CT-FG
Wing knobs
With flange, technopolymer

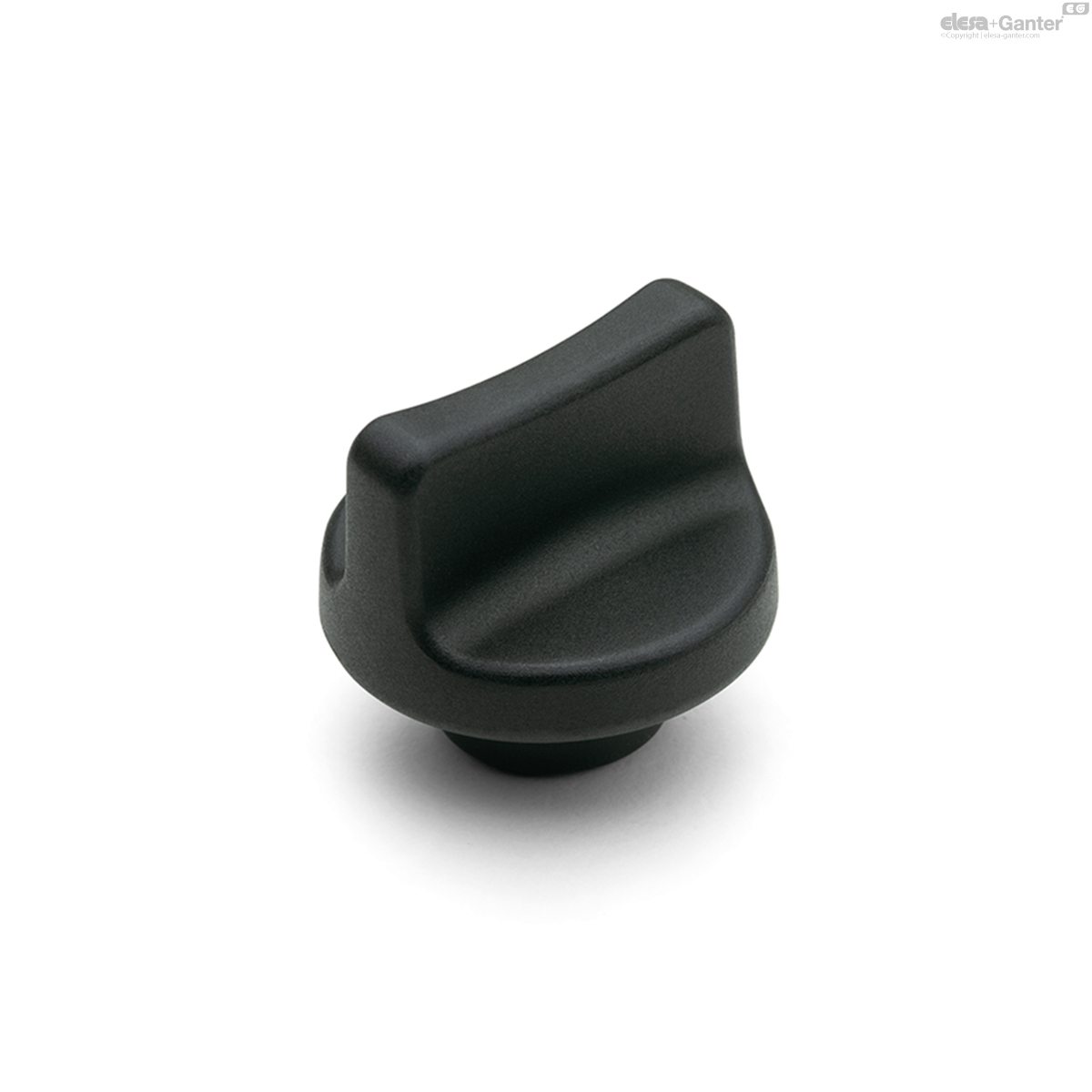

CT-FG-B
Wing knobs
Brass boss, threaded blind hole

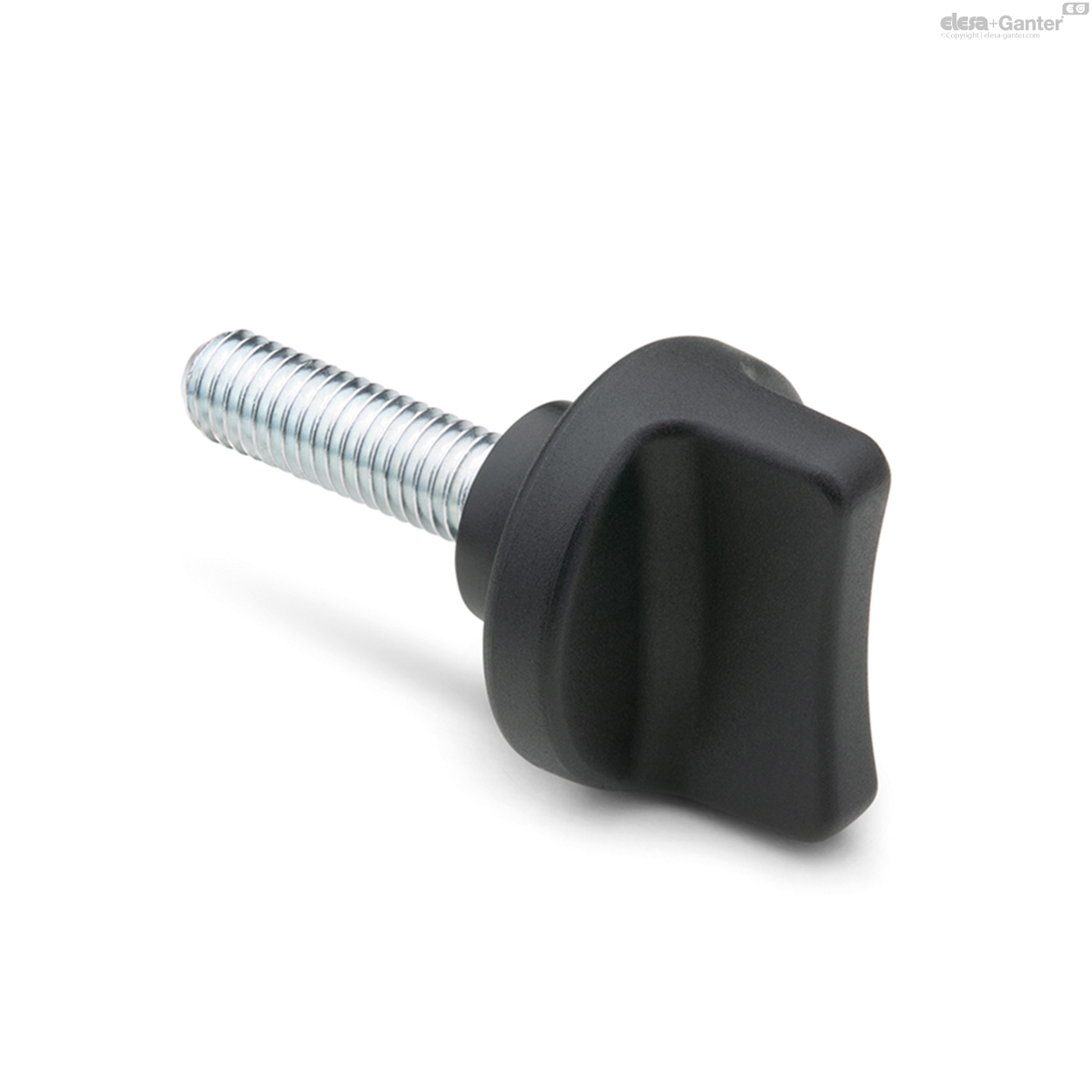

CT-FG-p
Wing knobs
Zinc-plated steel threaded stud
CT-FG-SST-p
Wing knobs
Stainless steel threaded stud
Description
Main specifications
Material
Glass-fibre reinforced polyamide based (PA) technopolymer, black colour, matte finish.
Standard executions
- CT-FG-B:Â brass boss, threaded blind hole.
- CT-FG-p: zinc-plated steel threaded stud, chamfered flat end according to UNI 947 : ISO 4753 (see Technical data).
- CT-FG-SST-p: AISI 304 stainless steel threaded stud, chamfered flat end UNI 947 : ISO 4753 (see Technical data).
General information
Features and applications
These wing knobs allow high tightening torque values.
The flange allows for a more secure grip, while the elongated hub increases the distance from the fixing surface.

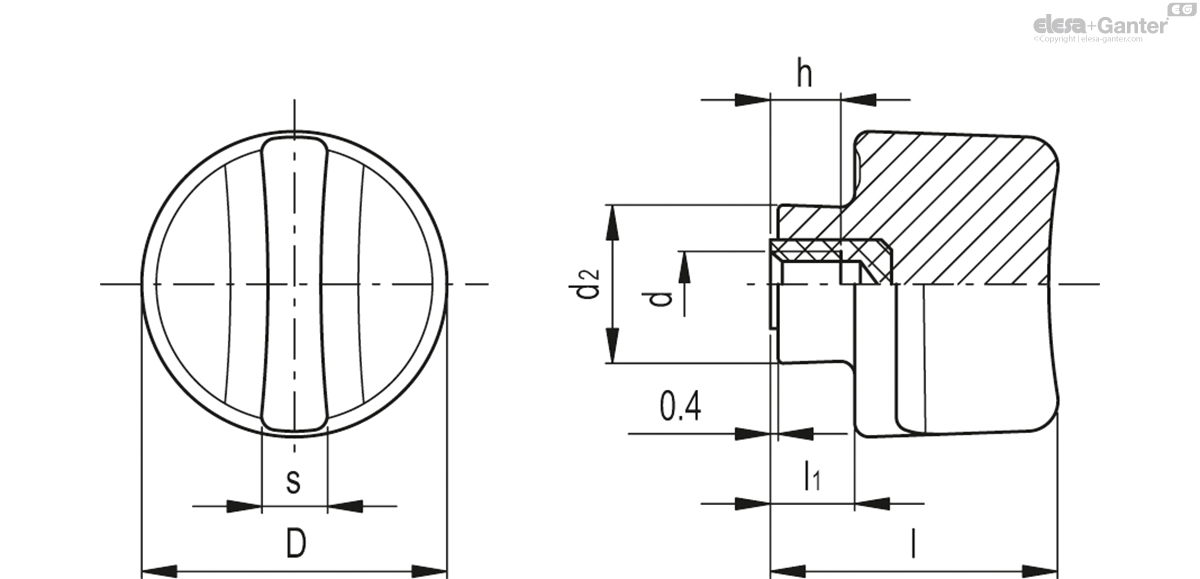

CT-FG-B
| D | d6H | d2 | l | l1 | h | s | C# [Nm] |
 |
|||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Code | Description | Actions | |||||||||
| 8002 | CT-FG.25 B-M5 | 25 | M5 | 13 | 24 | 6 | 6 | 6.5 | 9 | 8 |
|
| 8011 | CT-FG.30 B-M6 | 30 | M6 | 15.5 | 28 | 8 | 8 | 7 | 12 | 13 |
|
| 8012 | CT-FG.30 B-M8 | 30 | M8 | 15.5 | 28 | 8 | 8 | 7 | 20 | 14 |
|
