CSMT.

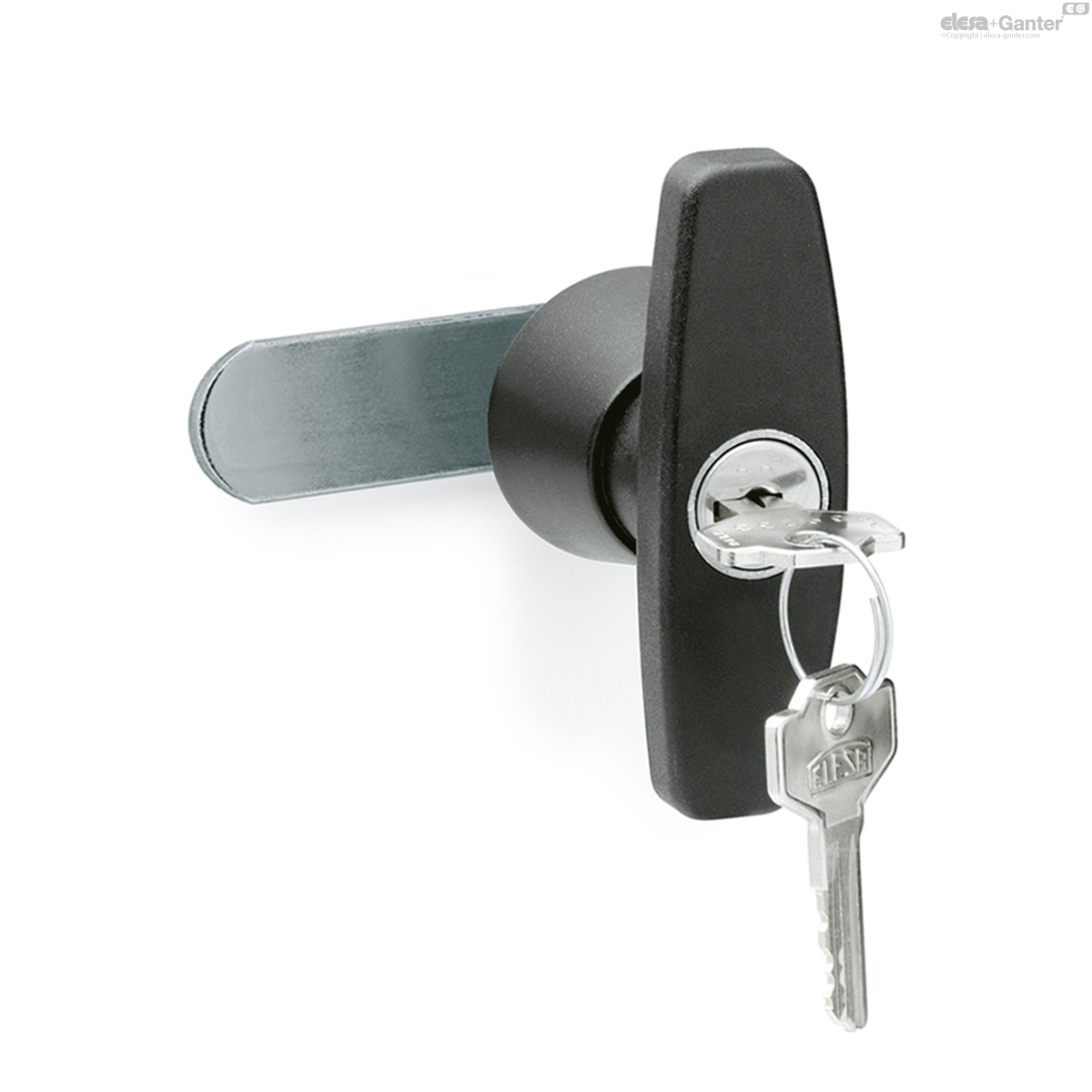

Lever latches with T-Handle
Operation with key, technopolymer
Description
Main specifications
Handle and stator
Glass-fibre reinforced polyamide based (PA) technopolymer.
Rotor
Chrome-plated zinc alloy.
Front plate
Stainless steel.
Nut
M22x1.5 technopolymer.
Flat closing lever
Zinc-plated steel, thickness 3 mm.
Packing ring
NBR rubber.
Self-tapping screw
Zinc-plated steel.
Two keys
Nickel-plated brass, removable in two positions at 180°.
Rotation
90° clockwise (right).
IP protection
IP 65 protection class, according to table EN 60529-.
Standard executions
- CSMT.: lock with 400 different combinations. Each lock has a couple of keys with different combination.
- CSMTU.: lock with one combination. All locks have the same combination which can be opened with the same key.
 Other executions
Special executions on request
Closing levers in other dimensions.

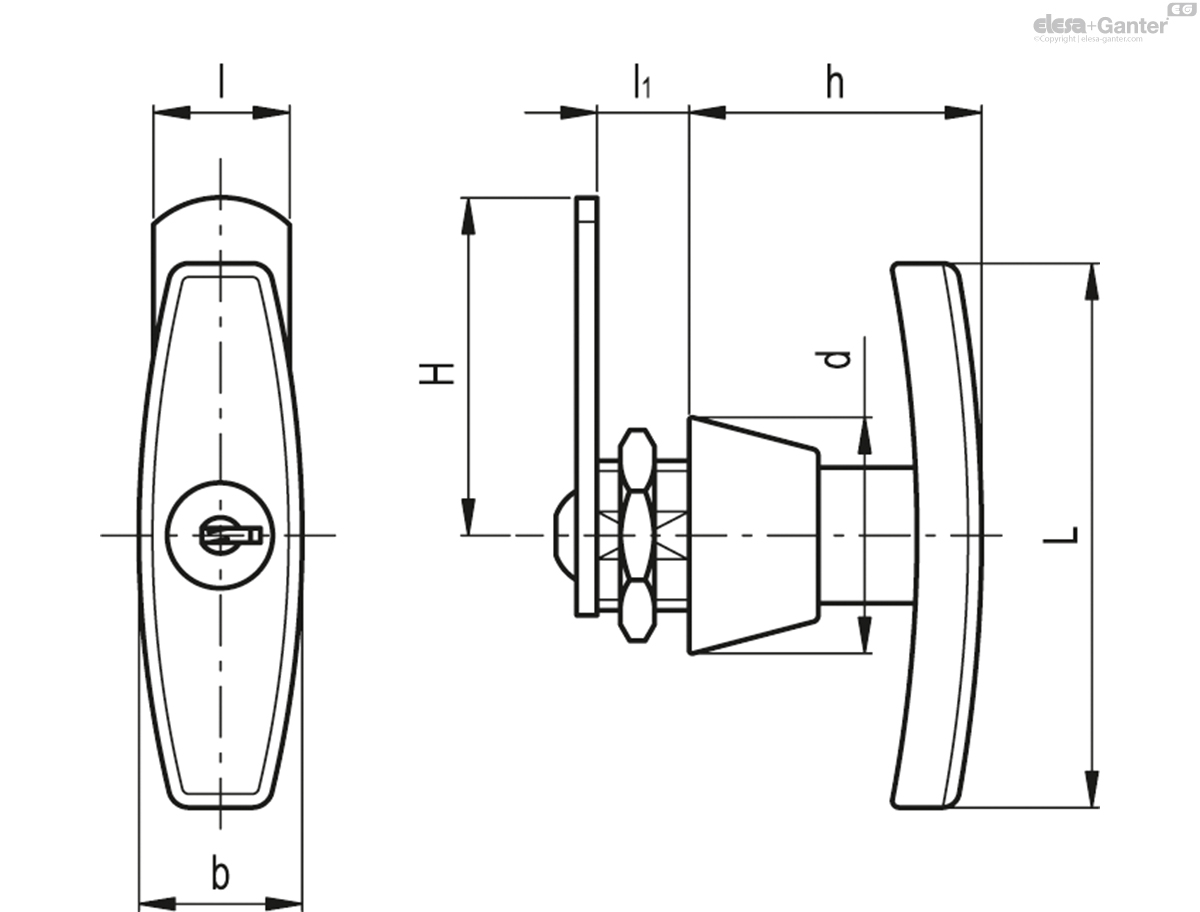

| H | L | l | l1 | b | h | d |  |
|||
|---|---|---|---|---|---|---|---|---|---|---|
| Code | Description | Actions | ||||||||
| 421521 | CSMT.50 | 50 | 80 | 20 | 13.5 | 24 | 43 | 37 | 134 |
|
| 421523 | CSMTU.50 | 50 | 80 | 20 | 13.5 | 24 | 43 | 37 | 127 |
|
