CFMY

Lift-off hinges

SUPER-technopolymer

Enquire Now

CFMY-D

Lift-off hinges

Rotation pin fitted on the right hinge body

CFMY-S

Lift-off hinges

Rotation pin fitted on the left hinge body

Description

Main specifications

Material

Glass-fibre reinforced polyamide based (PA) SUPER-technopolymer, black colour, matte finish.

Rotating pin

Self-lubricating glass-fibre reinforced polyamide based (PA) technopolymer, black colour.

Standard executions

Pass-through holes for countersunk head screws.

CFMY-D: rotation pin fitted on the right hinge body.
CFMY-S: rotation pin fitted on the left hinge body.

General information

Rotation angle (approximate value)

Max 270° (-90° and +180° being 0° the condition where the two interconnected surfaces are on the same plane).

Do not exceed the rotation angle limit so as not to prejudice the hinge mechanical performance.

To choose the convenient type and the right number of hinges for your application, see the Guidelines-.

Resistance tests	AXIAL STRESS	RADIAL STRESS	90° ANGLED STRESS
Resistance tests
Description	Max limit static load Sa [N]	Max limit static load Sr [N]	Max limit static load S90 [N]
CFMY.40	800	500	400
CFMY.50	1200	1100	700
CFMY.60	2050	1600	1250

The max static load is the value above which the material may break thus prejudicing the hinge functionality. Obviously, a suitable factor, according to the importance and the safety level of the specific application must be applied to this value.

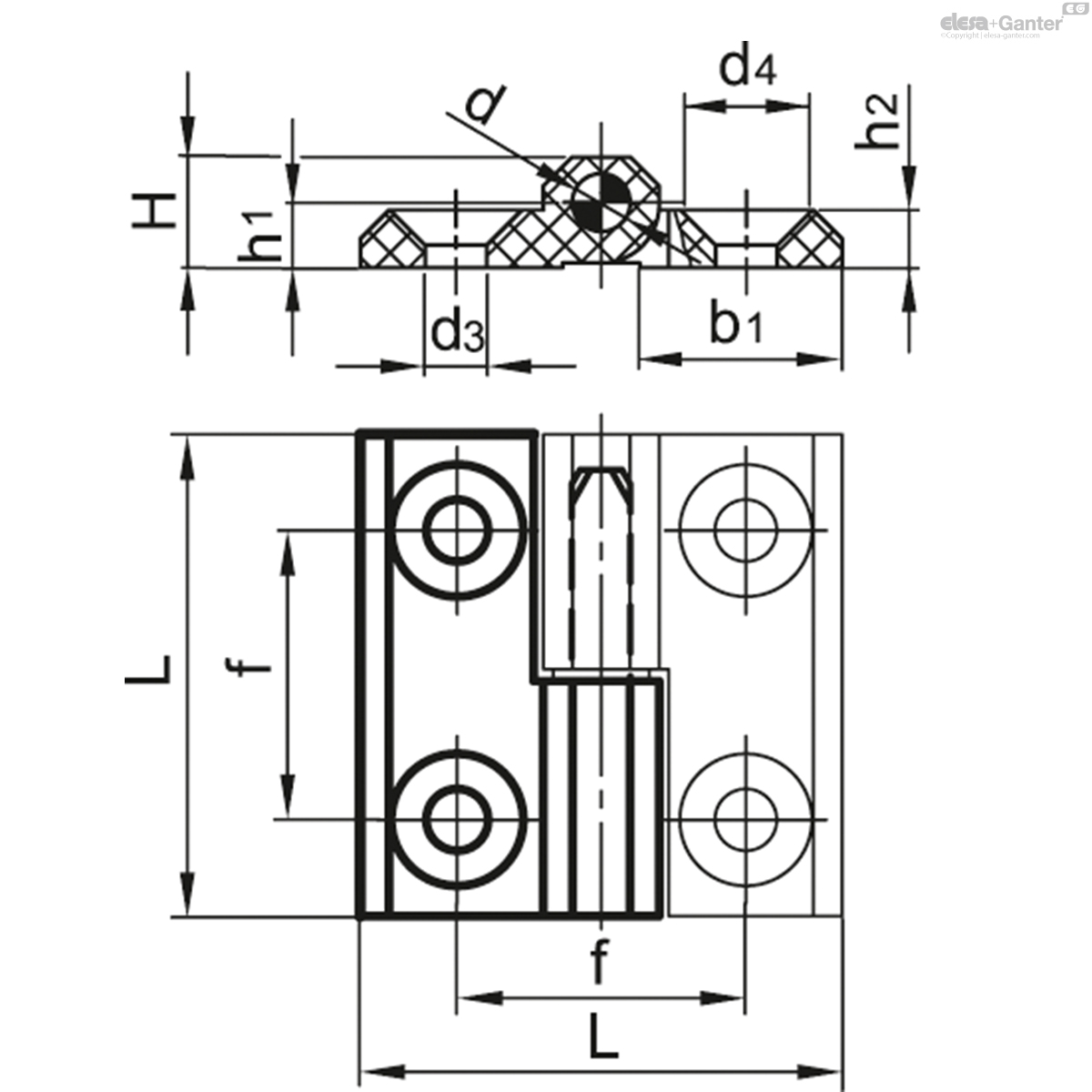

CFMY-S

		L	f_±0.25	H	h₁	h₂	b₁	d	d₃	d₄	C# [Nm]
Code	Description												Actions
425962	CFMY.60-SH-8-S	60	36	15	8.5	8	26	8	8.5	16.5	5	41
425966	CFMY.60 SH-6-S	60	36	15	8.5	8	26	6	6.5	12.5	5	44
425972	CFMY.50 SH-6-S	50	30	11.5	6.5	6	18	6	6.5	12.5	5	28
425982	CFMY.40 SH-4-S	40	25	9	5.5	5	14	4	4.5	8.5	3	14
