Home Leveling feet C500 C500 Ø80 Heavy Anti-Slip

C500 Ø80 Heavy Anti-Slip

C500

Enquire Now

Description

The C500 series is the best choice for industrial environments with critical hygienic level, like dairy, food, chemical and pharmaceutical industries, subjected to daily washing cycles. It offers a complete protection against bacterial proliferation and guarantees reduced washing cycle time as well as self-draining surfaces able to drain external elements easier than traditional systems. The new C500 series with hygienic stainless steel follows actual regulations and is approved by 3A and EHEDG normative. Base, spindle and cover are produced exclusively in AISI 304, with surface finishing lower than 0,8 μm, silicon blue seals are FDA approved and easily detectable by industrial scanner.

Basic features

Design:	Heavy
Base material:	Metal
Diameter:	80 mm
Max Load:	49999÷99999 N
Fixing point:	0
Anti-slip:	Yes
Unit of measure:	Ea
Box:	-

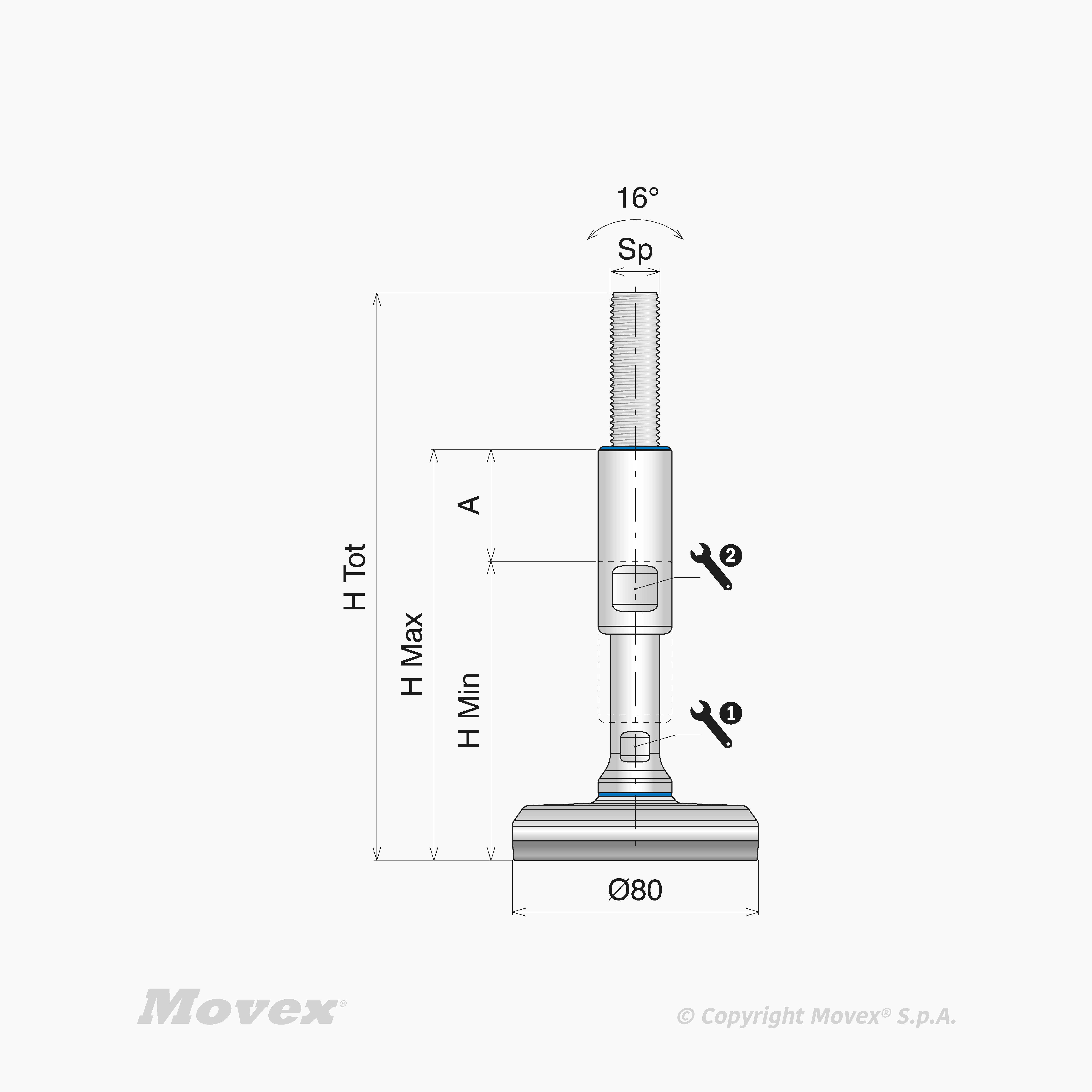

C500 Ø80 Heavy Anti-Slip

	A	Key slot	Spindle material	Thread size	H tot	Design	H min	H max	Key 1	Key 2	Temperature range dry
Code												Actions
P903033	45 mm	Standard	Stainless steel	M12	183.5	Heavy	103.5 mm	148.5 mm	10 mm	17 mm	-25÷100 °C
P903034	65 mm	Standard	Stainless steel	M12	233.5	Heavy	133.5 mm	198.5 mm	10 mm	17 mm	-25÷100 °C
P903035	45 mm	Standard	Stainless steel	M16	183.5	Heavy	103.5 mm	148.5 mm	13 mm	19 mm	-25÷100 °C
P903036	65 mm	Standard	Stainless steel	M16	233.5	Heavy	133.5 mm	198.5 mm	13 mm	19 mm	-25÷100 °C
P903037	45 mm	Standard	Stainless steel	M20	183.5	Heavy	103.5 mm	148.5 mm	17 mm	24 mm	-25÷100 °C
P903038	65 mm	Standard	Stainless steel	M20	233.5	Heavy	133.5 mm	198.5 mm	17 mm	24 mm	-25÷100 °C
P903039	45 mm	Standard	Stainless steel	M24	183.5	Heavy	103.5 mm	148.5 mm	19 mm	30 mm	-25÷100 °C
P903040	65 mm	Standard	Stainless steel	M24	233.5	Heavy	133.5 mm	198.5 mm	19 mm	30 mm	-25÷100 °C
P903041	45 mm	Standard	Stainless steel	M30	183.5	Heavy	103.5 mm	148.5 mm	24 mm	36 mm	-25÷100 °C
P903042	65 mm	Standard	Stainless steel	M30	233.5	Heavy	133.5 mm	198.5 mm	24 mm	36 mm	-25÷100 °C
P903043	65 mm	Standard	Stainless steel	M30	293.5	Heavy	193.5 mm	258.5 mm	24 mm	36 mm	-25÷100 °C
P903044	45 mm	Standard	Stainless steel	M36	183.5	Heavy	103.5 mm	148.5 mm	30 mm	42 mm	-25÷100 °C
P903045	65 mm	Standard	Stainless steel	M36	233.5	Heavy	133.5 mm	198.5 mm	30 mm	42 mm	-25÷100 °C
P903046	65 mm	Standard	Stainless steel	M36	293.5	Heavy	193.5 mm	258.5 mm	30 mm	42 mm	-25÷100 °C
