C500 Ø125 Heavy Split Anti-Slip

C500

Enquire Now

Description

The C500 series is the best choice for industrial environments with critical hygienic level, like dairy, food, chemical and pharmaceutical industries, subjected to daily washing cycles. It offers a complete protection against bacterial proliferation and guarantees reduced washing cycle time as well as self-draining surfaces able to drain external elements easier than traditional systems. The new C500 series with hygienic stainless steel follows actual regulations and is approved by 3A and EHEDG normative. Base, spindle and cover are produced exclusively in AISI 304, with surface finishing lower than 0,8 μm, silicon blue seals are FDA approved and easily detectable by industrial scanner.

Basic features

Design:	Heavy Split
Base material:	Metal
Diameter:	125 mm
Max Load:	100000÷200000 N
Fixing point:	0
Anti-slip:	Yes
Unit of measure:	Ea
Box:	-

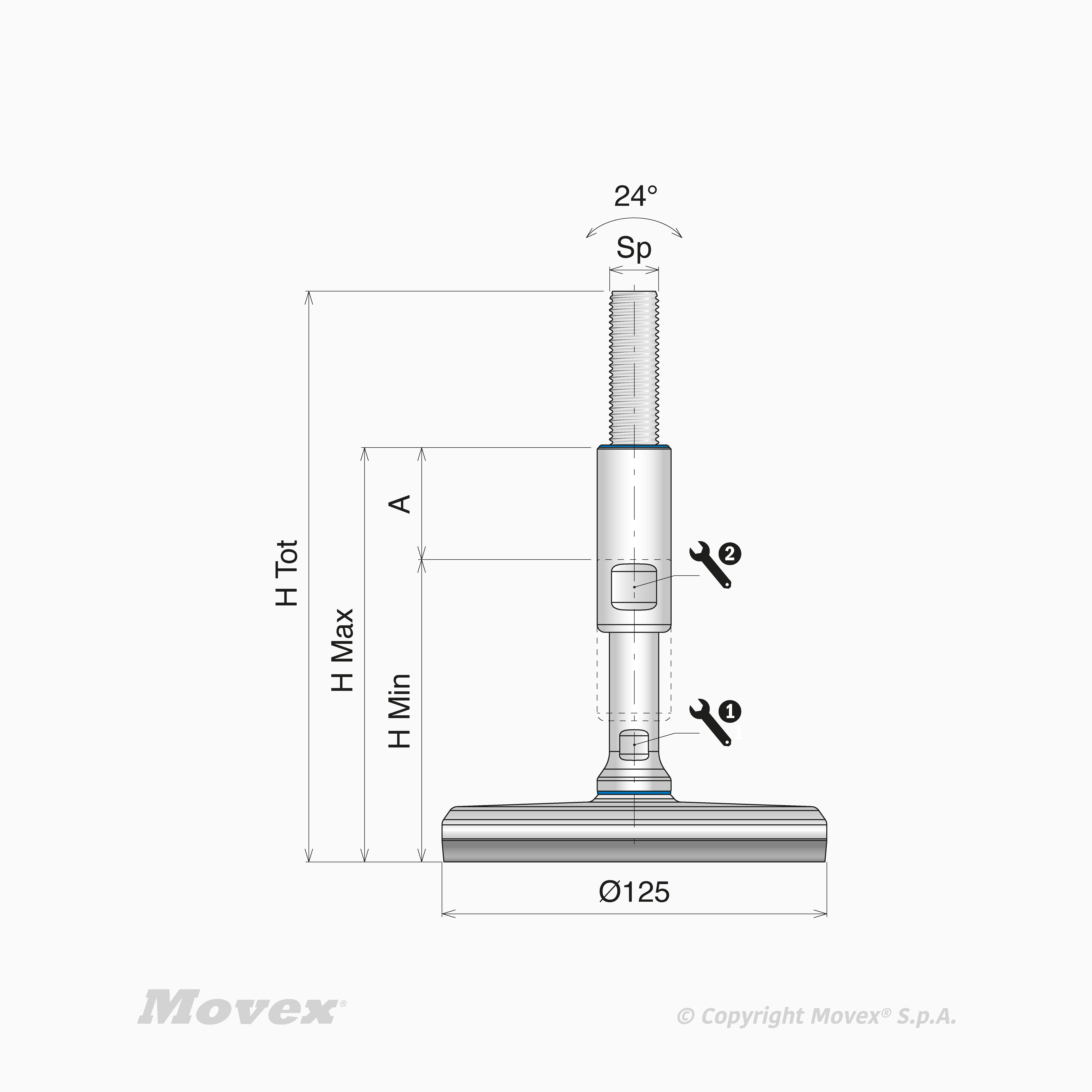

C500 Ø125 Heavy Split Anti-Slip

	A	Key slot	Spindle material	Thread size	H tot	Design	H min	H max	Key 1	Key 2	Temperature range dry
Code												Actions
P903201	45 mm	Standard	Stainless steel	M12	184.5	Heavy Split	104.5 mm	149.5 mm	10 mm	17 mm	-25÷100 °C
P903202	65 mm	Standard	Stainless steel	M12	234.5	Heavy Split	134.5 mm	199.5 mm	10 mm	17 mm	-25÷100 °C
P903203	45 mm	Standard	Stainless steel	M16	184.5	Heavy Split	104.5 mm	149.5 mm	13 mm	19 mm	-25÷100 °C
P903204	65 mm	Standard	Stainless steel	M16	234.5	Heavy Split	134.5 mm	199.5 mm	13 mm	19 mm	-25÷100 °C
P903205	45 mm	Standard	Stainless steel	M20	184.5	Heavy Split	104.5 mm	149.5 mm	17 mm	24 mm	-25÷100 °C
P903206	65 mm	Standard	Stainless steel	M20	234.5	Heavy Split	134.5 mm	199.5 mm	17 mm	24 mm	-25÷100 °C
P903207	45 mm	Standard	Stainless steel	M24	184.5	Heavy Split	104.5 mm	149.5 mm	19 mm	30 mm	-25÷100 °C
P903208	65 mm	Standard	Stainless steel	M24	234.5	Heavy Split	134.5 mm	199.5 mm	19 mm	30 mm	-25÷100 °C
P903209	45 mm	Standard	Stainless steel	M30	184.5	Heavy Split	104.5 mm	149.5 mm	24 mm	36 mm	-25÷100 °C
P903210	65 mm	Standard	Stainless steel	M30	234.5	Heavy Split	134.5 mm	199.5 mm	24 mm	36 mm	-25÷100 °C
P903211	65 mm	Standard	Stainless steel	M30	294.5	Heavy Split	194.5 mm	259.5 mm	24 mm	36 mm	-25÷100 °C
P903212	45 mm	Standard	Stainless steel	M36	184.5	Heavy Split	104.5 mm	149.5 mm	30 mm	42 mm	-25÷100 °C
P903213	65 mm	Standard	Stainless steel	M36	234.5	Heavy Split	134.5 mm	199.5 mm	30 mm	42 mm	-25÷100 °C
P903214	65 mm	Standard	Stainless steel	M36	294.5	Heavy Split	194.5 mm	259.5 mm	30 mm	42 mm	-25÷100 °C
