C500

Enquire Now

Description

The C500 series is the best choice for industrial environments with critical hygienic level, like dairy, food, chemical and pharmaceutical industries, subjected to daily washing cycles. It offers a complete protection against bacterial proliferation and guarantees reduced washing cycle time as well as self-draining surfaces able to drain external elements easier than traditional systems. The new C500 series with hygienic stainless steel follows actual regulations and is approved by 3A and EHEDG normative. Base, spindle and cover are produced exclusively in AISI 304, with surface finishing lower than 0,8 μm, silicon blue seals are FDA approved and easily detectable by industrial scanner.

Basic features

Design:	Heavy
Base material:	Metal
Diameter:	125 mm
Max Load:	100000÷200000 N
Fixing point:	2
Anti-slip:	Yes
Unit of measure:	Ea
Box:	-

C500 Ø125 Heavy 2 Fixing point Anti-Slip

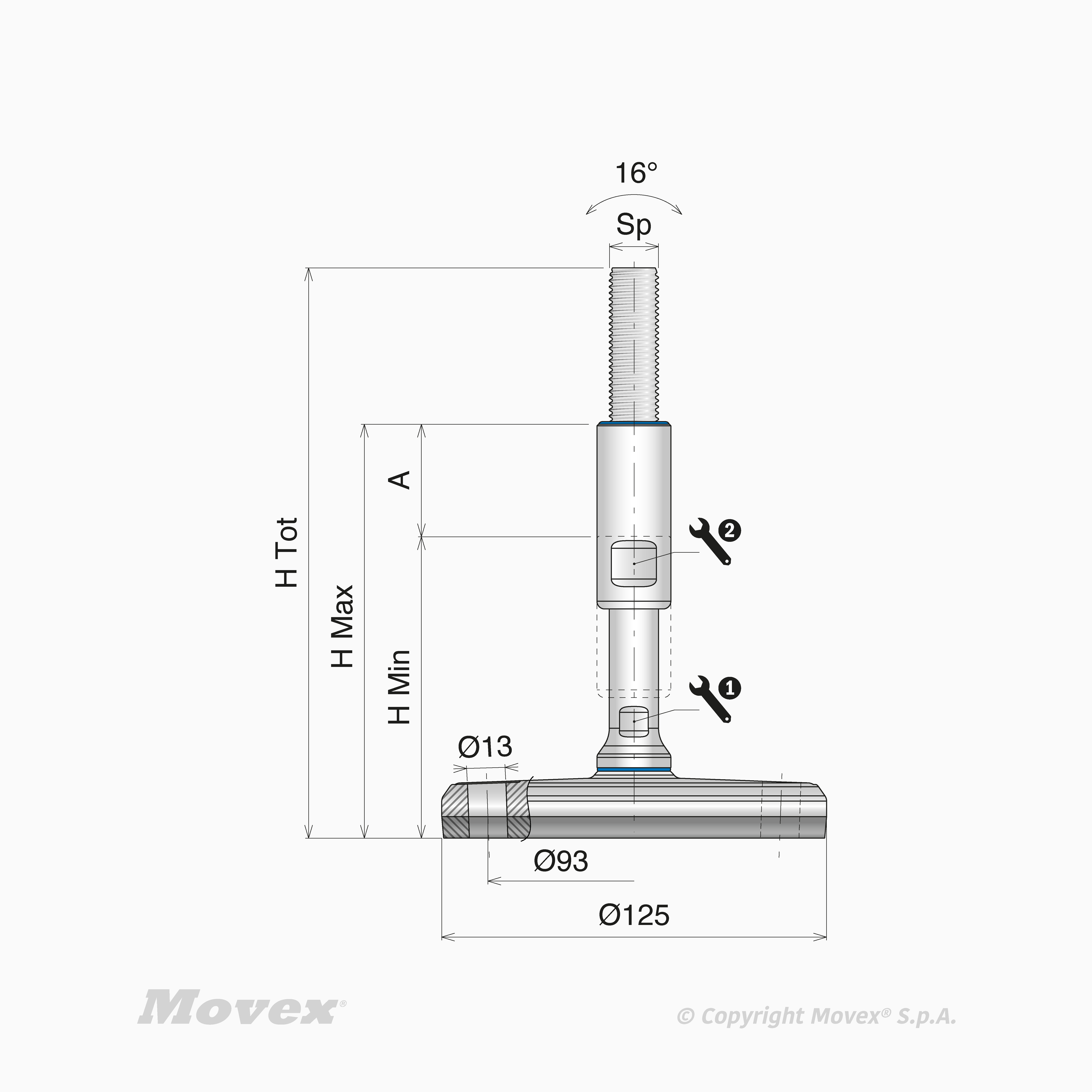

	A	Key slot	Spindle material	Thread size	H tot	Design	H min	H max	Key 1	Key 2	Temperature range dry
Code												Actions
P903131	45 mm	Standard	Stainless steel	M12	184.5	Heavy	104.5 mm	149.5 mm	10 mm	17 mm	-25÷100 °C
P903132	65 mm	Standard	Stainless steel	M12	234.5	Heavy	134.5 mm	199.5 mm	10 mm	17 mm	-25÷100 °C
P903133	45 mm	Standard	Stainless steel	M16	184.5	Heavy	104.5 mm	149.5 mm	13 mm	19 mm	-25÷100 °C
P903134	65 mm	Standard	Stainless steel	M16	234.5	Heavy	134.5 mm	199.5 mm	13 mm	19 mm	-25÷100 °C
P903135	45 mm	Standard	Stainless steel	M20	184.5	Heavy	104.5 mm	149.5 mm	17 mm	24 mm	-25÷100 °C
P903136	65 mm	Standard	Stainless steel	M20	234.5	Heavy	134.5 mm	199.5 mm	17 mm	24 mm	-25÷100 °C
P903137	45 mm	Standard	Stainless steel	M24	184.5	Heavy	104.5 mm	149.5 mm	19 mm	30 mm	-25÷100 °C
P903138	65 mm	Standard	Stainless steel	M24	234.5	Heavy	134.5 mm	199.5 mm	19 mm	30 mm	-25÷100 °C
P903139	45 mm	Standard	Stainless steel	M30	184.5	Heavy	104.5 mm	149.5 mm	24 mm	36 mm	-25÷100 °C
P903140	65 mm	Standard	Stainless steel	M30	234.5	Heavy	134.5 mm	199.5 mm	24 mm	36 mm	-25÷100 °C
P903141	65 mm	Standard	Stainless steel	M30	294.5	Heavy	194.5 mm	259.5 mm	24 mm	36 mm	-25÷100 °C
P903142	45 mm	Standard	Stainless steel	M36	184.5	Heavy	104.5 mm	149.5 mm	30 mm	42 mm	-25÷100 °C
P903143	65 mm	Standard	Stainless steel	M36	234.5	Heavy	134.5 mm	199.5 mm	30 mm	42 mm	-25÷100 °C
P903144	65 mm	Standard	Stainless steel	M36	294.5	Heavy	194.5 mm	259.5 mm	30 mm	42 mm	-25÷100 °C
