Home Leveling feet C500 C500 Ø125 Anti-Slip

C500 Ø125 Anti-Slip

C500

Enquire Now

Description

The C500 series is the best choice for industrial environments with critical hygienic level, like dairy, food, chemical and pharmaceutical industries, subjected to daily washing cycles. It offers a complete protection against bacterial proliferation and guarantees reduced washing cycle time as well as self-draining surfaces able to drain external elements easier than traditional systems. The new C500 series with hygienic stainless steel follows actual regulations and is approved by 3A and EHEDG normative. Base, spindle and cover are produced exclusively in AISI 304, with surface finishing lower than 0,8 μm, silicon blue seals are FDA approved and easily detectable by industrial scanner.

Basic features

Design:	Standard
Base material:	Metal
Diameter:	125 mm
Max Load:	19999÷49999 N
Fixing point:	0
Anti-slip:	Yes
Unit of measure:	Ea
Box:	-

C500 Ø125 Anti-Slip

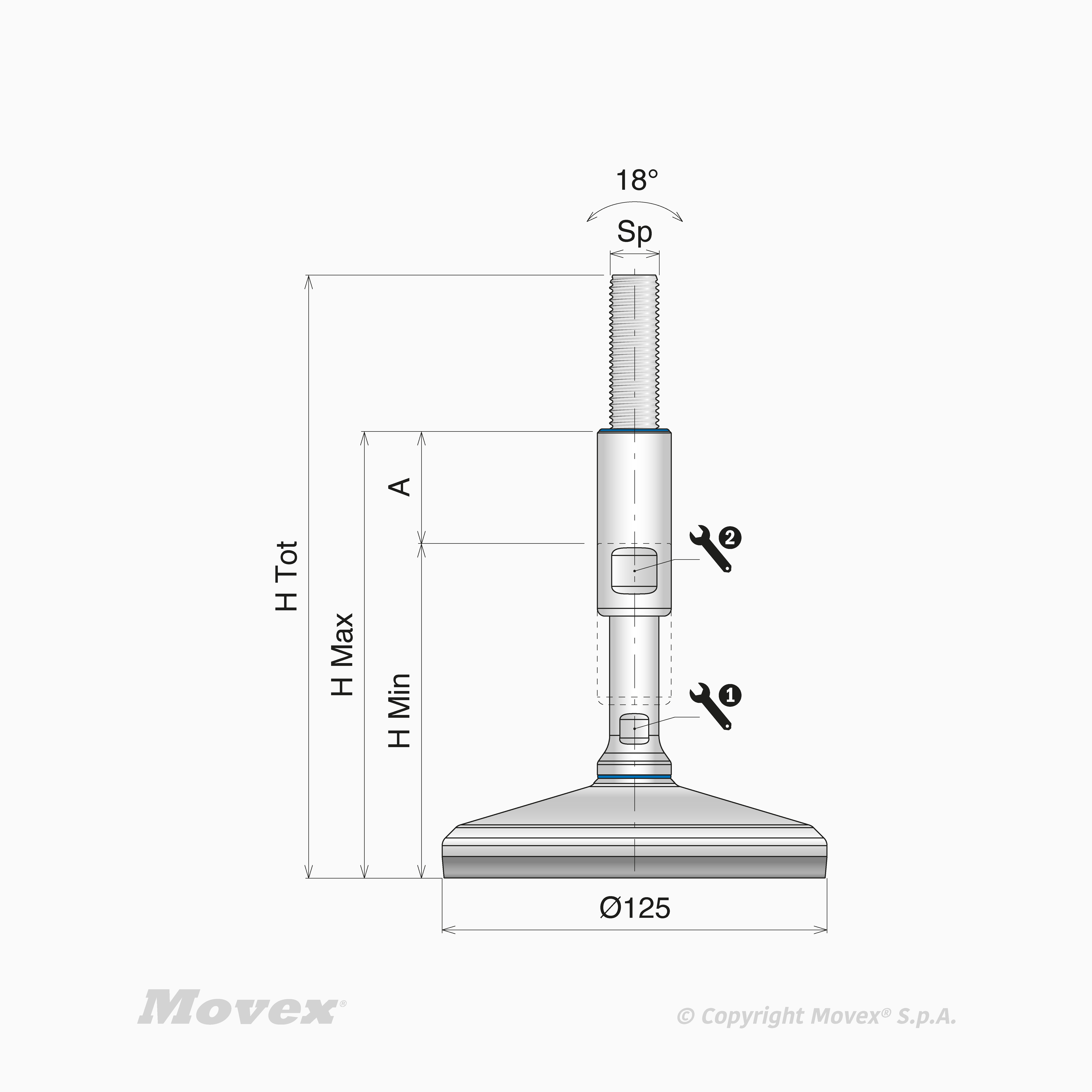

	A	Key slot	Spindle material	Thread size	H tot	Design	H min	H max	Key 1	Key 2	Temperature range dry
Code												Actions
P902865	45 mm	Standard	Stainless steel	M12	195	Standard	115 mm	160 mm	10 mm	17 mm	-25÷100 °C
P902866	65 mm	Standard	Stainless steel	M12	245	Standard	145 mm	210 mm	10 mm	17 mm	-25÷100 °C
P902867	45 mm	Standard	Stainless steel	M16	195	Standard	115 mm	160 mm	13 mm	19 mm	-25÷100 °C
P902868	65 mm	Standard	Stainless steel	M16	245	Standard	145 mm	210 mm	13 mm	19 mm	-25÷100 °C
P902869	45 mm	Standard	Stainless steel	M20	195	Standard	115 mm	160 mm	17 mm	24 mm	-25÷100 °C
P902870	65 mm	Standard	Stainless steel	M20	245	Standard	145 mm	210 mm	17 mm	24 mm	-25÷100 °C
P902871	45 mm	Standard	Stainless steel	M24	195	Standard	115 mm	160 mm	19 mm	30 mm	-25÷100 °C
P902872	65 mm	Standard	Stainless steel	M24	245	Standard	145 mm	210 mm	19 mm	30 mm	-25÷100 °C
P902873	45 mm	Standard	Stainless steel	M30	195	Standard	115 mm	160 mm	24 mm	36 mm	-25÷100 °C
P902874	65 mm	Standard	Stainless steel	M30	245	Standard	145 mm	210 mm	24 mm	36 mm	-25÷100 °C
P902875	65 mm	Standard	Stainless steel	M30	305	Standard	205 mm	270 mm	24 mm	36 mm	-25÷100 °C
P902876	45 mm	Standard	Stainless steel	M36	195	Standard	115 mm	160 mm	30 mm	42 mm	-25÷100 °C
P902877	65 mm	Standard	Stainless steel	M36	245	Standard	145 mm	210 mm	30 mm	42 mm	-25÷100 °C
P902878	65 mm	Standard	Stainless steel	M36	305	Standard	205 mm	270 mm	30 mm	42 mm	-25÷100 °C
