C500 Ø105 Heavy Split Anti-Slip

C500

Enquire Now

Description

The C500 series is the best choice for industrial environments with critical hygienic level, like dairy, food, chemical and pharmaceutical industries, subjected to daily washing cycles. It offers a complete protection against bacterial proliferation and guarantees reduced washing cycle time as well as self-draining surfaces able to drain external elements easier than traditional systems. The new C500 series with hygienic stainless steel follows actual regulations and is approved by 3A and EHEDG normative. Base, spindle and cover are produced exclusively in AISI 304, with surface finishing lower than 0,8 μm, silicon blue seals are FDA approved and easily detectable by industrial scanner.

Basic features

Design:	Heavy Split
Base material:	Metal
Diameter:	105 mm
Max Load:	100000÷200000 N
Fixing point:	0
Anti-slip:	Yes
Unit of measure:	Ea
Box:	-

C500 Ø105 Heavy Split Anti-Slip

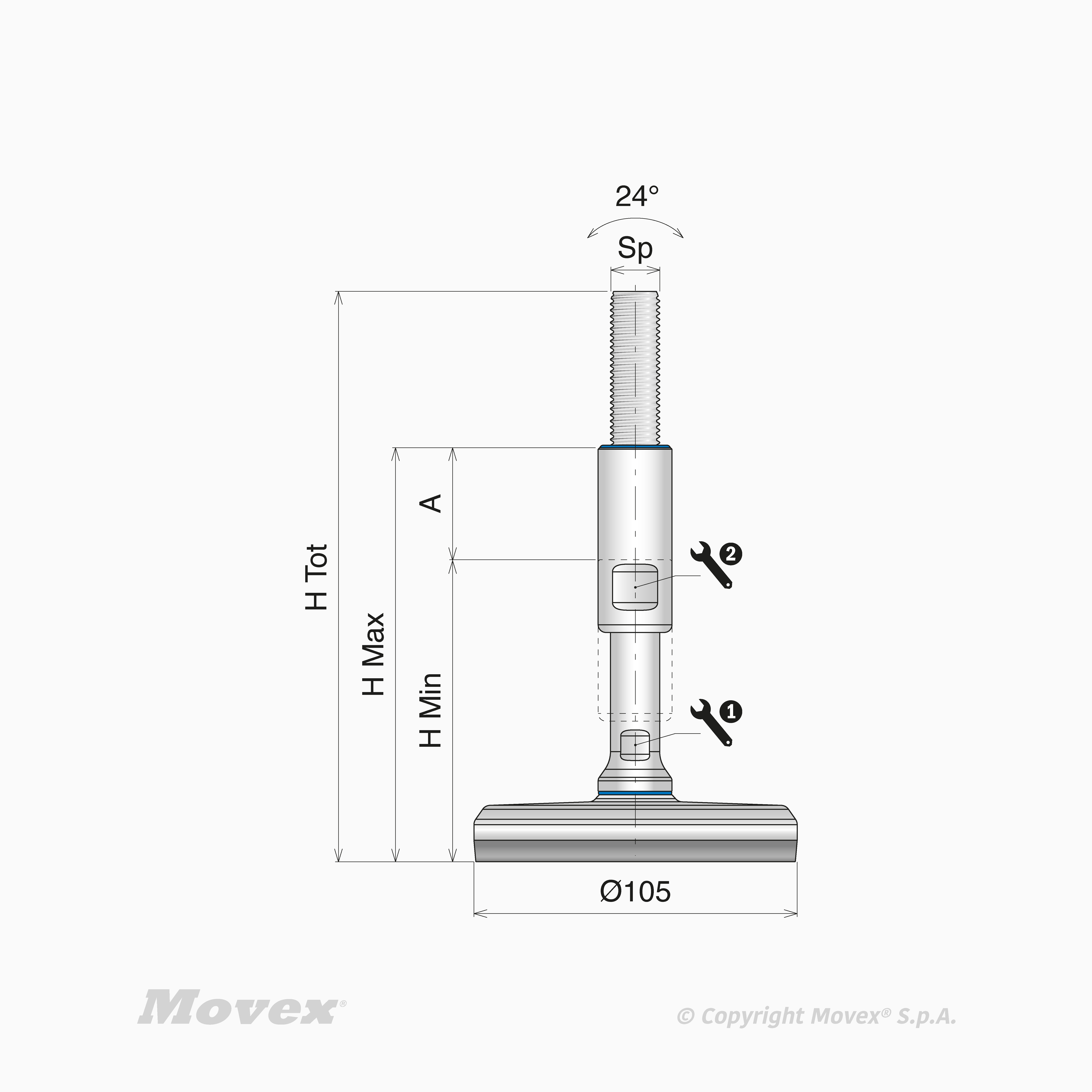

	A	Key slot	Spindle material	Thread size	H tot	Design	H min	H max	Key 1	Key 2	Temperature range dry
Code												Actions
P903187	45 mm	Standard	Stainless steel	M12	184.5	Heavy Split	104.5 mm	149.5 mm	10 mm	17 mm	-25÷100 °C
P903188	65 mm	Standard	Stainless steel	M12	234.5	Heavy Split	134.5 mm	199.5 mm	10 mm	17 mm	-25÷100 °C
P903189	45 mm	Standard	Stainless steel	M16	184.5	Heavy Split	104.5 mm	149.5 mm	13 mm	19 mm	-25÷100 °C
P903190	65 mm	Standard	Stainless steel	M16	234.5	Heavy Split	134.5 mm	199.5 mm	13 mm	19 mm	-25÷100 °C
P903191	45 mm	Standard	Stainless steel	M20	184.5	Heavy Split	104.5 mm	149.5 mm	17 mm	24 mm	-25÷100 °C
P903192	65 mm	Standard	Stainless steel	M20	234.5	Heavy Split	134.5 mm	199.5 mm	17 mm	24 mm	-25÷100 °C
P903193	45 mm	Standard	Stainless steel	M24	184.5	Heavy Split	104.5 mm	149.5 mm	19 mm	30 mm	-25÷100 °C
P903194	65 mm	Standard	Stainless steel	M24	234.5	Heavy Split	134.5 mm	199.5 mm	19 mm	30 mm	-25÷100 °C
P903195	45 mm	Standard	Stainless steel	M30	184.5	Heavy Split	104.5 mm	149.5 mm	24 mm	36 mm	-25÷100 °C
P903196	65 mm	Standard	Stainless steel	M30	234.5	Heavy Split	134.5 mm	199.5 mm	24 mm	36 mm	-25÷100 °C
P903197	65 mm	Standard	Stainless steel	M30	294.5	Heavy Split	194.5 mm	259.5 mm	24 mm	36 mm	-25÷100 °C
P903198	45 mm	Standard	Stainless steel	M36	184.5	Heavy Split	104.5 mm	149.5 mm	30 mm	42 mm	-25÷100 °C
P903199	65 mm	Standard	Stainless steel	M36	234.5	Heavy Split	134.5 mm	199.5 mm	30 mm	42 mm	-25÷100 °C
P903200	65 mm	Standard	Stainless steel	M36	294.5	Heavy Split	194.5 mm	259.5 mm	30 mm	42 mm	-25÷100 °C
