C-Profile Part 163
Extruded profiles
Description
Description
Movex® provides a new generation of high-performance profiles developed and produced with the most up to date technology.
Experienced engineers work around the clock on more than 50 extrusion machines, perfecting almost 2.000 high-quality products of different types and sizes.
Movex ® profiles are produced from top-quality UHMW-PE, with the possibility of enhanced performance with the use of our super-performing materials BluLub ®, Titanium White ® and AS.
Standard 3 m (10 ft) or 6 m (20 ft) profiles are typically shipped by common carrier. Selected items can be coiled into cartons for more convenient shipping.
Products stored in coils will have the tendency to retain a certain deformation when uncoiled, therefore consistency in the profile cross section over the full length of the coil cannot be guaranteed.
Basic features
| Series: | C-Profile |
|---|---|
| Material: | Plastic profile |
| Unit of measure: | Meter |
| Box: | - |

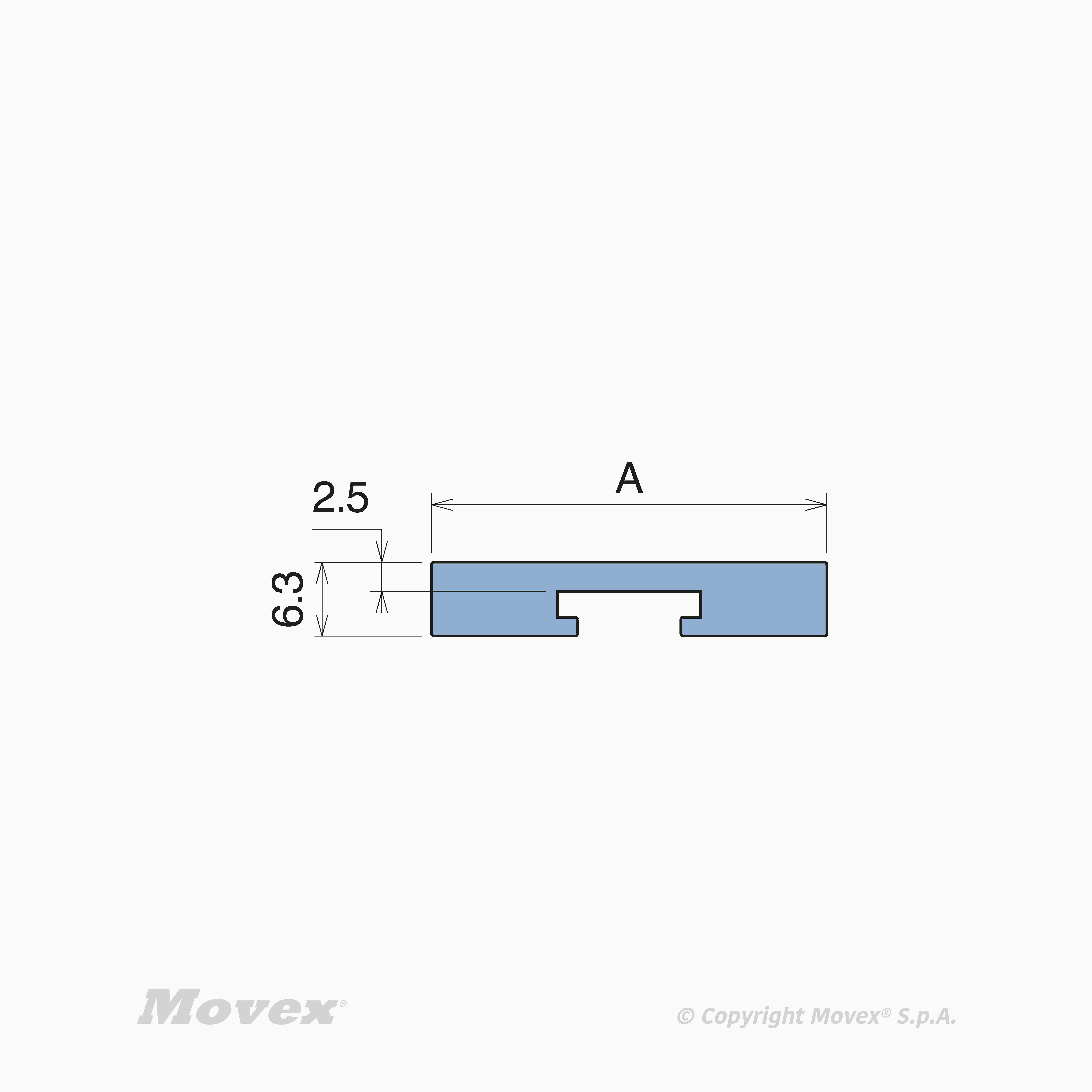

C-Profile Part 163
| Part | Material & color | Supply length | A | Operating Temperature °C | Supplementary informations | ||
|---|---|---|---|---|---|---|---|
| Code | Actions | ||||||
| P16303 | P163 | Ti-White | 6 m / 20 ft bars | 25.4 mm | -40÷80 °C | Coils Available Used with Part 164 - 165. Use as a reference for the inner dimensions of the profile. Height mm 6,3; Width mm 31,75 |
|
| P16303-30 | P163 | Ti-White | 30 m / 100 ft coils | 25.4 mm | -40÷80 °C | Coils Available Used with Part 164 - 165. Use as a reference for the inner dimensions of the profile. Height mm 6,3; Width mm 31,75 |
|
| P16303B | P163 | BluLub | 6 m / 20 ft bars | 25.4 mm | -40÷80 °C | - |
|
| P16303B-30 | P163 | BluLub | 30 m / 100 ft coils | 25.4 mm | -40÷80 °C | - |
|
| P16303BC | P163 | BluLub | 3 m / 10 ft bars | 25.4 mm | -40÷80 °C | Coils Available Used with Part 164 - 165. Use as a reference for the inner dimensions of the profile. Height mm 6,3; Width mm 31,75 |
|
| P16303BL | P163 | UHMW-PE Blue | 6 m / 20 ft bars | 25.4 mm | -40÷80 °C | Coils Available Used with Part 164 - 165. Use as a reference for the inner dimensions of the profile. Height mm 6,3; Width mm 25,4 |
|
| P16303BL-30 | P163 | UHMW-PE Blue | 30 m / 100 ft coils | 25.4 mm | -40÷80 °C | Coils Available Used with Part 164 - 165. Use as a reference for the inner dimensions of the profile. Height mm 6,3; Width mm 25,4 |
|
| P16303BLC | P163 | UHMW-PE Blue | 3 m / 10 ft bars | 25.4 mm | -40÷80 °C | Coils Available Used with Part 164 - 165. Use as a reference for the inner dimensions of the profile. Height mm 6,3; Width mm 25,4 |
|
| P16303C | P163 | Ti-White | 3 m / 10 ft bars | 25.4 mm | -40÷80 °C | Coils Available Used with Part 164 - 165. Use as a reference for the inner dimensions of the profile. Height mm 6,3; Width mm 25,4 |
|
| P16313 | P163 | Ti-White | 6 m / 20 ft bars | 31.75 mm | -40÷80 °C | Coils Available Used with Part 164 - 165. Use as a reference for the inner dimensions of the profile. Height mm 6,3; Width mm 35 |
|
| P16313-30 | P163 | Ti-White | 30 m / 100 ft coils | 31.75 mm | -40÷80 °C | Coils Available Used with Part 164 - 165. Use as a reference for the inner dimensions of the profile. Height mm 6,3; Width mm 35 |
|
| P16313B | P163 | BluLub | 6 m / 20 ft bars | 31.75 mm | -40÷80 °C | - |
|
| P16313B-30 | P163 | BluLub | 30 m / 100 ft coils | 31.75 mm | -40÷80 °C | - |
|
| P16313BC | P163 | BluLub | 3 m / 10 ft bars | 31.75 mm | -40÷80 °C | - |
|
| P16313BL | P163 | UHMW-PE Blue | 6 m / 20 ft bars | 31.75 mm | -40÷80 °C | Coils Available Used with Part 164 - 165. Use as a reference for the inner dimensions of the profile. Height mm 6,3; Width mm 31,75 |
|
| P16313BL-30 | P163 | UHMW-PE Blue | 30 m / 100 ft coils | 31.75 mm | -40÷80 °C | Coils Available Used with Part 164 - 165. Use as a reference for the inner dimensions of the profile. Height mm 6,3; Width mm 31,75 |
|
| P16313BLC | P163 | UHMW-PE Blue | 3 m / 10 ft bars | 31.75 mm | -40÷80 °C | Coils Available Used with Part 164 - 165. Use as a reference for the inner dimensions of the profile. Height mm 6,3; Width mm 25,4 |
|
| P16313C | P163 | Ti-White | 3 m / 10 ft bars | 31.75 mm | -40÷80 °C | Coils Available Used with Part 164 - 165. Use as a reference for the inner dimensions of the profile. Height mm 6,3; Width mm 31,75 |
|
| P16323 | P163 | Ti-White | 6 m / 20 ft bars | 35 mm | -40÷80 °C | Coils Available Used with Part 164 - 165. Use as a reference for the inner dimensions of the profile. Height mm 6,3; Width mm 35 |
|
| P16323-30 | P163 | Ti-White | 30 m / 100 ft coils | 35 mm | -40÷80 °C | Coils Available Used with Part 164 - 165. Use as a reference for the inner dimensions of the profile. Height mm 6,3; Width mm 35 |
|
| P16323B | P163 | BluLub | 6 m / 20 ft bars | 35 mm | -40÷80 °C | - |
|
| P16323B-30 | P163 | BluLub | 30 m / 100 ft coils | 35 mm | -40÷80 °C | - |
|
| P16323BC | P163 | BluLub | 3 m / 10 ft bars | 35 mm | -40÷80 °C | - |
|
| P16323BL | P163 | UHMW-PE Blue | 6 m / 20 ft bars | 35 mm | -40÷80 °C | Coils Available Used with Part 164 - 165. Use as a reference for the inner dimensions of the profile. Height mm 6,3; Width mm 35 |
|
| P16323BL-30 | P163 | UHMW-PE Blue | 30 m / 100 ft coils | 35 mm | -40÷80 °C | Coils Available Used with Part 164 - 165. Use as a reference for the inner dimensions of the profile. Height mm 6,3; Width mm 35 |
|
| P16323BLC | P163 | UHMW-PE Blue | 3 m / 10 ft bars | 35 mm | -40÷80 °C | Coils Available Used with Part 164 - 165. Use as a reference for the inner dimensions of the profile. Height mm 6,3; Width mm 31,75 |
|
| P16323C | P163 | Ti-White | 3 m / 10 ft bars | 35 mm | -40÷80 °C | Coils Available Used with Part 164 - 165. Use as a reference for the inner dimensions of the profile. Height mm 6,3; Width mm 35 |
|
| P16324 | P163 | Ti-White | 6 m / 20 ft bars | 38.1 mm | -40÷80 °C | Coils Available Used with Part 164 - 165. Use as a reference for the inner dimensions of the profile. Height mm 6,3; Width mm 38,1 |
|
| P16324-30 | P163 | Ti-White | 30 m / 100 ft coils | 38.1 mm | -40÷80 °C | Coils Available Used with Part 164 - 165. Use as a reference for the inner dimensions of the profile. Height mm 6,3; Width mm 38,1 |
|
| P16324B | P163 | BluLub | 6 m / 20 ft bars | 38.1 mm | -40÷80 °C | - |
|
| P16324B-30 | P163 | BluLub | 30 m / 100 ft coils | 38.1 mm | -40÷80 °C | - |
|
| P16324BC | P163 | BluLub | 3 m / 10 ft bars | 38.1 mm | -40÷80 °C | - |
|
| P16324BL | P163 | UHMW-PE Blue | 6 m / 20 ft bars | 38.1 mm | -40÷80 °C | Coils Available Used with Part 164 - 165. Use as a reference for the inner dimensions of the profile. Height mm 6,3; Width mm 38,1 |
|
| P16324BL-30 | P163 | UHMW-PE Blue | 30 m / 100 ft coils | 38.1 mm | -40÷80 °C | Coils Available Used with Part 164 - 165. Use as a reference for the inner dimensions of the profile. Height mm 6,3; Width mm 38,1 |
|
| P16324BLC | P163 | UHMW-PE Blue | 3 m / 10 ft bars | 38.1 mm | -40÷80 °C | Coils Available Used with Part 164 - 165. Use as a reference for the inner dimensions of the profile. Height mm 6,3; Width mm 38,1 |
|
| P16324C | P163 | Ti-White | 3 m / 10 ft bars | 38.1 mm | -40÷80 °C | Coils Available Used with Part 164 - 165. Use as a reference for the inner dimensions of the profile. Height mm 6,3; Width mm 35 |
|
| P16325 | P163 | Ti-White | 6 m / 20 ft bars | 54.1 mm | -40÷80 °C | Coils Available Used with Part 164 - 165. Use as a reference for the inner dimensions of the profile. Height mm 6,3; Width mm 54,1 |
|
| P16325-30 | P163 | Ti-White | 30 m / 100 ft coils | 54.1 mm | -40÷80 °C | Coils Available Used with Part 164 - 165. Use as a reference for the inner dimensions of the profile. Height mm 6,3; Width mm 25,4 |
|
| P16325B | P163 | BluLub | 6 m / 20 ft bars | 54.1 mm | -40÷80 °C | - |
|
| P16325B-30 | P163 | BluLub | 30 m / 100 ft coils | 54.1 mm | -40÷80 °C | Coils Available Used with Part 164 - 165. Use as a reference for the inner dimensions of the profile. Height mm 6,3; Width mm 25,4 |
|
| P16325BC | P163 | BluLub | 3 m / 10 ft bars | 54.1 mm | -40÷80 °C | - |
|
| P16325BL | P163 | UHMW-PE Blue | 6 m / 20 ft bars | 54.1 mm | -40÷80 °C | Coils Available Used with Part 164 - 165. Use as a reference for the inner dimensions of the profile. Height mm 6,3; Width mm 54,1 |
|
| P16325BL-30 | P163 | UHMW-PE Blue | 30 m / 100 ft coils | 54.1 mm | -40÷80 °C | Coils Available Used with Part 164 - 165. Use as a reference for the inner dimensions of the profile. Height mm 6,3; Width mm 31,75 |
|
| P16325BLC | P163 | UHMW-PE Blue | 3 m / 10 ft bars | 54.1 mm | -40÷80 °C | Coils Available Used with Part 164 - 165. Use as a reference for the inner dimensions of the profile. Height mm 6,3; Width mm 38,1 |
|
| P16325C | P163 | Ti-White | 3 m / 10 ft bars | 54.1 mm | -40÷80 °C | Coils Available Used with Part 164 - 165. Use as a reference for the inner dimensions of the profile. Height mm 6,3; Width mm 54,1 |
|
