BTL.
Fluted grip knobs
Technopolymer, elongated hub
BTL-B
Fluted grip knobs
Brass boss, threaded blind hole
BTL-p
Fluted grip knobs
Zinc-plated steel threaded stud
Description
Main specifications
Material
Polyamide based (PA) technopolymer, black colour, matte finish.
Standard executions
- BTL-B:Â brass boss, threaded blind hole.
- BTL-p: zinc-plated steel threaded stud, chamfered flat end according to UNI 947 : ISO 4753 (see Technical data).

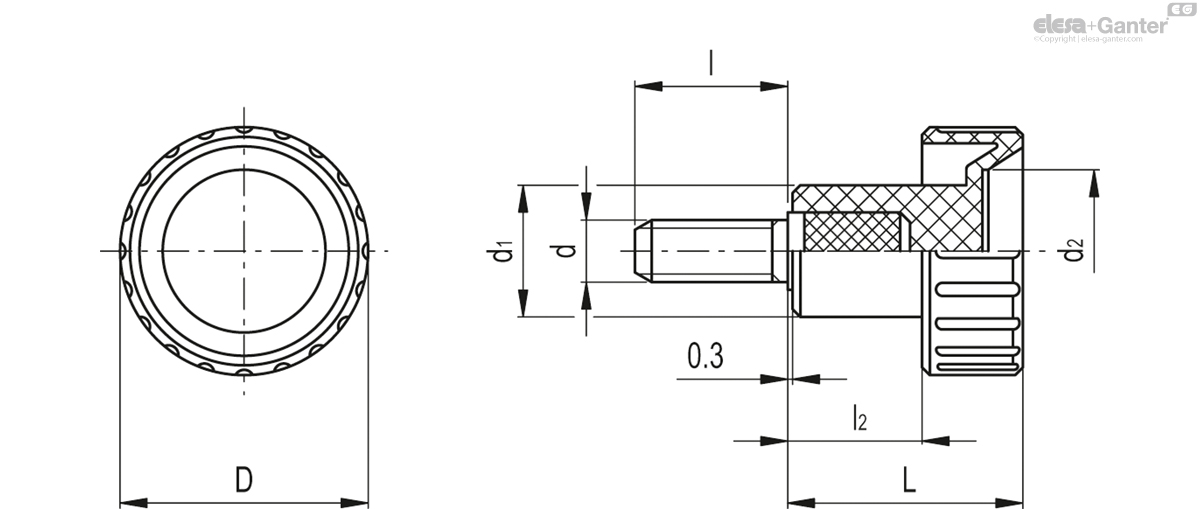

BTL-p
| D | d6g | L | d1 | d2 | l | l2 |  |
|||
|---|---|---|---|---|---|---|---|---|---|---|
| Code | Description | Actions | ||||||||
| 6411 | BTL.20 p-M6x16 | 20 | M6 | 21 | 11 | 11 | 16 | 12 | 10 |
|
| 6441 | BTL.25 p-M8x20 | 26 | M8 | 26 | 16 | 15 | 20 | 15 | 18 |
|
| 6471 | BTL.32 p-M8x25 | 32 | M8 | 30 | 17 | 21 | 25 | 17 | 21 |
|
