BTL.
Fluted grip knobs
Technopolymer, elongated hub

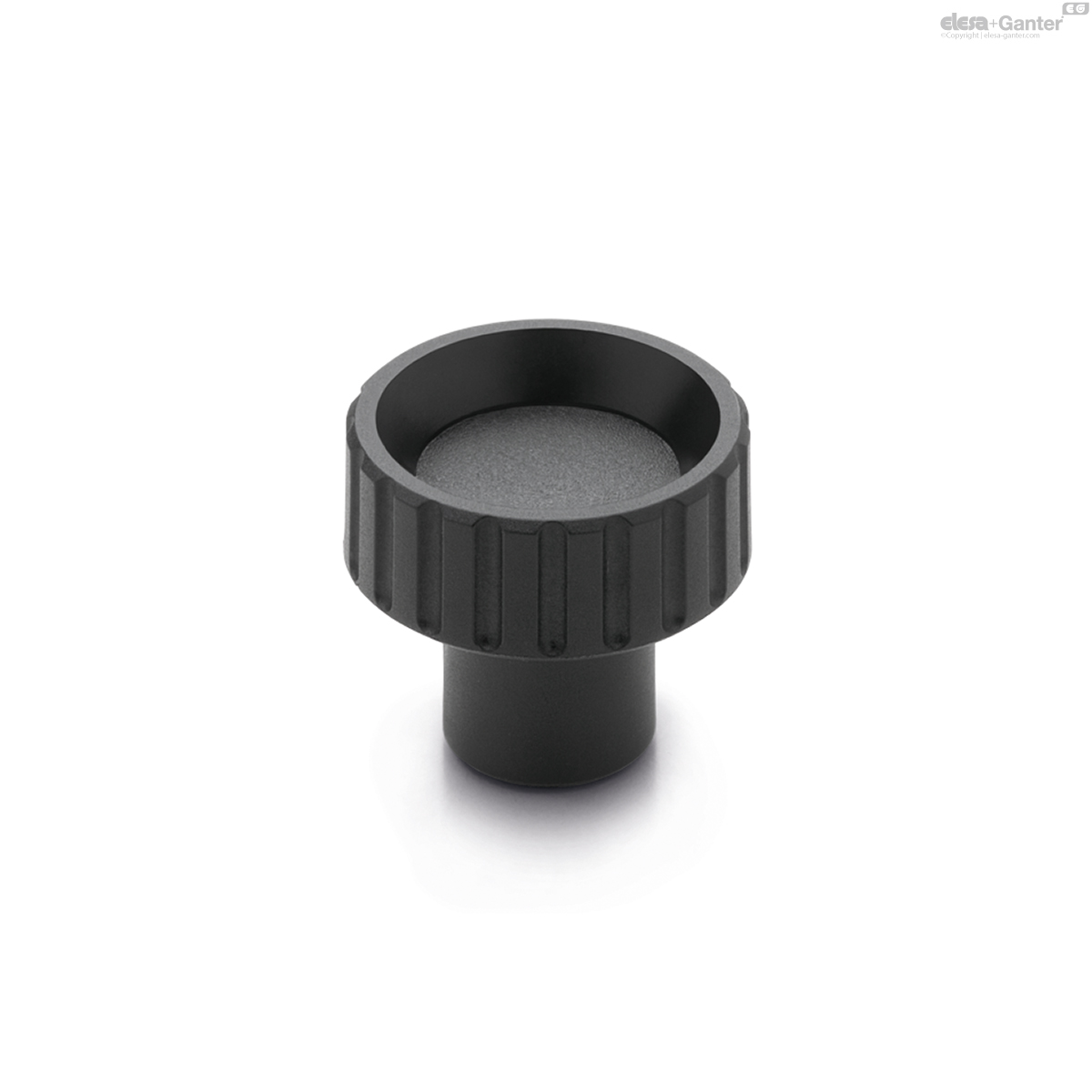

BTL-B
Fluted grip knobs
Brass boss, threaded blind hole

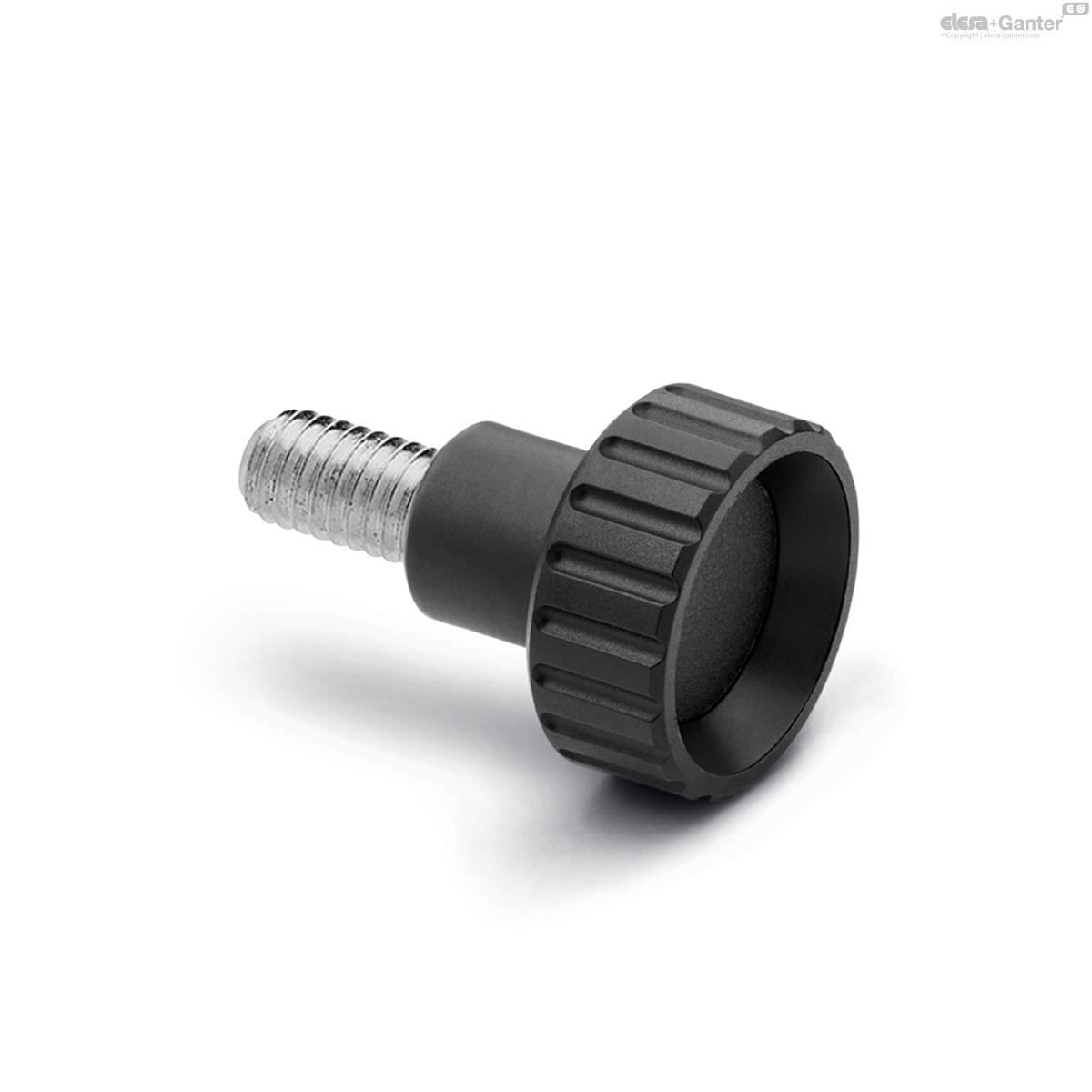

BTL-p
Fluted grip knobs
Zinc-plated steel threaded stud
Description
Main specifications
Material
Polyamide based (PA) technopolymer, black colour, matte finish.
Standard executions
- BTL-B:Â brass boss, threaded blind hole.
- BTL-p: zinc-plated steel threaded stud, chamfered flat end according to UNI 947 : ISO 4753 (see Technical data).

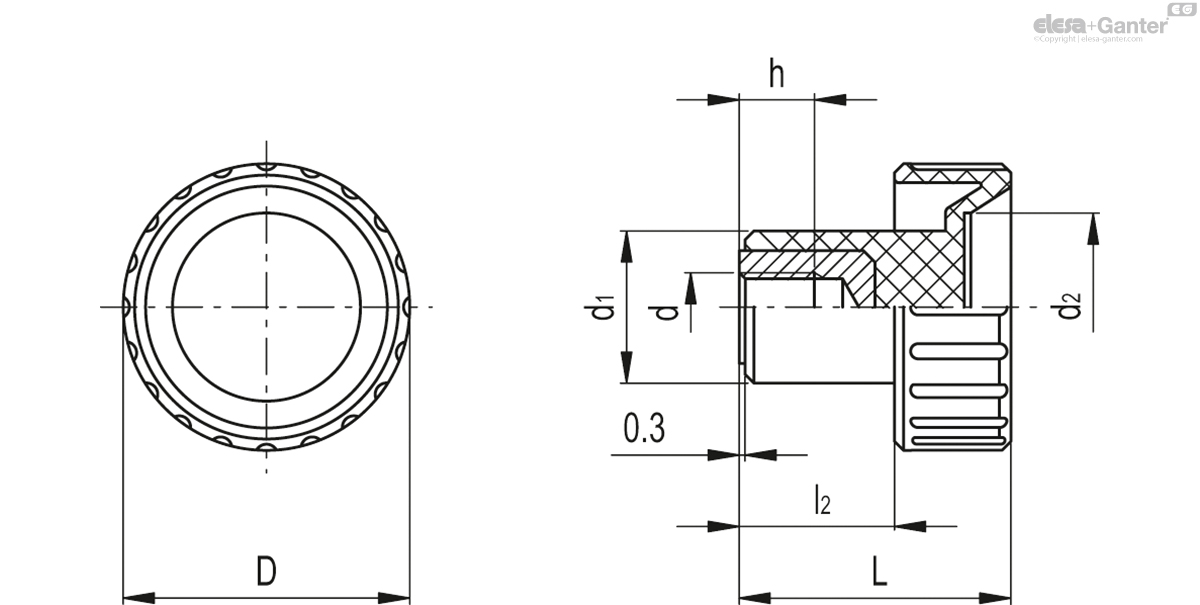

BTL-B
| D | d6H | L | d1 | d2 | l2 | h |  |
|||
|---|---|---|---|---|---|---|---|---|---|---|
| Code | Description | Actions | ||||||||
| 6401 | BTL.20 B-M5 | 20 | M5 | 21 | 11 | 11 | 12 | 10 | 5 |
|
| 6402 | BTL.20 B-M6 | 20 | M6 | 21 | 11 | 11 | 12 | 12 | 6 |
|
| 6431 | BTL.25 B-M6 | 26 | M6 | 26 | 16 | 15 | 15 | 12 | 9 |
|
| 6432 | BTL.25 B-M8 | 26 | M8 | 26 | 16 | 15 | 15 | 13 | 9 |
|
| 6462 | BTL.32 B-M8 | 32 | M8 | 30 | 17 | 21 | 17 | 15 | 19 |
|
