BAS2

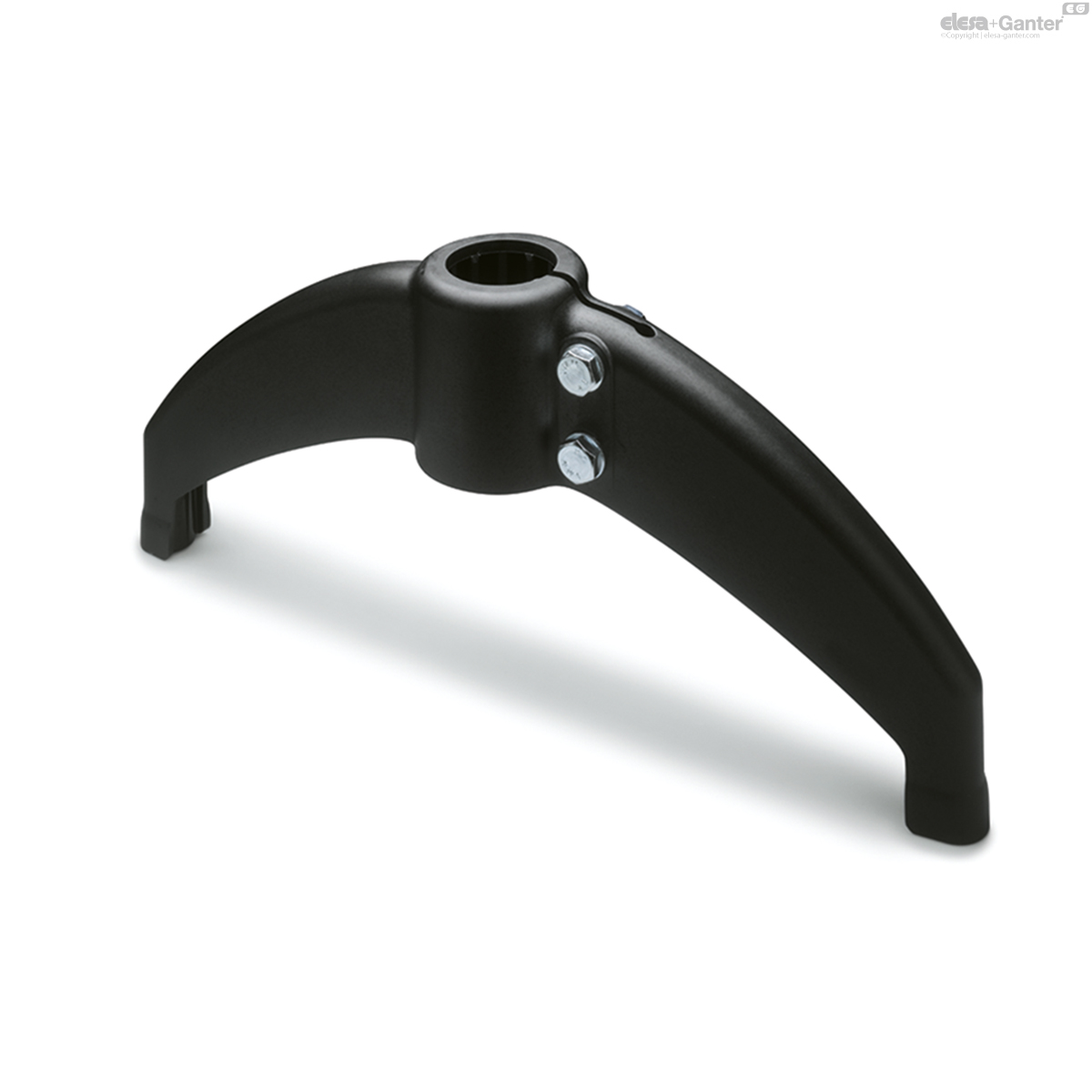

Bipod supports

Technopolymer

Enquire Now

Description

Main specifications

Material

Glass-fibre reinforced polyamide based (PA) technopolymer, black colour, matte finish.

Standard executions

BAS2-A: zinc-plated steel M10 screws, nuts and washers.
BAS2-SST: AISI 304 stainless steel M10 screws, nuts and washers.

Assembly on levelling elements

The bipod support bases are supplied with brass bosses, threaded pass-through hole for the assembly of the stem of the levelling element series LS.A, LV.A, LV.F.

General information

Features

The rounded shapes with a modern and elegant aesthetic guarantee maximum cleanability in the event of liquids or dust falling from above.

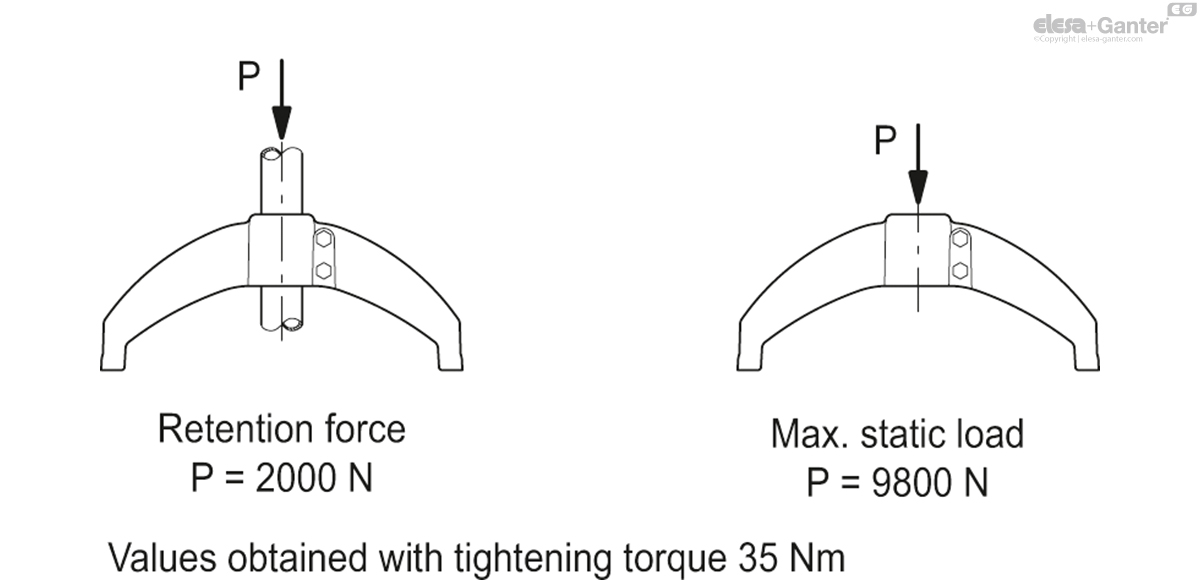

Maximum tightening torque for screw assembly 35 Nm.

BAS2-A

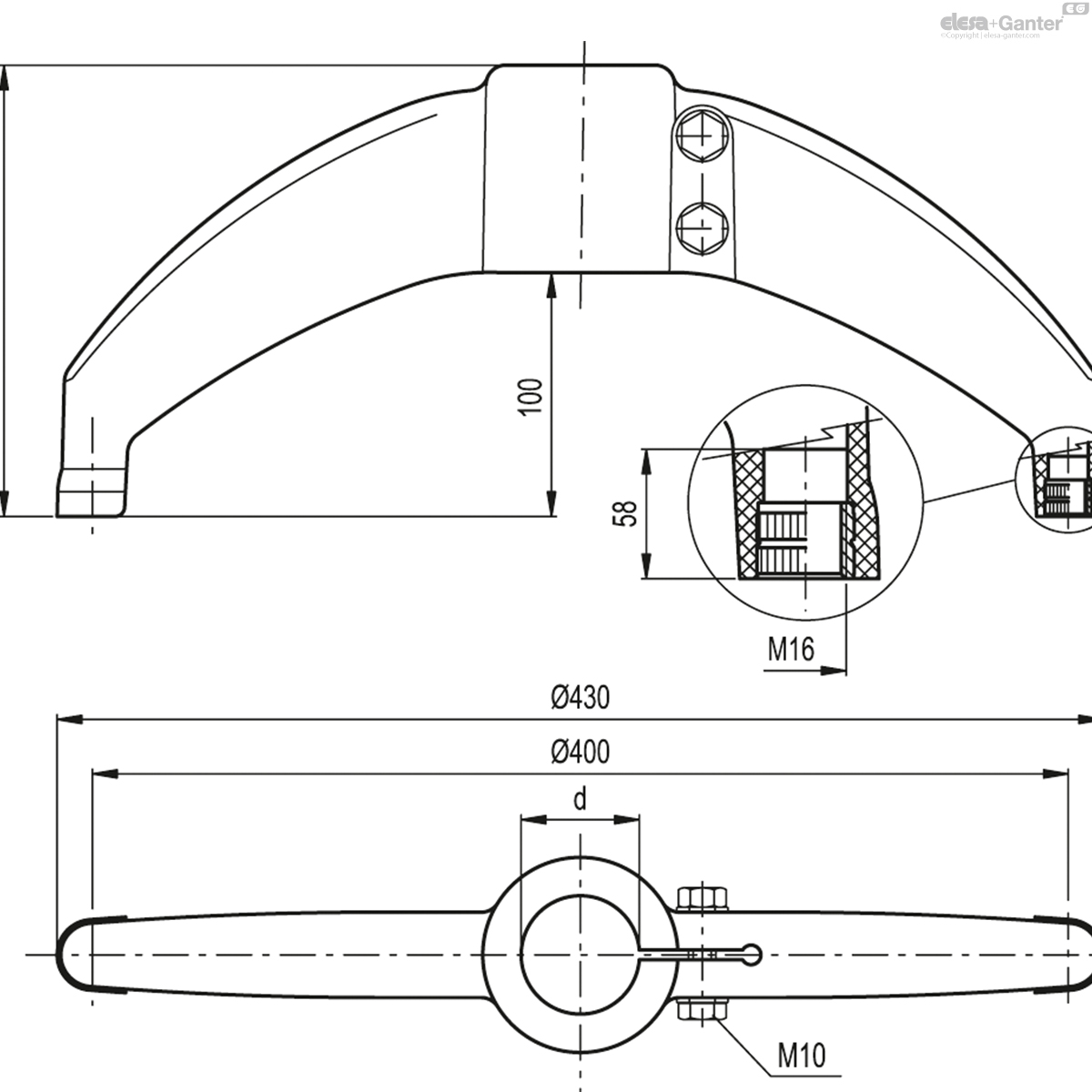

		d Tube (mm)	d Tube (GAS)
Code	Description				Actions
419632	BAS2-60-A	60.3	2'	650
419634	BAS2-48-A	48.3	1'1/2	670
419636	BAS2-42-A	42.4	1'1/4	680

BAS2-SST

		d Tube (mm)	d Tube (GAS)
Code	Description				Actions
419633	BAS2-60-SST	60.3	2'	650
419635	BAS2-48-SST	48.3	1'1/2	670
419637	BAS2-42-SST	42.4	1'1/4	680
