Home Clamping Knobs Knurled knobs B.193

B.193

Knurled grip knobs

Duroplast

__logo__INOX__

__logo__ELE_OD__

__logo__RoHS__

__logo__PF__

__logo__g11020__

Enquire Now

product image

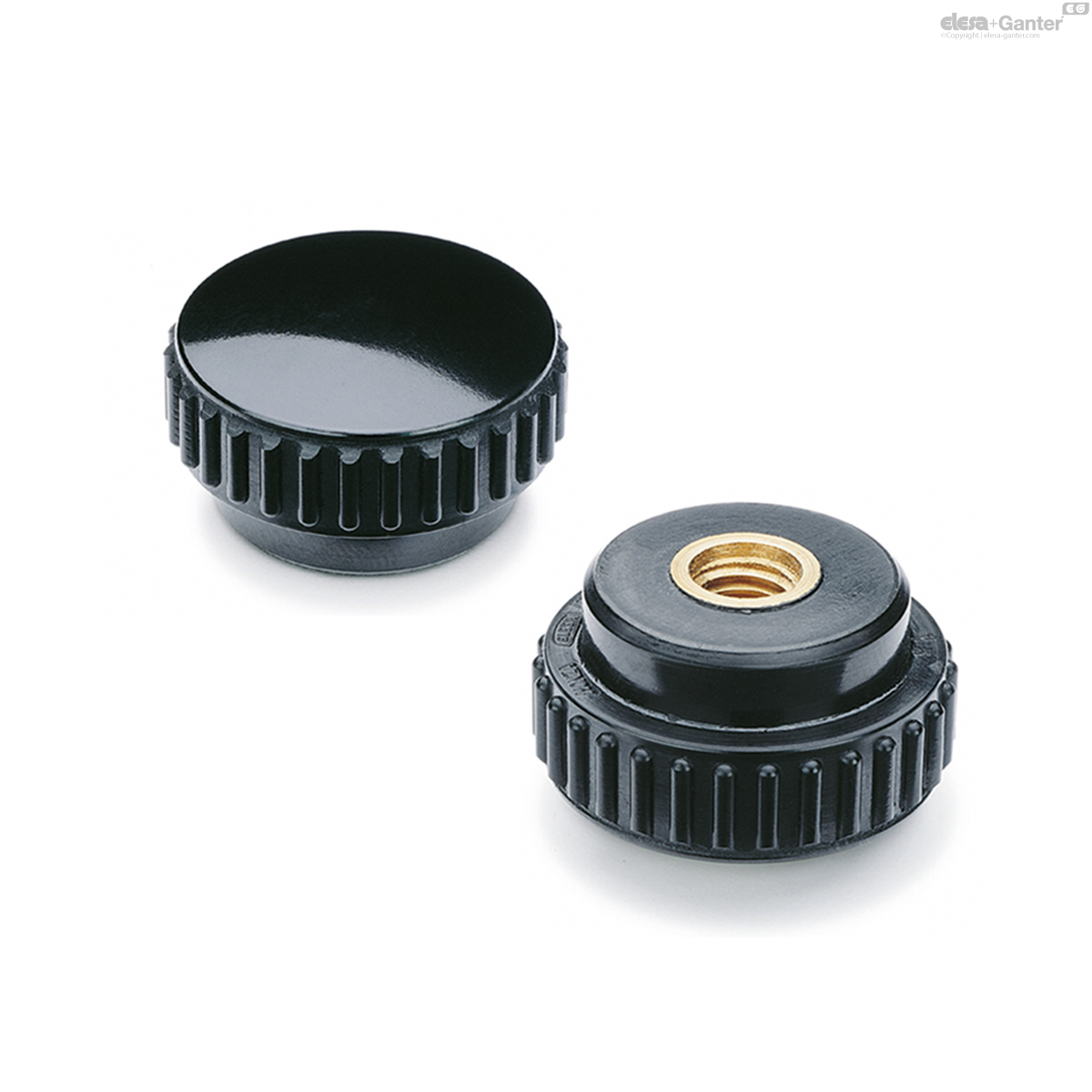

Knurled grip knobs

Brass boss, threaded blind hole

product image

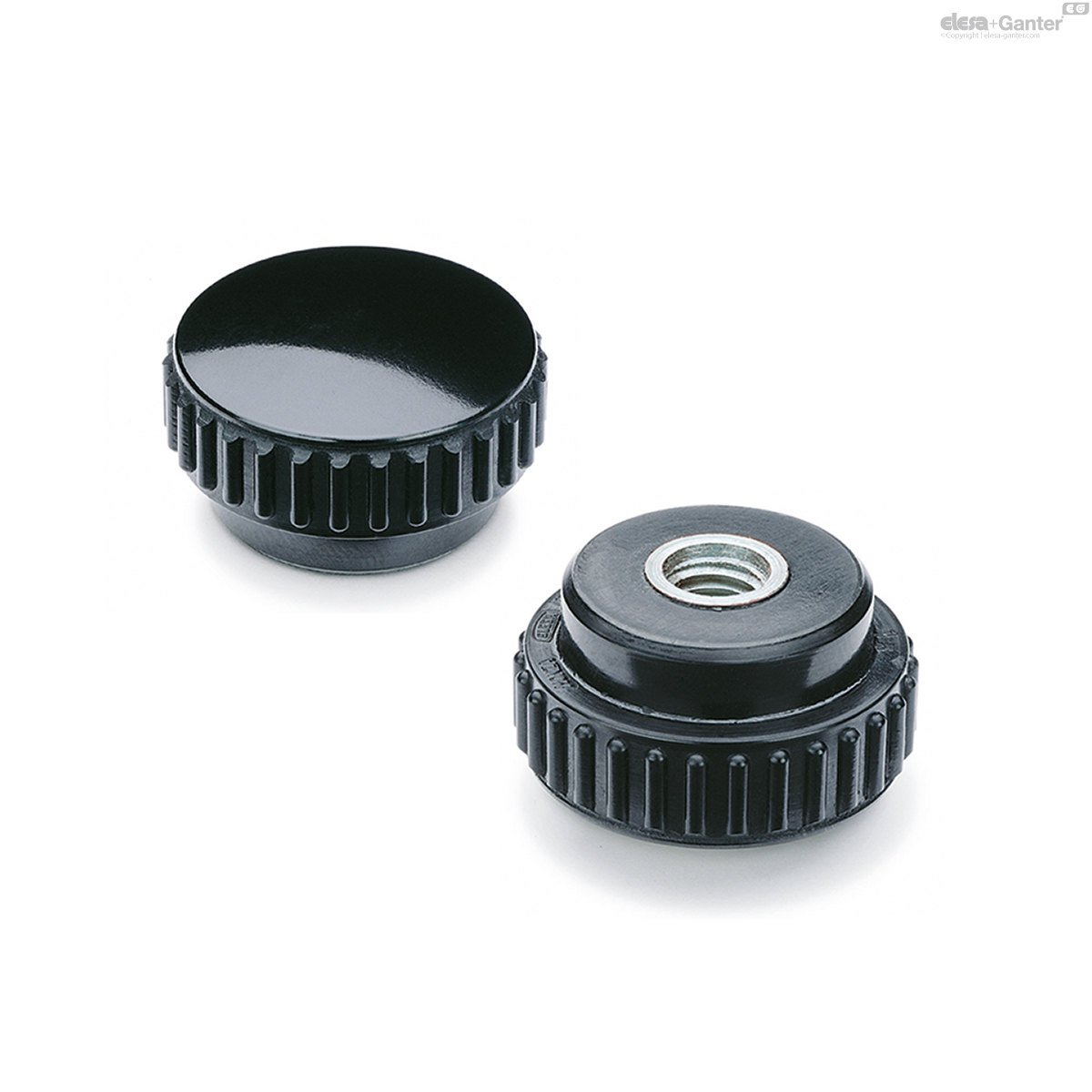

Knurled grip knobs

Stainless steel boss, threaded blind hole

product image

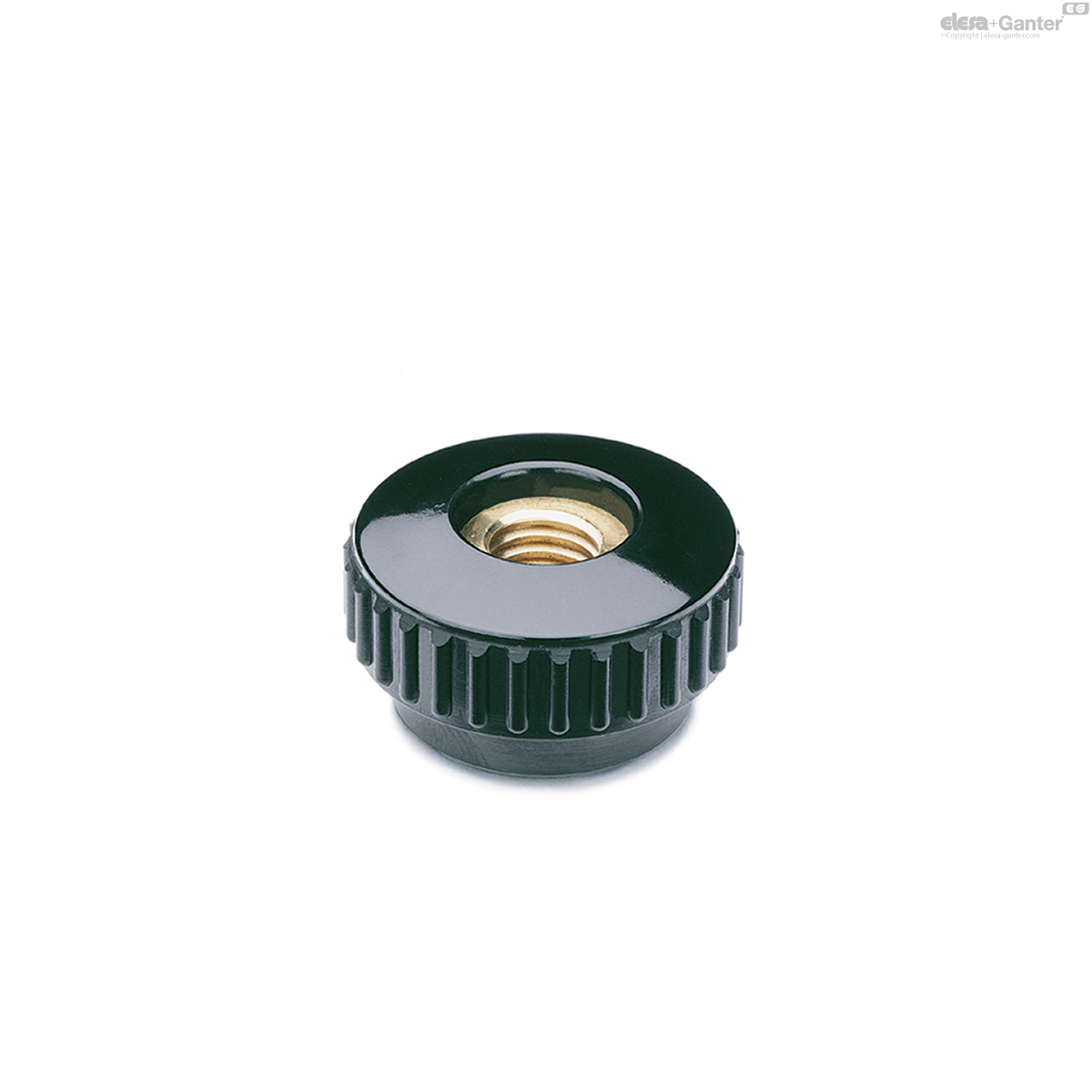

Knurled grip knobs

Brass boss, threaded pass-through hole

product image

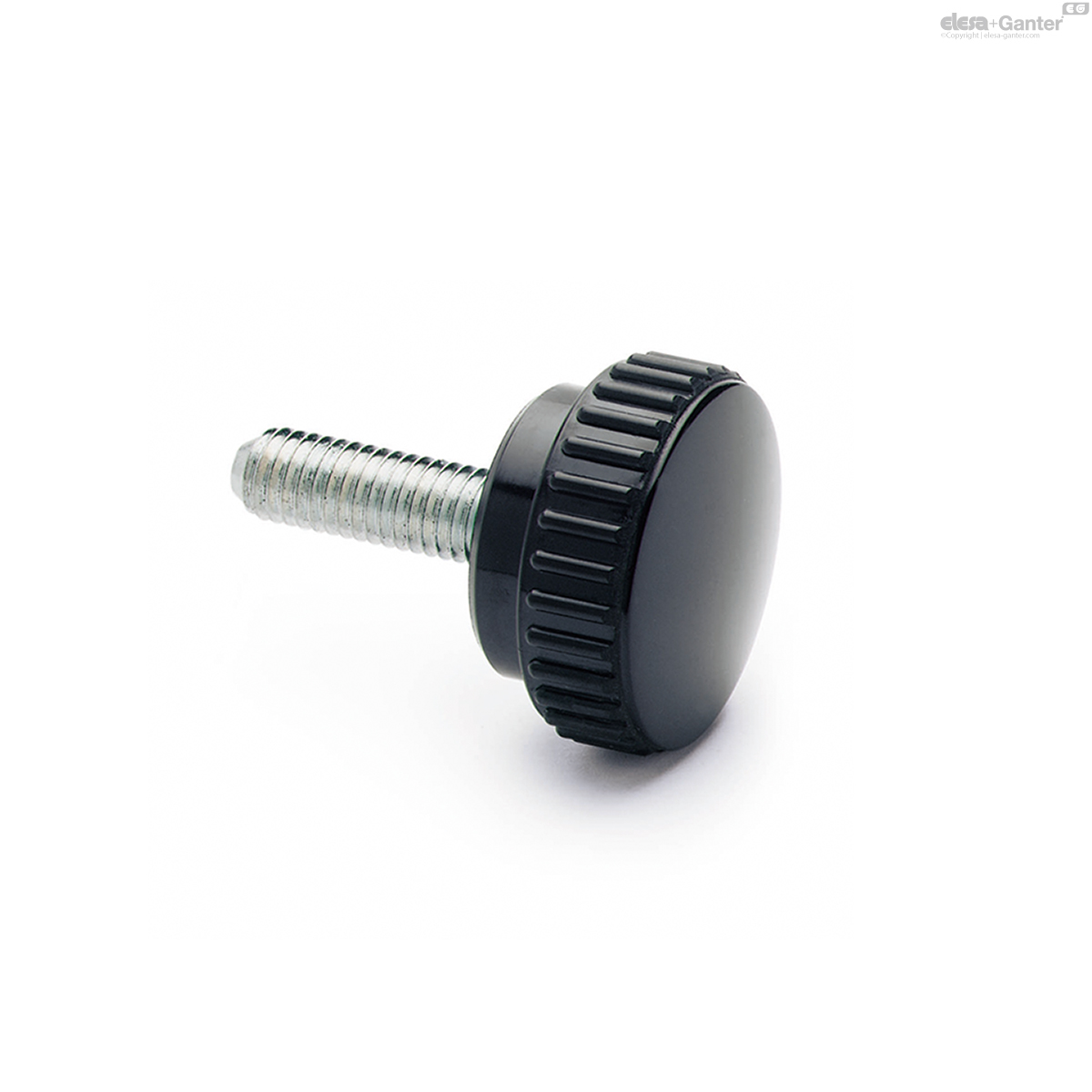

Knurled grip knobs

Zinc-plated steel threaded stud

product image

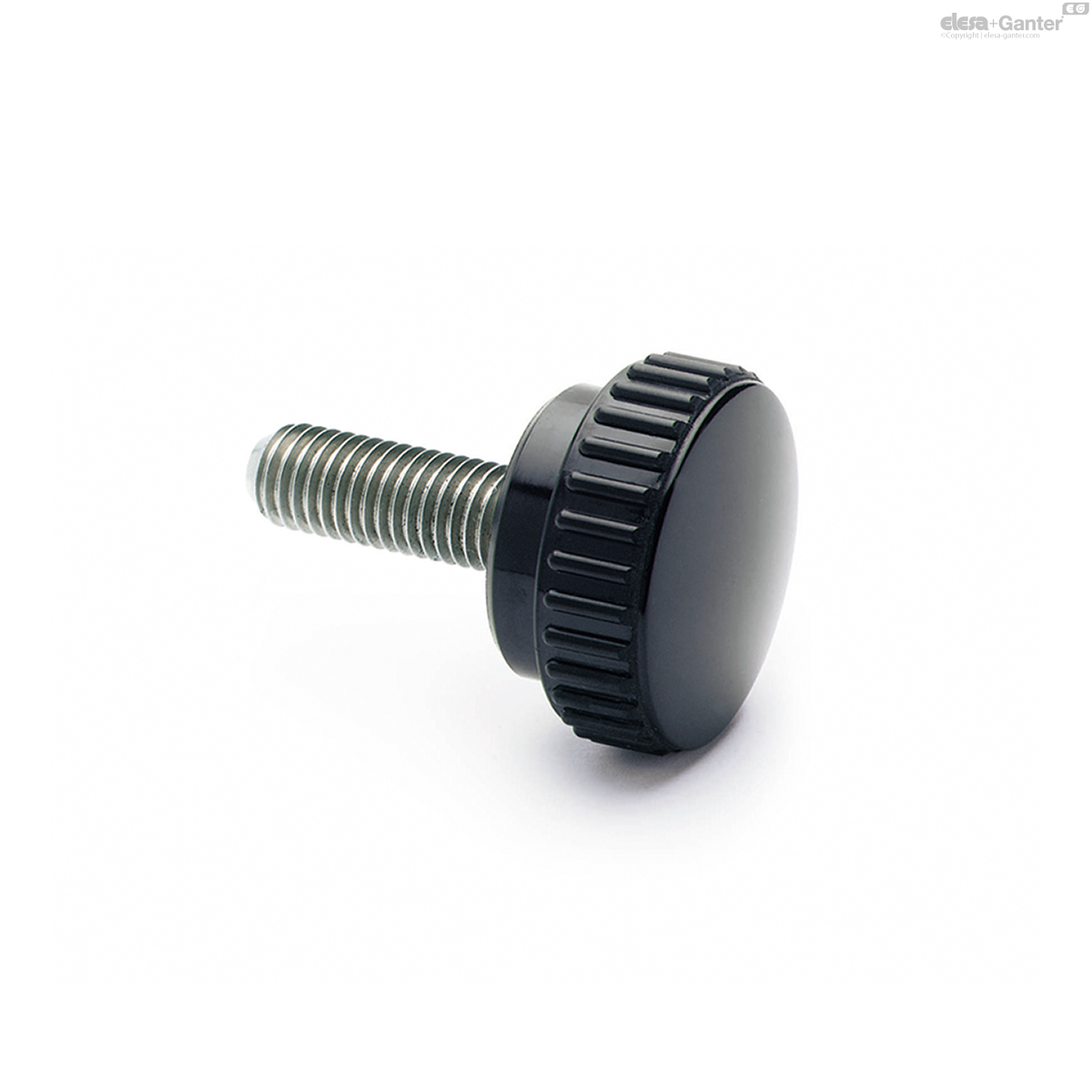

Knurled grip knobs

Stainless steel threaded stud

Description

Main specifications

Material

Phenolic based (PF) Duroplast, black colour, glossy finish.

Standard executions

B.193-B: brass boss, threaded blind hole.
B.193-SST: AISI 303 stainless steel boss, threaded blind hole.
B.193-FP: brass boss, threaded through hole.
B.193-p: zinc-plated steel threaded stud, chamfered flat end according to UNI 947 : ISO 4753 (see Technical data).
B.193-SST-p: AISI 303 stainless steel threaded stud, chamfered flat end according to UNI 947 : ISO 4753 (see Technical data).

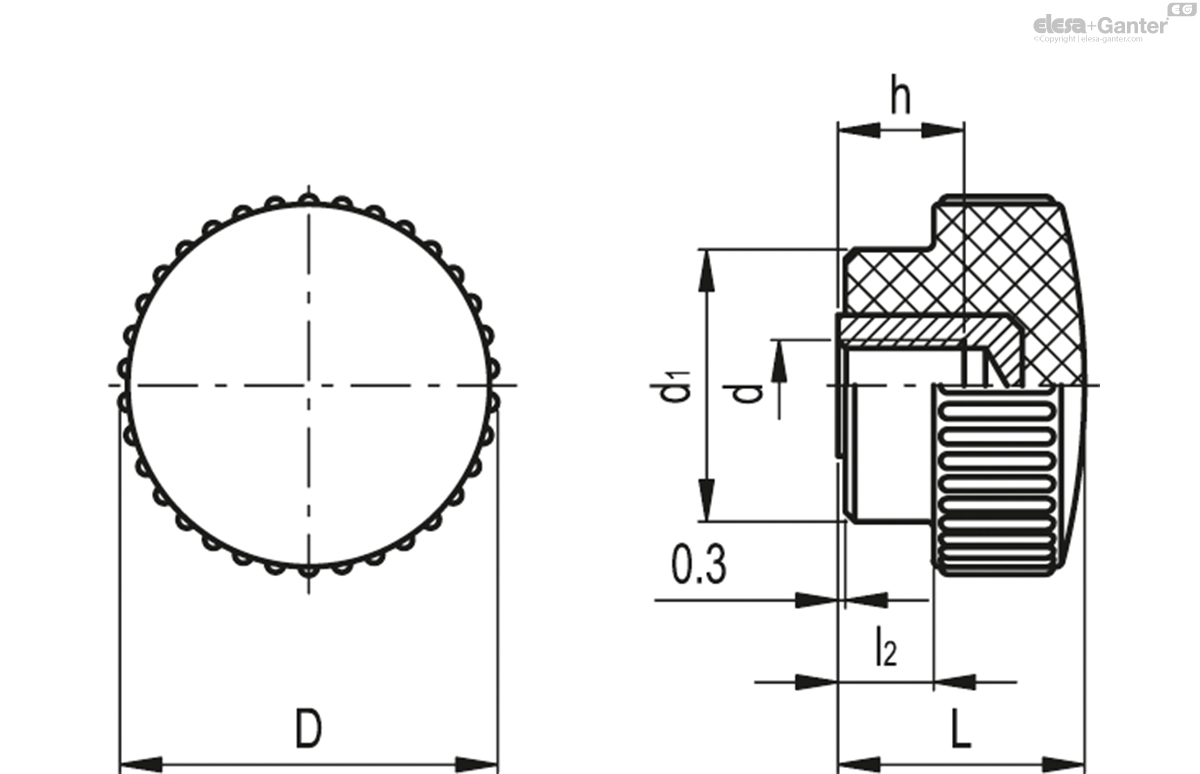

B.193-B

		D	d_6H	L	d₁	l₂	h
Code	Description								Actions
2101	B.193/15 B-M3	15	M3	11	11	2	6	4
2102	B.193/15 B-M4	15	M4	11	11	2	6	4
2103	B.193/15 B-M5	15	M5	11	11	2	6	4
2201	B.193/18 B-M5	18	M5	12	13	3	6	5
2301	B.193/20 B-M6	22	M6	14	15	4	6	9
2401	B.193/25 B-M6	26	M6	18	19	6	10	14
2501	B.193/30 B-M8	31	M8	18	24	6	10	21
2502	B.193/30 B-M6	31	M6	18	24	6	12	22
2601	B.193/35 B-M8	36	M8	23	27	8	10	30
2602	B.193/35 B-M10	36	M10	23	27	8	13	29
2701	B.193/40 B-M10	40	M10	26	29	10	13	39
2801	B.193/50 B-M10	50	M10	32	36	12	17	75
2802	B.193/50 B-M12	50	M12	32	36	12	20	80
