882 TAB Low Back Pressure
Plastic chains
Description
Basic features
| Series: | 821-882-8257 |
|---|---|
| Pitch: | 38.1 mm |
| Thickness: | 4.8 mm |
| Surface Type: | LBP - Low Back Pressure |
| Functionality: | Side Flex TAB |
| Unit of measure: | Meter |
882 TAB Low Back Pressure
| Width | Material | Part | Back flex radius | Sideflexing radius min | Mass | Pin material | Box | Max working load | ||
|---|---|---|---|---|---|---|---|---|---|---|
| Code | Actions | |||||||||
| P11180105 | K 450 - 114,3 mm | LFA - Low Friction Acetal (01) | P1118 | 150 mm | 610 mm | 4 kg/m | Stainless steel | 5 ft - 1,524 m | 3830 N |
|

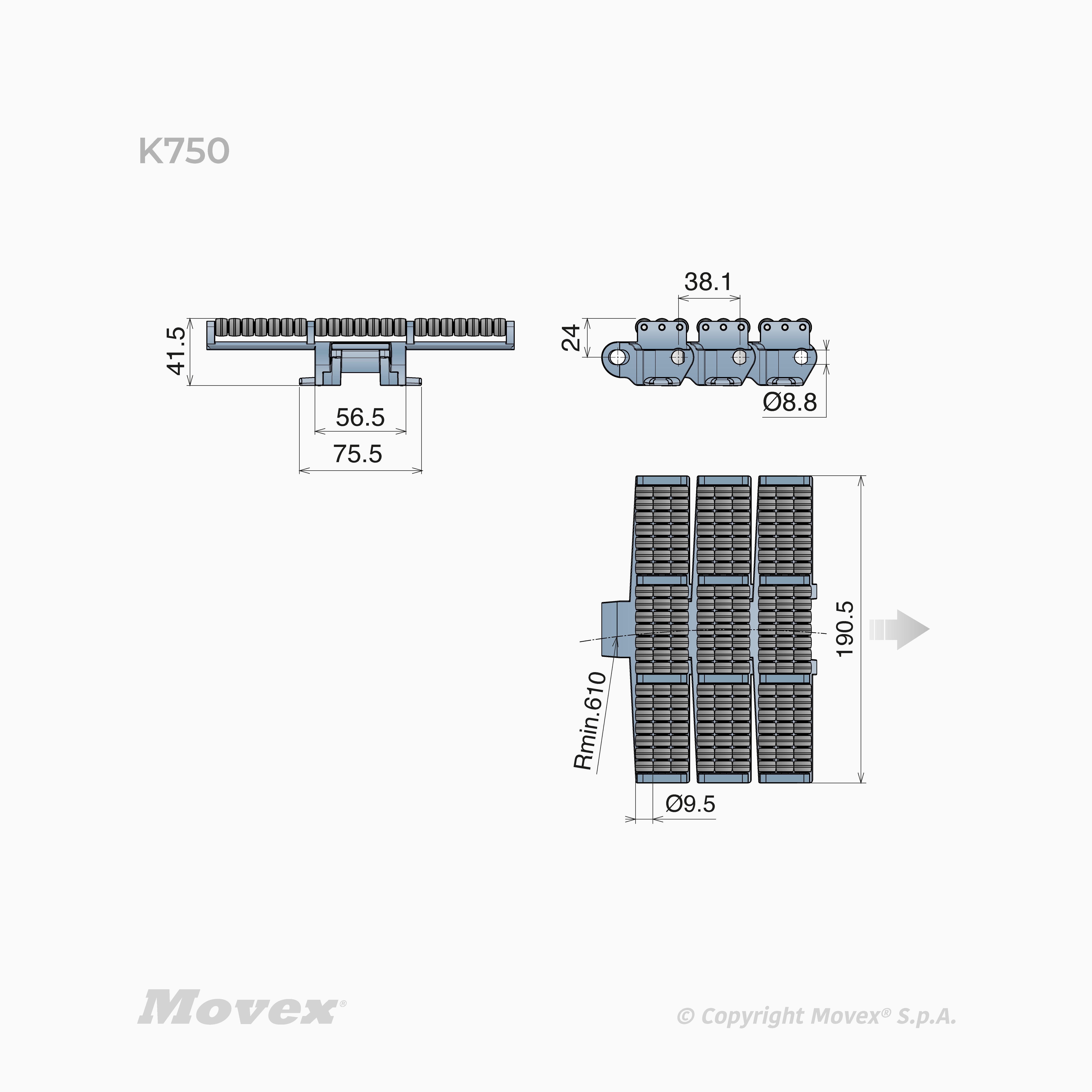

| P11180107 | K 750 - 190,5 mm | LFA - Low Friction Acetal (01) | P1118 | 150 mm | 610 mm | 4.7 kg/m | Stainless steel | 5 ft - 1,524 m | 3830 N |
|

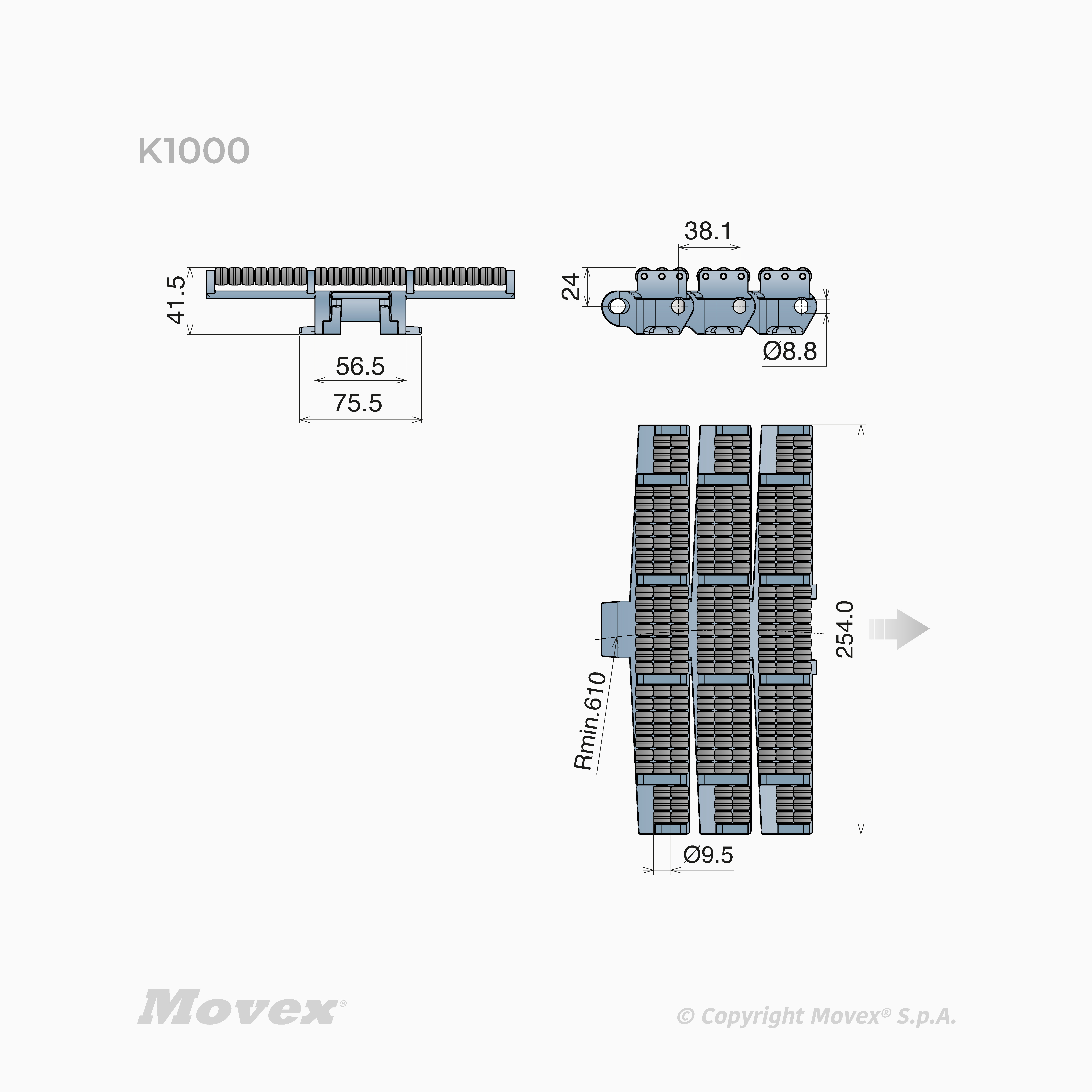

| P11180108 | K1000 - 254,0 mm | LFA - Low Friction Acetal (01) | P1118 | 150 mm | 610 mm | 5.95 kg/m | Stainless steel | 5 ft - 1,524 m | 3830 N |
|

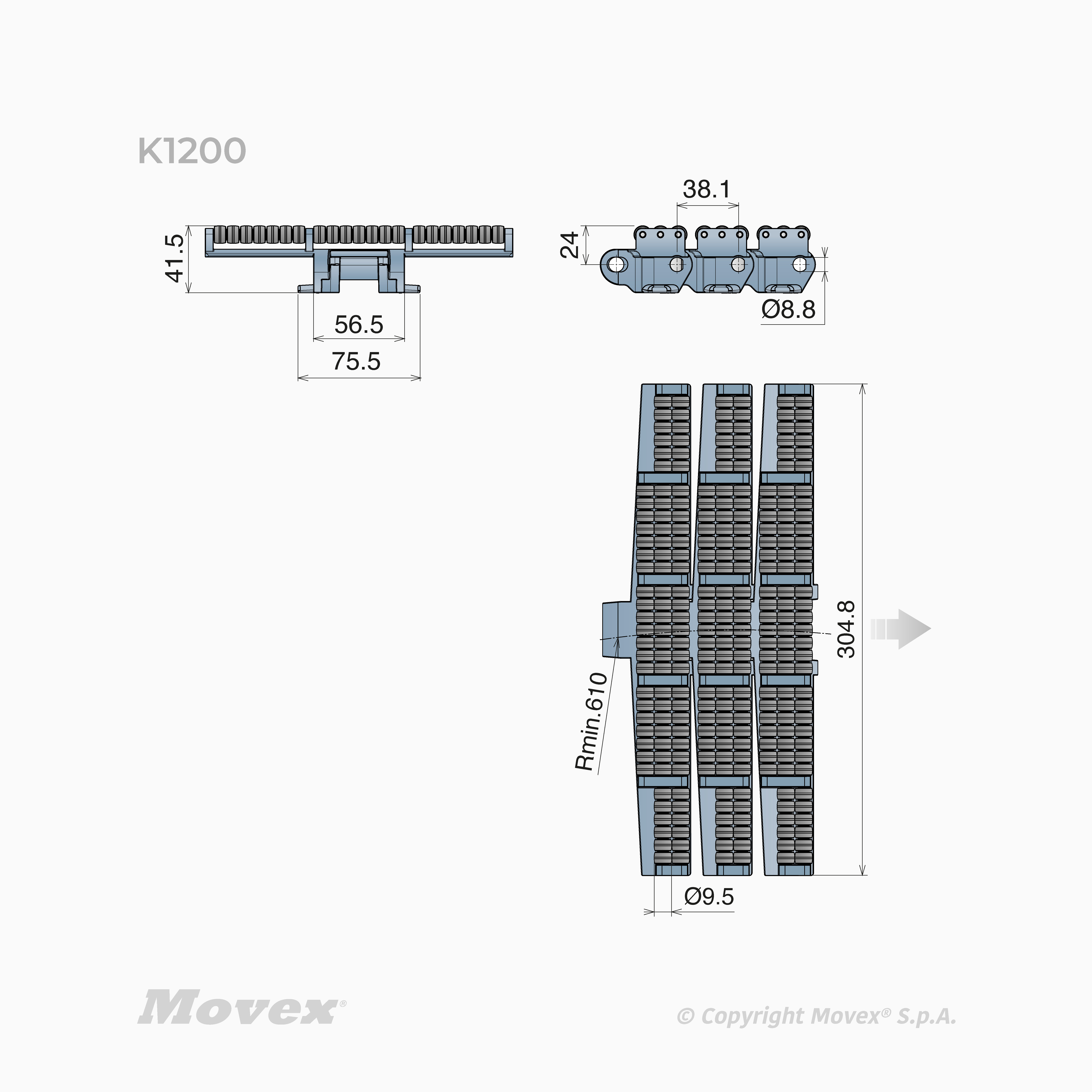

| P11180109 | K1200 - 304,8 mm | LFA - Low Friction Acetal (01) | P1118 | 150 mm | 610 mm | 6.55 kg/m | Stainless steel | 5 ft - 1,524 m | 3830 N |
|
