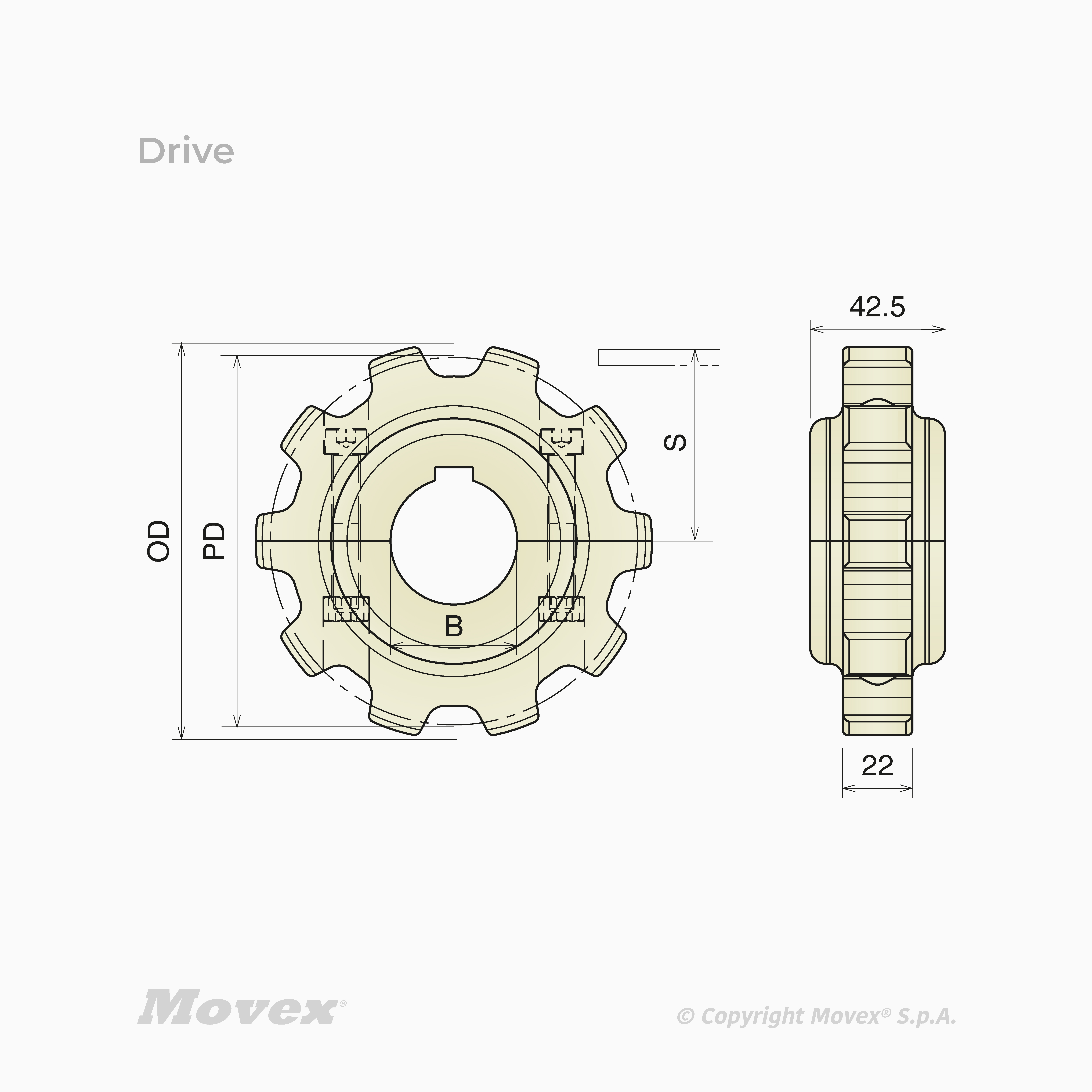

882 split machined sprocket

882 split machined sprocket

	Z-	Bore	Version	Type	Execution	Pitch diameter	Outer diameter	S dimension	Material	Temperature range dry	Temperature range wet
Code	All 9 10 11 12	All 18 mm 25 mm 30 mm 35 mm 40 mm 50 mm	All Drive Idler	All Split	All Machined	All 114.4 mm 123.2 mm 135.2 mm 147.2 mm	All 112 mm 125 mm 137 mm 149 mm	All 60.5 mm 66.4 mm 72.4 mm 78.4 mm	All PA - Polyamide composite	All -40÷80 °C	All -20÷120 °C	Actions
P55101	9	25 mm	Drive	Split	Machined	114.4 mm	112 mm	60.5 mm	PA - Polyamide composite	-40÷80 °C	-20÷120 °C
P55102	9	30 mm	Drive	Split	Machined	114.4 mm	112 mm	60.5 mm	PA - Polyamide composite	-40÷80 °C	-20÷120 °C
P55103	9	35 mm	Drive	Split	Machined	114.4 mm	112 mm	60.5 mm	PA - Polyamide composite	-40÷80 °C	-20÷120 °C
P55104	9	40 mm	Drive	Split	Machined	114.4 mm	112 mm	60.5 mm	PA - Polyamide composite	-40÷80 °C	-20÷120 °C
P55150	9	18 mm	Idler	Split	Machined	114.4 mm	112 mm	60.5 mm	PA - Polyamide composite	-40÷80 °C	-20÷120 °C
P55151	9	25 mm	Idler	Split	Machined	114.4 mm	112 mm	60.5 mm	PA - Polyamide composite	-40÷80 °C	-20÷120 °C
P55152	9	30 mm	Idler	Split	Machined	114.4 mm	112 mm	60.5 mm	PA - Polyamide composite	-40÷80 °C	-20÷120 °C
P55153	9	35 mm	Idler	Split	Machined	114.4 mm	112 mm	60.5 mm	PA - Polyamide composite	-40÷80 °C	-20÷120 °C
P55154	9	40 mm	Idler	Split	Machined	114.4 mm	112 mm	60.5 mm	PA - Polyamide composite	-40÷80 °C	-20÷120 °C
P55201	10	25 mm	Drive	Split	Machined	123.2 mm	125 mm	66.4 mm	PA - Polyamide composite	-40÷80 °C	-20÷120 °C
P55202	10	30 mm	Drive	Split	Machined	123.2 mm	125 mm	66.4 mm	PA - Polyamide composite	-40÷80 °C	-20÷120 °C
P55203	10	35 mm	Drive	Split	Machined	123.2 mm	125 mm	66.4 mm	PA - Polyamide composite	-40÷80 °C	-20÷120 °C
P55204	10	40 mm	Drive	Split	Machined	123.2 mm	125 mm	66.4 mm	PA - Polyamide composite	-40÷80 °C	-20÷120 °C
P55250	10	18 mm	Idler	Split	Machined	123.2 mm	125 mm	66.4 mm	PA - Polyamide composite	-40÷80 °C	-20÷120 °C
P55251	10	25 mm	Idler	Split	Machined	123.2 mm	125 mm	66.4 mm	PA - Polyamide composite	-40÷80 °C	-20÷120 °C
P55252	10	30 mm	Idler	Split	Machined	123.2 mm	125 mm	66.4 mm	PA - Polyamide composite	-40÷80 °C	-20÷120 °C
P55253	10	35 mm	Idler	Split	Machined	123.2 mm	125 mm	66.4 mm	PA - Polyamide composite	-40÷80 °C	-20÷120 °C
P55254	10	40 mm	Idler	Split	Machined	123.2 mm	125 mm	66.4 mm	PA - Polyamide composite	-40÷80 °C	-20÷120 °C
P55301	11	25 mm	Drive	Split	Machined	135.2 mm	137 mm	72.4 mm	PA - Polyamide composite	-40÷80 °C	-20÷120 °C
P55302	11	30 mm	Drive	Split	Machined	135.2 mm	137 mm	72.4 mm	PA - Polyamide composite	-40÷80 °C	-20÷120 °C
P55303	11	35 mm	Drive	Split	Machined	135.2 mm	137 mm	72.4 mm	PA - Polyamide composite	-40÷80 °C	-20÷120 °C
P55304	11	40 mm	Drive	Split	Machined	135.2 mm	137 mm	72.4 mm	PA - Polyamide composite	-40÷80 °C	-20÷120 °C
P55350	11	18 mm	Idler	Split	Machined	135.2 mm	137 mm	72.4 mm	PA - Polyamide composite	-40÷80 °C	-20÷120 °C
P55351	11	25 mm	Idler	Split	Machined	135.2 mm	137 mm	72.4 mm	PA - Polyamide composite	-40÷80 °C	-20÷120 °C
P55352	11	30 mm	Idler	Split	Machined	135.2 mm	137 mm	72.4 mm	PA - Polyamide composite	-40÷80 °C	-20÷120 °C
P55353	11	35 mm	Idler	Split	Machined	135.2 mm	137 mm	72.4 mm	PA - Polyamide composite	-40÷80 °C	-20÷120 °C
P55354	11	40 mm	Idler	Split	Machined	135.2 mm	137 mm	72.4 mm	PA - Polyamide composite	-40÷80 °C	-20÷120 °C
P55401	12	25 mm	Drive	Split	Machined	147.2 mm	149 mm	78.4 mm	PA - Polyamide composite	-40÷80 °C	-20÷120 °C
P55402	12	30 mm	Drive	Split	Machined	147.2 mm	149 mm	78.4 mm	PA - Polyamide composite	-40÷80 °C	-20÷120 °C
P55403	12	35 mm	Drive	Split	Machined	147.2 mm	149 mm	78.4 mm	PA - Polyamide composite	-40÷80 °C	-20÷120 °C
P55404	12	40 mm	Drive	Split	Machined	147.2 mm	149 mm	78.4 mm	PA - Polyamide composite	-40÷80 °C	-20÷120 °C
P55406	12	50 mm	Drive	Split	Machined	147.2 mm	149 mm	78.4 mm	PA - Polyamide composite	-40÷80 °C	-20÷120 °C
P55450	12	18 mm	Idler	Split	Machined	147.2 mm	149 mm	78.4 mm	PA - Polyamide composite	-40÷80 °C	-20÷120 °C
P55451	12	25 mm	Idler	Split	Machined	147.2 mm	149 mm	78.4 mm	PA - Polyamide composite	-40÷80 °C	-20÷120 °C
P55452	12	30 mm	Idler	Split	Machined	147.2 mm	149 mm	78.4 mm	PA - Polyamide composite	-40÷80 °C	-20÷120 °C
P55453	12	35 mm	Idler	Split	Machined	147.2 mm	149 mm	78.4 mm	PA - Polyamide composite	-40÷80 °C	-20÷120 °C
P55454	12	40 mm	Idler	Split	Machined	147.2 mm	149 mm	78.4 mm	PA - Polyamide composite	-40÷80 °C	-20÷120 °C

•
