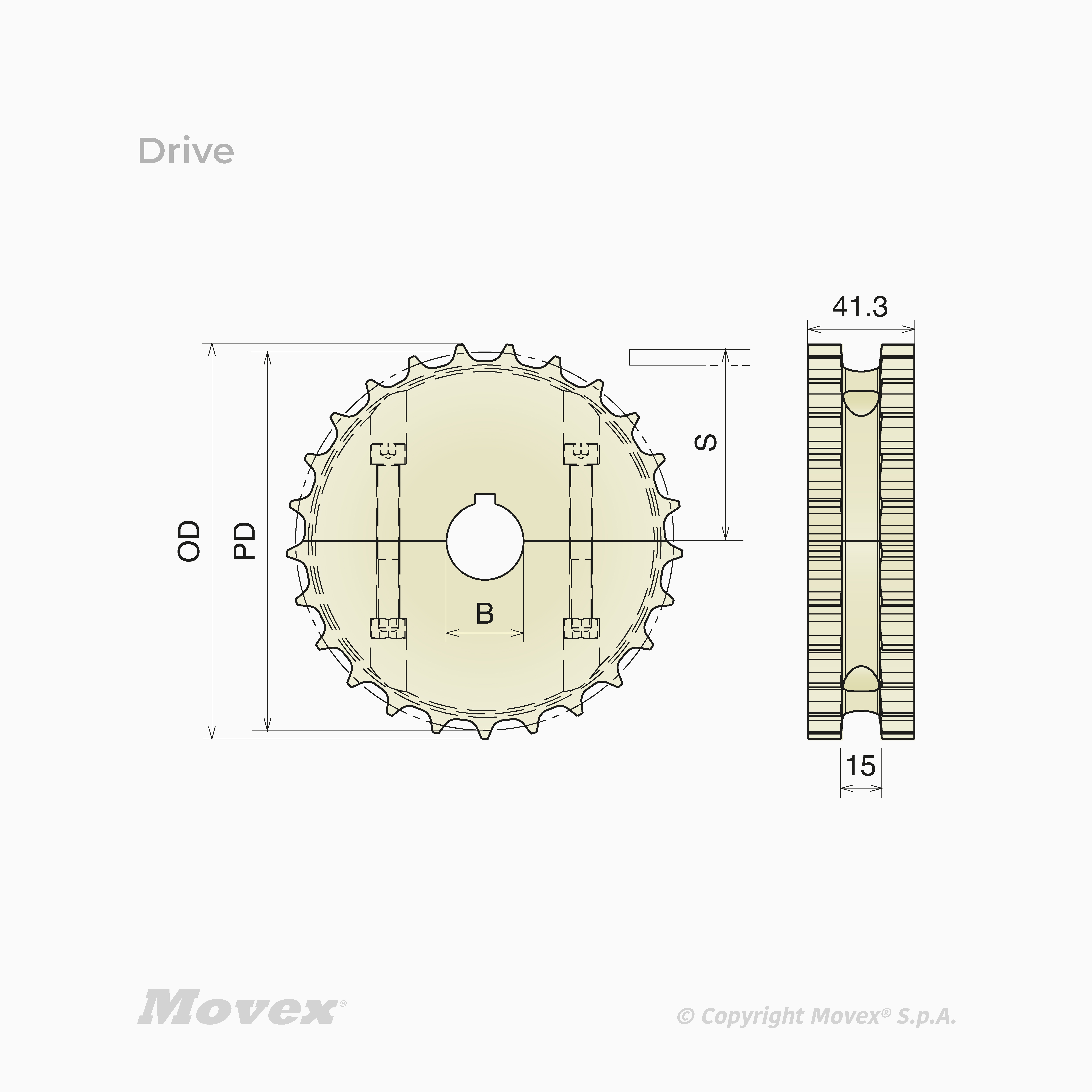

820 split machined sprocket

820 split machined sprocket

	Z-	Bore	Version	Type	Execution	Pitch diameter	Outer diameter	S dimension	Material	Temperature range dry	Temperature range wet
Code	All 17 19 21 23 25 27 29	All 18 mm 25 mm 30 mm 35 mm 40 mm	All Drive Idler	All Split	All Machined	All 105.5 mm 117.3 mm 129.3 mm 141.2 mm 153.2 mm 165.2 mm 177.2 mm	All 103.9 mm 117 mm 129 mm 142 mm 154 mm 166.8 mm 178.5 mm	All 55.9 mm 61.9 mm 67.8 mm 73.8 mm 79.8 mm 85.8 mm 91.8 mm	All PA - Polyamide composite	All -40÷80 °C	All -20÷120 °C	Actions
P53501	17	25 mm	Drive	Split	Machined	105.5 mm	103.9 mm	55.9 mm	PA - Polyamide composite	-40÷80 °C	-20÷120 °C
P53502	17	30 mm	Drive	Split	Machined	105.5 mm	103.9 mm	55.9 mm	PA - Polyamide composite	-40÷80 °C	-20÷120 °C
P53503	17	35 mm	Drive	Split	Machined	105.5 mm	103.9 mm	55.9 mm	PA - Polyamide composite	-40÷80 °C	-20÷120 °C
P53504	17	40 mm	Drive	Split	Machined	105.5 mm	103.9 mm	55.9 mm	PA - Polyamide composite	-40÷80 °C	-20÷120 °C
P53550	17	18 mm	Idler	Split	Machined	105.5 mm	103.9 mm	55.9 mm	PA - Polyamide composite	-40÷80 °C	-20÷120 °C
P53551	17	25 mm	Idler	Split	Machined	105.5 mm	103.9 mm	55.9 mm	PA - Polyamide composite	-40÷80 °C	-20÷120 °C
P53552	17	30 mm	Idler	Split	Machined	105.5 mm	103.9 mm	55.9 mm	PA - Polyamide composite	-40÷80 °C	-20÷120 °C
P53553	17	35 mm	Idler	Split	Machined	105.5 mm	103.9 mm	55.9 mm	PA - Polyamide composite	-40÷80 °C	-20÷120 °C
P53554	17	40 mm	Idler	Split	Machined	105.5 mm	103.9 mm	55.9 mm	PA - Polyamide composite	-40÷80 °C	-20÷120 °C
P53601	19	25 mm	Drive	Split	Machined	117.3 mm	117 mm	61.9 mm	PA - Polyamide composite	-40÷80 °C	-20÷120 °C
P53602	19	30 mm	Drive	Split	Machined	117.3 mm	117 mm	61.9 mm	PA - Polyamide composite	-40÷80 °C	-20÷120 °C
P53603	19	35 mm	Drive	Split	Machined	117.3 mm	117 mm	61.9 mm	PA - Polyamide composite	-40÷80 °C	-20÷120 °C
P53604	19	40 mm	Drive	Split	Machined	117.3 mm	117 mm	61.9 mm	PA - Polyamide composite	-40÷80 °C	-20÷120 °C
P53650	19	18 mm	Idler	Split	Machined	117.3 mm	117 mm	61.9 mm	PA - Polyamide composite	-40÷80 °C	-20÷120 °C
P53651	19	25 mm	Idler	Split	Machined	117.3 mm	117 mm	61.9 mm	PA - Polyamide composite	-40÷80 °C	-20÷120 °C
P53652	19	30 mm	Idler	Split	Machined	117.3 mm	117 mm	61.9 mm	PA - Polyamide composite	-40÷80 °C	-20÷120 °C
P53653	19	35 mm	Idler	Split	Machined	117.3 mm	117 mm	61.9 mm	PA - Polyamide composite	-40÷80 °C	-20÷120 °C
P53654	19	40 mm	Idler	Split	Machined	117.3 mm	117 mm	61.9 mm	PA - Polyamide composite	-40÷80 °C	-20÷120 °C
P53701	21	25 mm	Drive	Split	Machined	129.3 mm	129 mm	67.8 mm	PA - Polyamide composite	-40÷80 °C	-20÷120 °C
P53702	21	30 mm	Drive	Split	Machined	129.3 mm	129 mm	67.8 mm	PA - Polyamide composite	-40÷80 °C	-20÷120 °C
P53703	21	35 mm	Drive	Split	Machined	129.3 mm	129 mm	67.8 mm	PA - Polyamide composite	-40÷80 °C	-20÷120 °C
P53704	21	40 mm	Drive	Split	Machined	129.3 mm	129 mm	67.8 mm	PA - Polyamide composite	-40÷80 °C	-20÷120 °C
P53750	21	18 mm	Idler	Split	Machined	129.3 mm	129 mm	67.8 mm	PA - Polyamide composite	-40÷80 °C	-20÷120 °C
P53751	21	25 mm	Idler	Split	Machined	129.3 mm	129 mm	67.8 mm	PA - Polyamide composite	-40÷80 °C	-20÷120 °C
P53752	21	30 mm	Idler	Split	Machined	129.3 mm	129 mm	67.8 mm	PA - Polyamide composite	-40÷80 °C	-20÷120 °C
P53753	21	35 mm	Idler	Split	Machined	129.3 mm	129 mm	67.8 mm	PA - Polyamide composite	-40÷80 °C	-20÷120 °C
P53754	21	40 mm	Idler	Split	Machined	129.3 mm	129 mm	67.8 mm	PA - Polyamide composite	-40÷80 °C	-20÷120 °C
P53801	23	25 mm	Drive	Split	Machined	141.2 mm	142 mm	73.8 mm	PA - Polyamide composite	-40÷80 °C	-20÷120 °C
P53802	23	30 mm	Drive	Split	Machined	141.2 mm	142 mm	73.8 mm	PA - Polyamide composite	-40÷80 °C	-20÷120 °C
P53803	23	35 mm	Drive	Split	Machined	141.2 mm	142 mm	73.8 mm	PA - Polyamide composite	-40÷80 °C	-20÷120 °C
P53804	23	40 mm	Drive	Split	Machined	141.2 mm	142 mm	73.8 mm	PA - Polyamide composite	-40÷80 °C	-20÷120 °C
P53850	23	18 mm	Idler	Split	Machined	141.2 mm	142 mm	73.8 mm	PA - Polyamide composite	-40÷80 °C	-20÷120 °C
P53851	23	25 mm	Idler	Split	Machined	141.2 mm	142 mm	73.8 mm	PA - Polyamide composite	-40÷80 °C	-20÷120 °C
P53852	23	30 mm	Idler	Split	Machined	141.2 mm	142 mm	73.8 mm	PA - Polyamide composite	-40÷80 °C	-20÷120 °C
P53853	23	35 mm	Idler	Split	Machined	141.2 mm	142 mm	73.8 mm	PA - Polyamide composite	-40÷80 °C	-20÷120 °C
P53854	23	40 mm	Idler	Split	Machined	141.2 mm	142 mm	73.8 mm	PA - Polyamide composite	-40÷80 °C	-20÷120 °C
P53901	25	25 mm	Drive	Split	Machined	153.2 mm	154 mm	79.8 mm	PA - Polyamide composite	-40÷80 °C	-20÷120 °C
P53902	25	30 mm	Drive	Split	Machined	153.2 mm	154 mm	79.8 mm	PA - Polyamide composite	-40÷80 °C	-20÷120 °C
P53903	25	35 mm	Drive	Split	Machined	153.2 mm	154 mm	79.8 mm	PA - Polyamide composite	-40÷80 °C	-20÷120 °C
P53904	25	40 mm	Drive	Split	Machined	153.2 mm	154 mm	79.8 mm	PA - Polyamide composite	-40÷80 °C	-20÷120 °C
P53950	25	18 mm	Idler	Split	Machined	153.2 mm	154 mm	79.8 mm	PA - Polyamide composite	-40÷80 °C	-20÷120 °C
P53951	25	25 mm	Idler	Split	Machined	153.2 mm	154 mm	79.8 mm	PA - Polyamide composite	-40÷80 °C	-20÷120 °C
P53952	25	30 mm	Idler	Split	Machined	153.2 mm	154 mm	79.8 mm	PA - Polyamide composite	-40÷80 °C	-20÷120 °C
P53953	25	35 mm	Idler	Split	Machined	153.2 mm	154 mm	79.8 mm	PA - Polyamide composite	-40÷80 °C	-20÷120 °C
P53954	25	40 mm	Idler	Split	Machined	153.2 mm	154 mm	79.8 mm	PA - Polyamide composite	-40÷80 °C	-20÷120 °C
P54001	27	25 mm	Drive	Split	Machined	165.2 mm	166.8 mm	85.8 mm	PA - Polyamide composite	-40÷80 °C	-20÷120 °C
P54002	27	30 mm	Drive	Split	Machined	165.2 mm	166.8 mm	85.8 mm	PA - Polyamide composite	-40÷80 °C	-20÷120 °C
P54003	27	35 mm	Drive	Split	Machined	165.2 mm	166.8 mm	85.8 mm	PA - Polyamide composite	-40÷80 °C	-20÷120 °C
P54004	27	40 mm	Drive	Split	Machined	165.2 mm	166.8 mm	85.8 mm	PA - Polyamide composite	-40÷80 °C	-20÷120 °C
P54050	27	18 mm	Idler	Split	Machined	165.2 mm	166.8 mm	85.8 mm	PA - Polyamide composite	-40÷80 °C	-20÷120 °C
P54051	27	25 mm	Idler	Split	Machined	165.2 mm	166.8 mm	85.8 mm	PA - Polyamide composite	-40÷80 °C	-20÷120 °C
P54052	27	30 mm	Idler	Split	Machined	165.2 mm	166.8 mm	85.8 mm	PA - Polyamide composite	-40÷80 °C	-20÷120 °C
P54053	27	35 mm	Idler	Split	Machined	165.2 mm	166.8 mm	85.8 mm	PA - Polyamide composite	-40÷80 °C	-20÷120 °C
P54054	27	40 mm	Idler	Split	Machined	165.2 mm	166.8 mm	85.8 mm	PA - Polyamide composite	-40÷80 °C	-20÷120 °C
P54101	29	25 mm	Drive	Split	Machined	177.2 mm	178.5 mm	91.8 mm	PA - Polyamide composite	-40÷80 °C	-20÷120 °C
P54102	29	30 mm	Drive	Split	Machined	177.2 mm	178.5 mm	91.8 mm	PA - Polyamide composite	-40÷80 °C	-20÷120 °C
P54103	29	35 mm	Drive	Split	Machined	177.2 mm	178.5 mm	91.8 mm	PA - Polyamide composite	-40÷80 °C	-20÷120 °C
P54104	29	40 mm	Drive	Split	Machined	177.2 mm	178.5 mm	91.8 mm	PA - Polyamide composite	-40÷80 °C	-20÷120 °C
P54150	29	18 mm	Idler	Split	Machined	177.2 mm	178.5 mm	91.8 mm	PA - Polyamide composite	-40÷80 °C	-20÷120 °C
P54151	29	25 mm	Idler	Split	Machined	177.2 mm	178.5 mm	91.8 mm	PA - Polyamide composite	-40÷80 °C	-20÷120 °C
P54152	29	30 mm	Idler	Split	Machined	177.2 mm	178.5 mm	91.8 mm	PA - Polyamide composite	-40÷80 °C	-20÷120 °C
P54153	29	35 mm	Idler	Split	Machined	177.2 mm	178.5 mm	91.8 mm	PA - Polyamide composite	-40÷80 °C	-20÷120 °C
P54154	29	40 mm	Idler	Split	Machined	177.2 mm	178.5 mm	91.8 mm	PA - Polyamide composite	-40÷80 °C	-20÷120 °C

•
