7520 Flush Grid
Modular Belts
Description
Description
*Belts wider than standard are available with 50 mm increments.
The nominal tensile strength and the nominal width tolerance are valid for a temperature of 23°C (73 °F).
The actual width of the belt typically falls below the nominal value by 0.1% to 0.3%.
For PE belts up to 750 mm (30”) in width, the reduction ranges from -3 mm to 1 mm, and for widths beyond that, from -0.4% to 0.1%.
For POM belts up to 750 mm (30”) in width, the shrinkage ranges from -2 mm to 1 mm, and for those wider, from -0.25% to -0.25%.
For PP belts up to 750 mm (30”) in width, the decrease is between -1 mm and 2 mm, with the reduction for wider belts ranging from 0% to -0.45%.
Non-Standard belt widths are incremented by 16.65 mm (0.66”). The minimum width is 50 mm (2”).
Non-bricklayed belts are available in widths of 50 mm (2”), 100 mm (4”) and 200 mm (8”).

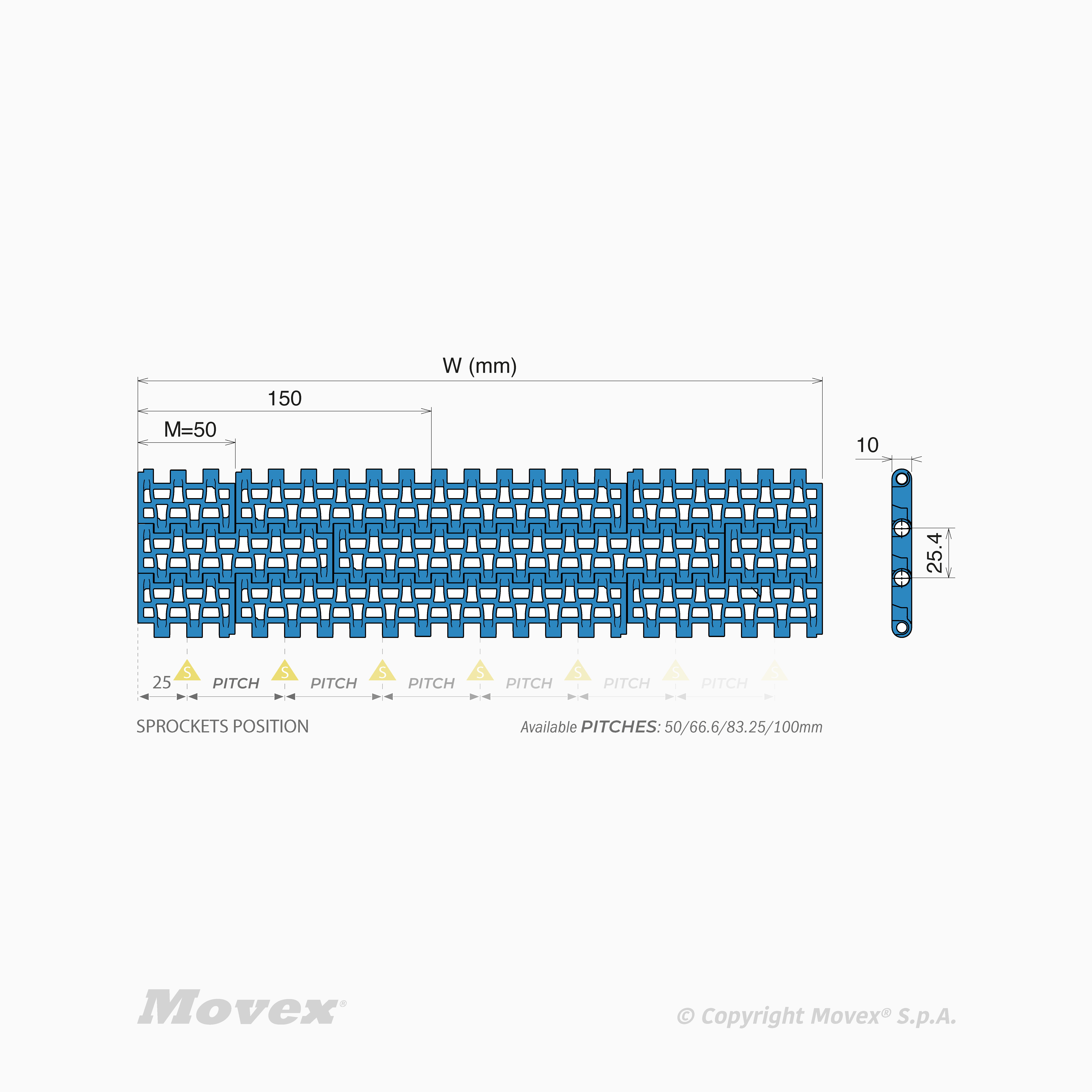

Basic features
| Series: | 7520 |
|---|---|
| Pitch: | 25.4 mm |
| Thickness: | 10 mm |
| Increments: | 50 mm - 1,97" |
| Surface Type: | FG - Flush Grid |
| Functionality: | Straight |
| Unit of measure: | Ea |
7520 Flush Grid
| Width | Material | Pin material | Version | Part | Back flex radius | Max working load | Mass | Fixation | Temperature range dry | Supplementary informations | Temperature range wet | ||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Code | Actions | ||||||||||||
| F7520FGLFB0050-PA6 | 50 mm (1,97'') | LFB - Low friction acetal (Blue) | PA6 White | No positioners | F7520 | 35 mm | 24700 N/m | 7.2 kg/m^2 | Self-Locking Pin | -40÷93 °C | Pin diameter: 5 mm Open Surface 42 % Temporary code, to be created specifically on request | -40÷65 °C |
|
| F7520FGLFB0050-PBT | 50 mm (1,97'') | LFB - Low friction acetal (Blue) | PBT White | No positioners | F7520 | 35 mm | 60000 N/m | 7.2 kg/m^2 | Self-Locking Pin | -40÷80 °C | Pin diameter: 5 mm Open Surface 42 % Temporary code, to be created specifically on request | -40÷65 °C |
|
| F7520FGLFB0050-PE | 50 mm (1,97'') | LFB - Low friction acetal (Blue) | PE White | No positioners | F7520 | 35 mm | 15000 N/m | 7.2 kg/m^2 | Self-Locking Pin | -40÷65 °C | Pin diameter: 5 mm Open Surface 42 % Temporary code, to be created specifically on request | -40÷65 °C |
|
| F7520FGLFB0050-PP | 50 mm (1,97'') | LFB - Low friction acetal (Blue) | PP White | No positioners | F7520 | 35 mm | 18000 N/m | 7.2 kg/m^2 | Self-Locking Pin | 5÷93 °C | Pin diameter: 5 mm Open Surface 42 % Temporary code, to be created specifically on request | -40÷65 °C |
|
| F7520FGLFB0100-PA6 | 100 mm (3,94'') | LFB - Low friction acetal (Blue) | PA6 White | No positioners | F7520 | 35 mm | 24700 N/m | 7.2 kg/m^2 | Self-Locking Pin | -40÷93 °C | Pin diameter: 5 mm Open Surface 42 % Temporary code, to be created specifically on request | -40÷65 °C |
|
| F7520FGLFB0100-PBT | 100 mm (3,94'') | LFB - Low friction acetal (Blue) | PBT White | No positioners | F7520 | 35 mm | 60000 N/m | 7.2 kg/m^2 | Self-Locking Pin | -40÷80 °C | Pin diameter: 5 mm Open Surface 42 % Temporary code, to be created specifically on request | -40÷65 °C |
|
| F7520FGLFB0100-PE | 100 mm (3,94'') | LFB - Low friction acetal (Blue) | PE White | No positioners | F7520 | 35 mm | 15000 N/m | 7.2 kg/m^2 | Self-Locking Pin | -40÷65 °C | Pin diameter: 5 mm Open Surface 42 % Temporary code, to be created specifically on request | -40÷65 °C |
|
| F7520FGLFB0100-PP | 100 mm (3,94'') | LFB - Low friction acetal (Blue) | PP White | No positioners | F7520 | 35 mm | 18000 N/m | 7.2 kg/m^2 | Self-Locking Pin | 5÷93 °C | Pin diameter: 5 mm Open Surface 42 % Temporary code, to be created specifically on request | -40÷65 °C |
|
| F7520FGLFB0150-PA6 | 150 mm (5,91'') | LFB - Low friction acetal (Blue) | PA6 White | No positioners | F7520 | 35 mm | 24700 N/m | 7.2 kg/m^2 | Self-Locking Pin | -40÷93 °C | Pin diameter: 5 mm Open Surface 42 % Temporary code, to be created specifically on request | -40÷65 °C |
|
| F7520FGLFB0150-PBT | 150 mm (5,91'') | LFB - Low friction acetal (Blue) | PBT White | No positioners | F7520 | 35 mm | 60000 N/m | 7.2 kg/m^2 | Self-Locking Pin | -40÷80 °C | Pin diameter: 5 mm Open Surface 42 % Temporary code, to be created specifically on request | -40÷65 °C |
|
| F7520FGLFB0150-PE | 150 mm (5,91'') | LFB - Low friction acetal (Blue) | PE White | No positioners | F7520 | 35 mm | 15000 N/m | 7.2 kg/m^2 | Self-Locking Pin | -40÷65 °C | Pin diameter: 5 mm Open Surface 42 % Temporary code, to be created specifically on request | -40÷65 °C |
|
| F7520FGLFB0150-PP | 150 mm (5,91'') | LFB - Low friction acetal (Blue) | PP White | No positioners | F7520 | 35 mm | 18000 N/m | 7.2 kg/m^2 | Self-Locking Pin | 5÷93 °C | Pin diameter: 5 mm Open Surface 42 % Temporary code, to be created specifically on request | -40÷65 °C |
|
| F7520FGLFB0200-PA6 | 200 mm (7,87'') | LFB - Low friction acetal (Blue) | PA6 White | No positioners | F7520 | 35 mm | 24700 N/m | 7.2 kg/m^2 | Self-Locking Pin | -40÷93 °C | Pin diameter: 5 mm Open Surface 42 % Temporary code, to be created specifically on request | -40÷65 °C |
|
| F7520FGLFB0200-PBT | 200 mm (7,87'') | LFB - Low friction acetal (Blue) | PBT White | No positioners | F7520 | 35 mm | 60000 N/m | 7.2 kg/m^2 | Self-Locking Pin | -40÷80 °C | Pin diameter: 5 mm Open Surface 42 % Temporary code, to be created specifically on request | -40÷65 °C |
|
| F7520FGLFB0200-PE | 200 mm (7,87'') | LFB - Low friction acetal (Blue) | PE White | No positioners | F7520 | 35 mm | 15000 N/m | 7.2 kg/m^2 | Self-Locking Pin | -40÷65 °C | Pin diameter: 5 mm Open Surface 42 % Temporary code, to be created specifically on request | -40÷65 °C |
|
| F7520FGLFB0200-PP | 200 mm (7,87'') | LFB - Low friction acetal (Blue) | PP White | No positioners | F7520 | 35 mm | 18000 N/m | 7.2 kg/m^2 | Self-Locking Pin | 5÷93 °C | Pin diameter: 5 mm Open Surface 42 % Temporary code, to be created specifically on request | -40÷65 °C |
|
| F7520FGLFB0250-PA6 | 250 mm (9,84'') | LFB - Low friction acetal (Blue) | PA6 White | No positioners | F7520 | 35 mm | 24700 N/m | 7.2 kg/m^2 | Self-Locking Pin | -40÷93 °C | Pin diameter: 5 mm Open Surface 42 % Temporary code, to be created specifically on request | -40÷65 °C |
|
| F7520FGLFB0250-PBT | 250 mm (9,84'') | LFB - Low friction acetal (Blue) | PBT White | No positioners | F7520 | 35 mm | 60000 N/m | 7.2 kg/m^2 | Self-Locking Pin | -40÷80 °C | Pin diameter: 5 mm Open Surface 42 % Temporary code, to be created specifically on request | -40÷65 °C |
|
| F7520FGLFB0250-PE | 250 mm (9,84'') | LFB - Low friction acetal (Blue) | PE White | No positioners | F7520 | 35 mm | 15000 N/m | 7.2 kg/m^2 | Self-Locking Pin | -40÷65 °C | Pin diameter: 5 mm Open Surface 42 % Temporary code, to be created specifically on request | -40÷65 °C |
|
| F7520FGLFB0250-PP | 250 mm (9,84'') | LFB - Low friction acetal (Blue) | PP White | No positioners | F7520 | 35 mm | 18000 N/m | 7.2 kg/m^2 | Self-Locking Pin | 5÷93 °C | Pin diameter: 5 mm Open Surface 42 % Temporary code, to be created specifically on request | -40÷65 °C |
|
| F7520FGLFB0300-PA6 | 300 mm (11,81'') | LFB - Low friction acetal (Blue) | PA6 White | No positioners | F7520 | 35 mm | 24700 N/m | 7.2 kg/m^2 | Self-Locking Pin | -40÷93 °C | Pin diameter: 5 mm Open Surface 42 % Temporary code, to be created specifically on request | -40÷65 °C |
|
| F7520FGLFB0300-PBT | 300 mm (11,81'') | LFB - Low friction acetal (Blue) | PBT White | No positioners | F7520 | 35 mm | 60000 N/m | 7.2 kg/m^2 | Self-Locking Pin | -40÷80 °C | Pin diameter: 5 mm Open Surface 42 % Temporary code, to be created specifically on request | -40÷65 °C |
|
| F7520FGLFB0300-PE | 300 mm (11,81'') | LFB - Low friction acetal (Blue) | PE White | No positioners | F7520 | 35 mm | 15000 N/m | 7.2 kg/m^2 | Self-Locking Pin | -40÷65 °C | Pin diameter: 5 mm Open Surface 42 % Temporary code, to be created specifically on request | -40÷65 °C |
|
| F7520FGLFB0300-PP | 300 mm (11,81'') | LFB - Low friction acetal (Blue) | PP White | No positioners | F7520 | 35 mm | 18000 N/m | 7.2 kg/m^2 | Self-Locking Pin | 5÷93 °C | Pin diameter: 5 mm Open Surface 42 % Temporary code, to be created specifically on request | -40÷65 °C |
|
| F7520FGLFB0350-PA6 | 350 mm (13,78'') | LFB - Low friction acetal (Blue) | PA6 White | No positioners | F7520 | 35 mm | 24700 N/m | 7.2 kg/m^2 | Self-Locking Pin | -40÷93 °C | Pin diameter: 5 mm Open Surface 42 % Temporary code, to be created specifically on request | -40÷65 °C |
|
| F7520FGLFB0350-PBT | 350 mm (13,78'') | LFB - Low friction acetal (Blue) | PBT White | No positioners | F7520 | 35 mm | 60000 N/m | 7.2 kg/m^2 | Self-Locking Pin | -40÷80 °C | Pin diameter: 5 mm Open Surface 42 % Temporary code, to be created specifically on request | -40÷65 °C |
|
| F7520FGLFB0350-PE | 350 mm (13,78'') | LFB - Low friction acetal (Blue) | PE White | No positioners | F7520 | 35 mm | 15000 N/m | 7.2 kg/m^2 | Self-Locking Pin | -40÷65 °C | Pin diameter: 5 mm Open Surface 42 % Temporary code, to be created specifically on request | -40÷65 °C |
|
| F7520FGLFB0350-PP | 350 mm (13,78'') | LFB - Low friction acetal (Blue) | PP White | No positioners | F7520 | 35 mm | 18000 N/m | 7.2 kg/m^2 | Self-Locking Pin | 5÷93 °C | Pin diameter: 5 mm Open Surface 42 % Temporary code, to be created specifically on request | -40÷65 °C |
|
| F7520FGLFB0400-PA6 | 400 mm (15,75'') | LFB - Low friction acetal (Blue) | PA6 White | No positioners | F7520 | 35 mm | 24700 N/m | 7.2 kg/m^2 | Self-Locking Pin | -40÷93 °C | Pin diameter: 5 mm Open Surface 42 % Temporary code, to be created specifically on request | -40÷65 °C |
|
| F7520FGLFB0400-PBT | 400 mm (15,75'') | LFB - Low friction acetal (Blue) | PBT White | No positioners | F7520 | 35 mm | 60000 N/m | 7.2 kg/m^2 | Self-Locking Pin | -40÷80 °C | Pin diameter: 5 mm Open Surface 42 % Temporary code, to be created specifically on request | -40÷65 °C |
|
| F7520FGLFB0400-PE | 400 mm (15,75'') | LFB - Low friction acetal (Blue) | PE White | No positioners | F7520 | 35 mm | 15000 N/m | 7.2 kg/m^2 | Self-Locking Pin | -40÷65 °C | Pin diameter: 5 mm Open Surface 42 % Temporary code, to be created specifically on request | -40÷65 °C |
|
| F7520FGLFB0400-PP | 400 mm (15,75'') | LFB - Low friction acetal (Blue) | PP White | No positioners | F7520 | 35 mm | 18000 N/m | 7.2 kg/m^2 | Self-Locking Pin | 5÷93 °C | Pin diameter: 5 mm Open Surface 42 % Temporary code, to be created specifically on request | -40÷65 °C |
|
| F7520FGLFB0450-PA6 | 450 mm (17,72'') | LFB - Low friction acetal (Blue) | PA6 White | No positioners | F7520 | 35 mm | 24700 N/m | 7.2 kg/m^2 | Self-Locking Pin | -40÷93 °C | Pin diameter: 5 mm Open Surface 42 % Temporary code, to be created specifically on request | -40÷65 °C |
|
| F7520FGLFB0450-PBT | 450 mm (17,72'') | LFB - Low friction acetal (Blue) | PBT White | No positioners | F7520 | 35 mm | 60000 N/m | 7.2 kg/m^2 | Self-Locking Pin | -40÷80 °C | Pin diameter: 5 mm Open Surface 42 % Temporary code, to be created specifically on request | -40÷65 °C |
|
| F7520FGLFB0450-PE | 450 mm (17,72'') | LFB - Low friction acetal (Blue) | PE White | No positioners | F7520 | 35 mm | 15000 N/m | 7.2 kg/m^2 | Self-Locking Pin | -40÷65 °C | Pin diameter: 5 mm Open Surface 42 % Temporary code, to be created specifically on request | -40÷65 °C |
|
| F7520FGLFB0450-PP | 450 mm (17,72'') | LFB - Low friction acetal (Blue) | PP White | No positioners | F7520 | 35 mm | 18000 N/m | 7.2 kg/m^2 | Self-Locking Pin | 5÷93 °C | Pin diameter: 5 mm Open Surface 42 % Temporary code, to be created specifically on request | -40÷65 °C |
|
| F7520FGLFB0500-PA6 | 500 mm (19,69'') | LFB - Low friction acetal (Blue) | PA6 White | No positioners | F7520 | 35 mm | 24700 N/m | 7.2 kg/m^2 | Self-Locking Pin | -40÷93 °C | Pin diameter: 5 mm Open Surface 42 % Temporary code, to be created specifically on request | -40÷65 °C |
|
| F7520FGLFB0500-PBT | 500 mm (19,69'') | LFB - Low friction acetal (Blue) | PBT White | No positioners | F7520 | 35 mm | 60000 N/m | 7.2 kg/m^2 | Self-Locking Pin | -40÷80 °C | Pin diameter: 5 mm Open Surface 42 % Temporary code, to be created specifically on request | -40÷65 °C |
|
| F7520FGLFB0500-PE | 500 mm (19,69'') | LFB - Low friction acetal (Blue) | PE White | No positioners | F7520 | 35 mm | 15000 N/m | 7.2 kg/m^2 | Self-Locking Pin | -40÷65 °C | Pin diameter: 5 mm Open Surface 42 % Temporary code, to be created specifically on request | -40÷65 °C |
|
| F7520FGLFB0500-PP | 500 mm (19,69'') | LFB - Low friction acetal (Blue) | PP White | No positioners | F7520 | 35 mm | 18000 N/m | 7.2 kg/m^2 | Self-Locking Pin | 5÷93 °C | Pin diameter: 5 mm Open Surface 42 % Temporary code, to be created specifically on request | -40÷65 °C |
|
| F7520FGLFB0550-PA6 | 550 mm (21,65'') | LFB - Low friction acetal (Blue) | PA6 White | No positioners | F7520 | 35 mm | 24700 N/m | 7.2 kg/m^2 | Self-Locking Pin | -40÷93 °C | Pin diameter: 5 mm Open Surface 42 % Temporary code, to be created specifically on request | -40÷65 °C |
|
| F7520FGLFB0550-PBT | 550 mm (21,65'') | LFB - Low friction acetal (Blue) | PBT White | No positioners | F7520 | 35 mm | 60000 N/m | 7.2 kg/m^2 | Self-Locking Pin | -40÷80 °C | Pin diameter: 5 mm Open Surface 42 % Temporary code, to be created specifically on request | -40÷65 °C |
|
| F7520FGLFB0550-PE | 550 mm (21,65'') | LFB - Low friction acetal (Blue) | PE White | No positioners | F7520 | 35 mm | 15000 N/m | 7.2 kg/m^2 | Self-Locking Pin | -40÷65 °C | Pin diameter: 5 mm Open Surface 42 % Temporary code, to be created specifically on request | -40÷65 °C |
|
| F7520FGLFB0550-PP | 550 mm (21,65'') | LFB - Low friction acetal (Blue) | PP White | No positioners | F7520 | 35 mm | 18000 N/m | 7.2 kg/m^2 | Self-Locking Pin | 5÷93 °C | Pin diameter: 5 mm Open Surface 42 % Temporary code, to be created specifically on request | -40÷65 °C |
|
| F7520FGLFB0600-PA6 | 600 mm (23,62'') | LFB - Low friction acetal (Blue) | PA6 White | No positioners | F7520 | 35 mm | 24700 N/m | 7.2 kg/m^2 | Self-Locking Pin | -40÷93 °C | Pin diameter: 5 mm Open Surface 42 % Temporary code, to be created specifically on request | -40÷65 °C |
|
| F7520FGLFB0600-PBT | 600 mm (23,62'') | LFB - Low friction acetal (Blue) | PBT White | No positioners | F7520 | 35 mm | 60000 N/m | 7.2 kg/m^2 | Self-Locking Pin | -40÷80 °C | Pin diameter: 5 mm Open Surface 42 % Temporary code, to be created specifically on request | -40÷65 °C |
|
| F7520FGLFB0600-PE | 600 mm (23,62'') | LFB - Low friction acetal (Blue) | PE White | No positioners | F7520 | 35 mm | 15000 N/m | 7.2 kg/m^2 | Self-Locking Pin | -40÷65 °C | Pin diameter: 5 mm Open Surface 42 % Temporary code, to be created specifically on request | -40÷65 °C |
|
| F7520FGLFB0600-PP | 600 mm (23,62'') | LFB - Low friction acetal (Blue) | PP White | No positioners | F7520 | 35 mm | 18000 N/m | 7.2 kg/m^2 | Self-Locking Pin | 5÷93 °C | Pin diameter: 5 mm Open Surface 42 % Temporary code, to be created specifically on request | -40÷65 °C |
|
| F7520FGLFB0650-PA6 | 650 mm (25,59'') | LFB - Low friction acetal (Blue) | PA6 White | No positioners | F7520 | 35 mm | 24700 N/m | 7.2 kg/m^2 | Self-Locking Pin | -40÷93 °C | Pin diameter: 5 mm Open Surface 42 % Temporary code, to be created specifically on request | -40÷65 °C |
|
| F7520FGLFB0650-PBT | 650 mm (25,59'') | LFB - Low friction acetal (Blue) | PBT White | No positioners | F7520 | 35 mm | 60000 N/m | 7.2 kg/m^2 | Self-Locking Pin | -40÷80 °C | Pin diameter: 5 mm Open Surface 42 % Temporary code, to be created specifically on request | -40÷65 °C |
|
| F7520FGLFB0650-PE | 650 mm (25,59'') | LFB - Low friction acetal (Blue) | PE White | No positioners | F7520 | 35 mm | 15000 N/m | 7.2 kg/m^2 | Self-Locking Pin | -40÷65 °C | Pin diameter: 5 mm Open Surface 42 % Temporary code, to be created specifically on request | -40÷65 °C |
|
| F7520FGLFB0650-PP | 650 mm (25,59'') | LFB - Low friction acetal (Blue) | PP White | No positioners | F7520 | 35 mm | 18000 N/m | 7.2 kg/m^2 | Self-Locking Pin | 5÷93 °C | Pin diameter: 5 mm Open Surface 42 % Temporary code, to be created specifically on request | -40÷65 °C |
|
| F7520FGLFB0700-PA6 | 700 mm (27,56'') | LFB - Low friction acetal (Blue) | PA6 White | No positioners | F7520 | 35 mm | 24700 N/m | 7.2 kg/m^2 | Self-Locking Pin | -40÷93 °C | Pin diameter: 5 mm Open Surface 42 % Temporary code, to be created specifically on request | -40÷65 °C |
|
| F7520FGLFB0700-PBT | 700 mm (27,56'') | LFB - Low friction acetal (Blue) | PBT White | No positioners | F7520 | 35 mm | 60000 N/m | 7.2 kg/m^2 | Self-Locking Pin | -40÷80 °C | Pin diameter: 5 mm Open Surface 42 % Temporary code, to be created specifically on request | -40÷65 °C |
|
| F7520FGLFB0700-PE | 700 mm (27,56'') | LFB - Low friction acetal (Blue) | PE White | No positioners | F7520 | 35 mm | 15000 N/m | 7.2 kg/m^2 | Self-Locking Pin | -40÷65 °C | Pin diameter: 5 mm Open Surface 42 % Temporary code, to be created specifically on request | -40÷65 °C |
|
| F7520FGLFB0700-PP | 700 mm (27,56'') | LFB - Low friction acetal (Blue) | PP White | No positioners | F7520 | 35 mm | 18000 N/m | 7.2 kg/m^2 | Self-Locking Pin | 5÷93 °C | Pin diameter: 5 mm Open Surface 42 % Temporary code, to be created specifically on request | -40÷65 °C |
|
| F7520FGLFB0750-PA6 | 750 mm (29,53'') | LFB - Low friction acetal (Blue) | PA6 White | No positioners | F7520 | 35 mm | 24700 N/m | 7.2 kg/m^2 | Self-Locking Pin | -40÷93 °C | Pin diameter: 5 mm Open Surface 42 % Temporary code, to be created specifically on request | -40÷65 °C |
|
| F7520FGLFB0750-PBT | 750 mm (29,53'') | LFB - Low friction acetal (Blue) | PBT White | No positioners | F7520 | 35 mm | 60000 N/m | 7.2 kg/m^2 | Self-Locking Pin | -40÷80 °C | Pin diameter: 5 mm Open Surface 42 % Temporary code, to be created specifically on request | -40÷65 °C |
|
| F7520FGLFB0750-PE | 750 mm (29,53'') | LFB - Low friction acetal (Blue) | PE White | No positioners | F7520 | 35 mm | 15000 N/m | 7.2 kg/m^2 | Self-Locking Pin | -40÷65 °C | Pin diameter: 5 mm Open Surface 42 % Temporary code, to be created specifically on request | -40÷65 °C |
|
| F7520FGLFB0750-PP | 750 mm (29,53'') | LFB - Low friction acetal (Blue) | PP White | No positioners | F7520 | 35 mm | 18000 N/m | 7.2 kg/m^2 | Self-Locking Pin | 5÷93 °C | Pin diameter: 5 mm Open Surface 42 % Temporary code, to be created specifically on request | -40÷65 °C |
|
| F7520FGLFB0800-PA6 | 800 mm (31,5'') | LFB - Low friction acetal (Blue) | PA6 White | No positioners | F7520 | 35 mm | 24700 N/m | 7.2 kg/m^2 | Self-Locking Pin | -40÷93 °C | Pin diameter: 5 mm Open Surface 42 % Temporary code, to be created specifically on request | -40÷65 °C |
|
| F7520FGLFB0800-PBT | 800 mm (31,5'') | LFB - Low friction acetal (Blue) | PBT White | No positioners | F7520 | 35 mm | 60000 N/m | 7.2 kg/m^2 | Self-Locking Pin | -40÷80 °C | Pin diameter: 5 mm Open Surface 42 % Temporary code, to be created specifically on request | -40÷65 °C |
|
| F7520FGLFB0800-PE | 800 mm (31,5'') | LFB - Low friction acetal (Blue) | PE White | No positioners | F7520 | 35 mm | 15000 N/m | 7.2 kg/m^2 | Self-Locking Pin | -40÷65 °C | Pin diameter: 5 mm Open Surface 42 % Temporary code, to be created specifically on request | -40÷65 °C |
|
| F7520FGLFB0800-PP | 800 mm (31,5'') | LFB - Low friction acetal (Blue) | PP White | No positioners | F7520 | 35 mm | 18000 N/m | 7.2 kg/m^2 | Self-Locking Pin | 5÷93 °C | Pin diameter: 5 mm Open Surface 42 % Temporary code, to be created specifically on request | -40÷65 °C |
|
| F7520FGLFB0850-PA6 | 850 mm (33,46'') | LFB - Low friction acetal (Blue) | PA6 White | No positioners | F7520 | 35 mm | 24700 N/m | 7.2 kg/m^2 | Self-Locking Pin | -40÷93 °C | Pin diameter: 5 mm Open Surface 42 % Temporary code, to be created specifically on request | -40÷65 °C |
|
| F7520FGLFB0850-PBT | 850 mm (33,46'') | LFB - Low friction acetal (Blue) | PBT White | No positioners | F7520 | 35 mm | 60000 N/m | 7.2 kg/m^2 | Self-Locking Pin | -40÷80 °C | Pin diameter: 5 mm Open Surface 42 % Temporary code, to be created specifically on request | -40÷65 °C |
|
| F7520FGLFB0850-PE | 850 mm (33,46'') | LFB - Low friction acetal (Blue) | PE White | No positioners | F7520 | 35 mm | 15000 N/m | 7.2 kg/m^2 | Self-Locking Pin | -40÷65 °C | Pin diameter: 5 mm Open Surface 42 % Temporary code, to be created specifically on request | -40÷65 °C |
|
| F7520FGLFB0850-PP | 850 mm (33,46'') | LFB - Low friction acetal (Blue) | PP White | No positioners | F7520 | 35 mm | 18000 N/m | 7.2 kg/m^2 | Self-Locking Pin | 5÷93 °C | Pin diameter: 5 mm Open Surface 42 % Temporary code, to be created specifically on request | -40÷65 °C |
|
| F7520FGLFB0900-PA6 | 900 mm (35,43'') | LFB - Low friction acetal (Blue) | PA6 White | No positioners | F7520 | 35 mm | 24700 N/m | 7.2 kg/m^2 | Self-Locking Pin | -40÷93 °C | Pin diameter: 5 mm Open Surface 42 % Temporary code, to be created specifically on request | -40÷65 °C |
|
| F7520FGLFB0900-PBT | 900 mm (35,43'') | LFB - Low friction acetal (Blue) | PBT White | No positioners | F7520 | 35 mm | 60000 N/m | 7.2 kg/m^2 | Self-Locking Pin | -40÷80 °C | Pin diameter: 5 mm Open Surface 42 % Temporary code, to be created specifically on request | -40÷65 °C |
|
| F7520FGLFB0900-PE | 900 mm (35,43'') | LFB - Low friction acetal (Blue) | PE White | No positioners | F7520 | 35 mm | 15000 N/m | 7.2 kg/m^2 | Self-Locking Pin | -40÷65 °C | Pin diameter: 5 mm Open Surface 42 % Temporary code, to be created specifically on request | -40÷65 °C |
|
| F7520FGLFB0900-PP | 900 mm (35,43'') | LFB - Low friction acetal (Blue) | PP White | No positioners | F7520 | 35 mm | 18000 N/m | 7.2 kg/m^2 | Self-Locking Pin | 5÷93 °C | Pin diameter: 5 mm Open Surface 42 % Temporary code, to be created specifically on request | -40÷65 °C |
|
| F7520FGLFC0050-PA6 | 50 mm (1,97'') | LFC - Low friction acetal (cyan) | PA6 White | No positioners | F7520 | 35 mm | 24700 N/m | 7.2 kg/m^2 | Self-Locking Pin | -40÷93 °C | Pin diameter: 5 mm Open Surface 42 % Temporary code, to be created specifically on request | -40÷65 °C |
|
| F7520FGLFC0050-PBT | 50 mm (1,97'') | LFC - Low friction acetal (cyan) | PBT White | No positioners | F7520 | 35 mm | 60000 N/m | 7.2 kg/m^2 | Self-Locking Pin | -40÷80 °C | Pin diameter: 5 mm Open Surface 42 % Temporary code, to be created specifically on request | -40÷65 °C |
|
| F7520FGLFC0050-PE | 50 mm (1,97'') | LFC - Low friction acetal (cyan) | PE White | No positioners | F7520 | 35 mm | 15000 N/m | 7.2 kg/m^2 | Self-Locking Pin | -40÷65 °C | Pin diameter: 5 mm Open Surface 42 % Temporary code, to be created specifically on request | -40÷65 °C |
|
| F7520FGLFC0050-PP | 50 mm (1,97'') | LFC - Low friction acetal (cyan) | PP White | No positioners | F7520 | 35 mm | 18000 N/m | 7.2 kg/m^2 | Self-Locking Pin | 5÷93 °C | Pin diameter: 5 mm Open Surface 42 % Temporary code, to be created specifically on request | -40÷65 °C |
|
| F7520FGLFC0100-PA6 | 100 mm (3,94'') | LFC - Low friction acetal (cyan) | PA6 White | No positioners | F7520 | 35 mm | 24700 N/m | 7.2 kg/m^2 | Self-Locking Pin | -40÷93 °C | Pin diameter: 5 mm Open Surface 42 % Temporary code, to be created specifically on request | -40÷65 °C |
|
| F7520FGLFC0100-PBT | 100 mm (3,94'') | LFC - Low friction acetal (cyan) | PBT White | No positioners | F7520 | 35 mm | 60000 N/m | 7.2 kg/m^2 | Self-Locking Pin | -40÷80 °C | Pin diameter: 5 mm Open Surface 42 % Temporary code, to be created specifically on request | -40÷65 °C |
|
| F7520FGLFC0100-PE | 100 mm (3,94'') | LFC - Low friction acetal (cyan) | PE White | No positioners | F7520 | 35 mm | 15000 N/m | 7.2 kg/m^2 | Self-Locking Pin | -40÷65 °C | Pin diameter: 5 mm Open Surface 42 % Temporary code, to be created specifically on request | -40÷65 °C |
|
| F7520FGLFC0100-PP | 100 mm (3,94'') | LFC - Low friction acetal (cyan) | PP White | No positioners | F7520 | 35 mm | 18000 N/m | 7.2 kg/m^2 | Self-Locking Pin | 5÷93 °C | Pin diameter: 5 mm Open Surface 42 % Temporary code, to be created specifically on request | -40÷65 °C |
|
| F7520FGLFC0150-PA6 | 150 mm (5,91'') | LFC - Low friction acetal (cyan) | PA6 White | No positioners | F7520 | 35 mm | 24700 N/m | 7.2 kg/m^2 | Self-Locking Pin | -40÷93 °C | Pin diameter: 5 mm Open Surface 42 % Temporary code, to be created specifically on request | -40÷65 °C |
|
| F7520FGLFC0150-PBT | 150 mm (5,91'') | LFC - Low friction acetal (cyan) | PBT White | No positioners | F7520 | 35 mm | 60000 N/m | 7.2 kg/m^2 | Self-Locking Pin | -40÷80 °C | Pin diameter: 5 mm Open Surface 42 % Temporary code, to be created specifically on request | -40÷65 °C |
|
| F7520FGLFC0150-PE | 150 mm (5,91'') | LFC - Low friction acetal (cyan) | PE White | No positioners | F7520 | 35 mm | 15000 N/m | 7.2 kg/m^2 | Self-Locking Pin | -40÷65 °C | Pin diameter: 5 mm Open Surface 42 % Temporary code, to be created specifically on request | -40÷65 °C |
|
| F7520FGLFC0150-PP | 150 mm (5,91'') | LFC - Low friction acetal (cyan) | PP White | No positioners | F7520 | 35 mm | 18000 N/m | 7.2 kg/m^2 | Self-Locking Pin | 5÷93 °C | Pin diameter: 5 mm Open Surface 42 % Temporary code, to be created specifically on request | -40÷65 °C |
|
| F7520FGLFC0200-PA6 | 200 mm (7,87'') | LFC - Low friction acetal (cyan) | PA6 White | No positioners | F7520 | 35 mm | 24700 N/m | 7.2 kg/m^2 | Self-Locking Pin | -40÷93 °C | Pin diameter: 5 mm Open Surface 42 % Temporary code, to be created specifically on request | -40÷65 °C |
|
| F7520FGLFC0200-PBT | 200 mm (7,87'') | LFC - Low friction acetal (cyan) | PBT White | No positioners | F7520 | 35 mm | 60000 N/m | 7.2 kg/m^2 | Self-Locking Pin | -40÷80 °C | Pin diameter: 5 mm Open Surface 42 % Temporary code, to be created specifically on request | -40÷65 °C |
|
| F7520FGLFC0200-PE | 200 mm (7,87'') | LFC - Low friction acetal (cyan) | PE White | No positioners | F7520 | 35 mm | 15000 N/m | 7.2 kg/m^2 | Self-Locking Pin | -40÷65 °C | Pin diameter: 5 mm Open Surface 42 % Temporary code, to be created specifically on request | -40÷65 °C |
|
| F7520FGLFC0200-PP | 200 mm (7,87'') | LFC - Low friction acetal (cyan) | PP White | No positioners | F7520 | 35 mm | 18000 N/m | 7.2 kg/m^2 | Self-Locking Pin | 5÷93 °C | Pin diameter: 5 mm Open Surface 42 % Temporary code, to be created specifically on request | -40÷65 °C |
|
| F7520FGLFC0250-PA6 | 250 mm (9,84'') | LFC - Low friction acetal (cyan) | PA6 White | No positioners | F7520 | 35 mm | 24700 N/m | 7.2 kg/m^2 | Self-Locking Pin | -40÷93 °C | Pin diameter: 5 mm Open Surface 42 % Temporary code, to be created specifically on request | -40÷65 °C |
|
| F7520FGLFC0250-PBT | 250 mm (9,84'') | LFC - Low friction acetal (cyan) | PBT White | No positioners | F7520 | 35 mm | 60000 N/m | 7.2 kg/m^2 | Self-Locking Pin | -40÷80 °C | Pin diameter: 5 mm Open Surface 42 % Temporary code, to be created specifically on request | -40÷65 °C |
|
| F7520FGLFC0250-PE | 250 mm (9,84'') | LFC - Low friction acetal (cyan) | PE White | No positioners | F7520 | 35 mm | 15000 N/m | 7.2 kg/m^2 | Self-Locking Pin | -40÷65 °C | Pin diameter: 5 mm Open Surface 42 % Temporary code, to be created specifically on request | -40÷65 °C |
|
| F7520FGLFC0250-PP | 250 mm (9,84'') | LFC - Low friction acetal (cyan) | PP White | No positioners | F7520 | 35 mm | 18000 N/m | 7.2 kg/m^2 | Self-Locking Pin | 5÷93 °C | Pin diameter: 5 mm Open Surface 42 % Temporary code, to be created specifically on request | -40÷65 °C |
|
| F7520FGLFC0300-PA6 | 300 mm (11,81'') | LFC - Low friction acetal (cyan) | PA6 White | No positioners | F7520 | 35 mm | 24700 N/m | 7.2 kg/m^2 | Self-Locking Pin | -40÷93 °C | Pin diameter: 5 mm Open Surface 42 % Temporary code, to be created specifically on request | -40÷65 °C |
|
| F7520FGLFC0300-PBT | 300 mm (11,81'') | LFC - Low friction acetal (cyan) | PBT White | No positioners | F7520 | 35 mm | 60000 N/m | 7.2 kg/m^2 | Self-Locking Pin | -40÷80 °C | Pin diameter: 5 mm Open Surface 42 % Temporary code, to be created specifically on request | -40÷65 °C |
|
| F7520FGLFC0300-PE | 300 mm (11,81'') | LFC - Low friction acetal (cyan) | PE White | No positioners | F7520 | 35 mm | 15000 N/m | 7.2 kg/m^2 | Self-Locking Pin | -40÷65 °C | Pin diameter: 5 mm Open Surface 42 % Temporary code, to be created specifically on request | -40÷65 °C |
|
| F7520FGLFC0300-PP | 300 mm (11,81'') | LFC - Low friction acetal (cyan) | PP White | No positioners | F7520 | 35 mm | 18000 N/m | 7.2 kg/m^2 | Self-Locking Pin | 5÷93 °C | Pin diameter: 5 mm Open Surface 42 % Temporary code, to be created specifically on request | -40÷65 °C |
|
| F7520FGLFC0350-PA6 | 350 mm (13,78'') | LFC - Low friction acetal (cyan) | PA6 White | No positioners | F7520 | 35 mm | 24700 N/m | 7.2 kg/m^2 | Self-Locking Pin | -40÷93 °C | Pin diameter: 5 mm Open Surface 42 % Temporary code, to be created specifically on request | -40÷65 °C |
|
| F7520FGLFC0350-PBT | 350 mm (13,78'') | LFC - Low friction acetal (cyan) | PBT White | No positioners | F7520 | 35 mm | 60000 N/m | 7.2 kg/m^2 | Self-Locking Pin | -40÷80 °C | Pin diameter: 5 mm Open Surface 42 % Temporary code, to be created specifically on request | -40÷65 °C |
|
| F7520FGLFC0350-PE | 350 mm (13,78'') | LFC - Low friction acetal (cyan) | PE White | No positioners | F7520 | 35 mm | 15000 N/m | 7.2 kg/m^2 | Self-Locking Pin | -40÷65 °C | Pin diameter: 5 mm Open Surface 42 % Temporary code, to be created specifically on request | -40÷65 °C |
|
| F7520FGLFC0350-PP | 350 mm (13,78'') | LFC - Low friction acetal (cyan) | PP White | No positioners | F7520 | 35 mm | 18000 N/m | 7.2 kg/m^2 | Self-Locking Pin | 5÷93 °C | Pin diameter: 5 mm Open Surface 42 % Temporary code, to be created specifically on request | -40÷65 °C |
|
| F7520FGLFC0400-PA6 | 400 mm (15,75'') | LFC - Low friction acetal (cyan) | PA6 White | No positioners | F7520 | 35 mm | 24700 N/m | 7.2 kg/m^2 | Self-Locking Pin | -40÷93 °C | Pin diameter: 5 mm Open Surface 42 % Temporary code, to be created specifically on request | -40÷65 °C |
|
| F7520FGLFC0400-PBT | 400 mm (15,75'') | LFC - Low friction acetal (cyan) | PBT White | No positioners | F7520 | 35 mm | 60000 N/m | 7.2 kg/m^2 | Self-Locking Pin | -40÷80 °C | Pin diameter: 5 mm Open Surface 42 % Temporary code, to be created specifically on request | -40÷65 °C |
|
| F7520FGLFC0400-PE | 400 mm (15,75'') | LFC - Low friction acetal (cyan) | PE White | No positioners | F7520 | 35 mm | 15000 N/m | 7.2 kg/m^2 | Self-Locking Pin | -40÷65 °C | Pin diameter: 5 mm Open Surface 42 % Temporary code, to be created specifically on request | -40÷65 °C |
|
| F7520FGLFC0400-PP | 400 mm (15,75'') | LFC - Low friction acetal (cyan) | PP White | No positioners | F7520 | 35 mm | 18000 N/m | 7.2 kg/m^2 | Self-Locking Pin | 5÷93 °C | Pin diameter: 5 mm Open Surface 42 % Temporary code, to be created specifically on request | -40÷65 °C |
|
| F7520FGLFC0450-PA6 | 450 mm (17,72'') | LFC - Low friction acetal (cyan) | PA6 White | No positioners | F7520 | 35 mm | 24700 N/m | 7.2 kg/m^2 | Self-Locking Pin | -40÷93 °C | Pin diameter: 5 mm Open Surface 42 % Temporary code, to be created specifically on request | -40÷65 °C |
|
| F7520FGLFC0450-PBT | 450 mm (17,72'') | LFC - Low friction acetal (cyan) | PBT White | No positioners | F7520 | 35 mm | 60000 N/m | 7.2 kg/m^2 | Self-Locking Pin | -40÷80 °C | Pin diameter: 5 mm Open Surface 42 % Temporary code, to be created specifically on request | -40÷65 °C |
|
| F7520FGLFC0450-PE | 450 mm (17,72'') | LFC - Low friction acetal (cyan) | PE White | No positioners | F7520 | 35 mm | 15000 N/m | 7.2 kg/m^2 | Self-Locking Pin | -40÷65 °C | Pin diameter: 5 mm Open Surface 42 % Temporary code, to be created specifically on request | -40÷65 °C |
|
| F7520FGLFC0450-PP | 450 mm (17,72'') | LFC - Low friction acetal (cyan) | PP White | No positioners | F7520 | 35 mm | 18000 N/m | 7.2 kg/m^2 | Self-Locking Pin | 5÷93 °C | Pin diameter: 5 mm Open Surface 42 % Temporary code, to be created specifically on request | -40÷65 °C |
|
| F7520FGLFC0500-PA6 | 500 mm (19,69'') | LFC - Low friction acetal (cyan) | PA6 White | No positioners | F7520 | 35 mm | 24700 N/m | 7.2 kg/m^2 | Self-Locking Pin | -40÷93 °C | Pin diameter: 5 mm Open Surface 42 % Temporary code, to be created specifically on request | -40÷65 °C |
|
| F7520FGLFC0500-PBT | 500 mm (19,69'') | LFC - Low friction acetal (cyan) | PBT White | No positioners | F7520 | 35 mm | 60000 N/m | 7.2 kg/m^2 | Self-Locking Pin | -40÷80 °C | Pin diameter: 5 mm Open Surface 42 % Temporary code, to be created specifically on request | -40÷65 °C |
|
| F7520FGLFC0500-PE | 500 mm (19,69'') | LFC - Low friction acetal (cyan) | PE White | No positioners | F7520 | 35 mm | 15000 N/m | 7.2 kg/m^2 | Self-Locking Pin | -40÷65 °C | Pin diameter: 5 mm Open Surface 42 % Temporary code, to be created specifically on request | -40÷65 °C |
|
| F7520FGLFC0500-PP | 500 mm (19,69'') | LFC - Low friction acetal (cyan) | PP White | No positioners | F7520 | 35 mm | 18000 N/m | 7.2 kg/m^2 | Self-Locking Pin | 5÷93 °C | Pin diameter: 5 mm Open Surface 42 % Temporary code, to be created specifically on request | -40÷65 °C |
|
| F7520FGLFC0550-PA6 | 550 mm (21,65'') | LFC - Low friction acetal (cyan) | PA6 White | No positioners | F7520 | 35 mm | 24700 N/m | 7.2 kg/m^2 | Self-Locking Pin | -40÷93 °C | Pin diameter: 5 mm Open Surface 42 % Temporary code, to be created specifically on request | -40÷65 °C |
|
| F7520FGLFC0550-PBT | 550 mm (21,65'') | LFC - Low friction acetal (cyan) | PBT White | No positioners | F7520 | 35 mm | 60000 N/m | 7.2 kg/m^2 | Self-Locking Pin | -40÷80 °C | Pin diameter: 5 mm Open Surface 42 % Temporary code, to be created specifically on request | -40÷65 °C |
|
| F7520FGLFC0550-PE | 550 mm (21,65'') | LFC - Low friction acetal (cyan) | PE White | No positioners | F7520 | 35 mm | 15000 N/m | 7.2 kg/m^2 | Self-Locking Pin | -40÷65 °C | Pin diameter: 5 mm Open Surface 42 % Temporary code, to be created specifically on request | -40÷65 °C |
|
| F7520FGLFC0550-PP | 550 mm (21,65'') | LFC - Low friction acetal (cyan) | PP White | No positioners | F7520 | 35 mm | 18000 N/m | 7.2 kg/m^2 | Self-Locking Pin | 5÷93 °C | Pin diameter: 5 mm Open Surface 42 % Temporary code, to be created specifically on request | -40÷65 °C |
|
| F7520FGLFC0600-PA6 | 600 mm (23,62'') | LFC - Low friction acetal (cyan) | PA6 White | No positioners | F7520 | 35 mm | 24700 N/m | 7.2 kg/m^2 | Self-Locking Pin | -40÷93 °C | Pin diameter: 5 mm Open Surface 42 % Temporary code, to be created specifically on request | -40÷65 °C |
|
| F7520FGLFC0600-PBT | 600 mm (23,62'') | LFC - Low friction acetal (cyan) | PBT White | No positioners | F7520 | 35 mm | 60000 N/m | 7.2 kg/m^2 | Self-Locking Pin | -40÷80 °C | Pin diameter: 5 mm Open Surface 42 % Temporary code, to be created specifically on request | -40÷65 °C |
|
| F7520FGLFC0600-PE | 600 mm (23,62'') | LFC - Low friction acetal (cyan) | PE White | No positioners | F7520 | 35 mm | 15000 N/m | 7.2 kg/m^2 | Self-Locking Pin | -40÷65 °C | Pin diameter: 5 mm Open Surface 42 % Temporary code, to be created specifically on request | -40÷65 °C |
|
| F7520FGLFC0600-PP | 600 mm (23,62'') | LFC - Low friction acetal (cyan) | PP White | No positioners | F7520 | 35 mm | 18000 N/m | 7.2 kg/m^2 | Self-Locking Pin | 5÷93 °C | Pin diameter: 5 mm Open Surface 42 % Temporary code, to be created specifically on request | -40÷65 °C |
|
| F7520FGLFC0650-PA6 | 650 mm (25,59'') | LFC - Low friction acetal (cyan) | PA6 White | No positioners | F7520 | 35 mm | 24700 N/m | 7.2 kg/m^2 | Self-Locking Pin | -40÷93 °C | Pin diameter: 5 mm Open Surface 42 % Temporary code, to be created specifically on request | -40÷65 °C |
|
| F7520FGLFC0650-PBT | 650 mm (25,59'') | LFC - Low friction acetal (cyan) | PBT White | No positioners | F7520 | 35 mm | 60000 N/m | 7.2 kg/m^2 | Self-Locking Pin | -40÷80 °C | Pin diameter: 5 mm Open Surface 42 % Temporary code, to be created specifically on request | -40÷65 °C |
|
| F7520FGLFC0650-PE | 650 mm (25,59'') | LFC - Low friction acetal (cyan) | PE White | No positioners | F7520 | 35 mm | 15000 N/m | 7.2 kg/m^2 | Self-Locking Pin | -40÷65 °C | Pin diameter: 5 mm Open Surface 42 % Temporary code, to be created specifically on request | -40÷65 °C |
|
| F7520FGLFC0650-PP | 650 mm (25,59'') | LFC - Low friction acetal (cyan) | PP White | No positioners | F7520 | 35 mm | 18000 N/m | 7.2 kg/m^2 | Self-Locking Pin | 5÷93 °C | Pin diameter: 5 mm Open Surface 42 % Temporary code, to be created specifically on request | -40÷65 °C |
|
| F7520FGLFC0700-PA6 | 700 mm (27,56'') | LFC - Low friction acetal (cyan) | PA6 White | No positioners | F7520 | 35 mm | 24700 N/m | 7.2 kg/m^2 | Self-Locking Pin | -40÷93 °C | Pin diameter: 5 mm Open Surface 42 % Temporary code, to be created specifically on request | -40÷65 °C |
|
| F7520FGLFC0700-PBT | 700 mm (27,56'') | LFC - Low friction acetal (cyan) | PBT White | No positioners | F7520 | 35 mm | 60000 N/m | 7.2 kg/m^2 | Self-Locking Pin | -40÷80 °C | Pin diameter: 5 mm Open Surface 42 % Temporary code, to be created specifically on request | -40÷65 °C |
|
| F7520FGLFC0700-PE | 700 mm (27,56'') | LFC - Low friction acetal (cyan) | PE White | No positioners | F7520 | 35 mm | 15000 N/m | 7.2 kg/m^2 | Self-Locking Pin | -40÷65 °C | Pin diameter: 5 mm Open Surface 42 % Temporary code, to be created specifically on request | -40÷65 °C |
|
| F7520FGLFC0700-PP | 700 mm (27,56'') | LFC - Low friction acetal (cyan) | PP White | No positioners | F7520 | 35 mm | 18000 N/m | 7.2 kg/m^2 | Self-Locking Pin | 5÷93 °C | Pin diameter: 5 mm Open Surface 42 % Temporary code, to be created specifically on request | -40÷65 °C |
|
| F7520FGLFC0750-PA6 | 750 mm (29,53'') | LFC - Low friction acetal (cyan) | PA6 White | No positioners | F7520 | 35 mm | 24700 N/m | 7.2 kg/m^2 | Self-Locking Pin | -40÷93 °C | Pin diameter: 5 mm Open Surface 42 % Temporary code, to be created specifically on request | -40÷65 °C |
|
| F7520FGLFC0750-PBT | 750 mm (29,53'') | LFC - Low friction acetal (cyan) | PBT White | No positioners | F7520 | 35 mm | 60000 N/m | 7.2 kg/m^2 | Self-Locking Pin | -40÷80 °C | Pin diameter: 5 mm Open Surface 42 % Temporary code, to be created specifically on request | -40÷65 °C |
|
| F7520FGLFC0750-PE | 750 mm (29,53'') | LFC - Low friction acetal (cyan) | PE White | No positioners | F7520 | 35 mm | 15000 N/m | 7.2 kg/m^2 | Self-Locking Pin | -40÷65 °C | Pin diameter: 5 mm Open Surface 42 % Temporary code, to be created specifically on request | -40÷65 °C |
|
| F7520FGLFC0750-PP | 750 mm (29,53'') | LFC - Low friction acetal (cyan) | PP White | No positioners | F7520 | 35 mm | 18000 N/m | 7.2 kg/m^2 | Self-Locking Pin | 5÷93 °C | Pin diameter: 5 mm Open Surface 42 % Temporary code, to be created specifically on request | -40÷65 °C |
|
| F7520FGLFC0800-PA6 | 800 mm (31,5'') | LFC - Low friction acetal (cyan) | PA6 White | No positioners | F7520 | 35 mm | 24700 N/m | 7.2 kg/m^2 | Self-Locking Pin | -40÷93 °C | Pin diameter: 5 mm Open Surface 42 % Temporary code, to be created specifically on request | -40÷65 °C |
|
| F7520FGLFC0800-PBT | 800 mm (31,5'') | LFC - Low friction acetal (cyan) | PBT White | No positioners | F7520 | 35 mm | 60000 N/m | 7.2 kg/m^2 | Self-Locking Pin | -40÷80 °C | Pin diameter: 5 mm Open Surface 42 % Temporary code, to be created specifically on request | -40÷65 °C |
|
| F7520FGLFC0800-PE | 800 mm (31,5'') | LFC - Low friction acetal (cyan) | PE White | No positioners | F7520 | 35 mm | 15000 N/m | 7.2 kg/m^2 | Self-Locking Pin | -40÷65 °C | Pin diameter: 5 mm Open Surface 42 % Temporary code, to be created specifically on request | -40÷65 °C |
|
| F7520FGLFC0800-PP | 800 mm (31,5'') | LFC - Low friction acetal (cyan) | PP White | No positioners | F7520 | 35 mm | 18000 N/m | 7.2 kg/m^2 | Self-Locking Pin | 5÷93 °C | Pin diameter: 5 mm Open Surface 42 % Temporary code, to be created specifically on request | -40÷65 °C |
|
| F7520FGLFC0850-PA6 | 850 mm (33,46'') | LFC - Low friction acetal (cyan) | PA6 White | No positioners | F7520 | 35 mm | 24700 N/m | 7.2 kg/m^2 | Self-Locking Pin | -40÷93 °C | Pin diameter: 5 mm Open Surface 42 % Temporary code, to be created specifically on request | -40÷65 °C |
|
| F7520FGLFC0850-PBT | 850 mm (33,46'') | LFC - Low friction acetal (cyan) | PBT White | No positioners | F7520 | 35 mm | 60000 N/m | 7.2 kg/m^2 | Self-Locking Pin | -40÷80 °C | Pin diameter: 5 mm Open Surface 42 % Temporary code, to be created specifically on request | -40÷65 °C |
|
| F7520FGLFC0850-PE | 850 mm (33,46'') | LFC - Low friction acetal (cyan) | PE White | No positioners | F7520 | 35 mm | 15000 N/m | 7.2 kg/m^2 | Self-Locking Pin | -40÷65 °C | Pin diameter: 5 mm Open Surface 42 % Temporary code, to be created specifically on request | -40÷65 °C |
|
| F7520FGLFC0850-PP | 850 mm (33,46'') | LFC - Low friction acetal (cyan) | PP White | No positioners | F7520 | 35 mm | 18000 N/m | 7.2 kg/m^2 | Self-Locking Pin | 5÷93 °C | Pin diameter: 5 mm Open Surface 42 % Temporary code, to be created specifically on request | -40÷65 °C |
|
| F7520FGLFC0900-PA6 | 900 mm (35,43'') | LFC - Low friction acetal (cyan) | PA6 White | No positioners | F7520 | 35 mm | 24700 N/m | 7.2 kg/m^2 | Self-Locking Pin | -40÷93 °C | Pin diameter: 5 mm Open Surface 42 % Temporary code, to be created specifically on request | -40÷65 °C |
|
| F7520FGLFC0900-PBT | 900 mm (35,43'') | LFC - Low friction acetal (cyan) | PBT White | No positioners | F7520 | 35 mm | 60000 N/m | 7.2 kg/m^2 | Self-Locking Pin | -40÷80 °C | Pin diameter: 5 mm Open Surface 42 % Temporary code, to be created specifically on request | -40÷65 °C |
|
| F7520FGLFC0900-PE | 900 mm (35,43'') | LFC - Low friction acetal (cyan) | PE White | No positioners | F7520 | 35 mm | 15000 N/m | 7.2 kg/m^2 | Self-Locking Pin | -40÷65 °C | Pin diameter: 5 mm Open Surface 42 % Temporary code, to be created specifically on request | -40÷65 °C |
|
| F7520FGLFC0900-PP | 900 mm (35,43'') | LFC - Low friction acetal (cyan) | PP White | No positioners | F7520 | 35 mm | 18000 N/m | 7.2 kg/m^2 | Self-Locking Pin | 5÷93 °C | Pin diameter: 5 mm Open Surface 42 % Temporary code, to be created specifically on request | -40÷65 °C |
|
| F7520FGLFW0050-PA6 | 50 mm (1,97'') | LFW - Low Friction acetal (White) | PA6 White | No positioners | F7520 | 35 mm | 24700 N/m | 7.2 kg/m^2 | Self-Locking Pin | -40÷93 °C | Pin diameter: 5 mm Open Surface 42 % Temporary code, to be created specifically on request | -40÷65 °C |
|
| F7520FGLFW0050-PBT | 50 mm (1,97'') | LFW - Low Friction acetal (White) | PBT White | No positioners | F7520 | 35 mm | 60000 N/m | 7.2 kg/m^2 | Self-Locking Pin | -40÷80 °C | Pin diameter: 5 mm Open Surface 42 % Temporary code, to be created specifically on request | -40÷65 °C |
|
| F7520FGLFW0050-PE | 50 mm (1,97'') | LFW - Low Friction acetal (White) | PE White | No positioners | F7520 | 35 mm | 15000 N/m | 7.2 kg/m^2 | Self-Locking Pin | -40÷65 °C | Pin diameter: 5 mm Open Surface 42 % Temporary code, to be created specifically on request | -40÷65 °C |
|
| F7520FGLFW0050-PP | 50 mm (1,97'') | LFW - Low Friction acetal (White) | PP White | No positioners | F7520 | 35 mm | 18000 N/m | 7.2 kg/m^2 | Self-Locking Pin | 5÷93 °C | Pin diameter: 5 mm Open Surface 42 % Temporary code, to be created specifically on request | -40÷65 °C |
|
| F7520FGLFW0100-PA6 | 100 mm (3,94'') | LFW - Low Friction acetal (White) | PA6 White | No positioners | F7520 | 35 mm | 24700 N/m | 7.2 kg/m^2 | Self-Locking Pin | -40÷93 °C | Pin diameter: 5 mm Open Surface 42 % Temporary code, to be created specifically on request | -40÷65 °C |
|
| F7520FGLFW0100-PBT | 100 mm (3,94'') | LFW - Low Friction acetal (White) | PBT White | No positioners | F7520 | 35 mm | 60000 N/m | 7.2 kg/m^2 | Self-Locking Pin | -40÷80 °C | Pin diameter: 5 mm Open Surface 42 % Temporary code, to be created specifically on request | -40÷65 °C |
|
| F7520FGLFW0100-PE | 100 mm (3,94'') | LFW - Low Friction acetal (White) | PE White | No positioners | F7520 | 35 mm | 15000 N/m | 7.2 kg/m^2 | Self-Locking Pin | -40÷65 °C | Pin diameter: 5 mm Open Surface 42 % Temporary code, to be created specifically on request | -40÷65 °C |
|
| F7520FGLFW0100-PP | 100 mm (3,94'') | LFW - Low Friction acetal (White) | PP White | No positioners | F7520 | 35 mm | 18000 N/m | 7.2 kg/m^2 | Self-Locking Pin | 5÷93 °C | Pin diameter: 5 mm Open Surface 42 % Temporary code, to be created specifically on request | -40÷65 °C |
|
| F7520FGLFW0150-PA6 | 150 mm (5,91'') | LFW - Low Friction acetal (White) | PA6 White | No positioners | F7520 | 35 mm | 24700 N/m | 7.2 kg/m^2 | Self-Locking Pin | -40÷93 °C | Pin diameter: 5 mm Open Surface 42 % Temporary code, to be created specifically on request | -40÷65 °C |
|
| F7520FGLFW0150-PBT | 150 mm (5,91'') | LFW - Low Friction acetal (White) | PBT White | No positioners | F7520 | 35 mm | 60000 N/m | 7.2 kg/m^2 | Self-Locking Pin | -40÷80 °C | Pin diameter: 5 mm Open Surface 42 % Temporary code, to be created specifically on request | -40÷65 °C |
|
| F7520FGLFW0150-PE | 150 mm (5,91'') | LFW - Low Friction acetal (White) | PE White | No positioners | F7520 | 35 mm | 15000 N/m | 7.2 kg/m^2 | Self-Locking Pin | -40÷65 °C | Pin diameter: 5 mm Open Surface 42 % Temporary code, to be created specifically on request | -40÷65 °C |
|
| F7520FGLFW0150-PP | 150 mm (5,91'') | LFW - Low Friction acetal (White) | PP White | No positioners | F7520 | 35 mm | 18000 N/m | 7.2 kg/m^2 | Self-Locking Pin | 5÷93 °C | Pin diameter: 5 mm Open Surface 42 % Temporary code, to be created specifically on request | -40÷65 °C |
|
| F7520FGLFW0200-PA6 | 200 mm (7,87'') | LFW - Low Friction acetal (White) | PA6 White | No positioners | F7520 | 35 mm | 24700 N/m | 7.2 kg/m^2 | Self-Locking Pin | -40÷93 °C | Pin diameter: 5 mm Open Surface 42 % Temporary code, to be created specifically on request | -40÷65 °C |
|
| F7520FGLFW0200-PBT | 200 mm (7,87'') | LFW - Low Friction acetal (White) | PBT White | No positioners | F7520 | 35 mm | 60000 N/m | 7.2 kg/m^2 | Self-Locking Pin | -40÷80 °C | Pin diameter: 5 mm Open Surface 42 % Temporary code, to be created specifically on request | -40÷65 °C |
|
| F7520FGLFW0200-PE | 200 mm (7,87'') | LFW - Low Friction acetal (White) | PE White | No positioners | F7520 | 35 mm | 15000 N/m | 7.2 kg/m^2 | Self-Locking Pin | -40÷65 °C | Pin diameter: 5 mm Open Surface 42 % Temporary code, to be created specifically on request | -40÷65 °C |
|
| F7520FGLFW0200-PP | 200 mm (7,87'') | LFW - Low Friction acetal (White) | PP White | No positioners | F7520 | 35 mm | 18000 N/m | 7.2 kg/m^2 | Self-Locking Pin | 5÷93 °C | Pin diameter: 5 mm Open Surface 42 % Temporary code, to be created specifically on request | -40÷65 °C |
|
| F7520FGLFW0250-PA6 | 250 mm (9,84'') | LFW - Low Friction acetal (White) | PA6 White | No positioners | F7520 | 35 mm | 24700 N/m | 7.2 kg/m^2 | Self-Locking Pin | -40÷93 °C | Pin diameter: 5 mm Open Surface 42 % Temporary code, to be created specifically on request | -40÷65 °C |
|
| F7520FGLFW0250-PBT | 250 mm (9,84'') | LFW - Low Friction acetal (White) | PBT White | No positioners | F7520 | 35 mm | 60000 N/m | 7.2 kg/m^2 | Self-Locking Pin | -40÷80 °C | Pin diameter: 5 mm Open Surface 42 % Temporary code, to be created specifically on request | -40÷65 °C |
|
| F7520FGLFW0250-PE | 250 mm (9,84'') | LFW - Low Friction acetal (White) | PE White | No positioners | F7520 | 35 mm | 15000 N/m | 7.2 kg/m^2 | Self-Locking Pin | -40÷65 °C | Pin diameter: 5 mm Open Surface 42 % Temporary code, to be created specifically on request | -40÷65 °C |
|
| F7520FGLFW0250-PP | 250 mm (9,84'') | LFW - Low Friction acetal (White) | PP White | No positioners | F7520 | 35 mm | 18000 N/m | 7.2 kg/m^2 | Self-Locking Pin | 5÷93 °C | Pin diameter: 5 mm Open Surface 42 % Temporary code, to be created specifically on request | -40÷65 °C |
|
| F7520FGLFW0300-PA6 | 300 mm (11,81'') | LFW - Low Friction acetal (White) | PA6 White | No positioners | F7520 | 35 mm | 24700 N/m | 7.2 kg/m^2 | Self-Locking Pin | -40÷93 °C | Pin diameter: 5 mm Open Surface 42 % Temporary code, to be created specifically on request | -40÷65 °C |
|
| F7520FGLFW0300-PBT | 300 mm (11,81'') | LFW - Low Friction acetal (White) | PBT White | No positioners | F7520 | 35 mm | 60000 N/m | 7.2 kg/m^2 | Self-Locking Pin | -40÷80 °C | Pin diameter: 5 mm Open Surface 42 % Temporary code, to be created specifically on request | -40÷65 °C |
|
| F7520FGLFW0300-PE | 300 mm (11,81'') | LFW - Low Friction acetal (White) | PE White | No positioners | F7520 | 35 mm | 15000 N/m | 7.2 kg/m^2 | Self-Locking Pin | -40÷65 °C | Pin diameter: 5 mm Open Surface 42 % Temporary code, to be created specifically on request | -40÷65 °C |
|
| F7520FGLFW0300-PP | 300 mm (11,81'') | LFW - Low Friction acetal (White) | PP White | No positioners | F7520 | 35 mm | 18000 N/m | 7.2 kg/m^2 | Self-Locking Pin | 5÷93 °C | Pin diameter: 5 mm Open Surface 42 % Temporary code, to be created specifically on request | -40÷65 °C |
|
| F7520FGLFW0350-PA6 | 350 mm (13,78'') | LFW - Low Friction acetal (White) | PA6 White | No positioners | F7520 | 35 mm | 24700 N/m | 7.2 kg/m^2 | Self-Locking Pin | -40÷93 °C | Pin diameter: 5 mm Open Surface 42 % Temporary code, to be created specifically on request | -40÷65 °C |
|
| F7520FGLFW0350-PBT | 350 mm (13,78'') | LFW - Low Friction acetal (White) | PBT White | No positioners | F7520 | 35 mm | 60000 N/m | 7.2 kg/m^2 | Self-Locking Pin | -40÷80 °C | Pin diameter: 5 mm Open Surface 42 % Temporary code, to be created specifically on request | -40÷65 °C |
|
| F7520FGLFW0350-PE | 350 mm (13,78'') | LFW - Low Friction acetal (White) | PE White | No positioners | F7520 | 35 mm | 15000 N/m | 7.2 kg/m^2 | Self-Locking Pin | -40÷65 °C | Pin diameter: 5 mm Open Surface 42 % Temporary code, to be created specifically on request | -40÷65 °C |
|
| F7520FGLFW0350-PP | 350 mm (13,78'') | LFW - Low Friction acetal (White) | PP White | No positioners | F7520 | 35 mm | 18000 N/m | 7.2 kg/m^2 | Self-Locking Pin | 5÷93 °C | Pin diameter: 5 mm Open Surface 42 % Temporary code, to be created specifically on request | -40÷65 °C |
|
| F7520FGLFW0400-PA6 | 400 mm (15,75'') | LFW - Low Friction acetal (White) | PA6 White | No positioners | F7520 | 35 mm | 24700 N/m | 7.2 kg/m^2 | Self-Locking Pin | -40÷93 °C | Pin diameter: 5 mm Open Surface 42 % Temporary code, to be created specifically on request | -40÷65 °C |
|
| F7520FGLFW0400-PBT | 400 mm (15,75'') | LFW - Low Friction acetal (White) | PBT White | No positioners | F7520 | 35 mm | 60000 N/m | 7.2 kg/m^2 | Self-Locking Pin | -40÷80 °C | Pin diameter: 5 mm Open Surface 42 % Temporary code, to be created specifically on request | -40÷65 °C |
|
| F7520FGLFW0400-PE | 400 mm (15,75'') | LFW - Low Friction acetal (White) | PE White | No positioners | F7520 | 35 mm | 15000 N/m | 7.2 kg/m^2 | Self-Locking Pin | -40÷65 °C | Pin diameter: 5 mm Open Surface 42 % Temporary code, to be created specifically on request | -40÷65 °C |
|
| F7520FGLFW0400-PP | 400 mm (15,75'') | LFW - Low Friction acetal (White) | PP White | No positioners | F7520 | 35 mm | 18000 N/m | 7.2 kg/m^2 | Self-Locking Pin | 5÷93 °C | Pin diameter: 5 mm Open Surface 42 % Temporary code, to be created specifically on request | -40÷65 °C |
|
| F7520FGLFW0450-PA6 | 450 mm (17,72'') | LFW - Low Friction acetal (White) | PA6 White | No positioners | F7520 | 35 mm | 24700 N/m | 7.2 kg/m^2 | Self-Locking Pin | -40÷93 °C | Pin diameter: 5 mm Open Surface 42 % Temporary code, to be created specifically on request | -40÷65 °C |
|
| F7520FGLFW0450-PBT | 450 mm (17,72'') | LFW - Low Friction acetal (White) | PBT White | No positioners | F7520 | 35 mm | 60000 N/m | 7.2 kg/m^2 | Self-Locking Pin | -40÷80 °C | Pin diameter: 5 mm Open Surface 42 % Temporary code, to be created specifically on request | -40÷65 °C |
|
| F7520FGLFW0450-PE | 450 mm (17,72'') | LFW - Low Friction acetal (White) | PE White | No positioners | F7520 | 35 mm | 15000 N/m | 7.2 kg/m^2 | Self-Locking Pin | -40÷65 °C | Pin diameter: 5 mm Open Surface 42 % Temporary code, to be created specifically on request | -40÷65 °C |
|
| F7520FGLFW0450-PP | 450 mm (17,72'') | LFW - Low Friction acetal (White) | PP White | No positioners | F7520 | 35 mm | 18000 N/m | 7.2 kg/m^2 | Self-Locking Pin | 5÷93 °C | Pin diameter: 5 mm Open Surface 42 % Temporary code, to be created specifically on request | -40÷65 °C |
|
| F7520FGLFW0500-PA6 | 500 mm (19,69'') | LFW - Low Friction acetal (White) | PA6 White | No positioners | F7520 | 35 mm | 24700 N/m | 7.2 kg/m^2 | Self-Locking Pin | -40÷93 °C | Pin diameter: 5 mm Open Surface 42 % Temporary code, to be created specifically on request | -40÷65 °C |
|
| F7520FGLFW0500-PBT | 500 mm (19,69'') | LFW - Low Friction acetal (White) | PBT White | No positioners | F7520 | 35 mm | 60000 N/m | 7.2 kg/m^2 | Self-Locking Pin | -40÷80 °C | Pin diameter: 5 mm Open Surface 42 % Temporary code, to be created specifically on request | -40÷65 °C |
|
| F7520FGLFW0500-PE | 500 mm (19,69'') | LFW - Low Friction acetal (White) | PE White | No positioners | F7520 | 35 mm | 15000 N/m | 7.2 kg/m^2 | Self-Locking Pin | -40÷65 °C | Pin diameter: 5 mm Open Surface 42 % Temporary code, to be created specifically on request | -40÷65 °C |
|
| F7520FGLFW0500-PP | 500 mm (19,69'') | LFW - Low Friction acetal (White) | PP White | No positioners | F7520 | 35 mm | 18000 N/m | 7.2 kg/m^2 | Self-Locking Pin | 5÷93 °C | Pin diameter: 5 mm Open Surface 42 % Temporary code, to be created specifically on request | -40÷65 °C |
|
| F7520FGLFW0550-PA6 | 550 mm (21,65'') | LFW - Low Friction acetal (White) | PA6 White | No positioners | F7520 | 35 mm | 24700 N/m | 7.2 kg/m^2 | Self-Locking Pin | -40÷93 °C | Pin diameter: 5 mm Open Surface 42 % Temporary code, to be created specifically on request | -40÷65 °C |
|
| F7520FGLFW0550-PBT | 550 mm (21,65'') | LFW - Low Friction acetal (White) | PBT White | No positioners | F7520 | 35 mm | 60000 N/m | 7.2 kg/m^2 | Self-Locking Pin | -40÷80 °C | Pin diameter: 5 mm Open Surface 42 % Temporary code, to be created specifically on request | -40÷65 °C |
|
| F7520FGLFW0550-PE | 550 mm (21,65'') | LFW - Low Friction acetal (White) | PE White | No positioners | F7520 | 35 mm | 15000 N/m | 7.2 kg/m^2 | Self-Locking Pin | -40÷65 °C | Pin diameter: 5 mm Open Surface 42 % Temporary code, to be created specifically on request | -40÷65 °C |
|
| F7520FGLFW0550-PP | 550 mm (21,65'') | LFW - Low Friction acetal (White) | PP White | No positioners | F7520 | 35 mm | 18000 N/m | 7.2 kg/m^2 | Self-Locking Pin | 5÷93 °C | Pin diameter: 5 mm Open Surface 42 % Temporary code, to be created specifically on request | -40÷65 °C |
|
| F7520FGLFW0600-PA6 | 600 mm (23,62'') | LFW - Low Friction acetal (White) | PA6 White | No positioners | F7520 | 35 mm | 24700 N/m | 7.2 kg/m^2 | Self-Locking Pin | -40÷93 °C | Pin diameter: 5 mm Open Surface 42 % Temporary code, to be created specifically on request | -40÷65 °C |
|
| F7520FGLFW0600-PBT | 600 mm (23,62'') | LFW - Low Friction acetal (White) | PBT White | No positioners | F7520 | 35 mm | 60000 N/m | 7.2 kg/m^2 | Self-Locking Pin | -40÷80 °C | Pin diameter: 5 mm Open Surface 42 % Temporary code, to be created specifically on request | -40÷65 °C |
|
| F7520FGLFW0600-PE | 600 mm (23,62'') | LFW - Low Friction acetal (White) | PE White | No positioners | F7520 | 35 mm | 15000 N/m | 7.2 kg/m^2 | Self-Locking Pin | -40÷65 °C | Pin diameter: 5 mm Open Surface 42 % Temporary code, to be created specifically on request | -40÷65 °C |
|
| F7520FGLFW0600-PP | 600 mm (23,62'') | LFW - Low Friction acetal (White) | PP White | No positioners | F7520 | 35 mm | 18000 N/m | 7.2 kg/m^2 | Self-Locking Pin | 5÷93 °C | Pin diameter: 5 mm Open Surface 42 % Temporary code, to be created specifically on request | -40÷65 °C |
|
| F7520FGLFW0650-PA6 | 650 mm (25,59'') | LFW - Low Friction acetal (White) | PA6 White | No positioners | F7520 | 35 mm | 24700 N/m | 7.2 kg/m^2 | Self-Locking Pin | -40÷93 °C | Pin diameter: 5 mm Open Surface 42 % Temporary code, to be created specifically on request | -40÷65 °C |
|
| F7520FGLFW0650-PBT | 650 mm (25,59'') | LFW - Low Friction acetal (White) | PBT White | No positioners | F7520 | 35 mm | 60000 N/m | 7.2 kg/m^2 | Self-Locking Pin | -40÷80 °C | Pin diameter: 5 mm Open Surface 42 % Temporary code, to be created specifically on request | -40÷65 °C |
|
| F7520FGLFW0650-PE | 650 mm (25,59'') | LFW - Low Friction acetal (White) | PE White | No positioners | F7520 | 35 mm | 15000 N/m | 7.2 kg/m^2 | Self-Locking Pin | -40÷65 °C | Pin diameter: 5 mm Open Surface 42 % Temporary code, to be created specifically on request | -40÷65 °C |
|
| F7520FGLFW0650-PP | 650 mm (25,59'') | LFW - Low Friction acetal (White) | PP White | No positioners | F7520 | 35 mm | 18000 N/m | 7.2 kg/m^2 | Self-Locking Pin | 5÷93 °C | Pin diameter: 5 mm Open Surface 42 % Temporary code, to be created specifically on request | -40÷65 °C |
|
| F7520FGLFW0700-PA6 | 700 mm (27,56'') | LFW - Low Friction acetal (White) | PA6 White | No positioners | F7520 | 35 mm | 24700 N/m | 7.2 kg/m^2 | Self-Locking Pin | -40÷93 °C | Pin diameter: 5 mm Open Surface 42 % Temporary code, to be created specifically on request | -40÷65 °C |
|
| F7520FGLFW0700-PBT | 700 mm (27,56'') | LFW - Low Friction acetal (White) | PBT White | No positioners | F7520 | 35 mm | 60000 N/m | 7.2 kg/m^2 | Self-Locking Pin | -40÷80 °C | Pin diameter: 5 mm Open Surface 42 % Temporary code, to be created specifically on request | -40÷65 °C |
|
| F7520FGLFW0700-PE | 700 mm (27,56'') | LFW - Low Friction acetal (White) | PE White | No positioners | F7520 | 35 mm | 15000 N/m | 7.2 kg/m^2 | Self-Locking Pin | -40÷65 °C | Pin diameter: 5 mm Open Surface 42 % Temporary code, to be created specifically on request | -40÷65 °C |
|
| F7520FGLFW0700-PP | 700 mm (27,56'') | LFW - Low Friction acetal (White) | PP White | No positioners | F7520 | 35 mm | 18000 N/m | 7.2 kg/m^2 | Self-Locking Pin | 5÷93 °C | Pin diameter: 5 mm Open Surface 42 % Temporary code, to be created specifically on request | -40÷65 °C |
|
| F7520FGLFW0750-PA6 | 750 mm (29,53'') | LFW - Low Friction acetal (White) | PA6 White | No positioners | F7520 | 35 mm | 24700 N/m | 7.2 kg/m^2 | Self-Locking Pin | -40÷93 °C | Pin diameter: 5 mm Open Surface 42 % Temporary code, to be created specifically on request | -40÷65 °C |
|
| F7520FGLFW0750-PBT | 750 mm (29,53'') | LFW - Low Friction acetal (White) | PBT White | No positioners | F7520 | 35 mm | 60000 N/m | 7.2 kg/m^2 | Self-Locking Pin | -40÷80 °C | Pin diameter: 5 mm Open Surface 42 % Temporary code, to be created specifically on request | -40÷65 °C |
|
| F7520FGLFW0750-PE | 750 mm (29,53'') | LFW - Low Friction acetal (White) | PE White | No positioners | F7520 | 35 mm | 15000 N/m | 7.2 kg/m^2 | Self-Locking Pin | -40÷65 °C | Pin diameter: 5 mm Open Surface 42 % Temporary code, to be created specifically on request | -40÷65 °C |
|
| F7520FGLFW0750-PP | 750 mm (29,53'') | LFW - Low Friction acetal (White) | PP White | No positioners | F7520 | 35 mm | 18000 N/m | 7.2 kg/m^2 | Self-Locking Pin | 5÷93 °C | Pin diameter: 5 mm Open Surface 42 % Temporary code, to be created specifically on request | -40÷65 °C |
|
| F7520FGLFW0800-PA6 | 800 mm (31,5'') | LFW - Low Friction acetal (White) | PA6 White | No positioners | F7520 | 35 mm | 24700 N/m | 7.2 kg/m^2 | Self-Locking Pin | -40÷93 °C | Pin diameter: 5 mm Open Surface 42 % Temporary code, to be created specifically on request | -40÷65 °C |
|
| F7520FGLFW0800-PBT | 800 mm (31,5'') | LFW - Low Friction acetal (White) | PBT White | No positioners | F7520 | 35 mm | 60000 N/m | 7.2 kg/m^2 | Self-Locking Pin | -40÷80 °C | Pin diameter: 5 mm Open Surface 42 % Temporary code, to be created specifically on request | -40÷65 °C |
|
| F7520FGLFW0800-PE | 800 mm (31,5'') | LFW - Low Friction acetal (White) | PE White | No positioners | F7520 | 35 mm | 15000 N/m | 7.2 kg/m^2 | Self-Locking Pin | -40÷65 °C | Pin diameter: 5 mm Open Surface 42 % Temporary code, to be created specifically on request | -40÷65 °C |
|
| F7520FGLFW0800-PP | 800 mm (31,5'') | LFW - Low Friction acetal (White) | PP White | No positioners | F7520 | 35 mm | 18000 N/m | 7.2 kg/m^2 | Self-Locking Pin | 5÷93 °C | Pin diameter: 5 mm Open Surface 42 % Temporary code, to be created specifically on request | -40÷65 °C |
|
| F7520FGLFW0850-PA6 | 850 mm (33,46'') | LFW - Low Friction acetal (White) | PA6 White | No positioners | F7520 | 35 mm | 24700 N/m | 7.2 kg/m^2 | Self-Locking Pin | -40÷93 °C | Pin diameter: 5 mm Open Surface 42 % Temporary code, to be created specifically on request | -40÷65 °C |
|
| F7520FGLFW0850-PBT | 850 mm (33,46'') | LFW - Low Friction acetal (White) | PBT White | No positioners | F7520 | 35 mm | 60000 N/m | 7.2 kg/m^2 | Self-Locking Pin | -40÷80 °C | Pin diameter: 5 mm Open Surface 42 % Temporary code, to be created specifically on request | -40÷65 °C |
|
| F7520FGLFW0850-PE | 850 mm (33,46'') | LFW - Low Friction acetal (White) | PE White | No positioners | F7520 | 35 mm | 15000 N/m | 7.2 kg/m^2 | Self-Locking Pin | -40÷65 °C | Pin diameter: 5 mm Open Surface 42 % Temporary code, to be created specifically on request | -40÷65 °C |
|
| F7520FGLFW0850-PP | 850 mm (33,46'') | LFW - Low Friction acetal (White) | PP White | No positioners | F7520 | 35 mm | 18000 N/m | 7.2 kg/m^2 | Self-Locking Pin | 5÷93 °C | Pin diameter: 5 mm Open Surface 42 % Temporary code, to be created specifically on request | -40÷65 °C |
|
| F7520FGLFW0900-PA6 | 900 mm (35,43'') | LFW - Low Friction acetal (White) | PA6 White | No positioners | F7520 | 35 mm | 24700 N/m | 7.2 kg/m^2 | Self-Locking Pin | -40÷93 °C | Pin diameter: 5 mm Open Surface 42 % Temporary code, to be created specifically on request | -40÷65 °C |
|
| F7520FGLFW0900-PBT | 900 mm (35,43'') | LFW - Low Friction acetal (White) | PBT White | No positioners | F7520 | 35 mm | 60000 N/m | 7.2 kg/m^2 | Self-Locking Pin | -40÷80 °C | Pin diameter: 5 mm Open Surface 42 % Temporary code, to be created specifically on request | -40÷65 °C |
|
| F7520FGLFW0900-PE | 900 mm (35,43'') | LFW - Low Friction acetal (White) | PE White | No positioners | F7520 | 35 mm | 15000 N/m | 7.2 kg/m^2 | Self-Locking Pin | -40÷65 °C | Pin diameter: 5 mm Open Surface 42 % Temporary code, to be created specifically on request | -40÷65 °C |
|
| F7520FGLFW0900-PP | 900 mm (35,43'') | LFW - Low Friction acetal (White) | PP White | No positioners | F7520 | 35 mm | 18000 N/m | 7.2 kg/m^2 | Self-Locking Pin | 5÷93 °C | Pin diameter: 5 mm Open Surface 42 % Temporary code, to be created specifically on request | -40÷65 °C |
|
| F7520FGPEB0050-PA6 | 50 mm (1,97'') | PEB - Polyethylene (blue) | PA6 White | No positioners | F7520 | 35 mm | 8000 N/m | 5.2 kg/m^2 | Self-Locking Pin | -40÷65 °C | Pin diameter: 5 mm Open Surface 42 % Temporary code, to be created specifically on request | - |
|
| F7520FGPEB0050-PBT | 50 mm (1,97'') | PEB - Polyethylene (blue) | PBT White | No positioners | F7520 | 35 mm | 8000 N/m | 5.2 kg/m^2 | Self-Locking Pin | -40÷65 °C | Pin diameter: 5 mm Open Surface 42 % Temporary code, to be created specifically on request | - |
|
| F7520FGPEB0050-PE | 50 mm (1,97'') | PEB - Polyethylene (blue) | PE White | No positioners | F7520 | 35 mm | 8000 N/m | 5.2 kg/m^2 | Self-Locking Pin | -70÷65 °C | Pin diameter: 5 mm Open Surface 42 % Temporary code, to be created specifically on request | - |
|
| F7520FGPEB0050-PP | 50 mm (1,97'') | PEB - Polyethylene (blue) | PP White | No positioners | F7520 | 35 mm | 8000 N/m | 5.2 kg/m^2 | Self-Locking Pin | 0÷65 °C | Pin diameter: 5 mm Open Surface 42 % Temporary code, to be created specifically on request | - |
|
| F7520FGPEB0100-PA6 | 100 mm (3,94'') | PEB - Polyethylene (blue) | PA6 White | No positioners | F7520 | 35 mm | 8000 N/m | 5.2 kg/m^2 | Self-Locking Pin | -40÷65 °C | Pin diameter: 5 mm Open Surface 42 % Temporary code, to be created specifically on request | - |
|
| F7520FGPEB0100-PBT | 100 mm (3,94'') | PEB - Polyethylene (blue) | PBT White | No positioners | F7520 | 35 mm | 8000 N/m | 5.2 kg/m^2 | Self-Locking Pin | -40÷65 °C | - | - |
|
| F7520FGPEB0100-PE | 100 mm (3,94'') | PEB - Polyethylene (blue) | PE White | No positioners | F7520 | 35 mm | 8000 N/m | 5.2 kg/m^2 | Self-Locking Pin | -70÷65 °C | Pin diameter: 5 mm Open Surface 42 % Temporary code, to be created specifically on request | - |
|
| F7520FGPEB0100-PP | 100 mm (3,94'') | PEB - Polyethylene (blue) | PP White | No positioners | F7520 | 35 mm | 8000 N/m | 5.2 kg/m^2 | Self-Locking Pin | 0÷65 °C | Pin diameter: 5 mm Open Surface 42 % Temporary code, to be created specifically on request | - |
|
| F7520FGPEB0150-PA6 | 150 mm (5,91'') | PEB - Polyethylene (blue) | PA6 White | No positioners | F7520 | 35 mm | 8000 N/m | 5.2 kg/m^2 | Self-Locking Pin | -40÷65 °C | Pin diameter: 5 mm Open Surface 42 % Temporary code, to be created specifically on request | - |
|
| F7520FGPEB0150-PBT | 150 mm (5,91'') | PEB - Polyethylene (blue) | PBT White | No positioners | F7520 | 35 mm | 8000 N/m | 5.2 kg/m^2 | Self-Locking Pin | -40÷65 °C | - | - |
|
| F7520FGPEB0150-PE | 150 mm (5,91'') | PEB - Polyethylene (blue) | PE White | No positioners | F7520 | 35 mm | 8000 N/m | 5.2 kg/m^2 | Self-Locking Pin | -70÷65 °C | Pin diameter: 5 mm Open Surface 42 % Temporary code, to be created specifically on request | - |
|
| F7520FGPEB0150-PP | 150 mm (5,91'') | PEB - Polyethylene (blue) | PP White | No positioners | F7520 | 35 mm | 8000 N/m | 5.2 kg/m^2 | Self-Locking Pin | 0÷65 °C | Pin diameter: 5 mm Open Surface 42 % Temporary code, to be created specifically on request | - |
|
| F7520FGPEB0200-PA6 | 200 mm (7,87'') | PEB - Polyethylene (blue) | PA6 White | No positioners | F7520 | 35 mm | 8000 N/m | 5.2 kg/m^2 | Self-Locking Pin | -40÷65 °C | Pin diameter: 5 mm Open Surface 42 % Temporary code, to be created specifically on request | - |
|
| F7520FGPEB0200-PBT | 200 mm (7,87'') | PEB - Polyethylene (blue) | PBT White | No positioners | F7520 | 35 mm | 8000 N/m | 5.2 kg/m^2 | Self-Locking Pin | -40÷65 °C | - | - |
|
| F7520FGPEB0200-PE | 200 mm (7,87'') | PEB - Polyethylene (blue) | PE White | No positioners | F7520 | 35 mm | 8000 N/m | 5.2 kg/m^2 | Self-Locking Pin | -70÷65 °C | Pin diameter: 5 mm Open Surface 42 % Temporary code, to be created specifically on request | - |
|
| F7520FGPEB0200-PP | 200 mm (7,87'') | PEB - Polyethylene (blue) | PP White | No positioners | F7520 | 35 mm | 8000 N/m | 5.2 kg/m^2 | Self-Locking Pin | 0÷65 °C | Pin diameter: 5 mm Open Surface 42 % Temporary code, to be created specifically on request | - |
|
| F7520FGPEB0250-PA6 | 250 mm (9,84'') | PEB - Polyethylene (blue) | PA6 White | No positioners | F7520 | 35 mm | 8000 N/m | 5.2 kg/m^2 | Self-Locking Pin | -40÷65 °C | Pin diameter: 5 mm Open Surface 42 % Temporary code, to be created specifically on request | - |
|
| F7520FGPEB0250-PBT | 250 mm (9,84'') | PEB - Polyethylene (blue) | PBT White | No positioners | F7520 | 35 mm | 8000 N/m | 5.2 kg/m^2 | Self-Locking Pin | -40÷65 °C | Pin diameter: 5 mm Open Surface 42 % Temporary code, to be created specifically on request | - |
|
| F7520FGPEB0250-PE | 250 mm (9,84'') | PEB - Polyethylene (blue) | PE White | No positioners | F7520 | 35 mm | 8000 N/m | 5.2 kg/m^2 | Self-Locking Pin | -70÷65 °C | Pin diameter: 5 mm Open Surface 42 % Temporary code, to be created specifically on request | - |
|
| F7520FGPEB0250-PP | 250 mm (9,84'') | PEB - Polyethylene (blue) | PP White | No positioners | F7520 | 35 mm | 8000 N/m | 5.2 kg/m^2 | Self-Locking Pin | 0÷65 °C | Pin diameter: 5 mm Open Surface 42 % Temporary code, to be created specifically on request | - |
|
| F7520FGPEB0300-PA6 | 300 mm (11,81'') | PEB - Polyethylene (blue) | PA6 White | No positioners | F7520 | 35 mm | 8000 N/m | 5.2 kg/m^2 | Self-Locking Pin | -40÷65 °C | Pin diameter: 5 mm Open Surface 42 % Temporary code, to be created specifically on request | - |
|
| F7520FGPEB0300-PBT | 300 mm (11,81'') | PEB - Polyethylene (blue) | PBT White | No positioners | F7520 | 35 mm | 8000 N/m | 5.2 kg/m^2 | Self-Locking Pin | -40÷65 °C | Pin diameter: 5 mm Open Surface 42 % Temporary code, to be created specifically on request | - |
|
| F7520FGPEB0300-PE | 300 mm (11,81'') | PEB - Polyethylene (blue) | PE White | No positioners | F7520 | 35 mm | 8000 N/m | 5.2 kg/m^2 | Self-Locking Pin | -70÷65 °C | Pin diameter: 5 mm Open Surface 42 % Temporary code, to be created specifically on request | - |
|
| F7520FGPEB0300-PP | 300 mm (11,81'') | PEB - Polyethylene (blue) | PP White | No positioners | F7520 | 35 mm | 8000 N/m | 5.2 kg/m^2 | Self-Locking Pin | 0÷65 °C | Pin diameter: 5 mm Open Surface 42 % Temporary code, to be created specifically on request | - |
|
| F7520FGPEB0350-PA6 | 350 mm (13,78'') | PEB - Polyethylene (blue) | PA6 White | No positioners | F7520 | 35 mm | 8000 N/m | 5.2 kg/m^2 | Self-Locking Pin | -40÷65 °C | Pin diameter: 5 mm Open Surface 42 % Temporary code, to be created specifically on request | - |
|
| F7520FGPEB0350-PBT | 350 mm (13,78'') | PEB - Polyethylene (blue) | PBT White | No positioners | F7520 | 35 mm | 8000 N/m | 5.2 kg/m^2 | Self-Locking Pin | -40÷65 °C | Pin diameter: 5 mm Open Surface 42 % Temporary code, to be created specifically on request | - |
|
| F7520FGPEB0350-PE | 350 mm (13,78'') | PEB - Polyethylene (blue) | PE White | No positioners | F7520 | 35 mm | 8000 N/m | 5.2 kg/m^2 | Self-Locking Pin | -70÷65 °C | Pin diameter: 5 mm Open Surface 42 % Temporary code, to be created specifically on request | - |
|
| F7520FGPEB0350-PP | 350 mm (13,78'') | PEB - Polyethylene (blue) | PP White | No positioners | F7520 | 35 mm | 8000 N/m | 5.2 kg/m^2 | Self-Locking Pin | 0÷65 °C | Pin diameter: 5 mm Open Surface 42 % Temporary code, to be created specifically on request | - |
|
| F7520FGPEB0400-PA6 | 400 mm (15,75'') | PEB - Polyethylene (blue) | PA6 White | No positioners | F7520 | 35 mm | 8000 N/m | 5.2 kg/m^2 | Self-Locking Pin | -40÷65 °C | Pin diameter: 5 mm Open Surface 42 % Temporary code, to be created specifically on request | - |
|
| F7520FGPEB0400-PBT | 400 mm (15,75'') | PEB - Polyethylene (blue) | PBT White | No positioners | F7520 | 35 mm | 8000 N/m | 5.2 kg/m^2 | Self-Locking Pin | -40÷65 °C | Pin diameter: 5 mm Open Surface 42 % Temporary code, to be created specifically on request | - |
|
| F7520FGPEB0400-PE | 400 mm (15,75'') | PEB - Polyethylene (blue) | PE White | No positioners | F7520 | 35 mm | 8000 N/m | 5.2 kg/m^2 | Self-Locking Pin | -70÷65 °C | Pin diameter: 5 mm Open Surface 42 % Temporary code, to be created specifically on request | - |
|
| F7520FGPEB0400-PP | 400 mm (15,75'') | PEB - Polyethylene (blue) | PP White | No positioners | F7520 | 35 mm | 8000 N/m | 5.2 kg/m^2 | Self-Locking Pin | 0÷65 °C | Pin diameter: 5 mm Open Surface 42 % Temporary code, to be created specifically on request | - |
|
| F7520FGPEB0450-PA6 | 450 mm (17,72'') | PEB - Polyethylene (blue) | PA6 White | No positioners | F7520 | 35 mm | 8000 N/m | 5.2 kg/m^2 | Self-Locking Pin | -40÷65 °C | Pin diameter: 5 mm Open Surface 42 % Temporary code, to be created specifically on request | - |
|
| F7520FGPEB0450-PBT | 450 mm (17,72'') | PEB - Polyethylene (blue) | PBT White | No positioners | F7520 | 35 mm | 8000 N/m | 5.2 kg/m^2 | Self-Locking Pin | -40÷65 °C | Pin diameter: 5 mm Open Surface 42 % Temporary code, to be created specifically on request | - |
|
| F7520FGPEB0450-PE | 450 mm (17,72'') | PEB - Polyethylene (blue) | PE White | No positioners | F7520 | 35 mm | 8000 N/m | 5.2 kg/m^2 | Self-Locking Pin | -70÷65 °C | Pin diameter: 5 mm Open Surface 42 % Temporary code, to be created specifically on request | - |
|
| F7520FGPEB0450-PP | 450 mm (17,72'') | PEB - Polyethylene (blue) | PP White | No positioners | F7520 | 35 mm | 8000 N/m | 5.2 kg/m^2 | Self-Locking Pin | 0÷65 °C | Pin diameter: 5 mm Open Surface 42 % Temporary code, to be created specifically on request | - |
|
| F7520FGPEB0500-PA6 | 500 mm (19,69'') | PEB - Polyethylene (blue) | PA6 White | No positioners | F7520 | 35 mm | 8000 N/m | 5.2 kg/m^2 | Self-Locking Pin | -40÷65 °C | Pin diameter: 5 mm Open Surface 42 % Temporary code, to be created specifically on request | - |
|
| F7520FGPEB0500-PBT | 500 mm (19,69'') | PEB - Polyethylene (blue) | PBT White | No positioners | F7520 | 35 mm | 8000 N/m | 5.2 kg/m^2 | Self-Locking Pin | -40÷65 °C | Pin diameter: 5 mm Open Surface 42 % Temporary code, to be created specifically on request | - |
|
| F7520FGPEB0500-PE | 500 mm (19,69'') | PEB - Polyethylene (blue) | PE White | No positioners | F7520 | 35 mm | 8000 N/m | 5.2 kg/m^2 | Self-Locking Pin | -70÷65 °C | Pin diameter: 5 mm Open Surface 42 % Temporary code, to be created specifically on request | - |
|
| F7520FGPEB0500-PP | 500 mm (19,69'') | PEB - Polyethylene (blue) | PP White | No positioners | F7520 | 35 mm | 8000 N/m | 5.2 kg/m^2 | Self-Locking Pin | 0÷65 °C | Pin diameter: 5 mm Open Surface 42 % Temporary code, to be created specifically on request | - |
|
| F7520FGPEB0550-PA6 | 550 mm (21,65'') | PEB - Polyethylene (blue) | PA6 White | No positioners | F7520 | 35 mm | 8000 N/m | 5.2 kg/m^2 | Self-Locking Pin | -40÷65 °C | Pin diameter: 5 mm Open Surface 42 % Temporary code, to be created specifically on request | - |
|
| F7520FGPEB0550-PBT | 550 mm (21,65'') | PEB - Polyethylene (blue) | PBT White | No positioners | F7520 | 35 mm | 8000 N/m | 5.2 kg/m^2 | Self-Locking Pin | -40÷65 °C | Pin diameter: 5 mm Open Surface 42 % Temporary code, to be created specifically on request | - |
|
| F7520FGPEB0550-PE | 550 mm (21,65'') | PEB - Polyethylene (blue) | PE White | No positioners | F7520 | 35 mm | 8000 N/m | 5.2 kg/m^2 | Self-Locking Pin | -70÷65 °C | Pin diameter: 5 mm Open Surface 42 % Temporary code, to be created specifically on request | - |
|
| F7520FGPEB0550-PP | 550 mm (21,65'') | PEB - Polyethylene (blue) | PP White | No positioners | F7520 | 35 mm | 8000 N/m | 5.2 kg/m^2 | Self-Locking Pin | 0÷65 °C | Pin diameter: 5 mm Open Surface 42 % Temporary code, to be created specifically on request | - |
|
| F7520FGPEB0600-PA6 | 600 mm (23,62'') | PEB - Polyethylene (blue) | PA6 White | No positioners | F7520 | 35 mm | 8000 N/m | 5.2 kg/m^2 | Self-Locking Pin | -40÷65 °C | Pin diameter: 5 mm Open Surface 42 % Temporary code, to be created specifically on request | - |
|
| F7520FGPEB0600-PBT | 600 mm (23,62'') | PEB - Polyethylene (blue) | PBT White | No positioners | F7520 | 35 mm | 8000 N/m | 5.2 kg/m^2 | Self-Locking Pin | -40÷65 °C | Pin diameter: 5 mm Open Surface 42 % Temporary code, to be created specifically on request | - |
|
| F7520FGPEB0600-PE | 600 mm (23,62'') | PEB - Polyethylene (blue) | PE White | No positioners | F7520 | 35 mm | 8000 N/m | 5.2 kg/m^2 | Self-Locking Pin | -70÷65 °C | Pin diameter: 5 mm Open Surface 42 % Temporary code, to be created specifically on request | - |
|
| F7520FGPEB0600-PP | 600 mm (23,62'') | PEB - Polyethylene (blue) | PP White | No positioners | F7520 | 35 mm | 8000 N/m | 5.2 kg/m^2 | Self-Locking Pin | 0÷65 °C | Pin diameter: 5 mm Open Surface 42 % Temporary code, to be created specifically on request | - |
|
| F7520FGPEB0650-PA6 | 650 mm (25,59'') | PEB - Polyethylene (blue) | PA6 White | No positioners | F7520 | 35 mm | 8000 N/m | 5.2 kg/m^2 | Self-Locking Pin | -40÷65 °C | Pin diameter: 5 mm Open Surface 42 % Temporary code, to be created specifically on request | - |
|
| F7520FGPEB0650-PBT | 650 mm (25,59'') | PEB - Polyethylene (blue) | PBT White | No positioners | F7520 | 35 mm | 8000 N/m | 5.2 kg/m^2 | Self-Locking Pin | -40÷65 °C | Pin diameter: 5 mm Open Surface 42 % Temporary code, to be created specifically on request | - |
|
| F7520FGPEB0650-PE | 650 mm (25,59'') | PEB - Polyethylene (blue) | PE White | No positioners | F7520 | 35 mm | 8000 N/m | 5.2 kg/m^2 | Self-Locking Pin | -70÷65 °C | Pin diameter: 5 mm Open Surface 42 % Temporary code, to be created specifically on request | - |
|
| F7520FGPEB0650-PP | 650 mm (25,59'') | PEB - Polyethylene (blue) | PP White | No positioners | F7520 | 35 mm | 8000 N/m | 5.2 kg/m^2 | Self-Locking Pin | 0÷65 °C | Pin diameter: 5 mm Open Surface 42 % Temporary code, to be created specifically on request | - |
|
| F7520FGPEB0700-PA6 | 700 mm (27,56'') | PEB - Polyethylene (blue) | PA6 White | No positioners | F7520 | 35 mm | 8000 N/m | 5.2 kg/m^2 | Self-Locking Pin | -40÷65 °C | Pin diameter: 5 mm Open Surface 42 % Temporary code, to be created specifically on request | - |
|
| F7520FGPEB0700-PBT | 700 mm (27,56'') | PEB - Polyethylene (blue) | PBT White | No positioners | F7520 | 35 mm | 8000 N/m | 5.2 kg/m^2 | Self-Locking Pin | -40÷65 °C | Pin diameter: 5 mm Open Surface 42 % Temporary code, to be created specifically on request | - |
|
| F7520FGPEB0700-PE | 700 mm (27,56'') | PEB - Polyethylene (blue) | PE White | No positioners | F7520 | 35 mm | 8000 N/m | 5.2 kg/m^2 | Self-Locking Pin | -70÷65 °C | Pin diameter: 5 mm Open Surface 42 % Temporary code, to be created specifically on request | - |
|
| F7520FGPEB0700-PP | 700 mm (27,56'') | PEB - Polyethylene (blue) | PP White | No positioners | F7520 | 35 mm | 8000 N/m | 5.2 kg/m^2 | Self-Locking Pin | 0÷65 °C | Pin diameter: 5 mm Open Surface 42 % Temporary code, to be created specifically on request | - |
|
| F7520FGPEB0750-PA6 | 750 mm (29,53'') | PEB - Polyethylene (blue) | PA6 White | No positioners | F7520 | 35 mm | 8000 N/m | 5.2 kg/m^2 | Self-Locking Pin | -40÷65 °C | Pin diameter: 5 mm Open Surface 42 % Temporary code, to be created specifically on request | - |
|
| F7520FGPEB0750-PBT | 750 mm (29,53'') | PEB - Polyethylene (blue) | PBT White | No positioners | F7520 | 35 mm | 8000 N/m | 5.2 kg/m^2 | Self-Locking Pin | -40÷65 °C | Pin diameter: 5 mm Open Surface 42 % Temporary code, to be created specifically on request | - |
|
| F7520FGPEB0750-PE | 750 mm (29,53'') | PEB - Polyethylene (blue) | PE White | No positioners | F7520 | 35 mm | 8000 N/m | 5.2 kg/m^2 | Self-Locking Pin | -70÷65 °C | Pin diameter: 5 mm Open Surface 42 % Temporary code, to be created specifically on request | - |
|
| F7520FGPEB0750-PP | 750 mm (29,53'') | PEB - Polyethylene (blue) | PP White | No positioners | F7520 | 35 mm | 8000 N/m | 5.2 kg/m^2 | Self-Locking Pin | 0÷65 °C | Pin diameter: 5 mm Open Surface 42 % Temporary code, to be created specifically on request | - |
|
| F7520FGPEB0800-PA6 | 800 mm (31,5'') | PEB - Polyethylene (blue) | PA6 White | No positioners | F7520 | 35 mm | 8000 N/m | 5.2 kg/m^2 | Self-Locking Pin | -40÷65 °C | Pin diameter: 5 mm Open Surface 42 % Temporary code, to be created specifically on request | - |
|
| F7520FGPEB0800-PBT | 800 mm (31,5'') | PEB - Polyethylene (blue) | PBT White | No positioners | F7520 | 35 mm | 8000 N/m | 5.2 kg/m^2 | Self-Locking Pin | -40÷65 °C | Pin diameter: 5 mm Open Surface 42 % Temporary code, to be created specifically on request | - |
|
| F7520FGPEB0800-PE | 800 mm (31,5'') | PEB - Polyethylene (blue) | PE White | No positioners | F7520 | 35 mm | 8000 N/m | 5.2 kg/m^2 | Self-Locking Pin | -70÷65 °C | Pin diameter: 5 mm Open Surface 42 % Temporary code, to be created specifically on request | - |
|
| F7520FGPEB0800-PP | 800 mm (31,5'') | PEB - Polyethylene (blue) | PP White | No positioners | F7520 | 35 mm | 8000 N/m | 5.2 kg/m^2 | Self-Locking Pin | 0÷65 °C | Pin diameter: 5 mm Open Surface 42 % Temporary code, to be created specifically on request | - |
|
| F7520FGPEB0850-PA6 | 850 mm (33,46'') | PEB - Polyethylene (blue) | PA6 White | No positioners | F7520 | 35 mm | 8000 N/m | 5.2 kg/m^2 | Self-Locking Pin | -40÷65 °C | Pin diameter: 5 mm Open Surface 42 % Temporary code, to be created specifically on request | - |
|
| F7520FGPEB0850-PBT | 850 mm (33,46'') | PEB - Polyethylene (blue) | PBT White | No positioners | F7520 | 35 mm | 8000 N/m | 5.2 kg/m^2 | Self-Locking Pin | -40÷65 °C | Pin diameter: 5 mm Open Surface 42 % Temporary code, to be created specifically on request | - |
|
| F7520FGPEB0850-PE | 850 mm (33,46'') | PEB - Polyethylene (blue) | PE White | No positioners | F7520 | 35 mm | 8000 N/m | 5.2 kg/m^2 | Self-Locking Pin | -70÷65 °C | Pin diameter: 5 mm Open Surface 42 % Temporary code, to be created specifically on request | - |
|
| F7520FGPEB0850-PP | 850 mm (33,46'') | PEB - Polyethylene (blue) | PP White | No positioners | F7520 | 35 mm | 8000 N/m | 5.2 kg/m^2 | Self-Locking Pin | 0÷65 °C | Pin diameter: 5 mm Open Surface 42 % Temporary code, to be created specifically on request | - |
|
| F7520FGPEB0900-PA6 | 900 mm (35,43'') | PEB - Polyethylene (blue) | PA6 White | No positioners | F7520 | 35 mm | 8000 N/m | 5.2 kg/m^2 | Self-Locking Pin | -40÷65 °C | Pin diameter: 5 mm Open Surface 42 % Temporary code, to be created specifically on request | - |
|
| F7520FGPEB0900-PBT | 900 mm (35,43'') | PEB - Polyethylene (blue) | PBT White | No positioners | F7520 | 35 mm | 8000 N/m | 5.2 kg/m^2 | Self-Locking Pin | -40÷65 °C | Pin diameter: 5 mm Open Surface 42 % Temporary code, to be created specifically on request | - |
|
| F7520FGPEB0900-PE | 900 mm (35,43'') | PEB - Polyethylene (blue) | PE White | No positioners | F7520 | 35 mm | 8000 N/m | 5.2 kg/m^2 | Self-Locking Pin | -70÷65 °C | Pin diameter: 5 mm Open Surface 42 % Temporary code, to be created specifically on request | - |
|
| F7520FGPEB0900-PP | 900 mm (35,43'') | PEB - Polyethylene (blue) | PP White | No positioners | F7520 | 35 mm | 8000 N/m | 5.2 kg/m^2 | Self-Locking Pin | 0÷65 °C | Pin diameter: 5 mm Open Surface 42 % Temporary code, to be created specifically on request | - |
|
| F7520FGPEC0050-PA6 | 50 mm (1,97'') | PEC - Polyethylene (cyan) | PA6 White | No positioners | F7520 | 35 mm | 8000 N/m | 5.2 kg/m^2 | Self-Locking Pin | -40÷65 °C | Pin diameter: 5 mm Open Surface 42 % Temporary code, to be created specifically on request | - |
|
| F7520FGPEC0050-PBT | 50 mm (1,97'') | PEC - Polyethylene (cyan) | PBT White | No positioners | F7520 | 35 mm | 8000 N/m | 5.2 kg/m^2 | Self-Locking Pin | -40÷65 °C | Pin diameter: 5 mm Open Surface 42 % Temporary code, to be created specifically on request | - |
|
| F7520FGPEC0050-PE | 50 mm (1,97'') | PEC - Polyethylene (cyan) | PE White | No positioners | F7520 | 35 mm | 8000 N/m | 5.2 kg/m^2 | Self-Locking Pin | -70÷65 °C | Pin diameter: 5 mm Open Surface 42 % Temporary code, to be created specifically on request | - |
|
| F7520FGPEC0050-PP | 50 mm (1,97'') | PEC - Polyethylene (cyan) | PP White | No positioners | F7520 | 35 mm | 8000 N/m | 5.2 kg/m^2 | Self-Locking Pin | 0÷65 °C | Pin diameter: 5 mm Open Surface 42 % Temporary code, to be created specifically on request | - |
|
| F7520FGPEC0100-PA6 | 100 mm (3,94'') | PEC - Polyethylene (cyan) | PA6 White | No positioners | F7520 | 35 mm | 8000 N/m | 5.2 kg/m^2 | Self-Locking Pin | -40÷65 °C | Pin diameter: 5 mm Open Surface 42 % Temporary code, to be created specifically on request | - |
|
| F7520FGPEC0100-PBT | 100 mm (3,94'') | PEC - Polyethylene (cyan) | PBT White | No positioners | F7520 | 35 mm | 8000 N/m | 5.2 kg/m^2 | Self-Locking Pin | -40÷65 °C | Pin diameter: 5 mm Open Surface 42 % Temporary code, to be created specifically on request | - |
|
| F7520FGPEC0100-PE | 100 mm (3,94'') | PEC - Polyethylene (cyan) | PE White | No positioners | F7520 | 35 mm | 8000 N/m | 5.2 kg/m^2 | Self-Locking Pin | -70÷65 °C | Pin diameter: 5 mm Open Surface 42 % Temporary code, to be created specifically on request | - |
|
| F7520FGPEC0100-PP | 100 mm (3,94'') | PEC - Polyethylene (cyan) | PP White | No positioners | F7520 | 35 mm | 8000 N/m | 5.2 kg/m^2 | Self-Locking Pin | 0÷65 °C | Pin diameter: 5 mm Open Surface 42 % Temporary code, to be created specifically on request | - |
|
| F7520FGPEC0150-PA6 | 150 mm (5,91'') | PEC - Polyethylene (cyan) | PA6 White | No positioners | F7520 | 35 mm | 8000 N/m | 5.2 kg/m^2 | Self-Locking Pin | -40÷65 °C | Pin diameter: 5 mm Open Surface 42 % Temporary code, to be created specifically on request | - |
|
| F7520FGPEC0150-PBT | 150 mm (5,91'') | PEC - Polyethylene (cyan) | PBT White | No positioners | F7520 | 35 mm | 8000 N/m | 5.2 kg/m^2 | Self-Locking Pin | -40÷65 °C | Pin diameter: 5 mm Open Surface 42 % Temporary code, to be created specifically on request | - |
|
| F7520FGPEC0150-PE | 150 mm (5,91'') | PEC - Polyethylene (cyan) | PE White | No positioners | F7520 | 35 mm | 8000 N/m | 5.2 kg/m^2 | Self-Locking Pin | -70÷65 °C | Pin diameter: 5 mm Open Surface 42 % Temporary code, to be created specifically on request | - |
|
| F7520FGPEC0150-PP | 150 mm (5,91'') | PEC - Polyethylene (cyan) | PP White | No positioners | F7520 | 35 mm | 8000 N/m | 5.2 kg/m^2 | Self-Locking Pin | 0÷65 °C | Pin diameter: 5 mm Open Surface 42 % Temporary code, to be created specifically on request | - |
|
| F7520FGPEC0200-PA6 | 200 mm (7,87'') | PEC - Polyethylene (cyan) | PA6 White | No positioners | F7520 | 35 mm | 8000 N/m | 5.2 kg/m^2 | Self-Locking Pin | -40÷65 °C | Pin diameter: 5 mm Open Surface 42 % Temporary code, to be created specifically on request | - |
|
| F7520FGPEC0200-PBT | 200 mm (7,87'') | PEC - Polyethylene (cyan) | PBT White | No positioners | F7520 | 35 mm | 8000 N/m | 5.2 kg/m^2 | Self-Locking Pin | -40÷65 °C | Pin diameter: 5 mm Open Surface 42 % Temporary code, to be created specifically on request | - |
|
| F7520FGPEC0200-PE | 200 mm (7,87'') | PEC - Polyethylene (cyan) | PE White | No positioners | F7520 | 35 mm | 8000 N/m | 5.2 kg/m^2 | Self-Locking Pin | -70÷65 °C | Pin diameter: 5 mm Open Surface 42 % Temporary code, to be created specifically on request | - |
|
| F7520FGPEC0200-PP | 200 mm (7,87'') | PEC - Polyethylene (cyan) | PP White | No positioners | F7520 | 35 mm | 8000 N/m | 5.2 kg/m^2 | Self-Locking Pin | 0÷65 °C | Pin diameter: 5 mm Open Surface 42 % Temporary code, to be created specifically on request | - |
|
| F7520FGPEC0250-PA6 | 250 mm (9,84'') | PEC - Polyethylene (cyan) | PA6 White | No positioners | F7520 | 35 mm | 8000 N/m | 5.2 kg/m^2 | Self-Locking Pin | -40÷65 °C | Pin diameter: 5 mm Open Surface 42 % Temporary code, to be created specifically on request | - |
|
| F7520FGPEC0250-PBT | 250 mm (9,84'') | PEC - Polyethylene (cyan) | PBT White | No positioners | F7520 | 35 mm | 8000 N/m | 5.2 kg/m^2 | Self-Locking Pin | -40÷65 °C | Pin diameter: 5 mm Open Surface 42 % Temporary code, to be created specifically on request | - |
|
| F7520FGPEC0250-PE | 250 mm (9,84'') | PEC - Polyethylene (cyan) | PE White | No positioners | F7520 | 35 mm | 8000 N/m | 5.2 kg/m^2 | Self-Locking Pin | -70÷65 °C | Pin diameter: 5 mm Open Surface 42 % Temporary code, to be created specifically on request | - |
|
| F7520FGPEC0250-PP | 250 mm (9,84'') | PEC - Polyethylene (cyan) | PP White | No positioners | F7520 | 35 mm | 8000 N/m | 5.2 kg/m^2 | Self-Locking Pin | 0÷65 °C | Pin diameter: 5 mm Open Surface 42 % Temporary code, to be created specifically on request | - |
|
| F7520FGPEC0300-PA6 | 300 mm (11,81'') | PEC - Polyethylene (cyan) | PA6 White | No positioners | F7520 | 35 mm | 8000 N/m | 5.2 kg/m^2 | Self-Locking Pin | -40÷65 °C | Pin diameter: 5 mm Open Surface 42 % Temporary code, to be created specifically on request | - |
|
| F7520FGPEC0300-PBT | 300 mm (11,81'') | PEC - Polyethylene (cyan) | PBT White | No positioners | F7520 | 35 mm | 8000 N/m | 5.2 kg/m^2 | Self-Locking Pin | -40÷65 °C | Pin diameter: 5 mm Open Surface 42 % Temporary code, to be created specifically on request | - |
|
| F7520FGPEC0300-PE | 300 mm (11,81'') | PEC - Polyethylene (cyan) | PE White | No positioners | F7520 | 35 mm | 8000 N/m | 5.2 kg/m^2 | Self-Locking Pin | -70÷65 °C | Pin diameter: 5 mm Open Surface 42 % Temporary code, to be created specifically on request | - |
|
| F7520FGPEC0300-PP | 300 mm (11,81'') | PEC - Polyethylene (cyan) | PP White | No positioners | F7520 | 35 mm | 8000 N/m | 5.2 kg/m^2 | Self-Locking Pin | 0÷65 °C | Pin diameter: 5 mm Open Surface 42 % Temporary code, to be created specifically on request | - |
|
| F7520FGPEC0350-PA6 | 350 mm (13,78'') | PEC - Polyethylene (cyan) | PA6 White | No positioners | F7520 | 35 mm | 8000 N/m | 5.2 kg/m^2 | Self-Locking Pin | -40÷65 °C | Pin diameter: 5 mm Open Surface 42 % Temporary code, to be created specifically on request | - |
|
| F7520FGPEC0350-PBT | 350 mm (13,78'') | PEC - Polyethylene (cyan) | PBT White | No positioners | F7520 | 35 mm | 8000 N/m | 5.2 kg/m^2 | Self-Locking Pin | -40÷65 °C | Pin diameter: 5 mm Open Surface 42 % Temporary code, to be created specifically on request | - |
|
| F7520FGPEC0350-PE | 350 mm (13,78'') | PEC - Polyethylene (cyan) | PE White | No positioners | F7520 | 35 mm | 8000 N/m | 5.2 kg/m^2 | Self-Locking Pin | -70÷65 °C | Pin diameter: 5 mm Open Surface 42 % Temporary code, to be created specifically on request | - |
|
| F7520FGPEC0350-PP | 350 mm (13,78'') | PEC - Polyethylene (cyan) | PP White | No positioners | F7520 | 35 mm | 8000 N/m | 5.2 kg/m^2 | Self-Locking Pin | 0÷65 °C | Pin diameter: 5 mm Open Surface 42 % Temporary code, to be created specifically on request | - |
|
| F7520FGPEC0400-PA6 | 400 mm (15,75'') | PEC - Polyethylene (cyan) | PA6 White | No positioners | F7520 | 35 mm | 8000 N/m | 5.2 kg/m^2 | Self-Locking Pin | -40÷65 °C | Pin diameter: 5 mm Open Surface 42 % Temporary code, to be created specifically on request | - |
|
| F7520FGPEC0400-PBT | 400 mm (15,75'') | PEC - Polyethylene (cyan) | PBT White | No positioners | F7520 | 35 mm | 8000 N/m | 5.2 kg/m^2 | Self-Locking Pin | -40÷65 °C | Pin diameter: 5 mm Open Surface 42 % Temporary code, to be created specifically on request | - |
|
| F7520FGPEC0400-PE | 400 mm (15,75'') | PEC - Polyethylene (cyan) | PE White | No positioners | F7520 | 35 mm | 8000 N/m | 5.2 kg/m^2 | Self-Locking Pin | -70÷65 °C | Pin diameter: 5 mm Open Surface 42 % Temporary code, to be created specifically on request | - |
|
| F7520FGPEC0400-PP | 400 mm (15,75'') | PEC - Polyethylene (cyan) | PP White | No positioners | F7520 | 35 mm | 8000 N/m | 5.2 kg/m^2 | Self-Locking Pin | 0÷65 °C | Pin diameter: 5 mm Open Surface 42 % Temporary code, to be created specifically on request | - |
|
| F7520FGPEC0450-PA6 | 450 mm (17,72'') | PEC - Polyethylene (cyan) | PA6 White | No positioners | F7520 | 35 mm | 8000 N/m | 5.2 kg/m^2 | Self-Locking Pin | -40÷65 °C | Pin diameter: 5 mm Open Surface 42 % Temporary code, to be created specifically on request | - |
|
| F7520FGPEC0450-PBT | 450 mm (17,72'') | PEC - Polyethylene (cyan) | PBT White | No positioners | F7520 | 35 mm | 8000 N/m | 5.2 kg/m^2 | Self-Locking Pin | -40÷65 °C | Pin diameter: 5 mm Open Surface 42 % Temporary code, to be created specifically on request | - |
|
| F7520FGPEC0450-PE | 450 mm (17,72'') | PEC - Polyethylene (cyan) | PE White | No positioners | F7520 | 35 mm | 8000 N/m | 5.2 kg/m^2 | Self-Locking Pin | -70÷65 °C | Pin diameter: 5 mm Open Surface 42 % Temporary code, to be created specifically on request | - |
|
| F7520FGPEC0450-PP | 450 mm (17,72'') | PEC - Polyethylene (cyan) | PP White | No positioners | F7520 | 35 mm | 8000 N/m | 5.2 kg/m^2 | Self-Locking Pin | 0÷65 °C | Pin diameter: 5 mm Open Surface 42 % Temporary code, to be created specifically on request | - |
|
| F7520FGPEC0500-PA6 | 500 mm (19,69'') | PEC - Polyethylene (cyan) | PA6 White | No positioners | F7520 | 35 mm | 8000 N/m | 5.2 kg/m^2 | Self-Locking Pin | -40÷65 °C | Pin diameter: 5 mm Open Surface 42 % Temporary code, to be created specifically on request | - |
|
| F7520FGPEC0500-PBT | 500 mm (19,69'') | PEC - Polyethylene (cyan) | PBT White | No positioners | F7520 | 35 mm | 8000 N/m | 5.2 kg/m^2 | Self-Locking Pin | -40÷65 °C | Pin diameter: 5 mm Open Surface 42 % Temporary code, to be created specifically on request | - |
|
| F7520FGPEC0500-PE | 500 mm (19,69'') | PEC - Polyethylene (cyan) | PE White | No positioners | F7520 | 35 mm | 8000 N/m | 5.2 kg/m^2 | Self-Locking Pin | -70÷65 °C | Pin diameter: 5 mm Open Surface 42 % Temporary code, to be created specifically on request | - |
|
| F7520FGPEC0500-PP | 500 mm (19,69'') | PEC - Polyethylene (cyan) | PP White | No positioners | F7520 | 35 mm | 8000 N/m | 5.2 kg/m^2 | Self-Locking Pin | 0÷65 °C | Pin diameter: 5 mm Open Surface 42 % Temporary code, to be created specifically on request | - |
|
| F7520FGPEC0550-PA6 | 550 mm (21,65'') | PEC - Polyethylene (cyan) | PA6 White | No positioners | F7520 | 35 mm | 8000 N/m | 5.2 kg/m^2 | Self-Locking Pin | -40÷65 °C | Pin diameter: 5 mm Open Surface 42 % Temporary code, to be created specifically on request | - |
|
| F7520FGPEC0550-PBT | 550 mm (21,65'') | PEC - Polyethylene (cyan) | PBT White | No positioners | F7520 | 35 mm | 8000 N/m | 5.2 kg/m^2 | Self-Locking Pin | -40÷65 °C | Pin diameter: 5 mm Open Surface 42 % Temporary code, to be created specifically on request | - |
|
| F7520FGPEC0550-PE | 550 mm (21,65'') | PEC - Polyethylene (cyan) | PE White | No positioners | F7520 | 35 mm | 8000 N/m | 5.2 kg/m^2 | Self-Locking Pin | -70÷65 °C | Pin diameter: 5 mm Open Surface 42 % Temporary code, to be created specifically on request | - |
|
| F7520FGPEC0550-PP | 550 mm (21,65'') | PEC - Polyethylene (cyan) | PP White | No positioners | F7520 | 35 mm | 8000 N/m | 5.2 kg/m^2 | Self-Locking Pin | 0÷65 °C | Pin diameter: 5 mm Open Surface 42 % Temporary code, to be created specifically on request | - |
|
| F7520FGPEC0600-PA6 | 600 mm (23,62'') | PEC - Polyethylene (cyan) | PA6 White | No positioners | F7520 | 35 mm | 8000 N/m | 5.2 kg/m^2 | Self-Locking Pin | -40÷65 °C | Pin diameter: 5 mm Open Surface 42 % Temporary code, to be created specifically on request | - |
|
| F7520FGPEC0600-PBT | 600 mm (23,62'') | PEC - Polyethylene (cyan) | PBT White | No positioners | F7520 | 35 mm | 8000 N/m | 5.2 kg/m^2 | Self-Locking Pin | -40÷65 °C | Pin diameter: 5 mm Open Surface 42 % Temporary code, to be created specifically on request | - |
|
| F7520FGPEC0600-PE | 600 mm (23,62'') | PEC - Polyethylene (cyan) | PE White | No positioners | F7520 | 35 mm | 8000 N/m | 5.2 kg/m^2 | Self-Locking Pin | -70÷65 °C | Pin diameter: 5 mm Open Surface 42 % Temporary code, to be created specifically on request | - |
|
| F7520FGPEC0600-PP | 600 mm (23,62'') | PEC - Polyethylene (cyan) | PP White | No positioners | F7520 | 35 mm | 8000 N/m | 5.2 kg/m^2 | Self-Locking Pin | 0÷65 °C | Pin diameter: 5 mm Open Surface 42 % Temporary code, to be created specifically on request | - |
|
| F7520FGPEC0650-PA6 | 650 mm (25,59'') | PEC - Polyethylene (cyan) | PA6 White | No positioners | F7520 | 35 mm | 8000 N/m | 5.2 kg/m^2 | Self-Locking Pin | -40÷65 °C | Pin diameter: 5 mm Open Surface 42 % Temporary code, to be created specifically on request | - |
|
| F7520FGPEC0650-PBT | 650 mm (25,59'') | PEC - Polyethylene (cyan) | PBT White | No positioners | F7520 | 35 mm | 8000 N/m | 5.2 kg/m^2 | Self-Locking Pin | -40÷65 °C | Pin diameter: 5 mm Open Surface 42 % Temporary code, to be created specifically on request | - |
|
| F7520FGPEC0650-PE | 650 mm (25,59'') | PEC - Polyethylene (cyan) | PE White | No positioners | F7520 | 35 mm | 8000 N/m | 5.2 kg/m^2 | Self-Locking Pin | -70÷65 °C | Pin diameter: 5 mm Open Surface 42 % Temporary code, to be created specifically on request | - |
|
| F7520FGPEC0650-PP | 650 mm (25,59'') | PEC - Polyethylene (cyan) | PP White | No positioners | F7520 | 35 mm | 8000 N/m | 5.2 kg/m^2 | Self-Locking Pin | 0÷65 °C | Pin diameter: 5 mm Open Surface 42 % Temporary code, to be created specifically on request | - |
|
| F7520FGPEC0700-PA6 | 700 mm (27,56'') | PEC - Polyethylene (cyan) | PA6 White | No positioners | F7520 | 35 mm | 8000 N/m | 5.2 kg/m^2 | Self-Locking Pin | -40÷65 °C | Pin diameter: 5 mm Open Surface 42 % Temporary code, to be created specifically on request | - |
|
| F7520FGPEC0700-PBT | 700 mm (27,56'') | PEC - Polyethylene (cyan) | PBT White | No positioners | F7520 | 35 mm | 8000 N/m | 5.2 kg/m^2 | Self-Locking Pin | -40÷65 °C | Pin diameter: 5 mm Open Surface 42 % Temporary code, to be created specifically on request | - |
|
| F7520FGPEC0700-PE | 700 mm (27,56'') | PEC - Polyethylene (cyan) | PE White | No positioners | F7520 | 35 mm | 8000 N/m | 5.2 kg/m^2 | Self-Locking Pin | -70÷65 °C | Pin diameter: 5 mm Open Surface 42 % Temporary code, to be created specifically on request | - |
|
| F7520FGPEC0700-PP | 700 mm (27,56'') | PEC - Polyethylene (cyan) | PP White | No positioners | F7520 | 35 mm | 8000 N/m | 5.2 kg/m^2 | Self-Locking Pin | 0÷65 °C | Pin diameter: 5 mm Open Surface 42 % Temporary code, to be created specifically on request | - |
|
| F7520FGPEC0750-PA6 | 750 mm (29,53'') | PEC - Polyethylene (cyan) | PA6 White | No positioners | F7520 | 35 mm | 8000 N/m | 5.2 kg/m^2 | Self-Locking Pin | -40÷65 °C | Pin diameter: 5 mm Open Surface 42 % Temporary code, to be created specifically on request | - |
|
| F7520FGPEC0750-PBT | 750 mm (29,53'') | PEC - Polyethylene (cyan) | PBT White | No positioners | F7520 | 35 mm | 8000 N/m | 5.2 kg/m^2 | Self-Locking Pin | -40÷65 °C | Pin diameter: 5 mm Open Surface 42 % Temporary code, to be created specifically on request | - |
|
| F7520FGPEC0750-PE | 750 mm (29,53'') | PEC - Polyethylene (cyan) | PE White | No positioners | F7520 | 35 mm | 8000 N/m | 5.2 kg/m^2 | Self-Locking Pin | -70÷65 °C | Pin diameter: 5 mm Open Surface 42 % Temporary code, to be created specifically on request | - |
|
| F7520FGPEC0750-PP | 750 mm (29,53'') | PEC - Polyethylene (cyan) | PP White | No positioners | F7520 | 35 mm | 8000 N/m | 5.2 kg/m^2 | Self-Locking Pin | 0÷65 °C | Pin diameter: 5 mm Open Surface 42 % Temporary code, to be created specifically on request | - |
|
| F7520FGPEC0800-PA6 | 800 mm (31,5'') | PEC - Polyethylene (cyan) | PA6 White | No positioners | F7520 | 35 mm | 8000 N/m | 5.2 kg/m^2 | Self-Locking Pin | -40÷65 °C | Pin diameter: 5 mm Open Surface 42 % Temporary code, to be created specifically on request | - |
|
| F7520FGPEC0800-PBT | 800 mm (31,5'') | PEC - Polyethylene (cyan) | PBT White | No positioners | F7520 | 35 mm | 8000 N/m | 5.2 kg/m^2 | Self-Locking Pin | -40÷65 °C | Pin diameter: 5 mm Open Surface 42 % Temporary code, to be created specifically on request | - |
|
| F7520FGPEC0800-PE | 800 mm (31,5'') | PEC - Polyethylene (cyan) | PE White | No positioners | F7520 | 35 mm | 8000 N/m | 5.2 kg/m^2 | Self-Locking Pin | -70÷65 °C | Pin diameter: 5 mm Open Surface 42 % Temporary code, to be created specifically on request | - |
|
| F7520FGPEC0800-PP | 800 mm (31,5'') | PEC - Polyethylene (cyan) | PP White | No positioners | F7520 | 35 mm | 8000 N/m | 5.2 kg/m^2 | Self-Locking Pin | 0÷65 °C | Pin diameter: 5 mm Open Surface 42 % Temporary code, to be created specifically on request | - |
|
| F7520FGPEC0850-PA6 | 850 mm (33,46'') | PEC - Polyethylene (cyan) | PA6 White | No positioners | F7520 | 35 mm | 8000 N/m | 5.2 kg/m^2 | Self-Locking Pin | -40÷65 °C | Pin diameter: 5 mm Open Surface 42 % Temporary code, to be created specifically on request | - |
|
| F7520FGPEC0850-PBT | 850 mm (33,46'') | PEC - Polyethylene (cyan) | PBT White | No positioners | F7520 | 35 mm | 8000 N/m | 5.2 kg/m^2 | Self-Locking Pin | -40÷65 °C | Pin diameter: 5 mm Open Surface 42 % Temporary code, to be created specifically on request | - |
|
| F7520FGPEC0850-PE | 850 mm (33,46'') | PEC - Polyethylene (cyan) | PE White | No positioners | F7520 | 35 mm | 8000 N/m | 5.2 kg/m^2 | Self-Locking Pin | -70÷65 °C | Pin diameter: 5 mm Open Surface 42 % Temporary code, to be created specifically on request | - |
|
| F7520FGPEC0850-PP | 850 mm (33,46'') | PEC - Polyethylene (cyan) | PP White | No positioners | F7520 | 35 mm | 8000 N/m | 5.2 kg/m^2 | Self-Locking Pin | 0÷65 °C | Pin diameter: 5 mm Open Surface 42 % Temporary code, to be created specifically on request | - |
|
| F7520FGPEC0900-PA6 | 900 mm (35,43'') | PEC - Polyethylene (cyan) | PA6 White | No positioners | F7520 | 35 mm | 8000 N/m | 5.2 kg/m^2 | Self-Locking Pin | -40÷65 °C | Pin diameter: 5 mm Open Surface 42 % Temporary code, to be created specifically on request | - |
|
| F7520FGPEC0900-PBT | 900 mm (35,43'') | PEC - Polyethylene (cyan) | PBT White | No positioners | F7520 | 35 mm | 8000 N/m | 5.2 kg/m^2 | Self-Locking Pin | -40÷65 °C | Pin diameter: 5 mm Open Surface 42 % Temporary code, to be created specifically on request | - |
|
| F7520FGPEC0900-PE | 900 mm (35,43'') | PEC - Polyethylene (cyan) | PE White | No positioners | F7520 | 35 mm | 8000 N/m | 5.2 kg/m^2 | Self-Locking Pin | -70÷65 °C | Pin diameter: 5 mm Open Surface 42 % Temporary code, to be created specifically on request | - |
|
| F7520FGPEC0900-PP | 900 mm (35,43'') | PEC - Polyethylene (cyan) | PP White | No positioners | F7520 | 35 mm | 8000 N/m | 5.2 kg/m^2 | Self-Locking Pin | 0÷65 °C | Pin diameter: 5 mm Open Surface 42 % Temporary code, to be created specifically on request | - |
|
| F7520FGPEN0050-PA6 | 50 mm (1,97'') | PEN - Polyethylene (natural) | PA6 White | No positioners | F7520 | 35 mm | 8000 N/m | 5.2 kg/m^2 | Self-Locking Pin | -40÷65 °C | Pin diameter: 5 mm Open Surface 42 % Temporary code, to be created specifically on request | - |
|
| F7520FGPEN0050-PBT | 50 mm (1,97'') | PEN - Polyethylene (natural) | PBT White | No positioners | F7520 | 35 mm | 8000 N/m | 5.2 kg/m^2 | Self-Locking Pin | -40÷65 °C | Pin diameter: 5 mm Open Surface 42 % Temporary code, to be created specifically on request | - |
|
| F7520FGPEN0050-PE | 50 mm (1,97'') | PEN - Polyethylene (natural) | PE White | No positioners | F7520 | 35 mm | 8000 N/m | 5.2 kg/m^2 | Self-Locking Pin | -70÷65 °C | Pin diameter: 5 mm Open Surface 42 % Temporary code, to be created specifically on request | - |
|
| F7520FGPEN0050-PP | 50 mm (1,97'') | PEN - Polyethylene (natural) | PP White | No positioners | F7520 | 35 mm | 8000 N/m | 5.2 kg/m^2 | Self-Locking Pin | 0÷65 °C | Pin diameter: 5 mm Open Surface 42 % Temporary code, to be created specifically on request | - |
|
| F7520FGPEN0100-PA6 | 100 mm (3,94'') | PEN - Polyethylene (natural) | PA6 White | No positioners | F7520 | 35 mm | 8000 N/m | 5.2 kg/m^2 | Self-Locking Pin | -40÷65 °C | Pin diameter: 5 mm Open Surface 42 % Temporary code, to be created specifically on request | - |
|
| F7520FGPEN0100-PBT | 100 mm (3,94'') | PEN - Polyethylene (natural) | PBT White | No positioners | F7520 | 35 mm | 8000 N/m | 5.2 kg/m^2 | Self-Locking Pin | -40÷65 °C | Pin diameter: 5 mm Open Surface 42 % Temporary code, to be created specifically on request | - |
|
| F7520FGPEN0100-PE | 100 mm (3,94'') | PEN - Polyethylene (natural) | PE White | No positioners | F7520 | 35 mm | 8000 N/m | 5.2 kg/m^2 | Self-Locking Pin | -70÷65 °C | Pin diameter: 5 mm Open Surface 42 % Temporary code, to be created specifically on request | - |
|
| F7520FGPEN0100-PP | 100 mm (3,94'') | PEN - Polyethylene (natural) | PP White | No positioners | F7520 | 35 mm | 8000 N/m | 5.2 kg/m^2 | Self-Locking Pin | 0÷65 °C | Pin diameter: 5 mm Open Surface 42 % Temporary code, to be created specifically on request | - |
|
| F7520FGPEN0150-PA6 | 150 mm (5,91'') | PEN - Polyethylene (natural) | PA6 White | No positioners | F7520 | 35 mm | 8000 N/m | 5.2 kg/m^2 | Self-Locking Pin | -40÷65 °C | Pin diameter: 5 mm Open Surface 42 % Temporary code, to be created specifically on request | - |
|
| F7520FGPEN0150-PBT | 150 mm (5,91'') | PEN - Polyethylene (natural) | PBT White | No positioners | F7520 | 35 mm | 8000 N/m | 5.2 kg/m^2 | Self-Locking Pin | -40÷65 °C | Pin diameter: 5 mm Open Surface 42 % Temporary code, to be created specifically on request | - |
|
| F7520FGPEN0150-PE | 150 mm (5,91'') | PEN - Polyethylene (natural) | PE White | No positioners | F7520 | 35 mm | 8000 N/m | 5.2 kg/m^2 | Self-Locking Pin | -70÷65 °C | Pin diameter: 5 mm Open Surface 42 % Temporary code, to be created specifically on request | - |
|
| F7520FGPEN0150-PP | 150 mm (5,91'') | PEN - Polyethylene (natural) | PP White | No positioners | F7520 | 35 mm | 8000 N/m | 5.2 kg/m^2 | Self-Locking Pin | 0÷65 °C | Pin diameter: 5 mm Open Surface 42 % Temporary code, to be created specifically on request | - |
|
| F7520FGPEN0200-PA6 | 200 mm (7,87'') | PEN - Polyethylene (natural) | PA6 White | No positioners | F7520 | 35 mm | 8000 N/m | 5.2 kg/m^2 | Self-Locking Pin | -40÷65 °C | Pin diameter: 5 mm Open Surface 42 % Temporary code, to be created specifically on request | - |
|
| F7520FGPEN0200-PBT | 200 mm (7,87'') | PEN - Polyethylene (natural) | PBT White | No positioners | F7520 | 35 mm | 8000 N/m | 5.2 kg/m^2 | Self-Locking Pin | -40÷65 °C | Pin diameter: 5 mm Open Surface 42 % Temporary code, to be created specifically on request | - |
|
| F7520FGPEN0200-PE | 200 mm (7,87'') | PEN - Polyethylene (natural) | PE White | No positioners | F7520 | 35 mm | 8000 N/m | 5.2 kg/m^2 | Self-Locking Pin | -70÷65 °C | Pin diameter: 5 mm Open Surface 42 % Temporary code, to be created specifically on request | - |
|
| F7520FGPEN0200-PP | 200 mm (7,87'') | PEN - Polyethylene (natural) | PP White | No positioners | F7520 | 35 mm | 8000 N/m | 5.2 kg/m^2 | Self-Locking Pin | 0÷65 °C | Pin diameter: 5 mm Open Surface 42 % Temporary code, to be created specifically on request | - |
|
| F7520FGPEN0250-PA6 | 250 mm (9,84'') | PEN - Polyethylene (natural) | PA6 White | No positioners | F7520 | 35 mm | 8000 N/m | 5.2 kg/m^2 | Self-Locking Pin | -40÷65 °C | Pin diameter: 5 mm Open Surface 42 % Temporary code, to be created specifically on request | - |
|
| F7520FGPEN0250-PBT | 250 mm (9,84'') | PEN - Polyethylene (natural) | PBT White | No positioners | F7520 | 35 mm | 8000 N/m | 5.2 kg/m^2 | Self-Locking Pin | -40÷65 °C | Pin diameter: 5 mm Open Surface 42 % Temporary code, to be created specifically on request | - |
|
| F7520FGPEN0250-PE | 250 mm (9,84'') | PEN - Polyethylene (natural) | PE White | No positioners | F7520 | 35 mm | 8000 N/m | 5.2 kg/m^2 | Self-Locking Pin | -70÷65 °C | Pin diameter: 5 mm Open Surface 42 % Temporary code, to be created specifically on request | - |
|
| F7520FGPEN0250-PP | 250 mm (9,84'') | PEN - Polyethylene (natural) | PP White | No positioners | F7520 | 35 mm | 8000 N/m | 5.2 kg/m^2 | Self-Locking Pin | 0÷65 °C | Pin diameter: 5 mm Open Surface 42 % Temporary code, to be created specifically on request | - |
|
| F7520FGPEN0300-PA6 | 300 mm (11,81'') | PEN - Polyethylene (natural) | PA6 White | No positioners | F7520 | 35 mm | 8000 N/m | 5.2 kg/m^2 | Self-Locking Pin | -40÷65 °C | Pin diameter: 5 mm Open Surface 42 % Temporary code, to be created specifically on request | - |
|
| F7520FGPEN0300-PBT | 300 mm (11,81'') | PEN - Polyethylene (natural) | PBT White | No positioners | F7520 | 35 mm | 8000 N/m | 5.2 kg/m^2 | Self-Locking Pin | -40÷65 °C | Pin diameter: 5 mm Open Surface 42 % Temporary code, to be created specifically on request | - |
|
| F7520FGPEN0300-PE | 300 mm (11,81'') | PEN - Polyethylene (natural) | PE White | No positioners | F7520 | 35 mm | 8000 N/m | 5.2 kg/m^2 | Self-Locking Pin | -70÷65 °C | Pin diameter: 5 mm Open Surface 42 % Temporary code, to be created specifically on request | - |
|
| F7520FGPEN0300-PP | 300 mm (11,81'') | PEN - Polyethylene (natural) | PP White | No positioners | F7520 | 35 mm | 8000 N/m | 5.2 kg/m^2 | Self-Locking Pin | 0÷65 °C | Pin diameter: 5 mm Open Surface 42 % Temporary code, to be created specifically on request | - |
|
| F7520FGPEN0350-PA6 | 350 mm (13,78'') | PEN - Polyethylene (natural) | PA6 White | No positioners | F7520 | 35 mm | 8000 N/m | 5.2 kg/m^2 | Self-Locking Pin | -40÷65 °C | Pin diameter: 5 mm Open Surface 42 % Temporary code, to be created specifically on request | - |
|
| F7520FGPEN0350-PBT | 350 mm (13,78'') | PEN - Polyethylene (natural) | PBT White | No positioners | F7520 | 35 mm | 8000 N/m | 5.2 kg/m^2 | Self-Locking Pin | -40÷65 °C | Pin diameter: 5 mm Open Surface 42 % Temporary code, to be created specifically on request | - |
|
| F7520FGPEN0350-PE | 350 mm (13,78'') | PEN - Polyethylene (natural) | PE White | No positioners | F7520 | 35 mm | 8000 N/m | 5.2 kg/m^2 | Self-Locking Pin | -70÷65 °C | Pin diameter: 5 mm Open Surface 42 % Temporary code, to be created specifically on request | - |
|
| F7520FGPEN0350-PP | 350 mm (13,78'') | PEN - Polyethylene (natural) | PP White | No positioners | F7520 | 35 mm | 8000 N/m | 5.2 kg/m^2 | Self-Locking Pin | 0÷65 °C | Pin diameter: 5 mm Open Surface 42 % Temporary code, to be created specifically on request | - |
|
| F7520FGPEN0400-PA6 | 400 mm (15,75'') | PEN - Polyethylene (natural) | PA6 White | No positioners | F7520 | 35 mm | 8000 N/m | 5.2 kg/m^2 | Self-Locking Pin | -40÷65 °C | Pin diameter: 5 mm Open Surface 42 % Temporary code, to be created specifically on request | - |
|
| F7520FGPEN0400-PBT | 400 mm (15,75'') | PEN - Polyethylene (natural) | PBT White | No positioners | F7520 | 35 mm | 8000 N/m | 5.2 kg/m^2 | Self-Locking Pin | -40÷65 °C | Pin diameter: 5 mm Open Surface 42 % Temporary code, to be created specifically on request | - |
|
| F7520FGPEN0400-PE | 400 mm (15,75'') | PEN - Polyethylene (natural) | PE White | No positioners | F7520 | 35 mm | 8000 N/m | 5.2 kg/m^2 | Self-Locking Pin | -70÷65 °C | Pin diameter: 5 mm Open Surface 42 % Temporary code, to be created specifically on request | - |
|
| F7520FGPEN0400-PP | 400 mm (15,75'') | PEN - Polyethylene (natural) | PP White | No positioners | F7520 | 35 mm | 8000 N/m | 5.2 kg/m^2 | Self-Locking Pin | 0÷65 °C | Pin diameter: 5 mm Open Surface 42 % Temporary code, to be created specifically on request | - |
|
| F7520FGPEN0450-PA6 | 450 mm (17,72'') | PEN - Polyethylene (natural) | PA6 White | No positioners | F7520 | 35 mm | 8000 N/m | 5.2 kg/m^2 | Self-Locking Pin | -40÷65 °C | Pin diameter: 5 mm Open Surface 42 % Temporary code, to be created specifically on request | - |
|
| F7520FGPEN0450-PBT | 450 mm (17,72'') | PEN - Polyethylene (natural) | PBT White | No positioners | F7520 | 35 mm | 8000 N/m | 5.2 kg/m^2 | Self-Locking Pin | -40÷65 °C | Pin diameter: 5 mm Open Surface 42 % Temporary code, to be created specifically on request | - |
|
| F7520FGPEN0450-PE | 450 mm (17,72'') | PEN - Polyethylene (natural) | PE White | No positioners | F7520 | 35 mm | 8000 N/m | 5.2 kg/m^2 | Self-Locking Pin | -70÷65 °C | Pin diameter: 5 mm Open Surface 42 % Temporary code, to be created specifically on request | - |
|
| F7520FGPEN0450-PP | 450 mm (17,72'') | PEN - Polyethylene (natural) | PP White | No positioners | F7520 | 35 mm | 8000 N/m | 5.2 kg/m^2 | Self-Locking Pin | 0÷65 °C | Pin diameter: 5 mm Open Surface 42 % Temporary code, to be created specifically on request | - |
|
| F7520FGPEN0500-PA6 | 500 mm (19,69'') | PEN - Polyethylene (natural) | PA6 White | No positioners | F7520 | 35 mm | 8000 N/m | 5.2 kg/m^2 | Self-Locking Pin | -40÷65 °C | Pin diameter: 5 mm Open Surface 42 % Temporary code, to be created specifically on request | - |
|
| F7520FGPEN0500-PBT | 500 mm (19,69'') | PEN - Polyethylene (natural) | PBT White | No positioners | F7520 | 35 mm | 8000 N/m | 5.2 kg/m^2 | Self-Locking Pin | -40÷65 °C | Pin diameter: 5 mm Open Surface 42 % Temporary code, to be created specifically on request | - |
|
| F7520FGPEN0500-PE | 500 mm (19,69'') | PEN - Polyethylene (natural) | PE White | No positioners | F7520 | 35 mm | 8000 N/m | 5.2 kg/m^2 | Self-Locking Pin | -70÷65 °C | Pin diameter: 5 mm Open Surface 42 % Temporary code, to be created specifically on request | - |
|
| F7520FGPEN0500-PP | 500 mm (19,69'') | PEN - Polyethylene (natural) | PP White | No positioners | F7520 | 35 mm | 8000 N/m | 5.2 kg/m^2 | Self-Locking Pin | 0÷65 °C | Pin diameter: 5 mm Open Surface 42 % Temporary code, to be created specifically on request | - |
|
| F7520FGPEN0550-PA6 | 550 mm (21,65'') | PEN - Polyethylene (natural) | PA6 White | No positioners | F7520 | 35 mm | 8000 N/m | 5.2 kg/m^2 | Self-Locking Pin | -40÷65 °C | Pin diameter: 5 mm Open Surface 42 % Temporary code, to be created specifically on request | - |
|
| F7520FGPEN0550-PBT | 550 mm (21,65'') | PEN - Polyethylene (natural) | PBT White | No positioners | F7520 | 35 mm | 8000 N/m | 5.2 kg/m^2 | Self-Locking Pin | -40÷65 °C | Pin diameter: 5 mm Open Surface 42 % Temporary code, to be created specifically on request | - |
|
| F7520FGPEN0550-PE | 550 mm (21,65'') | PEN - Polyethylene (natural) | PE White | No positioners | F7520 | 35 mm | 8000 N/m | 5.2 kg/m^2 | Self-Locking Pin | -70÷65 °C | Pin diameter: 5 mm Open Surface 42 % Temporary code, to be created specifically on request | - |
|
| F7520FGPEN0550-PP | 550 mm (21,65'') | PEN - Polyethylene (natural) | PP White | No positioners | F7520 | 35 mm | 8000 N/m | 5.2 kg/m^2 | Self-Locking Pin | 0÷65 °C | Pin diameter: 5 mm Open Surface 42 % Temporary code, to be created specifically on request | - |
|
| F7520FGPEN0600-PA6 | 600 mm (23,62'') | PEN - Polyethylene (natural) | PA6 White | No positioners | F7520 | 35 mm | 8000 N/m | 5.2 kg/m^2 | Self-Locking Pin | -40÷65 °C | Pin diameter: 5 mm Open Surface 42 % Temporary code, to be created specifically on request | - |
|
| F7520FGPEN0600-PBT | 600 mm (23,62'') | PEN - Polyethylene (natural) | PBT White | No positioners | F7520 | 35 mm | 8000 N/m | 5.2 kg/m^2 | Self-Locking Pin | -40÷65 °C | Pin diameter: 5 mm Open Surface 42 % Temporary code, to be created specifically on request | - |
|
| F7520FGPEN0600-PE | 600 mm (23,62'') | PEN - Polyethylene (natural) | PE White | No positioners | F7520 | 35 mm | 8000 N/m | 5.2 kg/m^2 | Self-Locking Pin | -70÷65 °C | Pin diameter: 5 mm Open Surface 42 % Temporary code, to be created specifically on request | - |
|
| F7520FGPEN0600-PP | 600 mm (23,62'') | PEN - Polyethylene (natural) | PP White | No positioners | F7520 | 35 mm | 8000 N/m | 5.2 kg/m^2 | Self-Locking Pin | 0÷65 °C | Pin diameter: 5 mm Open Surface 42 % Temporary code, to be created specifically on request | - |
|
| F7520FGPEN0650-PA6 | 650 mm (25,59'') | PEN - Polyethylene (natural) | PA6 White | No positioners | F7520 | 35 mm | 8000 N/m | 5.2 kg/m^2 | Self-Locking Pin | -40÷65 °C | Pin diameter: 5 mm Open Surface 42 % Temporary code, to be created specifically on request | - |
|
| F7520FGPEN0650-PBT | 650 mm (25,59'') | PEN - Polyethylene (natural) | PBT White | No positioners | F7520 | 35 mm | 8000 N/m | 5.2 kg/m^2 | Self-Locking Pin | -40÷65 °C | Pin diameter: 5 mm Open Surface 42 % Temporary code, to be created specifically on request | - |
|
| F7520FGPEN0650-PE | 650 mm (25,59'') | PEN - Polyethylene (natural) | PE White | No positioners | F7520 | 35 mm | 8000 N/m | 5.2 kg/m^2 | Self-Locking Pin | -70÷65 °C | Pin diameter: 5 mm Open Surface 42 % Temporary code, to be created specifically on request | - |
|
| F7520FGPEN0650-PP | 650 mm (25,59'') | PEN - Polyethylene (natural) | PP White | No positioners | F7520 | 35 mm | 8000 N/m | 5.2 kg/m^2 | Self-Locking Pin | 0÷65 °C | Pin diameter: 5 mm Open Surface 42 % Temporary code, to be created specifically on request | - |
|
| F7520FGPEN0700-PA6 | 700 mm (27,56'') | PEN - Polyethylene (natural) | PA6 White | No positioners | F7520 | 35 mm | 8000 N/m | 5.2 kg/m^2 | Self-Locking Pin | -40÷65 °C | Pin diameter: 5 mm Open Surface 42 % Temporary code, to be created specifically on request | - |
|
| F7520FGPEN0700-PBT | 700 mm (27,56'') | PEN - Polyethylene (natural) | PBT White | No positioners | F7520 | 35 mm | 8000 N/m | 5.2 kg/m^2 | Self-Locking Pin | -40÷65 °C | Pin diameter: 5 mm Open Surface 42 % Temporary code, to be created specifically on request | - |
|
| F7520FGPEN0700-PE | 700 mm (27,56'') | PEN - Polyethylene (natural) | PE White | No positioners | F7520 | 35 mm | 8000 N/m | 5.2 kg/m^2 | Self-Locking Pin | -70÷65 °C | Pin diameter: 5 mm Open Surface 42 % Temporary code, to be created specifically on request | - |
|
| F7520FGPEN0700-PP | 700 mm (27,56'') | PEN - Polyethylene (natural) | PP White | No positioners | F7520 | 35 mm | 8000 N/m | 5.2 kg/m^2 | Self-Locking Pin | 0÷65 °C | Pin diameter: 5 mm Open Surface 42 % Temporary code, to be created specifically on request | - |
|
| F7520FGPEN0750-PA6 | 750 mm (29,53'') | PEN - Polyethylene (natural) | PA6 White | No positioners | F7520 | 35 mm | 8000 N/m | 5.2 kg/m^2 | Self-Locking Pin | -40÷65 °C | Pin diameter: 5 mm Open Surface 42 % Temporary code, to be created specifically on request | - |
|
| F7520FGPEN0750-PBT | 750 mm (29,53'') | PEN - Polyethylene (natural) | PBT White | No positioners | F7520 | 35 mm | 8000 N/m | 5.2 kg/m^2 | Self-Locking Pin | -40÷65 °C | Pin diameter: 5 mm Open Surface 42 % Temporary code, to be created specifically on request | - |
|
| F7520FGPEN0750-PE | 750 mm (29,53'') | PEN - Polyethylene (natural) | PE White | No positioners | F7520 | 35 mm | 8000 N/m | 5.2 kg/m^2 | Self-Locking Pin | -70÷65 °C | Pin diameter: 5 mm Open Surface 42 % Temporary code, to be created specifically on request | - |
|
| F7520FGPEN0750-PP | 750 mm (29,53'') | PEN - Polyethylene (natural) | PP White | No positioners | F7520 | 35 mm | 8000 N/m | 5.2 kg/m^2 | Self-Locking Pin | 0÷65 °C | Pin diameter: 5 mm Open Surface 42 % Temporary code, to be created specifically on request | - |
|
| F7520FGPEN0800-PA6 | 800 mm (31,5'') | PEN - Polyethylene (natural) | PA6 White | No positioners | F7520 | 35 mm | 8000 N/m | 5.2 kg/m^2 | Self-Locking Pin | -40÷65 °C | Pin diameter: 5 mm Open Surface 42 % Temporary code, to be created specifically on request | - |
|
| F7520FGPEN0800-PBT | 800 mm (31,5'') | PEN - Polyethylene (natural) | PBT White | No positioners | F7520 | 35 mm | 8000 N/m | 5.2 kg/m^2 | Self-Locking Pin | -40÷65 °C | Pin diameter: 5 mm Open Surface 42 % Temporary code, to be created specifically on request | - |
|
| F7520FGPEN0800-PE | 800 mm (31,5'') | PEN - Polyethylene (natural) | PE White | No positioners | F7520 | 35 mm | 8000 N/m | 5.2 kg/m^2 | Self-Locking Pin | -70÷65 °C | Pin diameter: 5 mm Open Surface 42 % Temporary code, to be created specifically on request | - |
|
| F7520FGPEN0800-PP | 800 mm (31,5'') | PEN - Polyethylene (natural) | PP White | No positioners | F7520 | 35 mm | 8000 N/m | 5.2 kg/m^2 | Self-Locking Pin | 0÷65 °C | Pin diameter: 5 mm Open Surface 42 % Temporary code, to be created specifically on request | - |
|
| F7520FGPEN0850-PA6 | 850 mm (33,46'') | PEN - Polyethylene (natural) | PA6 White | No positioners | F7520 | 35 mm | 8000 N/m | 5.2 kg/m^2 | Self-Locking Pin | -40÷65 °C | Pin diameter: 5 mm Open Surface 42 % Temporary code, to be created specifically on request | - |
|
| F7520FGPEN0850-PBT | 850 mm (33,46'') | PEN - Polyethylene (natural) | PBT White | No positioners | F7520 | 35 mm | 8000 N/m | 5.2 kg/m^2 | Self-Locking Pin | -40÷65 °C | Pin diameter: 5 mm Open Surface 42 % Temporary code, to be created specifically on request | - |
|
| F7520FGPEN0850-PE | 850 mm (33,46'') | PEN - Polyethylene (natural) | PE White | No positioners | F7520 | 35 mm | 8000 N/m | 5.2 kg/m^2 | Self-Locking Pin | -70÷65 °C | Pin diameter: 5 mm Open Surface 42 % Temporary code, to be created specifically on request | - |
|
| F7520FGPEN0850-PP | 850 mm (33,46'') | PEN - Polyethylene (natural) | PP White | No positioners | F7520 | 35 mm | 8000 N/m | 5.2 kg/m^2 | Self-Locking Pin | 0÷65 °C | Pin diameter: 5 mm Open Surface 42 % Temporary code, to be created specifically on request | - |
|
| F7520FGPEN0900-PA6 | 900 mm (35,43'') | PEN - Polyethylene (natural) | PA6 White | No positioners | F7520 | 35 mm | 8000 N/m | 5.2 kg/m^2 | Self-Locking Pin | -40÷65 °C | Pin diameter: 5 mm Open Surface 42 % Temporary code, to be created specifically on request | - |
|
| F7520FGPEN0900-PBT | 900 mm (35,43'') | PEN - Polyethylene (natural) | PBT White | No positioners | F7520 | 35 mm | 8000 N/m | 5.2 kg/m^2 | Self-Locking Pin | -40÷65 °C | Pin diameter: 5 mm Open Surface 42 % Temporary code, to be created specifically on request | - |
|
| F7520FGPEN0900-PE | 900 mm (35,43'') | PEN - Polyethylene (natural) | PE White | No positioners | F7520 | 35 mm | 8000 N/m | 5.2 kg/m^2 | Self-Locking Pin | -70÷65 °C | Pin diameter: 5 mm Open Surface 42 % Temporary code, to be created specifically on request | - |
|
| F7520FGPEN0900-PP | 900 mm (35,43'') | PEN - Polyethylene (natural) | PP White | No positioners | F7520 | 35 mm | 8000 N/m | 5.2 kg/m^2 | Self-Locking Pin | 0÷65 °C | Pin diameter: 5 mm Open Surface 42 % Temporary code, to be created specifically on request | - |
|
| F7520FGPEW0050-PA6 | 50 mm (1,97'') | PEW - Polyethylene (white) | PA6 White | No positioners | F7520 | 35 mm | 8000 N/m | 5.2 kg/m^2 | Self-Locking Pin | -40÷65 °C | Pin diameter: 5 mm Open Surface 42 % Temporary code, to be created specifically on request | - |
|
| F7520FGPEW0050-PBT | 50 mm (1,97'') | PEW - Polyethylene (white) | PBT White | No positioners | F7520 | 35 mm | 8000 N/m | 5.2 kg/m^2 | Self-Locking Pin | -40÷65 °C | Pin diameter: 5 mm Open Surface 42 % Temporary code, to be created specifically on request | - |
|
| F7520FGPEW0050-PE | 50 mm (1,97'') | PEW - Polyethylene (white) | PE White | No positioners | F7520 | 35 mm | 8000 N/m | 5.2 kg/m^2 | Self-Locking Pin | -70÷65 °C | Pin diameter: 5 mm Open Surface 42 % Temporary code, to be created specifically on request | - |
|
| F7520FGPEW0050-PP | 50 mm (1,97'') | PEW - Polyethylene (white) | PP White | No positioners | F7520 | 35 mm | 8000 N/m | 5.2 kg/m^2 | Self-Locking Pin | 0÷65 °C | Pin diameter: 5 mm Open Surface 42 % Temporary code, to be created specifically on request | - |
|
| F7520FGPEW0100-PA6 | 100 mm (3,94'') | PEW - Polyethylene (white) | PA6 White | No positioners | F7520 | 35 mm | 8000 N/m | 5.2 kg/m^2 | Self-Locking Pin | -40÷65 °C | Pin diameter: 5 mm Open Surface 42 % Temporary code, to be created specifically on request | - |
|
| F7520FGPEW0100-PBT | 100 mm (3,94'') | PEW - Polyethylene (white) | PBT White | No positioners | F7520 | 35 mm | 8000 N/m | 5.2 kg/m^2 | Self-Locking Pin | -40÷65 °C | Pin diameter: 5 mm Open Surface 42 % Temporary code, to be created specifically on request | - |
|
| F7520FGPEW0100-PE | 100 mm (3,94'') | PEW - Polyethylene (white) | PE White | No positioners | F7520 | 35 mm | 8000 N/m | 5.2 kg/m^2 | Self-Locking Pin | -70÷65 °C | Pin diameter: 5 mm Open Surface 42 % Temporary code, to be created specifically on request | - |
|
| F7520FGPEW0100-PP | 100 mm (3,94'') | PEW - Polyethylene (white) | PP White | No positioners | F7520 | 35 mm | 8000 N/m | 5.2 kg/m^2 | Self-Locking Pin | 0÷65 °C | Pin diameter: 5 mm Open Surface 42 % Temporary code, to be created specifically on request | - |
|
| F7520FGPEW0150-PA6 | 150 mm (5,91'') | PEW - Polyethylene (white) | PA6 White | No positioners | F7520 | 35 mm | 8000 N/m | 5.2 kg/m^2 | Self-Locking Pin | -40÷65 °C | Pin diameter: 5 mm Open Surface 42 % Temporary code, to be created specifically on request | - |
|
| F7520FGPEW0150-PBT | 150 mm (5,91'') | PEW - Polyethylene (white) | PBT White | No positioners | F7520 | 35 mm | 8000 N/m | 5.2 kg/m^2 | Self-Locking Pin | -40÷65 °C | Pin diameter: 5 mm Open Surface 42 % Temporary code, to be created specifically on request | - |
|
| F7520FGPEW0150-PE | 150 mm (5,91'') | PEW - Polyethylene (white) | PE White | No positioners | F7520 | 35 mm | 8000 N/m | 5.2 kg/m^2 | Self-Locking Pin | -70÷65 °C | Pin diameter: 5 mm Open Surface 42 % Temporary code, to be created specifically on request | - |
|
| F7520FGPEW0150-PP | 150 mm (5,91'') | PEW - Polyethylene (white) | PP White | No positioners | F7520 | 35 mm | 8000 N/m | 5.2 kg/m^2 | Self-Locking Pin | 0÷65 °C | Pin diameter: 5 mm Open Surface 42 % Temporary code, to be created specifically on request | - |
|
| F7520FGPEW0200-PA6 | 200 mm (7,87'') | PEW - Polyethylene (white) | PA6 White | No positioners | F7520 | 35 mm | 8000 N/m | 5.2 kg/m^2 | Self-Locking Pin | -40÷65 °C | Pin diameter: 5 mm Open Surface 42 % Temporary code, to be created specifically on request | - |
|
| F7520FGPEW0200-PBT | 200 mm (7,87'') | PEW - Polyethylene (white) | PBT White | No positioners | F7520 | 35 mm | 8000 N/m | 5.2 kg/m^2 | Self-Locking Pin | -40÷65 °C | Pin diameter: 5 mm Open Surface 42 % Temporary code, to be created specifically on request | - |
|
| F7520FGPEW0200-PE | 200 mm (7,87'') | PEW - Polyethylene (white) | PE White | No positioners | F7520 | 35 mm | 8000 N/m | 5.2 kg/m^2 | Self-Locking Pin | -70÷65 °C | Pin diameter: 5 mm Open Surface 42 % Temporary code, to be created specifically on request | - |
|
| F7520FGPEW0200-PP | 200 mm (7,87'') | PEW - Polyethylene (white) | PP White | No positioners | F7520 | 35 mm | 8000 N/m | 5.2 kg/m^2 | Self-Locking Pin | 0÷65 °C | Pin diameter: 5 mm Open Surface 42 % Temporary code, to be created specifically on request | - |
|
| F7520FGPEW0250-PA6 | 250 mm (9,84'') | PEW - Polyethylene (white) | PA6 White | No positioners | F7520 | 35 mm | 8000 N/m | 5.2 kg/m^2 | Self-Locking Pin | -40÷65 °C | Pin diameter: 5 mm Open Surface 42 % Temporary code, to be created specifically on request | - |
|
| F7520FGPEW0250-PBT | 250 mm (9,84'') | PEW - Polyethylene (white) | PBT White | No positioners | F7520 | 35 mm | 8000 N/m | 5.2 kg/m^2 | Self-Locking Pin | -40÷65 °C | Pin diameter: 5 mm Open Surface 42 % Temporary code, to be created specifically on request | - |
|
| F7520FGPEW0250-PE | 250 mm (9,84'') | PEW - Polyethylene (white) | PE White | No positioners | F7520 | 35 mm | 8000 N/m | 5.2 kg/m^2 | Self-Locking Pin | -70÷65 °C | Pin diameter: 5 mm Open Surface 42 % Temporary code, to be created specifically on request | - |
|
| F7520FGPEW0250-PP | 250 mm (9,84'') | PEW - Polyethylene (white) | PP White | No positioners | F7520 | 35 mm | 8000 N/m | 5.2 kg/m^2 | Self-Locking Pin | 0÷65 °C | Pin diameter: 5 mm Open Surface 42 % Temporary code, to be created specifically on request | - |
|
| F7520FGPEW0300-PA6 | 300 mm (11,81'') | PEW - Polyethylene (white) | PA6 White | No positioners | F7520 | 35 mm | 8000 N/m | 5.2 kg/m^2 | Self-Locking Pin | -40÷65 °C | Pin diameter: 5 mm Open Surface 42 % Temporary code, to be created specifically on request | - |
|
| F7520FGPEW0300-PBT | 300 mm (11,81'') | PEW - Polyethylene (white) | PBT White | No positioners | F7520 | 35 mm | 8000 N/m | 5.2 kg/m^2 | Self-Locking Pin | -40÷65 °C | Pin diameter: 5 mm Open Surface 42 % Temporary code, to be created specifically on request | - |
|
| F7520FGPEW0300-PE | 300 mm (11,81'') | PEW - Polyethylene (white) | PE White | No positioners | F7520 | 35 mm | 8000 N/m | 5.2 kg/m^2 | Self-Locking Pin | -70÷65 °C | Pin diameter: 5 mm Open Surface 42 % Temporary code, to be created specifically on request | - |
|
| F7520FGPEW0300-PP | 300 mm (11,81'') | PEW - Polyethylene (white) | PP White | No positioners | F7520 | 35 mm | 8000 N/m | 5.2 kg/m^2 | Self-Locking Pin | 0÷65 °C | Pin diameter: 5 mm Open Surface 42 % Temporary code, to be created specifically on request | - |
|
| F7520FGPEW0350-PA6 | 350 mm (13,78'') | PEW - Polyethylene (white) | PA6 White | No positioners | F7520 | 35 mm | 8000 N/m | 5.2 kg/m^2 | Self-Locking Pin | -40÷65 °C | Pin diameter: 5 mm Open Surface 42 % Temporary code, to be created specifically on request | - |
|
| F7520FGPEW0350-PBT | 350 mm (13,78'') | PEW - Polyethylene (white) | PBT White | No positioners | F7520 | 35 mm | 8000 N/m | 5.2 kg/m^2 | Self-Locking Pin | -40÷65 °C | Pin diameter: 5 mm Open Surface 42 % Temporary code, to be created specifically on request | - |
|
| F7520FGPEW0350-PE | 350 mm (13,78'') | PEW - Polyethylene (white) | PE White | No positioners | F7520 | 35 mm | 8000 N/m | 5.2 kg/m^2 | Self-Locking Pin | -70÷65 °C | Pin diameter: 5 mm Open Surface 42 % Temporary code, to be created specifically on request | - |
|
| F7520FGPEW0350-PP | 350 mm (13,78'') | PEW - Polyethylene (white) | PP White | No positioners | F7520 | 35 mm | 8000 N/m | 5.2 kg/m^2 | Self-Locking Pin | 0÷65 °C | Pin diameter: 5 mm Open Surface 42 % Temporary code, to be created specifically on request | - |
|
| F7520FGPEW0400-PA6 | 400 mm (15,75'') | PEW - Polyethylene (white) | PA6 White | No positioners | F7520 | 35 mm | 8000 N/m | 5.2 kg/m^2 | Self-Locking Pin | -40÷65 °C | Pin diameter: 5 mm Open Surface 42 % Temporary code, to be created specifically on request | - |
|
| F7520FGPEW0400-PBT | 400 mm (15,75'') | PEW - Polyethylene (white) | PBT White | No positioners | F7520 | 35 mm | 8000 N/m | 5.2 kg/m^2 | Self-Locking Pin | -40÷65 °C | Pin diameter: 5 mm Open Surface 42 % Temporary code, to be created specifically on request | - |
|
| F7520FGPEW0400-PE | 400 mm (15,75'') | PEW - Polyethylene (white) | PE White | No positioners | F7520 | 35 mm | 8000 N/m | 5.2 kg/m^2 | Self-Locking Pin | -70÷65 °C | Pin diameter: 5 mm Open Surface 42 % Temporary code, to be created specifically on request | - |
|
| F7520FGPEW0400-PP | 400 mm (15,75'') | PEW - Polyethylene (white) | PP White | No positioners | F7520 | 35 mm | 8000 N/m | 5.2 kg/m^2 | Self-Locking Pin | 0÷65 °C | Pin diameter: 5 mm Open Surface 42 % Temporary code, to be created specifically on request | - |
|
| F7520FGPEW0450-PA6 | 450 mm (17,72'') | PEW - Polyethylene (white) | PA6 White | No positioners | F7520 | 35 mm | 8000 N/m | 5.2 kg/m^2 | Self-Locking Pin | -40÷65 °C | Pin diameter: 5 mm Open Surface 42 % Temporary code, to be created specifically on request | - |
|
| F7520FGPEW0450-PBT | 450 mm (17,72'') | PEW - Polyethylene (white) | PBT White | No positioners | F7520 | 35 mm | 8000 N/m | 5.2 kg/m^2 | Self-Locking Pin | -40÷65 °C | Pin diameter: 5 mm Open Surface 42 % Temporary code, to be created specifically on request | - |
|
| F7520FGPEW0450-PE | 450 mm (17,72'') | PEW - Polyethylene (white) | PE White | No positioners | F7520 | 35 mm | 8000 N/m | 5.2 kg/m^2 | Self-Locking Pin | -70÷65 °C | Pin diameter: 5 mm Open Surface 42 % Temporary code, to be created specifically on request | - |
|
| F7520FGPEW0450-PP | 450 mm (17,72'') | PEW - Polyethylene (white) | PP White | No positioners | F7520 | 35 mm | 8000 N/m | 5.2 kg/m^2 | Self-Locking Pin | 0÷65 °C | Pin diameter: 5 mm Open Surface 42 % Temporary code, to be created specifically on request | - |
|
| F7520FGPEW0500-PA6 | 500 mm (19,69'') | PEW - Polyethylene (white) | PA6 White | No positioners | F7520 | 35 mm | 8000 N/m | 5.2 kg/m^2 | Self-Locking Pin | -40÷65 °C | Pin diameter: 5 mm Open Surface 42 % Temporary code, to be created specifically on request | - |
|
| F7520FGPEW0500-PBT | 500 mm (19,69'') | PEW - Polyethylene (white) | PBT White | No positioners | F7520 | 35 mm | 8000 N/m | 5.2 kg/m^2 | Self-Locking Pin | -40÷65 °C | Pin diameter: 5 mm Open Surface 42 % Temporary code, to be created specifically on request | - |
|
| F7520FGPEW0500-PE | 500 mm (19,69'') | PEW - Polyethylene (white) | PE White | No positioners | F7520 | 35 mm | 8000 N/m | 5.2 kg/m^2 | Self-Locking Pin | -70÷65 °C | Pin diameter: 5 mm Open Surface 42 % Temporary code, to be created specifically on request | - |
|
| F7520FGPEW0500-PP | 500 mm (19,69'') | PEW - Polyethylene (white) | PP White | No positioners | F7520 | 35 mm | 8000 N/m | 5.2 kg/m^2 | Self-Locking Pin | 0÷65 °C | Pin diameter: 5 mm Open Surface 42 % Temporary code, to be created specifically on request | - |
|
| F7520FGPEW0550-PA6 | 550 mm (21,65'') | PEW - Polyethylene (white) | PA6 White | No positioners | F7520 | 35 mm | 8000 N/m | 5.2 kg/m^2 | Self-Locking Pin | -40÷65 °C | Pin diameter: 5 mm Open Surface 42 % Temporary code, to be created specifically on request | - |
|
| F7520FGPEW0550-PBT | 550 mm (21,65'') | PEW - Polyethylene (white) | PBT White | No positioners | F7520 | 35 mm | 8000 N/m | 5.2 kg/m^2 | Self-Locking Pin | -40÷65 °C | Pin diameter: 5 mm Open Surface 42 % Temporary code, to be created specifically on request | - |
|
| F7520FGPEW0550-PE | 550 mm (21,65'') | PEW - Polyethylene (white) | PE White | No positioners | F7520 | 35 mm | 8000 N/m | 5.2 kg/m^2 | Self-Locking Pin | -70÷65 °C | Pin diameter: 5 mm Open Surface 42 % Temporary code, to be created specifically on request | - |
|
| F7520FGPEW0550-PP | 550 mm (21,65'') | PEW - Polyethylene (white) | PP White | No positioners | F7520 | 35 mm | 8000 N/m | 5.2 kg/m^2 | Self-Locking Pin | 0÷65 °C | Pin diameter: 5 mm Open Surface 42 % Temporary code, to be created specifically on request | - |
|
| F7520FGPEW0600-PA6 | 600 mm (23,62'') | PEW - Polyethylene (white) | PA6 White | No positioners | F7520 | 35 mm | 8000 N/m | 5.2 kg/m^2 | Self-Locking Pin | -40÷65 °C | Pin diameter: 5 mm Open Surface 42 % Temporary code, to be created specifically on request | - |
|
| F7520FGPEW0600-PBT | 600 mm (23,62'') | PEW - Polyethylene (white) | PBT White | No positioners | F7520 | 35 mm | 8000 N/m | 5.2 kg/m^2 | Self-Locking Pin | -40÷65 °C | Pin diameter: 5 mm Open Surface 42 % Temporary code, to be created specifically on request | - |
|
| F7520FGPEW0600-PE | 600 mm (23,62'') | PEW - Polyethylene (white) | PE White | No positioners | F7520 | 35 mm | 8000 N/m | 5.2 kg/m^2 | Self-Locking Pin | -70÷65 °C | Pin diameter: 5 mm Open Surface 42 % Temporary code, to be created specifically on request | - |
|
| F7520FGPEW0600-PP | 600 mm (23,62'') | PEW - Polyethylene (white) | PP White | No positioners | F7520 | 35 mm | 8000 N/m | 5.2 kg/m^2 | Self-Locking Pin | 0÷65 °C | Pin diameter: 5 mm Open Surface 42 % Temporary code, to be created specifically on request | - |
|
| F7520FGPEW0650-PA6 | 650 mm (25,59'') | PEW - Polyethylene (white) | PA6 White | No positioners | F7520 | 35 mm | 8000 N/m | 5.2 kg/m^2 | Self-Locking Pin | -40÷65 °C | Pin diameter: 5 mm Open Surface 42 % Temporary code, to be created specifically on request | - |
|
| F7520FGPEW0650-PBT | 650 mm (25,59'') | PEW - Polyethylene (white) | PBT White | No positioners | F7520 | 35 mm | 8000 N/m | 5.2 kg/m^2 | Self-Locking Pin | -40÷65 °C | Pin diameter: 5 mm Open Surface 42 % Temporary code, to be created specifically on request | - |
|
| F7520FGPEW0650-PE | 650 mm (25,59'') | PEW - Polyethylene (white) | PE White | No positioners | F7520 | 35 mm | 8000 N/m | 5.2 kg/m^2 | Self-Locking Pin | -70÷65 °C | Pin diameter: 5 mm Open Surface 42 % Temporary code, to be created specifically on request | - |
|
| F7520FGPEW0650-PP | 650 mm (25,59'') | PEW - Polyethylene (white) | PP White | No positioners | F7520 | 35 mm | 8000 N/m | 5.2 kg/m^2 | Self-Locking Pin | 0÷65 °C | Pin diameter: 5 mm Open Surface 42 % Temporary code, to be created specifically on request | - |
|
| F7520FGPEW0700-PA6 | 700 mm (27,56'') | PEW - Polyethylene (white) | PA6 White | No positioners | F7520 | 35 mm | 8000 N/m | 5.2 kg/m^2 | Self-Locking Pin | -40÷65 °C | Pin diameter: 5 mm Open Surface 42 % Temporary code, to be created specifically on request | - |
|
| F7520FGPEW0700-PBT | 700 mm (27,56'') | PEW - Polyethylene (white) | PBT White | No positioners | F7520 | 35 mm | 8000 N/m | 5.2 kg/m^2 | Self-Locking Pin | -40÷65 °C | Pin diameter: 5 mm Open Surface 42 % Temporary code, to be created specifically on request | - |
|
| F7520FGPEW0700-PE | 700 mm (27,56'') | PEW - Polyethylene (white) | PE White | No positioners | F7520 | 35 mm | 8000 N/m | 5.2 kg/m^2 | Self-Locking Pin | -70÷65 °C | Pin diameter: 5 mm Open Surface 42 % Temporary code, to be created specifically on request | - |
|
| F7520FGPEW0700-PP | 700 mm (27,56'') | PEW - Polyethylene (white) | PP White | No positioners | F7520 | 35 mm | 8000 N/m | 5.2 kg/m^2 | Self-Locking Pin | 0÷65 °C | Pin diameter: 5 mm Open Surface 42 % Temporary code, to be created specifically on request | - |
|
| F7520FGPEW0750-PA6 | 750 mm (29,53'') | PEW - Polyethylene (white) | PA6 White | No positioners | F7520 | 35 mm | 8000 N/m | 5.2 kg/m^2 | Self-Locking Pin | -40÷65 °C | Pin diameter: 5 mm Open Surface 42 % Temporary code, to be created specifically on request | - |
|
| F7520FGPEW0750-PBT | 750 mm (29,53'') | PEW - Polyethylene (white) | PBT White | No positioners | F7520 | 35 mm | 8000 N/m | 5.2 kg/m^2 | Self-Locking Pin | -40÷65 °C | Pin diameter: 5 mm Open Surface 42 % Temporary code, to be created specifically on request | - |
|
| F7520FGPEW0750-PE | 750 mm (29,53'') | PEW - Polyethylene (white) | PE White | No positioners | F7520 | 35 mm | 8000 N/m | 5.2 kg/m^2 | Self-Locking Pin | -70÷65 °C | Pin diameter: 5 mm Open Surface 42 % Temporary code, to be created specifically on request | - |
|
| F7520FGPEW0750-PP | 750 mm (29,53'') | PEW - Polyethylene (white) | PP White | No positioners | F7520 | 35 mm | 8000 N/m | 5.2 kg/m^2 | Self-Locking Pin | 0÷65 °C | Pin diameter: 5 mm Open Surface 42 % Temporary code, to be created specifically on request | - |
|
| F7520FGPEW0800-PA6 | 800 mm (31,5'') | PEW - Polyethylene (white) | PA6 White | No positioners | F7520 | 35 mm | 8000 N/m | 5.2 kg/m^2 | Self-Locking Pin | -40÷65 °C | Pin diameter: 5 mm Open Surface 42 % Temporary code, to be created specifically on request | - |
|
| F7520FGPEW0800-PBT | 800 mm (31,5'') | PEW - Polyethylene (white) | PBT White | No positioners | F7520 | 35 mm | 8000 N/m | 5.2 kg/m^2 | Self-Locking Pin | -40÷65 °C | Pin diameter: 5 mm Open Surface 42 % Temporary code, to be created specifically on request | - |
|
| F7520FGPEW0800-PE | 800 mm (31,5'') | PEW - Polyethylene (white) | PE White | No positioners | F7520 | 35 mm | 8000 N/m | 5.2 kg/m^2 | Self-Locking Pin | -70÷65 °C | Pin diameter: 5 mm Open Surface 42 % Temporary code, to be created specifically on request | - |
|
| F7520FGPEW0800-PP | 800 mm (31,5'') | PEW - Polyethylene (white) | PP White | No positioners | F7520 | 35 mm | 8000 N/m | 5.2 kg/m^2 | Self-Locking Pin | 0÷65 °C | Pin diameter: 5 mm Open Surface 42 % Temporary code, to be created specifically on request | - |
|
| F7520FGPEW0850-PA6 | 850 mm (33,46'') | PEW - Polyethylene (white) | PA6 White | No positioners | F7520 | 35 mm | 8000 N/m | 5.2 kg/m^2 | Self-Locking Pin | -40÷65 °C | Pin diameter: 5 mm Open Surface 42 % Temporary code, to be created specifically on request | - |
|
| F7520FGPEW0850-PBT | 850 mm (33,46'') | PEW - Polyethylene (white) | PBT White | No positioners | F7520 | 35 mm | 8000 N/m | 5.2 kg/m^2 | Self-Locking Pin | -40÷65 °C | Pin diameter: 5 mm Open Surface 42 % Temporary code, to be created specifically on request | - |
|
| F7520FGPEW0850-PE | 850 mm (33,46'') | PEW - Polyethylene (white) | PE White | No positioners | F7520 | 35 mm | 8000 N/m | 5.2 kg/m^2 | Self-Locking Pin | -70÷65 °C | Pin diameter: 5 mm Open Surface 42 % Temporary code, to be created specifically on request | - |
|
| F7520FGPEW0850-PP | 850 mm (33,46'') | PEW - Polyethylene (white) | PP White | No positioners | F7520 | 35 mm | 8000 N/m | 5.2 kg/m^2 | Self-Locking Pin | 0÷65 °C | Pin diameter: 5 mm Open Surface 42 % Temporary code, to be created specifically on request | - |
|
| F7520FGPEW0900-PA6 | 900 mm (35,43'') | PEW - Polyethylene (white) | PA6 White | No positioners | F7520 | 35 mm | 8000 N/m | 5.2 kg/m^2 | Self-Locking Pin | -40÷65 °C | Pin diameter: 5 mm Open Surface 42 % Temporary code, to be created specifically on request | - |
|
| F7520FGPEW0900-PBT | 900 mm (35,43'') | PEW - Polyethylene (white) | PBT White | No positioners | F7520 | 35 mm | 8000 N/m | 5.2 kg/m^2 | Self-Locking Pin | -40÷65 °C | Pin diameter: 5 mm Open Surface 42 % Temporary code, to be created specifically on request | - |
|
| F7520FGPEW0900-PE | 900 mm (35,43'') | PEW - Polyethylene (white) | PE White | No positioners | F7520 | 35 mm | 8000 N/m | 5.2 kg/m^2 | Self-Locking Pin | -70÷65 °C | Pin diameter: 5 mm Open Surface 42 % Temporary code, to be created specifically on request | - |
|
| F7520FGPEW0900-PP | 900 mm (35,43'') | PEW - Polyethylene (white) | PP White | No positioners | F7520 | 35 mm | 8000 N/m | 5.2 kg/m^2 | Self-Locking Pin | 0÷65 °C | Pin diameter: 5 mm Open Surface 42 % Temporary code, to be created specifically on request | - |
|
| F7520FGPPB0050-PA6 | 50 mm (1,97'') | PPB - Polypropylene (Blue) | PA6 White | No positioners | F7520 | 35 mm | 21000 N/m | 5 kg/m^2 | Self-Locking Pin | 0÷80 °C | Pin diameter: 5 mm Open Surface 42 % Temporary code, to be created specifically on request | 0÷80 °C |
|
| F7520FGPPB0050-PBT | 50 mm (1,97'') | PPB - Polypropylene (Blue) | PBT White | No positioners | F7520 | 35 mm | 45000 N/m | 5 kg/m^2 | Self-Locking Pin | 0÷100 °C | Pin diameter: 5 mm Open Surface 42 % Temporary code, to be created specifically on request | 0÷100 °C |
|
| F7520FGPPB0050-PE | 50 mm (1,97'') | PPB - Polypropylene (Blue) | PE White | No positioners | F7520 | 35 mm | 12000 N/m | 5 kg/m^2 | Self-Locking Pin | 0÷65 °C | Pin diameter: 5 mm Open Surface 42 % Temporary code, to be created specifically on request | 0÷65 °C |
|
| F7520FGPPB0050-PP | 50 mm (1,97'') | PPB - Polypropylene (Blue) | PP White | No positioners | F7520 | 35 mm | 14000 N/m | 5 kg/m^2 | Self-Locking Pin | 0÷100 °C | Pin diameter: 5 mm Open Surface 42 % Temporary code, to be created specifically on request | 0÷100 °C |
|
| F7520FGPPB0100-PA6 | 100 mm (3,94'') | PPB - Polypropylene (Blue) | PA6 White | No positioners | F7520 | 35 mm | 21000 N/m | 5 kg/m^2 | Self-Locking Pin | 0÷80 °C | Pin diameter: 5 mm Open Surface 42 % Temporary code, to be created specifically on request | 0÷80 °C |
|
| F7520FGPPB0100-PBT | 100 mm (3,94'') | PPB - Polypropylene (Blue) | PBT White | No positioners | F7520 | 35 mm | 45000 N/m | 5 kg/m^2 | Self-Locking Pin | 0÷100 °C | Pin diameter: 5 mm Open Surface 42 % Temporary code, to be created specifically on request | 0÷100 °C |
|
| F7520FGPPB0100-PE | 100 mm (3,94'') | PPB - Polypropylene (Blue) | PE White | No positioners | F7520 | 35 mm | 12000 N/m | 5 kg/m^2 | Self-Locking Pin | 0÷65 °C | Pin diameter: 5 mm Open Surface 42 % Temporary code, to be created specifically on request | 0÷65 °C |
|
| F7520FGPPB0100-PP | 100 mm (3,94'') | PPB - Polypropylene (Blue) | PP White | No positioners | F7520 | 35 mm | 14000 N/m | 5 kg/m^2 | Self-Locking Pin | 0÷100 °C | Pin diameter: 5 mm Open Surface 42 % Temporary code, to be created specifically on request | 0÷100 °C |
|
| F7520FGPPB0150-PA6 | 150 mm (5,91'') | PPB - Polypropylene (Blue) | PA6 White | No positioners | F7520 | 35 mm | 21000 N/m | 5 kg/m^2 | Self-Locking Pin | 0÷80 °C | Pin diameter: 5 mm Open Surface 42 % Temporary code, to be created specifically on request | 0÷80 °C |
|
| F7520FGPPB0150-PBT | 150 mm (5,91'') | PPB - Polypropylene (Blue) | PBT White | No positioners | F7520 | 35 mm | 45000 N/m | 5 kg/m^2 | Self-Locking Pin | 0÷100 °C | Pin diameter: 5 mm Open Surface 42 % Temporary code, to be created specifically on request | 0÷100 °C |
|
| F7520FGPPB0150-PE | 150 mm (5,91'') | PPB - Polypropylene (Blue) | PE White | No positioners | F7520 | 35 mm | 12000 N/m | 5 kg/m^2 | Self-Locking Pin | 0÷65 °C | Pin diameter: 5 mm Open Surface 42 % Temporary code, to be created specifically on request | 0÷65 °C |
|
| F7520FGPPB0150-PP | 150 mm (5,91'') | PPB - Polypropylene (Blue) | PP White | No positioners | F7520 | 35 mm | 14000 N/m | 5 kg/m^2 | Self-Locking Pin | 0÷100 °C | Pin diameter: 5 mm Open Surface 42 % Temporary code, to be created specifically on request | 0÷100 °C |
|
| F7520FGPPB0200-PA6 | 200 mm (7,87'') | PPB - Polypropylene (Blue) | PA6 White | No positioners | F7520 | 35 mm | 21000 N/m | 5 kg/m^2 | Self-Locking Pin | 0÷80 °C | Pin diameter: 5 mm Open Surface 42 % Temporary code, to be created specifically on request | 0÷80 °C |
|
| F7520FGPPB0200-PBT | 200 mm (7,87'') | PPB - Polypropylene (Blue) | PBT White | No positioners | F7520 | 35 mm | 45000 N/m | 5 kg/m^2 | Self-Locking Pin | 0÷100 °C | Pin diameter: 5 mm Open Surface 42 % Temporary code, to be created specifically on request | 0÷100 °C |
|
| F7520FGPPB0200-PE | 200 mm (7,87'') | PPB - Polypropylene (Blue) | PE White | No positioners | F7520 | 35 mm | 12000 N/m | 5 kg/m^2 | Self-Locking Pin | 0÷65 °C | Pin diameter: 5 mm Open Surface 42 % Temporary code, to be created specifically on request | 0÷65 °C |
|
| F7520FGPPB0200-PP | 200 mm (7,87'') | PPB - Polypropylene (Blue) | PP White | No positioners | F7520 | 35 mm | 14000 N/m | 5 kg/m^2 | Self-Locking Pin | 0÷100 °C | Pin diameter: 5 mm Open Surface 42 % Temporary code, to be created specifically on request | 0÷100 °C |
|
| F7520FGPPB0250-PA6 | 250 mm (9,84'') | PPB - Polypropylene (Blue) | PA6 White | No positioners | F7520 | 35 mm | 21000 N/m | 5 kg/m^2 | Self-Locking Pin | 0÷80 °C | Pin diameter: 5 mm Open Surface 42 % Temporary code, to be created specifically on request | 0÷80 °C |
|
| F7520FGPPB0250-PBT | 250 mm (9,84'') | PPB - Polypropylene (Blue) | PBT White | No positioners | F7520 | 35 mm | 45000 N/m | 5 kg/m^2 | Self-Locking Pin | 0÷100 °C | Pin diameter: 5 mm Open Surface 42 % Temporary code, to be created specifically on request | 0÷100 °C |
|
| F7520FGPPB0250-PE | 250 mm (9,84'') | PPB - Polypropylene (Blue) | PE White | No positioners | F7520 | 35 mm | 12000 N/m | 5 kg/m^2 | Self-Locking Pin | 0÷65 °C | Pin diameter: 5 mm Open Surface 42 % Temporary code, to be created specifically on request | 0÷65 °C |
|
| F7520FGPPB0250-PP | 250 mm (9,84'') | PPB - Polypropylene (Blue) | PP White | No positioners | F7520 | 35 mm | 14000 N/m | 5 kg/m^2 | Self-Locking Pin | 0÷100 °C | Pin diameter: 5 mm Open Surface 42 % Temporary code, to be created specifically on request | 0÷100 °C |
|
| F7520FGPPB0300-PA6 | 300 mm (11,81'') | PPB - Polypropylene (Blue) | PA6 White | No positioners | F7520 | 35 mm | 21000 N/m | 5 kg/m^2 | Self-Locking Pin | 0÷80 °C | Pin diameter: 5 mm Open Surface 42 % Temporary code, to be created specifically on request | 0÷80 °C |
|
| F7520FGPPB0300-PBT | 300 mm (11,81'') | PPB - Polypropylene (Blue) | PBT White | No positioners | F7520 | 35 mm | 45000 N/m | 5 kg/m^2 | Self-Locking Pin | 0÷100 °C | Pin diameter: 5 mm Open Surface 42 % Temporary code, to be created specifically on request | 0÷100 °C |
|
| F7520FGPPB0300-PE | 300 mm (11,81'') | PPB - Polypropylene (Blue) | PE White | No positioners | F7520 | 35 mm | 12000 N/m | 5 kg/m^2 | Self-Locking Pin | 0÷65 °C | Pin diameter: 5 mm Open Surface 42 % Temporary code, to be created specifically on request | 0÷65 °C |
|
| F7520FGPPB0300-PP | 300 mm (11,81'') | PPB - Polypropylene (Blue) | PP White | No positioners | F7520 | 35 mm | 14000 N/m | 5 kg/m^2 | Self-Locking Pin | 0÷100 °C | Pin diameter: 5 mm Open Surface 42 % Temporary code, to be created specifically on request | 0÷100 °C |
|
| F7520FGPPB0350-PA6 | 350 mm (13,78'') | PPB - Polypropylene (Blue) | PA6 White | No positioners | F7520 | 35 mm | 21000 N/m | 5 kg/m^2 | Self-Locking Pin | 0÷80 °C | Pin diameter: 5 mm Open Surface 42 % Temporary code, to be created specifically on request | 0÷80 °C |
|
| F7520FGPPB0350-PBT | 350 mm (13,78'') | PPB - Polypropylene (Blue) | PBT White | No positioners | F7520 | 35 mm | 45000 N/m | 5 kg/m^2 | Self-Locking Pin | 0÷100 °C | Pin diameter: 5 mm Open Surface 42 % Temporary code, to be created specifically on request | 0÷100 °C |
|
| F7520FGPPB0350-PE | 350 mm (13,78'') | PPB - Polypropylene (Blue) | PE White | No positioners | F7520 | 35 mm | 12000 N/m | 5 kg/m^2 | Self-Locking Pin | 0÷65 °C | Pin diameter: 5 mm Open Surface 42 % Temporary code, to be created specifically on request | 0÷65 °C |
|
| F7520FGPPB0350-PP | 350 mm (13,78'') | PPB - Polypropylene (Blue) | PP White | No positioners | F7520 | 35 mm | 14000 N/m | 5 kg/m^2 | Self-Locking Pin | 0÷100 °C | Pin diameter: 5 mm Open Surface 42 % Temporary code, to be created specifically on request | 0÷100 °C |
|
| F7520FGPPB0400-PA6 | 400 mm (15,75'') | PPB - Polypropylene (Blue) | PA6 White | No positioners | F7520 | 35 mm | 21000 N/m | 5 kg/m^2 | Self-Locking Pin | 0÷80 °C | Pin diameter: 5 mm Open Surface 42 % Temporary code, to be created specifically on request | 0÷80 °C |
|
| F7520FGPPB0400-PBT | 400 mm (15,75'') | PPB - Polypropylene (Blue) | PBT White | No positioners | F7520 | 35 mm | 45000 N/m | 5 kg/m^2 | Self-Locking Pin | 0÷100 °C | Pin diameter: 5 mm Open Surface 42 % Temporary code, to be created specifically on request | 0÷100 °C |
|
| F7520FGPPB0400-PE | 400 mm (15,75'') | PPB - Polypropylene (Blue) | PE White | No positioners | F7520 | 35 mm | 12000 N/m | 5 kg/m^2 | Self-Locking Pin | 0÷65 °C | Pin diameter: 5 mm Open Surface 42 % Temporary code, to be created specifically on request | 0÷65 °C |
|
| F7520FGPPB0400-PP | 400 mm (15,75'') | PPB - Polypropylene (Blue) | PP White | No positioners | F7520 | 35 mm | 14000 N/m | 5 kg/m^2 | Self-Locking Pin | 0÷100 °C | Pin diameter: 5 mm Open Surface 42 % Temporary code, to be created specifically on request | 0÷100 °C |
|
| F7520FGPPB0450-PA6 | 450 mm (17,72'') | PPB - Polypropylene (Blue) | PA6 White | No positioners | F7520 | 35 mm | 21000 N/m | 5 kg/m^2 | Self-Locking Pin | 0÷80 °C | Pin diameter: 5 mm Open Surface 42 % Temporary code, to be created specifically on request | 0÷80 °C |
|
| F7520FGPPB0450-PBT | 450 mm (17,72'') | PPB - Polypropylene (Blue) | PBT White | No positioners | F7520 | 35 mm | 45000 N/m | 5 kg/m^2 | Self-Locking Pin | 0÷100 °C | Pin diameter: 5 mm Open Surface 42 % Temporary code, to be created specifically on request | 0÷100 °C |
|
| F7520FGPPB0450-PE | 450 mm (17,72'') | PPB - Polypropylene (Blue) | PE White | No positioners | F7520 | 35 mm | 12000 N/m | 5 kg/m^2 | Self-Locking Pin | 0÷65 °C | Pin diameter: 5 mm Open Surface 42 % Temporary code, to be created specifically on request | 0÷65 °C |
|
| F7520FGPPB0450-PP | 450 mm (17,72'') | PPB - Polypropylene (Blue) | PP White | No positioners | F7520 | 35 mm | 14000 N/m | 5 kg/m^2 | Self-Locking Pin | 0÷100 °C | Pin diameter: 5 mm Open Surface 42 % Temporary code, to be created specifically on request | 0÷100 °C |
|
| F7520FGPPB0500-PA6 | 500 mm (19,69'') | PPB - Polypropylene (Blue) | PA6 White | No positioners | F7520 | 35 mm | 21000 N/m | 5 kg/m^2 | Self-Locking Pin | 0÷80 °C | Pin diameter: 5 mm Open Surface 42 % Temporary code, to be created specifically on request | 0÷80 °C |
|
| F7520FGPPB0500-PBT | 500 mm (19,69'') | PPB - Polypropylene (Blue) | PBT White | No positioners | F7520 | 35 mm | 45000 N/m | 5 kg/m^2 | Self-Locking Pin | 0÷100 °C | Pin diameter: 5 mm Open Surface 42 % Temporary code, to be created specifically on request | 0÷100 °C |
|
| F7520FGPPB0500-PE | 500 mm (19,69'') | PPB - Polypropylene (Blue) | PE White | No positioners | F7520 | 35 mm | 12000 N/m | 5 kg/m^2 | Self-Locking Pin | 0÷65 °C | Pin diameter: 5 mm Open Surface 42 % Temporary code, to be created specifically on request | 0÷65 °C |
|
| F7520FGPPB0500-PP | 500 mm (19,69'') | PPB - Polypropylene (Blue) | PP White | No positioners | F7520 | 35 mm | 14000 N/m | 5 kg/m^2 | Self-Locking Pin | 0÷100 °C | Pin diameter: 5 mm Open Surface 42 % Temporary code, to be created specifically on request | 0÷100 °C |
|
| F7520FGPPB0550-PA6 | 550 mm (21,65'') | PPB - Polypropylene (Blue) | PA6 White | No positioners | F7520 | 35 mm | 21000 N/m | 5 kg/m^2 | Self-Locking Pin | 0÷80 °C | Pin diameter: 5 mm Open Surface 42 % Temporary code, to be created specifically on request | 0÷80 °C |
|
| F7520FGPPB0550-PBT | 550 mm (21,65'') | PPB - Polypropylene (Blue) | PBT White | No positioners | F7520 | 35 mm | 45000 N/m | 5 kg/m^2 | Self-Locking Pin | 0÷100 °C | Pin diameter: 5 mm Open Surface 42 % Temporary code, to be created specifically on request | 0÷100 °C |
|
| F7520FGPPB0550-PE | 550 mm (21,65'') | PPB - Polypropylene (Blue) | PE White | No positioners | F7520 | 35 mm | 12000 N/m | 5 kg/m^2 | Self-Locking Pin | 0÷65 °C | Pin diameter: 5 mm Open Surface 42 % Temporary code, to be created specifically on request | 0÷65 °C |
|
| F7520FGPPB0550-PP | 550 mm (21,65'') | PPB - Polypropylene (Blue) | PP White | No positioners | F7520 | 35 mm | 14000 N/m | 5 kg/m^2 | Self-Locking Pin | 0÷100 °C | Pin diameter: 5 mm Open Surface 42 % Temporary code, to be created specifically on request | 0÷100 °C |
|
| F7520FGPPB0600-PA6 | 600 mm (23,62'') | PPB - Polypropylene (Blue) | PA6 White | No positioners | F7520 | 35 mm | 21000 N/m | 5 kg/m^2 | Self-Locking Pin | 0÷80 °C | Pin diameter: 5 mm Open Surface 42 % Temporary code, to be created specifically on request | 0÷80 °C |
|
| F7520FGPPB0600-PBT | 600 mm (23,62'') | PPB - Polypropylene (Blue) | PBT White | No positioners | F7520 | 35 mm | 45000 N/m | 5 kg/m^2 | Self-Locking Pin | 0÷100 °C | Pin diameter: 5 mm Open Surface 42 % Temporary code, to be created specifically on request | 0÷100 °C |
|
| F7520FGPPB0600-PE | 600 mm (23,62'') | PPB - Polypropylene (Blue) | PE White | No positioners | F7520 | 35 mm | 12000 N/m | 5 kg/m^2 | Self-Locking Pin | 0÷65 °C | Pin diameter: 5 mm Open Surface 42 % Temporary code, to be created specifically on request | 0÷65 °C |
|
| F7520FGPPB0600-PP | 600 mm (23,62'') | PPB - Polypropylene (Blue) | PP White | No positioners | F7520 | 35 mm | 14000 N/m | 5 kg/m^2 | Self-Locking Pin | 0÷100 °C | Pin diameter: 5 mm Open Surface 42 % Temporary code, to be created specifically on request | 0÷100 °C |
|
| F7520FGPPB0650-PA6 | 650 mm (25,59'') | PPB - Polypropylene (Blue) | PA6 White | No positioners | F7520 | 35 mm | 21000 N/m | 5 kg/m^2 | Self-Locking Pin | 0÷80 °C | Pin diameter: 5 mm Open Surface 42 % Temporary code, to be created specifically on request | 0÷80 °C |
|
| F7520FGPPB0650-PBT | 650 mm (25,59'') | PPB - Polypropylene (Blue) | PBT White | No positioners | F7520 | 35 mm | 45000 N/m | 5 kg/m^2 | Self-Locking Pin | 0÷100 °C | Pin diameter: 5 mm Open Surface 42 % Temporary code, to be created specifically on request | 0÷100 °C |
|
| F7520FGPPB0650-PE | 650 mm (25,59'') | PPB - Polypropylene (Blue) | PE White | No positioners | F7520 | 35 mm | 12000 N/m | 5 kg/m^2 | Self-Locking Pin | 0÷65 °C | Pin diameter: 5 mm Open Surface 42 % Temporary code, to be created specifically on request | 0÷65 °C |
|
| F7520FGPPB0650-PP | 650 mm (25,59'') | PPB - Polypropylene (Blue) | PP White | No positioners | F7520 | 35 mm | 14000 N/m | 5 kg/m^2 | Self-Locking Pin | 0÷100 °C | Pin diameter: 5 mm Open Surface 42 % Temporary code, to be created specifically on request | 0÷100 °C |
|
| F7520FGPPB0700-PA6 | 700 mm (27,56'') | PPB - Polypropylene (Blue) | PA6 White | No positioners | F7520 | 35 mm | 21000 N/m | 5 kg/m^2 | Self-Locking Pin | 0÷80 °C | Pin diameter: 5 mm Open Surface 42 % Temporary code, to be created specifically on request | 0÷80 °C |
|
| F7520FGPPB0700-PBT | 700 mm (27,56'') | PPB - Polypropylene (Blue) | PBT White | No positioners | F7520 | 35 mm | 45000 N/m | 5 kg/m^2 | Self-Locking Pin | 0÷100 °C | Pin diameter: 5 mm Open Surface 42 % Temporary code, to be created specifically on request | 0÷100 °C |
|
| F7520FGPPB0700-PE | 700 mm (27,56'') | PPB - Polypropylene (Blue) | PE White | No positioners | F7520 | 35 mm | 12000 N/m | 5 kg/m^2 | Self-Locking Pin | 0÷65 °C | Pin diameter: 5 mm Open Surface 42 % Temporary code, to be created specifically on request | 0÷65 °C |
|
| F7520FGPPB0700-PP | 700 mm (27,56'') | PPB - Polypropylene (Blue) | PP White | No positioners | F7520 | 35 mm | 14000 N/m | 5 kg/m^2 | Self-Locking Pin | 0÷100 °C | Pin diameter: 5 mm Open Surface 42 % Temporary code, to be created specifically on request | 0÷100 °C |
|
| F7520FGPPB0750-PA6 | 750 mm (29,53'') | PPB - Polypropylene (Blue) | PA6 White | No positioners | F7520 | 35 mm | 21000 N/m | 5 kg/m^2 | Self-Locking Pin | 0÷80 °C | Pin diameter: 5 mm Open Surface 42 % Temporary code, to be created specifically on request | 0÷80 °C |
|
| F7520FGPPB0750-PBT | 750 mm (29,53'') | PPB - Polypropylene (Blue) | PBT White | No positioners | F7520 | 35 mm | 45000 N/m | 5 kg/m^2 | Self-Locking Pin | 0÷100 °C | Pin diameter: 5 mm Open Surface 42 % Temporary code, to be created specifically on request | 0÷100 °C |
|
| F7520FGPPB0750-PE | 750 mm (29,53'') | PPB - Polypropylene (Blue) | PE White | No positioners | F7520 | 35 mm | 12000 N/m | 5 kg/m^2 | Self-Locking Pin | 0÷65 °C | Pin diameter: 5 mm Open Surface 42 % Temporary code, to be created specifically on request | 0÷65 °C |
|
| F7520FGPPB0750-PP | 750 mm (29,53'') | PPB - Polypropylene (Blue) | PP White | No positioners | F7520 | 35 mm | 14000 N/m | 5 kg/m^2 | Self-Locking Pin | 0÷100 °C | Pin diameter: 5 mm Open Surface 42 % Temporary code, to be created specifically on request | 0÷100 °C |
|
| F7520FGPPB0800-PA6 | 800 mm (31,5'') | PPB - Polypropylene (Blue) | PA6 White | No positioners | F7520 | 35 mm | 21000 N/m | 5 kg/m^2 | Self-Locking Pin | 0÷80 °C | Pin diameter: 5 mm Open Surface 42 % Temporary code, to be created specifically on request | 0÷80 °C |
|
| F7520FGPPB0800-PBT | 800 mm (31,5'') | PPB - Polypropylene (Blue) | PBT White | No positioners | F7520 | 35 mm | 45000 N/m | 5 kg/m^2 | Self-Locking Pin | 0÷100 °C | Pin diameter: 5 mm Open Surface 42 % Temporary code, to be created specifically on request | 0÷100 °C |
|
| F7520FGPPB0800-PE | 800 mm (31,5'') | PPB - Polypropylene (Blue) | PE White | No positioners | F7520 | 35 mm | 12000 N/m | 5 kg/m^2 | Self-Locking Pin | 0÷65 °C | Pin diameter: 5 mm Open Surface 42 % Temporary code, to be created specifically on request | 0÷65 °C |
|
| F7520FGPPB0800-PP | 800 mm (31,5'') | PPB - Polypropylene (Blue) | PP White | No positioners | F7520 | 35 mm | 14000 N/m | 5 kg/m^2 | Self-Locking Pin | 0÷100 °C | Pin diameter: 5 mm Open Surface 42 % Temporary code, to be created specifically on request | 0÷100 °C |
|
| F7520FGPPB0850-PA6 | 850 mm (33,46'') | PPB - Polypropylene (Blue) | PA6 White | No positioners | F7520 | 35 mm | 21000 N/m | 5 kg/m^2 | Self-Locking Pin | 0÷80 °C | Pin diameter: 5 mm Open Surface 42 % Temporary code, to be created specifically on request | 0÷80 °C |
|
| F7520FGPPB0850-PBT | 850 mm (33,46'') | PPB - Polypropylene (Blue) | PBT White | No positioners | F7520 | 35 mm | 45000 N/m | 5 kg/m^2 | Self-Locking Pin | 0÷100 °C | Pin diameter: 5 mm Open Surface 42 % Temporary code, to be created specifically on request | 0÷100 °C |
|
| F7520FGPPB0850-PE | 850 mm (33,46'') | PPB - Polypropylene (Blue) | PE White | No positioners | F7520 | 35 mm | 12000 N/m | 5 kg/m^2 | Self-Locking Pin | 0÷65 °C | Pin diameter: 5 mm Open Surface 42 % Temporary code, to be created specifically on request | 0÷65 °C |
|
| F7520FGPPB0850-PP | 850 mm (33,46'') | PPB - Polypropylene (Blue) | PP White | No positioners | F7520 | 35 mm | 14000 N/m | 5 kg/m^2 | Self-Locking Pin | 0÷100 °C | Pin diameter: 5 mm Open Surface 42 % Temporary code, to be created specifically on request | 0÷100 °C |
|
| F7520FGPPB0900-PA6 | 900 mm (35,43'') | PPB - Polypropylene (Blue) | PA6 White | No positioners | F7520 | 35 mm | 21000 N/m | 5 kg/m^2 | Self-Locking Pin | 0÷80 °C | Pin diameter: 5 mm Open Surface 42 % Temporary code, to be created specifically on request | 0÷80 °C |
|
| F7520FGPPB0900-PBT | 900 mm (35,43'') | PPB - Polypropylene (Blue) | PBT White | No positioners | F7520 | 35 mm | 45000 N/m | 5 kg/m^2 | Self-Locking Pin | 0÷100 °C | Pin diameter: 5 mm Open Surface 42 % Temporary code, to be created specifically on request | 0÷100 °C |
|
| F7520FGPPB0900-PE | 900 mm (35,43'') | PPB - Polypropylene (Blue) | PE White | No positioners | F7520 | 35 mm | 12000 N/m | 5 kg/m^2 | Self-Locking Pin | 0÷65 °C | Pin diameter: 5 mm Open Surface 42 % Temporary code, to be created specifically on request | 0÷65 °C |
|
| F7520FGPPB0900-PP | 900 mm (35,43'') | PPB - Polypropylene (Blue) | PP White | No positioners | F7520 | 35 mm | 14000 N/m | 5 kg/m^2 | Self-Locking Pin | 0÷100 °C | Pin diameter: 5 mm Open Surface 42 % Temporary code, to be created specifically on request | 0÷100 °C |
|
| F7520FGPPC0050-PA6 | 50 mm (1,97'') | PPC - Polypropylene (cyan) | PA6 White | No positioners | F7520 | 35 mm | 21000 N/m | 5 kg/m^2 | Self-Locking Pin | 0÷80 °C | Pin diameter: 5 mm Open Surface 42 % Temporary code, to be created specifically on request | 0÷80 °C |
|
| F7520FGPPC0050-PBT | 50 mm (1,97'') | PPC - Polypropylene (cyan) | PBT White | No positioners | F7520 | 35 mm | 45000 N/m | 5 kg/m^2 | Self-Locking Pin | 0÷100 °C | Pin diameter: 5 mm Open Surface 42 % Temporary code, to be created specifically on request | 0÷100 °C |
|
| F7520FGPPC0050-PE | 50 mm (1,97'') | PPC - Polypropylene (cyan) | PE White | No positioners | F7520 | 35 mm | 12000 N/m | 5 kg/m^2 | Self-Locking Pin | 0÷65 °C | Pin diameter: 5 mm Open Surface 42 % Temporary code, to be created specifically on request | 0÷65 °C |
|
| F7520FGPPC0050-PP | 50 mm (1,97'') | PPC - Polypropylene (cyan) | PP White | No positioners | F7520 | 35 mm | 14000 N/m | 5 kg/m^2 | Self-Locking Pin | 0÷100 °C | Pin diameter: 5 mm Open Surface 42 % Temporary code, to be created specifically on request | 0÷100 °C |
|
| F7520FGPPC0100-PA6 | 100 mm (3,94'') | PPC - Polypropylene (cyan) | PA6 White | No positioners | F7520 | 35 mm | 21000 N/m | 5 kg/m^2 | Self-Locking Pin | 0÷80 °C | Pin diameter: 5 mm Open Surface 42 % Temporary code, to be created specifically on request | 0÷80 °C |
|
| F7520FGPPC0100-PBT | 100 mm (3,94'') | PPC - Polypropylene (cyan) | PBT White | No positioners | F7520 | 35 mm | 45000 N/m | 5 kg/m^2 | Self-Locking Pin | 0÷100 °C | Pin diameter: 5 mm Open Surface 42 % Temporary code, to be created specifically on request | 0÷100 °C |
|
| F7520FGPPC0100-PE | 100 mm (3,94'') | PPC - Polypropylene (cyan) | PE White | No positioners | F7520 | 35 mm | 12000 N/m | 5 kg/m^2 | Self-Locking Pin | 0÷65 °C | Pin diameter: 5 mm Open Surface 42 % Temporary code, to be created specifically on request | 0÷65 °C |
|
| F7520FGPPC0100-PP | 100 mm (3,94'') | PPC - Polypropylene (cyan) | PP White | No positioners | F7520 | 35 mm | 14000 N/m | 5 kg/m^2 | Self-Locking Pin | 0÷100 °C | Pin diameter: 5 mm Open Surface 42 % Temporary code, to be created specifically on request | 0÷100 °C |
|
| F7520FGPPC0150-PA6 | 150 mm (5,91'') | PPC - Polypropylene (cyan) | PA6 White | No positioners | F7520 | 35 mm | 21000 N/m | 5 kg/m^2 | Self-Locking Pin | 0÷80 °C | Pin diameter: 5 mm Open Surface 42 % Temporary code, to be created specifically on request | 0÷80 °C |
|
| F7520FGPPC0150-PBT | 150 mm (5,91'') | PPC - Polypropylene (cyan) | PBT White | No positioners | F7520 | 35 mm | 45000 N/m | 5 kg/m^2 | Self-Locking Pin | 0÷100 °C | Pin diameter: 5 mm Open Surface 42 % Temporary code, to be created specifically on request | 0÷100 °C |
|
| F7520FGPPC0150-PE | 150 mm (5,91'') | PPC - Polypropylene (cyan) | PE White | No positioners | F7520 | 35 mm | 12000 N/m | 5 kg/m^2 | Self-Locking Pin | 0÷65 °C | Pin diameter: 5 mm Open Surface 42 % Temporary code, to be created specifically on request | 0÷65 °C |
|
| F7520FGPPC0150-PP | 150 mm (5,91'') | PPC - Polypropylene (cyan) | PP White | No positioners | F7520 | 35 mm | 14000 N/m | 5 kg/m^2 | Self-Locking Pin | 0÷100 °C | Pin diameter: 5 mm Open Surface 42 % Temporary code, to be created specifically on request | 0÷100 °C |
|
| F7520FGPPC0200-PA6 | 200 mm (7,87'') | PPC - Polypropylene (cyan) | PA6 White | No positioners | F7520 | 35 mm | 21000 N/m | 5 kg/m^2 | Self-Locking Pin | 0÷80 °C | Pin diameter: 5 mm Open Surface 42 % Temporary code, to be created specifically on request | 0÷80 °C |
|
| F7520FGPPC0200-PBT | 200 mm (7,87'') | PPC - Polypropylene (cyan) | PBT White | No positioners | F7520 | 35 mm | 45000 N/m | 5 kg/m^2 | Self-Locking Pin | 0÷100 °C | Pin diameter: 5 mm Open Surface 42 % Temporary code, to be created specifically on request | 0÷100 °C |
|
| F7520FGPPC0200-PE | 200 mm (7,87'') | PPC - Polypropylene (cyan) | PE White | No positioners | F7520 | 35 mm | 12000 N/m | 5 kg/m^2 | Self-Locking Pin | 0÷65 °C | Pin diameter: 5 mm Open Surface 42 % Temporary code, to be created specifically on request | 0÷65 °C |
|
| F7520FGPPC0200-PP | 200 mm (7,87'') | PPC - Polypropylene (cyan) | PP White | No positioners | F7520 | 35 mm | 14000 N/m | 5 kg/m^2 | Self-Locking Pin | 0÷100 °C | Pin diameter: 5 mm Open Surface 42 % Temporary code, to be created specifically on request | 0÷100 °C |
|
| F7520FGPPC0250-PA6 | 250 mm (9,84'') | PPC - Polypropylene (cyan) | PA6 White | No positioners | F7520 | 35 mm | 21000 N/m | 5 kg/m^2 | Self-Locking Pin | 0÷80 °C | Pin diameter: 5 mm Open Surface 42 % Temporary code, to be created specifically on request | 0÷80 °C |
|
| F7520FGPPC0250-PBT | 250 mm (9,84'') | PPC - Polypropylene (cyan) | PBT White | No positioners | F7520 | 35 mm | 45000 N/m | 5 kg/m^2 | Self-Locking Pin | 0÷100 °C | Pin diameter: 5 mm Open Surface 42 % Temporary code, to be created specifically on request | 0÷100 °C |
|
| F7520FGPPC0250-PE | 250 mm (9,84'') | PPC - Polypropylene (cyan) | PE White | No positioners | F7520 | 35 mm | 12000 N/m | 5 kg/m^2 | Self-Locking Pin | 0÷65 °C | Pin diameter: 5 mm Open Surface 42 % Temporary code, to be created specifically on request | 0÷65 °C |
|
| F7520FGPPC0250-PP | 250 mm (9,84'') | PPC - Polypropylene (cyan) | PP White | No positioners | F7520 | 35 mm | 14000 N/m | 5 kg/m^2 | Self-Locking Pin | 0÷100 °C | Pin diameter: 5 mm Open Surface 42 % Temporary code, to be created specifically on request | 0÷100 °C |
|
| F7520FGPPC0300-PA6 | 300 mm (11,81'') | PPC - Polypropylene (cyan) | PA6 White | No positioners | F7520 | 35 mm | 21000 N/m | 5 kg/m^2 | Self-Locking Pin | 0÷80 °C | Pin diameter: 5 mm Open Surface 42 % Temporary code, to be created specifically on request | 0÷80 °C |
|
| F7520FGPPC0300-PBT | 300 mm (11,81'') | PPC - Polypropylene (cyan) | PBT White | No positioners | F7520 | 35 mm | 45000 N/m | 5 kg/m^2 | Self-Locking Pin | 0÷100 °C | Pin diameter: 5 mm Open Surface 42 % Temporary code, to be created specifically on request | 0÷100 °C |
|
| F7520FGPPC0300-PE | 300 mm (11,81'') | PPC - Polypropylene (cyan) | PE White | No positioners | F7520 | 35 mm | 12000 N/m | 5 kg/m^2 | Self-Locking Pin | 0÷65 °C | Pin diameter: 5 mm Open Surface 42 % Temporary code, to be created specifically on request | 0÷65 °C |
|
| F7520FGPPC0300-PP | 300 mm (11,81'') | PPC - Polypropylene (cyan) | PP White | No positioners | F7520 | 35 mm | 14000 N/m | 5 kg/m^2 | Self-Locking Pin | 0÷100 °C | Pin diameter: 5 mm Open Surface 42 % Temporary code, to be created specifically on request | 0÷100 °C |
|
| F7520FGPPC0350-PA6 | 350 mm (13,78'') | PPC - Polypropylene (cyan) | PA6 White | No positioners | F7520 | 35 mm | 21000 N/m | 5 kg/m^2 | Self-Locking Pin | 0÷80 °C | Pin diameter: 5 mm Open Surface 42 % Temporary code, to be created specifically on request | 0÷80 °C |
|
| F7520FGPPC0350-PBT | 350 mm (13,78'') | PPC - Polypropylene (cyan) | PBT White | No positioners | F7520 | 35 mm | 45000 N/m | 5 kg/m^2 | Self-Locking Pin | 0÷100 °C | Pin diameter: 5 mm Open Surface 42 % Temporary code, to be created specifically on request | 0÷100 °C |
|
| F7520FGPPC0350-PE | 350 mm (13,78'') | PPC - Polypropylene (cyan) | PE White | No positioners | F7520 | 35 mm | 12000 N/m | 5 kg/m^2 | Self-Locking Pin | 0÷65 °C | Pin diameter: 5 mm Open Surface 42 % Temporary code, to be created specifically on request | 0÷65 °C |
|
| F7520FGPPC0350-PP | 350 mm (13,78'') | PPC - Polypropylene (cyan) | PP White | No positioners | F7520 | 35 mm | 14000 N/m | 5 kg/m^2 | Self-Locking Pin | 0÷100 °C | Pin diameter: 5 mm Open Surface 42 % Temporary code, to be created specifically on request | 0÷100 °C |
|
| F7520FGPPC0400-PA6 | 400 mm (15,75'') | PPC - Polypropylene (cyan) | PA6 White | No positioners | F7520 | 35 mm | 21000 N/m | 5 kg/m^2 | Self-Locking Pin | 0÷80 °C | Pin diameter: 5 mm Open Surface 42 % Temporary code, to be created specifically on request | 0÷80 °C |
|
| F7520FGPPC0400-PBT | 400 mm (15,75'') | PPC - Polypropylene (cyan) | PBT White | No positioners | F7520 | 35 mm | 45000 N/m | 5 kg/m^2 | Self-Locking Pin | 0÷100 °C | Pin diameter: 5 mm Open Surface 42 % Temporary code, to be created specifically on request | 0÷100 °C |
|
| F7520FGPPC0400-PE | 400 mm (15,75'') | PPC - Polypropylene (cyan) | PE White | No positioners | F7520 | 35 mm | 12000 N/m | 5 kg/m^2 | Self-Locking Pin | 0÷65 °C | Pin diameter: 5 mm Open Surface 42 % Temporary code, to be created specifically on request | 0÷65 °C |
|
| F7520FGPPC0400-PP | 400 mm (15,75'') | PPC - Polypropylene (cyan) | PP White | No positioners | F7520 | 35 mm | 14000 N/m | 5 kg/m^2 | Self-Locking Pin | 0÷100 °C | Pin diameter: 5 mm Open Surface 42 % Temporary code, to be created specifically on request | 0÷100 °C |
|
| F7520FGPPC0450-PA6 | 450 mm (17,72'') | PPC - Polypropylene (cyan) | PA6 White | No positioners | F7520 | 35 mm | 21000 N/m | 5 kg/m^2 | Self-Locking Pin | 0÷80 °C | Pin diameter: 5 mm Open Surface 42 % Temporary code, to be created specifically on request | 0÷80 °C |
|
| F7520FGPPC0450-PBT | 450 mm (17,72'') | PPC - Polypropylene (cyan) | PBT White | No positioners | F7520 | 35 mm | 45000 N/m | 5 kg/m^2 | Self-Locking Pin | 0÷100 °C | Pin diameter: 5 mm Open Surface 42 % Temporary code, to be created specifically on request | 0÷100 °C |
|
| F7520FGPPC0450-PE | 450 mm (17,72'') | PPC - Polypropylene (cyan) | PE White | No positioners | F7520 | 35 mm | 12000 N/m | 5 kg/m^2 | Self-Locking Pin | 0÷65 °C | Pin diameter: 5 mm Open Surface 42 % Temporary code, to be created specifically on request | 0÷65 °C |
|
| F7520FGPPC0450-PP | 450 mm (17,72'') | PPC - Polypropylene (cyan) | PP White | No positioners | F7520 | 35 mm | 14000 N/m | 5 kg/m^2 | Self-Locking Pin | 0÷100 °C | Pin diameter: 5 mm Open Surface 42 % Temporary code, to be created specifically on request | 0÷100 °C |
|
| F7520FGPPC0500-PA6 | 500 mm (19,69'') | PPC - Polypropylene (cyan) | PA6 White | No positioners | F7520 | 35 mm | 21000 N/m | 5 kg/m^2 | Self-Locking Pin | 0÷80 °C | Pin diameter: 5 mm Open Surface 42 % Temporary code, to be created specifically on request | 0÷80 °C |
|
| F7520FGPPC0500-PBT | 500 mm (19,69'') | PPC - Polypropylene (cyan) | PBT White | No positioners | F7520 | 35 mm | 45000 N/m | 5 kg/m^2 | Self-Locking Pin | 0÷100 °C | Pin diameter: 5 mm Open Surface 42 % Temporary code, to be created specifically on request | 0÷100 °C |
|
| F7520FGPPC0500-PE | 500 mm (19,69'') | PPC - Polypropylene (cyan) | PE White | No positioners | F7520 | 35 mm | 12000 N/m | 5 kg/m^2 | Self-Locking Pin | 0÷65 °C | Pin diameter: 5 mm Open Surface 42 % Temporary code, to be created specifically on request | 0÷65 °C |
|
| F7520FGPPC0500-PP | 500 mm (19,69'') | PPC - Polypropylene (cyan) | PP White | No positioners | F7520 | 35 mm | 14000 N/m | 5 kg/m^2 | Self-Locking Pin | 0÷100 °C | Pin diameter: 5 mm Open Surface 42 % Temporary code, to be created specifically on request | 0÷100 °C |
|
| F7520FGPPC0550-PA6 | 550 mm (21,65'') | PPC - Polypropylene (cyan) | PA6 White | No positioners | F7520 | 35 mm | 21000 N/m | 5 kg/m^2 | Self-Locking Pin | 0÷80 °C | Pin diameter: 5 mm Open Surface 42 % Temporary code, to be created specifically on request | 0÷80 °C |
|
| F7520FGPPC0550-PBT | 550 mm (21,65'') | PPC - Polypropylene (cyan) | PBT White | No positioners | F7520 | 35 mm | 45000 N/m | 5 kg/m^2 | Self-Locking Pin | 0÷100 °C | Pin diameter: 5 mm Open Surface 42 % Temporary code, to be created specifically on request | 0÷100 °C |
|
| F7520FGPPC0550-PE | 550 mm (21,65'') | PPC - Polypropylene (cyan) | PE White | No positioners | F7520 | 35 mm | 12000 N/m | 5 kg/m^2 | Self-Locking Pin | 0÷65 °C | Pin diameter: 5 mm Open Surface 42 % Temporary code, to be created specifically on request | 0÷65 °C |
|
| F7520FGPPC0550-PP | 550 mm (21,65'') | PPC - Polypropylene (cyan) | PP White | No positioners | F7520 | 35 mm | 14000 N/m | 5 kg/m^2 | Self-Locking Pin | 0÷100 °C | Pin diameter: 5 mm Open Surface 42 % Temporary code, to be created specifically on request | 0÷100 °C |
|
| F7520FGPPC0600-PA6 | 600 mm (23,62'') | PPC - Polypropylene (cyan) | PA6 White | No positioners | F7520 | 35 mm | 21000 N/m | 5 kg/m^2 | Self-Locking Pin | 0÷80 °C | Pin diameter: 5 mm Open Surface 42 % Temporary code, to be created specifically on request | 0÷80 °C |
|
| F7520FGPPC0600-PBT | 600 mm (23,62'') | PPC - Polypropylene (cyan) | PBT White | No positioners | F7520 | 35 mm | 45000 N/m | 5 kg/m^2 | Self-Locking Pin | 0÷100 °C | Pin diameter: 5 mm Open Surface 42 % Temporary code, to be created specifically on request | 0÷100 °C |
|
| F7520FGPPC0600-PE | 600 mm (23,62'') | PPC - Polypropylene (cyan) | PE White | No positioners | F7520 | 35 mm | 12000 N/m | 5 kg/m^2 | Self-Locking Pin | 0÷65 °C | Pin diameter: 5 mm Open Surface 42 % Temporary code, to be created specifically on request | 0÷65 °C |
|
| F7520FGPPC0600-PP | 600 mm (23,62'') | PPC - Polypropylene (cyan) | PP White | No positioners | F7520 | 35 mm | 14000 N/m | 5 kg/m^2 | Self-Locking Pin | 0÷100 °C | Pin diameter: 5 mm Open Surface 42 % Temporary code, to be created specifically on request | 0÷100 °C |
|
| F7520FGPPC0650-PA6 | 650 mm (25,59'') | PPC - Polypropylene (cyan) | PA6 White | No positioners | F7520 | 35 mm | 21000 N/m | 5 kg/m^2 | Self-Locking Pin | 0÷80 °C | Pin diameter: 5 mm Open Surface 42 % Temporary code, to be created specifically on request | 0÷80 °C |
|
| F7520FGPPC0650-PBT | 650 mm (25,59'') | PPC - Polypropylene (cyan) | PBT White | No positioners | F7520 | 35 mm | 45000 N/m | 5 kg/m^2 | Self-Locking Pin | 0÷100 °C | Pin diameter: 5 mm Open Surface 42 % Temporary code, to be created specifically on request | 0÷100 °C |
|
| F7520FGPPC0650-PE | 650 mm (25,59'') | PPC - Polypropylene (cyan) | PE White | No positioners | F7520 | 35 mm | 12000 N/m | 5 kg/m^2 | Self-Locking Pin | 0÷65 °C | Pin diameter: 5 mm Open Surface 42 % Temporary code, to be created specifically on request | 0÷65 °C |
|
| F7520FGPPC0650-PP | 650 mm (25,59'') | PPC - Polypropylene (cyan) | PP White | No positioners | F7520 | 35 mm | 14000 N/m | 5 kg/m^2 | Self-Locking Pin | 0÷100 °C | Pin diameter: 5 mm Open Surface 42 % Temporary code, to be created specifically on request | 0÷100 °C |
|
| F7520FGPPC0700-PA6 | 700 mm (27,56'') | PPC - Polypropylene (cyan) | PA6 White | No positioners | F7520 | 35 mm | 21000 N/m | 5 kg/m^2 | Self-Locking Pin | 0÷80 °C | Pin diameter: 5 mm Open Surface 42 % Temporary code, to be created specifically on request | 0÷80 °C |
|
| F7520FGPPC0700-PBT | 700 mm (27,56'') | PPC - Polypropylene (cyan) | PBT White | No positioners | F7520 | 35 mm | 45000 N/m | 5 kg/m^2 | Self-Locking Pin | 0÷100 °C | Pin diameter: 5 mm Open Surface 42 % Temporary code, to be created specifically on request | 0÷100 °C |
|
| F7520FGPPC0700-PE | 700 mm (27,56'') | PPC - Polypropylene (cyan) | PE White | No positioners | F7520 | 35 mm | 12000 N/m | 5 kg/m^2 | Self-Locking Pin | 0÷65 °C | Pin diameter: 5 mm Open Surface 42 % Temporary code, to be created specifically on request | 0÷65 °C |
|
| F7520FGPPC0700-PP | 700 mm (27,56'') | PPC - Polypropylene (cyan) | PP White | No positioners | F7520 | 35 mm | 14000 N/m | 5 kg/m^2 | Self-Locking Pin | 0÷100 °C | Pin diameter: 5 mm Open Surface 42 % Temporary code, to be created specifically on request | 0÷100 °C |
|
| F7520FGPPC0750-PA6 | 750 mm (29,53'') | PPC - Polypropylene (cyan) | PA6 White | No positioners | F7520 | 35 mm | 21000 N/m | 5 kg/m^2 | Self-Locking Pin | 0÷80 °C | Pin diameter: 5 mm Open Surface 42 % Temporary code, to be created specifically on request | 0÷80 °C |
|
| F7520FGPPC0750-PBT | 750 mm (29,53'') | PPC - Polypropylene (cyan) | PBT White | No positioners | F7520 | 35 mm | 45000 N/m | 5 kg/m^2 | Self-Locking Pin | 0÷100 °C | Pin diameter: 5 mm Open Surface 42 % Temporary code, to be created specifically on request | 0÷100 °C |
|
| F7520FGPPC0750-PE | 750 mm (29,53'') | PPC - Polypropylene (cyan) | PE White | No positioners | F7520 | 35 mm | 12000 N/m | 5 kg/m^2 | Self-Locking Pin | 0÷65 °C | Pin diameter: 5 mm Open Surface 42 % Temporary code, to be created specifically on request | 0÷65 °C |
|
| F7520FGPPC0750-PP | 750 mm (29,53'') | PPC - Polypropylene (cyan) | PP White | No positioners | F7520 | 35 mm | 14000 N/m | 5 kg/m^2 | Self-Locking Pin | 0÷100 °C | Pin diameter: 5 mm Open Surface 42 % Temporary code, to be created specifically on request | 0÷100 °C |
|
| F7520FGPPC0800-PA6 | 800 mm (31,5'') | PPC - Polypropylene (cyan) | PA6 White | No positioners | F7520 | 35 mm | 21000 N/m | 5 kg/m^2 | Self-Locking Pin | 0÷80 °C | Pin diameter: 5 mm Open Surface 42 % Temporary code, to be created specifically on request | 0÷80 °C |
|
| F7520FGPPC0800-PBT | 800 mm (31,5'') | PPC - Polypropylene (cyan) | PBT White | No positioners | F7520 | 35 mm | 45000 N/m | 5 kg/m^2 | Self-Locking Pin | 0÷100 °C | Pin diameter: 5 mm Open Surface 42 % Temporary code, to be created specifically on request | 0÷100 °C |
|
| F7520FGPPC0800-PE | 800 mm (31,5'') | PPC - Polypropylene (cyan) | PE White | No positioners | F7520 | 35 mm | 12000 N/m | 5 kg/m^2 | Self-Locking Pin | 0÷65 °C | Pin diameter: 5 mm Open Surface 42 % Temporary code, to be created specifically on request | 0÷65 °C |
|
| F7520FGPPC0800-PP | 800 mm (31,5'') | PPC - Polypropylene (cyan) | PP White | No positioners | F7520 | 35 mm | 14000 N/m | 5 kg/m^2 | Self-Locking Pin | 0÷100 °C | Pin diameter: 5 mm Open Surface 42 % Temporary code, to be created specifically on request | 0÷100 °C |
|
| F7520FGPPC0850-PA6 | 850 mm (33,46'') | PPC - Polypropylene (cyan) | PA6 White | No positioners | F7520 | 35 mm | 21000 N/m | 5 kg/m^2 | Self-Locking Pin | 0÷80 °C | Pin diameter: 5 mm Open Surface 42 % Temporary code, to be created specifically on request | 0÷80 °C |
|
| F7520FGPPC0850-PBT | 850 mm (33,46'') | PPC - Polypropylene (cyan) | PBT White | No positioners | F7520 | 35 mm | 45000 N/m | 5 kg/m^2 | Self-Locking Pin | 0÷100 °C | Pin diameter: 5 mm Open Surface 42 % Temporary code, to be created specifically on request | 0÷100 °C |
|
| F7520FGPPC0850-PE | 850 mm (33,46'') | PPC - Polypropylene (cyan) | PE White | No positioners | F7520 | 35 mm | 12000 N/m | 5 kg/m^2 | Self-Locking Pin | 0÷65 °C | Pin diameter: 5 mm Open Surface 42 % Temporary code, to be created specifically on request | 0÷65 °C |
|
| F7520FGPPC0850-PP | 850 mm (33,46'') | PPC - Polypropylene (cyan) | PP White | No positioners | F7520 | 35 mm | 14000 N/m | 5 kg/m^2 | Self-Locking Pin | 0÷100 °C | Pin diameter: 5 mm Open Surface 42 % Temporary code, to be created specifically on request | 0÷100 °C |
|
| F7520FGPPC0900-PA6 | 900 mm (35,43'') | PPC - Polypropylene (cyan) | PA6 White | No positioners | F7520 | 35 mm | 21000 N/m | 5 kg/m^2 | Self-Locking Pin | 0÷80 °C | Pin diameter: 5 mm Open Surface 42 % Temporary code, to be created specifically on request | 0÷80 °C |
|
| F7520FGPPC0900-PBT | 900 mm (35,43'') | PPC - Polypropylene (cyan) | PBT White | No positioners | F7520 | 35 mm | 45000 N/m | 5 kg/m^2 | Self-Locking Pin | 0÷100 °C | Pin diameter: 5 mm Open Surface 42 % Temporary code, to be created specifically on request | 0÷100 °C |
|
| F7520FGPPC0900-PE | 900 mm (35,43'') | PPC - Polypropylene (cyan) | PE White | No positioners | F7520 | 35 mm | 12000 N/m | 5 kg/m^2 | Self-Locking Pin | 0÷65 °C | Pin diameter: 5 mm Open Surface 42 % Temporary code, to be created specifically on request | 0÷65 °C |
|
| F7520FGPPC0900-PP | 900 mm (35,43'') | PPC - Polypropylene (cyan) | PP White | No positioners | F7520 | 35 mm | 14000 N/m | 5 kg/m^2 | Self-Locking Pin | 0÷100 °C | Pin diameter: 5 mm Open Surface 42 % Temporary code, to be created specifically on request | 0÷100 °C |
|
| F7520FGPPW0050-PA6 | 50 mm (1,97'') | PPW - Polypropylene (white) | PA6 White | No positioners | F7520 | 35 mm | 21000 N/m | 5 kg/m^2 | Self-Locking Pin | 0÷80 °C | Pin diameter: 5 mm Open Surface 42 % Temporary code, to be created specifically on request | 0÷80 °C |
|
| F7520FGPPW0050-PBT | 50 mm (1,97'') | PPW - Polypropylene (white) | PBT White | No positioners | F7520 | 35 mm | 45000 N/m | 5 kg/m^2 | Self-Locking Pin | 0÷100 °C | Pin diameter: 5 mm Open Surface 42 % Temporary code, to be created specifically on request | 0÷100 °C |
|
| F7520FGPPW0050-PE | 50 mm (1,97'') | PPW - Polypropylene (white) | PE White | No positioners | F7520 | 35 mm | 12000 N/m | 5 kg/m^2 | Self-Locking Pin | 0÷65 °C | Pin diameter: 5 mm Open Surface 42 % Temporary code, to be created specifically on request | 0÷65 °C |
|
| F7520FGPPW0050-PP | 50 mm (1,97'') | PPW - Polypropylene (white) | PP White | No positioners | F7520 | 35 mm | 14000 N/m | 5 kg/m^2 | Self-Locking Pin | 0÷100 °C | Pin diameter: 5 mm Open Surface 42 % Temporary code, to be created specifically on request | 0÷100 °C |
|
| F7520FGPPW0100-PA6 | 100 mm (3,94'') | PPW - Polypropylene (white) | PA6 White | No positioners | F7520 | 35 mm | 21000 N/m | 5 kg/m^2 | Self-Locking Pin | 0÷80 °C | Pin diameter: 5 mm Open Surface 42 % Temporary code, to be created specifically on request | 0÷80 °C |
|
| F7520FGPPW0100-PBT | 100 mm (3,94'') | PPW - Polypropylene (white) | PBT White | No positioners | F7520 | 35 mm | 45000 N/m | 5 kg/m^2 | Self-Locking Pin | 0÷100 °C | Pin diameter: 5 mm Open Surface 42 % Temporary code, to be created specifically on request | 0÷100 °C |
|
| F7520FGPPW0100-PE | 100 mm (3,94'') | PPW - Polypropylene (white) | PE White | No positioners | F7520 | 35 mm | 12000 N/m | 5 kg/m^2 | Self-Locking Pin | 0÷65 °C | Pin diameter: 5 mm Open Surface 42 % Temporary code, to be created specifically on request | 0÷65 °C |
|
| F7520FGPPW0100-PP | 100 mm (3,94'') | PPW - Polypropylene (white) | PP White | No positioners | F7520 | 35 mm | 14000 N/m | 5 kg/m^2 | Self-Locking Pin | 0÷100 °C | Pin diameter: 5 mm Open Surface 42 % Temporary code, to be created specifically on request | 0÷100 °C |
|
| F7520FGPPW0150-PA6 | 150 mm (5,91'') | PPW - Polypropylene (white) | PA6 White | No positioners | F7520 | 35 mm | 21000 N/m | 5 kg/m^2 | Self-Locking Pin | 0÷80 °C | Pin diameter: 5 mm Open Surface 42 % Temporary code, to be created specifically on request | 0÷80 °C |
|
| F7520FGPPW0150-PBT | 150 mm (5,91'') | PPW - Polypropylene (white) | PBT White | No positioners | F7520 | 35 mm | 45000 N/m | 5 kg/m^2 | Self-Locking Pin | 0÷100 °C | Pin diameter: 5 mm Open Surface 42 % Temporary code, to be created specifically on request | 0÷100 °C |
|
| F7520FGPPW0150-PE | 150 mm (5,91'') | PPW - Polypropylene (white) | PE White | No positioners | F7520 | 35 mm | 12000 N/m | 5 kg/m^2 | Self-Locking Pin | 0÷65 °C | Pin diameter: 5 mm Open Surface 42 % Temporary code, to be created specifically on request | 0÷65 °C |
|
| F7520FGPPW0150-PP | 150 mm (5,91'') | PPW - Polypropylene (white) | PP White | No positioners | F7520 | 35 mm | 14000 N/m | 5 kg/m^2 | Self-Locking Pin | 0÷100 °C | Pin diameter: 5 mm Open Surface 42 % Temporary code, to be created specifically on request | 0÷100 °C |
|
| F7520FGPPW0200-PA6 | 200 mm (7,87'') | PPW - Polypropylene (white) | PA6 White | No positioners | F7520 | 35 mm | 21000 N/m | 5 kg/m^2 | Self-Locking Pin | 0÷80 °C | Pin diameter: 5 mm Open Surface 42 % Temporary code, to be created specifically on request | 0÷80 °C |
|
| F7520FGPPW0200-PBT | 200 mm (7,87'') | PPW - Polypropylene (white) | PBT White | No positioners | F7520 | 35 mm | 45000 N/m | 5 kg/m^2 | Self-Locking Pin | 0÷100 °C | Pin diameter: 5 mm Open Surface 42 % Temporary code, to be created specifically on request | 0÷100 °C |
|
| F7520FGPPW0200-PE | 200 mm (7,87'') | PPW - Polypropylene (white) | PE White | No positioners | F7520 | 35 mm | 12000 N/m | 5 kg/m^2 | Self-Locking Pin | 0÷65 °C | Pin diameter: 5 mm Open Surface 42 % Temporary code, to be created specifically on request | 0÷65 °C |
|
| F7520FGPPW0200-PP | 200 mm (7,87'') | PPW - Polypropylene (white) | PP White | No positioners | F7520 | 35 mm | 14000 N/m | 5 kg/m^2 | Self-Locking Pin | 0÷100 °C | Pin diameter: 5 mm Open Surface 42 % Temporary code, to be created specifically on request | 0÷100 °C |
|
| F7520FGPPW0250-PA6 | 250 mm (9,84'') | PPW - Polypropylene (white) | PA6 White | No positioners | F7520 | 35 mm | 21000 N/m | 5 kg/m^2 | Self-Locking Pin | 0÷80 °C | Pin diameter: 5 mm Open Surface 42 % Temporary code, to be created specifically on request | 0÷80 °C |
|
| F7520FGPPW0250-PBT | 250 mm (9,84'') | PPW - Polypropylene (white) | PBT White | No positioners | F7520 | 35 mm | 45000 N/m | 5 kg/m^2 | Self-Locking Pin | 0÷100 °C | Pin diameter: 5 mm Open Surface 42 % Temporary code, to be created specifically on request | 0÷100 °C |
|
| F7520FGPPW0250-PE | 250 mm (9,84'') | PPW - Polypropylene (white) | PE White | No positioners | F7520 | 35 mm | 12000 N/m | 5 kg/m^2 | Self-Locking Pin | 0÷65 °C | Pin diameter: 5 mm Open Surface 42 % Temporary code, to be created specifically on request | 0÷65 °C |
|
| F7520FGPPW0250-PP | 250 mm (9,84'') | PPW - Polypropylene (white) | PP White | No positioners | F7520 | 35 mm | 14000 N/m | 5 kg/m^2 | Self-Locking Pin | 0÷100 °C | Pin diameter: 5 mm Open Surface 42 % Temporary code, to be created specifically on request | 0÷100 °C |
|
| F7520FGPPW0300-PA6 | 300 mm (11,81'') | PPW - Polypropylene (white) | PA6 White | No positioners | F7520 | 35 mm | 21000 N/m | 5 kg/m^2 | Self-Locking Pin | 0÷80 °C | Pin diameter: 5 mm Open Surface 42 % Temporary code, to be created specifically on request | 0÷80 °C |
|
| F7520FGPPW0300-PBT | 300 mm (11,81'') | PPW - Polypropylene (white) | PBT White | No positioners | F7520 | 35 mm | 45000 N/m | 5 kg/m^2 | Self-Locking Pin | 0÷100 °C | Pin diameter: 5 mm Open Surface 42 % Temporary code, to be created specifically on request | 0÷100 °C |
|
| F7520FGPPW0300-PE | 300 mm (11,81'') | PPW - Polypropylene (white) | PE White | No positioners | F7520 | 35 mm | 12000 N/m | 5 kg/m^2 | Self-Locking Pin | 0÷65 °C | Pin diameter: 5 mm Open Surface 42 % Temporary code, to be created specifically on request | 0÷65 °C |
|
| F7520FGPPW0300-PP | 300 mm (11,81'') | PPW - Polypropylene (white) | PP White | No positioners | F7520 | 35 mm | 14000 N/m | 5 kg/m^2 | Self-Locking Pin | 0÷100 °C | Pin diameter: 5 mm Open Surface 42 % Temporary code, to be created specifically on request | 0÷100 °C |
|
| F7520FGPPW0350-PA6 | 350 mm (13,78'') | PPW - Polypropylene (white) | PA6 White | No positioners | F7520 | 35 mm | 21000 N/m | 5 kg/m^2 | Self-Locking Pin | 0÷80 °C | Pin diameter: 5 mm Open Surface 42 % Temporary code, to be created specifically on request | 0÷80 °C |
|
| F7520FGPPW0350-PBT | 350 mm (13,78'') | PPW - Polypropylene (white) | PBT White | No positioners | F7520 | 35 mm | 45000 N/m | 5 kg/m^2 | Self-Locking Pin | 0÷100 °C | Pin diameter: 5 mm Open Surface 42 % Temporary code, to be created specifically on request | 0÷100 °C |
|
| F7520FGPPW0350-PE | 350 mm (13,78'') | PPW - Polypropylene (white) | PE White | No positioners | F7520 | 35 mm | 12000 N/m | 5 kg/m^2 | Self-Locking Pin | 0÷65 °C | Pin diameter: 5 mm Open Surface 42 % Temporary code, to be created specifically on request | 0÷65 °C |
|
| F7520FGPPW0350-PP | 350 mm (13,78'') | PPW - Polypropylene (white) | PP White | No positioners | F7520 | 35 mm | 14000 N/m | 5 kg/m^2 | Self-Locking Pin | 0÷100 °C | Pin diameter: 5 mm Open Surface 42 % Temporary code, to be created specifically on request | 0÷100 °C |
|
| F7520FGPPW0400-PA6 | 400 mm (15,75'') | PPW - Polypropylene (white) | PA6 White | No positioners | F7520 | 35 mm | 21000 N/m | 5 kg/m^2 | Self-Locking Pin | 0÷80 °C | Pin diameter: 5 mm Open Surface 42 % Temporary code, to be created specifically on request | 0÷80 °C |
|
| F7520FGPPW0400-PBT | 400 mm (15,75'') | PPW - Polypropylene (white) | PBT White | No positioners | F7520 | 35 mm | 45000 N/m | 5 kg/m^2 | Self-Locking Pin | 0÷100 °C | Pin diameter: 5 mm Open Surface 42 % Temporary code, to be created specifically on request | 0÷100 °C |
|
| F7520FGPPW0400-PE | 400 mm (15,75'') | PPW - Polypropylene (white) | PE White | No positioners | F7520 | 35 mm | 12000 N/m | 5 kg/m^2 | Self-Locking Pin | 0÷65 °C | Pin diameter: 5 mm Open Surface 42 % Temporary code, to be created specifically on request | 0÷65 °C |
|
| F7520FGPPW0400-PP | 400 mm (15,75'') | PPW - Polypropylene (white) | PP White | No positioners | F7520 | 35 mm | 14000 N/m | 5 kg/m^2 | Self-Locking Pin | 0÷100 °C | Pin diameter: 5 mm Open Surface 42 % Temporary code, to be created specifically on request | 0÷100 °C |
|
| F7520FGPPW0450-PA6 | 450 mm (17,72'') | PPW - Polypropylene (white) | PA6 White | No positioners | F7520 | 35 mm | 21000 N/m | 5 kg/m^2 | Self-Locking Pin | 0÷80 °C | Pin diameter: 5 mm Open Surface 42 % Temporary code, to be created specifically on request | 0÷80 °C |
|
| F7520FGPPW0450-PBT | 450 mm (17,72'') | PPW - Polypropylene (white) | PBT White | No positioners | F7520 | 35 mm | 45000 N/m | 5 kg/m^2 | Self-Locking Pin | 0÷100 °C | Pin diameter: 5 mm Open Surface 42 % Temporary code, to be created specifically on request | 0÷100 °C |
|
| F7520FGPPW0450-PE | 450 mm (17,72'') | PPW - Polypropylene (white) | PE White | No positioners | F7520 | 35 mm | 12000 N/m | 5 kg/m^2 | Self-Locking Pin | 0÷65 °C | Pin diameter: 5 mm Open Surface 42 % Temporary code, to be created specifically on request | 0÷65 °C |
|
| F7520FGPPW0450-PP | 450 mm (17,72'') | PPW - Polypropylene (white) | PP White | No positioners | F7520 | 35 mm | 14000 N/m | 5 kg/m^2 | Self-Locking Pin | 0÷100 °C | Pin diameter: 5 mm Open Surface 42 % Temporary code, to be created specifically on request | 0÷100 °C |
|
| F7520FGPPW0500-PA6 | 500 mm (19,69'') | PPW - Polypropylene (white) | PA6 White | No positioners | F7520 | 35 mm | 21000 N/m | 5 kg/m^2 | Self-Locking Pin | 0÷80 °C | Pin diameter: 5 mm Open Surface 42 % Temporary code, to be created specifically on request | 0÷80 °C |
|
| F7520FGPPW0500-PBT | 500 mm (19,69'') | PPW - Polypropylene (white) | PBT White | No positioners | F7520 | 35 mm | 45000 N/m | 5 kg/m^2 | Self-Locking Pin | 0÷100 °C | Pin diameter: 5 mm Open Surface 42 % Temporary code, to be created specifically on request | 0÷100 °C |
|
| F7520FGPPW0500-PE | 500 mm (19,69'') | PPW - Polypropylene (white) | PE White | No positioners | F7520 | 35 mm | 12000 N/m | 5 kg/m^2 | Self-Locking Pin | 0÷65 °C | Pin diameter: 5 mm Open Surface 42 % Temporary code, to be created specifically on request | 0÷65 °C |
|
| F7520FGPPW0500-PP | 500 mm (19,69'') | PPW - Polypropylene (white) | PP White | No positioners | F7520 | 35 mm | 14000 N/m | 5 kg/m^2 | Self-Locking Pin | 0÷100 °C | Pin diameter: 5 mm Open Surface 42 % Temporary code, to be created specifically on request | 0÷100 °C |
|
| F7520FGPPW0550-PA6 | 550 mm (21,65'') | PPW - Polypropylene (white) | PA6 White | No positioners | F7520 | 35 mm | 21000 N/m | 5 kg/m^2 | Self-Locking Pin | 0÷80 °C | Pin diameter: 5 mm Open Surface 42 % Temporary code, to be created specifically on request | 0÷80 °C |
|
| F7520FGPPW0550-PBT | 550 mm (21,65'') | PPW - Polypropylene (white) | PBT White | No positioners | F7520 | 35 mm | 45000 N/m | 5 kg/m^2 | Self-Locking Pin | 0÷100 °C | Pin diameter: 5 mm Open Surface 42 % Temporary code, to be created specifically on request | 0÷100 °C |
|
| F7520FGPPW0550-PE | 550 mm (21,65'') | PPW - Polypropylene (white) | PE White | No positioners | F7520 | 35 mm | 12000 N/m | 5 kg/m^2 | Self-Locking Pin | 0÷65 °C | Pin diameter: 5 mm Open Surface 42 % Temporary code, to be created specifically on request | 0÷65 °C |
|
| F7520FGPPW0550-PP | 550 mm (21,65'') | PPW - Polypropylene (white) | PP White | No positioners | F7520 | 35 mm | 14000 N/m | 5 kg/m^2 | Self-Locking Pin | 0÷100 °C | Pin diameter: 5 mm Open Surface 42 % Temporary code, to be created specifically on request | 0÷100 °C |
|
| F7520FGPPW0600-PA6 | 600 mm (23,62'') | PPW - Polypropylene (white) | PA6 White | No positioners | F7520 | 35 mm | 21000 N/m | 5 kg/m^2 | Self-Locking Pin | 0÷80 °C | Pin diameter: 5 mm Open Surface 42 % Temporary code, to be created specifically on request | 0÷80 °C |
|
| F7520FGPPW0600-PBT | 600 mm (23,62'') | PPW - Polypropylene (white) | PBT White | No positioners | F7520 | 35 mm | 45000 N/m | 5 kg/m^2 | Self-Locking Pin | 0÷100 °C | Pin diameter: 5 mm Open Surface 42 % Temporary code, to be created specifically on request | 0÷100 °C |
|
| F7520FGPPW0600-PE | 600 mm (23,62'') | PPW - Polypropylene (white) | PE White | No positioners | F7520 | 35 mm | 12000 N/m | 5 kg/m^2 | Self-Locking Pin | 0÷65 °C | Pin diameter: 5 mm Open Surface 42 % Temporary code, to be created specifically on request | 0÷65 °C |
|
| F7520FGPPW0600-PP | 600 mm (23,62'') | PPW - Polypropylene (white) | PP White | No positioners | F7520 | 35 mm | 14000 N/m | 5 kg/m^2 | Self-Locking Pin | 0÷100 °C | Pin diameter: 5 mm Open Surface 42 % Temporary code, to be created specifically on request | 0÷100 °C |
|
| F7520FGPPW0650-PA6 | 650 mm (25,59'') | PPW - Polypropylene (white) | PA6 White | No positioners | F7520 | 35 mm | 21000 N/m | 5 kg/m^2 | Self-Locking Pin | 0÷80 °C | Pin diameter: 5 mm Open Surface 42 % Temporary code, to be created specifically on request | 0÷80 °C |
|
| F7520FGPPW0650-PBT | 650 mm (25,59'') | PPW - Polypropylene (white) | PBT White | No positioners | F7520 | 35 mm | 45000 N/m | 5 kg/m^2 | Self-Locking Pin | 0÷100 °C | Pin diameter: 5 mm Open Surface 42 % Temporary code, to be created specifically on request | 0÷100 °C |
|
| F7520FGPPW0650-PE | 650 mm (25,59'') | PPW - Polypropylene (white) | PE White | No positioners | F7520 | 35 mm | 12000 N/m | 5 kg/m^2 | Self-Locking Pin | 0÷65 °C | Pin diameter: 5 mm Open Surface 42 % Temporary code, to be created specifically on request | 0÷65 °C |
|
| F7520FGPPW0650-PP | 650 mm (25,59'') | PPW - Polypropylene (white) | PP White | No positioners | F7520 | 35 mm | 14000 N/m | 5 kg/m^2 | Self-Locking Pin | 0÷100 °C | Pin diameter: 5 mm Open Surface 42 % Temporary code, to be created specifically on request | 0÷100 °C |
|
| F7520FGPPW0700-PA6 | 700 mm (27,56'') | PPW - Polypropylene (white) | PA6 White | No positioners | F7520 | 35 mm | 21000 N/m | 5 kg/m^2 | Self-Locking Pin | 0÷80 °C | Pin diameter: 5 mm Open Surface 42 % Temporary code, to be created specifically on request | 0÷80 °C |
|
| F7520FGPPW0700-PBT | 700 mm (27,56'') | PPW - Polypropylene (white) | PBT White | No positioners | F7520 | 35 mm | 45000 N/m | 5 kg/m^2 | Self-Locking Pin | 0÷100 °C | Pin diameter: 5 mm Open Surface 42 % Temporary code, to be created specifically on request | 0÷100 °C |
|
| F7520FGPPW0700-PE | 700 mm (27,56'') | PPW - Polypropylene (white) | PE White | No positioners | F7520 | 35 mm | 12000 N/m | 5 kg/m^2 | Self-Locking Pin | 0÷65 °C | Pin diameter: 5 mm Open Surface 42 % Temporary code, to be created specifically on request | 0÷65 °C |
|
| F7520FGPPW0700-PP | 700 mm (27,56'') | PPW - Polypropylene (white) | PP White | No positioners | F7520 | 35 mm | 14000 N/m | 5 kg/m^2 | Self-Locking Pin | 0÷100 °C | Pin diameter: 5 mm Open Surface 42 % Temporary code, to be created specifically on request | 0÷100 °C |
|
| F7520FGPPW0750-PA6 | 750 mm (29,53'') | PPW - Polypropylene (white) | PA6 White | No positioners | F7520 | 35 mm | 21000 N/m | 5 kg/m^2 | Self-Locking Pin | 0÷80 °C | Pin diameter: 5 mm Open Surface 42 % Temporary code, to be created specifically on request | 0÷80 °C |
|
| F7520FGPPW0750-PBT | 750 mm (29,53'') | PPW - Polypropylene (white) | PBT White | No positioners | F7520 | 35 mm | 45000 N/m | 5 kg/m^2 | Self-Locking Pin | 0÷100 °C | Pin diameter: 5 mm Open Surface 42 % Temporary code, to be created specifically on request | 0÷100 °C |
|
| F7520FGPPW0750-PE | 750 mm (29,53'') | PPW - Polypropylene (white) | PE White | No positioners | F7520 | 35 mm | 12000 N/m | 5 kg/m^2 | Self-Locking Pin | 0÷65 °C | Pin diameter: 5 mm Open Surface 42 % Temporary code, to be created specifically on request | 0÷65 °C |
|
| F7520FGPPW0750-PP | 750 mm (29,53'') | PPW - Polypropylene (white) | PP White | No positioners | F7520 | 35 mm | 14000 N/m | 5 kg/m^2 | Self-Locking Pin | 0÷100 °C | Pin diameter: 5 mm Open Surface 42 % Temporary code, to be created specifically on request | 0÷100 °C |
|
| F7520FGPPW0800-PA6 | 800 mm (31,5'') | PPW - Polypropylene (white) | PA6 White | No positioners | F7520 | 35 mm | 21000 N/m | 5 kg/m^2 | Self-Locking Pin | 0÷80 °C | Pin diameter: 5 mm Open Surface 42 % Temporary code, to be created specifically on request | 0÷80 °C |
|
| F7520FGPPW0800-PBT | 800 mm (31,5'') | PPW - Polypropylene (white) | PBT White | No positioners | F7520 | 35 mm | 45000 N/m | 5 kg/m^2 | Self-Locking Pin | 0÷100 °C | Pin diameter: 5 mm Open Surface 42 % Temporary code, to be created specifically on request | 0÷100 °C |
|
| F7520FGPPW0800-PE | 800 mm (31,5'') | PPW - Polypropylene (white) | PE White | No positioners | F7520 | 35 mm | 12000 N/m | 5 kg/m^2 | Self-Locking Pin | 0÷65 °C | Pin diameter: 5 mm Open Surface 42 % Temporary code, to be created specifically on request | 0÷65 °C |
|
| F7520FGPPW0800-PP | 800 mm (31,5'') | PPW - Polypropylene (white) | PP White | No positioners | F7520 | 35 mm | 14000 N/m | 5 kg/m^2 | Self-Locking Pin | 0÷100 °C | Pin diameter: 5 mm Open Surface 42 % Temporary code, to be created specifically on request | 0÷100 °C |
|
| F7520FGPPW0850-PA6 | 850 mm (33,46'') | PPW - Polypropylene (white) | PA6 White | No positioners | F7520 | 35 mm | 21000 N/m | 5 kg/m^2 | Self-Locking Pin | 0÷80 °C | Pin diameter: 5 mm Open Surface 42 % Temporary code, to be created specifically on request | 0÷80 °C |
|
| F7520FGPPW0850-PBT | 850 mm (33,46'') | PPW - Polypropylene (white) | PBT White | No positioners | F7520 | 35 mm | 45000 N/m | 5 kg/m^2 | Self-Locking Pin | 0÷100 °C | Pin diameter: 5 mm Open Surface 42 % Temporary code, to be created specifically on request | 0÷100 °C |
|
| F7520FGPPW0850-PE | 850 mm (33,46'') | PPW - Polypropylene (white) | PE White | No positioners | F7520 | 35 mm | 12000 N/m | 5 kg/m^2 | Self-Locking Pin | 0÷65 °C | Pin diameter: 5 mm Open Surface 42 % Temporary code, to be created specifically on request | 0÷65 °C |
|
| F7520FGPPW0850-PP | 850 mm (33,46'') | PPW - Polypropylene (white) | PP White | No positioners | F7520 | 35 mm | 14000 N/m | 5 kg/m^2 | Self-Locking Pin | 0÷100 °C | Pin diameter: 5 mm Open Surface 42 % Temporary code, to be created specifically on request | 0÷100 °C |
|
| F7520FGPPW0900-PA6 | 900 mm (35,43'') | PPW - Polypropylene (white) | PA6 White | No positioners | F7520 | 35 mm | 21000 N/m | 5 kg/m^2 | Self-Locking Pin | 0÷80 °C | Pin diameter: 5 mm Open Surface 42 % Temporary code, to be created specifically on request | 0÷80 °C |
|
| F7520FGPPW0900-PBT | 900 mm (35,43'') | PPW - Polypropylene (white) | PBT White | No positioners | F7520 | 35 mm | 45000 N/m | 5 kg/m^2 | Self-Locking Pin | 0÷100 °C | Pin diameter: 5 mm Open Surface 42 % Temporary code, to be created specifically on request | 0÷100 °C |
|
| F7520FGPPW0900-PE | 900 mm (35,43'') | PPW - Polypropylene (white) | PE White | No positioners | F7520 | 35 mm | 12000 N/m | 5 kg/m^2 | Self-Locking Pin | 0÷65 °C | Pin diameter: 5 mm Open Surface 42 % Temporary code, to be created specifically on request | 0÷65 °C |
|
| F7520FGPPW0900-PP | 900 mm (35,43'') | PPW - Polypropylene (white) | PP White | No positioners | F7520 | 35 mm | 14000 N/m | 5 kg/m^2 | Self-Locking Pin | 0÷100 °C | Pin diameter: 5 mm Open Surface 42 % Temporary code, to be created specifically on request | 0÷100 °C |
|
Enquiry Now
To allow us to respond to your enquiry promptly, please provide all required information.
Related Products
-
7510 Flat TopModular BeltsView Product -
7510 Nub TopModular BeltsView Product
-
7510 Diamond TopModular BeltsView Product
-
7520 Flat TopModular BeltsView Product
-
7540 Radius Flush GridModular BeltsView Product
-
7544 Tight Radius Flush GridModular BeltsView Product
-
7510-7520-7540-7544 split machined sprocketBelt sprocketsView Product
-
7510-7520-7540-7544 one-piece molded sprocketBelt sprocketsView Product
