7544 Tight Radius Flush Grid
Modular Belts
Description
Description
Belts wider than standard are available with 50 mm increments.
Non-standard widths are available with 16.65 mm increments.
The nominal tensile strength and the nominal width tolerance are valid for a temperature of 23°C (73 °F).
The actual belt width may differ from the nominal value depending on the material used, with the following percentage tolerances:
For POM belts, the variation ranges from 0% to -0.5%.
For PP belts, the variation ranges from -0.5% to +0.5%.
Non-Standard belt widths are incremented by 16.65 mm (0.66”). The minimum width is 50 mm (2”).
Non-bricklayed belts are available in widths of 50 mm (2”), 100 mm (4”) and 200 mm (8”).

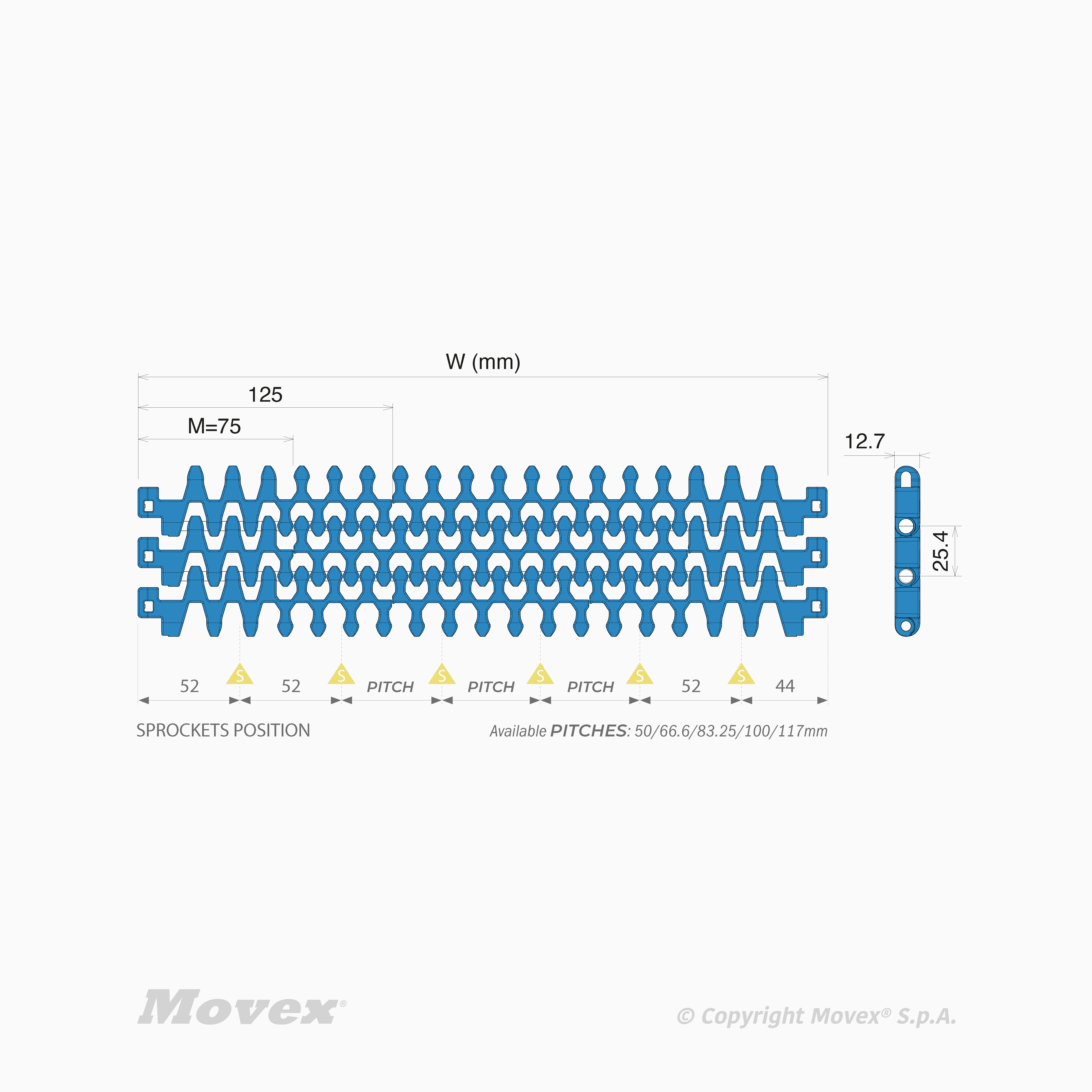

Basic features
| Series: | 7544 |
|---|---|
| Pitch: | 25.8 mm |
| Thickness: | 12.7 mm |
| Increments: | 50 mm - 1,97" |
| Surface Type: | FG - Flush Grid |
| Functionality: | Side-Flexing |
| Unit of measure: | Ea |
7544 Tight Radius Flush Grid
| Width | Material | Pin material | Version | Part | Back flex radius | Max working load | Mass | Fixation | Min radius | Temperature range dry | Supplementary informations | ||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Code | Actions | ||||||||||||
| F7544FGLFB0167-PBT | 167 mm (6,57'') | LFB - Low friction acetal (Blue) | PBT Pin | No positioners | F7544 | 66 mm | 20000 N/m | 8.4 kg/m^2 | Self-Locking Pin | 225,45 mm | -40÷93 °C | Temporary code, to be created specifically on request |
|
| F7544FGLFB0200-PBT | 200 mm (7,87'') | LFB - Low friction acetal (Blue) | PBT Pin | No positioners | F7544 | 66 mm | 20000 N/m | 8.4 kg/m^2 | Self-Locking Pin | 278 mm | -40÷93 °C | Temporary code, to be created specifically on request |
|
| F7544FGLFB0250-PBT | 250 mm (9,84'') | LFB - Low friction acetal (Blue) | PBT Pin | No positioners | F7544 | 66 mm | 20000 N/m | 8.4 kg/m^2 | Self-Locking Pin | 347,5 mm | -40÷93 °C | Temporary code, to be created specifically on request |
|
| F7544FGLFB0300-PBT | 300 mm (11,81'') | LFB - Low friction acetal (Blue) | PBT Pin | No positioners | F7544 | 66 mm | 20000 N/m | 8.4 kg/m^2 | Self-Locking Pin | 423 mm | -40÷93 °C | Temporary code, to be created specifically on request |
|
| F7544FGLFB0350-PBT | 350 mm (13,78'') | LFB - Low friction acetal (Blue) | PBT Pin | No positioners | F7544 | 66 mm | 20000 N/m | 8.4 kg/m^2 | Self-Locking Pin | 504 mm | -40÷93 °C | Temporary code, to be created specifically on request |
|
| F7544FGLFB0400-PBT | 400 mm (15,75'') | LFB - Low friction acetal (Blue) | PBT Pin | No positioners | F7544 | 66 mm | 20000 N/m | 8.4 kg/m^2 | Self-Locking Pin | 584 mm | -40÷93 °C | Temporary code, to be created specifically on request |
|
| F7544FGLFB0450-PBT | 450 mm (17,72'') | LFB - Low friction acetal (Blue) | PBT Pin | No positioners | F7544 | 66 mm | 20000 N/m | 8.4 kg/m^2 | Self-Locking Pin | 661,5 mm | -40÷93 °C | Temporary code, to be created specifically on request |
|
| F7544FGLFB0500-PBT | 500 mm (19,69'') | LFB - Low friction acetal (Blue) | PBT Pin | No positioners | F7544 | 66 mm | 20000 N/m | 8.4 kg/m^2 | Self-Locking Pin | 745 mm | -40÷93 °C | Temporary code, to be created specifically on request |
|
| F7544FGLFB0550-PBT | 550 mm (21,65'') | LFB - Low friction acetal (Blue) | PBT Pin | No positioners | F7544 | 66 mm | 20000 N/m | 8.4 kg/m^2 | Self-Locking Pin | 830,5 mm | -40÷93 °C | Temporary code, to be created specifically on request |
|
| F7544FGLFB0600-PBT | 600 mm (23,62'') | LFB - Low friction acetal (Blue) | PBT Pin | No positioners | F7544 | 66 mm | 20000 N/m | 8.4 kg/m^2 | Self-Locking Pin | 918 mm | -40÷93 °C | Temporary code, to be created specifically on request |
|
| F7544FGLFB0650-PBT | 650 mm (25,59'') | LFB - Low friction acetal (Blue) | PBT Pin | No positioners | F7544 | 66 mm | 20000 N/m | 8.4 kg/m^2 | Self-Locking Pin | 1001 mm | -40÷93 °C | Temporary code, to be created specifically on request |
|
| F7544FGLFB0700-PBT | 700 mm (27,56'') | LFB - Low friction acetal (Blue) | PBT Pin | No positioners | F7544 | 66 mm | 20000 N/m | 8.4 kg/m^2 | Self-Locking Pin | 1092 mm | -40÷93 °C | Temporary code, to be created specifically on request |
|
| F7544FGLFB0750-PBT | 750 mm (29,53'') | LFB - Low friction acetal (Blue) | PBT Pin | No positioners | F7544 | 66 mm | 20000 N/m | 8.4 kg/m^2 | Self-Locking Pin | 1177,5 mm | -40÷93 °C | Temporary code, to be created specifically on request |
|
| F7544FGLFB0800-PBT | 800 mm (31,5'') | LFB - Low friction acetal (Blue) | PBT Pin | No positioners | F7544 | 66 mm | 20000 N/m | 8.4 kg/m^2 | Self-Locking Pin | 1272 mm | -40÷93 °C | Temporary code, to be created specifically on request |
|
| F7544FGLFB0850-PBT | 850 mm (33,46'') | LFB - Low friction acetal (Blue) | PBT Pin | No positioners | F7544 | 66 mm | 20000 N/m | 8.4 kg/m^2 | Self-Locking Pin | 1360 mm | -40÷93 °C | Temporary code, to be created specifically on request |
|
| F7544FGLFB0900-PBT | 900 mm (35,43'') | LFB - Low friction acetal (Blue) | PBT Pin | No positioners | F7544 | 66 mm | 20000 N/m | 8.4 kg/m^2 | Self-Locking Pin | 1458 mm | -40÷93 °C | Temporary code, to be created specifically on request |
|
| F7544FGLFC0167-PBT | 167 mm (6,57'') | LFC - Low friction acetal (cyan) | PBT Pin | No positioners | F7544 | 66 mm | 20000 N/m | 8.4 kg/m^2 | Self-Locking Pin | 225,45 mm | -40÷93 °C | Temporary code, to be created specifically on request |
|
| F7544FGLFC0200-PBT | 200 mm (7,87'') | LFC - Low friction acetal (cyan) | PBT Pin | No positioners | F7544 | 66 mm | 20000 N/m | 8.4 kg/m^2 | Self-Locking Pin | 278 mm | -40÷93 °C | Temporary code, to be created specifically on request |
|
| F7544FGLFC0250-PBT | 250 mm (9,84'') | LFC - Low friction acetal (cyan) | PBT Pin | No positioners | F7544 | 66 mm | 20000 N/m | 8.4 kg/m^2 | Self-Locking Pin | 347,5 mm | -40÷93 °C | Temporary code, to be created specifically on request |
|
| F7544FGLFC0300-PBT | 300 mm (11,81'') | LFC - Low friction acetal (cyan) | PBT Pin | No positioners | F7544 | 66 mm | 20000 N/m | 8.4 kg/m^2 | Self-Locking Pin | 423 mm | -40÷93 °C | Temporary code, to be created specifically on request |
|
| F7544FGLFC0350-PBT | 350 mm (13,78'') | LFC - Low friction acetal (cyan) | PBT Pin | No positioners | F7544 | 66 mm | 20000 N/m | 8.4 kg/m^2 | Self-Locking Pin | 504 mm | -40÷93 °C | Temporary code, to be created specifically on request |
|
| F7544FGLFC0400-PBT | 400 mm (15,75'') | LFC - Low friction acetal (cyan) | PBT Pin | No positioners | F7544 | 66 mm | 20000 N/m | 8.4 kg/m^2 | Self-Locking Pin | 584 mm | -40÷93 °C | Temporary code, to be created specifically on request |
|
| F7544FGLFC0450-PBT | 450 mm (17,72'') | LFC - Low friction acetal (cyan) | PBT Pin | No positioners | F7544 | 66 mm | 20000 N/m | 8.4 kg/m^2 | Self-Locking Pin | 661,5 mm | -40÷93 °C | Temporary code, to be created specifically on request |
|
| F7544FGLFC0500-PBT | 500 mm (19,69'') | LFC - Low friction acetal (cyan) | PBT Pin | No positioners | F7544 | 66 mm | 20000 N/m | 8.4 kg/m^2 | Self-Locking Pin | 745 mm | -40÷93 °C | Temporary code, to be created specifically on request |
|
| F7544FGLFC0550-PBT | 550 mm (21,65'') | LFC - Low friction acetal (cyan) | PBT Pin | No positioners | F7544 | 66 mm | 20000 N/m | 8.4 kg/m^2 | Self-Locking Pin | 830,5 mm | -40÷93 °C | Temporary code, to be created specifically on request |
|
| F7544FGLFC0600-PBT | 600 mm (23,62'') | LFC - Low friction acetal (cyan) | PBT Pin | No positioners | F7544 | 66 mm | 20000 N/m | 8.4 kg/m^2 | Self-Locking Pin | 918 mm | -40÷93 °C | Temporary code, to be created specifically on request |
|
| F7544FGLFC0650-PBT | 650 mm (25,59'') | LFC - Low friction acetal (cyan) | PBT Pin | No positioners | F7544 | 66 mm | 20000 N/m | 8.4 kg/m^2 | Self-Locking Pin | 1001 mm | -40÷93 °C | Temporary code, to be created specifically on request |
|
| F7544FGLFC0700-PBT | 700 mm (27,56'') | LFC - Low friction acetal (cyan) | PBT Pin | No positioners | F7544 | 66 mm | 20000 N/m | 8.4 kg/m^2 | Self-Locking Pin | 1092 mm | -40÷93 °C | Temporary code, to be created specifically on request |
|
| F7544FGLFC0750-PBT | 750 mm (29,53'') | LFC - Low friction acetal (cyan) | PBT Pin | No positioners | F7544 | 66 mm | 20000 N/m | 8.4 kg/m^2 | Self-Locking Pin | 1177,5 mm | -40÷93 °C | Temporary code, to be created specifically on request |
|
| F7544FGLFC0800-PBT | 800 mm (31,5'') | LFC - Low friction acetal (cyan) | PBT Pin | No positioners | F7544 | 66 mm | 20000 N/m | 8.4 kg/m^2 | Self-Locking Pin | 1272 mm | -40÷93 °C | Temporary code, to be created specifically on request |
|
| F7544FGLFC0850-PBT | 850 mm (33,46'') | LFC - Low friction acetal (cyan) | PBT Pin | No positioners | F7544 | 66 mm | 20000 N/m | 8.4 kg/m^2 | Self-Locking Pin | 1360 mm | -40÷93 °C | Temporary code, to be created specifically on request |
|
| F7544FGLFC0900-PBT | 900 mm (35,43'') | LFC - Low friction acetal (cyan) | PBT Pin | No positioners | F7544 | 66 mm | 20000 N/m | 8.4 kg/m^2 | Self-Locking Pin | 1458 mm | -40÷93 °C | Temporary code, to be created specifically on request |
|
| F7544FGLFW0167-PBT | 167 mm (6,57'') | LFW - Low Friction acetal (White) | PBT Pin | No positioners | F7544 | 66 mm | 20000 N/m | 8.4 kg/m^2 | Self-Locking Pin | 225,45 mm | -40÷93 °C | Temporary code, to be created specifically on request |
|
| F7544FGLFW0200-PBT | 200 mm (7,87'') | LFW - Low Friction acetal (White) | PBT Pin | No positioners | F7544 | 66 mm | 20000 N/m | 8.4 kg/m^2 | Self-Locking Pin | 278 mm | -40÷93 °C | Temporary code, to be created specifically on request |
|
| F7544FGLFW0250-PBT | 250 mm (9,84'') | LFW - Low Friction acetal (White) | PBT Pin | No positioners | F7544 | 66 mm | 20000 N/m | 8.4 kg/m^2 | Self-Locking Pin | 347,5 mm | -40÷93 °C | Temporary code, to be created specifically on request |
|
| F7544FGLFW0300-PBT | 300 mm (11,81'') | LFW - Low Friction acetal (White) | PBT Pin | No positioners | F7544 | 66 mm | 20000 N/m | 8.4 kg/m^2 | Self-Locking Pin | 423 mm | -40÷93 °C | Temporary code, to be created specifically on request |
|
| F7544FGLFW0350-PBT | 350 mm (13,78'') | LFW - Low Friction acetal (White) | PBT Pin | No positioners | F7544 | 66 mm | 20000 N/m | 8.4 kg/m^2 | Self-Locking Pin | 504 mm | -40÷93 °C | Temporary code, to be created specifically on request |
|
| F7544FGLFW0400-PBT | 400 mm (15,75'') | LFW - Low Friction acetal (White) | PBT Pin | No positioners | F7544 | 66 mm | 20000 N/m | 8.4 kg/m^2 | Self-Locking Pin | 584 mm | -40÷93 °C | Temporary code, to be created specifically on request |
|
| F7544FGLFW0450-PBT | 450 mm (17,72'') | LFW - Low Friction acetal (White) | PBT Pin | No positioners | F7544 | 66 mm | 20000 N/m | 8.4 kg/m^2 | Self-Locking Pin | 661,5 mm | -40÷93 °C | Temporary code, to be created specifically on request |
|
| F7544FGLFW0500-PBT | 500 mm (19,69'') | LFW - Low Friction acetal (White) | PBT Pin | No positioners | F7544 | 66 mm | 20000 N/m | 8.4 kg/m^2 | Self-Locking Pin | 745 mm | -40÷93 °C | Temporary code, to be created specifically on request |
|
| F7544FGLFW0550-PBT | 550 mm (21,65'') | LFW - Low Friction acetal (White) | PBT Pin | No positioners | F7544 | 66 mm | 20000 N/m | 8.4 kg/m^2 | Self-Locking Pin | 830,5 mm | -40÷93 °C | Temporary code, to be created specifically on request |
|
| F7544FGLFW0600-PBT | 600 mm (23,62'') | LFW - Low Friction acetal (White) | PBT Pin | No positioners | F7544 | 66 mm | 20000 N/m | 8.4 kg/m^2 | Self-Locking Pin | 918 mm | -40÷93 °C | Temporary code, to be created specifically on request |
|
| F7544FGLFW0650-PBT | 650 mm (25,59'') | LFW - Low Friction acetal (White) | PBT Pin | No positioners | F7544 | 66 mm | 20000 N/m | 8.4 kg/m^2 | Self-Locking Pin | 1001 mm | -40÷93 °C | Temporary code, to be created specifically on request |
|
| F7544FGLFW0700-PBT | 700 mm (27,56'') | LFW - Low Friction acetal (White) | PBT Pin | No positioners | F7544 | 66 mm | 20000 N/m | 8.4 kg/m^2 | Self-Locking Pin | 1092 mm | -40÷93 °C | Temporary code, to be created specifically on request |
|
| F7544FGLFW0750-PBT | 750 mm (29,53'') | LFW - Low Friction acetal (White) | PBT Pin | No positioners | F7544 | 66 mm | 20000 N/m | 8.4 kg/m^2 | Self-Locking Pin | 1177,5 mm | -40÷93 °C | Temporary code, to be created specifically on request |
|
| F7544FGLFW0800-PBT | 800 mm (31,5'') | LFW - Low Friction acetal (White) | PBT Pin | No positioners | F7544 | 66 mm | 20000 N/m | 8.4 kg/m^2 | Self-Locking Pin | 1272 mm | -40÷93 °C | Temporary code, to be created specifically on request |
|
| F7544FGLFW0850-PBT | 850 mm (33,46'') | LFW - Low Friction acetal (White) | PBT Pin | No positioners | F7544 | 66 mm | 20000 N/m | 8.4 kg/m^2 | Self-Locking Pin | 1360 mm | -40÷93 °C | Temporary code, to be created specifically on request |
|
| F7544FGLFW0900-PBT | 900 mm (35,43'') | LFW - Low Friction acetal (White) | PBT Pin | No positioners | F7544 | 66 mm | 20000 N/m | 8.4 kg/m^2 | Self-Locking Pin | 1458 mm | -40÷93 °C | Temporary code, to be created specifically on request |
|
| F7544FGPPB0167-PBT | 167 mm (6,57'') | PPB - Polypropylene (Blue) | PBT Pin | No positioners | F7544 | 66 mm | 14000 N/m | 5.8 kg/m^2 | Self-Locking Pin | 225,45 mm | 5÷93 °C | Temporary code, to be created specifically on request |
|
| F7544FGPPB0167-PP | 167 mm (6,57'') | PPB - Polypropylene (Blue) | PP Pin | No positioners | F7544 | 66 mm | 14000 N/m | 5.8 kg/m^2 | Self-Locking Pin | 225,45 mm | 5÷104 °C | Temporary code, to be created specifically on request |
|
| F7544FGPPB0200-PBT | 200 mm (7,87'') | PPB - Polypropylene (Blue) | PBT Pin | No positioners | F7544 | 66 mm | 14000 N/m | 5.8 kg/m^2 | Self-Locking Pin | 278 mm | 5÷93 °C | Temporary code, to be created specifically on request |
|
| F7544FGPPB0200-PP | 200 mm (7,87'') | PPB - Polypropylene (Blue) | PP Pin | No positioners | F7544 | 66 mm | 14000 N/m | 5.8 kg/m^2 | Self-Locking Pin | 278 mm | 5÷104 °C | Temporary code, to be created specifically on request |
|
| F7544FGPPB0250-PBT | 250 mm (9,84'') | PPB - Polypropylene (Blue) | PBT Pin | No positioners | F7544 | 66 mm | 14000 N/m | 5.8 kg/m^2 | Self-Locking Pin | 347,5 mm | 5÷93 °C | Temporary code, to be created specifically on request |
|
| F7544FGPPB0250-PP | 250 mm (9,84'') | PPB - Polypropylene (Blue) | PP Pin | No positioners | F7544 | 66 mm | 14000 N/m | 5.8 kg/m^2 | Self-Locking Pin | 347,5 mm | 5÷104 °C | Temporary code, to be created specifically on request |
|
| F7544FGPPB0300-PBT | 300 mm (11,81'') | PPB - Polypropylene (Blue) | PBT Pin | No positioners | F7544 | 66 mm | 14000 N/m | 5.8 kg/m^2 | Self-Locking Pin | 423 mm | 5÷93 °C | Temporary code, to be created specifically on request |
|
| F7544FGPPB0300-PP | 300 mm (11,81'') | PPB - Polypropylene (Blue) | PP Pin | No positioners | F7544 | 66 mm | 14000 N/m | 5.8 kg/m^2 | Self-Locking Pin | 423 mm | 5÷104 °C | Temporary code, to be created specifically on request |
|
| F7544FGPPB0350-PBT | 350 mm (13,78'') | PPB - Polypropylene (Blue) | PBT Pin | No positioners | F7544 | 66 mm | 14000 N/m | 5.8 kg/m^2 | Self-Locking Pin | 504 mm | 5÷93 °C | Temporary code, to be created specifically on request |
|
| F7544FGPPB0350-PP | 350 mm (13,78'') | PPB - Polypropylene (Blue) | PP Pin | No positioners | F7544 | 66 mm | 14000 N/m | 5.8 kg/m^2 | Self-Locking Pin | 504 mm | 5÷104 °C | Temporary code, to be created specifically on request |
|
| F7544FGPPB0400-PBT | 400 mm (15,75'') | PPB - Polypropylene (Blue) | PBT Pin | No positioners | F7544 | 66 mm | 14000 N/m | 5.8 kg/m^2 | Self-Locking Pin | 584 mm | 5÷93 °C | Temporary code, to be created specifically on request |
|
| F7544FGPPB0400-PP | 400 mm (15,75'') | PPB - Polypropylene (Blue) | PP Pin | No positioners | F7544 | 66 mm | 14000 N/m | 5.8 kg/m^2 | Self-Locking Pin | 584 mm | 5÷104 °C | Temporary code, to be created specifically on request |
|
| F7544FGPPB0450-PBT | 450 mm (17,72'') | PPB - Polypropylene (Blue) | PBT Pin | No positioners | F7544 | 66 mm | 14000 N/m | 5.8 kg/m^2 | Self-Locking Pin | 661,5 mm | 5÷93 °C | Temporary code, to be created specifically on request |
|
| F7544FGPPB0450-PP | 450 mm (17,72'') | PPB - Polypropylene (Blue) | PP Pin | No positioners | F7544 | 66 mm | 14000 N/m | 5.8 kg/m^2 | Self-Locking Pin | 661,5 mm | 5÷104 °C | Temporary code, to be created specifically on request |
|
| F7544FGPPB0500-PBT | 500 mm (19,69'') | PPB - Polypropylene (Blue) | PBT Pin | No positioners | F7544 | 66 mm | 14000 N/m | 5.8 kg/m^2 | Self-Locking Pin | 745 mm | 5÷93 °C | Temporary code, to be created specifically on request |
|
| F7544FGPPB0500-PP | 500 mm (19,69'') | PPB - Polypropylene (Blue) | PP Pin | No positioners | F7544 | 66 mm | 14000 N/m | 5.8 kg/m^2 | Self-Locking Pin | 745 mm | 5÷104 °C | Temporary code, to be created specifically on request |
|
| F7544FGPPB0550-PBT | 550 mm (21,65'') | PPB - Polypropylene (Blue) | PBT Pin | No positioners | F7544 | 66 mm | 14000 N/m | 5.8 kg/m^2 | Self-Locking Pin | 830,5 mm | 5÷93 °C | Temporary code, to be created specifically on request |
|
| F7544FGPPB0550-PP | 550 mm (21,65'') | PPB - Polypropylene (Blue) | PP Pin | No positioners | F7544 | 66 mm | 14000 N/m | 5.8 kg/m^2 | Self-Locking Pin | 830,5 mm | 5÷104 °C | Temporary code, to be created specifically on request |
|
| F7544FGPPB0600-PBT | 600 mm (23,62'') | PPB - Polypropylene (Blue) | PBT Pin | No positioners | F7544 | 66 mm | 14000 N/m | 5.8 kg/m^2 | Self-Locking Pin | 918 mm | 5÷93 °C | Temporary code, to be created specifically on request |
|
| F7544FGPPB0600-PP | 600 mm (23,62'') | PPB - Polypropylene (Blue) | PP Pin | No positioners | F7544 | 66 mm | 14000 N/m | 5.8 kg/m^2 | Self-Locking Pin | 918 mm | 5÷104 °C | Temporary code, to be created specifically on request |
|
| F7544FGPPB0650-PBT | 650 mm (25,59'') | PPB - Polypropylene (Blue) | PBT Pin | No positioners | F7544 | 66 mm | 14000 N/m | 5.8 kg/m^2 | Self-Locking Pin | 1001 mm | 5÷93 °C | Temporary code, to be created specifically on request |
|
| F7544FGPPB0650-PP | 650 mm (25,59'') | PPB - Polypropylene (Blue) | PP Pin | No positioners | F7544 | 66 mm | 14000 N/m | 5.8 kg/m^2 | Self-Locking Pin | 1001 mm | 5÷104 °C | Temporary code, to be created specifically on request |
|
| F7544FGPPB0700-PBT | 700 mm (27,56'') | PPB - Polypropylene (Blue) | PBT Pin | No positioners | F7544 | 66 mm | 14000 N/m | 5.8 kg/m^2 | Self-Locking Pin | 1092 mm | 5÷93 °C | Temporary code, to be created specifically on request |
|
| F7544FGPPB0700-PP | 700 mm (27,56'') | PPB - Polypropylene (Blue) | PP Pin | No positioners | F7544 | 66 mm | 14000 N/m | 5.8 kg/m^2 | Self-Locking Pin | 1092 mm | 5÷104 °C | Temporary code, to be created specifically on request |
|
| F7544FGPPB0750-PBT | 750 mm (29,53'') | PPB - Polypropylene (Blue) | PBT Pin | No positioners | F7544 | 66 mm | 14000 N/m | 5.8 kg/m^2 | Self-Locking Pin | 1177,5 mm | 5÷93 °C | Temporary code, to be created specifically on request |
|
| F7544FGPPB0750-PP | 750 mm (29,53'') | PPB - Polypropylene (Blue) | PP Pin | No positioners | F7544 | 66 mm | 14000 N/m | 5.8 kg/m^2 | Self-Locking Pin | 1177,5 mm | 5÷104 °C | Temporary code, to be created specifically on request |
|
| F7544FGPPB0800-PBT | 800 mm (31,5'') | PPB - Polypropylene (Blue) | PBT Pin | No positioners | F7544 | 66 mm | 14000 N/m | 5.8 kg/m^2 | Self-Locking Pin | 1272 mm | 5÷93 °C | Temporary code, to be created specifically on request |
|
| F7544FGPPB0800-PP | 800 mm (31,5'') | PPB - Polypropylene (Blue) | PP Pin | No positioners | F7544 | 66 mm | 14000 N/m | 5.8 kg/m^2 | Self-Locking Pin | 1272 mm | 5÷104 °C | Temporary code, to be created specifically on request |
|
| F7544FGPPB0850-PBT | 850 mm (33,46'') | PPB - Polypropylene (Blue) | PBT Pin | No positioners | F7544 | 66 mm | 14000 N/m | 5.8 kg/m^2 | Self-Locking Pin | 1360 mm | 5÷93 °C | Temporary code, to be created specifically on request |
|
| F7544FGPPB0850-PP | 850 mm (33,46'') | PPB - Polypropylene (Blue) | PP Pin | No positioners | F7544 | 66 mm | 14000 N/m | 5.8 kg/m^2 | Self-Locking Pin | 1360 mm | 5÷104 °C | Temporary code, to be created specifically on request |
|
| F7544FGPPB0900-PBT | 900 mm (35,43'') | PPB - Polypropylene (Blue) | PBT Pin | No positioners | F7544 | 66 mm | 14000 N/m | 5.8 kg/m^2 | Self-Locking Pin | 1458 mm | 5÷93 °C | Temporary code, to be created specifically on request |
|
| F7544FGPPB0900-PP | 900 mm (35,43'') | PPB - Polypropylene (Blue) | PP Pin | No positioners | F7544 | 66 mm | 14000 N/m | 5.8 kg/m^2 | Self-Locking Pin | 1458 mm | 5÷104 °C | Temporary code, to be created specifically on request |
|
| F7544FGPPC0167-PBT | 167 mm (6,57'') | PPC - Polypropylene (cyan) | PBT Pin | No positioners | F7544 | 66 mm | 14000 N/m | 5.8 kg/m^2 | Self-Locking Pin | 225,45 mm | 5÷93 °C | Temporary code, to be created specifically on request |
|
| F7544FGPPC0167-PP | 167 mm (6,57'') | PPC - Polypropylene (cyan) | PP Pin | No positioners | F7544 | 66 mm | 14000 N/m | 5.8 kg/m^2 | Self-Locking Pin | 225,45 mm | 5÷104 °C | Temporary code, to be created specifically on request |
|
| F7544FGPPC0200-PBT | 200 mm (7,87'') | PPC - Polypropylene (cyan) | PBT Pin | No positioners | F7544 | 66 mm | 14000 N/m | 5.8 kg/m^2 | Self-Locking Pin | 278 mm | 5÷93 °C | Temporary code, to be created specifically on request |
|
| F7544FGPPC0200-PP | 200 mm (7,87'') | PPC - Polypropylene (cyan) | PP Pin | No positioners | F7544 | 66 mm | 14000 N/m | 5.8 kg/m^2 | Self-Locking Pin | 278 mm | 5÷104 °C | Temporary code, to be created specifically on request |
|
| F7544FGPPC0250-PBT | 250 mm (9,84'') | PPC - Polypropylene (cyan) | PBT Pin | No positioners | F7544 | 66 mm | 14000 N/m | 5.8 kg/m^2 | Self-Locking Pin | 347,5 mm | 5÷93 °C | Temporary code, to be created specifically on request |
|
| F7544FGPPC0250-PP | 250 mm (9,84'') | PPC - Polypropylene (cyan) | PP Pin | No positioners | F7544 | 66 mm | 14000 N/m | 5.8 kg/m^2 | Self-Locking Pin | 347,5 mm | 5÷104 °C | Temporary code, to be created specifically on request |
|
| F7544FGPPC0300-PBT | 300 mm (11,81'') | PPC - Polypropylene (cyan) | PBT Pin | No positioners | F7544 | 66 mm | 14000 N/m | 5.8 kg/m^2 | Self-Locking Pin | 423 mm | 5÷93 °C | Temporary code, to be created specifically on request |
|
| F7544FGPPC0300-PP | 300 mm (11,81'') | PPC - Polypropylene (cyan) | PP Pin | No positioners | F7544 | 66 mm | 14000 N/m | 5.8 kg/m^2 | Self-Locking Pin | 423 mm | 5÷104 °C | Temporary code, to be created specifically on request |
|
| F7544FGPPC0350-PBT | 350 mm (13,78'') | PPC - Polypropylene (cyan) | PBT Pin | No positioners | F7544 | 66 mm | 14000 N/m | 5.8 kg/m^2 | Self-Locking Pin | 504 mm | 5÷93 °C | Temporary code, to be created specifically on request |
|
| F7544FGPPC0350-PP | 350 mm (13,78'') | PPC - Polypropylene (cyan) | PP Pin | No positioners | F7544 | 66 mm | 14000 N/m | 5.8 kg/m^2 | Self-Locking Pin | 504 mm | 5÷104 °C | Temporary code, to be created specifically on request |
|
| F7544FGPPC0400-PBT | 400 mm (15,75'') | PPC - Polypropylene (cyan) | PBT Pin | No positioners | F7544 | 66 mm | 14000 N/m | 5.8 kg/m^2 | Self-Locking Pin | 584 mm | 5÷93 °C | Temporary code, to be created specifically on request |
|
| F7544FGPPC0400-PP | 400 mm (15,75'') | PPC - Polypropylene (cyan) | PP Pin | No positioners | F7544 | 66 mm | 14000 N/m | 5.8 kg/m^2 | Self-Locking Pin | 584 mm | 5÷104 °C | Temporary code, to be created specifically on request |
|
| F7544FGPPC0450-PBT | 450 mm (17,72'') | PPC - Polypropylene (cyan) | PBT Pin | No positioners | F7544 | 66 mm | 14000 N/m | 5.8 kg/m^2 | Self-Locking Pin | 661,5 mm | 5÷93 °C | Temporary code, to be created specifically on request |
|
| F7544FGPPC0450-PP | 450 mm (17,72'') | PPC - Polypropylene (cyan) | PP Pin | No positioners | F7544 | 66 mm | 14000 N/m | 5.8 kg/m^2 | Self-Locking Pin | 661,5 mm | 5÷104 °C | Temporary code, to be created specifically on request |
|
| F7544FGPPC0500-PBT | 500 mm (19,69'') | PPC - Polypropylene (cyan) | PBT Pin | No positioners | F7544 | 66 mm | 14000 N/m | 5.8 kg/m^2 | Self-Locking Pin | 745 mm | 5÷93 °C | Temporary code, to be created specifically on request |
|
| F7544FGPPC0500-PP | 500 mm (19,69'') | PPC - Polypropylene (cyan) | PP Pin | No positioners | F7544 | 66 mm | 14000 N/m | 5.8 kg/m^2 | Self-Locking Pin | 745 mm | 5÷104 °C | Temporary code, to be created specifically on request |
|
| F7544FGPPC0550-PBT | 550 mm (21,65'') | PPC - Polypropylene (cyan) | PBT Pin | No positioners | F7544 | 66 mm | 14000 N/m | 5.8 kg/m^2 | Self-Locking Pin | 830,5 mm | 5÷93 °C | Temporary code, to be created specifically on request |
|
| F7544FGPPC0550-PP | 550 mm (21,65'') | PPC - Polypropylene (cyan) | PP Pin | No positioners | F7544 | 66 mm | 14000 N/m | 5.8 kg/m^2 | Self-Locking Pin | 830,5 mm | 5÷104 °C | Temporary code, to be created specifically on request |
|
| F7544FGPPC0600-PBT | 600 mm (23,62'') | PPC - Polypropylene (cyan) | PBT Pin | No positioners | F7544 | 66 mm | 14000 N/m | 5.8 kg/m^2 | Self-Locking Pin | 918 mm | 5÷93 °C | Temporary code, to be created specifically on request |
|
| F7544FGPPC0600-PP | 600 mm (23,62'') | PPC - Polypropylene (cyan) | PP Pin | No positioners | F7544 | 66 mm | 14000 N/m | 5.8 kg/m^2 | Self-Locking Pin | 918 mm | 5÷104 °C | Temporary code, to be created specifically on request |
|
| F7544FGPPC0650-PBT | 650 mm (25,59'') | PPC - Polypropylene (cyan) | PBT Pin | No positioners | F7544 | 66 mm | 14000 N/m | 5.8 kg/m^2 | Self-Locking Pin | 1001 mm | 5÷93 °C | Temporary code, to be created specifically on request |
|
| F7544FGPPC0650-PP | 650 mm (25,59'') | PPC - Polypropylene (cyan) | PP Pin | No positioners | F7544 | 66 mm | 14000 N/m | 5.8 kg/m^2 | Self-Locking Pin | 1001 mm | 5÷104 °C | Temporary code, to be created specifically on request |
|
| F7544FGPPC0700-PBT | 700 mm (27,56'') | PPC - Polypropylene (cyan) | PBT Pin | No positioners | F7544 | 66 mm | 14000 N/m | 5.8 kg/m^2 | Self-Locking Pin | 1092 mm | 5÷93 °C | Temporary code, to be created specifically on request |
|
| F7544FGPPC0700-PP | 700 mm (27,56'') | PPC - Polypropylene (cyan) | PP Pin | No positioners | F7544 | 66 mm | 14000 N/m | 5.8 kg/m^2 | Self-Locking Pin | 1092 mm | 5÷104 °C | Temporary code, to be created specifically on request |
|
| F7544FGPPC0750-PBT | 750 mm (29,53'') | PPC - Polypropylene (cyan) | PBT Pin | No positioners | F7544 | 66 mm | 14000 N/m | 5.8 kg/m^2 | Self-Locking Pin | 1177,5 mm | 5÷93 °C | Temporary code, to be created specifically on request |
|
| F7544FGPPC0750-PP | 750 mm (29,53'') | PPC - Polypropylene (cyan) | PP Pin | No positioners | F7544 | 66 mm | 14000 N/m | 5.8 kg/m^2 | Self-Locking Pin | 1177,5 mm | 5÷104 °C | Temporary code, to be created specifically on request |
|
| F7544FGPPC0800-PBT | 800 mm (31,5'') | PPC - Polypropylene (cyan) | PBT Pin | No positioners | F7544 | 66 mm | 14000 N/m | 5.8 kg/m^2 | Self-Locking Pin | 1272 mm | 5÷93 °C | Temporary code, to be created specifically on request |
|
| F7544FGPPC0800-PP | 800 mm (31,5'') | PPC - Polypropylene (cyan) | PP Pin | No positioners | F7544 | 66 mm | 14000 N/m | 5.8 kg/m^2 | Self-Locking Pin | 1272 mm | 5÷104 °C | Temporary code, to be created specifically on request |
|
| F7544FGPPC0850-PBT | 850 mm (33,46'') | PPC - Polypropylene (cyan) | PBT Pin | No positioners | F7544 | 66 mm | 14000 N/m | 5.8 kg/m^2 | Self-Locking Pin | 1360 mm | 5÷93 °C | Temporary code, to be created specifically on request |
|
| F7544FGPPC0850-PP | 850 mm (33,46'') | PPC - Polypropylene (cyan) | PP Pin | No positioners | F7544 | 66 mm | 14000 N/m | 5.8 kg/m^2 | Self-Locking Pin | 1360 mm | 5÷104 °C | Temporary code, to be created specifically on request |
|
| F7544FGPPC0900-PBT | 900 mm (35,43'') | PPC - Polypropylene (cyan) | PBT Pin | No positioners | F7544 | 66 mm | 14000 N/m | 5.8 kg/m^2 | Self-Locking Pin | 1458 mm | 5÷93 °C | Temporary code, to be created specifically on request |
|
| F7544FGPPC0900-PP | 900 mm (35,43'') | PPC - Polypropylene (cyan) | PP Pin | No positioners | F7544 | 66 mm | 14000 N/m | 5.8 kg/m^2 | Self-Locking Pin | 1458 mm | 5÷104 °C | Temporary code, to be created specifically on request |
|
| F7544FGPPW0167-PBT | 167 mm (6,57'') | PPW - Polypropylene (white) | PBT Pin | No positioners | F7544 | 66 mm | 14000 N/m | 5.8 kg/m^2 | Self-Locking Pin | 225,45 mm | 5÷93 °C | Temporary code, to be created specifically on request |
|
| F7544FGPPW0167-PP | 167 mm (6,57'') | PPW - Polypropylene (white) | PP Pin | No positioners | F7544 | 66 mm | 14000 N/m | 5.8 kg/m^2 | Self-Locking Pin | 225,45 mm | 5÷104 °C | Temporary code, to be created specifically on request |
|
| F7544FGPPW0200-PBT | 200 mm (7,87'') | PPW - Polypropylene (white) | PBT Pin | No positioners | F7544 | 66 mm | 14000 N/m | 5.8 kg/m^2 | Self-Locking Pin | 278 mm | 5÷93 °C | Temporary code, to be created specifically on request |
|
| F7544FGPPW0200-PP | 200 mm (7,87'') | PPW - Polypropylene (white) | PP Pin | No positioners | F7544 | 66 mm | 14000 N/m | 5.8 kg/m^2 | Self-Locking Pin | 278 mm | 5÷104 °C | Temporary code, to be created specifically on request |
|
| F7544FGPPW0250-PBT | 250 mm (9,84'') | PPW - Polypropylene (white) | PBT Pin | No positioners | F7544 | 66 mm | 14000 N/m | 5.8 kg/m^2 | Self-Locking Pin | 347,5 mm | 5÷93 °C | Temporary code, to be created specifically on request |
|
| F7544FGPPW0250-PP | 250 mm (9,84'') | PPW - Polypropylene (white) | PP Pin | No positioners | F7544 | 66 mm | 14000 N/m | 5.8 kg/m^2 | Self-Locking Pin | 347,5 mm | 5÷104 °C | Temporary code, to be created specifically on request |
|
| F7544FGPPW0300-PBT | 300 mm (11,81'') | PPW - Polypropylene (white) | PBT Pin | No positioners | F7544 | 66 mm | 14000 N/m | 5.8 kg/m^2 | Self-Locking Pin | 423 mm | 5÷93 °C | Temporary code, to be created specifically on request |
|
| F7544FGPPW0300-PP | 300 mm (11,81'') | PPW - Polypropylene (white) | PP Pin | No positioners | F7544 | 66 mm | 14000 N/m | 5.8 kg/m^2 | Self-Locking Pin | 423 mm | 5÷104 °C | Temporary code, to be created specifically on request |
|
| F7544FGPPW0350-PBT | 350 mm (13,78'') | PPW - Polypropylene (white) | PBT Pin | No positioners | F7544 | 66 mm | 14000 N/m | 5.8 kg/m^2 | Self-Locking Pin | 504 mm | 5÷93 °C | Temporary code, to be created specifically on request |
|
| F7544FGPPW0350-PP | 350 mm (13,78'') | PPW - Polypropylene (white) | PP Pin | No positioners | F7544 | 66 mm | 14000 N/m | 5.8 kg/m^2 | Self-Locking Pin | 504 mm | 5÷104 °C | Temporary code, to be created specifically on request |
|
| F7544FGPPW0400-PBT | 400 mm (15,75'') | PPW - Polypropylene (white) | PBT Pin | No positioners | F7544 | 66 mm | 14000 N/m | 5.8 kg/m^2 | Self-Locking Pin | 584 mm | 5÷93 °C | Temporary code, to be created specifically on request |
|
| F7544FGPPW0400-PP | 400 mm (15,75'') | PPW - Polypropylene (white) | PP Pin | No positioners | F7544 | 66 mm | 14000 N/m | 5.8 kg/m^2 | Self-Locking Pin | 584 mm | 5÷104 °C | Temporary code, to be created specifically on request |
|
| F7544FGPPW0450-PBT | 450 mm (17,72'') | PPW - Polypropylene (white) | PBT Pin | No positioners | F7544 | 66 mm | 14000 N/m | 5.8 kg/m^2 | Self-Locking Pin | 661,5 mm | 5÷93 °C | Temporary code, to be created specifically on request |
|
| F7544FGPPW0450-PP | 450 mm (17,72'') | PPW - Polypropylene (white) | PP Pin | No positioners | F7544 | 66 mm | 14000 N/m | 5.8 kg/m^2 | Self-Locking Pin | 661,5 mm | 5÷104 °C | Temporary code, to be created specifically on request |
|
| F7544FGPPW0500-PBT | 500 mm (19,69'') | PPW - Polypropylene (white) | PBT Pin | No positioners | F7544 | 66 mm | 14000 N/m | 5.8 kg/m^2 | Self-Locking Pin | 745 mm | 5÷93 °C | Temporary code, to be created specifically on request |
|
| F7544FGPPW0500-PP | 500 mm (19,69'') | PPW - Polypropylene (white) | PP Pin | No positioners | F7544 | 66 mm | 14000 N/m | 5.8 kg/m^2 | Self-Locking Pin | 745 mm | 5÷104 °C | Temporary code, to be created specifically on request |
|
| F7544FGPPW0550-PBT | 550 mm (21,65'') | PPW - Polypropylene (white) | PBT Pin | No positioners | F7544 | 66 mm | 14000 N/m | 5.8 kg/m^2 | Self-Locking Pin | 830,5 mm | 5÷93 °C | Temporary code, to be created specifically on request |
|
| F7544FGPPW0550-PP | 550 mm (21,65'') | PPW - Polypropylene (white) | PP Pin | No positioners | F7544 | 66 mm | 14000 N/m | 5.8 kg/m^2 | Self-Locking Pin | 830,5 mm | 5÷104 °C | Temporary code, to be created specifically on request |
|
| F7544FGPPW0600-PBT | 600 mm (23,62'') | PPW - Polypropylene (white) | PBT Pin | No positioners | F7544 | 66 mm | 14000 N/m | 5.8 kg/m^2 | Self-Locking Pin | 918 mm | 5÷93 °C | Temporary code, to be created specifically on request |
|
| F7544FGPPW0600-PP | 600 mm (23,62'') | PPW - Polypropylene (white) | PP Pin | No positioners | F7544 | 66 mm | 14000 N/m | 5.8 kg/m^2 | Self-Locking Pin | 918 mm | 5÷104 °C | Temporary code, to be created specifically on request |
|
| F7544FGPPW0650-PBT | 650 mm (25,59'') | PPW - Polypropylene (white) | PBT Pin | No positioners | F7544 | 66 mm | 14000 N/m | 5.8 kg/m^2 | Self-Locking Pin | 1001 mm | 5÷93 °C | Temporary code, to be created specifically on request |
|
| F7544FGPPW0650-PP | 650 mm (25,59'') | PPW - Polypropylene (white) | PP Pin | No positioners | F7544 | 66 mm | 14000 N/m | 5.8 kg/m^2 | Self-Locking Pin | 1001 mm | 5÷104 °C | Temporary code, to be created specifically on request |
|
| F7544FGPPW0700-PBT | 700 mm (27,56'') | PPW - Polypropylene (white) | PBT Pin | No positioners | F7544 | 66 mm | 14000 N/m | 5.8 kg/m^2 | Self-Locking Pin | 1092 mm | 5÷93 °C | Temporary code, to be created specifically on request |
|
| F7544FGPPW0700-PP | 700 mm (27,56'') | PPW - Polypropylene (white) | PP Pin | No positioners | F7544 | 66 mm | 14000 N/m | 5.8 kg/m^2 | Self-Locking Pin | 1092 mm | 5÷104 °C | Temporary code, to be created specifically on request |
|
| F7544FGPPW0750-PBT | 750 mm (29,53'') | PPW - Polypropylene (white) | PBT Pin | No positioners | F7544 | 66 mm | 14000 N/m | 5.8 kg/m^2 | Self-Locking Pin | 1177,5 mm | 5÷93 °C | Temporary code, to be created specifically on request |
|
| F7544FGPPW0750-PP | 750 mm (29,53'') | PPW - Polypropylene (white) | PP Pin | No positioners | F7544 | 66 mm | 14000 N/m | 5.8 kg/m^2 | Self-Locking Pin | 1177,5 mm | 5÷104 °C | Temporary code, to be created specifically on request |
|
| F7544FGPPW0800-PBT | 800 mm (31,5'') | PPW - Polypropylene (white) | PBT Pin | No positioners | F7544 | 66 mm | 14000 N/m | 5.8 kg/m^2 | Self-Locking Pin | 1272 mm | 5÷93 °C | Temporary code, to be created specifically on request |
|
| F7544FGPPW0800-PP | 800 mm (31,5'') | PPW - Polypropylene (white) | PP Pin | No positioners | F7544 | 66 mm | 14000 N/m | 5.8 kg/m^2 | Self-Locking Pin | 1272 mm | 5÷104 °C | Temporary code, to be created specifically on request |
|
| F7544FGPPW0850-PBT | 850 mm (33,46'') | PPW - Polypropylene (white) | PBT Pin | No positioners | F7544 | 66 mm | 14000 N/m | 5.8 kg/m^2 | Self-Locking Pin | 1360 mm | 5÷93 °C | Temporary code, to be created specifically on request |
|
| F7544FGPPW0850-PP | 850 mm (33,46'') | PPW - Polypropylene (white) | PP Pin | No positioners | F7544 | 66 mm | 14000 N/m | 5.8 kg/m^2 | Self-Locking Pin | 1360 mm | 5÷104 °C | Temporary code, to be created specifically on request |
|
| F7544FGPPW0900-PBT | 900 mm (35,43'') | PPW - Polypropylene (white) | PBT Pin | No positioners | F7544 | 66 mm | 14000 N/m | 5.8 kg/m^2 | Self-Locking Pin | 1458 mm | 5÷93 °C | Temporary code, to be created specifically on request |
|
| F7544FGPPW0900-PP | 900 mm (35,43'') | PPW - Polypropylene (white) | PP Pin | No positioners | F7544 | 66 mm | 14000 N/m | 5.8 kg/m^2 | Self-Locking Pin | 1458 mm | 5÷104 °C | Temporary code, to be created specifically on request |
|
