7510 Flat Top
Modular Belts
Description
Description
The nominal tensile strength and the nominal width tolerance are valid for a temperature of 23°C (73 °F).
The actual width of the belt typically falls below the nominal value by 0.1% to 0.3%.
*Belts wider than standard are available with 50 mm increments.
For PE belts up to 750 mm (30”) in width, the reduction ranges from -4 mm to -1 mm, and for widths beyond that, from -0.75% to -0.35%.
For POM belts up to 750 mm (30”) in width, the shrinkage ranges from -4 mm to -1 mm, and for those wider, from -0.75% to -0.35%.
For PP belts up to 750 mm (30”) in width, the decrease is between -3 mm and 0 mm, with the reduction for wider belts ranging from -0.4% to 0%.
Non-Standard belt widths are incremented by 16.65 mm (0.66”). The minimum width is 50 mm (2”).
Non-bricklayed belts are available in widths of 50 mm (2”), 100 mm (4”) and 200 mm (8”).

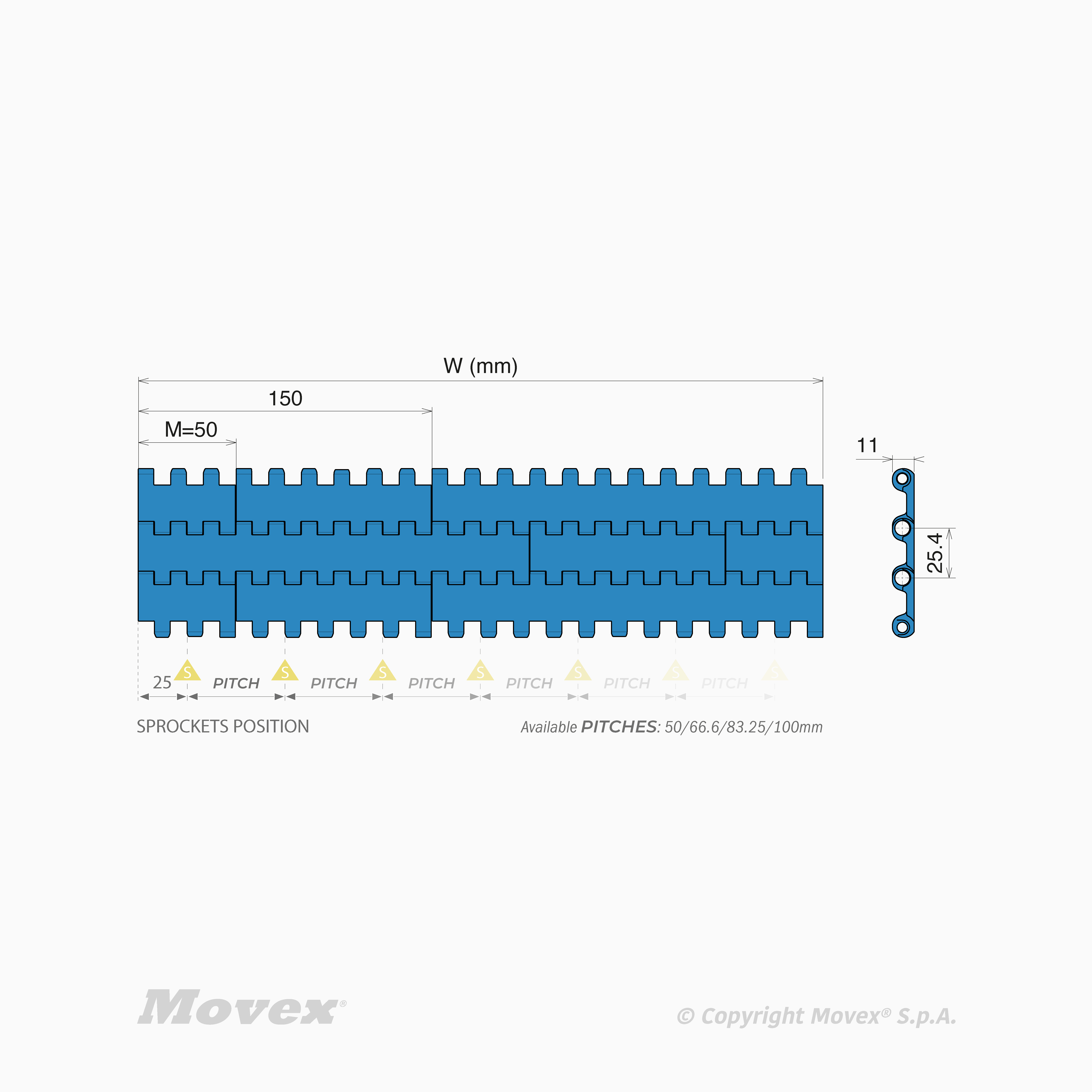

Basic features
| Series: | 7510 |
|---|---|
| Pitch: | 25.4 mm |
| Thickness: | 11 mm |
| Increments: | 50 mm - 1,97" |
| Surface Type: | FT - Flat Top |
| Functionality: | Straight |
| Unit of measure: | Ea |
7510 Flat Top
| Width | Material | Pin material | Version | Part | Back flex radius | Max working load | Mass | Fixation | Temperature range dry | Supplementary informations | Temperature range wet | ||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Code | Actions | ||||||||||||
| F7510FTLFB0050-PA6 | 50 mm (1,97'') | LFB - Low friction acetal (Blue) | PA6 White | No positioners | F7510 | 45 mm | 21900 N/m | 7.5 kg/m^2 | Self-Locking Pin | -40÷93 °C | Self-Cleaning Hinge System Pin diameter: 5 mm Temporary code, to be created specifically on request | -40÷65 °C |
|
| F7510FTLFB0050-PBT | 50 mm (1,97'') | LFB - Low friction acetal (Blue) | PBT White | No positioners | F7510 | 45 mm | 42000 N/m | 7.5 kg/m^2 | Self-Locking Pin | -40÷80 °C | Self-Cleaning Hinge System Pin diameter: 5 mm Temporary code, to be created specifically on request | -40÷65 °C |
|
| F7510FTLFB0050-PE | 50 mm (1,97'') | LFB - Low friction acetal (Blue) | PE White | No positioners | F7510 | 45 mm | 15000 N/m | 7.5 kg/m^2 | Self-Locking Pin | -40÷65 °C | Self-Cleaning Hinge System Pin diameter: 5 mm Temporary code, to be created specifically on request | -40÷65 °C |
|
| F7510FTLFB0050-PP | 50 mm (1,97'') | LFB - Low friction acetal (Blue) | PP White | No positioners | F7510 | 45 mm | 16000 N/m | 7.5 kg/m^2 | Self-Locking Pin | 5÷93 °C | Self-Cleaning Hinge System Pin diameter: 5 mm Temporary code, to be created specifically on request | -40÷65 °C |
|
| F7510FTLFB0100-PA6 | 100 mm (3,94'') | LFB - Low friction acetal (Blue) | PA6 White | No positioners | F7510 | 45 mm | 21900 N/m | 7.5 kg/m^2 | Self-Locking Pin | -40÷93 °C | Self-Cleaning Hinge System Pin diameter: 5 mm Temporary code, to be created specifically on request | -40÷65 °C |
|
| F7510FTLFB0100-PBT | 100 mm (3,94'') | LFB - Low friction acetal (Blue) | PBT White | No positioners | F7510 | 45 mm | 42000 N/m | 7.5 kg/m^2 | Self-Locking Pin | -40÷80 °C | Self-Cleaning Hinge System Pin diameter: 5 mm Temporary code, to be created specifically on request | -40÷65 °C |
|
| F7510FTLFB0100-PE | 100 mm (3,94'') | LFB - Low friction acetal (Blue) | PE White | No positioners | F7510 | 45 mm | 15000 N/m | 7.5 kg/m^2 | Self-Locking Pin | -40÷65 °C | Self-Cleaning Hinge System Pin diameter: 5 mm Temporary code, to be created specifically on request | -40÷65 °C |
|
| F7510FTLFB0100-PP | 100 mm (3,94'') | LFB - Low friction acetal (Blue) | PP White | No positioners | F7510 | 45 mm | 16000 N/m | 7.5 kg/m^2 | Self-Locking Pin | 5÷93 °C | Self-Cleaning Hinge System Pin diameter: 5 mm Temporary code, to be created specifically on request | -40÷65 °C |
|
| F7510FTLFB0150-PA6 | 150 mm (5,91'') | LFB - Low friction acetal (Blue) | PA6 White | No positioners | F7510 | 45 mm | 21900 N/m | 7.5 kg/m^2 | Self-Locking Pin | -40÷93 °C | Self-Cleaning Hinge System Pin diameter: 5 mm Temporary code, to be created specifically on request | -40÷65 °C |
|
| F7510FTLFB0150-PBT | 150 mm (5,91'') | LFB - Low friction acetal (Blue) | PBT White | No positioners | F7510 | 45 mm | 42000 N/m | 7.5 kg/m^2 | Self-Locking Pin | -40÷80 °C | Self-Cleaning Hinge System Pin diameter: 5 mm Temporary code, to be created specifically on request | -40÷65 °C |
|
| F7510FTLFB0150-PE | 150 mm (5,91'') | LFB - Low friction acetal (Blue) | PE White | No positioners | F7510 | 45 mm | 15000 N/m | 7.5 kg/m^2 | Self-Locking Pin | -40÷65 °C | Self-Cleaning Hinge System Pin diameter: 5 mm Temporary code, to be created specifically on request | -40÷65 °C |
|
| F7510FTLFB0150-PP | 150 mm (5,91'') | LFB - Low friction acetal (Blue) | PP White | No positioners | F7510 | 45 mm | 16000 N/m | 7.5 kg/m^2 | Self-Locking Pin | 5÷93 °C | Self-Cleaning Hinge System Pin diameter: 5 mm Temporary code, to be created specifically on request | -40÷65 °C |
|
| F7510FTLFB0200-PA6 | 200 mm (7,87'') | LFB - Low friction acetal (Blue) | PA6 White | No positioners | F7510 | 45 mm | 21900 N/m | 7.5 kg/m^2 | Self-Locking Pin | -40÷93 °C | Self-Cleaning Hinge System Pin diameter: 5 mm Temporary code, to be created specifically on request | -40÷65 °C |
|
| F7510FTLFB0200-PBT | 200 mm (7,87'') | LFB - Low friction acetal (Blue) | PBT White | No positioners | F7510 | 45 mm | 42000 N/m | 7.5 kg/m^2 | Self-Locking Pin | -40÷80 °C | Self-Cleaning Hinge System Pin diameter: 5 mm Temporary code, to be created specifically on request | -40÷65 °C |
|
| F7510FTLFB0200-PE | 200 mm (7,87'') | LFB - Low friction acetal (Blue) | PE White | No positioners | F7510 | 45 mm | 15000 N/m | 7.5 kg/m^2 | Self-Locking Pin | -40÷65 °C | Self-Cleaning Hinge System Pin diameter: 5 mm Temporary code, to be created specifically on request | -40÷65 °C |
|
| F7510FTLFB0200-PP | 200 mm (7,87'') | LFB - Low friction acetal (Blue) | PP White | No positioners | F7510 | 45 mm | 16000 N/m | 7.5 kg/m^2 | Self-Locking Pin | 5÷93 °C | Self-Cleaning Hinge System Pin diameter: 5 mm Temporary code, to be created specifically on request | -40÷65 °C |
|
| F7510FTLFB0250-PA6 | 250 mm (9,84'') | LFB - Low friction acetal (Blue) | PA6 White | No positioners | F7510 | 45 mm | 21900 N/m | 7.5 kg/m^2 | Self-Locking Pin | -40÷93 °C | Self-Cleaning Hinge System Pin diameter: 5 mm Temporary code, to be created specifically on request | -40÷65 °C |
|
| F7510FTLFB0250-PBT | 250 mm (9,84'') | LFB - Low friction acetal (Blue) | PBT White | No positioners | F7510 | 45 mm | 42000 N/m | 7.5 kg/m^2 | Self-Locking Pin | -40÷80 °C | Self-Cleaning Hinge System Pin diameter: 5 mm Temporary code, to be created specifically on request | -40÷65 °C |
|
| F7510FTLFB0250-PE | 250 mm (9,84'') | LFB - Low friction acetal (Blue) | PE White | No positioners | F7510 | 45 mm | 15000 N/m | 7.5 kg/m^2 | Self-Locking Pin | -40÷65 °C | Self-Cleaning Hinge System Pin diameter: 5 mm Temporary code, to be created specifically on request | -40÷65 °C |
|
| F7510FTLFB0250-PP | 250 mm (9,84'') | LFB - Low friction acetal (Blue) | PP White | No positioners | F7510 | 45 mm | 16000 N/m | 7.5 kg/m^2 | Self-Locking Pin | 5÷93 °C | Self-Cleaning Hinge System Pin diameter: 5 mm Temporary code, to be created specifically on request | -40÷65 °C |
|
| F7510FTLFB0300-PA6 | 300 mm (11,81'') | LFB - Low friction acetal (Blue) | PA6 White | No positioners | F7510 | 45 mm | 21900 N/m | 7.5 kg/m^2 | Self-Locking Pin | -40÷93 °C | Self-Cleaning Hinge System Pin diameter: 5 mm Temporary code, to be created specifically on request | -40÷65 °C |
|
| F7510FTLFB0300-PBT | 300 mm (11,81'') | LFB - Low friction acetal (Blue) | PBT White | No positioners | F7510 | 45 mm | 42000 N/m | 7.5 kg/m^2 | Self-Locking Pin | -40÷80 °C | Self-Cleaning Hinge System Pin diameter: 5 mm Temporary code, to be created specifically on request | -40÷65 °C |
|
| F7510FTLFB0300-PE | 300 mm (11,81'') | LFB - Low friction acetal (Blue) | PE White | No positioners | F7510 | 45 mm | 15000 N/m | 7.5 kg/m^2 | Self-Locking Pin | -40÷65 °C | Self-Cleaning Hinge System Pin diameter: 5 mm Temporary code, to be created specifically on request | -40÷65 °C |
|
| F7510FTLFB0300-PP | 300 mm (11,81'') | LFB - Low friction acetal (Blue) | PP White | No positioners | F7510 | 45 mm | 16000 N/m | 7.5 kg/m^2 | Self-Locking Pin | 5÷93 °C | Self-Cleaning Hinge System Pin diameter: 5 mm Temporary code, to be created specifically on request | -40÷65 °C |
|
| F7510FTLFB0350-PA6 | 350 mm (13,78'') | LFB - Low friction acetal (Blue) | PA6 White | No positioners | F7510 | 45 mm | 21900 N/m | 7.5 kg/m^2 | Self-Locking Pin | -40÷93 °C | Self-Cleaning Hinge System Pin diameter: 5 mm Temporary code, to be created specifically on request | -40÷65 °C |
|
| F7510FTLFB0350-PBT | 350 mm (13,78'') | LFB - Low friction acetal (Blue) | PBT White | No positioners | F7510 | 45 mm | 42000 N/m | 7.5 kg/m^2 | Self-Locking Pin | -40÷80 °C | Self-Cleaning Hinge System Pin diameter: 5 mm Temporary code, to be created specifically on request | -40÷65 °C |
|
| F7510FTLFB0350-PE | 350 mm (13,78'') | LFB - Low friction acetal (Blue) | PE White | No positioners | F7510 | 45 mm | 15000 N/m | 7.5 kg/m^2 | Self-Locking Pin | -40÷65 °C | Self-Cleaning Hinge System Pin diameter: 5 mm Temporary code, to be created specifically on request | -40÷65 °C |
|
| F7510FTLFB0350-PP | 350 mm (13,78'') | LFB - Low friction acetal (Blue) | PP White | No positioners | F7510 | 45 mm | 16000 N/m | 7.5 kg/m^2 | Self-Locking Pin | 5÷93 °C | Self-Cleaning Hinge System Pin diameter: 5 mm Temporary code, to be created specifically on request | -40÷65 °C |
|
| F7510FTLFB0400-PA6 | 400 mm (15,75'') | LFB - Low friction acetal (Blue) | PA6 White | No positioners | F7510 | 45 mm | 21900 N/m | 7.5 kg/m^2 | Self-Locking Pin | -40÷93 °C | Self-Cleaning Hinge System Pin diameter: 5 mm Temporary code, to be created specifically on request | -40÷65 °C |
|
| F7510FTLFB0400-PBT | 400 mm (15,75'') | LFB - Low friction acetal (Blue) | PBT White | No positioners | F7510 | 45 mm | 42000 N/m | 7.5 kg/m^2 | Self-Locking Pin | -40÷80 °C | Self-Cleaning Hinge System Pin diameter: 5 mm Temporary code, to be created specifically on request | -40÷65 °C |
|
| F7510FTLFB0400-PE | 400 mm (15,75'') | LFB - Low friction acetal (Blue) | PE White | No positioners | F7510 | 45 mm | 15000 N/m | 7.5 kg/m^2 | Self-Locking Pin | -40÷65 °C | Self-Cleaning Hinge System Pin diameter: 5 mm Temporary code, to be created specifically on request | -40÷65 °C |
|
| F7510FTLFB0400-PP | 400 mm (15,75'') | LFB - Low friction acetal (Blue) | PP White | No positioners | F7510 | 45 mm | 16000 N/m | 7.5 kg/m^2 | Self-Locking Pin | 5÷93 °C | Self-Cleaning Hinge System Pin diameter: 5 mm Temporary code, to be created specifically on request | -40÷65 °C |
|
| F7510FTLFB0450-PA6 | 450 mm (17,72'') | LFB - Low friction acetal (Blue) | PA6 White | No positioners | F7510 | 45 mm | 21900 N/m | 7.5 kg/m^2 | Self-Locking Pin | -40÷93 °C | Self-Cleaning Hinge System Pin diameter: 5 mm Temporary code, to be created specifically on request | -40÷65 °C |
|
| F7510FTLFB0450-PBT | 450 mm (17,72'') | LFB - Low friction acetal (Blue) | PBT White | No positioners | F7510 | 45 mm | 42000 N/m | 7.5 kg/m^2 | Self-Locking Pin | -40÷80 °C | Self-Cleaning Hinge System Pin diameter: 5 mm Temporary code, to be created specifically on request | -40÷65 °C |
|
| F7510FTLFB0450-PE | 450 mm (17,72'') | LFB - Low friction acetal (Blue) | PE White | No positioners | F7510 | 45 mm | 15000 N/m | 7.5 kg/m^2 | Self-Locking Pin | -40÷65 °C | Self-Cleaning Hinge System Pin diameter: 5 mm Temporary code, to be created specifically on request | -40÷65 °C |
|
| F7510FTLFB0450-PP | 450 mm (17,72'') | LFB - Low friction acetal (Blue) | PP White | No positioners | F7510 | 45 mm | 16000 N/m | 7.5 kg/m^2 | Self-Locking Pin | 5÷93 °C | Self-Cleaning Hinge System Pin diameter: 5 mm Temporary code, to be created specifically on request | -40÷65 °C |
|
| F7510FTLFB0500-PA6 | 500 mm (19,69'') | LFB - Low friction acetal (Blue) | PA6 White | No positioners | F7510 | 45 mm | 21900 N/m | 7.5 kg/m^2 | Self-Locking Pin | -40÷93 °C | Self-Cleaning Hinge System Pin diameter: 5 mm Temporary code, to be created specifically on request | -40÷65 °C |
|
| F7510FTLFB0500-PBT | 500 mm (19,69'') | LFB - Low friction acetal (Blue) | PBT White | No positioners | F7510 | 45 mm | 42000 N/m | 7.5 kg/m^2 | Self-Locking Pin | -40÷80 °C | Self-Cleaning Hinge System Pin diameter: 5 mm Temporary code, to be created specifically on request | -40÷65 °C |
|
| F7510FTLFB0500-PE | 500 mm (19,69'') | LFB - Low friction acetal (Blue) | PE White | No positioners | F7510 | 45 mm | 15000 N/m | 7.5 kg/m^2 | Self-Locking Pin | -40÷65 °C | Self-Cleaning Hinge System Pin diameter: 5 mm Temporary code, to be created specifically on request | -40÷65 °C |
|
| F7510FTLFB0500-PP | 500 mm (19,69'') | LFB - Low friction acetal (Blue) | PP White | No positioners | F7510 | 45 mm | 16000 N/m | 7.5 kg/m^2 | Self-Locking Pin | 5÷93 °C | Self-Cleaning Hinge System Pin diameter: 5 mm Temporary code, to be created specifically on request | -40÷65 °C |
|
| F7510FTLFB0550-PA6 | 550 mm (21,65'') | LFB - Low friction acetal (Blue) | PA6 White | No positioners | F7510 | 45 mm | 21900 N/m | 7.5 kg/m^2 | Self-Locking Pin | -40÷93 °C | Self-Cleaning Hinge System Pin diameter: 5 mm Temporary code, to be created specifically on request | -40÷65 °C |
|
| F7510FTLFB0550-PBT | 550 mm (21,65'') | LFB - Low friction acetal (Blue) | PBT White | No positioners | F7510 | 45 mm | 42000 N/m | 7.5 kg/m^2 | Self-Locking Pin | -40÷80 °C | Self-Cleaning Hinge System Pin diameter: 5 mm Temporary code, to be created specifically on request | -40÷65 °C |
|
| F7510FTLFB0550-PE | 550 mm (21,65'') | LFB - Low friction acetal (Blue) | PE White | No positioners | F7510 | 45 mm | 15000 N/m | 7.5 kg/m^2 | Self-Locking Pin | -40÷65 °C | Self-Cleaning Hinge System Pin diameter: 5 mm Temporary code, to be created specifically on request | -40÷65 °C |
|
| F7510FTLFB0550-PP | 550 mm (21,65'') | LFB - Low friction acetal (Blue) | PP White | No positioners | F7510 | 45 mm | 16000 N/m | 7.5 kg/m^2 | Self-Locking Pin | 5÷93 °C | Self-Cleaning Hinge System Pin diameter: 5 mm Temporary code, to be created specifically on request | -40÷65 °C |
|
| F7510FTLFB0600-PA6 | 600 mm (23,62'') | LFB - Low friction acetal (Blue) | PA6 White | No positioners | F7510 | 45 mm | 21900 N/m | 7.5 kg/m^2 | Self-Locking Pin | -40÷93 °C | Self-Cleaning Hinge System Pin diameter: 5 mm Temporary code, to be created specifically on request | -40÷65 °C |
|
| F7510FTLFB0600-PBT | 600 mm (23,62'') | LFB - Low friction acetal (Blue) | PBT White | No positioners | F7510 | 45 mm | 42000 N/m | 7.5 kg/m^2 | Self-Locking Pin | -40÷80 °C | Self-Cleaning Hinge System Pin diameter: 5 mm Temporary code, to be created specifically on request | -40÷65 °C |
|
| F7510FTLFB0600-PE | 600 mm (23,62'') | LFB - Low friction acetal (Blue) | PE White | No positioners | F7510 | 45 mm | 15000 N/m | 7.5 kg/m^2 | Self-Locking Pin | -40÷65 °C | Self-Cleaning Hinge System Pin diameter: 5 mm Temporary code, to be created specifically on request | -40÷65 °C |
|
| F7510FTLFB0600-PP | 600 mm (23,62'') | LFB - Low friction acetal (Blue) | PP White | No positioners | F7510 | 45 mm | 16000 N/m | 7.5 kg/m^2 | Self-Locking Pin | 5÷93 °C | Self-Cleaning Hinge System Pin diameter: 5 mm Temporary code, to be created specifically on request | -40÷65 °C |
|
| F7510FTLFB0650-PA6 | 650 mm (25,59'') | LFB - Low friction acetal (Blue) | PA6 White | No positioners | F7510 | 45 mm | 21900 N/m | 7.5 kg/m^2 | Self-Locking Pin | -40÷93 °C | Self-Cleaning Hinge System Pin diameter: 5 mm Temporary code, to be created specifically on request | -40÷65 °C |
|
| F7510FTLFB0650-PBT | 650 mm (25,59'') | LFB - Low friction acetal (Blue) | PBT White | No positioners | F7510 | 45 mm | 42000 N/m | 7.5 kg/m^2 | Self-Locking Pin | -40÷80 °C | Self-Cleaning Hinge System Pin diameter: 5 mm Temporary code, to be created specifically on request | -40÷65 °C |
|
| F7510FTLFB0650-PE | 650 mm (25,59'') | LFB - Low friction acetal (Blue) | PE White | No positioners | F7510 | 45 mm | 15000 N/m | 7.5 kg/m^2 | Self-Locking Pin | -40÷65 °C | Self-Cleaning Hinge System Pin diameter: 5 mm Temporary code, to be created specifically on request | -40÷65 °C |
|
| F7510FTLFB0650-PP | 650 mm (25,59'') | LFB - Low friction acetal (Blue) | PP White | No positioners | F7510 | 45 mm | 16000 N/m | 7.5 kg/m^2 | Self-Locking Pin | 5÷93 °C | Self-Cleaning Hinge System Pin diameter: 5 mm Temporary code, to be created specifically on request | -40÷65 °C |
|
| F7510FTLFB0700-PA6 | 700 mm (27,56'') | LFB - Low friction acetal (Blue) | PA6 White | No positioners | F7510 | 45 mm | 21900 N/m | 7.5 kg/m^2 | Self-Locking Pin | -40÷93 °C | Self-Cleaning Hinge System Pin diameter: 5 mm Temporary code, to be created specifically on request | -40÷65 °C |
|
| F7510FTLFB0700-PBT | 700 mm (27,56'') | LFB - Low friction acetal (Blue) | PBT White | No positioners | F7510 | 45 mm | 42000 N/m | 7.5 kg/m^2 | Self-Locking Pin | -40÷80 °C | Self-Cleaning Hinge System Pin diameter: 5 mm Temporary code, to be created specifically on request | -40÷65 °C |
|
| F7510FTLFB0700-PE | 700 mm (27,56'') | LFB - Low friction acetal (Blue) | PE White | No positioners | F7510 | 45 mm | 15000 N/m | 7.5 kg/m^2 | Self-Locking Pin | -40÷65 °C | Self-Cleaning Hinge System Pin diameter: 5 mm Temporary code, to be created specifically on request | -40÷65 °C |
|
| F7510FTLFB0700-PP | 700 mm (27,56'') | LFB - Low friction acetal (Blue) | PP White | No positioners | F7510 | 45 mm | 16000 N/m | 7.5 kg/m^2 | Self-Locking Pin | 5÷93 °C | Self-Cleaning Hinge System Pin diameter: 5 mm Temporary code, to be created specifically on request | -40÷65 °C |
|
| F7510FTLFB0750-PA6 | 750 mm (29,53'') | LFB - Low friction acetal (Blue) | PA6 White | No positioners | F7510 | 45 mm | 21900 N/m | 7.5 kg/m^2 | Self-Locking Pin | -40÷93 °C | Self-Cleaning Hinge System Pin diameter: 5 mm Temporary code, to be created specifically on request | -40÷65 °C |
|
| F7510FTLFB0750-PBT | 750 mm (29,53'') | LFB - Low friction acetal (Blue) | PBT White | No positioners | F7510 | 45 mm | 42000 N/m | 7.5 kg/m^2 | Self-Locking Pin | -40÷80 °C | Self-Cleaning Hinge System Pin diameter: 5 mm Temporary code, to be created specifically on request | -40÷65 °C |
|
| F7510FTLFB0750-PE | 750 mm (29,53'') | LFB - Low friction acetal (Blue) | PE White | No positioners | F7510 | 45 mm | 15000 N/m | 7.5 kg/m^2 | Self-Locking Pin | -40÷65 °C | Self-Cleaning Hinge System Pin diameter: 5 mm Temporary code, to be created specifically on request | -40÷65 °C |
|
| F7510FTLFB0750-PP | 750 mm (29,53'') | LFB - Low friction acetal (Blue) | PP White | No positioners | F7510 | 45 mm | 16000 N/m | 7.5 kg/m^2 | Self-Locking Pin | 5÷93 °C | Self-Cleaning Hinge System Pin diameter: 5 mm Temporary code, to be created specifically on request | -40÷65 °C |
|
| F7510FTLFB0800-PA6 | 800 mm (31,5'') | LFB - Low friction acetal (Blue) | PA6 White | No positioners | F7510 | 45 mm | 21900 N/m | 7.5 kg/m^2 | Self-Locking Pin | -40÷93 °C | Self-Cleaning Hinge System Pin diameter: 5 mm Temporary code, to be created specifically on request | -40÷65 °C |
|
| F7510FTLFB0800-PBT | 800 mm (31,5'') | LFB - Low friction acetal (Blue) | PBT White | No positioners | F7510 | 45 mm | 42000 N/m | 7.5 kg/m^2 | Self-Locking Pin | -40÷80 °C | Self-Cleaning Hinge System Pin diameter: 5 mm Temporary code, to be created specifically on request | -40÷65 °C |
|
| F7510FTLFB0800-PE | 800 mm (31,5'') | LFB - Low friction acetal (Blue) | PE White | No positioners | F7510 | 45 mm | 15000 N/m | 7.5 kg/m^2 | Self-Locking Pin | -40÷65 °C | Self-Cleaning Hinge System Pin diameter: 5 mm Temporary code, to be created specifically on request | -40÷65 °C |
|
| F7510FTLFB0800-PP | 800 mm (31,5'') | LFB - Low friction acetal (Blue) | PP White | No positioners | F7510 | 45 mm | 16000 N/m | 7.5 kg/m^2 | Self-Locking Pin | 5÷93 °C | Self-Cleaning Hinge System Pin diameter: 5 mm Temporary code, to be created specifically on request | -40÷65 °C |
|
| F7510FTLFB0850-PA6 | 850 mm (33,46'') | LFB - Low friction acetal (Blue) | PA6 White | No positioners | F7510 | 45 mm | 21900 N/m | 7.5 kg/m^2 | Self-Locking Pin | -40÷93 °C | Self-Cleaning Hinge System Pin diameter: 5 mm Temporary code, to be created specifically on request | -40÷65 °C |
|
| F7510FTLFB0850-PBT | 850 mm (33,46'') | LFB - Low friction acetal (Blue) | PBT White | No positioners | F7510 | 45 mm | 42000 N/m | 7.5 kg/m^2 | Self-Locking Pin | -40÷80 °C | Self-Cleaning Hinge System Pin diameter: 5 mm Temporary code, to be created specifically on request | -40÷65 °C |
|
| F7510FTLFB0850-PE | 850 mm (33,46'') | LFB - Low friction acetal (Blue) | PE White | No positioners | F7510 | 45 mm | 15000 N/m | 7.5 kg/m^2 | Self-Locking Pin | -40÷65 °C | Self-Cleaning Hinge System Pin diameter: 5 mm Temporary code, to be created specifically on request | -40÷65 °C |
|
| F7510FTLFB0850-PP | 850 mm (33,46'') | LFB - Low friction acetal (Blue) | PP White | No positioners | F7510 | 45 mm | 16000 N/m | 7.5 kg/m^2 | Self-Locking Pin | 5÷93 °C | Self-Cleaning Hinge System Pin diameter: 5 mm Temporary code, to be created specifically on request | -40÷65 °C |
|
| F7510FTLFB0900-PA6 | 900 mm (35,43'') | LFB - Low friction acetal (Blue) | PA6 White | No positioners | F7510 | 45 mm | 21900 N/m | 7.5 kg/m^2 | Self-Locking Pin | -40÷93 °C | Self-Cleaning Hinge System Pin diameter: 5 mm Temporary code, to be created specifically on request | -40÷65 °C |
|
| F7510FTLFB0900-PBT | 900 mm (35,43'') | LFB - Low friction acetal (Blue) | PBT White | No positioners | F7510 | 45 mm | 42000 N/m | 7.5 kg/m^2 | Self-Locking Pin | -40÷80 °C | Self-Cleaning Hinge System Pin diameter: 5 mm Temporary code, to be created specifically on request | -40÷65 °C |
|
| F7510FTLFB0900-PE | 900 mm (35,43'') | LFB - Low friction acetal (Blue) | PE White | No positioners | F7510 | 45 mm | 15000 N/m | 7.5 kg/m^2 | Self-Locking Pin | -40÷65 °C | Self-Cleaning Hinge System Pin diameter: 5 mm Temporary code, to be created specifically on request | -40÷65 °C |
|
| F7510FTLFB0900-PP | 900 mm (35,43'') | LFB - Low friction acetal (Blue) | PP White | No positioners | F7510 | 45 mm | 16000 N/m | 7.5 kg/m^2 | Self-Locking Pin | 5÷93 °C | Self-Cleaning Hinge System Pin diameter: 5 mm Temporary code, to be created specifically on request | -40÷65 °C |
|
| F7510FTLFC0050-PA6 | 50 mm (1,97'') | LFC - Low friction acetal (cyan) | PA6 White | No positioners | F7510 | 45 mm | 21900 N/m | 7.5 kg/m^2 | Self-Locking Pin | -40÷93 °C | Self-Cleaning Hinge System Pin diameter: 5 mm Temporary code, to be created specifically on request | -40÷65 °C |
|
| F7510FTLFC0050-PBT | 50 mm (1,97'') | LFC - Low friction acetal (cyan) | PBT White | No positioners | F7510 | 45 mm | 42000 N/m | 7.5 kg/m^2 | Self-Locking Pin | -40÷80 °C | Self-Cleaning Hinge System Pin diameter: 5 mm Temporary code, to be created specifically on request | -40÷65 °C |
|
| F7510FTLFC0050-PE | 50 mm (1,97'') | LFC - Low friction acetal (cyan) | PE White | No positioners | F7510 | 45 mm | 15000 N/m | 7.5 kg/m^2 | Self-Locking Pin | -40÷65 °C | Self-Cleaning Hinge System Pin diameter: 5 mm Temporary code, to be created specifically on request | -40÷65 °C |
|
| F7510FTLFC0050-PP | 50 mm (1,97'') | LFC - Low friction acetal (cyan) | PP White | No positioners | F7510 | 45 mm | 16000 N/m | 7.5 kg/m^2 | Self-Locking Pin | 5÷93 °C | Self-Cleaning Hinge System Pin diameter: 5 mm Temporary code, to be created specifically on request | -40÷65 °C |
|
| F7510FTLFC0100-PA6 | 100 mm (3,94'') | LFC - Low friction acetal (cyan) | PA6 White | No positioners | F7510 | 45 mm | 21900 N/m | 7.5 kg/m^2 | Self-Locking Pin | -40÷93 °C | Self-Cleaning Hinge System Pin diameter: 5 mm Temporary code, to be created specifically on request | -40÷65 °C |
|
| F7510FTLFC0100-PBT | 100 mm (3,94'') | LFC - Low friction acetal (cyan) | PBT White | No positioners | F7510 | 45 mm | 42000 N/m | 7.5 kg/m^2 | Self-Locking Pin | -40÷80 °C | Self-Cleaning Hinge System Pin diameter: 5 mm Temporary code, to be created specifically on request | -40÷65 °C |
|
| F7510FTLFC0100-PE | 100 mm (3,94'') | LFC - Low friction acetal (cyan) | PE White | No positioners | F7510 | 45 mm | 15000 N/m | 7.5 kg/m^2 | Self-Locking Pin | -40÷65 °C | Self-Cleaning Hinge System Pin diameter: 5 mm Temporary code, to be created specifically on request | -40÷65 °C |
|
| F7510FTLFC0100-PP | 100 mm (3,94'') | LFC - Low friction acetal (cyan) | PP White | No positioners | F7510 | 45 mm | 16000 N/m | 7.5 kg/m^2 | Self-Locking Pin | 5÷93 °C | Self-Cleaning Hinge System Pin diameter: 5 mm Temporary code, to be created specifically on request | -40÷65 °C |
|
| F7510FTLFC0150-PA6 | 150 mm (5,91'') | LFC - Low friction acetal (cyan) | PA6 White | No positioners | F7510 | 45 mm | 21900 N/m | 7.5 kg/m^2 | Self-Locking Pin | -40÷93 °C | Self-Cleaning Hinge System Pin diameter: 5 mm Temporary code, to be created specifically on request | -40÷65 °C |
|
| F7510FTLFC0150-PBT | 150 mm (5,91'') | LFC - Low friction acetal (cyan) | PBT White | No positioners | F7510 | 45 mm | 42000 N/m | 7.5 kg/m^2 | Self-Locking Pin | -40÷80 °C | Self-Cleaning Hinge System Pin diameter: 5 mm Temporary code, to be created specifically on request | -40÷65 °C |
|
| F7510FTLFC0150-PE | 150 mm (5,91'') | LFC - Low friction acetal (cyan) | PE White | No positioners | F7510 | 45 mm | 15000 N/m | 7.5 kg/m^2 | Self-Locking Pin | -40÷65 °C | Self-Cleaning Hinge System Pin diameter: 5 mm Temporary code, to be created specifically on request | -40÷65 °C |
|
| F7510FTLFC0150-PP | 150 mm (5,91'') | LFC - Low friction acetal (cyan) | PP White | No positioners | F7510 | 45 mm | 16000 N/m | 7.5 kg/m^2 | Self-Locking Pin | 5÷93 °C | Self-Cleaning Hinge System Pin diameter: 5 mm Temporary code, to be created specifically on request | -40÷65 °C |
|
| F7510FTLFC0200-PA6 | 200 mm (7,87'') | LFC - Low friction acetal (cyan) | PA6 White | No positioners | F7510 | 45 mm | 21900 N/m | 7.5 kg/m^2 | Self-Locking Pin | -40÷93 °C | Self-Cleaning Hinge System Pin diameter: 5 mm Temporary code, to be created specifically on request | -40÷65 °C |
|
| F7510FTLFC0200-PBT | 200 mm (7,87'') | LFC - Low friction acetal (cyan) | PBT White | No positioners | F7510 | 45 mm | 42000 N/m | 7.5 kg/m^2 | Self-Locking Pin | -40÷80 °C | Self-Cleaning Hinge System Pin diameter: 5 mm Temporary code, to be created specifically on request | -40÷65 °C |
|
| F7510FTLFC0200-PE | 200 mm (7,87'') | LFC - Low friction acetal (cyan) | PE White | No positioners | F7510 | 45 mm | 15000 N/m | 7.5 kg/m^2 | Self-Locking Pin | -40÷65 °C | Self-Cleaning Hinge System Pin diameter: 5 mm Temporary code, to be created specifically on request | -40÷65 °C |
|
| F7510FTLFC0200-PP | 200 mm (7,87'') | LFC - Low friction acetal (cyan) | PP White | No positioners | F7510 | 45 mm | 16000 N/m | 7.5 kg/m^2 | Self-Locking Pin | 5÷93 °C | Self-Cleaning Hinge System Pin diameter: 5 mm Temporary code, to be created specifically on request | -40÷65 °C |
|
| F7510FTLFC0250-PA6 | 250 mm (9,84'') | LFC - Low friction acetal (cyan) | PA6 White | No positioners | F7510 | 45 mm | 21900 N/m | 7.5 kg/m^2 | Self-Locking Pin | -40÷93 °C | Self-Cleaning Hinge System Pin diameter: 5 mm Temporary code, to be created specifically on request | -40÷65 °C |
|
| F7510FTLFC0250-PBT | 250 mm (9,84'') | LFC - Low friction acetal (cyan) | PBT White | No positioners | F7510 | 45 mm | 42000 N/m | 7.5 kg/m^2 | Self-Locking Pin | -40÷80 °C | Self-Cleaning Hinge System Pin diameter: 5 mm Temporary code, to be created specifically on request | -40÷65 °C |
|
| F7510FTLFC0250-PE | 250 mm (9,84'') | LFC - Low friction acetal (cyan) | PE White | No positioners | F7510 | 45 mm | 15000 N/m | 7.5 kg/m^2 | Self-Locking Pin | -40÷65 °C | Self-Cleaning Hinge System Pin diameter: 5 mm Temporary code, to be created specifically on request | -40÷65 °C |
|
| F7510FTLFC0250-PP | 250 mm (9,84'') | LFC - Low friction acetal (cyan) | PP White | No positioners | F7510 | 45 mm | 16000 N/m | 7.5 kg/m^2 | Self-Locking Pin | 5÷93 °C | Self-Cleaning Hinge System Pin diameter: 5 mm Temporary code, to be created specifically on request | -40÷65 °C |
|
| F7510FTLFC0300-PA6 | 300 mm (11,81'') | LFC - Low friction acetal (cyan) | PA6 White | No positioners | F7510 | 45 mm | 21900 N/m | 7.5 kg/m^2 | Self-Locking Pin | -40÷93 °C | Self-Cleaning Hinge System Pin diameter: 5 mm Temporary code, to be created specifically on request | -40÷65 °C |
|
| F7510FTLFC0300-PBT | 300 mm (11,81'') | LFC - Low friction acetal (cyan) | PBT White | No positioners | F7510 | 45 mm | 42000 N/m | 7.5 kg/m^2 | Self-Locking Pin | -40÷80 °C | Self-Cleaning Hinge System Pin diameter: 5 mm Temporary code, to be created specifically on request | -40÷65 °C |
|
| F7510FTLFC0300-PE | 300 mm (11,81'') | LFC - Low friction acetal (cyan) | PE White | No positioners | F7510 | 45 mm | 15000 N/m | 7.5 kg/m^2 | Self-Locking Pin | -40÷65 °C | Self-Cleaning Hinge System Pin diameter: 5 mm Temporary code, to be created specifically on request | -40÷65 °C |
|
| F7510FTLFC0300-PP | 300 mm (11,81'') | LFC - Low friction acetal (cyan) | PP White | No positioners | F7510 | 45 mm | 16000 N/m | 7.5 kg/m^2 | Self-Locking Pin | 5÷93 °C | Self-Cleaning Hinge System Pin diameter: 5 mm Temporary code, to be created specifically on request | -40÷65 °C |
|
| F7510FTLFC0350-PA6 | 350 mm (13,78'') | LFC - Low friction acetal (cyan) | PA6 White | No positioners | F7510 | 45 mm | 21900 N/m | 7.5 kg/m^2 | Self-Locking Pin | -40÷93 °C | Self-Cleaning Hinge System Pin diameter: 5 mm Temporary code, to be created specifically on request | -40÷65 °C |
|
| F7510FTLFC0350-PBT | 350 mm (13,78'') | LFC - Low friction acetal (cyan) | PBT White | No positioners | F7510 | 45 mm | 42000 N/m | 7.5 kg/m^2 | Self-Locking Pin | -40÷80 °C | Self-Cleaning Hinge System Pin diameter: 5 mm Temporary code, to be created specifically on request | -40÷65 °C |
|
| F7510FTLFC0350-PE | 350 mm (13,78'') | LFC - Low friction acetal (cyan) | PE White | No positioners | F7510 | 45 mm | 15000 N/m | 7.5 kg/m^2 | Self-Locking Pin | -40÷65 °C | Self-Cleaning Hinge System Pin diameter: 5 mm Temporary code, to be created specifically on request | -40÷65 °C |
|
| F7510FTLFC0350-PP | 350 mm (13,78'') | LFC - Low friction acetal (cyan) | PP White | No positioners | F7510 | 45 mm | 16000 N/m | 7.5 kg/m^2 | Self-Locking Pin | 5÷93 °C | Self-Cleaning Hinge System Pin diameter: 5 mm Temporary code, to be created specifically on request | -40÷65 °C |
|
| F7510FTLFC0400-PA6 | 400 mm (15,75'') | LFC - Low friction acetal (cyan) | PA6 White | No positioners | F7510 | 45 mm | 21900 N/m | 7.5 kg/m^2 | Self-Locking Pin | -40÷93 °C | Self-Cleaning Hinge System Pin diameter: 5 mm Temporary code, to be created specifically on request | -40÷65 °C |
|
| F7510FTLFC0400-PBT | 400 mm (15,75'') | LFC - Low friction acetal (cyan) | PBT White | No positioners | F7510 | 45 mm | 42000 N/m | 7.5 kg/m^2 | Self-Locking Pin | -40÷80 °C | Self-Cleaning Hinge System Pin diameter: 5 mm Temporary code, to be created specifically on request | -40÷65 °C |
|
| F7510FTLFC0400-PE | 400 mm (15,75'') | LFC - Low friction acetal (cyan) | PE White | No positioners | F7510 | 45 mm | 15000 N/m | 7.5 kg/m^2 | Self-Locking Pin | -40÷65 °C | Self-Cleaning Hinge System Pin diameter: 5 mm Temporary code, to be created specifically on request | -40÷65 °C |
|
| F7510FTLFC0400-PP | 400 mm (15,75'') | LFC - Low friction acetal (cyan) | PP White | No positioners | F7510 | 45 mm | 16000 N/m | 7.5 kg/m^2 | Self-Locking Pin | 5÷93 °C | Self-Cleaning Hinge System Pin diameter: 5 mm Temporary code, to be created specifically on request | -40÷65 °C |
|
| F7510FTLFC0450-PA6 | 450 mm (17,72'') | LFC - Low friction acetal (cyan) | PA6 White | No positioners | F7510 | 45 mm | 21900 N/m | 7.5 kg/m^2 | Self-Locking Pin | -40÷93 °C | Self-Cleaning Hinge System Pin diameter: 5 mm Temporary code, to be created specifically on request | -40÷65 °C |
|
| F7510FTLFC0450-PBT | 450 mm (17,72'') | LFC - Low friction acetal (cyan) | PBT White | No positioners | F7510 | 45 mm | 42000 N/m | 7.5 kg/m^2 | Self-Locking Pin | -40÷80 °C | Self-Cleaning Hinge System Pin diameter: 5 mm Temporary code, to be created specifically on request | -40÷65 °C |
|
| F7510FTLFC0450-PE | 450 mm (17,72'') | LFC - Low friction acetal (cyan) | PE White | No positioners | F7510 | 45 mm | 15000 N/m | 7.5 kg/m^2 | Self-Locking Pin | -40÷65 °C | Self-Cleaning Hinge System Pin diameter: 5 mm Temporary code, to be created specifically on request | -40÷65 °C |
|
| F7510FTLFC0450-PP | 450 mm (17,72'') | LFC - Low friction acetal (cyan) | PP White | No positioners | F7510 | 45 mm | 16000 N/m | 7.5 kg/m^2 | Self-Locking Pin | 5÷93 °C | Self-Cleaning Hinge System Pin diameter: 5 mm Temporary code, to be created specifically on request | -40÷65 °C |
|
| F7510FTLFC0500-PA6 | 500 mm (19,69'') | LFC - Low friction acetal (cyan) | PA6 White | No positioners | F7510 | 45 mm | 21900 N/m | 7.5 kg/m^2 | Self-Locking Pin | -40÷93 °C | Self-Cleaning Hinge System Pin diameter: 5 mm Temporary code, to be created specifically on request | -40÷65 °C |
|
| F7510FTLFC0500-PBT | 500 mm (19,69'') | LFC - Low friction acetal (cyan) | PBT White | No positioners | F7510 | 45 mm | 42000 N/m | 7.5 kg/m^2 | Self-Locking Pin | -40÷80 °C | Self-Cleaning Hinge System Pin diameter: 5 mm Temporary code, to be created specifically on request | -40÷65 °C |
|
| F7510FTLFC0500-PE | 500 mm (19,69'') | LFC - Low friction acetal (cyan) | PE White | No positioners | F7510 | 45 mm | 15000 N/m | 7.5 kg/m^2 | Self-Locking Pin | -40÷65 °C | Self-Cleaning Hinge System Pin diameter: 5 mm Temporary code, to be created specifically on request | -40÷65 °C |
|
| F7510FTLFC0500-PP | 500 mm (19,69'') | LFC - Low friction acetal (cyan) | PP White | No positioners | F7510 | 45 mm | 16000 N/m | 7.5 kg/m^2 | Self-Locking Pin | 5÷93 °C | Self-Cleaning Hinge System Pin diameter: 5 mm Temporary code, to be created specifically on request | -40÷65 °C |
|
| F7510FTLFC0550-PA6 | 550 mm (21,65'') | LFC - Low friction acetal (cyan) | PA6 White | No positioners | F7510 | 45 mm | 21900 N/m | 7.5 kg/m^2 | Self-Locking Pin | -40÷93 °C | Self-Cleaning Hinge System Pin diameter: 5 mm Temporary code, to be created specifically on request | -40÷65 °C |
|
| F7510FTLFC0550-PBT | 550 mm (21,65'') | LFC - Low friction acetal (cyan) | PBT White | No positioners | F7510 | 45 mm | 42000 N/m | 7.5 kg/m^2 | Self-Locking Pin | -40÷80 °C | Self-Cleaning Hinge System Pin diameter: 5 mm Temporary code, to be created specifically on request | -40÷65 °C |
|
| F7510FTLFC0550-PE | 550 mm (21,65'') | LFC - Low friction acetal (cyan) | PE White | No positioners | F7510 | 45 mm | 15000 N/m | 7.5 kg/m^2 | Self-Locking Pin | -40÷65 °C | Self-Cleaning Hinge System Pin diameter: 5 mm Temporary code, to be created specifically on request | -40÷65 °C |
|
| F7510FTLFC0550-PP | 550 mm (21,65'') | LFC - Low friction acetal (cyan) | PP White | No positioners | F7510 | 45 mm | 16000 N/m | 7.5 kg/m^2 | Self-Locking Pin | 5÷93 °C | Self-Cleaning Hinge System Pin diameter: 5 mm Temporary code, to be created specifically on request | -40÷65 °C |
|
| F7510FTLFC0600-PA6 | 600 mm (23,62'') | LFC - Low friction acetal (cyan) | PA6 White | No positioners | F7510 | 45 mm | 21900 N/m | 7.5 kg/m^2 | Self-Locking Pin | -40÷93 °C | Self-Cleaning Hinge System Pin diameter: 5 mm Temporary code, to be created specifically on request | -40÷65 °C |
|
| F7510FTLFC0600-PBT | 600 mm (23,62'') | LFC - Low friction acetal (cyan) | PBT White | No positioners | F7510 | 45 mm | 42000 N/m | 7.5 kg/m^2 | Self-Locking Pin | -40÷80 °C | Self-Cleaning Hinge System Pin diameter: 5 mm Temporary code, to be created specifically on request | -40÷65 °C |
|
| F7510FTLFC0600-PE | 600 mm (23,62'') | LFC - Low friction acetal (cyan) | PE White | No positioners | F7510 | 45 mm | 15000 N/m | 7.5 kg/m^2 | Self-Locking Pin | -40÷65 °C | Self-Cleaning Hinge System Pin diameter: 5 mm Temporary code, to be created specifically on request | -40÷65 °C |
|
| F7510FTLFC0600-PP | 600 mm (23,62'') | LFC - Low friction acetal (cyan) | PP White | No positioners | F7510 | 45 mm | 16000 N/m | 7.5 kg/m^2 | Self-Locking Pin | 5÷93 °C | Self-Cleaning Hinge System Pin diameter: 5 mm Temporary code, to be created specifically on request | -40÷65 °C |
|
| F7510FTLFC0650-PA6 | 650 mm (25,59'') | LFC - Low friction acetal (cyan) | PA6 White | No positioners | F7510 | 45 mm | 21900 N/m | 7.5 kg/m^2 | Self-Locking Pin | -40÷93 °C | Self-Cleaning Hinge System Pin diameter: 5 mm Temporary code, to be created specifically on request | -40÷65 °C |
|
| F7510FTLFC0650-PBT | 650 mm (25,59'') | LFC - Low friction acetal (cyan) | PBT White | No positioners | F7510 | 45 mm | 42000 N/m | 7.5 kg/m^2 | Self-Locking Pin | -40÷80 °C | Self-Cleaning Hinge System Pin diameter: 5 mm Temporary code, to be created specifically on request | -40÷65 °C |
|
| F7510FTLFC0650-PE | 650 mm (25,59'') | LFC - Low friction acetal (cyan) | PE White | No positioners | F7510 | 45 mm | 15000 N/m | 7.5 kg/m^2 | Self-Locking Pin | -40÷65 °C | Self-Cleaning Hinge System Pin diameter: 5 mm Temporary code, to be created specifically on request | -40÷65 °C |
|
| F7510FTLFC0650-PP | 650 mm (25,59'') | LFC - Low friction acetal (cyan) | PP White | No positioners | F7510 | 45 mm | 16000 N/m | 7.5 kg/m^2 | Self-Locking Pin | 5÷93 °C | Self-Cleaning Hinge System Pin diameter: 5 mm Temporary code, to be created specifically on request | -40÷65 °C |
|
| F7510FTLFC0700-PA6 | 700 mm (27,56'') | LFC - Low friction acetal (cyan) | PA6 White | No positioners | F7510 | 45 mm | 21900 N/m | 7.5 kg/m^2 | Self-Locking Pin | -40÷93 °C | Self-Cleaning Hinge System Pin diameter: 5 mm Temporary code, to be created specifically on request | -40÷65 °C |
|
| F7510FTLFC0700-PBT | 700 mm (27,56'') | LFC - Low friction acetal (cyan) | PBT White | No positioners | F7510 | 45 mm | 42000 N/m | 7.5 kg/m^2 | Self-Locking Pin | -40÷80 °C | Self-Cleaning Hinge System Pin diameter: 5 mm Temporary code, to be created specifically on request | -40÷65 °C |
|
| F7510FTLFC0700-PE | 700 mm (27,56'') | LFC - Low friction acetal (cyan) | PE White | No positioners | F7510 | 45 mm | 15000 N/m | 7.5 kg/m^2 | Self-Locking Pin | -40÷65 °C | Self-Cleaning Hinge System Pin diameter: 5 mm Temporary code, to be created specifically on request | -40÷65 °C |
|
| F7510FTLFC0700-PP | 700 mm (27,56'') | LFC - Low friction acetal (cyan) | PP White | No positioners | F7510 | 45 mm | 16000 N/m | 7.5 kg/m^2 | Self-Locking Pin | 5÷93 °C | Self-Cleaning Hinge System Pin diameter: 5 mm Temporary code, to be created specifically on request | -40÷65 °C |
|
| F7510FTLFC0750-PA6 | 750 mm (29,53'') | LFC - Low friction acetal (cyan) | PA6 White | No positioners | F7510 | 45 mm | 21900 N/m | 7.5 kg/m^2 | Self-Locking Pin | -40÷93 °C | Self-Cleaning Hinge System Pin diameter: 5 mm Temporary code, to be created specifically on request | -40÷65 °C |
|
| F7510FTLFC0750-PBT | 750 mm (29,53'') | LFC - Low friction acetal (cyan) | PBT White | No positioners | F7510 | 45 mm | 42000 N/m | 7.5 kg/m^2 | Self-Locking Pin | -40÷80 °C | Self-Cleaning Hinge System Pin diameter: 5 mm Temporary code, to be created specifically on request | -40÷65 °C |
|
| F7510FTLFC0750-PE | 750 mm (29,53'') | LFC - Low friction acetal (cyan) | PE White | No positioners | F7510 | 45 mm | 15000 N/m | 7.5 kg/m^2 | Self-Locking Pin | -40÷65 °C | Self-Cleaning Hinge System Pin diameter: 5 mm Temporary code, to be created specifically on request | -40÷65 °C |
|
| F7510FTLFC0750-PP | 750 mm (29,53'') | LFC - Low friction acetal (cyan) | PP White | No positioners | F7510 | 45 mm | 16000 N/m | 7.5 kg/m^2 | Self-Locking Pin | 5÷93 °C | Self-Cleaning Hinge System Pin diameter: 5 mm Temporary code, to be created specifically on request | -40÷65 °C |
|
| F7510FTLFC0800-PA6 | 800 mm (31,5'') | LFC - Low friction acetal (cyan) | PA6 White | No positioners | F7510 | 45 mm | 21900 N/m | 7.5 kg/m^2 | Self-Locking Pin | -40÷93 °C | Self-Cleaning Hinge System Pin diameter: 5 mm Temporary code, to be created specifically on request | -40÷65 °C |
|
| F7510FTLFC0800-PBT | 800 mm (31,5'') | LFC - Low friction acetal (cyan) | PBT White | No positioners | F7510 | 45 mm | 42000 N/m | 7.5 kg/m^2 | Self-Locking Pin | -40÷80 °C | Self-Cleaning Hinge System Pin diameter: 5 mm Temporary code, to be created specifically on request | -40÷65 °C |
|
| F7510FTLFC0800-PE | 800 mm (31,5'') | LFC - Low friction acetal (cyan) | PE White | No positioners | F7510 | 45 mm | 15000 N/m | 7.5 kg/m^2 | Self-Locking Pin | -40÷65 °C | Self-Cleaning Hinge System Pin diameter: 5 mm Temporary code, to be created specifically on request | -40÷65 °C |
|
| F7510FTLFC0800-PP | 800 mm (31,5'') | LFC - Low friction acetal (cyan) | PP White | No positioners | F7510 | 45 mm | 16000 N/m | 7.5 kg/m^2 | Self-Locking Pin | 5÷93 °C | Self-Cleaning Hinge System Pin diameter: 5 mm Temporary code, to be created specifically on request | -40÷65 °C |
|
| F7510FTLFC0850-PA6 | 850 mm (33,46'') | LFC - Low friction acetal (cyan) | PA6 White | No positioners | F7510 | 45 mm | 21900 N/m | 7.5 kg/m^2 | Self-Locking Pin | -40÷93 °C | Self-Cleaning Hinge System Pin diameter: 5 mm Temporary code, to be created specifically on request | -40÷65 °C |
|
| F7510FTLFC0850-PBT | 850 mm (33,46'') | LFC - Low friction acetal (cyan) | PBT White | No positioners | F7510 | 45 mm | 42000 N/m | 7.5 kg/m^2 | Self-Locking Pin | -40÷80 °C | Self-Cleaning Hinge System Pin diameter: 5 mm Temporary code, to be created specifically on request | -40÷65 °C |
|
| F7510FTLFC0850-PE | 850 mm (33,46'') | LFC - Low friction acetal (cyan) | PE White | No positioners | F7510 | 45 mm | 15000 N/m | 7.5 kg/m^2 | Self-Locking Pin | -40÷65 °C | Self-Cleaning Hinge System Pin diameter: 5 mm Temporary code, to be created specifically on request | -40÷65 °C |
|
| F7510FTLFC0850-PP | 850 mm (33,46'') | LFC - Low friction acetal (cyan) | PP White | No positioners | F7510 | 45 mm | 16000 N/m | 7.5 kg/m^2 | Self-Locking Pin | 5÷93 °C | Self-Cleaning Hinge System Pin diameter: 5 mm Temporary code, to be created specifically on request | -40÷65 °C |
|
| F7510FTLFC0900-PA6 | 900 mm (35,43'') | LFC - Low friction acetal (cyan) | PA6 White | No positioners | F7510 | 45 mm | 21900 N/m | 7.5 kg/m^2 | Self-Locking Pin | -40÷93 °C | Self-Cleaning Hinge System Pin diameter: 5 mm Temporary code, to be created specifically on request | -40÷65 °C |
|
| F7510FTLFC0900-PBT | 900 mm (35,43'') | LFC - Low friction acetal (cyan) | PBT White | No positioners | F7510 | 45 mm | 42000 N/m | 7.5 kg/m^2 | Self-Locking Pin | -40÷80 °C | Self-Cleaning Hinge System Pin diameter: 5 mm Temporary code, to be created specifically on request | -40÷65 °C |
|
| F7510FTLFC0900-PE | 900 mm (35,43'') | LFC - Low friction acetal (cyan) | PE White | No positioners | F7510 | 45 mm | 15000 N/m | 7.5 kg/m^2 | Self-Locking Pin | -40÷65 °C | Self-Cleaning Hinge System Pin diameter: 5 mm Temporary code, to be created specifically on request | -40÷65 °C |
|
| F7510FTLFC0900-PP | 900 mm (35,43'') | LFC - Low friction acetal (cyan) | PP White | No positioners | F7510 | 45 mm | 16000 N/m | 7.5 kg/m^2 | Self-Locking Pin | 5÷93 °C | Self-Cleaning Hinge System Pin diameter: 5 mm Temporary code, to be created specifically on request | -40÷65 °C |
|
| F7510FTLFW0050-PA6 | 50 mm (1,97'') | LFW - Low Friction acetal (White) | PA6 White | No positioners | F7510 | 45 mm | 21900 N/m | 7.5 kg/m^2 | Self-Locking Pin | -40÷93 °C | Self-Cleaning Hinge System Pin diameter: 5 mm Temporary code, to be created specifically on request | -40÷65 °C |
|
| F7510FTLFW0050-PBT | 50 mm (1,97'') | LFW - Low Friction acetal (White) | PBT White | No positioners | F7510 | 45 mm | 42000 N/m | 7.5 kg/m^2 | Self-Locking Pin | -40÷80 °C | Self-Cleaning Hinge System Pin diameter: 5 mm Temporary code, to be created specifically on request | -40÷65 °C |
|
| F7510FTLFW0050-PE | 50 mm (1,97'') | LFW - Low Friction acetal (White) | PE White | No positioners | F7510 | 45 mm | 15000 N/m | 7.5 kg/m^2 | Self-Locking Pin | -40÷65 °C | Self-Cleaning Hinge System Pin diameter: 5 mm Temporary code, to be created specifically on request | -40÷65 °C |
|
| F7510FTLFW0050-PP | 50 mm (1,97'') | LFW - Low Friction acetal (White) | PP White | No positioners | F7510 | 45 mm | 16000 N/m | 7.5 kg/m^2 | Self-Locking Pin | 5÷93 °C | Self-Cleaning Hinge System Pin diameter: 5 mm Temporary code, to be created specifically on request | -40÷65 °C |
|
| F7510FTLFW0100-PA6 | 100 mm (3,94'') | LFW - Low Friction acetal (White) | PA6 White | No positioners | F7510 | 45 mm | 21900 N/m | 7.5 kg/m^2 | Self-Locking Pin | -40÷93 °C | Self-Cleaning Hinge System Pin diameter: 5 mm Temporary code, to be created specifically on request | -40÷65 °C |
|
| F7510FTLFW0100-PBT | 100 mm (3,94'') | LFW - Low Friction acetal (White) | PBT White | No positioners | F7510 | 45 mm | 42000 N/m | 7.5 kg/m^2 | Self-Locking Pin | -40÷80 °C | Self-Cleaning Hinge System Pin diameter: 5 mm Temporary code, to be created specifically on request | -40÷65 °C |
|
| F7510FTLFW0100-PE | 100 mm (3,94'') | LFW - Low Friction acetal (White) | PE White | No positioners | F7510 | 45 mm | 15000 N/m | 7.5 kg/m^2 | Self-Locking Pin | -40÷65 °C | Self-Cleaning Hinge System Pin diameter: 5 mm Temporary code, to be created specifically on request | -40÷65 °C |
|
| F7510FTLFW0100-PP | 100 mm (3,94'') | LFW - Low Friction acetal (White) | PP White | No positioners | F7510 | 45 mm | 16000 N/m | 7.5 kg/m^2 | Self-Locking Pin | 5÷93 °C | Self-Cleaning Hinge System Pin diameter: 5 mm Temporary code, to be created specifically on request | -40÷65 °C |
|
| F7510FTLFW0150-PA6 | 150 mm (5,91'') | LFW - Low Friction acetal (White) | PA6 White | No positioners | F7510 | 45 mm | 21900 N/m | 7.5 kg/m^2 | Self-Locking Pin | -40÷93 °C | Self-Cleaning Hinge System Pin diameter: 5 mm Temporary code, to be created specifically on request | -40÷65 °C |
|
| F7510FTLFW0150-PBT | 150 mm (5,91'') | LFW - Low Friction acetal (White) | PBT White | No positioners | F7510 | 45 mm | 42000 N/m | 7.5 kg/m^2 | Self-Locking Pin | -40÷80 °C | Self-Cleaning Hinge System Pin diameter: 5 mm Temporary code, to be created specifically on request | -40÷65 °C |
|
| F7510FTLFW0150-PE | 150 mm (5,91'') | LFW - Low Friction acetal (White) | PE White | No positioners | F7510 | 45 mm | 15000 N/m | 7.5 kg/m^2 | Self-Locking Pin | -40÷65 °C | Self-Cleaning Hinge System Pin diameter: 5 mm Temporary code, to be created specifically on request | -40÷65 °C |
|
| F7510FTLFW0150-PP | 150 mm (5,91'') | LFW - Low Friction acetal (White) | PP White | No positioners | F7510 | 45 mm | 16000 N/m | 7.5 kg/m^2 | Self-Locking Pin | 5÷93 °C | Self-Cleaning Hinge System Pin diameter: 5 mm Temporary code, to be created specifically on request | -40÷65 °C |
|
| F7510FTLFW0200-PA6 | 200 mm (7,87'') | LFW - Low Friction acetal (White) | PA6 White | No positioners | F7510 | 45 mm | 21900 N/m | 7.5 kg/m^2 | Self-Locking Pin | -40÷93 °C | Self-Cleaning Hinge System Pin diameter: 5 mm Temporary code, to be created specifically on request | -40÷65 °C |
|
| F7510FTLFW0200-PBT | 200 mm (7,87'') | LFW - Low Friction acetal (White) | PBT White | No positioners | F7510 | 45 mm | 42000 N/m | 7.5 kg/m^2 | Self-Locking Pin | -40÷80 °C | Self-Cleaning Hinge System Pin diameter: 5 mm Temporary code, to be created specifically on request | -40÷65 °C |
|
| F7510FTLFW0200-PE | 200 mm (7,87'') | LFW - Low Friction acetal (White) | PE White | No positioners | F7510 | 45 mm | 15000 N/m | 7.5 kg/m^2 | Self-Locking Pin | -40÷65 °C | Self-Cleaning Hinge System Pin diameter: 5 mm Temporary code, to be created specifically on request | -40÷65 °C |
|
| F7510FTLFW0200-PP | 200 mm (7,87'') | LFW - Low Friction acetal (White) | PP White | No positioners | F7510 | 45 mm | 16000 N/m | 7.5 kg/m^2 | Self-Locking Pin | 5÷93 °C | Self-Cleaning Hinge System Pin diameter: 5 mm Temporary code, to be created specifically on request | -40÷65 °C |
|
| F7510FTLFW0250-PA6 | 250 mm (9,84'') | LFW - Low Friction acetal (White) | PA6 White | No positioners | F7510 | 45 mm | 21900 N/m | 7.5 kg/m^2 | Self-Locking Pin | -40÷93 °C | Self-Cleaning Hinge System Pin diameter: 5 mm Temporary code, to be created specifically on request | -40÷65 °C |
|
| F7510FTLFW0250-PBT | 250 mm (9,84'') | LFW - Low Friction acetal (White) | PBT White | No positioners | F7510 | 45 mm | 42000 N/m | 7.5 kg/m^2 | Self-Locking Pin | -40÷80 °C | Self-Cleaning Hinge System Pin diameter: 5 mm Temporary code, to be created specifically on request | -40÷65 °C |
|
| F7510FTLFW0250-PE | 250 mm (9,84'') | LFW - Low Friction acetal (White) | PE White | No positioners | F7510 | 45 mm | 15000 N/m | 7.5 kg/m^2 | Self-Locking Pin | -40÷65 °C | Self-Cleaning Hinge System Pin diameter: 5 mm Temporary code, to be created specifically on request | -40÷65 °C |
|
| F7510FTLFW0250-PP | 250 mm (9,84'') | LFW - Low Friction acetal (White) | PP White | No positioners | F7510 | 45 mm | 16000 N/m | 7.5 kg/m^2 | Self-Locking Pin | 5÷93 °C | Self-Cleaning Hinge System Pin diameter: 5 mm Temporary code, to be created specifically on request | -40÷65 °C |
|
| F7510FTLFW0300-PA6 | 300 mm (11,81'') | LFW - Low Friction acetal (White) | PA6 White | No positioners | F7510 | 45 mm | 21900 N/m | 7.5 kg/m^2 | Self-Locking Pin | -40÷93 °C | Self-Cleaning Hinge System Pin diameter: 5 mm Temporary code, to be created specifically on request | -40÷65 °C |
|
| F7510FTLFW0300-PBT | 300 mm (11,81'') | LFW - Low Friction acetal (White) | PBT White | No positioners | F7510 | 45 mm | 42000 N/m | 7.5 kg/m^2 | Self-Locking Pin | -40÷80 °C | Self-Cleaning Hinge System Pin diameter: 5 mm Temporary code, to be created specifically on request | -40÷65 °C |
|
| F7510FTLFW0300-PE | 300 mm (11,81'') | LFW - Low Friction acetal (White) | PE White | No positioners | F7510 | 45 mm | 15000 N/m | 7.5 kg/m^2 | Self-Locking Pin | -40÷65 °C | Self-Cleaning Hinge System Pin diameter: 5 mm Temporary code, to be created specifically on request | -40÷65 °C |
|
| F7510FTLFW0300-PP | 300 mm (11,81'') | LFW - Low Friction acetal (White) | PP White | No positioners | F7510 | 45 mm | 16000 N/m | 7.5 kg/m^2 | Self-Locking Pin | 5÷93 °C | Self-Cleaning Hinge System Pin diameter: 5 mm Temporary code, to be created specifically on request | -40÷65 °C |
|
| F7510FTLFW0350-PA6 | 350 mm (13,78'') | LFW - Low Friction acetal (White) | PA6 White | No positioners | F7510 | 45 mm | 21900 N/m | 7.5 kg/m^2 | Self-Locking Pin | -40÷93 °C | Self-Cleaning Hinge System Pin diameter: 5 mm Temporary code, to be created specifically on request | -40÷65 °C |
|
| F7510FTLFW0350-PBT | 350 mm (13,78'') | LFW - Low Friction acetal (White) | PBT White | No positioners | F7510 | 45 mm | 42000 N/m | 7.5 kg/m^2 | Self-Locking Pin | -40÷80 °C | Self-Cleaning Hinge System Pin diameter: 5 mm Temporary code, to be created specifically on request | -40÷65 °C |
|
| F7510FTLFW0350-PE | 350 mm (13,78'') | LFW - Low Friction acetal (White) | PE White | No positioners | F7510 | 45 mm | 15000 N/m | 7.5 kg/m^2 | Self-Locking Pin | -40÷65 °C | Self-Cleaning Hinge System Pin diameter: 5 mm Temporary code, to be created specifically on request | -40÷65 °C |
|
| F7510FTLFW0350-PP | 350 mm (13,78'') | LFW - Low Friction acetal (White) | PP White | No positioners | F7510 | 45 mm | 16000 N/m | 7.5 kg/m^2 | Self-Locking Pin | 5÷93 °C | Self-Cleaning Hinge System Pin diameter: 5 mm Temporary code, to be created specifically on request | -40÷65 °C |
|
| F7510FTLFW0400-PA6 | 400 mm (15,75'') | LFW - Low Friction acetal (White) | PA6 White | No positioners | F7510 | 45 mm | 21900 N/m | 7.5 kg/m^2 | Self-Locking Pin | -40÷93 °C | Self-Cleaning Hinge System Pin diameter: 5 mm Temporary code, to be created specifically on request | -40÷65 °C |
|
| F7510FTLFW0400-PBT | 400 mm (15,75'') | LFW - Low Friction acetal (White) | PBT White | No positioners | F7510 | 45 mm | 42000 N/m | 7.5 kg/m^2 | Self-Locking Pin | -40÷80 °C | Self-Cleaning Hinge System Pin diameter: 5 mm Temporary code, to be created specifically on request | -40÷65 °C |
|
| F7510FTLFW0400-PE | 400 mm (15,75'') | LFW - Low Friction acetal (White) | PE White | No positioners | F7510 | 45 mm | 15000 N/m | 7.5 kg/m^2 | Self-Locking Pin | -40÷65 °C | Self-Cleaning Hinge System Pin diameter: 5 mm Temporary code, to be created specifically on request | -40÷65 °C |
|
| F7510FTLFW0400-PP | 400 mm (15,75'') | LFW - Low Friction acetal (White) | PP White | No positioners | F7510 | 45 mm | 16000 N/m | 7.5 kg/m^2 | Self-Locking Pin | 5÷93 °C | Self-Cleaning Hinge System Pin diameter: 5 mm Temporary code, to be created specifically on request | -40÷65 °C |
|
| F7510FTLFW0450-PA6 | 450 mm (17,72'') | LFW - Low Friction acetal (White) | PA6 White | No positioners | F7510 | 45 mm | 21900 N/m | 7.5 kg/m^2 | Self-Locking Pin | -40÷93 °C | Self-Cleaning Hinge System Pin diameter: 5 mm Temporary code, to be created specifically on request | -40÷65 °C |
|
| F7510FTLFW0450-PBT | 450 mm (17,72'') | LFW - Low Friction acetal (White) | PBT White | No positioners | F7510 | 45 mm | 42000 N/m | 7.5 kg/m^2 | Self-Locking Pin | -40÷80 °C | Self-Cleaning Hinge System Pin diameter: 5 mm Temporary code, to be created specifically on request | -40÷65 °C |
|
| F7510FTLFW0450-PE | 450 mm (17,72'') | LFW - Low Friction acetal (White) | PE White | No positioners | F7510 | 45 mm | 15000 N/m | 7.5 kg/m^2 | Self-Locking Pin | -40÷65 °C | Self-Cleaning Hinge System Pin diameter: 5 mm Temporary code, to be created specifically on request | -40÷65 °C |
|
| F7510FTLFW0450-PP | 450 mm (17,72'') | LFW - Low Friction acetal (White) | PP White | No positioners | F7510 | 45 mm | 16000 N/m | 7.5 kg/m^2 | Self-Locking Pin | 5÷93 °C | Self-Cleaning Hinge System Pin diameter: 5 mm Temporary code, to be created specifically on request | -40÷65 °C |
|
| F7510FTLFW0500-PA6 | 500 mm (19,69'') | LFW - Low Friction acetal (White) | PA6 White | No positioners | F7510 | 45 mm | 21900 N/m | 7.5 kg/m^2 | Self-Locking Pin | -40÷93 °C | Self-Cleaning Hinge System Pin diameter: 5 mm Temporary code, to be created specifically on request | -40÷65 °C |
|
| F7510FTLFW0500-PBT | 500 mm (19,69'') | LFW - Low Friction acetal (White) | PBT White | No positioners | F7510 | 45 mm | 42000 N/m | 7.5 kg/m^2 | Self-Locking Pin | -40÷80 °C | Self-Cleaning Hinge System Pin diameter: 5 mm Temporary code, to be created specifically on request | -40÷65 °C |
|
| F7510FTLFW0500-PE | 500 mm (19,69'') | LFW - Low Friction acetal (White) | PE White | No positioners | F7510 | 45 mm | 15000 N/m | 7.5 kg/m^2 | Self-Locking Pin | -40÷65 °C | Self-Cleaning Hinge System Pin diameter: 5 mm Temporary code, to be created specifically on request | -40÷65 °C |
|
| F7510FTLFW0500-PP | 500 mm (19,69'') | LFW - Low Friction acetal (White) | PP White | No positioners | F7510 | 45 mm | 16000 N/m | 7.5 kg/m^2 | Self-Locking Pin | 5÷93 °C | Self-Cleaning Hinge System Pin diameter: 5 mm Temporary code, to be created specifically on request | -40÷65 °C |
|
| F7510FTLFW0550-PA6 | 550 mm (21,65'') | LFW - Low Friction acetal (White) | PA6 White | No positioners | F7510 | 45 mm | 21900 N/m | 7.5 kg/m^2 | Self-Locking Pin | -40÷93 °C | Self-Cleaning Hinge System Pin diameter: 5 mm Temporary code, to be created specifically on request | -40÷65 °C |
|
| F7510FTLFW0550-PBT | 550 mm (21,65'') | LFW - Low Friction acetal (White) | PBT White | No positioners | F7510 | 45 mm | 42000 N/m | 7.5 kg/m^2 | Self-Locking Pin | -40÷80 °C | Self-Cleaning Hinge System Pin diameter: 5 mm Temporary code, to be created specifically on request | -40÷65 °C |
|
| F7510FTLFW0550-PE | 550 mm (21,65'') | LFW - Low Friction acetal (White) | PE White | No positioners | F7510 | 45 mm | 15000 N/m | 7.5 kg/m^2 | Self-Locking Pin | -40÷65 °C | Self-Cleaning Hinge System Pin diameter: 5 mm Temporary code, to be created specifically on request | -40÷65 °C |
|
| F7510FTLFW0550-PP | 550 mm (21,65'') | LFW - Low Friction acetal (White) | PP White | No positioners | F7510 | 45 mm | 16000 N/m | 7.5 kg/m^2 | Self-Locking Pin | 5÷93 °C | Self-Cleaning Hinge System Pin diameter: 5 mm Temporary code, to be created specifically on request | -40÷65 °C |
|
| F7510FTLFW0600-PA6 | 600 mm (23,62'') | LFW - Low Friction acetal (White) | PA6 White | No positioners | F7510 | 45 mm | 21900 N/m | 7.5 kg/m^2 | Self-Locking Pin | -40÷93 °C | Self-Cleaning Hinge System Pin diameter: 5 mm Temporary code, to be created specifically on request | -40÷65 °C |
|
| F7510FTLFW0600-PBT | 600 mm (23,62'') | LFW - Low Friction acetal (White) | PBT White | No positioners | F7510 | 45 mm | 42000 N/m | 7.5 kg/m^2 | Self-Locking Pin | -40÷80 °C | Self-Cleaning Hinge System Pin diameter: 5 mm Temporary code, to be created specifically on request | -40÷65 °C |
|
| F7510FTLFW0600-PE | 600 mm (23,62'') | LFW - Low Friction acetal (White) | PE White | No positioners | F7510 | 45 mm | 15000 N/m | 7.5 kg/m^2 | Self-Locking Pin | -40÷65 °C | Self-Cleaning Hinge System Pin diameter: 5 mm Temporary code, to be created specifically on request | -40÷65 °C |
|
| F7510FTLFW0600-PP | 600 mm (23,62'') | LFW - Low Friction acetal (White) | PP White | No positioners | F7510 | 45 mm | 16000 N/m | 7.5 kg/m^2 | Self-Locking Pin | 5÷93 °C | Self-Cleaning Hinge System Pin diameter: 5 mm Temporary code, to be created specifically on request | -40÷65 °C |
|
| F7510FTLFW0650-PA6 | 650 mm (25,59'') | LFW - Low Friction acetal (White) | PA6 White | No positioners | F7510 | 45 mm | 21900 N/m | 7.5 kg/m^2 | Self-Locking Pin | -40÷93 °C | Self-Cleaning Hinge System Pin diameter: 5 mm Temporary code, to be created specifically on request | -40÷65 °C |
|
| F7510FTLFW0650-PBT | 650 mm (25,59'') | LFW - Low Friction acetal (White) | PBT White | No positioners | F7510 | 45 mm | 42000 N/m | 7.5 kg/m^2 | Self-Locking Pin | -40÷80 °C | Self-Cleaning Hinge System Pin diameter: 5 mm Temporary code, to be created specifically on request | -40÷65 °C |
|
| F7510FTLFW0650-PE | 650 mm (25,59'') | LFW - Low Friction acetal (White) | PE White | No positioners | F7510 | 45 mm | 15000 N/m | 7.5 kg/m^2 | Self-Locking Pin | -40÷65 °C | Self-Cleaning Hinge System Pin diameter: 5 mm Temporary code, to be created specifically on request | -40÷65 °C |
|
| F7510FTLFW0650-PP | 650 mm (25,59'') | LFW - Low Friction acetal (White) | PP White | No positioners | F7510 | 45 mm | 16000 N/m | 7.5 kg/m^2 | Self-Locking Pin | 5÷93 °C | Self-Cleaning Hinge System Pin diameter: 5 mm Temporary code, to be created specifically on request | -40÷65 °C |
|
| F7510FTLFW0700-PA6 | 700 mm (27,56'') | LFW - Low Friction acetal (White) | PA6 White | No positioners | F7510 | 45 mm | 21900 N/m | 7.5 kg/m^2 | Self-Locking Pin | -40÷93 °C | Self-Cleaning Hinge System Pin diameter: 5 mm Temporary code, to be created specifically on request | -40÷65 °C |
|
| F7510FTLFW0700-PBT | 700 mm (27,56'') | LFW - Low Friction acetal (White) | PBT White | No positioners | F7510 | 45 mm | 42000 N/m | 7.5 kg/m^2 | Self-Locking Pin | -40÷80 °C | Self-Cleaning Hinge System Pin diameter: 5 mm Temporary code, to be created specifically on request | -40÷65 °C |
|
| F7510FTLFW0700-PE | 700 mm (27,56'') | LFW - Low Friction acetal (White) | PE White | No positioners | F7510 | 45 mm | 15000 N/m | 7.5 kg/m^2 | Self-Locking Pin | -40÷65 °C | Self-Cleaning Hinge System Pin diameter: 5 mm Temporary code, to be created specifically on request | -40÷65 °C |
|
| F7510FTLFW0700-PP | 700 mm (27,56'') | LFW - Low Friction acetal (White) | PP White | No positioners | F7510 | 45 mm | 16000 N/m | 7.5 kg/m^2 | Self-Locking Pin | 5÷93 °C | Self-Cleaning Hinge System Pin diameter: 5 mm Temporary code, to be created specifically on request | -40÷65 °C |
|
| F7510FTLFW0750-PA6 | 750 mm (29,53'') | LFW - Low Friction acetal (White) | PA6 White | No positioners | F7510 | 45 mm | 21900 N/m | 7.5 kg/m^2 | Self-Locking Pin | -40÷93 °C | Self-Cleaning Hinge System Pin diameter: 5 mm Temporary code, to be created specifically on request | -40÷65 °C |
|
| F7510FTLFW0750-PBT | 750 mm (29,53'') | LFW - Low Friction acetal (White) | PBT White | No positioners | F7510 | 45 mm | 42000 N/m | 7.5 kg/m^2 | Self-Locking Pin | -40÷80 °C | Self-Cleaning Hinge System Pin diameter: 5 mm Temporary code, to be created specifically on request | -40÷65 °C |
|
| F7510FTLFW0750-PE | 750 mm (29,53'') | LFW - Low Friction acetal (White) | PE White | No positioners | F7510 | 45 mm | 15000 N/m | 7.5 kg/m^2 | Self-Locking Pin | -40÷65 °C | Self-Cleaning Hinge System Pin diameter: 5 mm Temporary code, to be created specifically on request | -40÷65 °C |
|
| F7510FTLFW0750-PP | 750 mm (29,53'') | LFW - Low Friction acetal (White) | PP White | No positioners | F7510 | 45 mm | 16000 N/m | 7.5 kg/m^2 | Self-Locking Pin | 5÷93 °C | Self-Cleaning Hinge System Pin diameter: 5 mm Temporary code, to be created specifically on request | -40÷65 °C |
|
| F7510FTLFW0800-PA6 | 800 mm (31,5'') | LFW - Low Friction acetal (White) | PA6 White | No positioners | F7510 | 45 mm | 21900 N/m | 7.5 kg/m^2 | Self-Locking Pin | -40÷93 °C | Self-Cleaning Hinge System Pin diameter: 5 mm Temporary code, to be created specifically on request | -40÷65 °C |
|
| F7510FTLFW0800-PBT | 800 mm (31,5'') | LFW - Low Friction acetal (White) | PBT White | No positioners | F7510 | 45 mm | 42000 N/m | 7.5 kg/m^2 | Self-Locking Pin | -40÷80 °C | Self-Cleaning Hinge System Pin diameter: 5 mm Temporary code, to be created specifically on request | -40÷65 °C |
|
| F7510FTLFW0800-PE | 800 mm (31,5'') | LFW - Low Friction acetal (White) | PE White | No positioners | F7510 | 45 mm | 15000 N/m | 7.5 kg/m^2 | Self-Locking Pin | -40÷65 °C | Self-Cleaning Hinge System Pin diameter: 5 mm Temporary code, to be created specifically on request | -40÷65 °C |
|
| F7510FTLFW0800-PP | 800 mm (31,5'') | LFW - Low Friction acetal (White) | PP White | No positioners | F7510 | 45 mm | 16000 N/m | 7.5 kg/m^2 | Self-Locking Pin | 5÷93 °C | Self-Cleaning Hinge System Pin diameter: 5 mm Temporary code, to be created specifically on request | -40÷65 °C |
|
| F7510FTLFW0850-PA6 | 850 mm (33,46'') | LFW - Low Friction acetal (White) | PA6 White | No positioners | F7510 | 45 mm | 21900 N/m | 7.5 kg/m^2 | Self-Locking Pin | -40÷93 °C | Self-Cleaning Hinge System Pin diameter: 5 mm Temporary code, to be created specifically on request | -40÷65 °C |
|
| F7510FTLFW0850-PBT | 850 mm (33,46'') | LFW - Low Friction acetal (White) | PBT White | No positioners | F7510 | 45 mm | 42000 N/m | 7.5 kg/m^2 | Self-Locking Pin | -40÷80 °C | Self-Cleaning Hinge System Pin diameter: 5 mm Temporary code, to be created specifically on request | -40÷65 °C |
|
| F7510FTLFW0850-PE | 850 mm (33,46'') | LFW - Low Friction acetal (White) | PE White | No positioners | F7510 | 45 mm | 15000 N/m | 7.5 kg/m^2 | Self-Locking Pin | -40÷65 °C | Self-Cleaning Hinge System Pin diameter: 5 mm Temporary code, to be created specifically on request | -40÷65 °C |
|
| F7510FTLFW0850-PP | 850 mm (33,46'') | LFW - Low Friction acetal (White) | PP White | No positioners | F7510 | 45 mm | 16000 N/m | 7.5 kg/m^2 | Self-Locking Pin | 5÷93 °C | Self-Cleaning Hinge System Pin diameter: 5 mm Temporary code, to be created specifically on request | -40÷65 °C |
|
| F7510FTLFW0900-PA6 | 900 mm (35,43'') | LFW - Low Friction acetal (White) | PA6 White | No positioners | F7510 | 45 mm | 21900 N/m | 7.5 kg/m^2 | Self-Locking Pin | -40÷93 °C | Self-Cleaning Hinge System Pin diameter: 5 mm Temporary code, to be created specifically on request | -40÷65 °C |
|
| F7510FTLFW0900-PBT | 900 mm (35,43'') | LFW - Low Friction acetal (White) | PBT White | No positioners | F7510 | 45 mm | 42000 N/m | 7.5 kg/m^2 | Self-Locking Pin | -40÷80 °C | Self-Cleaning Hinge System Pin diameter: 5 mm Temporary code, to be created specifically on request | -40÷65 °C |
|
| F7510FTLFW0900-PE | 900 mm (35,43'') | LFW - Low Friction acetal (White) | PE White | No positioners | F7510 | 45 mm | 15000 N/m | 7.5 kg/m^2 | Self-Locking Pin | -40÷65 °C | Self-Cleaning Hinge System Pin diameter: 5 mm Temporary code, to be created specifically on request | -40÷65 °C |
|
| F7510FTLFW0900-PP | 900 mm (35,43'') | LFW - Low Friction acetal (White) | PP White | No positioners | F7510 | 45 mm | 16000 N/m | 7.5 kg/m^2 | Self-Locking Pin | 5÷93 °C | Self-Cleaning Hinge System Pin diameter: 5 mm Temporary code, to be created specifically on request | -40÷65 °C |
|
| F7510FTPEB0050-PA6 | 50 mm (1,97'') | PEB - Polyethylene (blue) | PA6 White | No positioners | F7510 | 45 mm | 8000 N/m | 9.8 kg/m^2 | Self-Locking Pin | -40÷65 °C | Self-Cleaning Hinge System Pin diameter: 5 mm Temporary code, to be created specifically on request | - |
|
| F7510FTPEB0050-PBT | 50 mm (1,97'') | PEB - Polyethylene (blue) | PBT White | No positioners | F7510 | 45 mm | 8000 N/m | 9.8 kg/m^2 | Self-Locking Pin | -40÷65 °C | Self-Cleaning Hinge System Pin diameter: 5 mm Temporary code, to be created specifically on request | - |
|
| F7510FTPEB0050-PE | 50 mm (1,97'') | PEB - Polyethylene (blue) | PE White | No positioners | F7510 | 45 mm | 8000 N/m | 9.8 kg/m^2 | Self-Locking Pin | -70÷65 °C | Self-Cleaning Hinge System Pin diameter: 5 mm Temporary code, to be created specifically on request | - |
|
| F7510FTPEB0050-PP | 50 mm (1,97'') | PEB - Polyethylene (blue) | PP White | No positioners | F7510 | 45 mm | 8000 N/m | 9.8 kg/m^2 | Self-Locking Pin | 0÷65 °C | Self-Cleaning Hinge System Pin diameter: 5 mm Temporary code, to be created specifically on request | - |
|
| F7510FTPEB0100-PA6 | 100 mm (3,94'') | PEB - Polyethylene (blue) | PA6 White | No positioners | F7510 | 45 mm | 8000 N/m | 9.8 kg/m^2 | Self-Locking Pin | -40÷65 °C | Self-Cleaning Hinge System Pin diameter: 5 mm Temporary code, to be created specifically on request | - |
|
| F7510FTPEB0100-PBT | 100 mm (3,94'') | PEB - Polyethylene (blue) | PBT White | No positioners | F7510 | 45 mm | 8000 N/m | 9.8 kg/m^2 | Self-Locking Pin | -40÷65 °C | - | - |
|
| F7510FTPEB0100-PE | 100 mm (3,94'') | PEB - Polyethylene (blue) | PE White | No positioners | F7510 | 45 mm | 8000 N/m | 9.8 kg/m^2 | Self-Locking Pin | -70÷65 °C | Self-Cleaning Hinge System Pin diameter: 5 mm Temporary code, to be created specifically on request | - |
|
| F7510FTPEB0100-PP | 100 mm (3,94'') | PEB - Polyethylene (blue) | PP White | No positioners | F7510 | 45 mm | 8000 N/m | 9.8 kg/m^2 | Self-Locking Pin | 0÷65 °C | Self-Cleaning Hinge System Pin diameter: 5 mm Temporary code, to be created specifically on request | - |
|
| F7510FTPEB0150-PA6 | 150 mm (5,91'') | PEB - Polyethylene (blue) | PA6 White | No positioners | F7510 | 45 mm | 8000 N/m | 9.8 kg/m^2 | Self-Locking Pin | -40÷65 °C | Self-Cleaning Hinge System Pin diameter: 5 mm Temporary code, to be created specifically on request | - |
|
| F7510FTPEB0150-PBT | 150 mm (5,91'') | PEB - Polyethylene (blue) | PBT White | No positioners | F7510 | 45 mm | 8000 N/m | 9.8 kg/m^2 | Self-Locking Pin | -40÷65 °C | - | - |
|
| F7510FTPEB0150-PE | 150 mm (5,91'') | PEB - Polyethylene (blue) | PE White | No positioners | F7510 | 45 mm | 8000 N/m | 9.8 kg/m^2 | Self-Locking Pin | -70÷65 °C | Self-Cleaning Hinge System Pin diameter: 5 mm Temporary code, to be created specifically on request | - |
|
| F7510FTPEB0150-PP | 150 mm (5,91'') | PEB - Polyethylene (blue) | PP White | No positioners | F7510 | 45 mm | 8000 N/m | 9.8 kg/m^2 | Self-Locking Pin | 0÷65 °C | Self-Cleaning Hinge System Pin diameter: 5 mm Temporary code, to be created specifically on request | - |
|
| F7510FTPEB0200-PA6 | 200 mm (7,87'') | PEB - Polyethylene (blue) | PA6 White | No positioners | F7510 | 45 mm | 8000 N/m | 9.8 kg/m^2 | Self-Locking Pin | -40÷65 °C | Self-Cleaning Hinge System Pin diameter: 5 mm Temporary code, to be created specifically on request | - |
|
| F7510FTPEB0200-PBT | 200 mm (7,87'') | PEB - Polyethylene (blue) | PBT White | No positioners | F7510 | 45 mm | 8000 N/m | 9.8 kg/m^2 | Self-Locking Pin | -40÷65 °C | - | - |
|
| F7510FTPEB0200-PE | 200 mm (7,87'') | PEB - Polyethylene (blue) | PE White | No positioners | F7510 | 45 mm | 8000 N/m | 9.8 kg/m^2 | Self-Locking Pin | -70÷65 °C | Self-Cleaning Hinge System Pin diameter: 5 mm Temporary code, to be created specifically on request | - |
|
| F7510FTPEB0200-PP | 200 mm (7,87'') | PEB - Polyethylene (blue) | PP White | No positioners | F7510 | 45 mm | 8000 N/m | 9.8 kg/m^2 | Self-Locking Pin | 0÷65 °C | Self-Cleaning Hinge System Pin diameter: 5 mm Temporary code, to be created specifically on request | - |
|
| F7510FTPEB0250-PA6 | 250 mm (9,84'') | PEB - Polyethylene (blue) | PA6 White | No positioners | F7510 | 45 mm | 8000 N/m | 9.8 kg/m^2 | Self-Locking Pin | -40÷65 °C | Self-Cleaning Hinge System Pin diameter: 5 mm Temporary code, to be created specifically on request | - |
|
| F7510FTPEB0250-PBT | 250 mm (9,84'') | PEB - Polyethylene (blue) | PBT White | No positioners | F7510 | 45 mm | 8000 N/m | 9.8 kg/m^2 | Self-Locking Pin | -40÷65 °C | Self-Cleaning Hinge System Pin diameter: 5 mm Temporary code, to be created specifically on request | - |
|
| F7510FTPEB0250-PE | 250 mm (9,84'') | PEB - Polyethylene (blue) | PE White | No positioners | F7510 | 45 mm | 8000 N/m | 9.8 kg/m^2 | Self-Locking Pin | -70÷65 °C | Self-Cleaning Hinge System Pin diameter: 5 mm Temporary code, to be created specifically on request | - |
|
| F7510FTPEB0250-PP | 250 mm (9,84'') | PEB - Polyethylene (blue) | PP White | No positioners | F7510 | 45 mm | 8000 N/m | 9.8 kg/m^2 | Self-Locking Pin | 0÷65 °C | Self-Cleaning Hinge System Pin diameter: 5 mm Temporary code, to be created specifically on request | - |
|
| F7510FTPEB0300-PA6 | 300 mm (11,81'') | PEB - Polyethylene (blue) | PA6 White | No positioners | F7510 | 45 mm | 8000 N/m | 9.8 kg/m^2 | Self-Locking Pin | -40÷65 °C | Self-Cleaning Hinge System Pin diameter: 5 mm Temporary code, to be created specifically on request | - |
|
| F7510FTPEB0300-PBT | 300 mm (11,81'') | PEB - Polyethylene (blue) | PBT White | No positioners | F7510 | 45 mm | 8000 N/m | 9.8 kg/m^2 | Self-Locking Pin | -40÷65 °C | Self-Cleaning Hinge System Pin diameter: 5 mm Temporary code, to be created specifically on request | - |
|
| F7510FTPEB0300-PE | 300 mm (11,81'') | PEB - Polyethylene (blue) | PE White | No positioners | F7510 | 45 mm | 8000 N/m | 9.8 kg/m^2 | Self-Locking Pin | -70÷65 °C | Self-Cleaning Hinge System Pin diameter: 5 mm Temporary code, to be created specifically on request | - |
|
| F7510FTPEB0300-PP | 300 mm (11,81'') | PEB - Polyethylene (blue) | PP White | No positioners | F7510 | 45 mm | 8000 N/m | 9.8 kg/m^2 | Self-Locking Pin | 0÷65 °C | Self-Cleaning Hinge System Pin diameter: 5 mm Temporary code, to be created specifically on request | - |
|
| F7510FTPEB0350-PA6 | 350 mm (13,78'') | PEB - Polyethylene (blue) | PA6 White | No positioners | F7510 | 45 mm | 8000 N/m | 9.8 kg/m^2 | Self-Locking Pin | -40÷65 °C | Self-Cleaning Hinge System Pin diameter: 5 mm Temporary code, to be created specifically on request | - |
|
| F7510FTPEB0350-PBT | 350 mm (13,78'') | PEB - Polyethylene (blue) | PBT White | No positioners | F7510 | 45 mm | 8000 N/m | 9.8 kg/m^2 | Self-Locking Pin | -40÷65 °C | Self-Cleaning Hinge System Pin diameter: 5 mm Temporary code, to be created specifically on request | - |
|
| F7510FTPEB0350-PE | 350 mm (13,78'') | PEB - Polyethylene (blue) | PE White | No positioners | F7510 | 45 mm | 8000 N/m | 9.8 kg/m^2 | Self-Locking Pin | -70÷65 °C | Self-Cleaning Hinge System Pin diameter: 5 mm Temporary code, to be created specifically on request | - |
|
| F7510FTPEB0350-PP | 350 mm (13,78'') | PEB - Polyethylene (blue) | PP White | No positioners | F7510 | 45 mm | 8000 N/m | 9.8 kg/m^2 | Self-Locking Pin | 0÷65 °C | Self-Cleaning Hinge System Pin diameter: 5 mm Temporary code, to be created specifically on request | - |
|
| F7510FTPEB0400-PA6 | 400 mm (15,75'') | PEB - Polyethylene (blue) | PA6 White | No positioners | F7510 | 45 mm | 8000 N/m | 9.8 kg/m^2 | Self-Locking Pin | -40÷65 °C | Self-Cleaning Hinge System Pin diameter: 5 mm Temporary code, to be created specifically on request | - |
|
| F7510FTPEB0400-PBT | 400 mm (15,75'') | PEB - Polyethylene (blue) | PBT White | No positioners | F7510 | 45 mm | 8000 N/m | 9.8 kg/m^2 | Self-Locking Pin | -40÷65 °C | Self-Cleaning Hinge System Pin diameter: 5 mm Temporary code, to be created specifically on request | - |
|
| F7510FTPEB0400-PE | 400 mm (15,75'') | PEB - Polyethylene (blue) | PE White | No positioners | F7510 | 45 mm | 8000 N/m | 9.8 kg/m^2 | Self-Locking Pin | -70÷65 °C | Self-Cleaning Hinge System Pin diameter: 5 mm Temporary code, to be created specifically on request | - |
|
| F7510FTPEB0400-PP | 400 mm (15,75'') | PEB - Polyethylene (blue) | PP White | No positioners | F7510 | 45 mm | 8000 N/m | 9.8 kg/m^2 | Self-Locking Pin | 0÷65 °C | Self-Cleaning Hinge System Pin diameter: 5 mm Temporary code, to be created specifically on request | - |
|
| F7510FTPEB0450-PA6 | 450 mm (17,72'') | PEB - Polyethylene (blue) | PA6 White | No positioners | F7510 | 45 mm | 8000 N/m | 9.8 kg/m^2 | Self-Locking Pin | -40÷65 °C | Self-Cleaning Hinge System Pin diameter: 5 mm Temporary code, to be created specifically on request | - |
|
| F7510FTPEB0450-PBT | 450 mm (17,72'') | PEB - Polyethylene (blue) | PBT White | No positioners | F7510 | 45 mm | 8000 N/m | 9.8 kg/m^2 | Self-Locking Pin | -40÷65 °C | Self-Cleaning Hinge System Pin diameter: 5 mm Temporary code, to be created specifically on request | - |
|
| F7510FTPEB0450-PE | 450 mm (17,72'') | PEB - Polyethylene (blue) | PE White | No positioners | F7510 | 45 mm | 8000 N/m | 9.8 kg/m^2 | Self-Locking Pin | -70÷65 °C | Self-Cleaning Hinge System Pin diameter: 5 mm Temporary code, to be created specifically on request | - |
|
| F7510FTPEB0450-PP | 450 mm (17,72'') | PEB - Polyethylene (blue) | PP White | No positioners | F7510 | 45 mm | 8000 N/m | 9.8 kg/m^2 | Self-Locking Pin | 0÷65 °C | Self-Cleaning Hinge System Pin diameter: 5 mm Temporary code, to be created specifically on request | - |
|
| F7510FTPEB0500-PA6 | 500 mm (19,69'') | PEB - Polyethylene (blue) | PA6 White | No positioners | F7510 | 45 mm | 8000 N/m | 9.8 kg/m^2 | Self-Locking Pin | -40÷65 °C | Self-Cleaning Hinge System Pin diameter: 5 mm Temporary code, to be created specifically on request | - |
|
| F7510FTPEB0500-PBT | 500 mm (19,69'') | PEB - Polyethylene (blue) | PBT White | No positioners | F7510 | 45 mm | 8000 N/m | 9.8 kg/m^2 | Self-Locking Pin | -40÷65 °C | Self-Cleaning Hinge System Pin diameter: 5 mm Temporary code, to be created specifically on request | - |
|
| F7510FTPEB0500-PE | 500 mm (19,69'') | PEB - Polyethylene (blue) | PE White | No positioners | F7510 | 45 mm | 8000 N/m | 9.8 kg/m^2 | Self-Locking Pin | -70÷65 °C | Self-Cleaning Hinge System Pin diameter: 5 mm Temporary code, to be created specifically on request | - |
|
| F7510FTPEB0500-PP | 500 mm (19,69'') | PEB - Polyethylene (blue) | PP White | No positioners | F7510 | 45 mm | 8000 N/m | 9.8 kg/m^2 | Self-Locking Pin | 0÷65 °C | Self-Cleaning Hinge System Pin diameter: 5 mm Temporary code, to be created specifically on request | - |
|
| F7510FTPEB0550-PA6 | 550 mm (21,65'') | PEB - Polyethylene (blue) | PA6 White | No positioners | F7510 | 45 mm | 8000 N/m | 9.8 kg/m^2 | Self-Locking Pin | -40÷65 °C | Self-Cleaning Hinge System Pin diameter: 5 mm Temporary code, to be created specifically on request | - |
|
| F7510FTPEB0550-PBT | 550 mm (21,65'') | PEB - Polyethylene (blue) | PBT White | No positioners | F7510 | 45 mm | 8000 N/m | 9.8 kg/m^2 | Self-Locking Pin | -40÷65 °C | Self-Cleaning Hinge System Pin diameter: 5 mm Temporary code, to be created specifically on request | - |
|
| F7510FTPEB0550-PE | 550 mm (21,65'') | PEB - Polyethylene (blue) | PE White | No positioners | F7510 | 45 mm | 8000 N/m | 9.8 kg/m^2 | Self-Locking Pin | -70÷65 °C | Self-Cleaning Hinge System Pin diameter: 5 mm Temporary code, to be created specifically on request | - |
|
| F7510FTPEB0550-PP | 550 mm (21,65'') | PEB - Polyethylene (blue) | PP White | No positioners | F7510 | 45 mm | 8000 N/m | 9.8 kg/m^2 | Self-Locking Pin | 0÷65 °C | Self-Cleaning Hinge System Pin diameter: 5 mm Temporary code, to be created specifically on request | - |
|
| F7510FTPEB0600-PA6 | 600 mm (23,62'') | PEB - Polyethylene (blue) | PA6 White | No positioners | F7510 | 45 mm | 8000 N/m | 9.8 kg/m^2 | Self-Locking Pin | -40÷65 °C | Self-Cleaning Hinge System Pin diameter: 5 mm Temporary code, to be created specifically on request | - |
|
| F7510FTPEB0600-PBT | 600 mm (23,62'') | PEB - Polyethylene (blue) | PBT White | No positioners | F7510 | 45 mm | 8000 N/m | 9.8 kg/m^2 | Self-Locking Pin | -40÷65 °C | Self-Cleaning Hinge System Pin diameter: 5 mm Temporary code, to be created specifically on request | - |
|
| F7510FTPEB0600-PE | 600 mm (23,62'') | PEB - Polyethylene (blue) | PE White | No positioners | F7510 | 45 mm | 8000 N/m | 9.8 kg/m^2 | Self-Locking Pin | -70÷65 °C | Self-Cleaning Hinge System Pin diameter: 5 mm Temporary code, to be created specifically on request | - |
|
| F7510FTPEB0600-PP | 600 mm (23,62'') | PEB - Polyethylene (blue) | PP White | No positioners | F7510 | 45 mm | 8000 N/m | 9.8 kg/m^2 | Self-Locking Pin | 0÷65 °C | Self-Cleaning Hinge System Pin diameter: 5 mm Temporary code, to be created specifically on request | - |
|
| F7510FTPEB0650-PA6 | 650 mm (25,59'') | PEB - Polyethylene (blue) | PA6 White | No positioners | F7510 | 45 mm | 8000 N/m | 9.8 kg/m^2 | Self-Locking Pin | -40÷65 °C | Self-Cleaning Hinge System Pin diameter: 5 mm Temporary code, to be created specifically on request | - |
|
| F7510FTPEB0650-PBT | 650 mm (25,59'') | PEB - Polyethylene (blue) | PBT White | No positioners | F7510 | 45 mm | 8000 N/m | 9.8 kg/m^2 | Self-Locking Pin | -40÷65 °C | Self-Cleaning Hinge System Pin diameter: 5 mm Temporary code, to be created specifically on request | - |
|
| F7510FTPEB0650-PE | 650 mm (25,59'') | PEB - Polyethylene (blue) | PE White | No positioners | F7510 | 45 mm | 8000 N/m | 9.8 kg/m^2 | Self-Locking Pin | -70÷65 °C | Self-Cleaning Hinge System Pin diameter: 5 mm Temporary code, to be created specifically on request | - |
|
| F7510FTPEB0650-PP | 650 mm (25,59'') | PEB - Polyethylene (blue) | PP White | No positioners | F7510 | 45 mm | 8000 N/m | 9.8 kg/m^2 | Self-Locking Pin | 0÷65 °C | Self-Cleaning Hinge System Pin diameter: 5 mm Temporary code, to be created specifically on request | - |
|
| F7510FTPEB0700-PA6 | 700 mm (27,56'') | PEB - Polyethylene (blue) | PA6 White | No positioners | F7510 | 45 mm | 8000 N/m | 9.8 kg/m^2 | Self-Locking Pin | -40÷65 °C | Self-Cleaning Hinge System Pin diameter: 5 mm Temporary code, to be created specifically on request | - |
|
| F7510FTPEB0700-PBT | 700 mm (27,56'') | PEB - Polyethylene (blue) | PBT White | No positioners | F7510 | 45 mm | 8000 N/m | 9.8 kg/m^2 | Self-Locking Pin | -40÷65 °C | Self-Cleaning Hinge System Pin diameter: 5 mm Temporary code, to be created specifically on request | - |
|
| F7510FTPEB0700-PE | 700 mm (27,56'') | PEB - Polyethylene (blue) | PE White | No positioners | F7510 | 45 mm | 8000 N/m | 9.8 kg/m^2 | Self-Locking Pin | -70÷65 °C | Self-Cleaning Hinge System Pin diameter: 5 mm Temporary code, to be created specifically on request | - |
|
| F7510FTPEB0700-PP | 700 mm (27,56'') | PEB - Polyethylene (blue) | PP White | No positioners | F7510 | 45 mm | 8000 N/m | 9.8 kg/m^2 | Self-Locking Pin | 0÷65 °C | Self-Cleaning Hinge System Pin diameter: 5 mm Temporary code, to be created specifically on request | - |
|
| F7510FTPEB0750-PA6 | 750 mm (29,53'') | PEB - Polyethylene (blue) | PA6 White | No positioners | F7510 | 45 mm | 8000 N/m | 9.8 kg/m^2 | Self-Locking Pin | -40÷65 °C | Self-Cleaning Hinge System Pin diameter: 5 mm Temporary code, to be created specifically on request | - |
|
| F7510FTPEB0750-PBT | 750 mm (29,53'') | PEB - Polyethylene (blue) | PBT White | No positioners | F7510 | 45 mm | 8000 N/m | 9.8 kg/m^2 | Self-Locking Pin | -40÷65 °C | Self-Cleaning Hinge System Pin diameter: 5 mm Temporary code, to be created specifically on request | - |
|
| F7510FTPEB0750-PE | 750 mm (29,53'') | PEB - Polyethylene (blue) | PE White | No positioners | F7510 | 45 mm | 8000 N/m | 9.8 kg/m^2 | Self-Locking Pin | -70÷65 °C | Self-Cleaning Hinge System Pin diameter: 5 mm Temporary code, to be created specifically on request | - |
|
| F7510FTPEB0750-PP | 750 mm (29,53'') | PEB - Polyethylene (blue) | PP White | No positioners | F7510 | 45 mm | 8000 N/m | 9.8 kg/m^2 | Self-Locking Pin | 0÷65 °C | Self-Cleaning Hinge System Pin diameter: 5 mm Temporary code, to be created specifically on request | - |
|
| F7510FTPEB0800-PA6 | 800 mm (31,5'') | PEB - Polyethylene (blue) | PA6 White | No positioners | F7510 | 45 mm | 8000 N/m | 9.8 kg/m^2 | Self-Locking Pin | -40÷65 °C | Self-Cleaning Hinge System Pin diameter: 5 mm Temporary code, to be created specifically on request | - |
|
| F7510FTPEB0800-PBT | 800 mm (31,5'') | PEB - Polyethylene (blue) | PBT White | No positioners | F7510 | 45 mm | 8000 N/m | 9.8 kg/m^2 | Self-Locking Pin | -40÷65 °C | Self-Cleaning Hinge System Pin diameter: 5 mm Temporary code, to be created specifically on request | - |
|
| F7510FTPEB0800-PE | 800 mm (31,5'') | PEB - Polyethylene (blue) | PE White | No positioners | F7510 | 45 mm | 8000 N/m | 9.8 kg/m^2 | Self-Locking Pin | -70÷65 °C | Self-Cleaning Hinge System Pin diameter: 5 mm Temporary code, to be created specifically on request | - |
|
| F7510FTPEB0800-PP | 800 mm (31,5'') | PEB - Polyethylene (blue) | PP White | No positioners | F7510 | 45 mm | 8000 N/m | 9.8 kg/m^2 | Self-Locking Pin | 0÷65 °C | Self-Cleaning Hinge System Pin diameter: 5 mm Temporary code, to be created specifically on request | - |
|
| F7510FTPEB0850-PA6 | 850 mm (33,46'') | PEB - Polyethylene (blue) | PA6 White | No positioners | F7510 | 45 mm | 8000 N/m | 9.8 kg/m^2 | Self-Locking Pin | -40÷65 °C | Self-Cleaning Hinge System Pin diameter: 5 mm Temporary code, to be created specifically on request | - |
|
| F7510FTPEB0850-PBT | 850 mm (33,46'') | PEB - Polyethylene (blue) | PBT White | No positioners | F7510 | 45 mm | 8000 N/m | 9.8 kg/m^2 | Self-Locking Pin | -40÷65 °C | Self-Cleaning Hinge System Pin diameter: 5 mm Temporary code, to be created specifically on request | - |
|
| F7510FTPEB0850-PE | 850 mm (33,46'') | PEB - Polyethylene (blue) | PE White | No positioners | F7510 | 45 mm | 8000 N/m | 9.8 kg/m^2 | Self-Locking Pin | -70÷65 °C | Self-Cleaning Hinge System Pin diameter: 5 mm Temporary code, to be created specifically on request | - |
|
| F7510FTPEB0850-PP | 850 mm (33,46'') | PEB - Polyethylene (blue) | PP White | No positioners | F7510 | 45 mm | 8000 N/m | 9.8 kg/m^2 | Self-Locking Pin | 0÷65 °C | Self-Cleaning Hinge System Pin diameter: 5 mm Temporary code, to be created specifically on request | - |
|
| F7510FTPEB0900-PA6 | 900 mm (35,43'') | PEB - Polyethylene (blue) | PA6 White | No positioners | F7510 | 45 mm | 8000 N/m | 9.8 kg/m^2 | Self-Locking Pin | -40÷65 °C | Self-Cleaning Hinge System Pin diameter: 5 mm Temporary code, to be created specifically on request | - |
|
| F7510FTPEB0900-PBT | 900 mm (35,43'') | PEB - Polyethylene (blue) | PBT White | No positioners | F7510 | 45 mm | 8000 N/m | 9.8 kg/m^2 | Self-Locking Pin | -40÷65 °C | Self-Cleaning Hinge System Pin diameter: 5 mm Temporary code, to be created specifically on request | - |
|
| F7510FTPEB0900-PE | 900 mm (35,43'') | PEB - Polyethylene (blue) | PE White | No positioners | F7510 | 45 mm | 8000 N/m | 9.8 kg/m^2 | Self-Locking Pin | -70÷65 °C | Self-Cleaning Hinge System Pin diameter: 5 mm Temporary code, to be created specifically on request | - |
|
| F7510FTPEB0900-PP | 900 mm (35,43'') | PEB - Polyethylene (blue) | PP White | No positioners | F7510 | 45 mm | 8000 N/m | 9.8 kg/m^2 | Self-Locking Pin | 0÷65 °C | Self-Cleaning Hinge System Pin diameter: 5 mm Temporary code, to be created specifically on request | - |
|
| F7510FTPEC0050-PA6 | 50 mm (1,97'') | PEC - Polyethylene (cyan) | PA6 White | No positioners | F7510 | 45 mm | 8000 N/m | 9.8 kg/m^2 | Self-Locking Pin | -40÷65 °C | Self-Cleaning Hinge System Pin diameter: 5 mm Temporary code, to be created specifically on request | - |
|
| F7510FTPEC0050-PBT | 50 mm (1,97'') | PEC - Polyethylene (cyan) | PBT White | No positioners | F7510 | 45 mm | 8000 N/m | 9.8 kg/m^2 | Self-Locking Pin | -40÷65 °C | Self-Cleaning Hinge System Pin diameter: 5 mm Temporary code, to be created specifically on request | - |
|
| F7510FTPEC0050-PE | 50 mm (1,97'') | PEC - Polyethylene (cyan) | PE White | No positioners | F7510 | 45 mm | 8000 N/m | 9.8 kg/m^2 | Self-Locking Pin | -70÷65 °C | Self-Cleaning Hinge System Pin diameter: 5 mm Temporary code, to be created specifically on request | - |
|
| F7510FTPEC0050-PP | 50 mm (1,97'') | PEC - Polyethylene (cyan) | PP White | No positioners | F7510 | 45 mm | 8000 N/m | 9.8 kg/m^2 | Self-Locking Pin | 0÷65 °C | Self-Cleaning Hinge System Pin diameter: 5 mm Temporary code, to be created specifically on request | - |
|
| F7510FTPEC0100-PA6 | 100 mm (3,94'') | PEC - Polyethylene (cyan) | PA6 White | No positioners | F7510 | 45 mm | 8000 N/m | 9.8 kg/m^2 | Self-Locking Pin | -40÷65 °C | Self-Cleaning Hinge System Pin diameter: 5 mm Temporary code, to be created specifically on request | - |
|
| F7510FTPEC0100-PBT | 100 mm (3,94'') | PEC - Polyethylene (cyan) | PBT White | No positioners | F7510 | 45 mm | 8000 N/m | 9.8 kg/m^2 | Self-Locking Pin | -40÷65 °C | Self-Cleaning Hinge System Pin diameter: 5 mm Temporary code, to be created specifically on request | - |
|
| F7510FTPEC0100-PE | 100 mm (3,94'') | PEC - Polyethylene (cyan) | PE White | No positioners | F7510 | 45 mm | 8000 N/m | 9.8 kg/m^2 | Self-Locking Pin | -70÷65 °C | Self-Cleaning Hinge System Pin diameter: 5 mm Temporary code, to be created specifically on request | - |
|
| F7510FTPEC0100-PP | 100 mm (3,94'') | PEC - Polyethylene (cyan) | PP White | No positioners | F7510 | 45 mm | 8000 N/m | 9.8 kg/m^2 | Self-Locking Pin | 0÷65 °C | Self-Cleaning Hinge System Pin diameter: 5 mm Temporary code, to be created specifically on request | - |
|
| F7510FTPEC0150-PA6 | 150 mm (5,91'') | PEC - Polyethylene (cyan) | PA6 White | No positioners | F7510 | 45 mm | 8000 N/m | 9.8 kg/m^2 | Self-Locking Pin | -40÷65 °C | Self-Cleaning Hinge System Pin diameter: 5 mm Temporary code, to be created specifically on request | - |
|
| F7510FTPEC0150-PBT | 150 mm (5,91'') | PEC - Polyethylene (cyan) | PBT White | No positioners | F7510 | 45 mm | 8000 N/m | 9.8 kg/m^2 | Self-Locking Pin | -40÷65 °C | Self-Cleaning Hinge System Pin diameter: 5 mm Temporary code, to be created specifically on request | - |
|
| F7510FTPEC0150-PE | 150 mm (5,91'') | PEC - Polyethylene (cyan) | PE White | No positioners | F7510 | 45 mm | 8000 N/m | 9.8 kg/m^2 | Self-Locking Pin | -70÷65 °C | Self-Cleaning Hinge System Pin diameter: 5 mm Temporary code, to be created specifically on request | - |
|
| F7510FTPEC0150-PP | 150 mm (5,91'') | PEC - Polyethylene (cyan) | PP White | No positioners | F7510 | 45 mm | 8000 N/m | 9.8 kg/m^2 | Self-Locking Pin | 0÷65 °C | Self-Cleaning Hinge System Pin diameter: 5 mm Temporary code, to be created specifically on request | - |
|
| F7510FTPEC0200-PA6 | 200 mm (7,87'') | PEC - Polyethylene (cyan) | PA6 White | No positioners | F7510 | 45 mm | 8000 N/m | 9.8 kg/m^2 | Self-Locking Pin | -40÷65 °C | Self-Cleaning Hinge System Pin diameter: 5 mm Temporary code, to be created specifically on request | - |
|
| F7510FTPEC0200-PBT | 200 mm (7,87'') | PEC - Polyethylene (cyan) | PBT White | No positioners | F7510 | 45 mm | 8000 N/m | 9.8 kg/m^2 | Self-Locking Pin | -40÷65 °C | Self-Cleaning Hinge System Pin diameter: 5 mm Temporary code, to be created specifically on request | - |
|
| F7510FTPEC0200-PE | 200 mm (7,87'') | PEC - Polyethylene (cyan) | PE White | No positioners | F7510 | 45 mm | 8000 N/m | 9.8 kg/m^2 | Self-Locking Pin | -70÷65 °C | Self-Cleaning Hinge System Pin diameter: 5 mm Temporary code, to be created specifically on request | - |
|
| F7510FTPEC0200-PP | 200 mm (7,87'') | PEC - Polyethylene (cyan) | PP White | No positioners | F7510 | 45 mm | 8000 N/m | 9.8 kg/m^2 | Self-Locking Pin | 0÷65 °C | Self-Cleaning Hinge System Pin diameter: 5 mm Temporary code, to be created specifically on request | - |
|
| F7510FTPEC0250-PA6 | 250 mm (9,84'') | PEC - Polyethylene (cyan) | PA6 White | No positioners | F7510 | 45 mm | 8000 N/m | 9.8 kg/m^2 | Self-Locking Pin | -40÷65 °C | Self-Cleaning Hinge System Pin diameter: 5 mm Temporary code, to be created specifically on request | - |
|
| F7510FTPEC0250-PBT | 250 mm (9,84'') | PEC - Polyethylene (cyan) | PBT White | No positioners | F7510 | 45 mm | 8000 N/m | 9.8 kg/m^2 | Self-Locking Pin | -40÷65 °C | Self-Cleaning Hinge System Pin diameter: 5 mm Temporary code, to be created specifically on request | - |
|
| F7510FTPEC0250-PE | 250 mm (9,84'') | PEC - Polyethylene (cyan) | PE White | No positioners | F7510 | 45 mm | 8000 N/m | 9.8 kg/m^2 | Self-Locking Pin | -70÷65 °C | Self-Cleaning Hinge System Pin diameter: 5 mm Temporary code, to be created specifically on request | - |
|
| F7510FTPEC0250-PP | 250 mm (9,84'') | PEC - Polyethylene (cyan) | PP White | No positioners | F7510 | 45 mm | 8000 N/m | 9.8 kg/m^2 | Self-Locking Pin | 0÷65 °C | Self-Cleaning Hinge System Pin diameter: 5 mm Temporary code, to be created specifically on request | - |
|
| F7510FTPEC0300-PA6 | 300 mm (11,81'') | PEC - Polyethylene (cyan) | PA6 White | No positioners | F7510 | 45 mm | 8000 N/m | 9.8 kg/m^2 | Self-Locking Pin | -40÷65 °C | Self-Cleaning Hinge System Pin diameter: 5 mm Temporary code, to be created specifically on request | - |
|
| F7510FTPEC0300-PBT | 300 mm (11,81'') | PEC - Polyethylene (cyan) | PBT White | No positioners | F7510 | 45 mm | 8000 N/m | 9.8 kg/m^2 | Self-Locking Pin | -40÷65 °C | Self-Cleaning Hinge System Pin diameter: 5 mm Temporary code, to be created specifically on request | - |
|
| F7510FTPEC0300-PE | 300 mm (11,81'') | PEC - Polyethylene (cyan) | PE White | No positioners | F7510 | 45 mm | 8000 N/m | 9.8 kg/m^2 | Self-Locking Pin | -70÷65 °C | Self-Cleaning Hinge System Pin diameter: 5 mm Temporary code, to be created specifically on request | - |
|
| F7510FTPEC0300-PP | 300 mm (11,81'') | PEC - Polyethylene (cyan) | PP White | No positioners | F7510 | 45 mm | 8000 N/m | 9.8 kg/m^2 | Self-Locking Pin | 0÷65 °C | Self-Cleaning Hinge System Pin diameter: 5 mm Temporary code, to be created specifically on request | - |
|
| F7510FTPEC0350-PA6 | 350 mm (13,78'') | PEC - Polyethylene (cyan) | PA6 White | No positioners | F7510 | 45 mm | 8000 N/m | 9.8 kg/m^2 | Self-Locking Pin | -40÷65 °C | Self-Cleaning Hinge System Pin diameter: 5 mm Temporary code, to be created specifically on request | - |
|
| F7510FTPEC0350-PBT | 350 mm (13,78'') | PEC - Polyethylene (cyan) | PBT White | No positioners | F7510 | 45 mm | 8000 N/m | 9.8 kg/m^2 | Self-Locking Pin | -40÷65 °C | Self-Cleaning Hinge System Pin diameter: 5 mm Temporary code, to be created specifically on request | - |
|
| F7510FTPEC0350-PE | 350 mm (13,78'') | PEC - Polyethylene (cyan) | PE White | No positioners | F7510 | 45 mm | 8000 N/m | 9.8 kg/m^2 | Self-Locking Pin | -70÷65 °C | Self-Cleaning Hinge System Pin diameter: 5 mm Temporary code, to be created specifically on request | - |
|
| F7510FTPEC0350-PP | 350 mm (13,78'') | PEC - Polyethylene (cyan) | PP White | No positioners | F7510 | 45 mm | 8000 N/m | 9.8 kg/m^2 | Self-Locking Pin | 0÷65 °C | Self-Cleaning Hinge System Pin diameter: 5 mm Temporary code, to be created specifically on request | - |
|
| F7510FTPEC0400-PA6 | 400 mm (15,75'') | PEC - Polyethylene (cyan) | PA6 White | No positioners | F7510 | 45 mm | 8000 N/m | 9.8 kg/m^2 | Self-Locking Pin | -40÷65 °C | Self-Cleaning Hinge System Pin diameter: 5 mm Temporary code, to be created specifically on request | - |
|
| F7510FTPEC0400-PBT | 400 mm (15,75'') | PEC - Polyethylene (cyan) | PBT White | No positioners | F7510 | 45 mm | 8000 N/m | 9.8 kg/m^2 | Self-Locking Pin | -40÷65 °C | Self-Cleaning Hinge System Pin diameter: 5 mm Temporary code, to be created specifically on request | - |
|
| F7510FTPEC0400-PE | 400 mm (15,75'') | PEC - Polyethylene (cyan) | PE White | No positioners | F7510 | 45 mm | 8000 N/m | 9.8 kg/m^2 | Self-Locking Pin | -70÷65 °C | Self-Cleaning Hinge System Pin diameter: 5 mm Temporary code, to be created specifically on request | - |
|
| F7510FTPEC0400-PP | 400 mm (15,75'') | PEC - Polyethylene (cyan) | PP White | No positioners | F7510 | 45 mm | 8000 N/m | 9.8 kg/m^2 | Self-Locking Pin | 0÷65 °C | Self-Cleaning Hinge System Pin diameter: 5 mm Temporary code, to be created specifically on request | - |
|
| F7510FTPEC0450-PA6 | 450 mm (17,72'') | PEC - Polyethylene (cyan) | PA6 White | No positioners | F7510 | 45 mm | 8000 N/m | 9.8 kg/m^2 | Self-Locking Pin | -40÷65 °C | Self-Cleaning Hinge System Pin diameter: 5 mm Temporary code, to be created specifically on request | - |
|
| F7510FTPEC0450-PBT | 450 mm (17,72'') | PEC - Polyethylene (cyan) | PBT White | No positioners | F7510 | 45 mm | 8000 N/m | 9.8 kg/m^2 | Self-Locking Pin | -40÷65 °C | Self-Cleaning Hinge System Pin diameter: 5 mm Temporary code, to be created specifically on request | - |
|
| F7510FTPEC0450-PE | 450 mm (17,72'') | PEC - Polyethylene (cyan) | PE White | No positioners | F7510 | 45 mm | 8000 N/m | 9.8 kg/m^2 | Self-Locking Pin | -70÷65 °C | Self-Cleaning Hinge System Pin diameter: 5 mm Temporary code, to be created specifically on request | - |
|
| F7510FTPEC0450-PP | 450 mm (17,72'') | PEC - Polyethylene (cyan) | PP White | No positioners | F7510 | 45 mm | 8000 N/m | 9.8 kg/m^2 | Self-Locking Pin | 0÷65 °C | Self-Cleaning Hinge System Pin diameter: 5 mm Temporary code, to be created specifically on request | - |
|
| F7510FTPEC0500-PA6 | 500 mm (19,69'') | PEC - Polyethylene (cyan) | PA6 White | No positioners | F7510 | 45 mm | 8000 N/m | 9.8 kg/m^2 | Self-Locking Pin | -40÷65 °C | Self-Cleaning Hinge System Pin diameter: 5 mm Temporary code, to be created specifically on request | - |
|
| F7510FTPEC0500-PBT | 500 mm (19,69'') | PEC - Polyethylene (cyan) | PBT White | No positioners | F7510 | 45 mm | 8000 N/m | 9.8 kg/m^2 | Self-Locking Pin | -40÷65 °C | Self-Cleaning Hinge System Pin diameter: 5 mm Temporary code, to be created specifically on request | - |
|
| F7510FTPEC0500-PE | 500 mm (19,69'') | PEC - Polyethylene (cyan) | PE White | No positioners | F7510 | 45 mm | 8000 N/m | 9.8 kg/m^2 | Self-Locking Pin | -70÷65 °C | Self-Cleaning Hinge System Pin diameter: 5 mm Temporary code, to be created specifically on request | - |
|
| F7510FTPEC0500-PP | 500 mm (19,69'') | PEC - Polyethylene (cyan) | PP White | No positioners | F7510 | 45 mm | 8000 N/m | 9.8 kg/m^2 | Self-Locking Pin | 0÷65 °C | Self-Cleaning Hinge System Pin diameter: 5 mm Temporary code, to be created specifically on request | - |
|
| F7510FTPEC0550-PA6 | 550 mm (21,65'') | PEC - Polyethylene (cyan) | PA6 White | No positioners | F7510 | 45 mm | 8000 N/m | 9.8 kg/m^2 | Self-Locking Pin | -40÷65 °C | Self-Cleaning Hinge System Pin diameter: 5 mm Temporary code, to be created specifically on request | - |
|
| F7510FTPEC0550-PBT | 550 mm (21,65'') | PEC - Polyethylene (cyan) | PBT White | No positioners | F7510 | 45 mm | 8000 N/m | 9.8 kg/m^2 | Self-Locking Pin | -40÷65 °C | Self-Cleaning Hinge System Pin diameter: 5 mm Temporary code, to be created specifically on request | - |
|
| F7510FTPEC0550-PE | 550 mm (21,65'') | PEC - Polyethylene (cyan) | PE White | No positioners | F7510 | 45 mm | 8000 N/m | 9.8 kg/m^2 | Self-Locking Pin | -70÷65 °C | Self-Cleaning Hinge System Pin diameter: 5 mm Temporary code, to be created specifically on request | - |
|
| F7510FTPEC0550-PP | 550 mm (21,65'') | PEC - Polyethylene (cyan) | PP White | No positioners | F7510 | 45 mm | 8000 N/m | 9.8 kg/m^2 | Self-Locking Pin | 0÷65 °C | Self-Cleaning Hinge System Pin diameter: 5 mm Temporary code, to be created specifically on request | - |
|
| F7510FTPEC0600-PA6 | 600 mm (23,62'') | PEC - Polyethylene (cyan) | PA6 White | No positioners | F7510 | 45 mm | 8000 N/m | 9.8 kg/m^2 | Self-Locking Pin | -40÷65 °C | Self-Cleaning Hinge System Pin diameter: 5 mm Temporary code, to be created specifically on request | - |
|
| F7510FTPEC0600-PBT | 600 mm (23,62'') | PEC - Polyethylene (cyan) | PBT White | No positioners | F7510 | 45 mm | 8000 N/m | 9.8 kg/m^2 | Self-Locking Pin | -40÷65 °C | Self-Cleaning Hinge System Pin diameter: 5 mm Temporary code, to be created specifically on request | - |
|
| F7510FTPEC0600-PE | 600 mm (23,62'') | PEC - Polyethylene (cyan) | PE White | No positioners | F7510 | 45 mm | 8000 N/m | 9.8 kg/m^2 | Self-Locking Pin | -70÷65 °C | Self-Cleaning Hinge System Pin diameter: 5 mm Temporary code, to be created specifically on request | - |
|
| F7510FTPEC0600-PP | 600 mm (23,62'') | PEC - Polyethylene (cyan) | PP White | No positioners | F7510 | 45 mm | 8000 N/m | 9.8 kg/m^2 | Self-Locking Pin | 0÷65 °C | Self-Cleaning Hinge System Pin diameter: 5 mm Temporary code, to be created specifically on request | - |
|
| F7510FTPEC0650-PA6 | 650 mm (25,59'') | PEC - Polyethylene (cyan) | PA6 White | No positioners | F7510 | 45 mm | 8000 N/m | 9.8 kg/m^2 | Self-Locking Pin | -40÷65 °C | Self-Cleaning Hinge System Pin diameter: 5 mm Temporary code, to be created specifically on request | - |
|
| F7510FTPEC0650-PBT | 650 mm (25,59'') | PEC - Polyethylene (cyan) | PBT White | No positioners | F7510 | 45 mm | 8000 N/m | 9.8 kg/m^2 | Self-Locking Pin | -40÷65 °C | Self-Cleaning Hinge System Pin diameter: 5 mm Temporary code, to be created specifically on request | - |
|
| F7510FTPEC0650-PE | 650 mm (25,59'') | PEC - Polyethylene (cyan) | PE White | No positioners | F7510 | 45 mm | 8000 N/m | 9.8 kg/m^2 | Self-Locking Pin | -70÷65 °C | Self-Cleaning Hinge System Pin diameter: 5 mm Temporary code, to be created specifically on request | - |
|
| F7510FTPEC0650-PP | 650 mm (25,59'') | PEC - Polyethylene (cyan) | PP White | No positioners | F7510 | 45 mm | 8000 N/m | 9.8 kg/m^2 | Self-Locking Pin | 0÷65 °C | Self-Cleaning Hinge System Pin diameter: 5 mm Temporary code, to be created specifically on request | - |
|
| F7510FTPEC0700-PA6 | 700 mm (27,56'') | PEC - Polyethylene (cyan) | PA6 White | No positioners | F7510 | 45 mm | 8000 N/m | 9.8 kg/m^2 | Self-Locking Pin | -40÷65 °C | Self-Cleaning Hinge System Pin diameter: 5 mm Temporary code, to be created specifically on request | - |
|
| F7510FTPEC0700-PBT | 700 mm (27,56'') | PEC - Polyethylene (cyan) | PBT White | No positioners | F7510 | 45 mm | 8000 N/m | 9.8 kg/m^2 | Self-Locking Pin | -40÷65 °C | Self-Cleaning Hinge System Pin diameter: 5 mm Temporary code, to be created specifically on request | - |
|
| F7510FTPEC0700-PE | 700 mm (27,56'') | PEC - Polyethylene (cyan) | PE White | No positioners | F7510 | 45 mm | 8000 N/m | 9.8 kg/m^2 | Self-Locking Pin | -70÷65 °C | Self-Cleaning Hinge System Pin diameter: 5 mm Temporary code, to be created specifically on request | - |
|
| F7510FTPEC0700-PP | 700 mm (27,56'') | PEC - Polyethylene (cyan) | PP White | No positioners | F7510 | 45 mm | 8000 N/m | 9.8 kg/m^2 | Self-Locking Pin | 0÷65 °C | Self-Cleaning Hinge System Pin diameter: 5 mm Temporary code, to be created specifically on request | - |
|
| F7510FTPEC0750-PA6 | 750 mm (29,53'') | PEC - Polyethylene (cyan) | PA6 White | No positioners | F7510 | 45 mm | 8000 N/m | 9.8 kg/m^2 | Self-Locking Pin | -40÷65 °C | Self-Cleaning Hinge System Pin diameter: 5 mm Temporary code, to be created specifically on request | - |
|
| F7510FTPEC0750-PBT | 750 mm (29,53'') | PEC - Polyethylene (cyan) | PBT White | No positioners | F7510 | 45 mm | 8000 N/m | 9.8 kg/m^2 | Self-Locking Pin | -40÷65 °C | Self-Cleaning Hinge System Pin diameter: 5 mm Temporary code, to be created specifically on request | - |
|
| F7510FTPEC0750-PE | 750 mm (29,53'') | PEC - Polyethylene (cyan) | PE White | No positioners | F7510 | 45 mm | 8000 N/m | 9.8 kg/m^2 | Self-Locking Pin | -70÷65 °C | Self-Cleaning Hinge System Pin diameter: 5 mm Temporary code, to be created specifically on request | - |
|
| F7510FTPEC0750-PP | 750 mm (29,53'') | PEC - Polyethylene (cyan) | PP White | No positioners | F7510 | 45 mm | 8000 N/m | 9.8 kg/m^2 | Self-Locking Pin | 0÷65 °C | Self-Cleaning Hinge System Pin diameter: 5 mm Temporary code, to be created specifically on request | - |
|
| F7510FTPEC0800-PA6 | 800 mm (31,5'') | PEC - Polyethylene (cyan) | PA6 White | No positioners | F7510 | 45 mm | 8000 N/m | 9.8 kg/m^2 | Self-Locking Pin | -40÷65 °C | Self-Cleaning Hinge System Pin diameter: 5 mm Temporary code, to be created specifically on request | - |
|
| F7510FTPEC0800-PBT | 800 mm (31,5'') | PEC - Polyethylene (cyan) | PBT White | No positioners | F7510 | 45 mm | 8000 N/m | 9.8 kg/m^2 | Self-Locking Pin | -40÷65 °C | Self-Cleaning Hinge System Pin diameter: 5 mm Temporary code, to be created specifically on request | - |
|
| F7510FTPEC0800-PE | 800 mm (31,5'') | PEC - Polyethylene (cyan) | PE White | No positioners | F7510 | 45 mm | 8000 N/m | 9.8 kg/m^2 | Self-Locking Pin | -70÷65 °C | Self-Cleaning Hinge System Pin diameter: 5 mm Temporary code, to be created specifically on request | - |
|
| F7510FTPEC0800-PP | 800 mm (31,5'') | PEC - Polyethylene (cyan) | PP White | No positioners | F7510 | 45 mm | 8000 N/m | 9.8 kg/m^2 | Self-Locking Pin | 0÷65 °C | Self-Cleaning Hinge System Pin diameter: 5 mm Temporary code, to be created specifically on request | - |
|
| F7510FTPEC0850-PA6 | 850 mm (33,46'') | PEC - Polyethylene (cyan) | PA6 White | No positioners | F7510 | 45 mm | 8000 N/m | 9.8 kg/m^2 | Self-Locking Pin | -40÷65 °C | Self-Cleaning Hinge System Pin diameter: 5 mm Temporary code, to be created specifically on request | - |
|
| F7510FTPEC0850-PBT | 850 mm (33,46'') | PEC - Polyethylene (cyan) | PBT White | No positioners | F7510 | 45 mm | 8000 N/m | 9.8 kg/m^2 | Self-Locking Pin | -40÷65 °C | Self-Cleaning Hinge System Pin diameter: 5 mm Temporary code, to be created specifically on request | - |
|
| F7510FTPEC0850-PE | 850 mm (33,46'') | PEC - Polyethylene (cyan) | PE White | No positioners | F7510 | 45 mm | 8000 N/m | 9.8 kg/m^2 | Self-Locking Pin | -70÷65 °C | Self-Cleaning Hinge System Pin diameter: 5 mm Temporary code, to be created specifically on request | - |
|
| F7510FTPEC0850-PP | 850 mm (33,46'') | PEC - Polyethylene (cyan) | PP White | No positioners | F7510 | 45 mm | 8000 N/m | 9.8 kg/m^2 | Self-Locking Pin | 0÷65 °C | Self-Cleaning Hinge System Pin diameter: 5 mm Temporary code, to be created specifically on request | - |
|
| F7510FTPEC0900-PA6 | 900 mm (35,43'') | PEC - Polyethylene (cyan) | PA6 White | No positioners | F7510 | 45 mm | 8000 N/m | 9.8 kg/m^2 | Self-Locking Pin | -40÷65 °C | Self-Cleaning Hinge System Pin diameter: 5 mm Temporary code, to be created specifically on request | - |
|
| F7510FTPEC0900-PBT | 900 mm (35,43'') | PEC - Polyethylene (cyan) | PBT White | No positioners | F7510 | 45 mm | 8000 N/m | 9.8 kg/m^2 | Self-Locking Pin | -40÷65 °C | Self-Cleaning Hinge System Pin diameter: 5 mm Temporary code, to be created specifically on request | - |
|
| F7510FTPEC0900-PE | 900 mm (35,43'') | PEC - Polyethylene (cyan) | PE White | No positioners | F7510 | 45 mm | 8000 N/m | 9.8 kg/m^2 | Self-Locking Pin | -70÷65 °C | Self-Cleaning Hinge System Pin diameter: 5 mm Temporary code, to be created specifically on request | - |
|
| F7510FTPEC0900-PP | 900 mm (35,43'') | PEC - Polyethylene (cyan) | PP White | No positioners | F7510 | 45 mm | 8000 N/m | 9.8 kg/m^2 | Self-Locking Pin | 0÷65 °C | Self-Cleaning Hinge System Pin diameter: 5 mm Temporary code, to be created specifically on request | - |
|
| F7510FTPEN0050-PA6 | 50 mm (1,97'') | PEN - Polyethylene (natural) | PA6 White | No positioners | F7510 | 45 mm | 8000 N/m | 9.8 kg/m^2 | Self-Locking Pin | -40÷65 °C | Self-Cleaning Hinge System Pin diameter: 5 mm Temporary code, to be created specifically on request | - |
|
| F7510FTPEN0050-PBT | 50 mm (1,97'') | PEN - Polyethylene (natural) | PBT White | No positioners | F7510 | 45 mm | 8000 N/m | 9.8 kg/m^2 | Self-Locking Pin | -40÷65 °C | Self-Cleaning Hinge System Pin diameter: 5 mm Temporary code, to be created specifically on request | - |
|
| F7510FTPEN0050-PE | 50 mm (1,97'') | PEN - Polyethylene (natural) | PE White | No positioners | F7510 | 45 mm | 8000 N/m | 9.8 kg/m^2 | Self-Locking Pin | -70÷65 °C | Self-Cleaning Hinge System Pin diameter: 5 mm Temporary code, to be created specifically on request | - |
|
| F7510FTPEN0050-PP | 50 mm (1,97'') | PEN - Polyethylene (natural) | PP White | No positioners | F7510 | 45 mm | 8000 N/m | 9.8 kg/m^2 | Self-Locking Pin | 0÷65 °C | Self-Cleaning Hinge System Pin diameter: 5 mm Temporary code, to be created specifically on request | - |
|
| F7510FTPEN0100-PA6 | 100 mm (3,94'') | PEN - Polyethylene (natural) | PA6 White | No positioners | F7510 | 45 mm | 8000 N/m | 9.8 kg/m^2 | Self-Locking Pin | -40÷65 °C | Self-Cleaning Hinge System Pin diameter: 5 mm Temporary code, to be created specifically on request | - |
|
| F7510FTPEN0100-PBT | 100 mm (3,94'') | PEN - Polyethylene (natural) | PBT White | No positioners | F7510 | 45 mm | 8000 N/m | 9.8 kg/m^2 | Self-Locking Pin | -40÷65 °C | Self-Cleaning Hinge System Pin diameter: 5 mm Temporary code, to be created specifically on request | - |
|
| F7510FTPEN0100-PE | 100 mm (3,94'') | PEN - Polyethylene (natural) | PE White | No positioners | F7510 | 45 mm | 8000 N/m | 9.8 kg/m^2 | Self-Locking Pin | -70÷65 °C | Self-Cleaning Hinge System Pin diameter: 5 mm Temporary code, to be created specifically on request | - |
|
| F7510FTPEN0100-PP | 100 mm (3,94'') | PEN - Polyethylene (natural) | PP White | No positioners | F7510 | 45 mm | 8000 N/m | 9.8 kg/m^2 | Self-Locking Pin | 0÷65 °C | Self-Cleaning Hinge System Pin diameter: 5 mm Temporary code, to be created specifically on request | - |
|
| F7510FTPEN0150-PA6 | 150 mm (5,91'') | PEN - Polyethylene (natural) | PA6 White | No positioners | F7510 | 45 mm | 8000 N/m | 9.8 kg/m^2 | Self-Locking Pin | -40÷65 °C | Self-Cleaning Hinge System Pin diameter: 5 mm Temporary code, to be created specifically on request | - |
|
| F7510FTPEN0150-PBT | 150 mm (5,91'') | PEN - Polyethylene (natural) | PBT White | No positioners | F7510 | 45 mm | 8000 N/m | 9.8 kg/m^2 | Self-Locking Pin | -40÷65 °C | Self-Cleaning Hinge System Pin diameter: 5 mm Temporary code, to be created specifically on request | - |
|
| F7510FTPEN0150-PE | 150 mm (5,91'') | PEN - Polyethylene (natural) | PE White | No positioners | F7510 | 45 mm | 8000 N/m | 9.8 kg/m^2 | Self-Locking Pin | -70÷65 °C | Self-Cleaning Hinge System Pin diameter: 5 mm Temporary code, to be created specifically on request | - |
|
| F7510FTPEN0150-PP | 150 mm (5,91'') | PEN - Polyethylene (natural) | PP White | No positioners | F7510 | 45 mm | 8000 N/m | 9.8 kg/m^2 | Self-Locking Pin | 0÷65 °C | Self-Cleaning Hinge System Pin diameter: 5 mm Temporary code, to be created specifically on request | - |
|
| F7510FTPEN0200-PA6 | 200 mm (7,87'') | PEN - Polyethylene (natural) | PA6 White | No positioners | F7510 | 45 mm | 8000 N/m | 9.8 kg/m^2 | Self-Locking Pin | -40÷65 °C | Self-Cleaning Hinge System Pin diameter: 5 mm Temporary code, to be created specifically on request | - |
|
| F7510FTPEN0200-PBT | 200 mm (7,87'') | PEN - Polyethylene (natural) | PBT White | No positioners | F7510 | 45 mm | 8000 N/m | 9.8 kg/m^2 | Self-Locking Pin | -40÷65 °C | Self-Cleaning Hinge System Pin diameter: 5 mm Temporary code, to be created specifically on request | - |
|
| F7510FTPEN0200-PE | 200 mm (7,87'') | PEN - Polyethylene (natural) | PE White | No positioners | F7510 | 45 mm | 8000 N/m | 9.8 kg/m^2 | Self-Locking Pin | -70÷65 °C | Self-Cleaning Hinge System Pin diameter: 5 mm Temporary code, to be created specifically on request | - |
|
| F7510FTPEN0200-PP | 200 mm (7,87'') | PEN - Polyethylene (natural) | PP White | No positioners | F7510 | 45 mm | 8000 N/m | 9.8 kg/m^2 | Self-Locking Pin | 0÷65 °C | Self-Cleaning Hinge System Pin diameter: 5 mm Temporary code, to be created specifically on request | - |
|
| F7510FTPEN0250-PA6 | 250 mm (9,84'') | PEN - Polyethylene (natural) | PA6 White | No positioners | F7510 | 45 mm | 8000 N/m | 9.8 kg/m^2 | Self-Locking Pin | -40÷65 °C | Self-Cleaning Hinge System Pin diameter: 5 mm Temporary code, to be created specifically on request | - |
|
| F7510FTPEN0250-PBT | 250 mm (9,84'') | PEN - Polyethylene (natural) | PBT White | No positioners | F7510 | 45 mm | 8000 N/m | 9.8 kg/m^2 | Self-Locking Pin | -40÷65 °C | Self-Cleaning Hinge System Pin diameter: 5 mm Temporary code, to be created specifically on request | - |
|
| F7510FTPEN0250-PE | 250 mm (9,84'') | PEN - Polyethylene (natural) | PE White | No positioners | F7510 | 45 mm | 8000 N/m | 9.8 kg/m^2 | Self-Locking Pin | -70÷65 °C | Self-Cleaning Hinge System Pin diameter: 5 mm Temporary code, to be created specifically on request | - |
|
| F7510FTPEN0250-PP | 250 mm (9,84'') | PEN - Polyethylene (natural) | PP White | No positioners | F7510 | 45 mm | 8000 N/m | 9.8 kg/m^2 | Self-Locking Pin | 0÷65 °C | Self-Cleaning Hinge System Pin diameter: 5 mm Temporary code, to be created specifically on request | - |
|
| F7510FTPEN0300-PA6 | 300 mm (11,81'') | PEN - Polyethylene (natural) | PA6 White | No positioners | F7510 | 45 mm | 8000 N/m | 9.8 kg/m^2 | Self-Locking Pin | -40÷65 °C | Self-Cleaning Hinge System Pin diameter: 5 mm Temporary code, to be created specifically on request | - |
|
| F7510FTPEN0300-PBT | 300 mm (11,81'') | PEN - Polyethylene (natural) | PBT White | No positioners | F7510 | 45 mm | 8000 N/m | 9.8 kg/m^2 | Self-Locking Pin | -40÷65 °C | Self-Cleaning Hinge System Pin diameter: 5 mm Temporary code, to be created specifically on request | - |
|
| F7510FTPEN0300-PE | 300 mm (11,81'') | PEN - Polyethylene (natural) | PE White | No positioners | F7510 | 45 mm | 8000 N/m | 9.8 kg/m^2 | Self-Locking Pin | -70÷65 °C | Self-Cleaning Hinge System Pin diameter: 5 mm Temporary code, to be created specifically on request | - |
|
| F7510FTPEN0300-PP | 300 mm (11,81'') | PEN - Polyethylene (natural) | PP White | No positioners | F7510 | 45 mm | 8000 N/m | 9.8 kg/m^2 | Self-Locking Pin | 0÷65 °C | Self-Cleaning Hinge System Pin diameter: 5 mm Temporary code, to be created specifically on request | - |
|
| F7510FTPEN0350-PA6 | 350 mm (13,78'') | PEN - Polyethylene (natural) | PA6 White | No positioners | F7510 | 45 mm | 8000 N/m | 9.8 kg/m^2 | Self-Locking Pin | -40÷65 °C | Self-Cleaning Hinge System Pin diameter: 5 mm Temporary code, to be created specifically on request | - |
|
| F7510FTPEN0350-PBT | 350 mm (13,78'') | PEN - Polyethylene (natural) | PBT White | No positioners | F7510 | 45 mm | 8000 N/m | 9.8 kg/m^2 | Self-Locking Pin | -40÷65 °C | Self-Cleaning Hinge System Pin diameter: 5 mm Temporary code, to be created specifically on request | - |
|
| F7510FTPEN0350-PE | 350 mm (13,78'') | PEN - Polyethylene (natural) | PE White | No positioners | F7510 | 45 mm | 8000 N/m | 9.8 kg/m^2 | Self-Locking Pin | -70÷65 °C | Self-Cleaning Hinge System Pin diameter: 5 mm Temporary code, to be created specifically on request | - |
|
| F7510FTPEN0350-PP | 350 mm (13,78'') | PEN - Polyethylene (natural) | PP White | No positioners | F7510 | 45 mm | 8000 N/m | 9.8 kg/m^2 | Self-Locking Pin | 0÷65 °C | Self-Cleaning Hinge System Pin diameter: 5 mm Temporary code, to be created specifically on request | - |
|
| F7510FTPEN0400-PA6 | 400 mm (15,75'') | PEN - Polyethylene (natural) | PA6 White | No positioners | F7510 | 45 mm | 8000 N/m | 9.8 kg/m^2 | Self-Locking Pin | -40÷65 °C | Self-Cleaning Hinge System Pin diameter: 5 mm Temporary code, to be created specifically on request | - |
|
| F7510FTPEN0400-PBT | 400 mm (15,75'') | PEN - Polyethylene (natural) | PBT White | No positioners | F7510 | 45 mm | 8000 N/m | 9.8 kg/m^2 | Self-Locking Pin | -40÷65 °C | Self-Cleaning Hinge System Pin diameter: 5 mm Temporary code, to be created specifically on request | - |
|
| F7510FTPEN0400-PE | 400 mm (15,75'') | PEN - Polyethylene (natural) | PE White | No positioners | F7510 | 45 mm | 8000 N/m | 9.8 kg/m^2 | Self-Locking Pin | -70÷65 °C | Self-Cleaning Hinge System Pin diameter: 5 mm Temporary code, to be created specifically on request | - |
|
| F7510FTPEN0400-PP | 400 mm (15,75'') | PEN - Polyethylene (natural) | PP White | No positioners | F7510 | 45 mm | 8000 N/m | 9.8 kg/m^2 | Self-Locking Pin | 0÷65 °C | Self-Cleaning Hinge System Pin diameter: 5 mm Temporary code, to be created specifically on request | - |
|
| F7510FTPEN0450-PA6 | 450 mm (17,72'') | PEN - Polyethylene (natural) | PA6 White | No positioners | F7510 | 45 mm | 8000 N/m | 9.8 kg/m^2 | Self-Locking Pin | -40÷65 °C | Self-Cleaning Hinge System Pin diameter: 5 mm Temporary code, to be created specifically on request | - |
|
| F7510FTPEN0450-PBT | 450 mm (17,72'') | PEN - Polyethylene (natural) | PBT White | No positioners | F7510 | 45 mm | 8000 N/m | 9.8 kg/m^2 | Self-Locking Pin | -40÷65 °C | Self-Cleaning Hinge System Pin diameter: 5 mm Temporary code, to be created specifically on request | - |
|
| F7510FTPEN0450-PE | 450 mm (17,72'') | PEN - Polyethylene (natural) | PE White | No positioners | F7510 | 45 mm | 8000 N/m | 9.8 kg/m^2 | Self-Locking Pin | -70÷65 °C | Self-Cleaning Hinge System Pin diameter: 5 mm Temporary code, to be created specifically on request | - |
|
| F7510FTPEN0450-PP | 450 mm (17,72'') | PEN - Polyethylene (natural) | PP White | No positioners | F7510 | 45 mm | 8000 N/m | 9.8 kg/m^2 | Self-Locking Pin | 0÷65 °C | Self-Cleaning Hinge System Pin diameter: 5 mm Temporary code, to be created specifically on request | - |
|
| F7510FTPEN0500-PA6 | 500 mm (19,69'') | PEN - Polyethylene (natural) | PA6 White | No positioners | F7510 | 45 mm | 8000 N/m | 9.8 kg/m^2 | Self-Locking Pin | -40÷65 °C | Self-Cleaning Hinge System Pin diameter: 5 mm Temporary code, to be created specifically on request | - |
|
| F7510FTPEN0500-PBT | 500 mm (19,69'') | PEN - Polyethylene (natural) | PBT White | No positioners | F7510 | 45 mm | 8000 N/m | 9.8 kg/m^2 | Self-Locking Pin | -40÷65 °C | Self-Cleaning Hinge System Pin diameter: 5 mm Temporary code, to be created specifically on request | - |
|
| F7510FTPEN0500-PE | 500 mm (19,69'') | PEN - Polyethylene (natural) | PE White | No positioners | F7510 | 45 mm | 8000 N/m | 9.8 kg/m^2 | Self-Locking Pin | -70÷65 °C | Self-Cleaning Hinge System Pin diameter: 5 mm Temporary code, to be created specifically on request | - |
|
| F7510FTPEN0500-PP | 500 mm (19,69'') | PEN - Polyethylene (natural) | PP White | No positioners | F7510 | 45 mm | 8000 N/m | 9.8 kg/m^2 | Self-Locking Pin | 0÷65 °C | Self-Cleaning Hinge System Pin diameter: 5 mm Temporary code, to be created specifically on request | - |
|
| F7510FTPEN0550-PA6 | 550 mm (21,65'') | PEN - Polyethylene (natural) | PA6 White | No positioners | F7510 | 45 mm | 8000 N/m | 9.8 kg/m^2 | Self-Locking Pin | -40÷65 °C | Self-Cleaning Hinge System Pin diameter: 5 mm Temporary code, to be created specifically on request | - |
|
| F7510FTPEN0550-PBT | 550 mm (21,65'') | PEN - Polyethylene (natural) | PBT White | No positioners | F7510 | 45 mm | 8000 N/m | 9.8 kg/m^2 | Self-Locking Pin | -40÷65 °C | Self-Cleaning Hinge System Pin diameter: 5 mm Temporary code, to be created specifically on request | - |
|
| F7510FTPEN0550-PE | 550 mm (21,65'') | PEN - Polyethylene (natural) | PE White | No positioners | F7510 | 45 mm | 8000 N/m | 9.8 kg/m^2 | Self-Locking Pin | -70÷65 °C | Self-Cleaning Hinge System Pin diameter: 5 mm Temporary code, to be created specifically on request | - |
|
| F7510FTPEN0550-PP | 550 mm (21,65'') | PEN - Polyethylene (natural) | PP White | No positioners | F7510 | 45 mm | 8000 N/m | 9.8 kg/m^2 | Self-Locking Pin | 0÷65 °C | Self-Cleaning Hinge System Pin diameter: 5 mm Temporary code, to be created specifically on request | - |
|
| F7510FTPEN0600-PA6 | 600 mm (23,62'') | PEN - Polyethylene (natural) | PA6 White | No positioners | F7510 | 45 mm | 8000 N/m | 9.8 kg/m^2 | Self-Locking Pin | -40÷65 °C | Self-Cleaning Hinge System Pin diameter: 5 mm Temporary code, to be created specifically on request | - |
|
| F7510FTPEN0600-PBT | 600 mm (23,62'') | PEN - Polyethylene (natural) | PBT White | No positioners | F7510 | 45 mm | 8000 N/m | 9.8 kg/m^2 | Self-Locking Pin | -40÷65 °C | Self-Cleaning Hinge System Pin diameter: 5 mm Temporary code, to be created specifically on request | - |
|
| F7510FTPEN0600-PE | 600 mm (23,62'') | PEN - Polyethylene (natural) | PE White | No positioners | F7510 | 45 mm | 8000 N/m | 9.8 kg/m^2 | Self-Locking Pin | -70÷65 °C | Self-Cleaning Hinge System Pin diameter: 5 mm Temporary code, to be created specifically on request | - |
|
| F7510FTPEN0600-PP | 600 mm (23,62'') | PEN - Polyethylene (natural) | PP White | No positioners | F7510 | 45 mm | 8000 N/m | 9.8 kg/m^2 | Self-Locking Pin | 0÷65 °C | Self-Cleaning Hinge System Pin diameter: 5 mm Temporary code, to be created specifically on request | - |
|
| F7510FTPEN0650-PA6 | 650 mm (25,59'') | PEN - Polyethylene (natural) | PA6 White | No positioners | F7510 | 45 mm | 8000 N/m | 9.8 kg/m^2 | Self-Locking Pin | -40÷65 °C | Self-Cleaning Hinge System Pin diameter: 5 mm Temporary code, to be created specifically on request | - |
|
| F7510FTPEN0650-PBT | 650 mm (25,59'') | PEN - Polyethylene (natural) | PBT White | No positioners | F7510 | 45 mm | 8000 N/m | 9.8 kg/m^2 | Self-Locking Pin | -40÷65 °C | Self-Cleaning Hinge System Pin diameter: 5 mm Temporary code, to be created specifically on request | - |
|
| F7510FTPEN0650-PE | 650 mm (25,59'') | PEN - Polyethylene (natural) | PE White | No positioners | F7510 | 45 mm | 8000 N/m | 9.8 kg/m^2 | Self-Locking Pin | -70÷65 °C | Self-Cleaning Hinge System Pin diameter: 5 mm Temporary code, to be created specifically on request | - |
|
| F7510FTPEN0650-PP | 650 mm (25,59'') | PEN - Polyethylene (natural) | PP White | No positioners | F7510 | 45 mm | 8000 N/m | 9.8 kg/m^2 | Self-Locking Pin | 0÷65 °C | Self-Cleaning Hinge System Pin diameter: 5 mm Temporary code, to be created specifically on request | - |
|
| F7510FTPEN0700-PA6 | 700 mm (27,56'') | PEN - Polyethylene (natural) | PA6 White | No positioners | F7510 | 45 mm | 8000 N/m | 9.8 kg/m^2 | Self-Locking Pin | -40÷65 °C | Self-Cleaning Hinge System Pin diameter: 5 mm Temporary code, to be created specifically on request | - |
|
| F7510FTPEN0700-PBT | 700 mm (27,56'') | PEN - Polyethylene (natural) | PBT White | No positioners | F7510 | 45 mm | 8000 N/m | 9.8 kg/m^2 | Self-Locking Pin | -40÷65 °C | Self-Cleaning Hinge System Pin diameter: 5 mm Temporary code, to be created specifically on request | - |
|
| F7510FTPEN0700-PE | 700 mm (27,56'') | PEN - Polyethylene (natural) | PE White | No positioners | F7510 | 45 mm | 8000 N/m | 9.8 kg/m^2 | Self-Locking Pin | -70÷65 °C | Self-Cleaning Hinge System Pin diameter: 5 mm Temporary code, to be created specifically on request | - |
|
| F7510FTPEN0700-PP | 700 mm (27,56'') | PEN - Polyethylene (natural) | PP White | No positioners | F7510 | 45 mm | 8000 N/m | 9.8 kg/m^2 | Self-Locking Pin | 0÷65 °C | Self-Cleaning Hinge System Pin diameter: 5 mm Temporary code, to be created specifically on request | - |
|
| F7510FTPEN0750-PA6 | 750 mm (29,53'') | PEN - Polyethylene (natural) | PA6 White | No positioners | F7510 | 45 mm | 8000 N/m | 9.8 kg/m^2 | Self-Locking Pin | -40÷65 °C | Self-Cleaning Hinge System Pin diameter: 5 mm Temporary code, to be created specifically on request | - |
|
| F7510FTPEN0750-PBT | 750 mm (29,53'') | PEN - Polyethylene (natural) | PBT White | No positioners | F7510 | 45 mm | 8000 N/m | 9.8 kg/m^2 | Self-Locking Pin | -40÷65 °C | Self-Cleaning Hinge System Pin diameter: 5 mm Temporary code, to be created specifically on request | - |
|
| F7510FTPEN0750-PE | 750 mm (29,53'') | PEN - Polyethylene (natural) | PE White | No positioners | F7510 | 45 mm | 8000 N/m | 9.8 kg/m^2 | Self-Locking Pin | -70÷65 °C | Self-Cleaning Hinge System Pin diameter: 5 mm Temporary code, to be created specifically on request | - |
|
| F7510FTPEN0750-PP | 750 mm (29,53'') | PEN - Polyethylene (natural) | PP White | No positioners | F7510 | 45 mm | 8000 N/m | 9.8 kg/m^2 | Self-Locking Pin | 0÷65 °C | Self-Cleaning Hinge System Pin diameter: 5 mm Temporary code, to be created specifically on request | - |
|
| F7510FTPEN0800-PA6 | 800 mm (31,5'') | PEN - Polyethylene (natural) | PA6 White | No positioners | F7510 | 45 mm | 8000 N/m | 9.8 kg/m^2 | Self-Locking Pin | -40÷65 °C | Self-Cleaning Hinge System Pin diameter: 5 mm Temporary code, to be created specifically on request | - |
|
| F7510FTPEN0800-PBT | 800 mm (31,5'') | PEN - Polyethylene (natural) | PBT White | No positioners | F7510 | 45 mm | 8000 N/m | 9.8 kg/m^2 | Self-Locking Pin | -40÷65 °C | Self-Cleaning Hinge System Pin diameter: 5 mm Temporary code, to be created specifically on request | - |
|
| F7510FTPEN0800-PE | 800 mm (31,5'') | PEN - Polyethylene (natural) | PE White | No positioners | F7510 | 45 mm | 8000 N/m | 9.8 kg/m^2 | Self-Locking Pin | -70÷65 °C | Self-Cleaning Hinge System Pin diameter: 5 mm Temporary code, to be created specifically on request | - |
|
| F7510FTPEN0800-PP | 800 mm (31,5'') | PEN - Polyethylene (natural) | PP White | No positioners | F7510 | 45 mm | 8000 N/m | 9.8 kg/m^2 | Self-Locking Pin | 0÷65 °C | Self-Cleaning Hinge System Pin diameter: 5 mm Temporary code, to be created specifically on request | - |
|
| F7510FTPEN0850-PA6 | 850 mm (33,46'') | PEN - Polyethylene (natural) | PA6 White | No positioners | F7510 | 45 mm | 8000 N/m | 9.8 kg/m^2 | Self-Locking Pin | -40÷65 °C | Self-Cleaning Hinge System Pin diameter: 5 mm Temporary code, to be created specifically on request | - |
|
| F7510FTPEN0850-PBT | 850 mm (33,46'') | PEN - Polyethylene (natural) | PBT White | No positioners | F7510 | 45 mm | 8000 N/m | 9.8 kg/m^2 | Self-Locking Pin | -40÷65 °C | Self-Cleaning Hinge System Pin diameter: 5 mm Temporary code, to be created specifically on request | - |
|
| F7510FTPEN0850-PE | 850 mm (33,46'') | PEN - Polyethylene (natural) | PE White | No positioners | F7510 | 45 mm | 8000 N/m | 9.8 kg/m^2 | Self-Locking Pin | -70÷65 °C | Self-Cleaning Hinge System Pin diameter: 5 mm Temporary code, to be created specifically on request | - |
|
| F7510FTPEN0850-PP | 850 mm (33,46'') | PEN - Polyethylene (natural) | PP White | No positioners | F7510 | 45 mm | 8000 N/m | 9.8 kg/m^2 | Self-Locking Pin | 0÷65 °C | Self-Cleaning Hinge System Pin diameter: 5 mm Temporary code, to be created specifically on request | - |
|
| F7510FTPEN0900-PA6 | 900 mm (35,43'') | PEN - Polyethylene (natural) | PA6 White | No positioners | F7510 | 45 mm | 8000 N/m | 9.8 kg/m^2 | Self-Locking Pin | -40÷65 °C | Self-Cleaning Hinge System Pin diameter: 5 mm Temporary code, to be created specifically on request | - |
|
| F7510FTPEN0900-PBT | 900 mm (35,43'') | PEN - Polyethylene (natural) | PBT White | No positioners | F7510 | 45 mm | 8000 N/m | 9.8 kg/m^2 | Self-Locking Pin | -40÷65 °C | Self-Cleaning Hinge System Pin diameter: 5 mm Temporary code, to be created specifically on request | - |
|
| F7510FTPEN0900-PE | 900 mm (35,43'') | PEN - Polyethylene (natural) | PE White | No positioners | F7510 | 45 mm | 8000 N/m | 9.8 kg/m^2 | Self-Locking Pin | -70÷65 °C | Self-Cleaning Hinge System Pin diameter: 5 mm Temporary code, to be created specifically on request | - |
|
| F7510FTPEN0900-PP | 900 mm (35,43'') | PEN - Polyethylene (natural) | PP White | No positioners | F7510 | 45 mm | 8000 N/m | 9.8 kg/m^2 | Self-Locking Pin | 0÷65 °C | Self-Cleaning Hinge System Pin diameter: 5 mm Temporary code, to be created specifically on request | - |
|
| F7510FTPEW0050-PA6 | 50 mm (1,97'') | PEW - Polyethylene (white) | PA6 White | No positioners | F7510 | 45 mm | 8000 N/m | 5.4 kg/m^2 | Self-Locking Pin | -40÷65 °C | Self-Cleaning Hinge System Pin diameter: 5 mm Temporary code, to be created specifically on request | - |
|
| F7510FTPEW0050-PBT | 50 mm (1,97'') | PEW - Polyethylene (white) | PBT White | No positioners | F7510 | 45 mm | 8000 N/m | 5.4 kg/m^2 | Self-Locking Pin | -40÷65 °C | Self-Cleaning Hinge System Pin diameter: 5 mm Temporary code, to be created specifically on request | - |
|
| F7510FTPEW0050-PE | 50 mm (1,97'') | PEW - Polyethylene (white) | PE White | No positioners | F7510 | 45 mm | 8000 N/m | 5.4 kg/m^2 | Self-Locking Pin | -70÷65 °C | Self-Cleaning Hinge System Pin diameter: 5 mm Temporary code, to be created specifically on request | - |
|
| F7510FTPEW0050-PP | 50 mm (1,97'') | PEW - Polyethylene (white) | PP White | No positioners | F7510 | 45 mm | 8000 N/m | 5.4 kg/m^2 | Self-Locking Pin | 0÷65 °C | Self-Cleaning Hinge System Pin diameter: 5 mm Temporary code, to be created specifically on request | - |
|
| F7510FTPEW0100-PA6 | 100 mm (3,94'') | PEW - Polyethylene (white) | PA6 White | No positioners | F7510 | 45 mm | 8000 N/m | 5.4 kg/m^2 | Self-Locking Pin | -40÷65 °C | Self-Cleaning Hinge System Pin diameter: 5 mm Temporary code, to be created specifically on request | - |
|
| F7510FTPEW0100-PBT | 100 mm (3,94'') | PEW - Polyethylene (white) | PBT White | No positioners | F7510 | 45 mm | 8000 N/m | 5.4 kg/m^2 | Self-Locking Pin | -40÷65 °C | Self-Cleaning Hinge System Pin diameter: 5 mm Temporary code, to be created specifically on request | - |
|
| F7510FTPEW0100-PE | 100 mm (3,94'') | PEW - Polyethylene (white) | PE White | No positioners | F7510 | 45 mm | 8000 N/m | 5.4 kg/m^2 | Self-Locking Pin | -70÷65 °C | Self-Cleaning Hinge System Pin diameter: 5 mm Temporary code, to be created specifically on request | - |
|
| F7510FTPEW0100-PP | 100 mm (3,94'') | PEW - Polyethylene (white) | PP White | No positioners | F7510 | 45 mm | 8000 N/m | 5.4 kg/m^2 | Self-Locking Pin | 0÷65 °C | Self-Cleaning Hinge System Pin diameter: 5 mm Temporary code, to be created specifically on request | - |
|
| F7510FTPEW0150-PA6 | 150 mm (5,91'') | PEW - Polyethylene (white) | PA6 White | No positioners | F7510 | 45 mm | 8000 N/m | 5.4 kg/m^2 | Self-Locking Pin | -40÷65 °C | Self-Cleaning Hinge System Pin diameter: 5 mm Temporary code, to be created specifically on request | - |
|
| F7510FTPEW0150-PBT | 150 mm (5,91'') | PEW - Polyethylene (white) | PBT White | No positioners | F7510 | 45 mm | 8000 N/m | 5.4 kg/m^2 | Self-Locking Pin | -40÷65 °C | Self-Cleaning Hinge System Pin diameter: 5 mm Temporary code, to be created specifically on request | - |
|
| F7510FTPEW0150-PE | 150 mm (5,91'') | PEW - Polyethylene (white) | PE White | No positioners | F7510 | 45 mm | 8000 N/m | 5.4 kg/m^2 | Self-Locking Pin | -70÷65 °C | Self-Cleaning Hinge System Pin diameter: 5 mm Temporary code, to be created specifically on request | - |
|
| F7510FTPEW0150-PP | 150 mm (5,91'') | PEW - Polyethylene (white) | PP White | No positioners | F7510 | 45 mm | 8000 N/m | 5.4 kg/m^2 | Self-Locking Pin | 0÷65 °C | Self-Cleaning Hinge System Pin diameter: 5 mm Temporary code, to be created specifically on request | - |
|
| F7510FTPEW0200-PA6 | 200 mm (7,87'') | PEW - Polyethylene (white) | PA6 White | No positioners | F7510 | 45 mm | 8000 N/m | 5.4 kg/m^2 | Self-Locking Pin | -40÷65 °C | Self-Cleaning Hinge System Pin diameter: 5 mm Temporary code, to be created specifically on request | - |
|
| F7510FTPEW0200-PBT | 200 mm (7,87'') | PEW - Polyethylene (white) | PBT White | No positioners | F7510 | 45 mm | 8000 N/m | 5.4 kg/m^2 | Self-Locking Pin | -40÷65 °C | Self-Cleaning Hinge System Pin diameter: 5 mm Temporary code, to be created specifically on request | - |
|
| F7510FTPEW0200-PE | 200 mm (7,87'') | PEW - Polyethylene (white) | PE White | No positioners | F7510 | 45 mm | 8000 N/m | 5.4 kg/m^2 | Self-Locking Pin | -70÷65 °C | Self-Cleaning Hinge System Pin diameter: 5 mm Temporary code, to be created specifically on request | - |
|
| F7510FTPEW0200-PP | 200 mm (7,87'') | PEW - Polyethylene (white) | PP White | No positioners | F7510 | 45 mm | 8000 N/m | 5.4 kg/m^2 | Self-Locking Pin | 0÷65 °C | Self-Cleaning Hinge System Pin diameter: 5 mm Temporary code, to be created specifically on request | - |
|
| F7510FTPEW0250-PA6 | 250 mm (9,84'') | PEW - Polyethylene (white) | PA6 White | No positioners | F7510 | 45 mm | 8000 N/m | 5.4 kg/m^2 | Self-Locking Pin | -40÷65 °C | Self-Cleaning Hinge System Pin diameter: 5 mm Temporary code, to be created specifically on request | - |
|
| F7510FTPEW0250-PBT | 250 mm (9,84'') | PEW - Polyethylene (white) | PBT White | No positioners | F7510 | 45 mm | 8000 N/m | 5.4 kg/m^2 | Self-Locking Pin | -40÷65 °C | Self-Cleaning Hinge System Pin diameter: 5 mm Temporary code, to be created specifically on request | - |
|
| F7510FTPEW0250-PE | 250 mm (9,84'') | PEW - Polyethylene (white) | PE White | No positioners | F7510 | 45 mm | 8000 N/m | 5.4 kg/m^2 | Self-Locking Pin | -70÷65 °C | Self-Cleaning Hinge System Pin diameter: 5 mm Temporary code, to be created specifically on request | - |
|
| F7510FTPEW0250-PP | 250 mm (9,84'') | PEW - Polyethylene (white) | PP White | No positioners | F7510 | 45 mm | 8000 N/m | 5.4 kg/m^2 | Self-Locking Pin | 0÷65 °C | Self-Cleaning Hinge System Pin diameter: 5 mm Temporary code, to be created specifically on request | - |
|
| F7510FTPEW0300-PA6 | 300 mm (11,81'') | PEW - Polyethylene (white) | PA6 White | No positioners | F7510 | 45 mm | 8000 N/m | 5.4 kg/m^2 | Self-Locking Pin | -40÷65 °C | Self-Cleaning Hinge System Pin diameter: 5 mm Temporary code, to be created specifically on request | - |
|
| F7510FTPEW0300-PBT | 300 mm (11,81'') | PEW - Polyethylene (white) | PBT White | No positioners | F7510 | 45 mm | 8000 N/m | 5.4 kg/m^2 | Self-Locking Pin | -40÷65 °C | Self-Cleaning Hinge System Pin diameter: 5 mm Temporary code, to be created specifically on request | - |
|
| F7510FTPEW0300-PE | 300 mm (11,81'') | PEW - Polyethylene (white) | PE White | No positioners | F7510 | 45 mm | 8000 N/m | 5.4 kg/m^2 | Self-Locking Pin | -70÷65 °C | Self-Cleaning Hinge System Pin diameter: 5 mm Temporary code, to be created specifically on request | - |
|
| F7510FTPEW0300-PP | 300 mm (11,81'') | PEW - Polyethylene (white) | PP White | No positioners | F7510 | 45 mm | 8000 N/m | 5.4 kg/m^2 | Self-Locking Pin | 0÷65 °C | Self-Cleaning Hinge System Pin diameter: 5 mm Temporary code, to be created specifically on request | - |
|
| F7510FTPEW0350-PA6 | 350 mm (13,78'') | PEW - Polyethylene (white) | PA6 White | No positioners | F7510 | 45 mm | 8000 N/m | 5.4 kg/m^2 | Self-Locking Pin | -40÷65 °C | Self-Cleaning Hinge System Pin diameter: 5 mm Temporary code, to be created specifically on request | - |
|
| F7510FTPEW0350-PBT | 350 mm (13,78'') | PEW - Polyethylene (white) | PBT White | No positioners | F7510 | 45 mm | 8000 N/m | 5.4 kg/m^2 | Self-Locking Pin | -40÷65 °C | Self-Cleaning Hinge System Pin diameter: 5 mm Temporary code, to be created specifically on request | - |
|
| F7510FTPEW0350-PE | 350 mm (13,78'') | PEW - Polyethylene (white) | PE White | No positioners | F7510 | 45 mm | 8000 N/m | 5.4 kg/m^2 | Self-Locking Pin | -70÷65 °C | Self-Cleaning Hinge System Pin diameter: 5 mm Temporary code, to be created specifically on request | - |
|
| F7510FTPEW0350-PP | 350 mm (13,78'') | PEW - Polyethylene (white) | PP White | No positioners | F7510 | 45 mm | 8000 N/m | 5.4 kg/m^2 | Self-Locking Pin | 0÷65 °C | Self-Cleaning Hinge System Pin diameter: 5 mm Temporary code, to be created specifically on request | - |
|
| F7510FTPEW0400-PA6 | 400 mm (15,75'') | PEW - Polyethylene (white) | PA6 White | No positioners | F7510 | 45 mm | 8000 N/m | 5.4 kg/m^2 | Self-Locking Pin | -40÷65 °C | Self-Cleaning Hinge System Pin diameter: 5 mm Temporary code, to be created specifically on request | - |
|
| F7510FTPEW0400-PBT | 400 mm (15,75'') | PEW - Polyethylene (white) | PBT White | No positioners | F7510 | 45 mm | 8000 N/m | 5.4 kg/m^2 | Self-Locking Pin | -40÷65 °C | Self-Cleaning Hinge System Pin diameter: 5 mm Temporary code, to be created specifically on request | - |
|
| F7510FTPEW0400-PE | 400 mm (15,75'') | PEW - Polyethylene (white) | PE White | No positioners | F7510 | 45 mm | 8000 N/m | 5.4 kg/m^2 | Self-Locking Pin | -70÷65 °C | Self-Cleaning Hinge System Pin diameter: 5 mm Temporary code, to be created specifically on request | - |
|
| F7510FTPEW0400-PP | 400 mm (15,75'') | PEW - Polyethylene (white) | PP White | No positioners | F7510 | 45 mm | 8000 N/m | 5.4 kg/m^2 | Self-Locking Pin | 0÷65 °C | Self-Cleaning Hinge System Pin diameter: 5 mm Temporary code, to be created specifically on request | - |
|
| F7510FTPEW0450-PA6 | 450 mm (17,72'') | PEW - Polyethylene (white) | PA6 White | No positioners | F7510 | 45 mm | 8000 N/m | 5.4 kg/m^2 | Self-Locking Pin | -40÷65 °C | Self-Cleaning Hinge System Pin diameter: 5 mm Temporary code, to be created specifically on request | - |
|
| F7510FTPEW0450-PBT | 450 mm (17,72'') | PEW - Polyethylene (white) | PBT White | No positioners | F7510 | 45 mm | 8000 N/m | 5.4 kg/m^2 | Self-Locking Pin | -40÷65 °C | Self-Cleaning Hinge System Pin diameter: 5 mm Temporary code, to be created specifically on request | - |
|
| F7510FTPEW0450-PE | 450 mm (17,72'') | PEW - Polyethylene (white) | PE White | No positioners | F7510 | 45 mm | 8000 N/m | 5.4 kg/m^2 | Self-Locking Pin | -70÷65 °C | Self-Cleaning Hinge System Pin diameter: 5 mm Temporary code, to be created specifically on request | - |
|
| F7510FTPEW0450-PP | 450 mm (17,72'') | PEW - Polyethylene (white) | PP White | No positioners | F7510 | 45 mm | 8000 N/m | 5.4 kg/m^2 | Self-Locking Pin | 0÷65 °C | Self-Cleaning Hinge System Pin diameter: 5 mm Temporary code, to be created specifically on request | - |
|
| F7510FTPEW0500-PA6 | 500 mm (19,69'') | PEW - Polyethylene (white) | PA6 White | No positioners | F7510 | 45 mm | 8000 N/m | 5.4 kg/m^2 | Self-Locking Pin | -40÷65 °C | Self-Cleaning Hinge System Pin diameter: 5 mm Temporary code, to be created specifically on request | - |
|
| F7510FTPEW0500-PBT | 500 mm (19,69'') | PEW - Polyethylene (white) | PBT White | No positioners | F7510 | 45 mm | 8000 N/m | 5.4 kg/m^2 | Self-Locking Pin | -40÷65 °C | Self-Cleaning Hinge System Pin diameter: 5 mm Temporary code, to be created specifically on request | - |
|
| F7510FTPEW0500-PE | 500 mm (19,69'') | PEW - Polyethylene (white) | PE White | No positioners | F7510 | 45 mm | 8000 N/m | 5.4 kg/m^2 | Self-Locking Pin | -70÷65 °C | Self-Cleaning Hinge System Pin diameter: 5 mm Temporary code, to be created specifically on request | - |
|
| F7510FTPEW0500-PP | 500 mm (19,69'') | PEW - Polyethylene (white) | PP White | No positioners | F7510 | 45 mm | 8000 N/m | 5.4 kg/m^2 | Self-Locking Pin | 0÷65 °C | Self-Cleaning Hinge System Pin diameter: 5 mm Temporary code, to be created specifically on request | - |
|
| F7510FTPEW0550-PA6 | 550 mm (21,65'') | PEW - Polyethylene (white) | PA6 White | No positioners | F7510 | 45 mm | 8000 N/m | 5.4 kg/m^2 | Self-Locking Pin | -40÷65 °C | Self-Cleaning Hinge System Pin diameter: 5 mm Temporary code, to be created specifically on request | - |
|
| F7510FTPEW0550-PBT | 550 mm (21,65'') | PEW - Polyethylene (white) | PBT White | No positioners | F7510 | 45 mm | 8000 N/m | 5.4 kg/m^2 | Self-Locking Pin | -40÷65 °C | Self-Cleaning Hinge System Pin diameter: 5 mm Temporary code, to be created specifically on request | - |
|
| F7510FTPEW0550-PE | 550 mm (21,65'') | PEW - Polyethylene (white) | PE White | No positioners | F7510 | 45 mm | 8000 N/m | 5.4 kg/m^2 | Self-Locking Pin | -70÷65 °C | Self-Cleaning Hinge System Pin diameter: 5 mm Temporary code, to be created specifically on request | - |
|
| F7510FTPEW0550-PP | 550 mm (21,65'') | PEW - Polyethylene (white) | PP White | No positioners | F7510 | 45 mm | 8000 N/m | 5.4 kg/m^2 | Self-Locking Pin | 0÷65 °C | Self-Cleaning Hinge System Pin diameter: 5 mm Temporary code, to be created specifically on request | - |
|
| F7510FTPEW0600-PA6 | 600 mm (23,62'') | PEW - Polyethylene (white) | PA6 White | No positioners | F7510 | 45 mm | 8000 N/m | 5.4 kg/m^2 | Self-Locking Pin | -40÷65 °C | Self-Cleaning Hinge System Pin diameter: 5 mm Temporary code, to be created specifically on request | - |
|
| F7510FTPEW0600-PBT | 600 mm (23,62'') | PEW - Polyethylene (white) | PBT White | No positioners | F7510 | 45 mm | 8000 N/m | 5.4 kg/m^2 | Self-Locking Pin | -40÷65 °C | Self-Cleaning Hinge System Pin diameter: 5 mm Temporary code, to be created specifically on request | - |
|
| F7510FTPEW0600-PE | 600 mm (23,62'') | PEW - Polyethylene (white) | PE White | No positioners | F7510 | 45 mm | 8000 N/m | 5.4 kg/m^2 | Self-Locking Pin | -70÷65 °C | Self-Cleaning Hinge System Pin diameter: 5 mm Temporary code, to be created specifically on request | - |
|
| F7510FTPEW0600-PP | 600 mm (23,62'') | PEW - Polyethylene (white) | PP White | No positioners | F7510 | 45 mm | 8000 N/m | 5.4 kg/m^2 | Self-Locking Pin | 0÷65 °C | Self-Cleaning Hinge System Pin diameter: 5 mm Temporary code, to be created specifically on request | - |
|
| F7510FTPEW0650-PA6 | 650 mm (25,59'') | PEW - Polyethylene (white) | PA6 White | No positioners | F7510 | 45 mm | 8000 N/m | 5.4 kg/m^2 | Self-Locking Pin | -40÷65 °C | Self-Cleaning Hinge System Pin diameter: 5 mm Temporary code, to be created specifically on request | - |
|
| F7510FTPEW0650-PBT | 650 mm (25,59'') | PEW - Polyethylene (white) | PBT White | No positioners | F7510 | 45 mm | 8000 N/m | 5.4 kg/m^2 | Self-Locking Pin | -40÷65 °C | Self-Cleaning Hinge System Pin diameter: 5 mm Temporary code, to be created specifically on request | - |
|
| F7510FTPEW0650-PE | 650 mm (25,59'') | PEW - Polyethylene (white) | PE White | No positioners | F7510 | 45 mm | 8000 N/m | 5.4 kg/m^2 | Self-Locking Pin | -70÷65 °C | Self-Cleaning Hinge System Pin diameter: 5 mm Temporary code, to be created specifically on request | - |
|
| F7510FTPEW0650-PP | 650 mm (25,59'') | PEW - Polyethylene (white) | PP White | No positioners | F7510 | 45 mm | 8000 N/m | 5.4 kg/m^2 | Self-Locking Pin | 0÷65 °C | Self-Cleaning Hinge System Pin diameter: 5 mm Temporary code, to be created specifically on request | - |
|
| F7510FTPEW0700-PA6 | 700 mm (27,56'') | PEW - Polyethylene (white) | PA6 White | No positioners | F7510 | 45 mm | 8000 N/m | 5.4 kg/m^2 | Self-Locking Pin | -40÷65 °C | Self-Cleaning Hinge System Pin diameter: 5 mm Temporary code, to be created specifically on request | - |
|
| F7510FTPEW0700-PBT | 700 mm (27,56'') | PEW - Polyethylene (white) | PBT White | No positioners | F7510 | 45 mm | 8000 N/m | 5.4 kg/m^2 | Self-Locking Pin | -40÷65 °C | Self-Cleaning Hinge System Pin diameter: 5 mm Temporary code, to be created specifically on request | - |
|
| F7510FTPEW0700-PE | 700 mm (27,56'') | PEW - Polyethylene (white) | PE White | No positioners | F7510 | 45 mm | 8000 N/m | 5.4 kg/m^2 | Self-Locking Pin | -70÷65 °C | Self-Cleaning Hinge System Pin diameter: 5 mm Temporary code, to be created specifically on request | - |
|
| F7510FTPEW0700-PP | 700 mm (27,56'') | PEW - Polyethylene (white) | PP White | No positioners | F7510 | 45 mm | 8000 N/m | 5.4 kg/m^2 | Self-Locking Pin | 0÷65 °C | Self-Cleaning Hinge System Pin diameter: 5 mm Temporary code, to be created specifically on request | - |
|
| F7510FTPEW0750-PA6 | 750 mm (29,53'') | PEW - Polyethylene (white) | PA6 White | No positioners | F7510 | 45 mm | 8000 N/m | 5.4 kg/m^2 | Self-Locking Pin | -40÷65 °C | Self-Cleaning Hinge System Pin diameter: 5 mm Temporary code, to be created specifically on request | - |
|
| F7510FTPEW0750-PBT | 750 mm (29,53'') | PEW - Polyethylene (white) | PBT White | No positioners | F7510 | 45 mm | 8000 N/m | 5.4 kg/m^2 | Self-Locking Pin | -40÷65 °C | Self-Cleaning Hinge System Pin diameter: 5 mm Temporary code, to be created specifically on request | - |
|
| F7510FTPEW0750-PE | 750 mm (29,53'') | PEW - Polyethylene (white) | PE White | No positioners | F7510 | 45 mm | 8000 N/m | 5.4 kg/m^2 | Self-Locking Pin | -70÷65 °C | Self-Cleaning Hinge System Pin diameter: 5 mm Temporary code, to be created specifically on request | - |
|
| F7510FTPEW0750-PP | 750 mm (29,53'') | PEW - Polyethylene (white) | PP White | No positioners | F7510 | 45 mm | 8000 N/m | 5.4 kg/m^2 | Self-Locking Pin | 0÷65 °C | Self-Cleaning Hinge System Pin diameter: 5 mm Temporary code, to be created specifically on request | - |
|
| F7510FTPEW0800-PA6 | 800 mm (31,5'') | PEW - Polyethylene (white) | PA6 White | No positioners | F7510 | 45 mm | 8000 N/m | 5.4 kg/m^2 | Self-Locking Pin | -40÷65 °C | Self-Cleaning Hinge System Pin diameter: 5 mm Temporary code, to be created specifically on request | - |
|
| F7510FTPEW0800-PBT | 800 mm (31,5'') | PEW - Polyethylene (white) | PBT White | No positioners | F7510 | 45 mm | 8000 N/m | 5.4 kg/m^2 | Self-Locking Pin | -40÷65 °C | Self-Cleaning Hinge System Pin diameter: 5 mm Temporary code, to be created specifically on request | - |
|
| F7510FTPEW0800-PE | 800 mm (31,5'') | PEW - Polyethylene (white) | PE White | No positioners | F7510 | 45 mm | 8000 N/m | 5.4 kg/m^2 | Self-Locking Pin | -70÷65 °C | Self-Cleaning Hinge System Pin diameter: 5 mm Temporary code, to be created specifically on request | - |
|
| F7510FTPEW0800-PP | 800 mm (31,5'') | PEW - Polyethylene (white) | PP White | No positioners | F7510 | 45 mm | 8000 N/m | 5.4 kg/m^2 | Self-Locking Pin | 0÷65 °C | Self-Cleaning Hinge System Pin diameter: 5 mm Temporary code, to be created specifically on request | - |
|
| F7510FTPEW0850-PA6 | 850 mm (33,46'') | PEW - Polyethylene (white) | PA6 White | No positioners | F7510 | 45 mm | 8000 N/m | 5.4 kg/m^2 | Self-Locking Pin | -40÷65 °C | Self-Cleaning Hinge System Pin diameter: 5 mm Temporary code, to be created specifically on request | - |
|
| F7510FTPEW0850-PBT | 850 mm (33,46'') | PEW - Polyethylene (white) | PBT White | No positioners | F7510 | 45 mm | 8000 N/m | 5.4 kg/m^2 | Self-Locking Pin | -40÷65 °C | Self-Cleaning Hinge System Pin diameter: 5 mm Temporary code, to be created specifically on request | - |
|
| F7510FTPEW0850-PE | 850 mm (33,46'') | PEW - Polyethylene (white) | PE White | No positioners | F7510 | 45 mm | 8000 N/m | 5.4 kg/m^2 | Self-Locking Pin | -70÷65 °C | Self-Cleaning Hinge System Pin diameter: 5 mm Temporary code, to be created specifically on request | - |
|
| F7510FTPEW0850-PP | 850 mm (33,46'') | PEW - Polyethylene (white) | PP White | No positioners | F7510 | 45 mm | 8000 N/m | 5.4 kg/m^2 | Self-Locking Pin | 0÷65 °C | Self-Cleaning Hinge System Pin diameter: 5 mm Temporary code, to be created specifically on request | - |
|
| F7510FTPEW0900-PA6 | 900 mm (35,43'') | PEW - Polyethylene (white) | PA6 White | No positioners | F7510 | 45 mm | 8000 N/m | 5.4 kg/m^2 | Self-Locking Pin | -40÷65 °C | Self-Cleaning Hinge System Pin diameter: 5 mm Temporary code, to be created specifically on request | - |
|
| F7510FTPEW0900-PBT | 900 mm (35,43'') | PEW - Polyethylene (white) | PBT White | No positioners | F7510 | 45 mm | 8000 N/m | 5.4 kg/m^2 | Self-Locking Pin | -40÷65 °C | Self-Cleaning Hinge System Pin diameter: 5 mm Temporary code, to be created specifically on request | - |
|
| F7510FTPEW0900-PE | 900 mm (35,43'') | PEW - Polyethylene (white) | PE White | No positioners | F7510 | 45 mm | 8000 N/m | 5.4 kg/m^2 | Self-Locking Pin | -70÷65 °C | Self-Cleaning Hinge System Pin diameter: 5 mm Temporary code, to be created specifically on request | - |
|
| F7510FTPEW0900-PP | 900 mm (35,43'') | PEW - Polyethylene (white) | PP White | No positioners | F7510 | 45 mm | 8000 N/m | 5.4 kg/m^2 | Self-Locking Pin | 0÷65 °C | Self-Cleaning Hinge System Pin diameter: 5 mm Temporary code, to be created specifically on request | - |
|
| F7510FTPPB0050-PA6 | 50 mm (1,97'') | PPB - Polypropylene (Blue) | PA6 White | No positioners | F7510 | 45 mm | 18600 N/m | 5.2 kg/m^2 | Self-Locking Pin | 0÷80 °C | Self-Cleaning Hinge System Pin diameter: 5 mm Temporary code, to be created specifically on request | 0÷80 °C |
|
| F7510FTPPB0050-PBT | 50 mm (1,97'') | PPB - Polypropylene (Blue) | PBT White | No positioners | F7510 | 45 mm | 32000 N/m | 5.2 kg/m^2 | Self-Locking Pin | 0÷100 °C | Self-Cleaning Hinge System Pin diameter: 5 mm Temporary code, to be created specifically on request | 0÷100 °C |
|
| F7510FTPPB0050-PE | 50 mm (1,97'') | PPB - Polypropylene (Blue) | PE White | No positioners | F7510 | 45 mm | 12000 N/m | 5.2 kg/m^2 | Self-Locking Pin | 0÷65 °C | Self-Cleaning Hinge System Pin diameter: 5 mm Temporary code, to be created specifically on request | 0÷65 °C |
|
| F7510FTPPB0050-PP | 50 mm (1,97'') | PPB - Polypropylene (Blue) | PP White | No positioners | F7510 | 45 mm | 14000 N/m | 5.2 kg/m^2 | Self-Locking Pin | 0÷100 °C | Self-Cleaning Hinge System Pin diameter: 5 mm Temporary code, to be created specifically on request | 0÷100 °C |
|
| F7510FTPPB0100-PA6 | 100 mm (3,94'') | PPB - Polypropylene (Blue) | PA6 White | No positioners | F7510 | 45 mm | 18600 N/m | 5.2 kg/m^2 | Self-Locking Pin | 0÷80 °C | Self-Cleaning Hinge System Pin diameter: 5 mm Temporary code, to be created specifically on request | 0÷80 °C |
|
| F7510FTPPB0100-PBT | 100 mm (3,94'') | PPB - Polypropylene (Blue) | PBT White | No positioners | F7510 | 45 mm | 32000 N/m | 5.2 kg/m^2 | Self-Locking Pin | 0÷100 °C | Self-Cleaning Hinge System Pin diameter: 5 mm Temporary code, to be created specifically on request | 0÷100 °C |
|
| F7510FTPPB0100-PE | 100 mm (3,94'') | PPB - Polypropylene (Blue) | PE White | No positioners | F7510 | 45 mm | 12000 N/m | 5.2 kg/m^2 | Self-Locking Pin | 0÷65 °C | Self-Cleaning Hinge System Pin diameter: 5 mm Temporary code, to be created specifically on request | 0÷65 °C |
|
| F7510FTPPB0100-PP | 100 mm (3,94'') | PPB - Polypropylene (Blue) | PP White | No positioners | F7510 | 45 mm | 14000 N/m | 5.2 kg/m^2 | Self-Locking Pin | 0÷100 °C | Self-Cleaning Hinge System Pin diameter: 5 mm Temporary code, to be created specifically on request | 0÷100 °C |
|
| F7510FTPPB0150-PA6 | 150 mm (5,91'') | PPB - Polypropylene (Blue) | PA6 White | No positioners | F7510 | 45 mm | 18600 N/m | 5.2 kg/m^2 | Self-Locking Pin | 0÷80 °C | Self-Cleaning Hinge System Pin diameter: 5 mm Temporary code, to be created specifically on request | 0÷80 °C |
|
| F7510FTPPB0150-PBT | 150 mm (5,91'') | PPB - Polypropylene (Blue) | PBT White | No positioners | F7510 | 45 mm | 32000 N/m | 5.2 kg/m^2 | Self-Locking Pin | 0÷100 °C | Self-Cleaning Hinge System Pin diameter: 5 mm Temporary code, to be created specifically on request | 0÷100 °C |
|
| F7510FTPPB0150-PE | 150 mm (5,91'') | PPB - Polypropylene (Blue) | PE White | No positioners | F7510 | 45 mm | 12000 N/m | 5.2 kg/m^2 | Self-Locking Pin | 0÷65 °C | Self-Cleaning Hinge System Pin diameter: 5 mm Temporary code, to be created specifically on request | 0÷65 °C |
|
| F7510FTPPB0150-PP | 150 mm (5,91'') | PPB - Polypropylene (Blue) | PP White | No positioners | F7510 | 45 mm | 14000 N/m | 5.2 kg/m^2 | Self-Locking Pin | 0÷100 °C | Self-Cleaning Hinge System Pin diameter: 5 mm Temporary code, to be created specifically on request | 0÷100 °C |
|
| F7510FTPPB0200-PA6 | 200 mm (7,87'') | PPB - Polypropylene (Blue) | PA6 White | No positioners | F7510 | 45 mm | 18600 N/m | 5.2 kg/m^2 | Self-Locking Pin | 0÷80 °C | Self-Cleaning Hinge System Pin diameter: 5 mm Temporary code, to be created specifically on request | 0÷80 °C |
|
| F7510FTPPB0200-PBT | 200 mm (7,87'') | PPB - Polypropylene (Blue) | PBT White | No positioners | F7510 | 45 mm | 32000 N/m | 5.2 kg/m^2 | Self-Locking Pin | 0÷100 °C | Self-Cleaning Hinge System Pin diameter: 5 mm Temporary code, to be created specifically on request | 0÷100 °C |
|
| F7510FTPPB0200-PE | 200 mm (7,87'') | PPB - Polypropylene (Blue) | PE White | No positioners | F7510 | 45 mm | 12000 N/m | 5.2 kg/m^2 | Self-Locking Pin | 0÷65 °C | Self-Cleaning Hinge System Pin diameter: 5 mm Temporary code, to be created specifically on request | 0÷65 °C |
|
| F7510FTPPB0200-PP | 200 mm (7,87'') | PPB - Polypropylene (Blue) | PP White | No positioners | F7510 | 45 mm | 14000 N/m | 5.2 kg/m^2 | Self-Locking Pin | 0÷100 °C | Self-Cleaning Hinge System Pin diameter: 5 mm Temporary code, to be created specifically on request | 0÷100 °C |
|
| F7510FTPPB0250-PA6 | 250 mm (9,84'') | PPB - Polypropylene (Blue) | PA6 White | No positioners | F7510 | 45 mm | 18600 N/m | 5.2 kg/m^2 | Self-Locking Pin | 0÷80 °C | Self-Cleaning Hinge System Pin diameter: 5 mm Temporary code, to be created specifically on request | 0÷80 °C |
|
| F7510FTPPB0250-PBT | 250 mm (9,84'') | PPB - Polypropylene (Blue) | PBT White | No positioners | F7510 | 45 mm | 32000 N/m | 5.2 kg/m^2 | Self-Locking Pin | 0÷100 °C | Self-Cleaning Hinge System Pin diameter: 5 mm Temporary code, to be created specifically on request | 0÷100 °C |
|
| F7510FTPPB0250-PE | 250 mm (9,84'') | PPB - Polypropylene (Blue) | PE White | No positioners | F7510 | 45 mm | 12000 N/m | 5.2 kg/m^2 | Self-Locking Pin | 0÷65 °C | Self-Cleaning Hinge System Pin diameter: 5 mm Temporary code, to be created specifically on request | 0÷65 °C |
|
| F7510FTPPB0250-PP | 250 mm (9,84'') | PPB - Polypropylene (Blue) | PP White | No positioners | F7510 | 45 mm | 14000 N/m | 5.2 kg/m^2 | Self-Locking Pin | 0÷100 °C | Self-Cleaning Hinge System Pin diameter: 5 mm Temporary code, to be created specifically on request | 0÷100 °C |
|
| F7510FTPPB0300-PA6 | 300 mm (11,81'') | PPB - Polypropylene (Blue) | PA6 White | No positioners | F7510 | 45 mm | 18600 N/m | 5.2 kg/m^2 | Self-Locking Pin | 0÷80 °C | Self-Cleaning Hinge System Pin diameter: 5 mm Temporary code, to be created specifically on request | 0÷80 °C |
|
| F7510FTPPB0300-PBT | 300 mm (11,81'') | PPB - Polypropylene (Blue) | PBT White | No positioners | F7510 | 45 mm | 32000 N/m | 5.2 kg/m^2 | Self-Locking Pin | 0÷100 °C | Self-Cleaning Hinge System Pin diameter: 5 mm Temporary code, to be created specifically on request | 0÷100 °C |
|
| F7510FTPPB0300-PE | 300 mm (11,81'') | PPB - Polypropylene (Blue) | PE White | No positioners | F7510 | 45 mm | 12000 N/m | 5.2 kg/m^2 | Self-Locking Pin | 0÷65 °C | Self-Cleaning Hinge System Pin diameter: 5 mm Temporary code, to be created specifically on request | 0÷65 °C |
|
| F7510FTPPB0300-PP | 300 mm (11,81'') | PPB - Polypropylene (Blue) | PP White | No positioners | F7510 | 45 mm | 14000 N/m | 5.2 kg/m^2 | Self-Locking Pin | 0÷100 °C | Self-Cleaning Hinge System Pin diameter: 5 mm Temporary code, to be created specifically on request | 0÷100 °C |
|
| F7510FTPPB0350-PA6 | 350 mm (13,78'') | PPB - Polypropylene (Blue) | PA6 White | No positioners | F7510 | 45 mm | 18600 N/m | 5.2 kg/m^2 | Self-Locking Pin | 0÷80 °C | Self-Cleaning Hinge System Pin diameter: 5 mm Temporary code, to be created specifically on request | 0÷80 °C |
|
| F7510FTPPB0350-PBT | 350 mm (13,78'') | PPB - Polypropylene (Blue) | PBT White | No positioners | F7510 | 45 mm | 32000 N/m | 5.2 kg/m^2 | Self-Locking Pin | 0÷100 °C | Self-Cleaning Hinge System Pin diameter: 5 mm Temporary code, to be created specifically on request | 0÷100 °C |
|
| F7510FTPPB0350-PE | 350 mm (13,78'') | PPB - Polypropylene (Blue) | PE White | No positioners | F7510 | 45 mm | 12000 N/m | 5.2 kg/m^2 | Self-Locking Pin | 0÷65 °C | Self-Cleaning Hinge System Pin diameter: 5 mm Temporary code, to be created specifically on request | 0÷65 °C |
|
| F7510FTPPB0350-PP | 350 mm (13,78'') | PPB - Polypropylene (Blue) | PP White | No positioners | F7510 | 45 mm | 14000 N/m | 5.2 kg/m^2 | Self-Locking Pin | 0÷100 °C | Self-Cleaning Hinge System Pin diameter: 5 mm Temporary code, to be created specifically on request | 0÷100 °C |
|
| F7510FTPPB0400-PA6 | 400 mm (15,75'') | PPB - Polypropylene (Blue) | PA6 White | No positioners | F7510 | 45 mm | 18600 N/m | 5.2 kg/m^2 | Self-Locking Pin | 0÷80 °C | Self-Cleaning Hinge System Pin diameter: 5 mm Temporary code, to be created specifically on request | 0÷80 °C |
|
| F7510FTPPB0400-PBT | 400 mm (15,75'') | PPB - Polypropylene (Blue) | PBT White | No positioners | F7510 | 45 mm | 32000 N/m | 5.2 kg/m^2 | Self-Locking Pin | 0÷100 °C | Self-Cleaning Hinge System Pin diameter: 5 mm Temporary code, to be created specifically on request | 0÷100 °C |
|
| F7510FTPPB0400-PE | 400 mm (15,75'') | PPB - Polypropylene (Blue) | PE White | No positioners | F7510 | 45 mm | 12000 N/m | 5.2 kg/m^2 | Self-Locking Pin | 0÷65 °C | Self-Cleaning Hinge System Pin diameter: 5 mm Temporary code, to be created specifically on request | 0÷65 °C |
|
| F7510FTPPB0400-PP | 400 mm (15,75'') | PPB - Polypropylene (Blue) | PP White | No positioners | F7510 | 45 mm | 14000 N/m | 5.2 kg/m^2 | Self-Locking Pin | 0÷100 °C | Self-Cleaning Hinge System Pin diameter: 5 mm Temporary code, to be created specifically on request | 0÷100 °C |
|
| F7510FTPPB0450-PA6 | 450 mm (17,72'') | PPB - Polypropylene (Blue) | PA6 White | No positioners | F7510 | 45 mm | 18600 N/m | 5.2 kg/m^2 | Self-Locking Pin | 0÷80 °C | Self-Cleaning Hinge System Pin diameter: 5 mm Temporary code, to be created specifically on request | 0÷80 °C |
|
| F7510FTPPB0450-PBT | 450 mm (17,72'') | PPB - Polypropylene (Blue) | PBT White | No positioners | F7510 | 45 mm | 32000 N/m | 5.2 kg/m^2 | Self-Locking Pin | 0÷100 °C | Self-Cleaning Hinge System Pin diameter: 5 mm Temporary code, to be created specifically on request | 0÷100 °C |
|
| F7510FTPPB0450-PE | 450 mm (17,72'') | PPB - Polypropylene (Blue) | PE White | No positioners | F7510 | 45 mm | 12000 N/m | 5.2 kg/m^2 | Self-Locking Pin | 0÷65 °C | Self-Cleaning Hinge System Pin diameter: 5 mm Temporary code, to be created specifically on request | 0÷65 °C |
|
| F7510FTPPB0450-PP | 450 mm (17,72'') | PPB - Polypropylene (Blue) | PP White | No positioners | F7510 | 45 mm | 14000 N/m | 5.2 kg/m^2 | Self-Locking Pin | 0÷100 °C | Self-Cleaning Hinge System Pin diameter: 5 mm Temporary code, to be created specifically on request | 0÷100 °C |
|
| F7510FTPPB0500-PA6 | 500 mm (19,69'') | PPB - Polypropylene (Blue) | PA6 White | No positioners | F7510 | 45 mm | 18600 N/m | 5.2 kg/m^2 | Self-Locking Pin | 0÷80 °C | Self-Cleaning Hinge System Pin diameter: 5 mm Temporary code, to be created specifically on request | 0÷80 °C |
|
| F7510FTPPB0500-PBT | 500 mm (19,69'') | PPB - Polypropylene (Blue) | PBT White | No positioners | F7510 | 45 mm | 32000 N/m | 5.2 kg/m^2 | Self-Locking Pin | 0÷100 °C | Self-Cleaning Hinge System Pin diameter: 5 mm Temporary code, to be created specifically on request | 0÷100 °C |
|
| F7510FTPPB0500-PE | 500 mm (19,69'') | PPB - Polypropylene (Blue) | PE White | No positioners | F7510 | 45 mm | 12000 N/m | 5.2 kg/m^2 | Self-Locking Pin | 0÷65 °C | Self-Cleaning Hinge System Pin diameter: 5 mm Temporary code, to be created specifically on request | 0÷65 °C |
|
| F7510FTPPB0500-PP | 500 mm (19,69'') | PPB - Polypropylene (Blue) | PP White | No positioners | F7510 | 45 mm | 14000 N/m | 5.2 kg/m^2 | Self-Locking Pin | 0÷100 °C | Self-Cleaning Hinge System Pin diameter: 5 mm Temporary code, to be created specifically on request | 0÷100 °C |
|
| F7510FTPPB0550-PA6 | 550 mm (21,65'') | PPB - Polypropylene (Blue) | PA6 White | No positioners | F7510 | 45 mm | 18600 N/m | 5.2 kg/m^2 | Self-Locking Pin | 0÷80 °C | Self-Cleaning Hinge System Pin diameter: 5 mm Temporary code, to be created specifically on request | 0÷80 °C |
|
| F7510FTPPB0550-PBT | 550 mm (21,65'') | PPB - Polypropylene (Blue) | PBT White | No positioners | F7510 | 45 mm | 32000 N/m | 5.2 kg/m^2 | Self-Locking Pin | 0÷100 °C | Self-Cleaning Hinge System Pin diameter: 5 mm Temporary code, to be created specifically on request | 0÷100 °C |
|
| F7510FTPPB0550-PE | 550 mm (21,65'') | PPB - Polypropylene (Blue) | PE White | No positioners | F7510 | 45 mm | 12000 N/m | 5.2 kg/m^2 | Self-Locking Pin | 0÷65 °C | Self-Cleaning Hinge System Pin diameter: 5 mm Temporary code, to be created specifically on request | 0÷65 °C |
|
| F7510FTPPB0550-PP | 550 mm (21,65'') | PPB - Polypropylene (Blue) | PP White | No positioners | F7510 | 45 mm | 14000 N/m | 5.2 kg/m^2 | Self-Locking Pin | 0÷100 °C | Self-Cleaning Hinge System Pin diameter: 5 mm Temporary code, to be created specifically on request | 0÷100 °C |
|
| F7510FTPPB0600-PA6 | 600 mm (23,62'') | PPB - Polypropylene (Blue) | PA6 White | No positioners | F7510 | 45 mm | 18600 N/m | 5.2 kg/m^2 | Self-Locking Pin | 0÷80 °C | Self-Cleaning Hinge System Pin diameter: 5 mm Temporary code, to be created specifically on request | 0÷80 °C |
|
| F7510FTPPB0600-PBT | 600 mm (23,62'') | PPB - Polypropylene (Blue) | PBT White | No positioners | F7510 | 45 mm | 32000 N/m | 5.2 kg/m^2 | Self-Locking Pin | 0÷100 °C | Self-Cleaning Hinge System Pin diameter: 5 mm Temporary code, to be created specifically on request | 0÷100 °C |
|
| F7510FTPPB0600-PE | 600 mm (23,62'') | PPB - Polypropylene (Blue) | PE White | No positioners | F7510 | 45 mm | 12000 N/m | 5.2 kg/m^2 | Self-Locking Pin | 0÷65 °C | Self-Cleaning Hinge System Pin diameter: 5 mm Temporary code, to be created specifically on request | 0÷65 °C |
|
| F7510FTPPB0600-PP | 600 mm (23,62'') | PPB - Polypropylene (Blue) | PP White | No positioners | F7510 | 45 mm | 14000 N/m | 5.2 kg/m^2 | Self-Locking Pin | 0÷100 °C | Self-Cleaning Hinge System Pin diameter: 5 mm Temporary code, to be created specifically on request | 0÷100 °C |
|
| F7510FTPPB0650-PA6 | 650 mm (25,59'') | PPB - Polypropylene (Blue) | PA6 White | No positioners | F7510 | 45 mm | 18600 N/m | 5.2 kg/m^2 | Self-Locking Pin | 0÷80 °C | Self-Cleaning Hinge System Pin diameter: 5 mm Temporary code, to be created specifically on request | 0÷80 °C |
|
| F7510FTPPB0650-PBT | 650 mm (25,59'') | PPB - Polypropylene (Blue) | PBT White | No positioners | F7510 | 45 mm | 32000 N/m | 5.2 kg/m^2 | Self-Locking Pin | 0÷100 °C | Self-Cleaning Hinge System Pin diameter: 5 mm Temporary code, to be created specifically on request | 0÷100 °C |
|
| F7510FTPPB0650-PE | 650 mm (25,59'') | PPB - Polypropylene (Blue) | PE White | No positioners | F7510 | 45 mm | 12000 N/m | 5.2 kg/m^2 | Self-Locking Pin | 0÷65 °C | Self-Cleaning Hinge System Pin diameter: 5 mm Temporary code, to be created specifically on request | 0÷65 °C |
|
| F7510FTPPB0650-PP | 650 mm (25,59'') | PPB - Polypropylene (Blue) | PP White | No positioners | F7510 | 45 mm | 14000 N/m | 5.2 kg/m^2 | Self-Locking Pin | 0÷100 °C | Self-Cleaning Hinge System Pin diameter: 5 mm Temporary code, to be created specifically on request | 0÷100 °C |
|
| F7510FTPPB0700-PA6 | 700 mm (27,56'') | PPB - Polypropylene (Blue) | PA6 White | No positioners | F7510 | 45 mm | 18600 N/m | 5.2 kg/m^2 | Self-Locking Pin | 0÷80 °C | Self-Cleaning Hinge System Pin diameter: 5 mm Temporary code, to be created specifically on request | 0÷80 °C |
|
| F7510FTPPB0700-PBT | 700 mm (27,56'') | PPB - Polypropylene (Blue) | PBT White | No positioners | F7510 | 45 mm | 32000 N/m | 5.2 kg/m^2 | Self-Locking Pin | 0÷100 °C | Self-Cleaning Hinge System Pin diameter: 5 mm Temporary code, to be created specifically on request | 0÷100 °C |
|
| F7510FTPPB0700-PE | 700 mm (27,56'') | PPB - Polypropylene (Blue) | PE White | No positioners | F7510 | 45 mm | 12000 N/m | 5.2 kg/m^2 | Self-Locking Pin | 0÷65 °C | Self-Cleaning Hinge System Pin diameter: 5 mm Temporary code, to be created specifically on request | 0÷65 °C |
|
| F7510FTPPB0700-PP | 700 mm (27,56'') | PPB - Polypropylene (Blue) | PP White | No positioners | F7510 | 45 mm | 14000 N/m | 5.2 kg/m^2 | Self-Locking Pin | 0÷100 °C | Self-Cleaning Hinge System Pin diameter: 5 mm Temporary code, to be created specifically on request | 0÷100 °C |
|
| F7510FTPPB0750-PA6 | 750 mm (29,53'') | PPB - Polypropylene (Blue) | PA6 White | No positioners | F7510 | 45 mm | 18600 N/m | 5.2 kg/m^2 | Self-Locking Pin | 0÷80 °C | Self-Cleaning Hinge System Pin diameter: 5 mm Temporary code, to be created specifically on request | 0÷80 °C |
|
| F7510FTPPB0750-PBT | 750 mm (29,53'') | PPB - Polypropylene (Blue) | PBT White | No positioners | F7510 | 45 mm | 32000 N/m | 5.2 kg/m^2 | Self-Locking Pin | 0÷100 °C | Self-Cleaning Hinge System Pin diameter: 5 mm Temporary code, to be created specifically on request | 0÷100 °C |
|
| F7510FTPPB0750-PE | 750 mm (29,53'') | PPB - Polypropylene (Blue) | PE White | No positioners | F7510 | 45 mm | 12000 N/m | 5.2 kg/m^2 | Self-Locking Pin | 0÷65 °C | Self-Cleaning Hinge System Pin diameter: 5 mm Temporary code, to be created specifically on request | 0÷65 °C |
|
| F7510FTPPB0750-PP | 750 mm (29,53'') | PPB - Polypropylene (Blue) | PP White | No positioners | F7510 | 45 mm | 14000 N/m | 5.2 kg/m^2 | Self-Locking Pin | 0÷100 °C | Self-Cleaning Hinge System Pin diameter: 5 mm Temporary code, to be created specifically on request | 0÷100 °C |
|
| F7510FTPPB0800-PA6 | 800 mm (31,5'') | PPB - Polypropylene (Blue) | PA6 White | No positioners | F7510 | 45 mm | 18600 N/m | 5.2 kg/m^2 | Self-Locking Pin | 0÷80 °C | Self-Cleaning Hinge System Pin diameter: 5 mm Temporary code, to be created specifically on request | 0÷80 °C |
|
| F7510FTPPB0800-PBT | 800 mm (31,5'') | PPB - Polypropylene (Blue) | PBT White | No positioners | F7510 | 45 mm | 32000 N/m | 5.2 kg/m^2 | Self-Locking Pin | 0÷100 °C | Self-Cleaning Hinge System Pin diameter: 5 mm Temporary code, to be created specifically on request | 0÷100 °C |
|
| F7510FTPPB0800-PE | 800 mm (31,5'') | PPB - Polypropylene (Blue) | PE White | No positioners | F7510 | 45 mm | 12000 N/m | 5.2 kg/m^2 | Self-Locking Pin | 0÷65 °C | Self-Cleaning Hinge System Pin diameter: 5 mm Temporary code, to be created specifically on request | 0÷65 °C |
|
| F7510FTPPB0800-PP | 800 mm (31,5'') | PPB - Polypropylene (Blue) | PP White | No positioners | F7510 | 45 mm | 14000 N/m | 5.2 kg/m^2 | Self-Locking Pin | 0÷100 °C | Self-Cleaning Hinge System Pin diameter: 5 mm Temporary code, to be created specifically on request | 0÷100 °C |
|
| F7510FTPPB0850-PA6 | 850 mm (33,46'') | PPB - Polypropylene (Blue) | PA6 White | No positioners | F7510 | 45 mm | 18600 N/m | 5.2 kg/m^2 | Self-Locking Pin | 0÷80 °C | Self-Cleaning Hinge System Pin diameter: 5 mm Temporary code, to be created specifically on request | 0÷80 °C |
|
| F7510FTPPB0850-PBT | 850 mm (33,46'') | PPB - Polypropylene (Blue) | PBT White | No positioners | F7510 | 45 mm | 32000 N/m | 5.2 kg/m^2 | Self-Locking Pin | 0÷100 °C | Self-Cleaning Hinge System Pin diameter: 5 mm Temporary code, to be created specifically on request | 0÷100 °C |
|
| F7510FTPPB0850-PE | 850 mm (33,46'') | PPB - Polypropylene (Blue) | PE White | No positioners | F7510 | 45 mm | 12000 N/m | 5.2 kg/m^2 | Self-Locking Pin | 0÷65 °C | Self-Cleaning Hinge System Pin diameter: 5 mm Temporary code, to be created specifically on request | 0÷65 °C |
|
| F7510FTPPB0850-PP | 850 mm (33,46'') | PPB - Polypropylene (Blue) | PP White | No positioners | F7510 | 45 mm | 14000 N/m | 5.2 kg/m^2 | Self-Locking Pin | 0÷100 °C | Self-Cleaning Hinge System Pin diameter: 5 mm Temporary code, to be created specifically on request | 0÷100 °C |
|
| F7510FTPPB0900-PA6 | 900 mm (35,43'') | PPB - Polypropylene (Blue) | PA6 White | No positioners | F7510 | 45 mm | 18600 N/m | 5.2 kg/m^2 | Self-Locking Pin | 0÷80 °C | Self-Cleaning Hinge System Pin diameter: 5 mm Temporary code, to be created specifically on request | 0÷80 °C |
|
| F7510FTPPB0900-PBT | 900 mm (35,43'') | PPB - Polypropylene (Blue) | PBT White | No positioners | F7510 | 45 mm | 32000 N/m | 5.2 kg/m^2 | Self-Locking Pin | 0÷100 °C | Self-Cleaning Hinge System Pin diameter: 5 mm Temporary code, to be created specifically on request | 0÷100 °C |
|
| F7510FTPPB0900-PE | 900 mm (35,43'') | PPB - Polypropylene (Blue) | PE White | No positioners | F7510 | 45 mm | 12000 N/m | 5.2 kg/m^2 | Self-Locking Pin | 0÷65 °C | Self-Cleaning Hinge System Pin diameter: 5 mm Temporary code, to be created specifically on request | 0÷65 °C |
|
| F7510FTPPB0900-PP | 900 mm (35,43'') | PPB - Polypropylene (Blue) | PP White | No positioners | F7510 | 45 mm | 14000 N/m | 5.2 kg/m^2 | Self-Locking Pin | 0÷100 °C | Self-Cleaning Hinge System Pin diameter: 5 mm Temporary code, to be created specifically on request | 0÷100 °C |
|
| F7510FTPPC0050-PA6 | 50 mm (1,97'') | PPC - Polypropylene (cyan) | PA6 White | No positioners | F7510 | 45 mm | 18600 N/m | 5.2 kg/m^2 | Self-Locking Pin | 0÷80 °C | Self-Cleaning Hinge System Pin diameter: 5 mm Temporary code, to be created specifically on request | 0÷80 °C |
|
| F7510FTPPC0050-PBT | 50 mm (1,97'') | PPC - Polypropylene (cyan) | PBT White | No positioners | F7510 | 45 mm | 32000 N/m | 5.2 kg/m^2 | Self-Locking Pin | 0÷100 °C | Self-Cleaning Hinge System Pin diameter: 5 mm Temporary code, to be created specifically on request | 0÷100 °C |
|
| F7510FTPPC0050-PE | 50 mm (1,97'') | PPC - Polypropylene (cyan) | PE White | No positioners | F7510 | 45 mm | 12000 N/m | 5.2 kg/m^2 | Self-Locking Pin | 0÷65 °C | Self-Cleaning Hinge System Pin diameter: 5 mm Temporary code, to be created specifically on request | 0÷65 °C |
|
| F7510FTPPC0050-PP | 50 mm (1,97'') | PPC - Polypropylene (cyan) | PP White | No positioners | F7510 | 45 mm | 14000 N/m | 5.2 kg/m^2 | Self-Locking Pin | 0÷100 °C | Self-Cleaning Hinge System Pin diameter: 5 mm Temporary code, to be created specifically on request | 0÷100 °C |
|
| F7510FTPPC0100-PA6 | 100 mm (3,94'') | PPC - Polypropylene (cyan) | PA6 White | No positioners | F7510 | 45 mm | 18600 N/m | 5.2 kg/m^2 | Self-Locking Pin | 0÷80 °C | Self-Cleaning Hinge System Pin diameter: 5 mm Temporary code, to be created specifically on request | 0÷80 °C |
|
| F7510FTPPC0100-PBT | 100 mm (3,94'') | PPC - Polypropylene (cyan) | PBT White | No positioners | F7510 | 45 mm | 32000 N/m | 5.2 kg/m^2 | Self-Locking Pin | 0÷100 °C | Self-Cleaning Hinge System Pin diameter: 5 mm Temporary code, to be created specifically on request | 0÷100 °C |
|
| F7510FTPPC0100-PE | 100 mm (3,94'') | PPC - Polypropylene (cyan) | PE White | No positioners | F7510 | 45 mm | 12000 N/m | 5.2 kg/m^2 | Self-Locking Pin | 0÷65 °C | Self-Cleaning Hinge System Pin diameter: 5 mm Temporary code, to be created specifically on request | 0÷65 °C |
|
| F7510FTPPC0100-PP | 100 mm (3,94'') | PPC - Polypropylene (cyan) | PP White | No positioners | F7510 | 45 mm | 14000 N/m | 5.2 kg/m^2 | Self-Locking Pin | 0÷100 °C | Self-Cleaning Hinge System Pin diameter: 5 mm Temporary code, to be created specifically on request | 0÷100 °C |
|
| F7510FTPPC0150-PA6 | 150 mm (5,91'') | PPC - Polypropylene (cyan) | PA6 White | No positioners | F7510 | 45 mm | 18600 N/m | 5.2 kg/m^2 | Self-Locking Pin | 0÷80 °C | Self-Cleaning Hinge System Pin diameter: 5 mm Temporary code, to be created specifically on request | 0÷80 °C |
|
| F7510FTPPC0150-PBT | 150 mm (5,91'') | PPC - Polypropylene (cyan) | PBT White | No positioners | F7510 | 45 mm | 32000 N/m | 5.2 kg/m^2 | Self-Locking Pin | 0÷100 °C | Self-Cleaning Hinge System Pin diameter: 5 mm Temporary code, to be created specifically on request | 0÷100 °C |
|
| F7510FTPPC0150-PE | 150 mm (5,91'') | PPC - Polypropylene (cyan) | PE White | No positioners | F7510 | 45 mm | 12000 N/m | 5.2 kg/m^2 | Self-Locking Pin | 0÷65 °C | Self-Cleaning Hinge System Pin diameter: 5 mm Temporary code, to be created specifically on request | 0÷65 °C |
|
| F7510FTPPC0150-PP | 150 mm (5,91'') | PPC - Polypropylene (cyan) | PP White | No positioners | F7510 | 45 mm | 14000 N/m | 5.2 kg/m^2 | Self-Locking Pin | 0÷100 °C | Self-Cleaning Hinge System Pin diameter: 5 mm Temporary code, to be created specifically on request | 0÷100 °C |
|
| F7510FTPPC0200-PA6 | 200 mm (7,87'') | PPC - Polypropylene (cyan) | PA6 White | No positioners | F7510 | 45 mm | 18600 N/m | 5.2 kg/m^2 | Self-Locking Pin | 0÷80 °C | Self-Cleaning Hinge System Pin diameter: 5 mm Temporary code, to be created specifically on request | 0÷80 °C |
|
| F7510FTPPC0200-PBT | 200 mm (7,87'') | PPC - Polypropylene (cyan) | PBT White | No positioners | F7510 | 45 mm | 32000 N/m | 5.2 kg/m^2 | Self-Locking Pin | 0÷100 °C | Self-Cleaning Hinge System Pin diameter: 5 mm Temporary code, to be created specifically on request | 0÷100 °C |
|
| F7510FTPPC0200-PE | 200 mm (7,87'') | PPC - Polypropylene (cyan) | PE White | No positioners | F7510 | 45 mm | 12000 N/m | 5.2 kg/m^2 | Self-Locking Pin | 0÷65 °C | Self-Cleaning Hinge System Pin diameter: 5 mm Temporary code, to be created specifically on request | 0÷65 °C |
|
| F7510FTPPC0200-PP | 200 mm (7,87'') | PPC - Polypropylene (cyan) | PP White | No positioners | F7510 | 45 mm | 14000 N/m | 5.2 kg/m^2 | Self-Locking Pin | 0÷100 °C | Self-Cleaning Hinge System Pin diameter: 5 mm Temporary code, to be created specifically on request | 0÷100 °C |
|
| F7510FTPPC0250-PA6 | 250 mm (9,84'') | PPC - Polypropylene (cyan) | PA6 White | No positioners | F7510 | 45 mm | 18600 N/m | 5.2 kg/m^2 | Self-Locking Pin | 0÷80 °C | Self-Cleaning Hinge System Pin diameter: 5 mm Temporary code, to be created specifically on request | 0÷80 °C |
|
| F7510FTPPC0250-PBT | 250 mm (9,84'') | PPC - Polypropylene (cyan) | PBT White | No positioners | F7510 | 45 mm | 32000 N/m | 5.2 kg/m^2 | Self-Locking Pin | 0÷100 °C | Self-Cleaning Hinge System Pin diameter: 5 mm Temporary code, to be created specifically on request | 0÷100 °C |
|
| F7510FTPPC0250-PE | 250 mm (9,84'') | PPC - Polypropylene (cyan) | PE White | No positioners | F7510 | 45 mm | 12000 N/m | 5.2 kg/m^2 | Self-Locking Pin | 0÷65 °C | Self-Cleaning Hinge System Pin diameter: 5 mm Temporary code, to be created specifically on request | 0÷65 °C |
|
| F7510FTPPC0250-PP | 250 mm (9,84'') | PPC - Polypropylene (cyan) | PP White | No positioners | F7510 | 45 mm | 14000 N/m | 5.2 kg/m^2 | Self-Locking Pin | 0÷100 °C | Self-Cleaning Hinge System Pin diameter: 5 mm Temporary code, to be created specifically on request | 0÷100 °C |
|
| F7510FTPPC0300-PA6 | 300 mm (11,81'') | PPC - Polypropylene (cyan) | PA6 White | No positioners | F7510 | 45 mm | 18600 N/m | 5.2 kg/m^2 | Self-Locking Pin | 0÷80 °C | Self-Cleaning Hinge System Pin diameter: 5 mm Temporary code, to be created specifically on request | 0÷80 °C |
|
| F7510FTPPC0300-PBT | 300 mm (11,81'') | PPC - Polypropylene (cyan) | PBT White | No positioners | F7510 | 45 mm | 32000 N/m | 5.2 kg/m^2 | Self-Locking Pin | 0÷100 °C | Self-Cleaning Hinge System Pin diameter: 5 mm Temporary code, to be created specifically on request | 0÷100 °C |
|
| F7510FTPPC0300-PE | 300 mm (11,81'') | PPC - Polypropylene (cyan) | PE White | No positioners | F7510 | 45 mm | 12000 N/m | 5.2 kg/m^2 | Self-Locking Pin | 0÷65 °C | Self-Cleaning Hinge System Pin diameter: 5 mm Temporary code, to be created specifically on request | 0÷65 °C |
|
| F7510FTPPC0300-PP | 300 mm (11,81'') | PPC - Polypropylene (cyan) | PP White | No positioners | F7510 | 45 mm | 14000 N/m | 5.2 kg/m^2 | Self-Locking Pin | 0÷100 °C | Self-Cleaning Hinge System Pin diameter: 5 mm Temporary code, to be created specifically on request | 0÷100 °C |
|
| F7510FTPPC0350-PA6 | 350 mm (13,78'') | PPC - Polypropylene (cyan) | PA6 White | No positioners | F7510 | 45 mm | 18600 N/m | 5.2 kg/m^2 | Self-Locking Pin | 0÷80 °C | Self-Cleaning Hinge System Pin diameter: 5 mm Temporary code, to be created specifically on request | 0÷80 °C |
|
| F7510FTPPC0350-PBT | 350 mm (13,78'') | PPC - Polypropylene (cyan) | PBT White | No positioners | F7510 | 45 mm | 32000 N/m | 5.2 kg/m^2 | Self-Locking Pin | 0÷100 °C | Self-Cleaning Hinge System Pin diameter: 5 mm Temporary code, to be created specifically on request | 0÷100 °C |
|
| F7510FTPPC0350-PE | 350 mm (13,78'') | PPC - Polypropylene (cyan) | PE White | No positioners | F7510 | 45 mm | 12000 N/m | 5.2 kg/m^2 | Self-Locking Pin | 0÷65 °C | Self-Cleaning Hinge System Pin diameter: 5 mm Temporary code, to be created specifically on request | 0÷65 °C |
|
| F7510FTPPC0350-PP | 350 mm (13,78'') | PPC - Polypropylene (cyan) | PP White | No positioners | F7510 | 45 mm | 14000 N/m | 5.2 kg/m^2 | Self-Locking Pin | 0÷100 °C | Self-Cleaning Hinge System Pin diameter: 5 mm Temporary code, to be created specifically on request | 0÷100 °C |
|
| F7510FTPPC0400-PA6 | 400 mm (15,75'') | PPC - Polypropylene (cyan) | PA6 White | No positioners | F7510 | 45 mm | 18600 N/m | 5.2 kg/m^2 | Self-Locking Pin | 0÷80 °C | Self-Cleaning Hinge System Pin diameter: 5 mm Temporary code, to be created specifically on request | 0÷80 °C |
|
| F7510FTPPC0400-PBT | 400 mm (15,75'') | PPC - Polypropylene (cyan) | PBT White | No positioners | F7510 | 45 mm | 32000 N/m | 5.2 kg/m^2 | Self-Locking Pin | 0÷100 °C | Self-Cleaning Hinge System Pin diameter: 5 mm Temporary code, to be created specifically on request | 0÷100 °C |
|
| F7510FTPPC0400-PE | 400 mm (15,75'') | PPC - Polypropylene (cyan) | PE White | No positioners | F7510 | 45 mm | 12000 N/m | 5.2 kg/m^2 | Self-Locking Pin | 0÷65 °C | Self-Cleaning Hinge System Pin diameter: 5 mm Temporary code, to be created specifically on request | 0÷65 °C |
|
| F7510FTPPC0400-PP | 400 mm (15,75'') | PPC - Polypropylene (cyan) | PP White | No positioners | F7510 | 45 mm | 14000 N/m | 5.2 kg/m^2 | Self-Locking Pin | 0÷100 °C | Self-Cleaning Hinge System Pin diameter: 5 mm Temporary code, to be created specifically on request | 0÷100 °C |
|
| F7510FTPPC0450-PA6 | 450 mm (17,72'') | PPC - Polypropylene (cyan) | PA6 White | No positioners | F7510 | 45 mm | 18600 N/m | 5.2 kg/m^2 | Self-Locking Pin | 0÷80 °C | Self-Cleaning Hinge System Pin diameter: 5 mm Temporary code, to be created specifically on request | 0÷80 °C |
|
| F7510FTPPC0450-PBT | 450 mm (17,72'') | PPC - Polypropylene (cyan) | PBT White | No positioners | F7510 | 45 mm | 32000 N/m | 5.2 kg/m^2 | Self-Locking Pin | 0÷100 °C | Self-Cleaning Hinge System Pin diameter: 5 mm Temporary code, to be created specifically on request | 0÷100 °C |
|
| F7510FTPPC0450-PE | 450 mm (17,72'') | PPC - Polypropylene (cyan) | PE White | No positioners | F7510 | 45 mm | 12000 N/m | 5.2 kg/m^2 | Self-Locking Pin | 0÷65 °C | Self-Cleaning Hinge System Pin diameter: 5 mm Temporary code, to be created specifically on request | 0÷65 °C |
|
| F7510FTPPC0450-PP | 450 mm (17,72'') | PPC - Polypropylene (cyan) | PP White | No positioners | F7510 | 45 mm | 14000 N/m | 5.2 kg/m^2 | Self-Locking Pin | 0÷100 °C | Self-Cleaning Hinge System Pin diameter: 5 mm Temporary code, to be created specifically on request | 0÷100 °C |
|
| F7510FTPPC0500-PA6 | 500 mm (19,69'') | PPC - Polypropylene (cyan) | PA6 White | No positioners | F7510 | 45 mm | 18600 N/m | 5.2 kg/m^2 | Self-Locking Pin | 0÷80 °C | Self-Cleaning Hinge System Pin diameter: 5 mm Temporary code, to be created specifically on request | 0÷80 °C |
|
| F7510FTPPC0500-PBT | 500 mm (19,69'') | PPC - Polypropylene (cyan) | PBT White | No positioners | F7510 | 45 mm | 32000 N/m | 5.2 kg/m^2 | Self-Locking Pin | 0÷100 °C | Self-Cleaning Hinge System Pin diameter: 5 mm Temporary code, to be created specifically on request | 0÷100 °C |
|
| F7510FTPPC0500-PE | 500 mm (19,69'') | PPC - Polypropylene (cyan) | PE White | No positioners | F7510 | 45 mm | 12000 N/m | 5.2 kg/m^2 | Self-Locking Pin | 0÷65 °C | Self-Cleaning Hinge System Pin diameter: 5 mm Temporary code, to be created specifically on request | 0÷65 °C |
|
| F7510FTPPC0500-PP | 500 mm (19,69'') | PPC - Polypropylene (cyan) | PP White | No positioners | F7510 | 45 mm | 14000 N/m | 5.2 kg/m^2 | Self-Locking Pin | 0÷100 °C | Self-Cleaning Hinge System Pin diameter: 5 mm Temporary code, to be created specifically on request | 0÷100 °C |
|
| F7510FTPPC0550-PA6 | 550 mm (21,65'') | PPC - Polypropylene (cyan) | PA6 White | No positioners | F7510 | 45 mm | 18600 N/m | 5.2 kg/m^2 | Self-Locking Pin | 0÷80 °C | Self-Cleaning Hinge System Pin diameter: 5 mm Temporary code, to be created specifically on request | 0÷80 °C |
|
| F7510FTPPC0550-PBT | 550 mm (21,65'') | PPC - Polypropylene (cyan) | PBT White | No positioners | F7510 | 45 mm | 32000 N/m | 5.2 kg/m^2 | Self-Locking Pin | 0÷100 °C | Self-Cleaning Hinge System Pin diameter: 5 mm Temporary code, to be created specifically on request | 0÷100 °C |
|
| F7510FTPPC0550-PE | 550 mm (21,65'') | PPC - Polypropylene (cyan) | PE White | No positioners | F7510 | 45 mm | 12000 N/m | 5.2 kg/m^2 | Self-Locking Pin | 0÷65 °C | Self-Cleaning Hinge System Pin diameter: 5 mm Temporary code, to be created specifically on request | 0÷65 °C |
|
| F7510FTPPC0550-PP | 550 mm (21,65'') | PPC - Polypropylene (cyan) | PP White | No positioners | F7510 | 45 mm | 14000 N/m | 5.2 kg/m^2 | Self-Locking Pin | 0÷100 °C | Self-Cleaning Hinge System Pin diameter: 5 mm Temporary code, to be created specifically on request | 0÷100 °C |
|
| F7510FTPPC0600-PA6 | 600 mm (23,62'') | PPC - Polypropylene (cyan) | PA6 White | No positioners | F7510 | 45 mm | 18600 N/m | 5.2 kg/m^2 | Self-Locking Pin | 0÷80 °C | Self-Cleaning Hinge System Pin diameter: 5 mm Temporary code, to be created specifically on request | 0÷80 °C |
|
| F7510FTPPC0600-PBT | 600 mm (23,62'') | PPC - Polypropylene (cyan) | PBT White | No positioners | F7510 | 45 mm | 32000 N/m | 5.2 kg/m^2 | Self-Locking Pin | 0÷100 °C | Self-Cleaning Hinge System Pin diameter: 5 mm Temporary code, to be created specifically on request | 0÷100 °C |
|
| F7510FTPPC0600-PE | 600 mm (23,62'') | PPC - Polypropylene (cyan) | PE White | No positioners | F7510 | 45 mm | 12000 N/m | 5.2 kg/m^2 | Self-Locking Pin | 0÷65 °C | Self-Cleaning Hinge System Pin diameter: 5 mm Temporary code, to be created specifically on request | 0÷65 °C |
|
| F7510FTPPC0600-PP | 600 mm (23,62'') | PPC - Polypropylene (cyan) | PP White | No positioners | F7510 | 45 mm | 14000 N/m | 5.2 kg/m^2 | Self-Locking Pin | 0÷100 °C | Self-Cleaning Hinge System Pin diameter: 5 mm Temporary code, to be created specifically on request | 0÷100 °C |
|
| F7510FTPPC0650-PA6 | 650 mm (25,59'') | PPC - Polypropylene (cyan) | PA6 White | No positioners | F7510 | 45 mm | 18600 N/m | 5.2 kg/m^2 | Self-Locking Pin | 0÷80 °C | Self-Cleaning Hinge System Pin diameter: 5 mm Temporary code, to be created specifically on request | 0÷80 °C |
|
| F7510FTPPC0650-PBT | 650 mm (25,59'') | PPC - Polypropylene (cyan) | PBT White | No positioners | F7510 | 45 mm | 32000 N/m | 5.2 kg/m^2 | Self-Locking Pin | 0÷100 °C | Self-Cleaning Hinge System Pin diameter: 5 mm Temporary code, to be created specifically on request | 0÷100 °C |
|
| F7510FTPPC0650-PE | 650 mm (25,59'') | PPC - Polypropylene (cyan) | PE White | No positioners | F7510 | 45 mm | 12000 N/m | 5.2 kg/m^2 | Self-Locking Pin | 0÷65 °C | Self-Cleaning Hinge System Pin diameter: 5 mm Temporary code, to be created specifically on request | 0÷65 °C |
|
| F7510FTPPC0650-PP | 650 mm (25,59'') | PPC - Polypropylene (cyan) | PP White | No positioners | F7510 | 45 mm | 14000 N/m | 5.2 kg/m^2 | Self-Locking Pin | 0÷100 °C | Self-Cleaning Hinge System Pin diameter: 5 mm Temporary code, to be created specifically on request | 0÷100 °C |
|
| F7510FTPPC0700-PA6 | 700 mm (27,56'') | PPC - Polypropylene (cyan) | PA6 White | No positioners | F7510 | 45 mm | 18600 N/m | 5.2 kg/m^2 | Self-Locking Pin | 0÷80 °C | Self-Cleaning Hinge System Pin diameter: 5 mm Temporary code, to be created specifically on request | 0÷80 °C |
|
| F7510FTPPC0700-PBT | 700 mm (27,56'') | PPC - Polypropylene (cyan) | PBT White | No positioners | F7510 | 45 mm | 32000 N/m | 5.2 kg/m^2 | Self-Locking Pin | 0÷100 °C | Self-Cleaning Hinge System Pin diameter: 5 mm Temporary code, to be created specifically on request | 0÷100 °C |
|
| F7510FTPPC0700-PE | 700 mm (27,56'') | PPC - Polypropylene (cyan) | PE White | No positioners | F7510 | 45 mm | 12000 N/m | 5.2 kg/m^2 | Self-Locking Pin | 0÷65 °C | Self-Cleaning Hinge System Pin diameter: 5 mm Temporary code, to be created specifically on request | 0÷65 °C |
|
| F7510FTPPC0700-PP | 700 mm (27,56'') | PPC - Polypropylene (cyan) | PP White | No positioners | F7510 | 45 mm | 14000 N/m | 5.2 kg/m^2 | Self-Locking Pin | 0÷100 °C | Self-Cleaning Hinge System Pin diameter: 5 mm Temporary code, to be created specifically on request | 0÷100 °C |
|
| F7510FTPPC0750-PA6 | 750 mm (29,53'') | PPC - Polypropylene (cyan) | PA6 White | No positioners | F7510 | 45 mm | 18600 N/m | 5.2 kg/m^2 | Self-Locking Pin | 0÷80 °C | Self-Cleaning Hinge System Pin diameter: 5 mm Temporary code, to be created specifically on request | 0÷80 °C |
|
| F7510FTPPC0750-PBT | 750 mm (29,53'') | PPC - Polypropylene (cyan) | PBT White | No positioners | F7510 | 45 mm | 32000 N/m | 5.2 kg/m^2 | Self-Locking Pin | 0÷100 °C | Self-Cleaning Hinge System Pin diameter: 5 mm Temporary code, to be created specifically on request | 0÷100 °C |
|
| F7510FTPPC0750-PE | 750 mm (29,53'') | PPC - Polypropylene (cyan) | PE White | No positioners | F7510 | 45 mm | 12000 N/m | 5.2 kg/m^2 | Self-Locking Pin | 0÷65 °C | Self-Cleaning Hinge System Pin diameter: 5 mm Temporary code, to be created specifically on request | 0÷65 °C |
|
| F7510FTPPC0750-PP | 750 mm (29,53'') | PPC - Polypropylene (cyan) | PP White | No positioners | F7510 | 45 mm | 14000 N/m | 5.2 kg/m^2 | Self-Locking Pin | 0÷100 °C | Self-Cleaning Hinge System Pin diameter: 5 mm Temporary code, to be created specifically on request | 0÷100 °C |
|
| F7510FTPPC0800-PA6 | 800 mm (31,5'') | PPC - Polypropylene (cyan) | PA6 White | No positioners | F7510 | 45 mm | 18600 N/m | 5.2 kg/m^2 | Self-Locking Pin | 0÷80 °C | Self-Cleaning Hinge System Pin diameter: 5 mm Temporary code, to be created specifically on request | 0÷80 °C |
|
| F7510FTPPC0800-PBT | 800 mm (31,5'') | PPC - Polypropylene (cyan) | PBT White | No positioners | F7510 | 45 mm | 32000 N/m | 5.2 kg/m^2 | Self-Locking Pin | 0÷100 °C | Self-Cleaning Hinge System Pin diameter: 5 mm Temporary code, to be created specifically on request | 0÷100 °C |
|
| F7510FTPPC0800-PE | 800 mm (31,5'') | PPC - Polypropylene (cyan) | PE White | No positioners | F7510 | 45 mm | 12000 N/m | 5.2 kg/m^2 | Self-Locking Pin | 0÷65 °C | Self-Cleaning Hinge System Pin diameter: 5 mm Temporary code, to be created specifically on request | 0÷65 °C |
|
| F7510FTPPC0800-PP | 800 mm (31,5'') | PPC - Polypropylene (cyan) | PP White | No positioners | F7510 | 45 mm | 14000 N/m | 5.2 kg/m^2 | Self-Locking Pin | 0÷100 °C | Self-Cleaning Hinge System Pin diameter: 5 mm Temporary code, to be created specifically on request | 0÷100 °C |
|
| F7510FTPPC0850-PA6 | 850 mm (33,46'') | PPC - Polypropylene (cyan) | PA6 White | No positioners | F7510 | 45 mm | 18600 N/m | 5.2 kg/m^2 | Self-Locking Pin | 0÷80 °C | Self-Cleaning Hinge System Pin diameter: 5 mm Temporary code, to be created specifically on request | 0÷80 °C |
|
| F7510FTPPC0850-PBT | 850 mm (33,46'') | PPC - Polypropylene (cyan) | PBT White | No positioners | F7510 | 45 mm | 32000 N/m | 5.2 kg/m^2 | Self-Locking Pin | 0÷100 °C | Self-Cleaning Hinge System Pin diameter: 5 mm Temporary code, to be created specifically on request | 0÷100 °C |
|
| F7510FTPPC0850-PE | 850 mm (33,46'') | PPC - Polypropylene (cyan) | PE White | No positioners | F7510 | 45 mm | 12000 N/m | 5.2 kg/m^2 | Self-Locking Pin | 0÷65 °C | Self-Cleaning Hinge System Pin diameter: 5 mm Temporary code, to be created specifically on request | 0÷65 °C |
|
| F7510FTPPC0850-PP | 850 mm (33,46'') | PPC - Polypropylene (cyan) | PP White | No positioners | F7510 | 45 mm | 14000 N/m | 5.2 kg/m^2 | Self-Locking Pin | 0÷100 °C | Self-Cleaning Hinge System Pin diameter: 5 mm Temporary code, to be created specifically on request | 0÷100 °C |
|
| F7510FTPPC0900-PA6 | 900 mm (35,43'') | PPC - Polypropylene (cyan) | PA6 White | No positioners | F7510 | 45 mm | 18600 N/m | 5.2 kg/m^2 | Self-Locking Pin | 0÷80 °C | Self-Cleaning Hinge System Pin diameter: 5 mm Temporary code, to be created specifically on request | 0÷80 °C |
|
| F7510FTPPC0900-PBT | 900 mm (35,43'') | PPC - Polypropylene (cyan) | PBT White | No positioners | F7510 | 45 mm | 32000 N/m | 5.2 kg/m^2 | Self-Locking Pin | 0÷100 °C | Self-Cleaning Hinge System Pin diameter: 5 mm Temporary code, to be created specifically on request | 0÷100 °C |
|
| F7510FTPPC0900-PE | 900 mm (35,43'') | PPC - Polypropylene (cyan) | PE White | No positioners | F7510 | 45 mm | 12000 N/m | 5.2 kg/m^2 | Self-Locking Pin | 0÷65 °C | Self-Cleaning Hinge System Pin diameter: 5 mm Temporary code, to be created specifically on request | 0÷65 °C |
|
| F7510FTPPC0900-PP | 900 mm (35,43'') | PPC - Polypropylene (cyan) | PP White | No positioners | F7510 | 45 mm | 14000 N/m | 5.2 kg/m^2 | Self-Locking Pin | 0÷100 °C | Self-Cleaning Hinge System Pin diameter: 5 mm Temporary code, to be created specifically on request | 0÷100 °C |
|
| F7510FTPPW0050-PA6 | 50 mm (1,97'') | PPW - Polypropylene (white) | PA6 White | No positioners | F7510 | 45 mm | 18600 N/m | 5.2 kg/m^2 | Self-Locking Pin | 0÷80 °C | Self-Cleaning Hinge System Pin diameter: 5 mm Temporary code, to be created specifically on request | 0÷80 °C |
|
| F7510FTPPW0050-PBT | 50 mm (1,97'') | PPW - Polypropylene (white) | PBT White | No positioners | F7510 | 45 mm | 32000 N/m | 5.2 kg/m^2 | Self-Locking Pin | 0÷100 °C | Self-Cleaning Hinge System Pin diameter: 5 mm Temporary code, to be created specifically on request | 0÷100 °C |
|
| F7510FTPPW0050-PE | 50 mm (1,97'') | PPW - Polypropylene (white) | PE White | No positioners | F7510 | 45 mm | 12000 N/m | 5.2 kg/m^2 | Self-Locking Pin | 0÷65 °C | Self-Cleaning Hinge System Pin diameter: 5 mm Temporary code, to be created specifically on request | 0÷65 °C |
|
| F7510FTPPW0050-PP | 50 mm (1,97'') | PPW - Polypropylene (white) | PP White | No positioners | F7510 | 45 mm | 14000 N/m | 5.2 kg/m^2 | Self-Locking Pin | 0÷100 °C | Self-Cleaning Hinge System Pin diameter: 5 mm Temporary code, to be created specifically on request | 0÷100 °C |
|
| F7510FTPPW0100-PA6 | 100 mm (3,94'') | PPW - Polypropylene (white) | PA6 White | No positioners | F7510 | 45 mm | 18600 N/m | 5.2 kg/m^2 | Self-Locking Pin | 0÷80 °C | Self-Cleaning Hinge System Pin diameter: 5 mm Temporary code, to be created specifically on request | 0÷80 °C |
|
| F7510FTPPW0100-PBT | 100 mm (3,94'') | PPW - Polypropylene (white) | PBT White | No positioners | F7510 | 45 mm | 32000 N/m | 5.2 kg/m^2 | Self-Locking Pin | 0÷100 °C | Self-Cleaning Hinge System Pin diameter: 5 mm Temporary code, to be created specifically on request | 0÷100 °C |
|
| F7510FTPPW0100-PE | 100 mm (3,94'') | PPW - Polypropylene (white) | PE White | No positioners | F7510 | 45 mm | 12000 N/m | 5.2 kg/m^2 | Self-Locking Pin | 0÷65 °C | Self-Cleaning Hinge System Pin diameter: 5 mm Temporary code, to be created specifically on request | 0÷65 °C |
|
| F7510FTPPW0100-PP | 100 mm (3,94'') | PPW - Polypropylene (white) | PP White | No positioners | F7510 | 45 mm | 14000 N/m | 5.2 kg/m^2 | Self-Locking Pin | 0÷100 °C | Self-Cleaning Hinge System Pin diameter: 5 mm Temporary code, to be created specifically on request | 0÷100 °C |
|
| F7510FTPPW0150-PA6 | 150 mm (5,91'') | PPW - Polypropylene (white) | PA6 White | No positioners | F7510 | 45 mm | 18600 N/m | 5.2 kg/m^2 | Self-Locking Pin | 0÷80 °C | Self-Cleaning Hinge System Pin diameter: 5 mm Temporary code, to be created specifically on request | 0÷80 °C |
|
| F7510FTPPW0150-PBT | 150 mm (5,91'') | PPW - Polypropylene (white) | PBT White | No positioners | F7510 | 45 mm | 32000 N/m | 5.2 kg/m^2 | Self-Locking Pin | 0÷100 °C | Self-Cleaning Hinge System Pin diameter: 5 mm Temporary code, to be created specifically on request | 0÷100 °C |
|
| F7510FTPPW0150-PE | 150 mm (5,91'') | PPW - Polypropylene (white) | PE White | No positioners | F7510 | 45 mm | 12000 N/m | 5.2 kg/m^2 | Self-Locking Pin | 0÷65 °C | Self-Cleaning Hinge System Pin diameter: 5 mm Temporary code, to be created specifically on request | 0÷65 °C |
|
| F7510FTPPW0150-PP | 150 mm (5,91'') | PPW - Polypropylene (white) | PP White | No positioners | F7510 | 45 mm | 14000 N/m | 5.2 kg/m^2 | Self-Locking Pin | 0÷100 °C | Self-Cleaning Hinge System Pin diameter: 5 mm Temporary code, to be created specifically on request | 0÷100 °C |
|
| F7510FTPPW0200-PA6 | 200 mm (7,87'') | PPW - Polypropylene (white) | PA6 White | No positioners | F7510 | 45 mm | 18600 N/m | 5.2 kg/m^2 | Self-Locking Pin | 0÷80 °C | Self-Cleaning Hinge System Pin diameter: 5 mm Temporary code, to be created specifically on request | 0÷80 °C |
|
| F7510FTPPW0200-PBT | 200 mm (7,87'') | PPW - Polypropylene (white) | PBT White | No positioners | F7510 | 45 mm | 32000 N/m | 5.2 kg/m^2 | Self-Locking Pin | 0÷100 °C | Self-Cleaning Hinge System Pin diameter: 5 mm Temporary code, to be created specifically on request | 0÷100 °C |
|
| F7510FTPPW0200-PE | 200 mm (7,87'') | PPW - Polypropylene (white) | PE White | No positioners | F7510 | 45 mm | 12000 N/m | 5.2 kg/m^2 | Self-Locking Pin | 0÷65 °C | Self-Cleaning Hinge System Pin diameter: 5 mm Temporary code, to be created specifically on request | 0÷65 °C |
|
| F7510FTPPW0200-PP | 200 mm (7,87'') | PPW - Polypropylene (white) | PP White | No positioners | F7510 | 45 mm | 14000 N/m | 5.2 kg/m^2 | Self-Locking Pin | 0÷100 °C | Self-Cleaning Hinge System Pin diameter: 5 mm Temporary code, to be created specifically on request | 0÷100 °C |
|
| F7510FTPPW0250-PA6 | 250 mm (9,84'') | PPW - Polypropylene (white) | PA6 White | No positioners | F7510 | 45 mm | 18600 N/m | 5.2 kg/m^2 | Self-Locking Pin | 0÷80 °C | Self-Cleaning Hinge System Pin diameter: 5 mm Temporary code, to be created specifically on request | 0÷80 °C |
|
| F7510FTPPW0250-PBT | 250 mm (9,84'') | PPW - Polypropylene (white) | PBT White | No positioners | F7510 | 45 mm | 32000 N/m | 5.2 kg/m^2 | Self-Locking Pin | 0÷100 °C | Self-Cleaning Hinge System Pin diameter: 5 mm Temporary code, to be created specifically on request | 0÷100 °C |
|
| F7510FTPPW0250-PE | 250 mm (9,84'') | PPW - Polypropylene (white) | PE White | No positioners | F7510 | 45 mm | 12000 N/m | 5.2 kg/m^2 | Self-Locking Pin | 0÷65 °C | Self-Cleaning Hinge System Pin diameter: 5 mm Temporary code, to be created specifically on request | 0÷65 °C |
|
| F7510FTPPW0250-PP | 250 mm (9,84'') | PPW - Polypropylene (white) | PP White | No positioners | F7510 | 45 mm | 14000 N/m | 5.2 kg/m^2 | Self-Locking Pin | 0÷100 °C | Self-Cleaning Hinge System Pin diameter: 5 mm Temporary code, to be created specifically on request | 0÷100 °C |
|
| F7510FTPPW0300-PA6 | 300 mm (11,81'') | PPW - Polypropylene (white) | PA6 White | No positioners | F7510 | 45 mm | 18600 N/m | 5.2 kg/m^2 | Self-Locking Pin | 0÷80 °C | Self-Cleaning Hinge System Pin diameter: 5 mm Temporary code, to be created specifically on request | 0÷80 °C |
|
| F7510FTPPW0300-PBT | 300 mm (11,81'') | PPW - Polypropylene (white) | PBT White | No positioners | F7510 | 45 mm | 32000 N/m | 5.2 kg/m^2 | Self-Locking Pin | 0÷100 °C | Self-Cleaning Hinge System Pin diameter: 5 mm Temporary code, to be created specifically on request | 0÷100 °C |
|
| F7510FTPPW0300-PE | 300 mm (11,81'') | PPW - Polypropylene (white) | PE White | No positioners | F7510 | 45 mm | 12000 N/m | 5.2 kg/m^2 | Self-Locking Pin | 0÷65 °C | Self-Cleaning Hinge System Pin diameter: 5 mm Temporary code, to be created specifically on request | 0÷65 °C |
|
| F7510FTPPW0300-PP | 300 mm (11,81'') | PPW - Polypropylene (white) | PP White | No positioners | F7510 | 45 mm | 14000 N/m | 5.2 kg/m^2 | Self-Locking Pin | 0÷100 °C | Self-Cleaning Hinge System Pin diameter: 5 mm Temporary code, to be created specifically on request | 0÷100 °C |
|
| F7510FTPPW0350-PA6 | 350 mm (13,78'') | PPW - Polypropylene (white) | PA6 White | No positioners | F7510 | 45 mm | 18600 N/m | 5.2 kg/m^2 | Self-Locking Pin | 0÷80 °C | Self-Cleaning Hinge System Pin diameter: 5 mm Temporary code, to be created specifically on request | 0÷80 °C |
|
| F7510FTPPW0350-PBT | 350 mm (13,78'') | PPW - Polypropylene (white) | PBT White | No positioners | F7510 | 45 mm | 32000 N/m | 5.2 kg/m^2 | Self-Locking Pin | 0÷100 °C | Self-Cleaning Hinge System Pin diameter: 5 mm Temporary code, to be created specifically on request | 0÷100 °C |
|
| F7510FTPPW0350-PE | 350 mm (13,78'') | PPW - Polypropylene (white) | PE White | No positioners | F7510 | 45 mm | 12000 N/m | 5.2 kg/m^2 | Self-Locking Pin | 0÷65 °C | Self-Cleaning Hinge System Pin diameter: 5 mm Temporary code, to be created specifically on request | 0÷65 °C |
|
| F7510FTPPW0350-PP | 350 mm (13,78'') | PPW - Polypropylene (white) | PP White | No positioners | F7510 | 45 mm | 14000 N/m | 5.2 kg/m^2 | Self-Locking Pin | 0÷100 °C | Self-Cleaning Hinge System Pin diameter: 5 mm Temporary code, to be created specifically on request | 0÷100 °C |
|
| F7510FTPPW0400-PA6 | 400 mm (15,75'') | PPW - Polypropylene (white) | PA6 White | No positioners | F7510 | 45 mm | 18600 N/m | 5.2 kg/m^2 | Self-Locking Pin | 0÷80 °C | Self-Cleaning Hinge System Pin diameter: 5 mm Temporary code, to be created specifically on request | 0÷80 °C |
|
| F7510FTPPW0400-PBT | 400 mm (15,75'') | PPW - Polypropylene (white) | PBT White | No positioners | F7510 | 45 mm | 32000 N/m | 5.2 kg/m^2 | Self-Locking Pin | 0÷100 °C | Self-Cleaning Hinge System Pin diameter: 5 mm Temporary code, to be created specifically on request | 0÷100 °C |
|
| F7510FTPPW0400-PE | 400 mm (15,75'') | PPW - Polypropylene (white) | PE White | No positioners | F7510 | 45 mm | 12000 N/m | 5.2 kg/m^2 | Self-Locking Pin | 0÷65 °C | Self-Cleaning Hinge System Pin diameter: 5 mm Temporary code, to be created specifically on request | 0÷65 °C |
|
| F7510FTPPW0400-PP | 400 mm (15,75'') | PPW - Polypropylene (white) | PP White | No positioners | F7510 | 45 mm | 14000 N/m | 5.2 kg/m^2 | Self-Locking Pin | 0÷100 °C | Self-Cleaning Hinge System Pin diameter: 5 mm Temporary code, to be created specifically on request | 0÷100 °C |
|
| F7510FTPPW0450-PA6 | 450 mm (17,72'') | PPW - Polypropylene (white) | PA6 White | No positioners | F7510 | 45 mm | 18600 N/m | 5.2 kg/m^2 | Self-Locking Pin | 0÷80 °C | Self-Cleaning Hinge System Pin diameter: 5 mm Temporary code, to be created specifically on request | 0÷80 °C |
|
| F7510FTPPW0450-PBT | 450 mm (17,72'') | PPW - Polypropylene (white) | PBT White | No positioners | F7510 | 45 mm | 32000 N/m | 5.2 kg/m^2 | Self-Locking Pin | 0÷100 °C | Self-Cleaning Hinge System Pin diameter: 5 mm Temporary code, to be created specifically on request | 0÷100 °C |
|
| F7510FTPPW0450-PE | 450 mm (17,72'') | PPW - Polypropylene (white) | PE White | No positioners | F7510 | 45 mm | 12000 N/m | 5.2 kg/m^2 | Self-Locking Pin | 0÷65 °C | Self-Cleaning Hinge System Pin diameter: 5 mm Temporary code, to be created specifically on request | 0÷65 °C |
|
| F7510FTPPW0450-PP | 450 mm (17,72'') | PPW - Polypropylene (white) | PP White | No positioners | F7510 | 45 mm | 14000 N/m | 5.2 kg/m^2 | Self-Locking Pin | 0÷100 °C | Self-Cleaning Hinge System Pin diameter: 5 mm Temporary code, to be created specifically on request | 0÷100 °C |
|
| F7510FTPPW0500-PA6 | 500 mm (19,69'') | PPW - Polypropylene (white) | PA6 White | No positioners | F7510 | 45 mm | 18600 N/m | 5.2 kg/m^2 | Self-Locking Pin | 0÷80 °C | Self-Cleaning Hinge System Pin diameter: 5 mm Temporary code, to be created specifically on request | 0÷80 °C |
|
| F7510FTPPW0500-PBT | 500 mm (19,69'') | PPW - Polypropylene (white) | PBT White | No positioners | F7510 | 45 mm | 32000 N/m | 5.2 kg/m^2 | Self-Locking Pin | 0÷100 °C | Self-Cleaning Hinge System Pin diameter: 5 mm Temporary code, to be created specifically on request | 0÷100 °C |
|
| F7510FTPPW0500-PE | 500 mm (19,69'') | PPW - Polypropylene (white) | PE White | No positioners | F7510 | 45 mm | 12000 N/m | 5.2 kg/m^2 | Self-Locking Pin | 0÷65 °C | Self-Cleaning Hinge System Pin diameter: 5 mm Temporary code, to be created specifically on request | 0÷65 °C |
|
| F7510FTPPW0500-PP | 500 mm (19,69'') | PPW - Polypropylene (white) | PP White | No positioners | F7510 | 45 mm | 14000 N/m | 5.2 kg/m^2 | Self-Locking Pin | 0÷100 °C | Self-Cleaning Hinge System Pin diameter: 5 mm Temporary code, to be created specifically on request | 0÷100 °C |
|
| F7510FTPPW0550-PA6 | 550 mm (21,65'') | PPW - Polypropylene (white) | PA6 White | No positioners | F7510 | 45 mm | 18600 N/m | 5.2 kg/m^2 | Self-Locking Pin | 0÷80 °C | Self-Cleaning Hinge System Pin diameter: 5 mm Temporary code, to be created specifically on request | 0÷80 °C |
|
| F7510FTPPW0550-PBT | 550 mm (21,65'') | PPW - Polypropylene (white) | PBT White | No positioners | F7510 | 45 mm | 32000 N/m | 5.2 kg/m^2 | Self-Locking Pin | 0÷100 °C | Self-Cleaning Hinge System Pin diameter: 5 mm Temporary code, to be created specifically on request | 0÷100 °C |
|
| F7510FTPPW0550-PE | 550 mm (21,65'') | PPW - Polypropylene (white) | PE White | No positioners | F7510 | 45 mm | 12000 N/m | 5.2 kg/m^2 | Self-Locking Pin | 0÷65 °C | Self-Cleaning Hinge System Pin diameter: 5 mm Temporary code, to be created specifically on request | 0÷65 °C |
|
| F7510FTPPW0550-PP | 550 mm (21,65'') | PPW - Polypropylene (white) | PP White | No positioners | F7510 | 45 mm | 14000 N/m | 5.2 kg/m^2 | Self-Locking Pin | 0÷100 °C | Self-Cleaning Hinge System Pin diameter: 5 mm Temporary code, to be created specifically on request | 0÷100 °C |
|
| F7510FTPPW0600-PA6 | 600 mm (23,62'') | PPW - Polypropylene (white) | PA6 White | No positioners | F7510 | 45 mm | 18600 N/m | 5.2 kg/m^2 | Self-Locking Pin | 0÷80 °C | Self-Cleaning Hinge System Pin diameter: 5 mm Temporary code, to be created specifically on request | 0÷80 °C |
|
| F7510FTPPW0600-PBT | 600 mm (23,62'') | PPW - Polypropylene (white) | PBT White | No positioners | F7510 | 45 mm | 32000 N/m | 5.2 kg/m^2 | Self-Locking Pin | 0÷100 °C | Self-Cleaning Hinge System Pin diameter: 5 mm Temporary code, to be created specifically on request | 0÷100 °C |
|
| F7510FTPPW0600-PE | 600 mm (23,62'') | PPW - Polypropylene (white) | PE White | No positioners | F7510 | 45 mm | 12000 N/m | 5.2 kg/m^2 | Self-Locking Pin | 0÷65 °C | Self-Cleaning Hinge System Pin diameter: 5 mm Temporary code, to be created specifically on request | 0÷65 °C |
|
| F7510FTPPW0600-PP | 600 mm (23,62'') | PPW - Polypropylene (white) | PP White | No positioners | F7510 | 45 mm | 14000 N/m | 5.2 kg/m^2 | Self-Locking Pin | 0÷100 °C | Self-Cleaning Hinge System Pin diameter: 5 mm Temporary code, to be created specifically on request | 0÷100 °C |
|
| F7510FTPPW0650-PA6 | 650 mm (25,59'') | PPW - Polypropylene (white) | PA6 White | No positioners | F7510 | 45 mm | 18600 N/m | 5.2 kg/m^2 | Self-Locking Pin | 0÷80 °C | Self-Cleaning Hinge System Pin diameter: 5 mm Temporary code, to be created specifically on request | 0÷80 °C |
|
| F7510FTPPW0650-PBT | 650 mm (25,59'') | PPW - Polypropylene (white) | PBT White | No positioners | F7510 | 45 mm | 32000 N/m | 5.2 kg/m^2 | Self-Locking Pin | 0÷100 °C | Self-Cleaning Hinge System Pin diameter: 5 mm Temporary code, to be created specifically on request | 0÷100 °C |
|
| F7510FTPPW0650-PE | 650 mm (25,59'') | PPW - Polypropylene (white) | PE White | No positioners | F7510 | 45 mm | 12000 N/m | 5.2 kg/m^2 | Self-Locking Pin | 0÷65 °C | Self-Cleaning Hinge System Pin diameter: 5 mm Temporary code, to be created specifically on request | 0÷65 °C |
|
| F7510FTPPW0650-PP | 650 mm (25,59'') | PPW - Polypropylene (white) | PP White | No positioners | F7510 | 45 mm | 14000 N/m | 5.2 kg/m^2 | Self-Locking Pin | 0÷100 °C | Self-Cleaning Hinge System Pin diameter: 5 mm Temporary code, to be created specifically on request | 0÷100 °C |
|
| F7510FTPPW0700-PA6 | 700 mm (27,56'') | PPW - Polypropylene (white) | PA6 White | No positioners | F7510 | 45 mm | 18600 N/m | 5.2 kg/m^2 | Self-Locking Pin | 0÷80 °C | Self-Cleaning Hinge System Pin diameter: 5 mm Temporary code, to be created specifically on request | 0÷80 °C |
|
| F7510FTPPW0700-PBT | 700 mm (27,56'') | PPW - Polypropylene (white) | PBT White | No positioners | F7510 | 45 mm | 32000 N/m | 5.2 kg/m^2 | Self-Locking Pin | 0÷100 °C | Self-Cleaning Hinge System Pin diameter: 5 mm Temporary code, to be created specifically on request | 0÷100 °C |
|
| F7510FTPPW0700-PE | 700 mm (27,56'') | PPW - Polypropylene (white) | PE White | No positioners | F7510 | 45 mm | 12000 N/m | 5.2 kg/m^2 | Self-Locking Pin | 0÷65 °C | Self-Cleaning Hinge System Pin diameter: 5 mm Temporary code, to be created specifically on request | 0÷65 °C |
|
| F7510FTPPW0700-PP | 700 mm (27,56'') | PPW - Polypropylene (white) | PP White | No positioners | F7510 | 45 mm | 14000 N/m | 5.2 kg/m^2 | Self-Locking Pin | 0÷100 °C | Self-Cleaning Hinge System Pin diameter: 5 mm Temporary code, to be created specifically on request | 0÷100 °C |
|
| F7510FTPPW0750-PA6 | 750 mm (29,53'') | PPW - Polypropylene (white) | PA6 White | No positioners | F7510 | 45 mm | 18600 N/m | 5.2 kg/m^2 | Self-Locking Pin | 0÷80 °C | Self-Cleaning Hinge System Pin diameter: 5 mm Temporary code, to be created specifically on request | 0÷80 °C |
|
| F7510FTPPW0750-PBT | 750 mm (29,53'') | PPW - Polypropylene (white) | PBT White | No positioners | F7510 | 45 mm | 32000 N/m | 5.2 kg/m^2 | Self-Locking Pin | 0÷100 °C | Self-Cleaning Hinge System Pin diameter: 5 mm Temporary code, to be created specifically on request | 0÷100 °C |
|
| F7510FTPPW0750-PE | 750 mm (29,53'') | PPW - Polypropylene (white) | PE White | No positioners | F7510 | 45 mm | 12000 N/m | 5.2 kg/m^2 | Self-Locking Pin | 0÷65 °C | Self-Cleaning Hinge System Pin diameter: 5 mm Temporary code, to be created specifically on request | 0÷65 °C |
|
| F7510FTPPW0750-PP | 750 mm (29,53'') | PPW - Polypropylene (white) | PP White | No positioners | F7510 | 45 mm | 14000 N/m | 5.2 kg/m^2 | Self-Locking Pin | 0÷100 °C | Self-Cleaning Hinge System Pin diameter: 5 mm Temporary code, to be created specifically on request | 0÷100 °C |
|
| F7510FTPPW0800-PA6 | 800 mm (31,5'') | PPW - Polypropylene (white) | PA6 White | No positioners | F7510 | 45 mm | 18600 N/m | 5.2 kg/m^2 | Self-Locking Pin | 0÷80 °C | Self-Cleaning Hinge System Pin diameter: 5 mm Temporary code, to be created specifically on request | 0÷80 °C |
|
| F7510FTPPW0800-PBT | 800 mm (31,5'') | PPW - Polypropylene (white) | PBT White | No positioners | F7510 | 45 mm | 32000 N/m | 5.2 kg/m^2 | Self-Locking Pin | 0÷100 °C | Self-Cleaning Hinge System Pin diameter: 5 mm Temporary code, to be created specifically on request | 0÷100 °C |
|
| F7510FTPPW0800-PE | 800 mm (31,5'') | PPW - Polypropylene (white) | PE White | No positioners | F7510 | 45 mm | 12000 N/m | 5.2 kg/m^2 | Self-Locking Pin | 0÷65 °C | Self-Cleaning Hinge System Pin diameter: 5 mm Temporary code, to be created specifically on request | 0÷65 °C |
|
| F7510FTPPW0800-PP | 800 mm (31,5'') | PPW - Polypropylene (white) | PP White | No positioners | F7510 | 45 mm | 14000 N/m | 5.2 kg/m^2 | Self-Locking Pin | 0÷100 °C | Self-Cleaning Hinge System Pin diameter: 5 mm Temporary code, to be created specifically on request | 0÷100 °C |
|
| F7510FTPPW0850-PA6 | 850 mm (33,46'') | PPW - Polypropylene (white) | PA6 White | No positioners | F7510 | 45 mm | 18600 N/m | 5.2 kg/m^2 | Self-Locking Pin | 0÷80 °C | Self-Cleaning Hinge System Pin diameter: 5 mm Temporary code, to be created specifically on request | 0÷80 °C |
|
| F7510FTPPW0850-PBT | 850 mm (33,46'') | PPW - Polypropylene (white) | PBT White | No positioners | F7510 | 45 mm | 32000 N/m | 5.2 kg/m^2 | Self-Locking Pin | 0÷100 °C | Self-Cleaning Hinge System Pin diameter: 5 mm Temporary code, to be created specifically on request | 0÷100 °C |
|
| F7510FTPPW0850-PE | 850 mm (33,46'') | PPW - Polypropylene (white) | PE White | No positioners | F7510 | 45 mm | 12000 N/m | 5.2 kg/m^2 | Self-Locking Pin | 0÷65 °C | Self-Cleaning Hinge System Pin diameter: 5 mm Temporary code, to be created specifically on request | 0÷65 °C |
|
| F7510FTPPW0850-PP | 850 mm (33,46'') | PPW - Polypropylene (white) | PP White | No positioners | F7510 | 45 mm | 14000 N/m | 5.2 kg/m^2 | Self-Locking Pin | 0÷100 °C | Self-Cleaning Hinge System Pin diameter: 5 mm Temporary code, to be created specifically on request | 0÷100 °C |
|
| F7510FTPPW0900-PA6 | 900 mm (35,43'') | PPW - Polypropylene (white) | PA6 White | No positioners | F7510 | 45 mm | 18600 N/m | 5.2 kg/m^2 | Self-Locking Pin | 0÷80 °C | Self-Cleaning Hinge System Pin diameter: 5 mm Temporary code, to be created specifically on request | 0÷80 °C |
|
| F7510FTPPW0900-PBT | 900 mm (35,43'') | PPW - Polypropylene (white) | PBT White | No positioners | F7510 | 45 mm | 32000 N/m | 5.2 kg/m^2 | Self-Locking Pin | 0÷100 °C | Self-Cleaning Hinge System Pin diameter: 5 mm Temporary code, to be created specifically on request | 0÷100 °C |
|
| F7510FTPPW0900-PE | 900 mm (35,43'') | PPW - Polypropylene (white) | PE White | No positioners | F7510 | 45 mm | 12000 N/m | 5.2 kg/m^2 | Self-Locking Pin | 0÷65 °C | Self-Cleaning Hinge System Pin diameter: 5 mm Temporary code, to be created specifically on request | 0÷65 °C |
|
| F7510FTPPW0900-PP | 900 mm (35,43'') | PPW - Polypropylene (white) | PP White | No positioners | F7510 | 45 mm | 14000 N/m | 5.2 kg/m^2 | Self-Locking Pin | 0÷100 °C | Self-Cleaning Hinge System Pin diameter: 5 mm Temporary code, to be created specifically on request | 0÷100 °C |
|
Enquiry Now
To allow us to respond to your enquiry promptly, please provide all required information.
Related Products
-
7510 Nub TopModular BeltsView Product -
7510 Diamond TopModular BeltsView Product
-
7510 Mesh TopModular BeltsView Product
-
7520 Flat TopModular BeltsView Product
-
7540 Radius Flush GridModular BeltsView Product
-
7544 Tight Radius Flush GridModular BeltsView Product
-
7510-7520-7540-7544 split machined sprocketBelt sprocketsView Product
-
7510-7520-7540-7544 one-piece molded sprocketBelt sprocketsView Product
