7510 Diamond Top
Modular Belts
Description
Description
The nominal tensile strength and the nominal width tolerance are valid for a temperature of 23°C (73 °F).
The actual width of the belt typically falls below the nominal value by 0.1% to 0.3%.
*Belts wider than standard are available with 50 mm increments.
For PE belts up to 750 mm (30”) in width, the reduction ranges from -4 mm to -1 mm, and for widths beyond that, from -0.75% to -0.35%.
For POM belts up to 750 mm (30”) in width, the shrinkage ranges from -4 mm to -1 mm, and for those wider, from -0.75% to -0.35%.
For PP belts up to 750 mm (30”) in width, the decrease is between -3 mm and 0 mm, with the reduction for wider belts ranging from -0.4% to 0%.
Non-Standard belt widths are incremented by 16.65 mm (0.66”). The minimum width is 50 mm (2”).
Non-bricklayed belts are available in widths of 50 mm (2”), 100 mm (4”) and 200 mm (8”).

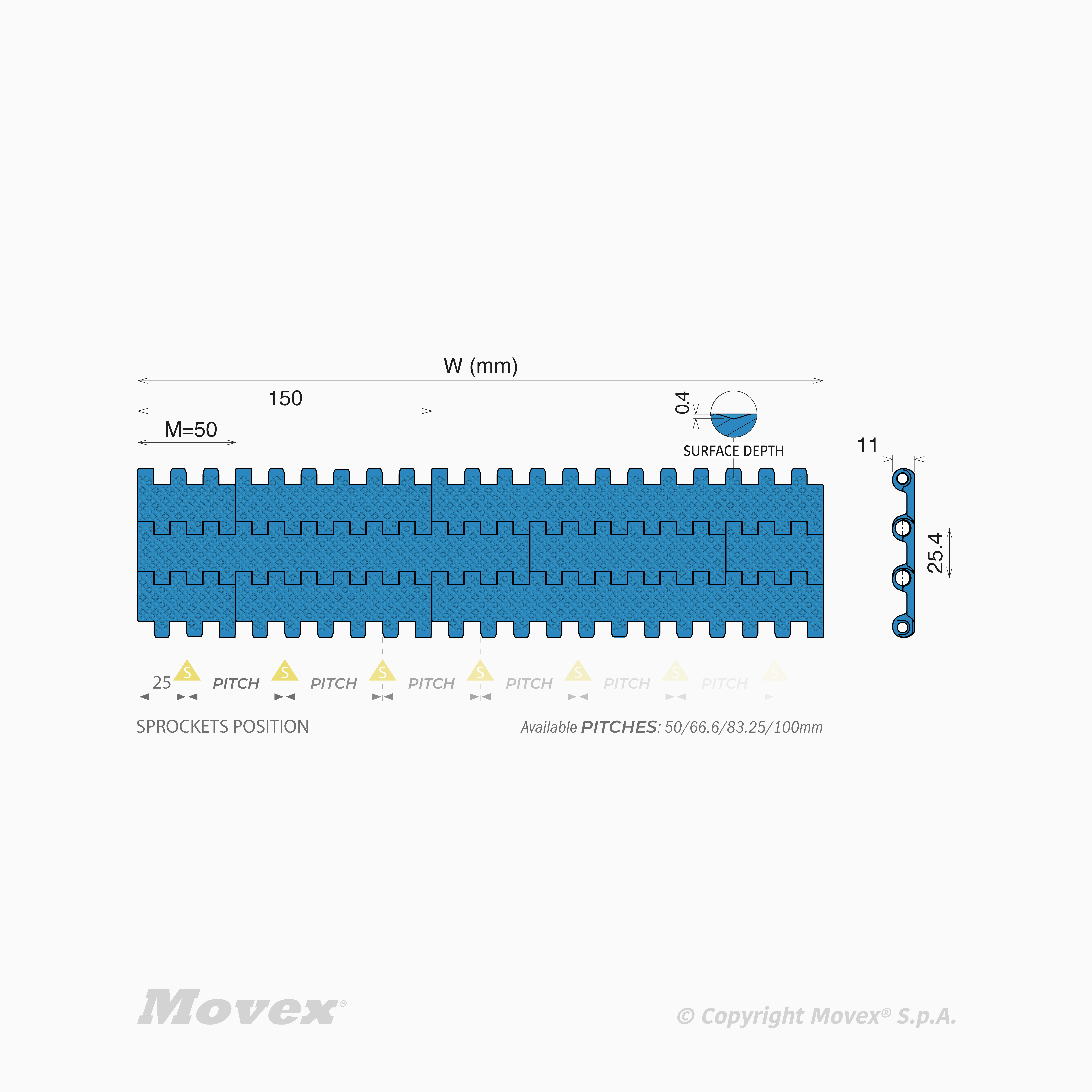

Basic features
| Series: | 7510 |
|---|---|
| Pitch: | 25.4 mm |
| Thickness: | 11 mm |
| Increments: | 50 mm - 1,97" |
| Surface Type: | DT - Diamond Top |
| Functionality: | Straight |
| Unit of measure: | Ea |
7510 Diamond Top
| Width | Material | Pin material | Version | Part | Back flex radius | Max working load | Mass | Fixation | Temperature range dry | Supplementary informations | Temperature range wet | ||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Code | Actions | ||||||||||||
| F7510DTLFB0050-PA6 | 50 mm (1,97'') | LFB - Low friction acetal (Blue) | PA6 White | No positioners | F7510 | 45 mm | 21900 N/m | 7.4 kg/m^2 | Self-Locking Pin | -40÷93 °C | Self-Cleaning Hinge System Pin diameter: 5 mm Temporary code, to be created specifically on request | -40÷65 °C |
|
| F7510DTLFB0050-PBT | 50 mm (1,97'') | LFB - Low friction acetal (Blue) | PBT White | No positioners | F7510 | 45 mm | 42000 N/m | 7.4 kg/m^2 | Self-Locking Pin | -40÷80 °C | Self-Cleaning Hinge System Pin diameter: 5 mm Temporary code, to be created specifically on request | -40÷65 °C |
|
| F7510DTLFB0050-PE | 50 mm (1,97'') | LFB - Low friction acetal (Blue) | PE White | No positioners | F7510 | 45 mm | 15000 N/m | 7.4 kg/m^2 | Self-Locking Pin | -40÷65 °C | Self-Cleaning Hinge System Pin diameter: 5 mm Temporary code, to be created specifically on request | -40÷65 °C |
|
| F7510DTLFB0050-PP | 50 mm (1,97'') | LFB - Low friction acetal (Blue) | PP White | No positioners | F7510 | 45 mm | 16000 N/m | 7.4 kg/m^2 | Self-Locking Pin | 5÷93 °C | Self-Cleaning Hinge System Pin diameter: 5 mm Temporary code, to be created specifically on request | -40÷65 °C |
|
| F7510DTLFB0100-PA6 | 100 mm (3,94'') | LFB - Low friction acetal (Blue) | PA6 White | No positioners | F7510 | 45 mm | 21900 N/m | 7.4 kg/m^2 | Self-Locking Pin | -40÷93 °C | Self-Cleaning Hinge System Pin diameter: 5 mm Temporary code, to be created specifically on request | -40÷65 °C |
|
| F7510DTLFB0100-PBT | 100 mm (3,94'') | LFB - Low friction acetal (Blue) | PBT White | No positioners | F7510 | 45 mm | 42000 N/m | 7.4 kg/m^2 | Self-Locking Pin | -40÷80 °C | Self-Cleaning Hinge System Pin diameter: 5 mm Temporary code, to be created specifically on request | -40÷65 °C |
|
| F7510DTLFB0100-PE | 100 mm (3,94'') | LFB - Low friction acetal (Blue) | PE White | No positioners | F7510 | 45 mm | 15000 N/m | 7.4 kg/m^2 | Self-Locking Pin | -40÷65 °C | Self-Cleaning Hinge System Pin diameter: 5 mm Temporary code, to be created specifically on request | -40÷65 °C |
|
| F7510DTLFB0100-PP | 100 mm (3,94'') | LFB - Low friction acetal (Blue) | PP White | No positioners | F7510 | 45 mm | 16000 N/m | 7.4 kg/m^2 | Self-Locking Pin | 5÷93 °C | Self-Cleaning Hinge System Pin diameter: 5 mm Temporary code, to be created specifically on request | -40÷65 °C |
|
| F7510DTLFB0150-PA6 | 150 mm (5,91'') | LFB - Low friction acetal (Blue) | PA6 White | No positioners | F7510 | 45 mm | 21900 N/m | 7.4 kg/m^2 | Self-Locking Pin | -40÷93 °C | Self-Cleaning Hinge System Pin diameter: 5 mm Temporary code, to be created specifically on request | -40÷65 °C |
|
| F7510DTLFB0150-PBT | 150 mm (5,91'') | LFB - Low friction acetal (Blue) | PBT White | No positioners | F7510 | 45 mm | 42000 N/m | 7.4 kg/m^2 | Self-Locking Pin | -40÷80 °C | Self-Cleaning Hinge System Pin diameter: 5 mm Temporary code, to be created specifically on request | -40÷65 °C |
|
| F7510DTLFB0150-PE | 150 mm (5,91'') | LFB - Low friction acetal (Blue) | PE White | No positioners | F7510 | 45 mm | 15000 N/m | 7.4 kg/m^2 | Self-Locking Pin | -40÷65 °C | Self-Cleaning Hinge System Pin diameter: 5 mm Temporary code, to be created specifically on request | -40÷65 °C |
|
| F7510DTLFB0150-PP | 150 mm (5,91'') | LFB - Low friction acetal (Blue) | PP White | No positioners | F7510 | 45 mm | 16000 N/m | 7.4 kg/m^2 | Self-Locking Pin | 5÷93 °C | Self-Cleaning Hinge System Pin diameter: 5 mm Temporary code, to be created specifically on request | -40÷65 °C |
|
| F7510DTLFB0200-PA6 | 200 mm (7,87'') | LFB - Low friction acetal (Blue) | PA6 White | No positioners | F7510 | 45 mm | 21900 N/m | 7.4 kg/m^2 | Self-Locking Pin | -40÷93 °C | Self-Cleaning Hinge System Pin diameter: 5 mm Temporary code, to be created specifically on request | -40÷65 °C |
|
| F7510DTLFB0200-PBT | 200 mm (7,87'') | LFB - Low friction acetal (Blue) | PBT White | No positioners | F7510 | 45 mm | 42000 N/m | 7.4 kg/m^2 | Self-Locking Pin | -40÷80 °C | Self-Cleaning Hinge System Pin diameter: 5 mm Temporary code, to be created specifically on request | -40÷65 °C |
|
| F7510DTLFB0200-PE | 200 mm (7,87'') | LFB - Low friction acetal (Blue) | PE White | No positioners | F7510 | 45 mm | 15000 N/m | 7.4 kg/m^2 | Self-Locking Pin | -40÷65 °C | Self-Cleaning Hinge System Pin diameter: 5 mm Temporary code, to be created specifically on request | -40÷65 °C |
|
| F7510DTLFB0200-PP | 200 mm (7,87'') | LFB - Low friction acetal (Blue) | PP White | No positioners | F7510 | 45 mm | 16000 N/m | 7.4 kg/m^2 | Self-Locking Pin | 5÷93 °C | Self-Cleaning Hinge System Pin diameter: 5 mm Temporary code, to be created specifically on request | -40÷65 °C |
|
| F7510DTLFB0250-PA6 | 250 mm (9,84'') | LFB - Low friction acetal (Blue) | PA6 White | No positioners | F7510 | 45 mm | 21900 N/m | 7.4 kg/m^2 | Self-Locking Pin | -40÷93 °C | Self-Cleaning Hinge System Pin diameter: 5 mm Temporary code, to be created specifically on request | -40÷65 °C |
|
| F7510DTLFB0250-PBT | 250 mm (9,84'') | LFB - Low friction acetal (Blue) | PBT White | No positioners | F7510 | 45 mm | 42000 N/m | 7.4 kg/m^2 | Self-Locking Pin | -40÷80 °C | Self-Cleaning Hinge System Pin diameter: 5 mm Temporary code, to be created specifically on request | -40÷65 °C |
|
| F7510DTLFB0250-PE | 250 mm (9,84'') | LFB - Low friction acetal (Blue) | PE White | No positioners | F7510 | 45 mm | 15000 N/m | 7.4 kg/m^2 | Self-Locking Pin | -40÷65 °C | Self-Cleaning Hinge System Pin diameter: 5 mm Temporary code, to be created specifically on request | -40÷65 °C |
|
| F7510DTLFB0250-PP | 250 mm (9,84'') | LFB - Low friction acetal (Blue) | PP White | No positioners | F7510 | 45 mm | 16000 N/m | 7.4 kg/m^2 | Self-Locking Pin | 5÷93 °C | Self-Cleaning Hinge System Pin diameter: 5 mm Temporary code, to be created specifically on request | -40÷65 °C |
|
| F7510DTLFB0300-PA6 | 300 mm (11,81'') | LFB - Low friction acetal (Blue) | PA6 White | No positioners | F7510 | 45 mm | 21900 N/m | 7.4 kg/m^2 | Self-Locking Pin | -40÷93 °C | Self-Cleaning Hinge System Pin diameter: 5 mm Temporary code, to be created specifically on request | -40÷65 °C |
|
| F7510DTLFB0300-PBT | 300 mm (11,81'') | LFB - Low friction acetal (Blue) | PBT White | No positioners | F7510 | 45 mm | 42000 N/m | 7.4 kg/m^2 | Self-Locking Pin | -40÷80 °C | Self-Cleaning Hinge System Pin diameter: 5 mm Temporary code, to be created specifically on request | -40÷65 °C |
|
| F7510DTLFB0300-PE | 300 mm (11,81'') | LFB - Low friction acetal (Blue) | PE White | No positioners | F7510 | 45 mm | 15000 N/m | 7.4 kg/m^2 | Self-Locking Pin | -40÷65 °C | Self-Cleaning Hinge System Pin diameter: 5 mm Temporary code, to be created specifically on request | -40÷65 °C |
|
| F7510DTLFB0300-PP | 300 mm (11,81'') | LFB - Low friction acetal (Blue) | PP White | No positioners | F7510 | 45 mm | 16000 N/m | 7.4 kg/m^2 | Self-Locking Pin | 5÷93 °C | Self-Cleaning Hinge System Pin diameter: 5 mm Temporary code, to be created specifically on request | -40÷65 °C |
|
| F7510DTLFB0350-PA6 | 350 mm (13,78'') | LFB - Low friction acetal (Blue) | PA6 White | No positioners | F7510 | 45 mm | 21900 N/m | 7.4 kg/m^2 | Self-Locking Pin | -40÷93 °C | Self-Cleaning Hinge System Pin diameter: 5 mm Temporary code, to be created specifically on request | -40÷65 °C |
|
| F7510DTLFB0350-PBT | 350 mm (13,78'') | LFB - Low friction acetal (Blue) | PBT White | No positioners | F7510 | 45 mm | 42000 N/m | 7.4 kg/m^2 | Self-Locking Pin | -40÷80 °C | Self-Cleaning Hinge System Pin diameter: 5 mm Temporary code, to be created specifically on request | -40÷65 °C |
|
| F7510DTLFB0350-PE | 350 mm (13,78'') | LFB - Low friction acetal (Blue) | PE White | No positioners | F7510 | 45 mm | 15000 N/m | 7.4 kg/m^2 | Self-Locking Pin | -40÷65 °C | Self-Cleaning Hinge System Pin diameter: 5 mm Temporary code, to be created specifically on request | -40÷65 °C |
|
| F7510DTLFB0350-PP | 350 mm (13,78'') | LFB - Low friction acetal (Blue) | PP White | No positioners | F7510 | 45 mm | 16000 N/m | 7.4 kg/m^2 | Self-Locking Pin | 5÷93 °C | Self-Cleaning Hinge System Pin diameter: 5 mm Temporary code, to be created specifically on request | -40÷65 °C |
|
| F7510DTLFB0400-PA6 | 400 mm (15,75'') | LFB - Low friction acetal (Blue) | PA6 White | No positioners | F7510 | 45 mm | 21900 N/m | 7.4 kg/m^2 | Self-Locking Pin | -40÷93 °C | Self-Cleaning Hinge System Pin diameter: 5 mm Temporary code, to be created specifically on request | -40÷65 °C |
|
| F7510DTLFB0400-PBT | 400 mm (15,75'') | LFB - Low friction acetal (Blue) | PBT White | No positioners | F7510 | 45 mm | 42000 N/m | 7.4 kg/m^2 | Self-Locking Pin | -40÷80 °C | Self-Cleaning Hinge System Pin diameter: 5 mm Temporary code, to be created specifically on request | -40÷65 °C |
|
| F7510DTLFB0400-PE | 400 mm (15,75'') | LFB - Low friction acetal (Blue) | PE White | No positioners | F7510 | 45 mm | 15000 N/m | 7.4 kg/m^2 | Self-Locking Pin | -40÷65 °C | Self-Cleaning Hinge System Pin diameter: 5 mm Temporary code, to be created specifically on request | -40÷65 °C |
|
| F7510DTLFB0400-PP | 400 mm (15,75'') | LFB - Low friction acetal (Blue) | PP White | No positioners | F7510 | 45 mm | 16000 N/m | 7.4 kg/m^2 | Self-Locking Pin | 5÷93 °C | Self-Cleaning Hinge System Pin diameter: 5 mm Temporary code, to be created specifically on request | -40÷65 °C |
|
| F7510DTLFB0450-PA6 | 450 mm (17,72'') | LFB - Low friction acetal (Blue) | PA6 White | No positioners | F7510 | 45 mm | 21900 N/m | 7.4 kg/m^2 | Self-Locking Pin | -40÷93 °C | Self-Cleaning Hinge System Pin diameter: 5 mm Temporary code, to be created specifically on request | -40÷65 °C |
|
| F7510DTLFB0450-PBT | 450 mm (17,72'') | LFB - Low friction acetal (Blue) | PBT White | No positioners | F7510 | 45 mm | 42000 N/m | 7.4 kg/m^2 | Self-Locking Pin | -40÷80 °C | Self-Cleaning Hinge System Pin diameter: 5 mm Temporary code, to be created specifically on request | -40÷65 °C |
|
| F7510DTLFB0450-PE | 450 mm (17,72'') | LFB - Low friction acetal (Blue) | PE White | No positioners | F7510 | 45 mm | 15000 N/m | 7.4 kg/m^2 | Self-Locking Pin | -40÷65 °C | Self-Cleaning Hinge System Pin diameter: 5 mm Temporary code, to be created specifically on request | -40÷65 °C |
|
| F7510DTLFB0450-PP | 450 mm (17,72'') | LFB - Low friction acetal (Blue) | PP White | No positioners | F7510 | 45 mm | 16000 N/m | 7.4 kg/m^2 | Self-Locking Pin | 5÷93 °C | Self-Cleaning Hinge System Pin diameter: 5 mm Temporary code, to be created specifically on request | -40÷65 °C |
|
| F7510DTLFB0500-PA6 | 500 mm (19,69'') | LFB - Low friction acetal (Blue) | PA6 White | No positioners | F7510 | 45 mm | 21900 N/m | 7.4 kg/m^2 | Self-Locking Pin | -40÷93 °C | Self-Cleaning Hinge System Pin diameter: 5 mm Temporary code, to be created specifically on request | -40÷65 °C |
|
| F7510DTLFB0500-PBT | 500 mm (19,69'') | LFB - Low friction acetal (Blue) | PBT White | No positioners | F7510 | 45 mm | 42000 N/m | 7.4 kg/m^2 | Self-Locking Pin | -40÷80 °C | Self-Cleaning Hinge System Pin diameter: 5 mm Temporary code, to be created specifically on request | -40÷65 °C |
|
| F7510DTLFB0500-PE | 500 mm (19,69'') | LFB - Low friction acetal (Blue) | PE White | No positioners | F7510 | 45 mm | 15000 N/m | 7.4 kg/m^2 | Self-Locking Pin | -40÷65 °C | Self-Cleaning Hinge System Pin diameter: 5 mm Temporary code, to be created specifically on request | -40÷65 °C |
|
| F7510DTLFB0500-PP | 500 mm (19,69'') | LFB - Low friction acetal (Blue) | PP White | No positioners | F7510 | 45 mm | 16000 N/m | 7.4 kg/m^2 | Self-Locking Pin | 5÷93 °C | Self-Cleaning Hinge System Pin diameter: 5 mm Temporary code, to be created specifically on request | -40÷65 °C |
|
| F7510DTLFB0550-PA6 | 550 mm (21,65'') | LFB - Low friction acetal (Blue) | PA6 White | No positioners | F7510 | 45 mm | 21900 N/m | 7.4 kg/m^2 | Self-Locking Pin | -40÷93 °C | Self-Cleaning Hinge System Pin diameter: 5 mm Temporary code, to be created specifically on request | -40÷65 °C |
|
| F7510DTLFB0550-PBT | 550 mm (21,65'') | LFB - Low friction acetal (Blue) | PBT White | No positioners | F7510 | 45 mm | 42000 N/m | 7.4 kg/m^2 | Self-Locking Pin | -40÷80 °C | Self-Cleaning Hinge System Pin diameter: 5 mm Temporary code, to be created specifically on request | -40÷65 °C |
|
| F7510DTLFB0550-PE | 550 mm (21,65'') | LFB - Low friction acetal (Blue) | PE White | No positioners | F7510 | 45 mm | 15000 N/m | 7.4 kg/m^2 | Self-Locking Pin | -40÷65 °C | Self-Cleaning Hinge System Pin diameter: 5 mm Temporary code, to be created specifically on request | -40÷65 °C |
|
| F7510DTLFB0550-PP | 550 mm (21,65'') | LFB - Low friction acetal (Blue) | PP White | No positioners | F7510 | 45 mm | 16000 N/m | 7.4 kg/m^2 | Self-Locking Pin | 5÷93 °C | Self-Cleaning Hinge System Pin diameter: 5 mm Temporary code, to be created specifically on request | -40÷65 °C |
|
| F7510DTLFB0600-PA6 | 600 mm (23,62'') | LFB - Low friction acetal (Blue) | PA6 White | No positioners | F7510 | 45 mm | 21900 N/m | 7.4 kg/m^2 | Self-Locking Pin | -40÷93 °C | Self-Cleaning Hinge System Pin diameter: 5 mm Temporary code, to be created specifically on request | -40÷65 °C |
|
| F7510DTLFB0600-PBT | 600 mm (23,62'') | LFB - Low friction acetal (Blue) | PBT White | No positioners | F7510 | 45 mm | 42000 N/m | 7.4 kg/m^2 | Self-Locking Pin | -40÷80 °C | Self-Cleaning Hinge System Pin diameter: 5 mm Temporary code, to be created specifically on request | -40÷65 °C |
|
| F7510DTLFB0600-PE | 600 mm (23,62'') | LFB - Low friction acetal (Blue) | PE White | No positioners | F7510 | 45 mm | 15000 N/m | 7.4 kg/m^2 | Self-Locking Pin | -40÷65 °C | Self-Cleaning Hinge System Pin diameter: 5 mm Temporary code, to be created specifically on request | -40÷65 °C |
|
| F7510DTLFB0600-PP | 600 mm (23,62'') | LFB - Low friction acetal (Blue) | PP White | No positioners | F7510 | 45 mm | 16000 N/m | 7.4 kg/m^2 | Self-Locking Pin | 5÷93 °C | Self-Cleaning Hinge System Pin diameter: 5 mm Temporary code, to be created specifically on request | -40÷65 °C |
|
| F7510DTLFB0650-PA6 | 650 mm (25,59'') | LFB - Low friction acetal (Blue) | PA6 White | No positioners | F7510 | 45 mm | 21900 N/m | 7.4 kg/m^2 | Self-Locking Pin | -40÷93 °C | Self-Cleaning Hinge System Pin diameter: 5 mm Temporary code, to be created specifically on request | -40÷65 °C |
|
| F7510DTLFB0650-PBT | 650 mm (25,59'') | LFB - Low friction acetal (Blue) | PBT White | No positioners | F7510 | 45 mm | 42000 N/m | 7.4 kg/m^2 | Self-Locking Pin | -40÷80 °C | Self-Cleaning Hinge System Pin diameter: 5 mm Temporary code, to be created specifically on request | -40÷65 °C |
|
| F7510DTLFB0650-PE | 650 mm (25,59'') | LFB - Low friction acetal (Blue) | PE White | No positioners | F7510 | 45 mm | 15000 N/m | 7.4 kg/m^2 | Self-Locking Pin | -40÷65 °C | Self-Cleaning Hinge System Pin diameter: 5 mm Temporary code, to be created specifically on request | -40÷65 °C |
|
| F7510DTLFB0650-PP | 650 mm (25,59'') | LFB - Low friction acetal (Blue) | PP White | No positioners | F7510 | 45 mm | 16000 N/m | 7.4 kg/m^2 | Self-Locking Pin | 5÷93 °C | Self-Cleaning Hinge System Pin diameter: 5 mm Temporary code, to be created specifically on request | -40÷65 °C |
|
| F7510DTLFB0700-PA6 | 700 mm (27,56'') | LFB - Low friction acetal (Blue) | PA6 White | No positioners | F7510 | 45 mm | 21900 N/m | 7.4 kg/m^2 | Self-Locking Pin | -40÷93 °C | Self-Cleaning Hinge System Pin diameter: 5 mm Temporary code, to be created specifically on request | -40÷65 °C |
|
| F7510DTLFB0700-PBT | 700 mm (27,56'') | LFB - Low friction acetal (Blue) | PBT White | No positioners | F7510 | 45 mm | 42000 N/m | 7.4 kg/m^2 | Self-Locking Pin | -40÷80 °C | Self-Cleaning Hinge System Pin diameter: 5 mm Temporary code, to be created specifically on request | -40÷65 °C |
|
| F7510DTLFB0700-PE | 700 mm (27,56'') | LFB - Low friction acetal (Blue) | PE White | No positioners | F7510 | 45 mm | 15000 N/m | 7.4 kg/m^2 | Self-Locking Pin | -40÷65 °C | Self-Cleaning Hinge System Pin diameter: 5 mm Temporary code, to be created specifically on request | -40÷65 °C |
|
| F7510DTLFB0700-PP | 700 mm (27,56'') | LFB - Low friction acetal (Blue) | PP White | No positioners | F7510 | 45 mm | 16000 N/m | 7.4 kg/m^2 | Self-Locking Pin | 5÷93 °C | Self-Cleaning Hinge System Pin diameter: 5 mm Temporary code, to be created specifically on request | -40÷65 °C |
|
| F7510DTLFB0750-PA6 | 750 mm (29,53'') | LFB - Low friction acetal (Blue) | PA6 White | No positioners | F7510 | 45 mm | 21900 N/m | 7.4 kg/m^2 | Self-Locking Pin | -40÷93 °C | Self-Cleaning Hinge System Pin diameter: 5 mm Temporary code, to be created specifically on request | -40÷65 °C |
|
| F7510DTLFB0750-PBT | 750 mm (29,53'') | LFB - Low friction acetal (Blue) | PBT White | No positioners | F7510 | 45 mm | 42000 N/m | 7.4 kg/m^2 | Self-Locking Pin | -40÷80 °C | Self-Cleaning Hinge System Pin diameter: 5 mm Temporary code, to be created specifically on request | -40÷65 °C |
|
| F7510DTLFB0750-PE | 750 mm (29,53'') | LFB - Low friction acetal (Blue) | PE White | No positioners | F7510 | 45 mm | 15000 N/m | 7.4 kg/m^2 | Self-Locking Pin | -40÷65 °C | Self-Cleaning Hinge System Pin diameter: 5 mm Temporary code, to be created specifically on request | -40÷65 °C |
|
| F7510DTLFB0750-PP | 750 mm (29,53'') | LFB - Low friction acetal (Blue) | PP White | No positioners | F7510 | 45 mm | 16000 N/m | 7.4 kg/m^2 | Self-Locking Pin | 5÷93 °C | Self-Cleaning Hinge System Pin diameter: 5 mm Temporary code, to be created specifically on request | -40÷65 °C |
|
| F7510DTLFB0800-PA6 | 800 mm (31,5'') | LFB - Low friction acetal (Blue) | PA6 White | No positioners | F7510 | 45 mm | 21900 N/m | 7.4 kg/m^2 | Self-Locking Pin | -40÷93 °C | Self-Cleaning Hinge System Pin diameter: 5 mm Temporary code, to be created specifically on request | -40÷65 °C |
|
| F7510DTLFB0800-PBT | 800 mm (31,5'') | LFB - Low friction acetal (Blue) | PBT White | No positioners | F7510 | 45 mm | 42000 N/m | 7.4 kg/m^2 | Self-Locking Pin | -40÷80 °C | Self-Cleaning Hinge System Pin diameter: 5 mm Temporary code, to be created specifically on request | -40÷65 °C |
|
| F7510DTLFB0800-PE | 800 mm (31,5'') | LFB - Low friction acetal (Blue) | PE White | No positioners | F7510 | 45 mm | 15000 N/m | 7.4 kg/m^2 | Self-Locking Pin | -40÷65 °C | Self-Cleaning Hinge System Pin diameter: 5 mm Temporary code, to be created specifically on request | -40÷65 °C |
|
| F7510DTLFB0800-PP | 800 mm (31,5'') | LFB - Low friction acetal (Blue) | PP White | No positioners | F7510 | 45 mm | 16000 N/m | 7.4 kg/m^2 | Self-Locking Pin | 5÷93 °C | Self-Cleaning Hinge System Pin diameter: 5 mm Temporary code, to be created specifically on request | -40÷65 °C |
|
| F7510DTLFB0850-PA6 | 850 mm (33,46'') | LFB - Low friction acetal (Blue) | PA6 White | No positioners | F7510 | 45 mm | 21900 N/m | 7.4 kg/m^2 | Self-Locking Pin | -40÷93 °C | Self-Cleaning Hinge System Pin diameter: 5 mm Temporary code, to be created specifically on request | -40÷65 °C |
|
| F7510DTLFB0850-PBT | 850 mm (33,46'') | LFB - Low friction acetal (Blue) | PBT White | No positioners | F7510 | 45 mm | 42000 N/m | 7.4 kg/m^2 | Self-Locking Pin | -40÷80 °C | Self-Cleaning Hinge System Pin diameter: 5 mm Temporary code, to be created specifically on request | -40÷65 °C |
|
| F7510DTLFB0850-PE | 850 mm (33,46'') | LFB - Low friction acetal (Blue) | PE White | No positioners | F7510 | 45 mm | 15000 N/m | 7.4 kg/m^2 | Self-Locking Pin | -40÷65 °C | Self-Cleaning Hinge System Pin diameter: 5 mm Temporary code, to be created specifically on request | -40÷65 °C |
|
| F7510DTLFB0850-PP | 850 mm (33,46'') | LFB - Low friction acetal (Blue) | PP White | No positioners | F7510 | 45 mm | 16000 N/m | 7.4 kg/m^2 | Self-Locking Pin | 5÷93 °C | Self-Cleaning Hinge System Pin diameter: 5 mm Temporary code, to be created specifically on request | -40÷65 °C |
|
| F7510DTLFB0900-PA6 | 900 mm (35,43'') | LFB - Low friction acetal (Blue) | PA6 White | No positioners | F7510 | 45 mm | 21900 N/m | 7.4 kg/m^2 | Self-Locking Pin | -40÷93 °C | Self-Cleaning Hinge System Pin diameter: 5 mm Temporary code, to be created specifically on request | -40÷65 °C |
|
| F7510DTLFB0900-PBT | 900 mm (35,43'') | LFB - Low friction acetal (Blue) | PBT White | No positioners | F7510 | 45 mm | 42000 N/m | 7.4 kg/m^2 | Self-Locking Pin | -40÷80 °C | Self-Cleaning Hinge System Pin diameter: 5 mm Temporary code, to be created specifically on request | -40÷65 °C |
|
| F7510DTLFB0900-PE | 900 mm (35,43'') | LFB - Low friction acetal (Blue) | PE White | No positioners | F7510 | 45 mm | 15000 N/m | 7.4 kg/m^2 | Self-Locking Pin | -40÷65 °C | Self-Cleaning Hinge System Pin diameter: 5 mm Temporary code, to be created specifically on request | -40÷65 °C |
|
| F7510DTLFB0900-PP | 900 mm (35,43'') | LFB - Low friction acetal (Blue) | PP White | No positioners | F7510 | 45 mm | 16000 N/m | 7.4 kg/m^2 | Self-Locking Pin | 5÷93 °C | Self-Cleaning Hinge System Pin diameter: 5 mm Temporary code, to be created specifically on request | -40÷65 °C |
|
| F7510DTLFC0050-PA6 | 50 mm (1,97'') | LFC - Low friction acetal (cyan) | PA6 White | No positioners | F7510 | 45 mm | 21900 N/m | 7.4 kg/m^2 | Self-Locking Pin | -40÷93 °C | Self-Cleaning Hinge System Pin diameter: 5 mm Temporary code, to be created specifically on request | -40÷65 °C |
|
| F7510DTLFC0050-PBT | 50 mm (1,97'') | LFC - Low friction acetal (cyan) | PBT White | No positioners | F7510 | 45 mm | 42000 N/m | 7.4 kg/m^2 | Self-Locking Pin | -40÷80 °C | Self-Cleaning Hinge System Pin diameter: 5 mm Temporary code, to be created specifically on request | -40÷65 °C |
|
| F7510DTLFC0050-PE | 50 mm (1,97'') | LFC - Low friction acetal (cyan) | PE White | No positioners | F7510 | 45 mm | 15000 N/m | 7.4 kg/m^2 | Self-Locking Pin | -40÷65 °C | Self-Cleaning Hinge System Pin diameter: 5 mm Temporary code, to be created specifically on request | -40÷65 °C |
|
| F7510DTLFC0050-PP | 50 mm (1,97'') | LFC - Low friction acetal (cyan) | PP White | No positioners | F7510 | 45 mm | 16000 N/m | 7.4 kg/m^2 | Self-Locking Pin | 5÷93 °C | Self-Cleaning Hinge System Pin diameter: 5 mm Temporary code, to be created specifically on request | -40÷65 °C |
|
| F7510DTLFC0100-PA6 | 100 mm (3,94'') | LFC - Low friction acetal (cyan) | PA6 White | No positioners | F7510 | 45 mm | 21900 N/m | 7.4 kg/m^2 | Self-Locking Pin | -40÷93 °C | Self-Cleaning Hinge System Pin diameter: 5 mm Temporary code, to be created specifically on request | -40÷65 °C |
|
| F7510DTLFC0100-PBT | 100 mm (3,94'') | LFC - Low friction acetal (cyan) | PBT White | No positioners | F7510 | 45 mm | 42000 N/m | 7.4 kg/m^2 | Self-Locking Pin | -40÷80 °C | Self-Cleaning Hinge System Pin diameter: 5 mm Temporary code, to be created specifically on request | -40÷65 °C |
|
| F7510DTLFC0100-PE | 100 mm (3,94'') | LFC - Low friction acetal (cyan) | PE White | No positioners | F7510 | 45 mm | 15000 N/m | 7.4 kg/m^2 | Self-Locking Pin | -40÷65 °C | Self-Cleaning Hinge System Pin diameter: 5 mm Temporary code, to be created specifically on request | -40÷65 °C |
|
| F7510DTLFC0100-PP | 100 mm (3,94'') | LFC - Low friction acetal (cyan) | PP White | No positioners | F7510 | 45 mm | 16000 N/m | 7.4 kg/m^2 | Self-Locking Pin | 5÷93 °C | Self-Cleaning Hinge System Pin diameter: 5 mm Temporary code, to be created specifically on request | -40÷65 °C |
|
| F7510DTLFC0150-PA6 | 150 mm (5,91'') | LFC - Low friction acetal (cyan) | PA6 White | No positioners | F7510 | 45 mm | 21900 N/m | 7.4 kg/m^2 | Self-Locking Pin | -40÷93 °C | Self-Cleaning Hinge System Pin diameter: 5 mm Temporary code, to be created specifically on request | -40÷65 °C |
|
| F7510DTLFC0150-PBT | 150 mm (5,91'') | LFC - Low friction acetal (cyan) | PBT White | No positioners | F7510 | 45 mm | 42000 N/m | 7.4 kg/m^2 | Self-Locking Pin | -40÷80 °C | Self-Cleaning Hinge System Pin diameter: 5 mm Temporary code, to be created specifically on request | -40÷65 °C |
|
| F7510DTLFC0150-PE | 150 mm (5,91'') | LFC - Low friction acetal (cyan) | PE White | No positioners | F7510 | 45 mm | 15000 N/m | 7.4 kg/m^2 | Self-Locking Pin | -40÷65 °C | Self-Cleaning Hinge System Pin diameter: 5 mm Temporary code, to be created specifically on request | -40÷65 °C |
|
| F7510DTLFC0150-PP | 150 mm (5,91'') | LFC - Low friction acetal (cyan) | PP White | No positioners | F7510 | 45 mm | 16000 N/m | 7.4 kg/m^2 | Self-Locking Pin | 5÷93 °C | Self-Cleaning Hinge System Pin diameter: 5 mm Temporary code, to be created specifically on request | -40÷65 °C |
|
| F7510DTLFC0200-PA6 | 200 mm (7,87'') | LFC - Low friction acetal (cyan) | PA6 White | No positioners | F7510 | 45 mm | 21900 N/m | 7.4 kg/m^2 | Self-Locking Pin | -40÷93 °C | Self-Cleaning Hinge System Pin diameter: 5 mm Temporary code, to be created specifically on request | -40÷65 °C |
|
| F7510DTLFC0200-PBT | 200 mm (7,87'') | LFC - Low friction acetal (cyan) | PBT White | No positioners | F7510 | 45 mm | 42000 N/m | 7.4 kg/m^2 | Self-Locking Pin | -40÷80 °C | Self-Cleaning Hinge System Pin diameter: 5 mm Temporary code, to be created specifically on request | -40÷65 °C |
|
| F7510DTLFC0200-PE | 200 mm (7,87'') | LFC - Low friction acetal (cyan) | PE White | No positioners | F7510 | 45 mm | 15000 N/m | 7.4 kg/m^2 | Self-Locking Pin | -40÷65 °C | Self-Cleaning Hinge System Pin diameter: 5 mm Temporary code, to be created specifically on request | -40÷65 °C |
|
| F7510DTLFC0200-PP | 200 mm (7,87'') | LFC - Low friction acetal (cyan) | PP White | No positioners | F7510 | 45 mm | 16000 N/m | 7.4 kg/m^2 | Self-Locking Pin | 5÷93 °C | Self-Cleaning Hinge System Pin diameter: 5 mm Temporary code, to be created specifically on request | -40÷65 °C |
|
| F7510DTLFC0250-PA6 | 250 mm (9,84'') | LFC - Low friction acetal (cyan) | PA6 White | No positioners | F7510 | 45 mm | 21900 N/m | 7.4 kg/m^2 | Self-Locking Pin | -40÷93 °C | Self-Cleaning Hinge System Pin diameter: 5 mm Temporary code, to be created specifically on request | -40÷65 °C |
|
| F7510DTLFC0250-PBT | 250 mm (9,84'') | LFC - Low friction acetal (cyan) | PBT White | No positioners | F7510 | 45 mm | 42000 N/m | 7.4 kg/m^2 | Self-Locking Pin | -40÷80 °C | Self-Cleaning Hinge System Pin diameter: 5 mm Temporary code, to be created specifically on request | -40÷65 °C |
|
| F7510DTLFC0250-PE | 250 mm (9,84'') | LFC - Low friction acetal (cyan) | PE White | No positioners | F7510 | 45 mm | 15000 N/m | 7.4 kg/m^2 | Self-Locking Pin | -40÷65 °C | Self-Cleaning Hinge System Pin diameter: 5 mm Temporary code, to be created specifically on request | -40÷65 °C |
|
| F7510DTLFC0250-PP | 250 mm (9,84'') | LFC - Low friction acetal (cyan) | PP White | No positioners | F7510 | 45 mm | 16000 N/m | 7.4 kg/m^2 | Self-Locking Pin | 5÷93 °C | Self-Cleaning Hinge System Pin diameter: 5 mm Temporary code, to be created specifically on request | -40÷65 °C |
|
| F7510DTLFC0300-PA6 | 300 mm (11,81'') | LFC - Low friction acetal (cyan) | PA6 White | No positioners | F7510 | 45 mm | 21900 N/m | 7.4 kg/m^2 | Self-Locking Pin | -40÷93 °C | Self-Cleaning Hinge System Pin diameter: 5 mm Temporary code, to be created specifically on request | -40÷65 °C |
|
| F7510DTLFC0300-PBT | 300 mm (11,81'') | LFC - Low friction acetal (cyan) | PBT White | No positioners | F7510 | 45 mm | 42000 N/m | 7.4 kg/m^2 | Self-Locking Pin | -40÷80 °C | Self-Cleaning Hinge System Pin diameter: 5 mm Temporary code, to be created specifically on request | -40÷65 °C |
|
| F7510DTLFC0300-PE | 300 mm (11,81'') | LFC - Low friction acetal (cyan) | PE White | No positioners | F7510 | 45 mm | 15000 N/m | 7.4 kg/m^2 | Self-Locking Pin | -40÷65 °C | Self-Cleaning Hinge System Pin diameter: 5 mm Temporary code, to be created specifically on request | -40÷65 °C |
|
| F7510DTLFC0300-PP | 300 mm (11,81'') | LFC - Low friction acetal (cyan) | PP White | No positioners | F7510 | 45 mm | 16000 N/m | 7.4 kg/m^2 | Self-Locking Pin | 5÷93 °C | Self-Cleaning Hinge System Pin diameter: 5 mm Temporary code, to be created specifically on request | -40÷65 °C |
|
| F7510DTLFC0350-PA6 | 350 mm (13,78'') | LFC - Low friction acetal (cyan) | PA6 White | No positioners | F7510 | 45 mm | 21900 N/m | 7.4 kg/m^2 | Self-Locking Pin | -40÷93 °C | Self-Cleaning Hinge System Pin diameter: 5 mm Temporary code, to be created specifically on request | -40÷65 °C |
|
| F7510DTLFC0350-PBT | 350 mm (13,78'') | LFC - Low friction acetal (cyan) | PBT White | No positioners | F7510 | 45 mm | 42000 N/m | 7.4 kg/m^2 | Self-Locking Pin | -40÷80 °C | Self-Cleaning Hinge System Pin diameter: 5 mm Temporary code, to be created specifically on request | -40÷65 °C |
|
| F7510DTLFC0350-PE | 350 mm (13,78'') | LFC - Low friction acetal (cyan) | PE White | No positioners | F7510 | 45 mm | 15000 N/m | 7.4 kg/m^2 | Self-Locking Pin | -40÷65 °C | Self-Cleaning Hinge System Pin diameter: 5 mm Temporary code, to be created specifically on request | -40÷65 °C |
|
| F7510DTLFC0350-PP | 350 mm (13,78'') | LFC - Low friction acetal (cyan) | PP White | No positioners | F7510 | 45 mm | 16000 N/m | 7.4 kg/m^2 | Self-Locking Pin | 5÷93 °C | Self-Cleaning Hinge System Pin diameter: 5 mm Temporary code, to be created specifically on request | -40÷65 °C |
|
| F7510DTLFC0400-PA6 | 400 mm (15,75'') | LFC - Low friction acetal (cyan) | PA6 White | No positioners | F7510 | 45 mm | 21900 N/m | 7.4 kg/m^2 | Self-Locking Pin | -40÷93 °C | Self-Cleaning Hinge System Pin diameter: 5 mm Temporary code, to be created specifically on request | -40÷65 °C |
|
| F7510DTLFC0400-PBT | 400 mm (15,75'') | LFC - Low friction acetal (cyan) | PBT White | No positioners | F7510 | 45 mm | 42000 N/m | 7.4 kg/m^2 | Self-Locking Pin | -40÷80 °C | Self-Cleaning Hinge System Pin diameter: 5 mm Temporary code, to be created specifically on request | -40÷65 °C |
|
| F7510DTLFC0400-PE | 400 mm (15,75'') | LFC - Low friction acetal (cyan) | PE White | No positioners | F7510 | 45 mm | 15000 N/m | 7.4 kg/m^2 | Self-Locking Pin | -40÷65 °C | Self-Cleaning Hinge System Pin diameter: 5 mm Temporary code, to be created specifically on request | -40÷65 °C |
|
| F7510DTLFC0400-PP | 400 mm (15,75'') | LFC - Low friction acetal (cyan) | PP White | No positioners | F7510 | 45 mm | 16000 N/m | 7.4 kg/m^2 | Self-Locking Pin | 5÷93 °C | Self-Cleaning Hinge System Pin diameter: 5 mm Temporary code, to be created specifically on request | -40÷65 °C |
|
| F7510DTLFC0450-PA6 | 450 mm (17,72'') | LFC - Low friction acetal (cyan) | PA6 White | No positioners | F7510 | 45 mm | 21900 N/m | 7.4 kg/m^2 | Self-Locking Pin | -40÷93 °C | Self-Cleaning Hinge System Pin diameter: 5 mm Temporary code, to be created specifically on request | -40÷65 °C |
|
| F7510DTLFC0450-PBT | 450 mm (17,72'') | LFC - Low friction acetal (cyan) | PBT White | No positioners | F7510 | 45 mm | 42000 N/m | 7.4 kg/m^2 | Self-Locking Pin | -40÷80 °C | Self-Cleaning Hinge System Pin diameter: 5 mm Temporary code, to be created specifically on request | -40÷65 °C |
|
| F7510DTLFC0450-PE | 450 mm (17,72'') | LFC - Low friction acetal (cyan) | PE White | No positioners | F7510 | 45 mm | 15000 N/m | 7.4 kg/m^2 | Self-Locking Pin | -40÷65 °C | Self-Cleaning Hinge System Pin diameter: 5 mm Temporary code, to be created specifically on request | -40÷65 °C |
|
| F7510DTLFC0450-PP | 450 mm (17,72'') | LFC - Low friction acetal (cyan) | PP White | No positioners | F7510 | 45 mm | 16000 N/m | 7.4 kg/m^2 | Self-Locking Pin | 5÷93 °C | Self-Cleaning Hinge System Pin diameter: 5 mm Temporary code, to be created specifically on request | -40÷65 °C |
|
| F7510DTLFC0500-PA6 | 500 mm (19,69'') | LFC - Low friction acetal (cyan) | PA6 White | No positioners | F7510 | 45 mm | 21900 N/m | 7.4 kg/m^2 | Self-Locking Pin | -40÷93 °C | Self-Cleaning Hinge System Pin diameter: 5 mm Temporary code, to be created specifically on request | -40÷65 °C |
|
| F7510DTLFC0500-PBT | 500 mm (19,69'') | LFC - Low friction acetal (cyan) | PBT White | No positioners | F7510 | 45 mm | 42000 N/m | 7.4 kg/m^2 | Self-Locking Pin | -40÷80 °C | Self-Cleaning Hinge System Pin diameter: 5 mm Temporary code, to be created specifically on request | -40÷65 °C |
|
| F7510DTLFC0500-PE | 500 mm (19,69'') | LFC - Low friction acetal (cyan) | PE White | No positioners | F7510 | 45 mm | 15000 N/m | 7.4 kg/m^2 | Self-Locking Pin | -40÷65 °C | Self-Cleaning Hinge System Pin diameter: 5 mm Temporary code, to be created specifically on request | -40÷65 °C |
|
| F7510DTLFC0500-PP | 500 mm (19,69'') | LFC - Low friction acetal (cyan) | PP White | No positioners | F7510 | 45 mm | 16000 N/m | 7.4 kg/m^2 | Self-Locking Pin | 5÷93 °C | Self-Cleaning Hinge System Pin diameter: 5 mm Temporary code, to be created specifically on request | -40÷65 °C |
|
| F7510DTLFC0550-PA6 | 550 mm (21,65'') | LFC - Low friction acetal (cyan) | PA6 White | No positioners | F7510 | 45 mm | 21900 N/m | 7.4 kg/m^2 | Self-Locking Pin | -40÷93 °C | Self-Cleaning Hinge System Pin diameter: 5 mm Temporary code, to be created specifically on request | -40÷65 °C |
|
| F7510DTLFC0550-PBT | 550 mm (21,65'') | LFC - Low friction acetal (cyan) | PBT White | No positioners | F7510 | 45 mm | 42000 N/m | 7.4 kg/m^2 | Self-Locking Pin | -40÷80 °C | Self-Cleaning Hinge System Pin diameter: 5 mm Temporary code, to be created specifically on request | -40÷65 °C |
|
| F7510DTLFC0550-PE | 550 mm (21,65'') | LFC - Low friction acetal (cyan) | PE White | No positioners | F7510 | 45 mm | 15000 N/m | 7.4 kg/m^2 | Self-Locking Pin | -40÷65 °C | Self-Cleaning Hinge System Pin diameter: 5 mm Temporary code, to be created specifically on request | -40÷65 °C |
|
| F7510DTLFC0550-PP | 550 mm (21,65'') | LFC - Low friction acetal (cyan) | PP White | No positioners | F7510 | 45 mm | 16000 N/m | 7.4 kg/m^2 | Self-Locking Pin | 5÷93 °C | Self-Cleaning Hinge System Pin diameter: 5 mm Temporary code, to be created specifically on request | -40÷65 °C |
|
| F7510DTLFC0600-PA6 | 600 mm (23,62'') | LFC - Low friction acetal (cyan) | PA6 White | No positioners | F7510 | 45 mm | 21900 N/m | 7.4 kg/m^2 | Self-Locking Pin | -40÷93 °C | Self-Cleaning Hinge System Pin diameter: 5 mm Temporary code, to be created specifically on request | -40÷65 °C |
|
| F7510DTLFC0600-PBT | 600 mm (23,62'') | LFC - Low friction acetal (cyan) | PBT White | No positioners | F7510 | 45 mm | 42000 N/m | 7.4 kg/m^2 | Self-Locking Pin | -40÷80 °C | Self-Cleaning Hinge System Pin diameter: 5 mm Temporary code, to be created specifically on request | -40÷65 °C |
|
| F7510DTLFC0600-PE | 600 mm (23,62'') | LFC - Low friction acetal (cyan) | PE White | No positioners | F7510 | 45 mm | 15000 N/m | 7.4 kg/m^2 | Self-Locking Pin | -40÷65 °C | Self-Cleaning Hinge System Pin diameter: 5 mm Temporary code, to be created specifically on request | -40÷65 °C |
|
| F7510DTLFC0600-PP | 600 mm (23,62'') | LFC - Low friction acetal (cyan) | PP White | No positioners | F7510 | 45 mm | 16000 N/m | 7.4 kg/m^2 | Self-Locking Pin | 5÷93 °C | Self-Cleaning Hinge System Pin diameter: 5 mm Temporary code, to be created specifically on request | -40÷65 °C |
|
| F7510DTLFC0650-PA6 | 650 mm (25,59'') | LFC - Low friction acetal (cyan) | PA6 White | No positioners | F7510 | 45 mm | 21900 N/m | 7.4 kg/m^2 | Self-Locking Pin | -40÷93 °C | Self-Cleaning Hinge System Pin diameter: 5 mm Temporary code, to be created specifically on request | -40÷65 °C |
|
| F7510DTLFC0650-PBT | 650 mm (25,59'') | LFC - Low friction acetal (cyan) | PBT White | No positioners | F7510 | 45 mm | 42000 N/m | 7.4 kg/m^2 | Self-Locking Pin | -40÷80 °C | Self-Cleaning Hinge System Pin diameter: 5 mm Temporary code, to be created specifically on request | -40÷65 °C |
|
| F7510DTLFC0650-PE | 650 mm (25,59'') | LFC - Low friction acetal (cyan) | PE White | No positioners | F7510 | 45 mm | 15000 N/m | 7.4 kg/m^2 | Self-Locking Pin | -40÷65 °C | Self-Cleaning Hinge System Pin diameter: 5 mm Temporary code, to be created specifically on request | -40÷65 °C |
|
| F7510DTLFC0650-PP | 650 mm (25,59'') | LFC - Low friction acetal (cyan) | PP White | No positioners | F7510 | 45 mm | 16000 N/m | 7.4 kg/m^2 | Self-Locking Pin | 5÷93 °C | Self-Cleaning Hinge System Pin diameter: 5 mm Temporary code, to be created specifically on request | -40÷65 °C |
|
| F7510DTLFC0700-PA6 | 700 mm (27,56'') | LFC - Low friction acetal (cyan) | PA6 White | No positioners | F7510 | 45 mm | 21900 N/m | 7.4 kg/m^2 | Self-Locking Pin | -40÷93 °C | Self-Cleaning Hinge System Pin diameter: 5 mm Temporary code, to be created specifically on request | -40÷65 °C |
|
| F7510DTLFC0700-PBT | 700 mm (27,56'') | LFC - Low friction acetal (cyan) | PBT White | No positioners | F7510 | 45 mm | 42000 N/m | 7.4 kg/m^2 | Self-Locking Pin | -40÷80 °C | Self-Cleaning Hinge System Pin diameter: 5 mm Temporary code, to be created specifically on request | -40÷65 °C |
|
| F7510DTLFC0700-PE | 700 mm (27,56'') | LFC - Low friction acetal (cyan) | PE White | No positioners | F7510 | 45 mm | 15000 N/m | 7.4 kg/m^2 | Self-Locking Pin | -40÷65 °C | Self-Cleaning Hinge System Pin diameter: 5 mm Temporary code, to be created specifically on request | -40÷65 °C |
|
| F7510DTLFC0700-PP | 700 mm (27,56'') | LFC - Low friction acetal (cyan) | PP White | No positioners | F7510 | 45 mm | 16000 N/m | 7.4 kg/m^2 | Self-Locking Pin | 5÷93 °C | Self-Cleaning Hinge System Pin diameter: 5 mm Temporary code, to be created specifically on request | -40÷65 °C |
|
| F7510DTLFC0750-PA6 | 750 mm (29,53'') | LFC - Low friction acetal (cyan) | PA6 White | No positioners | F7510 | 45 mm | 21900 N/m | 7.4 kg/m^2 | Self-Locking Pin | -40÷93 °C | Self-Cleaning Hinge System Pin diameter: 5 mm Temporary code, to be created specifically on request | -40÷65 °C |
|
| F7510DTLFC0750-PBT | 750 mm (29,53'') | LFC - Low friction acetal (cyan) | PBT White | No positioners | F7510 | 45 mm | 42000 N/m | 7.4 kg/m^2 | Self-Locking Pin | -40÷80 °C | Self-Cleaning Hinge System Pin diameter: 5 mm Temporary code, to be created specifically on request | -40÷65 °C |
|
| F7510DTLFC0750-PE | 750 mm (29,53'') | LFC - Low friction acetal (cyan) | PE White | No positioners | F7510 | 45 mm | 15000 N/m | 7.4 kg/m^2 | Self-Locking Pin | -40÷65 °C | Self-Cleaning Hinge System Pin diameter: 5 mm Temporary code, to be created specifically on request | -40÷65 °C |
|
| F7510DTLFC0750-PP | 750 mm (29,53'') | LFC - Low friction acetal (cyan) | PP White | No positioners | F7510 | 45 mm | 16000 N/m | 7.4 kg/m^2 | Self-Locking Pin | 5÷93 °C | Self-Cleaning Hinge System Pin diameter: 5 mm Temporary code, to be created specifically on request | -40÷65 °C |
|
| F7510DTLFC0800-PA6 | 800 mm (31,5'') | LFC - Low friction acetal (cyan) | PA6 White | No positioners | F7510 | 45 mm | 21900 N/m | 7.4 kg/m^2 | Self-Locking Pin | -40÷93 °C | Self-Cleaning Hinge System Pin diameter: 5 mm Temporary code, to be created specifically on request | -40÷65 °C |
|
| F7510DTLFC0800-PBT | 800 mm (31,5'') | LFC - Low friction acetal (cyan) | PBT White | No positioners | F7510 | 45 mm | 42000 N/m | 7.4 kg/m^2 | Self-Locking Pin | -40÷80 °C | Self-Cleaning Hinge System Pin diameter: 5 mm Temporary code, to be created specifically on request | -40÷65 °C |
|
| F7510DTLFC0800-PE | 800 mm (31,5'') | LFC - Low friction acetal (cyan) | PE White | No positioners | F7510 | 45 mm | 15000 N/m | 7.4 kg/m^2 | Self-Locking Pin | -40÷65 °C | Self-Cleaning Hinge System Pin diameter: 5 mm Temporary code, to be created specifically on request | -40÷65 °C |
|
| F7510DTLFC0800-PP | 800 mm (31,5'') | LFC - Low friction acetal (cyan) | PP White | No positioners | F7510 | 45 mm | 16000 N/m | 7.4 kg/m^2 | Self-Locking Pin | 5÷93 °C | Self-Cleaning Hinge System Pin diameter: 5 mm Temporary code, to be created specifically on request | -40÷65 °C |
|
| F7510DTLFC0850-PA6 | 850 mm (33,46'') | LFC - Low friction acetal (cyan) | PA6 White | No positioners | F7510 | 45 mm | 21900 N/m | 7.4 kg/m^2 | Self-Locking Pin | -40÷93 °C | Self-Cleaning Hinge System Pin diameter: 5 mm Temporary code, to be created specifically on request | -40÷65 °C |
|
| F7510DTLFC0850-PBT | 850 mm (33,46'') | LFC - Low friction acetal (cyan) | PBT White | No positioners | F7510 | 45 mm | 42000 N/m | 7.4 kg/m^2 | Self-Locking Pin | -40÷80 °C | Self-Cleaning Hinge System Pin diameter: 5 mm Temporary code, to be created specifically on request | -40÷65 °C |
|
| F7510DTLFC0850-PE | 850 mm (33,46'') | LFC - Low friction acetal (cyan) | PE White | No positioners | F7510 | 45 mm | 15000 N/m | 7.4 kg/m^2 | Self-Locking Pin | -40÷65 °C | Self-Cleaning Hinge System Pin diameter: 5 mm Temporary code, to be created specifically on request | -40÷65 °C |
|
| F7510DTLFC0850-PP | 850 mm (33,46'') | LFC - Low friction acetal (cyan) | PP White | No positioners | F7510 | 45 mm | 16000 N/m | 7.4 kg/m^2 | Self-Locking Pin | 5÷93 °C | Self-Cleaning Hinge System Pin diameter: 5 mm Temporary code, to be created specifically on request | -40÷65 °C |
|
| F7510DTLFC0900-PA6 | 900 mm (35,43'') | LFC - Low friction acetal (cyan) | PA6 White | No positioners | F7510 | 45 mm | 21900 N/m | 7.4 kg/m^2 | Self-Locking Pin | -40÷93 °C | Self-Cleaning Hinge System Pin diameter: 5 mm Temporary code, to be created specifically on request | -40÷65 °C |
|
| F7510DTLFC0900-PBT | 900 mm (35,43'') | LFC - Low friction acetal (cyan) | PBT White | No positioners | F7510 | 45 mm | 42000 N/m | 7.4 kg/m^2 | Self-Locking Pin | -40÷80 °C | Self-Cleaning Hinge System Pin diameter: 5 mm Temporary code, to be created specifically on request | -40÷65 °C |
|
| F7510DTLFC0900-PE | 900 mm (35,43'') | LFC - Low friction acetal (cyan) | PE White | No positioners | F7510 | 45 mm | 15000 N/m | 7.4 kg/m^2 | Self-Locking Pin | -40÷65 °C | Self-Cleaning Hinge System Pin diameter: 5 mm Temporary code, to be created specifically on request | -40÷65 °C |
|
| F7510DTLFC0900-PP | 900 mm (35,43'') | LFC - Low friction acetal (cyan) | PP White | No positioners | F7510 | 45 mm | 16000 N/m | 7.4 kg/m^2 | Self-Locking Pin | 5÷93 °C | Self-Cleaning Hinge System Pin diameter: 5 mm Temporary code, to be created specifically on request | -40÷65 °C |
|
| F7510DTLFW0050-PA6 | 50 mm (1,97'') | LFW - Low Friction acetal (White) | PA6 White | No positioners | F7510 | 45 mm | 21900 N/m | 7.4 kg/m^2 | Self-Locking Pin | -40÷93 °C | Self-Cleaning Hinge System Pin diameter: 5 mm Temporary code, to be created specifically on request | -40÷65 °C |
|
| F7510DTLFW0050-PBT | 50 mm (1,97'') | LFW - Low Friction acetal (White) | PBT White | No positioners | F7510 | 45 mm | 42000 N/m | 7.4 kg/m^2 | Self-Locking Pin | -40÷80 °C | Self-Cleaning Hinge System Pin diameter: 5 mm Temporary code, to be created specifically on request | -40÷65 °C |
|
| F7510DTLFW0050-PE | 50 mm (1,97'') | LFW - Low Friction acetal (White) | PE White | No positioners | F7510 | 45 mm | 15000 N/m | 7.4 kg/m^2 | Self-Locking Pin | -40÷65 °C | Self-Cleaning Hinge System Pin diameter: 5 mm Temporary code, to be created specifically on request | -40÷65 °C |
|
| F7510DTLFW0050-PP | 50 mm (1,97'') | LFW - Low Friction acetal (White) | PP White | No positioners | F7510 | 45 mm | 16000 N/m | 7.4 kg/m^2 | Self-Locking Pin | 5÷93 °C | Self-Cleaning Hinge System Pin diameter: 5 mm Temporary code, to be created specifically on request | -40÷65 °C |
|
| F7510DTLFW0100-PA6 | 100 mm (3,94'') | LFW - Low Friction acetal (White) | PA6 White | No positioners | F7510 | 45 mm | 21900 N/m | 7.4 kg/m^2 | Self-Locking Pin | -40÷93 °C | Self-Cleaning Hinge System Pin diameter: 5 mm Temporary code, to be created specifically on request | -40÷65 °C |
|
| F7510DTLFW0100-PBT | 100 mm (3,94'') | LFW - Low Friction acetal (White) | PBT White | No positioners | F7510 | 45 mm | 42000 N/m | 7.4 kg/m^2 | Self-Locking Pin | -40÷80 °C | Self-Cleaning Hinge System Pin diameter: 5 mm Temporary code, to be created specifically on request | -40÷65 °C |
|
| F7510DTLFW0100-PE | 100 mm (3,94'') | LFW - Low Friction acetal (White) | PE White | No positioners | F7510 | 45 mm | 15000 N/m | 7.4 kg/m^2 | Self-Locking Pin | -40÷65 °C | Self-Cleaning Hinge System Pin diameter: 5 mm Temporary code, to be created specifically on request | -40÷65 °C |
|
| F7510DTLFW0100-PP | 100 mm (3,94'') | LFW - Low Friction acetal (White) | PP White | No positioners | F7510 | 45 mm | 16000 N/m | 7.4 kg/m^2 | Self-Locking Pin | 5÷93 °C | Self-Cleaning Hinge System Pin diameter: 5 mm Temporary code, to be created specifically on request | -40÷65 °C |
|
| F7510DTLFW0150-PA6 | 150 mm (5,91'') | LFW - Low Friction acetal (White) | PA6 White | No positioners | F7510 | 45 mm | 21900 N/m | 7.4 kg/m^2 | Self-Locking Pin | -40÷93 °C | Self-Cleaning Hinge System Pin diameter: 5 mm Temporary code, to be created specifically on request | -40÷65 °C |
|
| F7510DTLFW0150-PBT | 150 mm (5,91'') | LFW - Low Friction acetal (White) | PBT White | No positioners | F7510 | 45 mm | 42000 N/m | 7.4 kg/m^2 | Self-Locking Pin | -40÷80 °C | Self-Cleaning Hinge System Pin diameter: 5 mm Temporary code, to be created specifically on request | -40÷65 °C |
|
| F7510DTLFW0150-PE | 150 mm (5,91'') | LFW - Low Friction acetal (White) | PE White | No positioners | F7510 | 45 mm | 15000 N/m | 7.4 kg/m^2 | Self-Locking Pin | -40÷65 °C | Self-Cleaning Hinge System Pin diameter: 5 mm Temporary code, to be created specifically on request | -40÷65 °C |
|
| F7510DTLFW0150-PP | 150 mm (5,91'') | LFW - Low Friction acetal (White) | PP White | No positioners | F7510 | 45 mm | 16000 N/m | 7.4 kg/m^2 | Self-Locking Pin | 5÷93 °C | Self-Cleaning Hinge System Pin diameter: 5 mm Temporary code, to be created specifically on request | -40÷65 °C |
|
| F7510DTLFW0200-PA6 | 200 mm (7,87'') | LFW - Low Friction acetal (White) | PA6 White | No positioners | F7510 | 45 mm | 21900 N/m | 7.4 kg/m^2 | Self-Locking Pin | -40÷93 °C | Self-Cleaning Hinge System Pin diameter: 5 mm Temporary code, to be created specifically on request | -40÷65 °C |
|
| F7510DTLFW0200-PBT | 200 mm (7,87'') | LFW - Low Friction acetal (White) | PBT White | No positioners | F7510 | 45 mm | 42000 N/m | 7.4 kg/m^2 | Self-Locking Pin | -40÷80 °C | Self-Cleaning Hinge System Pin diameter: 5 mm Temporary code, to be created specifically on request | -40÷65 °C |
|
| F7510DTLFW0200-PE | 200 mm (7,87'') | LFW - Low Friction acetal (White) | PE White | No positioners | F7510 | 45 mm | 15000 N/m | 7.4 kg/m^2 | Self-Locking Pin | -40÷65 °C | Self-Cleaning Hinge System Pin diameter: 5 mm Temporary code, to be created specifically on request | -40÷65 °C |
|
| F7510DTLFW0200-PP | 200 mm (7,87'') | LFW - Low Friction acetal (White) | PP White | No positioners | F7510 | 45 mm | 16000 N/m | 7.4 kg/m^2 | Self-Locking Pin | 5÷93 °C | Self-Cleaning Hinge System Pin diameter: 5 mm Temporary code, to be created specifically on request | -40÷65 °C |
|
| F7510DTLFW0250-PA6 | 250 mm (9,84'') | LFW - Low Friction acetal (White) | PA6 White | No positioners | F7510 | 45 mm | 21900 N/m | 7.4 kg/m^2 | Self-Locking Pin | -40÷93 °C | Self-Cleaning Hinge System Pin diameter: 5 mm Temporary code, to be created specifically on request | -40÷65 °C |
|
| F7510DTLFW0250-PBT | 250 mm (9,84'') | LFW - Low Friction acetal (White) | PBT White | No positioners | F7510 | 45 mm | 42000 N/m | 7.4 kg/m^2 | Self-Locking Pin | -40÷80 °C | Self-Cleaning Hinge System Pin diameter: 5 mm Temporary code, to be created specifically on request | -40÷65 °C |
|
| F7510DTLFW0250-PE | 250 mm (9,84'') | LFW - Low Friction acetal (White) | PE White | No positioners | F7510 | 45 mm | 15000 N/m | 7.4 kg/m^2 | Self-Locking Pin | -40÷65 °C | Self-Cleaning Hinge System Pin diameter: 5 mm Temporary code, to be created specifically on request | -40÷65 °C |
|
| F7510DTLFW0250-PP | 250 mm (9,84'') | LFW - Low Friction acetal (White) | PP White | No positioners | F7510 | 45 mm | 16000 N/m | 7.4 kg/m^2 | Self-Locking Pin | 5÷93 °C | Self-Cleaning Hinge System Pin diameter: 5 mm Temporary code, to be created specifically on request | -40÷65 °C |
|
| F7510DTLFW0300-PA6 | 300 mm (11,81'') | LFW - Low Friction acetal (White) | PA6 White | No positioners | F7510 | 45 mm | 21900 N/m | 7.4 kg/m^2 | Self-Locking Pin | -40÷93 °C | Self-Cleaning Hinge System Pin diameter: 5 mm Temporary code, to be created specifically on request | -40÷65 °C |
|
| F7510DTLFW0300-PBT | 300 mm (11,81'') | LFW - Low Friction acetal (White) | PBT White | No positioners | F7510 | 45 mm | 42000 N/m | 7.4 kg/m^2 | Self-Locking Pin | -40÷80 °C | Self-Cleaning Hinge System Pin diameter: 5 mm Temporary code, to be created specifically on request | -40÷65 °C |
|
| F7510DTLFW0300-PE | 300 mm (11,81'') | LFW - Low Friction acetal (White) | PE White | No positioners | F7510 | 45 mm | 15000 N/m | 7.4 kg/m^2 | Self-Locking Pin | -40÷65 °C | Self-Cleaning Hinge System Pin diameter: 5 mm Temporary code, to be created specifically on request | -40÷65 °C |
|
| F7510DTLFW0300-PP | 300 mm (11,81'') | LFW - Low Friction acetal (White) | PP White | No positioners | F7510 | 45 mm | 16000 N/m | 7.4 kg/m^2 | Self-Locking Pin | 5÷93 °C | Self-Cleaning Hinge System Pin diameter: 5 mm Temporary code, to be created specifically on request | -40÷65 °C |
|
| F7510DTLFW0350-PA6 | 350 mm (13,78'') | LFW - Low Friction acetal (White) | PA6 White | No positioners | F7510 | 45 mm | 21900 N/m | 7.4 kg/m^2 | Self-Locking Pin | -40÷93 °C | Self-Cleaning Hinge System Pin diameter: 5 mm Temporary code, to be created specifically on request | -40÷65 °C |
|
| F7510DTLFW0350-PBT | 350 mm (13,78'') | LFW - Low Friction acetal (White) | PBT White | No positioners | F7510 | 45 mm | 42000 N/m | 7.4 kg/m^2 | Self-Locking Pin | -40÷80 °C | Self-Cleaning Hinge System Pin diameter: 5 mm Temporary code, to be created specifically on request | -40÷65 °C |
|
| F7510DTLFW0350-PE | 350 mm (13,78'') | LFW - Low Friction acetal (White) | PE White | No positioners | F7510 | 45 mm | 15000 N/m | 7.4 kg/m^2 | Self-Locking Pin | -40÷65 °C | Self-Cleaning Hinge System Pin diameter: 5 mm Temporary code, to be created specifically on request | -40÷65 °C |
|
| F7510DTLFW0350-PP | 350 mm (13,78'') | LFW - Low Friction acetal (White) | PP White | No positioners | F7510 | 45 mm | 16000 N/m | 7.4 kg/m^2 | Self-Locking Pin | 5÷93 °C | Self-Cleaning Hinge System Pin diameter: 5 mm Temporary code, to be created specifically on request | -40÷65 °C |
|
| F7510DTLFW0400-PA6 | 400 mm (15,75'') | LFW - Low Friction acetal (White) | PA6 White | No positioners | F7510 | 45 mm | 21900 N/m | 7.4 kg/m^2 | Self-Locking Pin | -40÷93 °C | Self-Cleaning Hinge System Pin diameter: 5 mm Temporary code, to be created specifically on request | -40÷65 °C |
|
| F7510DTLFW0400-PBT | 400 mm (15,75'') | LFW - Low Friction acetal (White) | PBT White | No positioners | F7510 | 45 mm | 42000 N/m | 7.4 kg/m^2 | Self-Locking Pin | -40÷80 °C | Self-Cleaning Hinge System Pin diameter: 5 mm Temporary code, to be created specifically on request | -40÷65 °C |
|
| F7510DTLFW0400-PE | 400 mm (15,75'') | LFW - Low Friction acetal (White) | PE White | No positioners | F7510 | 45 mm | 15000 N/m | 7.4 kg/m^2 | Self-Locking Pin | -40÷65 °C | Self-Cleaning Hinge System Pin diameter: 5 mm Temporary code, to be created specifically on request | -40÷65 °C |
|
| F7510DTLFW0400-PP | 400 mm (15,75'') | LFW - Low Friction acetal (White) | PP White | No positioners | F7510 | 45 mm | 16000 N/m | 7.4 kg/m^2 | Self-Locking Pin | 5÷93 °C | Self-Cleaning Hinge System Pin diameter: 5 mm Temporary code, to be created specifically on request | -40÷65 °C |
|
| F7510DTLFW0450-PA6 | 450 mm (17,72'') | LFW - Low Friction acetal (White) | PA6 White | No positioners | F7510 | 45 mm | 21900 N/m | 7.4 kg/m^2 | Self-Locking Pin | -40÷93 °C | Self-Cleaning Hinge System Pin diameter: 5 mm Temporary code, to be created specifically on request | -40÷65 °C |
|
| F7510DTLFW0450-PBT | 450 mm (17,72'') | LFW - Low Friction acetal (White) | PBT White | No positioners | F7510 | 45 mm | 42000 N/m | 7.4 kg/m^2 | Self-Locking Pin | -40÷80 °C | Self-Cleaning Hinge System Pin diameter: 5 mm Temporary code, to be created specifically on request | -40÷65 °C |
|
| F7510DTLFW0450-PE | 450 mm (17,72'') | LFW - Low Friction acetal (White) | PE White | No positioners | F7510 | 45 mm | 15000 N/m | 7.4 kg/m^2 | Self-Locking Pin | -40÷65 °C | Self-Cleaning Hinge System Pin diameter: 5 mm Temporary code, to be created specifically on request | -40÷65 °C |
|
| F7510DTLFW0450-PP | 450 mm (17,72'') | LFW - Low Friction acetal (White) | PP White | No positioners | F7510 | 45 mm | 16000 N/m | 7.4 kg/m^2 | Self-Locking Pin | 5÷93 °C | Self-Cleaning Hinge System Pin diameter: 5 mm Temporary code, to be created specifically on request | -40÷65 °C |
|
| F7510DTLFW0500-PA6 | 500 mm (19,69'') | LFW - Low Friction acetal (White) | PA6 White | No positioners | F7510 | 45 mm | 21900 N/m | 7.4 kg/m^2 | Self-Locking Pin | -40÷93 °C | Self-Cleaning Hinge System Pin diameter: 5 mm Temporary code, to be created specifically on request | -40÷65 °C |
|
| F7510DTLFW0500-PBT | 500 mm (19,69'') | LFW - Low Friction acetal (White) | PBT White | No positioners | F7510 | 45 mm | 42000 N/m | 7.4 kg/m^2 | Self-Locking Pin | -40÷80 °C | Self-Cleaning Hinge System Pin diameter: 5 mm Temporary code, to be created specifically on request | -40÷65 °C |
|
| F7510DTLFW0500-PE | 500 mm (19,69'') | LFW - Low Friction acetal (White) | PE White | No positioners | F7510 | 45 mm | 15000 N/m | 7.4 kg/m^2 | Self-Locking Pin | -40÷65 °C | Self-Cleaning Hinge System Pin diameter: 5 mm Temporary code, to be created specifically on request | -40÷65 °C |
|
| F7510DTLFW0500-PP | 500 mm (19,69'') | LFW - Low Friction acetal (White) | PP White | No positioners | F7510 | 45 mm | 16000 N/m | 7.4 kg/m^2 | Self-Locking Pin | 5÷93 °C | Self-Cleaning Hinge System Pin diameter: 5 mm Temporary code, to be created specifically on request | -40÷65 °C |
|
| F7510DTLFW0550-PA6 | 550 mm (21,65'') | LFW - Low Friction acetal (White) | PA6 White | No positioners | F7510 | 45 mm | 21900 N/m | 7.4 kg/m^2 | Self-Locking Pin | -40÷93 °C | Self-Cleaning Hinge System Pin diameter: 5 mm Temporary code, to be created specifically on request | -40÷65 °C |
|
| F7510DTLFW0550-PBT | 550 mm (21,65'') | LFW - Low Friction acetal (White) | PBT White | No positioners | F7510 | 45 mm | 42000 N/m | 7.4 kg/m^2 | Self-Locking Pin | -40÷80 °C | Self-Cleaning Hinge System Pin diameter: 5 mm Temporary code, to be created specifically on request | -40÷65 °C |
|
| F7510DTLFW0550-PE | 550 mm (21,65'') | LFW - Low Friction acetal (White) | PE White | No positioners | F7510 | 45 mm | 15000 N/m | 7.4 kg/m^2 | Self-Locking Pin | -40÷65 °C | Self-Cleaning Hinge System Pin diameter: 5 mm Temporary code, to be created specifically on request | -40÷65 °C |
|
| F7510DTLFW0550-PP | 550 mm (21,65'') | LFW - Low Friction acetal (White) | PP White | No positioners | F7510 | 45 mm | 16000 N/m | 7.4 kg/m^2 | Self-Locking Pin | 5÷93 °C | Self-Cleaning Hinge System Pin diameter: 5 mm Temporary code, to be created specifically on request | -40÷65 °C |
|
| F7510DTLFW0600-PA6 | 600 mm (23,62'') | LFW - Low Friction acetal (White) | PA6 White | No positioners | F7510 | 45 mm | 21900 N/m | 7.4 kg/m^2 | Self-Locking Pin | -40÷93 °C | Self-Cleaning Hinge System Pin diameter: 5 mm Temporary code, to be created specifically on request | -40÷65 °C |
|
| F7510DTLFW0600-PBT | 600 mm (23,62'') | LFW - Low Friction acetal (White) | PBT White | No positioners | F7510 | 45 mm | 42000 N/m | 7.4 kg/m^2 | Self-Locking Pin | -40÷80 °C | Self-Cleaning Hinge System Pin diameter: 5 mm Temporary code, to be created specifically on request | -40÷65 °C |
|
| F7510DTLFW0600-PE | 600 mm (23,62'') | LFW - Low Friction acetal (White) | PE White | No positioners | F7510 | 45 mm | 15000 N/m | 7.4 kg/m^2 | Self-Locking Pin | -40÷65 °C | Self-Cleaning Hinge System Pin diameter: 5 mm Temporary code, to be created specifically on request | -40÷65 °C |
|
| F7510DTLFW0600-PP | 600 mm (23,62'') | LFW - Low Friction acetal (White) | PP White | No positioners | F7510 | 45 mm | 16000 N/m | 7.4 kg/m^2 | Self-Locking Pin | 5÷93 °C | Self-Cleaning Hinge System Pin diameter: 5 mm Temporary code, to be created specifically on request | -40÷65 °C |
|
| F7510DTLFW0650-PA6 | 650 mm (25,59'') | LFW - Low Friction acetal (White) | PA6 White | No positioners | F7510 | 45 mm | 21900 N/m | 7.4 kg/m^2 | Self-Locking Pin | -40÷93 °C | Self-Cleaning Hinge System Pin diameter: 5 mm Temporary code, to be created specifically on request | -40÷65 °C |
|
| F7510DTLFW0650-PBT | 650 mm (25,59'') | LFW - Low Friction acetal (White) | PBT White | No positioners | F7510 | 45 mm | 42000 N/m | 7.4 kg/m^2 | Self-Locking Pin | -40÷80 °C | Self-Cleaning Hinge System Pin diameter: 5 mm Temporary code, to be created specifically on request | -40÷65 °C |
|
| F7510DTLFW0650-PE | 650 mm (25,59'') | LFW - Low Friction acetal (White) | PE White | No positioners | F7510 | 45 mm | 15000 N/m | 7.4 kg/m^2 | Self-Locking Pin | -40÷65 °C | Self-Cleaning Hinge System Pin diameter: 5 mm Temporary code, to be created specifically on request | -40÷65 °C |
|
| F7510DTLFW0650-PP | 650 mm (25,59'') | LFW - Low Friction acetal (White) | PP White | No positioners | F7510 | 45 mm | 16000 N/m | 7.4 kg/m^2 | Self-Locking Pin | 5÷93 °C | Self-Cleaning Hinge System Pin diameter: 5 mm Temporary code, to be created specifically on request | -40÷65 °C |
|
| F7510DTLFW0700-PA6 | 700 mm (27,56'') | LFW - Low Friction acetal (White) | PA6 White | No positioners | F7510 | 45 mm | 21900 N/m | 7.4 kg/m^2 | Self-Locking Pin | -40÷93 °C | Self-Cleaning Hinge System Pin diameter: 5 mm Temporary code, to be created specifically on request | -40÷65 °C |
|
| F7510DTLFW0700-PBT | 700 mm (27,56'') | LFW - Low Friction acetal (White) | PBT White | No positioners | F7510 | 45 mm | 42000 N/m | 7.4 kg/m^2 | Self-Locking Pin | -40÷80 °C | Self-Cleaning Hinge System Pin diameter: 5 mm Temporary code, to be created specifically on request | -40÷65 °C |
|
| F7510DTLFW0700-PE | 700 mm (27,56'') | LFW - Low Friction acetal (White) | PE White | No positioners | F7510 | 45 mm | 15000 N/m | 7.4 kg/m^2 | Self-Locking Pin | -40÷65 °C | Self-Cleaning Hinge System Pin diameter: 5 mm Temporary code, to be created specifically on request | -40÷65 °C |
|
| F7510DTLFW0700-PP | 700 mm (27,56'') | LFW - Low Friction acetal (White) | PP White | No positioners | F7510 | 45 mm | 16000 N/m | 7.4 kg/m^2 | Self-Locking Pin | 5÷93 °C | Self-Cleaning Hinge System Pin diameter: 5 mm Temporary code, to be created specifically on request | -40÷65 °C |
|
| F7510DTLFW0750-PA6 | 750 mm (29,53'') | LFW - Low Friction acetal (White) | PA6 White | No positioners | F7510 | 45 mm | 21900 N/m | 7.4 kg/m^2 | Self-Locking Pin | -40÷93 °C | Self-Cleaning Hinge System Pin diameter: 5 mm Temporary code, to be created specifically on request | -40÷65 °C |
|
| F7510DTLFW0750-PBT | 750 mm (29,53'') | LFW - Low Friction acetal (White) | PBT White | No positioners | F7510 | 45 mm | 42000 N/m | 7.4 kg/m^2 | Self-Locking Pin | -40÷80 °C | Self-Cleaning Hinge System Pin diameter: 5 mm Temporary code, to be created specifically on request | -40÷65 °C |
|
| F7510DTLFW0750-PE | 750 mm (29,53'') | LFW - Low Friction acetal (White) | PE White | No positioners | F7510 | 45 mm | 15000 N/m | 7.4 kg/m^2 | Self-Locking Pin | -40÷65 °C | Self-Cleaning Hinge System Pin diameter: 5 mm Temporary code, to be created specifically on request | -40÷65 °C |
|
| F7510DTLFW0750-PP | 750 mm (29,53'') | LFW - Low Friction acetal (White) | PP White | No positioners | F7510 | 45 mm | 16000 N/m | 7.4 kg/m^2 | Self-Locking Pin | 5÷93 °C | Self-Cleaning Hinge System Pin diameter: 5 mm Temporary code, to be created specifically on request | -40÷65 °C |
|
| F7510DTLFW0800-PA6 | 800 mm (31,5'') | LFW - Low Friction acetal (White) | PA6 White | No positioners | F7510 | 45 mm | 21900 N/m | 7.4 kg/m^2 | Self-Locking Pin | -40÷93 °C | Self-Cleaning Hinge System Pin diameter: 5 mm Temporary code, to be created specifically on request | -40÷65 °C |
|
| F7510DTLFW0800-PBT | 800 mm (31,5'') | LFW - Low Friction acetal (White) | PBT White | No positioners | F7510 | 45 mm | 42000 N/m | 7.4 kg/m^2 | Self-Locking Pin | -40÷80 °C | Self-Cleaning Hinge System Pin diameter: 5 mm Temporary code, to be created specifically on request | -40÷65 °C |
|
| F7510DTLFW0800-PE | 800 mm (31,5'') | LFW - Low Friction acetal (White) | PE White | No positioners | F7510 | 45 mm | 15000 N/m | 7.4 kg/m^2 | Self-Locking Pin | -40÷65 °C | Self-Cleaning Hinge System Pin diameter: 5 mm Temporary code, to be created specifically on request | -40÷65 °C |
|
| F7510DTLFW0800-PP | 800 mm (31,5'') | LFW - Low Friction acetal (White) | PP White | No positioners | F7510 | 45 mm | 16000 N/m | 7.4 kg/m^2 | Self-Locking Pin | 5÷93 °C | Self-Cleaning Hinge System Pin diameter: 5 mm Temporary code, to be created specifically on request | -40÷65 °C |
|
| F7510DTLFW0850-PA6 | 850 mm (33,46'') | LFW - Low Friction acetal (White) | PA6 White | No positioners | F7510 | 45 mm | 21900 N/m | 7.4 kg/m^2 | Self-Locking Pin | -40÷93 °C | Self-Cleaning Hinge System Pin diameter: 5 mm Temporary code, to be created specifically on request | -40÷65 °C |
|
| F7510DTLFW0850-PBT | 850 mm (33,46'') | LFW - Low Friction acetal (White) | PBT White | No positioners | F7510 | 45 mm | 42000 N/m | 7.4 kg/m^2 | Self-Locking Pin | -40÷80 °C | Self-Cleaning Hinge System Pin diameter: 5 mm Temporary code, to be created specifically on request | -40÷65 °C |
|
| F7510DTLFW0850-PE | 850 mm (33,46'') | LFW - Low Friction acetal (White) | PE White | No positioners | F7510 | 45 mm | 15000 N/m | 7.4 kg/m^2 | Self-Locking Pin | -40÷65 °C | Self-Cleaning Hinge System Pin diameter: 5 mm Temporary code, to be created specifically on request | -40÷65 °C |
|
| F7510DTLFW0850-PP | 850 mm (33,46'') | LFW - Low Friction acetal (White) | PP White | No positioners | F7510 | 45 mm | 16000 N/m | 7.4 kg/m^2 | Self-Locking Pin | 5÷93 °C | Self-Cleaning Hinge System Pin diameter: 5 mm Temporary code, to be created specifically on request | -40÷65 °C |
|
| F7510DTLFW0900-PA6 | 900 mm (35,43'') | LFW - Low Friction acetal (White) | PA6 White | No positioners | F7510 | 45 mm | 21900 N/m | 7.4 kg/m^2 | Self-Locking Pin | -40÷93 °C | Self-Cleaning Hinge System Pin diameter: 5 mm Temporary code, to be created specifically on request | -40÷65 °C |
|
| F7510DTLFW0900-PBT | 900 mm (35,43'') | LFW - Low Friction acetal (White) | PBT White | No positioners | F7510 | 45 mm | 42000 N/m | 7.4 kg/m^2 | Self-Locking Pin | -40÷80 °C | Self-Cleaning Hinge System Pin diameter: 5 mm Temporary code, to be created specifically on request | -40÷65 °C |
|
| F7510DTLFW0900-PE | 900 mm (35,43'') | LFW - Low Friction acetal (White) | PE White | No positioners | F7510 | 45 mm | 15000 N/m | 7.4 kg/m^2 | Self-Locking Pin | -40÷65 °C | Self-Cleaning Hinge System Pin diameter: 5 mm Temporary code, to be created specifically on request | -40÷65 °C |
|
| F7510DTLFW0900-PP | 900 mm (35,43'') | LFW - Low Friction acetal (White) | PP White | No positioners | F7510 | 45 mm | 16000 N/m | 7.4 kg/m^2 | Self-Locking Pin | 5÷93 °C | Self-Cleaning Hinge System Pin diameter: 5 mm Temporary code, to be created specifically on request | -40÷65 °C |
|
| F7510DTPEB0050-PA6 | 50 mm (1,97'') | PEB - Polyethylene (blue) | PA6 White | No positioners | F7510 | 45 mm | 8000 N/m | 5.3 kg/m^2 | Self-Locking Pin | -40÷65 °C | Self-Cleaning Hinge System Pin diameter: 5 mm Temporary code, to be created specifically on request | - |
|
| F7510DTPEB0050-PBT | 50 mm (1,97'') | PEB - Polyethylene (blue) | PBT White | No positioners | F7510 | 45 mm | 8000 N/m | 5.3 kg/m^2 | Self-Locking Pin | -40÷65 °C | Self-Cleaning Hinge System Pin diameter: 5 mm Temporary code, to be created specifically on request | - |
|
| F7510DTPEB0050-PE | 50 mm (1,97'') | PEB - Polyethylene (blue) | PE White | No positioners | F7510 | 45 mm | 8000 N/m | 5.3 kg/m^2 | Self-Locking Pin | -70÷65 °C | Self-Cleaning Hinge System Pin diameter: 5 mm Temporary code, to be created specifically on request | - |
|
| F7510DTPEB0050-PP | 50 mm (1,97'') | PEB - Polyethylene (blue) | PP White | No positioners | F7510 | 45 mm | 8000 N/m | 5.3 kg/m^2 | Self-Locking Pin | 0÷65 °C | Self-Cleaning Hinge System Pin diameter: 5 mm Temporary code, to be created specifically on request | - |
|
| F7510DTPEB0100-PA6 | 100 mm (3,94'') | PEB - Polyethylene (blue) | PA6 White | No positioners | F7510 | 45 mm | 8000 N/m | 5.3 kg/m^2 | Self-Locking Pin | -40÷65 °C | Self-Cleaning Hinge System Pin diameter: 5 mm Temporary code, to be created specifically on request | - |
|
| F7510DTPEB0100-PBT | 100 mm (3,94'') | PEB - Polyethylene (blue) | PBT White | No positioners | F7510 | 45 mm | 8000 N/m | 5.3 kg/m^2 | Self-Locking Pin | -40÷65 °C | - | - |
|
| F7510DTPEB0100-PE | 100 mm (3,94'') | PEB - Polyethylene (blue) | PE White | No positioners | F7510 | 45 mm | 8000 N/m | 5.3 kg/m^2 | Self-Locking Pin | -70÷65 °C | Self-Cleaning Hinge System Pin diameter: 5 mm Temporary code, to be created specifically on request | - |
|
| F7510DTPEB0100-PP | 100 mm (3,94'') | PEB - Polyethylene (blue) | PP White | No positioners | F7510 | 45 mm | 8000 N/m | 5.3 kg/m^2 | Self-Locking Pin | 0÷65 °C | Self-Cleaning Hinge System Pin diameter: 5 mm Temporary code, to be created specifically on request | - |
|
| F7510DTPEB0150-PA6 | 150 mm (5,91'') | PEB - Polyethylene (blue) | PA6 White | No positioners | F7510 | 45 mm | 8000 N/m | 5.3 kg/m^2 | Self-Locking Pin | -40÷65 °C | Self-Cleaning Hinge System Pin diameter: 5 mm Temporary code, to be created specifically on request | - |
|
| F7510DTPEB0150-PBT | 150 mm (5,91'') | PEB - Polyethylene (blue) | PBT White | No positioners | F7510 | 45 mm | 8000 N/m | 5.3 kg/m^2 | Self-Locking Pin | -40÷65 °C | - | - |
|
| F7510DTPEB0150-PE | 150 mm (5,91'') | PEB - Polyethylene (blue) | PE White | No positioners | F7510 | 45 mm | 8000 N/m | 5.3 kg/m^2 | Self-Locking Pin | -70÷65 °C | Self-Cleaning Hinge System Pin diameter: 5 mm Temporary code, to be created specifically on request | - |
|
| F7510DTPEB0150-PP | 150 mm (5,91'') | PEB - Polyethylene (blue) | PP White | No positioners | F7510 | 45 mm | 8000 N/m | 5.3 kg/m^2 | Self-Locking Pin | 0÷65 °C | Self-Cleaning Hinge System Pin diameter: 5 mm Temporary code, to be created specifically on request | - |
|
| F7510DTPEB0200-PA6 | 200 mm (7,87'') | PEB - Polyethylene (blue) | PA6 White | No positioners | F7510 | 45 mm | 8000 N/m | 5.3 kg/m^2 | Self-Locking Pin | -40÷65 °C | Self-Cleaning Hinge System Pin diameter: 5 mm Temporary code, to be created specifically on request | - |
|
| F7510DTPEB0200-PBT | 200 mm (7,87'') | PEB - Polyethylene (blue) | PBT White | No positioners | F7510 | 45 mm | 8000 N/m | 5.3 kg/m^2 | Self-Locking Pin | -40÷65 °C | - | - |
|
| F7510DTPEB0200-PE | 200 mm (7,87'') | PEB - Polyethylene (blue) | PE White | No positioners | F7510 | 45 mm | 8000 N/m | 5.3 kg/m^2 | Self-Locking Pin | -70÷65 °C | Self-Cleaning Hinge System Pin diameter: 5 mm Temporary code, to be created specifically on request | - |
|
| F7510DTPEB0200-PP | 200 mm (7,87'') | PEB - Polyethylene (blue) | PP White | No positioners | F7510 | 45 mm | 8000 N/m | 5.3 kg/m^2 | Self-Locking Pin | 0÷65 °C | Self-Cleaning Hinge System Pin diameter: 5 mm Temporary code, to be created specifically on request | - |
|
| F7510DTPEB0250-PA6 | 250 mm (9,84'') | PEB - Polyethylene (blue) | PA6 White | No positioners | F7510 | 45 mm | 8000 N/m | 5.3 kg/m^2 | Self-Locking Pin | -40÷65 °C | Self-Cleaning Hinge System Pin diameter: 5 mm Temporary code, to be created specifically on request | - |
|
| F7510DTPEB0250-PBT | 250 mm (9,84'') | PEB - Polyethylene (blue) | PBT White | No positioners | F7510 | 45 mm | 8000 N/m | 5.3 kg/m^2 | Self-Locking Pin | -40÷65 °C | Self-Cleaning Hinge System Pin diameter: 5 mm Temporary code, to be created specifically on request | - |
|
| F7510DTPEB0250-PE | 250 mm (9,84'') | PEB - Polyethylene (blue) | PE White | No positioners | F7510 | 45 mm | 8000 N/m | 5.3 kg/m^2 | Self-Locking Pin | -70÷65 °C | Self-Cleaning Hinge System Pin diameter: 5 mm Temporary code, to be created specifically on request | - |
|
| F7510DTPEB0250-PP | 250 mm (9,84'') | PEB - Polyethylene (blue) | PP White | No positioners | F7510 | 45 mm | 8000 N/m | 5.3 kg/m^2 | Self-Locking Pin | 0÷65 °C | Self-Cleaning Hinge System Pin diameter: 5 mm Temporary code, to be created specifically on request | - |
|
| F7510DTPEB0300-PA6 | 300 mm (11,81'') | PEB - Polyethylene (blue) | PA6 White | No positioners | F7510 | 45 mm | 8000 N/m | 5.3 kg/m^2 | Self-Locking Pin | -40÷65 °C | Self-Cleaning Hinge System Pin diameter: 5 mm Temporary code, to be created specifically on request | - |
|
| F7510DTPEB0300-PBT | 300 mm (11,81'') | PEB - Polyethylene (blue) | PBT White | No positioners | F7510 | 45 mm | 8000 N/m | 5.3 kg/m^2 | Self-Locking Pin | -40÷65 °C | Self-Cleaning Hinge System Pin diameter: 5 mm Temporary code, to be created specifically on request | - |
|
| F7510DTPEB0300-PE | 300 mm (11,81'') | PEB - Polyethylene (blue) | PE White | No positioners | F7510 | 45 mm | 8000 N/m | 5.3 kg/m^2 | Self-Locking Pin | -70÷65 °C | Self-Cleaning Hinge System Pin diameter: 5 mm Temporary code, to be created specifically on request | - |
|
| F7510DTPEB0300-PP | 300 mm (11,81'') | PEB - Polyethylene (blue) | PP White | No positioners | F7510 | 45 mm | 8000 N/m | 5.3 kg/m^2 | Self-Locking Pin | 0÷65 °C | Self-Cleaning Hinge System Pin diameter: 5 mm Temporary code, to be created specifically on request | - |
|
| F7510DTPEB0350-PA6 | 350 mm (13,78'') | PEB - Polyethylene (blue) | PA6 White | No positioners | F7510 | 45 mm | 8000 N/m | 5.3 kg/m^2 | Self-Locking Pin | -40÷65 °C | Self-Cleaning Hinge System Pin diameter: 5 mm Temporary code, to be created specifically on request | - |
|
| F7510DTPEB0350-PBT | 350 mm (13,78'') | PEB - Polyethylene (blue) | PBT White | No positioners | F7510 | 45 mm | 8000 N/m | 5.3 kg/m^2 | Self-Locking Pin | -40÷65 °C | Self-Cleaning Hinge System Pin diameter: 5 mm Temporary code, to be created specifically on request | - |
|
| F7510DTPEB0350-PE | 350 mm (13,78'') | PEB - Polyethylene (blue) | PE White | No positioners | F7510 | 45 mm | 8000 N/m | 5.3 kg/m^2 | Self-Locking Pin | -70÷65 °C | Self-Cleaning Hinge System Pin diameter: 5 mm Temporary code, to be created specifically on request | - |
|
| F7510DTPEB0350-PP | 350 mm (13,78'') | PEB - Polyethylene (blue) | PP White | No positioners | F7510 | 45 mm | 8000 N/m | 5.3 kg/m^2 | Self-Locking Pin | 0÷65 °C | Self-Cleaning Hinge System Pin diameter: 5 mm Temporary code, to be created specifically on request | - |
|
| F7510DTPEB0400-PA6 | 400 mm (15,75'') | PEB - Polyethylene (blue) | PA6 White | No positioners | F7510 | 45 mm | 8000 N/m | 5.3 kg/m^2 | Self-Locking Pin | -40÷65 °C | Self-Cleaning Hinge System Pin diameter: 5 mm Temporary code, to be created specifically on request | - |
|
| F7510DTPEB0400-PBT | 400 mm (15,75'') | PEB - Polyethylene (blue) | PBT White | No positioners | F7510 | 45 mm | 8000 N/m | 5.3 kg/m^2 | Self-Locking Pin | -40÷65 °C | Self-Cleaning Hinge System Pin diameter: 5 mm Temporary code, to be created specifically on request | - |
|
| F7510DTPEB0400-PE | 400 mm (15,75'') | PEB - Polyethylene (blue) | PE White | No positioners | F7510 | 45 mm | 8000 N/m | 5.3 kg/m^2 | Self-Locking Pin | -70÷65 °C | Self-Cleaning Hinge System Pin diameter: 5 mm Temporary code, to be created specifically on request | - |
|
| F7510DTPEB0400-PP | 400 mm (15,75'') | PEB - Polyethylene (blue) | PP White | No positioners | F7510 | 45 mm | 8000 N/m | 5.3 kg/m^2 | Self-Locking Pin | 0÷65 °C | Self-Cleaning Hinge System Pin diameter: 5 mm Temporary code, to be created specifically on request | - |
|
| F7510DTPEB0450-PA6 | 450 mm (17,72'') | PEB - Polyethylene (blue) | PA6 White | No positioners | F7510 | 45 mm | 8000 N/m | 5.3 kg/m^2 | Self-Locking Pin | -40÷65 °C | Self-Cleaning Hinge System Pin diameter: 5 mm Temporary code, to be created specifically on request | - |
|
| F7510DTPEB0450-PBT | 450 mm (17,72'') | PEB - Polyethylene (blue) | PBT White | No positioners | F7510 | 45 mm | 8000 N/m | 5.3 kg/m^2 | Self-Locking Pin | -40÷65 °C | Self-Cleaning Hinge System Pin diameter: 5 mm Temporary code, to be created specifically on request | - |
|
| F7510DTPEB0450-PE | 450 mm (17,72'') | PEB - Polyethylene (blue) | PE White | No positioners | F7510 | 45 mm | 8000 N/m | 5.3 kg/m^2 | Self-Locking Pin | -70÷65 °C | Self-Cleaning Hinge System Pin diameter: 5 mm Temporary code, to be created specifically on request | - |
|
| F7510DTPEB0450-PP | 450 mm (17,72'') | PEB - Polyethylene (blue) | PP White | No positioners | F7510 | 45 mm | 8000 N/m | 5.3 kg/m^2 | Self-Locking Pin | 0÷65 °C | Self-Cleaning Hinge System Pin diameter: 5 mm Temporary code, to be created specifically on request | - |
|
| F7510DTPEB0500-PA6 | 500 mm (19,69'') | PEB - Polyethylene (blue) | PA6 White | No positioners | F7510 | 45 mm | 8000 N/m | 5.3 kg/m^2 | Self-Locking Pin | -40÷65 °C | Self-Cleaning Hinge System Pin diameter: 5 mm Temporary code, to be created specifically on request | - |
|
| F7510DTPEB0500-PBT | 500 mm (19,69'') | PEB - Polyethylene (blue) | PBT White | No positioners | F7510 | 45 mm | 8000 N/m | 5.3 kg/m^2 | Self-Locking Pin | -40÷65 °C | Self-Cleaning Hinge System Pin diameter: 5 mm Temporary code, to be created specifically on request | - |
|
| F7510DTPEB0500-PE | 500 mm (19,69'') | PEB - Polyethylene (blue) | PE White | No positioners | F7510 | 45 mm | 8000 N/m | 5.3 kg/m^2 | Self-Locking Pin | -70÷65 °C | Self-Cleaning Hinge System Pin diameter: 5 mm Temporary code, to be created specifically on request | - |
|
| F7510DTPEB0500-PP | 500 mm (19,69'') | PEB - Polyethylene (blue) | PP White | No positioners | F7510 | 45 mm | 8000 N/m | 5.3 kg/m^2 | Self-Locking Pin | 0÷65 °C | Self-Cleaning Hinge System Pin diameter: 5 mm Temporary code, to be created specifically on request | - |
|
| F7510DTPEB0550-PA6 | 550 mm (21,65'') | PEB - Polyethylene (blue) | PA6 White | No positioners | F7510 | 45 mm | 8000 N/m | 5.3 kg/m^2 | Self-Locking Pin | -40÷65 °C | Self-Cleaning Hinge System Pin diameter: 5 mm Temporary code, to be created specifically on request | - |
|
| F7510DTPEB0550-PBT | 550 mm (21,65'') | PEB - Polyethylene (blue) | PBT White | No positioners | F7510 | 45 mm | 8000 N/m | 5.3 kg/m^2 | Self-Locking Pin | -40÷65 °C | Self-Cleaning Hinge System Pin diameter: 5 mm Temporary code, to be created specifically on request | - |
|
| F7510DTPEB0550-PE | 550 mm (21,65'') | PEB - Polyethylene (blue) | PE White | No positioners | F7510 | 45 mm | 8000 N/m | 5.3 kg/m^2 | Self-Locking Pin | -70÷65 °C | Self-Cleaning Hinge System Pin diameter: 5 mm Temporary code, to be created specifically on request | - |
|
| F7510DTPEB0550-PP | 550 mm (21,65'') | PEB - Polyethylene (blue) | PP White | No positioners | F7510 | 45 mm | 8000 N/m | 5.3 kg/m^2 | Self-Locking Pin | 0÷65 °C | Self-Cleaning Hinge System Pin diameter: 5 mm Temporary code, to be created specifically on request | - |
|
| F7510DTPEB0600-PA6 | 600 mm (23,62'') | PEB - Polyethylene (blue) | PA6 White | No positioners | F7510 | 45 mm | 8000 N/m | 5.3 kg/m^2 | Self-Locking Pin | -40÷65 °C | Self-Cleaning Hinge System Pin diameter: 5 mm Temporary code, to be created specifically on request | - |
|
| F7510DTPEB0600-PBT | 600 mm (23,62'') | PEB - Polyethylene (blue) | PBT White | No positioners | F7510 | 45 mm | 8000 N/m | 5.3 kg/m^2 | Self-Locking Pin | -40÷65 °C | Self-Cleaning Hinge System Pin diameter: 5 mm Temporary code, to be created specifically on request | - |
|
| F7510DTPEB0600-PE | 600 mm (23,62'') | PEB - Polyethylene (blue) | PE White | No positioners | F7510 | 45 mm | 8000 N/m | 5.3 kg/m^2 | Self-Locking Pin | -70÷65 °C | Self-Cleaning Hinge System Pin diameter: 5 mm Temporary code, to be created specifically on request | - |
|
| F7510DTPEB0600-PP | 600 mm (23,62'') | PEB - Polyethylene (blue) | PP White | No positioners | F7510 | 45 mm | 8000 N/m | 5.3 kg/m^2 | Self-Locking Pin | 0÷65 °C | Self-Cleaning Hinge System Pin diameter: 5 mm Temporary code, to be created specifically on request | - |
|
| F7510DTPEB0650-PA6 | 650 mm (25,59'') | PEB - Polyethylene (blue) | PA6 White | No positioners | F7510 | 45 mm | 8000 N/m | 5.3 kg/m^2 | Self-Locking Pin | -40÷65 °C | Self-Cleaning Hinge System Pin diameter: 5 mm Temporary code, to be created specifically on request | - |
|
| F7510DTPEB0650-PBT | 650 mm (25,59'') | PEB - Polyethylene (blue) | PBT White | No positioners | F7510 | 45 mm | 8000 N/m | 5.3 kg/m^2 | Self-Locking Pin | -40÷65 °C | Self-Cleaning Hinge System Pin diameter: 5 mm Temporary code, to be created specifically on request | - |
|
| F7510DTPEB0650-PE | 650 mm (25,59'') | PEB - Polyethylene (blue) | PE White | No positioners | F7510 | 45 mm | 8000 N/m | 5.3 kg/m^2 | Self-Locking Pin | -70÷65 °C | Self-Cleaning Hinge System Pin diameter: 5 mm Temporary code, to be created specifically on request | - |
|
| F7510DTPEB0650-PP | 650 mm (25,59'') | PEB - Polyethylene (blue) | PP White | No positioners | F7510 | 45 mm | 8000 N/m | 5.3 kg/m^2 | Self-Locking Pin | 0÷65 °C | Self-Cleaning Hinge System Pin diameter: 5 mm Temporary code, to be created specifically on request | - |
|
| F7510DTPEB0700-PA6 | 700 mm (27,56'') | PEB - Polyethylene (blue) | PA6 White | No positioners | F7510 | 45 mm | 8000 N/m | 5.3 kg/m^2 | Self-Locking Pin | -40÷65 °C | Self-Cleaning Hinge System Pin diameter: 5 mm Temporary code, to be created specifically on request | - |
|
| F7510DTPEB0700-PBT | 700 mm (27,56'') | PEB - Polyethylene (blue) | PBT White | No positioners | F7510 | 45 mm | 8000 N/m | 5.3 kg/m^2 | Self-Locking Pin | -40÷65 °C | Self-Cleaning Hinge System Pin diameter: 5 mm Temporary code, to be created specifically on request | - |
|
| F7510DTPEB0700-PE | 700 mm (27,56'') | PEB - Polyethylene (blue) | PE White | No positioners | F7510 | 45 mm | 8000 N/m | 5.3 kg/m^2 | Self-Locking Pin | -70÷65 °C | Self-Cleaning Hinge System Pin diameter: 5 mm Temporary code, to be created specifically on request | - |
|
| F7510DTPEB0700-PP | 700 mm (27,56'') | PEB - Polyethylene (blue) | PP White | No positioners | F7510 | 45 mm | 8000 N/m | 5.3 kg/m^2 | Self-Locking Pin | 0÷65 °C | Self-Cleaning Hinge System Pin diameter: 5 mm Temporary code, to be created specifically on request | - |
|
| F7510DTPEB0750-PA6 | 750 mm (29,53'') | PEB - Polyethylene (blue) | PA6 White | No positioners | F7510 | 45 mm | 8000 N/m | 5.3 kg/m^2 | Self-Locking Pin | -40÷65 °C | Self-Cleaning Hinge System Pin diameter: 5 mm Temporary code, to be created specifically on request | - |
|
| F7510DTPEB0750-PBT | 750 mm (29,53'') | PEB - Polyethylene (blue) | PBT White | No positioners | F7510 | 45 mm | 8000 N/m | 5.3 kg/m^2 | Self-Locking Pin | -40÷65 °C | Self-Cleaning Hinge System Pin diameter: 5 mm Temporary code, to be created specifically on request | - |
|
| F7510DTPEB0750-PE | 750 mm (29,53'') | PEB - Polyethylene (blue) | PE White | No positioners | F7510 | 45 mm | 8000 N/m | 5.3 kg/m^2 | Self-Locking Pin | -70÷65 °C | Self-Cleaning Hinge System Pin diameter: 5 mm Temporary code, to be created specifically on request | - |
|
| F7510DTPEB0750-PP | 750 mm (29,53'') | PEB - Polyethylene (blue) | PP White | No positioners | F7510 | 45 mm | 8000 N/m | 5.3 kg/m^2 | Self-Locking Pin | 0÷65 °C | Self-Cleaning Hinge System Pin diameter: 5 mm Temporary code, to be created specifically on request | - |
|
| F7510DTPEB0800-PA6 | 800 mm (31,5'') | PEB - Polyethylene (blue) | PA6 White | No positioners | F7510 | 45 mm | 8000 N/m | 5.3 kg/m^2 | Self-Locking Pin | -40÷65 °C | Self-Cleaning Hinge System Pin diameter: 5 mm Temporary code, to be created specifically on request | - |
|
| F7510DTPEB0800-PBT | 800 mm (31,5'') | PEB - Polyethylene (blue) | PBT White | No positioners | F7510 | 45 mm | 8000 N/m | 5.3 kg/m^2 | Self-Locking Pin | -40÷65 °C | Self-Cleaning Hinge System Pin diameter: 5 mm Temporary code, to be created specifically on request | - |
|
| F7510DTPEB0800-PE | 800 mm (31,5'') | PEB - Polyethylene (blue) | PE White | No positioners | F7510 | 45 mm | 8000 N/m | 5.3 kg/m^2 | Self-Locking Pin | -70÷65 °C | Self-Cleaning Hinge System Pin diameter: 5 mm Temporary code, to be created specifically on request | - |
|
| F7510DTPEB0800-PP | 800 mm (31,5'') | PEB - Polyethylene (blue) | PP White | No positioners | F7510 | 45 mm | 8000 N/m | 5.3 kg/m^2 | Self-Locking Pin | 0÷65 °C | Self-Cleaning Hinge System Pin diameter: 5 mm Temporary code, to be created specifically on request | - |
|
| F7510DTPEB0850-PA6 | 850 mm (33,46'') | PEB - Polyethylene (blue) | PA6 White | No positioners | F7510 | 45 mm | 8000 N/m | 5.3 kg/m^2 | Self-Locking Pin | -40÷65 °C | Self-Cleaning Hinge System Pin diameter: 5 mm Temporary code, to be created specifically on request | - |
|
| F7510DTPEB0850-PBT | 850 mm (33,46'') | PEB - Polyethylene (blue) | PBT White | No positioners | F7510 | 45 mm | 8000 N/m | 5.3 kg/m^2 | Self-Locking Pin | -40÷65 °C | Self-Cleaning Hinge System Pin diameter: 5 mm Temporary code, to be created specifically on request | - |
|
| F7510DTPEB0850-PE | 850 mm (33,46'') | PEB - Polyethylene (blue) | PE White | No positioners | F7510 | 45 mm | 8000 N/m | 5.3 kg/m^2 | Self-Locking Pin | -70÷65 °C | Self-Cleaning Hinge System Pin diameter: 5 mm Temporary code, to be created specifically on request | - |
|
| F7510DTPEB0850-PP | 850 mm (33,46'') | PEB - Polyethylene (blue) | PP White | No positioners | F7510 | 45 mm | 8000 N/m | 5.3 kg/m^2 | Self-Locking Pin | 0÷65 °C | Self-Cleaning Hinge System Pin diameter: 5 mm Temporary code, to be created specifically on request | - |
|
| F7510DTPEB0900-PA6 | 900 mm (35,43'') | PEB - Polyethylene (blue) | PA6 White | No positioners | F7510 | 45 mm | 8000 N/m | 5.3 kg/m^2 | Self-Locking Pin | -40÷65 °C | Self-Cleaning Hinge System Pin diameter: 5 mm Temporary code, to be created specifically on request | - |
|
| F7510DTPEB0900-PBT | 900 mm (35,43'') | PEB - Polyethylene (blue) | PBT White | No positioners | F7510 | 45 mm | 8000 N/m | 5.3 kg/m^2 | Self-Locking Pin | -40÷65 °C | Self-Cleaning Hinge System Pin diameter: 5 mm Temporary code, to be created specifically on request | - |
|
| F7510DTPEB0900-PE | 900 mm (35,43'') | PEB - Polyethylene (blue) | PE White | No positioners | F7510 | 45 mm | 8000 N/m | 5.3 kg/m^2 | Self-Locking Pin | -70÷65 °C | Self-Cleaning Hinge System Pin diameter: 5 mm Temporary code, to be created specifically on request | - |
|
| F7510DTPEB0900-PP | 900 mm (35,43'') | PEB - Polyethylene (blue) | PP White | No positioners | F7510 | 45 mm | 8000 N/m | 5.3 kg/m^2 | Self-Locking Pin | 0÷65 °C | Self-Cleaning Hinge System Pin diameter: 5 mm Temporary code, to be created specifically on request | - |
|
| F7510DTPEC0050-PA6 | 50 mm (1,97'') | PEC - Polyethylene (cyan) | PA6 White | No positioners | F7510 | 45 mm | 8000 N/m | 5.3 kg/m^2 | Self-Locking Pin | -40÷65 °C | Self-Cleaning Hinge System Pin diameter: 5 mm Temporary code, to be created specifically on request | - |
|
| F7510DTPEC0050-PBT | 50 mm (1,97'') | PEC - Polyethylene (cyan) | PBT White | No positioners | F7510 | 45 mm | 8000 N/m | 5.3 kg/m^2 | Self-Locking Pin | -40÷65 °C | Self-Cleaning Hinge System Pin diameter: 5 mm Temporary code, to be created specifically on request | - |
|
| F7510DTPEC0050-PE | 50 mm (1,97'') | PEC - Polyethylene (cyan) | PE White | No positioners | F7510 | 45 mm | 8000 N/m | 5.3 kg/m^2 | Self-Locking Pin | -70÷65 °C | Self-Cleaning Hinge System Pin diameter: 5 mm Temporary code, to be created specifically on request | - |
|
| F7510DTPEC0050-PP | 50 mm (1,97'') | PEC - Polyethylene (cyan) | PP White | No positioners | F7510 | 45 mm | 8000 N/m | 5.3 kg/m^2 | Self-Locking Pin | 0÷65 °C | Self-Cleaning Hinge System Pin diameter: 5 mm Temporary code, to be created specifically on request | - |
|
| F7510DTPEC0100-PA6 | 100 mm (3,94'') | PEC - Polyethylene (cyan) | PA6 White | No positioners | F7510 | 45 mm | 8000 N/m | 5.3 kg/m^2 | Self-Locking Pin | -40÷65 °C | Self-Cleaning Hinge System Pin diameter: 5 mm Temporary code, to be created specifically on request | - |
|
| F7510DTPEC0100-PBT | 100 mm (3,94'') | PEC - Polyethylene (cyan) | PBT White | No positioners | F7510 | 45 mm | 8000 N/m | 5.3 kg/m^2 | Self-Locking Pin | -40÷65 °C | Self-Cleaning Hinge System Pin diameter: 5 mm Temporary code, to be created specifically on request | - |
|
| F7510DTPEC0100-PE | 100 mm (3,94'') | PEC - Polyethylene (cyan) | PE White | No positioners | F7510 | 45 mm | 8000 N/m | 5.3 kg/m^2 | Self-Locking Pin | -70÷65 °C | Self-Cleaning Hinge System Pin diameter: 5 mm Temporary code, to be created specifically on request | - |
|
| F7510DTPEC0100-PP | 100 mm (3,94'') | PEC - Polyethylene (cyan) | PP White | No positioners | F7510 | 45 mm | 8000 N/m | 5.3 kg/m^2 | Self-Locking Pin | 0÷65 °C | Self-Cleaning Hinge System Pin diameter: 5 mm Temporary code, to be created specifically on request | - |
|
| F7510DTPEC0150-PA6 | 150 mm (5,91'') | PEC - Polyethylene (cyan) | PA6 White | No positioners | F7510 | 45 mm | 8000 N/m | 5.3 kg/m^2 | Self-Locking Pin | -40÷65 °C | Self-Cleaning Hinge System Pin diameter: 5 mm Temporary code, to be created specifically on request | - |
|
| F7510DTPEC0150-PBT | 150 mm (5,91'') | PEC - Polyethylene (cyan) | PBT White | No positioners | F7510 | 45 mm | 8000 N/m | 5.3 kg/m^2 | Self-Locking Pin | -40÷65 °C | Self-Cleaning Hinge System Pin diameter: 5 mm Temporary code, to be created specifically on request | - |
|
| F7510DTPEC0150-PE | 150 mm (5,91'') | PEC - Polyethylene (cyan) | PE White | No positioners | F7510 | 45 mm | 8000 N/m | 5.3 kg/m^2 | Self-Locking Pin | -70÷65 °C | Self-Cleaning Hinge System Pin diameter: 5 mm Temporary code, to be created specifically on request | - |
|
| F7510DTPEC0150-PP | 150 mm (5,91'') | PEC - Polyethylene (cyan) | PP White | No positioners | F7510 | 45 mm | 8000 N/m | 5.3 kg/m^2 | Self-Locking Pin | 0÷65 °C | Self-Cleaning Hinge System Pin diameter: 5 mm Temporary code, to be created specifically on request | - |
|
| F7510DTPEC0200-PA6 | 200 mm (7,87'') | PEC - Polyethylene (cyan) | PA6 White | No positioners | F7510 | 45 mm | 8000 N/m | 5.3 kg/m^2 | Self-Locking Pin | -40÷65 °C | Self-Cleaning Hinge System Pin diameter: 5 mm Temporary code, to be created specifically on request | - |
|
| F7510DTPEC0200-PBT | 200 mm (7,87'') | PEC - Polyethylene (cyan) | PBT White | No positioners | F7510 | 45 mm | 8000 N/m | 5.3 kg/m^2 | Self-Locking Pin | -40÷65 °C | Self-Cleaning Hinge System Pin diameter: 5 mm Temporary code, to be created specifically on request | - |
|
| F7510DTPEC0200-PE | 200 mm (7,87'') | PEC - Polyethylene (cyan) | PE White | No positioners | F7510 | 45 mm | 8000 N/m | 5.3 kg/m^2 | Self-Locking Pin | -70÷65 °C | Self-Cleaning Hinge System Pin diameter: 5 mm Temporary code, to be created specifically on request | - |
|
| F7510DTPEC0200-PP | 200 mm (7,87'') | PEC - Polyethylene (cyan) | PP White | No positioners | F7510 | 45 mm | 8000 N/m | 5.3 kg/m^2 | Self-Locking Pin | 0÷65 °C | Self-Cleaning Hinge System Pin diameter: 5 mm Temporary code, to be created specifically on request | - |
|
| F7510DTPEC0250-PA6 | 250 mm (9,84'') | PEC - Polyethylene (cyan) | PA6 White | No positioners | F7510 | 45 mm | 8000 N/m | 5.3 kg/m^2 | Self-Locking Pin | -40÷65 °C | Self-Cleaning Hinge System Pin diameter: 5 mm Temporary code, to be created specifically on request | - |
|
| F7510DTPEC0250-PBT | 250 mm (9,84'') | PEC - Polyethylene (cyan) | PBT White | No positioners | F7510 | 45 mm | 8000 N/m | 5.3 kg/m^2 | Self-Locking Pin | -40÷65 °C | Self-Cleaning Hinge System Pin diameter: 5 mm Temporary code, to be created specifically on request | - |
|
| F7510DTPEC0250-PE | 250 mm (9,84'') | PEC - Polyethylene (cyan) | PE White | No positioners | F7510 | 45 mm | 8000 N/m | 5.3 kg/m^2 | Self-Locking Pin | -70÷65 °C | Self-Cleaning Hinge System Pin diameter: 5 mm Temporary code, to be created specifically on request | - |
|
| F7510DTPEC0250-PP | 250 mm (9,84'') | PEC - Polyethylene (cyan) | PP White | No positioners | F7510 | 45 mm | 8000 N/m | 5.3 kg/m^2 | Self-Locking Pin | 0÷65 °C | Self-Cleaning Hinge System Pin diameter: 5 mm Temporary code, to be created specifically on request | - |
|
| F7510DTPEC0300-PA6 | 300 mm (11,81'') | PEC - Polyethylene (cyan) | PA6 White | No positioners | F7510 | 45 mm | 8000 N/m | 5.3 kg/m^2 | Self-Locking Pin | -40÷65 °C | Self-Cleaning Hinge System Pin diameter: 5 mm Temporary code, to be created specifically on request | - |
|
| F7510DTPEC0300-PBT | 300 mm (11,81'') | PEC - Polyethylene (cyan) | PBT White | No positioners | F7510 | 45 mm | 8000 N/m | 5.3 kg/m^2 | Self-Locking Pin | -40÷65 °C | Self-Cleaning Hinge System Pin diameter: 5 mm Temporary code, to be created specifically on request | - |
|
| F7510DTPEC0300-PE | 300 mm (11,81'') | PEC - Polyethylene (cyan) | PE White | No positioners | F7510 | 45 mm | 8000 N/m | 5.3 kg/m^2 | Self-Locking Pin | -70÷65 °C | Self-Cleaning Hinge System Pin diameter: 5 mm Temporary code, to be created specifically on request | - |
|
| F7510DTPEC0300-PP | 300 mm (11,81'') | PEC - Polyethylene (cyan) | PP White | No positioners | F7510 | 45 mm | 8000 N/m | 5.3 kg/m^2 | Self-Locking Pin | 0÷65 °C | Self-Cleaning Hinge System Pin diameter: 5 mm Temporary code, to be created specifically on request | - |
|
| F7510DTPEC0350-PA6 | 350 mm (13,78'') | PEC - Polyethylene (cyan) | PA6 White | No positioners | F7510 | 45 mm | 8000 N/m | 5.3 kg/m^2 | Self-Locking Pin | -40÷65 °C | Self-Cleaning Hinge System Pin diameter: 5 mm Temporary code, to be created specifically on request | - |
|
| F7510DTPEC0350-PBT | 350 mm (13,78'') | PEC - Polyethylene (cyan) | PBT White | No positioners | F7510 | 45 mm | 8000 N/m | 5.3 kg/m^2 | Self-Locking Pin | -40÷65 °C | Self-Cleaning Hinge System Pin diameter: 5 mm Temporary code, to be created specifically on request | - |
|
| F7510DTPEC0350-PE | 350 mm (13,78'') | PEC - Polyethylene (cyan) | PE White | No positioners | F7510 | 45 mm | 8000 N/m | 5.3 kg/m^2 | Self-Locking Pin | -70÷65 °C | Self-Cleaning Hinge System Pin diameter: 5 mm Temporary code, to be created specifically on request | - |
|
| F7510DTPEC0350-PP | 350 mm (13,78'') | PEC - Polyethylene (cyan) | PP White | No positioners | F7510 | 45 mm | 8000 N/m | 5.3 kg/m^2 | Self-Locking Pin | 0÷65 °C | Self-Cleaning Hinge System Pin diameter: 5 mm Temporary code, to be created specifically on request | - |
|
| F7510DTPEC0400-PA6 | 400 mm (15,75'') | PEC - Polyethylene (cyan) | PA6 White | No positioners | F7510 | 45 mm | 8000 N/m | 5.3 kg/m^2 | Self-Locking Pin | -40÷65 °C | Self-Cleaning Hinge System Pin diameter: 5 mm Temporary code, to be created specifically on request | - |
|
| F7510DTPEC0400-PBT | 400 mm (15,75'') | PEC - Polyethylene (cyan) | PBT White | No positioners | F7510 | 45 mm | 8000 N/m | 5.3 kg/m^2 | Self-Locking Pin | -40÷65 °C | Self-Cleaning Hinge System Pin diameter: 5 mm Temporary code, to be created specifically on request | - |
|
| F7510DTPEC0400-PE | 400 mm (15,75'') | PEC - Polyethylene (cyan) | PE White | No positioners | F7510 | 45 mm | 8000 N/m | 5.3 kg/m^2 | Self-Locking Pin | -70÷65 °C | Self-Cleaning Hinge System Pin diameter: 5 mm Temporary code, to be created specifically on request | - |
|
| F7510DTPEC0400-PP | 400 mm (15,75'') | PEC - Polyethylene (cyan) | PP White | No positioners | F7510 | 45 mm | 8000 N/m | 5.3 kg/m^2 | Self-Locking Pin | 0÷65 °C | Self-Cleaning Hinge System Pin diameter: 5 mm Temporary code, to be created specifically on request | - |
|
| F7510DTPEC0450-PA6 | 450 mm (17,72'') | PEC - Polyethylene (cyan) | PA6 White | No positioners | F7510 | 45 mm | 8000 N/m | 5.3 kg/m^2 | Self-Locking Pin | -40÷65 °C | Self-Cleaning Hinge System Pin diameter: 5 mm Temporary code, to be created specifically on request | - |
|
| F7510DTPEC0450-PBT | 450 mm (17,72'') | PEC - Polyethylene (cyan) | PBT White | No positioners | F7510 | 45 mm | 8000 N/m | 5.3 kg/m^2 | Self-Locking Pin | -40÷65 °C | Self-Cleaning Hinge System Pin diameter: 5 mm Temporary code, to be created specifically on request | - |
|
| F7510DTPEC0450-PE | 450 mm (17,72'') | PEC - Polyethylene (cyan) | PE White | No positioners | F7510 | 45 mm | 8000 N/m | 5.3 kg/m^2 | Self-Locking Pin | -70÷65 °C | Self-Cleaning Hinge System Pin diameter: 5 mm Temporary code, to be created specifically on request | - |
|
| F7510DTPEC0450-PP | 450 mm (17,72'') | PEC - Polyethylene (cyan) | PP White | No positioners | F7510 | 45 mm | 8000 N/m | 5.3 kg/m^2 | Self-Locking Pin | 0÷65 °C | Self-Cleaning Hinge System Pin diameter: 5 mm Temporary code, to be created specifically on request | - |
|
| F7510DTPEC0500-PA6 | 500 mm (19,69'') | PEC - Polyethylene (cyan) | PA6 White | No positioners | F7510 | 45 mm | 8000 N/m | 5.3 kg/m^2 | Self-Locking Pin | -40÷65 °C | Self-Cleaning Hinge System Pin diameter: 5 mm Temporary code, to be created specifically on request | - |
|
| F7510DTPEC0500-PBT | 500 mm (19,69'') | PEC - Polyethylene (cyan) | PBT White | No positioners | F7510 | 45 mm | 8000 N/m | 5.3 kg/m^2 | Self-Locking Pin | -40÷65 °C | Self-Cleaning Hinge System Pin diameter: 5 mm Temporary code, to be created specifically on request | - |
|
| F7510DTPEC0500-PE | 500 mm (19,69'') | PEC - Polyethylene (cyan) | PE White | No positioners | F7510 | 45 mm | 8000 N/m | 5.3 kg/m^2 | Self-Locking Pin | -70÷65 °C | Self-Cleaning Hinge System Pin diameter: 5 mm Temporary code, to be created specifically on request | - |
|
| F7510DTPEC0500-PP | 500 mm (19,69'') | PEC - Polyethylene (cyan) | PP White | No positioners | F7510 | 45 mm | 8000 N/m | 5.3 kg/m^2 | Self-Locking Pin | 0÷65 °C | Self-Cleaning Hinge System Pin diameter: 5 mm Temporary code, to be created specifically on request | - |
|
| F7510DTPEC0550-PA6 | 550 mm (21,65'') | PEC - Polyethylene (cyan) | PA6 White | No positioners | F7510 | 45 mm | 8000 N/m | 5.3 kg/m^2 | Self-Locking Pin | -40÷65 °C | Self-Cleaning Hinge System Pin diameter: 5 mm Temporary code, to be created specifically on request | - |
|
| F7510DTPEC0550-PBT | 550 mm (21,65'') | PEC - Polyethylene (cyan) | PBT White | No positioners | F7510 | 45 mm | 8000 N/m | 5.3 kg/m^2 | Self-Locking Pin | -40÷65 °C | Self-Cleaning Hinge System Pin diameter: 5 mm Temporary code, to be created specifically on request | - |
|
| F7510DTPEC0550-PE | 550 mm (21,65'') | PEC - Polyethylene (cyan) | PE White | No positioners | F7510 | 45 mm | 8000 N/m | 5.3 kg/m^2 | Self-Locking Pin | -70÷65 °C | Self-Cleaning Hinge System Pin diameter: 5 mm Temporary code, to be created specifically on request | - |
|
| F7510DTPEC0550-PP | 550 mm (21,65'') | PEC - Polyethylene (cyan) | PP White | No positioners | F7510 | 45 mm | 8000 N/m | 5.3 kg/m^2 | Self-Locking Pin | 0÷65 °C | Self-Cleaning Hinge System Pin diameter: 5 mm Temporary code, to be created specifically on request | - |
|
| F7510DTPEC0600-PA6 | 600 mm (23,62'') | PEC - Polyethylene (cyan) | PA6 White | No positioners | F7510 | 45 mm | 8000 N/m | 5.3 kg/m^2 | Self-Locking Pin | -40÷65 °C | Self-Cleaning Hinge System Pin diameter: 5 mm Temporary code, to be created specifically on request | - |
|
| F7510DTPEC0600-PBT | 600 mm (23,62'') | PEC - Polyethylene (cyan) | PBT White | No positioners | F7510 | 45 mm | 8000 N/m | 5.3 kg/m^2 | Self-Locking Pin | -40÷65 °C | Self-Cleaning Hinge System Pin diameter: 5 mm Temporary code, to be created specifically on request | - |
|
| F7510DTPEC0600-PE | 600 mm (23,62'') | PEC - Polyethylene (cyan) | PE White | No positioners | F7510 | 45 mm | 8000 N/m | 5.3 kg/m^2 | Self-Locking Pin | -70÷65 °C | Self-Cleaning Hinge System Pin diameter: 5 mm Temporary code, to be created specifically on request | - |
|
| F7510DTPEC0600-PP | 600 mm (23,62'') | PEC - Polyethylene (cyan) | PP White | No positioners | F7510 | 45 mm | 8000 N/m | 5.3 kg/m^2 | Self-Locking Pin | 0÷65 °C | Self-Cleaning Hinge System Pin diameter: 5 mm Temporary code, to be created specifically on request | - |
|
| F7510DTPEC0650-PA6 | 650 mm (25,59'') | PEC - Polyethylene (cyan) | PA6 White | No positioners | F7510 | 45 mm | 8000 N/m | 5.3 kg/m^2 | Self-Locking Pin | -40÷65 °C | Self-Cleaning Hinge System Pin diameter: 5 mm Temporary code, to be created specifically on request | - |
|
| F7510DTPEC0650-PBT | 650 mm (25,59'') | PEC - Polyethylene (cyan) | PBT White | No positioners | F7510 | 45 mm | 8000 N/m | 5.3 kg/m^2 | Self-Locking Pin | -40÷65 °C | Self-Cleaning Hinge System Pin diameter: 5 mm Temporary code, to be created specifically on request | - |
|
| F7510DTPEC0650-PE | 650 mm (25,59'') | PEC - Polyethylene (cyan) | PE White | No positioners | F7510 | 45 mm | 8000 N/m | 5.3 kg/m^2 | Self-Locking Pin | -70÷65 °C | Self-Cleaning Hinge System Pin diameter: 5 mm Temporary code, to be created specifically on request | - |
|
| F7510DTPEC0650-PP | 650 mm (25,59'') | PEC - Polyethylene (cyan) | PP White | No positioners | F7510 | 45 mm | 8000 N/m | 5.3 kg/m^2 | Self-Locking Pin | 0÷65 °C | Self-Cleaning Hinge System Pin diameter: 5 mm Temporary code, to be created specifically on request | - |
|
| F7510DTPEC0700-PA6 | 700 mm (27,56'') | PEC - Polyethylene (cyan) | PA6 White | No positioners | F7510 | 45 mm | 8000 N/m | 5.3 kg/m^2 | Self-Locking Pin | -40÷65 °C | Self-Cleaning Hinge System Pin diameter: 5 mm Temporary code, to be created specifically on request | - |
|
| F7510DTPEC0700-PBT | 700 mm (27,56'') | PEC - Polyethylene (cyan) | PBT White | No positioners | F7510 | 45 mm | 8000 N/m | 5.3 kg/m^2 | Self-Locking Pin | -40÷65 °C | Self-Cleaning Hinge System Pin diameter: 5 mm Temporary code, to be created specifically on request | - |
|
| F7510DTPEC0700-PE | 700 mm (27,56'') | PEC - Polyethylene (cyan) | PE White | No positioners | F7510 | 45 mm | 8000 N/m | 5.3 kg/m^2 | Self-Locking Pin | -70÷65 °C | Self-Cleaning Hinge System Pin diameter: 5 mm Temporary code, to be created specifically on request | - |
|
| F7510DTPEC0700-PP | 700 mm (27,56'') | PEC - Polyethylene (cyan) | PP White | No positioners | F7510 | 45 mm | 8000 N/m | 5.3 kg/m^2 | Self-Locking Pin | 0÷65 °C | Self-Cleaning Hinge System Pin diameter: 5 mm Temporary code, to be created specifically on request | - |
|
| F7510DTPEC0750-PA6 | 750 mm (29,53'') | PEC - Polyethylene (cyan) | PA6 White | No positioners | F7510 | 45 mm | 8000 N/m | 5.3 kg/m^2 | Self-Locking Pin | -40÷65 °C | Self-Cleaning Hinge System Pin diameter: 5 mm Temporary code, to be created specifically on request | - |
|
| F7510DTPEC0750-PBT | 750 mm (29,53'') | PEC - Polyethylene (cyan) | PBT White | No positioners | F7510 | 45 mm | 8000 N/m | 5.3 kg/m^2 | Self-Locking Pin | -40÷65 °C | Self-Cleaning Hinge System Pin diameter: 5 mm Temporary code, to be created specifically on request | - |
|
| F7510DTPEC0750-PE | 750 mm (29,53'') | PEC - Polyethylene (cyan) | PE White | No positioners | F7510 | 45 mm | 8000 N/m | 5.3 kg/m^2 | Self-Locking Pin | -70÷65 °C | Self-Cleaning Hinge System Pin diameter: 5 mm Temporary code, to be created specifically on request | - |
|
| F7510DTPEC0750-PP | 750 mm (29,53'') | PEC - Polyethylene (cyan) | PP White | No positioners | F7510 | 45 mm | 8000 N/m | 5.3 kg/m^2 | Self-Locking Pin | 0÷65 °C | Self-Cleaning Hinge System Pin diameter: 5 mm Temporary code, to be created specifically on request | - |
|
| F7510DTPEC0800-PA6 | 800 mm (31,5'') | PEC - Polyethylene (cyan) | PA6 White | No positioners | F7510 | 45 mm | 8000 N/m | 5.3 kg/m^2 | Self-Locking Pin | -40÷65 °C | Self-Cleaning Hinge System Pin diameter: 5 mm Temporary code, to be created specifically on request | - |
|
| F7510DTPEC0800-PBT | 800 mm (31,5'') | PEC - Polyethylene (cyan) | PBT White | No positioners | F7510 | 45 mm | 8000 N/m | 5.3 kg/m^2 | Self-Locking Pin | -40÷65 °C | Self-Cleaning Hinge System Pin diameter: 5 mm Temporary code, to be created specifically on request | - |
|
| F7510DTPEC0800-PE | 800 mm (31,5'') | PEC - Polyethylene (cyan) | PE White | No positioners | F7510 | 45 mm | 8000 N/m | 5.3 kg/m^2 | Self-Locking Pin | -70÷65 °C | Self-Cleaning Hinge System Pin diameter: 5 mm Temporary code, to be created specifically on request | - |
|
| F7510DTPEC0800-PP | 800 mm (31,5'') | PEC - Polyethylene (cyan) | PP White | No positioners | F7510 | 45 mm | 8000 N/m | 5.3 kg/m^2 | Self-Locking Pin | 0÷65 °C | Self-Cleaning Hinge System Pin diameter: 5 mm Temporary code, to be created specifically on request | - |
|
| F7510DTPEC0850-PA6 | 850 mm (33,46'') | PEC - Polyethylene (cyan) | PA6 White | No positioners | F7510 | 45 mm | 8000 N/m | 5.3 kg/m^2 | Self-Locking Pin | -40÷65 °C | Self-Cleaning Hinge System Pin diameter: 5 mm Temporary code, to be created specifically on request | - |
|
| F7510DTPEC0850-PBT | 850 mm (33,46'') | PEC - Polyethylene (cyan) | PBT White | No positioners | F7510 | 45 mm | 8000 N/m | 5.3 kg/m^2 | Self-Locking Pin | -40÷65 °C | Self-Cleaning Hinge System Pin diameter: 5 mm Temporary code, to be created specifically on request | - |
|
| F7510DTPEC0850-PE | 850 mm (33,46'') | PEC - Polyethylene (cyan) | PE White | No positioners | F7510 | 45 mm | 8000 N/m | 5.3 kg/m^2 | Self-Locking Pin | -70÷65 °C | Self-Cleaning Hinge System Pin diameter: 5 mm Temporary code, to be created specifically on request | - |
|
| F7510DTPEC0850-PP | 850 mm (33,46'') | PEC - Polyethylene (cyan) | PP White | No positioners | F7510 | 45 mm | 8000 N/m | 5.3 kg/m^2 | Self-Locking Pin | 0÷65 °C | Self-Cleaning Hinge System Pin diameter: 5 mm Temporary code, to be created specifically on request | - |
|
| F7510DTPEC0900-PA6 | 900 mm (35,43'') | PEC - Polyethylene (cyan) | PA6 White | No positioners | F7510 | 45 mm | 8000 N/m | 5.3 kg/m^2 | Self-Locking Pin | -40÷65 °C | Self-Cleaning Hinge System Pin diameter: 5 mm Temporary code, to be created specifically on request | - |
|
| F7510DTPEC0900-PBT | 900 mm (35,43'') | PEC - Polyethylene (cyan) | PBT White | No positioners | F7510 | 45 mm | 8000 N/m | 5.3 kg/m^2 | Self-Locking Pin | -40÷65 °C | Self-Cleaning Hinge System Pin diameter: 5 mm Temporary code, to be created specifically on request | - |
|
| F7510DTPEC0900-PE | 900 mm (35,43'') | PEC - Polyethylene (cyan) | PE White | No positioners | F7510 | 45 mm | 8000 N/m | 5.3 kg/m^2 | Self-Locking Pin | -70÷65 °C | Self-Cleaning Hinge System Pin diameter: 5 mm Temporary code, to be created specifically on request | - |
|
| F7510DTPEC0900-PP | 900 mm (35,43'') | PEC - Polyethylene (cyan) | PP White | No positioners | F7510 | 45 mm | 8000 N/m | 5.3 kg/m^2 | Self-Locking Pin | 0÷65 °C | Self-Cleaning Hinge System Pin diameter: 5 mm Temporary code, to be created specifically on request | - |
|
| F7510DTPEN0050-PA6 | 50 mm (1,97'') | PEN - Polyethylene (natural) | PA6 White | No positioners | F7510 | 45 mm | 8000 N/m | 5.7 kg/m^2 | Self-Locking Pin | -40÷65 °C | Self-Cleaning Hinge System Pin diameter: 5 mm Temporary code, to be created specifically on request | - |
|
| F7510DTPEN0050-PBT | 50 mm (1,97'') | PEN - Polyethylene (natural) | PBT White | No positioners | F7510 | 45 mm | 8000 N/m | 5.7 kg/m^2 | Self-Locking Pin | -40÷65 °C | Self-Cleaning Hinge System Pin diameter: 5 mm Temporary code, to be created specifically on request | - |
|
| F7510DTPEN0050-PE | 50 mm (1,97'') | PEN - Polyethylene (natural) | PE White | No positioners | F7510 | 45 mm | 8000 N/m | 5.7 kg/m^2 | Self-Locking Pin | -70÷65 °C | Self-Cleaning Hinge System Pin diameter: 5 mm Temporary code, to be created specifically on request | - |
|
| F7510DTPEN0050-PP | 50 mm (1,97'') | PEN - Polyethylene (natural) | PP White | No positioners | F7510 | 45 mm | 8000 N/m | 5.7 kg/m^2 | Self-Locking Pin | 0÷65 °C | Self-Cleaning Hinge System Pin diameter: 5 mm Temporary code, to be created specifically on request | - |
|
| F7510DTPEN0100-PA6 | 100 mm (3,94'') | PEN - Polyethylene (natural) | PA6 White | No positioners | F7510 | 45 mm | 8000 N/m | 5.7 kg/m^2 | Self-Locking Pin | -40÷65 °C | Self-Cleaning Hinge System Pin diameter: 5 mm Temporary code, to be created specifically on request | - |
|
| F7510DTPEN0100-PBT | 100 mm (3,94'') | PEN - Polyethylene (natural) | PBT White | No positioners | F7510 | 45 mm | 8000 N/m | 5.7 kg/m^2 | Self-Locking Pin | -40÷65 °C | Self-Cleaning Hinge System Pin diameter: 5 mm Temporary code, to be created specifically on request | - |
|
| F7510DTPEN0100-PE | 100 mm (3,94'') | PEN - Polyethylene (natural) | PE White | No positioners | F7510 | 45 mm | 8000 N/m | 5.7 kg/m^2 | Self-Locking Pin | -70÷65 °C | Self-Cleaning Hinge System Pin diameter: 5 mm Temporary code, to be created specifically on request | - |
|
| F7510DTPEN0100-PP | 100 mm (3,94'') | PEN - Polyethylene (natural) | PP White | No positioners | F7510 | 45 mm | 8000 N/m | 5.7 kg/m^2 | Self-Locking Pin | 0÷65 °C | Self-Cleaning Hinge System Pin diameter: 5 mm Temporary code, to be created specifically on request | - |
|
| F7510DTPEN0150-PA6 | 150 mm (5,91'') | PEN - Polyethylene (natural) | PA6 White | No positioners | F7510 | 45 mm | 8000 N/m | 5.7 kg/m^2 | Self-Locking Pin | -40÷65 °C | Self-Cleaning Hinge System Pin diameter: 5 mm Temporary code, to be created specifically on request | - |
|
| F7510DTPEN0150-PBT | 150 mm (5,91'') | PEN - Polyethylene (natural) | PBT White | No positioners | F7510 | 45 mm | 8000 N/m | 5.7 kg/m^2 | Self-Locking Pin | -40÷65 °C | Self-Cleaning Hinge System Pin diameter: 5 mm Temporary code, to be created specifically on request | - |
|
| F7510DTPEN0150-PE | 150 mm (5,91'') | PEN - Polyethylene (natural) | PE White | No positioners | F7510 | 45 mm | 8000 N/m | 5.7 kg/m^2 | Self-Locking Pin | -70÷65 °C | Self-Cleaning Hinge System Pin diameter: 5 mm Temporary code, to be created specifically on request | - |
|
| F7510DTPEN0150-PP | 150 mm (5,91'') | PEN - Polyethylene (natural) | PP White | No positioners | F7510 | 45 mm | 8000 N/m | 5.7 kg/m^2 | Self-Locking Pin | 0÷65 °C | Self-Cleaning Hinge System Pin diameter: 5 mm Temporary code, to be created specifically on request | - |
|
| F7510DTPEN0200-PA6 | 200 mm (7,87'') | PEN - Polyethylene (natural) | PA6 White | No positioners | F7510 | 45 mm | 8000 N/m | 5.7 kg/m^2 | Self-Locking Pin | -40÷65 °C | Self-Cleaning Hinge System Pin diameter: 5 mm Temporary code, to be created specifically on request | - |
|
| F7510DTPEN0200-PBT | 200 mm (7,87'') | PEN - Polyethylene (natural) | PBT White | No positioners | F7510 | 45 mm | 8000 N/m | 5.7 kg/m^2 | Self-Locking Pin | -40÷65 °C | Self-Cleaning Hinge System Pin diameter: 5 mm Temporary code, to be created specifically on request | - |
|
| F7510DTPEN0200-PE | 200 mm (7,87'') | PEN - Polyethylene (natural) | PE White | No positioners | F7510 | 45 mm | 8000 N/m | 5.7 kg/m^2 | Self-Locking Pin | -70÷65 °C | Self-Cleaning Hinge System Pin diameter: 5 mm Temporary code, to be created specifically on request | - |
|
| F7510DTPEN0200-PP | 200 mm (7,87'') | PEN - Polyethylene (natural) | PP White | No positioners | F7510 | 45 mm | 8000 N/m | 5.7 kg/m^2 | Self-Locking Pin | 0÷65 °C | Self-Cleaning Hinge System Pin diameter: 5 mm Temporary code, to be created specifically on request | - |
|
| F7510DTPEN0250-PA6 | 250 mm (9,84'') | PEN - Polyethylene (natural) | PA6 White | No positioners | F7510 | 45 mm | 8000 N/m | 5.7 kg/m^2 | Self-Locking Pin | -40÷65 °C | Self-Cleaning Hinge System Pin diameter: 5 mm Temporary code, to be created specifically on request | - |
|
| F7510DTPEN0250-PBT | 250 mm (9,84'') | PEN - Polyethylene (natural) | PBT White | No positioners | F7510 | 45 mm | 8000 N/m | 5.7 kg/m^2 | Self-Locking Pin | -40÷65 °C | Self-Cleaning Hinge System Pin diameter: 5 mm Temporary code, to be created specifically on request | - |
|
| F7510DTPEN0250-PE | 250 mm (9,84'') | PEN - Polyethylene (natural) | PE White | No positioners | F7510 | 45 mm | 8000 N/m | 5.7 kg/m^2 | Self-Locking Pin | -70÷65 °C | Self-Cleaning Hinge System Pin diameter: 5 mm Temporary code, to be created specifically on request | - |
|
| F7510DTPEN0250-PP | 250 mm (9,84'') | PEN - Polyethylene (natural) | PP White | No positioners | F7510 | 45 mm | 8000 N/m | 5.7 kg/m^2 | Self-Locking Pin | 0÷65 °C | Self-Cleaning Hinge System Pin diameter: 5 mm Temporary code, to be created specifically on request | - |
|
| F7510DTPEN0300-PA6 | 300 mm (11,81'') | PEN - Polyethylene (natural) | PA6 White | No positioners | F7510 | 45 mm | 8000 N/m | 5.7 kg/m^2 | Self-Locking Pin | -40÷65 °C | Self-Cleaning Hinge System Pin diameter: 5 mm Temporary code, to be created specifically on request | - |
|
| F7510DTPEN0300-PBT | 300 mm (11,81'') | PEN - Polyethylene (natural) | PBT White | No positioners | F7510 | 45 mm | 8000 N/m | 5.7 kg/m^2 | Self-Locking Pin | -40÷65 °C | Self-Cleaning Hinge System Pin diameter: 5 mm Temporary code, to be created specifically on request | - |
|
| F7510DTPEN0300-PE | 300 mm (11,81'') | PEN - Polyethylene (natural) | PE White | No positioners | F7510 | 45 mm | 8000 N/m | 5.7 kg/m^2 | Self-Locking Pin | -70÷65 °C | Self-Cleaning Hinge System Pin diameter: 5 mm Temporary code, to be created specifically on request | - |
|
| F7510DTPEN0300-PP | 300 mm (11,81'') | PEN - Polyethylene (natural) | PP White | No positioners | F7510 | 45 mm | 8000 N/m | 5.7 kg/m^2 | Self-Locking Pin | 0÷65 °C | Self-Cleaning Hinge System Pin diameter: 5 mm Temporary code, to be created specifically on request | - |
|
| F7510DTPEN0350-PA6 | 350 mm (13,78'') | PEN - Polyethylene (natural) | PA6 White | No positioners | F7510 | 45 mm | 8000 N/m | 5.7 kg/m^2 | Self-Locking Pin | -40÷65 °C | Self-Cleaning Hinge System Pin diameter: 5 mm Temporary code, to be created specifically on request | - |
|
| F7510DTPEN0350-PBT | 350 mm (13,78'') | PEN - Polyethylene (natural) | PBT White | No positioners | F7510 | 45 mm | 8000 N/m | 5.7 kg/m^2 | Self-Locking Pin | -40÷65 °C | Self-Cleaning Hinge System Pin diameter: 5 mm Temporary code, to be created specifically on request | - |
|
| F7510DTPEN0350-PE | 350 mm (13,78'') | PEN - Polyethylene (natural) | PE White | No positioners | F7510 | 45 mm | 8000 N/m | 5.7 kg/m^2 | Self-Locking Pin | -70÷65 °C | Self-Cleaning Hinge System Pin diameter: 5 mm Temporary code, to be created specifically on request | - |
|
| F7510DTPEN0350-PP | 350 mm (13,78'') | PEN - Polyethylene (natural) | PP White | No positioners | F7510 | 45 mm | 8000 N/m | 5.7 kg/m^2 | Self-Locking Pin | 0÷65 °C | Self-Cleaning Hinge System Pin diameter: 5 mm Temporary code, to be created specifically on request | - |
|
| F7510DTPEN0400-PA6 | 400 mm (15,75'') | PEN - Polyethylene (natural) | PA6 White | No positioners | F7510 | 45 mm | 8000 N/m | 5.7 kg/m^2 | Self-Locking Pin | -40÷65 °C | Self-Cleaning Hinge System Pin diameter: 5 mm Temporary code, to be created specifically on request | - |
|
| F7510DTPEN0400-PBT | 400 mm (15,75'') | PEN - Polyethylene (natural) | PBT White | No positioners | F7510 | 45 mm | 8000 N/m | 5.7 kg/m^2 | Self-Locking Pin | -40÷65 °C | Self-Cleaning Hinge System Pin diameter: 5 mm Temporary code, to be created specifically on request | - |
|
| F7510DTPEN0400-PE | 400 mm (15,75'') | PEN - Polyethylene (natural) | PE White | No positioners | F7510 | 45 mm | 8000 N/m | 5.7 kg/m^2 | Self-Locking Pin | -70÷65 °C | Self-Cleaning Hinge System Pin diameter: 5 mm Temporary code, to be created specifically on request | - |
|
| F7510DTPEN0400-PP | 400 mm (15,75'') | PEN - Polyethylene (natural) | PP White | No positioners | F7510 | 45 mm | 8000 N/m | 5.7 kg/m^2 | Self-Locking Pin | 0÷65 °C | Self-Cleaning Hinge System Pin diameter: 5 mm Temporary code, to be created specifically on request | - |
|
| F7510DTPEN0450-PA6 | 450 mm (17,72'') | PEN - Polyethylene (natural) | PA6 White | No positioners | F7510 | 45 mm | 8000 N/m | 5.7 kg/m^2 | Self-Locking Pin | -40÷65 °C | Self-Cleaning Hinge System Pin diameter: 5 mm Temporary code, to be created specifically on request | - |
|
| F7510DTPEN0450-PBT | 450 mm (17,72'') | PEN - Polyethylene (natural) | PBT White | No positioners | F7510 | 45 mm | 8000 N/m | 5.7 kg/m^2 | Self-Locking Pin | -40÷65 °C | Self-Cleaning Hinge System Pin diameter: 5 mm Temporary code, to be created specifically on request | - |
|
| F7510DTPEN0450-PE | 450 mm (17,72'') | PEN - Polyethylene (natural) | PE White | No positioners | F7510 | 45 mm | 8000 N/m | 5.7 kg/m^2 | Self-Locking Pin | -70÷65 °C | Self-Cleaning Hinge System Pin diameter: 5 mm Temporary code, to be created specifically on request | - |
|
| F7510DTPEN0450-PP | 450 mm (17,72'') | PEN - Polyethylene (natural) | PP White | No positioners | F7510 | 45 mm | 8000 N/m | 5.7 kg/m^2 | Self-Locking Pin | 0÷65 °C | Self-Cleaning Hinge System Pin diameter: 5 mm Temporary code, to be created specifically on request | - |
|
| F7510DTPEN0500-PA6 | 500 mm (19,69'') | PEN - Polyethylene (natural) | PA6 White | No positioners | F7510 | 45 mm | 8000 N/m | 5.7 kg/m^2 | Self-Locking Pin | -40÷65 °C | Self-Cleaning Hinge System Pin diameter: 5 mm Temporary code, to be created specifically on request | - |
|
| F7510DTPEN0500-PBT | 500 mm (19,69'') | PEN - Polyethylene (natural) | PBT White | No positioners | F7510 | 45 mm | 8000 N/m | 5.7 kg/m^2 | Self-Locking Pin | -40÷65 °C | Self-Cleaning Hinge System Pin diameter: 5 mm Temporary code, to be created specifically on request | - |
|
| F7510DTPEN0500-PE | 500 mm (19,69'') | PEN - Polyethylene (natural) | PE White | No positioners | F7510 | 45 mm | 8000 N/m | 5.7 kg/m^2 | Self-Locking Pin | -70÷65 °C | Self-Cleaning Hinge System Pin diameter: 5 mm Temporary code, to be created specifically on request | - |
|
| F7510DTPEN0500-PP | 500 mm (19,69'') | PEN - Polyethylene (natural) | PP White | No positioners | F7510 | 45 mm | 8000 N/m | 5.7 kg/m^2 | Self-Locking Pin | 0÷65 °C | Self-Cleaning Hinge System Pin diameter: 5 mm Temporary code, to be created specifically on request | - |
|
| F7510DTPEN0550-PA6 | 550 mm (21,65'') | PEN - Polyethylene (natural) | PA6 White | No positioners | F7510 | 45 mm | 8000 N/m | 5.7 kg/m^2 | Self-Locking Pin | -40÷65 °C | Self-Cleaning Hinge System Pin diameter: 5 mm Temporary code, to be created specifically on request | - |
|
| F7510DTPEN0550-PBT | 550 mm (21,65'') | PEN - Polyethylene (natural) | PBT White | No positioners | F7510 | 45 mm | 8000 N/m | 5.7 kg/m^2 | Self-Locking Pin | -40÷65 °C | Self-Cleaning Hinge System Pin diameter: 5 mm Temporary code, to be created specifically on request | - |
|
| F7510DTPEN0550-PE | 550 mm (21,65'') | PEN - Polyethylene (natural) | PE White | No positioners | F7510 | 45 mm | 8000 N/m | 5.7 kg/m^2 | Self-Locking Pin | -70÷65 °C | Self-Cleaning Hinge System Pin diameter: 5 mm Temporary code, to be created specifically on request | - |
|
| F7510DTPEN0550-PP | 550 mm (21,65'') | PEN - Polyethylene (natural) | PP White | No positioners | F7510 | 45 mm | 8000 N/m | 5.7 kg/m^2 | Self-Locking Pin | 0÷65 °C | Self-Cleaning Hinge System Pin diameter: 5 mm Temporary code, to be created specifically on request | - |
|
| F7510DTPEN0600-PA6 | 600 mm (23,62'') | PEN - Polyethylene (natural) | PA6 White | No positioners | F7510 | 45 mm | 8000 N/m | 5.7 kg/m^2 | Self-Locking Pin | -40÷65 °C | Self-Cleaning Hinge System Pin diameter: 5 mm Temporary code, to be created specifically on request | - |
|
| F7510DTPEN0600-PBT | 600 mm (23,62'') | PEN - Polyethylene (natural) | PBT White | No positioners | F7510 | 45 mm | 8000 N/m | 5.7 kg/m^2 | Self-Locking Pin | -40÷65 °C | Self-Cleaning Hinge System Pin diameter: 5 mm Temporary code, to be created specifically on request | - |
|
| F7510DTPEN0600-PE | 600 mm (23,62'') | PEN - Polyethylene (natural) | PE White | No positioners | F7510 | 45 mm | 8000 N/m | 5.7 kg/m^2 | Self-Locking Pin | -70÷65 °C | Self-Cleaning Hinge System Pin diameter: 5 mm Temporary code, to be created specifically on request | - |
|
| F7510DTPEN0600-PP | 600 mm (23,62'') | PEN - Polyethylene (natural) | PP White | No positioners | F7510 | 45 mm | 8000 N/m | 5.7 kg/m^2 | Self-Locking Pin | 0÷65 °C | Self-Cleaning Hinge System Pin diameter: 5 mm Temporary code, to be created specifically on request | - |
|
| F7510DTPEN0650-PA6 | 650 mm (25,59'') | PEN - Polyethylene (natural) | PA6 White | No positioners | F7510 | 45 mm | 8000 N/m | 5.7 kg/m^2 | Self-Locking Pin | -40÷65 °C | Self-Cleaning Hinge System Pin diameter: 5 mm Temporary code, to be created specifically on request | - |
|
| F7510DTPEN0650-PBT | 650 mm (25,59'') | PEN - Polyethylene (natural) | PBT White | No positioners | F7510 | 45 mm | 8000 N/m | 5.7 kg/m^2 | Self-Locking Pin | -40÷65 °C | Self-Cleaning Hinge System Pin diameter: 5 mm Temporary code, to be created specifically on request | - |
|
| F7510DTPEN0650-PE | 650 mm (25,59'') | PEN - Polyethylene (natural) | PE White | No positioners | F7510 | 45 mm | 8000 N/m | 5.7 kg/m^2 | Self-Locking Pin | -70÷65 °C | Self-Cleaning Hinge System Pin diameter: 5 mm Temporary code, to be created specifically on request | - |
|
| F7510DTPEN0650-PP | 650 mm (25,59'') | PEN - Polyethylene (natural) | PP White | No positioners | F7510 | 45 mm | 8000 N/m | 5.7 kg/m^2 | Self-Locking Pin | 0÷65 °C | Self-Cleaning Hinge System Pin diameter: 5 mm Temporary code, to be created specifically on request | - |
|
| F7510DTPEN0700-PA6 | 700 mm (27,56'') | PEN - Polyethylene (natural) | PA6 White | No positioners | F7510 | 45 mm | 8000 N/m | 5.7 kg/m^2 | Self-Locking Pin | -40÷65 °C | Self-Cleaning Hinge System Pin diameter: 5 mm Temporary code, to be created specifically on request | - |
|
| F7510DTPEN0700-PBT | 700 mm (27,56'') | PEN - Polyethylene (natural) | PBT White | No positioners | F7510 | 45 mm | 8000 N/m | 5.7 kg/m^2 | Self-Locking Pin | -40÷65 °C | Self-Cleaning Hinge System Pin diameter: 5 mm Temporary code, to be created specifically on request | - |
|
| F7510DTPEN0700-PE | 700 mm (27,56'') | PEN - Polyethylene (natural) | PE White | No positioners | F7510 | 45 mm | 8000 N/m | 5.7 kg/m^2 | Self-Locking Pin | -70÷65 °C | Self-Cleaning Hinge System Pin diameter: 5 mm Temporary code, to be created specifically on request | - |
|
| F7510DTPEN0700-PP | 700 mm (27,56'') | PEN - Polyethylene (natural) | PP White | No positioners | F7510 | 45 mm | 8000 N/m | 5.7 kg/m^2 | Self-Locking Pin | 0÷65 °C | Self-Cleaning Hinge System Pin diameter: 5 mm Temporary code, to be created specifically on request | - |
|
| F7510DTPEN0750-PA6 | 750 mm (29,53'') | PEN - Polyethylene (natural) | PA6 White | No positioners | F7510 | 45 mm | 8000 N/m | 5.7 kg/m^2 | Self-Locking Pin | -40÷65 °C | Self-Cleaning Hinge System Pin diameter: 5 mm Temporary code, to be created specifically on request | - |
|
| F7510DTPEN0750-PBT | 750 mm (29,53'') | PEN - Polyethylene (natural) | PBT White | No positioners | F7510 | 45 mm | 8000 N/m | 5.7 kg/m^2 | Self-Locking Pin | -40÷65 °C | Self-Cleaning Hinge System Pin diameter: 5 mm Temporary code, to be created specifically on request | - |
|
| F7510DTPEN0750-PE | 750 mm (29,53'') | PEN - Polyethylene (natural) | PE White | No positioners | F7510 | 45 mm | 8000 N/m | 5.7 kg/m^2 | Self-Locking Pin | -70÷65 °C | Self-Cleaning Hinge System Pin diameter: 5 mm Temporary code, to be created specifically on request | - |
|
| F7510DTPEN0750-PP | 750 mm (29,53'') | PEN - Polyethylene (natural) | PP White | No positioners | F7510 | 45 mm | 8000 N/m | 5.7 kg/m^2 | Self-Locking Pin | 0÷65 °C | Self-Cleaning Hinge System Pin diameter: 5 mm Temporary code, to be created specifically on request | - |
|
| F7510DTPEN0800-PA6 | 800 mm (31,5'') | PEN - Polyethylene (natural) | PA6 White | No positioners | F7510 | 45 mm | 8000 N/m | 5.7 kg/m^2 | Self-Locking Pin | -40÷65 °C | Self-Cleaning Hinge System Pin diameter: 5 mm Temporary code, to be created specifically on request | - |
|
| F7510DTPEN0800-PBT | 800 mm (31,5'') | PEN - Polyethylene (natural) | PBT White | No positioners | F7510 | 45 mm | 8000 N/m | 5.7 kg/m^2 | Self-Locking Pin | -40÷65 °C | Self-Cleaning Hinge System Pin diameter: 5 mm Temporary code, to be created specifically on request | - |
|
| F7510DTPEN0800-PE | 800 mm (31,5'') | PEN - Polyethylene (natural) | PE White | No positioners | F7510 | 45 mm | 8000 N/m | 5.7 kg/m^2 | Self-Locking Pin | -70÷65 °C | Self-Cleaning Hinge System Pin diameter: 5 mm Temporary code, to be created specifically on request | - |
|
| F7510DTPEN0800-PP | 800 mm (31,5'') | PEN - Polyethylene (natural) | PP White | No positioners | F7510 | 45 mm | 8000 N/m | 5.7 kg/m^2 | Self-Locking Pin | 0÷65 °C | Self-Cleaning Hinge System Pin diameter: 5 mm Temporary code, to be created specifically on request | - |
|
| F7510DTPEN0850-PA6 | 850 mm (33,46'') | PEN - Polyethylene (natural) | PA6 White | No positioners | F7510 | 45 mm | 8000 N/m | 5.7 kg/m^2 | Self-Locking Pin | -40÷65 °C | Self-Cleaning Hinge System Pin diameter: 5 mm Temporary code, to be created specifically on request | - |
|
| F7510DTPEN0850-PBT | 850 mm (33,46'') | PEN - Polyethylene (natural) | PBT White | No positioners | F7510 | 45 mm | 8000 N/m | 5.7 kg/m^2 | Self-Locking Pin | -40÷65 °C | Self-Cleaning Hinge System Pin diameter: 5 mm Temporary code, to be created specifically on request | - |
|
| F7510DTPEN0850-PE | 850 mm (33,46'') | PEN - Polyethylene (natural) | PE White | No positioners | F7510 | 45 mm | 8000 N/m | 5.7 kg/m^2 | Self-Locking Pin | -70÷65 °C | Self-Cleaning Hinge System Pin diameter: 5 mm Temporary code, to be created specifically on request | - |
|
| F7510DTPEN0850-PP | 850 mm (33,46'') | PEN - Polyethylene (natural) | PP White | No positioners | F7510 | 45 mm | 8000 N/m | 5.7 kg/m^2 | Self-Locking Pin | 0÷65 °C | Self-Cleaning Hinge System Pin diameter: 5 mm Temporary code, to be created specifically on request | - |
|
| F7510DTPEN0900-PA6 | 900 mm (35,43'') | PEN - Polyethylene (natural) | PA6 White | No positioners | F7510 | 45 mm | 8000 N/m | 5.7 kg/m^2 | Self-Locking Pin | -40÷65 °C | Self-Cleaning Hinge System Pin diameter: 5 mm Temporary code, to be created specifically on request | - |
|
| F7510DTPEN0900-PBT | 900 mm (35,43'') | PEN - Polyethylene (natural) | PBT White | No positioners | F7510 | 45 mm | 8000 N/m | 5.7 kg/m^2 | Self-Locking Pin | -40÷65 °C | Self-Cleaning Hinge System Pin diameter: 5 mm Temporary code, to be created specifically on request | - |
|
| F7510DTPEN0900-PE | 900 mm (35,43'') | PEN - Polyethylene (natural) | PE White | No positioners | F7510 | 45 mm | 8000 N/m | 5.7 kg/m^2 | Self-Locking Pin | -70÷65 °C | Self-Cleaning Hinge System Pin diameter: 5 mm Temporary code, to be created specifically on request | - |
|
| F7510DTPEN0900-PP | 900 mm (35,43'') | PEN - Polyethylene (natural) | PP White | No positioners | F7510 | 45 mm | 8000 N/m | 5.7 kg/m^2 | Self-Locking Pin | 0÷65 °C | Self-Cleaning Hinge System Pin diameter: 5 mm Temporary code, to be created specifically on request | - |
|
| F7510DTPEW0050-PA6 | 50 mm (1,97'') | PEW - Polyethylene (white) | PA6 White | No positioners | F7510 | 45 mm | 8000 N/m | 5.3 kg/m^2 | Self-Locking Pin | -40÷65 °C | Self-Cleaning Hinge System Pin diameter: 5 mm Temporary code, to be created specifically on request | - |
|
| F7510DTPEW0050-PBT | 50 mm (1,97'') | PEW - Polyethylene (white) | PBT White | No positioners | F7510 | 45 mm | 8000 N/m | 5.3 kg/m^2 | Self-Locking Pin | -40÷65 °C | Self-Cleaning Hinge System Pin diameter: 5 mm Temporary code, to be created specifically on request | - |
|
| F7510DTPEW0050-PE | 50 mm (1,97'') | PEW - Polyethylene (white) | PE White | No positioners | F7510 | 45 mm | 8000 N/m | 5.3 kg/m^2 | Self-Locking Pin | -70÷65 °C | Self-Cleaning Hinge System Pin diameter: 5 mm Temporary code, to be created specifically on request | - |
|
| F7510DTPEW0050-PP | 50 mm (1,97'') | PEW - Polyethylene (white) | PP White | No positioners | F7510 | 45 mm | 8000 N/m | 5.3 kg/m^2 | Self-Locking Pin | 0÷65 °C | Self-Cleaning Hinge System Pin diameter: 5 mm Temporary code, to be created specifically on request | - |
|
| F7510DTPEW0100-PA6 | 100 mm (3,94'') | PEW - Polyethylene (white) | PA6 White | No positioners | F7510 | 45 mm | 8000 N/m | 5.3 kg/m^2 | Self-Locking Pin | -40÷65 °C | Self-Cleaning Hinge System Pin diameter: 5 mm Temporary code, to be created specifically on request | - |
|
| F7510DTPEW0100-PBT | 100 mm (3,94'') | PEW - Polyethylene (white) | PBT White | No positioners | F7510 | 45 mm | 8000 N/m | 5.3 kg/m^2 | Self-Locking Pin | -40÷65 °C | Self-Cleaning Hinge System Pin diameter: 5 mm Temporary code, to be created specifically on request | - |
|
| F7510DTPEW0100-PE | 100 mm (3,94'') | PEW - Polyethylene (white) | PE White | No positioners | F7510 | 45 mm | 8000 N/m | 5.3 kg/m^2 | Self-Locking Pin | -70÷65 °C | Self-Cleaning Hinge System Pin diameter: 5 mm Temporary code, to be created specifically on request | - |
|
| F7510DTPEW0100-PP | 100 mm (3,94'') | PEW - Polyethylene (white) | PP White | No positioners | F7510 | 45 mm | 8000 N/m | 5.3 kg/m^2 | Self-Locking Pin | 0÷65 °C | Self-Cleaning Hinge System Pin diameter: 5 mm Temporary code, to be created specifically on request | - |
|
| F7510DTPEW0150-PA6 | 150 mm (5,91'') | PEW - Polyethylene (white) | PA6 White | No positioners | F7510 | 45 mm | 8000 N/m | 5.3 kg/m^2 | Self-Locking Pin | -40÷65 °C | Self-Cleaning Hinge System Pin diameter: 5 mm Temporary code, to be created specifically on request | - |
|
| F7510DTPEW0150-PBT | 150 mm (5,91'') | PEW - Polyethylene (white) | PBT White | No positioners | F7510 | 45 mm | 8000 N/m | 5.3 kg/m^2 | Self-Locking Pin | -40÷65 °C | Self-Cleaning Hinge System Pin diameter: 5 mm Temporary code, to be created specifically on request | - |
|
| F7510DTPEW0150-PE | 150 mm (5,91'') | PEW - Polyethylene (white) | PE White | No positioners | F7510 | 45 mm | 8000 N/m | 5.3 kg/m^2 | Self-Locking Pin | -70÷65 °C | Self-Cleaning Hinge System Pin diameter: 5 mm Temporary code, to be created specifically on request | - |
|
| F7510DTPEW0150-PP | 150 mm (5,91'') | PEW - Polyethylene (white) | PP White | No positioners | F7510 | 45 mm | 8000 N/m | 5.3 kg/m^2 | Self-Locking Pin | 0÷65 °C | Self-Cleaning Hinge System Pin diameter: 5 mm Temporary code, to be created specifically on request | - |
|
| F7510DTPEW0200-PA6 | 200 mm (7,87'') | PEW - Polyethylene (white) | PA6 White | No positioners | F7510 | 45 mm | 8000 N/m | 5.3 kg/m^2 | Self-Locking Pin | -40÷65 °C | Self-Cleaning Hinge System Pin diameter: 5 mm Temporary code, to be created specifically on request | - |
|
| F7510DTPEW0200-PBT | 200 mm (7,87'') | PEW - Polyethylene (white) | PBT White | No positioners | F7510 | 45 mm | 8000 N/m | 5.3 kg/m^2 | Self-Locking Pin | -40÷65 °C | Self-Cleaning Hinge System Pin diameter: 5 mm Temporary code, to be created specifically on request | - |
|
| F7510DTPEW0200-PE | 200 mm (7,87'') | PEW - Polyethylene (white) | PE White | No positioners | F7510 | 45 mm | 8000 N/m | 5.3 kg/m^2 | Self-Locking Pin | -70÷65 °C | Self-Cleaning Hinge System Pin diameter: 5 mm Temporary code, to be created specifically on request | - |
|
| F7510DTPEW0200-PP | 200 mm (7,87'') | PEW - Polyethylene (white) | PP White | No positioners | F7510 | 45 mm | 8000 N/m | 5.3 kg/m^2 | Self-Locking Pin | 0÷65 °C | Self-Cleaning Hinge System Pin diameter: 5 mm Temporary code, to be created specifically on request | - |
|
| F7510DTPEW0250-PA6 | 250 mm (9,84'') | PEW - Polyethylene (white) | PA6 White | No positioners | F7510 | 45 mm | 8000 N/m | 5.3 kg/m^2 | Self-Locking Pin | -40÷65 °C | Self-Cleaning Hinge System Pin diameter: 5 mm Temporary code, to be created specifically on request | - |
|
| F7510DTPEW0250-PBT | 250 mm (9,84'') | PEW - Polyethylene (white) | PBT White | No positioners | F7510 | 45 mm | 8000 N/m | 5.3 kg/m^2 | Self-Locking Pin | -40÷65 °C | Self-Cleaning Hinge System Pin diameter: 5 mm Temporary code, to be created specifically on request | - |
|
| F7510DTPEW0250-PE | 250 mm (9,84'') | PEW - Polyethylene (white) | PE White | No positioners | F7510 | 45 mm | 8000 N/m | 5.3 kg/m^2 | Self-Locking Pin | -70÷65 °C | Self-Cleaning Hinge System Pin diameter: 5 mm Temporary code, to be created specifically on request | - |
|
| F7510DTPEW0250-PP | 250 mm (9,84'') | PEW - Polyethylene (white) | PP White | No positioners | F7510 | 45 mm | 8000 N/m | 5.3 kg/m^2 | Self-Locking Pin | 0÷65 °C | Self-Cleaning Hinge System Pin diameter: 5 mm Temporary code, to be created specifically on request | - |
|
| F7510DTPEW0300-PA6 | 300 mm (11,81'') | PEW - Polyethylene (white) | PA6 White | No positioners | F7510 | 45 mm | 8000 N/m | 5.3 kg/m^2 | Self-Locking Pin | -40÷65 °C | Self-Cleaning Hinge System Pin diameter: 5 mm Temporary code, to be created specifically on request | - |
|
| F7510DTPEW0300-PBT | 300 mm (11,81'') | PEW - Polyethylene (white) | PBT White | No positioners | F7510 | 45 mm | 8000 N/m | 5.3 kg/m^2 | Self-Locking Pin | -40÷65 °C | Self-Cleaning Hinge System Pin diameter: 5 mm Temporary code, to be created specifically on request | - |
|
| F7510DTPEW0300-PE | 300 mm (11,81'') | PEW - Polyethylene (white) | PE White | No positioners | F7510 | 45 mm | 8000 N/m | 5.3 kg/m^2 | Self-Locking Pin | -70÷65 °C | Self-Cleaning Hinge System Pin diameter: 5 mm Temporary code, to be created specifically on request | - |
|
| F7510DTPEW0300-PP | 300 mm (11,81'') | PEW - Polyethylene (white) | PP White | No positioners | F7510 | 45 mm | 8000 N/m | 5.3 kg/m^2 | Self-Locking Pin | 0÷65 °C | Self-Cleaning Hinge System Pin diameter: 5 mm Temporary code, to be created specifically on request | - |
|
| F7510DTPEW0350-PA6 | 350 mm (13,78'') | PEW - Polyethylene (white) | PA6 White | No positioners | F7510 | 45 mm | 8000 N/m | 5.3 kg/m^2 | Self-Locking Pin | -40÷65 °C | Self-Cleaning Hinge System Pin diameter: 5 mm Temporary code, to be created specifically on request | - |
|
| F7510DTPEW0350-PBT | 350 mm (13,78'') | PEW - Polyethylene (white) | PBT White | No positioners | F7510 | 45 mm | 8000 N/m | 5.3 kg/m^2 | Self-Locking Pin | -40÷65 °C | Self-Cleaning Hinge System Pin diameter: 5 mm Temporary code, to be created specifically on request | - |
|
| F7510DTPEW0350-PE | 350 mm (13,78'') | PEW - Polyethylene (white) | PE White | No positioners | F7510 | 45 mm | 8000 N/m | 5.3 kg/m^2 | Self-Locking Pin | -70÷65 °C | Self-Cleaning Hinge System Pin diameter: 5 mm Temporary code, to be created specifically on request | - |
|
| F7510DTPEW0350-PP | 350 mm (13,78'') | PEW - Polyethylene (white) | PP White | No positioners | F7510 | 45 mm | 8000 N/m | 5.3 kg/m^2 | Self-Locking Pin | 0÷65 °C | Self-Cleaning Hinge System Pin diameter: 5 mm Temporary code, to be created specifically on request | - |
|
| F7510DTPEW0400-PA6 | 400 mm (15,75'') | PEW - Polyethylene (white) | PA6 White | No positioners | F7510 | 45 mm | 8000 N/m | 5.3 kg/m^2 | Self-Locking Pin | -40÷65 °C | Self-Cleaning Hinge System Pin diameter: 5 mm Temporary code, to be created specifically on request | - |
|
| F7510DTPEW0400-PBT | 400 mm (15,75'') | PEW - Polyethylene (white) | PBT White | No positioners | F7510 | 45 mm | 8000 N/m | 5.3 kg/m^2 | Self-Locking Pin | -40÷65 °C | Self-Cleaning Hinge System Pin diameter: 5 mm Temporary code, to be created specifically on request | - |
|
| F7510DTPEW0400-PE | 400 mm (15,75'') | PEW - Polyethylene (white) | PE White | No positioners | F7510 | 45 mm | 8000 N/m | 5.3 kg/m^2 | Self-Locking Pin | -70÷65 °C | Self-Cleaning Hinge System Pin diameter: 5 mm Temporary code, to be created specifically on request | - |
|
| F7510DTPEW0400-PP | 400 mm (15,75'') | PEW - Polyethylene (white) | PP White | No positioners | F7510 | 45 mm | 8000 N/m | 5.3 kg/m^2 | Self-Locking Pin | 0÷65 °C | Self-Cleaning Hinge System Pin diameter: 5 mm Temporary code, to be created specifically on request | - |
|
| F7510DTPEW0450-PA6 | 450 mm (17,72'') | PEW - Polyethylene (white) | PA6 White | No positioners | F7510 | 45 mm | 8000 N/m | 5.3 kg/m^2 | Self-Locking Pin | -40÷65 °C | Self-Cleaning Hinge System Pin diameter: 5 mm Temporary code, to be created specifically on request | - |
|
| F7510DTPEW0450-PBT | 450 mm (17,72'') | PEW - Polyethylene (white) | PBT White | No positioners | F7510 | 45 mm | 8000 N/m | 5.3 kg/m^2 | Self-Locking Pin | -40÷65 °C | Self-Cleaning Hinge System Pin diameter: 5 mm Temporary code, to be created specifically on request | - |
|
| F7510DTPEW0450-PE | 450 mm (17,72'') | PEW - Polyethylene (white) | PE White | No positioners | F7510 | 45 mm | 8000 N/m | 5.3 kg/m^2 | Self-Locking Pin | -70÷65 °C | Self-Cleaning Hinge System Pin diameter: 5 mm Temporary code, to be created specifically on request | - |
|
| F7510DTPEW0450-PP | 450 mm (17,72'') | PEW - Polyethylene (white) | PP White | No positioners | F7510 | 45 mm | 8000 N/m | 5.3 kg/m^2 | Self-Locking Pin | 0÷65 °C | Self-Cleaning Hinge System Pin diameter: 5 mm Temporary code, to be created specifically on request | - |
|
| F7510DTPEW0500-PA6 | 500 mm (19,69'') | PEW - Polyethylene (white) | PA6 White | No positioners | F7510 | 45 mm | 8000 N/m | 5.3 kg/m^2 | Self-Locking Pin | -40÷65 °C | Self-Cleaning Hinge System Pin diameter: 5 mm Temporary code, to be created specifically on request | - |
|
| F7510DTPEW0500-PBT | 500 mm (19,69'') | PEW - Polyethylene (white) | PBT White | No positioners | F7510 | 45 mm | 8000 N/m | 5.3 kg/m^2 | Self-Locking Pin | -40÷65 °C | Self-Cleaning Hinge System Pin diameter: 5 mm Temporary code, to be created specifically on request | - |
|
| F7510DTPEW0500-PE | 500 mm (19,69'') | PEW - Polyethylene (white) | PE White | No positioners | F7510 | 45 mm | 8000 N/m | 5.3 kg/m^2 | Self-Locking Pin | -70÷65 °C | Self-Cleaning Hinge System Pin diameter: 5 mm Temporary code, to be created specifically on request | - |
|
| F7510DTPEW0500-PP | 500 mm (19,69'') | PEW - Polyethylene (white) | PP White | No positioners | F7510 | 45 mm | 8000 N/m | 5.3 kg/m^2 | Self-Locking Pin | 0÷65 °C | Self-Cleaning Hinge System Pin diameter: 5 mm Temporary code, to be created specifically on request | - |
|
| F7510DTPEW0550-PA6 | 550 mm (21,65'') | PEW - Polyethylene (white) | PA6 White | No positioners | F7510 | 45 mm | 8000 N/m | 5.3 kg/m^2 | Self-Locking Pin | -40÷65 °C | Self-Cleaning Hinge System Pin diameter: 5 mm Temporary code, to be created specifically on request | - |
|
| F7510DTPEW0550-PBT | 550 mm (21,65'') | PEW - Polyethylene (white) | PBT White | No positioners | F7510 | 45 mm | 8000 N/m | 5.3 kg/m^2 | Self-Locking Pin | -40÷65 °C | Self-Cleaning Hinge System Pin diameter: 5 mm Temporary code, to be created specifically on request | - |
|
| F7510DTPEW0550-PE | 550 mm (21,65'') | PEW - Polyethylene (white) | PE White | No positioners | F7510 | 45 mm | 8000 N/m | 5.3 kg/m^2 | Self-Locking Pin | -70÷65 °C | Self-Cleaning Hinge System Pin diameter: 5 mm Temporary code, to be created specifically on request | - |
|
| F7510DTPEW0550-PP | 550 mm (21,65'') | PEW - Polyethylene (white) | PP White | No positioners | F7510 | 45 mm | 8000 N/m | 5.3 kg/m^2 | Self-Locking Pin | 0÷65 °C | Self-Cleaning Hinge System Pin diameter: 5 mm Temporary code, to be created specifically on request | - |
|
| F7510DTPEW0600-PA6 | 600 mm (23,62'') | PEW - Polyethylene (white) | PA6 White | No positioners | F7510 | 45 mm | 8000 N/m | 5.3 kg/m^2 | Self-Locking Pin | -40÷65 °C | Self-Cleaning Hinge System Pin diameter: 5 mm Temporary code, to be created specifically on request | - |
|
| F7510DTPEW0600-PBT | 600 mm (23,62'') | PEW - Polyethylene (white) | PBT White | No positioners | F7510 | 45 mm | 8000 N/m | 5.3 kg/m^2 | Self-Locking Pin | -40÷65 °C | Self-Cleaning Hinge System Pin diameter: 5 mm Temporary code, to be created specifically on request | - |
|
| F7510DTPEW0600-PE | 600 mm (23,62'') | PEW - Polyethylene (white) | PE White | No positioners | F7510 | 45 mm | 8000 N/m | 5.3 kg/m^2 | Self-Locking Pin | -70÷65 °C | Self-Cleaning Hinge System Pin diameter: 5 mm Temporary code, to be created specifically on request | - |
|
| F7510DTPEW0600-PP | 600 mm (23,62'') | PEW - Polyethylene (white) | PP White | No positioners | F7510 | 45 mm | 8000 N/m | 5.3 kg/m^2 | Self-Locking Pin | 0÷65 °C | Self-Cleaning Hinge System Pin diameter: 5 mm Temporary code, to be created specifically on request | - |
|
| F7510DTPEW0650-PA6 | 650 mm (25,59'') | PEW - Polyethylene (white) | PA6 White | No positioners | F7510 | 45 mm | 8000 N/m | 5.3 kg/m^2 | Self-Locking Pin | -40÷65 °C | Self-Cleaning Hinge System Pin diameter: 5 mm Temporary code, to be created specifically on request | - |
|
| F7510DTPEW0650-PBT | 650 mm (25,59'') | PEW - Polyethylene (white) | PBT White | No positioners | F7510 | 45 mm | 8000 N/m | 5.3 kg/m^2 | Self-Locking Pin | -40÷65 °C | Self-Cleaning Hinge System Pin diameter: 5 mm Temporary code, to be created specifically on request | - |
|
| F7510DTPEW0650-PE | 650 mm (25,59'') | PEW - Polyethylene (white) | PE White | No positioners | F7510 | 45 mm | 8000 N/m | 5.3 kg/m^2 | Self-Locking Pin | -70÷65 °C | Self-Cleaning Hinge System Pin diameter: 5 mm Temporary code, to be created specifically on request | - |
|
| F7510DTPEW0650-PP | 650 mm (25,59'') | PEW - Polyethylene (white) | PP White | No positioners | F7510 | 45 mm | 8000 N/m | 5.3 kg/m^2 | Self-Locking Pin | 0÷65 °C | Self-Cleaning Hinge System Pin diameter: 5 mm Temporary code, to be created specifically on request | - |
|
| F7510DTPEW0700-PA6 | 700 mm (27,56'') | PEW - Polyethylene (white) | PA6 White | No positioners | F7510 | 45 mm | 8000 N/m | 5.3 kg/m^2 | Self-Locking Pin | -40÷65 °C | Self-Cleaning Hinge System Pin diameter: 5 mm Temporary code, to be created specifically on request | - |
|
| F7510DTPEW0700-PBT | 700 mm (27,56'') | PEW - Polyethylene (white) | PBT White | No positioners | F7510 | 45 mm | 8000 N/m | 5.3 kg/m^2 | Self-Locking Pin | -40÷65 °C | Self-Cleaning Hinge System Pin diameter: 5 mm Temporary code, to be created specifically on request | - |
|
| F7510DTPEW0700-PE | 700 mm (27,56'') | PEW - Polyethylene (white) | PE White | No positioners | F7510 | 45 mm | 8000 N/m | 5.3 kg/m^2 | Self-Locking Pin | -70÷65 °C | Self-Cleaning Hinge System Pin diameter: 5 mm Temporary code, to be created specifically on request | - |
|
| F7510DTPEW0700-PP | 700 mm (27,56'') | PEW - Polyethylene (white) | PP White | No positioners | F7510 | 45 mm | 8000 N/m | 5.3 kg/m^2 | Self-Locking Pin | 0÷65 °C | Self-Cleaning Hinge System Pin diameter: 5 mm Temporary code, to be created specifically on request | - |
|
| F7510DTPEW0750-PA6 | 750 mm (29,53'') | PEW - Polyethylene (white) | PA6 White | No positioners | F7510 | 45 mm | 8000 N/m | 5.3 kg/m^2 | Self-Locking Pin | -40÷65 °C | Self-Cleaning Hinge System Pin diameter: 5 mm Temporary code, to be created specifically on request | - |
|
| F7510DTPEW0750-PBT | 750 mm (29,53'') | PEW - Polyethylene (white) | PBT White | No positioners | F7510 | 45 mm | 8000 N/m | 5.3 kg/m^2 | Self-Locking Pin | -40÷65 °C | Self-Cleaning Hinge System Pin diameter: 5 mm Temporary code, to be created specifically on request | - |
|
| F7510DTPEW0750-PE | 750 mm (29,53'') | PEW - Polyethylene (white) | PE White | No positioners | F7510 | 45 mm | 8000 N/m | 5.3 kg/m^2 | Self-Locking Pin | -70÷65 °C | Self-Cleaning Hinge System Pin diameter: 5 mm Temporary code, to be created specifically on request | - |
|
| F7510DTPEW0750-PP | 750 mm (29,53'') | PEW - Polyethylene (white) | PP White | No positioners | F7510 | 45 mm | 8000 N/m | 5.3 kg/m^2 | Self-Locking Pin | 0÷65 °C | Self-Cleaning Hinge System Pin diameter: 5 mm Temporary code, to be created specifically on request | - |
|
| F7510DTPEW0800-PA6 | 800 mm (31,5'') | PEW - Polyethylene (white) | PA6 White | No positioners | F7510 | 45 mm | 8000 N/m | 5.3 kg/m^2 | Self-Locking Pin | -40÷65 °C | Self-Cleaning Hinge System Pin diameter: 5 mm Temporary code, to be created specifically on request | - |
|
| F7510DTPEW0800-PBT | 800 mm (31,5'') | PEW - Polyethylene (white) | PBT White | No positioners | F7510 | 45 mm | 8000 N/m | 5.3 kg/m^2 | Self-Locking Pin | -40÷65 °C | Self-Cleaning Hinge System Pin diameter: 5 mm Temporary code, to be created specifically on request | - |
|
| F7510DTPEW0800-PE | 800 mm (31,5'') | PEW - Polyethylene (white) | PE White | No positioners | F7510 | 45 mm | 8000 N/m | 5.3 kg/m^2 | Self-Locking Pin | -70÷65 °C | Self-Cleaning Hinge System Pin diameter: 5 mm Temporary code, to be created specifically on request | - |
|
| F7510DTPEW0800-PP | 800 mm (31,5'') | PEW - Polyethylene (white) | PP White | No positioners | F7510 | 45 mm | 8000 N/m | 5.3 kg/m^2 | Self-Locking Pin | 0÷65 °C | Self-Cleaning Hinge System Pin diameter: 5 mm Temporary code, to be created specifically on request | - |
|
| F7510DTPEW0850-PA6 | 850 mm (33,46'') | PEW - Polyethylene (white) | PA6 White | No positioners | F7510 | 45 mm | 8000 N/m | 5.3 kg/m^2 | Self-Locking Pin | -40÷65 °C | Self-Cleaning Hinge System Pin diameter: 5 mm Temporary code, to be created specifically on request | - |
|
| F7510DTPEW0850-PBT | 850 mm (33,46'') | PEW - Polyethylene (white) | PBT White | No positioners | F7510 | 45 mm | 8000 N/m | 5.3 kg/m^2 | Self-Locking Pin | -40÷65 °C | Self-Cleaning Hinge System Pin diameter: 5 mm Temporary code, to be created specifically on request | - |
|
| F7510DTPEW0850-PE | 850 mm (33,46'') | PEW - Polyethylene (white) | PE White | No positioners | F7510 | 45 mm | 8000 N/m | 5.3 kg/m^2 | Self-Locking Pin | -70÷65 °C | Self-Cleaning Hinge System Pin diameter: 5 mm Temporary code, to be created specifically on request | - |
|
| F7510DTPEW0850-PP | 850 mm (33,46'') | PEW - Polyethylene (white) | PP White | No positioners | F7510 | 45 mm | 8000 N/m | 5.3 kg/m^2 | Self-Locking Pin | 0÷65 °C | Self-Cleaning Hinge System Pin diameter: 5 mm Temporary code, to be created specifically on request | - |
|
| F7510DTPEW0900-PA6 | 900 mm (35,43'') | PEW - Polyethylene (white) | PA6 White | No positioners | F7510 | 45 mm | 8000 N/m | 5.3 kg/m^2 | Self-Locking Pin | -40÷65 °C | Self-Cleaning Hinge System Pin diameter: 5 mm Temporary code, to be created specifically on request | - |
|
| F7510DTPEW0900-PBT | 900 mm (35,43'') | PEW - Polyethylene (white) | PBT White | No positioners | F7510 | 45 mm | 8000 N/m | 5.3 kg/m^2 | Self-Locking Pin | -40÷65 °C | Self-Cleaning Hinge System Pin diameter: 5 mm Temporary code, to be created specifically on request | - |
|
| F7510DTPEW0900-PE | 900 mm (35,43'') | PEW - Polyethylene (white) | PE White | No positioners | F7510 | 45 mm | 8000 N/m | 5.3 kg/m^2 | Self-Locking Pin | -70÷65 °C | Self-Cleaning Hinge System Pin diameter: 5 mm Temporary code, to be created specifically on request | - |
|
| F7510DTPEW0900-PP | 900 mm (35,43'') | PEW - Polyethylene (white) | PP White | No positioners | F7510 | 45 mm | 8000 N/m | 5.3 kg/m^2 | Self-Locking Pin | 0÷65 °C | Self-Cleaning Hinge System Pin diameter: 5 mm Temporary code, to be created specifically on request | - |
|
| F7510DTPPB0050-PA6 | 50 mm (1,97'') | PPB - Polypropylene (Blue) | PA6 White | No positioners | F7510 | 45 mm | 18600 N/m | 5.1 kg/m^2 | Self-Locking Pin | 0÷80 °C | Self-Cleaning Hinge System Pin diameter: 5 mm Temporary code, to be created specifically on request | 0÷80 °C |
|
| F7510DTPPB0050-PBT | 50 mm (1,97'') | PPB - Polypropylene (Blue) | PBT White | No positioners | F7510 | 45 mm | 32000 N/m | 5.1 kg/m^2 | Self-Locking Pin | 0÷100 °C | Self-Cleaning Hinge System Pin diameter: 5 mm Temporary code, to be created specifically on request | 0÷100 °C |
|
| F7510DTPPB0050-PE | 50 mm (1,97'') | PPB - Polypropylene (Blue) | PE White | No positioners | F7510 | 45 mm | 12000 N/m | 5.1 kg/m^2 | Self-Locking Pin | 0÷65 °C | Self-Cleaning Hinge System Pin diameter: 5 mm Temporary code, to be created specifically on request | 0÷65 °C |
|
| F7510DTPPB0050-PP | 50 mm (1,97'') | PPB - Polypropylene (Blue) | PP White | No positioners | F7510 | 45 mm | 14000 N/m | 5.1 kg/m^2 | Self-Locking Pin | 0÷100 °C | Self-Cleaning Hinge System Pin diameter: 5 mm Temporary code, to be created specifically on request | 0÷100 °C |
|
| F7510DTPPB0100-PA6 | 100 mm (3,94'') | PPB - Polypropylene (Blue) | PA6 White | No positioners | F7510 | 45 mm | 18600 N/m | 5.1 kg/m^2 | Self-Locking Pin | 0÷80 °C | Self-Cleaning Hinge System Pin diameter: 5 mm Temporary code, to be created specifically on request | 0÷80 °C |
|
| F7510DTPPB0100-PBT | 100 mm (3,94'') | PPB - Polypropylene (Blue) | PBT White | No positioners | F7510 | 45 mm | 32000 N/m | 5.1 kg/m^2 | Self-Locking Pin | 0÷100 °C | Self-Cleaning Hinge System Pin diameter: 5 mm Temporary code, to be created specifically on request | 0÷100 °C |
|
| F7510DTPPB0100-PE | 100 mm (3,94'') | PPB - Polypropylene (Blue) | PE White | No positioners | F7510 | 45 mm | 12000 N/m | 5.1 kg/m^2 | Self-Locking Pin | 0÷65 °C | Self-Cleaning Hinge System Pin diameter: 5 mm Temporary code, to be created specifically on request | 0÷65 °C |
|
| F7510DTPPB0100-PP | 100 mm (3,94'') | PPB - Polypropylene (Blue) | PP White | No positioners | F7510 | 45 mm | 14000 N/m | 5.1 kg/m^2 | Self-Locking Pin | 0÷100 °C | Self-Cleaning Hinge System Pin diameter: 5 mm Temporary code, to be created specifically on request | 0÷100 °C |
|
| F7510DTPPB0150-PA6 | 150 mm (5,91'') | PPB - Polypropylene (Blue) | PA6 White | No positioners | F7510 | 45 mm | 18600 N/m | 5.1 kg/m^2 | Self-Locking Pin | 0÷80 °C | Self-Cleaning Hinge System Pin diameter: 5 mm Temporary code, to be created specifically on request | 0÷80 °C |
|
| F7510DTPPB0150-PBT | 150 mm (5,91'') | PPB - Polypropylene (Blue) | PBT White | No positioners | F7510 | 45 mm | 32000 N/m | 5.1 kg/m^2 | Self-Locking Pin | 0÷100 °C | Self-Cleaning Hinge System Pin diameter: 5 mm Temporary code, to be created specifically on request | 0÷100 °C |
|
| F7510DTPPB0150-PE | 150 mm (5,91'') | PPB - Polypropylene (Blue) | PE White | No positioners | F7510 | 45 mm | 12000 N/m | 5.1 kg/m^2 | Self-Locking Pin | 0÷65 °C | Self-Cleaning Hinge System Pin diameter: 5 mm Temporary code, to be created specifically on request | 0÷65 °C |
|
| F7510DTPPB0150-PP | 150 mm (5,91'') | PPB - Polypropylene (Blue) | PP White | No positioners | F7510 | 45 mm | 14000 N/m | 5.1 kg/m^2 | Self-Locking Pin | 0÷100 °C | Self-Cleaning Hinge System Pin diameter: 5 mm Temporary code, to be created specifically on request | 0÷100 °C |
|
| F7510DTPPB0200-PA6 | 200 mm (7,87'') | PPB - Polypropylene (Blue) | PA6 White | No positioners | F7510 | 45 mm | 18600 N/m | 5.1 kg/m^2 | Self-Locking Pin | 0÷80 °C | Self-Cleaning Hinge System Pin diameter: 5 mm Temporary code, to be created specifically on request | 0÷80 °C |
|
| F7510DTPPB0200-PBT | 200 mm (7,87'') | PPB - Polypropylene (Blue) | PBT White | No positioners | F7510 | 45 mm | 32000 N/m | 5.1 kg/m^2 | Self-Locking Pin | 0÷100 °C | Self-Cleaning Hinge System Pin diameter: 5 mm Temporary code, to be created specifically on request | 0÷100 °C |
|
| F7510DTPPB0200-PE | 200 mm (7,87'') | PPB - Polypropylene (Blue) | PE White | No positioners | F7510 | 45 mm | 12000 N/m | 5.1 kg/m^2 | Self-Locking Pin | 0÷65 °C | Self-Cleaning Hinge System Pin diameter: 5 mm Temporary code, to be created specifically on request | 0÷65 °C |
|
| F7510DTPPB0200-PP | 200 mm (7,87'') | PPB - Polypropylene (Blue) | PP White | No positioners | F7510 | 45 mm | 14000 N/m | 5.1 kg/m^2 | Self-Locking Pin | 0÷100 °C | Self-Cleaning Hinge System Pin diameter: 5 mm Temporary code, to be created specifically on request | 0÷100 °C |
|
| F7510DTPPB0250-PA6 | 250 mm (9,84'') | PPB - Polypropylene (Blue) | PA6 White | No positioners | F7510 | 45 mm | 18600 N/m | 5.1 kg/m^2 | Self-Locking Pin | 0÷80 °C | Self-Cleaning Hinge System Pin diameter: 5 mm Temporary code, to be created specifically on request | 0÷80 °C |
|
| F7510DTPPB0250-PBT | 250 mm (9,84'') | PPB - Polypropylene (Blue) | PBT White | No positioners | F7510 | 45 mm | 32000 N/m | 5.1 kg/m^2 | Self-Locking Pin | 0÷100 °C | Self-Cleaning Hinge System Pin diameter: 5 mm Temporary code, to be created specifically on request | 0÷100 °C |
|
| F7510DTPPB0250-PE | 250 mm (9,84'') | PPB - Polypropylene (Blue) | PE White | No positioners | F7510 | 45 mm | 12000 N/m | 5.1 kg/m^2 | Self-Locking Pin | 0÷65 °C | Self-Cleaning Hinge System Pin diameter: 5 mm Temporary code, to be created specifically on request | 0÷65 °C |
|
| F7510DTPPB0250-PP | 250 mm (9,84'') | PPB - Polypropylene (Blue) | PP White | No positioners | F7510 | 45 mm | 14000 N/m | 5.1 kg/m^2 | Self-Locking Pin | 0÷100 °C | Self-Cleaning Hinge System Pin diameter: 5 mm Temporary code, to be created specifically on request | 0÷100 °C |
|
| F7510DTPPB0300-PA6 | 300 mm (11,81'') | PPB - Polypropylene (Blue) | PA6 White | No positioners | F7510 | 45 mm | 18600 N/m | 5.1 kg/m^2 | Self-Locking Pin | 0÷80 °C | Self-Cleaning Hinge System Pin diameter: 5 mm Temporary code, to be created specifically on request | 0÷80 °C |
|
| F7510DTPPB0300-PBT | 300 mm (11,81'') | PPB - Polypropylene (Blue) | PBT White | No positioners | F7510 | 45 mm | 32000 N/m | 5.1 kg/m^2 | Self-Locking Pin | 0÷100 °C | Self-Cleaning Hinge System Pin diameter: 5 mm Temporary code, to be created specifically on request | 0÷100 °C |
|
| F7510DTPPB0300-PE | 300 mm (11,81'') | PPB - Polypropylene (Blue) | PE White | No positioners | F7510 | 45 mm | 12000 N/m | 5.1 kg/m^2 | Self-Locking Pin | 0÷65 °C | Self-Cleaning Hinge System Pin diameter: 5 mm Temporary code, to be created specifically on request | 0÷65 °C |
|
| F7510DTPPB0300-PP | 300 mm (11,81'') | PPB - Polypropylene (Blue) | PP White | No positioners | F7510 | 45 mm | 14000 N/m | 5.1 kg/m^2 | Self-Locking Pin | 0÷100 °C | Self-Cleaning Hinge System Pin diameter: 5 mm Temporary code, to be created specifically on request | 0÷100 °C |
|
| F7510DTPPB0350-PA6 | 350 mm (13,78'') | PPB - Polypropylene (Blue) | PA6 White | No positioners | F7510 | 45 mm | 18600 N/m | 5.1 kg/m^2 | Self-Locking Pin | 0÷80 °C | Self-Cleaning Hinge System Pin diameter: 5 mm Temporary code, to be created specifically on request | 0÷80 °C |
|
| F7510DTPPB0350-PBT | 350 mm (13,78'') | PPB - Polypropylene (Blue) | PBT White | No positioners | F7510 | 45 mm | 32000 N/m | 5.1 kg/m^2 | Self-Locking Pin | 0÷100 °C | Self-Cleaning Hinge System Pin diameter: 5 mm Temporary code, to be created specifically on request | 0÷100 °C |
|
| F7510DTPPB0350-PE | 350 mm (13,78'') | PPB - Polypropylene (Blue) | PE White | No positioners | F7510 | 45 mm | 12000 N/m | 5.1 kg/m^2 | Self-Locking Pin | 0÷65 °C | Self-Cleaning Hinge System Pin diameter: 5 mm Temporary code, to be created specifically on request | 0÷65 °C |
|
| F7510DTPPB0350-PP | 350 mm (13,78'') | PPB - Polypropylene (Blue) | PP White | No positioners | F7510 | 45 mm | 14000 N/m | 5.1 kg/m^2 | Self-Locking Pin | 0÷100 °C | Self-Cleaning Hinge System Pin diameter: 5 mm Temporary code, to be created specifically on request | 0÷100 °C |
|
| F7510DTPPB0400-PA6 | 400 mm (15,75'') | PPB - Polypropylene (Blue) | PA6 White | No positioners | F7510 | 45 mm | 18600 N/m | 5.1 kg/m^2 | Self-Locking Pin | 0÷80 °C | Self-Cleaning Hinge System Pin diameter: 5 mm Temporary code, to be created specifically on request | 0÷80 °C |
|
| F7510DTPPB0400-PBT | 400 mm (15,75'') | PPB - Polypropylene (Blue) | PBT White | No positioners | F7510 | 45 mm | 32000 N/m | 5.1 kg/m^2 | Self-Locking Pin | 0÷100 °C | Self-Cleaning Hinge System Pin diameter: 5 mm Temporary code, to be created specifically on request | 0÷100 °C |
|
| F7510DTPPB0400-PE | 400 mm (15,75'') | PPB - Polypropylene (Blue) | PE White | No positioners | F7510 | 45 mm | 12000 N/m | 5.1 kg/m^2 | Self-Locking Pin | 0÷65 °C | Self-Cleaning Hinge System Pin diameter: 5 mm Temporary code, to be created specifically on request | 0÷65 °C |
|
| F7510DTPPB0400-PP | 400 mm (15,75'') | PPB - Polypropylene (Blue) | PP White | No positioners | F7510 | 45 mm | 14000 N/m | 5.1 kg/m^2 | Self-Locking Pin | 0÷100 °C | Self-Cleaning Hinge System Pin diameter: 5 mm Temporary code, to be created specifically on request | 0÷100 °C |
|
| F7510DTPPB0450-PA6 | 450 mm (17,72'') | PPB - Polypropylene (Blue) | PA6 White | No positioners | F7510 | 45 mm | 18600 N/m | 5.1 kg/m^2 | Self-Locking Pin | 0÷80 °C | Self-Cleaning Hinge System Pin diameter: 5 mm Temporary code, to be created specifically on request | 0÷80 °C |
|
| F7510DTPPB0450-PBT | 450 mm (17,72'') | PPB - Polypropylene (Blue) | PBT White | No positioners | F7510 | 45 mm | 32000 N/m | 5.1 kg/m^2 | Self-Locking Pin | 0÷100 °C | Self-Cleaning Hinge System Pin diameter: 5 mm Temporary code, to be created specifically on request | 0÷100 °C |
|
| F7510DTPPB0450-PE | 450 mm (17,72'') | PPB - Polypropylene (Blue) | PE White | No positioners | F7510 | 45 mm | 12000 N/m | 5.1 kg/m^2 | Self-Locking Pin | 0÷65 °C | Self-Cleaning Hinge System Pin diameter: 5 mm Temporary code, to be created specifically on request | 0÷65 °C |
|
| F7510DTPPB0450-PP | 450 mm (17,72'') | PPB - Polypropylene (Blue) | PP White | No positioners | F7510 | 45 mm | 14000 N/m | 5.1 kg/m^2 | Self-Locking Pin | 0÷100 °C | Self-Cleaning Hinge System Pin diameter: 5 mm Temporary code, to be created specifically on request | 0÷100 °C |
|
| F7510DTPPB0500-PA6 | 500 mm (19,69'') | PPB - Polypropylene (Blue) | PA6 White | No positioners | F7510 | 45 mm | 18600 N/m | 5.1 kg/m^2 | Self-Locking Pin | 0÷80 °C | Self-Cleaning Hinge System Pin diameter: 5 mm Temporary code, to be created specifically on request | 0÷80 °C |
|
| F7510DTPPB0500-PBT | 500 mm (19,69'') | PPB - Polypropylene (Blue) | PBT White | No positioners | F7510 | 45 mm | 32000 N/m | 5.1 kg/m^2 | Self-Locking Pin | 0÷100 °C | Self-Cleaning Hinge System Pin diameter: 5 mm Temporary code, to be created specifically on request | 0÷100 °C |
|
| F7510DTPPB0500-PE | 500 mm (19,69'') | PPB - Polypropylene (Blue) | PE White | No positioners | F7510 | 45 mm | 12000 N/m | 5.1 kg/m^2 | Self-Locking Pin | 0÷65 °C | Self-Cleaning Hinge System Pin diameter: 5 mm Temporary code, to be created specifically on request | 0÷65 °C |
|
| F7510DTPPB0500-PP | 500 mm (19,69'') | PPB - Polypropylene (Blue) | PP White | No positioners | F7510 | 45 mm | 14000 N/m | 5.1 kg/m^2 | Self-Locking Pin | 0÷100 °C | Self-Cleaning Hinge System Pin diameter: 5 mm Temporary code, to be created specifically on request | 0÷100 °C |
|
| F7510DTPPB0550-PA6 | 550 mm (21,65'') | PPB - Polypropylene (Blue) | PA6 White | No positioners | F7510 | 45 mm | 18600 N/m | 5.1 kg/m^2 | Self-Locking Pin | 0÷80 °C | Self-Cleaning Hinge System Pin diameter: 5 mm Temporary code, to be created specifically on request | 0÷80 °C |
|
| F7510DTPPB0550-PBT | 550 mm (21,65'') | PPB - Polypropylene (Blue) | PBT White | No positioners | F7510 | 45 mm | 32000 N/m | 5.1 kg/m^2 | Self-Locking Pin | 0÷100 °C | Self-Cleaning Hinge System Pin diameter: 5 mm Temporary code, to be created specifically on request | 0÷100 °C |
|
| F7510DTPPB0550-PE | 550 mm (21,65'') | PPB - Polypropylene (Blue) | PE White | No positioners | F7510 | 45 mm | 12000 N/m | 5.1 kg/m^2 | Self-Locking Pin | 0÷65 °C | Self-Cleaning Hinge System Pin diameter: 5 mm Temporary code, to be created specifically on request | 0÷65 °C |
|
| F7510DTPPB0550-PP | 550 mm (21,65'') | PPB - Polypropylene (Blue) | PP White | No positioners | F7510 | 45 mm | 14000 N/m | 5.1 kg/m^2 | Self-Locking Pin | 0÷100 °C | Self-Cleaning Hinge System Pin diameter: 5 mm Temporary code, to be created specifically on request | 0÷100 °C |
|
| F7510DTPPB0600-PA6 | 600 mm (23,62'') | PPB - Polypropylene (Blue) | PA6 White | No positioners | F7510 | 45 mm | 18600 N/m | 5.1 kg/m^2 | Self-Locking Pin | 0÷80 °C | Self-Cleaning Hinge System Pin diameter: 5 mm Temporary code, to be created specifically on request | 0÷80 °C |
|
| F7510DTPPB0600-PBT | 600 mm (23,62'') | PPB - Polypropylene (Blue) | PBT White | No positioners | F7510 | 45 mm | 32000 N/m | 5.1 kg/m^2 | Self-Locking Pin | 0÷100 °C | Self-Cleaning Hinge System Pin diameter: 5 mm Temporary code, to be created specifically on request | 0÷100 °C |
|
| F7510DTPPB0600-PE | 600 mm (23,62'') | PPB - Polypropylene (Blue) | PE White | No positioners | F7510 | 45 mm | 12000 N/m | 5.1 kg/m^2 | Self-Locking Pin | 0÷65 °C | Self-Cleaning Hinge System Pin diameter: 5 mm Temporary code, to be created specifically on request | 0÷65 °C |
|
| F7510DTPPB0600-PP | 600 mm (23,62'') | PPB - Polypropylene (Blue) | PP White | No positioners | F7510 | 45 mm | 14000 N/m | 5.1 kg/m^2 | Self-Locking Pin | 0÷100 °C | Self-Cleaning Hinge System Pin diameter: 5 mm Temporary code, to be created specifically on request | 0÷100 °C |
|
| F7510DTPPB0650-PA6 | 650 mm (25,59'') | PPB - Polypropylene (Blue) | PA6 White | No positioners | F7510 | 45 mm | 18600 N/m | 5.1 kg/m^2 | Self-Locking Pin | 0÷80 °C | Self-Cleaning Hinge System Pin diameter: 5 mm Temporary code, to be created specifically on request | 0÷80 °C |
|
| F7510DTPPB0650-PBT | 650 mm (25,59'') | PPB - Polypropylene (Blue) | PBT White | No positioners | F7510 | 45 mm | 32000 N/m | 5.1 kg/m^2 | Self-Locking Pin | 0÷100 °C | Self-Cleaning Hinge System Pin diameter: 5 mm Temporary code, to be created specifically on request | 0÷100 °C |
|
| F7510DTPPB0650-PE | 650 mm (25,59'') | PPB - Polypropylene (Blue) | PE White | No positioners | F7510 | 45 mm | 12000 N/m | 5.1 kg/m^2 | Self-Locking Pin | 0÷65 °C | Self-Cleaning Hinge System Pin diameter: 5 mm Temporary code, to be created specifically on request | 0÷65 °C |
|
| F7510DTPPB0650-PP | 650 mm (25,59'') | PPB - Polypropylene (Blue) | PP White | No positioners | F7510 | 45 mm | 14000 N/m | 5.1 kg/m^2 | Self-Locking Pin | 0÷100 °C | Self-Cleaning Hinge System Pin diameter: 5 mm Temporary code, to be created specifically on request | 0÷100 °C |
|
| F7510DTPPB0700-PA6 | 700 mm (27,56'') | PPB - Polypropylene (Blue) | PA6 White | No positioners | F7510 | 45 mm | 18600 N/m | 5.1 kg/m^2 | Self-Locking Pin | 0÷80 °C | Self-Cleaning Hinge System Pin diameter: 5 mm Temporary code, to be created specifically on request | 0÷80 °C |
|
| F7510DTPPB0700-PBT | 700 mm (27,56'') | PPB - Polypropylene (Blue) | PBT White | No positioners | F7510 | 45 mm | 32000 N/m | 5.1 kg/m^2 | Self-Locking Pin | 0÷100 °C | Self-Cleaning Hinge System Pin diameter: 5 mm Temporary code, to be created specifically on request | 0÷100 °C |
|
| F7510DTPPB0700-PE | 700 mm (27,56'') | PPB - Polypropylene (Blue) | PE White | No positioners | F7510 | 45 mm | 12000 N/m | 5.1 kg/m^2 | Self-Locking Pin | 0÷65 °C | Self-Cleaning Hinge System Pin diameter: 5 mm Temporary code, to be created specifically on request | 0÷65 °C |
|
| F7510DTPPB0700-PP | 700 mm (27,56'') | PPB - Polypropylene (Blue) | PP White | No positioners | F7510 | 45 mm | 14000 N/m | 5.1 kg/m^2 | Self-Locking Pin | 0÷100 °C | Self-Cleaning Hinge System Pin diameter: 5 mm Temporary code, to be created specifically on request | 0÷100 °C |
|
| F7510DTPPB0750-PA6 | 750 mm (29,53'') | PPB - Polypropylene (Blue) | PA6 White | No positioners | F7510 | 45 mm | 18600 N/m | 5.1 kg/m^2 | Self-Locking Pin | 0÷80 °C | Self-Cleaning Hinge System Pin diameter: 5 mm Temporary code, to be created specifically on request | 0÷80 °C |
|
| F7510DTPPB0750-PBT | 750 mm (29,53'') | PPB - Polypropylene (Blue) | PBT White | No positioners | F7510 | 45 mm | 32000 N/m | 5.1 kg/m^2 | Self-Locking Pin | 0÷100 °C | Self-Cleaning Hinge System Pin diameter: 5 mm Temporary code, to be created specifically on request | 0÷100 °C |
|
| F7510DTPPB0750-PE | 750 mm (29,53'') | PPB - Polypropylene (Blue) | PE White | No positioners | F7510 | 45 mm | 12000 N/m | 5.1 kg/m^2 | Self-Locking Pin | 0÷65 °C | Self-Cleaning Hinge System Pin diameter: 5 mm Temporary code, to be created specifically on request | 0÷65 °C |
|
| F7510DTPPB0750-PP | 750 mm (29,53'') | PPB - Polypropylene (Blue) | PP White | No positioners | F7510 | 45 mm | 14000 N/m | 5.1 kg/m^2 | Self-Locking Pin | 0÷100 °C | Self-Cleaning Hinge System Pin diameter: 5 mm Temporary code, to be created specifically on request | 0÷100 °C |
|
| F7510DTPPB0800-PA6 | 800 mm (31,5'') | PPB - Polypropylene (Blue) | PA6 White | No positioners | F7510 | 45 mm | 18600 N/m | 5.1 kg/m^2 | Self-Locking Pin | 0÷80 °C | Self-Cleaning Hinge System Pin diameter: 5 mm Temporary code, to be created specifically on request | 0÷80 °C |
|
| F7510DTPPB0800-PBT | 800 mm (31,5'') | PPB - Polypropylene (Blue) | PBT White | No positioners | F7510 | 45 mm | 32000 N/m | 5.1 kg/m^2 | Self-Locking Pin | 0÷100 °C | Self-Cleaning Hinge System Pin diameter: 5 mm Temporary code, to be created specifically on request | 0÷100 °C |
|
| F7510DTPPB0800-PE | 800 mm (31,5'') | PPB - Polypropylene (Blue) | PE White | No positioners | F7510 | 45 mm | 12000 N/m | 5.1 kg/m^2 | Self-Locking Pin | 0÷65 °C | Self-Cleaning Hinge System Pin diameter: 5 mm Temporary code, to be created specifically on request | 0÷65 °C |
|
| F7510DTPPB0800-PP | 800 mm (31,5'') | PPB - Polypropylene (Blue) | PP White | No positioners | F7510 | 45 mm | 14000 N/m | 5.1 kg/m^2 | Self-Locking Pin | 0÷100 °C | Self-Cleaning Hinge System Pin diameter: 5 mm Temporary code, to be created specifically on request | 0÷100 °C |
|
| F7510DTPPB0850-PA6 | 850 mm (33,46'') | PPB - Polypropylene (Blue) | PA6 White | No positioners | F7510 | 45 mm | 18600 N/m | 5.1 kg/m^2 | Self-Locking Pin | 0÷80 °C | Self-Cleaning Hinge System Pin diameter: 5 mm Temporary code, to be created specifically on request | 0÷80 °C |
|
| F7510DTPPB0850-PBT | 850 mm (33,46'') | PPB - Polypropylene (Blue) | PBT White | No positioners | F7510 | 45 mm | 32000 N/m | 5.1 kg/m^2 | Self-Locking Pin | 0÷100 °C | Self-Cleaning Hinge System Pin diameter: 5 mm Temporary code, to be created specifically on request | 0÷100 °C |
|
| F7510DTPPB0850-PE | 850 mm (33,46'') | PPB - Polypropylene (Blue) | PE White | No positioners | F7510 | 45 mm | 12000 N/m | 5.1 kg/m^2 | Self-Locking Pin | 0÷65 °C | Self-Cleaning Hinge System Pin diameter: 5 mm Temporary code, to be created specifically on request | 0÷65 °C |
|
| F7510DTPPB0850-PP | 850 mm (33,46'') | PPB - Polypropylene (Blue) | PP White | No positioners | F7510 | 45 mm | 14000 N/m | 5.1 kg/m^2 | Self-Locking Pin | 0÷100 °C | Self-Cleaning Hinge System Pin diameter: 5 mm Temporary code, to be created specifically on request | 0÷100 °C |
|
| F7510DTPPB0900-PA6 | 900 mm (35,43'') | PPB - Polypropylene (Blue) | PA6 White | No positioners | F7510 | 45 mm | 18600 N/m | 5.1 kg/m^2 | Self-Locking Pin | 0÷80 °C | Self-Cleaning Hinge System Pin diameter: 5 mm Temporary code, to be created specifically on request | 0÷80 °C |
|
| F7510DTPPB0900-PBT | 900 mm (35,43'') | PPB - Polypropylene (Blue) | PBT White | No positioners | F7510 | 45 mm | 32000 N/m | 5.1 kg/m^2 | Self-Locking Pin | 0÷100 °C | Self-Cleaning Hinge System Pin diameter: 5 mm Temporary code, to be created specifically on request | 0÷100 °C |
|
| F7510DTPPB0900-PE | 900 mm (35,43'') | PPB - Polypropylene (Blue) | PE White | No positioners | F7510 | 45 mm | 12000 N/m | 5.1 kg/m^2 | Self-Locking Pin | 0÷65 °C | Self-Cleaning Hinge System Pin diameter: 5 mm Temporary code, to be created specifically on request | 0÷65 °C |
|
| F7510DTPPB0900-PP | 900 mm (35,43'') | PPB - Polypropylene (Blue) | PP White | No positioners | F7510 | 45 mm | 14000 N/m | 5.1 kg/m^2 | Self-Locking Pin | 0÷100 °C | Self-Cleaning Hinge System Pin diameter: 5 mm Temporary code, to be created specifically on request | 0÷100 °C |
|
| F7510DTPPC0050-PA6 | 50 mm (1,97'') | PPC - Polypropylene (cyan) | PA6 White | No positioners | F7510 | 45 mm | 18600 N/m | 5.1 kg/m^2 | Self-Locking Pin | 0÷80 °C | Self-Cleaning Hinge System Pin diameter: 5 mm Temporary code, to be created specifically on request | 0÷80 °C |
|
| F7510DTPPC0050-PBT | 50 mm (1,97'') | PPC - Polypropylene (cyan) | PBT White | No positioners | F7510 | 45 mm | 32000 N/m | 5.1 kg/m^2 | Self-Locking Pin | 0÷100 °C | Self-Cleaning Hinge System Pin diameter: 5 mm Temporary code, to be created specifically on request | 0÷100 °C |
|
| F7510DTPPC0050-PE | 50 mm (1,97'') | PPC - Polypropylene (cyan) | PE White | No positioners | F7510 | 45 mm | 12000 N/m | 5.1 kg/m^2 | Self-Locking Pin | 0÷65 °C | Self-Cleaning Hinge System Pin diameter: 5 mm Temporary code, to be created specifically on request | 0÷65 °C |
|
| F7510DTPPC0050-PP | 50 mm (1,97'') | PPC - Polypropylene (cyan) | PP White | No positioners | F7510 | 45 mm | 14000 N/m | 5.1 kg/m^2 | Self-Locking Pin | 0÷100 °C | Self-Cleaning Hinge System Pin diameter: 5 mm Temporary code, to be created specifically on request | 0÷100 °C |
|
| F7510DTPPC0100-PA6 | 100 mm (3,94'') | PPC - Polypropylene (cyan) | PA6 White | No positioners | F7510 | 45 mm | 18600 N/m | 5.1 kg/m^2 | Self-Locking Pin | 0÷80 °C | Self-Cleaning Hinge System Pin diameter: 5 mm Temporary code, to be created specifically on request | 0÷80 °C |
|
| F7510DTPPC0100-PBT | 100 mm (3,94'') | PPC - Polypropylene (cyan) | PBT White | No positioners | F7510 | 45 mm | 32000 N/m | 5.1 kg/m^2 | Self-Locking Pin | 0÷100 °C | Self-Cleaning Hinge System Pin diameter: 5 mm Temporary code, to be created specifically on request | 0÷100 °C |
|
| F7510DTPPC0100-PE | 100 mm (3,94'') | PPC - Polypropylene (cyan) | PE White | No positioners | F7510 | 45 mm | 12000 N/m | 5.1 kg/m^2 | Self-Locking Pin | 0÷65 °C | Self-Cleaning Hinge System Pin diameter: 5 mm Temporary code, to be created specifically on request | 0÷65 °C |
|
| F7510DTPPC0100-PP | 100 mm (3,94'') | PPC - Polypropylene (cyan) | PP White | No positioners | F7510 | 45 mm | 14000 N/m | 5.1 kg/m^2 | Self-Locking Pin | 0÷100 °C | Self-Cleaning Hinge System Pin diameter: 5 mm Temporary code, to be created specifically on request | 0÷100 °C |
|
| F7510DTPPC0150-PA6 | 150 mm (5,91'') | PPC - Polypropylene (cyan) | PA6 White | No positioners | F7510 | 45 mm | 18600 N/m | 5.1 kg/m^2 | Self-Locking Pin | 0÷80 °C | Self-Cleaning Hinge System Pin diameter: 5 mm Temporary code, to be created specifically on request | 0÷80 °C |
|
| F7510DTPPC0150-PBT | 150 mm (5,91'') | PPC - Polypropylene (cyan) | PBT White | No positioners | F7510 | 45 mm | 32000 N/m | 5.1 kg/m^2 | Self-Locking Pin | 0÷100 °C | Self-Cleaning Hinge System Pin diameter: 5 mm Temporary code, to be created specifically on request | 0÷100 °C |
|
| F7510DTPPC0150-PE | 150 mm (5,91'') | PPC - Polypropylene (cyan) | PE White | No positioners | F7510 | 45 mm | 12000 N/m | 5.1 kg/m^2 | Self-Locking Pin | 0÷65 °C | Self-Cleaning Hinge System Pin diameter: 5 mm Temporary code, to be created specifically on request | 0÷65 °C |
|
| F7510DTPPC0150-PP | 150 mm (5,91'') | PPC - Polypropylene (cyan) | PP White | No positioners | F7510 | 45 mm | 14000 N/m | 5.1 kg/m^2 | Self-Locking Pin | 0÷100 °C | Self-Cleaning Hinge System Pin diameter: 5 mm Temporary code, to be created specifically on request | 0÷100 °C |
|
| F7510DTPPC0200-PA6 | 200 mm (7,87'') | PPC - Polypropylene (cyan) | PA6 White | No positioners | F7510 | 45 mm | 18600 N/m | 5.1 kg/m^2 | Self-Locking Pin | 0÷80 °C | Self-Cleaning Hinge System Pin diameter: 5 mm Temporary code, to be created specifically on request | 0÷80 °C |
|
| F7510DTPPC0200-PBT | 200 mm (7,87'') | PPC - Polypropylene (cyan) | PBT White | No positioners | F7510 | 45 mm | 32000 N/m | 5.1 kg/m^2 | Self-Locking Pin | 0÷100 °C | Self-Cleaning Hinge System Pin diameter: 5 mm Temporary code, to be created specifically on request | 0÷100 °C |
|
| F7510DTPPC0200-PE | 200 mm (7,87'') | PPC - Polypropylene (cyan) | PE White | No positioners | F7510 | 45 mm | 12000 N/m | 5.1 kg/m^2 | Self-Locking Pin | 0÷65 °C | Self-Cleaning Hinge System Pin diameter: 5 mm Temporary code, to be created specifically on request | 0÷65 °C |
|
| F7510DTPPC0200-PP | 200 mm (7,87'') | PPC - Polypropylene (cyan) | PP White | No positioners | F7510 | 45 mm | 14000 N/m | 5.1 kg/m^2 | Self-Locking Pin | 0÷100 °C | Self-Cleaning Hinge System Pin diameter: 5 mm Temporary code, to be created specifically on request | 0÷100 °C |
|
| F7510DTPPC0250-PA6 | 250 mm (9,84'') | PPC - Polypropylene (cyan) | PA6 White | No positioners | F7510 | 45 mm | 18600 N/m | 5.1 kg/m^2 | Self-Locking Pin | 0÷80 °C | Self-Cleaning Hinge System Pin diameter: 5 mm Temporary code, to be created specifically on request | 0÷80 °C |
|
| F7510DTPPC0250-PBT | 250 mm (9,84'') | PPC - Polypropylene (cyan) | PBT White | No positioners | F7510 | 45 mm | 32000 N/m | 5.1 kg/m^2 | Self-Locking Pin | 0÷100 °C | Self-Cleaning Hinge System Pin diameter: 5 mm Temporary code, to be created specifically on request | 0÷100 °C |
|
| F7510DTPPC0250-PE | 250 mm (9,84'') | PPC - Polypropylene (cyan) | PE White | No positioners | F7510 | 45 mm | 12000 N/m | 5.1 kg/m^2 | Self-Locking Pin | 0÷65 °C | Self-Cleaning Hinge System Pin diameter: 5 mm Temporary code, to be created specifically on request | 0÷65 °C |
|
| F7510DTPPC0250-PP | 250 mm (9,84'') | PPC - Polypropylene (cyan) | PP White | No positioners | F7510 | 45 mm | 14000 N/m | 5.1 kg/m^2 | Self-Locking Pin | 0÷100 °C | Self-Cleaning Hinge System Pin diameter: 5 mm Temporary code, to be created specifically on request | 0÷100 °C |
|
| F7510DTPPC0300-PA6 | 300 mm (11,81'') | PPC - Polypropylene (cyan) | PA6 White | No positioners | F7510 | 45 mm | 18600 N/m | 5.1 kg/m^2 | Self-Locking Pin | 0÷80 °C | Self-Cleaning Hinge System Pin diameter: 5 mm Temporary code, to be created specifically on request | 0÷80 °C |
|
| F7510DTPPC0300-PBT | 300 mm (11,81'') | PPC - Polypropylene (cyan) | PBT White | No positioners | F7510 | 45 mm | 32000 N/m | 5.1 kg/m^2 | Self-Locking Pin | 0÷100 °C | Self-Cleaning Hinge System Pin diameter: 5 mm Temporary code, to be created specifically on request | 0÷100 °C |
|
| F7510DTPPC0300-PE | 300 mm (11,81'') | PPC - Polypropylene (cyan) | PE White | No positioners | F7510 | 45 mm | 12000 N/m | 5.1 kg/m^2 | Self-Locking Pin | 0÷65 °C | Self-Cleaning Hinge System Pin diameter: 5 mm Temporary code, to be created specifically on request | 0÷65 °C |
|
| F7510DTPPC0300-PP | 300 mm (11,81'') | PPC - Polypropylene (cyan) | PP White | No positioners | F7510 | 45 mm | 14000 N/m | 5.1 kg/m^2 | Self-Locking Pin | 0÷100 °C | Self-Cleaning Hinge System Pin diameter: 5 mm Temporary code, to be created specifically on request | 0÷100 °C |
|
| F7510DTPPC0350-PA6 | 350 mm (13,78'') | PPC - Polypropylene (cyan) | PA6 White | No positioners | F7510 | 45 mm | 18600 N/m | 5.1 kg/m^2 | Self-Locking Pin | 0÷80 °C | Self-Cleaning Hinge System Pin diameter: 5 mm Temporary code, to be created specifically on request | 0÷80 °C |
|
| F7510DTPPC0350-PBT | 350 mm (13,78'') | PPC - Polypropylene (cyan) | PBT White | No positioners | F7510 | 45 mm | 32000 N/m | 5.1 kg/m^2 | Self-Locking Pin | 0÷100 °C | Self-Cleaning Hinge System Pin diameter: 5 mm Temporary code, to be created specifically on request | 0÷100 °C |
|
| F7510DTPPC0350-PE | 350 mm (13,78'') | PPC - Polypropylene (cyan) | PE White | No positioners | F7510 | 45 mm | 12000 N/m | 5.1 kg/m^2 | Self-Locking Pin | 0÷65 °C | Self-Cleaning Hinge System Pin diameter: 5 mm Temporary code, to be created specifically on request | 0÷65 °C |
|
| F7510DTPPC0350-PP | 350 mm (13,78'') | PPC - Polypropylene (cyan) | PP White | No positioners | F7510 | 45 mm | 14000 N/m | 5.1 kg/m^2 | Self-Locking Pin | 0÷100 °C | Self-Cleaning Hinge System Pin diameter: 5 mm Temporary code, to be created specifically on request | 0÷100 °C |
|
| F7510DTPPC0400-PA6 | 400 mm (15,75'') | PPC - Polypropylene (cyan) | PA6 White | No positioners | F7510 | 45 mm | 18600 N/m | 5.1 kg/m^2 | Self-Locking Pin | 0÷80 °C | Self-Cleaning Hinge System Pin diameter: 5 mm Temporary code, to be created specifically on request | 0÷80 °C |
|
| F7510DTPPC0400-PBT | 400 mm (15,75'') | PPC - Polypropylene (cyan) | PBT White | No positioners | F7510 | 45 mm | 32000 N/m | 5.1 kg/m^2 | Self-Locking Pin | 0÷100 °C | Self-Cleaning Hinge System Pin diameter: 5 mm Temporary code, to be created specifically on request | 0÷100 °C |
|
| F7510DTPPC0400-PE | 400 mm (15,75'') | PPC - Polypropylene (cyan) | PE White | No positioners | F7510 | 45 mm | 12000 N/m | 5.1 kg/m^2 | Self-Locking Pin | 0÷65 °C | Self-Cleaning Hinge System Pin diameter: 5 mm Temporary code, to be created specifically on request | 0÷65 °C |
|
| F7510DTPPC0400-PP | 400 mm (15,75'') | PPC - Polypropylene (cyan) | PP White | No positioners | F7510 | 45 mm | 14000 N/m | 5.1 kg/m^2 | Self-Locking Pin | 0÷100 °C | Self-Cleaning Hinge System Pin diameter: 5 mm Temporary code, to be created specifically on request | 0÷100 °C |
|
| F7510DTPPC0450-PA6 | 450 mm (17,72'') | PPC - Polypropylene (cyan) | PA6 White | No positioners | F7510 | 45 mm | 18600 N/m | 5.1 kg/m^2 | Self-Locking Pin | 0÷80 °C | Self-Cleaning Hinge System Pin diameter: 5 mm Temporary code, to be created specifically on request | 0÷80 °C |
|
| F7510DTPPC0450-PBT | 450 mm (17,72'') | PPC - Polypropylene (cyan) | PBT White | No positioners | F7510 | 45 mm | 32000 N/m | 5.1 kg/m^2 | Self-Locking Pin | 0÷100 °C | Self-Cleaning Hinge System Pin diameter: 5 mm Temporary code, to be created specifically on request | 0÷100 °C |
|
| F7510DTPPC0450-PE | 450 mm (17,72'') | PPC - Polypropylene (cyan) | PE White | No positioners | F7510 | 45 mm | 12000 N/m | 5.1 kg/m^2 | Self-Locking Pin | 0÷65 °C | Self-Cleaning Hinge System Pin diameter: 5 mm Temporary code, to be created specifically on request | 0÷65 °C |
|
| F7510DTPPC0450-PP | 450 mm (17,72'') | PPC - Polypropylene (cyan) | PP White | No positioners | F7510 | 45 mm | 14000 N/m | 5.1 kg/m^2 | Self-Locking Pin | 0÷100 °C | Self-Cleaning Hinge System Pin diameter: 5 mm Temporary code, to be created specifically on request | 0÷100 °C |
|
| F7510DTPPC0500-PA6 | 500 mm (19,69'') | PPC - Polypropylene (cyan) | PA6 White | No positioners | F7510 | 45 mm | 18600 N/m | 5.1 kg/m^2 | Self-Locking Pin | 0÷80 °C | Self-Cleaning Hinge System Pin diameter: 5 mm Temporary code, to be created specifically on request | 0÷80 °C |
|
| F7510DTPPC0500-PBT | 500 mm (19,69'') | PPC - Polypropylene (cyan) | PBT White | No positioners | F7510 | 45 mm | 32000 N/m | 5.1 kg/m^2 | Self-Locking Pin | 0÷100 °C | Self-Cleaning Hinge System Pin diameter: 5 mm Temporary code, to be created specifically on request | 0÷100 °C |
|
| F7510DTPPC0500-PE | 500 mm (19,69'') | PPC - Polypropylene (cyan) | PE White | No positioners | F7510 | 45 mm | 12000 N/m | 5.1 kg/m^2 | Self-Locking Pin | 0÷65 °C | Self-Cleaning Hinge System Pin diameter: 5 mm Temporary code, to be created specifically on request | 0÷65 °C |
|
| F7510DTPPC0500-PP | 500 mm (19,69'') | PPC - Polypropylene (cyan) | PP White | No positioners | F7510 | 45 mm | 14000 N/m | 5.1 kg/m^2 | Self-Locking Pin | 0÷100 °C | Self-Cleaning Hinge System Pin diameter: 5 mm Temporary code, to be created specifically on request | 0÷100 °C |
|
| F7510DTPPC0550-PA6 | 550 mm (21,65'') | PPC - Polypropylene (cyan) | PA6 White | No positioners | F7510 | 45 mm | 18600 N/m | 5.1 kg/m^2 | Self-Locking Pin | 0÷80 °C | Self-Cleaning Hinge System Pin diameter: 5 mm Temporary code, to be created specifically on request | 0÷80 °C |
|
| F7510DTPPC0550-PBT | 550 mm (21,65'') | PPC - Polypropylene (cyan) | PBT White | No positioners | F7510 | 45 mm | 32000 N/m | 5.1 kg/m^2 | Self-Locking Pin | 0÷100 °C | Self-Cleaning Hinge System Pin diameter: 5 mm Temporary code, to be created specifically on request | 0÷100 °C |
|
| F7510DTPPC0550-PE | 550 mm (21,65'') | PPC - Polypropylene (cyan) | PE White | No positioners | F7510 | 45 mm | 12000 N/m | 5.1 kg/m^2 | Self-Locking Pin | 0÷65 °C | Self-Cleaning Hinge System Pin diameter: 5 mm Temporary code, to be created specifically on request | 0÷65 °C |
|
| F7510DTPPC0550-PP | 550 mm (21,65'') | PPC - Polypropylene (cyan) | PP White | No positioners | F7510 | 45 mm | 14000 N/m | 5.1 kg/m^2 | Self-Locking Pin | 0÷100 °C | Self-Cleaning Hinge System Pin diameter: 5 mm Temporary code, to be created specifically on request | 0÷100 °C |
|
| F7510DTPPC0600-PA6 | 600 mm (23,62'') | PPC - Polypropylene (cyan) | PA6 White | No positioners | F7510 | 45 mm | 18600 N/m | 5.1 kg/m^2 | Self-Locking Pin | 0÷80 °C | Self-Cleaning Hinge System Pin diameter: 5 mm Temporary code, to be created specifically on request | 0÷80 °C |
|
| F7510DTPPC0600-PBT | 600 mm (23,62'') | PPC - Polypropylene (cyan) | PBT White | No positioners | F7510 | 45 mm | 32000 N/m | 5.1 kg/m^2 | Self-Locking Pin | 0÷100 °C | Self-Cleaning Hinge System Pin diameter: 5 mm Temporary code, to be created specifically on request | 0÷100 °C |
|
| F7510DTPPC0600-PE | 600 mm (23,62'') | PPC - Polypropylene (cyan) | PE White | No positioners | F7510 | 45 mm | 12000 N/m | 5.1 kg/m^2 | Self-Locking Pin | 0÷65 °C | Self-Cleaning Hinge System Pin diameter: 5 mm Temporary code, to be created specifically on request | 0÷65 °C |
|
| F7510DTPPC0600-PP | 600 mm (23,62'') | PPC - Polypropylene (cyan) | PP White | No positioners | F7510 | 45 mm | 14000 N/m | 5.1 kg/m^2 | Self-Locking Pin | 0÷100 °C | Self-Cleaning Hinge System Pin diameter: 5 mm Temporary code, to be created specifically on request | 0÷100 °C |
|
| F7510DTPPC0650-PA6 | 650 mm (25,59'') | PPC - Polypropylene (cyan) | PA6 White | No positioners | F7510 | 45 mm | 18600 N/m | 5.1 kg/m^2 | Self-Locking Pin | 0÷80 °C | Self-Cleaning Hinge System Pin diameter: 5 mm Temporary code, to be created specifically on request | 0÷80 °C |
|
| F7510DTPPC0650-PBT | 650 mm (25,59'') | PPC - Polypropylene (cyan) | PBT White | No positioners | F7510 | 45 mm | 32000 N/m | 5.1 kg/m^2 | Self-Locking Pin | 0÷100 °C | Self-Cleaning Hinge System Pin diameter: 5 mm Temporary code, to be created specifically on request | 0÷100 °C |
|
| F7510DTPPC0650-PE | 650 mm (25,59'') | PPC - Polypropylene (cyan) | PE White | No positioners | F7510 | 45 mm | 12000 N/m | 5.1 kg/m^2 | Self-Locking Pin | 0÷65 °C | Self-Cleaning Hinge System Pin diameter: 5 mm Temporary code, to be created specifically on request | 0÷65 °C |
|
| F7510DTPPC0650-PP | 650 mm (25,59'') | PPC - Polypropylene (cyan) | PP White | No positioners | F7510 | 45 mm | 14000 N/m | 5.1 kg/m^2 | Self-Locking Pin | 0÷100 °C | Self-Cleaning Hinge System Pin diameter: 5 mm Temporary code, to be created specifically on request | 0÷100 °C |
|
| F7510DTPPC0700-PA6 | 700 mm (27,56'') | PPC - Polypropylene (cyan) | PA6 White | No positioners | F7510 | 45 mm | 18600 N/m | 5.1 kg/m^2 | Self-Locking Pin | 0÷80 °C | Self-Cleaning Hinge System Pin diameter: 5 mm Temporary code, to be created specifically on request | 0÷80 °C |
|
| F7510DTPPC0700-PBT | 700 mm (27,56'') | PPC - Polypropylene (cyan) | PBT White | No positioners | F7510 | 45 mm | 32000 N/m | 5.1 kg/m^2 | Self-Locking Pin | 0÷100 °C | Self-Cleaning Hinge System Pin diameter: 5 mm Temporary code, to be created specifically on request | 0÷100 °C |
|
| F7510DTPPC0700-PE | 700 mm (27,56'') | PPC - Polypropylene (cyan) | PE White | No positioners | F7510 | 45 mm | 12000 N/m | 5.1 kg/m^2 | Self-Locking Pin | 0÷65 °C | Self-Cleaning Hinge System Pin diameter: 5 mm Temporary code, to be created specifically on request | 0÷65 °C |
|
| F7510DTPPC0700-PP | 700 mm (27,56'') | PPC - Polypropylene (cyan) | PP White | No positioners | F7510 | 45 mm | 14000 N/m | 5.1 kg/m^2 | Self-Locking Pin | 0÷100 °C | Self-Cleaning Hinge System Pin diameter: 5 mm Temporary code, to be created specifically on request | 0÷100 °C |
|
| F7510DTPPC0750-PA6 | 750 mm (29,53'') | PPC - Polypropylene (cyan) | PA6 White | No positioners | F7510 | 45 mm | 18600 N/m | 5.1 kg/m^2 | Self-Locking Pin | 0÷80 °C | Self-Cleaning Hinge System Pin diameter: 5 mm Temporary code, to be created specifically on request | 0÷80 °C |
|
| F7510DTPPC0750-PBT | 750 mm (29,53'') | PPC - Polypropylene (cyan) | PBT White | No positioners | F7510 | 45 mm | 32000 N/m | 5.1 kg/m^2 | Self-Locking Pin | 0÷100 °C | Self-Cleaning Hinge System Pin diameter: 5 mm Temporary code, to be created specifically on request | 0÷100 °C |
|
| F7510DTPPC0750-PE | 750 mm (29,53'') | PPC - Polypropylene (cyan) | PE White | No positioners | F7510 | 45 mm | 12000 N/m | 5.1 kg/m^2 | Self-Locking Pin | 0÷65 °C | Self-Cleaning Hinge System Pin diameter: 5 mm Temporary code, to be created specifically on request | 0÷65 °C |
|
| F7510DTPPC0750-PP | 750 mm (29,53'') | PPC - Polypropylene (cyan) | PP White | No positioners | F7510 | 45 mm | 14000 N/m | 5.1 kg/m^2 | Self-Locking Pin | 0÷100 °C | Self-Cleaning Hinge System Pin diameter: 5 mm Temporary code, to be created specifically on request | 0÷100 °C |
|
| F7510DTPPC0800-PA6 | 800 mm (31,5'') | PPC - Polypropylene (cyan) | PA6 White | No positioners | F7510 | 45 mm | 18600 N/m | 5.1 kg/m^2 | Self-Locking Pin | 0÷80 °C | Self-Cleaning Hinge System Pin diameter: 5 mm Temporary code, to be created specifically on request | 0÷80 °C |
|
| F7510DTPPC0800-PBT | 800 mm (31,5'') | PPC - Polypropylene (cyan) | PBT White | No positioners | F7510 | 45 mm | 32000 N/m | 5.1 kg/m^2 | Self-Locking Pin | 0÷100 °C | Self-Cleaning Hinge System Pin diameter: 5 mm Temporary code, to be created specifically on request | 0÷100 °C |
|
| F7510DTPPC0800-PE | 800 mm (31,5'') | PPC - Polypropylene (cyan) | PE White | No positioners | F7510 | 45 mm | 12000 N/m | 5.1 kg/m^2 | Self-Locking Pin | 0÷65 °C | Self-Cleaning Hinge System Pin diameter: 5 mm Temporary code, to be created specifically on request | 0÷65 °C |
|
| F7510DTPPC0800-PP | 800 mm (31,5'') | PPC - Polypropylene (cyan) | PP White | No positioners | F7510 | 45 mm | 14000 N/m | 5.1 kg/m^2 | Self-Locking Pin | 0÷100 °C | Self-Cleaning Hinge System Pin diameter: 5 mm Temporary code, to be created specifically on request | 0÷100 °C |
|
| F7510DTPPC0850-PA6 | 850 mm (33,46'') | PPC - Polypropylene (cyan) | PA6 White | No positioners | F7510 | 45 mm | 18600 N/m | 5.1 kg/m^2 | Self-Locking Pin | 0÷80 °C | Self-Cleaning Hinge System Pin diameter: 5 mm Temporary code, to be created specifically on request | 0÷80 °C |
|
| F7510DTPPC0850-PBT | 850 mm (33,46'') | PPC - Polypropylene (cyan) | PBT White | No positioners | F7510 | 45 mm | 32000 N/m | 5.1 kg/m^2 | Self-Locking Pin | 0÷100 °C | Self-Cleaning Hinge System Pin diameter: 5 mm Temporary code, to be created specifically on request | 0÷100 °C |
|
| F7510DTPPC0850-PE | 850 mm (33,46'') | PPC - Polypropylene (cyan) | PE White | No positioners | F7510 | 45 mm | 12000 N/m | 5.1 kg/m^2 | Self-Locking Pin | 0÷65 °C | Self-Cleaning Hinge System Pin diameter: 5 mm Temporary code, to be created specifically on request | 0÷65 °C |
|
| F7510DTPPC0850-PP | 850 mm (33,46'') | PPC - Polypropylene (cyan) | PP White | No positioners | F7510 | 45 mm | 14000 N/m | 5.1 kg/m^2 | Self-Locking Pin | 0÷100 °C | Self-Cleaning Hinge System Pin diameter: 5 mm Temporary code, to be created specifically on request | 0÷100 °C |
|
| F7510DTPPC0900-PA6 | 900 mm (35,43'') | PPC - Polypropylene (cyan) | PA6 White | No positioners | F7510 | 45 mm | 18600 N/m | 5.1 kg/m^2 | Self-Locking Pin | 0÷80 °C | Self-Cleaning Hinge System Pin diameter: 5 mm Temporary code, to be created specifically on request | 0÷80 °C |
|
| F7510DTPPC0900-PBT | 900 mm (35,43'') | PPC - Polypropylene (cyan) | PBT White | No positioners | F7510 | 45 mm | 32000 N/m | 5.1 kg/m^2 | Self-Locking Pin | 0÷100 °C | Self-Cleaning Hinge System Pin diameter: 5 mm Temporary code, to be created specifically on request | 0÷100 °C |
|
| F7510DTPPC0900-PE | 900 mm (35,43'') | PPC - Polypropylene (cyan) | PE White | No positioners | F7510 | 45 mm | 12000 N/m | 5.1 kg/m^2 | Self-Locking Pin | 0÷65 °C | Self-Cleaning Hinge System Pin diameter: 5 mm Temporary code, to be created specifically on request | 0÷65 °C |
|
| F7510DTPPC0900-PP | 900 mm (35,43'') | PPC - Polypropylene (cyan) | PP White | No positioners | F7510 | 45 mm | 14000 N/m | 5.1 kg/m^2 | Self-Locking Pin | 0÷100 °C | Self-Cleaning Hinge System Pin diameter: 5 mm Temporary code, to be created specifically on request | 0÷100 °C |
|
| F7510DTPPW0050-PA6 | 50 mm (1,97'') | PPW - Polypropylene (white) | PA6 White | No positioners | F7510 | 45 mm | 18600 N/m | 5.1 kg/m^2 | Self-Locking Pin | 0÷80 °C | Self-Cleaning Hinge System Pin diameter: 5 mm Temporary code, to be created specifically on request | 0÷80 °C |
|
| F7510DTPPW0050-PBT | 50 mm (1,97'') | PPW - Polypropylene (white) | PBT White | No positioners | F7510 | 45 mm | 32000 N/m | 5.1 kg/m^2 | Self-Locking Pin | 0÷100 °C | Self-Cleaning Hinge System Pin diameter: 5 mm Temporary code, to be created specifically on request | 0÷100 °C |
|
| F7510DTPPW0050-PE | 50 mm (1,97'') | PPW - Polypropylene (white) | PE White | No positioners | F7510 | 45 mm | 12000 N/m | 5.1 kg/m^2 | Self-Locking Pin | 0÷65 °C | Self-Cleaning Hinge System Pin diameter: 5 mm Temporary code, to be created specifically on request | 0÷65 °C |
|
| F7510DTPPW0050-PP | 50 mm (1,97'') | PPW - Polypropylene (white) | PP White | No positioners | F7510 | 45 mm | 14000 N/m | 5.1 kg/m^2 | Self-Locking Pin | 0÷100 °C | Self-Cleaning Hinge System Pin diameter: 5 mm Temporary code, to be created specifically on request | 0÷100 °C |
|
| F7510DTPPW0100-PA6 | 100 mm (3,94'') | PPW - Polypropylene (white) | PA6 White | No positioners | F7510 | 45 mm | 18600 N/m | 5.1 kg/m^2 | Self-Locking Pin | 0÷80 °C | Self-Cleaning Hinge System Pin diameter: 5 mm Temporary code, to be created specifically on request | 0÷80 °C |
|
| F7510DTPPW0100-PBT | 100 mm (3,94'') | PPW - Polypropylene (white) | PBT White | No positioners | F7510 | 45 mm | 32000 N/m | 5.1 kg/m^2 | Self-Locking Pin | 0÷100 °C | Self-Cleaning Hinge System Pin diameter: 5 mm Temporary code, to be created specifically on request | 0÷100 °C |
|
| F7510DTPPW0100-PE | 100 mm (3,94'') | PPW - Polypropylene (white) | PE White | No positioners | F7510 | 45 mm | 12000 N/m | 5.1 kg/m^2 | Self-Locking Pin | 0÷65 °C | Self-Cleaning Hinge System Pin diameter: 5 mm Temporary code, to be created specifically on request | 0÷65 °C |
|
| F7510DTPPW0100-PP | 100 mm (3,94'') | PPW - Polypropylene (white) | PP White | No positioners | F7510 | 45 mm | 14000 N/m | 5.1 kg/m^2 | Self-Locking Pin | 0÷100 °C | Self-Cleaning Hinge System Pin diameter: 5 mm Temporary code, to be created specifically on request | 0÷100 °C |
|
| F7510DTPPW0150-PA6 | 150 mm (5,91'') | PPW - Polypropylene (white) | PA6 White | No positioners | F7510 | 45 mm | 18600 N/m | 5.1 kg/m^2 | Self-Locking Pin | 0÷80 °C | Self-Cleaning Hinge System Pin diameter: 5 mm Temporary code, to be created specifically on request | 0÷80 °C |
|
| F7510DTPPW0150-PBT | 150 mm (5,91'') | PPW - Polypropylene (white) | PBT White | No positioners | F7510 | 45 mm | 32000 N/m | 5.1 kg/m^2 | Self-Locking Pin | 0÷100 °C | Self-Cleaning Hinge System Pin diameter: 5 mm Temporary code, to be created specifically on request | 0÷100 °C |
|
| F7510DTPPW0150-PE | 150 mm (5,91'') | PPW - Polypropylene (white) | PE White | No positioners | F7510 | 45 mm | 12000 N/m | 5.1 kg/m^2 | Self-Locking Pin | 0÷65 °C | Self-Cleaning Hinge System Pin diameter: 5 mm Temporary code, to be created specifically on request | 0÷65 °C |
|
| F7510DTPPW0150-PP | 150 mm (5,91'') | PPW - Polypropylene (white) | PP White | No positioners | F7510 | 45 mm | 14000 N/m | 5.1 kg/m^2 | Self-Locking Pin | 0÷100 °C | Self-Cleaning Hinge System Pin diameter: 5 mm Temporary code, to be created specifically on request | 0÷100 °C |
|
| F7510DTPPW0200-PA6 | 200 mm (7,87'') | PPW - Polypropylene (white) | PA6 White | No positioners | F7510 | 45 mm | 18600 N/m | 5.1 kg/m^2 | Self-Locking Pin | 0÷80 °C | Self-Cleaning Hinge System Pin diameter: 5 mm Temporary code, to be created specifically on request | 0÷80 °C |
|
| F7510DTPPW0200-PBT | 200 mm (7,87'') | PPW - Polypropylene (white) | PBT White | No positioners | F7510 | 45 mm | 32000 N/m | 5.1 kg/m^2 | Self-Locking Pin | 0÷100 °C | Self-Cleaning Hinge System Pin diameter: 5 mm Temporary code, to be created specifically on request | 0÷100 °C |
|
| F7510DTPPW0200-PE | 200 mm (7,87'') | PPW - Polypropylene (white) | PE White | No positioners | F7510 | 45 mm | 12000 N/m | 5.1 kg/m^2 | Self-Locking Pin | 0÷65 °C | Self-Cleaning Hinge System Pin diameter: 5 mm Temporary code, to be created specifically on request | 0÷65 °C |
|
| F7510DTPPW0200-PP | 200 mm (7,87'') | PPW - Polypropylene (white) | PP White | No positioners | F7510 | 45 mm | 14000 N/m | 5.1 kg/m^2 | Self-Locking Pin | 0÷100 °C | Self-Cleaning Hinge System Pin diameter: 5 mm Temporary code, to be created specifically on request | 0÷100 °C |
|
| F7510DTPPW0250-PA6 | 250 mm (9,84'') | PPW - Polypropylene (white) | PA6 White | No positioners | F7510 | 45 mm | 18600 N/m | 5.1 kg/m^2 | Self-Locking Pin | 0÷80 °C | Self-Cleaning Hinge System Pin diameter: 5 mm Temporary code, to be created specifically on request | 0÷80 °C |
|
| F7510DTPPW0250-PBT | 250 mm (9,84'') | PPW - Polypropylene (white) | PBT White | No positioners | F7510 | 45 mm | 32000 N/m | 5.1 kg/m^2 | Self-Locking Pin | 0÷100 °C | Self-Cleaning Hinge System Pin diameter: 5 mm Temporary code, to be created specifically on request | 0÷100 °C |
|
| F7510DTPPW0250-PE | 250 mm (9,84'') | PPW - Polypropylene (white) | PE White | No positioners | F7510 | 45 mm | 12000 N/m | 5.1 kg/m^2 | Self-Locking Pin | 0÷65 °C | Self-Cleaning Hinge System Pin diameter: 5 mm Temporary code, to be created specifically on request | 0÷65 °C |
|
| F7510DTPPW0250-PP | 250 mm (9,84'') | PPW - Polypropylene (white) | PP White | No positioners | F7510 | 45 mm | 14000 N/m | 5.1 kg/m^2 | Self-Locking Pin | 0÷100 °C | Self-Cleaning Hinge System Pin diameter: 5 mm Temporary code, to be created specifically on request | 0÷100 °C |
|
| F7510DTPPW0300-PA6 | 300 mm (11,81'') | PPW - Polypropylene (white) | PA6 White | No positioners | F7510 | 45 mm | 18600 N/m | 5.1 kg/m^2 | Self-Locking Pin | 0÷80 °C | Self-Cleaning Hinge System Pin diameter: 5 mm Temporary code, to be created specifically on request | 0÷80 °C |
|
| F7510DTPPW0300-PBT | 300 mm (11,81'') | PPW - Polypropylene (white) | PBT White | No positioners | F7510 | 45 mm | 32000 N/m | 5.1 kg/m^2 | Self-Locking Pin | 0÷100 °C | Self-Cleaning Hinge System Pin diameter: 5 mm Temporary code, to be created specifically on request | 0÷100 °C |
|
| F7510DTPPW0300-PE | 300 mm (11,81'') | PPW - Polypropylene (white) | PE White | No positioners | F7510 | 45 mm | 12000 N/m | 5.1 kg/m^2 | Self-Locking Pin | 0÷65 °C | Self-Cleaning Hinge System Pin diameter: 5 mm Temporary code, to be created specifically on request | 0÷65 °C |
|
| F7510DTPPW0300-PP | 300 mm (11,81'') | PPW - Polypropylene (white) | PP White | No positioners | F7510 | 45 mm | 14000 N/m | 5.1 kg/m^2 | Self-Locking Pin | 0÷100 °C | Self-Cleaning Hinge System Pin diameter: 5 mm Temporary code, to be created specifically on request | 0÷100 °C |
|
| F7510DTPPW0350-PA6 | 350 mm (13,78'') | PPW - Polypropylene (white) | PA6 White | No positioners | F7510 | 45 mm | 18600 N/m | 5.1 kg/m^2 | Self-Locking Pin | 0÷80 °C | Self-Cleaning Hinge System Pin diameter: 5 mm Temporary code, to be created specifically on request | 0÷80 °C |
|
| F7510DTPPW0350-PBT | 350 mm (13,78'') | PPW - Polypropylene (white) | PBT White | No positioners | F7510 | 45 mm | 32000 N/m | 5.1 kg/m^2 | Self-Locking Pin | 0÷100 °C | Self-Cleaning Hinge System Pin diameter: 5 mm Temporary code, to be created specifically on request | 0÷100 °C |
|
| F7510DTPPW0350-PE | 350 mm (13,78'') | PPW - Polypropylene (white) | PE White | No positioners | F7510 | 45 mm | 12000 N/m | 5.1 kg/m^2 | Self-Locking Pin | 0÷65 °C | Self-Cleaning Hinge System Pin diameter: 5 mm Temporary code, to be created specifically on request | 0÷65 °C |
|
| F7510DTPPW0350-PP | 350 mm (13,78'') | PPW - Polypropylene (white) | PP White | No positioners | F7510 | 45 mm | 14000 N/m | 5.1 kg/m^2 | Self-Locking Pin | 0÷100 °C | Self-Cleaning Hinge System Pin diameter: 5 mm Temporary code, to be created specifically on request | 0÷100 °C |
|
| F7510DTPPW0400-PA6 | 400 mm (15,75'') | PPW - Polypropylene (white) | PA6 White | No positioners | F7510 | 45 mm | 18600 N/m | 5.1 kg/m^2 | Self-Locking Pin | 0÷80 °C | Self-Cleaning Hinge System Pin diameter: 5 mm Temporary code, to be created specifically on request | 0÷80 °C |
|
| F7510DTPPW0400-PBT | 400 mm (15,75'') | PPW - Polypropylene (white) | PBT White | No positioners | F7510 | 45 mm | 32000 N/m | 5.1 kg/m^2 | Self-Locking Pin | 0÷100 °C | Self-Cleaning Hinge System Pin diameter: 5 mm Temporary code, to be created specifically on request | 0÷100 °C |
|
| F7510DTPPW0400-PE | 400 mm (15,75'') | PPW - Polypropylene (white) | PE White | No positioners | F7510 | 45 mm | 12000 N/m | 5.1 kg/m^2 | Self-Locking Pin | 0÷65 °C | Self-Cleaning Hinge System Pin diameter: 5 mm Temporary code, to be created specifically on request | 0÷65 °C |
|
| F7510DTPPW0400-PP | 400 mm (15,75'') | PPW - Polypropylene (white) | PP White | No positioners | F7510 | 45 mm | 14000 N/m | 5.1 kg/m^2 | Self-Locking Pin | 0÷100 °C | Self-Cleaning Hinge System Pin diameter: 5 mm Temporary code, to be created specifically on request | 0÷100 °C |
|
| F7510DTPPW0450-PA6 | 450 mm (17,72'') | PPW - Polypropylene (white) | PA6 White | No positioners | F7510 | 45 mm | 18600 N/m | 5.1 kg/m^2 | Self-Locking Pin | 0÷80 °C | Self-Cleaning Hinge System Pin diameter: 5 mm Temporary code, to be created specifically on request | 0÷80 °C |
|
| F7510DTPPW0450-PBT | 450 mm (17,72'') | PPW - Polypropylene (white) | PBT White | No positioners | F7510 | 45 mm | 32000 N/m | 5.1 kg/m^2 | Self-Locking Pin | 0÷100 °C | Self-Cleaning Hinge System Pin diameter: 5 mm Temporary code, to be created specifically on request | 0÷100 °C |
|
| F7510DTPPW0450-PE | 450 mm (17,72'') | PPW - Polypropylene (white) | PE White | No positioners | F7510 | 45 mm | 12000 N/m | 5.1 kg/m^2 | Self-Locking Pin | 0÷65 °C | Self-Cleaning Hinge System Pin diameter: 5 mm Temporary code, to be created specifically on request | 0÷65 °C |
|
| F7510DTPPW0450-PP | 450 mm (17,72'') | PPW - Polypropylene (white) | PP White | No positioners | F7510 | 45 mm | 14000 N/m | 5.1 kg/m^2 | Self-Locking Pin | 0÷100 °C | Self-Cleaning Hinge System Pin diameter: 5 mm Temporary code, to be created specifically on request | 0÷100 °C |
|
| F7510DTPPW0500-PA6 | 500 mm (19,69'') | PPW - Polypropylene (white) | PA6 White | No positioners | F7510 | 45 mm | 18600 N/m | 5.1 kg/m^2 | Self-Locking Pin | 0÷80 °C | Self-Cleaning Hinge System Pin diameter: 5 mm Temporary code, to be created specifically on request | 0÷80 °C |
|
| F7510DTPPW0500-PBT | 500 mm (19,69'') | PPW - Polypropylene (white) | PBT White | No positioners | F7510 | 45 mm | 32000 N/m | 5.1 kg/m^2 | Self-Locking Pin | 0÷100 °C | Self-Cleaning Hinge System Pin diameter: 5 mm Temporary code, to be created specifically on request | 0÷100 °C |
|
| F7510DTPPW0500-PE | 500 mm (19,69'') | PPW - Polypropylene (white) | PE White | No positioners | F7510 | 45 mm | 12000 N/m | 5.1 kg/m^2 | Self-Locking Pin | 0÷65 °C | Self-Cleaning Hinge System Pin diameter: 5 mm Temporary code, to be created specifically on request | 0÷65 °C |
|
| F7510DTPPW0500-PP | 500 mm (19,69'') | PPW - Polypropylene (white) | PP White | No positioners | F7510 | 45 mm | 14000 N/m | 5.1 kg/m^2 | Self-Locking Pin | 0÷100 °C | Self-Cleaning Hinge System Pin diameter: 5 mm Temporary code, to be created specifically on request | 0÷100 °C |
|
| F7510DTPPW0550-PA6 | 550 mm (21,65'') | PPW - Polypropylene (white) | PA6 White | No positioners | F7510 | 45 mm | 18600 N/m | 5.1 kg/m^2 | Self-Locking Pin | 0÷80 °C | Self-Cleaning Hinge System Pin diameter: 5 mm Temporary code, to be created specifically on request | 0÷80 °C |
|
| F7510DTPPW0550-PBT | 550 mm (21,65'') | PPW - Polypropylene (white) | PBT White | No positioners | F7510 | 45 mm | 32000 N/m | 5.1 kg/m^2 | Self-Locking Pin | 0÷100 °C | Self-Cleaning Hinge System Pin diameter: 5 mm Temporary code, to be created specifically on request | 0÷100 °C |
|
| F7510DTPPW0550-PE | 550 mm (21,65'') | PPW - Polypropylene (white) | PE White | No positioners | F7510 | 45 mm | 12000 N/m | 5.1 kg/m^2 | Self-Locking Pin | 0÷65 °C | Self-Cleaning Hinge System Pin diameter: 5 mm Temporary code, to be created specifically on request | 0÷65 °C |
|
| F7510DTPPW0550-PP | 550 mm (21,65'') | PPW - Polypropylene (white) | PP White | No positioners | F7510 | 45 mm | 14000 N/m | 5.1 kg/m^2 | Self-Locking Pin | 0÷100 °C | Self-Cleaning Hinge System Pin diameter: 5 mm Temporary code, to be created specifically on request | 0÷100 °C |
|
| F7510DTPPW0600-PA6 | 600 mm (23,62'') | PPW - Polypropylene (white) | PA6 White | No positioners | F7510 | 45 mm | 18600 N/m | 5.1 kg/m^2 | Self-Locking Pin | 0÷80 °C | Self-Cleaning Hinge System Pin diameter: 5 mm Temporary code, to be created specifically on request | 0÷80 °C |
|
| F7510DTPPW0600-PBT | 600 mm (23,62'') | PPW - Polypropylene (white) | PBT White | No positioners | F7510 | 45 mm | 32000 N/m | 5.1 kg/m^2 | Self-Locking Pin | 0÷100 °C | Self-Cleaning Hinge System Pin diameter: 5 mm Temporary code, to be created specifically on request | 0÷100 °C |
|
| F7510DTPPW0600-PE | 600 mm (23,62'') | PPW - Polypropylene (white) | PE White | No positioners | F7510 | 45 mm | 12000 N/m | 5.1 kg/m^2 | Self-Locking Pin | 0÷65 °C | Self-Cleaning Hinge System Pin diameter: 5 mm Temporary code, to be created specifically on request | 0÷65 °C |
|
| F7510DTPPW0600-PP | 600 mm (23,62'') | PPW - Polypropylene (white) | PP White | No positioners | F7510 | 45 mm | 14000 N/m | 5.1 kg/m^2 | Self-Locking Pin | 0÷100 °C | Self-Cleaning Hinge System Pin diameter: 5 mm Temporary code, to be created specifically on request | 0÷100 °C |
|
| F7510DTPPW0650-PA6 | 650 mm (25,59'') | PPW - Polypropylene (white) | PA6 White | No positioners | F7510 | 45 mm | 18600 N/m | 5.1 kg/m^2 | Self-Locking Pin | 0÷80 °C | Self-Cleaning Hinge System Pin diameter: 5 mm Temporary code, to be created specifically on request | 0÷80 °C |
|
| F7510DTPPW0650-PBT | 650 mm (25,59'') | PPW - Polypropylene (white) | PBT White | No positioners | F7510 | 45 mm | 32000 N/m | 5.1 kg/m^2 | Self-Locking Pin | 0÷100 °C | Self-Cleaning Hinge System Pin diameter: 5 mm Temporary code, to be created specifically on request | 0÷100 °C |
|
| F7510DTPPW0650-PE | 650 mm (25,59'') | PPW - Polypropylene (white) | PE White | No positioners | F7510 | 45 mm | 12000 N/m | 5.1 kg/m^2 | Self-Locking Pin | 0÷65 °C | Self-Cleaning Hinge System Pin diameter: 5 mm Temporary code, to be created specifically on request | 0÷65 °C |
|
| F7510DTPPW0650-PP | 650 mm (25,59'') | PPW - Polypropylene (white) | PP White | No positioners | F7510 | 45 mm | 14000 N/m | 5.1 kg/m^2 | Self-Locking Pin | 0÷100 °C | Self-Cleaning Hinge System Pin diameter: 5 mm Temporary code, to be created specifically on request | 0÷100 °C |
|
| F7510DTPPW0700-PA6 | 700 mm (27,56'') | PPW - Polypropylene (white) | PA6 White | No positioners | F7510 | 45 mm | 18600 N/m | 5.1 kg/m^2 | Self-Locking Pin | 0÷80 °C | Self-Cleaning Hinge System Pin diameter: 5 mm Temporary code, to be created specifically on request | 0÷80 °C |
|
| F7510DTPPW0700-PBT | 700 mm (27,56'') | PPW - Polypropylene (white) | PBT White | No positioners | F7510 | 45 mm | 32000 N/m | 5.1 kg/m^2 | Self-Locking Pin | 0÷100 °C | Self-Cleaning Hinge System Pin diameter: 5 mm Temporary code, to be created specifically on request | 0÷100 °C |
|
| F7510DTPPW0700-PE | 700 mm (27,56'') | PPW - Polypropylene (white) | PE White | No positioners | F7510 | 45 mm | 12000 N/m | 5.1 kg/m^2 | Self-Locking Pin | 0÷65 °C | Self-Cleaning Hinge System Pin diameter: 5 mm Temporary code, to be created specifically on request | 0÷65 °C |
|
| F7510DTPPW0700-PP | 700 mm (27,56'') | PPW - Polypropylene (white) | PP White | No positioners | F7510 | 45 mm | 14000 N/m | 5.1 kg/m^2 | Self-Locking Pin | 0÷100 °C | Self-Cleaning Hinge System Pin diameter: 5 mm Temporary code, to be created specifically on request | 0÷100 °C |
|
| F7510DTPPW0750-PA6 | 750 mm (29,53'') | PPW - Polypropylene (white) | PA6 White | No positioners | F7510 | 45 mm | 18600 N/m | 5.1 kg/m^2 | Self-Locking Pin | 0÷80 °C | Self-Cleaning Hinge System Pin diameter: 5 mm Temporary code, to be created specifically on request | 0÷80 °C |
|
| F7510DTPPW0750-PBT | 750 mm (29,53'') | PPW - Polypropylene (white) | PBT White | No positioners | F7510 | 45 mm | 32000 N/m | 5.1 kg/m^2 | Self-Locking Pin | 0÷100 °C | Self-Cleaning Hinge System Pin diameter: 5 mm Temporary code, to be created specifically on request | 0÷100 °C |
|
| F7510DTPPW0750-PE | 750 mm (29,53'') | PPW - Polypropylene (white) | PE White | No positioners | F7510 | 45 mm | 12000 N/m | 5.1 kg/m^2 | Self-Locking Pin | 0÷65 °C | Self-Cleaning Hinge System Pin diameter: 5 mm Temporary code, to be created specifically on request | 0÷65 °C |
|
| F7510DTPPW0750-PP | 750 mm (29,53'') | PPW - Polypropylene (white) | PP White | No positioners | F7510 | 45 mm | 14000 N/m | 5.1 kg/m^2 | Self-Locking Pin | 0÷100 °C | Self-Cleaning Hinge System Pin diameter: 5 mm Temporary code, to be created specifically on request | 0÷100 °C |
|
| F7510DTPPW0800-PA6 | 800 mm (31,5'') | PPW - Polypropylene (white) | PA6 White | No positioners | F7510 | 45 mm | 18600 N/m | 5.1 kg/m^2 | Self-Locking Pin | 0÷80 °C | Self-Cleaning Hinge System Pin diameter: 5 mm Temporary code, to be created specifically on request | 0÷80 °C |
|
| F7510DTPPW0800-PBT | 800 mm (31,5'') | PPW - Polypropylene (white) | PBT White | No positioners | F7510 | 45 mm | 32000 N/m | 5.1 kg/m^2 | Self-Locking Pin | 0÷100 °C | Self-Cleaning Hinge System Pin diameter: 5 mm Temporary code, to be created specifically on request | 0÷100 °C |
|
| F7510DTPPW0800-PE | 800 mm (31,5'') | PPW - Polypropylene (white) | PE White | No positioners | F7510 | 45 mm | 12000 N/m | 5.1 kg/m^2 | Self-Locking Pin | 0÷65 °C | Self-Cleaning Hinge System Pin diameter: 5 mm Temporary code, to be created specifically on request | 0÷65 °C |
|
| F7510DTPPW0800-PP | 800 mm (31,5'') | PPW - Polypropylene (white) | PP White | No positioners | F7510 | 45 mm | 14000 N/m | 5.1 kg/m^2 | Self-Locking Pin | 0÷100 °C | Self-Cleaning Hinge System Pin diameter: 5 mm Temporary code, to be created specifically on request | 0÷100 °C |
|
| F7510DTPPW0850-PA6 | 850 mm (33,46'') | PPW - Polypropylene (white) | PA6 White | No positioners | F7510 | 45 mm | 18600 N/m | 5.1 kg/m^2 | Self-Locking Pin | 0÷80 °C | Self-Cleaning Hinge System Pin diameter: 5 mm Temporary code, to be created specifically on request | 0÷80 °C |
|
| F7510DTPPW0850-PBT | 850 mm (33,46'') | PPW - Polypropylene (white) | PBT White | No positioners | F7510 | 45 mm | 32000 N/m | 5.1 kg/m^2 | Self-Locking Pin | 0÷100 °C | Self-Cleaning Hinge System Pin diameter: 5 mm Temporary code, to be created specifically on request | 0÷100 °C |
|
| F7510DTPPW0850-PE | 850 mm (33,46'') | PPW - Polypropylene (white) | PE White | No positioners | F7510 | 45 mm | 12000 N/m | 5.1 kg/m^2 | Self-Locking Pin | 0÷65 °C | Self-Cleaning Hinge System Pin diameter: 5 mm Temporary code, to be created specifically on request | 0÷65 °C |
|
| F7510DTPPW0850-PP | 850 mm (33,46'') | PPW - Polypropylene (white) | PP White | No positioners | F7510 | 45 mm | 14000 N/m | 5.1 kg/m^2 | Self-Locking Pin | 0÷100 °C | Self-Cleaning Hinge System Pin diameter: 5 mm Temporary code, to be created specifically on request | 0÷100 °C |
|
| F7510DTPPW0900-PA6 | 900 mm (35,43'') | PPW - Polypropylene (white) | PA6 White | No positioners | F7510 | 45 mm | 18600 N/m | 5.1 kg/m^2 | Self-Locking Pin | 0÷80 °C | Self-Cleaning Hinge System Pin diameter: 5 mm Temporary code, to be created specifically on request | 0÷80 °C |
|
| F7510DTPPW0900-PBT | 900 mm (35,43'') | PPW - Polypropylene (white) | PBT White | No positioners | F7510 | 45 mm | 32000 N/m | 5.1 kg/m^2 | Self-Locking Pin | 0÷100 °C | Self-Cleaning Hinge System Pin diameter: 5 mm Temporary code, to be created specifically on request | 0÷100 °C |
|
| F7510DTPPW0900-PE | 900 mm (35,43'') | PPW - Polypropylene (white) | PE White | No positioners | F7510 | 45 mm | 12000 N/m | 5.1 kg/m^2 | Self-Locking Pin | 0÷65 °C | Self-Cleaning Hinge System Pin diameter: 5 mm Temporary code, to be created specifically on request | 0÷65 °C |
|
| F7510DTPPW0900-PP | 900 mm (35,43'') | PPW - Polypropylene (white) | PP White | No positioners | F7510 | 45 mm | 14000 N/m | 5.1 kg/m^2 | Self-Locking Pin | 0÷100 °C | Self-Cleaning Hinge System Pin diameter: 5 mm Temporary code, to be created specifically on request | 0÷100 °C |
|
Enquiry Now
To allow us to respond to your enquiry promptly, please provide all required information.
Related Products
-
7510 Flat TopModular BeltsView Product -
7510 Nub TopModular BeltsView Product
-
7510 Mesh TopModular BeltsView Product
-
7520 Flat TopModular BeltsView Product
-
7540 Radius Flush GridModular BeltsView Product
-
7544 Tight Radius Flush GridModular BeltsView Product
-
7510-7520-7540-7544 split machined sprocketBelt sprocketsView Product
-
7510-7520-7540-7544 one-piece molded sprocketBelt sprocketsView Product
