600 split machined support sprocket

600 split machined support sprocket

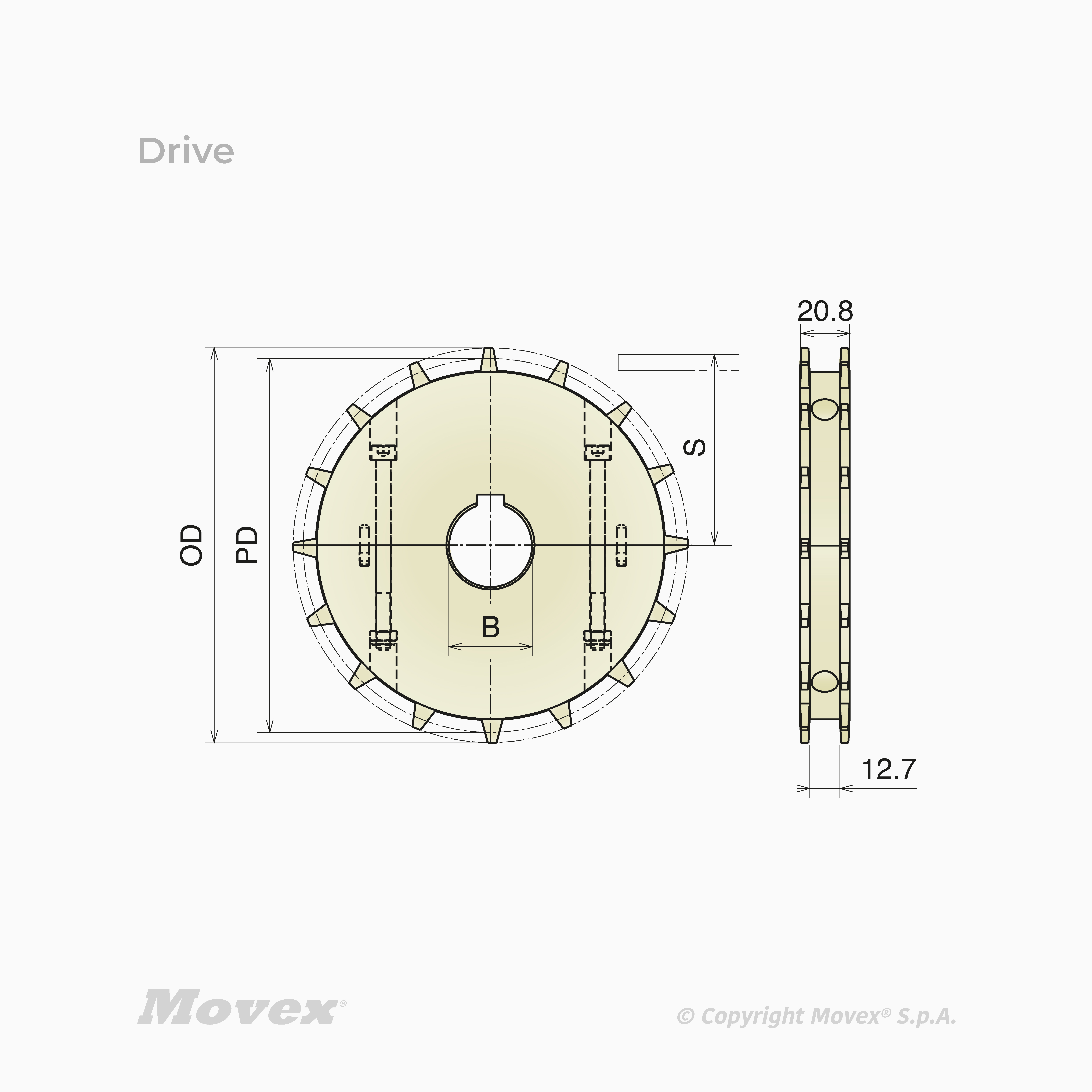

	Z-	Bore	Version	Type	Execution	Pitch diameter	Outer diameter	S dimension	Material	Temperature range dry	Temperature range wet
Code	All 10 13 15 16	All 18 mm 25 mm 30 mm 35 mm 40 mm	All Drive Idler	All Split	All Machined	All 102.8 mm 132.7 mm 152.7 mm 162.8 mm	All 107.7 mm 138.8 mm 159.4 mm 169.6 mm	All 45 mm 60 mm 70 mm 75 mm	All PA - Polyamide composite	All -40÷80 °C	All -20÷120 °C	Actions
P157101SR	10	25 mm	Drive	Split	Machined	102.8 mm	107.7 mm	45 mm	PA - Polyamide composite	-40÷80 °C	-20÷120 °C
P157102SR	10	30 mm	Drive	Split	Machined	102.8 mm	107.7 mm	45 mm	PA - Polyamide composite	-40÷80 °C	-20÷120 °C
P157103SR	10	35 mm	Drive	Split	Machined	102.8 mm	107.7 mm	45 mm	PA - Polyamide composite	-40÷80 °C	-20÷120 °C
P157104SR	10	40 mm	Drive	Split	Machined	102.8 mm	107.7 mm	45 mm	PA - Polyamide composite	-40÷80 °C	-20÷120 °C
P157150SR	10	18 mm	Idler	Split	Machined	102.8 mm	107.7 mm	45 mm	PA - Polyamide composite	-40÷80 °C	-20÷120 °C
P157151SR	10	25 mm	Idler	Split	Machined	102.8 mm	107.7 mm	45 mm	PA - Polyamide composite	-40÷80 °C	-20÷120 °C
P157152SR	10	30 mm	Idler	Split	Machined	102.8 mm	107.7 mm	45 mm	PA - Polyamide composite	-40÷80 °C	-20÷120 °C
P157153SR	10	35 mm	Idler	Split	Machined	102.8 mm	107.7 mm	45 mm	PA - Polyamide composite	-40÷80 °C	-20÷120 °C
P157154SR	10	40 mm	Idler	Split	Machined	102.8 mm	107.7 mm	45 mm	PA - Polyamide composite	-40÷80 °C	-20÷120 °C
P157201SR	13	25 mm	Drive	Split	Machined	132.7 mm	138.8 mm	60 mm	PA - Polyamide composite	-40÷80 °C	-20÷120 °C
P157202SR	13	30 mm	Drive	Split	Machined	132.7 mm	138.8 mm	60 mm	PA - Polyamide composite	-40÷80 °C	-20÷120 °C
P157203SR	13	35 mm	Drive	Split	Machined	132.7 mm	138.8 mm	60 mm	PA - Polyamide composite	-40÷80 °C	-20÷120 °C
P157204SR	13	40 mm	Drive	Split	Machined	132.7 mm	138.8 mm	60 mm	PA - Polyamide composite	-40÷80 °C	-20÷120 °C
P157250SR	13	18 mm	Idler	Split	Machined	132.7 mm	138.8 mm	60 mm	PA - Polyamide composite	-40÷80 °C	-20÷120 °C
P157251SR	13	25 mm	Idler	Split	Machined	132.7 mm	138.8 mm	60 mm	PA - Polyamide composite	-40÷80 °C	-20÷120 °C
P157252SR	13	30 mm	Idler	Split	Machined	132.7 mm	138.8 mm	60 mm	PA - Polyamide composite	-40÷80 °C	-20÷120 °C
P157253SR	13	35 mm	Idler	Split	Machined	132.7 mm	138.8 mm	60 mm	PA - Polyamide composite	-40÷80 °C	-20÷120 °C
P157254SR	13	40 mm	Idler	Split	Machined	132.7 mm	138.8 mm	60 mm	PA - Polyamide composite	-40÷80 °C	-20÷120 °C
P157301SR	15	25 mm	Drive	Split	Machined	152.7 mm	159.4 mm	70 mm	PA - Polyamide composite	-40÷80 °C	-20÷120 °C
P157302SR	15	30 mm	Drive	Split	Machined	152.7 mm	159.4 mm	70 mm	PA - Polyamide composite	-40÷80 °C	-20÷120 °C
P157303SR	15	35 mm	Drive	Split	Machined	152.7 mm	159.4 mm	70 mm	PA - Polyamide composite	-40÷80 °C	-20÷120 °C
P157304SR	15	40 mm	Drive	Split	Machined	152.7 mm	159.4 mm	70 mm	PA - Polyamide composite	-40÷80 °C	-20÷120 °C
P157350SR	15	18 mm	Idler	Split	Machined	152.7 mm	159.4 mm	70 mm	PA - Polyamide composite	-40÷80 °C	-20÷120 °C
P157351SR	15	25 mm	Idler	Split	Machined	152.7 mm	159.4 mm	70 mm	PA - Polyamide composite	-40÷80 °C	-20÷120 °C
P157352SR	15	30 mm	Idler	Split	Machined	152.7 mm	159.4 mm	70 mm	PA - Polyamide composite	-40÷80 °C	-20÷120 °C
P157353SR	15	35 mm	Idler	Split	Machined	152.7 mm	159.4 mm	70 mm	PA - Polyamide composite	-40÷80 °C	-20÷120 °C
P157354SR	15	40 mm	Idler	Split	Machined	152.7 mm	159.4 mm	70 mm	PA - Polyamide composite	-40÷80 °C	-20÷120 °C
P157401SR	16	25 mm	Drive	Split	Machined	162.8 mm	169.6 mm	75 mm	PA - Polyamide composite	-40÷80 °C	-20÷120 °C
P157402SR	16	30 mm	Drive	Split	Machined	162.8 mm	169.6 mm	75 mm	PA - Polyamide composite	-40÷80 °C	-20÷120 °C
P157403SR	16	35 mm	Drive	Split	Machined	162.8 mm	169.6 mm	75 mm	PA - Polyamide composite	-40÷80 °C	-20÷120 °C
P157404SR	16	40 mm	Drive	Split	Machined	162.8 mm	169.6 mm	75 mm	PA - Polyamide composite	-40÷80 °C	-20÷120 °C
P157450SR	16	18 mm	Idler	Split	Machined	162.8 mm	169.6 mm	75 mm	PA - Polyamide composite	-40÷80 °C	-20÷120 °C
P157451SR	16	25 mm	Idler	Split	Machined	162.8 mm	169.6 mm	75 mm	PA - Polyamide composite	-40÷80 °C	-20÷120 °C
P157452SR	16	30 mm	Idler	Split	Machined	162.8 mm	169.6 mm	75 mm	PA - Polyamide composite	-40÷80 °C	-20÷120 °C
P157453SR	16	35 mm	Idler	Split	Machined	162.8 mm	169.6 mm	75 mm	PA - Polyamide composite	-40÷80 °C	-20÷120 °C
P157454SR	16	40 mm	Idler	Split	Machined	162.8 mm	169.6 mm	75 mm	PA - Polyamide composite	-40÷80 °C	-20÷120 °C

•
