600 split machined support roller
Belt sprockets
Description
Basic features
| Series: | 600 |
|---|---|
| Pitch: | 31.75 mm |
| Unit of measure: | Ea |

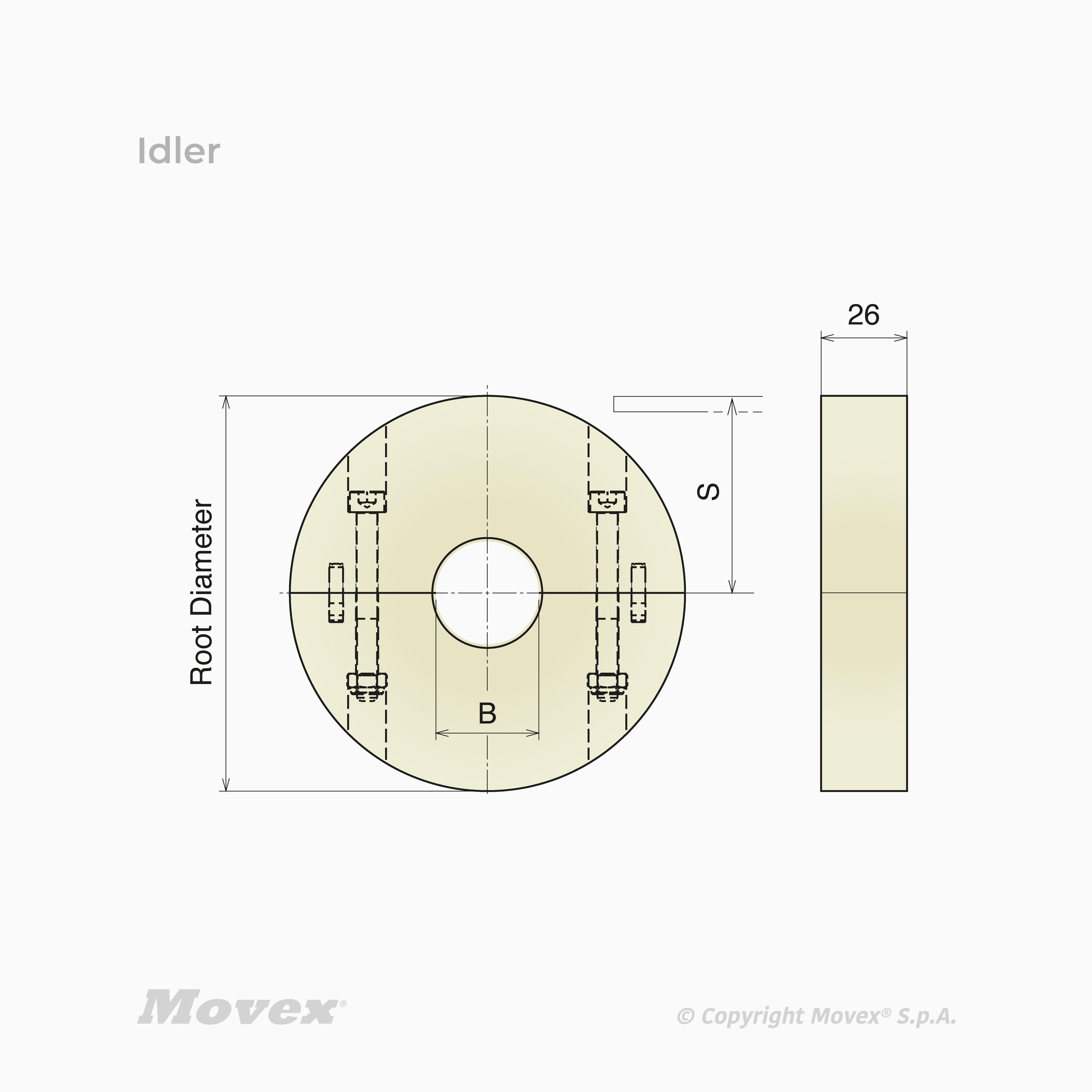

600 split machined support roller
| Z- | Bore |
Version | Box | Type | Execution | Outer diameter | S dimension | Material | Temperature range dry | Temperature range wet | ||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Code | Actions | |||||||||||
| P157150R | 10 | ○ 18 mm | Idler wheel | 4 | Split | Machined | 85.1 mm | 45 mm | PA - Polyamide composite | -40÷80 °C | -20÷120 °C |
|
| P157151R | 10 | ○ 25 mm | Idler wheel | 4 | Split | Machined | 85.1 mm | 45 mm | PA - Polyamide composite | -40÷80 °C | -20÷120 °C |
|
| P157152R | 10 | ○ 30 mm | Idler wheel | 4 | Split | Machined | 85.1 mm | 45 mm | PA - Polyamide composite | -40÷80 °C | -20÷120 °C |
|
| P157153R | 10 | ○ 35 mm | Idler wheel | 4 | Split | Machined | 85.1 mm | 45 mm | PA - Polyamide composite | -40÷80 °C | -20÷120 °C |
|
| P157154R | 10 | ○ 40 mm | Idler wheel | 4 | Split | Machined | 85.1 mm | 45 mm | PA - Polyamide composite | -40÷80 °C | -20÷120 °C |
|
| P157250R | 13 | ○ 18 mm | Idler wheel | 4 | Split | Machined | 115 mm | 60 mm | PA - Polyamide composite | -40÷80 °C | -20÷120 °C |
|
| P157251R | 13 | ○ 25 mm | Idler wheel | 4 | Split | Machined | 115 mm | 60 mm | PA - Polyamide composite | -40÷80 °C | -20÷120 °C |
|
| P157252R | 13 | ○ 30 mm | Idler wheel | 4 | Split | Machined | 115 mm | 60 mm | PA - Polyamide composite | -40÷80 °C | -20÷120 °C |
|
| P157253R | 13 | ○ 35 mm | Idler wheel | 4 | Split | Machined | 115 mm | 60 mm | PA - Polyamide composite | -40÷80 °C | -20÷120 °C |
|
| P157254R | 13 | ○ 40 mm | Idler wheel | 4 | Split | Machined | 115 mm | 60 mm | PA - Polyamide composite | -40÷80 °C | -20÷120 °C |
|
| P157350R | 15 | ○ 18 mm | Idler wheel | 4 | Split | Machined | 134.3 mm | 70 mm | PA - Polyamide composite | -40÷80 °C | -20÷120 °C |
|
| P157351R | 15 | ○ 25 mm | Idler wheel | 4 | Split | Machined | 134.3 mm | 70 mm | PA - Polyamide composite | -40÷80 °C | -20÷120 °C |
|
| P157352R | 15 | ○ 30 mm | Idler wheel | 4 | Split | Machined | 134.3 mm | 70 mm | PA - Polyamide composite | -40÷80 °C | -20÷120 °C |
|
| P157353R | 15 | ○ 35 mm | Idler wheel | 4 | Split | Machined | 134.3 mm | 70 mm | PA - Polyamide composite | -40÷80 °C | -20÷120 °C |
|
| P157354R | 15 | ○ 40 mm | Idler wheel | 4 | Split | Machined | 134.3 mm | 70 mm | PA - Polyamide composite | -40÷80 °C | -20÷120 °C |
|
| P157450R | 16 | ○ 18 mm | Idler wheel | 4 | Split | Machined | 146.8 mm | 75 mm | PA - Polyamide composite | -40÷80 °C | -20÷120 °C |
|
| P157451R | 16 | ○ 25 mm | Idler wheel | 4 | Split | Machined | 146.8 mm | 75 mm | PA - Polyamide composite | -40÷80 °C | -20÷120 °C |
|
| P157452R | 16 | ○ 30 mm | Idler wheel | 4 | Split | Machined | 146.8 mm | 75 mm | PA - Polyamide composite | -40÷80 °C | -20÷120 °C |
|
| P157453R | 16 | ○ 35 mm | Idler wheel | 4 | Split | Machined | 146.8 mm | 75 mm | PA - Polyamide composite | -40÷80 °C | -20÷120 °C |
|
| P157454R | 16 | ○ 40 mm | Idler wheel | 4 | Split | Machined | 146.8 mm | 75 mm | PA - Polyamide composite | -40÷80 °C | -20÷120 °C |
|
