600 split machined sprocket

600 split machined sprocket

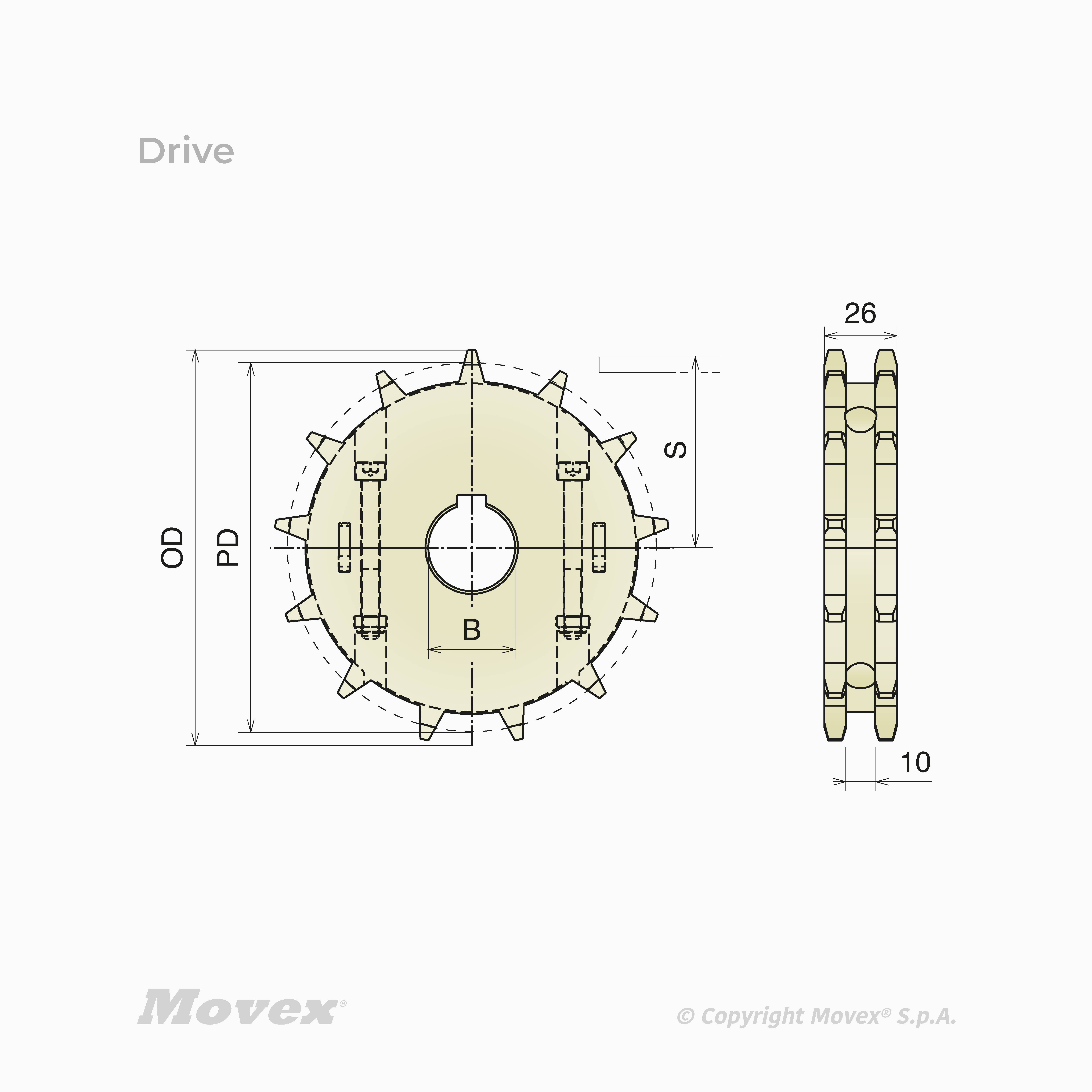

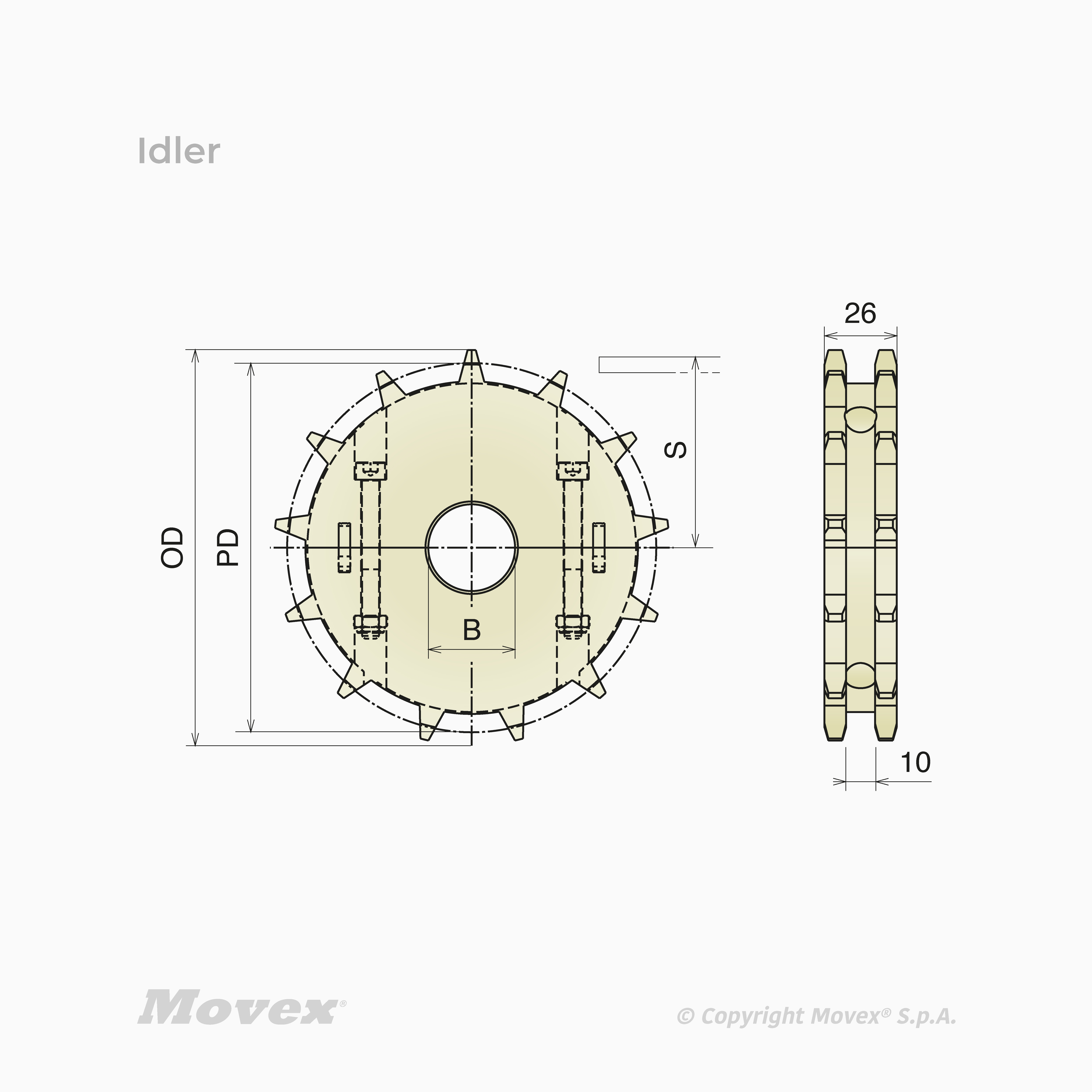

	Z-	Bore	Version	Type	Execution	Pitch diameter	Outer diameter	S dimension	Material	Temperature range dry	Temperature range wet
Code	All 10 13 15 16	All 18 mm 25 mm 30 mm 35 mm 40 mm	All Drive Idler	All Split	All Machined	All 102.8 mm 132.7 mm 152.7 mm 162.8 mm	All 107.7 mm 138.8 mm 159.4 mm 169.6 mm	All 45 mm 60 mm 70 mm 75 mm	All PA - Polyamide composite	All -40÷80 °C	All -20÷120 °C	Actions
P157101	10	25 mm	Drive	Split	Machined	102.8 mm	107.7 mm	45 mm	PA - Polyamide composite	-40÷80 °C	-20÷120 °C
P157102	10	30 mm	Drive	Split	Machined	102.8 mm	107.7 mm	45 mm	PA - Polyamide composite	-40÷80 °C	-20÷120 °C
P157103	10	35 mm	Drive	Split	Machined	102.8 mm	107.7 mm	45 mm	PA - Polyamide composite	-40÷80 °C	-20÷120 °C
P157104	10	40 mm	Drive	Split	Machined	102.8 mm	107.7 mm	45 mm	PA - Polyamide composite	-40÷80 °C	-20÷120 °C
P157150	10	18 mm	Idler	Split	Machined	102.8 mm	107.7 mm	45 mm	PA - Polyamide composite	-40÷80 °C	-20÷120 °C
P157151	10	25 mm	Idler	Split	Machined	102.8 mm	107.7 mm	45 mm	PA - Polyamide composite	-40÷80 °C	-20÷120 °C
P157152	10	30 mm	Idler	Split	Machined	102.8 mm	107.7 mm	45 mm	PA - Polyamide composite	-40÷80 °C	-20÷120 °C
P157153	10	35 mm	Idler	Split	Machined	102.8 mm	107.7 mm	45 mm	PA - Polyamide composite	-40÷80 °C	-20÷120 °C
P157154	10	40 mm	Idler	Split	Machined	102.8 mm	107.7 mm	45 mm	PA - Polyamide composite	-40÷80 °C	-20÷120 °C
P157201	13	25 mm	Drive	Split	Machined	132.7 mm	138.8 mm	60 mm	PA - Polyamide composite	-40÷80 °C	-20÷120 °C
P157202	13	30 mm	Drive	Split	Machined	132.7 mm	138.8 mm	60 mm	PA - Polyamide composite	-40÷80 °C	-20÷120 °C
P157203	13	35 mm	Drive	Split	Machined	132.7 mm	138.8 mm	60 mm	PA - Polyamide composite	-40÷80 °C	-20÷120 °C
P157204	13	40 mm	Drive	Split	Machined	132.7 mm	138.8 mm	60 mm	PA - Polyamide composite	-40÷80 °C	-20÷120 °C
P157250	13	18 mm	Idler	Split	Machined	132.7 mm	138.8 mm	60 mm	PA - Polyamide composite	-40÷80 °C	-20÷120 °C
P157251	13	25 mm	Idler	Split	Machined	132.7 mm	138.8 mm	60 mm	PA - Polyamide composite	-40÷80 °C	-20÷120 °C
P157252	13	30 mm	Idler	Split	Machined	132.7 mm	138.8 mm	60 mm	PA - Polyamide composite	-40÷80 °C	-20÷120 °C
P157253	13	35 mm	Idler	Split	Machined	132.7 mm	138.8 mm	60 mm	PA - Polyamide composite	-40÷80 °C	-20÷120 °C
P157254	13	40 mm	Idler	Split	Machined	132.7 mm	138.8 mm	60 mm	PA - Polyamide composite	-40÷80 °C	-20÷120 °C
P157301	15	25 mm	Drive	Split	Machined	152.7 mm	159.4 mm	70 mm	PA - Polyamide composite	-40÷80 °C	-20÷120 °C
P157302	15	30 mm	Drive	Split	Machined	152.7 mm	159.4 mm	70 mm	PA - Polyamide composite	-40÷80 °C	-20÷120 °C
P157303	15	35 mm	Drive	Split	Machined	152.7 mm	159.4 mm	70 mm	PA - Polyamide composite	-40÷80 °C	-20÷120 °C
P157304	15	40 mm	Drive	Split	Machined	152.7 mm	159.4 mm	70 mm	PA - Polyamide composite	-40÷80 °C	-20÷120 °C
P157350	15	18 mm	Idler	Split	Machined	152.7 mm	159.4 mm	70 mm	PA - Polyamide composite	-40÷80 °C	-20÷120 °C
P157351	15	25 mm	Idler	Split	Machined	152.7 mm	159.4 mm	70 mm	PA - Polyamide composite	-40÷80 °C	-20÷120 °C
P157352	15	30 mm	Idler	Split	Machined	152.7 mm	159.4 mm	70 mm	PA - Polyamide composite	-40÷80 °C	-20÷120 °C
P157353	15	35 mm	Idler	Split	Machined	152.7 mm	159.4 mm	70 mm	PA - Polyamide composite	-40÷80 °C	-20÷120 °C
P157354	15	40 mm	Idler	Split	Machined	152.7 mm	159.4 mm	70 mm	PA - Polyamide composite	-40÷80 °C	-20÷120 °C
P157401	16	25 mm	Drive	Split	Machined	162.8 mm	169.6 mm	75 mm	PA - Polyamide composite	-40÷80 °C	-20÷120 °C
P157402	16	30 mm	Drive	Split	Machined	162.8 mm	169.6 mm	75 mm	PA - Polyamide composite	-40÷80 °C	-20÷120 °C
P157403	16	35 mm	Drive	Split	Machined	162.8 mm	169.6 mm	75 mm	PA - Polyamide composite	-40÷80 °C	-20÷120 °C
P157404	16	40 mm	Drive	Split	Machined	162.8 mm	169.6 mm	75 mm	PA - Polyamide composite	-40÷80 °C	-20÷120 °C
P157450	16	18 mm	Idler	Split	Machined	162.8 mm	169.6 mm	75 mm	PA - Polyamide composite	-40÷80 °C	-20÷120 °C
P157451	16	25 mm	Idler	Split	Machined	162.8 mm	169.6 mm	75 mm	PA - Polyamide composite	-40÷80 °C	-20÷120 °C
P157452	16	30 mm	Idler	Split	Machined	162.8 mm	169.6 mm	75 mm	PA - Polyamide composite	-40÷80 °C	-20÷120 °C
P157453	16	35 mm	Idler	Split	Machined	162.8 mm	169.6 mm	75 mm	PA - Polyamide composite	-40÷80 °C	-20÷120 °C
P157454	16	40 mm	Idler	Split	Machined	162.8 mm	169.6 mm	75 mm	PA - Polyamide composite	-40÷80 °C	-20÷120 °C

•
