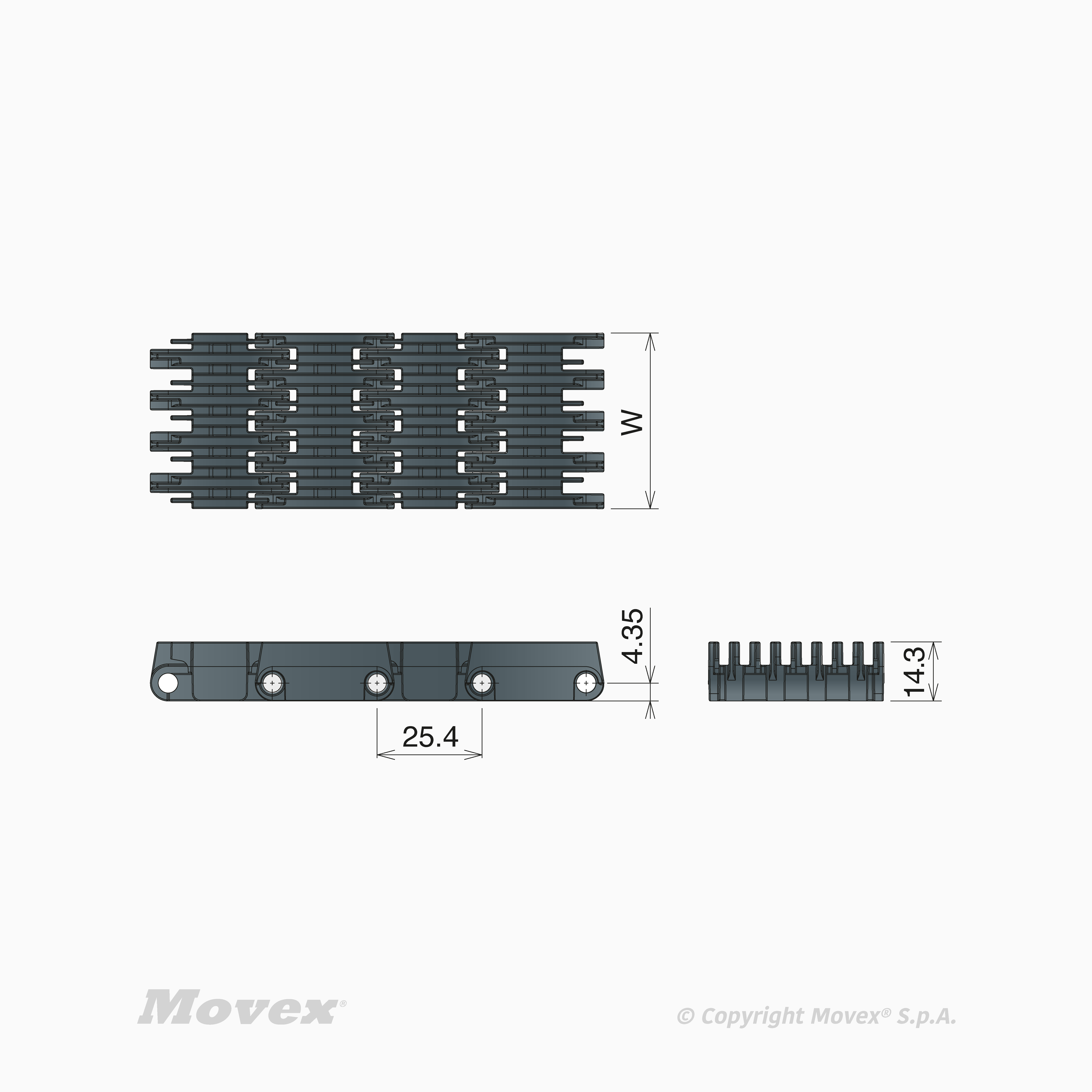

550 Mini Raised Rib

550 Mini Raised Rib

	Width	Material	Version	Part	Back flex radius	Max working load	Mass	Pin material	Fixation	Box	Temperature range dry	Temperature range wet
Code	All 22,5 mm 27,5 mm 32,5 mm 37,5 mm 42,5 mm 47,5 mm 52,5 mm 57,5 mm	All LFG - Low friction acetal (Grey)	All A - No positioners	All P5246	All 62 mm	All 160 N/m 200 N/m 330 N/m 400 N/m 530 N/m 600 N/m 730 N/m 800 N/m	All 0.25 kg/m^2 0.3 kg/m^2 0.35 kg/m^2 0.4 kg/m^2 0.45 kg/m^2 0.5 kg/m^2 0.55 kg/m^2 0.6 kg/m^2	All PBT white	All Self-Locking Pin	All 20 ft - 6,096 mt	All -40÷80 °C	All -40÷65 °C	Actions
P5246279089A-M	22,5 mm	LFG - Low friction acetal (Grey)	A - No positioners	P5246	62 mm	160 N/m	0.25 kg/m^2	PBT white	Self-Locking Pin	20 ft - 6,096 mt	-40÷80 °C	-40÷65 °C
P5246279109A-M	27,5 mm	LFG - Low friction acetal (Grey)	A - No positioners	P5246	62 mm	200 N/m	0.3 kg/m^2	PBT white	Self-Locking Pin	20 ft - 6,096 mt	-40÷80 °C	-40÷65 °C
P5246279128A-M	32,5 mm	LFG - Low friction acetal (Grey)	A - No positioners	P5246	62 mm	330 N/m	0.35 kg/m^2	PBT white	Self-Locking Pin	20 ft - 6,096 mt	-40÷80 °C	-40÷65 °C
P5246279148A-M	37,5 mm	LFG - Low friction acetal (Grey)	A - No positioners	P5246	62 mm	400 N/m	0.4 kg/m^2	PBT white	Self-Locking Pin	20 ft - 6,096 mt	-40÷80 °C	-40÷65 °C
P5246279167A-M	42,5 mm	LFG - Low friction acetal (Grey)	A - No positioners	P5246	62 mm	530 N/m	0.45 kg/m^2	PBT white	Self-Locking Pin	20 ft - 6,096 mt	-40÷80 °C	-40÷65 °C
P5246279187A-M	47,5 mm	LFG - Low friction acetal (Grey)	A - No positioners	P5246	62 mm	600 N/m	0.5 kg/m^2	PBT white	Self-Locking Pin	20 ft - 6,096 mt	-40÷80 °C	-40÷65 °C
P5246279207A-M	52,5 mm	LFG - Low friction acetal (Grey)	A - No positioners	P5246	62 mm	730 N/m	0.55 kg/m^2	PBT white	Self-Locking Pin	20 ft - 6,096 mt	-40÷80 °C	-40÷65 °C
P5246279226A-M	57,5 mm	LFG - Low friction acetal (Grey)	A - No positioners	P5246	62 mm	800 N/m	0.6 kg/m^2	PBT white	Self-Locking Pin	20 ft - 6,096 mt	-40÷80 °C	-40÷65 °C

•
