550 Grip Top
Modular Belts
Description
Description
Modular belt with over-molded high-grip rubber, for inclines, declines or acceleration applications, guaranteeing high performances and superior durability.
Basic features
| Series: | 550 |
|---|---|
| Pitch: | 25.4 mm |
| Thickness: | 8.7 mm |
| Increments: | 85 mm |
| Surface Type: | GT - Grip Top |
| Functionality: | Straight |
| Unit of measure: | Meter |

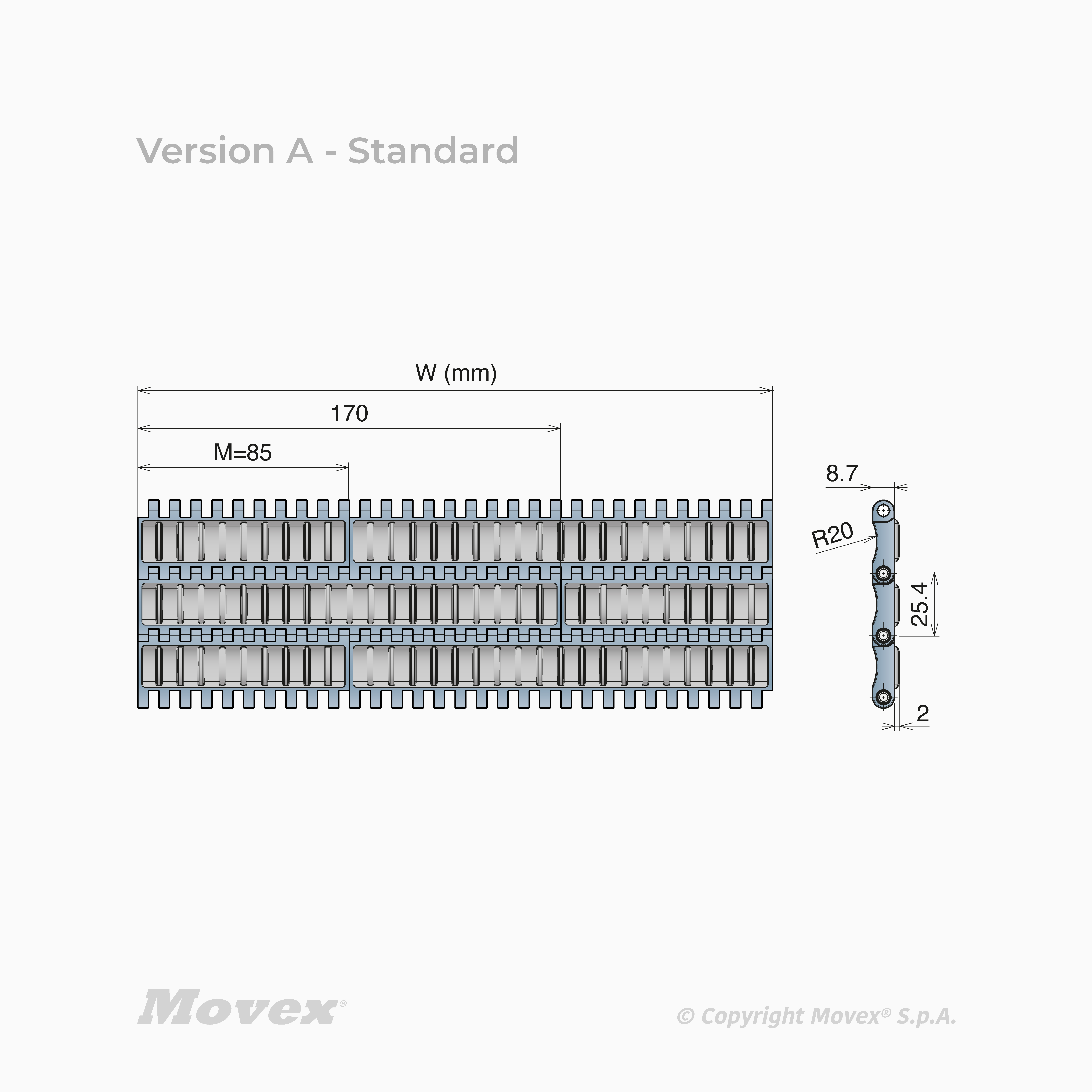

550 Grip Top

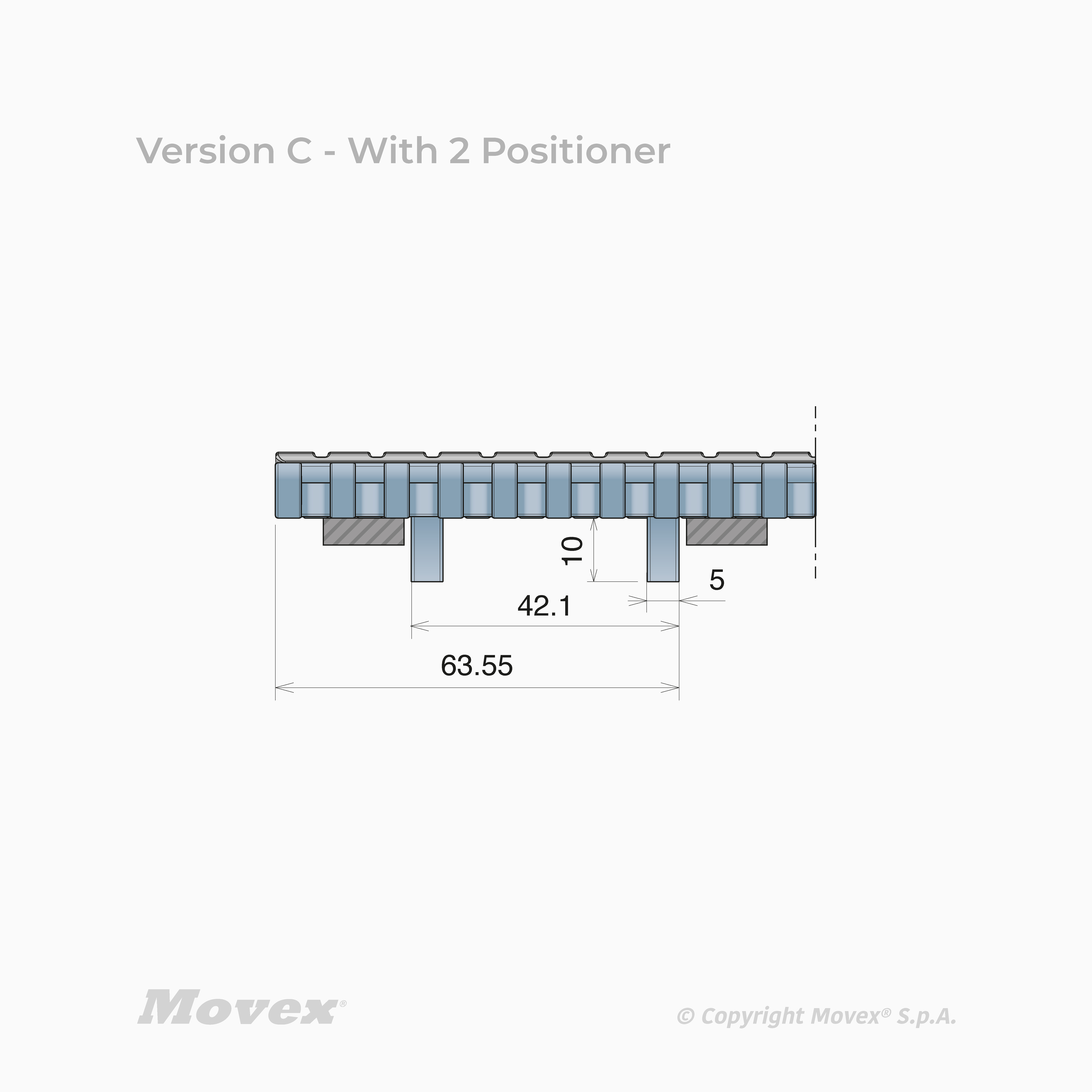

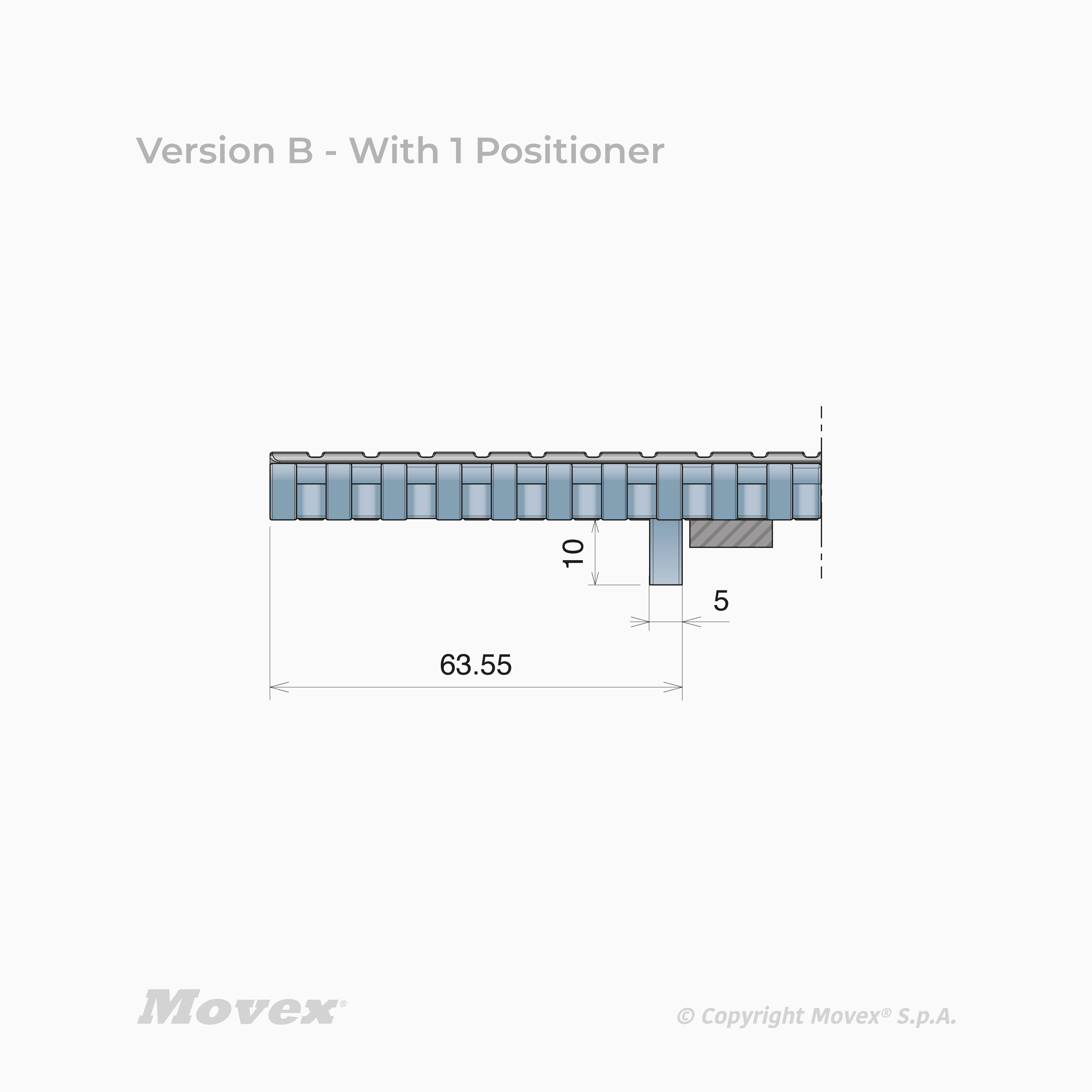

| Width | Material | Pin material | Version | Part | Back flex radius | Max working load | Mass | Fixation | Box | Temperature range dry | Temperature range wet | Supplementary informations | ||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Code | Actions | |||||||||||||
| P5503010085A | 85 mm (3,35") | LFA - Low friction acetal (01) | PBT White | A - No positioners | P5503 | 30 mm | 27500 N/m | 10.1 kg/m^2 | Patented PinSphere | 10 ft - 3,048 m | -40÷80 °C | -40÷65 °C | Top Rubber - 50 ShA-Pigeon Blue |
|
| P5503010085A-SS | 85 mm (3,35") | LFA - Low friction acetal (01) | Stainless steel | A - No positioners | P5503 | 30 mm | 30250 N/m | 10.1 kg/m^2 | Patented PinSphere | 10 ft - 3,048 m | -40÷80 °C | -40÷65 °C | Top Rubber - 50 ShA-Dark Grey |
|
| P5503010085B | 85 mm (3,35") | LFA - Low friction acetal (01) | PBT White | B - 1 Positioner | P5503 | 30 mm | 27500 N/m | 10.1 kg/m^2 | Patented PinSphere | 10 ft - 3,048 m | -40÷80 °C | -40÷65 °C | Top Rubber - 50 ShA-Dark Grey |
|
| P5503010085B-SS | 85 mm (3,35") | LFA - Low friction acetal (01) | Stainless steel | B - 1 Positioner | P5503 | 30 mm | 30250 N/m | 10.1 kg/m^2 | Patented PinSphere | 10 ft - 3,048 m | -40÷80 °C | -40÷65 °C | Top Rubber - 50 ShA-Dark Grey |
|
| P5503010085C | 85 mm (3,35") | LFA - Low friction acetal (01) | PBT White | C - 2 Positioners | P5503 | 30 mm | 27500 N/m | 10.1 kg/m^2 | Patented PinSphere | 10 ft - 3,048 m | -40÷80 °C | -40÷65 °C | Top Rubber - 50 ShA-Dark Grey |
|
| P5503010085C-SS | 85 mm (3,35") | LFA - Low friction acetal (01) | Stainless steel | C - 2 Positioners | P5503 | 30 mm | 30250 N/m | 10.1 kg/m^2 | Patented PinSphere | 10 ft - 3,048 m | -40÷80 °C | -40÷65 °C | Top Rubber - 50 ShA-Dark Grey |
|
| P5503010170A | 170 mm (6,69") | LFA - Low friction acetal (01) | PBT White | A - No positioners | P5503 | 30 mm | 27500 N/m | 10.1 kg/m^2 | Patented PinSphere | 10 ft - 3,048 m | -40÷80 °C | -40÷65 °C | - |
|
| P5503010170A-SS | 170 mm (6,69") | LFA - Low friction acetal (01) | Stainless steel | A - No positioners | P5503 | 30 mm | 30250 N/m | 10.1 kg/m^2 | Patented PinSphere | 10 ft - 3,048 m | -40÷80 °C | -40÷65 °C | Top Rubber - 50 ShA-Dark Grey |
|
| P5503010170B | 170 mm (6,69") | LFA - Low friction acetal (01) | PBT White | B - 1 Positioner | P5503 | 30 mm | 27500 N/m | 10.1 kg/m^2 | Patented PinSphere | 10 ft - 3,048 m | -40÷80 °C | -40÷65 °C | Top Rubber - 50 ShA-Dark Grey |
|
| P5503010170B-SS | 170 mm (6,69") | LFA - Low friction acetal (01) | Stainless steel | B - 1 Positioner | P5503 | 30 mm | 30250 N/m | 10.1 kg/m^2 | Patented PinSphere | 10 ft - 3,048 m | -40÷80 °C | -40÷65 °C | Top Rubber - 50 ShA-Dark Grey |
|
| P5503010170C | 170 mm (6,69") | LFA - Low friction acetal (01) | PBT White | C - 2 Positioners | P5503 | 30 mm | 27500 N/m | 10.1 kg/m^2 | Patented PinSphere | 10 ft - 3,048 m | -40÷80 °C | -40÷65 °C | Top Rubber - 50 ShA-Dark Grey |
|
| P5503010170C-SS | 170 mm (6,69") | LFA - Low friction acetal (01) | Stainless steel | C - 2 Positioners | P5503 | 30 mm | 30250 N/m | 10.1 kg/m^2 | Patented PinSphere | 10 ft - 3,048 m | -40÷80 °C | -40÷65 °C | Top Rubber - 50 ShA-Dark Grey |
|
| P5503010255A | 255 mm (10,04") | LFA - Low friction acetal (01) | PBT White | A - No positioners | P5503 | 30 mm | 27500 N/m | 10.1 kg/m^2 | Patented PinSphere | 10 ft - 3,048 m | -40÷80 °C | -40÷65 °C | - |
|
| P5503010255A-SS | 255 mm (10,04") | LFA - Low friction acetal (01) | Stainless steel | A - No positioners | P5503 | 30 mm | 30250 N/m | 10.1 kg/m^2 | Patented PinSphere | 10 ft - 3,048 m | -40÷80 °C | -40÷65 °C | Top Rubber - 50 ShA-Dark Grey |
|
| P5503010255B | 255 mm (10,04") | LFA - Low friction acetal (01) | PBT White | B - 1 Positioner | P5503 | 30 mm | 27500 N/m | 10.1 kg/m^2 | Patented PinSphere | 10 ft - 3,048 m | -40÷80 °C | -40÷65 °C | Top Rubber - 50 ShA-Dark Grey |
|
| P5503010255B-SS | 255 mm (10,04") | LFA - Low friction acetal (01) | Stainless steel | B - 1 Positioner | P5503 | 30 mm | 30250 N/m | 10.1 kg/m^2 | Patented PinSphere | 10 ft - 3,048 m | -40÷80 °C | -40÷65 °C | Top Rubber - 50 ShA-Dark Grey |
|
| P5503010255C | 255 mm (10,04") | LFA - Low friction acetal (01) | PBT White | C - 2 Positioners | P5503 | 30 mm | 27500 N/m | 10.1 kg/m^2 | Patented PinSphere | 10 ft - 3,048 m | -40÷80 °C | -40÷65 °C | Top Rubber - 50 ShA-Dark Grey |
|
| P5503010255C-SS | 255 mm (10,04") | LFA - Low friction acetal (01) | Stainless steel | C - 2 Positioners | P5503 | 30 mm | 30250 N/m | 10.1 kg/m^2 | Patented PinSphere | 10 ft - 3,048 m | -40÷80 °C | -40÷65 °C | Top Rubber - 50 ShA-Dark Grey |
|
| P5503010340A | 340 mm (13,39") | LFA - Low friction acetal (01) | PBT White | A - No positioners | P5503 | 30 mm | 27500 N/m | 10.1 kg/m^2 | Patented PinSphere | 5 ft - 1,524 m | -40÷80 °C | -40÷65 °C | - |
|
| P5503010340A-SS | 340 mm (13,39") | LFA - Low friction acetal (01) | Stainless steel | A - No positioners | P5503 | 30 mm | 30250 N/m | 10.1 kg/m^2 | Patented PinSphere | 5 ft - 1,524 m | -40÷80 °C | -40÷65 °C | Top Rubber - 50 ShA-Dark Grey |
|
| P5503010340B | 340 mm (13,39") | LFA - Low friction acetal (01) | PBT White | B - 1 Positioner | P5503 | 30 mm | 27500 N/m | 10.1 kg/m^2 | Patented PinSphere | 5 ft - 1,524 m | -40÷80 °C | -40÷65 °C | Top Rubber - 50 ShA-Dark Grey |
|
| P5503010340B-SS | 340 mm (13,39") | LFA - Low friction acetal (01) | Stainless steel | B - 1 Positioner | P5503 | 30 mm | 30250 N/m | 10.1 kg/m^2 | Patented PinSphere | 5 ft - 1,524 m | -40÷80 °C | -40÷65 °C | Top Rubber - 50 ShA-Dark Grey |
|
| P5503010340C | 340 mm (13,39") | LFA - Low friction acetal (01) | PBT White | C - 2 Positioners | P5503 | 30 mm | 27500 N/m | 10.1 kg/m^2 | Patented PinSphere | 5 ft - 1,524 m | -40÷80 °C | -40÷65 °C | Top Rubber - 50 ShA-Dark Grey |
|
| P5503010340C-SS | 340 mm (13,39") | LFA - Low friction acetal (01) | Stainless steel | C - 2 Positioners | P5503 | 30 mm | 30250 N/m | 10.1 kg/m^2 | Patented PinSphere | 5 ft - 1,524 m | -40÷80 °C | -40÷65 °C | Top Rubber - 50 ShA-Dark Grey |
|
| P5503010425A | 425 mm (16,73") | LFA - Low friction acetal (01) | PBT White | A - No positioners | P5503 | 30 mm | 27500 N/m | 10.1 kg/m^2 | Patented PinSphere | 5 ft - 1,524 m | -40÷80 °C | -40÷65 °C | - |
|
| P5503010425A-SS | 425 mm (16,73") | LFA - Low friction acetal (01) | Stainless steel | A - No positioners | P5503 | 30 mm | 30250 N/m | 10.1 kg/m^2 | Patented PinSphere | 5 ft - 1,524 m | -40÷80 °C | -40÷65 °C | Top Rubber - 50 ShA-Dark Grey |
|
| P5503010425B | 425 mm (16,73") | LFA - Low friction acetal (01) | PBT White | B - 1 Positioner | P5503 | 30 mm | 27500 N/m | 10.1 kg/m^2 | Patented PinSphere | 5 ft - 1,524 m | -40÷80 °C | -40÷65 °C | Top Rubber - 50 ShA-Dark Grey |
|
| P5503010425B-SS | 425 mm (16,73") | LFA - Low friction acetal (01) | Stainless steel | B - 1 Positioner | P5503 | 30 mm | 30250 N/m | 10.1 kg/m^2 | Patented PinSphere | 5 ft - 1,524 m | -40÷80 °C | -40÷65 °C | Top Rubber - 50 ShA-Dark Grey |
|
| P5503010425C | 425 mm (16,73") | LFA - Low friction acetal (01) | PBT White | C - 2 Positioners | P5503 | 30 mm | 27500 N/m | 10.1 kg/m^2 | Patented PinSphere | 5 ft - 1,524 m | -40÷80 °C | -40÷65 °C | Top Rubber - 50 ShA-Dark Grey |
|
| P5503010425C-SS | 425 mm (16,73") | LFA - Low friction acetal (01) | Stainless steel | C - 2 Positioners | P5503 | 30 mm | 30250 N/m | 10.1 kg/m^2 | Patented PinSphere | 5 ft - 1,524 m | -40÷80 °C | -40÷65 °C | Top Rubber - 50 ShA-Dark Grey |
|
| P5503010510A | 510 mm (20,08") | LFA - Low friction acetal (01) | PBT White | A - No positioners | P5503 | 30 mm | 27500 N/m | 10.1 kg/m^2 | Patented PinSphere | 5 ft - 1,524 m | -40÷80 °C | -40÷65 °C | - |
|
| P5503010510A-SS | 510 mm (20,08") | LFA - Low friction acetal (01) | Stainless steel | A - No positioners | P5503 | 30 mm | 30250 N/m | 10.1 kg/m^2 | Patented PinSphere | 5 ft - 1,524 m | -40÷80 °C | -40÷65 °C | Top Rubber - 50 ShA-Dark Grey |
|
| P5503010510B | 510 mm (20,08") | LFA - Low friction acetal (01) | PBT White | B - 1 Positioner | P5503 | 30 mm | 27500 N/m | 10.1 kg/m^2 | Patented PinSphere | 5 ft - 1,524 m | -40÷80 °C | -40÷65 °C | Top Rubber - 50 ShA-Dark Grey |
|
| P5503010510B-SS | 510 mm (20,08") | LFA - Low friction acetal (01) | Stainless steel | B - 1 Positioner | P5503 | 30 mm | 30250 N/m | 10.1 kg/m^2 | Patented PinSphere | 5 ft - 1,524 m | -40÷80 °C | -40÷65 °C | Top Rubber - 50 ShA-Dark Grey |
|
| P5503010510C | 510 mm (20,08") | LFA - Low friction acetal (01) | PBT White | C - 2 Positioners | P5503 | 30 mm | 27500 N/m | 10.1 kg/m^2 | Patented PinSphere | 5 ft - 1,524 m | -40÷80 °C | -40÷65 °C | Top Rubber - 50 ShA-Dark Grey |
|
| P5503010510C-SS | 510 mm (20,08") | LFA - Low friction acetal (01) | Stainless steel | C - 2 Positioners | P5503 | 30 mm | 30250 N/m | 10.1 kg/m^2 | Patented PinSphere | 5 ft - 1,524 m | -40÷80 °C | -40÷65 °C | Top Rubber - 50 ShA-Dark Grey |
|
| P5503010595A | 595 mm (23,43") | LFA - Low friction acetal (01) | PBT White | A - No positioners | P5503 | 30 mm | 27500 N/m | 10.1 kg/m^2 | Patented PinSphere | 3,33 ft - 1,016 m | -40÷80 °C | -40÷65 °C | - |
|
| P5503010595A-SS | 595 mm (23,43") | LFA - Low friction acetal (01) | Stainless steel | A - No positioners | P5503 | 30 mm | 30250 N/m | 10.1 kg/m^2 | Patented PinSphere | 3,33 ft - 1,016 m | -40÷80 °C | -40÷65 °C | Top Rubber - 50 ShA-Dark Grey |
|
| P5503010595B | 595 mm (23,43") | LFA - Low friction acetal (01) | PBT White | B - 1 Positioner | P5503 | 30 mm | 27500 N/m | 10.1 kg/m^2 | Patented PinSphere | 3,33 ft - 1,016 m | -40÷80 °C | -40÷65 °C | Top Rubber - 50 ShA-Dark Grey |
|
| P5503010595B-SS | 595 mm (23,43") | LFA - Low friction acetal (01) | Stainless steel | B - 1 Positioner | P5503 | 30 mm | 30250 N/m | 10.1 kg/m^2 | Patented PinSphere | 3,33 ft - 1,016 m | -40÷80 °C | -40÷65 °C | Top Rubber - 50 ShA-Dark Grey |
|
| P5503010595C | 595 mm (23,43") | LFA - Low friction acetal (01) | PBT White | C - 2 Positioners | P5503 | 30 mm | 27500 N/m | 10.1 kg/m^2 | Patented PinSphere | 3,33 ft - 1,016 m | -40÷80 °C | -40÷65 °C | Top Rubber - 50 ShA-Dark Grey |
|
| P5503010595C-SS | 595 mm (23,43") | LFA - Low friction acetal (01) | Stainless steel | C - 2 Positioners | P5503 | 30 mm | 30250 N/m | 10.1 kg/m^2 | Patented PinSphere | 3,33 ft - 1,016 m | -40÷80 °C | -40÷65 °C | Top Rubber - 50 ShA-Dark Grey |
|
| P5503010680A | 680 mm (26,77") | LFA - Low friction acetal (01) | PBT White | A - No positioners | P5503 | 30 mm | 27500 N/m | 10.1 kg/m^2 | Patented PinSphere | 3,33 ft - 1,016 m | -40÷80 °C | -40÷65 °C | - |
|
| P5503010680A-SS | 680 mm (26,77") | LFA - Low friction acetal (01) | Stainless steel | A - No positioners | P5503 | 30 mm | 30250 N/m | 10.1 kg/m^2 | Patented PinSphere | 3,33 ft - 1,016 m | -40÷80 °C | -40÷65 °C | Top Rubber - 50 ShA-Dark Grey |
|
| P5503010680B | 680 mm (26,77") | LFA - Low friction acetal (01) | PBT White | B - 1 Positioner | P5503 | 30 mm | 27500 N/m | 10.1 kg/m^2 | Patented PinSphere | 3,33 ft - 1,016 m | -40÷80 °C | -40÷65 °C | Top Rubber - 50 ShA-Dark Grey |
|
| P5503010680B-SS | 680 mm (26,77") | LFA - Low friction acetal (01) | Stainless steel | B - 1 Positioner | P5503 | 30 mm | 30250 N/m | 10.1 kg/m^2 | Patented PinSphere | 3,33 ft - 1,016 m | -40÷80 °C | -40÷65 °C | Top Rubber - 50 ShA-Dark Grey |
|
| P5503010680C | 680 mm (26,77") | LFA - Low friction acetal (01) | PBT White | C - 2 Positioners | P5503 | 30 mm | 27500 N/m | 10.1 kg/m^2 | Patented PinSphere | 3,33 ft - 1,016 m | -40÷80 °C | -40÷65 °C | Top Rubber - 50 ShA-Dark Grey |
|
| P5503010680C-SS | 680 mm (26,77") | LFA - Low friction acetal (01) | Stainless steel | C - 2 Positioners | P5503 | 30 mm | 30250 N/m | 10.1 kg/m^2 | Patented PinSphere | 3,33 ft - 1,016 m | -40÷80 °C | -40÷65 °C | Top Rubber - 50 ShA-Dark Grey |
|
| P5503010765A | 765 mm (30,12") | LFA - Low friction acetal (01) | PBT White | A - No positioners | P5503 | 30 mm | 27500 N/m | 10.1 kg/m^2 | Patented PinSphere | 3,33 ft - 1,016 m | -40÷80 °C | -40÷65 °C | - |
|
| P5503010765A-SS | 765 mm (30,12") | LFA - Low friction acetal (01) | Stainless steel | A - No positioners | P5503 | 30 mm | 30250 N/m | 10.1 kg/m^2 | Patented PinSphere | 3,33 ft - 1,016 m | -40÷80 °C | -40÷65 °C | Top Rubber - 50 ShA-Dark Grey |
|
| P5503010765B | 765 mm (30,12") | LFA - Low friction acetal (01) | PBT White | B - 1 Positioner | P5503 | 30 mm | 27500 N/m | 10.1 kg/m^2 | Patented PinSphere | 3,33 ft - 1,016 m | -40÷80 °C | -40÷65 °C | Top Rubber - 50 ShA-Dark Grey |
|
| P5503010765B-SS | 765 mm (30,12") | LFA - Low friction acetal (01) | Stainless steel | B - 1 Positioner | P5503 | 30 mm | 30250 N/m | 10.1 kg/m^2 | Patented PinSphere | 3,33 ft - 1,016 m | -40÷80 °C | -40÷65 °C | Top Rubber - 50 ShA-Dark Grey |
|
| P5503010765C | 765 mm (30,12") | LFA - Low friction acetal (01) | PBT White | C - 2 Positioners | P5503 | 30 mm | 27500 N/m | 10.1 kg/m^2 | Patented PinSphere | 3,33 ft - 1,016 m | -40÷80 °C | -40÷65 °C | Top Rubber - 50 ShA-Dark Grey |
|
| P5503010765C-SS | 765 mm (30,12") | LFA - Low friction acetal (01) | Stainless steel | C - 2 Positioners | P5503 | 30 mm | 30250 N/m | 10.1 kg/m^2 | Patented PinSphere | 3,33 ft - 1,016 m | -40÷80 °C | -40÷65 °C | Top Rubber - 50 ShA-Dark Grey |
|
| P5503010850A | 850 mm (33,46") | LFA - Low friction acetal (01) | PBT White | A - No positioners | P5503 | 30 mm | 27500 N/m | 10.1 kg/m^2 | Patented PinSphere | 3,33 ft - 1,016 m | -40÷80 °C | -40÷65 °C | Top Rubber - 50 ShA-Dark Grey |
|
| P5503010850A-SS | 850 mm (33,46") | LFA - Low friction acetal (01) | Stainless steel | A - No positioners | P5503 | 30 mm | 30250 N/m | 10.1 kg/m^2 | Patented PinSphere | 3,33 ft - 1,016 m | -40÷80 °C | -40÷65 °C | Top Rubber - 50 ShA-Dark Grey |
|
| P5503010850B | 850 mm (33,46") | LFA - Low friction acetal (01) | PBT White | B - 1 Positioner | P5503 | 30 mm | 27500 N/m | 10.1 kg/m^2 | Patented PinSphere | 3,33 ft - 1,016 m | -40÷80 °C | -40÷65 °C | Top Rubber - 50 ShA-Dark Grey |
|
| P5503010850B-SS | 850 mm (33,46") | LFA - Low friction acetal (01) | Stainless steel | B - 1 Positioner | P5503 | 30 mm | 30250 N/m | 10.1 kg/m^2 | Patented PinSphere | 3,33 ft - 1,016 m | -40÷80 °C | -40÷65 °C | Top Rubber - 50 ShA-Dark Grey |
|
| P5503010850C | 850 mm (33,46") | LFA - Low friction acetal (01) | PBT White | C - 2 Positioners | P5503 | 30 mm | 27500 N/m | 10.1 kg/m^2 | Patented PinSphere | 3,33 ft - 1,016 m | -40÷80 °C | -40÷65 °C | Top Rubber - 50 ShA-Dark Grey |
|
| P5503010850C-SS | 850 mm (33,46") | LFA - Low friction acetal (01) | Stainless steel | C - 2 Positioners | P5503 | 30 mm | 30250 N/m | 10.1 kg/m^2 | Patented PinSphere | 3,33 ft - 1,016 m | -40÷80 °C | -40÷65 °C | Top Rubber - 50 ShA-Dark Grey |
|
| P5503010935A | 935 mm (36,81") | LFA - Low friction acetal (01) | PBT White | A - No positioners | P5503 | 30 mm | 27500 N/m | 10.1 kg/m^2 | Patented PinSphere | 3,33 ft - 1,016 m | -40÷80 °C | -40÷65 °C | Top Rubber - 50 ShA-Dark Grey |
|
| P5503010935A-SS | 935 mm (36,81") | LFA - Low friction acetal (01) | Stainless steel | A - No positioners | P5503 | 30 mm | 30250 N/m | 10.1 kg/m^2 | Patented PinSphere | 3,33 ft - 1,016 m | -40÷80 °C | -40÷65 °C | Top Rubber - 50 ShA-Dark Grey |
|
| P5503010935B | 935 mm (36,81") | LFA - Low friction acetal (01) | PBT White | B - 1 Positioner | P5503 | 30 mm | 27500 N/m | 10.1 kg/m^2 | Patented PinSphere | 3,33 ft - 1,016 m | -40÷80 °C | -40÷65 °C | Top Rubber - 50 ShA-Dark Grey |
|
| P5503010935B-SS | 935 mm (36,81") | LFA - Low friction acetal (01) | Stainless steel | B - 1 Positioner | P5503 | 30 mm | 30250 N/m | 10.1 kg/m^2 | Patented PinSphere | 3,33 ft - 1,016 m | -40÷80 °C | -40÷65 °C | Top Rubber - 50 ShA-Dark Grey |
|
| P5503010935C | 935 mm (36,81") | LFA - Low friction acetal (01) | PBT White | C - 2 Positioners | P5503 | 30 mm | 27500 N/m | 10.1 kg/m^2 | Patented PinSphere | 3,33 ft - 1,016 m | -40÷80 °C | -40÷65 °C | Top Rubber - 50 ShA-Dark Grey |
|
| P5503010935C-SS | 935 mm (36,81") | LFA - Low friction acetal (01) | Stainless steel | C - 2 Positioners | P5503 | 30 mm | 30250 N/m | 10.1 kg/m^2 | Patented PinSphere | 3,33 ft - 1,016 m | -40÷80 °C | -40÷65 °C | Top Rubber - 50 ShA-Dark Grey |
|
| P5503011020A | 1020 mm (40,16") | LFA - Low friction acetal (01) | PBT White | A - No positioners | P5503 | 30 mm | 27500 N/m | 10.1 kg/m^2 | Patented PinSphere | 3,33 ft - 1,016 m | -40÷80 °C | -40÷65 °C | Top Rubber - 50 ShA-Dark Grey |
|
| P5503011020A-SS | 1020 mm (40,16") | LFA - Low friction acetal (01) | Stainless steel | A - No positioners | P5503 | 30 mm | 30250 N/m | 10.1 kg/m^2 | Patented PinSphere | 3,33 ft - 1,016 m | -40÷80 °C | -40÷65 °C | Top Rubber - 50 ShA-Dark Grey |
|
| P5503011020B | 1020 mm (40,16") | LFA - Low friction acetal (01) | PBT White | B - 1 Positioner | P5503 | 30 mm | 27500 N/m | 10.1 kg/m^2 | Patented PinSphere | 3,33 ft - 1,016 m | -40÷80 °C | -40÷65 °C | Top Rubber - 50 ShA-Dark Grey |
|
| P5503011020B-SS | 1020 mm (40,16") | LFA - Low friction acetal (01) | Stainless steel | B - 1 Positioner | P5503 | 30 mm | 30250 N/m | 10.1 kg/m^2 | Patented PinSphere | 3,33 ft - 1,016 m | -40÷80 °C | -40÷65 °C | Top Rubber - 50 ShA-Dark Grey |
|
| P5503011020C | 1020 mm (40,16") | LFA - Low friction acetal (01) | PBT White | C - 2 Positioners | P5503 | 30 mm | 27500 N/m | 10.1 kg/m^2 | Patented PinSphere | 3,33 ft - 1,016 m | -40÷80 °C | -40÷65 °C | Top Rubber - 50 ShA-Dark Grey |
|
| P5503011020C-SS | 1020 mm (40,16") | LFA - Low friction acetal (01) | Stainless steel | C - 2 Positioners | P5503 | 30 mm | 30250 N/m | 10.1 kg/m^2 | Patented PinSphere | 3,33 ft - 1,016 m | -40÷80 °C | -40÷65 °C | Top Rubber - 50 ShA-Dark Grey |
|
| P5503011105A | 1105 mm (43,50") | LFA - Low friction acetal (01) | PBT White | A - No positioners | P5503 | 30 mm | 27500 N/m | 10.1 kg/m^2 | Patented PinSphere | 3,33 ft - 1,016 m | -40÷80 °C | -40÷65 °C | Top Rubber - 50 ShA-Dark Grey |
|
| P5503011105A-SS | 1105 mm (43,50") | LFA - Low friction acetal (01) | Stainless steel | A - No positioners | P5503 | 30 mm | 30250 N/m | 10.1 kg/m^2 | Patented PinSphere | 3,33 ft - 1,016 m | -40÷80 °C | -40÷65 °C | Top Rubber - 50 ShA-Dark Grey |
|
| P5503011105B | 1105 mm (43,50") | LFA - Low friction acetal (01) | PBT White | B - 1 Positioner | P5503 | 30 mm | 27500 N/m | 10.1 kg/m^2 | Patented PinSphere | 3,33 ft - 1,016 m | -40÷80 °C | -40÷65 °C | Top Rubber - 50 ShA-Dark Grey |
|
| P5503011105B-SS | 1105 mm (43,50") | LFA - Low friction acetal (01) | Stainless steel | B - 1 Positioner | P5503 | 30 mm | 30250 N/m | 10.1 kg/m^2 | Patented PinSphere | 3,33 ft - 1,016 m | -40÷80 °C | -40÷65 °C | Top Rubber - 50 ShA-Dark Grey |
|
| P5503011105C | 1105 mm (43,50") | LFA - Low friction acetal (01) | PBT White | C - 2 Positioners | P5503 | 30 mm | 27500 N/m | 10.1 kg/m^2 | Patented PinSphere | 3,33 ft - 1,016 m | -40÷80 °C | -40÷65 °C | Top Rubber - 50 ShA-Dark Grey |
|
| P5503011105C-SS | 1105 mm (43,50") | LFA - Low friction acetal (01) | Stainless steel | C - 2 Positioners | P5503 | 30 mm | 30250 N/m | 10.1 kg/m^2 | Patented PinSphere | 3,33 ft - 1,016 m | -40÷80 °C | -40÷65 °C | Top Rubber - 50 ShA-Dark Grey |
|
| P5503011190A | 1190 mm (46,85") | LFA - Low friction acetal (01) | PBT White | A - No positioners | P5503 | 30 mm | 27500 N/m | 10.1 kg/m^2 | Patented PinSphere | 3,33 ft - 1,016 m | -40÷80 °C | -40÷65 °C | Top Rubber - 50 ShA-Dark Grey |
|
| P5503011190A-SS | 1190 mm (46,85") | LFA - Low friction acetal (01) | Stainless steel | A - No positioners | P5503 | 30 mm | 30250 N/m | 10.1 kg/m^2 | Patented PinSphere | 3,33 ft - 1,016 m | -40÷80 °C | -40÷65 °C | Top Rubber - 50 ShA-Dark Grey |
|
| P5503011190B | 1190 mm (46,85") | LFA - Low friction acetal (01) | PBT White | B - 1 Positioner | P5503 | 30 mm | 27500 N/m | 10.1 kg/m^2 | Patented PinSphere | 3,33 ft - 1,016 m | -40÷80 °C | -40÷65 °C | Top Rubber - 50 ShA-Dark Grey |
|
| P5503011190B-SS | 1190 mm (46,85") | LFA - Low friction acetal (01) | Stainless steel | B - 1 Positioner | P5503 | 30 mm | 30250 N/m | 10.1 kg/m^2 | Patented PinSphere | 3,33 ft - 1,016 m | -40÷80 °C | -40÷65 °C | Top Rubber - 50 ShA-Dark Grey |
|
| P5503011190C | 1190 mm (46,85") | LFA - Low friction acetal (01) | PBT White | C - 2 Positioners | P5503 | 30 mm | 27500 N/m | 10.1 kg/m^2 | Patented PinSphere | 3,33 ft - 1,016 m | -40÷80 °C | -40÷65 °C | Top Rubber - 50 ShA-Dark Grey |
|
| P5503011190C-SS | 1190 mm (46,85") | LFA - Low friction acetal (01) | Stainless steel | C - 2 Positioners | P5503 | 30 mm | 30250 N/m | 10.1 kg/m^2 | Patented PinSphere | 3,33 ft - 1,016 m | -40÷80 °C | -40÷65 °C | Top Rubber - 50 ShA-Dark Grey |
|
| P5503011275A | 1275 mm (50,20") | LFA - Low friction acetal (01) | PBT White | A - No positioners | P5503 | 30 mm | 27500 N/m | 10.1 kg/m^2 | Patented PinSphere | 3,33 ft - 1,016 m | -40÷80 °C | -40÷65 °C | Top Rubber - 50 ShA-Dark Grey |
|
| P5503011275A-SS | 1275 mm (50,20") | LFA - Low friction acetal (01) | Stainless steel | A - No positioners | P5503 | 30 mm | 30250 N/m | 10.1 kg/m^2 | Patented PinSphere | 3,33 ft - 1,016 m | -40÷80 °C | -40÷65 °C | Top Rubber - 50 ShA-Dark Grey |
|
| P5503011275B | 1275 mm (50,20") | LFA - Low friction acetal (01) | PBT White | B - 1 Positioner | P5503 | 30 mm | 27500 N/m | 10.1 kg/m^2 | Patented PinSphere | 3,33 ft - 1,016 m | -40÷80 °C | -40÷65 °C | Top Rubber - 50 ShA-Dark Grey |
|
| P5503011275B-SS | 1275 mm (50,20") | LFA - Low friction acetal (01) | Stainless steel | B - 1 Positioner | P5503 | 30 mm | 30250 N/m | 10.1 kg/m^2 | Patented PinSphere | 3,33 ft - 1,016 m | -40÷80 °C | -40÷65 °C | Top Rubber - 50 ShA-Dark Grey |
|
| P5503011275C | 1275 mm (50,20") | LFA - Low friction acetal (01) | PBT White | C - 2 Positioners | P5503 | 30 mm | 27500 N/m | 10.1 kg/m^2 | Patented PinSphere | 3,33 ft - 1,016 m | -40÷80 °C | -40÷65 °C | Top Rubber - 50 ShA-Dark Grey |
|
| P5503011275C-SS | 1275 mm (50,20") | LFA - Low friction acetal (01) | Stainless steel | C - 2 Positioners | P5503 | 30 mm | 30250 N/m | 10.1 kg/m^2 | Patented PinSphere | 3,33 ft - 1,016 m | -40÷80 °C | -40÷65 °C | Top Rubber - 50 ShA-Dark Grey |
|
| P5503011360A | 1360 mm (53,54") | LFA - Low friction acetal (01) | PBT White | A - No positioners | P5503 | 30 mm | 27500 N/m | 10.1 kg/m^2 | Patented PinSphere | 3,33 ft - 1,016 m | -40÷80 °C | -40÷65 °C | Top Rubber - 50 ShA-Dark Grey |
|
| P5503011360A-SS | 1360 mm (53,54") | LFA - Low friction acetal (01) | Stainless steel | A - No positioners | P5503 | 30 mm | 30250 N/m | 10.1 kg/m^2 | Patented PinSphere | 3,33 ft - 1,016 m | -40÷80 °C | -40÷65 °C | Top Rubber - 50 ShA-Dark Grey |
|
| P5503011360B | 1360 mm (53,54") | LFA - Low friction acetal (01) | PBT White | B - 1 Positioner | P5503 | 30 mm | 27500 N/m | 10.1 kg/m^2 | Patented PinSphere | 3,33 ft - 1,016 m | -40÷80 °C | -40÷65 °C | Top Rubber - 50 ShA-Dark Grey |
|
| P5503011360B-SS | 1360 mm (53,54") | LFA - Low friction acetal (01) | Stainless steel | B - 1 Positioner | P5503 | 30 mm | 30250 N/m | 10.1 kg/m^2 | Patented PinSphere | 3,33 ft - 1,016 m | -40÷80 °C | -40÷65 °C | Top Rubber - 50 ShA-Dark Grey |
|
| P5503011360C | 1360 mm (53,54") | LFA - Low friction acetal (01) | PBT White | C - 2 Positioners | P5503 | 30 mm | 27500 N/m | 10.1 kg/m^2 | Patented PinSphere | 3,33 ft - 1,016 m | -40÷80 °C | -40÷65 °C | Top Rubber - 50 ShA-Dark Grey |
|
| P5503011360C-SS | 1360 mm (53,54") | LFA - Low friction acetal (01) | Stainless steel | C - 2 Positioners | P5503 | 30 mm | 30250 N/m | 10.1 kg/m^2 | Patented PinSphere | 3,33 ft - 1,016 m | -40÷80 °C | -40÷65 °C | Top Rubber - 50 ShA-Dark Grey |
|
| P5503011445A | 1445 mm (56,89") | LFA - Low friction acetal (01) | PBT White | A - No positioners | P5503 | 30 mm | 27500 N/m | 10.1 kg/m^2 | Patented PinSphere | 3,33 ft - 1,016 m | -40÷80 °C | -40÷65 °C | Top Rubber - 50 ShA-Dark Grey |
|
| P5503011445A-SS | 1445 mm (56,89") | LFA - Low friction acetal (01) | Stainless steel | A - No positioners | P5503 | 30 mm | 30250 N/m | 10.1 kg/m^2 | Patented PinSphere | 3,33 ft - 1,016 m | -40÷80 °C | -40÷65 °C | Top Rubber - 50 ShA-Dark Grey |
|
| P5503011445B | 1445 mm (56,89") | LFA - Low friction acetal (01) | PBT White | B - 1 Positioner | P5503 | 30 mm | 27500 N/m | 10.1 kg/m^2 | Patented PinSphere | 3,33 ft - 1,016 m | -40÷80 °C | -40÷65 °C | Top Rubber - 50 ShA-Dark Grey |
|
| P5503011445B-SS | 1445 mm (56,89") | LFA - Low friction acetal (01) | Stainless steel | B - 1 Positioner | P5503 | 30 mm | 30250 N/m | 10.1 kg/m^2 | Patented PinSphere | 3,33 ft - 1,016 m | -40÷80 °C | -40÷65 °C | Top Rubber - 50 ShA-Dark Grey |
|
| P5503011445C | 1445 mm (56,89") | LFA - Low friction acetal (01) | PBT White | C - 2 Positioners | P5503 | 30 mm | 27500 N/m | 10.1 kg/m^2 | Patented PinSphere | 3,33 ft - 1,016 m | -40÷80 °C | -40÷65 °C | Top Rubber - 50 ShA-Dark Grey |
|
| P5503011445C-SS | 1445 mm (56,89") | LFA - Low friction acetal (01) | Stainless steel | C - 2 Positioners | P5503 | 30 mm | 30250 N/m | 10.1 kg/m^2 | Patented PinSphere | 3,33 ft - 1,016 m | -40÷80 °C | -40÷65 °C | Top Rubber - 50 ShA-Dark Grey |
|
| P5503011530A | 1530 mm (60,24") | LFA - Low friction acetal (01) | PBT White | A - No positioners | P5503 | 30 mm | 27500 N/m | 10.1 kg/m^2 | Patented PinSphere | 3,33 ft - 1,016 m | -40÷80 °C | -40÷65 °C | Top Rubber - 50 ShA-Dark Grey |
|
| P5503011530A-SS | 1530 mm (60,24") | LFA - Low friction acetal (01) | Stainless steel | A - No positioners | P5503 | 30 mm | 30250 N/m | 10.1 kg/m^2 | Patented PinSphere | 3,33 ft - 1,016 m | -40÷80 °C | -40÷65 °C | Top Rubber - 50 ShA-Dark Grey |
|
| P5503011530B | 1530 mm (60,24") | LFA - Low friction acetal (01) | PBT White | B - 1 Positioner | P5503 | 30 mm | 27500 N/m | 10.1 kg/m^2 | Patented PinSphere | 3,33 ft - 1,016 m | -40÷80 °C | -40÷65 °C | Top Rubber - 50 ShA-Dark Grey |
|
| P5503011530B-SS | 1530 mm (60,24") | LFA - Low friction acetal (01) | Stainless steel | B - 1 Positioner | P5503 | 30 mm | 30250 N/m | 10.1 kg/m^2 | Patented PinSphere | 3,33 ft - 1,016 m | -40÷80 °C | -40÷65 °C | Top Rubber - 50 ShA-Dark Grey |
|
| P5503011530C | 1530 mm (60,24") | LFA - Low friction acetal (01) | PBT White | C - 2 Positioners | P5503 | 30 mm | 27500 N/m | 10.1 kg/m^2 | Patented PinSphere | 3,33 ft - 1,016 m | -40÷80 °C | -40÷65 °C | Top Rubber - 50 ShA-Dark Grey |
|
| P5503011530C-SS | 1530 mm (60,24") | LFA - Low friction acetal (01) | Stainless steel | C - 2 Positioners | P5503 | 30 mm | 30250 N/m | 10.1 kg/m^2 | Patented PinSphere | 3,33 ft - 1,016 m | -40÷80 °C | -40÷65 °C | Top Rubber - 50 ShA-Dark Grey |
|
| P5503020085A | 85 mm (3,35") | PP - Polypropylene (02) | PP Blue | A - No positioners | P5503 | 30 mm | 16500 N/m | 8.4 kg/m^2 | Patented PinSphere | 10 ft - 3,048 m | 4÷80 °C | 4÷80 °C | Top Rubber - 50 ShA-Dark Grey |
|
| P5503020085A-SS | 85 mm (3,35") | PP - Polypropylene (02) | Stainless steel | A - No positioners | P5503 | 30 mm | 18150 N/m | 8.4 kg/m^2 | Patented PinSphere | 10 ft - 3,048 m | 4÷80 °C | 4÷80 °C | Top Rubber - 50 ShA-Pigeon Blue |
|
| P5503020085B | 85 mm (3,35") | PP - Polypropylene (02) | PP Blue | B - 1 Positioner | P5503 | 30 mm | 16500 N/m | 8.4 kg/m^2 | Patented PinSphere | 10 ft - 3,048 m | 4÷80 °C | 4÷80 °C | Top Rubber - 50 ShA-Pigeon Blue |
|
| P5503020085B-SS | 85 mm (3,35") | PP - Polypropylene (02) | Stainless steel | B - 1 Positioner | P5503 | 30 mm | 18150 N/m | 8.4 kg/m^2 | Patented PinSphere | 10 ft - 3,048 m | 4÷80 °C | 4÷80 °C | Top Rubber - 50 ShA-Pigeon Blue |
|
| P5503020085C | 85 mm (3,35") | PP - Polypropylene (02) | PP Blue | C - 2 Positioners | P5503 | 30 mm | 16500 N/m | 8.4 kg/m^2 | Patented PinSphere | 10 ft - 3,048 m | 4÷80 °C | 4÷80 °C | Top Rubber - 50 ShA-Pigeon Blue |
|
| P5503020085C-SS | 85 mm (3,35") | PP - Polypropylene (02) | Stainless steel | C - 2 Positioners | P5503 | 30 mm | 18150 N/m | 8.4 kg/m^2 | Patented PinSphere | 10 ft - 3,048 m | 4÷80 °C | 4÷80 °C | Top Rubber - 50 ShA-Pigeon Blue |
|
| P5503020170A | 170 mm (6,69") | PP - Polypropylene (02) | PP Blue | A - No positioners | P5503 | 30 mm | 16500 N/m | 8.4 kg/m^2 | Patented PinSphere | 10 ft - 3,048 m | 4÷80 °C | 4÷80 °C | Top Rubber - 50 ShA-Dark Grey |
|
| P5503020170A-SS | 170 mm (6,69") | PP - Polypropylene (02) | Stainless steel | A - No positioners | P5503 | 30 mm | 18150 N/m | 8.4 kg/m^2 | Patented PinSphere | 10 ft - 3,048 m | 4÷80 °C | 4÷80 °C | Top Rubber - 50 ShA-Pigeon Blue |
|
| P5503020170B | 170 mm (6,69") | PP - Polypropylene (02) | PP Blue | B - 1 Positioner | P5503 | 30 mm | 16500 N/m | 8.4 kg/m^2 | Patented PinSphere | 10 ft - 3,048 m | 4÷80 °C | 4÷80 °C | Top Rubber - 50 ShA-Pigeon Blue |
|
| P5503020170B-SS | 170 mm (6,69") | PP - Polypropylene (02) | Stainless steel | B - 1 Positioner | P5503 | 30 mm | 18150 N/m | 8.4 kg/m^2 | Patented PinSphere | 10 ft - 3,048 m | 4÷80 °C | 4÷80 °C | Top Rubber - 50 ShA-Pigeon Blue |
|
| P5503020170C | 170 mm (6,69") | PP - Polypropylene (02) | PP Blue | C - 2 Positioners | P5503 | 30 mm | 16500 N/m | 8.4 kg/m^2 | Patented PinSphere | 10 ft - 3,048 m | 4÷80 °C | 4÷80 °C | Top Rubber - 50 ShA-Pigeon Blue |
|
| P5503020170C-SS | 170 mm (6,69") | PP - Polypropylene (02) | Stainless steel | C - 2 Positioners | P5503 | 30 mm | 18150 N/m | 8.4 kg/m^2 | Patented PinSphere | 10 ft - 3,048 m | 4÷80 °C | 4÷80 °C | Top Rubber - 50 ShA-Pigeon Blue |
|
| P5503020255A | 255 mm (10,04") | PP - Polypropylene (02) | PP Blue | A - No positioners | P5503 | 30 mm | 16500 N/m | 8.4 kg/m^2 | Patented PinSphere | 10 ft - 3,048 m | 4÷80 °C | 4÷80 °C | Top Rubber - 50 ShA-Dark Grey |
|
| P5503020255A-SS | 255 mm (10,04") | PP - Polypropylene (02) | Stainless steel | A - No positioners | P5503 | 30 mm | 18150 N/m | 8.4 kg/m^2 | Patented PinSphere | 10 ft - 3,048 m | 4÷80 °C | 4÷80 °C | Top Rubber - 50 ShA-Pigeon Blue |
|
| P5503020255B | 255 mm (10,04") | PP - Polypropylene (02) | PP Blue | B - 1 Positioner | P5503 | 30 mm | 16500 N/m | 8.4 kg/m^2 | Patented PinSphere | 10 ft - 3,048 m | 4÷80 °C | 4÷80 °C | Top Rubber - 50 ShA-Pigeon Blue |
|
| P5503020255B-SS | 255 mm (10,04") | PP - Polypropylene (02) | Stainless steel | B - 1 Positioner | P5503 | 30 mm | 18150 N/m | 8.4 kg/m^2 | Patented PinSphere | 10 ft - 3,048 m | 4÷80 °C | 4÷80 °C | Top Rubber - 50 ShA-Pigeon Blue |
|
| P5503020255C | 255 mm (10,04") | PP - Polypropylene (02) | PP Blue | C - 2 Positioners | P5503 | 30 mm | 16500 N/m | 8.4 kg/m^2 | Patented PinSphere | 10 ft - 3,048 m | 4÷80 °C | 4÷80 °C | Top Rubber - 50 ShA-Pigeon Blue |
|
| P5503020255C-SS | 255 mm (10,04") | PP - Polypropylene (02) | Stainless steel | C - 2 Positioners | P5503 | 30 mm | 18150 N/m | 8.4 kg/m^2 | Patented PinSphere | 10 ft - 3,048 m | 4÷80 °C | 4÷80 °C | Top Rubber - 50 ShA-Pigeon Blue |
|
| P5503020340A | 340 mm (13,39") | PP - Polypropylene (02) | PP Blue | A - No positioners | P5503 | 30 mm | 16500 N/m | 8.4 kg/m^2 | Patented PinSphere | 5 ft - 1,524 m | 4÷80 °C | 4÷80 °C | Top Rubber - 50 ShA-Pigeon Blue |
|
| P5503020340A-SS | 340 mm (13,39") | PP - Polypropylene (02) | Stainless steel | A - No positioners | P5503 | 30 mm | 18150 N/m | 8.4 kg/m^2 | Patented PinSphere | 5 ft - 1,524 m | 4÷80 °C | 4÷80 °C | Top Rubber - 50 ShA-Pigeon Blue |
|
| P5503020340B | 340 mm (13,39") | PP - Polypropylene (02) | PP Blue | B - 1 Positioner | P5503 | 30 mm | 16500 N/m | 8.4 kg/m^2 | Patented PinSphere | 5 ft - 1,524 m | 4÷80 °C | 4÷80 °C | Top Rubber - 50 ShA-Pigeon Blue |
|
| P5503020340B-SS | 340 mm (13,39") | PP - Polypropylene (02) | Stainless steel | B - 1 Positioner | P5503 | 30 mm | 18150 N/m | 8.4 kg/m^2 | Patented PinSphere | 5 ft - 1,524 m | 4÷80 °C | 4÷80 °C | Top Rubber - 50 ShA-Pigeon Blue |
|
| P5503020340C | 340 mm (13,39") | PP - Polypropylene (02) | PP Blue | C - 2 Positioners | P5503 | 30 mm | 16500 N/m | 8.4 kg/m^2 | Patented PinSphere | 5 ft - 1,524 m | 4÷80 °C | 4÷80 °C | Top Rubber - 50 ShA-Pigeon Blue |
|
| P5503020340C-SS | 340 mm (13,39") | PP - Polypropylene (02) | Stainless steel | C - 2 Positioners | P5503 | 30 mm | 18150 N/m | 8.4 kg/m^2 | Patented PinSphere | 5 ft - 1,524 m | 4÷80 °C | 4÷80 °C | Top Rubber - 50 ShA-Pigeon Blue |
|
| P5503020425A | 425 mm (16,73") | PP - Polypropylene (02) | PP Blue | A - No positioners | P5503 | 30 mm | 16500 N/m | 8.4 kg/m^2 | Patented PinSphere | 5 ft - 1,524 m | 4÷80 °C | 4÷80 °C | Top Rubber - 50 ShA-Pigeon Blue |
|
| P5503020425A-SS | 425 mm (16,73") | PP - Polypropylene (02) | Stainless steel | A - No positioners | P5503 | 30 mm | 18150 N/m | 8.4 kg/m^2 | Patented PinSphere | 5 ft - 1,524 m | 4÷80 °C | 4÷80 °C | Top Rubber - 50 ShA-Pigeon Blue |
|
| P5503020425B | 425 mm (16,73") | PP - Polypropylene (02) | PP Blue | B - 1 Positioner | P5503 | 30 mm | 16500 N/m | 8.4 kg/m^2 | Patented PinSphere | 5 ft - 1,524 m | 4÷80 °C | 4÷80 °C | Top Rubber - 50 ShA-Pigeon Blue |
|
| P5503020425B-SS | 425 mm (16,73") | PP - Polypropylene (02) | Stainless steel | B - 1 Positioner | P5503 | 30 mm | 18150 N/m | 8.4 kg/m^2 | Patented PinSphere | 5 ft - 1,524 m | 4÷80 °C | 4÷80 °C | Top Rubber - 50 ShA-Pigeon Blue |
|
| P5503020425C | 425 mm (16,73") | PP - Polypropylene (02) | PP Blue | C - 2 Positioners | P5503 | 30 mm | 16500 N/m | 8.4 kg/m^2 | Patented PinSphere | 5 ft - 1,524 m | 4÷80 °C | 4÷80 °C | Top Rubber - 50 ShA-Pigeon Blue |
|
| P5503020425C-SS | 425 mm (16,73") | PP - Polypropylene (02) | Stainless steel | C - 2 Positioners | P5503 | 30 mm | 18150 N/m | 8.4 kg/m^2 | Patented PinSphere | 5 ft - 1,524 m | 4÷80 °C | 4÷80 °C | Top Rubber - 50 ShA-Pigeon Blue |
|
| P5503020510A | 510 mm (20,08") | PP - Polypropylene (02) | PP Blue | A - No positioners | P5503 | 30 mm | 16500 N/m | 8.4 kg/m^2 | Patented PinSphere | 5 ft - 1,524 m | 4÷80 °C | 4÷80 °C | Top Rubber - 50 ShA-Pigeon Blue |
|
| P5503020510A-SS | 510 mm (20,08") | PP - Polypropylene (02) | Stainless steel | A - No positioners | P5503 | 30 mm | 18150 N/m | 8.4 kg/m^2 | Patented PinSphere | 5 ft - 1,524 m | 4÷80 °C | 4÷80 °C | Top Rubber - 50 ShA-Pigeon Blue |
|
| P5503020510B | 510 mm (20,08") | PP - Polypropylene (02) | PP Blue | B - 1 Positioner | P5503 | 30 mm | 16500 N/m | 8.4 kg/m^2 | Patented PinSphere | 5 ft - 1,524 m | 4÷80 °C | 4÷80 °C | Top Rubber - 50 ShA-Pigeon Blue |
|
| P5503020510B-SS | 510 mm (20,08") | PP - Polypropylene (02) | Stainless steel | B - 1 Positioner | P5503 | 30 mm | 18150 N/m | 8.4 kg/m^2 | Patented PinSphere | 5 ft - 1,524 m | 4÷80 °C | 4÷80 °C | Top Rubber - 50 ShA-Pigeon Blue |
|
| P5503020510C | 510 mm (20,08") | PP - Polypropylene (02) | PP Blue | C - 2 Positioners | P5503 | 30 mm | 16500 N/m | 8.4 kg/m^2 | Patented PinSphere | 5 ft - 1,524 m | 4÷80 °C | 4÷80 °C | Top Rubber - 50 ShA-Pigeon Blue |
|
| P5503020510C-SS | 510 mm (20,08") | PP - Polypropylene (02) | Stainless steel | C - 2 Positioners | P5503 | 30 mm | 18150 N/m | 8.4 kg/m^2 | Patented PinSphere | 5 ft - 1,524 m | 4÷80 °C | 4÷80 °C | Top Rubber - 50 ShA-Pigeon Blue |
|
| P5503020595A | 595 mm (23,43") | PP - Polypropylene (02) | PP Blue | A - No positioners | P5503 | 30 mm | 16500 N/m | 8.4 kg/m^2 | Patented PinSphere | 3,33 ft - 1,016 m | 4÷80 °C | 4÷80 °C | Top Rubber - 50 ShA-Pigeon Blue |
|
| P5503020595A-SS | 595 mm (23,43") | PP - Polypropylene (02) | Stainless steel | A - No positioners | P5503 | 30 mm | 18150 N/m | 8.4 kg/m^2 | Patented PinSphere | 3,33 ft - 1,016 m | 4÷80 °C | 4÷80 °C | Top Rubber - 50 ShA-Pigeon Blue |
|
| P5503020595B | 595 mm (23,43") | PP - Polypropylene (02) | PP Blue | B - 1 Positioner | P5503 | 30 mm | 16500 N/m | 8.4 kg/m^2 | Patented PinSphere | 3,33 ft - 1,016 m | 4÷80 °C | 4÷80 °C | Top Rubber - 50 ShA-Pigeon Blue |
|
| P5503020595B-SS | 595 mm (23,43") | PP - Polypropylene (02) | Stainless steel | B - 1 Positioner | P5503 | 30 mm | 18150 N/m | 8.4 kg/m^2 | Patented PinSphere | 3,33 ft - 1,016 m | 4÷80 °C | 4÷80 °C | Top Rubber - 50 ShA-Pigeon Blue |
|
| P5503020595C | 595 mm (23,43") | PP - Polypropylene (02) | PP Blue | C - 2 Positioners | P5503 | 30 mm | 16500 N/m | 8.4 kg/m^2 | Patented PinSphere | 3,33 ft - 1,016 m | 4÷80 °C | 4÷80 °C | Top Rubber - 50 ShA-Pigeon Blue |
|
| P5503020595C-SS | 595 mm (23,43") | PP - Polypropylene (02) | Stainless steel | C - 2 Positioners | P5503 | 30 mm | 18150 N/m | 8.4 kg/m^2 | Patented PinSphere | 3,33 ft - 1,016 m | 4÷80 °C | 4÷80 °C | Top Rubber - 50 ShA-Pigeon Blue |
|
| P5503020680A | 680 mm (26,77") | PP - Polypropylene (02) | PP Blue | A - No positioners | P5503 | 30 mm | 16500 N/m | 8.4 kg/m^2 | Patented PinSphere | 3,33 ft - 1,016 m | 4÷80 °C | 4÷80 °C | Top Rubber - 50 ShA-Pigeon Blue |
|
| P5503020680A-SS | 680 mm (26,77") | PP - Polypropylene (02) | Stainless steel | A - No positioners | P5503 | 30 mm | 18150 N/m | 8.4 kg/m^2 | Patented PinSphere | 3,33 ft - 1,016 m | 4÷80 °C | 4÷80 °C | Top Rubber - 50 ShA-Pigeon Blue |
|
| P5503020680B | 680 mm (26,77") | PP - Polypropylene (02) | PP Blue | B - 1 Positioner | P5503 | 30 mm | 16500 N/m | 8.4 kg/m^2 | Patented PinSphere | 3,33 ft - 1,016 m | 4÷80 °C | 4÷80 °C | Top Rubber - 50 ShA-Pigeon Blue |
|
| P5503020680B-SS | 680 mm (26,77") | PP - Polypropylene (02) | Stainless steel | B - 1 Positioner | P5503 | 30 mm | 18150 N/m | 8.4 kg/m^2 | Patented PinSphere | 3,33 ft - 1,016 m | 4÷80 °C | 4÷80 °C | Top Rubber - 50 ShA-Pigeon Blue |
|
| P5503020680C | 680 mm (26,77") | PP - Polypropylene (02) | PP Blue | C - 2 Positioners | P5503 | 30 mm | 16500 N/m | 8.4 kg/m^2 | Patented PinSphere | 3,33 ft - 1,016 m | 4÷80 °C | 4÷80 °C | Top Rubber - 50 ShA-Pigeon Blue |
|
| P5503020680C-SS | 680 mm (26,77") | PP - Polypropylene (02) | Stainless steel | C - 2 Positioners | P5503 | 30 mm | 18150 N/m | 8.4 kg/m^2 | Patented PinSphere | 3,33 ft - 1,016 m | 4÷80 °C | 4÷80 °C | Top Rubber - 50 ShA-Pigeon Blue |
|
| P5503020765A | 765 mm (30,12") | PP - Polypropylene (02) | PP Blue | A - No positioners | P5503 | 30 mm | 16500 N/m | 8.4 kg/m^2 | Patented PinSphere | 3,33 ft - 1,016 m | 4÷80 °C | 4÷80 °C | Top Rubber - 50 ShA-Pigeon Blue |
|
| P5503020765A-SS | 765 mm (30,12") | PP - Polypropylene (02) | Stainless steel | A - No positioners | P5503 | 30 mm | 18150 N/m | 8.4 kg/m^2 | Patented PinSphere | 3,33 ft - 1,016 m | 4÷80 °C | 4÷80 °C | Top Rubber - 50 ShA-Pigeon Blue |
|
| P5503020765B | 765 mm (30,12") | PP - Polypropylene (02) | PP Blue | B - 1 Positioner | P5503 | 30 mm | 16500 N/m | 8.4 kg/m^2 | Patented PinSphere | 3,33 ft - 1,016 m | 4÷80 °C | 4÷80 °C | Top Rubber - 50 ShA-Pigeon Blue |
|
| P5503020765B-SS | 765 mm (30,12") | PP - Polypropylene (02) | Stainless steel | B - 1 Positioner | P5503 | 30 mm | 18150 N/m | 8.4 kg/m^2 | Patented PinSphere | 3,33 ft - 1,016 m | 4÷80 °C | 4÷80 °C | Top Rubber - 50 ShA-Pigeon Blue |
|
| P5503020765C | 765 mm (30,12") | PP - Polypropylene (02) | PP Blue | C - 2 Positioners | P5503 | 30 mm | 16500 N/m | 8.4 kg/m^2 | Patented PinSphere | 3,33 ft - 1,016 m | 4÷80 °C | 4÷80 °C | Top Rubber - 50 ShA-Pigeon Blue |
|
| P5503020765C-SS | 765 mm (30,12") | PP - Polypropylene (02) | Stainless steel | C - 2 Positioners | P5503 | 30 mm | 18150 N/m | 8.4 kg/m^2 | Patented PinSphere | 3,33 ft - 1,016 m | 4÷80 °C | 4÷80 °C | Top Rubber - 50 ShA-Pigeon Blue |
|
| P5503020850A | 850 mm (33,46") | PP - Polypropylene (02) | PP Blue | A - No positioners | P5503 | 30 mm | 16500 N/m | 8.4 kg/m^2 | Patented PinSphere | 3,33 ft - 1,016 m | 4÷80 °C | 4÷80 °C | Top Rubber - 50 ShA-Pigeon Blue |
|
| P5503020850A-SS | 850 mm (33,46") | PP - Polypropylene (02) | Stainless steel | A - No positioners | P5503 | 30 mm | 18150 N/m | 8.4 kg/m^2 | Patented PinSphere | 3,33 ft - 1,016 m | 4÷80 °C | 4÷80 °C | Top Rubber - 50 ShA-Pigeon Blue |
|
| P5503020850B | 850 mm (33,46") | PP - Polypropylene (02) | PP Blue | B - 1 Positioner | P5503 | 30 mm | 16500 N/m | 8.4 kg/m^2 | Patented PinSphere | 3,33 ft - 1,016 m | 4÷80 °C | 4÷80 °C | Top Rubber - 50 ShA-Pigeon Blue |
|
| P5503020850B-SS | 850 mm (33,46") | PP - Polypropylene (02) | Stainless steel | B - 1 Positioner | P5503 | 30 mm | 18150 N/m | 8.4 kg/m^2 | Patented PinSphere | 3,33 ft - 1,016 m | 4÷80 °C | 4÷80 °C | Top Rubber - 50 ShA-Pigeon Blue |
|
| P5503020850C | 850 mm (33,46") | PP - Polypropylene (02) | PP Blue | C - 2 Positioners | P5503 | 30 mm | 16500 N/m | 8.4 kg/m^2 | Patented PinSphere | 3,33 ft - 1,016 m | 4÷80 °C | 4÷80 °C | Top Rubber - 50 ShA-Pigeon Blue |
|
| P5503020850C-SS | 850 mm (33,46") | PP - Polypropylene (02) | Stainless steel | C - 2 Positioners | P5503 | 30 mm | 18150 N/m | 8.4 kg/m^2 | Patented PinSphere | 3,33 ft - 1,016 m | 4÷80 °C | 4÷80 °C | Top Rubber - 50 ShA-Pigeon Blue |
|
| P5503020935A | 935 mm (36,81") | PP - Polypropylene (02) | PP Blue | A - No positioners | P5503 | 30 mm | 16500 N/m | 8.4 kg/m^2 | Patented PinSphere | 3,33 ft - 1,016 m | 4÷80 °C | 4÷80 °C | Top Rubber - 50 ShA-Pigeon Blue |
|
| P5503020935A-SS | 935 mm (36,81") | PP - Polypropylene (02) | Stainless steel | A - No positioners | P5503 | 30 mm | 18150 N/m | 8.4 kg/m^2 | Patented PinSphere | 3,33 ft - 1,016 m | 4÷80 °C | 4÷80 °C | Top Rubber - 50 ShA-Pigeon Blue |
|
| P5503020935B | 935 mm (36,81") | PP - Polypropylene (02) | PP Blue | B - 1 Positioner | P5503 | 30 mm | 16500 N/m | 8.4 kg/m^2 | Patented PinSphere | 3,33 ft - 1,016 m | 4÷80 °C | 4÷80 °C | Top Rubber - 50 ShA-Pigeon Blue |
|
| P5503020935B-SS | 935 mm (36,81") | PP - Polypropylene (02) | Stainless steel | B - 1 Positioner | P5503 | 30 mm | 18150 N/m | 8.4 kg/m^2 | Patented PinSphere | 3,33 ft - 1,016 m | 4÷80 °C | 4÷80 °C | Top Rubber - 50 ShA-Pigeon Blue |
|
| P5503020935C | 935 mm (36,81") | PP - Polypropylene (02) | PP Blue | C - 2 Positioners | P5503 | 30 mm | 16500 N/m | 8.4 kg/m^2 | Patented PinSphere | 3,33 ft - 1,016 m | 4÷80 °C | 4÷80 °C | Top Rubber - 50 ShA-Pigeon Blue |
|
| P5503020935C-SS | 935 mm (36,81") | PP - Polypropylene (02) | Stainless steel | C - 2 Positioners | P5503 | 30 mm | 18150 N/m | 8.4 kg/m^2 | Patented PinSphere | 3,33 ft - 1,016 m | 4÷80 °C | 4÷80 °C | Top Rubber - 50 ShA-Pigeon Blue |
|
| P5503021020A | 1020 mm (40,16") | PP - Polypropylene (02) | PP Blue | A - No positioners | P5503 | 30 mm | 16500 N/m | 8.4 kg/m^2 | Patented PinSphere | 3,33 ft - 1,016 m | 4÷80 °C | 4÷80 °C | Top Rubber - 50 ShA-Pigeon Blue |
|
| P5503021020A-SS | 1020 mm (40,16") | PP - Polypropylene (02) | Stainless steel | A - No positioners | P5503 | 30 mm | 18150 N/m | 8.4 kg/m^2 | Patented PinSphere | 3,33 ft - 1,016 m | 4÷80 °C | 4÷80 °C | Top Rubber - 50 ShA-Pigeon Blue |
|
| P5503021020B | 1020 mm (40,16") | PP - Polypropylene (02) | PP Blue | B - 1 Positioner | P5503 | 30 mm | 16500 N/m | 8.4 kg/m^2 | Patented PinSphere | 3,33 ft - 1,016 m | 4÷80 °C | 4÷80 °C | Top Rubber - 50 ShA-Pigeon Blue |
|
| P5503021020B-SS | 1020 mm (40,16") | PP - Polypropylene (02) | Stainless steel | B - 1 Positioner | P5503 | 30 mm | 18150 N/m | 8.4 kg/m^2 | Patented PinSphere | 3,33 ft - 1,016 m | 4÷80 °C | 4÷80 °C | Top Rubber - 50 ShA-Pigeon Blue |
|
| P5503021020C | 1020 mm (40,16") | PP - Polypropylene (02) | PP Blue | C - 2 Positioners | P5503 | 30 mm | 16500 N/m | 8.4 kg/m^2 | Patented PinSphere | 3,33 ft - 1,016 m | 4÷80 °C | 4÷80 °C | Top Rubber - 50 ShA-Pigeon Blue |
|
| P5503021020C-SS | 1020 mm (40,16") | PP - Polypropylene (02) | Stainless steel | C - 2 Positioners | P5503 | 30 mm | 18150 N/m | 8.4 kg/m^2 | Patented PinSphere | 3,33 ft - 1,016 m | 4÷80 °C | 4÷80 °C | Top Rubber - 50 ShA-Pigeon Blue |
|
| P5503021105A | 1105 mm (43,50") | PP - Polypropylene (02) | PP Blue | A - No positioners | P5503 | 30 mm | 16500 N/m | 8.4 kg/m^2 | Patented PinSphere | 3,33 ft - 1,016 m | 4÷80 °C | 4÷80 °C | Top Rubber - 50 ShA-Pigeon Blue |
|
| P5503021105A-SS | 1105 mm (43,50") | PP - Polypropylene (02) | Stainless steel | A - No positioners | P5503 | 30 mm | 18150 N/m | 8.4 kg/m^2 | Patented PinSphere | 3,33 ft - 1,016 m | 4÷80 °C | 4÷80 °C | Top Rubber - 50 ShA-Pigeon Blue |
|
| P5503021105B | 1105 mm (43,50") | PP - Polypropylene (02) | PP Blue | B - 1 Positioner | P5503 | 30 mm | 16500 N/m | 8.4 kg/m^2 | Patented PinSphere | 3,33 ft - 1,016 m | 4÷80 °C | 4÷80 °C | Top Rubber - 50 ShA-Pigeon Blue |
|
| P5503021105B-SS | 1105 mm (43,50") | PP - Polypropylene (02) | Stainless steel | B - 1 Positioner | P5503 | 30 mm | 18150 N/m | 8.4 kg/m^2 | Patented PinSphere | 3,33 ft - 1,016 m | 4÷80 °C | 4÷80 °C | Top Rubber - 50 ShA-Pigeon Blue |
|
| P5503021105C | 1105 mm (43,50") | PP - Polypropylene (02) | PP Blue | C - 2 Positioners | P5503 | 30 mm | 16500 N/m | 8.4 kg/m^2 | Patented PinSphere | 3,33 ft - 1,016 m | 4÷80 °C | 4÷80 °C | Top Rubber - 50 ShA-Pigeon Blue |
|
| P5503021105C-SS | 1105 mm (43,50") | PP - Polypropylene (02) | Stainless steel | C - 2 Positioners | P5503 | 30 mm | 18150 N/m | 8.4 kg/m^2 | Patented PinSphere | 3,33 ft - 1,016 m | 4÷80 °C | 4÷80 °C | Top Rubber - 50 ShA-Pigeon Blue |
|
| P5503021190A | 1190 mm (46,85") | PP - Polypropylene (02) | PP Blue | A - No positioners | P5503 | 30 mm | 16500 N/m | 8.4 kg/m^2 | Patented PinSphere | 3,33 ft - 1,016 m | 4÷80 °C | 4÷80 °C | Top Rubber - 50 ShA-Pigeon Blue |
|
| P5503021190A-SS | 1190 mm (46,85") | PP - Polypropylene (02) | Stainless steel | A - No positioners | P5503 | 30 mm | 18150 N/m | 8.4 kg/m^2 | Patented PinSphere | 3,33 ft - 1,016 m | 4÷80 °C | 4÷80 °C | Top Rubber - 50 ShA-Pigeon Blue |
|
| P5503021190B | 1190 mm (46,85") | PP - Polypropylene (02) | PP Blue | B - 1 Positioner | P5503 | 30 mm | 16500 N/m | 8.4 kg/m^2 | Patented PinSphere | 3,33 ft - 1,016 m | 4÷80 °C | 4÷80 °C | Top Rubber - 50 ShA-Pigeon Blue |
|
| P5503021190B-SS | 1190 mm (46,85") | PP - Polypropylene (02) | Stainless steel | B - 1 Positioner | P5503 | 30 mm | 18150 N/m | 8.4 kg/m^2 | Patented PinSphere | 3,33 ft - 1,016 m | 4÷80 °C | 4÷80 °C | Top Rubber - 50 ShA-Pigeon Blue |
|
| P5503021190C | 1190 mm (46,85") | PP - Polypropylene (02) | PP Blue | C - 2 Positioners | P5503 | 30 mm | 16500 N/m | 8.4 kg/m^2 | Patented PinSphere | 3,33 ft - 1,016 m | 4÷80 °C | 4÷80 °C | Top Rubber - 50 ShA-Pigeon Blue |
|
| P5503021190C-SS | 1190 mm (46,85") | PP - Polypropylene (02) | Stainless steel | C - 2 Positioners | P5503 | 30 mm | 18150 N/m | 8.4 kg/m^2 | Patented PinSphere | 3,33 ft - 1,016 m | 4÷80 °C | 4÷80 °C | Top Rubber - 50 ShA-Pigeon Blue |
|
| P5503021275A | 1275 mm (50,20") | PP - Polypropylene (02) | PP Blue | A - No positioners | P5503 | 30 mm | 16500 N/m | 8.4 kg/m^2 | Patented PinSphere | 3,33 ft - 1,016 m | 4÷80 °C | 4÷80 °C | Top Rubber - 50 ShA-Pigeon Blue |
|
| P5503021275A-SS | 1275 mm (50,20") | PP - Polypropylene (02) | Stainless steel | A - No positioners | P5503 | 30 mm | 18150 N/m | 8.4 kg/m^2 | Patented PinSphere | 3,33 ft - 1,016 m | 4÷80 °C | 4÷80 °C | Top Rubber - 50 ShA-Pigeon Blue |
|
| P5503021275B | 1275 mm (50,20") | PP - Polypropylene (02) | PP Blue | B - 1 Positioner | P5503 | 30 mm | 16500 N/m | 8.4 kg/m^2 | Patented PinSphere | 3,33 ft - 1,016 m | 4÷80 °C | 4÷80 °C | Top Rubber - 50 ShA-Pigeon Blue |
|
| P5503021275B-SS | 1275 mm (50,20") | PP - Polypropylene (02) | Stainless steel | B - 1 Positioner | P5503 | 30 mm | 18150 N/m | 8.4 kg/m^2 | Patented PinSphere | 3,33 ft - 1,016 m | 4÷80 °C | 4÷80 °C | Top Rubber - 50 ShA-Pigeon Blue |
|
| P5503021275C | 1275 mm (50,20") | PP - Polypropylene (02) | PP Blue | C - 2 Positioners | P5503 | 30 mm | 16500 N/m | 8.4 kg/m^2 | Patented PinSphere | 3,33 ft - 1,016 m | 4÷80 °C | 4÷80 °C | Top Rubber - 50 ShA-Pigeon Blue |
|
| P5503021275C-SS | 1275 mm (50,20") | PP - Polypropylene (02) | Stainless steel | C - 2 Positioners | P5503 | 30 mm | 18150 N/m | 8.4 kg/m^2 | Patented PinSphere | 3,33 ft - 1,016 m | 4÷80 °C | 4÷80 °C | Top Rubber - 50 ShA-Pigeon Blue |
|
| P5503021360A | 1360 mm (53,54") | PP - Polypropylene (02) | PP Blue | A - No positioners | P5503 | 30 mm | 16500 N/m | 8.4 kg/m^2 | Patented PinSphere | 3,33 ft - 1,016 m | 4÷80 °C | 4÷80 °C | Top Rubber - 50 ShA-Pigeon Blue |
|
| P5503021360A-SS | 1360 mm (53,54") | PP - Polypropylene (02) | Stainless steel | A - No positioners | P5503 | 30 mm | 18150 N/m | 8.4 kg/m^2 | Patented PinSphere | 3,33 ft - 1,016 m | 4÷80 °C | 4÷80 °C | Top Rubber - 50 ShA-Pigeon Blue |
|
| P5503021360B | 1360 mm (53,54") | PP - Polypropylene (02) | PP Blue | B - 1 Positioner | P5503 | 30 mm | 16500 N/m | 8.4 kg/m^2 | Patented PinSphere | 3,33 ft - 1,016 m | 4÷80 °C | 4÷80 °C | Top Rubber - 50 ShA-Pigeon Blue |
|
| P5503021360B-SS | 1360 mm (53,54") | PP - Polypropylene (02) | Stainless steel | B - 1 Positioner | P5503 | 30 mm | 18150 N/m | 8.4 kg/m^2 | Patented PinSphere | 3,33 ft - 1,016 m | 4÷80 °C | 4÷80 °C | Top Rubber - 50 ShA-Pigeon Blue |
|
| P5503021360C | 1360 mm (53,54") | PP - Polypropylene (02) | PP Blue | C - 2 Positioners | P5503 | 30 mm | 16500 N/m | 8.4 kg/m^2 | Patented PinSphere | 3,33 ft - 1,016 m | 4÷80 °C | 4÷80 °C | Top Rubber - 50 ShA-Pigeon Blue |
|
| P5503021360C-SS | 1360 mm (53,54") | PP - Polypropylene (02) | Stainless steel | C - 2 Positioners | P5503 | 30 mm | 18150 N/m | 8.4 kg/m^2 | Patented PinSphere | 3,33 ft - 1,016 m | 4÷80 °C | 4÷80 °C | Top Rubber - 50 ShA-Pigeon Blue |
|
| P5503021445A | 1445 mm (56,89") | PP - Polypropylene (02) | PP Blue | A - No positioners | P5503 | 30 mm | 16500 N/m | 8.4 kg/m^2 | Patented PinSphere | 3,33 ft - 1,016 m | 4÷80 °C | 4÷80 °C | Top Rubber - 50 ShA-Pigeon Blue |
|
| P5503021445A-SS | 1445 mm (56,89") | PP - Polypropylene (02) | Stainless steel | A - No positioners | P5503 | 30 mm | 18150 N/m | 8.4 kg/m^2 | Patented PinSphere | 3,33 ft - 1,016 m | 4÷80 °C | 4÷80 °C | Top Rubber - 50 ShA-Pigeon Blue |
|
| P5503021445B | 1445 mm (56,89") | PP - Polypropylene (02) | PP Blue | B - 1 Positioner | P5503 | 30 mm | 16500 N/m | 8.4 kg/m^2 | Patented PinSphere | 3,33 ft - 1,016 m | 4÷80 °C | 4÷80 °C | Top Rubber - 50 ShA-Pigeon Blue |
|
| P5503021445B-SS | 1445 mm (56,89") | PP - Polypropylene (02) | Stainless steel | B - 1 Positioner | P5503 | 30 mm | 18150 N/m | 8.4 kg/m^2 | Patented PinSphere | 3,33 ft - 1,016 m | 4÷80 °C | 4÷80 °C | Top Rubber - 50 ShA-Pigeon Blue |
|
| P5503021445C | 1445 mm (56,89") | PP - Polypropylene (02) | PP Blue | C - 2 Positioners | P5503 | 30 mm | 16500 N/m | 8.4 kg/m^2 | Patented PinSphere | 3,33 ft - 1,016 m | 4÷80 °C | 4÷80 °C | Top Rubber - 50 ShA-Pigeon Blue |
|
| P5503021445C-SS | 1445 mm (56,89") | PP - Polypropylene (02) | Stainless steel | C - 2 Positioners | P5503 | 30 mm | 18150 N/m | 8.4 kg/m^2 | Patented PinSphere | 3,33 ft - 1,016 m | 4÷80 °C | 4÷80 °C | Top Rubber - 50 ShA-Pigeon Blue |
|
| P5503021530A | 1530 mm (60,24") | PP - Polypropylene (02) | PP Blue | A - No positioners | P5503 | 30 mm | 16500 N/m | 8.4 kg/m^2 | Patented PinSphere | 3,33 ft - 1,016 m | 4÷80 °C | 4÷80 °C | Top Rubber - 50 ShA-Pigeon Blue |
|
| P5503021530A-SS | 1530 mm (60,24") | PP - Polypropylene (02) | Stainless steel | A - No positioners | P5503 | 30 mm | 18150 N/m | 8.4 kg/m^2 | Patented PinSphere | 3,33 ft - 1,016 m | 4÷80 °C | 4÷80 °C | Top Rubber - 50 ShA-Pigeon Blue |
|
| P5503021530B | 1530 mm (60,24") | PP - Polypropylene (02) | PP Blue | B - 1 Positioner | P5503 | 30 mm | 16500 N/m | 8.4 kg/m^2 | Patented PinSphere | 3,33 ft - 1,016 m | 4÷80 °C | 4÷80 °C | Top Rubber - 50 ShA-Pigeon Blue |
|
| P5503021530B-SS | 1530 mm (60,24") | PP - Polypropylene (02) | Stainless steel | B - 1 Positioner | P5503 | 30 mm | 18150 N/m | 8.4 kg/m^2 | Patented PinSphere | 3,33 ft - 1,016 m | 4÷80 °C | 4÷80 °C | Top Rubber - 50 ShA-Pigeon Blue |
|
| P5503021530C | 1530 mm (60,24") | PP - Polypropylene (02) | PP Blue | C - 2 Positioners | P5503 | 30 mm | 16500 N/m | 8.4 kg/m^2 | Patented PinSphere | 3,33 ft - 1,016 m | 4÷80 °C | 4÷80 °C | Top Rubber - 50 ShA-Pigeon Blue |
|
| P5503021530C-SS | 1530 mm (60,24") | PP - Polypropylene (02) | Stainless steel | C - 2 Positioners | P5503 | 30 mm | 18150 N/m | 8.4 kg/m^2 | Patented PinSphere | 3,33 ft - 1,016 m | 4÷80 °C | 4÷80 °C | Top Rubber - 50 ShA-Pigeon Blue |
|
| P5503030085A | 85 mm (3,35") | MX - Performance PBT (03) | POM Grey | A - No positioners | P5503 | 30 mm | 21500 N/m | 10.5 kg/m^2 | Patented PinSphere | 10 ft - 3,048 m | -40÷120 °C | -40÷60 °C | Top Rubber - 50 ShA-Dark Grey |
|
| P5503030085A-SS | 85 mm (3,35") | MX - Performance PBT (03) | Stainless steel | A - No positioners | P5503 | 30 mm | 23650 N/m | 10.5 kg/m^2 | Patented PinSphere | 10 ft - 3,048 m | -40÷120 °C | -40÷60 °C | Top Rubber - 50 ShA-Dark Grey |
|
| P5503030085B | 85 mm (3,35") | MX - Performance PBT (03) | POM Grey | B - 1 Positioner | P5503 | 30 mm | 21500 N/m | 10.5 kg/m^2 | Patented PinSphere | 10 ft - 3,048 m | -40÷120 °C | -40÷60 °C | Top Rubber - 50 ShA-Dark Grey |
|
| P5503030085B-SS | 85 mm (3,35") | MX - Performance PBT (03) | Stainless steel | B - 1 Positioner | P5503 | 30 mm | 23650 N/m | 10.5 kg/m^2 | Patented PinSphere | 10 ft - 3,048 m | -40÷120 °C | -40÷60 °C | Top Rubber - 50 ShA-Dark Grey |
|
| P5503030085C | 85 mm (3,35") | MX - Performance PBT (03) | POM Grey | C - 2 Positioners | P5503 | 30 mm | 21500 N/m | 10.5 kg/m^2 | Patented PinSphere | 10 ft - 3,048 m | -40÷120 °C | -40÷60 °C | Top Rubber - 50 ShA-Dark Grey |
|
| P5503030085C-SS | 85 mm (3,35") | MX - Performance PBT (03) | Stainless steel | C - 2 Positioners | P5503 | 30 mm | 23650 N/m | 10.5 kg/m^2 | Patented PinSphere | 10 ft - 3,048 m | -40÷120 °C | -40÷60 °C | Top Rubber - 50 ShA-Dark Grey |
|
| P5503030170A | 170 mm (6,69") | MX - Performance PBT (03) | POM Grey | A - No positioners | P5503 | 30 mm | 21500 N/m | 10.5 kg/m^2 | Patented PinSphere | 10 ft - 3,048 m | -40÷120 °C | -40÷60 °C | Top Rubber - 50 ShA-Dark Grey |
|
| P5503030170A-SS | 170 mm (6,69") | MX - Performance PBT (03) | Stainless steel | A - No positioners | P5503 | 30 mm | 23650 N/m | 10.5 kg/m^2 | Patented PinSphere | 10 ft - 3,048 m | -40÷120 °C | -40÷60 °C | Top Rubber - 50 ShA-Dark Grey |
|
| P5503030170B | 170 mm (6,69") | MX - Performance PBT (03) | POM Grey | B - 1 Positioner | P5503 | 30 mm | 21500 N/m | 10.5 kg/m^2 | Patented PinSphere | 10 ft - 3,048 m | -40÷120 °C | -40÷60 °C | Top Rubber - 50 ShA-Dark Grey |
|
| P5503030170B-SS | 170 mm (6,69") | MX - Performance PBT (03) | Stainless steel | B - 1 Positioner | P5503 | 30 mm | 23650 N/m | 10.5 kg/m^2 | Patented PinSphere | 10 ft - 3,048 m | -40÷120 °C | -40÷60 °C | Top Rubber - 50 ShA-Dark Grey |
|
| P5503030170C | 170 mm (6,69") | MX - Performance PBT (03) | POM Grey | C - 2 Positioners | P5503 | 30 mm | 21500 N/m | 10.5 kg/m^2 | Patented PinSphere | 10 ft - 3,048 m | -40÷120 °C | -40÷60 °C | Top Rubber - 50 ShA-Dark Grey |
|
| P5503030170C-SS | 170 mm (6,69") | MX - Performance PBT (03) | Stainless steel | C - 2 Positioners | P5503 | 30 mm | 23650 N/m | 10.5 kg/m^2 | Patented PinSphere | 10 ft - 3,048 m | -40÷120 °C | -40÷60 °C | Top Rubber - 50 ShA-Dark Grey |
|
| P5503030255A | 255 mm (10,04") | MX - Performance PBT (03) | POM Grey | A - No positioners | P5503 | 30 mm | 21500 N/m | 10.5 kg/m^2 | Patented PinSphere | 10 ft - 3,048 m | -40÷120 °C | -40÷60 °C | Top Rubber - 50 ShA-Dark Grey |
|
| P5503030255A-SS | 255 mm (10,04") | MX - Performance PBT (03) | Stainless steel | A - No positioners | P5503 | 30 mm | 23650 N/m | 10.5 kg/m^2 | Patented PinSphere | 10 ft - 3,048 m | -40÷120 °C | -40÷60 °C | Top Rubber - 50 ShA-Dark Grey |
|
| P5503030255B | 255 mm (10,04") | MX - Performance PBT (03) | POM Grey | B - 1 Positioner | P5503 | 30 mm | 21500 N/m | 10.5 kg/m^2 | Patented PinSphere | 10 ft - 3,048 m | -40÷120 °C | -40÷60 °C | Top Rubber - 50 ShA-Dark Grey |
|
| P5503030255B-SS | 255 mm (10,04") | MX - Performance PBT (03) | Stainless steel | B - 1 Positioner | P5503 | 30 mm | 23650 N/m | 10.5 kg/m^2 | Patented PinSphere | 10 ft - 3,048 m | -40÷120 °C | -40÷60 °C | Top Rubber - 50 ShA-Dark Grey |
|
| P5503030255C | 255 mm (10,04") | MX - Performance PBT (03) | POM Grey | C - 2 Positioners | P5503 | 30 mm | 21500 N/m | 10.5 kg/m^2 | Patented PinSphere | 10 ft - 3,048 m | -40÷120 °C | -40÷60 °C | Top Rubber - 50 ShA-Dark Grey |
|
| P5503030255C-SS | 255 mm (10,04") | MX - Performance PBT (03) | Stainless steel | C - 2 Positioners | P5503 | 30 mm | 23650 N/m | 10.5 kg/m^2 | Patented PinSphere | 10 ft - 3,048 m | -40÷120 °C | -40÷60 °C | Top Rubber - 50 ShA-Dark Grey |
|
| P5503030340A | 340 mm (13,39") | MX - Performance PBT (03) | POM Grey | A - No positioners | P5503 | 30 mm | 21500 N/m | 10.5 kg/m^2 | Patented PinSphere | 5 ft - 1,524 m | -40÷120 °C | -40÷60 °C | Top Rubber - 50 ShA-Dark Grey |
|
| P5503030340A-SS | 340 mm (13,39") | MX - Performance PBT (03) | Stainless steel | A - No positioners | P5503 | 30 mm | 23650 N/m | 10.5 kg/m^2 | Patented PinSphere | 5 ft - 1,524 m | -40÷120 °C | -40÷60 °C | Top Rubber - 50 ShA-Dark Grey |
|
| P5503030340B | 340 mm (13,39") | MX - Performance PBT (03) | POM Grey | B - 1 Positioner | P5503 | 30 mm | 21500 N/m | 10.5 kg/m^2 | Patented PinSphere | 5 ft - 1,524 m | -40÷120 °C | -40÷60 °C | Top Rubber - 50 ShA-Dark Grey |
|
| P5503030340B-SS | 340 mm (13,39") | MX - Performance PBT (03) | Stainless steel | B - 1 Positioner | P5503 | 30 mm | 23650 N/m | 10.5 kg/m^2 | Patented PinSphere | 5 ft - 1,524 m | -40÷120 °C | -40÷60 °C | Top Rubber - 50 ShA-Dark Grey |
|
| P5503030340C | 340 mm (13,39") | MX - Performance PBT (03) | POM Grey | C - 2 Positioners | P5503 | 30 mm | 21500 N/m | 10.5 kg/m^2 | Patented PinSphere | 5 ft - 1,524 m | -40÷120 °C | -40÷60 °C | Top Rubber - 50 ShA-Dark Grey |
|
| P5503030340C-SS | 340 mm (13,39") | MX - Performance PBT (03) | Stainless steel | C - 2 Positioners | P5503 | 30 mm | 23650 N/m | 10.5 kg/m^2 | Patented PinSphere | 5 ft - 1,524 m | -40÷120 °C | -40÷60 °C | Top Rubber - 50 ShA-Dark Grey |
|
| P5503030425A | 425 mm (16,73") | MX - Performance PBT (03) | POM Grey | A - No positioners | P5503 | 30 mm | 21500 N/m | 10.5 kg/m^2 | Patented PinSphere | 5 ft - 1,524 m | -40÷120 °C | -40÷60 °C | Top Rubber - 50 ShA-Dark Grey |
|
| P5503030425A-SS | 425 mm (16,73") | MX - Performance PBT (03) | Stainless steel | A - No positioners | P5503 | 30 mm | 23650 N/m | 10.5 kg/m^2 | Patented PinSphere | 5 ft - 1,524 m | -40÷120 °C | -40÷60 °C | Top Rubber - 50 ShA-Dark Grey |
|
| P5503030425B | 425 mm (16,73") | MX - Performance PBT (03) | POM Grey | B - 1 Positioner | P5503 | 30 mm | 21500 N/m | 10.5 kg/m^2 | Patented PinSphere | 5 ft - 1,524 m | -40÷120 °C | -40÷60 °C | Top Rubber - 50 ShA-Dark Grey |
|
| P5503030425B-SS | 425 mm (16,73") | MX - Performance PBT (03) | Stainless steel | B - 1 Positioner | P5503 | 30 mm | 23650 N/m | 10.5 kg/m^2 | Patented PinSphere | 5 ft - 1,524 m | -40÷120 °C | -40÷60 °C | Top Rubber - 50 ShA-Dark Grey |
|
| P5503030425C | 425 mm (16,73") | MX - Performance PBT (03) | POM Grey | C - 2 Positioners | P5503 | 30 mm | 21500 N/m | 10.5 kg/m^2 | Patented PinSphere | 5 ft - 1,524 m | -40÷120 °C | -40÷60 °C | Top Rubber - 50 ShA-Dark Grey |
|
| P5503030425C-SS | 425 mm (16,73") | MX - Performance PBT (03) | Stainless steel | C - 2 Positioners | P5503 | 30 mm | 23650 N/m | 10.5 kg/m^2 | Patented PinSphere | 5 ft - 1,524 m | -40÷120 °C | -40÷60 °C | Top Rubber - 50 ShA-Dark Grey |
|
| P5503030510A | 510 mm (20,08") | MX - Performance PBT (03) | POM Grey | A - No positioners | P5503 | 30 mm | 21500 N/m | 10.5 kg/m^2 | Patented PinSphere | 5 ft - 1,524 m | -40÷120 °C | -40÷60 °C | Top Rubber - 50 ShA-Dark Grey |
|
| P5503030510A-SS | 510 mm (20,08") | MX - Performance PBT (03) | Stainless steel | A - No positioners | P5503 | 30 mm | 23650 N/m | 10.5 kg/m^2 | Patented PinSphere | 5 ft - 1,524 m | -40÷120 °C | -40÷60 °C | Top Rubber - 50 ShA-Dark Grey |
|
| P5503030510B | 510 mm (20,08") | MX - Performance PBT (03) | POM Grey | B - 1 Positioner | P5503 | 30 mm | 21500 N/m | 10.5 kg/m^2 | Patented PinSphere | 5 ft - 1,524 m | -40÷120 °C | -40÷60 °C | Top Rubber - 50 ShA-Dark Grey |
|
| P5503030510B-SS | 510 mm (20,08") | MX - Performance PBT (03) | Stainless steel | B - 1 Positioner | P5503 | 30 mm | 23650 N/m | 10.5 kg/m^2 | Patented PinSphere | 5 ft - 1,524 m | -40÷120 °C | -40÷60 °C | Top Rubber - 50 ShA-Dark Grey |
|
| P5503030510C | 510 mm (20,08") | MX - Performance PBT (03) | POM Grey | C - 2 Positioners | P5503 | 30 mm | 21500 N/m | 10.5 kg/m^2 | Patented PinSphere | 5 ft - 1,524 m | -40÷120 °C | -40÷60 °C | Top Rubber - 50 ShA-Dark Grey |
|
| P5503030510C-SS | 510 mm (20,08") | MX - Performance PBT (03) | Stainless steel | C - 2 Positioners | P5503 | 30 mm | 23650 N/m | 10.5 kg/m^2 | Patented PinSphere | 5 ft - 1,524 m | -40÷120 °C | -40÷60 °C | Top Rubber - 50 ShA-Dark Grey |
|
| P5503030595A | 595 mm (23,43") | MX - Performance PBT (03) | POM Grey | A - No positioners | P5503 | 30 mm | 21500 N/m | 10.5 kg/m^2 | Patented PinSphere | 3,33 ft - 1,016 m | -40÷120 °C | -40÷60 °C | Top Rubber - 50 ShA-Dark Grey |
|
| P5503030595A-SS | 595 mm (23,43") | MX - Performance PBT (03) | Stainless steel | A - No positioners | P5503 | 30 mm | 23650 N/m | 10.5 kg/m^2 | Patented PinSphere | 3,33 ft - 1,016 m | -40÷120 °C | -40÷60 °C | Top Rubber - 50 ShA-Dark Grey |
|
| P5503030595B | 595 mm (23,43") | MX - Performance PBT (03) | POM Grey | B - 1 Positioner | P5503 | 30 mm | 21500 N/m | 10.5 kg/m^2 | Patented PinSphere | 3,33 ft - 1,016 m | -40÷120 °C | -40÷60 °C | Top Rubber - 50 ShA-Dark Grey |
|
| P5503030595B-SS | 595 mm (23,43") | MX - Performance PBT (03) | Stainless steel | B - 1 Positioner | P5503 | 30 mm | 23650 N/m | 10.5 kg/m^2 | Patented PinSphere | 3,33 ft - 1,016 m | -40÷120 °C | -40÷60 °C | Top Rubber - 50 ShA-Dark Grey |
|
| P5503030595C | 595 mm (23,43") | MX - Performance PBT (03) | POM Grey | C - 2 Positioners | P5503 | 30 mm | 21500 N/m | 10.5 kg/m^2 | Patented PinSphere | 3,33 ft - 1,016 m | -40÷120 °C | -40÷60 °C | Top Rubber - 50 ShA-Dark Grey |
|
| P5503030595C-SS | 595 mm (23,43") | MX - Performance PBT (03) | Stainless steel | C - 2 Positioners | P5503 | 30 mm | 23650 N/m | 10.5 kg/m^2 | Patented PinSphere | 3,33 ft - 1,016 m | -40÷120 °C | -40÷60 °C | Top Rubber - 50 ShA-Dark Grey |
|
| P5503030680A | 680 mm (26,77") | MX - Performance PBT (03) | POM Grey | A - No positioners | P5503 | 30 mm | 21500 N/m | 10.5 kg/m^2 | Patented PinSphere | 3,33 ft - 1,016 m | -40÷120 °C | -40÷60 °C | Top Rubber - 50 ShA-Dark Grey |
|
| P5503030680A-SS | 680 mm (26,77") | MX - Performance PBT (03) | Stainless steel | A - No positioners | P5503 | 30 mm | 23650 N/m | 10.5 kg/m^2 | Patented PinSphere | 3,33 ft - 1,016 m | -40÷120 °C | -40÷60 °C | Top Rubber - 50 ShA-Dark Grey |
|
| P5503030680B | 680 mm (26,77") | MX - Performance PBT (03) | POM Grey | B - 1 Positioner | P5503 | 30 mm | 21500 N/m | 10.5 kg/m^2 | Patented PinSphere | 3,33 ft - 1,016 m | -40÷120 °C | -40÷60 °C | Top Rubber - 50 ShA-Dark Grey |
|
| P5503030680B-SS | 680 mm (26,77") | MX - Performance PBT (03) | Stainless steel | B - 1 Positioner | P5503 | 30 mm | 23650 N/m | 10.5 kg/m^2 | Patented PinSphere | 3,33 ft - 1,016 m | -40÷120 °C | -40÷60 °C | Top Rubber - 50 ShA-Dark Grey |
|
| P5503030680C | 680 mm (26,77") | MX - Performance PBT (03) | POM Grey | C - 2 Positioners | P5503 | 30 mm | 21500 N/m | 10.5 kg/m^2 | Patented PinSphere | 3,33 ft - 1,016 m | -40÷120 °C | -40÷60 °C | Top Rubber - 50 ShA-Dark Grey |
|
| P5503030680C-SS | 680 mm (26,77") | MX - Performance PBT (03) | Stainless steel | C - 2 Positioners | P5503 | 30 mm | 23650 N/m | 10.5 kg/m^2 | Patented PinSphere | 3,33 ft - 1,016 m | -40÷120 °C | -40÷60 °C | Top Rubber - 50 ShA-Dark Grey |
|
| P5503030765A | 765 mm (30,12") | MX - Performance PBT (03) | POM Grey | A - No positioners | P5503 | 30 mm | 21500 N/m | 10.5 kg/m^2 | Patented PinSphere | 3,33 ft - 1,016 m | -40÷120 °C | -40÷60 °C | Top Rubber - 50 ShA-Dark Grey |
|
| P5503030765A-SS | 765 mm (30,12") | MX - Performance PBT (03) | Stainless steel | A - No positioners | P5503 | 30 mm | 23650 N/m | 10.5 kg/m^2 | Patented PinSphere | 3,33 ft - 1,016 m | -40÷120 °C | -40÷60 °C | Top Rubber - 50 ShA-Dark Grey |
|
| P5503030765B | 765 mm (30,12") | MX - Performance PBT (03) | POM Grey | B - 1 Positioner | P5503 | 30 mm | 21500 N/m | 10.5 kg/m^2 | Patented PinSphere | 3,33 ft - 1,016 m | -40÷120 °C | -40÷60 °C | Top Rubber - 50 ShA-Dark Grey |
|
| P5503030765B-SS | 765 mm (30,12") | MX - Performance PBT (03) | Stainless steel | B - 1 Positioner | P5503 | 30 mm | 23650 N/m | 10.5 kg/m^2 | Patented PinSphere | 3,33 ft - 1,016 m | -40÷120 °C | -40÷60 °C | Top Rubber - 50 ShA-Dark Grey |
|
| P5503030765C | 765 mm (30,12") | MX - Performance PBT (03) | POM Grey | C - 2 Positioners | P5503 | 30 mm | 21500 N/m | 10.5 kg/m^2 | Patented PinSphere | 3,33 ft - 1,016 m | -40÷120 °C | -40÷60 °C | Top Rubber - 50 ShA-Dark Grey |
|
| P5503030765C-SS | 765 mm (30,12") | MX - Performance PBT (03) | Stainless steel | C - 2 Positioners | P5503 | 30 mm | 23650 N/m | 10.5 kg/m^2 | Patented PinSphere | 3,33 ft - 1,016 m | -40÷120 °C | -40÷60 °C | Top Rubber - 50 ShA-Dark Grey |
|
| P5503030850A | 850 mm (33,46") | MX - Performance PBT (03) | POM Grey | A - No positioners | P5503 | 30 mm | 21500 N/m | 10.5 kg/m^2 | Patented PinSphere | 3,33 ft - 1,016 m | -40÷120 °C | -40÷60 °C | Top Rubber - 50 ShA-Dark Grey |
|
| P5503030850A-SS | 850 mm (33,46") | MX - Performance PBT (03) | Stainless steel | A - No positioners | P5503 | 30 mm | 23650 N/m | 10.5 kg/m^2 | Patented PinSphere | 3,33 ft - 1,016 m | -40÷120 °C | -40÷60 °C | Top Rubber - 50 ShA-Dark Grey |
|
| P5503030850B | 850 mm (33,46") | MX - Performance PBT (03) | POM Grey | B - 1 Positioner | P5503 | 30 mm | 21500 N/m | 10.5 kg/m^2 | Patented PinSphere | 3,33 ft - 1,016 m | -40÷120 °C | -40÷60 °C | Top Rubber - 50 ShA-Dark Grey |
|
| P5503030850B-SS | 850 mm (33,46") | MX - Performance PBT (03) | Stainless steel | B - 1 Positioner | P5503 | 30 mm | 23650 N/m | 10.5 kg/m^2 | Patented PinSphere | 3,33 ft - 1,016 m | -40÷120 °C | -40÷60 °C | Top Rubber - 50 ShA-Dark Grey |
|
| P5503030850C | 850 mm (33,46") | MX - Performance PBT (03) | POM Grey | C - 2 Positioners | P5503 | 30 mm | 21500 N/m | 10.5 kg/m^2 | Patented PinSphere | 3,33 ft - 1,016 m | -40÷120 °C | -40÷60 °C | Top Rubber - 50 ShA-Dark Grey |
|
| P5503030850C-SS | 850 mm (33,46") | MX - Performance PBT (03) | Stainless steel | C - 2 Positioners | P5503 | 30 mm | 23650 N/m | 10.5 kg/m^2 | Patented PinSphere | 3,33 ft - 1,016 m | -40÷120 °C | -40÷60 °C | Top Rubber - 50 ShA-Dark Grey |
|
| P5503030935A | 935 mm (36,81") | MX - Performance PBT (03) | POM Grey | A - No positioners | P5503 | 30 mm | 21500 N/m | 10.5 kg/m^2 | Patented PinSphere | 3,33 ft - 1,016 m | -40÷120 °C | -40÷60 °C | Top Rubber - 50 ShA-Dark Grey |
|
| P5503030935A-SS | 935 mm (36,81") | MX - Performance PBT (03) | Stainless steel | A - No positioners | P5503 | 30 mm | 23650 N/m | 10.5 kg/m^2 | Patented PinSphere | 3,33 ft - 1,016 m | -40÷120 °C | -40÷60 °C | Top Rubber - 50 ShA-Dark Grey |
|
| P5503030935B | 935 mm (36,81") | MX - Performance PBT (03) | POM Grey | B - 1 Positioner | P5503 | 30 mm | 21500 N/m | 10.5 kg/m^2 | Patented PinSphere | 3,33 ft - 1,016 m | -40÷120 °C | -40÷60 °C | Top Rubber - 50 ShA-Dark Grey |
|
| P5503030935B-SS | 935 mm (36,81") | MX - Performance PBT (03) | Stainless steel | B - 1 Positioner | P5503 | 30 mm | 23650 N/m | 10.5 kg/m^2 | Patented PinSphere | 3,33 ft - 1,016 m | -40÷120 °C | -40÷60 °C | Top Rubber - 50 ShA-Dark Grey |
|
| P5503030935C | 935 mm (36,81") | MX - Performance PBT (03) | POM Grey | C - 2 Positioners | P5503 | 30 mm | 21500 N/m | 10.5 kg/m^2 | Patented PinSphere | 3,33 ft - 1,016 m | -40÷120 °C | -40÷60 °C | Top Rubber - 50 ShA-Dark Grey |
|
| P5503030935C-SS | 935 mm (36,81") | MX - Performance PBT (03) | Stainless steel | C - 2 Positioners | P5503 | 30 mm | 23650 N/m | 10.5 kg/m^2 | Patented PinSphere | 3,33 ft - 1,016 m | -40÷120 °C | -40÷60 °C | Top Rubber - 50 ShA-Dark Grey |
|
| P5503031020A | 1020 mm (40,16") | MX - Performance PBT (03) | POM Grey | A - No positioners | P5503 | 30 mm | 21500 N/m | 10.5 kg/m^2 | Patented PinSphere | 3,33 ft - 1,016 m | -40÷120 °C | -40÷60 °C | Top Rubber - 50 ShA-Dark Grey |
|
| P5503031020A-SS | 1020 mm (40,16") | MX - Performance PBT (03) | Stainless steel | A - No positioners | P5503 | 30 mm | 23650 N/m | 10.5 kg/m^2 | Patented PinSphere | 3,33 ft - 1,016 m | -40÷120 °C | -40÷60 °C | Top Rubber - 50 ShA-Dark Grey |
|
| P5503031020B | 1020 mm (40,16") | MX - Performance PBT (03) | POM Grey | B - 1 Positioner | P5503 | 30 mm | 21500 N/m | 10.5 kg/m^2 | Patented PinSphere | 3,33 ft - 1,016 m | -40÷120 °C | -40÷60 °C | Top Rubber - 50 ShA-Dark Grey |
|
| P5503031020B-SS | 1020 mm (40,16") | MX - Performance PBT (03) | Stainless steel | B - 1 Positioner | P5503 | 30 mm | 23650 N/m | 10.5 kg/m^2 | Patented PinSphere | 3,33 ft - 1,016 m | -40÷120 °C | -40÷60 °C | Top Rubber - 50 ShA-Dark Grey |
|
| P5503031020C | 1020 mm (40,16") | MX - Performance PBT (03) | POM Grey | C - 2 Positioners | P5503 | 30 mm | 21500 N/m | 10.5 kg/m^2 | Patented PinSphere | 3,33 ft - 1,016 m | -40÷120 °C | -40÷60 °C | Top Rubber - 50 ShA-Dark Grey |
|
| P5503031020C-SS | 1020 mm (40,16") | MX - Performance PBT (03) | Stainless steel | C - 2 Positioners | P5503 | 30 mm | 23650 N/m | 10.5 kg/m^2 | Patented PinSphere | 3,33 ft - 1,016 m | -40÷120 °C | -40÷60 °C | Top Rubber - 50 ShA-Dark Grey |
|
| P5503031105A | 1105 mm (43,50") | MX - Performance PBT (03) | POM Grey | A - No positioners | P5503 | 30 mm | 21500 N/m | 10.5 kg/m^2 | Patented PinSphere | 3,33 ft - 1,016 m | -40÷120 °C | -40÷60 °C | Top Rubber - 50 ShA-Dark Grey |
|
| P5503031105A-SS | 1105 mm (43,50") | MX - Performance PBT (03) | Stainless steel | A - No positioners | P5503 | 30 mm | 23650 N/m | 10.5 kg/m^2 | Patented PinSphere | 3,33 ft - 1,016 m | -40÷120 °C | -40÷60 °C | Top Rubber - 50 ShA-Dark Grey |
|
| P5503031105B | 1105 mm (43,50") | MX - Performance PBT (03) | POM Grey | B - 1 Positioner | P5503 | 30 mm | 21500 N/m | 10.5 kg/m^2 | Patented PinSphere | 3,33 ft - 1,016 m | -40÷120 °C | -40÷60 °C | Top Rubber - 50 ShA-Dark Grey |
|
| P5503031105B-SS | 1105 mm (43,50") | MX - Performance PBT (03) | Stainless steel | B - 1 Positioner | P5503 | 30 mm | 23650 N/m | 10.5 kg/m^2 | Patented PinSphere | 3,33 ft - 1,016 m | -40÷120 °C | -40÷60 °C | Top Rubber - 50 ShA-Dark Grey |
|
| P5503031105C | 1105 mm (43,50") | MX - Performance PBT (03) | POM Grey | C - 2 Positioners | P5503 | 30 mm | 21500 N/m | 10.5 kg/m^2 | Patented PinSphere | 3,33 ft - 1,016 m | -40÷120 °C | -40÷60 °C | Top Rubber - 50 ShA-Dark Grey |
|
| P5503031105C-SS | 1105 mm (43,50") | MX - Performance PBT (03) | Stainless steel | C - 2 Positioners | P5503 | 30 mm | 23650 N/m | 10.5 kg/m^2 | Patented PinSphere | 3,33 ft - 1,016 m | -40÷120 °C | -40÷60 °C | Top Rubber - 50 ShA-Dark Grey |
|
| P5503031190A | 1190 mm (46,85") | MX - Performance PBT (03) | POM Grey | A - No positioners | P5503 | 30 mm | 21500 N/m | 10.5 kg/m^2 | Patented PinSphere | 3,33 ft - 1,016 m | -40÷120 °C | -40÷60 °C | Top Rubber - 50 ShA-Dark Grey |
|
| P5503031190A-SS | 1190 mm (46,85") | MX - Performance PBT (03) | Stainless steel | A - No positioners | P5503 | 30 mm | 23650 N/m | 10.5 kg/m^2 | Patented PinSphere | 3,33 ft - 1,016 m | -40÷120 °C | -40÷60 °C | Top Rubber - 50 ShA-Dark Grey |
|
| P5503031190B | 1190 mm (46,85") | MX - Performance PBT (03) | POM Grey | B - 1 Positioner | P5503 | 30 mm | 21500 N/m | 10.5 kg/m^2 | Patented PinSphere | 3,33 ft - 1,016 m | -40÷120 °C | -40÷60 °C | Top Rubber - 50 ShA-Dark Grey |
|
| P5503031190B-SS | 1190 mm (46,85") | MX - Performance PBT (03) | Stainless steel | B - 1 Positioner | P5503 | 30 mm | 23650 N/m | 10.5 kg/m^2 | Patented PinSphere | 3,33 ft - 1,016 m | -40÷120 °C | -40÷60 °C | Top Rubber - 50 ShA-Dark Grey |
|
| P5503031190C | 1190 mm (46,85") | MX - Performance PBT (03) | POM Grey | C - 2 Positioners | P5503 | 30 mm | 21500 N/m | 10.5 kg/m^2 | Patented PinSphere | 3,33 ft - 1,016 m | -40÷120 °C | -40÷60 °C | Top Rubber - 50 ShA-Dark Grey |
|
| P5503031190C-SS | 1190 mm (46,85") | MX - Performance PBT (03) | Stainless steel | C - 2 Positioners | P5503 | 30 mm | 23650 N/m | 10.5 kg/m^2 | Patented PinSphere | 3,33 ft - 1,016 m | -40÷120 °C | -40÷60 °C | Top Rubber - 50 ShA-Dark Grey |
|
| P5503031275A | 1275 mm (50,20") | MX - Performance PBT (03) | POM Grey | A - No positioners | P5503 | 30 mm | 21500 N/m | 10.5 kg/m^2 | Patented PinSphere | 3,33 ft - 1,016 m | -40÷120 °C | -40÷60 °C | Top Rubber - 50 ShA-Dark Grey |
|
| P5503031275A-SS | 1275 mm (50,20") | MX - Performance PBT (03) | Stainless steel | A - No positioners | P5503 | 30 mm | 23650 N/m | 10.5 kg/m^2 | Patented PinSphere | 3,33 ft - 1,016 m | -40÷120 °C | -40÷60 °C | Top Rubber - 50 ShA-Dark Grey |
|
| P5503031275B | 1275 mm (50,20") | MX - Performance PBT (03) | POM Grey | B - 1 Positioner | P5503 | 30 mm | 21500 N/m | 10.5 kg/m^2 | Patented PinSphere | 3,33 ft - 1,016 m | -40÷120 °C | -40÷60 °C | Top Rubber - 50 ShA-Dark Grey |
|
| P5503031275B-SS | 1275 mm (50,20") | MX - Performance PBT (03) | Stainless steel | B - 1 Positioner | P5503 | 30 mm | 23650 N/m | 10.5 kg/m^2 | Patented PinSphere | 3,33 ft - 1,016 m | -40÷120 °C | -40÷60 °C | Top Rubber - 50 ShA-Dark Grey |
|
| P5503031275C | 1275 mm (50,20") | MX - Performance PBT (03) | POM Grey | C - 2 Positioners | P5503 | 30 mm | 21500 N/m | 10.5 kg/m^2 | Patented PinSphere | 3,33 ft - 1,016 m | -40÷120 °C | -40÷60 °C | Top Rubber - 50 ShA-Dark Grey |
|
| P5503031275C-SS | 1275 mm (50,20") | MX - Performance PBT (03) | Stainless steel | C - 2 Positioners | P5503 | 30 mm | 23650 N/m | 10.5 kg/m^2 | Patented PinSphere | 3,33 ft - 1,016 m | -40÷120 °C | -40÷60 °C | Top Rubber - 50 ShA-Dark Grey |
|
| P5503031360A | 1360 mm (53,54") | MX - Performance PBT (03) | POM Grey | A - No positioners | P5503 | 30 mm | 21500 N/m | 10.5 kg/m^2 | Patented PinSphere | 3,33 ft - 1,016 m | -40÷120 °C | -40÷60 °C | Top Rubber - 50 ShA-Dark Grey |
|
| P5503031360A-SS | 1360 mm (53,54") | MX - Performance PBT (03) | Stainless steel | A - No positioners | P5503 | 30 mm | 23650 N/m | 10.5 kg/m^2 | Patented PinSphere | 3,33 ft - 1,016 m | -40÷120 °C | -40÷60 °C | Top Rubber - 50 ShA-Dark Grey |
|
| P5503031360B | 1360 mm (53,54") | MX - Performance PBT (03) | POM Grey | B - 1 Positioner | P5503 | 30 mm | 21500 N/m | 10.5 kg/m^2 | Patented PinSphere | 3,33 ft - 1,016 m | -40÷120 °C | -40÷60 °C | Top Rubber - 50 ShA-Dark Grey |
|
| P5503031360B-SS | 1360 mm (53,54") | MX - Performance PBT (03) | Stainless steel | B - 1 Positioner | P5503 | 30 mm | 23650 N/m | 10.5 kg/m^2 | Patented PinSphere | 3,33 ft - 1,016 m | -40÷120 °C | -40÷60 °C | Top Rubber - 50 ShA-Dark Grey |
|
| P5503031360C | 1360 mm (53,54") | MX - Performance PBT (03) | POM Grey | C - 2 Positioners | P5503 | 30 mm | 21500 N/m | 10.5 kg/m^2 | Patented PinSphere | 3,33 ft - 1,016 m | -40÷120 °C | -40÷60 °C | Top Rubber - 50 ShA-Dark Grey |
|
| P5503031360C-SS | 1360 mm (53,54") | MX - Performance PBT (03) | Stainless steel | C - 2 Positioners | P5503 | 30 mm | 23650 N/m | 10.5 kg/m^2 | Patented PinSphere | 3,33 ft - 1,016 m | -40÷120 °C | -40÷60 °C | Top Rubber - 50 ShA-Dark Grey |
|
| P5503031445A | 1445 mm (56,89") | MX - Performance PBT (03) | POM Grey | A - No positioners | P5503 | 30 mm | 21500 N/m | 10.5 kg/m^2 | Patented PinSphere | 3,33 ft - 1,016 m | -40÷120 °C | -40÷60 °C | Top Rubber - 50 ShA-Dark Grey |
|
| P5503031445A-SS | 1445 mm (56,89") | MX - Performance PBT (03) | Stainless steel | A - No positioners | P5503 | 30 mm | 23650 N/m | 10.5 kg/m^2 | Patented PinSphere | 3,33 ft - 1,016 m | -40÷120 °C | -40÷60 °C | Top Rubber - 50 ShA-Dark Grey |
|
| P5503031445B | 1445 mm (56,89") | MX - Performance PBT (03) | POM Grey | B - 1 Positioner | P5503 | 30 mm | 21500 N/m | 10.5 kg/m^2 | Patented PinSphere | 3,33 ft - 1,016 m | -40÷120 °C | -40÷60 °C | Top Rubber - 50 ShA-Dark Grey |
|
| P5503031445B-SS | 1445 mm (56,89") | MX - Performance PBT (03) | Stainless steel | B - 1 Positioner | P5503 | 30 mm | 23650 N/m | 10.5 kg/m^2 | Patented PinSphere | 3,33 ft - 1,016 m | -40÷120 °C | -40÷60 °C | Top Rubber - 50 ShA-Dark Grey |
|
| P5503031445C | 1445 mm (56,89") | MX - Performance PBT (03) | POM Grey | C - 2 Positioners | P5503 | 30 mm | 21500 N/m | 10.5 kg/m^2 | Patented PinSphere | 3,33 ft - 1,016 m | -40÷120 °C | -40÷60 °C | Top Rubber - 50 ShA-Dark Grey |
|
| P5503031445C-SS | 1445 mm (56,89") | MX - Performance PBT (03) | Stainless steel | C - 2 Positioners | P5503 | 30 mm | 23650 N/m | 10.5 kg/m^2 | Patented PinSphere | 3,33 ft - 1,016 m | -40÷120 °C | -40÷60 °C | Top Rubber - 50 ShA-Dark Grey |
|
| P5503031530A | 1530 mm (60,24") | MX - Performance PBT (03) | POM Grey | A - No positioners | P5503 | 30 mm | 21500 N/m | 10.5 kg/m^2 | Patented PinSphere | 3,33 ft - 1,016 m | -40÷120 °C | -40÷60 °C | Top Rubber - 50 ShA-Dark Grey |
|
| P5503031530A-SS | 1530 mm (60,24") | MX - Performance PBT (03) | Stainless steel | A - No positioners | P5503 | 30 mm | 23650 N/m | 10.5 kg/m^2 | Patented PinSphere | 3,33 ft - 1,016 m | -40÷120 °C | -40÷60 °C | Top Rubber - 50 ShA-Dark Grey |
|
| P5503031530B | 1530 mm (60,24") | MX - Performance PBT (03) | POM Grey | B - 1 Positioner | P5503 | 30 mm | 21500 N/m | 10.5 kg/m^2 | Patented PinSphere | 3,33 ft - 1,016 m | -40÷120 °C | -40÷60 °C | Top Rubber - 50 ShA-Dark Grey |
|
| P5503031530B-SS | 1530 mm (60,24") | MX - Performance PBT (03) | Stainless steel | B - 1 Positioner | P5503 | 30 mm | 23650 N/m | 10.5 kg/m^2 | Patented PinSphere | 3,33 ft - 1,016 m | -40÷120 °C | -40÷60 °C | Top Rubber - 50 ShA-Dark Grey |
|
| P5503031530C | 1530 mm (60,24") | MX - Performance PBT (03) | POM Grey | C - 2 Positioners | P5503 | 30 mm | 21500 N/m | 10.5 kg/m^2 | Patented PinSphere | 3,33 ft - 1,016 m | -40÷120 °C | -40÷60 °C | Top Rubber - 50 ShA-Dark Grey |
|
| P5503031530C-SS | 1530 mm (60,24") | MX - Performance PBT (03) | Stainless steel | C - 2 Positioners | P5503 | 30 mm | 23650 N/m | 10.5 kg/m^2 | Patented PinSphere | 3,33 ft - 1,016 m | -40÷120 °C | -40÷60 °C | Top Rubber - 50 ShA-Dark Grey |
|
Enquiry Now
To allow us to respond to your enquiry promptly, please provide all required information.
