530 Low Back Pressure
Modular Belts
Description
Description
Movex ® 530 Low Backline Pressure Modular Belt Series is the ideal choice for accumulation applications and and to minimize the transfer areas.
Available in two different versions, the 530 LBP (3 rows of rollers) has a density of 700 rollers per square meter and the 530 PRO LBP (4 rows of rollers) has a density of 3.400 rollers per square meter, offering a more homogeneous product support.
Moreover, the 530 PRO LBP is assembled with Patented Pin Sphere ® system and is suitable for Movex Transfer plates with rollers.
Both 530 LBP and 530 PRO LBP guarantee a double possibility of using: for accumulation system, driven rollers, to double the product speed.
The two different configurations allow a great versatility with the same product.
Basic features
| Series: | 530 |
|---|---|
| Pitch: | 15 mm |
| Thickness: | 8.7 mm |
| Increments: | 3" - 76,2 mm |
| Surface Type: | LBP - Low Back Pressure |
| Functionality: | Straight |
| Unit of measure: | Meter |

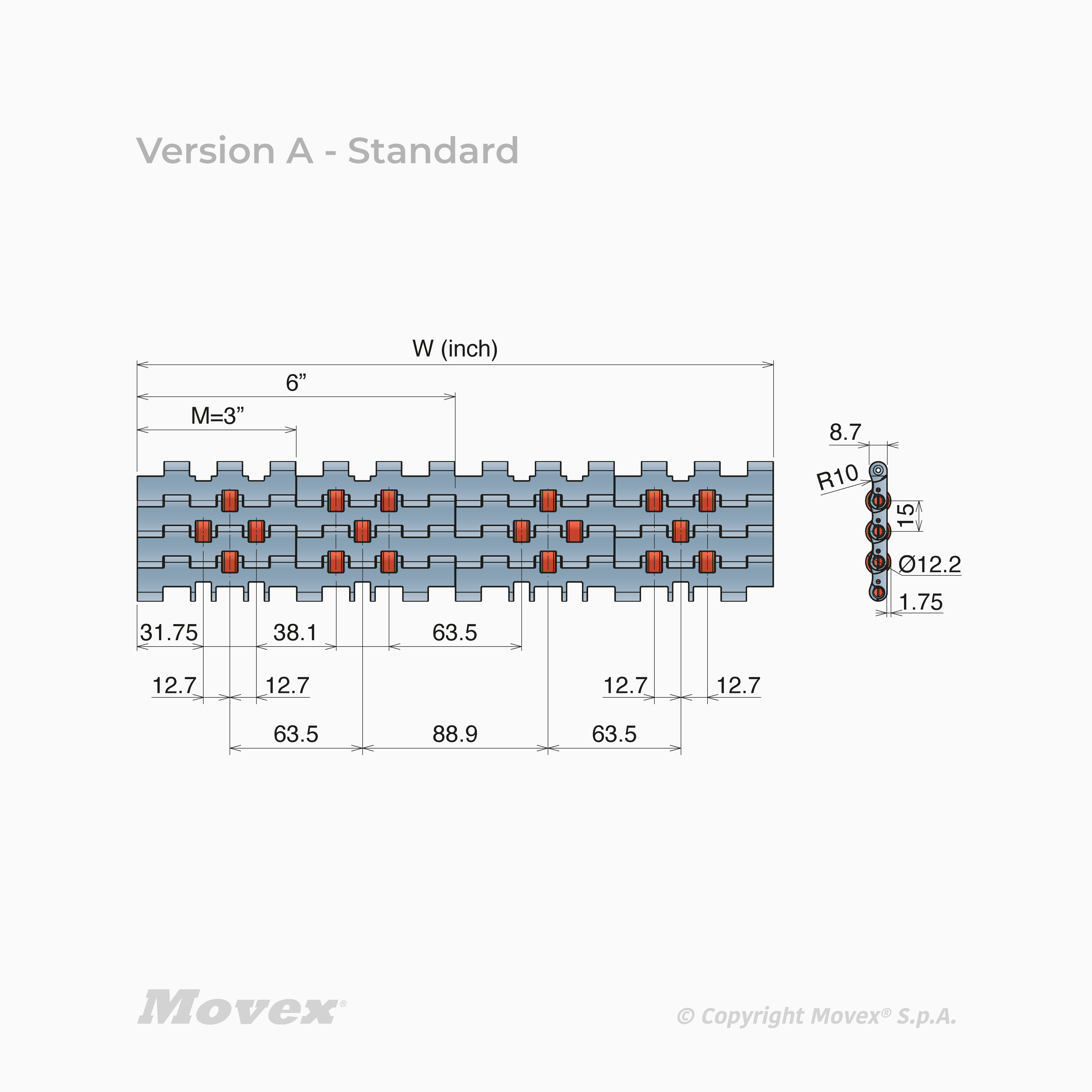

530 Low Back Pressure
| Width | Material | Version | Part | Back flex radius | Max working load | Mass | Pin material | Fixation | Box | Temperature range dry | Temperature range wet | ||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Code | Actions | ||||||||||||
| P5324010006A | 6" (152,4 mm) | LFA - Low friction acetal (01) | A - No positioners | P5324 | 25 mm | 24000 N/m | 9 kg/m^2 | PBT white | Snap-in Clip | 4,92 ft - 1,5 m | -40÷80 °C | -40÷65 °C |
|
| P5324010012A | 12" (304,8 mm) | LFA - Low friction acetal (01) | A - No positioners | P5324 | 25 mm | 24000 N/m | 9 kg/m^2 | PBT white | Snap-in Clip | 3,30 ft - 1,005 m | -40÷80 °C | -40÷65 °C |
|
| P5324010018A | 18" (457,2 mm) | LFA - Low friction acetal (01) | A - No positioners | P5324 | 25 mm | 24000 N/m | 9 kg/m^2 | PBT white | Snap-in Clip | 3,30 ft - 1,005 m | -40÷80 °C | -40÷65 °C |
|
| P5324010024A | 24" (609,6 mm) | LFA - Low friction acetal (01) | A - No positioners | P5324 | 25 mm | 24000 N/m | 9 kg/m^2 | PBT white | Snap-in Clip | 2,46 ft - 0,75 m | -40÷80 °C | -40÷65 °C |
|
| P5324010030A | 30" (762 mm) | LFA - Low friction acetal (01) | A - No positioners | P5324 | 25 mm | 24000 N/m | 9 kg/m^2 | PBT white | Snap-in Clip | 2,46 ft - 0,75 m | -40÷80 °C | -40÷65 °C |
|
| P5324010036A | 36" (914,4 mm) | LFA - Low friction acetal (01) | A - No positioners | P5324 | 25 mm | 24000 N/m | 9 kg/m^2 | PBT white | Snap-in Clip | 2,46 ft - 0,75 m | -40÷80 °C | -40÷65 °C |
|
| P5324010042A | 42" (1066,8 mm) | LFA - Low friction acetal (01) | A - No positioners | P5324 | 25 mm | 24000 N/m | 9 kg/m^2 | PBT white | Snap-in Clip | 2,46 ft - 0,75 m | -40÷80 °C | -40÷65 °C |
|
| P5324010048A | 48" (1219,2 mm) | LFA - Low friction acetal (01) | A - No positioners | P5324 | 25 mm | 24000 N/m | 9 kg/m^2 | PBT white | Snap-in Clip | 2,46 ft - 0,75 m | -40÷80 °C | -40÷65 °C |
|
| P5324010054A | 54" (1371,6 mm) | LFA - Low friction acetal (01) | A - No positioners | P5324 | 25 mm | 24000 N/m | 9 kg/m^2 | PBT white | Snap-in Clip | 2,46 ft - 0,75 m | -40÷80 °C | -40÷65 °C |
|
