525-530 machined sprocket

Belt sprockets

Enquire Now

Description

Basic features

Series:	525-530
Pitch:	15 mm
Unit of measure:	Ea

525-530 machined sprocket

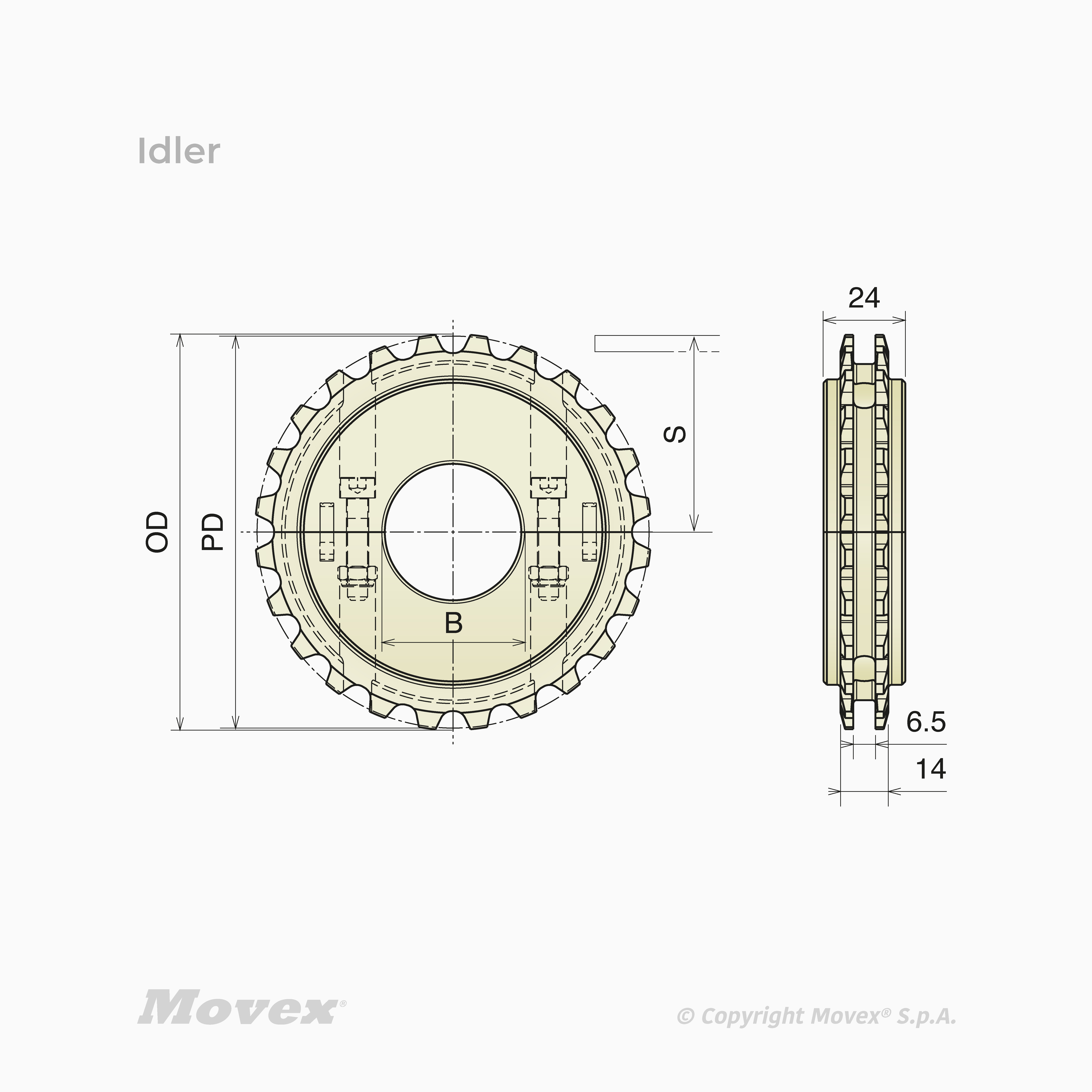

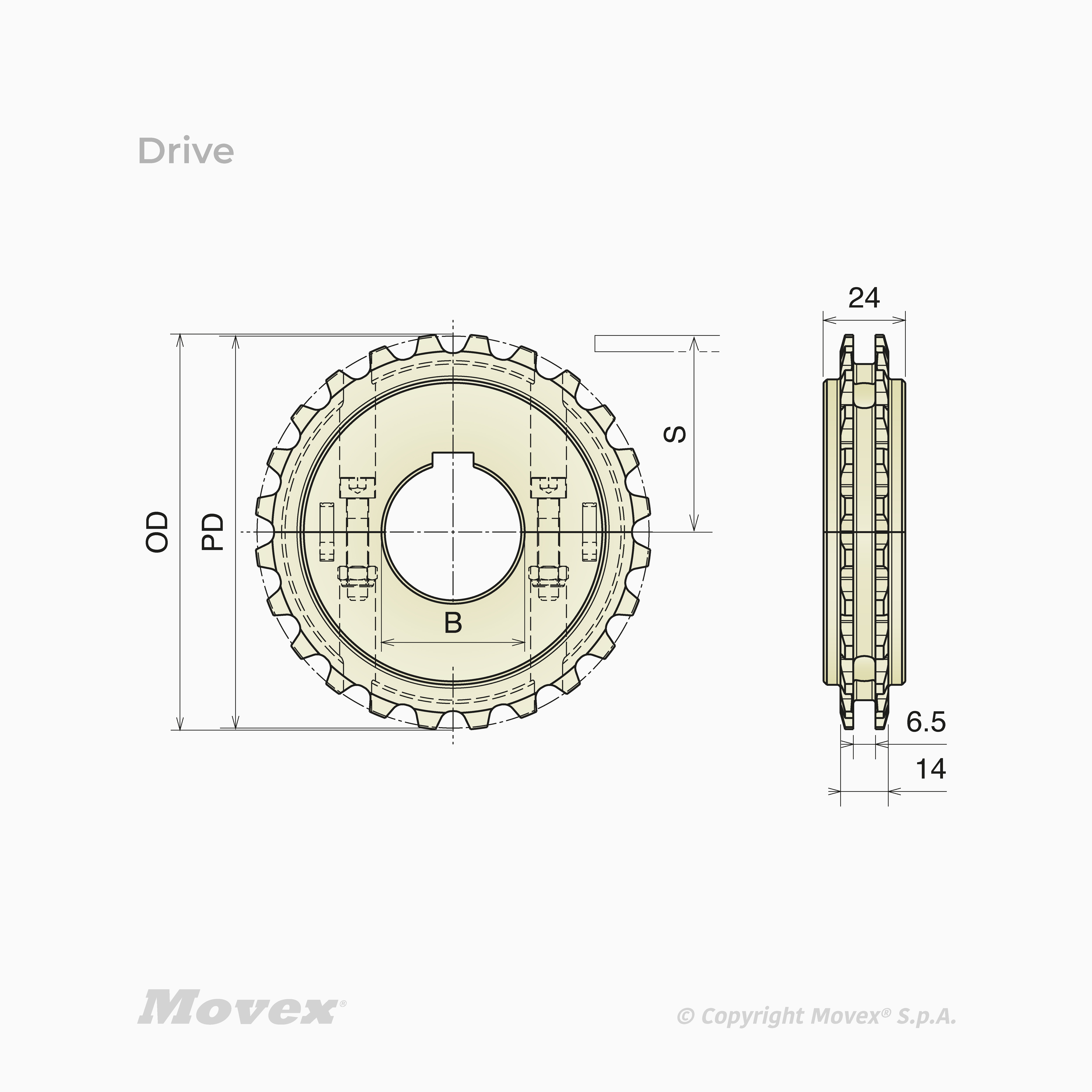

	Z-	Bore	Version	Box	Type	Execution	Pitch diameter	Outer diameter	S dimension	Material	Temperature range dry	Temperature range wet
Code													Actions
P158101E	12	○ 25 mm	Drive	4	One-piece	Machined	58.1 mm	58.2 mm	24.6 mm	PA - Polyamide composite	-40÷80 °C	-20÷120 °C
P158102E	12	○ 30 mm	Drive	4	One-piece	Machined	58.1 mm	58.2 mm	24.6 mm	PA - Polyamide composite	-40÷80 °C	-20÷120 °C
P158106E	12	☐ 25 x 25 mm	Drive	4	One-piece	Machined	58.1 mm	58.2 mm	24.6 mm	PA - Polyamide composite	-40÷80 °C	-20÷120 °C
P158150E	12	○ 18 mm	Idler	4	One-piece	Machined	58.1 mm	58.2 mm	24.6 mm	PA - Polyamide composite	-40÷80 °C	-20÷120 °C
P158151E	12	○ 25 mm	Idler	4	One-piece	Machined	58.1 mm	58.2 mm	24.6 mm	PA - Polyamide composite	-40÷80 °C	-20÷120 °C
P158201E	16	○ 25 mm	Drive	4	One-piece	Machined	77.1 mm	77.7 mm	34.2 mm	PA - Polyamide composite	-40÷80 °C	-20÷120 °C
P158202E	16	○ 30 mm	Drive	4	One-piece	Machined	77.1 mm	77.7 mm	34.2 mm	PA - Polyamide composite	-40÷80 °C	-20÷120 °C
P158206E	16	☐ 25 x 25 mm	Drive	4	One-piece	Machined	77.1 mm	77.7 mm	34.2 mm	PA - Polyamide composite	-40÷80 °C	-20÷120 °C
P158207E	16	☐ 30 x 30 mm	Drive	4	One-piece	Machined	77.1 mm	77.7 mm	34.2 mm	PA - Polyamide composite	-40÷80 °C	-20÷120 °C
P158250E	16	○ 18 mm	Idler	4	One-piece	Machined	77.1 mm	77.7 mm	34.2 mm	PA - Polyamide composite	-40÷80 °C	-20÷120 °C
P158251E	16	○ 25 mm	Idler	4	One-piece	Machined	77.1 mm	77.7 mm	34.2 mm	PA - Polyamide composite	-40÷80 °C	-20÷120 °C
P158252E	16	○ 30 mm	Idler	4	One-piece	Machined	77.1 mm	77.7 mm	34.2 mm	PA - Polyamide composite	-40÷80 °C	-20÷120 °C
P158301	24	○ 25 mm	Drive	4	Split	Machined	114.9 mm	115.5 mm	53.5 mm	PA - Polyamide composite	-40÷80 °C	-20÷120 °C
P158302	24	○ 30 mm	Drive	4	Split	Machined	114.9 mm	115.5 mm	53.5 mm	PA - Polyamide composite	-40÷80 °C	-20÷120 °C
P158303	24	○ 35 mm	Drive	4	Split	Machined	114.9 mm	115.5 mm	53.5 mm	PA - Polyamide composite	-40÷80 °C	-20÷120 °C
P158304	24	○ 40 mm	Drive	4	Split	Machined	114.9 mm	115.5 mm	53.5 mm	PA - Polyamide composite	-40÷80 °C	-20÷120 °C
P158306	24	☐ 25 x 25 mm	Drive	4	Split	Machined	114.9 mm	115.5 mm	53.5 mm	PA - Polyamide composite	-40÷80 °C	-20÷120 °C
P158307	24	☐ 30 x 30 mm	Drive	4	Split	Machined	114.9 mm	115.5 mm	53.5 mm	PA - Polyamide composite	-40÷80 °C	-20÷120 °C
P158308	24	☐ 40 x 40 mm	Drive	4	Split	Machined	114.9 mm	115.5 mm	53.5 mm	PA - Polyamide composite	-40÷80 °C	-20÷120 °C
P158350	24	○ 18 mm	Idler	4	Split	Machined	114.9 mm	115.5 mm	53.5 mm	PA - Polyamide composite	-40÷80 °C	-20÷120 °C
P158351	24	○ 25 mm	Idler	4	Split	Machined	114.9 mm	115.5 mm	53.5 mm	PA - Polyamide composite	-40÷80 °C	-20÷120 °C
P158352	24	○ 30 mm	Idler	4	Split	Machined	114.9 mm	115.5 mm	53.5 mm	PA - Polyamide composite	-40÷80 °C	-20÷120 °C
P158353	24	○ 35 mm	Idler	4	Split	Machined	114.9 mm	115.5 mm	53.5 mm	PA - Polyamide composite	-40÷80 °C	-20÷120 °C
P158354	24	○ 40 mm	Idler	4	Split	Machined	114.9 mm	115.5 mm	53.5 mm	PA - Polyamide composite	-40÷80 °C	-20÷120 °C
P158401	32	○ 25 mm	Drive	4	Split	Machined	153.4 mm	154.8 mm	72.5 mm	PA - Polyamide composite	-40÷80 °C	-20÷120 °C
P158402	32	○ 30 mm	Drive	4	Split	Machined	153.4 mm	154.8 mm	72.5 mm	PA - Polyamide composite	-40÷80 °C	-20÷120 °C
P158403	32	○ 35 mm	Drive	4	Split	Machined	153.4 mm	154.8 mm	72.5 mm	PA - Polyamide composite	-40÷80 °C	-20÷120 °C
P158404	32	○ 40 mm	Drive	4	Split	Machined	153.4 mm	154.8 mm	72.5 mm	PA - Polyamide composite	-40÷80 °C	-20÷120 °C
P158406	32	☐ 25 x 25 mm	Drive	4	Split	Machined	153.4 mm	154.8 mm	72.5 mm	PA - Polyamide composite	-40÷80 °C	-20÷120 °C
P158407	32	☐ 30 x 30 mm	Drive	4	Split	Machined	153.4 mm	154.8 mm	72.5 mm	PA - Polyamide composite	-40÷80 °C	-20÷120 °C
P158408	32	☐ 40 x 40 mm	Drive	4	Split	Machined	153.4 mm	154.8 mm	72.5 mm	PA - Polyamide composite	-40÷80 °C	-20÷120 °C
P158450	32	○ 18 mm	Idler	4	Split	Machined	153.4 mm	154.8 mm	72.5 mm	PA - Polyamide composite	-40÷80 °C	-20÷120 °C
P158451	32	○ 25 mm	Idler	4	Split	Machined	153.4 mm	154.8 mm	72.5 mm	PA - Polyamide composite	-40÷80 °C	-20÷120 °C
P158452	32	○ 30 mm	Idler	4	Split	Machined	153.4 mm	154.8 mm	72.5 mm	PA - Polyamide composite	-40÷80 °C	-20÷120 °C
P158453	32	○ 35 mm	Idler	4	Split	Machined	153.4 mm	154.8 mm	72.5 mm	PA - Polyamide composite	-40÷80 °C	-20÷120 °C
P158454	32	○ 40 mm	Idler	4	Split	Machined	153.4 mm	154.8 mm	72.5 mm	PA - Polyamide composite	-40÷80 °C	-20÷120 °C
