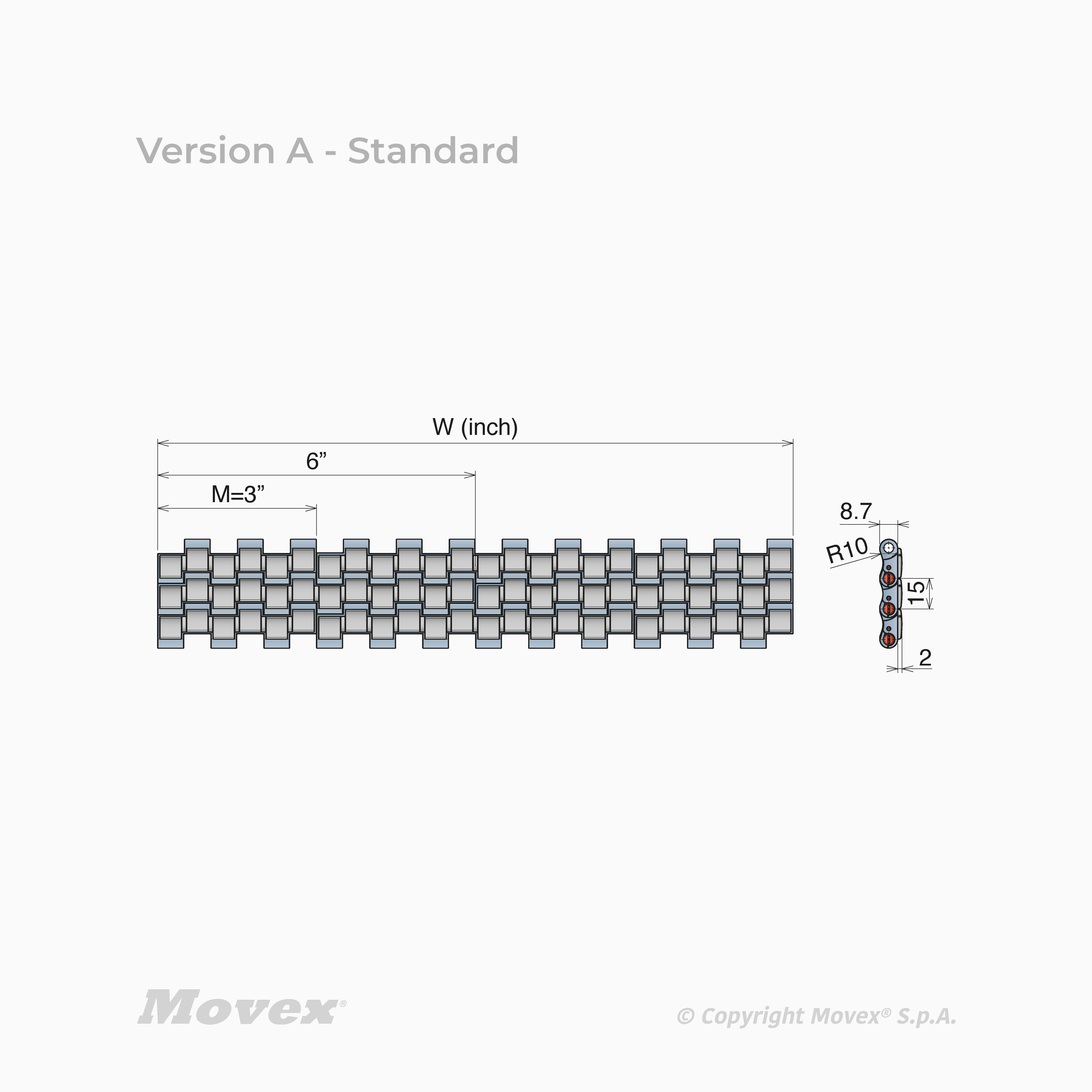

530 Grip Top
Modular Belts
Description
Description
Modular belt with over-molded high-grip rubber, for inclines, declines or acceleration applications, guaranteeing high performances and superior durability.
Basic features
| Series: | 530 |
|---|---|
| Pitch: | 15 mm |
| Thickness: | 8.7 mm |
| Increments: | 3" - 76,2 mm |
| Surface Type: | GT - Grip Top |
| Functionality: | Straight |
| Unit of measure: | Meter |
530 Grip Top
| Width | Material | Version | Part | Back flex radius | Max working load | Mass | Pin material | Fixation | Box | Temperature range dry | Temperature range wet | Supplementary informations | ||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Code | Actions | |||||||||||||
| P5323010003A | 3" (76,2 mm) | LFA - Low friction acetal (01) | A - No positioners | P5323 | 30 mm | 26000 N/m | 10.6 kg/m^2 | PBT white | Snap-in Clip | 9,84 ft - 3 m | -40÷80 °C | -40÷65 °C | Top Rubber - 50 ShA- Pigeon Blue |
|
| P5323010006A | 6" (152,4 mm) | LFA - Low friction acetal (01) | A - No positioners | P5323 | 30 mm | 26000 N/m | 10.6 kg/m^2 | PBT white | Snap-in Clip | 9,84 ft - 3 m | -40÷80 °C | -40÷65 °C | - |
|
| P5323010009A | 9" (228,6 mm) | LFA - Low friction acetal (01) | A - No positioners | P5323 | 30 mm | 26000 N/m | 10.6 kg/m^2 | PBT white | Snap-in Clip | 9,84 ft - 3 m | -40÷80 °C | -40÷65 °C | - |
|
| P5323010012A | 12" (304,8 mm) | LFA - Low friction acetal (01) | A - No positioners | P5323 | 30 mm | 26000 N/m | 10.6 kg/m^2 | PBT white | Snap-in Clip | 4,92 ft - 1,5 m | -40÷80 °C | -40÷65 °C | - |
|
| P5323010015A | 15" (381 mm) | LFA - Low friction acetal (01) | A - No positioners | P5323 | 30 mm | 26000 N/m | 10.6 kg/m^2 | PBT white | Snap-in Clip | 4,92 ft - 1,5 m | -40÷80 °C | -40÷65 °C | - |
|
| P5323010018A | 18" (457,2 mm) | LFA - Low friction acetal (01) | A - No positioners | P5323 | 30 mm | 26000 N/m | 10.6 kg/m^2 | PBT white | Snap-in Clip | 4,92 ft - 1,5 m | -40÷80 °C | -40÷65 °C | - |
|
| P5323010021A | 21" (533,4 mm) | LFA - Low friction acetal (01) | A - No positioners | P5323 | 30 mm | 26000 N/m | 10.6 kg/m^2 | PBT white | Snap-in Clip | 3,30 ft - 1,005 m | -40÷80 °C | -40÷65 °C | - |
|
| P5323010024A | 24" (609,6 mm) | LFA - Low friction acetal (01) | A - No positioners | P5323 | 30 mm | 26000 N/m | 10.6 kg/m^2 | PBT white | Snap-in Clip | 3,30 ft - 1,005 m | -40÷80 °C | -40÷65 °C | - |
|
| P5323010027A | 27" (685,8 mm) | LFA - Low friction acetal (01) | A - No positioners | P5323 | 30 mm | 26000 N/m | 10.6 kg/m^2 | PBT white | Snap-in Clip | 3,30 ft - 1,005 m | -40÷80 °C | -40÷65 °C | - |
|
| P5323010030A | 30" (762 mm) | LFA - Low friction acetal (01) | A - No positioners | P5323 | 30 mm | 26000 N/m | 10.6 kg/m^2 | PBT white | Snap-in Clip | 3,30 ft - 1,005 m | -40÷80 °C | -40÷65 °C | - |
|
| P5323010033A | 33" (838,2 mm) | LFA - Low friction acetal (01) | A - No positioners | P5323 | 30 mm | 26000 N/m | 10.6 kg/m^2 | PBT white | Snap-in Clip | 3,30 ft - 1,005 m | -40÷80 °C | -40÷65 °C | - |
|
| P5323010036A | 36" (914,4 mm) | LFA - Low friction acetal (01) | A - No positioners | P5323 | 30 mm | 26000 N/m | 10.6 kg/m^2 | PBT white | Snap-in Clip | 3,30 ft - 1,005 m | -40÷80 °C | -40÷65 °C | - |
|
| P5323010039A | 39" (990,6 mm) | LFA - Low friction acetal (01) | A - No positioners | P5323 | 30 mm | 26000 N/m | 10.6 kg/m^2 | PBT white | Snap-in Clip | 3,30 ft - 1,005 m | -40÷80 °C | -40÷65 °C | - |
|
| P5323010042A | 42" (1066,8 mm) | LFA - Low friction acetal (01) | A - No positioners | P5323 | 30 mm | 26000 N/m | 10.6 kg/m^2 | PBT white | Snap-in Clip | 3,30 ft - 1,005 m | -40÷80 °C | -40÷65 °C | Top Rubber - 50 ShA- Dark Grey |
|
| P5323010045A | 45" (1143 mm) | LFA - Low friction acetal (01) | A - No positioners | P5323 | 30 mm | 26000 N/m | 10.6 kg/m^2 | PBT white | Snap-in Clip | 3,30 ft - 1,005 m | -40÷80 °C | -40÷65 °C | Top Rubber - 50 ShA- Dark Grey |
|
| P5323010048A | 48" (1219,2 mm) | LFA - Low friction acetal (01) | A - No positioners | P5323 | 30 mm | 26000 N/m | 10.6 kg/m^2 | PBT white | Snap-in Clip | 3,30 ft - 1,005 m | -40÷80 °C | -40÷65 °C | Top Rubber - 50 ShA- Dark Grey |
|
| P5323010051A | 51" (1295,4 mm) | LFA - Low friction acetal (01) | A - No positioners | P5323 | 30 mm | 26000 N/m | 10.6 kg/m^2 | PBT white | Snap-in Clip | 3,30 ft - 1,005 m | -40÷80 °C | -40÷65 °C | Top Rubber - 50 ShA- Dark Grey |
|
| P5323010054A | 54" (1371,6 mm) | LFA - Low friction acetal (01) | A - No positioners | P5323 | 30 mm | 26000 N/m | 10.6 kg/m^2 | PBT white | Snap-in Clip | 3,30 ft - 1,005 m | -40÷80 °C | -40÷65 °C | Top Rubber - 50 ShA- Dark Grey |
|
| P5323020003A | 3" (76,2 mm) | PP - Polypropylene (02) | A - No positioners | P5323 | 30 mm | 16000 N/m | 9 kg/m^2 | PP Blue | Snap-in Clip | 9,84 ft - 3 m | 4÷80 °C | 4÷80 °C | Top Rubber - 50 ShA- Dark Grey |
|
| P5323020006A | 6" (152,4 mm) | PP - Polypropylene (02) | A - No positioners | P5323 | 30 mm | 16000 N/m | 9 kg/m^2 | PP Blue | Snap-in Clip | 9,84 ft - 3 m | 4÷80 °C | 4÷80 °C | Top Rubber - 50 ShA- Dark Grey |
|
| P5323020009A | 9" (228,6 mm) | PP - Polypropylene (02) | A - No positioners | P5323 | 30 mm | 16000 N/m | 9 kg/m^2 | PP Blue | Snap-in Clip | 9,84 ft - 3 m | 4÷80 °C | 4÷80 °C | Top Rubber - 50 ShA- Dark Grey |
|
| P5323020012A | 12" (304,8 mm) | PP - Polypropylene (02) | A - No positioners | P5323 | 30 mm | 16000 N/m | 9 kg/m^2 | PP Blue | Snap-in Clip | 4,92 ft - 1,5 m | 4÷80 °C | 4÷80 °C | Top Rubber - 50 ShA- Dark Grey |
|
| P5323020015A | 15" (381 mm) | PP - Polypropylene (02) | A - No positioners | P5323 | 30 mm | 16000 N/m | 9 kg/m^2 | PP Blue | Snap-in Clip | 4,92 ft - 1,5 m | 4÷80 °C | 4÷80 °C | Top Rubber - 50 ShA- Dark Grey |
|
| P5323020018A | 18" (457,2 mm) | PP - Polypropylene (02) | A - No positioners | P5323 | 30 mm | 16000 N/m | 9 kg/m^2 | PP Blue | Snap-in Clip | 4,92 ft - 1,5 m | 4÷80 °C | 4÷80 °C | Top Rubber - 50 ShA- Dark Grey |
|
| P5323020021A | 21" (533,4 mm) | PP - Polypropylene (02) | A - No positioners | P5323 | 30 mm | 16000 N/m | 9 kg/m^2 | PP Blue | Snap-in Clip | 3,30 ft - 1,005 m | 4÷80 °C | 4÷80 °C | Top Rubber - 50 ShA- Pigeon Blue |
|
| P5323020024A | 24" (609,6 mm) | PP - Polypropylene (02) | A - No positioners | P5323 | 30 mm | 16000 N/m | 9 kg/m^2 | PP Blue | Snap-in Clip | 3,30 ft - 1,005 m | 4÷80 °C | 4÷80 °C | Top Rubber - 50 ShA- Pigeon Blue |
|
| P5323020027A | 27" (685,8 mm) | PP - Polypropylene (02) | A - No positioners | P5323 | 30 mm | 16000 N/m | 9 kg/m^2 | PP Blue | Snap-in Clip | 3,30 ft - 1,005 m | 4÷80 °C | 4÷80 °C | Top Rubber - 50 ShA- Pigeon Blue |
|
| P5323020030A | 30" (762 mm) | PP - Polypropylene (02) | A - No positioners | P5323 | 30 mm | 16000 N/m | 9 kg/m^2 | PP Blue | Snap-in Clip | 3,30 ft - 1,005 m | 4÷80 °C | 4÷80 °C | Top Rubber - 50 ShA- Pigeon Blue |
|
| P5323020033A | 33" (838,2 mm) | PP - Polypropylene (02) | A - No positioners | P5323 | 30 mm | 16000 N/m | 9 kg/m^2 | PP Blue | Snap-in Clip | 3,30 ft - 1,005 m | 4÷80 °C | 4÷80 °C | Top Rubber - 50 ShA- Pigeon Blue |
|
| P5323020036A | 36" (914,4 mm) | PP - Polypropylene (02) | A - No positioners | P5323 | 30 mm | 16000 N/m | 9 kg/m^2 | PP Blue | Snap-in Clip | 3,30 ft - 1,005 m | 4÷80 °C | 4÷80 °C | Top Rubber - 50 ShA- Pigeon Blue |
|
| P5323020039A | 39" (990,6 mm) | PP - Polypropylene (02) | A - No positioners | P5323 | 30 mm | 16000 N/m | 9 kg/m^2 | PP Blue | Snap-in Clip | 3,30 ft - 1,005 m | 4÷80 °C | 4÷80 °C | Top Rubber - 50 ShA- Pigeon Blue |
|
| P5323020042A | 42" (1066,8 mm) | PP - Polypropylene (02) | A - No positioners | P5323 | 30 mm | 16000 N/m | 9 kg/m^2 | PP Blue | Snap-in Clip | 3,30 ft - 1,005 m | 4÷80 °C | 4÷80 °C | Top Rubber - 50 ShA- Pigeon Blue |
|
| P5323020045A | 45" (1143 mm) | PP - Polypropylene (02) | A - No positioners | P5323 | 30 mm | 16000 N/m | 9 kg/m^2 | PP Blue | Snap-in Clip | 3,30 ft - 1,005 m | 4÷80 °C | 4÷80 °C | Top Rubber - 50 ShA- Pigeon Blue |
|
| P5323020048A | 48" (1219,2 mm) | PP - Polypropylene (02) | A - No positioners | P5323 | 30 mm | 16000 N/m | 9 kg/m^2 | PP Blue | Snap-in Clip | 3,30 ft - 1,005 m | 4÷80 °C | 4÷80 °C | Top Rubber - 50 ShA- Pigeon Blue |
|
| P5323020051A | 51" (1295,4 mm) | PP - Polypropylene (02) | A - No positioners | P5323 | 30 mm | 16000 N/m | 9 kg/m^2 | PP Blue | Snap-in Clip | 3,30 ft - 1,005 m | 4÷80 °C | 4÷80 °C | Top Rubber - 50 ShA- Pigeon Blue |
|
| P5323020054A | 54" (1371,6 mm) | PP - Polypropylene (02) | A - No positioners | P5323 | 30 mm | 16000 N/m | 9 kg/m^2 | PP Blue | Snap-in Clip | 3,30 ft - 1,005 m | 4÷80 °C | 4÷80 °C | Top Rubber - 50 ShA- Pigeon Blue |
|
| P5323030003A | 3" (76,2 mm) | MX - Performance PBT (03) | A - No positioners | P5323 | 30 mm | 21000 N/m | 10.6 kg/m^2 | POM grey | Snap-in Clip | 9,84 ft - 3 m | -40÷120 °C | -40÷60 °C | Top Rubber - 50 ShA- Dark Grey |
|
| P5323030006A | 6" (152,4 mm) | MX - Performance PBT (03) | A - No positioners | P5323 | 30 mm | 21000 N/m | 10.6 kg/m^2 | POM grey | Snap-in Clip | 9,84 ft - 3 m | -40÷120 °C | -40÷60 °C | Top Rubber - 50 ShA- Dark Grey |
|
| P5323030009A | 9" (228,6 mm) | MX - Performance PBT (03) | A - No positioners | P5323 | 30 mm | 21000 N/m | 10.6 kg/m^2 | POM grey | Snap-in Clip | 9,84 ft - 3 m | -40÷120 °C | -40÷60 °C | Top Rubber - 50 ShA- Dark Grey |
|
| P5323030012A | 12" (304,8 mm) | MX - Performance PBT (03) | A - No positioners | P5323 | 30 mm | 21000 N/m | 10.6 kg/m^2 | POM grey | Snap-in Clip | 4,92 ft - 1,5 m | -40÷120 °C | -40÷60 °C | Top Rubber - 50 ShA- Dark Grey |
|
| P5323030015A | 15" (381 mm) | MX - Performance PBT (03) | A - No positioners | P5323 | 30 mm | 21000 N/m | 10.6 kg/m^2 | POM grey | Snap-in Clip | 4,92 ft - 1,5 m | -40÷120 °C | -40÷60 °C | Top Rubber - 50 ShA- Dark Grey |
|
| P5323030018A | 18" (457,2 mm) | MX - Performance PBT (03) | A - No positioners | P5323 | 30 mm | 21000 N/m | 10.6 kg/m^2 | POM grey | Snap-in Clip | 4,92 ft - 1,5 m | -40÷120 °C | -40÷60 °C | Top Rubber - 50 ShA- Dark Grey |
|
| P5323030021A | 21" (533,4 mm) | MX - Performance PBT (03) | A - No positioners | P5323 | 30 mm | 21000 N/m | 10.6 kg/m^2 | POM grey | Snap-in Clip | 3,30 ft - 1,005 m | -40÷120 °C | -40÷60 °C | Top Rubber - 50 ShA- Dark Grey |
|
| P5323030024A | 24" (609,6 mm) | MX - Performance PBT (03) | A - No positioners | P5323 | 30 mm | 21000 N/m | 10.6 kg/m^2 | POM grey | Snap-in Clip | 3,30 ft - 1,005 m | -40÷120 °C | -40÷60 °C | Top Rubber - 50 ShA- Dark Grey |
|
| P5323030027A | 27" (685,8 mm) | MX - Performance PBT (03) | A - No positioners | P5323 | 30 mm | 21000 N/m | 10.6 kg/m^2 | POM grey | Snap-in Clip | 3,30 ft - 1,005 m | -40÷120 °C | -40÷60 °C | Top Rubber - 50 ShA- Dark Grey |
|
| P5323030030A | 30" (762 mm) | MX - Performance PBT (03) | A - No positioners | P5323 | 30 mm | 21000 N/m | 10.6 kg/m^2 | POM grey | Snap-in Clip | 3,30 ft - 1,005 m | -40÷120 °C | -40÷60 °C | Top Rubber - 50 ShA- Dark Grey |
|
| P5323030033A | 33" (838,2 mm) | MX - Performance PBT (03) | A - No positioners | P5323 | 30 mm | 21000 N/m | 10.6 kg/m^2 | POM grey | Snap-in Clip | 3,30 ft - 1,005 m | -40÷120 °C | -40÷60 °C | Top Rubber - 50 ShA- Dark Grey |
|
| P5323030036A | 36" (914,4 mm) | MX - Performance PBT (03) | A - No positioners | P5323 | 30 mm | 21000 N/m | 10.6 kg/m^2 | POM grey | Snap-in Clip | 3,30 ft - 1,005 m | -40÷120 °C | -40÷60 °C | Top Rubber - 50 ShA- Dark Grey |
|
| P5323030039A | 39" (990,6 mm) | MX - Performance PBT (03) | A - No positioners | P5323 | 30 mm | 21000 N/m | 10.6 kg/m^2 | POM grey | Snap-in Clip | 3,30 ft - 1,005 m | -40÷120 °C | -40÷60 °C | Top Rubber - 50 ShA- Dark Grey |
|
| P5323030042A | 42" (1066,8 mm) | MX - Performance PBT (03) | A - No positioners | P5323 | 30 mm | 21000 N/m | 10.6 kg/m^2 | POM grey | Snap-in Clip | 3,30 ft - 1,005 m | -40÷120 °C | -40÷60 °C | Top Rubber - 50 ShA- Dark Grey |
|
| P5323030045A | 45" (1143 mm) | MX - Performance PBT (03) | A - No positioners | P5323 | 30 mm | 21000 N/m | 10.6 kg/m^2 | POM grey | Snap-in Clip | 3,30 ft - 1,005 m | -40÷120 °C | -40÷60 °C | Top Rubber - 50 ShA- Dark Grey |
|
| P5323030048A | 48" (1219,2 mm) | MX - Performance PBT (03) | A - No positioners | P5323 | 30 mm | 21000 N/m | 10.6 kg/m^2 | POM grey | Snap-in Clip | 3,30 ft - 1,005 m | -40÷120 °C | -40÷60 °C | Top Rubber - 50 ShA- Dark Grey |
|
| P5323030051A | 51" (1295,4 mm) | MX - Performance PBT (03) | A - No positioners | P5323 | 30 mm | 21000 N/m | 10.6 kg/m^2 | POM grey | Snap-in Clip | 3,30 ft - 1,005 m | -40÷120 °C | -40÷60 °C | Top Rubber - 50 ShA- Dark Grey |
|
| P5323030054A | 54" (1371,6 mm) | MX - Performance PBT (03) | A - No positioners | P5323 | 30 mm | 21000 N/m | 10.6 kg/m^2 | POM grey | Snap-in Clip | 3,30 ft - 1,005 m | -40÷120 °C | -40÷60 °C | Top Rubber - 50 ShA- Dark Grey |
|
