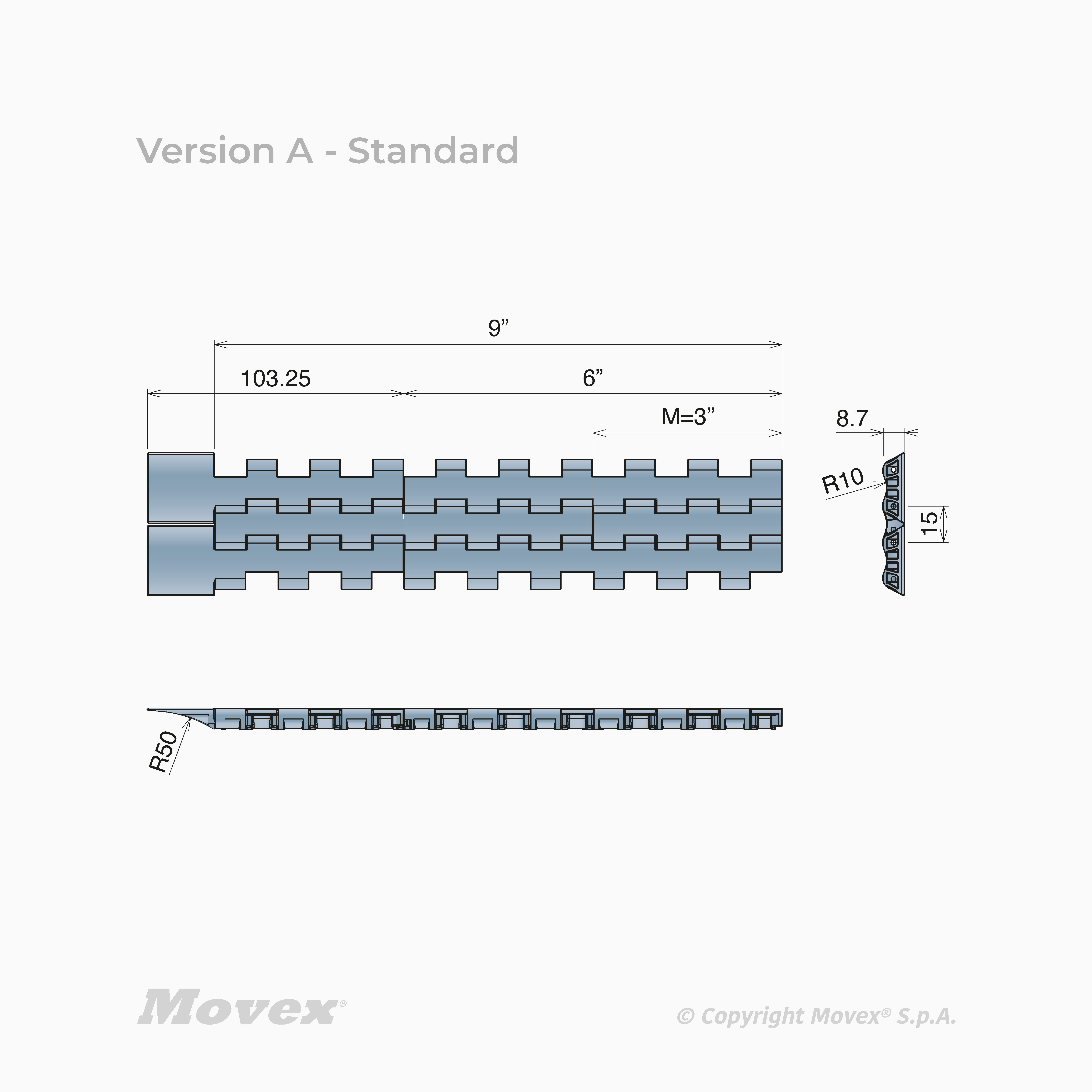

530 Flat Top Transfer

530 Flat Top Transfer

	Width	Material	Version	Part	Back flex radius	Max working load	Mass	Pin material	Fixation	Box	Temperature range dry	Temperature range wet
Code	All 3" (76,2 mm) 6" (152,4 mm) 9" (228,6 mm)	All LFA - Low friction acetal (01) MX - Performance PBT (03)	All A - No positioners	All P5326	All 25 mm	All 21000 N/m 26000 N/m	All 9 kg/m^2 9.2 kg/m^2	All PBT white POM grey	All Snap-in Clip	All 9,84 ft - 3 m	All -40÷120 °C -40÷80 °C	All -40÷60 °C -40÷65 °C	Actions
P5326010003A	3" (76,2 mm)	LFA - Low friction acetal (01)	A - No positioners	P5326	25 mm	26000 N/m	9.2 kg/m^2	PBT white	Snap-in Clip	9,84 ft - 3 m	-40÷80 °C	-40÷65 °C
P5326010006A	6" (152,4 mm)	LFA - Low friction acetal (01)	A - No positioners	P5326	25 mm	26000 N/m	9.2 kg/m^2	PBT white	Snap-in Clip	9,84 ft - 3 m	-40÷80 °C	-40÷65 °C
P5326010009A	9" (228,6 mm)	LFA - Low friction acetal (01)	A - No positioners	P5326	25 mm	26000 N/m	9.2 kg/m^2	PBT white	Snap-in Clip	9,84 ft - 3 m	-40÷80 °C	-40÷65 °C
P5326030003A	3" (76,2 mm)	MX - Performance PBT (03)	A - No positioners	P5326	25 mm	21000 N/m	9 kg/m^2	POM grey	Snap-in Clip	9,84 ft - 3 m	-40÷120 °C	-40÷60 °C
P5326030006A	6" (152,4 mm)	MX - Performance PBT (03)	A - No positioners	P5326	25 mm	21000 N/m	9 kg/m^2	POM grey	Snap-in Clip	9,84 ft - 3 m	-40÷120 °C	-40÷60 °C
P5326030009A	9" (228,6 mm)	MX - Performance PBT (03)	A - No positioners	P5326	25 mm	21000 N/m	9 kg/m^2	POM grey	Snap-in Clip	9,84 ft - 3 m	-40÷120 °C	-40÷60 °C

•
