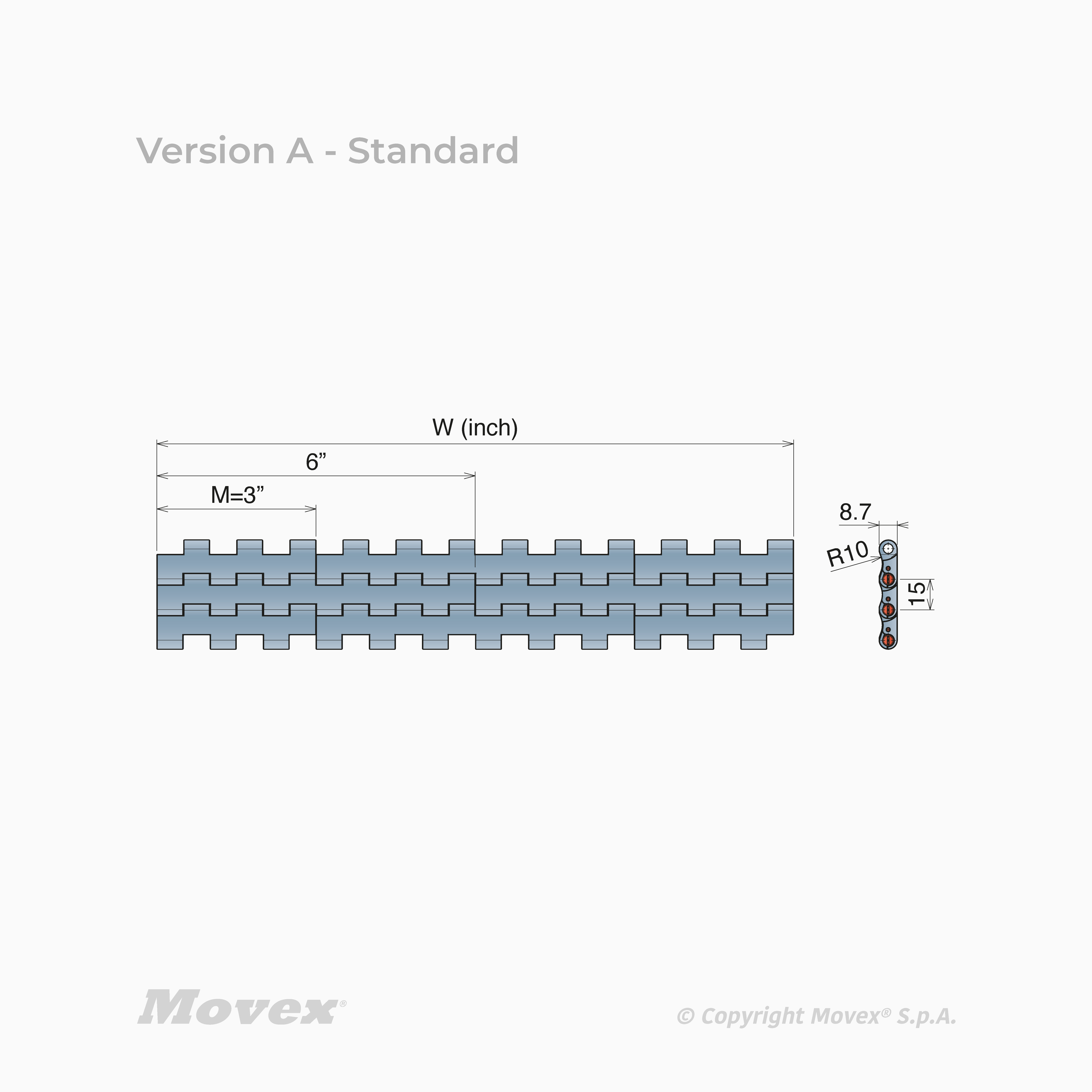

530 Flat Top

530 Flat Top

	Width	Material	Version	Part	Back flex radius	Max working load	Mass	Pin material	Fixation	Box	Temperature range dry	Temperature range wet
Code	All 12" (304,8 mm) 15" (381 mm) 18" (457,2 mm) 21" (533,4 mm) 24" (609,6 mm) 27" (685,8 mm) 3" (76,2 mm) 30" (762 mm) 33" (838,2 mm) 36" (914,4 mm) 39" (990,6 mm) 42" (1066,8 mm) 45" (1143 mm) 48" (1219,2 mm) 51" (1295,4 mm) 54" (1371,6 mm) 6" (152,4 mm) 9" (228,6 mm)	All DKM - Aramide Reinforced Acetal (16) LFA - Low friction acetal (01) MPX - Lubricated Acetal (25) MWX - Polyamide Composite (17) MX - Performance PBT (03)	All A - No positioners	All P5321	All 25 mm	All 21000 N/m 26000 N/m	All 9 kg/m^2 9.2 kg/m^2 9.5 kg/m^2	All PBT white POM grey	All Snap-in Clip	All 3,30 ft - 1,005 m 4,92 ft - 1,5 m 9,84 ft - 3 m	All -40÷104 °C -40÷120 °C -40÷80 °C	All -40÷60 °C -40÷65 °C Not suitable °C	Actions
P5321010003A	3" (76,2 mm)	LFA - Low friction acetal (01)	A - No positioners	P5321	25 mm	26000 N/m	9.2 kg/m^2	PBT white	Snap-in Clip	9,84 ft - 3 m	-40÷80 °C	-40÷65 °C
P5321010006A	6" (152,4 mm)	LFA - Low friction acetal (01)	A - No positioners	P5321	25 mm	26000 N/m	9.2 kg/m^2	PBT white	Snap-in Clip	9,84 ft - 3 m	-40÷80 °C	-40÷65 °C
P5321010009A	9" (228,6 mm)	LFA - Low friction acetal (01)	A - No positioners	P5321	25 mm	26000 N/m	9.2 kg/m^2	PBT white	Snap-in Clip	9,84 ft - 3 m	-40÷80 °C	-40÷65 °C
P5321010012A	12" (304,8 mm)	LFA - Low friction acetal (01)	A - No positioners	P5321	25 mm	26000 N/m	9.2 kg/m^2	PBT white	Snap-in Clip	4,92 ft - 1,5 m	-40÷80 °C	-40÷65 °C
P5321010015A	15" (381 mm)	LFA - Low friction acetal (01)	A - No positioners	P5321	25 mm	26000 N/m	9.2 kg/m^2	PBT white	Snap-in Clip	4,92 ft - 1,5 m	-40÷80 °C	-40÷65 °C
P5321010018A	18" (457,2 mm)	LFA - Low friction acetal (01)	A - No positioners	P5321	25 mm	26000 N/m	9.2 kg/m^2	PBT white	Snap-in Clip	4,92 ft - 1,5 m	-40÷80 °C	-40÷65 °C
P5321010021A	21" (533,4 mm)	LFA - Low friction acetal (01)	A - No positioners	P5321	25 mm	26000 N/m	9.2 kg/m^2	PBT white	Snap-in Clip	3,30 ft - 1,005 m	-40÷80 °C	-40÷65 °C
P5321010024A	24" (609,6 mm)	LFA - Low friction acetal (01)	A - No positioners	P5321	25 mm	26000 N/m	9.2 kg/m^2	PBT white	Snap-in Clip	3,30 ft - 1,005 m	-40÷80 °C	-40÷65 °C
P5321010027A	27" (685,8 mm)	LFA - Low friction acetal (01)	A - No positioners	P5321	25 mm	26000 N/m	9.2 kg/m^2	PBT white	Snap-in Clip	3,30 ft - 1,005 m	-40÷80 °C	-40÷65 °C
P5321010030A	30" (762 mm)	LFA - Low friction acetal (01)	A - No positioners	P5321	25 mm	26000 N/m	9.2 kg/m^2	PBT white	Snap-in Clip	3,30 ft - 1,005 m	-40÷80 °C	-40÷65 °C
P5321010033A	33" (838,2 mm)	LFA - Low friction acetal (01)	A - No positioners	P5321	25 mm	26000 N/m	9.2 kg/m^2	PBT white	Snap-in Clip	3,30 ft - 1,005 m	-40÷80 °C	-40÷65 °C
P5321010036A	36" (914,4 mm)	LFA - Low friction acetal (01)	A - No positioners	P5321	25 mm	26000 N/m	9.2 kg/m^2	PBT white	Snap-in Clip	3,30 ft - 1,005 m	-40÷80 °C	-40÷65 °C
P5321010039A	39" (990,6 mm)	LFA - Low friction acetal (01)	A - No positioners	P5321	25 mm	26000 N/m	9.2 kg/m^2	PBT white	Snap-in Clip	3,30 ft - 1,005 m	-40÷80 °C	-40÷65 °C
P5321010042A	42" (1066,8 mm)	LFA - Low friction acetal (01)	A - No positioners	P5321	25 mm	26000 N/m	9.2 kg/m^2	PBT white	Snap-in Clip	3,30 ft - 1,005 m	-40÷80 °C	-40÷65 °C
P5321010045A	45" (1143 mm)	LFA - Low friction acetal (01)	A - No positioners	P5321	25 mm	26000 N/m	9.2 kg/m^2	PBT white	Snap-in Clip	3,30 ft - 1,005 m	-40÷80 °C	-40÷65 °C
P5321010048A	48" (1219,2 mm)	LFA - Low friction acetal (01)	A - No positioners	P5321	25 mm	26000 N/m	9.2 kg/m^2	PBT white	Snap-in Clip	3,30 ft - 1,005 m	-40÷80 °C	-40÷65 °C
P5321010051A	51" (1295,4 mm)	LFA - Low friction acetal (01)	A - No positioners	P5321	25 mm	26000 N/m	9.2 kg/m^2	PBT white	Snap-in Clip	3,30 ft - 1,005 m	-40÷80 °C	-40÷65 °C
P5321010054A	54" (1371,6 mm)	LFA - Low friction acetal (01)	A - No positioners	P5321	25 mm	26000 N/m	9.2 kg/m^2	PBT white	Snap-in Clip	3,30 ft - 1,005 m	-40÷80 °C	-40÷65 °C
P5321030003A	3" (76,2 mm)	MX - Performance PBT (03)	A - No positioners	P5321	25 mm	21000 N/m	9 kg/m^2	POM grey	Snap-in Clip	9,84 ft - 3 m	-40÷120 °C	-40÷60 °C
P5321030006A	6" (152,4 mm)	MX - Performance PBT (03)	A - No positioners	P5321	25 mm	21000 N/m	9 kg/m^2	POM grey	Snap-in Clip	9,84 ft - 3 m	-40÷120 °C	-40÷60 °C
P5321030009A	9" (228,6 mm)	MX - Performance PBT (03)	A - No positioners	P5321	25 mm	21000 N/m	9 kg/m^2	POM grey	Snap-in Clip	9,84 ft - 3 m	-40÷120 °C	-40÷60 °C
P5321030012A	12" (304,8 mm)	MX - Performance PBT (03)	A - No positioners	P5321	25 mm	21000 N/m	9 kg/m^2	POM grey	Snap-in Clip	4,92 ft - 1,5 m	-40÷120 °C	-40÷60 °C
P5321030015A	15" (381 mm)	MX - Performance PBT (03)	A - No positioners	P5321	25 mm	21000 N/m	9 kg/m^2	POM grey	Snap-in Clip	4,92 ft - 1,5 m	-40÷120 °C	-40÷60 °C
P5321030018A	18" (457,2 mm)	MX - Performance PBT (03)	A - No positioners	P5321	25 mm	21000 N/m	9 kg/m^2	POM grey	Snap-in Clip	4,92 ft - 1,5 m	-40÷120 °C	-40÷60 °C
P5321030021A	21" (533,4 mm)	MX - Performance PBT (03)	A - No positioners	P5321	25 mm	21000 N/m	9 kg/m^2	POM grey	Snap-in Clip	3,30 ft - 1,005 m	-40÷120 °C	-40÷60 °C
P5321030024A	24" (609,6 mm)	MX - Performance PBT (03)	A - No positioners	P5321	25 mm	21000 N/m	9 kg/m^2	POM grey	Snap-in Clip	3,30 ft - 1,005 m	-40÷120 °C	-40÷60 °C
P5321030027A	27" (685,8 mm)	MX - Performance PBT (03)	A - No positioners	P5321	25 mm	21000 N/m	9 kg/m^2	POM grey	Snap-in Clip	3,30 ft - 1,005 m	-40÷120 °C	-40÷60 °C
P5321030030A	30" (762 mm)	MX - Performance PBT (03)	A - No positioners	P5321	25 mm	21000 N/m	9 kg/m^2	POM grey	Snap-in Clip	3,30 ft - 1,005 m	-40÷120 °C	-40÷60 °C
P5321030033A	33" (838,2 mm)	MX - Performance PBT (03)	A - No positioners	P5321	25 mm	21000 N/m	9 kg/m^2	POM grey	Snap-in Clip	3,30 ft - 1,005 m	-40÷120 °C	-40÷60 °C
P5321030036A	36" (914,4 mm)	MX - Performance PBT (03)	A - No positioners	P5321	25 mm	21000 N/m	9 kg/m^2	POM grey	Snap-in Clip	3,30 ft - 1,005 m	-40÷120 °C	-40÷60 °C
P5321030039A	39" (990,6 mm)	MX - Performance PBT (03)	A - No positioners	P5321	25 mm	21000 N/m	9 kg/m^2	POM grey	Snap-in Clip	3,30 ft - 1,005 m	-40÷120 °C	-40÷60 °C
P5321030042A	42" (1066,8 mm)	MX - Performance PBT (03)	A - No positioners	P5321	25 mm	21000 N/m	9 kg/m^2	POM grey	Snap-in Clip	3,30 ft - 1,005 m	-40÷120 °C	-40÷60 °C
P5321030045A	45" (1143 mm)	MX - Performance PBT (03)	A - No positioners	P5321	25 mm	21000 N/m	9 kg/m^2	POM grey	Snap-in Clip	3,30 ft - 1,005 m	-40÷120 °C	-40÷60 °C
P5321030048A	48" (1219,2 mm)	MX - Performance PBT (03)	A - No positioners	P5321	25 mm	21000 N/m	9 kg/m^2	POM grey	Snap-in Clip	3,30 ft - 1,005 m	-40÷120 °C	-40÷60 °C
P5321030051A	51" (1295,4 mm)	MX - Performance PBT (03)	A - No positioners	P5321	25 mm	21000 N/m	9 kg/m^2	POM grey	Snap-in Clip	3,30 ft - 1,005 m	-40÷120 °C	-40÷60 °C
P5321030054A	54" (1371,6 mm)	MX - Performance PBT (03)	A - No positioners	P5321	25 mm	21000 N/m	9 kg/m^2	POM grey	Snap-in Clip	3,30 ft - 1,005 m	-40÷120 °C	-40÷60 °C
P5321160003A	3" (76,2 mm)	DKM - Aramide Reinforced Acetal (16)	A - No positioners	P5321	25 mm	26000 N/m	9.2 kg/m^2	PBT white	Snap-in Clip	9,84 ft - 3 m	-40÷80 °C	-40÷65 °C
P5321160006A	6" (152,4 mm)	DKM - Aramide Reinforced Acetal (16)	A - No positioners	P5321	25 mm	26000 N/m	9.2 kg/m^2	PBT white	Snap-in Clip	9,84 ft - 3 m	-40÷80 °C	-40÷65 °C
P5321160009A	9" (228,6 mm)	DKM - Aramide Reinforced Acetal (16)	A - No positioners	P5321	25 mm	26000 N/m	9.2 kg/m^2	PBT white	Snap-in Clip	9,84 ft - 3 m	-40÷80 °C	-40÷65 °C
P5321160012A	12" (304,8 mm)	DKM - Aramide Reinforced Acetal (16)	A - No positioners	P5321	25 mm	26000 N/m	9.2 kg/m^2	PBT white	Snap-in Clip	4,92 ft - 1,5 m	-40÷80 °C	-40÷65 °C
P5321160015A	15" (381 mm)	DKM - Aramide Reinforced Acetal (16)	A - No positioners	P5321	25 mm	26000 N/m	9.2 kg/m^2	PBT white	Snap-in Clip	4,92 ft - 1,5 m	-40÷80 °C	-40÷65 °C
P5321160018A	18" (457,2 mm)	DKM - Aramide Reinforced Acetal (16)	A - No positioners	P5321	25 mm	26000 N/m	9.2 kg/m^2	PBT white	Snap-in Clip	4,92 ft - 1,5 m	-40÷80 °C	-40÷65 °C
P5321160021A	21" (533,4 mm)	DKM - Aramide Reinforced Acetal (16)	A - No positioners	P5321	25 mm	26000 N/m	9.2 kg/m^2	PBT white	Snap-in Clip	3,30 ft - 1,005 m	-40÷80 °C	-40÷65 °C
P5321160024A	24" (609,6 mm)	DKM - Aramide Reinforced Acetal (16)	A - No positioners	P5321	25 mm	26000 N/m	9.2 kg/m^2	PBT white	Snap-in Clip	3,30 ft - 1,005 m	-40÷80 °C	-40÷65 °C
P5321160027A	27" (685,8 mm)	DKM - Aramide Reinforced Acetal (16)	A - No positioners	P5321	25 mm	26000 N/m	9.2 kg/m^2	PBT white	Snap-in Clip	3,30 ft - 1,005 m	-40÷80 °C	-40÷65 °C
P5321160030A	30" (762 mm)	DKM - Aramide Reinforced Acetal (16)	A - No positioners	P5321	25 mm	26000 N/m	9.2 kg/m^2	PBT white	Snap-in Clip	3,30 ft - 1,005 m	-40÷80 °C	-40÷65 °C
P5321160033A	33" (838,2 mm)	DKM - Aramide Reinforced Acetal (16)	A - No positioners	P5321	25 mm	26000 N/m	9.2 kg/m^2	PBT white	Snap-in Clip	3,30 ft - 1,005 m	-40÷80 °C	-40÷65 °C
P5321160036A	36" (914,4 mm)	DKM - Aramide Reinforced Acetal (16)	A - No positioners	P5321	25 mm	26000 N/m	9.2 kg/m^2	PBT white	Snap-in Clip	3,30 ft - 1,005 m	-40÷80 °C	-40÷65 °C
P5321160039A	39" (990,6 mm)	DKM - Aramide Reinforced Acetal (16)	A - No positioners	P5321	25 mm	26000 N/m	9.2 kg/m^2	PBT white	Snap-in Clip	3,30 ft - 1,005 m	-40÷80 °C	-40÷65 °C
P5321160042A	42" (1066,8 mm)	DKM - Aramide Reinforced Acetal (16)	A - No positioners	P5321	25 mm	26000 N/m	9.2 kg/m^2	PBT white	Snap-in Clip	3,30 ft - 1,005 m	-40÷80 °C	-40÷65 °C
P5321160045A	45" (1143 mm)	DKM - Aramide Reinforced Acetal (16)	A - No positioners	P5321	25 mm	26000 N/m	9.2 kg/m^2	PBT white	Snap-in Clip	3,30 ft - 1,005 m	-40÷80 °C	-40÷65 °C
P5321160048A	48" (1219,2 mm)	DKM - Aramide Reinforced Acetal (16)	A - No positioners	P5321	25 mm	26000 N/m	9.2 kg/m^2	PBT white	Snap-in Clip	3,30 ft - 1,005 m	-40÷80 °C	-40÷65 °C
P5321160051A	51" (1295,4 mm)	DKM - Aramide Reinforced Acetal (16)	A - No positioners	P5321	25 mm	26000 N/m	9.2 kg/m^2	PBT white	Snap-in Clip	3,30 ft - 1,005 m	-40÷80 °C	-40÷65 °C
P5321160054A	54" (1371,6 mm)	DKM - Aramide Reinforced Acetal (16)	A - No positioners	P5321	25 mm	26000 N/m	9.2 kg/m^2	PBT white	Snap-in Clip	3,30 ft - 1,005 m	-40÷80 °C	-40÷65 °C
P5321170003A	3" (76,2 mm)	MWX - Polyamide Composite (17)	A - No positioners	P5321	25 mm	26000 N/m	9.5 kg/m^2	PBT white	Snap-in Clip	9,84 ft - 3 m	-40÷104 °C	Not suitable °C
P5321170006A	6" (152,4 mm)	MWX - Polyamide Composite (17)	A - No positioners	P5321	25 mm	26000 N/m	9.5 kg/m^2	PBT white	Snap-in Clip	9,84 ft - 3 m	-40÷104 °C	Not suitable °C
P5321170009A	9" (228,6 mm)	MWX - Polyamide Composite (17)	A - No positioners	P5321	25 mm	26000 N/m	9.5 kg/m^2	PBT white	Snap-in Clip	9,84 ft - 3 m	-40÷104 °C	Not suitable °C
P5321170012A	12" (304,8 mm)	MWX - Polyamide Composite (17)	A - No positioners	P5321	25 mm	26000 N/m	9.5 kg/m^2	PBT white	Snap-in Clip	4,92 ft - 1,5 m	-40÷104 °C	Not suitable °C
P5321170015A	15" (381 mm)	MWX - Polyamide Composite (17)	A - No positioners	P5321	25 mm	26000 N/m	9.5 kg/m^2	PBT white	Snap-in Clip	4,92 ft - 1,5 m	-40÷104 °C	Not suitable °C
P5321170018A	18" (457,2 mm)	MWX - Polyamide Composite (17)	A - No positioners	P5321	25 mm	26000 N/m	9.5 kg/m^2	PBT white	Snap-in Clip	4,92 ft - 1,5 m	-40÷104 °C	Not suitable °C
P5321170021A	21" (533,4 mm)	MWX - Polyamide Composite (17)	A - No positioners	P5321	25 mm	26000 N/m	9.5 kg/m^2	PBT white	Snap-in Clip	3,30 ft - 1,005 m	-40÷104 °C	Not suitable °C
P5321170024A	24" (609,6 mm)	MWX - Polyamide Composite (17)	A - No positioners	P5321	25 mm	26000 N/m	9.5 kg/m^2	PBT white	Snap-in Clip	3,30 ft - 1,005 m	-40÷104 °C	Not suitable °C
P5321170027A	27" (685,8 mm)	MWX - Polyamide Composite (17)	A - No positioners	P5321	25 mm	26000 N/m	9.5 kg/m^2	PBT white	Snap-in Clip	3,30 ft - 1,005 m	-40÷104 °C	Not suitable °C
P5321170030A	30" (762 mm)	MWX - Polyamide Composite (17)	A - No positioners	P5321	25 mm	26000 N/m	9.5 kg/m^2	PBT white	Snap-in Clip	3,30 ft - 1,005 m	-40÷104 °C	Not suitable °C
P5321170033A	33" (838,2 mm)	MWX - Polyamide Composite (17)	A - No positioners	P5321	25 mm	26000 N/m	9.5 kg/m^2	PBT white	Snap-in Clip	3,30 ft - 1,005 m	-40÷104 °C	Not suitable °C
P5321170036A	36" (914,4 mm)	MWX - Polyamide Composite (17)	A - No positioners	P5321	25 mm	26000 N/m	9.5 kg/m^2	PBT white	Snap-in Clip	3,30 ft - 1,005 m	-40÷104 °C	Not suitable °C
P5321170039A	39" (990,6 mm)	MWX - Polyamide Composite (17)	A - No positioners	P5321	25 mm	26000 N/m	9.5 kg/m^2	PBT white	Snap-in Clip	3,30 ft - 1,005 m	-40÷104 °C	Not suitable °C
P5321170042A	42" (1066,8 mm)	MWX - Polyamide Composite (17)	A - No positioners	P5321	25 mm	26000 N/m	9.5 kg/m^2	PBT white	Snap-in Clip	3,30 ft - 1,005 m	-40÷104 °C	Not suitable °C
P5321170045A	45" (1143 mm)	MWX - Polyamide Composite (17)	A - No positioners	P5321	25 mm	26000 N/m	9.5 kg/m^2	PBT white	Snap-in Clip	3,30 ft - 1,005 m	-40÷104 °C	Not suitable °C
P5321170048A	48" (1219,2 mm)	MWX - Polyamide Composite (17)	A - No positioners	P5321	25 mm	26000 N/m	9.5 kg/m^2	PBT white	Snap-in Clip	3,30 ft - 1,005 m	-40÷104 °C	Not suitable °C
P5321170051A	51" (1295,4 mm)	MWX - Polyamide Composite (17)	A - No positioners	P5321	25 mm	26000 N/m	9.5 kg/m^2	PBT white	Snap-in Clip	3,30 ft - 1,005 m	-40÷104 °C	Not suitable °C
P5321170054A	54" (1371,6 mm)	MWX - Polyamide Composite (17)	A - No positioners	P5321	25 mm	26000 N/m	9.5 kg/m^2	PBT white	Snap-in Clip	3,30 ft - 1,005 m	-40÷104 °C	Not suitable °C
P5321250003A	3" (76,2 mm)	MPX - Lubricated Acetal (25)	A - No positioners	P5321	25 mm	26000 N/m	9.2 kg/m^2	PBT white	Snap-in Clip	9,84 ft - 3 m	-40÷80 °C	-40÷65 °C
P5321250006A	6" (152,4 mm)	MPX - Lubricated Acetal (25)	A - No positioners	P5321	25 mm	26000 N/m	9.2 kg/m^2	PBT white	Snap-in Clip	9,84 ft - 3 m	-40÷80 °C	-40÷65 °C
P5321250009A	9" (228,6 mm)	MPX - Lubricated Acetal (25)	A - No positioners	P5321	25 mm	26000 N/m	9.2 kg/m^2	PBT white	Snap-in Clip	9,84 ft - 3 m	-40÷80 °C	-40÷65 °C
P5321250012A	12" (304,8 mm)	MPX - Lubricated Acetal (25)	A - No positioners	P5321	25 mm	26000 N/m	9.2 kg/m^2	PBT white	Snap-in Clip	4,92 ft - 1,5 m	-40÷80 °C	-40÷65 °C
P5321250015A	15" (381 mm)	MPX - Lubricated Acetal (25)	A - No positioners	P5321	25 mm	26000 N/m	9.2 kg/m^2	PBT white	Snap-in Clip	4,92 ft - 1,5 m	-40÷80 °C	-40÷65 °C
P5321250018A	18" (457,2 mm)	MPX - Lubricated Acetal (25)	A - No positioners	P5321	25 mm	26000 N/m	9.2 kg/m^2	PBT white	Snap-in Clip	4,92 ft - 1,5 m	-40÷80 °C	-40÷65 °C
P5321250021A	21" (533,4 mm)	MPX - Lubricated Acetal (25)	A - No positioners	P5321	25 mm	26000 N/m	9.2 kg/m^2	PBT white	Snap-in Clip	3,30 ft - 1,005 m	-40÷80 °C	-40÷65 °C
P5321250024A	24" (609,6 mm)	MPX - Lubricated Acetal (25)	A - No positioners	P5321	25 mm	26000 N/m	9.2 kg/m^2	PBT white	Snap-in Clip	3,30 ft - 1,005 m	-40÷80 °C	-40÷65 °C
P5321250027A	27" (685,8 mm)	MPX - Lubricated Acetal (25)	A - No positioners	P5321	25 mm	26000 N/m	9.2 kg/m^2	PBT white	Snap-in Clip	3,30 ft - 1,005 m	-40÷80 °C	-40÷65 °C
P5321250030A	30" (762 mm)	MPX - Lubricated Acetal (25)	A - No positioners	P5321	25 mm	26000 N/m	9.2 kg/m^2	PBT white	Snap-in Clip	3,30 ft - 1,005 m	-40÷80 °C	-40÷65 °C
P5321250033A	33" (838,2 mm)	MPX - Lubricated Acetal (25)	A - No positioners	P5321	25 mm	26000 N/m	9.2 kg/m^2	PBT white	Snap-in Clip	3,30 ft - 1,005 m	-40÷80 °C	-40÷65 °C
P5321250036A	36" (914,4 mm)	MPX - Lubricated Acetal (25)	A - No positioners	P5321	25 mm	26000 N/m	9.2 kg/m^2	PBT white	Snap-in Clip	3,30 ft - 1,005 m	-40÷80 °C	-40÷65 °C
P5321250039A	39" (990,6 mm)	MPX - Lubricated Acetal (25)	A - No positioners	P5321	25 mm	26000 N/m	9.2 kg/m^2	PBT white	Snap-in Clip	3,30 ft - 1,005 m	-40÷80 °C	-40÷65 °C
P5321250042A	42" (1066,8 mm)	MPX - Lubricated Acetal (25)	A - No positioners	P5321	25 mm	26000 N/m	9.2 kg/m^2	PBT white	Snap-in Clip	3,30 ft - 1,005 m	-40÷80 °C	-40÷65 °C
P5321250045A	45" (1143 mm)	MPX - Lubricated Acetal (25)	A - No positioners	P5321	25 mm	26000 N/m	9.2 kg/m^2	PBT white	Snap-in Clip	3,30 ft - 1,005 m	-40÷80 °C	-40÷65 °C
P5321250048A	48" (1219,2 mm)	MPX - Lubricated Acetal (25)	A - No positioners	P5321	25 mm	26000 N/m	9.2 kg/m^2	PBT white	Snap-in Clip	3,30 ft - 1,005 m	-40÷80 °C	-40÷65 °C
P5321250051A	51" (1295,4 mm)	MPX - Lubricated Acetal (25)	A - No positioners	P5321	25 mm	26000 N/m	9.2 kg/m^2	PBT white	Snap-in Clip	3,30 ft - 1,005 m	-40÷80 °C	-40÷65 °C
P5321250054A	54" (1371,6 mm)	MPX - Lubricated Acetal (25)	A - No positioners	P5321	25 mm	26000 N/m	9.2 kg/m^2	PBT white	Snap-in Clip	3,30 ft - 1,005 m	-40÷80 °C	-40÷65 °C

•
