525 Heavy duty Grip Top Side Indent

525 Heavy duty Grip Top Side Indent

	Width	Material	Version	Part	Back flex radius	Max working load	Mass	Pin material	Fixation	Box	Temperature range dry	Temperature range wet	Supplementary informations
Code	All 1020 mm (40,16") 1105 mm (43,50") 1190 mm (46,85") 1275 mm (50,20") 1360 mm (53,54") 1445 mm (56,89") 1530 mm (60,24") 255 mm (10,04") 340 mm (13,39") 425 mm (16,73") 510 mm (20,08") 595 mm (23,43") 680 mm (26,77") 765 mm (30,12") 850 mm (33,46") 935 mm (36,81")	All LFA - Low friction acetal (01) MX - Performance PBT (03) PP - Polypropylene (02)	All A - No positioners B - 1 Positioner C - 2 Positioners	All P5265	All 25 mm	All 15500 N/m 20500 N/m 25500 N/m	All 10.35 kg/m^2 8.7 kg/m^2	All PBT white POM grey PP Blue	All Snap-in Clip	All 3,30 ft - 1,005 m 4,92 ft - 1,5 m 9,84 ft - 3 m	All -40÷120 °C -40÷80 °C 4÷80 °C	All -40÷60 °C -40÷65 °C 4÷80 °C	All - Top Rubber - 50 ShA- Dark Grey Top Rubber - 50 ShA- Drak Grey Top Rubber - 50 ShA- Pigeon Blue	Actions

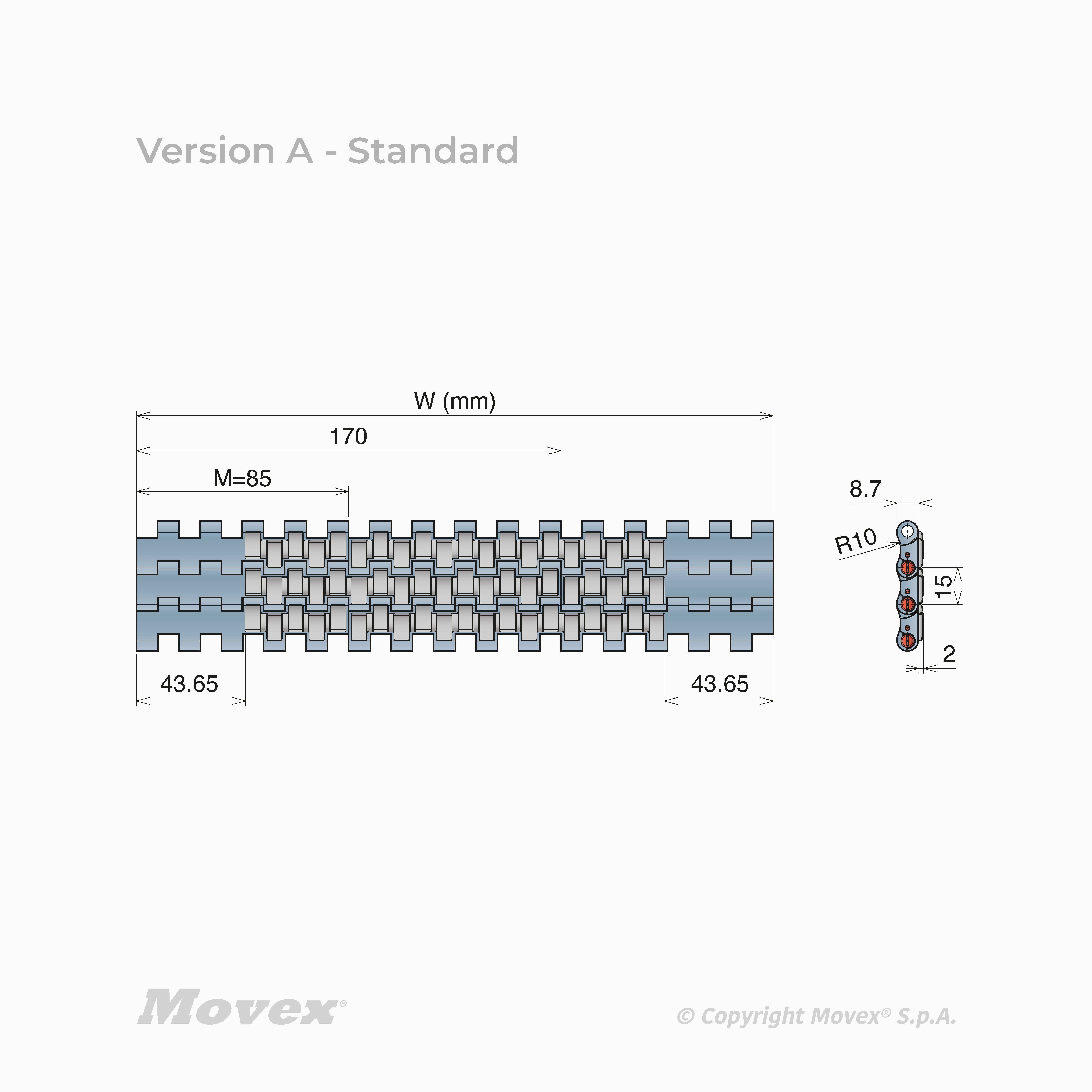

P5265010255A	255 mm (10,04")	LFA - Low friction acetal (01)	A - No positioners	P5265	25 mm	25500 N/m	10.35 kg/m^2	PBT white	Snap-in Clip	9,84 ft - 3 m	-40÷80 °C	-40÷65 °C	Top Rubber - 50 ShA- Pigeon Blue

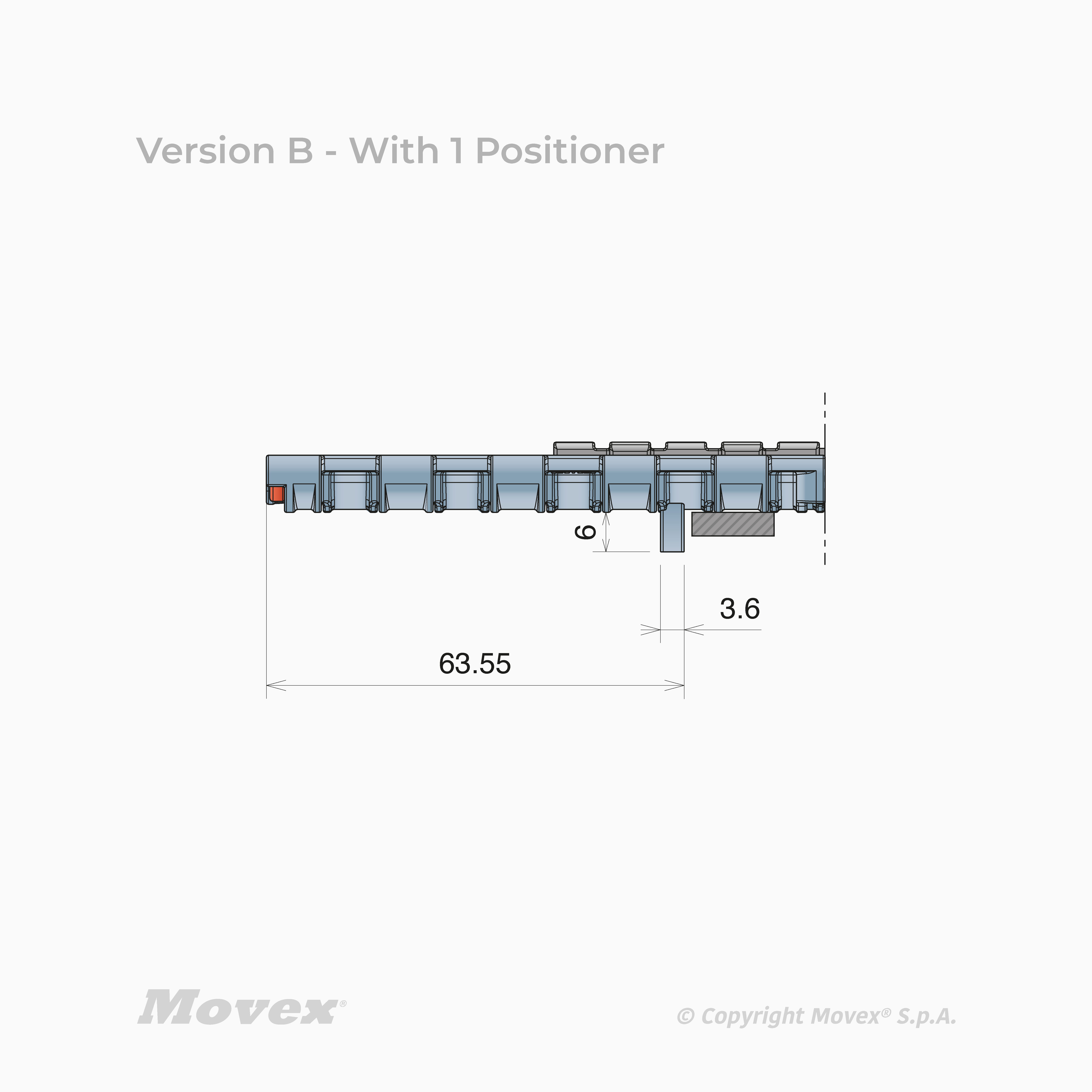

P5265010255B	255 mm (10,04")	LFA - Low friction acetal (01)	B - 1 Positioner	P5265	25 mm	25500 N/m	10.35 kg/m^2	PBT white	Snap-in Clip	9,84 ft - 3 m	-40÷80 °C	-40÷65 °C	Top Rubber - 50 ShA- Drak Grey

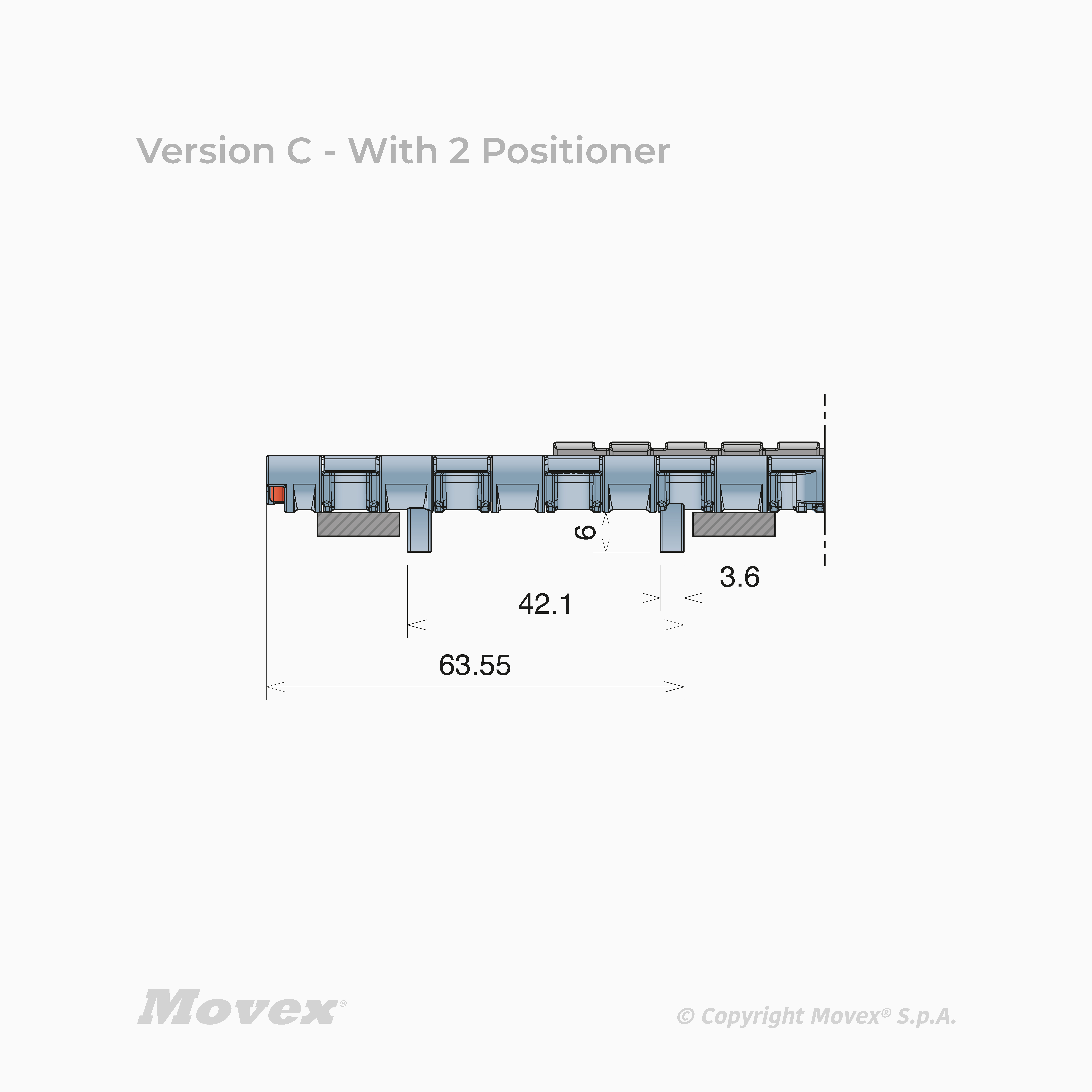

P5265010255C	255 mm (10,04")	LFA - Low friction acetal (01)	C - 2 Positioners	P5265	25 mm	25500 N/m	10.35 kg/m^2	PBT white	Snap-in Clip	9,84 ft - 3 m	-40÷80 °C	-40÷65 °C	Top Rubber - 50 ShA- Drak Grey
P5265010340A	340 mm (13,39")	LFA - Low friction acetal (01)	A - No positioners	P5265	25 mm	25500 N/m	10.35 kg/m^2	PBT white	Snap-in Clip	4,92 ft - 1,5 m	-40÷80 °C	-40÷65 °C	-
P5265010340B	340 mm (13,39")	LFA - Low friction acetal (01)	B - 1 Positioner	P5265	25 mm	25500 N/m	10.35 kg/m^2	PBT white	Snap-in Clip	4,92 ft - 1,5 m	-40÷80 °C	-40÷65 °C	Top Rubber - 50 ShA- Drak Grey
P5265010340C	340 mm (13,39")	LFA - Low friction acetal (01)	C - 2 Positioners	P5265	25 mm	25500 N/m	10.35 kg/m^2	PBT white	Snap-in Clip	4,92 ft - 1,5 m	-40÷80 °C	-40÷65 °C	Top Rubber - 50 ShA- Drak Grey
P5265010425A	425 mm (16,73")	LFA - Low friction acetal (01)	A - No positioners	P5265	25 mm	25500 N/m	10.35 kg/m^2	PBT white	Snap-in Clip	4,92 ft - 1,5 m	-40÷80 °C	-40÷65 °C	-
P5265010425B	425 mm (16,73")	LFA - Low friction acetal (01)	B - 1 Positioner	P5265	25 mm	25500 N/m	10.35 kg/m^2	PBT white	Snap-in Clip	4,92 ft - 1,5 m	-40÷80 °C	-40÷65 °C	Top Rubber - 50 ShA- Drak Grey
P5265010425C	425 mm (16,73")	LFA - Low friction acetal (01)	C - 2 Positioners	P5265	25 mm	25500 N/m	10.35 kg/m^2	PBT white	Snap-in Clip	4,92 ft - 1,5 m	-40÷80 °C	-40÷65 °C	Top Rubber - 50 ShA- Drak Grey
P5265010510A	510 mm (20,08")	LFA - Low friction acetal (01)	A - No positioners	P5265	25 mm	25500 N/m	10.35 kg/m^2	PBT white	Snap-in Clip	4,92 ft - 1,5 m	-40÷80 °C	-40÷65 °C	-
P5265010510B	510 mm (20,08")	LFA - Low friction acetal (01)	B - 1 Positioner	P5265	25 mm	25500 N/m	10.35 kg/m^2	PBT white	Snap-in Clip	4,92 ft - 1,5 m	-40÷80 °C	-40÷65 °C	Top Rubber - 50 ShA- Drak Grey
P5265010510C	510 mm (20,08")	LFA - Low friction acetal (01)	C - 2 Positioners	P5265	25 mm	25500 N/m	10.35 kg/m^2	PBT white	Snap-in Clip	4,92 ft - 1,5 m	-40÷80 °C	-40÷65 °C	Top Rubber - 50 ShA- Drak Grey
P5265010595A	595 mm (23,43")	LFA - Low friction acetal (01)	A - No positioners	P5265	25 mm	25500 N/m	10.35 kg/m^2	PBT white	Snap-in Clip	3,30 ft - 1,005 m	-40÷80 °C	-40÷65 °C	-
P5265010595B	595 mm (23,43")	LFA - Low friction acetal (01)	B - 1 Positioner	P5265	25 mm	25500 N/m	10.35 kg/m^2	PBT white	Snap-in Clip	3,30 ft - 1,005 m	-40÷80 °C	-40÷65 °C	Top Rubber - 50 ShA- Drak Grey
P5265010595C	595 mm (23,43")	LFA - Low friction acetal (01)	C - 2 Positioners	P5265	25 mm	25500 N/m	10.35 kg/m^2	PBT white	Snap-in Clip	3,30 ft - 1,005 m	-40÷80 °C	-40÷65 °C	Top Rubber - 50 ShA- Drak Grey
P5265010680A	680 mm (26,77")	LFA - Low friction acetal (01)	A - No positioners	P5265	25 mm	25500 N/m	10.35 kg/m^2	PBT white	Snap-in Clip	3,30 ft - 1,005 m	-40÷80 °C	-40÷65 °C	-
P5265010680B	680 mm (26,77")	LFA - Low friction acetal (01)	B - 1 Positioner	P5265	25 mm	25500 N/m	10.35 kg/m^2	PBT white	Snap-in Clip	3,30 ft - 1,005 m	-40÷80 °C	-40÷65 °C	Top Rubber - 50 ShA- Drak Grey
P5265010680C	680 mm (26,77")	LFA - Low friction acetal (01)	C - 2 Positioners	P5265	25 mm	25500 N/m	10.35 kg/m^2	PBT white	Snap-in Clip	3,30 ft - 1,005 m	-40÷80 °C	-40÷65 °C	Top Rubber - 50 ShA- Drak Grey
P5265010765A	765 mm (30,12")	LFA - Low friction acetal (01)	A - No positioners	P5265	25 mm	25500 N/m	10.35 kg/m^2	PBT white	Snap-in Clip	3,30 ft - 1,005 m	-40÷80 °C	-40÷65 °C	-
P5265010765B	765 mm (30,12")	LFA - Low friction acetal (01)	B - 1 Positioner	P5265	25 mm	25500 N/m	10.35 kg/m^2	PBT white	Snap-in Clip	3,30 ft - 1,005 m	-40÷80 °C	-40÷65 °C	Top Rubber - 50 ShA- Drak Grey
P5265010765C	765 mm (30,12")	LFA - Low friction acetal (01)	C - 2 Positioners	P5265	25 mm	25500 N/m	10.35 kg/m^2	PBT white	Snap-in Clip	3,30 ft - 1,005 m	-40÷80 °C	-40÷65 °C	Top Rubber - 50 ShA- Drak Grey
P5265010850A	850 mm (33,46")	LFA - Low friction acetal (01)	A - No positioners	P5265	25 mm	25500 N/m	10.35 kg/m^2	PBT white	Snap-in Clip	3,30 ft - 1,005 m	-40÷80 °C	-40÷65 °C	-
P5265010850B	850 mm (33,46")	LFA - Low friction acetal (01)	B - 1 Positioner	P5265	25 mm	25500 N/m	10.35 kg/m^2	PBT white	Snap-in Clip	3,30 ft - 1,005 m	-40÷80 °C	-40÷65 °C	Top Rubber - 50 ShA- Drak Grey
P5265010850C	850 mm (33,46")	LFA - Low friction acetal (01)	C - 2 Positioners	P5265	25 mm	25500 N/m	10.35 kg/m^2	PBT white	Snap-in Clip	3,30 ft - 1,005 m	-40÷80 °C	-40÷65 °C	Top Rubber - 50 ShA- Drak Grey
P5265010935A	935 mm (36,81")	LFA - Low friction acetal (01)	A - No positioners	P5265	25 mm	25500 N/m	10.35 kg/m^2	PBT white	Snap-in Clip	3,30 ft - 1,005 m	-40÷80 °C	-40÷65 °C	-
P5265010935B	935 mm (36,81")	LFA - Low friction acetal (01)	B - 1 Positioner	P5265	25 mm	25500 N/m	10.35 kg/m^2	PBT white	Snap-in Clip	3,30 ft - 1,005 m	-40÷80 °C	-40÷65 °C	Top Rubber - 50 ShA- Drak Grey
P5265010935C	935 mm (36,81")	LFA - Low friction acetal (01)	C - 2 Positioners	P5265	25 mm	25500 N/m	10.35 kg/m^2	PBT white	Snap-in Clip	3,30 ft - 1,005 m	-40÷80 °C	-40÷65 °C	Top Rubber - 50 ShA- Drak Grey
P5265011020A	1020 mm (40,16")	LFA - Low friction acetal (01)	A - No positioners	P5265	25 mm	25500 N/m	10.35 kg/m^2	PBT white	Snap-in Clip	3,30 ft - 1,005 m	-40÷80 °C	-40÷65 °C	-
P5265011020B	1020 mm (40,16")	LFA - Low friction acetal (01)	B - 1 Positioner	P5265	25 mm	25500 N/m	10.35 kg/m^2	PBT white	Snap-in Clip	3,30 ft - 1,005 m	-40÷80 °C	-40÷65 °C	Top Rubber - 50 ShA- Drak Grey
P5265011020C	1020 mm (40,16")	LFA - Low friction acetal (01)	C - 2 Positioners	P5265	25 mm	25500 N/m	10.35 kg/m^2	PBT white	Snap-in Clip	3,30 ft - 1,005 m	-40÷80 °C	-40÷65 °C	Top Rubber - 50 ShA- Drak Grey
P5265011105A	1105 mm (43,50")	LFA - Low friction acetal (01)	A - No positioners	P5265	25 mm	25500 N/m	10.35 kg/m^2	PBT white	Snap-in Clip	3,30 ft - 1,005 m	-40÷80 °C	-40÷65 °C	-
P5265011105B	1105 mm (43,50")	LFA - Low friction acetal (01)	B - 1 Positioner	P5265	25 mm	25500 N/m	10.35 kg/m^2	PBT white	Snap-in Clip	3,30 ft - 1,005 m	-40÷80 °C	-40÷65 °C	Top Rubber - 50 ShA- Drak Grey
P5265011105C	1105 mm (43,50")	LFA - Low friction acetal (01)	C - 2 Positioners	P5265	25 mm	25500 N/m	10.35 kg/m^2	PBT white	Snap-in Clip	3,30 ft - 1,005 m	-40÷80 °C	-40÷65 °C	Top Rubber - 50 ShA- Drak Grey
P5265011190A	1190 mm (46,85")	LFA - Low friction acetal (01)	A - No positioners	P5265	25 mm	25500 N/m	10.35 kg/m^2	PBT white	Snap-in Clip	3,30 ft - 1,005 m	-40÷80 °C	-40÷65 °C	Top Rubber - 50 ShA- Drak Grey
P5265011190B	1190 mm (46,85")	LFA - Low friction acetal (01)	B - 1 Positioner	P5265	25 mm	25500 N/m	10.35 kg/m^2	PBT white	Snap-in Clip	3,30 ft - 1,005 m	-40÷80 °C	-40÷65 °C	Top Rubber - 50 ShA- Drak Grey
P5265011190C	1190 mm (46,85")	LFA - Low friction acetal (01)	C - 2 Positioners	P5265	25 mm	25500 N/m	10.35 kg/m^2	PBT white	Snap-in Clip	3,30 ft - 1,005 m	-40÷80 °C	-40÷65 °C	Top Rubber - 50 ShA- Drak Grey
P5265011275A	1275 mm (50,20")	LFA - Low friction acetal (01)	A - No positioners	P5265	25 mm	25500 N/m	10.35 kg/m^2	PBT white	Snap-in Clip	3,30 ft - 1,005 m	-40÷80 °C	-40÷65 °C	Top Rubber - 50 ShA- Drak Grey
P5265011275B	1275 mm (50,20")	LFA - Low friction acetal (01)	B - 1 Positioner	P5265	25 mm	25500 N/m	10.35 kg/m^2	PBT white	Snap-in Clip	3,30 ft - 1,005 m	-40÷80 °C	-40÷65 °C	Top Rubber - 50 ShA- Drak Grey
P5265011275C	1275 mm (50,20")	LFA - Low friction acetal (01)	C - 2 Positioners	P5265	25 mm	25500 N/m	10.35 kg/m^2	PBT white	Snap-in Clip	3,30 ft - 1,005 m	-40÷80 °C	-40÷65 °C	Top Rubber - 50 ShA- Drak Grey
P5265011360A	1360 mm (53,54")	LFA - Low friction acetal (01)	A - No positioners	P5265	25 mm	25500 N/m	10.35 kg/m^2	PBT white	Snap-in Clip	3,30 ft - 1,005 m	-40÷80 °C	-40÷65 °C	Top Rubber - 50 ShA- Drak Grey
P5265011360B	1360 mm (53,54")	LFA - Low friction acetal (01)	B - 1 Positioner	P5265	25 mm	25500 N/m	10.35 kg/m^2	PBT white	Snap-in Clip	3,30 ft - 1,005 m	-40÷80 °C	-40÷65 °C	Top Rubber - 50 ShA- Drak Grey
P5265011360C	1360 mm (53,54")	LFA - Low friction acetal (01)	C - 2 Positioners	P5265	25 mm	25500 N/m	10.35 kg/m^2	PBT white	Snap-in Clip	3,30 ft - 1,005 m	-40÷80 °C	-40÷65 °C	Top Rubber - 50 ShA- Drak Grey
P5265011445A	1445 mm (56,89")	LFA - Low friction acetal (01)	A - No positioners	P5265	25 mm	25500 N/m	10.35 kg/m^2	PBT white	Snap-in Clip	3,30 ft - 1,005 m	-40÷80 °C	-40÷65 °C	Top Rubber - 50 ShA- Drak Grey
P5265011445B	1445 mm (56,89")	LFA - Low friction acetal (01)	B - 1 Positioner	P5265	25 mm	25500 N/m	10.35 kg/m^2	PBT white	Snap-in Clip	3,30 ft - 1,005 m	-40÷80 °C	-40÷65 °C	Top Rubber - 50 ShA- Drak Grey
P5265011445C	1445 mm (56,89")	LFA - Low friction acetal (01)	C - 2 Positioners	P5265	25 mm	25500 N/m	10.35 kg/m^2	PBT white	Snap-in Clip	3,30 ft - 1,005 m	-40÷80 °C	-40÷65 °C	Top Rubber - 50 ShA- Drak Grey
P5265011530A	1530 mm (60,24")	LFA - Low friction acetal (01)	A - No positioners	P5265	25 mm	25500 N/m	10.35 kg/m^2	PBT white	Snap-in Clip	3,30 ft - 1,005 m	-40÷80 °C	-40÷65 °C	Top Rubber - 50 ShA- Drak Grey
P5265011530B	1530 mm (60,24")	LFA - Low friction acetal (01)	B - 1 Positioner	P5265	25 mm	25500 N/m	10.35 kg/m^2	PBT white	Snap-in Clip	3,30 ft - 1,005 m	-40÷80 °C	-40÷65 °C	Top Rubber - 50 ShA- Drak Grey
P5265011530C	1530 mm (60,24")	LFA - Low friction acetal (01)	C - 2 Positioners	P5265	25 mm	25500 N/m	10.35 kg/m^2	PBT white	Snap-in Clip	3,30 ft - 1,005 m	-40÷80 °C	-40÷65 °C	Top Rubber - 50 ShA- Drak Grey
P5265020255A	255 mm (10,04")	PP - Polypropylene (02)	A - No positioners	P5265	25 mm	15500 N/m	8.7 kg/m^2	PP Blue	Snap-in Clip	9,84 ft - 3 m	4÷80 °C	4÷80 °C	Top Rubber - 50 ShA- Dark Grey
P5265020255B	255 mm (10,04")	PP - Polypropylene (02)	B - 1 Positioner	P5265	25 mm	15500 N/m	8.7 kg/m^2	PP Blue	Snap-in Clip	9,84 ft - 3 m	4÷80 °C	4÷80 °C	Top Rubber - 50 ShA- Pigeon Blue
P5265020255C	255 mm (10,04")	PP - Polypropylene (02)	C - 2 Positioners	P5265	25 mm	15500 N/m	8.7 kg/m^2	PP Blue	Snap-in Clip	9,84 ft - 3 m	4÷80 °C	4÷80 °C	Top Rubber - 50 ShA- Pigeon Blue
P5265020340A	340 mm (13,39")	PP - Polypropylene (02)	A - No positioners	P5265	25 mm	15500 N/m	8.7 kg/m^2	PP Blue	Snap-in Clip	4,92 ft - 1,5 m	4÷80 °C	4÷80 °C	Top Rubber - 50 ShA- Dark Grey
P5265020340B	340 mm (13,39")	PP - Polypropylene (02)	B - 1 Positioner	P5265	25 mm	15500 N/m	8.7 kg/m^2	PP Blue	Snap-in Clip	4,92 ft - 1,5 m	4÷80 °C	4÷80 °C	Top Rubber - 50 ShA- Pigeon Blue
P5265020340C	340 mm (13,39")	PP - Polypropylene (02)	C - 2 Positioners	P5265	25 mm	15500 N/m	8.7 kg/m^2	PP Blue	Snap-in Clip	4,92 ft - 1,5 m	4÷80 °C	4÷80 °C	Top Rubber - 50 ShA- Pigeon Blue
P5265020425A	425 mm (16,73")	PP - Polypropylene (02)	A - No positioners	P5265	25 mm	15500 N/m	8.7 kg/m^2	PP Blue	Snap-in Clip	4,92 ft - 1,5 m	4÷80 °C	4÷80 °C	Top Rubber - 50 ShA- Dark Grey
P5265020425B	425 mm (16,73")	PP - Polypropylene (02)	B - 1 Positioner	P5265	25 mm	15500 N/m	8.7 kg/m^2	PP Blue	Snap-in Clip	4,92 ft - 1,5 m	4÷80 °C	4÷80 °C	Top Rubber - 50 ShA- Pigeon Blue
P5265020425C	425 mm (16,73")	PP - Polypropylene (02)	C - 2 Positioners	P5265	25 mm	15500 N/m	8.7 kg/m^2	PP Blue	Snap-in Clip	4,92 ft - 1,5 m	4÷80 °C	4÷80 °C	Top Rubber - 50 ShA- Pigeon Blue
P5265020510A	510 mm (20,08")	PP - Polypropylene (02)	A - No positioners	P5265	25 mm	15500 N/m	8.7 kg/m^2	PP Blue	Snap-in Clip	4,92 ft - 1,5 m	4÷80 °C	4÷80 °C	Top Rubber - 50 ShA- Dark Grey
P5265020510B	510 mm (20,08")	PP - Polypropylene (02)	B - 1 Positioner	P5265	25 mm	15500 N/m	8.7 kg/m^2	PP Blue	Snap-in Clip	4,92 ft - 1,5 m	4÷80 °C	4÷80 °C	Top Rubber - 50 ShA- Pigeon Blue
P5265020510C	510 mm (20,08")	PP - Polypropylene (02)	C - 2 Positioners	P5265	25 mm	15500 N/m	8.7 kg/m^2	PP Blue	Snap-in Clip	4,92 ft - 1,5 m	4÷80 °C	4÷80 °C	Top Rubber - 50 ShA- Pigeon Blue
P5265020595A	595 mm (23,43")	PP - Polypropylene (02)	A - No positioners	P5265	25 mm	15500 N/m	8.7 kg/m^2	PP Blue	Snap-in Clip	3,30 ft - 1,005 m	4÷80 °C	4÷80 °C	Top Rubber - 50 ShA- Dark Grey
P5265020595B	595 mm (23,43")	PP - Polypropylene (02)	B - 1 Positioner	P5265	25 mm	15500 N/m	8.7 kg/m^2	PP Blue	Snap-in Clip	3,30 ft - 1,005 m	4÷80 °C	4÷80 °C	Top Rubber - 50 ShA- Pigeon Blue
P5265020595C	595 mm (23,43")	PP - Polypropylene (02)	C - 2 Positioners	P5265	25 mm	15500 N/m	8.7 kg/m^2	PP Blue	Snap-in Clip	3,30 ft - 1,005 m	4÷80 °C	4÷80 °C	Top Rubber - 50 ShA- Pigeon Blue
P5265020680A	680 mm (26,77")	PP - Polypropylene (02)	A - No positioners	P5265	25 mm	15500 N/m	8.7 kg/m^2	PP Blue	Snap-in Clip	3,30 ft - 1,005 m	4÷80 °C	4÷80 °C	Top Rubber - 50 ShA- Pigeon Blue
P5265020680B	680 mm (26,77")	PP - Polypropylene (02)	B - 1 Positioner	P5265	25 mm	15500 N/m	8.7 kg/m^2	PP Blue	Snap-in Clip	3,30 ft - 1,005 m	4÷80 °C	4÷80 °C	Top Rubber - 50 ShA- Pigeon Blue
P5265020680C	680 mm (26,77")	PP - Polypropylene (02)	C - 2 Positioners	P5265	25 mm	15500 N/m	8.7 kg/m^2	PP Blue	Snap-in Clip	3,30 ft - 1,005 m	4÷80 °C	4÷80 °C	Top Rubber - 50 ShA- Pigeon Blue
P5265020765A	765 mm (30,12")	PP - Polypropylene (02)	A - No positioners	P5265	25 mm	15500 N/m	8.7 kg/m^2	PP Blue	Snap-in Clip	3,30 ft - 1,005 m	4÷80 °C	4÷80 °C	Top Rubber - 50 ShA- Pigeon Blue
P5265020765B	765 mm (30,12")	PP - Polypropylene (02)	B - 1 Positioner	P5265	25 mm	15500 N/m	8.7 kg/m^2	PP Blue	Snap-in Clip	3,30 ft - 1,005 m	4÷80 °C	4÷80 °C	Top Rubber - 50 ShA- Pigeon Blue
P5265020765C	765 mm (30,12")	PP - Polypropylene (02)	C - 2 Positioners	P5265	25 mm	15500 N/m	8.7 kg/m^2	PP Blue	Snap-in Clip	3,30 ft - 1,005 m	4÷80 °C	4÷80 °C	Top Rubber - 50 ShA- Pigeon Blue
P5265020850A	850 mm (33,46")	PP - Polypropylene (02)	A - No positioners	P5265	25 mm	15500 N/m	8.7 kg/m^2	PP Blue	Snap-in Clip	3,30 ft - 1,005 m	4÷80 °C	4÷80 °C	Top Rubber - 50 ShA- Pigeon Blue
P5265020850B	850 mm (33,46")	PP - Polypropylene (02)	B - 1 Positioner	P5265	25 mm	15500 N/m	8.7 kg/m^2	PP Blue	Snap-in Clip	3,30 ft - 1,005 m	4÷80 °C	4÷80 °C	Top Rubber - 50 ShA- Pigeon Blue
P5265020850C	850 mm (33,46")	PP - Polypropylene (02)	C - 2 Positioners	P5265	25 mm	15500 N/m	8.7 kg/m^2	PP Blue	Snap-in Clip	3,30 ft - 1,005 m	4÷80 °C	4÷80 °C	Top Rubber - 50 ShA- Pigeon Blue
P5265020935A	935 mm (36,81")	PP - Polypropylene (02)	A - No positioners	P5265	25 mm	15500 N/m	8.7 kg/m^2	PP Blue	Snap-in Clip	3,30 ft - 1,005 m	4÷80 °C	4÷80 °C	Top Rubber - 50 ShA- Pigeon Blue
P5265020935B	935 mm (36,81")	PP - Polypropylene (02)	B - 1 Positioner	P5265	25 mm	15500 N/m	8.7 kg/m^2	PP Blue	Snap-in Clip	3,30 ft - 1,005 m	4÷80 °C	4÷80 °C	Top Rubber - 50 ShA- Pigeon Blue
P5265020935C	935 mm (36,81")	PP - Polypropylene (02)	C - 2 Positioners	P5265	25 mm	15500 N/m	8.7 kg/m^2	PP Blue	Snap-in Clip	3,30 ft - 1,005 m	4÷80 °C	4÷80 °C	Top Rubber - 50 ShA- Pigeon Blue
P5265021020A	1020 mm (40,16")	PP - Polypropylene (02)	A - No positioners	P5265	25 mm	15500 N/m	8.7 kg/m^2	PP Blue	Snap-in Clip	3,30 ft - 1,005 m	4÷80 °C	4÷80 °C	Top Rubber - 50 ShA- Pigeon Blue
P5265021020B	1020 mm (40,16")	PP - Polypropylene (02)	B - 1 Positioner	P5265	25 mm	15500 N/m	8.7 kg/m^2	PP Blue	Snap-in Clip	3,30 ft - 1,005 m	4÷80 °C	4÷80 °C	Top Rubber - 50 ShA- Pigeon Blue
P5265021020C	1020 mm (40,16")	PP - Polypropylene (02)	C - 2 Positioners	P5265	25 mm	15500 N/m	8.7 kg/m^2	PP Blue	Snap-in Clip	3,30 ft - 1,005 m	4÷80 °C	4÷80 °C	Top Rubber - 50 ShA- Pigeon Blue
P5265021105A	1105 mm (43,50")	PP - Polypropylene (02)	A - No positioners	P5265	25 mm	15500 N/m	8.7 kg/m^2	PP Blue	Snap-in Clip	3,30 ft - 1,005 m	4÷80 °C	4÷80 °C	Top Rubber - 50 ShA- Pigeon Blue
P5265021105B	1105 mm (43,50")	PP - Polypropylene (02)	B - 1 Positioner	P5265	25 mm	15500 N/m	8.7 kg/m^2	PP Blue	Snap-in Clip	3,30 ft - 1,005 m	4÷80 °C	4÷80 °C	Top Rubber - 50 ShA- Pigeon Blue
P5265021105C	1105 mm (43,50")	PP - Polypropylene (02)	C - 2 Positioners	P5265	25 mm	15500 N/m	8.7 kg/m^2	PP Blue	Snap-in Clip	3,30 ft - 1,005 m	4÷80 °C	4÷80 °C	Top Rubber - 50 ShA- Pigeon Blue
P5265021190A	1190 mm (46,85")	PP - Polypropylene (02)	A - No positioners	P5265	25 mm	15500 N/m	8.7 kg/m^2	PP Blue	Snap-in Clip	3,30 ft - 1,005 m	4÷80 °C	4÷80 °C	Top Rubber - 50 ShA- Pigeon Blue
P5265021190B	1190 mm (46,85")	PP - Polypropylene (02)	B - 1 Positioner	P5265	25 mm	15500 N/m	8.7 kg/m^2	PP Blue	Snap-in Clip	3,30 ft - 1,005 m	4÷80 °C	4÷80 °C	Top Rubber - 50 ShA- Pigeon Blue
P5265021190C	1190 mm (46,85")	PP - Polypropylene (02)	C - 2 Positioners	P5265	25 mm	15500 N/m	8.7 kg/m^2	PP Blue	Snap-in Clip	3,30 ft - 1,005 m	4÷80 °C	4÷80 °C	Top Rubber - 50 ShA- Pigeon Blue
P5265021275A	1275 mm (50,20")	PP - Polypropylene (02)	A - No positioners	P5265	25 mm	15500 N/m	8.7 kg/m^2	PP Blue	Snap-in Clip	3,30 ft - 1,005 m	4÷80 °C	4÷80 °C	Top Rubber - 50 ShA- Pigeon Blue
P5265021275B	1275 mm (50,20")	PP - Polypropylene (02)	B - 1 Positioner	P5265	25 mm	15500 N/m	8.7 kg/m^2	PP Blue	Snap-in Clip	3,30 ft - 1,005 m	4÷80 °C	4÷80 °C	Top Rubber - 50 ShA- Pigeon Blue
P5265021275C	1275 mm (50,20")	PP - Polypropylene (02)	C - 2 Positioners	P5265	25 mm	15500 N/m	8.7 kg/m^2	PP Blue	Snap-in Clip	3,30 ft - 1,005 m	4÷80 °C	4÷80 °C	Top Rubber - 50 ShA- Pigeon Blue
P5265021360A	1360 mm (53,54")	PP - Polypropylene (02)	A - No positioners	P5265	25 mm	15500 N/m	8.7 kg/m^2	PP Blue	Snap-in Clip	3,30 ft - 1,005 m	4÷80 °C	4÷80 °C	Top Rubber - 50 ShA- Pigeon Blue
P5265021360B	1360 mm (53,54")	PP - Polypropylene (02)	B - 1 Positioner	P5265	25 mm	15500 N/m	8.7 kg/m^2	PP Blue	Snap-in Clip	3,30 ft - 1,005 m	4÷80 °C	4÷80 °C	Top Rubber - 50 ShA- Pigeon Blue
P5265021360C	1360 mm (53,54")	PP - Polypropylene (02)	C - 2 Positioners	P5265	25 mm	15500 N/m	8.7 kg/m^2	PP Blue	Snap-in Clip	3,30 ft - 1,005 m	4÷80 °C	4÷80 °C	Top Rubber - 50 ShA- Pigeon Blue
P5265021445A	1445 mm (56,89")	PP - Polypropylene (02)	A - No positioners	P5265	25 mm	15500 N/m	8.7 kg/m^2	PP Blue	Snap-in Clip	3,30 ft - 1,005 m	4÷80 °C	4÷80 °C	Top Rubber - 50 ShA- Pigeon Blue
P5265021445B	1445 mm (56,89")	PP - Polypropylene (02)	B - 1 Positioner	P5265	25 mm	15500 N/m	8.7 kg/m^2	PP Blue	Snap-in Clip	3,30 ft - 1,005 m	4÷80 °C	4÷80 °C	Top Rubber - 50 ShA- Pigeon Blue
P5265021445C	1445 mm (56,89")	PP - Polypropylene (02)	C - 2 Positioners	P5265	25 mm	15500 N/m	8.7 kg/m^2	PP Blue	Snap-in Clip	3,30 ft - 1,005 m	4÷80 °C	4÷80 °C	Top Rubber - 50 ShA- Pigeon Blue
P5265021530A	1530 mm (60,24")	PP - Polypropylene (02)	A - No positioners	P5265	25 mm	15500 N/m	8.7 kg/m^2	PP Blue	Snap-in Clip	3,30 ft - 1,005 m	4÷80 °C	4÷80 °C	Top Rubber - 50 ShA- Pigeon Blue
P5265021530B	1530 mm (60,24")	PP - Polypropylene (02)	B - 1 Positioner	P5265	25 mm	15500 N/m	8.7 kg/m^2	PP Blue	Snap-in Clip	3,30 ft - 1,005 m	4÷80 °C	4÷80 °C	Top Rubber - 50 ShA- Pigeon Blue
P5265021530C	1530 mm (60,24")	PP - Polypropylene (02)	C - 2 Positioners	P5265	25 mm	15500 N/m	8.7 kg/m^2	PP Blue	Snap-in Clip	3,30 ft - 1,005 m	4÷80 °C	4÷80 °C	Top Rubber - 50 ShA- Pigeon Blue
P5265030255A	255 mm (10,04")	MX - Performance PBT (03)	A - No positioners	P5265	25 mm	20500 N/m	10.35 kg/m^2	POM grey	Snap-in Clip	9,84 ft - 3 m	-40÷120 °C	-40÷60 °C	Top Rubber - 50 ShA- Drak Grey
P5265030255B	255 mm (10,04")	MX - Performance PBT (03)	B - 1 Positioner	P5265	25 mm	20500 N/m	10.35 kg/m^2	POM grey	Snap-in Clip	9,84 ft - 3 m	-40÷120 °C	-40÷60 °C	Top Rubber - 50 ShA- Dark Grey
P5265030255C	255 mm (10,04")	MX - Performance PBT (03)	C - 2 Positioners	P5265	25 mm	20500 N/m	10.35 kg/m^2	POM grey	Snap-in Clip	9,84 ft - 3 m	-40÷120 °C	-40÷60 °C	Top Rubber - 50 ShA- Dark Grey
P5265030340A	340 mm (13,39")	MX - Performance PBT (03)	A - No positioners	P5265	25 mm	20500 N/m	10.35 kg/m^2	POM grey	Snap-in Clip	4,92 ft - 1,5 m	-40÷120 °C	-40÷60 °C	Top Rubber - 50 ShA- Drak Grey
P5265030340B	340 mm (13,39")	MX - Performance PBT (03)	B - 1 Positioner	P5265	25 mm	20500 N/m	10.35 kg/m^2	POM grey	Snap-in Clip	4,92 ft - 1,5 m	-40÷120 °C	-40÷60 °C	Top Rubber - 50 ShA- Dark Grey
P5265030340C	340 mm (13,39")	MX - Performance PBT (03)	C - 2 Positioners	P5265	25 mm	20500 N/m	10.35 kg/m^2	POM grey	Snap-in Clip	4,92 ft - 1,5 m	-40÷120 °C	-40÷60 °C	Top Rubber - 50 ShA- Dark Grey
P5265030425A	425 mm (16,73")	MX - Performance PBT (03)	A - No positioners	P5265	25 mm	20500 N/m	10.35 kg/m^2	POM grey	Snap-in Clip	4,92 ft - 1,5 m	-40÷120 °C	-40÷60 °C	Top Rubber - 50 ShA- Drak Grey
P5265030425B	425 mm (16,73")	MX - Performance PBT (03)	B - 1 Positioner	P5265	25 mm	20500 N/m	10.35 kg/m^2	POM grey	Snap-in Clip	4,92 ft - 1,5 m	-40÷120 °C	-40÷60 °C	Top Rubber - 50 ShA- Dark Grey
P5265030425C	425 mm (16,73")	MX - Performance PBT (03)	C - 2 Positioners	P5265	25 mm	20500 N/m	10.35 kg/m^2	POM grey	Snap-in Clip	4,92 ft - 1,5 m	-40÷120 °C	-40÷60 °C	Top Rubber - 50 ShA- Dark Grey
P5265030510A	510 mm (20,08")	MX - Performance PBT (03)	A - No positioners	P5265	25 mm	20500 N/m	10.35 kg/m^2	POM grey	Snap-in Clip	4,92 ft - 1,5 m	-40÷120 °C	-40÷60 °C	Top Rubber - 50 ShA- Drak Grey
P5265030510B	510 mm (20,08")	MX - Performance PBT (03)	B - 1 Positioner	P5265	25 mm	20500 N/m	10.35 kg/m^2	POM grey	Snap-in Clip	4,92 ft - 1,5 m	-40÷120 °C	-40÷60 °C	Top Rubber - 50 ShA- Dark Grey
P5265030510C	510 mm (20,08")	MX - Performance PBT (03)	C - 2 Positioners	P5265	25 mm	20500 N/m	10.35 kg/m^2	POM grey	Snap-in Clip	4,92 ft - 1,5 m	-40÷120 °C	-40÷60 °C	Top Rubber - 50 ShA- Dark Grey
P5265030595A	595 mm (23,43")	MX - Performance PBT (03)	A - No positioners	P5265	25 mm	20500 N/m	10.35 kg/m^2	POM grey	Snap-in Clip	3,30 ft - 1,005 m	-40÷120 °C	-40÷60 °C	Top Rubber - 50 ShA- Drak Grey
P5265030595B	595 mm (23,43")	MX - Performance PBT (03)	B - 1 Positioner	P5265	25 mm	20500 N/m	10.35 kg/m^2	POM grey	Snap-in Clip	3,30 ft - 1,005 m	-40÷120 °C	-40÷60 °C	Top Rubber - 50 ShA- Dark Grey
P5265030595C	595 mm (23,43")	MX - Performance PBT (03)	C - 2 Positioners	P5265	25 mm	20500 N/m	10.35 kg/m^2	POM grey	Snap-in Clip	3,30 ft - 1,005 m	-40÷120 °C	-40÷60 °C	Top Rubber - 50 ShA- Dark Grey
P5265030680A	680 mm (26,77")	MX - Performance PBT (03)	A - No positioners	P5265	25 mm	20500 N/m	10.35 kg/m^2	POM grey	Snap-in Clip	3,30 ft - 1,005 m	-40÷120 °C	-40÷60 °C	Top Rubber - 50 ShA- Drak Grey
P5265030680B	680 mm (26,77")	MX - Performance PBT (03)	B - 1 Positioner	P5265	25 mm	20500 N/m	10.35 kg/m^2	POM grey	Snap-in Clip	3,30 ft - 1,005 m	-40÷120 °C	-40÷60 °C	Top Rubber - 50 ShA- Dark Grey
P5265030680C	680 mm (26,77")	MX - Performance PBT (03)	C - 2 Positioners	P5265	25 mm	20500 N/m	10.35 kg/m^2	POM grey	Snap-in Clip	3,30 ft - 1,005 m	-40÷120 °C	-40÷60 °C	Top Rubber - 50 ShA- Dark Grey
P5265030765A	765 mm (30,12")	MX - Performance PBT (03)	A - No positioners	P5265	25 mm	20500 N/m	10.35 kg/m^2	POM grey	Snap-in Clip	3,30 ft - 1,005 m	-40÷120 °C	-40÷60 °C	Top Rubber - 50 ShA- Dark Grey
P5265030765B	765 mm (30,12")	MX - Performance PBT (03)	B - 1 Positioner	P5265	25 mm	20500 N/m	10.35 kg/m^2	POM grey	Snap-in Clip	3,30 ft - 1,005 m	-40÷120 °C	-40÷60 °C	Top Rubber - 50 ShA- Dark Grey
P5265030765C	765 mm (30,12")	MX - Performance PBT (03)	C - 2 Positioners	P5265	25 mm	20500 N/m	10.35 kg/m^2	POM grey	Snap-in Clip	3,30 ft - 1,005 m	-40÷120 °C	-40÷60 °C	Top Rubber - 50 ShA- Dark Grey
P5265030850A	850 mm (33,46")	MX - Performance PBT (03)	A - No positioners	P5265	25 mm	20500 N/m	10.35 kg/m^2	POM grey	Snap-in Clip	3,30 ft - 1,005 m	-40÷120 °C	-40÷60 °C	Top Rubber - 50 ShA- Dark Grey
P5265030850B	850 mm (33,46")	MX - Performance PBT (03)	B - 1 Positioner	P5265	25 mm	20500 N/m	10.35 kg/m^2	POM grey	Snap-in Clip	3,30 ft - 1,005 m	-40÷120 °C	-40÷60 °C	Top Rubber - 50 ShA- Dark Grey
P5265030850C	850 mm (33,46")	MX - Performance PBT (03)	C - 2 Positioners	P5265	25 mm	20500 N/m	10.35 kg/m^2	POM grey	Snap-in Clip	3,30 ft - 1,005 m	-40÷120 °C	-40÷60 °C	Top Rubber - 50 ShA- Dark Grey
P5265030935A	935 mm (36,81")	MX - Performance PBT (03)	A - No positioners	P5265	25 mm	20500 N/m	10.35 kg/m^2	POM grey	Snap-in Clip	3,30 ft - 1,005 m	-40÷120 °C	-40÷60 °C	Top Rubber - 50 ShA- Dark Grey
P5265030935B	935 mm (36,81")	MX - Performance PBT (03)	B - 1 Positioner	P5265	25 mm	20500 N/m	10.35 kg/m^2	POM grey	Snap-in Clip	3,30 ft - 1,005 m	-40÷120 °C	-40÷60 °C	Top Rubber - 50 ShA- Dark Grey
P5265030935C	935 mm (36,81")	MX - Performance PBT (03)	C - 2 Positioners	P5265	25 mm	20500 N/m	10.35 kg/m^2	POM grey	Snap-in Clip	3,30 ft - 1,005 m	-40÷120 °C	-40÷60 °C	Top Rubber - 50 ShA- Dark Grey
P5265031020A	1020 mm (40,16")	MX - Performance PBT (03)	A - No positioners	P5265	25 mm	20500 N/m	10.35 kg/m^2	POM grey	Snap-in Clip	3,30 ft - 1,005 m	-40÷120 °C	-40÷60 °C	Top Rubber - 50 ShA- Dark Grey
P5265031020B	1020 mm (40,16")	MX - Performance PBT (03)	B - 1 Positioner	P5265	25 mm	20500 N/m	10.35 kg/m^2	POM grey	Snap-in Clip	3,30 ft - 1,005 m	-40÷120 °C	-40÷60 °C	Top Rubber - 50 ShA- Dark Grey
P5265031020C	1020 mm (40,16")	MX - Performance PBT (03)	C - 2 Positioners	P5265	25 mm	20500 N/m	10.35 kg/m^2	POM grey	Snap-in Clip	3,30 ft - 1,005 m	-40÷120 °C	-40÷60 °C	Top Rubber - 50 ShA- Dark Grey
P5265031105A	1105 mm (43,50")	MX - Performance PBT (03)	A - No positioners	P5265	25 mm	20500 N/m	10.35 kg/m^2	POM grey	Snap-in Clip	3,30 ft - 1,005 m	-40÷120 °C	-40÷60 °C	Top Rubber - 50 ShA- Dark Grey
P5265031105B	1105 mm (43,50")	MX - Performance PBT (03)	B - 1 Positioner	P5265	25 mm	20500 N/m	10.35 kg/m^2	POM grey	Snap-in Clip	3,30 ft - 1,005 m	-40÷120 °C	-40÷60 °C	Top Rubber - 50 ShA- Dark Grey
P5265031105C	1105 mm (43,50")	MX - Performance PBT (03)	C - 2 Positioners	P5265	25 mm	20500 N/m	10.35 kg/m^2	POM grey	Snap-in Clip	3,30 ft - 1,005 m	-40÷120 °C	-40÷60 °C	Top Rubber - 50 ShA- Dark Grey
P5265031190A	1190 mm (46,85")	MX - Performance PBT (03)	A - No positioners	P5265	25 mm	20500 N/m	10.35 kg/m^2	POM grey	Snap-in Clip	3,30 ft - 1,005 m	-40÷120 °C	-40÷60 °C	Top Rubber - 50 ShA- Dark Grey
P5265031190B	1190 mm (46,85")	MX - Performance PBT (03)	B - 1 Positioner	P5265	25 mm	20500 N/m	10.35 kg/m^2	POM grey	Snap-in Clip	3,30 ft - 1,005 m	-40÷120 °C	-40÷60 °C	Top Rubber - 50 ShA- Dark Grey
P5265031190C	1190 mm (46,85")	MX - Performance PBT (03)	C - 2 Positioners	P5265	25 mm	20500 N/m	10.35 kg/m^2	POM grey	Snap-in Clip	3,30 ft - 1,005 m	-40÷120 °C	-40÷60 °C	Top Rubber - 50 ShA- Dark Grey
P5265031275A	1275 mm (50,20")	MX - Performance PBT (03)	A - No positioners	P5265	25 mm	20500 N/m	10.35 kg/m^2	POM grey	Snap-in Clip	3,30 ft - 1,005 m	-40÷120 °C	-40÷60 °C	Top Rubber - 50 ShA- Dark Grey
P5265031275B	1275 mm (50,20")	MX - Performance PBT (03)	B - 1 Positioner	P5265	25 mm	20500 N/m	10.35 kg/m^2	POM grey	Snap-in Clip	3,30 ft - 1,005 m	-40÷120 °C	-40÷60 °C	Top Rubber - 50 ShA- Dark Grey
P5265031275C	1275 mm (50,20")	MX - Performance PBT (03)	C - 2 Positioners	P5265	25 mm	20500 N/m	10.35 kg/m^2	POM grey	Snap-in Clip	3,30 ft - 1,005 m	-40÷120 °C	-40÷60 °C	Top Rubber - 50 ShA- Dark Grey
P5265031360A	1360 mm (53,54")	MX - Performance PBT (03)	A - No positioners	P5265	25 mm	20500 N/m	10.35 kg/m^2	POM grey	Snap-in Clip	3,30 ft - 1,005 m	-40÷120 °C	-40÷60 °C	Top Rubber - 50 ShA- Dark Grey
P5265031360B	1360 mm (53,54")	MX - Performance PBT (03)	B - 1 Positioner	P5265	25 mm	20500 N/m	10.35 kg/m^2	POM grey	Snap-in Clip	3,30 ft - 1,005 m	-40÷120 °C	-40÷60 °C	Top Rubber - 50 ShA- Dark Grey
P5265031360C	1360 mm (53,54")	MX - Performance PBT (03)	C - 2 Positioners	P5265	25 mm	20500 N/m	10.35 kg/m^2	POM grey	Snap-in Clip	3,30 ft - 1,005 m	-40÷120 °C	-40÷60 °C	Top Rubber - 50 ShA- Dark Grey
P5265031445A	1445 mm (56,89")	MX - Performance PBT (03)	A - No positioners	P5265	25 mm	20500 N/m	10.35 kg/m^2	POM grey	Snap-in Clip	3,30 ft - 1,005 m	-40÷120 °C	-40÷60 °C	Top Rubber - 50 ShA- Dark Grey
P5265031445B	1445 mm (56,89")	MX - Performance PBT (03)	B - 1 Positioner	P5265	25 mm	20500 N/m	10.35 kg/m^2	POM grey	Snap-in Clip	3,30 ft - 1,005 m	-40÷120 °C	-40÷60 °C	Top Rubber - 50 ShA- Dark Grey
P5265031445C	1445 mm (56,89")	MX - Performance PBT (03)	C - 2 Positioners	P5265	25 mm	20500 N/m	10.35 kg/m^2	POM grey	Snap-in Clip	3,30 ft - 1,005 m	-40÷120 °C	-40÷60 °C	Top Rubber - 50 ShA- Dark Grey
P5265031530A	1530 mm (60,24")	MX - Performance PBT (03)	A - No positioners	P5265	25 mm	20500 N/m	10.35 kg/m^2	POM grey	Snap-in Clip	3,30 ft - 1,005 m	-40÷120 °C	-40÷60 °C	Top Rubber - 50 ShA- Dark Grey
P5265031530B	1530 mm (60,24")	MX - Performance PBT (03)	B - 1 Positioner	P5265	25 mm	20500 N/m	10.35 kg/m^2	POM grey	Snap-in Clip	3,30 ft - 1,005 m	-40÷120 °C	-40÷60 °C	Top Rubber - 50 ShA- Dark Grey
P5265031530C	1530 mm (60,24")	MX - Performance PBT (03)	C - 2 Positioners	P5265	25 mm	20500 N/m	10.35 kg/m^2	POM grey	Snap-in Clip	3,30 ft - 1,005 m	-40÷120 °C	-40÷60 °C	Top Rubber - 50 ShA- Dark Grey

•
