525 Heavy Duty Grip Top
Modular Belts
Description
Description
Modular belt with over-molded high-grip rubber, for inclines, declines or acceleration applications, guaranteeing high performances and superior durability.
Basic features
| Series: | 525 |
|---|---|
| Pitch: | 15 mm |
| Thickness: | 8.7 mm |
| Increments: | 85 mm |
| Surface Type: | GT - Grip Top |
| Functionality: | Straight |
| Unit of measure: | Meter |
525 Heavy Duty Grip Top
| Width | Material | Version | Part | Back flex radius | Max working load | Mass | Pin material | Fixation | Box | Temperature range dry | Temperature range wet | Supplementary informations | ||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Code | Actions | |||||||||||||

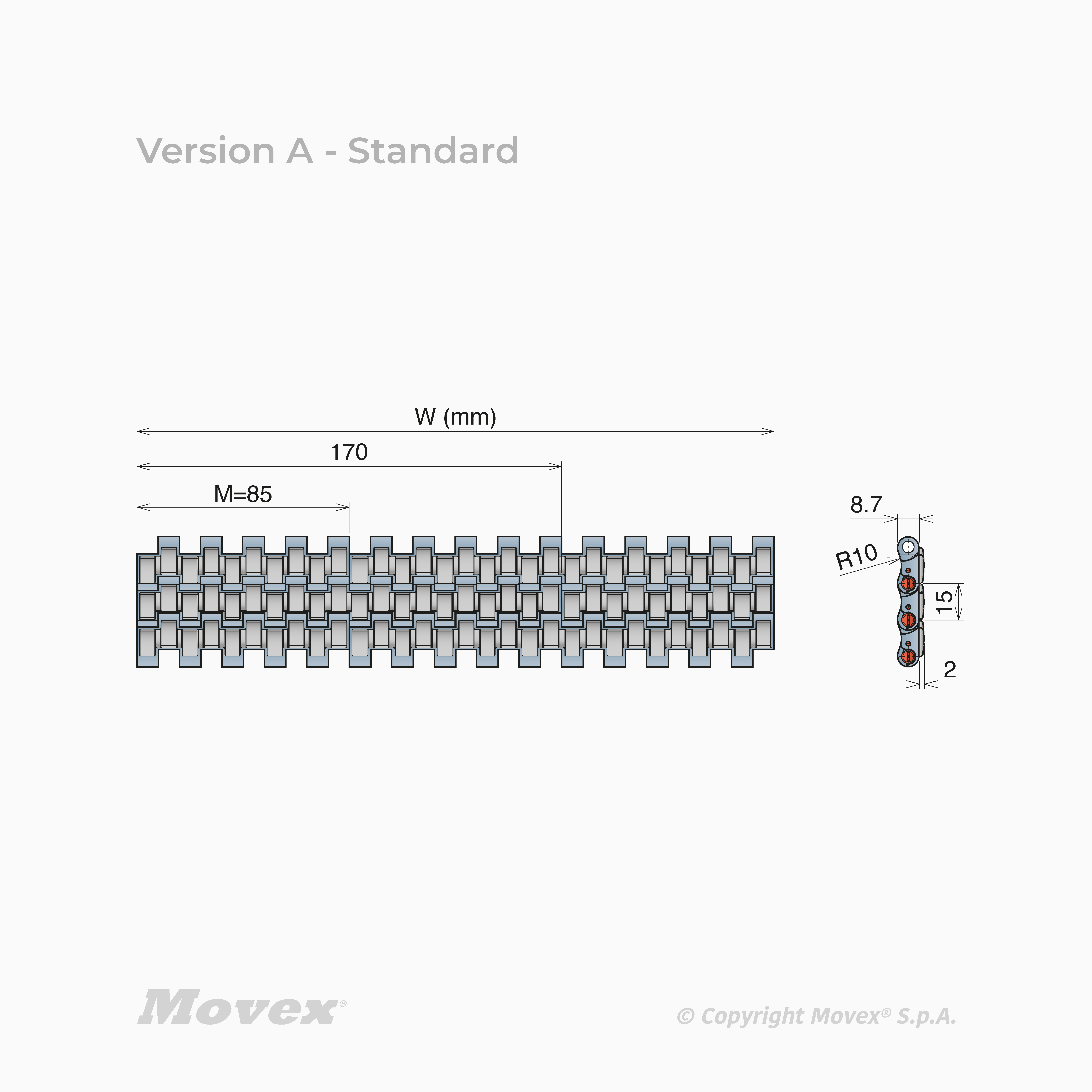

| P5263010085A | 85 mm (3,35") | LFA - Low friction acetal (01) | A - No positioners | P5263 | 25 mm | 25500 N/m | 10.35 kg/m^2 | PBT white | Snap-in Clip | 9,84 ft - 3 m | -40÷80 °C | -40÷65 °C | Top Rubber - 50 ShA- Pigeon Blue |
|

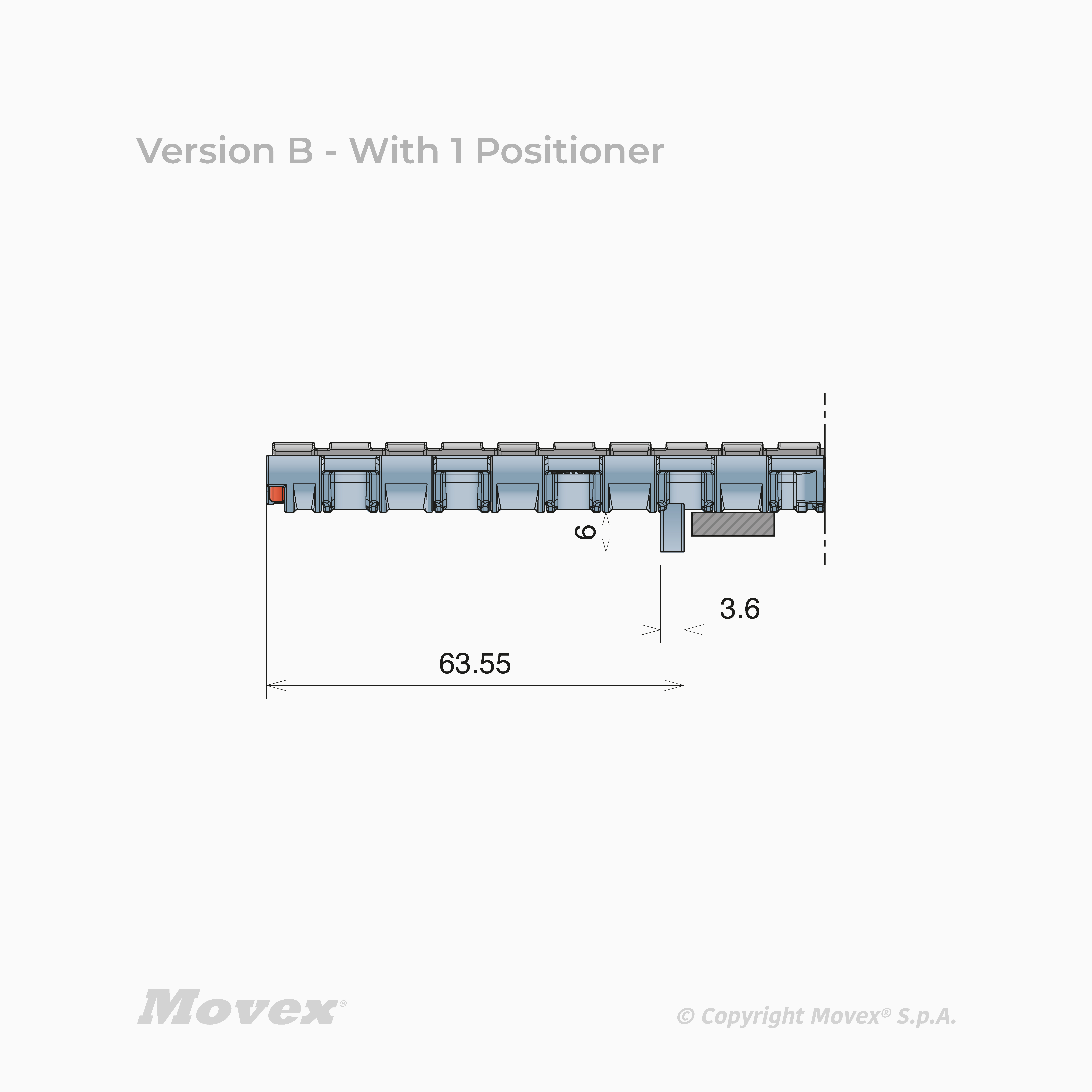

| P5263010085B | 85 mm (3,35") | LFA - Low friction acetal (01) | B - 1 Positioner | P5263 | 25 mm | 25500 N/m | 10.35 kg/m^2 | PBT white | Snap-in Clip | 9,84 ft - 3 m | -40÷80 °C | -40÷65 °C | Top Rubber - 50 ShA- Drak Grey |
|

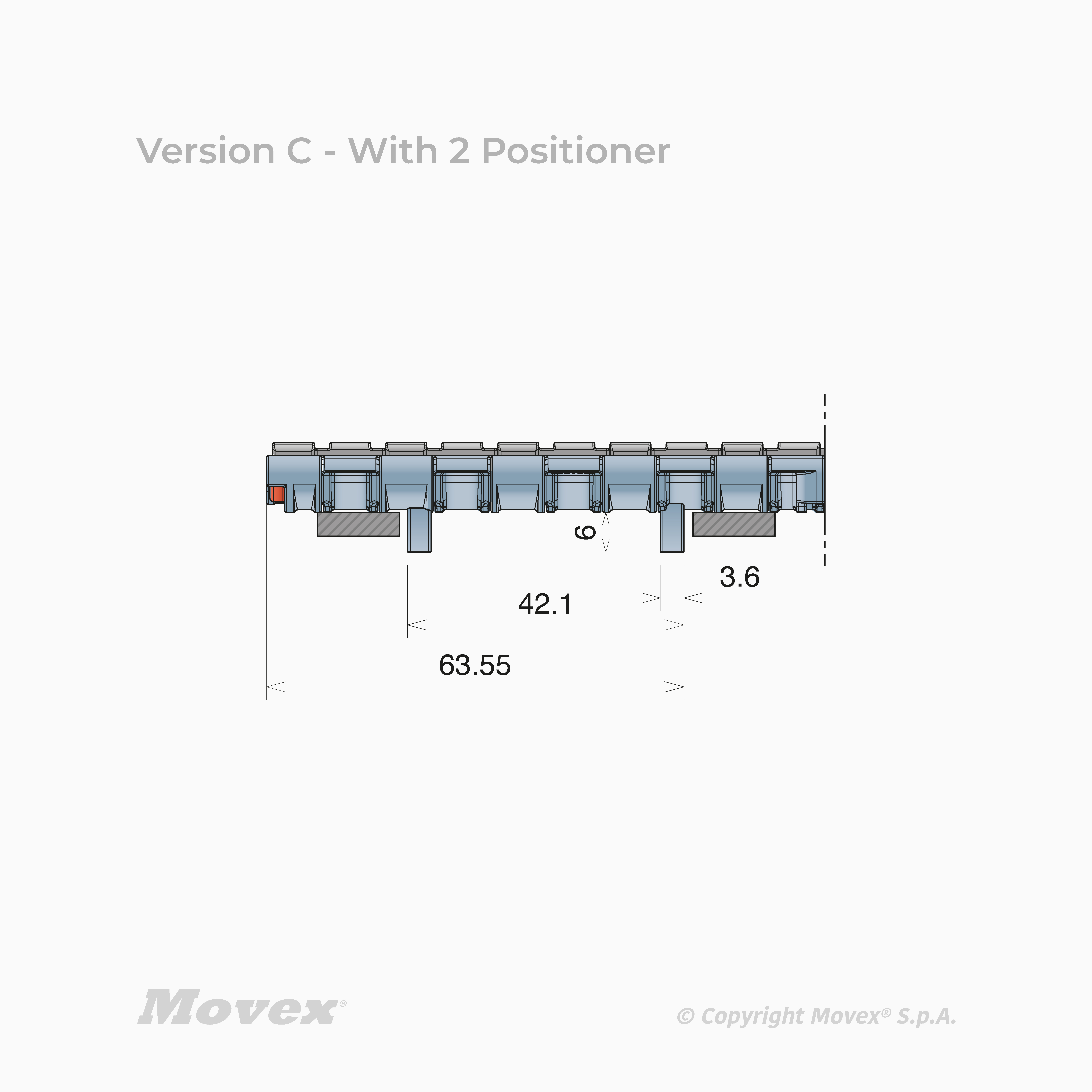

| P5263010085C | 85 mm (3,35") | LFA - Low friction acetal (01) | C - 2 Positioners | P5263 | 25 mm | 25500 N/m | 10.35 kg/m^2 | PBT white | Snap-in Clip | 9,84 ft - 3 m | -40÷80 °C | -40÷65 °C | Top Rubber - 50 ShA- Drak Grey |
|
| P5263010170A | 170 mm (6,69") | LFA - Low friction acetal (01) | A - No positioners | P5263 | 25 mm | 25500 N/m | 10.35 kg/m^2 | PBT white | Snap-in Clip | 9,84 ft - 3 m | -40÷80 °C | -40÷65 °C | - |
|
| P5263010170B | 170 mm (6,69") | LFA - Low friction acetal (01) | B - 1 Positioner | P5263 | 25 mm | 25500 N/m | 10.35 kg/m^2 | PBT white | Snap-in Clip | 9,84 ft - 3 m | -40÷80 °C | -40÷65 °C | Top Rubber - 50 ShA- Drak Grey |
|
| P5263010170C | 170 mm (6,69") | LFA - Low friction acetal (01) | C - 2 Positioners | P5263 | 25 mm | 25500 N/m | 10.35 kg/m^2 | PBT white | Snap-in Clip | 9,84 ft - 3 m | -40÷80 °C | -40÷65 °C | Top Rubber - 50 ShA- Drak Grey |
|
| P5263010255A | 255 mm (10,04") | LFA - Low friction acetal (01) | A - No positioners | P5263 | 25 mm | 25500 N/m | 10.35 kg/m^2 | PBT white | Snap-in Clip | 9,84 ft - 3 m | -40÷80 °C | -40÷65 °C | - |
|
| P5263010255B | 255 mm (10,04") | LFA - Low friction acetal (01) | B - 1 Positioner | P5263 | 25 mm | 25500 N/m | 10.35 kg/m^2 | PBT white | Snap-in Clip | 9,84 ft - 3 m | -40÷80 °C | -40÷65 °C | Top Rubber - 50 ShA- Drak Grey |
|
| P5263010255C | 255 mm (10,04") | LFA - Low friction acetal (01) | C - 2 Positioners | P5263 | 25 mm | 25500 N/m | 10.35 kg/m^2 | PBT white | Snap-in Clip | 9,84 ft - 3 m | -40÷80 °C | -40÷65 °C | Top Rubber - 50 ShA- Drak Grey |
|
| P5263010340A | 340 mm (13,39") | LFA - Low friction acetal (01) | A - No positioners | P5263 | 25 mm | 25500 N/m | 10.35 kg/m^2 | PBT white | Snap-in Clip | 4,92 ft - 1,5 m | -40÷80 °C | -40÷65 °C | - |
|
| P5263010340B | 340 mm (13,39") | LFA - Low friction acetal (01) | B - 1 Positioner | P5263 | 25 mm | 25500 N/m | 10.35 kg/m^2 | PBT white | Snap-in Clip | 4,92 ft - 1,5 m | -40÷80 °C | -40÷65 °C | Top Rubber - 50 ShA- Drak Grey |
|
| P5263010340C | 340 mm (13,39") | LFA - Low friction acetal (01) | C - 2 Positioners | P5263 | 25 mm | 25500 N/m | 10.35 kg/m^2 | PBT white | Snap-in Clip | 4,92 ft - 1,5 m | -40÷80 °C | -40÷65 °C | Top Rubber - 50 ShA- Drak Grey |
|
| P5263010425A | 425 mm (16,73") | LFA - Low friction acetal (01) | A - No positioners | P5263 | 25 mm | 25500 N/m | 10.35 kg/m^2 | PBT white | Snap-in Clip | 4,92 ft - 1,5 m | -40÷80 °C | -40÷65 °C | - |
|
| P5263010425B | 425 mm (16,73") | LFA - Low friction acetal (01) | B - 1 Positioner | P5263 | 25 mm | 25500 N/m | 10.35 kg/m^2 | PBT white | Snap-in Clip | 4,92 ft - 1,5 m | -40÷80 °C | -40÷65 °C | Top Rubber - 50 ShA- Drak Grey |
|
| P5263010425C | 425 mm (16,73") | LFA - Low friction acetal (01) | C - 2 Positioners | P5263 | 25 mm | 25500 N/m | 10.35 kg/m^2 | PBT white | Snap-in Clip | 4,92 ft - 1,5 m | -40÷80 °C | -40÷65 °C | Top Rubber - 50 ShA- Drak Grey |
|
| P5263010510A | 510 mm (20,08") | LFA - Low friction acetal (01) | A - No positioners | P5263 | 25 mm | 25500 N/m | 10.35 kg/m^2 | PBT white | Snap-in Clip | 4,92 ft - 1,5 m | -40÷80 °C | -40÷65 °C | - |
|
| P5263010510B | 510 mm (20,08") | LFA - Low friction acetal (01) | B - 1 Positioner | P5263 | 25 mm | 25500 N/m | 10.35 kg/m^2 | PBT white | Snap-in Clip | 4,92 ft - 1,5 m | -40÷80 °C | -40÷65 °C | Top Rubber - 50 ShA- Drak Grey |
|
| P5263010510C | 510 mm (20,08") | LFA - Low friction acetal (01) | C - 2 Positioners | P5263 | 25 mm | 25500 N/m | 10.35 kg/m^2 | PBT white | Snap-in Clip | 4,92 ft - 1,5 m | -40÷80 °C | -40÷65 °C | Top Rubber - 50 ShA- Drak Grey |
|
| P5263010595A | 595 mm (23,43") | LFA - Low friction acetal (01) | A - No positioners | P5263 | 25 mm | 25500 N/m | 10.35 kg/m^2 | PBT white | Snap-in Clip | 3,30 ft - 1,005 m | -40÷80 °C | -40÷65 °C | - |
|
| P5263010595B | 595 mm (23,43") | LFA - Low friction acetal (01) | B - 1 Positioner | P5263 | 25 mm | 25500 N/m | 10.35 kg/m^2 | PBT white | Snap-in Clip | 3,30 ft - 1,005 m | -40÷80 °C | -40÷65 °C | Top Rubber - 50 ShA- Drak Grey |
|
| P5263010595C | 595 mm (23,43") | LFA - Low friction acetal (01) | C - 2 Positioners | P5263 | 25 mm | 25500 N/m | 10.35 kg/m^2 | PBT white | Snap-in Clip | 3,30 ft - 1,005 m | -40÷80 °C | -40÷65 °C | Top Rubber - 50 ShA- Drak Grey |
|
| P5263010680A | 680 mm (26,77") | LFA - Low friction acetal (01) | A - No positioners | P5263 | 25 mm | 25500 N/m | 10.35 kg/m^2 | PBT white | Snap-in Clip | 3,30 ft - 1,005 m | -40÷80 °C | -40÷65 °C | - |
|
| P5263010680B | 680 mm (26,77") | LFA - Low friction acetal (01) | B - 1 Positioner | P5263 | 25 mm | 25500 N/m | 10.35 kg/m^2 | PBT white | Snap-in Clip | 3,30 ft - 1,005 m | -40÷80 °C | -40÷65 °C | Top Rubber - 50 ShA- Drak Grey |
|
| P5263010680C | 680 mm (26,77") | LFA - Low friction acetal (01) | C - 2 Positioners | P5263 | 25 mm | 25500 N/m | 10.35 kg/m^2 | PBT white | Snap-in Clip | 3,30 ft - 1,005 m | -40÷80 °C | -40÷65 °C | Top Rubber - 50 ShA- Drak Grey |
|
| P5263010765A | 765 mm (30,12") | LFA - Low friction acetal (01) | A - No positioners | P5263 | 25 mm | 25500 N/m | 10.35 kg/m^2 | PBT white | Snap-in Clip | 3,30 ft - 1,005 m | -40÷80 °C | -40÷65 °C | - |
|
| P5263010765B | 765 mm (30,12") | LFA - Low friction acetal (01) | B - 1 Positioner | P5263 | 25 mm | 25500 N/m | 10.35 kg/m^2 | PBT white | Snap-in Clip | 3,30 ft - 1,005 m | -40÷80 °C | -40÷65 °C | Top Rubber - 50 ShA- Drak Grey |
|
| P5263010765C | 765 mm (30,12") | LFA - Low friction acetal (01) | C - 2 Positioners | P5263 | 25 mm | 25500 N/m | 10.35 kg/m^2 | PBT white | Snap-in Clip | 3,30 ft - 1,005 m | -40÷80 °C | -40÷65 °C | Top Rubber - 50 ShA- Drak Grey |
|
| P5263010850A | 850 mm (33,46") | LFA - Low friction acetal (01) | A - No positioners | P5263 | 25 mm | 25500 N/m | 10.35 kg/m^2 | PBT white | Snap-in Clip | 3,30 ft - 1,005 m | -40÷80 °C | -40÷65 °C | - |
|
| P5263010850B | 850 mm (33,46") | LFA - Low friction acetal (01) | B - 1 Positioner | P5263 | 25 mm | 25500 N/m | 10.35 kg/m^2 | PBT white | Snap-in Clip | 3,30 ft - 1,005 m | -40÷80 °C | -40÷65 °C | Top Rubber - 50 ShA- Drak Grey |
|
| P5263010850C | 850 mm (33,46") | LFA - Low friction acetal (01) | C - 2 Positioners | P5263 | 25 mm | 25500 N/m | 10.35 kg/m^2 | PBT white | Snap-in Clip | 3,30 ft - 1,005 m | -40÷80 °C | -40÷65 °C | Top Rubber - 50 ShA- Drak Grey |
|
| P5263010935A | 935 mm (36,81") | LFA - Low friction acetal (01) | A - No positioners | P5263 | 25 mm | 25500 N/m | 10.35 kg/m^2 | PBT white | Snap-in Clip | 3,30 ft - 1,005 m | -40÷80 °C | -40÷65 °C | Top Rubber - 50 ShA- Drak Grey |
|
| P5263010935B | 935 mm (36,81") | LFA - Low friction acetal (01) | B - 1 Positioner | P5263 | 25 mm | 25500 N/m | 10.35 kg/m^2 | PBT white | Snap-in Clip | 3,30 ft - 1,005 m | -40÷80 °C | -40÷65 °C | Top Rubber - 50 ShA- Drak Grey |
|
| P5263010935C | 935 mm (36,81") | LFA - Low friction acetal (01) | C - 2 Positioners | P5263 | 25 mm | 25500 N/m | 10.35 kg/m^2 | PBT white | Snap-in Clip | 3,30 ft - 1,005 m | -40÷80 °C | -40÷65 °C | Top Rubber - 50 ShA- Drak Grey |
|
| P5263011020A | 1020 mm (40,16") | LFA - Low friction acetal (01) | A - No positioners | P5263 | 25 mm | 25500 N/m | 10.35 kg/m^2 | PBT white | Snap-in Clip | 3,30 ft - 1,005 m | -40÷80 °C | -40÷65 °C | Top Rubber - 50 ShA- Drak Grey |
|
| P5263011020B | 1020 mm (40,16") | LFA - Low friction acetal (01) | B - 1 Positioner | P5263 | 25 mm | 25500 N/m | 10.35 kg/m^2 | PBT white | Snap-in Clip | 3,30 ft - 1,005 m | -40÷80 °C | -40÷65 °C | Top Rubber - 50 ShA- Drak Grey |
|
| P5263011020C | 1020 mm (40,16") | LFA - Low friction acetal (01) | C - 2 Positioners | P5263 | 25 mm | 25500 N/m | 10.35 kg/m^2 | PBT white | Snap-in Clip | 3,30 ft - 1,005 m | -40÷80 °C | -40÷65 °C | Top Rubber - 50 ShA- Drak Grey |
|
| P5263011105A | 1105 mm (43,50") | LFA - Low friction acetal (01) | A - No positioners | P5263 | 25 mm | 25500 N/m | 10.35 kg/m^2 | PBT white | Snap-in Clip | 3,30 ft - 1,005 m | -40÷80 °C | -40÷65 °C | Top Rubber - 50 ShA- Drak Grey |
|
| P5263011105B | 1105 mm (43,50") | LFA - Low friction acetal (01) | B - 1 Positioner | P5263 | 25 mm | 25500 N/m | 10.35 kg/m^2 | PBT white | Snap-in Clip | 3,30 ft - 1,005 m | -40÷80 °C | -40÷65 °C | Top Rubber - 50 ShA- Drak Grey |
|
| P5263011105C | 1105 mm (43,50") | LFA - Low friction acetal (01) | C - 2 Positioners | P5263 | 25 mm | 25500 N/m | 10.35 kg/m^2 | PBT white | Snap-in Clip | 3,30 ft - 1,005 m | -40÷80 °C | -40÷65 °C | Top Rubber - 50 ShA- Drak Grey |
|
| P5263011190A | 1190 mm (46,85") | LFA - Low friction acetal (01) | A - No positioners | P5263 | 25 mm | 25500 N/m | 10.35 kg/m^2 | PBT white | Snap-in Clip | 3,30 ft - 1,005 m | -40÷80 °C | -40÷65 °C | Top Rubber - 50 ShA- Drak Grey |
|
| P5263011190B | 1190 mm (46,85") | LFA - Low friction acetal (01) | B - 1 Positioner | P5263 | 25 mm | 25500 N/m | 10.35 kg/m^2 | PBT white | Snap-in Clip | 3,30 ft - 1,005 m | -40÷80 °C | -40÷65 °C | Top Rubber - 50 ShA- Drak Grey |
|
| P5263011190C | 1190 mm (46,85") | LFA - Low friction acetal (01) | C - 2 Positioners | P5263 | 25 mm | 25500 N/m | 10.35 kg/m^2 | PBT white | Snap-in Clip | 3,30 ft - 1,005 m | -40÷80 °C | -40÷65 °C | Top Rubber - 50 ShA- Drak Grey |
|
| P5263011275A | 1275 mm (50,20") | LFA - Low friction acetal (01) | A - No positioners | P5263 | 25 mm | 25500 N/m | 10.35 kg/m^2 | PBT white | Snap-in Clip | 3,30 ft - 1,005 m | -40÷80 °C | -40÷65 °C | Top Rubber - 50 ShA- Drak Grey |
|
| P5263011275B | 1275 mm (50,20") | LFA - Low friction acetal (01) | B - 1 Positioner | P5263 | 25 mm | 25500 N/m | 10.35 kg/m^2 | PBT white | Snap-in Clip | 3,30 ft - 1,005 m | -40÷80 °C | -40÷65 °C | Top Rubber - 50 ShA- Drak Grey |
|
| P5263011275C | 1275 mm (50,20") | LFA - Low friction acetal (01) | C - 2 Positioners | P5263 | 25 mm | 25500 N/m | 10.35 kg/m^2 | PBT white | Snap-in Clip | 3,30 ft - 1,005 m | -40÷80 °C | -40÷65 °C | Top Rubber - 50 ShA- Drak Grey |
|
| P5263011360A | 1360 mm (53,54") | LFA - Low friction acetal (01) | A - No positioners | P5263 | 25 mm | 25500 N/m | 10.35 kg/m^2 | PBT white | Snap-in Clip | 3,30 ft - 1,005 m | -40÷80 °C | -40÷65 °C | Top Rubber - 50 ShA- Drak Grey |
|
| P5263011360B | 1360 mm (53,54") | LFA - Low friction acetal (01) | B - 1 Positioner | P5263 | 25 mm | 25500 N/m | 10.35 kg/m^2 | PBT white | Snap-in Clip | 3,30 ft - 1,005 m | -40÷80 °C | -40÷65 °C | Top Rubber - 50 ShA- Drak Grey |
|
| P5263011360C | 1360 mm (53,54") | LFA - Low friction acetal (01) | C - 2 Positioners | P5263 | 25 mm | 25500 N/m | 10.35 kg/m^2 | PBT white | Snap-in Clip | 3,30 ft - 1,005 m | -40÷80 °C | -40÷65 °C | Top Rubber - 50 ShA- Drak Grey |
|
| P5263011445A | 1445 mm (56,89") | LFA - Low friction acetal (01) | A - No positioners | P5263 | 25 mm | 25500 N/m | 10.35 kg/m^2 | PBT white | Snap-in Clip | 3,30 ft - 1,005 m | -40÷80 °C | -40÷65 °C | Top Rubber - 50 ShA- Drak Grey |
|
| P5263011445B | 1445 mm (56,89") | LFA - Low friction acetal (01) | B - 1 Positioner | P5263 | 25 mm | 25500 N/m | 10.35 kg/m^2 | PBT white | Snap-in Clip | 3,30 ft - 1,005 m | -40÷80 °C | -40÷65 °C | Top Rubber - 50 ShA- Drak Grey |
|
| P5263011445C | 1445 mm (56,89") | LFA - Low friction acetal (01) | C - 2 Positioners | P5263 | 25 mm | 25500 N/m | 10.35 kg/m^2 | PBT white | Snap-in Clip | 3,30 ft - 1,005 m | -40÷80 °C | -40÷65 °C | Top Rubber - 50 ShA- Drak Grey |
|
| P5263011530A | 1530 mm (60,24") | LFA - Low friction acetal (01) | A - No positioners | P5263 | 25 mm | 25500 N/m | 10.35 kg/m^2 | PBT white | Snap-in Clip | 3,30 ft - 1,005 m | -40÷80 °C | -40÷65 °C | Top Rubber - 50 ShA- Drak Grey |
|
| P5263011530B | 1530 mm (60,24") | LFA - Low friction acetal (01) | B - 1 Positioner | P5263 | 25 mm | 25500 N/m | 10.35 kg/m^2 | PBT white | Snap-in Clip | 3,30 ft - 1,005 m | -40÷80 °C | -40÷65 °C | Top Rubber - 50 ShA- Drak Grey |
|
| P5263011530C | 1530 mm (60,24") | LFA - Low friction acetal (01) | C - 2 Positioners | P5263 | 25 mm | 25500 N/m | 10.35 kg/m^2 | PBT white | Snap-in Clip | 3,30 ft - 1,005 m | -40÷80 °C | -40÷65 °C | Top Rubber - 50 ShA- Drak Grey |
|
| P5263020085A | 85 mm (3,35") | PP - Polypropylene (02) | A - No positioners | P5263 | 25 mm | 15500 N/m | 8.7 kg/m^2 | PP Blue | Snap-in Clip | 9,84 ft - 3 m | 4÷80 °C | 4÷80 °C | Top Rubber - 50 ShA- Dark Grey |
|
| P5263020085B | 85 mm (3,35") | PP - Polypropylene (02) | B - 1 Positioner | P5263 | 25 mm | 15500 N/m | 8.7 kg/m^2 | PP Blue | Snap-in Clip | 9,84 ft - 3 m | 4÷80 °C | 4÷80 °C | Top Rubber - 50 ShA- Pigeon Blue |
|
| P5263020085C | 85 mm (3,35") | PP - Polypropylene (02) | C - 2 Positioners | P5263 | 25 mm | 15500 N/m | 8.7 kg/m^2 | PP Blue | Snap-in Clip | 9,84 ft - 3 m | 4÷80 °C | 4÷80 °C | Top Rubber - 50 ShA- Pigeon Blue |
|
| P5263020170A | 170 mm (6,69") | PP - Polypropylene (02) | A - No positioners | P5263 | 25 mm | 15500 N/m | 8.7 kg/m^2 | PP Blue | Snap-in Clip | 9,84 ft - 3 m | 4÷80 °C | 4÷80 °C | Top Rubber - 50 ShA- Dark Grey |
|
| P5263020170B | 170 mm (6,69") | PP - Polypropylene (02) | B - 1 Positioner | P5263 | 25 mm | 15500 N/m | 8.7 kg/m^2 | PP Blue | Snap-in Clip | 9,84 ft - 3 m | 4÷80 °C | 4÷80 °C | Top Rubber - 50 ShA- Pigeon Blue |
|
| P5263020170C | 170 mm (6,69") | PP - Polypropylene (02) | C - 2 Positioners | P5263 | 25 mm | 15500 N/m | 8.7 kg/m^2 | PP Blue | Snap-in Clip | 9,84 ft - 3 m | 4÷80 °C | 4÷80 °C | Top Rubber - 50 ShA- Pigeon Blue |
|
| P5263020255A | 255 mm (10,04") | PP - Polypropylene (02) | A - No positioners | P5263 | 25 mm | 15500 N/m | 8.7 kg/m^2 | PP Blue | Snap-in Clip | 9,84 ft - 3 m | 4÷80 °C | 4÷80 °C | Top Rubber - 50 ShA- Dark Grey |
|
| P5263020255B | 255 mm (10,04") | PP - Polypropylene (02) | B - 1 Positioner | P5263 | 25 mm | 15500 N/m | 8.7 kg/m^2 | PP Blue | Snap-in Clip | 9,84 ft - 3 m | 4÷80 °C | 4÷80 °C | Top Rubber - 50 ShA- Pigeon Blue |
|
| P5263020255C | 255 mm (10,04") | PP - Polypropylene (02) | C - 2 Positioners | P5263 | 25 mm | 15500 N/m | 8.7 kg/m^2 | PP Blue | Snap-in Clip | 9,84 ft - 3 m | 4÷80 °C | 4÷80 °C | Top Rubber - 50 ShA- Pigeon Blue |
|
| P5263020340A | 340 mm (13,39") | PP - Polypropylene (02) | A - No positioners | P5263 | 25 mm | 15500 N/m | 8.7 kg/m^2 | PP Blue | Snap-in Clip | 4,92 ft - 1,5 m | 4÷80 °C | 4÷80 °C | Top Rubber - 50 ShA- Dark Grey |
|
| P5263020340B | 340 mm (13,39") | PP - Polypropylene (02) | B - 1 Positioner | P5263 | 25 mm | 15500 N/m | 8.7 kg/m^2 | PP Blue | Snap-in Clip | 4,92 ft - 1,5 m | 4÷80 °C | 4÷80 °C | Top Rubber - 50 ShA- Pigeon Blue |
|
| P5263020340C | 340 mm (13,39") | PP - Polypropylene (02) | C - 2 Positioners | P5263 | 25 mm | 15500 N/m | 8.7 kg/m^2 | PP Blue | Snap-in Clip | 4,92 ft - 1,5 m | 4÷80 °C | 4÷80 °C | Top Rubber - 50 ShA- Pigeon Blue |
|
| P5263020425A | 425 mm (16,73") | PP - Polypropylene (02) | A - No positioners | P5263 | 25 mm | 15500 N/m | 8.7 kg/m^2 | PP Blue | Snap-in Clip | 4,92 ft - 1,5 m | 4÷80 °C | 4÷80 °C | Top Rubber - 50 ShA- Pigeon Blue |
|
| P5263020425B | 425 mm (16,73") | PP - Polypropylene (02) | B - 1 Positioner | P5263 | 25 mm | 15500 N/m | 8.7 kg/m^2 | PP Blue | Snap-in Clip | 4,92 ft - 1,5 m | 4÷80 °C | 4÷80 °C | Top Rubber - 50 ShA- Pigeon Blue |
|
| P5263020425C | 425 mm (16,73") | PP - Polypropylene (02) | C - 2 Positioners | P5263 | 25 mm | 15500 N/m | 8.7 kg/m^2 | PP Blue | Snap-in Clip | 4,92 ft - 1,5 m | 4÷80 °C | 4÷80 °C | Top Rubber - 50 ShA- Pigeon Blue |
|
| P5263020510A | 510 mm (20,08") | PP - Polypropylene (02) | A - No positioners | P5263 | 25 mm | 15500 N/m | 8.7 kg/m^2 | PP Blue | Snap-in Clip | 4,92 ft - 1,5 m | 4÷80 °C | 4÷80 °C | Top Rubber - 50 ShA- Pigeon Blue |
|
| P5263020510B | 510 mm (20,08") | PP - Polypropylene (02) | B - 1 Positioner | P5263 | 25 mm | 15500 N/m | 8.7 kg/m^2 | PP Blue | Snap-in Clip | 4,92 ft - 1,5 m | 4÷80 °C | 4÷80 °C | Top Rubber - 50 ShA- Pigeon Blue |
|
| P5263020510C | 510 mm (20,08") | PP - Polypropylene (02) | C - 2 Positioners | P5263 | 25 mm | 15500 N/m | 8.7 kg/m^2 | PP Blue | Snap-in Clip | 4,92 ft - 1,5 m | 4÷80 °C | 4÷80 °C | Top Rubber - 50 ShA- Pigeon Blue |
|
| P5263020595A | 595 mm (23,43") | PP - Polypropylene (02) | A - No positioners | P5263 | 25 mm | 15500 N/m | 8.7 kg/m^2 | PP Blue | Snap-in Clip | 3,30 ft - 1,005 m | 4÷80 °C | 4÷80 °C | Top Rubber - 50 ShA- Pigeon Blue |
|
| P5263020595B | 595 mm (23,43") | PP - Polypropylene (02) | B - 1 Positioner | P5263 | 25 mm | 15500 N/m | 8.7 kg/m^2 | PP Blue | Snap-in Clip | 3,30 ft - 1,005 m | 4÷80 °C | 4÷80 °C | Top Rubber - 50 ShA- Pigeon Blue |
|
| P5263020595C | 595 mm (23,43") | PP - Polypropylene (02) | C - 2 Positioners | P5263 | 25 mm | 15500 N/m | 8.7 kg/m^2 | PP Blue | Snap-in Clip | 3,30 ft - 1,005 m | 4÷80 °C | 4÷80 °C | Top Rubber - 50 ShA- Pigeon Blue |
|
| P5263020680A | 680 mm (26,77") | PP - Polypropylene (02) | A - No positioners | P5263 | 25 mm | 15500 N/m | 8.7 kg/m^2 | PP Blue | Snap-in Clip | 3,30 ft - 1,005 m | 4÷80 °C | 4÷80 °C | Top Rubber - 50 ShA- Pigeon Blue |
|
| P5263020680B | 680 mm (26,77") | PP - Polypropylene (02) | B - 1 Positioner | P5263 | 25 mm | 15500 N/m | 8.7 kg/m^2 | PP Blue | Snap-in Clip | 3,30 ft - 1,005 m | 4÷80 °C | 4÷80 °C | Top Rubber - 50 ShA- Pigeon Blue |
|
| P5263020680C | 680 mm (26,77") | PP - Polypropylene (02) | C - 2 Positioners | P5263 | 25 mm | 15500 N/m | 8.7 kg/m^2 | PP Blue | Snap-in Clip | 3,30 ft - 1,005 m | 4÷80 °C | 4÷80 °C | Top Rubber - 50 ShA- Pigeon Blue |
|
| P5263020765A | 765 mm (30,12") | PP - Polypropylene (02) | A - No positioners | P5263 | 25 mm | 15500 N/m | 8.7 kg/m^2 | PP Blue | Snap-in Clip | 3,30 ft - 1,005 m | 4÷80 °C | 4÷80 °C | Top Rubber - 50 ShA- Pigeon Blue |
|
| P5263020765B | 765 mm (30,12") | PP - Polypropylene (02) | B - 1 Positioner | P5263 | 25 mm | 15500 N/m | 8.7 kg/m^2 | PP Blue | Snap-in Clip | 3,30 ft - 1,005 m | 4÷80 °C | 4÷80 °C | Top Rubber - 50 ShA- Pigeon Blue |
|
| P5263020765C | 765 mm (30,12") | PP - Polypropylene (02) | C - 2 Positioners | P5263 | 25 mm | 15500 N/m | 8.7 kg/m^2 | PP Blue | Snap-in Clip | 3,30 ft - 1,005 m | 4÷80 °C | 4÷80 °C | Top Rubber - 50 ShA- Pigeon Blue |
|
| P5263020850A | 850 mm (33,46") | PP - Polypropylene (02) | A - No positioners | P5263 | 25 mm | 15500 N/m | 8.7 kg/m^2 | PP Blue | Snap-in Clip | 3,30 ft - 1,005 m | 4÷80 °C | 4÷80 °C | Top Rubber - 50 ShA- Pigeon Blue |
|
| P5263020850B | 850 mm (33,46") | PP - Polypropylene (02) | B - 1 Positioner | P5263 | 25 mm | 15500 N/m | 8.7 kg/m^2 | PP Blue | Snap-in Clip | 3,30 ft - 1,005 m | 4÷80 °C | 4÷80 °C | Top Rubber - 50 ShA- Pigeon Blue |
|
| P5263020850C | 850 mm (33,46") | PP - Polypropylene (02) | C - 2 Positioners | P5263 | 25 mm | 15500 N/m | 8.7 kg/m^2 | PP Blue | Snap-in Clip | 3,30 ft - 1,005 m | 4÷80 °C | 4÷80 °C | Top Rubber - 50 ShA- Pigeon Blue |
|
| P5263020935A | 935 mm (36,81") | PP - Polypropylene (02) | A - No positioners | P5263 | 25 mm | 15500 N/m | 8.7 kg/m^2 | PP Blue | Snap-in Clip | 3,30 ft - 1,005 m | 4÷80 °C | 4÷80 °C | Top Rubber - 50 ShA- Pigeon Blue |
|
| P5263020935B | 935 mm (36,81") | PP - Polypropylene (02) | B - 1 Positioner | P5263 | 25 mm | 15500 N/m | 8.7 kg/m^2 | PP Blue | Snap-in Clip | 3,30 ft - 1,005 m | 4÷80 °C | 4÷80 °C | Top Rubber - 50 ShA- Pigeon Blue |
|
| P5263020935C | 935 mm (36,81") | PP - Polypropylene (02) | C - 2 Positioners | P5263 | 25 mm | 15500 N/m | 8.7 kg/m^2 | PP Blue | Snap-in Clip | 3,30 ft - 1,005 m | 4÷80 °C | 4÷80 °C | Top Rubber - 50 ShA- Pigeon Blue |
|
| P5263021020A | 1020 mm (40,16") | PP - Polypropylene (02) | A - No positioners | P5263 | 25 mm | 15500 N/m | 8.7 kg/m^2 | PP Blue | Snap-in Clip | 3,30 ft - 1,005 m | 4÷80 °C | 4÷80 °C | Top Rubber - 50 ShA- Pigeon Blue |
|
| P5263021020B | 1020 mm (40,16") | PP - Polypropylene (02) | B - 1 Positioner | P5263 | 25 mm | 15500 N/m | 8.7 kg/m^2 | PP Blue | Snap-in Clip | 3,30 ft - 1,005 m | 4÷80 °C | 4÷80 °C | Top Rubber - 50 ShA- Pigeon Blue |
|
| P5263021020C | 1020 mm (40,16") | PP - Polypropylene (02) | C - 2 Positioners | P5263 | 25 mm | 15500 N/m | 8.7 kg/m^2 | PP Blue | Snap-in Clip | 3,30 ft - 1,005 m | 4÷80 °C | 4÷80 °C | Top Rubber - 50 ShA- Pigeon Blue |
|
| P5263021105A | 1105 mm (43,50") | PP - Polypropylene (02) | A - No positioners | P5263 | 25 mm | 15500 N/m | 8.7 kg/m^2 | PP Blue | Snap-in Clip | 3,30 ft - 1,005 m | 4÷80 °C | 4÷80 °C | Top Rubber - 50 ShA- Pigeon Blue |
|
| P5263021105B | 1105 mm (43,50") | PP - Polypropylene (02) | B - 1 Positioner | P5263 | 25 mm | 15500 N/m | 8.7 kg/m^2 | PP Blue | Snap-in Clip | 3,30 ft - 1,005 m | 4÷80 °C | 4÷80 °C | Top Rubber - 50 ShA- Pigeon Blue |
|
| P5263021105C | 1105 mm (43,50") | PP - Polypropylene (02) | C - 2 Positioners | P5263 | 25 mm | 15500 N/m | 8.7 kg/m^2 | PP Blue | Snap-in Clip | 3,30 ft - 1,005 m | 4÷80 °C | 4÷80 °C | Top Rubber - 50 ShA- Pigeon Blue |
|
| P5263021190A | 1190 mm (46,85") | PP - Polypropylene (02) | A - No positioners | P5263 | 25 mm | 15500 N/m | 8.7 kg/m^2 | PP Blue | Snap-in Clip | 3,30 ft - 1,005 m | 4÷80 °C | 4÷80 °C | Top Rubber - 50 ShA- Pigeon Blue |
|
| P5263021190B | 1190 mm (46,85") | PP - Polypropylene (02) | B - 1 Positioner | P5263 | 25 mm | 15500 N/m | 8.7 kg/m^2 | PP Blue | Snap-in Clip | 3,30 ft - 1,005 m | 4÷80 °C | 4÷80 °C | Top Rubber - 50 ShA- Pigeon Blue |
|
| P5263021190C | 1190 mm (46,85") | PP - Polypropylene (02) | C - 2 Positioners | P5263 | 25 mm | 15500 N/m | 8.7 kg/m^2 | PP Blue | Snap-in Clip | 3,30 ft - 1,005 m | 4÷80 °C | 4÷80 °C | Top Rubber - 50 ShA- Pigeon Blue |
|
| P5263021275A | 1275 mm (50,20") | PP - Polypropylene (02) | A - No positioners | P5263 | 25 mm | 15500 N/m | 8.7 kg/m^2 | PP Blue | Snap-in Clip | 3,30 ft - 1,005 m | 4÷80 °C | 4÷80 °C | Top Rubber - 50 ShA- Pigeon Blue |
|
| P5263021275B | 1275 mm (50,20") | PP - Polypropylene (02) | B - 1 Positioner | P5263 | 25 mm | 15500 N/m | 8.7 kg/m^2 | PP Blue | Snap-in Clip | 3,30 ft - 1,005 m | 4÷80 °C | 4÷80 °C | Top Rubber - 50 ShA- Pigeon Blue |
|
| P5263021275C | 1275 mm (50,20") | PP - Polypropylene (02) | C - 2 Positioners | P5263 | 25 mm | 15500 N/m | 8.7 kg/m^2 | PP Blue | Snap-in Clip | 3,30 ft - 1,005 m | 4÷80 °C | 4÷80 °C | Top Rubber - 50 ShA- Pigeon Blue |
|
| P5263021360A | 1360 mm (53,54") | PP - Polypropylene (02) | A - No positioners | P5263 | 25 mm | 15500 N/m | 8.7 kg/m^2 | PP Blue | Snap-in Clip | 3,30 ft - 1,005 m | 4÷80 °C | 4÷80 °C | Top Rubber - 50 ShA- Pigeon Blue |
|
| P5263021360B | 1360 mm (53,54") | PP - Polypropylene (02) | B - 1 Positioner | P5263 | 25 mm | 15500 N/m | 8.7 kg/m^2 | PP Blue | Snap-in Clip | 3,30 ft - 1,005 m | 4÷80 °C | 4÷80 °C | Top Rubber - 50 ShA- Pigeon Blue |
|
| P5263021360C | 1360 mm (53,54") | PP - Polypropylene (02) | C - 2 Positioners | P5263 | 25 mm | 15500 N/m | 8.7 kg/m^2 | PP Blue | Snap-in Clip | 3,30 ft - 1,005 m | 4÷80 °C | 4÷80 °C | Top Rubber - 50 ShA- Pigeon Blue |
|
| P5263021445A | 1445 mm (56,89") | PP - Polypropylene (02) | A - No positioners | P5263 | 25 mm | 15500 N/m | 8.7 kg/m^2 | PP Blue | Snap-in Clip | 3,30 ft - 1,005 m | 4÷80 °C | 4÷80 °C | Top Rubber - 50 ShA- Pigeon Blue |
|
| P5263021445B | 1445 mm (56,89") | PP - Polypropylene (02) | B - 1 Positioner | P5263 | 25 mm | 15500 N/m | 8.7 kg/m^2 | PP Blue | Snap-in Clip | 3,30 ft - 1,005 m | 4÷80 °C | 4÷80 °C | Top Rubber - 50 ShA- Pigeon Blue |
|
| P5263021445C | 1445 mm (56,89") | PP - Polypropylene (02) | C - 2 Positioners | P5263 | 25 mm | 15500 N/m | 8.7 kg/m^2 | PP Blue | Snap-in Clip | 3,30 ft - 1,005 m | 4÷80 °C | 4÷80 °C | Top Rubber - 50 ShA- Pigeon Blue |
|
| P5263021530A | 1530 mm (60,24") | PP - Polypropylene (02) | A - No positioners | P5263 | 25 mm | 15500 N/m | 8.7 kg/m^2 | PP Blue | Snap-in Clip | 3,30 ft - 1,005 m | 4÷80 °C | 4÷80 °C | Top Rubber - 50 ShA- Pigeon Blue |
|
| P5263021530B | 1530 mm (60,24") | PP - Polypropylene (02) | B - 1 Positioner | P5263 | 25 mm | 15500 N/m | 8.7 kg/m^2 | PP Blue | Snap-in Clip | 3,30 ft - 1,005 m | 4÷80 °C | 4÷80 °C | Top Rubber - 50 ShA- Pigeon Blue |
|
| P5263021530C | 1530 mm (60,24") | PP - Polypropylene (02) | C - 2 Positioners | P5263 | 25 mm | 15500 N/m | 8.7 kg/m^2 | PP Blue | Snap-in Clip | 3,30 ft - 1,005 m | 4÷80 °C | 4÷80 °C | Top Rubber - 50 ShA- Pigeon Blue |
|
| P5263030085A | 85 mm (3,35") | MX - Performance PBT (03) | A - No positioners | P5263 | 25 mm | 20500 N/m | 10.35 kg/m^2 | POM grey | Snap-in Clip | 9,84 ft - 3 m | -40÷120 °C | -40÷60 °C | Top Rubber - 50 ShA- Drak Grey |
|
| P5263030085B | 85 mm (3,35") | MX - Performance PBT (03) | B - 1 Positioner | P5263 | 25 mm | 20500 N/m | 10.35 kg/m^2 | POM grey | Snap-in Clip | 9,84 ft - 3 m | -40÷120 °C | -40÷60 °C | Top Rubber - 50 ShA- Dark Grey |
|
| P5263030085C | 85 mm (3,35") | MX - Performance PBT (03) | C - 2 Positioners | P5263 | 25 mm | 20500 N/m | 10.35 kg/m^2 | POM grey | Snap-in Clip | 9,84 ft - 3 m | -40÷120 °C | -40÷60 °C | Top Rubber - 50 ShA- Dark Grey |
|
| P5263030170A | 170 mm (6,69") | MX - Performance PBT (03) | A - No positioners | P5263 | 25 mm | 20500 N/m | 10.35 kg/m^2 | POM grey | Snap-in Clip | 9,84 ft - 3 m | -40÷120 °C | -40÷60 °C | Top Rubber - 50 ShA- Drak Grey |
|
| P5263030170B | 170 mm (6,69") | MX - Performance PBT (03) | B - 1 Positioner | P5263 | 25 mm | 20500 N/m | 10.35 kg/m^2 | POM grey | Snap-in Clip | 9,84 ft - 3 m | -40÷120 °C | -40÷60 °C | Top Rubber - 50 ShA- Dark Grey |
|
| P5263030170C | 170 mm (6,69") | MX - Performance PBT (03) | C - 2 Positioners | P5263 | 25 mm | 20500 N/m | 10.35 kg/m^2 | POM grey | Snap-in Clip | 9,84 ft - 3 m | -40÷120 °C | -40÷60 °C | Top Rubber - 50 ShA- Dark Grey |
|
| P5263030255A | 255 mm (10,04") | MX - Performance PBT (03) | A - No positioners | P5263 | 25 mm | 20500 N/m | 10.35 kg/m^2 | POM grey | Snap-in Clip | 9,84 ft - 3 m | -40÷120 °C | -40÷60 °C | Top Rubber - 50 ShA- Drak Grey |
|
| P5263030255B | 255 mm (10,04") | MX - Performance PBT (03) | B - 1 Positioner | P5263 | 25 mm | 20500 N/m | 10.35 kg/m^2 | POM grey | Snap-in Clip | 9,84 ft - 3 m | -40÷120 °C | -40÷60 °C | Top Rubber - 50 ShA- Dark Grey |
|
| P5263030255C | 255 mm (10,04") | MX - Performance PBT (03) | C - 2 Positioners | P5263 | 25 mm | 20500 N/m | 10.35 kg/m^2 | POM grey | Snap-in Clip | 9,84 ft - 3 m | -40÷120 °C | -40÷60 °C | Top Rubber - 50 ShA- Dark Grey |
|
| P5263030340A | 340 mm (13,39") | MX - Performance PBT (03) | A - No positioners | P5263 | 25 mm | 20500 N/m | 10.35 kg/m^2 | POM grey | Snap-in Clip | 4,92 ft - 1,5 m | -40÷120 °C | -40÷60 °C | Top Rubber - 50 ShA- Drak Grey |
|
| P5263030340B | 340 mm (13,39") | MX - Performance PBT (03) | B - 1 Positioner | P5263 | 25 mm | 20500 N/m | 10.35 kg/m^2 | POM grey | Snap-in Clip | 4,92 ft - 1,5 m | -40÷120 °C | -40÷60 °C | Top Rubber - 50 ShA- Dark Grey |
|
| P5263030340C | 340 mm (13,39") | MX - Performance PBT (03) | C - 2 Positioners | P5263 | 25 mm | 20500 N/m | 10.35 kg/m^2 | POM grey | Snap-in Clip | 4,92 ft - 1,5 m | -40÷120 °C | -40÷60 °C | Top Rubber - 50 ShA- Dark Grey |
|
| P5263030425A | 425 mm (16,73") | MX - Performance PBT (03) | A - No positioners | P5263 | 25 mm | 20500 N/m | 10.35 kg/m^2 | POM grey | Snap-in Clip | 4,92 ft - 1,5 m | -40÷120 °C | -40÷60 °C | Top Rubber - 50 ShA- Dark Grey |
|
| P5263030425B | 425 mm (16,73") | MX - Performance PBT (03) | B - 1 Positioner | P5263 | 25 mm | 20500 N/m | 10.35 kg/m^2 | POM grey | Snap-in Clip | 4,92 ft - 1,5 m | -40÷120 °C | -40÷60 °C | Top Rubber - 50 ShA- Dark Grey |
|
| P5263030425C | 425 mm (16,73") | MX - Performance PBT (03) | C - 2 Positioners | P5263 | 25 mm | 20500 N/m | 10.35 kg/m^2 | POM grey | Snap-in Clip | 4,92 ft - 1,5 m | -40÷120 °C | -40÷60 °C | Top Rubber - 50 ShA- Dark Grey |
|
| P5263030510A | 510 mm (20,08") | MX - Performance PBT (03) | A - No positioners | P5263 | 25 mm | 20500 N/m | 10.35 kg/m^2 | POM grey | Snap-in Clip | 3,30 ft - 1,005 m | -40÷120 °C | -40÷60 °C | Top Rubber - 50 ShA- Dark Grey |
|
| P5263030510B | 510 mm (20,08") | MX - Performance PBT (03) | B - 1 Positioner | P5263 | 25 mm | 20500 N/m | 10.35 kg/m^2 | POM grey | Snap-in Clip | 4,92 ft - 1,5 m | -40÷120 °C | -40÷60 °C | Top Rubber - 50 ShA- Dark Grey |
|
| P5263030510C | 510 mm (20,08") | MX - Performance PBT (03) | C - 2 Positioners | P5263 | 25 mm | 20500 N/m | 10.35 kg/m^2 | POM grey | Snap-in Clip | 4,92 ft - 1,5 m | -40÷120 °C | -40÷60 °C | Top Rubber - 50 ShA- Dark Grey |
|
| P5263030595A | 595 mm (23,43") | MX - Performance PBT (03) | A - No positioners | P5263 | 25 mm | 20500 N/m | 10.35 kg/m^2 | POM grey | Snap-in Clip | 3,30 ft - 1,005 m | -40÷120 °C | -40÷60 °C | Top Rubber - 50 ShA- Dark Grey |
|
| P5263030595B | 595 mm (23,43") | MX - Performance PBT (03) | B - 1 Positioner | P5263 | 25 mm | 20500 N/m | 10.35 kg/m^2 | POM grey | Snap-in Clip | 3,30 ft - 1,005 m | -40÷120 °C | -40÷60 °C | Top Rubber - 50 ShA- Dark Grey |
|
| P5263030595C | 595 mm (23,43") | MX - Performance PBT (03) | C - 2 Positioners | P5263 | 25 mm | 20500 N/m | 10.35 kg/m^2 | POM grey | Snap-in Clip | 3,30 ft - 1,005 m | -40÷120 °C | -40÷60 °C | Top Rubber - 50 ShA- Dark Grey |
|
| P5263030680A | 680 mm (26,77") | MX - Performance PBT (03) | A - No positioners | P5263 | 25 mm | 20500 N/m | 10.35 kg/m^2 | POM grey | Snap-in Clip | 3,30 ft - 1,005 m | -40÷120 °C | -40÷60 °C | Top Rubber - 50 ShA- Dark Grey |
|
| P5263030680B | 680 mm (26,77") | MX - Performance PBT (03) | B - 1 Positioner | P5263 | 25 mm | 20500 N/m | 10.35 kg/m^2 | POM grey | Snap-in Clip | 3,30 ft - 1,005 m | -40÷120 °C | -40÷60 °C | Top Rubber - 50 ShA- Dark Grey |
|
| P5263030680C | 680 mm (26,77") | MX - Performance PBT (03) | C - 2 Positioners | P5263 | 25 mm | 20500 N/m | 10.35 kg/m^2 | POM grey | Snap-in Clip | 3,30 ft - 1,005 m | -40÷120 °C | -40÷60 °C | Top Rubber - 50 ShA- Dark Grey |
|
| P5263030765A | 765 mm (30,12") | MX - Performance PBT (03) | A - No positioners | P5263 | 25 mm | 20500 N/m | 10.35 kg/m^2 | POM grey | Snap-in Clip | 3,30 ft - 1,005 m | -40÷120 °C | -40÷60 °C | Top Rubber - 50 ShA- Dark Grey |
|
| P5263030765B | 765 mm (30,12") | MX - Performance PBT (03) | B - 1 Positioner | P5263 | 25 mm | 20500 N/m | 10.35 kg/m^2 | POM grey | Snap-in Clip | 3,30 ft - 1,005 m | -40÷120 °C | -40÷60 °C | Top Rubber - 50 ShA- Dark Grey |
|
| P5263030765C | 765 mm (30,12") | MX - Performance PBT (03) | C - 2 Positioners | P5263 | 25 mm | 20500 N/m | 10.35 kg/m^2 | POM grey | Snap-in Clip | 3,30 ft - 1,005 m | -40÷120 °C | -40÷60 °C | Top Rubber - 50 ShA- Dark Grey |
|
| P5263030850A | 850 mm (33,46") | MX - Performance PBT (03) | A - No positioners | P5263 | 25 mm | 20500 N/m | 10.35 kg/m^2 | POM grey | Snap-in Clip | 3,30 ft - 1,005 m | -40÷120 °C | -40÷60 °C | Top Rubber - 50 ShA- Dark Grey |
|
| P5263030850B | 850 mm (33,46") | MX - Performance PBT (03) | B - 1 Positioner | P5263 | 25 mm | 20500 N/m | 10.35 kg/m^2 | POM grey | Snap-in Clip | 3,30 ft - 1,005 m | -40÷120 °C | -40÷60 °C | Top Rubber - 50 ShA- Dark Grey |
|
| P5263030850C | 850 mm (33,46") | MX - Performance PBT (03) | C - 2 Positioners | P5263 | 25 mm | 20500 N/m | 10.35 kg/m^2 | POM grey | Snap-in Clip | 3,30 ft - 1,005 m | -40÷120 °C | -40÷60 °C | Top Rubber - 50 ShA- Dark Grey |
|
| P5263030935A | 935 mm (36,81") | MX - Performance PBT (03) | A - No positioners | P5263 | 25 mm | 20500 N/m | 10.35 kg/m^2 | POM grey | Snap-in Clip | 3,30 ft - 1,005 m | -40÷120 °C | -40÷60 °C | Top Rubber - 50 ShA- Dark Grey |
|
| P5263030935B | 935 mm (36,81") | MX - Performance PBT (03) | B - 1 Positioner | P5263 | 25 mm | 20500 N/m | 10.35 kg/m^2 | POM grey | Snap-in Clip | 3,30 ft - 1,005 m | -40÷120 °C | -40÷60 °C | Top Rubber - 50 ShA- Dark Grey |
|
| P5263030935C | 935 mm (36,81") | MX - Performance PBT (03) | C - 2 Positioners | P5263 | 25 mm | 20500 N/m | 10.35 kg/m^2 | POM grey | Snap-in Clip | 3,30 ft - 1,005 m | -40÷120 °C | -40÷60 °C | Top Rubber - 50 ShA- Dark Grey |
|
| P5263031020A | 1020 mm (40,16") | MX - Performance PBT (03) | A - No positioners | P5263 | 25 mm | 20500 N/m | 10.35 kg/m^2 | POM grey | Snap-in Clip | 3,30 ft - 1,005 m | -40÷120 °C | -40÷60 °C | Top Rubber - 50 ShA- Dark Grey |
|
| P5263031020B | 1020 mm (40,16") | MX - Performance PBT (03) | B - 1 Positioner | P5263 | 25 mm | 20500 N/m | 10.35 kg/m^2 | POM grey | Snap-in Clip | 3,30 ft - 1,005 m | -40÷120 °C | -40÷60 °C | Top Rubber - 50 ShA- Dark Grey |
|
| P5263031020C | 1020 mm (40,16") | MX - Performance PBT (03) | C - 2 Positioners | P5263 | 25 mm | 20500 N/m | 10.35 kg/m^2 | POM grey | Snap-in Clip | 3,30 ft - 1,005 m | -40÷120 °C | -40÷60 °C | Top Rubber - 50 ShA- Dark Grey |
|
| P5263031105A | 1105 mm (43,50") | MX - Performance PBT (03) | A - No positioners | P5263 | 25 mm | 20500 N/m | 10.35 kg/m^2 | POM grey | Snap-in Clip | 3,30 ft - 1,005 m | -40÷120 °C | -40÷60 °C | Top Rubber - 50 ShA- Dark Grey |
|
| P5263031105B | 1105 mm (43,50") | MX - Performance PBT (03) | B - 1 Positioner | P5263 | 25 mm | 20500 N/m | 10.35 kg/m^2 | POM grey | Snap-in Clip | 3,30 ft - 1,005 m | -40÷120 °C | -40÷60 °C | Top Rubber - 50 ShA- Dark Grey |
|
| P5263031105C | 1105 mm (43,50") | MX - Performance PBT (03) | C - 2 Positioners | P5263 | 25 mm | 20500 N/m | 10.35 kg/m^2 | POM grey | Snap-in Clip | 3,30 ft - 1,005 m | -40÷120 °C | -40÷60 °C | Top Rubber - 50 ShA- Dark Grey |
|
| P5263031190A | 1190 mm (46,85") | MX - Performance PBT (03) | A - No positioners | P5263 | 25 mm | 20500 N/m | 10.35 kg/m^2 | POM grey | Snap-in Clip | 3,30 ft - 1,005 m | -40÷120 °C | -40÷60 °C | Top Rubber - 50 ShA- Dark Grey |
|
| P5263031190B | 1190 mm (46,85") | MX - Performance PBT (03) | B - 1 Positioner | P5263 | 25 mm | 20500 N/m | 10.35 kg/m^2 | POM grey | Snap-in Clip | 3,30 ft - 1,005 m | -40÷120 °C | -40÷60 °C | Top Rubber - 50 ShA- Dark Grey |
|
| P5263031190C | 1190 mm (46,85") | MX - Performance PBT (03) | C - 2 Positioners | P5263 | 25 mm | 20500 N/m | 10.35 kg/m^2 | POM grey | Snap-in Clip | 3,30 ft - 1,005 m | -40÷120 °C | -40÷60 °C | Top Rubber - 50 ShA- Dark Grey |
|
| P5263031275A | 1275 mm (50,20") | MX - Performance PBT (03) | A - No positioners | P5263 | 25 mm | 20500 N/m | 10.35 kg/m^2 | POM grey | Snap-in Clip | 3,30 ft - 1,005 m | -40÷120 °C | -40÷60 °C | Top Rubber - 50 ShA- Dark Grey |
|
| P5263031275B | 1275 mm (50,20") | MX - Performance PBT (03) | B - 1 Positioner | P5263 | 25 mm | 20500 N/m | 10.35 kg/m^2 | POM grey | Snap-in Clip | 3,30 ft - 1,005 m | -40÷120 °C | -40÷60 °C | Top Rubber - 50 ShA- Dark Grey |
|
| P5263031275C | 1275 mm (50,20") | MX - Performance PBT (03) | C - 2 Positioners | P5263 | 25 mm | 20500 N/m | 10.35 kg/m^2 | POM grey | Snap-in Clip | 3,30 ft - 1,005 m | -40÷120 °C | -40÷60 °C | Top Rubber - 50 ShA- Dark Grey |
|
| P5263031360A | 1360 mm (53,54") | MX - Performance PBT (03) | A - No positioners | P5263 | 25 mm | 20500 N/m | 10.35 kg/m^2 | POM grey | Snap-in Clip | 3,30 ft - 1,005 m | -40÷120 °C | -40÷60 °C | Top Rubber - 50 ShA- Dark Grey |
|
| P5263031360B | 1360 mm (53,54") | MX - Performance PBT (03) | B - 1 Positioner | P5263 | 25 mm | 20500 N/m | 10.35 kg/m^2 | POM grey | Snap-in Clip | 3,30 ft - 1,005 m | -40÷120 °C | -40÷60 °C | Top Rubber - 50 ShA- Dark Grey |
|
| P5263031360C | 1360 mm (53,54") | MX - Performance PBT (03) | C - 2 Positioners | P5263 | 25 mm | 20500 N/m | 10.35 kg/m^2 | POM grey | Snap-in Clip | 3,30 ft - 1,005 m | -40÷120 °C | -40÷60 °C | Top Rubber - 50 ShA- Dark Grey |
|
| P5263031445A | 1445 mm (56,89") | MX - Performance PBT (03) | A - No positioners | P5263 | 25 mm | 20500 N/m | 10.35 kg/m^2 | POM grey | Snap-in Clip | 3,30 ft - 1,005 m | -40÷120 °C | -40÷60 °C | Top Rubber - 50 ShA- Dark Grey |
|
| P5263031445B | 1445 mm (56,89") | MX - Performance PBT (03) | B - 1 Positioner | P5263 | 25 mm | 20500 N/m | 10.35 kg/m^2 | POM grey | Snap-in Clip | 3,30 ft - 1,005 m | -40÷120 °C | -40÷60 °C | Top Rubber - 50 ShA- Dark Grey |
|
| P5263031445C | 1445 mm (56,89") | MX - Performance PBT (03) | C - 2 Positioners | P5263 | 25 mm | 20500 N/m | 10.35 kg/m^2 | POM grey | Snap-in Clip | 3,30 ft - 1,005 m | -40÷120 °C | -40÷60 °C | Top Rubber - 50 ShA- Dark Grey |
|
| P5263031530A | 1530 mm (60,24") | MX - Performance PBT (03) | A - No positioners | P5263 | 25 mm | 20500 N/m | 10.35 kg/m^2 | POM grey | Snap-in Clip | 3,30 ft - 1,005 m | -40÷120 °C | -40÷60 °C | Top Rubber - 50 ShA- Dark Grey |
|
| P5263031530B | 1530 mm (60,24") | MX - Performance PBT (03) | B - 1 Positioner | P5263 | 25 mm | 20500 N/m | 10.35 kg/m^2 | POM grey | Snap-in Clip | 3,30 ft - 1,005 m | -40÷120 °C | -40÷60 °C | Top Rubber - 50 ShA- Dark Grey |
|
| P5263031530C | 1530 mm (60,24") | MX - Performance PBT (03) | C - 2 Positioners | P5263 | 25 mm | 20500 N/m | 10.35 kg/m^2 | POM grey | Snap-in Clip | 3,30 ft - 1,005 m | -40÷120 °C | -40÷60 °C | Top Rubber - 50 ShA- Dark Grey |
|
Enquiry Now
To allow us to respond to your enquiry promptly, please provide all required information.
Related Products
-
Nosebars for 520-525 seriesNosebarsView Product -
Nosebars with bearings for 520-525 seriesNosebarsView Product
-
Nosebars with rollers for 520-525 seriesNosebarsView Product
-
One piece for 520-525 seriesNosebarsView Product
-
One piece with rollers for 520-525 seriesNosebarsView Product
-
525-530 machined sprocketBelt sprocketsView Product
-
525-530 molded sprocketBelt sprocketsView Product
