525 Heavy Duty Flush Grid
Modular Belts
Description
Description
Flush Grid modular belts with open surface help draining water and dirt from the running surface.
Basic features

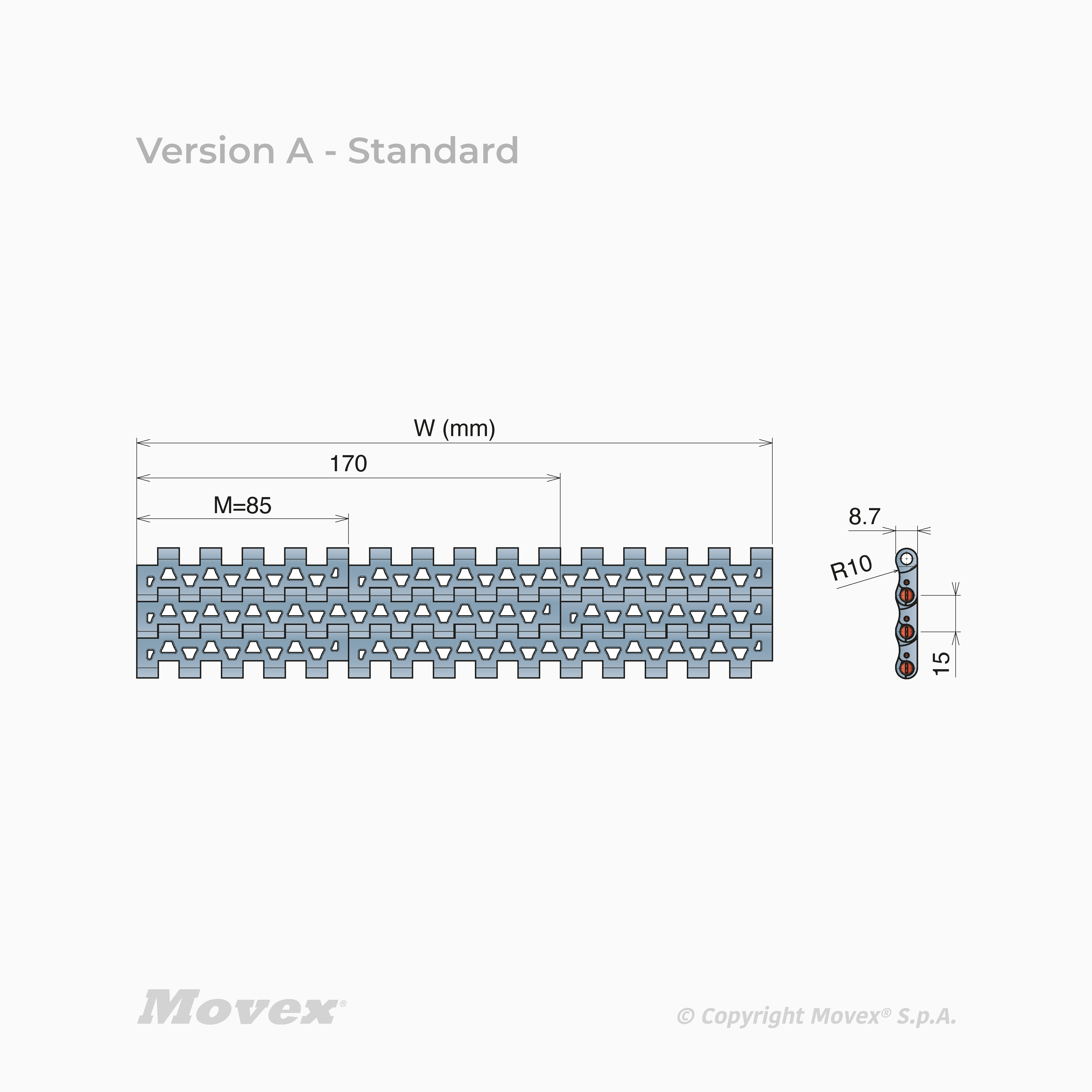

| Series: | 525 |
|---|---|
| Pitch: | 15 mm |
| Thickness: | 8.7 mm |
| Increments: | 85 mm |
| Surface Type: | FG - Flush Grid |
| Functionality: | Straight |
| Unit of measure: | Meter |
525 Heavy Duty Flush Grid
| Width | Material | Version | Part | Back flex radius | Max working load | Mass | Pin material | Fixation | Box | Temperature range dry | Temperature range wet | Supplementary informations | ||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Code | Actions | |||||||||||||
| P5262010085A | 85 mm (3,35") | LFA - Low friction acetal (01) | A - No positioners | P5262 | 25 mm | 25500 N/m | 8.1 kg/m^2 | PBT white | Snap-in Clip | 9,84 ft - 3 m | -40÷80 °C | -40÷65 °C | Open Surface 35 % |
|

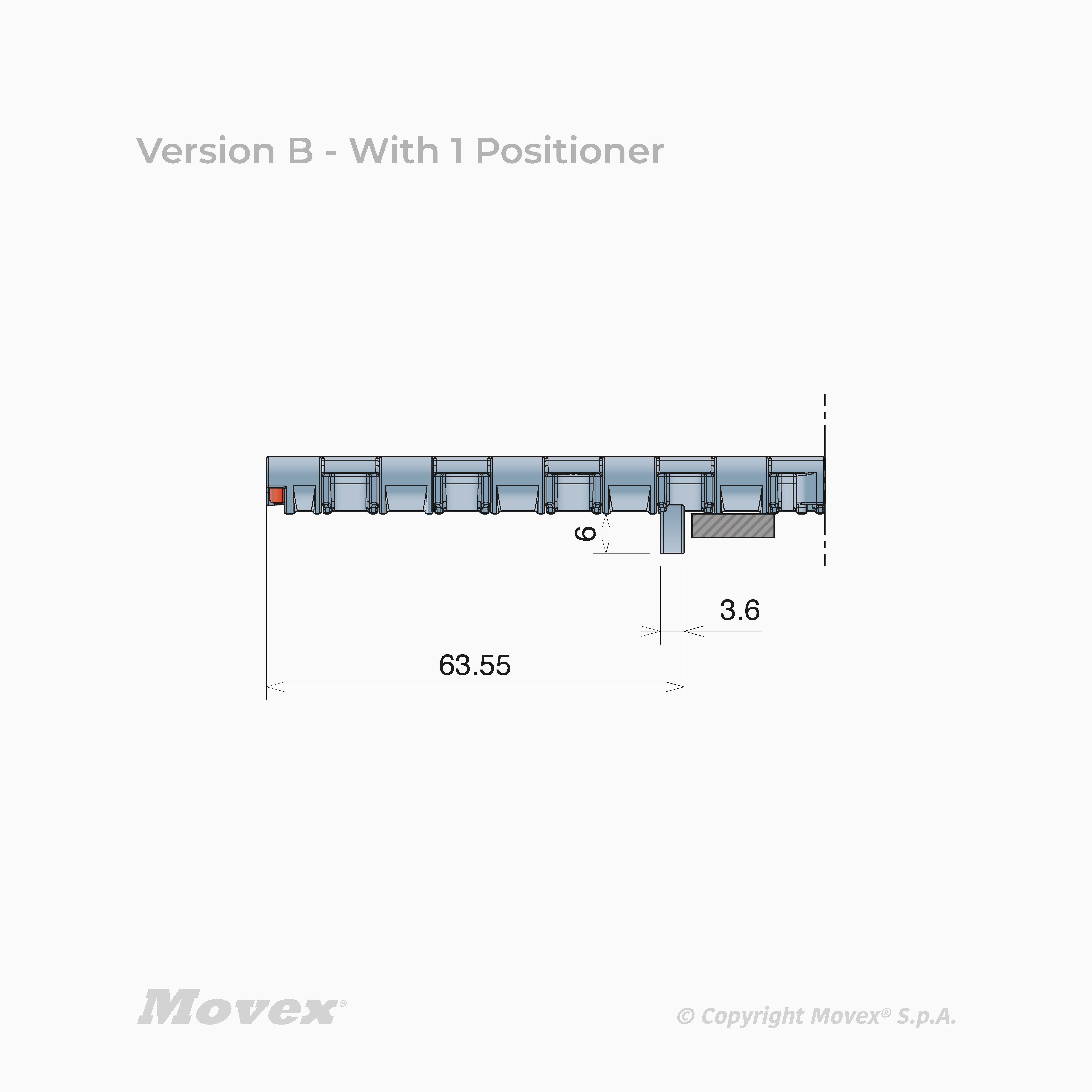

| P5262010085B | 85 mm (3,35") | LFA - Low friction acetal (01) | B - 1 Positioner | P5262 | 25 mm | 25500 N/m | 8.1 kg/m^2 | PBT white | Snap-in Clip | 9,84 ft - 3 m | -40÷80 °C | -40÷65 °C | Open Surface 35 % |
|

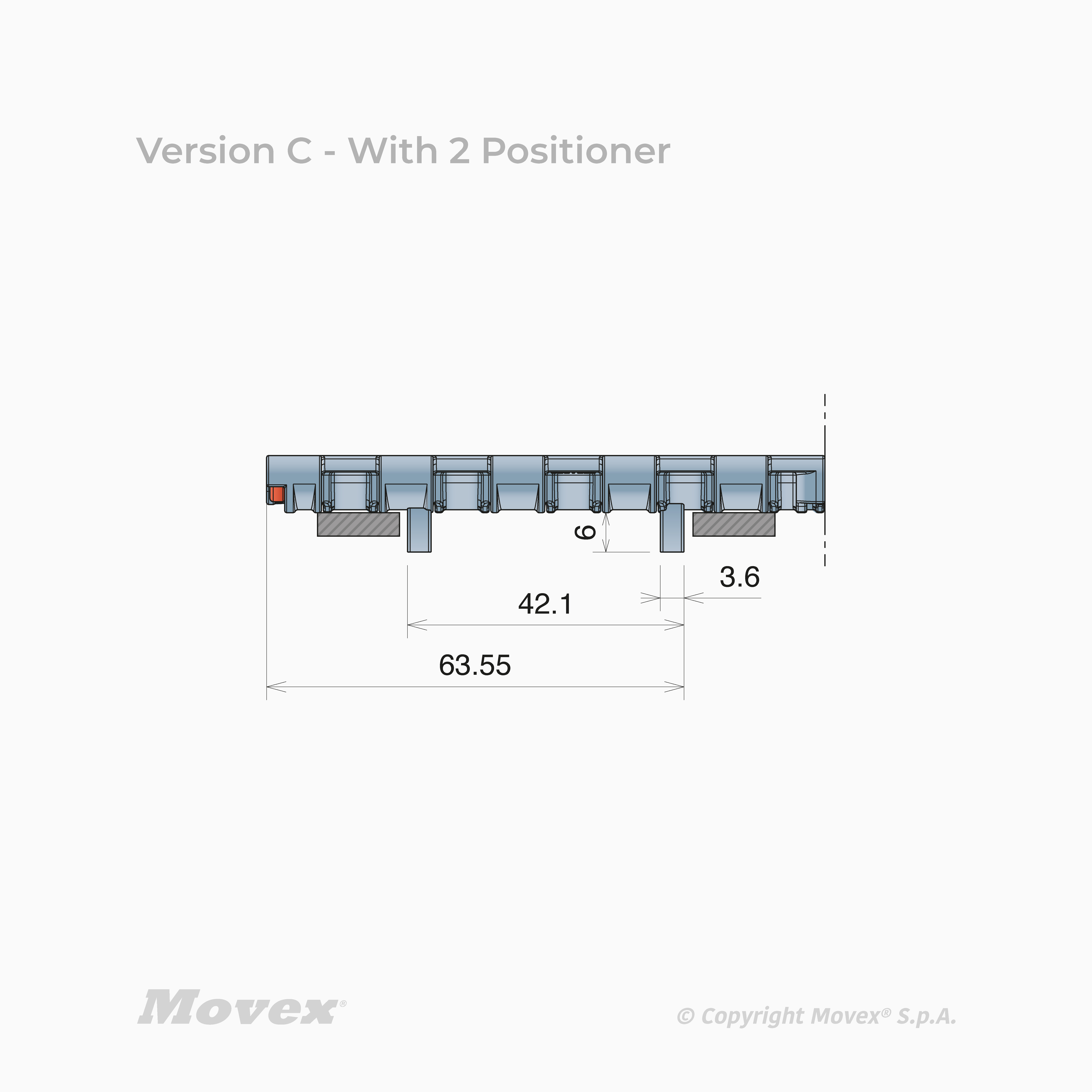

| P5262010085C | 85 mm (3,35") | LFA - Low friction acetal (01) | C - 2 Positioners | P5262 | 25 mm | 25500 N/m | 8.1 kg/m^2 | PBT white | Snap-in Clip | 9,84 ft - 3 m | -40÷80 °C | -40÷65 °C | Open Surface 35 % |
|
| P5262010170A | 170 mm (6,69") | LFA - Low friction acetal (01) | A - No positioners | P5262 | 25 mm | 25500 N/m | 8.1 kg/m^2 | PBT white | Snap-in Clip | 9,84 ft - 3 m | -40÷80 °C | -40÷65 °C | - |
|
| P5262010170B | 170 mm (6,69") | LFA - Low friction acetal (01) | B - 1 Positioner | P5262 | 25 mm | 25500 N/m | 8.1 kg/m^2 | PBT white | Snap-in Clip | 9,84 ft - 3 m | -40÷80 °C | -40÷65 °C | Open Surface 35 % |
|
| P5262010170C | 170 mm (6,69") | LFA - Low friction acetal (01) | C - 2 Positioners | P5262 | 25 mm | 25500 N/m | 8.1 kg/m^2 | PBT white | Snap-in Clip | 9,84 ft - 3 m | -40÷80 °C | -40÷65 °C | Open Surface 35 % |
|
| P5262010255A | 255 mm (10,04") | LFA - Low friction acetal (01) | A - No positioners | P5262 | 25 mm | 25500 N/m | 8.1 kg/m^2 | PBT white | Snap-in Clip | 9,84 ft - 3 m | -40÷80 °C | -40÷65 °C | - |
|
| P5262010255B | 255 mm (10,04") | LFA - Low friction acetal (01) | B - 1 Positioner | P5262 | 25 mm | 25500 N/m | 8.1 kg/m^2 | PBT white | Snap-in Clip | 9,84 ft - 3 m | -40÷80 °C | -40÷65 °C | Open Surface 35 % |
|
| P5262010255C | 255 mm (10,04") | LFA - Low friction acetal (01) | C - 2 Positioners | P5262 | 25 mm | 25500 N/m | 8.1 kg/m^2 | PBT white | Snap-in Clip | 9,84 ft - 3 m | -40÷80 °C | -40÷65 °C | Open Surface 35 % |
|
| P5262010340A | 340 mm (13,39") | LFA - Low friction acetal (01) | A - No positioners | P5262 | 25 mm | 25500 N/m | 8.1 kg/m^2 | PBT white | Snap-in Clip | 4,92 ft - 1,5 m | -40÷80 °C | -40÷65 °C | - |
|
| P5262010340B | 340 mm (13,39") | LFA - Low friction acetal (01) | B - 1 Positioner | P5262 | 25 mm | 25500 N/m | 8.1 kg/m^2 | PBT white | Snap-in Clip | 4,92 ft - 1,5 m | -40÷80 °C | -40÷65 °C | Open Surface 35 % |
|
| P5262010340C | 340 mm (13,39") | LFA - Low friction acetal (01) | C - 2 Positioners | P5262 | 25 mm | 25500 N/m | 8.1 kg/m^2 | PBT white | Snap-in Clip | 4,92 ft - 1,5 m | -40÷80 °C | -40÷65 °C | Open Surface 35 % |
|
| P5262010425A | 425 mm (16,73") | LFA - Low friction acetal (01) | A - No positioners | P5262 | 25 mm | 25500 N/m | 8.1 kg/m^2 | PBT white | Snap-in Clip | 4,92 ft - 1,5 m | -40÷80 °C | -40÷65 °C | - |
|
| P5262010425B | 425 mm (16,73") | LFA - Low friction acetal (01) | B - 1 Positioner | P5262 | 25 mm | 25500 N/m | 8.1 kg/m^2 | PBT white | Snap-in Clip | 4,92 ft - 1,5 m | -40÷80 °C | -40÷65 °C | Open Surface 35 % |
|
| P5262010425C | 425 mm (16,73") | LFA - Low friction acetal (01) | C - 2 Positioners | P5262 | 25 mm | 25500 N/m | 8.1 kg/m^2 | PBT white | Snap-in Clip | 4,92 ft - 1,5 m | -40÷80 °C | -40÷65 °C | Open Surface 35 % |
|
| P5262010510A | 510 mm (20,08") | LFA - Low friction acetal (01) | A - No positioners | P5262 | 25 mm | 25500 N/m | 8.1 kg/m^2 | PBT white | Snap-in Clip | 4,92 ft - 1,5 m | -40÷80 °C | -40÷65 °C | - |
|
| P5262010510B | 510 mm (20,08") | LFA - Low friction acetal (01) | B - 1 Positioner | P5262 | 25 mm | 25500 N/m | 8.1 kg/m^2 | PBT white | Snap-in Clip | 4,92 ft - 1,5 m | -40÷80 °C | -40÷65 °C | Open Surface 35 % |
|
| P5262010510C | 510 mm (20,08") | LFA - Low friction acetal (01) | C - 2 Positioners | P5262 | 25 mm | 25500 N/m | 8.1 kg/m^2 | PBT white | Snap-in Clip | 4,92 ft - 1,5 m | -40÷80 °C | -40÷65 °C | Open Surface 35 % |
|
| P5262010595A | 595 mm (23,43") | LFA - Low friction acetal (01) | A - No positioners | P5262 | 25 mm | 25500 N/m | 8.1 kg/m^2 | PBT white | Snap-in Clip | 4,92 ft - 1,5 m | -40÷80 °C | -40÷65 °C | Open Surface 35 % |
|
| P5262010595B | 595 mm (23,43") | LFA - Low friction acetal (01) | B - 1 Positioner | P5262 | 25 mm | 25500 N/m | 8.1 kg/m^2 | PBT white | Snap-in Clip | 4,92 ft - 1,5 m | -40÷80 °C | -40÷65 °C | Open Surface 35 % |
|
| P5262010595C | 595 mm (23,43") | LFA - Low friction acetal (01) | C - 2 Positioners | P5262 | 25 mm | 25500 N/m | 8.1 kg/m^2 | PBT white | Snap-in Clip | 4,92 ft - 1,5 m | -40÷80 °C | -40÷65 °C | Open Surface 35 % |
|
| P5262010680A | 680 mm (26,77") | LFA - Low friction acetal (01) | A - No positioners | P5262 | 25 mm | 25500 N/m | 8.1 kg/m^2 | PBT white | Snap-in Clip | 4,92 ft - 1,5 m | -40÷80 °C | -40÷65 °C | Open Surface 35 % |
|
| P5262010680B | 680 mm (26,77") | LFA - Low friction acetal (01) | B - 1 Positioner | P5262 | 25 mm | 25500 N/m | 8.1 kg/m^2 | PBT white | Snap-in Clip | 4,92 ft - 1,5 m | -40÷80 °C | -40÷65 °C | Open Surface 35 % |
|
| P5262010680C | 680 mm (26,77") | LFA - Low friction acetal (01) | C - 2 Positioners | P5262 | 25 mm | 25500 N/m | 8.1 kg/m^2 | PBT white | Snap-in Clip | 4,92 ft - 1,5 m | -40÷80 °C | -40÷65 °C | Open Surface 35 % |
|
| P5262010765A | 765 mm (30,12") | LFA - Low friction acetal (01) | A - No positioners | P5262 | 25 mm | 25500 N/m | 8.1 kg/m^2 | PBT white | Snap-in Clip | 4,92 ft - 1,5 m | -40÷80 °C | -40÷65 °C | Open Surface 35 % |
|
| P5262010765B | 765 mm (30,12") | LFA - Low friction acetal (01) | B - 1 Positioner | P5262 | 25 mm | 25500 N/m | 8.1 kg/m^2 | PBT white | Snap-in Clip | 4,92 ft - 1,5 m | -40÷80 °C | -40÷65 °C | Open Surface 35 % |
|
| P5262010765C | 765 mm (30,12") | LFA - Low friction acetal (01) | C - 2 Positioners | P5262 | 25 mm | 25500 N/m | 8.1 kg/m^2 | PBT white | Snap-in Clip | 4,92 ft - 1,5 m | -40÷80 °C | -40÷65 °C | Open Surface 35 % |
|
| P5262010850A | 850 mm (33,46") | LFA - Low friction acetal (01) | A - No positioners | P5262 | 25 mm | 25500 N/m | 8.1 kg/m^2 | PBT white | Snap-in Clip | 4,92 ft - 1,5 m | -40÷80 °C | -40÷65 °C | Open Surface 35 % |
|
| P5262010850B | 850 mm (33,46") | LFA - Low friction acetal (01) | B - 1 Positioner | P5262 | 25 mm | 25500 N/m | 8.1 kg/m^2 | PBT white | Snap-in Clip | 4,92 ft - 1,5 m | -40÷80 °C | -40÷65 °C | Open Surface 35 % |
|
| P5262010850C | 850 mm (33,46") | LFA - Low friction acetal (01) | C - 2 Positioners | P5262 | 25 mm | 25500 N/m | 8.1 kg/m^2 | PBT white | Snap-in Clip | 4,92 ft - 1,5 m | -40÷80 °C | -40÷65 °C | Open Surface 35 % |
|
| P5262010935A | 935 mm (36,81") | LFA - Low friction acetal (01) | A - No positioners | P5262 | 25 mm | 25500 N/m | 8.1 kg/m^2 | PBT white | Snap-in Clip | 4,92 ft - 1,5 m | -40÷80 °C | -40÷65 °C | Open Surface 35 % |
|
| P5262010935B | 935 mm (36,81") | LFA - Low friction acetal (01) | B - 1 Positioner | P5262 | 25 mm | 25500 N/m | 8.1 kg/m^2 | PBT white | Snap-in Clip | 4,92 ft - 1,5 m | -40÷80 °C | -40÷65 °C | Open Surface 35 % |
|
| P5262010935C | 935 mm (36,81") | LFA - Low friction acetal (01) | C - 2 Positioners | P5262 | 25 mm | 25500 N/m | 8.1 kg/m^2 | PBT white | Snap-in Clip | 4,92 ft - 1,5 m | -40÷80 °C | -40÷65 °C | Open Surface 35 % |
|
| P5262011020A | 1020 mm (40,16") | LFA - Low friction acetal (01) | A - No positioners | P5262 | 25 mm | 25500 N/m | 8.1 kg/m^2 | PBT white | Snap-in Clip | 4,92 ft - 1,5 m | -40÷80 °C | -40÷65 °C | Open Surface 35 % |
|
| P5262011020B | 1020 mm (40,16") | LFA - Low friction acetal (01) | B - 1 Positioner | P5262 | 25 mm | 25500 N/m | 8.1 kg/m^2 | PBT white | Snap-in Clip | 4,92 ft - 1,5 m | -40÷80 °C | -40÷65 °C | Open Surface 35 % |
|
| P5262011020C | 1020 mm (40,16") | LFA - Low friction acetal (01) | C - 2 Positioners | P5262 | 25 mm | 25500 N/m | 8.1 kg/m^2 | PBT white | Snap-in Clip | 4,92 ft - 1,5 m | -40÷80 °C | -40÷65 °C | Open Surface 35 % |
|
| P5262011105A | 1105 mm (43,50") | LFA - Low friction acetal (01) | A - No positioners | P5262 | 25 mm | 25500 N/m | 8.1 kg/m^2 | PBT white | Snap-in Clip | 4,92 ft - 1,5 m | -40÷80 °C | -40÷65 °C | Open Surface 35 % |
|
| P5262011105B | 1105 mm (43,50") | LFA - Low friction acetal (01) | B - 1 Positioner | P5262 | 25 mm | 25500 N/m | 8.1 kg/m^2 | PBT white | Snap-in Clip | 4,92 ft - 1,5 m | -40÷80 °C | -40÷65 °C | Open Surface 35 % |
|
| P5262011105C | 1105 mm (43,50") | LFA - Low friction acetal (01) | C - 2 Positioners | P5262 | 25 mm | 25500 N/m | 8.1 kg/m^2 | PBT white | Snap-in Clip | 4,92 ft - 1,5 m | -40÷80 °C | -40÷65 °C | Open Surface 35 % |
|
| P5262011190A | 1190 mm (46,85") | LFA - Low friction acetal (01) | A - No positioners | P5262 | 25 mm | 25500 N/m | 8.1 kg/m^2 | PBT white | Snap-in Clip | 4,92 ft - 1,5 m | -40÷80 °C | -40÷65 °C | Open Surface 35 % |
|
| P5262011190B | 1190 mm (46,85") | LFA - Low friction acetal (01) | B - 1 Positioner | P5262 | 25 mm | 25500 N/m | 8.1 kg/m^2 | PBT white | Snap-in Clip | 4,92 ft - 1,5 m | -40÷80 °C | -40÷65 °C | Open Surface 35 % |
|
| P5262011190C | 1190 mm (46,85") | LFA - Low friction acetal (01) | C - 2 Positioners | P5262 | 25 mm | 25500 N/m | 8.1 kg/m^2 | PBT white | Snap-in Clip | 4,92 ft - 1,5 m | -40÷80 °C | -40÷65 °C | Open Surface 35 % |
|
| P5262011275A | 1275 mm (50,20") | LFA - Low friction acetal (01) | A - No positioners | P5262 | 25 mm | 25500 N/m | 8.1 kg/m^2 | PBT white | Snap-in Clip | 4,92 ft - 1,5 m | -40÷80 °C | -40÷65 °C | Open Surface 35 % |
|
| P5262011275B | 1275 mm (50,20") | LFA - Low friction acetal (01) | B - 1 Positioner | P5262 | 25 mm | 25500 N/m | 8.1 kg/m^2 | PBT white | Snap-in Clip | 4,92 ft - 1,5 m | -40÷80 °C | -40÷65 °C | Open Surface 35 % |
|
| P5262011275C | 1275 mm (50,20") | LFA - Low friction acetal (01) | C - 2 Positioners | P5262 | 25 mm | 25500 N/m | 8.1 kg/m^2 | PBT white | Snap-in Clip | 4,92 ft - 1,5 m | -40÷80 °C | -40÷65 °C | Open Surface 35 % |
|
| P5262011360A | 1360 mm (53,54") | LFA - Low friction acetal (01) | A - No positioners | P5262 | 25 mm | 25500 N/m | 8.1 kg/m^2 | PBT white | Snap-in Clip | 4,92 ft - 1,5 m | -40÷80 °C | -40÷65 °C | Open Surface 35 % |
|
| P5262011360B | 1360 mm (53,54") | LFA - Low friction acetal (01) | B - 1 Positioner | P5262 | 25 mm | 25500 N/m | 8.1 kg/m^2 | PBT white | Snap-in Clip | 4,92 ft - 1,5 m | -40÷80 °C | -40÷65 °C | Open Surface 35 % |
|
| P5262011360C | 1360 mm (53,54") | LFA - Low friction acetal (01) | C - 2 Positioners | P5262 | 25 mm | 25500 N/m | 8.1 kg/m^2 | PBT white | Snap-in Clip | 4,92 ft - 1,5 m | -40÷80 °C | -40÷65 °C | Open Surface 35 % |
|
| P5262011445A | 1445 mm (56,89") | LFA - Low friction acetal (01) | A - No positioners | P5262 | 25 mm | 25500 N/m | 8.1 kg/m^2 | PBT white | Snap-in Clip | 4,92 ft - 1,5 m | -40÷80 °C | -40÷65 °C | Open Surface 35 % |
|
| P5262011445B | 1445 mm (56,89") | LFA - Low friction acetal (01) | B - 1 Positioner | P5262 | 25 mm | 25500 N/m | 8.1 kg/m^2 | PBT white | Snap-in Clip | 4,92 ft - 1,5 m | -40÷80 °C | -40÷65 °C | Open Surface 35 % |
|
| P5262011445C | 1445 mm (56,89") | LFA - Low friction acetal (01) | C - 2 Positioners | P5262 | 25 mm | 25500 N/m | 8.1 kg/m^2 | PBT white | Snap-in Clip | 4,92 ft - 1,5 m | -40÷80 °C | -40÷65 °C | Open Surface 35 % |
|
| P5262011530A | 1530 mm (60,24") | LFA - Low friction acetal (01) | A - No positioners | P5262 | 25 mm | 25500 N/m | 8.1 kg/m^2 | PBT white | Snap-in Clip | 4,92 ft - 1,5 m | -40÷80 °C | -40÷65 °C | Open Surface 35 % |
|
| P5262011530B | 1530 mm (60,24") | LFA - Low friction acetal (01) | B - 1 Positioner | P5262 | 25 mm | 25500 N/m | 8.1 kg/m^2 | PBT white | Snap-in Clip | 4,92 ft - 1,5 m | -40÷80 °C | -40÷65 °C | Open Surface 35 % |
|
| P5262011530C | 1530 mm (60,24") | LFA - Low friction acetal (01) | C - 2 Positioners | P5262 | 25 mm | 25500 N/m | 8.1 kg/m^2 | PBT white | Snap-in Clip | 4,92 ft - 1,5 m | -40÷80 °C | -40÷65 °C | Open Surface 35 % |
|
| P5262030085A | 85 mm (3,35") | MX - Performance PBT (03) | A - No positioners | P5262 | 25 mm | 20500 N/m | 7.8 kg/m^2 | POM grey | Snap-in Clip | 9,84 ft - 3 m | -40÷120 °C | -40÷60 °C | Open Surface 35 % |
|
| P5262030085B | 85 mm (3,35") | MX - Performance PBT (03) | B - 1 Positioner | P5262 | 25 mm | 20500 N/m | 7.8 kg/m^2 | POM grey | Snap-in Clip | 9,84 ft - 3 m | -40÷120 °C | -40÷60 °C | Open Surface 35 % |
|
| P5262030085C | 85 mm (3,35") | MX - Performance PBT (03) | C - 2 Positioners | P5262 | 25 mm | 20500 N/m | 7.8 kg/m^2 | POM grey | Snap-in Clip | 9,84 ft - 3 m | -40÷120 °C | -40÷60 °C | Open Surface 35 % |
|
| P5262030170A | 170 mm (6,69") | MX - Performance PBT (03) | A - No positioners | P5262 | 25 mm | 20500 N/m | 7.8 kg/m^2 | POM grey | Snap-in Clip | 9,84 ft - 3 m | -40÷120 °C | -40÷60 °C | Open Surface 35 % |
|
| P5262030170B | 170 mm (6,69") | MX - Performance PBT (03) | B - 1 Positioner | P5262 | 25 mm | 20500 N/m | 7.8 kg/m^2 | POM grey | Snap-in Clip | 9,84 ft - 3 m | -40÷120 °C | -40÷60 °C | Open Surface 35 % |
|
| P5262030170C | 170 mm (6,69") | MX - Performance PBT (03) | C - 2 Positioners | P5262 | 25 mm | 20500 N/m | 7.8 kg/m^2 | POM grey | Snap-in Clip | 9,84 ft - 3 m | -40÷120 °C | -40÷60 °C | Open Surface 35 % |
|
| P5262030255A | 255 mm (10,04") | MX - Performance PBT (03) | A - No positioners | P5262 | 25 mm | 20500 N/m | 7.8 kg/m^2 | POM grey | Snap-in Clip | 9,84 ft - 3 m | -40÷120 °C | -40÷60 °C | Open Surface 35 % |
|
| P5262030255B | 255 mm (10,04") | MX - Performance PBT (03) | B - 1 Positioner | P5262 | 25 mm | 20500 N/m | 7.8 kg/m^2 | POM grey | Snap-in Clip | 9,84 ft - 3 m | -40÷120 °C | -40÷60 °C | Open Surface 35 % |
|
| P5262030255C | 255 mm (10,04") | MX - Performance PBT (03) | C - 2 Positioners | P5262 | 25 mm | 20500 N/m | 7.8 kg/m^2 | POM grey | Snap-in Clip | 9,84 ft - 3 m | -40÷120 °C | -40÷60 °C | Open Surface 35 % |
|
| P5262030340A | 340 mm (13,39") | MX - Performance PBT (03) | A - No positioners | P5262 | 25 mm | 20500 N/m | 7.8 kg/m^2 | POM grey | Snap-in Clip | 4,92 ft - 1,5 m | -40÷120 °C | -40÷60 °C | Open Surface 35 % |
|
| P5262030340B | 340 mm (13,39") | MX - Performance PBT (03) | B - 1 Positioner | P5262 | 25 mm | 20500 N/m | 7.8 kg/m^2 | POM grey | Snap-in Clip | 4,92 ft - 1,5 m | -40÷120 °C | -40÷60 °C | Open Surface 35 % |
|
| P5262030340C | 340 mm (13,39") | MX - Performance PBT (03) | C - 2 Positioners | P5262 | 25 mm | 20500 N/m | 7.8 kg/m^2 | POM grey | Snap-in Clip | 4,92 ft - 1,5 m | -40÷120 °C | -40÷60 °C | Open Surface 35 % |
|
| P5262030425A | 425 mm (16,73") | MX - Performance PBT (03) | A - No positioners | P5262 | 25 mm | 20500 N/m | 7.8 kg/m^2 | POM grey | Snap-in Clip | 4,92 ft - 1,5 m | -40÷120 °C | -40÷60 °C | Open Surface 35 % |
|
| P5262030425B | 425 mm (16,73") | MX - Performance PBT (03) | B - 1 Positioner | P5262 | 25 mm | 20500 N/m | 7.8 kg/m^2 | POM grey | Snap-in Clip | 4,92 ft - 1,5 m | -40÷120 °C | -40÷60 °C | Open Surface 35 % |
|
| P5262030425C | 425 mm (16,73") | MX - Performance PBT (03) | C - 2 Positioners | P5262 | 25 mm | 20500 N/m | 7.8 kg/m^2 | POM grey | Snap-in Clip | 4,92 ft - 1,5 m | -40÷120 °C | -40÷60 °C | Open Surface 35 % |
|
| P5262030510A | 510 mm (20,08") | MX - Performance PBT (03) | A - No positioners | P5262 | 25 mm | 20500 N/m | 7.8 kg/m^2 | POM grey | Snap-in Clip | 4,92 ft - 1,5 m | -40÷120 °C | -40÷60 °C | Open Surface 35 % |
|
| P5262030510B | 510 mm (20,08") | MX - Performance PBT (03) | B - 1 Positioner | P5262 | 25 mm | 20500 N/m | 7.8 kg/m^2 | POM grey | Snap-in Clip | 4,92 ft - 1,5 m | -40÷120 °C | -40÷60 °C | Open Surface 35 % |
|
| P5262030510C | 510 mm (20,08") | MX - Performance PBT (03) | C - 2 Positioners | P5262 | 25 mm | 20500 N/m | 7.8 kg/m^2 | POM grey | Snap-in Clip | 4,92 ft - 1,5 m | -40÷120 °C | -40÷60 °C | Open Surface 35 % |
|
| P5262030595A | 595 mm (23,43") | MX - Performance PBT (03) | A - No positioners | P5262 | 25 mm | 20500 N/m | 7.8 kg/m^2 | POM grey | Snap-in Clip | 4,92 ft - 1,5 m | -40÷120 °C | -40÷60 °C | Open Surface 35 % |
|
| P5262030595B | 595 mm (23,43") | MX - Performance PBT (03) | B - 1 Positioner | P5262 | 25 mm | 20500 N/m | 7.8 kg/m^2 | POM grey | Snap-in Clip | 4,92 ft - 1,5 m | -40÷120 °C | -40÷60 °C | Open Surface 35 % |
|
| P5262030595C | 595 mm (23,43") | MX - Performance PBT (03) | C - 2 Positioners | P5262 | 25 mm | 20500 N/m | 7.8 kg/m^2 | POM grey | Snap-in Clip | 4,92 ft - 1,5 m | -40÷120 °C | -40÷60 °C | Open Surface 35 % |
|
| P5262030680A | 680 mm (26,77") | MX - Performance PBT (03) | A - No positioners | P5262 | 25 mm | 20500 N/m | 7.8 kg/m^2 | POM grey | Snap-in Clip | 4,92 ft - 1,5 m | -40÷120 °C | -40÷60 °C | Open Surface 35 % |
|
| P5262030680B | 680 mm (26,77") | MX - Performance PBT (03) | B - 1 Positioner | P5262 | 25 mm | 20500 N/m | 7.8 kg/m^2 | POM grey | Snap-in Clip | 4,92 ft - 1,5 m | -40÷120 °C | -40÷60 °C | Open Surface 35 % |
|
| P5262030680C | 680 mm (26,77") | MX - Performance PBT (03) | C - 2 Positioners | P5262 | 25 mm | 20500 N/m | 7.8 kg/m^2 | POM grey | Snap-in Clip | 4,92 ft - 1,5 m | -40÷120 °C | -40÷60 °C | Open Surface 35 % |
|
| P5262030765A | 765 mm (30,12") | MX - Performance PBT (03) | A - No positioners | P5262 | 25 mm | 20500 N/m | 7.8 kg/m^2 | POM grey | Snap-in Clip | 4,92 ft - 1,5 m | -40÷120 °C | -40÷60 °C | Open Surface 35 % |
|
| P5262030765B | 765 mm (30,12") | MX - Performance PBT (03) | B - 1 Positioner | P5262 | 25 mm | 20500 N/m | 7.8 kg/m^2 | POM grey | Snap-in Clip | 4,92 ft - 1,5 m | -40÷120 °C | -40÷60 °C | Open Surface 35 % |
|
| P5262030765C | 765 mm (30,12") | MX - Performance PBT (03) | C - 2 Positioners | P5262 | 25 mm | 20500 N/m | 7.8 kg/m^2 | POM grey | Snap-in Clip | 4,92 ft - 1,5 m | -40÷120 °C | -40÷60 °C | Open Surface 35 % |
|
| P5262030850A | 850 mm (33,46") | MX - Performance PBT (03) | A - No positioners | P5262 | 25 mm | 20500 N/m | 7.8 kg/m^2 | POM grey | Snap-in Clip | 4,92 ft - 1,5 m | -40÷120 °C | -40÷60 °C | Open Surface 35 % |
|
| P5262030850B | 850 mm (33,46") | MX - Performance PBT (03) | B - 1 Positioner | P5262 | 25 mm | 20500 N/m | 7.8 kg/m^2 | POM grey | Snap-in Clip | 4,92 ft - 1,5 m | -40÷120 °C | -40÷60 °C | Open Surface 35 % |
|
| P5262030850C | 850 mm (33,46") | MX - Performance PBT (03) | C - 2 Positioners | P5262 | 25 mm | 20500 N/m | 7.8 kg/m^2 | POM grey | Snap-in Clip | 4,92 ft - 1,5 m | -40÷120 °C | -40÷60 °C | Open Surface 35 % |
|
| P5262030935A | 935 mm (36,81") | MX - Performance PBT (03) | A - No positioners | P5262 | 25 mm | 20500 N/m | 7.8 kg/m^2 | POM grey | Snap-in Clip | 4,92 ft - 1,5 m | -40÷120 °C | -40÷60 °C | Open Surface 35 % |
|
| P5262030935B | 935 mm (36,81") | MX - Performance PBT (03) | B - 1 Positioner | P5262 | 25 mm | 20500 N/m | 7.8 kg/m^2 | POM grey | Snap-in Clip | 4,92 ft - 1,5 m | -40÷120 °C | -40÷60 °C | Open Surface 35 % |
|
| P5262030935C | 935 mm (36,81") | MX - Performance PBT (03) | C - 2 Positioners | P5262 | 25 mm | 20500 N/m | 7.8 kg/m^2 | POM grey | Snap-in Clip | 4,92 ft - 1,5 m | -40÷120 °C | -40÷60 °C | Open Surface 35 % |
|
| P5262031020A | 1020 mm (40,16") | MX - Performance PBT (03) | A - No positioners | P5262 | 25 mm | 20500 N/m | 7.8 kg/m^2 | POM grey | Snap-in Clip | 4,92 ft - 1,5 m | -40÷120 °C | -40÷60 °C | Open Surface 35 % |
|
| P5262031020B | 1020 mm (40,16") | MX - Performance PBT (03) | B - 1 Positioner | P5262 | 25 mm | 20500 N/m | 7.8 kg/m^2 | POM grey | Snap-in Clip | 4,92 ft - 1,5 m | -40÷120 °C | -40÷60 °C | Open Surface 35 % |
|
| P5262031020C | 1020 mm (40,16") | MX - Performance PBT (03) | C - 2 Positioners | P5262 | 25 mm | 20500 N/m | 7.8 kg/m^2 | POM grey | Snap-in Clip | 4,92 ft - 1,5 m | -40÷120 °C | -40÷60 °C | Open Surface 35 % |
|
| P5262031105A | 1105 mm (43,50") | MX - Performance PBT (03) | A - No positioners | P5262 | 25 mm | 20500 N/m | 7.8 kg/m^2 | POM grey | Snap-in Clip | 4,92 ft - 1,5 m | -40÷120 °C | -40÷60 °C | Open Surface 35 % |
|
| P5262031105B | 1105 mm (43,50") | MX - Performance PBT (03) | B - 1 Positioner | P5262 | 25 mm | 20500 N/m | 7.8 kg/m^2 | POM grey | Snap-in Clip | 4,92 ft - 1,5 m | -40÷120 °C | -40÷60 °C | Open Surface 35 % |
|
| P5262031105C | 1105 mm (43,50") | MX - Performance PBT (03) | C - 2 Positioners | P5262 | 25 mm | 20500 N/m | 7.8 kg/m^2 | POM grey | Snap-in Clip | 4,92 ft - 1,5 m | -40÷120 °C | -40÷60 °C | Open Surface 35 % |
|
| P5262031190A | 1190 mm (46,85") | MX - Performance PBT (03) | A - No positioners | P5262 | 25 mm | 20500 N/m | 7.8 kg/m^2 | POM grey | Snap-in Clip | 4,92 ft - 1,5 m | -40÷120 °C | -40÷60 °C | Open Surface 35 % |
|
| P5262031190B | 1190 mm (46,85") | MX - Performance PBT (03) | B - 1 Positioner | P5262 | 25 mm | 20500 N/m | 7.8 kg/m^2 | POM grey | Snap-in Clip | 4,92 ft - 1,5 m | -40÷120 °C | -40÷60 °C | Open Surface 35 % |
|
| P5262031190C | 1190 mm (46,85") | MX - Performance PBT (03) | C - 2 Positioners | P5262 | 25 mm | 20500 N/m | 7.8 kg/m^2 | POM grey | Snap-in Clip | 4,92 ft - 1,5 m | -40÷120 °C | -40÷60 °C | Open Surface 35 % |
|
| P5262031275A | 1275 mm (50,20") | MX - Performance PBT (03) | A - No positioners | P5262 | 25 mm | 20500 N/m | 7.8 kg/m^2 | POM grey | Snap-in Clip | 4,92 ft - 1,5 m | -40÷120 °C | -40÷60 °C | Open Surface 35 % |
|
| P5262031275B | 1275 mm (50,20") | MX - Performance PBT (03) | B - 1 Positioner | P5262 | 25 mm | 20500 N/m | 7.8 kg/m^2 | POM grey | Snap-in Clip | 4,92 ft - 1,5 m | -40÷120 °C | -40÷60 °C | Open Surface 35 % |
|
| P5262031275C | 1275 mm (50,20") | MX - Performance PBT (03) | C - 2 Positioners | P5262 | 25 mm | 20500 N/m | 7.8 kg/m^2 | POM grey | Snap-in Clip | 4,92 ft - 1,5 m | -40÷120 °C | -40÷60 °C | Open Surface 35 % |
|
| P5262031360A | 1360 mm (53,54") | MX - Performance PBT (03) | A - No positioners | P5262 | 25 mm | 20500 N/m | 7.8 kg/m^2 | POM grey | Snap-in Clip | 4,92 ft - 1,5 m | -40÷120 °C | -40÷60 °C | Open Surface 35 % |
|
| P5262031360B | 1360 mm (53,54") | MX - Performance PBT (03) | B - 1 Positioner | P5262 | 25 mm | 20500 N/m | 7.8 kg/m^2 | POM grey | Snap-in Clip | 4,92 ft - 1,5 m | -40÷120 °C | -40÷60 °C | Open Surface 35 % |
|
| P5262031360C | 1360 mm (53,54") | MX - Performance PBT (03) | C - 2 Positioners | P5262 | 25 mm | 20500 N/m | 7.8 kg/m^2 | POM grey | Snap-in Clip | 4,92 ft - 1,5 m | -40÷120 °C | -40÷60 °C | Open Surface 35 % |
|
| P5262031445A | 1445 mm (56,89") | MX - Performance PBT (03) | A - No positioners | P5262 | 25 mm | 20500 N/m | 7.8 kg/m^2 | POM grey | Snap-in Clip | 4,92 ft - 1,5 m | -40÷120 °C | -40÷60 °C | Open Surface 35 % |
|
| P5262031445B | 1445 mm (56,89") | MX - Performance PBT (03) | B - 1 Positioner | P5262 | 25 mm | 20500 N/m | 7.8 kg/m^2 | POM grey | Snap-in Clip | 4,92 ft - 1,5 m | -40÷120 °C | -40÷60 °C | Open Surface 35 % |
|
| P5262031445C | 1445 mm (56,89") | MX - Performance PBT (03) | C - 2 Positioners | P5262 | 25 mm | 20500 N/m | 7.8 kg/m^2 | POM grey | Snap-in Clip | 4,92 ft - 1,5 m | -40÷120 °C | -40÷60 °C | Open Surface 35 % |
|
| P5262031530A | 1530 mm (60,24") | MX - Performance PBT (03) | A - No positioners | P5262 | 25 mm | 20500 N/m | 7.8 kg/m^2 | POM grey | Snap-in Clip | 4,92 ft - 1,5 m | -40÷120 °C | -40÷60 °C | Open Surface 35 % |
|
| P5262031530B | 1530 mm (60,24") | MX - Performance PBT (03) | B - 1 Positioner | P5262 | 25 mm | 20500 N/m | 7.8 kg/m^2 | POM grey | Snap-in Clip | 4,92 ft - 1,5 m | -40÷120 °C | -40÷60 °C | Open Surface 35 % |
|
| P5262031530C | 1530 mm (60,24") | MX - Performance PBT (03) | C - 2 Positioners | P5262 | 25 mm | 20500 N/m | 7.8 kg/m^2 | POM grey | Snap-in Clip | 4,92 ft - 1,5 m | -40÷120 °C | -40÷60 °C | Open Surface 35 % |
|
| P5262230085A | 85 mm (3,35") | LFB - Low friction acetal (Blue) | A - No positioners | P5262 | 25 mm | 25500 N/m | 8.1 kg/m^2 | PBT white | Snap-in Clip | 9,84 ft - 3 m | -40÷80 °C | -40÷65 °C | Open Surface 35 % |
|
| P5262230085B | 85 mm (3,35") | LFB - Low friction acetal (Blue) | B - 1 Positioner | P5262 | 25 mm | 25500 N/m | 8.1 kg/m^2 | PBT white | Snap-in Clip | 9,84 ft - 3 m | -40÷80 °C | -40÷65 °C | Open Surface 35 % |
|
| P5262230085C | 85 mm (3,35") | LFB - Low friction acetal (Blue) | C - 2 Positioners | P5262 | 25 mm | 25500 N/m | 8.1 kg/m^2 | PBT white | Snap-in Clip | 9,84 ft - 3 m | -40÷80 °C | -40÷65 °C | Open Surface 35 % |
|
| P5262230170A | 170 mm (6,69") | LFB - Low friction acetal (Blue) | A - No positioners | P5262 | 25 mm | 25500 N/m | 8.1 kg/m^2 | PBT white | Snap-in Clip | 9,84 ft - 3 m | -40÷80 °C | -40÷65 °C | Open Surface 35 % |
|
| P5262230170B | 170 mm (6,69") | LFB - Low friction acetal (Blue) | B - 1 Positioner | P5262 | 25 mm | 25500 N/m | 8.1 kg/m^2 | PBT white | Snap-in Clip | 9,84 ft - 3 m | -40÷80 °C | -40÷65 °C | Open Surface 35 % |
|
| P5262230170C | 170 mm (6,69") | LFB - Low friction acetal (Blue) | C - 2 Positioners | P5262 | 25 mm | 25500 N/m | 8.1 kg/m^2 | PBT white | Snap-in Clip | 9,84 ft - 3 m | -40÷80 °C | -40÷65 °C | Open Surface 35 % |
|
| P5262230255A | 255 mm (10,04") | LFB - Low friction acetal (Blue) | A - No positioners | P5262 | 25 mm | 25500 N/m | 8.1 kg/m^2 | PBT white | Snap-in Clip | 9,84 ft - 3 m | -40÷80 °C | -40÷65 °C | Open Surface 35 % |
|
| P5262230255B | 255 mm (10,04") | LFB - Low friction acetal (Blue) | B - 1 Positioner | P5262 | 25 mm | 25500 N/m | 8.1 kg/m^2 | PBT white | Snap-in Clip | 9,84 ft - 3 m | -40÷80 °C | -40÷65 °C | Open Surface 35 % |
|
| P5262230255C | 255 mm (10,04") | LFB - Low friction acetal (Blue) | C - 2 Positioners | P5262 | 25 mm | 25500 N/m | 8.1 kg/m^2 | PBT white | Snap-in Clip | 9,84 ft - 3 m | -40÷80 °C | -40÷65 °C | Open Surface 35 % |
|
| P5262230340A | 340 mm (13,39") | LFB - Low friction acetal (Blue) | A - No positioners | P5262 | 25 mm | 25500 N/m | 8.1 kg/m^2 | PBT white | Snap-in Clip | 4,92 ft - 1,5 m | -40÷80 °C | -40÷65 °C | Open Surface 35 % |
|
| P5262230340B | 340 mm (13,39") | LFB - Low friction acetal (Blue) | B - 1 Positioner | P5262 | 25 mm | 25500 N/m | 8.1 kg/m^2 | PBT white | Snap-in Clip | 4,92 ft - 1,5 m | -40÷80 °C | -40÷65 °C | Open Surface 35 % |
|
| P5262230340C | 340 mm (13,39") | LFB - Low friction acetal (Blue) | C - 2 Positioners | P5262 | 25 mm | 25500 N/m | 8.1 kg/m^2 | PBT white | Snap-in Clip | 4,92 ft - 1,5 m | -40÷80 °C | -40÷65 °C | Open Surface 35 % |
|
| P5262230425A | 425 mm (16,73") | LFB - Low friction acetal (Blue) | A - No positioners | P5262 | 25 mm | 25500 N/m | 8.1 kg/m^2 | PBT white | Snap-in Clip | 4,92 ft - 1,5 m | -40÷80 °C | -40÷65 °C | Open Surface 35 % |
|
| P5262230425B | 425 mm (16,73") | LFB - Low friction acetal (Blue) | B - 1 Positioner | P5262 | 25 mm | 25500 N/m | 8.1 kg/m^2 | PBT white | Snap-in Clip | 4,92 ft - 1,5 m | -40÷80 °C | -40÷65 °C | Open Surface 35 % |
|
| P5262230425C | 425 mm (16,73") | LFB - Low friction acetal (Blue) | C - 2 Positioners | P5262 | 25 mm | 25500 N/m | 8.1 kg/m^2 | PBT white | Snap-in Clip | 4,92 ft - 1,5 m | -40÷80 °C | -40÷65 °C | Open Surface 35 % |
|
| P5262230510A | 510 mm (20,08") | LFB - Low friction acetal (Blue) | A - No positioners | P5262 | 25 mm | 25500 N/m | 8.1 kg/m^2 | PBT white | Snap-in Clip | 4,92 ft - 1,5 m | -40÷80 °C | -40÷65 °C | Open Surface 35 % |
|
| P5262230510B | 510 mm (20,08") | LFB - Low friction acetal (Blue) | B - 1 Positioner | P5262 | 25 mm | 25500 N/m | 8.1 kg/m^2 | PBT white | Snap-in Clip | 4,92 ft - 1,5 m | -40÷80 °C | -40÷65 °C | Open Surface 35 % |
|
| P5262230510C | 510 mm (20,08") | LFB - Low friction acetal (Blue) | C - 2 Positioners | P5262 | 25 mm | 25500 N/m | 8.1 kg/m^2 | PBT white | Snap-in Clip | 4,92 ft - 1,5 m | -40÷80 °C | -40÷65 °C | Open Surface 35 % |
|
| P5262230595A | 595 mm (23,43") | LFB - Low friction acetal (Blue) | A - No positioners | P5262 | 25 mm | 25500 N/m | 8.1 kg/m^2 | PBT white | Snap-in Clip | 4,92 ft - 1,5 m | -40÷80 °C | -40÷65 °C | Open Surface 35 % |
|
| P5262230595B | 595 mm (23,43") | LFB - Low friction acetal (Blue) | B - 1 Positioner | P5262 | 25 mm | 25500 N/m | 8.1 kg/m^2 | PBT white | Snap-in Clip | 4,92 ft - 1,5 m | -40÷80 °C | -40÷65 °C | Open Surface 35 % |
|
| P5262230595C | 595 mm (23,43") | LFB - Low friction acetal (Blue) | C - 2 Positioners | P5262 | 25 mm | 25500 N/m | 8.1 kg/m^2 | PBT white | Snap-in Clip | 4,92 ft - 1,5 m | -40÷80 °C | -40÷65 °C | Open Surface 35 % |
|
| P5262230680A | 680 mm (26,77") | LFB - Low friction acetal (Blue) | A - No positioners | P5262 | 25 mm | 25500 N/m | 8.1 kg/m^2 | PBT white | Snap-in Clip | 4,92 ft - 1,5 m | -40÷80 °C | -40÷65 °C | Open Surface 35 % |
|
| P5262230680B | 680 mm (26,77") | LFB - Low friction acetal (Blue) | B - 1 Positioner | P5262 | 25 mm | 25500 N/m | 8.1 kg/m^2 | PBT white | Snap-in Clip | 4,92 ft - 1,5 m | -40÷80 °C | -40÷65 °C | Open Surface 35 % |
|
| P5262230680C | 680 mm (26,77") | LFB - Low friction acetal (Blue) | C - 2 Positioners | P5262 | 25 mm | 25500 N/m | 8.1 kg/m^2 | PBT white | Snap-in Clip | 4,92 ft - 1,5 m | -40÷80 °C | -40÷65 °C | Open Surface 35 % |
|
| P5262230765A | 765 mm (30,12") | LFB - Low friction acetal (Blue) | A - No positioners | P5262 | 25 mm | 25500 N/m | 8.1 kg/m^2 | PBT white | Snap-in Clip | 4,92 ft - 1,5 m | -40÷80 °C | -40÷65 °C | Open Surface 35 % |
|
| P5262230765B | 765 mm (30,12") | LFB - Low friction acetal (Blue) | B - 1 Positioner | P5262 | 25 mm | 25500 N/m | 8.1 kg/m^2 | PBT white | Snap-in Clip | 4,92 ft - 1,5 m | -40÷80 °C | -40÷65 °C | Open Surface 35 % |
|
| P5262230765C | 765 mm (30,12") | LFB - Low friction acetal (Blue) | C - 2 Positioners | P5262 | 25 mm | 25500 N/m | 8.1 kg/m^2 | PBT white | Snap-in Clip | 4,92 ft - 1,5 m | -40÷80 °C | -40÷65 °C | Open Surface 35 % |
|
| P5262230850A | 850 mm (33,46") | LFB - Low friction acetal (Blue) | A - No positioners | P5262 | 25 mm | 25500 N/m | 8.1 kg/m^2 | PBT white | Snap-in Clip | 4,92 ft - 1,5 m | -40÷80 °C | -40÷65 °C | Open Surface 35 % |
|
| P5262230850B | 850 mm (33,46") | LFB - Low friction acetal (Blue) | B - 1 Positioner | P5262 | 25 mm | 25500 N/m | 8.1 kg/m^2 | PBT white | Snap-in Clip | 4,92 ft - 1,5 m | -40÷80 °C | -40÷65 °C | Open Surface 35 % |
|
| P5262230850C | 850 mm (33,46") | LFB - Low friction acetal (Blue) | C - 2 Positioners | P5262 | 25 mm | 25500 N/m | 8.1 kg/m^2 | PBT white | Snap-in Clip | 4,92 ft - 1,5 m | -40÷80 °C | -40÷65 °C | Open Surface 35 % |
|
| P5262230935A | 935 mm (36,81") | LFB - Low friction acetal (Blue) | A - No positioners | P5262 | 25 mm | 25500 N/m | 8.1 kg/m^2 | PBT white | Snap-in Clip | 4,92 ft - 1,5 m | -40÷80 °C | -40÷65 °C | Open Surface 35 % |
|
| P5262230935B | 935 mm (36,81") | LFB - Low friction acetal (Blue) | B - 1 Positioner | P5262 | 25 mm | 25500 N/m | 8.1 kg/m^2 | PBT white | Snap-in Clip | 4,92 ft - 1,5 m | -40÷80 °C | -40÷65 °C | Open Surface 35 % |
|
| P5262230935C | 935 mm (36,81") | LFB - Low friction acetal (Blue) | C - 2 Positioners | P5262 | 25 mm | 25500 N/m | 8.1 kg/m^2 | PBT white | Snap-in Clip | 4,92 ft - 1,5 m | -40÷80 °C | -40÷65 °C | Open Surface 35 % |
|
| P5262231020A | 1020 mm (40,16") | LFB - Low friction acetal (Blue) | A - No positioners | P5262 | 25 mm | 25500 N/m | 8.1 kg/m^2 | PBT white | Snap-in Clip | 4,92 ft - 1,5 m | -40÷80 °C | -40÷65 °C | Open Surface 35 % |
|
| P5262231020B | 1020 mm (40,16") | LFB - Low friction acetal (Blue) | B - 1 Positioner | P5262 | 25 mm | 25500 N/m | 8.1 kg/m^2 | PBT white | Snap-in Clip | 4,92 ft - 1,5 m | -40÷80 °C | -40÷65 °C | Open Surface 35 % |
|
| P5262231020C | 1020 mm (40,16") | LFB - Low friction acetal (Blue) | C - 2 Positioners | P5262 | 25 mm | 25500 N/m | 8.1 kg/m^2 | PBT white | Snap-in Clip | 4,92 ft - 1,5 m | -40÷80 °C | -40÷65 °C | Open Surface 35 % |
|
| P5262231105A | 1105 mm (43,50") | LFB - Low friction acetal (Blue) | A - No positioners | P5262 | 25 mm | 25500 N/m | 8.1 kg/m^2 | PBT white | Snap-in Clip | 4,92 ft - 1,5 m | -40÷80 °C | -40÷65 °C | Open Surface 35 % |
|
| P5262231105B | 1105 mm (43,50") | LFB - Low friction acetal (Blue) | B - 1 Positioner | P5262 | 25 mm | 25500 N/m | 8.1 kg/m^2 | PBT white | Snap-in Clip | 4,92 ft - 1,5 m | -40÷80 °C | -40÷65 °C | Open Surface 35 % |
|
| P5262231105C | 1105 mm (43,50") | LFB - Low friction acetal (Blue) | C - 2 Positioners | P5262 | 25 mm | 25500 N/m | 8.1 kg/m^2 | PBT white | Snap-in Clip | 4,92 ft - 1,5 m | -40÷80 °C | -40÷65 °C | Open Surface 35 % |
|
| P5262231190A | 1190 mm (46,85") | LFB - Low friction acetal (Blue) | A - No positioners | P5262 | 25 mm | 25500 N/m | 8.1 kg/m^2 | PBT white | Snap-in Clip | 4,92 ft - 1,5 m | -40÷80 °C | -40÷65 °C | Open Surface 35 % |
|
| P5262231190B | 1190 mm (46,85") | LFB - Low friction acetal (Blue) | B - 1 Positioner | P5262 | 25 mm | 25500 N/m | 8.1 kg/m^2 | PBT white | Snap-in Clip | 4,92 ft - 1,5 m | -40÷80 °C | -40÷65 °C | Open Surface 35 % |
|
| P5262231190C | 1190 mm (46,85") | LFB - Low friction acetal (Blue) | C - 2 Positioners | P5262 | 25 mm | 25500 N/m | 8.1 kg/m^2 | PBT white | Snap-in Clip | 4,92 ft - 1,5 m | -40÷80 °C | -40÷65 °C | Open Surface 35 % |
|
| P5262231275A | 1275 mm (50,20") | LFB - Low friction acetal (Blue) | A - No positioners | P5262 | 25 mm | 25500 N/m | 8.1 kg/m^2 | PBT white | Snap-in Clip | 4,92 ft - 1,5 m | -40÷80 °C | -40÷65 °C | Open Surface 35 % |
|
| P5262231275B | 1275 mm (50,20") | LFB - Low friction acetal (Blue) | B - 1 Positioner | P5262 | 25 mm | 25500 N/m | 8.1 kg/m^2 | PBT white | Snap-in Clip | 4,92 ft - 1,5 m | -40÷80 °C | -40÷65 °C | Open Surface 35 % |
|
| P5262231275C | 1275 mm (50,20") | LFB - Low friction acetal (Blue) | C - 2 Positioners | P5262 | 25 mm | 25500 N/m | 8.1 kg/m^2 | PBT white | Snap-in Clip | 4,92 ft - 1,5 m | -40÷80 °C | -40÷65 °C | Open Surface 35 % |
|
| P5262231360A | 1360 mm (53,54") | LFB - Low friction acetal (Blue) | A - No positioners | P5262 | 25 mm | 25500 N/m | 8.1 kg/m^2 | PBT white | Snap-in Clip | 4,92 ft - 1,5 m | -40÷80 °C | -40÷65 °C | Open Surface 35 % |
|
| P5262231360B | 1360 mm (53,54") | LFB - Low friction acetal (Blue) | B - 1 Positioner | P5262 | 25 mm | 25500 N/m | 8.1 kg/m^2 | PBT white | Snap-in Clip | 4,92 ft - 1,5 m | -40÷80 °C | -40÷65 °C | Open Surface 35 % |
|
| P5262231360C | 1360 mm (53,54") | LFB - Low friction acetal (Blue) | C - 2 Positioners | P5262 | 25 mm | 25500 N/m | 8.1 kg/m^2 | PBT white | Snap-in Clip | 4,92 ft - 1,5 m | -40÷80 °C | -40÷65 °C | Open Surface 35 % |
|
| P5262231445A | 1445 mm (56,89") | LFB - Low friction acetal (Blue) | A - No positioners | P5262 | 25 mm | 25500 N/m | 8.1 kg/m^2 | PBT white | Snap-in Clip | 4,92 ft - 1,5 m | -40÷80 °C | -40÷65 °C | Open Surface 35 % |
|
| P5262231445B | 1445 mm (56,89") | LFB - Low friction acetal (Blue) | B - 1 Positioner | P5262 | 25 mm | 25500 N/m | 8.1 kg/m^2 | PBT white | Snap-in Clip | 4,92 ft - 1,5 m | -40÷80 °C | -40÷65 °C | Open Surface 35 % |
|
| P5262231445C | 1445 mm (56,89") | LFB - Low friction acetal (Blue) | C - 2 Positioners | P5262 | 25 mm | 25500 N/m | 8.1 kg/m^2 | PBT white | Snap-in Clip | 4,92 ft - 1,5 m | -40÷80 °C | -40÷65 °C | Open Surface 35 % |
|
| P5262231530A | 1530 mm (60,24") | LFB - Low friction acetal (Blue) | A - No positioners | P5262 | 25 mm | 25500 N/m | 8.1 kg/m^2 | PBT white | Snap-in Clip | 4,92 ft - 1,5 m | -40÷80 °C | -40÷65 °C | Open Surface 35 % |
|
| P5262231530B | 1530 mm (60,24") | LFB - Low friction acetal (Blue) | B - 1 Positioner | P5262 | 25 mm | 25500 N/m | 8.1 kg/m^2 | PBT white | Snap-in Clip | 4,92 ft - 1,5 m | -40÷80 °C | -40÷65 °C | Open Surface 35 % |
|
| P5262231530C | 1530 mm (60,24") | LFB - Low friction acetal (Blue) | C - 2 Positioners | P5262 | 25 mm | 25500 N/m | 8.1 kg/m^2 | PBT white | Snap-in Clip | 4,92 ft - 1,5 m | -40÷80 °C | -40÷65 °C | Open Surface 35 % |
|
| P5262300085A | 85 mm (3,35") | PFX - Extra Performance PBT (30) | A - No positioners | P5262 | 25 mm | 20500 N/m | 7.8 kg/m^2 | POM grey | Snap-in Clip | 9,84 ft - 3 m | -40÷120 °C | -40÷60 °C | Open Surface 35 % |
|
| P5262300085B | 85 mm (3,35") | PFX - Extra Performance PBT (30) | B - 1 Positioner | P5262 | 25 mm | 20500 N/m | 7.8 kg/m^2 | POM grey | Snap-in Clip | 9,84 ft - 3 m | -40÷120 °C | -40÷60 °C | Open Surface 35 % |
|
| P5262300085C | 85 mm (3,35") | PFX - Extra Performance PBT (30) | C - 2 Positioners | P5262 | 25 mm | 20500 N/m | 7.8 kg/m^2 | POM grey | Snap-in Clip | 9,84 ft - 3 m | -40÷120 °C | -40÷60 °C | Open Surface 35 % |
|
| P5262300170A | 170 mm (6,69") | PFX - Extra Performance PBT (30) | A - No positioners | P5262 | 25 mm | 20500 N/m | 7.8 kg/m^2 | POM grey | Snap-in Clip | 9,84 ft - 3 m | -40÷120 °C | -40÷60 °C | Open Surface 35 % |
|
| P5262300170B | 170 mm (6,69") | PFX - Extra Performance PBT (30) | B - 1 Positioner | P5262 | 25 mm | 20500 N/m | 7.8 kg/m^2 | POM grey | Snap-in Clip | 9,84 ft - 3 m | -40÷120 °C | -40÷60 °C | Open Surface 35 % |
|
| P5262300170C | 170 mm (6,69") | PFX - Extra Performance PBT (30) | C - 2 Positioners | P5262 | 25 mm | 20500 N/m | 7.8 kg/m^2 | POM grey | Snap-in Clip | 9,84 ft - 3 m | -40÷120 °C | -40÷60 °C | Open Surface 35 % |
|
| P5262300255A | 255 mm (10,04") | PFX - Extra Performance PBT (30) | A - No positioners | P5262 | 25 mm | 20500 N/m | 7.8 kg/m^2 | POM grey | Snap-in Clip | 9,84 ft - 3 m | -40÷120 °C | -40÷60 °C | Open Surface 35 % |
|
| P5262300255B | 255 mm (10,04") | PFX - Extra Performance PBT (30) | B - 1 Positioner | P5262 | 25 mm | 20500 N/m | 7.8 kg/m^2 | POM grey | Snap-in Clip | 9,84 ft - 3 m | -40÷120 °C | -40÷60 °C | Open Surface 35 % |
|
| P5262300255C | 255 mm (10,04") | PFX - Extra Performance PBT (30) | C - 2 Positioners | P5262 | 25 mm | 20500 N/m | 7.8 kg/m^2 | POM grey | Snap-in Clip | 9,84 ft - 3 m | -40÷120 °C | -40÷60 °C | Open Surface 35 % |
|
| P5262300340A | 340 mm (13,39") | PFX - Extra Performance PBT (30) | A - No positioners | P5262 | 25 mm | 20500 N/m | 7.8 kg/m^2 | POM grey | Snap-in Clip | 4,92 ft - 1,5 m | -40÷120 °C | -40÷60 °C | Open Surface 35 % |
|
| P5262300340B | 340 mm (13,39") | PFX - Extra Performance PBT (30) | B - 1 Positioner | P5262 | 25 mm | 20500 N/m | 7.8 kg/m^2 | POM grey | Snap-in Clip | 4,92 ft - 1,5 m | -40÷120 °C | -40÷60 °C | Open Surface 35 % |
|
| P5262300340C | 340 mm (13,39") | PFX - Extra Performance PBT (30) | C - 2 Positioners | P5262 | 25 mm | 20500 N/m | 7.8 kg/m^2 | POM grey | Snap-in Clip | 4,92 ft - 1,5 m | -40÷120 °C | -40÷60 °C | Open Surface 35 % |
|
| P5262300425A | 425 mm (16,73") | PFX - Extra Performance PBT (30) | A - No positioners | P5262 | 25 mm | 20500 N/m | 7.8 kg/m^2 | POM grey | Snap-in Clip | 4,92 ft - 1,5 m | -40÷120 °C | -40÷60 °C | Open Surface 35 % |
|
| P5262300425B | 425 mm (16,73") | PFX - Extra Performance PBT (30) | B - 1 Positioner | P5262 | 25 mm | 20500 N/m | 7.8 kg/m^2 | POM grey | Snap-in Clip | 4,92 ft - 1,5 m | -40÷120 °C | -40÷60 °C | Open Surface 35 % |
|
| P5262300425C | 425 mm (16,73") | PFX - Extra Performance PBT (30) | C - 2 Positioners | P5262 | 25 mm | 20500 N/m | 7.8 kg/m^2 | POM grey | Snap-in Clip | 4,92 ft - 1,5 m | -40÷120 °C | -40÷60 °C | Open Surface 35 % |
|
| P5262300510A | 510 mm (20,08") | PFX - Extra Performance PBT (30) | A - No positioners | P5262 | 25 mm | 20500 N/m | 7.8 kg/m^2 | POM grey | Snap-in Clip | 4,92 ft - 1,5 m | -40÷120 °C | -40÷60 °C | Open Surface 35 % |
|
| P5262300510B | 510 mm (20,08") | PFX - Extra Performance PBT (30) | B - 1 Positioner | P5262 | 25 mm | 20500 N/m | 7.8 kg/m^2 | POM grey | Snap-in Clip | 4,92 ft - 1,5 m | -40÷120 °C | -40÷60 °C | Open Surface 35 % |
|
| P5262300510C | 510 mm (20,08") | PFX - Extra Performance PBT (30) | C - 2 Positioners | P5262 | 25 mm | 20500 N/m | 7.8 kg/m^2 | POM grey | Snap-in Clip | 4,92 ft - 1,5 m | -40÷120 °C | -40÷60 °C | Open Surface 35 % |
|
| P5262300595A | 595 mm (23,43") | PFX - Extra Performance PBT (30) | A - No positioners | P5262 | 25 mm | 20500 N/m | 7.8 kg/m^2 | POM grey | Snap-in Clip | 4,92 ft - 1,5 m | -40÷120 °C | -40÷60 °C | Open Surface 35 % |
|
| P5262300595B | 595 mm (23,43") | PFX - Extra Performance PBT (30) | B - 1 Positioner | P5262 | 25 mm | 20500 N/m | 7.8 kg/m^2 | POM grey | Snap-in Clip | 4,92 ft - 1,5 m | -40÷120 °C | -40÷60 °C | Open Surface 35 % |
|
| P5262300595C | 595 mm (23,43") | PFX - Extra Performance PBT (30) | C - 2 Positioners | P5262 | 25 mm | 20500 N/m | 7.8 kg/m^2 | POM grey | Snap-in Clip | 4,92 ft - 1,5 m | -40÷120 °C | -40÷60 °C | Open Surface 35 % |
|
| P5262300680A | 680 mm (26,77") | PFX - Extra Performance PBT (30) | A - No positioners | P5262 | 25 mm | 20500 N/m | 7.8 kg/m^2 | POM grey | Snap-in Clip | 4,92 ft - 1,5 m | -40÷120 °C | -40÷60 °C | Open Surface 35 % |
|
| P5262300680B | 680 mm (26,77") | PFX - Extra Performance PBT (30) | B - 1 Positioner | P5262 | 25 mm | 20500 N/m | 7.8 kg/m^2 | POM grey | Snap-in Clip | 4,92 ft - 1,5 m | -40÷120 °C | -40÷60 °C | Open Surface 35 % |
|
| P5262300680C | 680 mm (26,77") | PFX - Extra Performance PBT (30) | C - 2 Positioners | P5262 | 25 mm | 20500 N/m | 7.8 kg/m^2 | POM grey | Snap-in Clip | 4,92 ft - 1,5 m | -40÷120 °C | -40÷60 °C | Open Surface 35 % |
|
| P5262300765A | 765 mm (30,12") | PFX - Extra Performance PBT (30) | A - No positioners | P5262 | 25 mm | 20500 N/m | 7.8 kg/m^2 | POM grey | Snap-in Clip | 4,92 ft - 1,5 m | -40÷120 °C | -40÷60 °C | Open Surface 35 % |
|
| P5262300765B | 765 mm (30,12") | PFX - Extra Performance PBT (30) | B - 1 Positioner | P5262 | 25 mm | 20500 N/m | 7.8 kg/m^2 | POM grey | Snap-in Clip | 4,92 ft - 1,5 m | -40÷120 °C | -40÷60 °C | Open Surface 35 % |
|
| P5262300765C | 765 mm (30,12") | PFX - Extra Performance PBT (30) | C - 2 Positioners | P5262 | 25 mm | 20500 N/m | 7.8 kg/m^2 | POM grey | Snap-in Clip | 4,92 ft - 1,5 m | -40÷120 °C | -40÷60 °C | Open Surface 35 % |
|
| P5262300850A | 850 mm (33,46") | PFX - Extra Performance PBT (30) | A - No positioners | P5262 | 25 mm | 20500 N/m | 7.8 kg/m^2 | POM grey | Snap-in Clip | 4,92 ft - 1,5 m | -40÷120 °C | -40÷60 °C | Open Surface 35 % |
|
| P5262300850B | 850 mm (33,46") | PFX - Extra Performance PBT (30) | B - 1 Positioner | P5262 | 25 mm | 20500 N/m | 7.8 kg/m^2 | POM grey | Snap-in Clip | 4,92 ft - 1,5 m | -40÷120 °C | -40÷60 °C | Open Surface 35 % |
|
| P5262300850C | 850 mm (33,46") | PFX - Extra Performance PBT (30) | C - 2 Positioners | P5262 | 25 mm | 20500 N/m | 7.8 kg/m^2 | POM grey | Snap-in Clip | 4,92 ft - 1,5 m | -40÷120 °C | -40÷60 °C | Open Surface 35 % |
|
| P5262300935A | 935 mm (36,81") | PFX - Extra Performance PBT (30) | A - No positioners | P5262 | 25 mm | 20500 N/m | 7.8 kg/m^2 | POM grey | Snap-in Clip | 4,92 ft - 1,5 m | -40÷120 °C | -40÷60 °C | Open Surface 35 % |
|
| P5262300935B | 935 mm (36,81") | PFX - Extra Performance PBT (30) | B - 1 Positioner | P5262 | 25 mm | 20500 N/m | 7.8 kg/m^2 | POM grey | Snap-in Clip | 4,92 ft - 1,5 m | -40÷120 °C | -40÷60 °C | Open Surface 35 % |
|
| P5262300935C | 935 mm (36,81") | PFX - Extra Performance PBT (30) | C - 2 Positioners | P5262 | 25 mm | 20500 N/m | 7.8 kg/m^2 | POM grey | Snap-in Clip | 4,92 ft - 1,5 m | -40÷120 °C | -40÷60 °C | Open Surface 35 % |
|
| P5262301020A | 1020 mm (40,16") | PFX - Extra Performance PBT (30) | A - No positioners | P5262 | 25 mm | 20500 N/m | 7.8 kg/m^2 | POM grey | Snap-in Clip | 4,92 ft - 1,5 m | -40÷120 °C | -40÷60 °C | Open Surface 35 % |
|
| P5262301020B | 1020 mm (40,16") | PFX - Extra Performance PBT (30) | B - 1 Positioner | P5262 | 25 mm | 20500 N/m | 7.8 kg/m^2 | POM grey | Snap-in Clip | 4,92 ft - 1,5 m | -40÷120 °C | -40÷60 °C | Open Surface 35 % |
|
| P5262301020C | 1020 mm (40,16") | PFX - Extra Performance PBT (30) | C - 2 Positioners | P5262 | 25 mm | 20500 N/m | 7.8 kg/m^2 | POM grey | Snap-in Clip | 4,92 ft - 1,5 m | -40÷120 °C | -40÷60 °C | Open Surface 35 % |
|
| P5262301105A | 1105 mm (43,50") | PFX - Extra Performance PBT (30) | A - No positioners | P5262 | 25 mm | 20500 N/m | 7.8 kg/m^2 | POM grey | Snap-in Clip | 4,92 ft - 1,5 m | -40÷120 °C | -40÷60 °C | Open Surface 35 % |
|
| P5262301105B | 1105 mm (43,50") | PFX - Extra Performance PBT (30) | B - 1 Positioner | P5262 | 25 mm | 20500 N/m | 7.8 kg/m^2 | POM grey | Snap-in Clip | 4,92 ft - 1,5 m | -40÷120 °C | -40÷60 °C | Open Surface 35 % |
|
| P5262301105C | 1105 mm (43,50") | PFX - Extra Performance PBT (30) | C - 2 Positioners | P5262 | 25 mm | 20500 N/m | 7.8 kg/m^2 | POM grey | Snap-in Clip | 4,92 ft - 1,5 m | -40÷120 °C | -40÷60 °C | Open Surface 35 % |
|
| P5262301190A | 1190 mm (46,85") | PFX - Extra Performance PBT (30) | A - No positioners | P5262 | 25 mm | 20500 N/m | 7.8 kg/m^2 | POM grey | Snap-in Clip | 4,92 ft - 1,5 m | -40÷120 °C | -40÷60 °C | Open Surface 35 % |
|
| P5262301190B | 1190 mm (46,85") | PFX - Extra Performance PBT (30) | B - 1 Positioner | P5262 | 25 mm | 20500 N/m | 7.8 kg/m^2 | POM grey | Snap-in Clip | 4,92 ft - 1,5 m | -40÷120 °C | -40÷60 °C | Open Surface 35 % |
|
| P5262301190C | 1190 mm (46,85") | PFX - Extra Performance PBT (30) | C - 2 Positioners | P5262 | 25 mm | 20500 N/m | 7.8 kg/m^2 | POM grey | Snap-in Clip | 4,92 ft - 1,5 m | -40÷120 °C | -40÷60 °C | Open Surface 35 % |
|
| P5262301275A | 1275 mm (50,20") | PFX - Extra Performance PBT (30) | A - No positioners | P5262 | 25 mm | 20500 N/m | 7.8 kg/m^2 | POM grey | Snap-in Clip | 4,92 ft - 1,5 m | -40÷120 °C | -40÷60 °C | Open Surface 35 % |
|
| P5262301275B | 1275 mm (50,20") | PFX - Extra Performance PBT (30) | B - 1 Positioner | P5262 | 25 mm | 20500 N/m | 7.8 kg/m^2 | POM grey | Snap-in Clip | 4,92 ft - 1,5 m | -40÷120 °C | -40÷60 °C | Open Surface 35 % |
|
| P5262301275C | 1275 mm (50,20") | PFX - Extra Performance PBT (30) | C - 2 Positioners | P5262 | 25 mm | 20500 N/m | 7.8 kg/m^2 | POM grey | Snap-in Clip | 4,92 ft - 1,5 m | -40÷120 °C | -40÷60 °C | Open Surface 35 % |
|
| P5262301360A | 1360 mm (53,54") | PFX - Extra Performance PBT (30) | A - No positioners | P5262 | 25 mm | 20500 N/m | 7.8 kg/m^2 | POM grey | Snap-in Clip | 4,92 ft - 1,5 m | -40÷120 °C | -40÷60 °C | Open Surface 35 % |
|
| P5262301360B | 1360 mm (53,54") | PFX - Extra Performance PBT (30) | B - 1 Positioner | P5262 | 25 mm | 20500 N/m | 7.8 kg/m^2 | POM grey | Snap-in Clip | 4,92 ft - 1,5 m | -40÷120 °C | -40÷60 °C | Open Surface 35 % |
|
| P5262301360C | 1360 mm (53,54") | PFX - Extra Performance PBT (30) | C - 2 Positioners | P5262 | 25 mm | 20500 N/m | 7.8 kg/m^2 | POM grey | Snap-in Clip | 4,92 ft - 1,5 m | -40÷120 °C | -40÷60 °C | Open Surface 35 % |
|
| P5262301445A | 1445 mm (56,89") | PFX - Extra Performance PBT (30) | A - No positioners | P5262 | 25 mm | 20500 N/m | 7.8 kg/m^2 | POM grey | Snap-in Clip | 4,92 ft - 1,5 m | -40÷120 °C | -40÷60 °C | Open Surface 35 % |
|
| P5262301445B | 1445 mm (56,89") | PFX - Extra Performance PBT (30) | B - 1 Positioner | P5262 | 25 mm | 20500 N/m | 7.8 kg/m^2 | POM grey | Snap-in Clip | 4,92 ft - 1,5 m | -40÷120 °C | -40÷60 °C | Open Surface 35 % |
|
| P5262301445C | 1445 mm (56,89") | PFX - Extra Performance PBT (30) | C - 2 Positioners | P5262 | 25 mm | 20500 N/m | 7.8 kg/m^2 | POM grey | Snap-in Clip | 4,92 ft - 1,5 m | -40÷120 °C | -40÷60 °C | Open Surface 35 % |
|
| P5262301530A | 1530 mm (60,24") | PFX - Extra Performance PBT (30) | A - No positioners | P5262 | 25 mm | 20500 N/m | 7.8 kg/m^2 | POM grey | Snap-in Clip | 4,92 ft - 1,5 m | -40÷120 °C | -40÷60 °C | Open Surface 35 % |
|
| P5262301530B | 1530 mm (60,24") | PFX - Extra Performance PBT (30) | B - 1 Positioner | P5262 | 25 mm | 20500 N/m | 7.8 kg/m^2 | POM grey | Snap-in Clip | 4,92 ft - 1,5 m | -40÷120 °C | -40÷60 °C | Open Surface 35 % |
|
| P5262301530C | 1530 mm (60,24") | PFX - Extra Performance PBT (30) | C - 2 Positioners | P5262 | 25 mm | 20500 N/m | 7.8 kg/m^2 | POM grey | Snap-in Clip | 4,92 ft - 1,5 m | -40÷120 °C | -40÷60 °C | Open Surface 35 % |
|
Enquiry Now
To allow us to respond to your enquiry promptly, please provide all required information.
Related Products
-
Nosebars for 520-525 seriesNosebarsView Product -
Nosebars with bearings for 520-525 seriesNosebarsView Product
-
Nosebars with rollers for 520-525 seriesNosebarsView Product
-
One piece for 520-525 seriesNosebarsView Product
-
One piece with rollers for 520-525 seriesNosebarsView Product
-
525-530 machined sprocketBelt sprocketsView Product
-
525-530 molded sprocketBelt sprocketsView Product
