525 Flat Top Transfer
Modular Belts
Description
Basic features

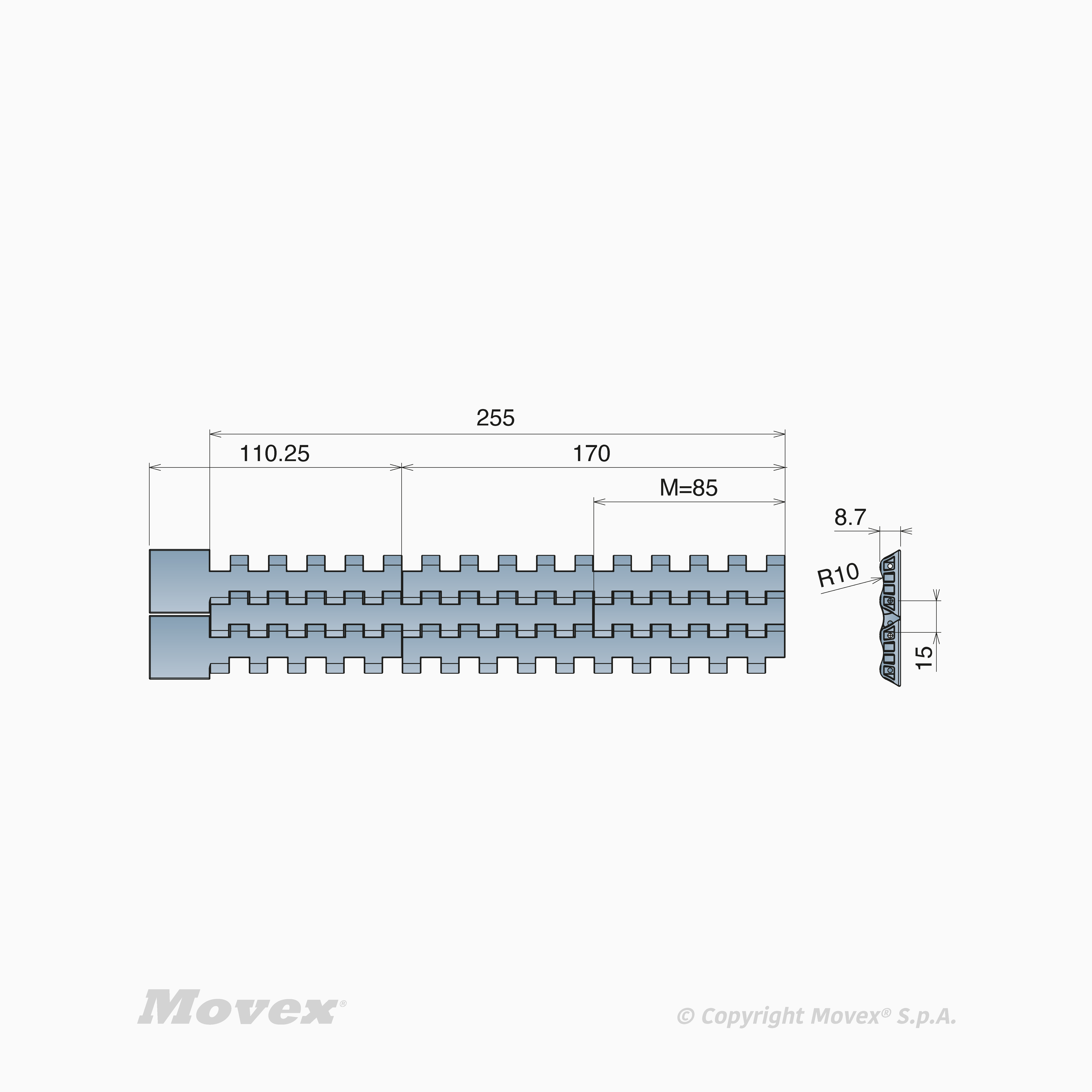

| Series: | 525 |
|---|---|
| Pitch: | 15 mm |
| Thickness: | 8.7 mm |
| Increments: | 85 mm |
| Surface Type: | FT - Flat Top |
| Functionality: | Straight |
| Unit of measure: | Meter |
525 Flat Top Transfer
| Width | Material | Version | Part | Back flex radius | Max working load | Mass | Pin material | Fixation | Box | Temperature range dry | Temperature range wet | ||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Code | Actions | ||||||||||||

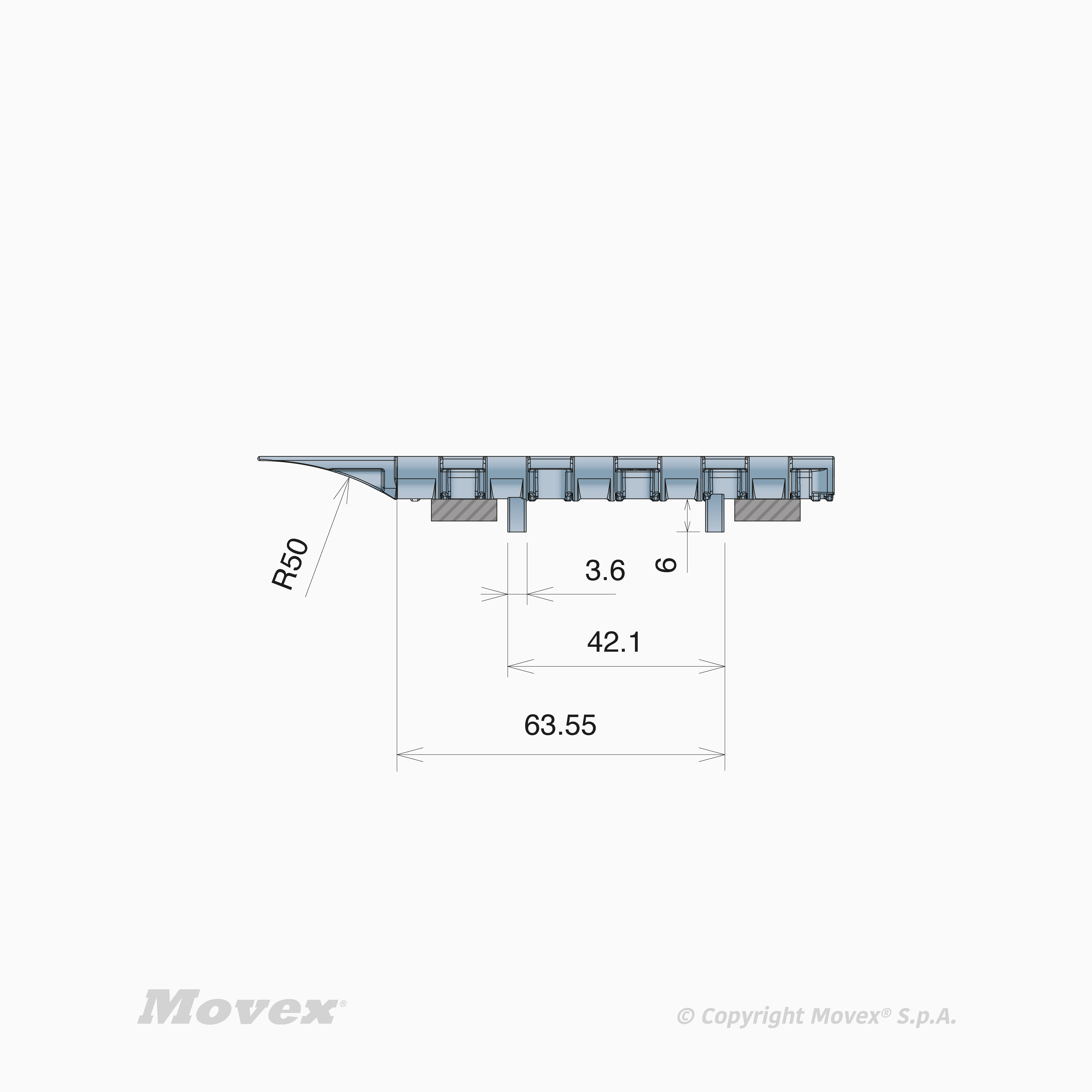

| P5256010085C | 85 mm (3,35") | LFA - Low friction acetal (01) | C - 2 Positioners | P5256 | 25 mm | 21500 N/m | 7.8 kg/m^2 | PBT white | Snap-in Clip | 9,84 ft - 3 m | -40÷80 °C | -40÷65 °C |
|

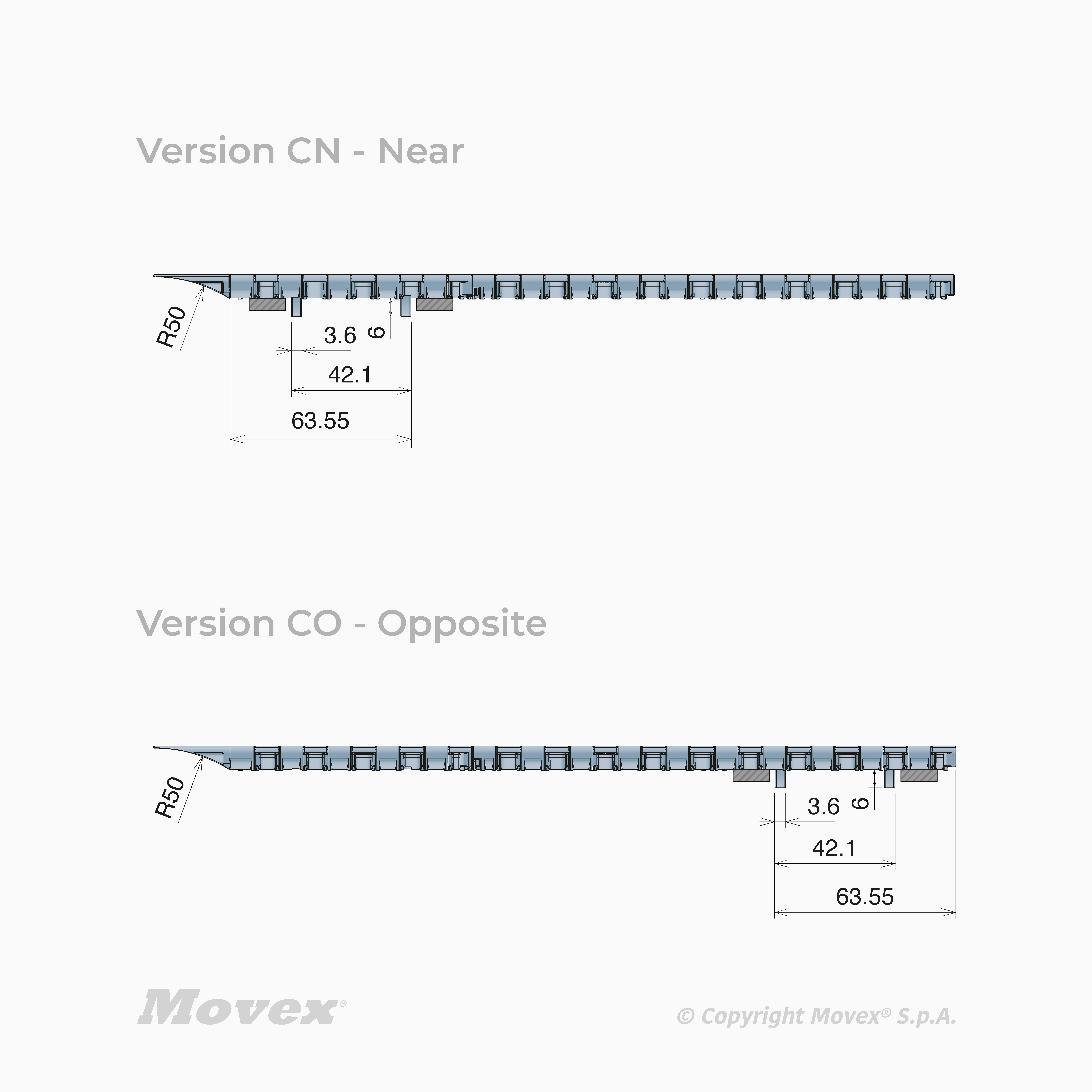

| P5256010170CN | 170 mm (6,69") | LFA - Low friction acetal (01) | CN - 2 Positioners - Near | P5256 | 25 mm | 21500 N/m | 7.8 kg/m^2 | PBT white | Snap-in Clip | 9,84 ft - 3 m | -40÷80 °C | -40÷65 °C |
|
| P5256010170CO | 170 mm (6,69") | LFA - Low friction acetal (01) | CO - 2 Positioners - Opposite | P5256 | 25 mm | 21500 N/m | 7.8 kg/m^2 | PBT white | Snap-in Clip | 9,84 ft - 3 m | -40÷80 °C | -40÷65 °C |
|
| P5256010255CN | 255 mm (10,04") | LFA - Low friction acetal (01) | CN - 2 Positioners - Near | P5256 | 25 mm | 21500 N/m | 7.8 kg/m^2 | PBT white | Snap-in Clip | 9,84 ft - 3 m | -40÷80 °C | -40÷65 °C |
|
| P5256010255CO | 255 mm (10,04") | LFA - Low friction acetal (01) | CO - 2 Positioners - Opposite | P5256 | 25 mm | 21500 N/m | 7.8 kg/m^2 | PBT white | Snap-in Clip | 9,84 ft - 3 m | -40÷80 °C | -40÷65 °C |
|
| P5256030085C | 85 mm (3,35") | MX - Performance PBT (03) | C - 2 Positioners | P5256 | 25 mm | 17500 N/m | 7.5 kg/m^2 | POM grey | Snap-in Clip | 9,84 ft - 3 m | -40÷120 °C | -40÷60 °C |
|
| P5256030170CN | 170 mm (6,69") | MX - Performance PBT (03) | CN - 2 Positioners - Near | P5256 | 25 mm | 17500 N/m | 7.5 kg/m^2 | POM grey | Snap-in Clip | 9,84 ft - 3 m | -40÷120 °C | -40÷60 °C |
|
| P5256030170CO | 170 mm (6,69") | MX - Performance PBT (03) | CO - 2 Positioners - Opposite | P5256 | 25 mm | 17500 N/m | 7.5 kg/m^2 | POM grey | Snap-in Clip | 9,84 ft - 3 m | -40÷120 °C | -40÷60 °C |
|
| P5256030255CN | 255 mm (10,04") | MX - Performance PBT (03) | CN - 2 Positioners - Near | P5256 | 25 mm | 17500 N/m | 7.5 kg/m^2 | POM grey | Snap-in Clip | 9,84 ft - 3 m | -40÷120 °C | -40÷60 °C |
|
| P5256030255CO | 255 mm (10,04") | MX - Performance PBT (03) | CO - 2 Positioners - Opposite | P5256 | 25 mm | 17500 N/m | 7.5 kg/m^2 | POM grey | Snap-in Clip | 9,84 ft - 3 m | -40÷120 °C | -40÷60 °C |
|
