525-530 molded sprocket

525-530 molded sprocket

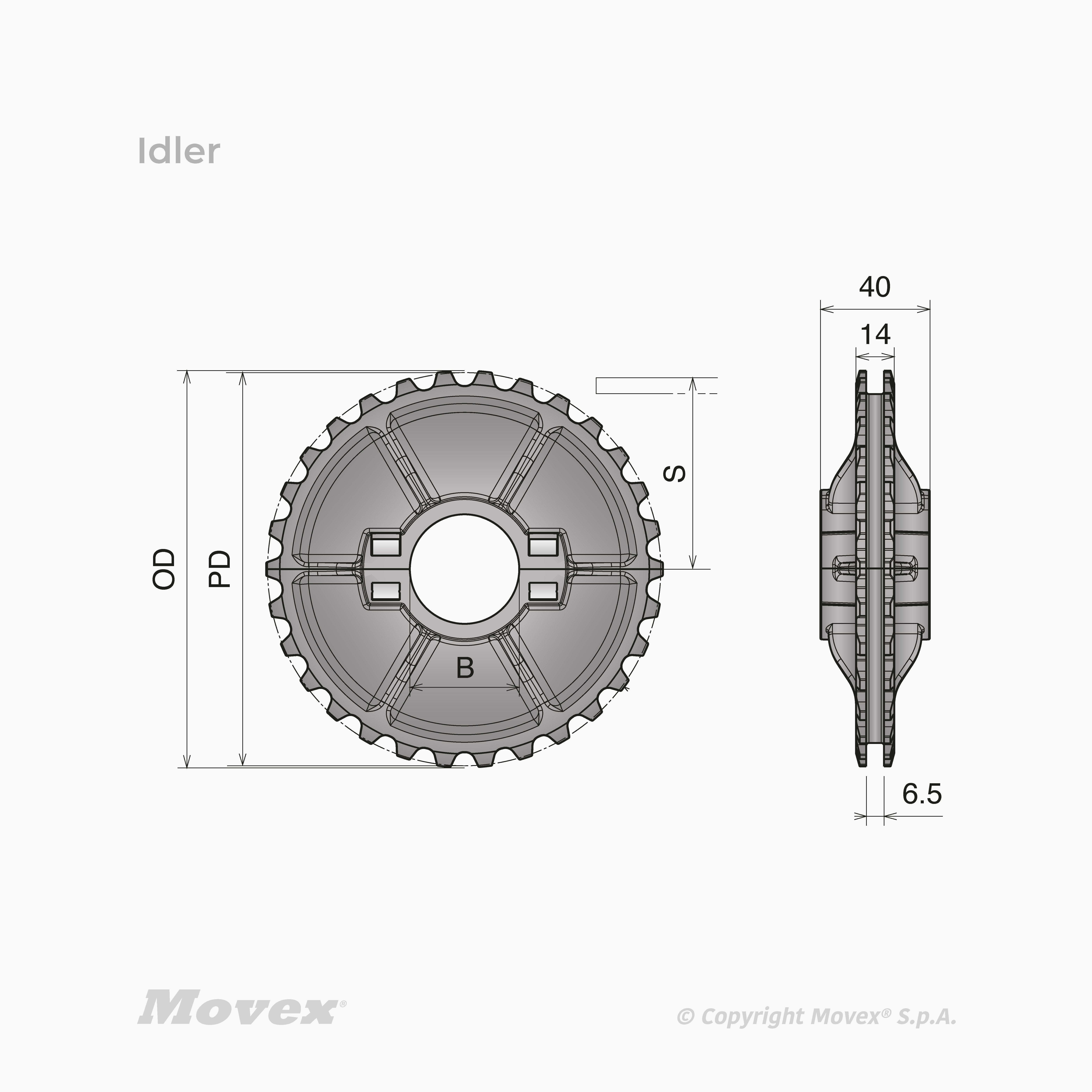

	Z-	Bore	Version	Type	Execution	Pitch diameter	Outer diameter	S dimension	Material	Temperature range dry	Temperature range wet
Code	All 24 30 32	All 25 mm 25 x 25 mm 30 mm 30 x 30 mm 35 mm 40 mm 40 x 40 mm	All Drive Idler	All Split	All Molded	All 114.8 mm 143.5 mm 153.4 mm	All 115.3 mm 115.6 mm 154.9 mm	All 52.3 mm 53.3 mm 72.4 mm	All PA - Polyamide reinforced	All -20÷120 °C	All -20÷120 °C	Actions
P158601	24	25 mm	Drive	Split	Molded	114.8 mm	115.6 mm	53.3 mm	PA - Polyamide reinforced	-20÷120 °C	-20÷120 °C
P158602	24	30 mm	Drive	Split	Molded	114.8 mm	115.6 mm	53.3 mm	PA - Polyamide reinforced	-20÷120 °C	-20÷120 °C
P158603	24	35 mm	Drive	Split	Molded	114.8 mm	115.6 mm	53.3 mm	PA - Polyamide reinforced	-20÷120 °C	-20÷120 °C
P158604	24	40 mm	Drive	Split	Molded	114.8 mm	115.6 mm	53.3 mm	PA - Polyamide reinforced	-20÷120 °C	-20÷120 °C
P158606	24	25 x 25 mm	Drive	Split	Molded	114.8 mm	115.6 mm	53.3 mm	PA - Polyamide reinforced	-20÷120 °C	-20÷120 °C
P158607	24	30 x 30 mm	Drive	Split	Molded	114.8 mm	115.6 mm	53.3 mm	PA - Polyamide reinforced	-20÷120 °C	-20÷120 °C
P158608	24	40 x 40 mm	Drive	Split	Molded	114.8 mm	115.6 mm	53.3 mm	PA - Polyamide reinforced	-20÷120 °C	-20÷120 °C
P158651	24	25 mm	Idler	Split	Molded	114.8 mm	115.6 mm	53.3 mm	PA - Polyamide reinforced	-20÷120 °C	-20÷120 °C
P158652	24	30 mm	Idler	Split	Molded	114.8 mm	115.6 mm	53.3 mm	PA - Polyamide reinforced	-20÷120 °C	-20÷120 °C
P158653	24	35 mm	Idler	Split	Molded	114.8 mm	115.6 mm	53.3 mm	PA - Polyamide reinforced	-20÷120 °C	-20÷120 °C
P158654	24	40 mm	Idler	Split	Molded	114.8 mm	115.6 mm	53.3 mm	PA - Polyamide reinforced	-20÷120 °C	-20÷120 °C
P158701	30	25 mm	Drive	Split	Molded	143.5 mm	115.3 mm	52.3 mm	PA - Polyamide reinforced	-20÷120 °C	-20÷120 °C
P158702	30	30 mm	Drive	Split	Molded	143.5 mm	115.3 mm	52.3 mm	PA - Polyamide reinforced	-20÷120 °C	-20÷120 °C
P158703	30	35 mm	Drive	Split	Molded	143.5 mm	115.3 mm	52.3 mm	PA - Polyamide reinforced	-20÷120 °C	-20÷120 °C
P158704	30	40 mm	Drive	Split	Molded	143.5 mm	115.3 mm	52.3 mm	PA - Polyamide reinforced	-20÷120 °C	-20÷120 °C
P158706	30	25 x 25 mm	Drive	Split	Molded	143.5 mm	115.3 mm	52.3 mm	PA - Polyamide reinforced	-20÷120 °C	-20÷120 °C
P158707	30	30 x 30 mm	Drive	Split	Molded	143.5 mm	115.3 mm	52.3 mm	PA - Polyamide reinforced	-20÷120 °C	-20÷120 °C
P158708	30	40 x 40 mm	Drive	Split	Molded	143.5 mm	115.3 mm	52.3 mm	PA - Polyamide reinforced	-20÷120 °C	-20÷120 °C
P158751	30	25 mm	Idler	Split	Molded	143.5 mm	115.3 mm	52.3 mm	PA - Polyamide reinforced	-20÷120 °C	-20÷120 °C
P158752	30	30 mm	Idler	Split	Molded	143.5 mm	115.3 mm	52.3 mm	PA - Polyamide reinforced	-20÷120 °C	-20÷120 °C
P158753	30	35 mm	Idler	Split	Molded	143.5 mm	115.3 mm	52.3 mm	PA - Polyamide reinforced	-20÷120 °C	-20÷120 °C
P158754	30	40 mm	Idler	Split	Molded	143.5 mm	115.3 mm	52.3 mm	PA - Polyamide reinforced	-20÷120 °C	-20÷120 °C
P158801	32	25 mm	Drive	Split	Molded	153.4 mm	154.9 mm	72.4 mm	PA - Polyamide reinforced	-20÷120 °C	-20÷120 °C
P158802	32	30 mm	Drive	Split	Molded	153.4 mm	154.9 mm	72.4 mm	PA - Polyamide reinforced	-20÷120 °C	-20÷120 °C
P158803	32	35 mm	Drive	Split	Molded	153.4 mm	154.9 mm	72.4 mm	PA - Polyamide reinforced	-20÷120 °C	-20÷120 °C
P158804	32	40 mm	Drive	Split	Molded	153.4 mm	154.9 mm	72.4 mm	PA - Polyamide reinforced	-20÷120 °C	-20÷120 °C
P158806	32	25 x 25 mm	Drive	Split	Molded	153.4 mm	154.9 mm	72.4 mm	PA - Polyamide reinforced	-20÷120 °C	-20÷120 °C
P158807	32	30 x 30 mm	Drive	Split	Molded	153.4 mm	154.9 mm	72.4 mm	PA - Polyamide reinforced	-20÷120 °C	-20÷120 °C
P158808	32	40 x 40 mm	Drive	Split	Molded	153.4 mm	154.9 mm	72.4 mm	PA - Polyamide reinforced	-20÷120 °C	-20÷120 °C
P158851	32	25 mm	Idler	Split	Molded	153.4 mm	154.9 mm	72.4 mm	PA - Polyamide reinforced	-20÷120 °C	-20÷120 °C
P158852	32	30 mm	Idler	Split	Molded	153.4 mm	154.9 mm	72.4 mm	PA - Polyamide reinforced	-20÷120 °C	-20÷120 °C
P158853	32	35 mm	Idler	Split	Molded	153.4 mm	154.9 mm	72.4 mm	PA - Polyamide reinforced	-20÷120 °C	-20÷120 °C
P158854	32	40 mm	Idler	Split	Molded	153.4 mm	154.9 mm	72.4 mm	PA - Polyamide reinforced	-20÷120 °C	-20÷120 °C

•
