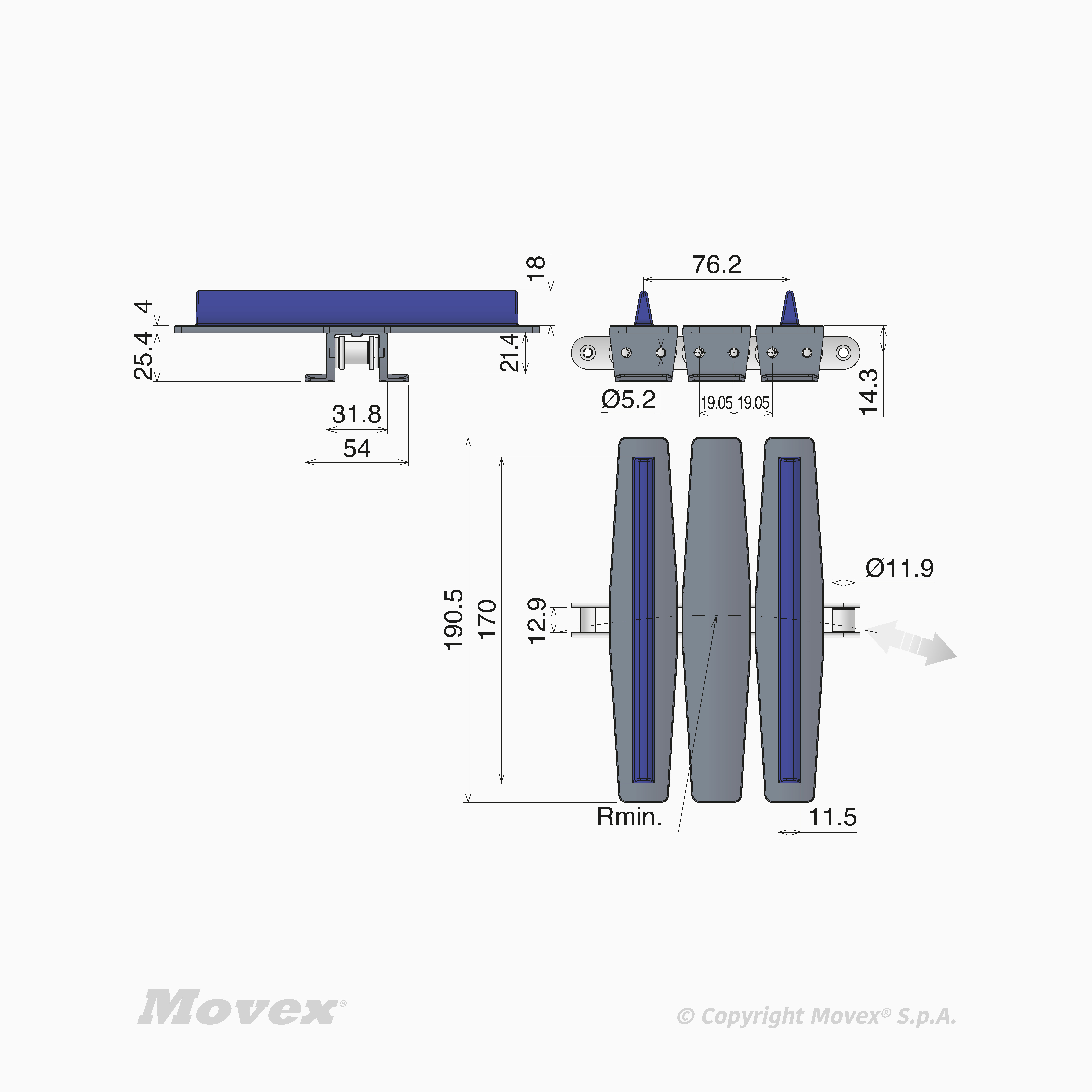

1873 TAB MX2
Plastic chains
Description
Description
Chain for hot-fill applications, neck & cap sterilizing.
Designed to keep the products in the correct position during the twist movement.
The design guarantees a perfect connection between rubber and plate.
The rubber is developed for and perfectly resistant against the higher temperatures of the hot-filled products.
Hardened pins and bushing guarantee a longer lifetime.
Chain twist 90° in 1500 mm.
Basic features
| Series: | 1843-1863-1873-1874-1883 |
|---|---|
| Pitch: | 38.1 mm |
| Thickness: | 4 mm |
| Surface Type: | GT - Grip Top |
| Functionality: | Side Flex TAB |
| Unit of measure: | Meter |
1873 TAB MX2
| Width | Material | Part | Back flex radius | Sideflexing radius min | Mass | Rubber width (B) | Rubber type | Rubber hardness ShA | Roller chain | Box | Max working load | ||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Code | Actions | ||||||||||||
| P11670107 | K 750 - 190,5 mm | LF - Low friction acetal (01) | P1167 | 200 mm | 457 mm | 2.6 kg/m | 170 mm | TPE Rubber | 75 | Stainless Steel | 10 ft - 3,048 m | 3500 N |
|
| P11670307 | K 750 - 190,5 mm | MX - Performance PBT (03) | P1167 | 200 mm | 457 mm | 2.6 kg/m | 170 mm | TPE Rubber | 75 | Stainless Steel | 10 ft - 3,048 m | 3500 N |
|
| P11760107 | K 750 - 190,5 mm | LF - Low friction acetal (01) | P1176 | 200 mm | 457 mm | 2.6 kg/m | 170 mm | TPE Rubber | 75 | Nickel Plated Steel | 10 ft - 3,048 m | 4500 N |
|
| P11760307 | K 750 - 190,5 mm | MX - Performance PBT (03) | P1176 | 200 mm | 457 mm | 2.6 kg/m | 170 mm | TPE Rubber | 75 | Nickel Plated Steel | 10 ft - 3,048 m | 4500 N |
|
| P11770107 | K 750 - 190,5 mm | LF - Low friction acetal (01) | P1177 | 200 mm | 457 mm | 2.6 kg/m | 170 mm | TPE Rubber | 75 | C45 | 10 ft - 3,048 m | 4500 N |
|
| P11770307 | K 750 - 190,5 mm | MX - Performance PBT (03) | P1177 | 200 mm | 457 mm | 2.6 kg/m | 170 mm | TPE Rubber | 75 | C45 | 10 ft - 3,048 m | 4500 N |
|
