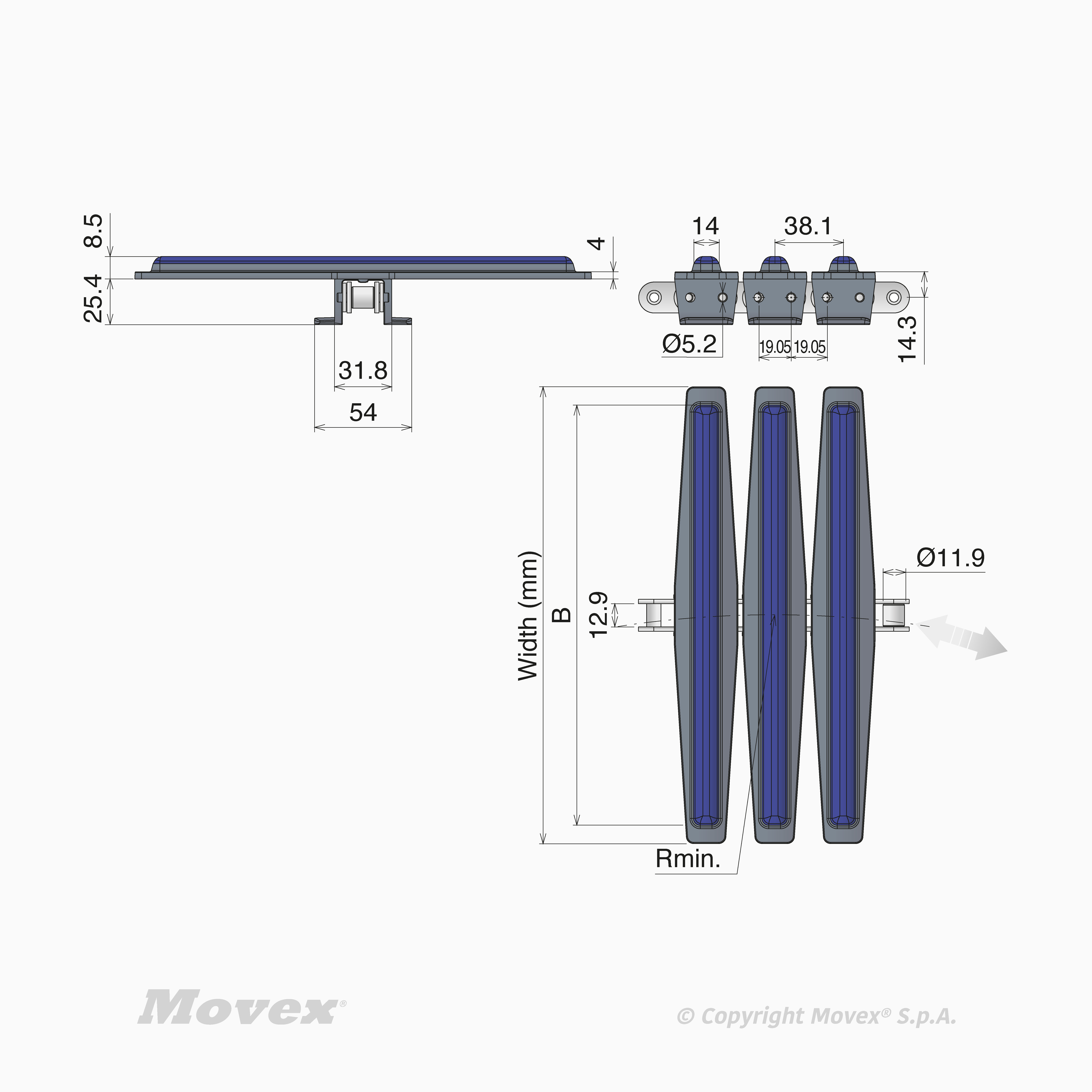

1873 TAB MX1
Plastic chains
Description
Description
Chain for hot-fill applications, neck & cap sterilizing.
Designed to keep the products in the correct position during the twist movement.
The design guarantees a perfect connection between rubber and plate.
The rubber is developed for and perfectly resistant against the higher temperatures of the hot-filled products.
Hardened pins and bushing guarantee a longer lifetime.Â
Chain twist 90° in 1500 mm.
Basic features
| Series: | 1843-1863-1873-1874-1883 |
|---|---|
| Pitch: | 38.1 mm |
| Thickness: | 4 mm |
| Surface Type: | GT - Grip Top |
| Functionality: | Side Flex TAB |
| Unit of measure: | Meter |
1873 TAB MX1
| Width | Material | Part | Back flex radius | Sideflexing radius min | Mass | Rubber width (B) | Rubber type | Rubber color | Rubber hardness ShA | Roller chain | Box | Max working load | ||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Code | Actions | |||||||||||||
| P11690107 | K 750 - 190,5 mm | LF - Low friction acetal (01) | P1169 | 200 mm | 457 mm | 3.3 kg/m | 170 mm | TPE Rubber | Red | 85 | Stainless Steel | 10 ft - 3,048 m | 3500 N |
|
| P11690108 | K1000 - 254,0 mm | LF - Low friction acetal (01) | P1169 | 200 mm | 457 mm | 3.6 kg/m | 223.5 mm | TPE Rubber | Red | 85 | Stainless Steel | 10 ft - 3,048 m | 3500 N |
|
| P11690111 | K1161 - 295,0 mm | LF - Low friction acetal (01) | P1169 | 200 mm | 457 mm | 3.9 kg/m | 280 mm | TPE Rubber | Red | 85 | Stainless Steel | 10 ft - 3,048 m | 3500 N |
|
| P11690307 | K 750 - 190,5 mm | MX - Performance PBT (03) | P1169 | 200 mm | 457 mm | 3.3 kg/m | 170 mm | TPE Rubber | Blue | 85 | Stainless Steel | 10 ft - 3,048 m | 3500 N |
|
| P11690308 | K1000 - 254,0 mm | MX - Performance PBT (03) | P1169 | 200 mm | 457 mm | 3.6 kg/m | 223.5 mm | TPE Rubber | Blue | 85 | Stainless Steel | 10 ft - 3,048 m | 3500 N |
|
| P11690311 | K1161 - 295,0 mm | MX - Performance PBT (03) | P1169 | 200 mm | 457 mm | 3.9 kg/m | 280 mm | TPE Rubber | Blue | 85 | Stainless Steel | 10 ft - 3,048 m | 3500 N |
|
| P11780107 | K 750 - 190,5 mm | LF - Low friction acetal (01) | P1178 | 200 mm | 457 mm | 3.3 kg/m | 170 mm | TPE Rubber | Red | 85 | Nickel Plated Steel | 10 ft - 3,048 m | 4500 N |
|
| P11780108 | K1000 - 254,0 mm | LF - Low friction acetal (01) | P1178 | 200 mm | 457 mm | 3.6 kg/m | 223.5 mm | TPE Rubber | Red | 85 | Nickel Plated Steel | 10 ft - 3,048 m | 4500 N |
|
| P11780111 | K1161 - 295,0 mm | LF - Low friction acetal (01) | P1178 | 200 mm | 457 mm | 3.9 kg/m | 280 mm | TPE Rubber | Red | 85 | Nickel Plated Steel | 10 ft - 3,048 m | 4500 N |
|
| P11780307 | K 750 - 190,5 mm | MX - Performance PBT (03) | P1178 | 200 mm | 457 mm | 3.3 kg/m | 170 mm | TPE Rubber | Blue | 85 | Nickel Plated Steel | 10 ft - 3,048 m | 4500 N |
|
| P11780308 | K1000 - 254,0 mm | MX - Performance PBT (03) | P1178 | 200 mm | 457 mm | 3.6 kg/m | 223.5 mm | TPE Rubber | Blue | 85 | Nickel Plated Steel | 10 ft - 3,048 m | 4500 N |
|
| P11780311 | K1161 - 295,0 mm | MX - Performance PBT (03) | P1178 | 200 mm | 457 mm | 3.9 kg/m | 280 mm | TPE Rubber | Blue | 85 | Nickel Plated Steel | 10 ft - 3,048 m | 4500 N |
|
| P11790107 | K 750 - 190,5 mm | LF - Low friction acetal (01) | P1179 | 200 mm | 457 mm | 3.3 kg/m | 170 mm | TPE Rubber | Red | 85 | C45 | 10 ft - 3,048 m | 4500 N |
|
| P11790108 | K1000 - 254,0 mm | LF - Low friction acetal (01) | P1179 | 200 mm | 457 mm | 3.6 kg/m | 223.5 mm | TPE Rubber | Red | 85 | C45 | 10 ft - 3,048 m | 4500 N |
|
| P11790111 | K1161 - 295,0 mm | LF - Low friction acetal (01) | P1179 | 200 mm | 457 mm | 3.9 kg/m | 280 mm | TPE Rubber | Red | 85 | C45 | 10 ft - 3,048 m | 4500 N |
|
| P11790307 | K 750 - 190,5 mm | MX - Performance PBT (03) | P1179 | 200 mm | 457 mm | 3.3 kg/m | 170 mm | TPE Rubber | Blue | 85 | C45 | 10 ft - 3,048 m | 4500 N |
|
| P11790308 | K1000 - 254,0 mm | MX - Performance PBT (03) | P1179 | 200 mm | 457 mm | 3.6 kg/m | 223.5 mm | TPE Rubber | Blue | 85 | C45 | 10 ft - 3,048 m | 4500 N |
|
| P11790311 | K1161 - 295,0 mm | MX - Performance PBT (03) | P1179 | 200 mm | 457 mm | 3.9 kg/m | 280 mm | TPE Rubber | Blue | 85 | C45 | 10 ft - 3,048 m | 4500 N |
|
