1873 TAB GB2 TWISTER
Plastic chains
Description
Basic features
| Series: | 1843-1863-1873-1874-1883 |
|---|---|
| Pitch: | 38.1 mm |
| Thickness: | 4 mm |
| Surface Type: | FT - Flat Top |
| Functionality: | Side Flex TAB |
| Unit of measure: | Meter |

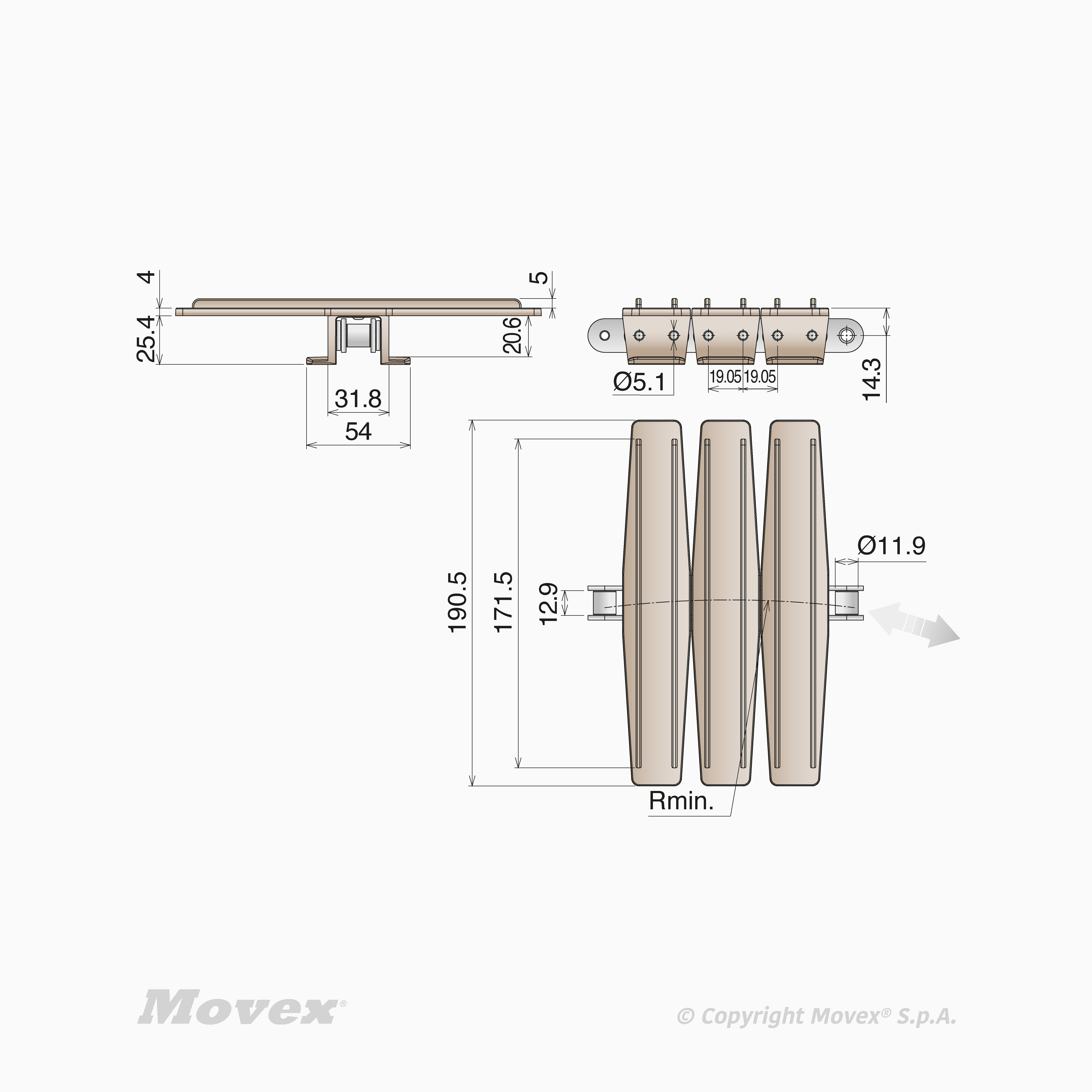

1873 TAB GB2 TWISTER
| Width | Material | Part | Back flex radius | Sideflexing radius min | Mass | Roller chain | Box | Max working load | ||
|---|---|---|---|---|---|---|---|---|---|---|
| Code | Actions | |||||||||
| P11370107 | K 750 - 190,5 mm | LF - Low friction acetal (01) | P1137 | 210 mm | 457 mm | 2.6 kg/m | C45 | 10 ft - 3,048 m | 4500 N |
|
| P11370307 | K 750 - 190,5 mm | MX - Performance PBT (03) | P1137 | 210 mm | 457 mm | 2.6 kg/m | C45 | 10 ft - 3,048 m | 4500 N |
|
| P11380107 | K 750 - 190,5 mm | LF - Low friction acetal (01) | P1138 | 210 mm | 457 mm | 2.6 kg/m | Stainless Steel | 10 ft - 3,048 m | 3500 N |
|
| P11380307 | K 750 - 190,5 mm | MX - Performance PBT (03) | P1138 | 210 mm | 457 mm | 2.6 kg/m | Stainless Steel | 10 ft - 3,048 m | 3500 N |
|
