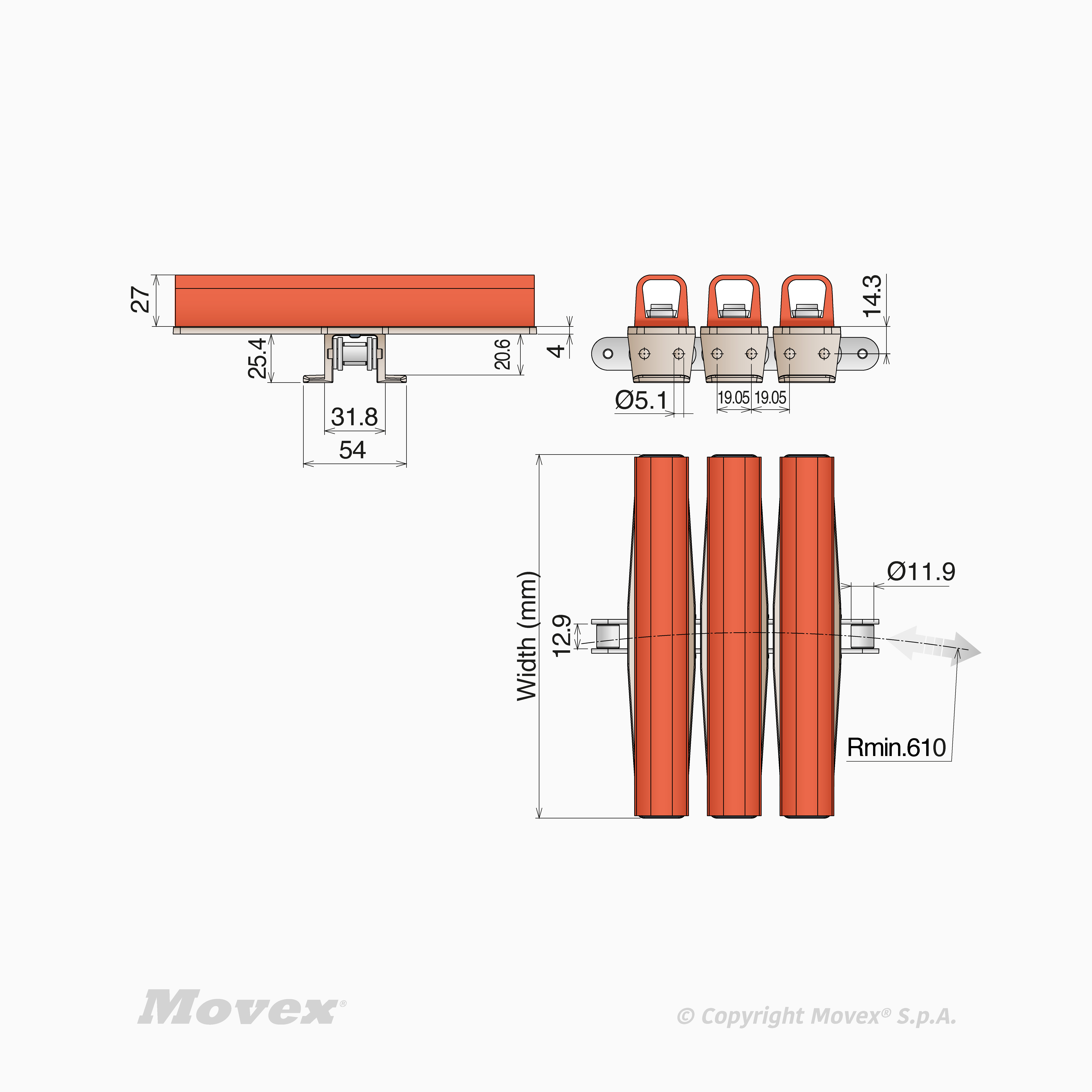

1873 TAB D-Shape
Plastic chains
Description
Basic features
| Series: | 1843-1863-1873-1874-1883 |
|---|---|
| Pitch: | 38.1 mm |
| Thickness: | 4 mm |
| Surface Type: | Gripper |
| Functionality: | Side Flex TAB |
| Unit of measure: | Meter |
1873 TAB D-Shape
| Width | Material | Part | Back flex radius | Sideflexing radius min | Mass | Rubber type | Rubber color | Roller chain | Box | Max working load | ||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Code | Actions | |||||||||||
| P11870106 | K 600 - 152,4 mm | LF - Low friction acetal (01) | P1187 | 200 mm | 610 mm | 4 kg/m | TPR | Red | C45 | 10 ft - 3,048 m | 4500 N |
|
| P11870107 | K 750 - 190,5 mm | LF - Low friction acetal (01) | P1187 | 200 mm | 610 mm | 4.9 kg/m | TPR | Red | C45 | 10 ft - 3,048 m | 4500 N |
|
| P11870206 | K 600 - 152,4 mm | LF - Low friction acetal (01) | P1187 | 200 mm | 610 mm | 4 kg/m | TPR | Red | Nickel Plated Steel | 10 ft - 3,048 m | 4500 N |
|
| P11870207 | K 750 - 190,5 mm | LF - Low friction acetal (01) | P1187 | 200 mm | 610 mm | 4.9 kg/m | TPR | Red | Nickel Plated Steel | 10 ft - 3,048 m | 4500 N |
|
| P11870306 | K 600 - 152,4 mm | LF - Low friction acetal (01) | P1187 | 200 mm | 610 mm | 4 kg/m | TPR | Red | Stainless Steel | 10 ft - 3,048 m | 3500 N |
|
| P11870307 | K 750 - 190,5 mm | LF - Low friction acetal (01) | P1187 | 200 mm | 610 mm | 4.9 kg/m | TPR | Red | Stainless Steel | 10 ft - 3,048 m | 3500 N |
|
| P11880106 | K 600 - 152,4 mm | MX - Performance PBT (03) | P1188 | 200 mm | 610 mm | 4 kg/m | TPR | Red | C45 | 10 ft - 3,048 m | 4500 N |
|
| P11880107 | K 750 - 190,5 mm | MX - Performance PBT (03) | P1188 | 200 mm | 610 mm | 4.9 kg/m | TPR | Red | C45 | 10 ft - 3,048 m | 4500 N |
|
| P11880206 | K 600 - 152,4 mm | MX - Performance PBT (03) | P1188 | 200 mm | 610 mm | 4 kg/m | TPR | Red | Nickel Plated Steel | 10 ft - 3,048 m | 4500 N |
|
| P11880207 | K 750 - 190,5 mm | MX - Performance PBT (03) | P1188 | 200 mm | 610 mm | 4.9 kg/m | TPR | Red | Nickel Plated Steel | 10 ft - 3,048 m | 4500 N |
|
| P11880306 | K 600 - 152,4 mm | MX - Performance PBT (03) | P1188 | 200 mm | 610 mm | 4 kg/m | TPR | Red | Stainless Steel | 10 ft - 3,048 m | 3500 N |
|
| P11880307 | K 750 - 190,5 mm | MX - Performance PBT (03) | P1188 | 200 mm | 610 mm | 4.9 kg/m | TPR | Red | Stainless Steel | 10 ft - 3,048 m | 3500 N |
|
| P11890106 | K 600 - 152,4 mm | MPX - Lubricated acetal (25) | P1189 | 200 mm | 610 mm | 4 kg/m | EPDM-PP | Black | C45 | 10 ft - 3,048 m | 4500 N |
|
| P11890107 | K 750 - 190,5 mm | MPX - Lubricated acetal (25) | P1189 | 200 mm | 610 mm | 4.9 kg/m | EPDM-PP | Black | C45 | 10 ft - 3,048 m | 4500 N |
|
| P11890206 | K 600 - 152,4 mm | MPX - Lubricated acetal (25) | P1189 | 200 mm | 610 mm | 4 kg/m | EPDM-PP | Black | Nickel Plated Steel | 10 ft - 3,048 m | 4500 N |
|
| P11890207 | K 750 - 190,5 mm | MPX - Lubricated acetal (25) | P1189 | 200 mm | 610 mm | 4.9 kg/m | EPDM-PP | Black | Nickel Plated Steel | 10 ft - 3,048 m | 4500 N |
|
| P11890306 | K 600 - 152,4 mm | MPX - Lubricated acetal (25) | P1189 | 200 mm | 610 mm | 4 kg/m | EPDM-PP | Black | Stainless Steel | 10 ft - 3,048 m | 3500 N |
|
| P11890307 | K 750 - 190,5 mm | MPX - Lubricated acetal (25) | P1189 | 200 mm | 610 mm | 4.9 kg/m | EPDM-PP | Black | Stainless Steel | 10 ft - 3,048 m | 3500 N |
|
