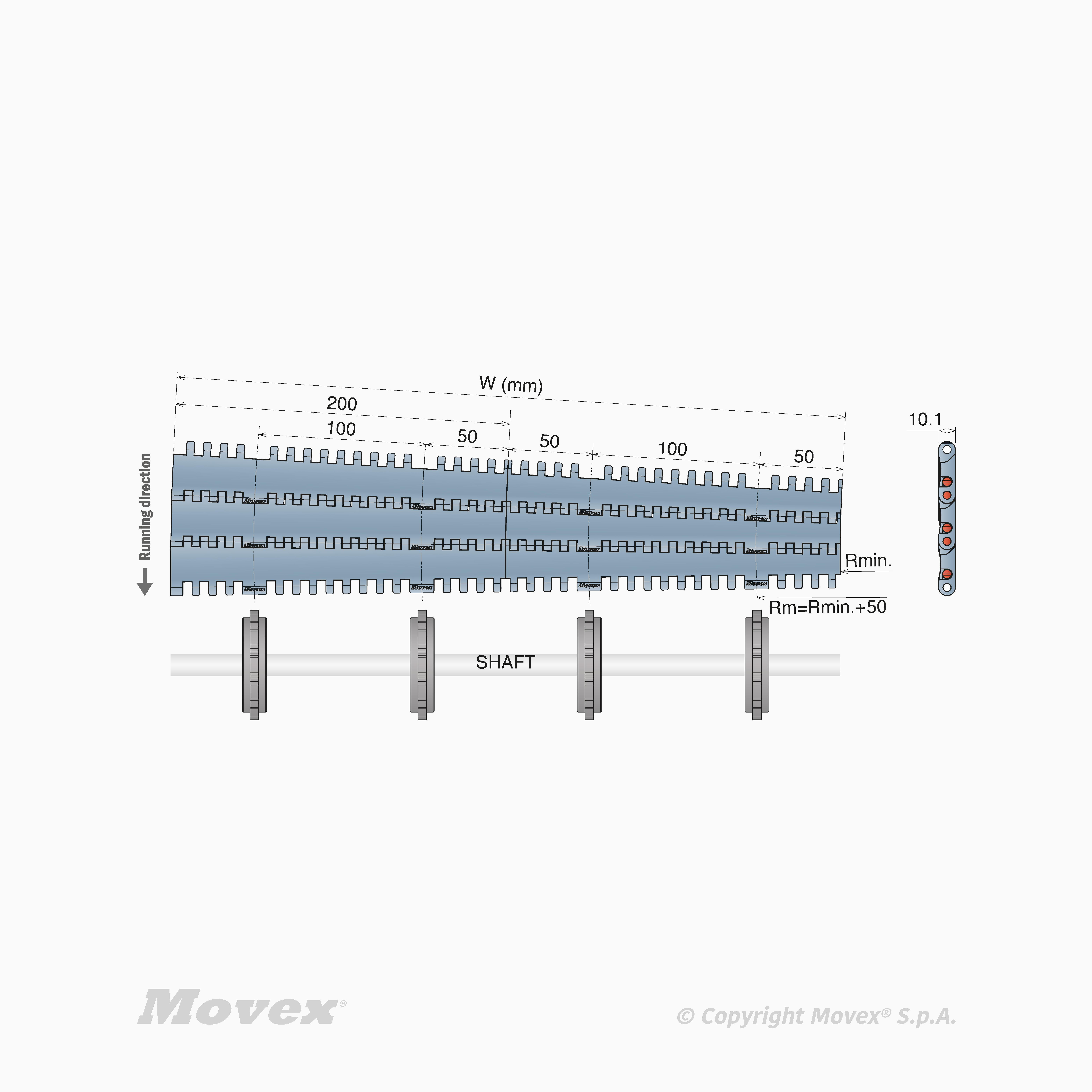

Zero Contact-fixed radius curve

Zero Contact-fixed radius curve

	Radius	Width	Angle	Material	Part	Back flex radius	Max working load	Mass	Pin material	Fixation	Temperature range dry	Temperature range wet	Supplementary informations
Code	All 1000 mm 1200 mm 1400 mm 1600 mm 1800 mm 2000 mm 600 mm 800 mm	All 1000 mm (39,37") 1200 mm (47,24") 1400 mm (55,12") 1600 mm (62,99") 200 mm (7,87") 400 mm (15,75") 600 mm (23,62") 800 mm (31,50")	All 180° 90°	All LFA - Low friction acetal (01) LFB - Low friction acetal (Blue)	All P545	All 60 mm	All 13500 N/m	All 9.25 kg/m^2	All PBT white	All Snap-in Clip	All -40÷80 °C	All -40÷65 °C	All - Low friction, Minimized maintenance, Easy pin removal Row to row angle: 1,33°; Pin material: Ø4,7 mm; Open Area: 0% Length of the belt 150 Modules Low friction, Minimized maintenance, Easy pin removal Row to row angle: 1,33°; Pin material: Ø4,7 mm; Open Area: 0% Length of the belt 285 Modules	Actions
P5451010201A	600 mm	200 mm (7,87")	90°	LFA - Low friction acetal (01)	P545	60 mm	13500 N/m	9.25 kg/m^2	PBT white	Snap-in Clip	-40÷80 °C	-40÷65 °C	Low friction, Minimized maintenance, Easy pin removal Row to row angle: 1,33°; Pin material: Ø4,7 mm; Open Area: 0% Length of the belt 285 Modules
P5451010202A	800 mm	200 mm (7,87")	90°	LFA - Low friction acetal (01)	P545	60 mm	13500 N/m	9.25 kg/m^2	PBT white	Snap-in Clip	-40÷80 °C	-40÷65 °C	-
P5451010203A	1000 mm	200 mm (7,87")	90°	LFA - Low friction acetal (01)	P545	60 mm	13500 N/m	9.25 kg/m^2	PBT white	Snap-in Clip	-40÷80 °C	-40÷65 °C	-
P5451010204A	1200 mm	200 mm (7,87")	90°	LFA - Low friction acetal (01)	P545	60 mm	13500 N/m	9.25 kg/m^2	PBT white	Snap-in Clip	-40÷80 °C	-40÷65 °C	-
P5451010205A	1400 mm	200 mm (7,87")	90°	LFA - Low friction acetal (01)	P545	60 mm	13500 N/m	9.25 kg/m^2	PBT white	Snap-in Clip	-40÷80 °C	-40÷65 °C	-
P5451010206A	1600 mm	200 mm (7,87")	90°	LFA - Low friction acetal (01)	P545	60 mm	13500 N/m	9.25 kg/m^2	PBT white	Snap-in Clip	-40÷80 °C	-40÷65 °C	-
P5451010207A	1800 mm	200 mm (7,87")	90°	LFA - Low friction acetal (01)	P545	60 mm	13500 N/m	9.25 kg/m^2	PBT white	Snap-in Clip	-40÷80 °C	-40÷65 °C	-
P5451010208A	2000 mm	200 mm (7,87")	90°	LFA - Low friction acetal (01)	P545	60 mm	13500 N/m	9.25 kg/m^2	PBT white	Snap-in Clip	-40÷80 °C	-40÷65 °C	Low friction, Minimized maintenance, Easy pin removal Row to row angle: 1,33°; Pin material: Ø4,7 mm; Open Area: 0% Length of the belt 150 Modules
P5451010401A	600 mm	400 mm (15,75")	90°	LFA - Low friction acetal (01)	P545	60 mm	13500 N/m	9.25 kg/m^2	PBT white	Snap-in Clip	-40÷80 °C	-40÷65 °C	Low friction, Minimized maintenance, Easy pin removal Row to row angle: 1,33°; Pin material: Ø4,7 mm; Open Area: 0% Length of the belt 150 Modules
P5451010402A	800 mm	400 mm (15,75")	90°	LFA - Low friction acetal (01)	P545	60 mm	13500 N/m	9.25 kg/m^2	PBT white	Snap-in Clip	-40÷80 °C	-40÷65 °C	Low friction, Minimized maintenance, Easy pin removal Row to row angle: 1,33°; Pin material: Ø4,7 mm; Open Area: 0% Length of the belt 150 Modules
P5451010403A	1000 mm	400 mm (15,75")	90°	LFA - Low friction acetal (01)	P545	60 mm	13500 N/m	9.25 kg/m^2	PBT white	Snap-in Clip	-40÷80 °C	-40÷65 °C	Low friction, Minimized maintenance, Easy pin removal Row to row angle: 1,33°; Pin material: Ø4,7 mm; Open Area: 0% Length of the belt 150 Modules
P5451010404A	1200 mm	400 mm (15,75")	90°	LFA - Low friction acetal (01)	P545	60 mm	13500 N/m	9.25 kg/m^2	PBT white	Snap-in Clip	-40÷80 °C	-40÷65 °C	Low friction, Minimized maintenance, Easy pin removal Row to row angle: 1,33°; Pin material: Ø4,7 mm; Open Area: 0% Length of the belt 150 Modules
P5451010405A	1400 mm	400 mm (15,75")	90°	LFA - Low friction acetal (01)	P545	60 mm	13500 N/m	9.25 kg/m^2	PBT white	Snap-in Clip	-40÷80 °C	-40÷65 °C	Low friction, Minimized maintenance, Easy pin removal Row to row angle: 1,33°; Pin material: Ø4,7 mm; Open Area: 0% Length of the belt 150 Modules
P5451010406A	1600 mm	400 mm (15,75")	90°	LFA - Low friction acetal (01)	P545	60 mm	13500 N/m	9.25 kg/m^2	PBT white	Snap-in Clip	-40÷80 °C	-40÷65 °C	Low friction, Minimized maintenance, Easy pin removal Row to row angle: 1,33°; Pin material: Ø4,7 mm; Open Area: 0% Length of the belt 150 Modules
P5451010407A	1800 mm	400 mm (15,75")	90°	LFA - Low friction acetal (01)	P545	60 mm	13500 N/m	9.25 kg/m^2	PBT white	Snap-in Clip	-40÷80 °C	-40÷65 °C	Low friction, Minimized maintenance, Easy pin removal Row to row angle: 1,33°; Pin material: Ø4,7 mm; Open Area: 0% Length of the belt 150 Modules
P5451010601A	600 mm	600 mm (23,62")	90°	LFA - Low friction acetal (01)	P545	60 mm	13500 N/m	9.25 kg/m^2	PBT white	Snap-in Clip	-40÷80 °C	-40÷65 °C	Low friction, Minimized maintenance, Easy pin removal Row to row angle: 1,33°; Pin material: Ø4,7 mm; Open Area: 0% Length of the belt 150 Modules
P5451010602A	800 mm	600 mm (23,62")	90°	LFA - Low friction acetal (01)	P545	60 mm	13500 N/m	9.25 kg/m^2	PBT white	Snap-in Clip	-40÷80 °C	-40÷65 °C	Low friction, Minimized maintenance, Easy pin removal Row to row angle: 1,33°; Pin material: Ø4,7 mm; Open Area: 0% Length of the belt 150 Modules
P5451010603A	1000 mm	600 mm (23,62")	90°	LFA - Low friction acetal (01)	P545	60 mm	13500 N/m	9.25 kg/m^2	PBT white	Snap-in Clip	-40÷80 °C	-40÷65 °C	Low friction, Minimized maintenance, Easy pin removal Row to row angle: 1,33°; Pin material: Ø4,7 mm; Open Area: 0% Length of the belt 150 Modules
P5451010604A	1200 mm	600 mm (23,62")	90°	LFA - Low friction acetal (01)	P545	60 mm	13500 N/m	9.25 kg/m^2	PBT white	Snap-in Clip	-40÷80 °C	-40÷65 °C	Low friction, Minimized maintenance, Easy pin removal Row to row angle: 1,33°; Pin material: Ø4,7 mm; Open Area: 0% Length of the belt 150 Modules
P5451010605A	1400 mm	600 mm (23,62")	90°	LFA - Low friction acetal (01)	P545	60 mm	13500 N/m	9.25 kg/m^2	PBT white	Snap-in Clip	-40÷80 °C	-40÷65 °C	Low friction, Minimized maintenance, Easy pin removal Row to row angle: 1,33°; Pin material: Ø4,7 mm; Open Area: 0% Length of the belt 150 Modules
P5451010606A	1600 mm	600 mm (23,62")	90°	LFA - Low friction acetal (01)	P545	60 mm	13500 N/m	9.25 kg/m^2	PBT white	Snap-in Clip	-40÷80 °C	-40÷65 °C	Low friction, Minimized maintenance, Easy pin removal Row to row angle: 1,33°; Pin material: Ø4,7 mm; Open Area: 0% Length of the belt 150 Modules
P5451010801A	600 mm	800 mm (31,50")	90°	LFA - Low friction acetal (01)	P545	60 mm	13500 N/m	9.25 kg/m^2	PBT white	Snap-in Clip	-40÷80 °C	-40÷65 °C	Low friction, Minimized maintenance, Easy pin removal Row to row angle: 1,33°; Pin material: Ø4,7 mm; Open Area: 0% Length of the belt 150 Modules
P5451010802A	800 mm	800 mm (31,50")	90°	LFA - Low friction acetal (01)	P545	60 mm	13500 N/m	9.25 kg/m^2	PBT white	Snap-in Clip	-40÷80 °C	-40÷65 °C	Low friction, Minimized maintenance, Easy pin removal Row to row angle: 1,33°; Pin material: Ø4,7 mm; Open Area: 0% Length of the belt 150 Modules
P5451010803A	1000 mm	800 mm (31,50")	90°	LFA - Low friction acetal (01)	P545	60 mm	13500 N/m	9.25 kg/m^2	PBT white	Snap-in Clip	-40÷80 °C	-40÷65 °C	Low friction, Minimized maintenance, Easy pin removal Row to row angle: 1,33°; Pin material: Ø4,7 mm; Open Area: 0% Length of the belt 150 Modules
P5451010804A	1200 mm	800 mm (31,50")	90°	LFA - Low friction acetal (01)	P545	60 mm	13500 N/m	9.25 kg/m^2	PBT white	Snap-in Clip	-40÷80 °C	-40÷65 °C	Low friction, Minimized maintenance, Easy pin removal Row to row angle: 1,33°; Pin material: Ø4,7 mm; Open Area: 0% Length of the belt 150 Modules
P5451010805A	1400 mm	800 mm (31,50")	90°	LFA - Low friction acetal (01)	P545	60 mm	13500 N/m	9.25 kg/m^2	PBT white	Snap-in Clip	-40÷80 °C	-40÷65 °C	Low friction, Minimized maintenance, Easy pin removal Row to row angle: 1,33°; Pin material: Ø4,7 mm; Open Area: 0% Length of the belt 150 Modules
P5451011001A	600 mm	1000 mm (39,37")	90°	LFA - Low friction acetal (01)	P545	60 mm	13500 N/m	9.25 kg/m^2	PBT white	Snap-in Clip	-40÷80 °C	-40÷65 °C	Low friction, Minimized maintenance, Easy pin removal Row to row angle: 1,33°; Pin material: Ø4,7 mm; Open Area: 0% Length of the belt 150 Modules
P5451011002A	800 mm	1000 mm (39,37")	90°	LFA - Low friction acetal (01)	P545	60 mm	13500 N/m	9.25 kg/m^2	PBT white	Snap-in Clip	-40÷80 °C	-40÷65 °C	Low friction, Minimized maintenance, Easy pin removal Row to row angle: 1,33°; Pin material: Ø4,7 mm; Open Area: 0% Length of the belt 150 Modules
P5451011003A	1000 mm	1000 mm (39,37")	90°	LFA - Low friction acetal (01)	P545	60 mm	13500 N/m	9.25 kg/m^2	PBT white	Snap-in Clip	-40÷80 °C	-40÷65 °C	Low friction, Minimized maintenance, Easy pin removal Row to row angle: 1,33°; Pin material: Ø4,7 mm; Open Area: 0% Length of the belt 150 Modules
P5451011004A	1200 mm	1000 mm (39,37")	90°	LFA - Low friction acetal (01)	P545	60 mm	13500 N/m	9.25 kg/m^2	PBT white	Snap-in Clip	-40÷80 °C	-40÷65 °C	Low friction, Minimized maintenance, Easy pin removal Row to row angle: 1,33°; Pin material: Ø4,7 mm; Open Area: 0% Length of the belt 150 Modules
P5451011201A	600 mm	1200 mm (47,24")	90°	LFA - Low friction acetal (01)	P545	60 mm	13500 N/m	9.25 kg/m^2	PBT white	Snap-in Clip	-40÷80 °C	-40÷65 °C	Low friction, Minimized maintenance, Easy pin removal Row to row angle: 1,33°; Pin material: Ø4,7 mm; Open Area: 0% Length of the belt 150 Modules
P5451011202A	800 mm	1200 mm (47,24")	90°	LFA - Low friction acetal (01)	P545	60 mm	13500 N/m	9.25 kg/m^2	PBT white	Snap-in Clip	-40÷80 °C	-40÷65 °C	Low friction, Minimized maintenance, Easy pin removal Row to row angle: 1,33°; Pin material: Ø4,7 mm; Open Area: 0% Length of the belt 150 Modules
P5451011203A	1000 mm	1200 mm (47,24")	90°	LFA - Low friction acetal (01)	P545	60 mm	13500 N/m	9.25 kg/m^2	PBT white	Snap-in Clip	-40÷80 °C	-40÷65 °C	Low friction, Minimized maintenance, Easy pin removal Row to row angle: 1,33°; Pin material: Ø4,7 mm; Open Area: 0% Length of the belt 150 Modules
P5451011401A	600 mm	1400 mm (55,12")	90°	LFA - Low friction acetal (01)	P545	60 mm	13500 N/m	9.25 kg/m^2	PBT white	Snap-in Clip	-40÷80 °C	-40÷65 °C	Low friction, Minimized maintenance, Easy pin removal Row to row angle: 1,33°; Pin material: Ø4,7 mm; Open Area: 0% Length of the belt 150 Modules
P5451011402A	800 mm	1400 mm (55,12")	90°	LFA - Low friction acetal (01)	P545	60 mm	13500 N/m	9.25 kg/m^2	PBT white	Snap-in Clip	-40÷80 °C	-40÷65 °C	Low friction, Minimized maintenance, Easy pin removal Row to row angle: 1,33°; Pin material: Ø4,7 mm; Open Area: 0% Length of the belt 150 Modules
P5451011601A	600 mm	1600 mm (62,99")	90°	LFA - Low friction acetal (01)	P545	60 mm	13500 N/m	9.25 kg/m^2	PBT white	Snap-in Clip	-40÷80 °C	-40÷65 °C	Low friction, Minimized maintenance, Easy pin removal Row to row angle: 1,33°; Pin material: Ø4,7 mm; Open Area: 0% Length of the belt 150 Modules
P5451230201A	600 mm	200 mm (7,87")	90°	LFB - Low friction acetal (Blue)	P545	60 mm	13500 N/m	9.25 kg/m^2	PBT white	Snap-in Clip	-40÷80 °C	-40÷65 °C	Low friction, Minimized maintenance, Easy pin removal Row to row angle: 1,33°; Pin material: Ø4,7 mm; Open Area: 0% Length of the belt 150 Modules
P5451230202A	800 mm	200 mm (7,87")	90°	LFB - Low friction acetal (Blue)	P545	60 mm	13500 N/m	9.25 kg/m^2	PBT white	Snap-in Clip	-40÷80 °C	-40÷65 °C	Low friction, Minimized maintenance, Easy pin removal Row to row angle: 1,33°; Pin material: Ø4,7 mm; Open Area: 0% Length of the belt 150 Modules
P5451230203A	1000 mm	200 mm (7,87")	90°	LFB - Low friction acetal (Blue)	P545	60 mm	13500 N/m	9.25 kg/m^2	PBT white	Snap-in Clip	-40÷80 °C	-40÷65 °C	Low friction, Minimized maintenance, Easy pin removal Row to row angle: 1,33°; Pin material: Ø4,7 mm; Open Area: 0% Length of the belt 150 Modules
P5451230204A	1200 mm	200 mm (7,87")	90°	LFB - Low friction acetal (Blue)	P545	60 mm	13500 N/m	9.25 kg/m^2	PBT white	Snap-in Clip	-40÷80 °C	-40÷65 °C	Low friction, Minimized maintenance, Easy pin removal Row to row angle: 1,33°; Pin material: Ø4,7 mm; Open Area: 0% Length of the belt 150 Modules
P5451230205A	1400 mm	200 mm (7,87")	90°	LFB - Low friction acetal (Blue)	P545	60 mm	13500 N/m	9.25 kg/m^2	PBT white	Snap-in Clip	-40÷80 °C	-40÷65 °C	Low friction, Minimized maintenance, Easy pin removal Row to row angle: 1,33°; Pin material: Ø4,7 mm; Open Area: 0% Length of the belt 150 Modules
P5451230206A	1600 mm	200 mm (7,87")	90°	LFB - Low friction acetal (Blue)	P545	60 mm	13500 N/m	9.25 kg/m^2	PBT white	Snap-in Clip	-40÷80 °C	-40÷65 °C	Low friction, Minimized maintenance, Easy pin removal Row to row angle: 1,33°; Pin material: Ø4,7 mm; Open Area: 0% Length of the belt 150 Modules
P5451230207A	1800 mm	200 mm (7,87")	90°	LFB - Low friction acetal (Blue)	P545	60 mm	13500 N/m	9.25 kg/m^2	PBT white	Snap-in Clip	-40÷80 °C	-40÷65 °C	Low friction, Minimized maintenance, Easy pin removal Row to row angle: 1,33°; Pin material: Ø4,7 mm; Open Area: 0% Length of the belt 150 Modules
P5451230208A	2000 mm	200 mm (7,87")	90°	LFB - Low friction acetal (Blue)	P545	60 mm	13500 N/m	9.25 kg/m^2	PBT white	Snap-in Clip	-40÷80 °C	-40÷65 °C	Low friction, Minimized maintenance, Easy pin removal Row to row angle: 1,33°; Pin material: Ø4,7 mm; Open Area: 0% Length of the belt 150 Modules
P5451230401A	600 mm	400 mm (15,75")	90°	LFB - Low friction acetal (Blue)	P545	60 mm	13500 N/m	9.25 kg/m^2	PBT white	Snap-in Clip	-40÷80 °C	-40÷65 °C	Low friction, Minimized maintenance, Easy pin removal Row to row angle: 1,33°; Pin material: Ø4,7 mm; Open Area: 0% Length of the belt 150 Modules
P5451230402A	800 mm	400 mm (15,75")	90°	LFB - Low friction acetal (Blue)	P545	60 mm	13500 N/m	9.25 kg/m^2	PBT white	Snap-in Clip	-40÷80 °C	-40÷65 °C	Low friction, Minimized maintenance, Easy pin removal Row to row angle: 1,33°; Pin material: Ø4,7 mm; Open Area: 0% Length of the belt 150 Modules
P5451230403A	1000 mm	400 mm (15,75")	90°	LFB - Low friction acetal (Blue)	P545	60 mm	13500 N/m	9.25 kg/m^2	PBT white	Snap-in Clip	-40÷80 °C	-40÷65 °C	Low friction, Minimized maintenance, Easy pin removal Row to row angle: 1,33°; Pin material: Ø4,7 mm; Open Area: 0% Length of the belt 150 Modules
P5451230404A	1200 mm	400 mm (15,75")	90°	LFB - Low friction acetal (Blue)	P545	60 mm	13500 N/m	9.25 kg/m^2	PBT white	Snap-in Clip	-40÷80 °C	-40÷65 °C	Low friction, Minimized maintenance, Easy pin removal Row to row angle: 1,33°; Pin material: Ø4,7 mm; Open Area: 0% Length of the belt 150 Modules
P5451230405A	1400 mm	400 mm (15,75")	90°	LFB - Low friction acetal (Blue)	P545	60 mm	13500 N/m	9.25 kg/m^2	PBT white	Snap-in Clip	-40÷80 °C	-40÷65 °C	Low friction, Minimized maintenance, Easy pin removal Row to row angle: 1,33°; Pin material: Ø4,7 mm; Open Area: 0% Length of the belt 150 Modules
P5451230406A	1600 mm	400 mm (15,75")	90°	LFB - Low friction acetal (Blue)	P545	60 mm	13500 N/m	9.25 kg/m^2	PBT white	Snap-in Clip	-40÷80 °C	-40÷65 °C	Low friction, Minimized maintenance, Easy pin removal Row to row angle: 1,33°; Pin material: Ø4,7 mm; Open Area: 0% Length of the belt 150 Modules
P5451230407A	1800 mm	400 mm (15,75")	90°	LFB - Low friction acetal (Blue)	P545	60 mm	13500 N/m	9.25 kg/m^2	PBT white	Snap-in Clip	-40÷80 °C	-40÷65 °C	Low friction, Minimized maintenance, Easy pin removal Row to row angle: 1,33°; Pin material: Ø4,7 mm; Open Area: 0% Length of the belt 150 Modules
P5451230601A	600 mm	600 mm (23,62")	90°	LFB - Low friction acetal (Blue)	P545	60 mm	13500 N/m	9.25 kg/m^2	PBT white	Snap-in Clip	-40÷80 °C	-40÷65 °C	Low friction, Minimized maintenance, Easy pin removal Row to row angle: 1,33°; Pin material: Ø4,7 mm; Open Area: 0% Length of the belt 150 Modules
P5451230602A	800 mm	600 mm (23,62")	90°	LFB - Low friction acetal (Blue)	P545	60 mm	13500 N/m	9.25 kg/m^2	PBT white	Snap-in Clip	-40÷80 °C	-40÷65 °C	Low friction, Minimized maintenance, Easy pin removal Row to row angle: 1,33°; Pin material: Ø4,7 mm; Open Area: 0% Length of the belt 150 Modules
P5451230603A	1000 mm	600 mm (23,62")	90°	LFB - Low friction acetal (Blue)	P545	60 mm	13500 N/m	9.25 kg/m^2	PBT white	Snap-in Clip	-40÷80 °C	-40÷65 °C	Low friction, Minimized maintenance, Easy pin removal Row to row angle: 1,33°; Pin material: Ø4,7 mm; Open Area: 0% Length of the belt 150 Modules
P5451230604A	1200 mm	600 mm (23,62")	90°	LFB - Low friction acetal (Blue)	P545	60 mm	13500 N/m	9.25 kg/m^2	PBT white	Snap-in Clip	-40÷80 °C	-40÷65 °C	Low friction, Minimized maintenance, Easy pin removal Row to row angle: 1,33°; Pin material: Ø4,7 mm; Open Area: 0% Length of the belt 150 Modules
P5451230605A	1400 mm	600 mm (23,62")	90°	LFB - Low friction acetal (Blue)	P545	60 mm	13500 N/m	9.25 kg/m^2	PBT white	Snap-in Clip	-40÷80 °C	-40÷65 °C	Low friction, Minimized maintenance, Easy pin removal Row to row angle: 1,33°; Pin material: Ø4,7 mm; Open Area: 0% Length of the belt 150 Modules
P5451230606A	1600 mm	600 mm (23,62")	90°	LFB - Low friction acetal (Blue)	P545	60 mm	13500 N/m	9.25 kg/m^2	PBT white	Snap-in Clip	-40÷80 °C	-40÷65 °C	Low friction, Minimized maintenance, Easy pin removal Row to row angle: 1,33°; Pin material: Ø4,7 mm; Open Area: 0% Length of the belt 150 Modules
P5451230801A	600 mm	800 mm (31,50")	90°	LFB - Low friction acetal (Blue)	P545	60 mm	13500 N/m	9.25 kg/m^2	PBT white	Snap-in Clip	-40÷80 °C	-40÷65 °C	Low friction, Minimized maintenance, Easy pin removal Row to row angle: 1,33°; Pin material: Ø4,7 mm; Open Area: 0% Length of the belt 150 Modules
P5451230802A	800 mm	800 mm (31,50")	90°	LFB - Low friction acetal (Blue)	P545	60 mm	13500 N/m	9.25 kg/m^2	PBT white	Snap-in Clip	-40÷80 °C	-40÷65 °C	Low friction, Minimized maintenance, Easy pin removal Row to row angle: 1,33°; Pin material: Ø4,7 mm; Open Area: 0% Length of the belt 150 Modules
P5451230803A	1000 mm	800 mm (31,50")	90°	LFB - Low friction acetal (Blue)	P545	60 mm	13500 N/m	9.25 kg/m^2	PBT white	Snap-in Clip	-40÷80 °C	-40÷65 °C	Low friction, Minimized maintenance, Easy pin removal Row to row angle: 1,33°; Pin material: Ø4,7 mm; Open Area: 0% Length of the belt 150 Modules
P5451230804A	1200 mm	800 mm (31,50")	90°	LFB - Low friction acetal (Blue)	P545	60 mm	13500 N/m	9.25 kg/m^2	PBT white	Snap-in Clip	-40÷80 °C	-40÷65 °C	Low friction, Minimized maintenance, Easy pin removal Row to row angle: 1,33°; Pin material: Ø4,7 mm; Open Area: 0% Length of the belt 150 Modules
P5451230805A	1400 mm	800 mm (31,50")	90°	LFB - Low friction acetal (Blue)	P545	60 mm	13500 N/m	9.25 kg/m^2	PBT white	Snap-in Clip	-40÷80 °C	-40÷65 °C	Low friction, Minimized maintenance, Easy pin removal Row to row angle: 1,33°; Pin material: Ø4,7 mm; Open Area: 0% Length of the belt 150 Modules
P5451231001A	600 mm	1000 mm (39,37")	90°	LFB - Low friction acetal (Blue)	P545	60 mm	13500 N/m	9.25 kg/m^2	PBT white	Snap-in Clip	-40÷80 °C	-40÷65 °C	Low friction, Minimized maintenance, Easy pin removal Row to row angle: 1,33°; Pin material: Ø4,7 mm; Open Area: 0% Length of the belt 150 Modules
P5451231002A	800 mm	1000 mm (39,37")	90°	LFB - Low friction acetal (Blue)	P545	60 mm	13500 N/m	9.25 kg/m^2	PBT white	Snap-in Clip	-40÷80 °C	-40÷65 °C	Low friction, Minimized maintenance, Easy pin removal Row to row angle: 1,33°; Pin material: Ø4,7 mm; Open Area: 0% Length of the belt 150 Modules
P5451231003A	1000 mm	1000 mm (39,37")	90°	LFB - Low friction acetal (Blue)	P545	60 mm	13500 N/m	9.25 kg/m^2	PBT white	Snap-in Clip	-40÷80 °C	-40÷65 °C	Low friction, Minimized maintenance, Easy pin removal Row to row angle: 1,33°; Pin material: Ø4,7 mm; Open Area: 0% Length of the belt 150 Modules
P5451231004A	1200 mm	1000 mm (39,37")	90°	LFB - Low friction acetal (Blue)	P545	60 mm	13500 N/m	9.25 kg/m^2	PBT white	Snap-in Clip	-40÷80 °C	-40÷65 °C	Low friction, Minimized maintenance, Easy pin removal Row to row angle: 1,33°; Pin material: Ø4,7 mm; Open Area: 0% Length of the belt 150 Modules
P5451231201A	600 mm	1200 mm (47,24")	90°	LFB - Low friction acetal (Blue)	P545	60 mm	13500 N/m	9.25 kg/m^2	PBT white	Snap-in Clip	-40÷80 °C	-40÷65 °C	Low friction, Minimized maintenance, Easy pin removal Row to row angle: 1,33°; Pin material: Ø4,7 mm; Open Area: 0% Length of the belt 150 Modules
P5451231202A	800 mm	1200 mm (47,24")	90°	LFB - Low friction acetal (Blue)	P545	60 mm	13500 N/m	9.25 kg/m^2	PBT white	Snap-in Clip	-40÷80 °C	-40÷65 °C	Low friction, Minimized maintenance, Easy pin removal Row to row angle: 1,33°; Pin material: Ø4,7 mm; Open Area: 0% Length of the belt 150 Modules
P5451231203A	1000 mm	1200 mm (47,24")	90°	LFB - Low friction acetal (Blue)	P545	60 mm	13500 N/m	9.25 kg/m^2	PBT white	Snap-in Clip	-40÷80 °C	-40÷65 °C	Low friction, Minimized maintenance, Easy pin removal Row to row angle: 1,33°; Pin material: Ø4,7 mm; Open Area: 0% Length of the belt 150 Modules
P5451231401A	600 mm	1400 mm (55,12")	90°	LFB - Low friction acetal (Blue)	P545	60 mm	13500 N/m	9.25 kg/m^2	PBT white	Snap-in Clip	-40÷80 °C	-40÷65 °C	Low friction, Minimized maintenance, Easy pin removal Row to row angle: 1,33°; Pin material: Ø4,7 mm; Open Area: 0% Length of the belt 150 Modules
P5451231402A	800 mm	1400 mm (55,12")	90°	LFB - Low friction acetal (Blue)	P545	60 mm	13500 N/m	9.25 kg/m^2	PBT white	Snap-in Clip	-40÷80 °C	-40÷65 °C	Low friction, Minimized maintenance, Easy pin removal Row to row angle: 1,33°; Pin material: Ø4,7 mm; Open Area: 0% Length of the belt 150 Modules
P5451231601A	600 mm	1600 mm (62,99")	90°	LFB - Low friction acetal (Blue)	P545	60 mm	13500 N/m	9.25 kg/m^2	PBT white	Snap-in Clip	-40÷80 °C	-40÷65 °C	Low friction, Minimized maintenance, Easy pin removal Row to row angle: 1,33°; Pin material: Ø4,7 mm; Open Area: 0% Length of the belt 150 Modules
P5452010201A	600 mm	200 mm (7,87")	180°	LFA - Low friction acetal (01)	P545	60 mm	13500 N/m	9.25 kg/m^2	PBT white	Snap-in Clip	-40÷80 °C	-40÷65 °C	Low friction, Minimized maintenance, Easy pin removal Row to row angle: 1,33°; Pin material: Ø4,7 mm; Open Area: 0% Length of the belt 150 Modules
P5452010202A	800 mm	200 mm (7,87")	180°	LFA - Low friction acetal (01)	P545	60 mm	13500 N/m	9.25 kg/m^2	PBT white	Snap-in Clip	-40÷80 °C	-40÷65 °C	Low friction, Minimized maintenance, Easy pin removal Row to row angle: 1,33°; Pin material: Ø4,7 mm; Open Area: 0% Length of the belt 150 Modules
P5452010203A	1000 mm	200 mm (7,87")	180°	LFA - Low friction acetal (01)	P545	60 mm	13500 N/m	9.25 kg/m^2	PBT white	Snap-in Clip	-40÷80 °C	-40÷65 °C	Low friction, Minimized maintenance, Easy pin removal Row to row angle: 1,33°; Pin material: Ø4,7 mm; Open Area: 0% Length of the belt 150 Modules
P5452010204A	1200 mm	200 mm (7,87")	180°	LFA - Low friction acetal (01)	P545	60 mm	13500 N/m	9.25 kg/m^2	PBT white	Snap-in Clip	-40÷80 °C	-40÷65 °C	Low friction, Minimized maintenance, Easy pin removal Row to row angle: 1,33°; Pin material: Ø4,7 mm; Open Area: 0% Length of the belt 150 Modules
P5452010205A	1400 mm	200 mm (7,87")	180°	LFA - Low friction acetal (01)	P545	60 mm	13500 N/m	9.25 kg/m^2	PBT white	Snap-in Clip	-40÷80 °C	-40÷65 °C	Low friction, Minimized maintenance, Easy pin removal Row to row angle: 1,33°; Pin material: Ø4,7 mm; Open Area: 0% Length of the belt 285 Modules
P5452010206A	1600 mm	200 mm (7,87")	180°	LFA - Low friction acetal (01)	P545	60 mm	13500 N/m	9.25 kg/m^2	PBT white	Snap-in Clip	-40÷80 °C	-40÷65 °C	Low friction, Minimized maintenance, Easy pin removal Row to row angle: 1,33°; Pin material: Ø4,7 mm; Open Area: 0% Length of the belt 285 Modules
P5452010207A	1800 mm	200 mm (7,87")	180°	LFA - Low friction acetal (01)	P545	60 mm	13500 N/m	9.25 kg/m^2	PBT white	Snap-in Clip	-40÷80 °C	-40÷65 °C	Low friction, Minimized maintenance, Easy pin removal Row to row angle: 1,33°; Pin material: Ø4,7 mm; Open Area: 0% Length of the belt 285 Modules
P5452010208A	2000 mm	200 mm (7,87")	180°	LFA - Low friction acetal (01)	P545	60 mm	13500 N/m	9.25 kg/m^2	PBT white	Snap-in Clip	-40÷80 °C	-40÷65 °C	Low friction, Minimized maintenance, Easy pin removal Row to row angle: 1,33°; Pin material: Ø4,7 mm; Open Area: 0% Length of the belt 285 Modules
P5452010401A	600 mm	400 mm (15,75")	180°	LFA - Low friction acetal (01)	P545	60 mm	13500 N/m	9.25 kg/m^2	PBT white	Snap-in Clip	-40÷80 °C	-40÷65 °C	Low friction, Minimized maintenance, Easy pin removal Row to row angle: 1,33°; Pin material: Ø4,7 mm; Open Area: 0% Length of the belt 285 Modules
P5452010402A	800 mm	400 mm (15,75")	180°	LFA - Low friction acetal (01)	P545	60 mm	13500 N/m	9.25 kg/m^2	PBT white	Snap-in Clip	-40÷80 °C	-40÷65 °C	Low friction, Minimized maintenance, Easy pin removal Row to row angle: 1,33°; Pin material: Ø4,7 mm; Open Area: 0% Length of the belt 285 Modules
P5452010403A	1000 mm	400 mm (15,75")	180°	LFA - Low friction acetal (01)	P545	60 mm	13500 N/m	9.25 kg/m^2	PBT white	Snap-in Clip	-40÷80 °C	-40÷65 °C	Low friction, Minimized maintenance, Easy pin removal Row to row angle: 1,33°; Pin material: Ø4,7 mm; Open Area: 0% Length of the belt 285 Modules
P5452010404A	1200 mm	400 mm (15,75")	180°	LFA - Low friction acetal (01)	P545	60 mm	13500 N/m	9.25 kg/m^2	PBT white	Snap-in Clip	-40÷80 °C	-40÷65 °C	Low friction, Minimized maintenance, Easy pin removal Row to row angle: 1,33°; Pin material: Ø4,7 mm; Open Area: 0% Length of the belt 285 Modules
P5452010405A	1400 mm	400 mm (15,75")	180°	LFA - Low friction acetal (01)	P545	60 mm	13500 N/m	9.25 kg/m^2	PBT white	Snap-in Clip	-40÷80 °C	-40÷65 °C	Low friction, Minimized maintenance, Easy pin removal Row to row angle: 1,33°; Pin material: Ø4,7 mm; Open Area: 0% Length of the belt 285 Modules
P5452010406A	1600 mm	400 mm (15,75")	180°	LFA - Low friction acetal (01)	P545	60 mm	13500 N/m	9.25 kg/m^2	PBT white	Snap-in Clip	-40÷80 °C	-40÷65 °C	Low friction, Minimized maintenance, Easy pin removal Row to row angle: 1,33°; Pin material: Ø4,7 mm; Open Area: 0% Length of the belt 285 Modules
P5452010407A	1800 mm	400 mm (15,75")	180°	LFA - Low friction acetal (01)	P545	60 mm	13500 N/m	9.25 kg/m^2	PBT white	Snap-in Clip	-40÷80 °C	-40÷65 °C	Low friction, Minimized maintenance, Easy pin removal Row to row angle: 1,33°; Pin material: Ø4,7 mm; Open Area: 0% Length of the belt 285 Modules
P5452010601A	600 mm	600 mm (23,62")	180°	LFA - Low friction acetal (01)	P545	60 mm	13500 N/m	9.25 kg/m^2	PBT white	Snap-in Clip	-40÷80 °C	-40÷65 °C	Low friction, Minimized maintenance, Easy pin removal Row to row angle: 1,33°; Pin material: Ø4,7 mm; Open Area: 0% Length of the belt 285 Modules
P5452010602A	800 mm	600 mm (23,62")	180°	LFA - Low friction acetal (01)	P545	60 mm	13500 N/m	9.25 kg/m^2	PBT white	Snap-in Clip	-40÷80 °C	-40÷65 °C	Low friction, Minimized maintenance, Easy pin removal Row to row angle: 1,33°; Pin material: Ø4,7 mm; Open Area: 0% Length of the belt 285 Modules
P5452010603A	1000 mm	600 mm (23,62")	180°	LFA - Low friction acetal (01)	P545	60 mm	13500 N/m	9.25 kg/m^2	PBT white	Snap-in Clip	-40÷80 °C	-40÷65 °C	Low friction, Minimized maintenance, Easy pin removal Row to row angle: 1,33°; Pin material: Ø4,7 mm; Open Area: 0% Length of the belt 285 Modules
P5452010604A	1200 mm	600 mm (23,62")	180°	LFA - Low friction acetal (01)	P545	60 mm	13500 N/m	9.25 kg/m^2	PBT white	Snap-in Clip	-40÷80 °C	-40÷65 °C	Low friction, Minimized maintenance, Easy pin removal Row to row angle: 1,33°; Pin material: Ø4,7 mm; Open Area: 0% Length of the belt 285 Modules
P5452010605A	1400 mm	600 mm (23,62")	180°	LFA - Low friction acetal (01)	P545	60 mm	13500 N/m	9.25 kg/m^2	PBT white	Snap-in Clip	-40÷80 °C	-40÷65 °C	Low friction, Minimized maintenance, Easy pin removal Row to row angle: 1,33°; Pin material: Ø4,7 mm; Open Area: 0% Length of the belt 285 Modules
P5452010606A	1600 mm	600 mm (23,62")	180°	LFA - Low friction acetal (01)	P545	60 mm	13500 N/m	9.25 kg/m^2	PBT white	Snap-in Clip	-40÷80 °C	-40÷65 °C	Low friction, Minimized maintenance, Easy pin removal Row to row angle: 1,33°; Pin material: Ø4,7 mm; Open Area: 0% Length of the belt 285 Modules
P5452010801A	600 mm	800 mm (31,50")	180°	LFA - Low friction acetal (01)	P545	60 mm	13500 N/m	9.25 kg/m^2	PBT white	Snap-in Clip	-40÷80 °C	-40÷65 °C	Low friction, Minimized maintenance, Easy pin removal Row to row angle: 1,33°; Pin material: Ø4,7 mm; Open Area: 0% Length of the belt 285 Modules
P5452010802A	800 mm	800 mm (31,50")	180°	LFA - Low friction acetal (01)	P545	60 mm	13500 N/m	9.25 kg/m^2	PBT white	Snap-in Clip	-40÷80 °C	-40÷65 °C	Low friction, Minimized maintenance, Easy pin removal Row to row angle: 1,33°; Pin material: Ø4,7 mm; Open Area: 0% Length of the belt 285 Modules
P5452010803A	1000 mm	800 mm (31,50")	180°	LFA - Low friction acetal (01)	P545	60 mm	13500 N/m	9.25 kg/m^2	PBT white	Snap-in Clip	-40÷80 °C	-40÷65 °C	Low friction, Minimized maintenance, Easy pin removal Row to row angle: 1,33°; Pin material: Ø4,7 mm; Open Area: 0% Length of the belt 285 Modules
P5452010804A	1200 mm	800 mm (31,50")	180°	LFA - Low friction acetal (01)	P545	60 mm	13500 N/m	9.25 kg/m^2	PBT white	Snap-in Clip	-40÷80 °C	-40÷65 °C	Low friction, Minimized maintenance, Easy pin removal Row to row angle: 1,33°; Pin material: Ø4,7 mm; Open Area: 0% Length of the belt 285 Modules
P5452010805A	1400 mm	800 mm (31,50")	180°	LFA - Low friction acetal (01)	P545	60 mm	13500 N/m	9.25 kg/m^2	PBT white	Snap-in Clip	-40÷80 °C	-40÷65 °C	Low friction, Minimized maintenance, Easy pin removal Row to row angle: 1,33°; Pin material: Ø4,7 mm; Open Area: 0% Length of the belt 285 Modules
P5452011001A	600 mm	1000 mm (39,37")	180°	LFA - Low friction acetal (01)	P545	60 mm	13500 N/m	9.25 kg/m^2	PBT white	Snap-in Clip	-40÷80 °C	-40÷65 °C	Low friction, Minimized maintenance, Easy pin removal Row to row angle: 1,33°; Pin material: Ø4,7 mm; Open Area: 0% Length of the belt 285 Modules
P5452011002A	800 mm	1000 mm (39,37")	180°	LFA - Low friction acetal (01)	P545	60 mm	13500 N/m	9.25 kg/m^2	PBT white	Snap-in Clip	-40÷80 °C	-40÷65 °C	Low friction, Minimized maintenance, Easy pin removal Row to row angle: 1,33°; Pin material: Ø4,7 mm; Open Area: 0% Length of the belt 285 Modules
P5452011003A	1000 mm	1000 mm (39,37")	180°	LFA - Low friction acetal (01)	P545	60 mm	13500 N/m	9.25 kg/m^2	PBT white	Snap-in Clip	-40÷80 °C	-40÷65 °C	Low friction, Minimized maintenance, Easy pin removal Row to row angle: 1,33°; Pin material: Ø4,7 mm; Open Area: 0% Length of the belt 285 Modules
P5452011004A	1200 mm	1000 mm (39,37")	180°	LFA - Low friction acetal (01)	P545	60 mm	13500 N/m	9.25 kg/m^2	PBT white	Snap-in Clip	-40÷80 °C	-40÷65 °C	Low friction, Minimized maintenance, Easy pin removal Row to row angle: 1,33°; Pin material: Ø4,7 mm; Open Area: 0% Length of the belt 285 Modules
P5452011201A	600 mm	1200 mm (47,24")	180°	LFA - Low friction acetal (01)	P545	60 mm	13500 N/m	9.25 kg/m^2	PBT white	Snap-in Clip	-40÷80 °C	-40÷65 °C	Low friction, Minimized maintenance, Easy pin removal Row to row angle: 1,33°; Pin material: Ø4,7 mm; Open Area: 0% Length of the belt 285 Modules
P5452011202A	800 mm	1200 mm (47,24")	180°	LFA - Low friction acetal (01)	P545	60 mm	13500 N/m	9.25 kg/m^2	PBT white	Snap-in Clip	-40÷80 °C	-40÷65 °C	Low friction, Minimized maintenance, Easy pin removal Row to row angle: 1,33°; Pin material: Ø4,7 mm; Open Area: 0% Length of the belt 285 Modules
P5452011203A	1000 mm	1200 mm (47,24")	180°	LFA - Low friction acetal (01)	P545	60 mm	13500 N/m	9.25 kg/m^2	PBT white	Snap-in Clip	-40÷80 °C	-40÷65 °C	Low friction, Minimized maintenance, Easy pin removal Row to row angle: 1,33°; Pin material: Ø4,7 mm; Open Area: 0% Length of the belt 285 Modules
P5452011401A	600 mm	1400 mm (55,12")	180°	LFA - Low friction acetal (01)	P545	60 mm	13500 N/m	9.25 kg/m^2	PBT white	Snap-in Clip	-40÷80 °C	-40÷65 °C	Low friction, Minimized maintenance, Easy pin removal Row to row angle: 1,33°; Pin material: Ø4,7 mm; Open Area: 0% Length of the belt 285 Modules
P5452011402A	800 mm	1400 mm (55,12")	180°	LFA - Low friction acetal (01)	P545	60 mm	13500 N/m	9.25 kg/m^2	PBT white	Snap-in Clip	-40÷80 °C	-40÷65 °C	Low friction, Minimized maintenance, Easy pin removal Row to row angle: 1,33°; Pin material: Ø4,7 mm; Open Area: 0% Length of the belt 285 Modules
P5452011601A	600 mm	1600 mm (62,99")	180°	LFA - Low friction acetal (01)	P545	60 mm	13500 N/m	9.25 kg/m^2	PBT white	Snap-in Clip	-40÷80 °C	-40÷65 °C	Low friction, Minimized maintenance, Easy pin removal Row to row angle: 1,33°; Pin material: Ø4,7 mm; Open Area: 0% Length of the belt 285 Modules
P5452230201A	600 mm	200 mm (7,87")	180°	LFB - Low friction acetal (Blue)	P545	60 mm	13500 N/m	9.25 kg/m^2	PBT white	Snap-in Clip	-40÷80 °C	-40÷65 °C	Low friction, Minimized maintenance, Easy pin removal Row to row angle: 1,33°; Pin material: Ø4,7 mm; Open Area: 0% Length of the belt 285 Modules
P5452230202A	800 mm	200 mm (7,87")	180°	LFB - Low friction acetal (Blue)	P545	60 mm	13500 N/m	9.25 kg/m^2	PBT white	Snap-in Clip	-40÷80 °C	-40÷65 °C	Low friction, Minimized maintenance, Easy pin removal Row to row angle: 1,33°; Pin material: Ø4,7 mm; Open Area: 0% Length of the belt 285 Modules
P5452230203A	1000 mm	200 mm (7,87")	180°	LFB - Low friction acetal (Blue)	P545	60 mm	13500 N/m	9.25 kg/m^2	PBT white	Snap-in Clip	-40÷80 °C	-40÷65 °C	Low friction, Minimized maintenance, Easy pin removal Row to row angle: 1,33°; Pin material: Ø4,7 mm; Open Area: 0% Length of the belt 285 Modules
P5452230204A	1200 mm	200 mm (7,87")	180°	LFB - Low friction acetal (Blue)	P545	60 mm	13500 N/m	9.25 kg/m^2	PBT white	Snap-in Clip	-40÷80 °C	-40÷65 °C	Low friction, Minimized maintenance, Easy pin removal Row to row angle: 1,33°; Pin material: Ø4,7 mm; Open Area: 0% Length of the belt 285 Modules
P5452230205A	1400 mm	200 mm (7,87")	180°	LFB - Low friction acetal (Blue)	P545	60 mm	13500 N/m	9.25 kg/m^2	PBT white	Snap-in Clip	-40÷80 °C	-40÷65 °C	Low friction, Minimized maintenance, Easy pin removal Row to row angle: 1,33°; Pin material: Ø4,7 mm; Open Area: 0% Length of the belt 285 Modules
P5452230206A	1600 mm	200 mm (7,87")	180°	LFB - Low friction acetal (Blue)	P545	60 mm	13500 N/m	9.25 kg/m^2	PBT white	Snap-in Clip	-40÷80 °C	-40÷65 °C	Low friction, Minimized maintenance, Easy pin removal Row to row angle: 1,33°; Pin material: Ø4,7 mm; Open Area: 0% Length of the belt 285 Modules
P5452230207A	1800 mm	200 mm (7,87")	180°	LFB - Low friction acetal (Blue)	P545	60 mm	13500 N/m	9.25 kg/m^2	PBT white	Snap-in Clip	-40÷80 °C	-40÷65 °C	Low friction, Minimized maintenance, Easy pin removal Row to row angle: 1,33°; Pin material: Ø4,7 mm; Open Area: 0% Length of the belt 285 Modules
P5452230208A	2000 mm	200 mm (7,87")	180°	LFB - Low friction acetal (Blue)	P545	60 mm	13500 N/m	9.25 kg/m^2	PBT white	Snap-in Clip	-40÷80 °C	-40÷65 °C	Low friction, Minimized maintenance, Easy pin removal Row to row angle: 1,33°; Pin material: Ø4,7 mm; Open Area: 0% Length of the belt 285 Modules
P5452230401A	600 mm	400 mm (15,75")	180°	LFB - Low friction acetal (Blue)	P545	60 mm	13500 N/m	9.25 kg/m^2	PBT white	Snap-in Clip	-40÷80 °C	-40÷65 °C	Low friction, Minimized maintenance, Easy pin removal Row to row angle: 1,33°; Pin material: Ø4,7 mm; Open Area: 0% Length of the belt 285 Modules
P5452230402A	800 mm	400 mm (15,75")	180°	LFB - Low friction acetal (Blue)	P545	60 mm	13500 N/m	9.25 kg/m^2	PBT white	Snap-in Clip	-40÷80 °C	-40÷65 °C	Low friction, Minimized maintenance, Easy pin removal Row to row angle: 1,33°; Pin material: Ø4,7 mm; Open Area: 0% Length of the belt 285 Modules
P5452230403A	1000 mm	400 mm (15,75")	180°	LFB - Low friction acetal (Blue)	P545	60 mm	13500 N/m	9.25 kg/m^2	PBT white	Snap-in Clip	-40÷80 °C	-40÷65 °C	Low friction, Minimized maintenance, Easy pin removal Row to row angle: 1,33°; Pin material: Ø4,7 mm; Open Area: 0% Length of the belt 285 Modules
P5452230404A	1200 mm	400 mm (15,75")	180°	LFB - Low friction acetal (Blue)	P545	60 mm	13500 N/m	9.25 kg/m^2	PBT white	Snap-in Clip	-40÷80 °C	-40÷65 °C	Low friction, Minimized maintenance, Easy pin removal Row to row angle: 1,33°; Pin material: Ø4,7 mm; Open Area: 0% Length of the belt 285 Modules
P5452230405A	1400 mm	400 mm (15,75")	180°	LFB - Low friction acetal (Blue)	P545	60 mm	13500 N/m	9.25 kg/m^2	PBT white	Snap-in Clip	-40÷80 °C	-40÷65 °C	Low friction, Minimized maintenance, Easy pin removal Row to row angle: 1,33°; Pin material: Ø4,7 mm; Open Area: 0% Length of the belt 285 Modules
P5452230406A	1600 mm	400 mm (15,75")	180°	LFB - Low friction acetal (Blue)	P545	60 mm	13500 N/m	9.25 kg/m^2	PBT white	Snap-in Clip	-40÷80 °C	-40÷65 °C	Low friction, Minimized maintenance, Easy pin removal Row to row angle: 1,33°; Pin material: Ø4,7 mm; Open Area: 0% Length of the belt 285 Modules
P5452230407A	1800 mm	400 mm (15,75")	180°	LFB - Low friction acetal (Blue)	P545	60 mm	13500 N/m	9.25 kg/m^2	PBT white	Snap-in Clip	-40÷80 °C	-40÷65 °C	Low friction, Minimized maintenance, Easy pin removal Row to row angle: 1,33°; Pin material: Ø4,7 mm; Open Area: 0% Length of the belt 285 Modules
P5452230601A	600 mm	600 mm (23,62")	180°	LFB - Low friction acetal (Blue)	P545	60 mm	13500 N/m	9.25 kg/m^2	PBT white	Snap-in Clip	-40÷80 °C	-40÷65 °C	Low friction, Minimized maintenance, Easy pin removal Row to row angle: 1,33°; Pin material: Ø4,7 mm; Open Area: 0% Length of the belt 285 Modules
P5452230602A	800 mm	600 mm (23,62")	180°	LFB - Low friction acetal (Blue)	P545	60 mm	13500 N/m	9.25 kg/m^2	PBT white	Snap-in Clip	-40÷80 °C	-40÷65 °C	Low friction, Minimized maintenance, Easy pin removal Row to row angle: 1,33°; Pin material: Ø4,7 mm; Open Area: 0% Length of the belt 285 Modules
P5452230603A	1000 mm	600 mm (23,62")	180°	LFB - Low friction acetal (Blue)	P545	60 mm	13500 N/m	9.25 kg/m^2	PBT white	Snap-in Clip	-40÷80 °C	-40÷65 °C	Low friction, Minimized maintenance, Easy pin removal Row to row angle: 1,33°; Pin material: Ø4,7 mm; Open Area: 0% Length of the belt 285 Modules
P5452230604A	1200 mm	600 mm (23,62")	180°	LFB - Low friction acetal (Blue)	P545	60 mm	13500 N/m	9.25 kg/m^2	PBT white	Snap-in Clip	-40÷80 °C	-40÷65 °C	Low friction, Minimized maintenance, Easy pin removal Row to row angle: 1,33°; Pin material: Ø4,7 mm; Open Area: 0% Length of the belt 285 Modules
P5452230605A	1400 mm	600 mm (23,62")	180°	LFB - Low friction acetal (Blue)	P545	60 mm	13500 N/m	9.25 kg/m^2	PBT white	Snap-in Clip	-40÷80 °C	-40÷65 °C	Low friction, Minimized maintenance, Easy pin removal Row to row angle: 1,33°; Pin material: Ø4,7 mm; Open Area: 0% Length of the belt 285 Modules
P5452230606A	1600 mm	600 mm (23,62")	180°	LFB - Low friction acetal (Blue)	P545	60 mm	13500 N/m	9.25 kg/m^2	PBT white	Snap-in Clip	-40÷80 °C	-40÷65 °C	Low friction, Minimized maintenance, Easy pin removal Row to row angle: 1,33°; Pin material: Ø4,7 mm; Open Area: 0% Length of the belt 285 Modules
P5452230801A	600 mm	800 mm (31,50")	180°	LFB - Low friction acetal (Blue)	P545	60 mm	13500 N/m	9.25 kg/m^2	PBT white	Snap-in Clip	-40÷80 °C	-40÷65 °C	Low friction, Minimized maintenance, Easy pin removal Row to row angle: 1,33°; Pin material: Ø4,7 mm; Open Area: 0% Length of the belt 285 Modules
P5452230802A	800 mm	800 mm (31,50")	180°	LFB - Low friction acetal (Blue)	P545	60 mm	13500 N/m	9.25 kg/m^2	PBT white	Snap-in Clip	-40÷80 °C	-40÷65 °C	Low friction, Minimized maintenance, Easy pin removal Row to row angle: 1,33°; Pin material: Ø4,7 mm; Open Area: 0% Length of the belt 285 Modules
P5452230803A	1000 mm	800 mm (31,50")	180°	LFB - Low friction acetal (Blue)	P545	60 mm	13500 N/m	9.25 kg/m^2	PBT white	Snap-in Clip	-40÷80 °C	-40÷65 °C	Low friction, Minimized maintenance, Easy pin removal Row to row angle: 1,33°; Pin material: Ø4,7 mm; Open Area: 0% Length of the belt 285 Modules
P5452230804A	1200 mm	800 mm (31,50")	180°	LFB - Low friction acetal (Blue)	P545	60 mm	13500 N/m	9.25 kg/m^2	PBT white	Snap-in Clip	-40÷80 °C	-40÷65 °C	Low friction, Minimized maintenance, Easy pin removal Row to row angle: 1,33°; Pin material: Ø4,7 mm; Open Area: 0% Length of the belt 285 Modules
P5452230805A	1400 mm	800 mm (31,50")	180°	LFB - Low friction acetal (Blue)	P545	60 mm	13500 N/m	9.25 kg/m^2	PBT white	Snap-in Clip	-40÷80 °C	-40÷65 °C	Low friction, Minimized maintenance, Easy pin removal Row to row angle: 1,33°; Pin material: Ø4,7 mm; Open Area: 0% Length of the belt 285 Modules
P5452231001A	600 mm	1000 mm (39,37")	180°	LFB - Low friction acetal (Blue)	P545	60 mm	13500 N/m	9.25 kg/m^2	PBT white	Snap-in Clip	-40÷80 °C	-40÷65 °C	Low friction, Minimized maintenance, Easy pin removal Row to row angle: 1,33°; Pin material: Ø4,7 mm; Open Area: 0% Length of the belt 285 Modules
P5452231002A	800 mm	1000 mm (39,37")	180°	LFB - Low friction acetal (Blue)	P545	60 mm	13500 N/m	9.25 kg/m^2	PBT white	Snap-in Clip	-40÷80 °C	-40÷65 °C	Low friction, Minimized maintenance, Easy pin removal Row to row angle: 1,33°; Pin material: Ø4,7 mm; Open Area: 0% Length of the belt 285 Modules
P5452231003A	1000 mm	1000 mm (39,37")	180°	LFB - Low friction acetal (Blue)	P545	60 mm	13500 N/m	9.25 kg/m^2	PBT white	Snap-in Clip	-40÷80 °C	-40÷65 °C	Low friction, Minimized maintenance, Easy pin removal Row to row angle: 1,33°; Pin material: Ø4,7 mm; Open Area: 0% Length of the belt 285 Modules
P5452231004A	1200 mm	1000 mm (39,37")	180°	LFB - Low friction acetal (Blue)	P545	60 mm	13500 N/m	9.25 kg/m^2	PBT white	Snap-in Clip	-40÷80 °C	-40÷65 °C	Low friction, Minimized maintenance, Easy pin removal Row to row angle: 1,33°; Pin material: Ø4,7 mm; Open Area: 0% Length of the belt 285 Modules
P5452231201A	600 mm	1200 mm (47,24")	180°	LFB - Low friction acetal (Blue)	P545	60 mm	13500 N/m	9.25 kg/m^2	PBT white	Snap-in Clip	-40÷80 °C	-40÷65 °C	Low friction, Minimized maintenance, Easy pin removal Row to row angle: 1,33°; Pin material: Ø4,7 mm; Open Area: 0% Length of the belt 285 Modules
P5452231202A	800 mm	1200 mm (47,24")	180°	LFB - Low friction acetal (Blue)	P545	60 mm	13500 N/m	9.25 kg/m^2	PBT white	Snap-in Clip	-40÷80 °C	-40÷65 °C	Low friction, Minimized maintenance, Easy pin removal Row to row angle: 1,33°; Pin material: Ø4,7 mm; Open Area: 0% Length of the belt 285 Modules
P5452231203A	1000 mm	1200 mm (47,24")	180°	LFB - Low friction acetal (Blue)	P545	60 mm	13500 N/m	9.25 kg/m^2	PBT white	Snap-in Clip	-40÷80 °C	-40÷65 °C	Low friction, Minimized maintenance, Easy pin removal Row to row angle: 1,33°; Pin material: Ø4,7 mm; Open Area: 0% Length of the belt 285 Modules
P5452231401A	600 mm	1400 mm (55,12")	180°	LFB - Low friction acetal (Blue)	P545	60 mm	13500 N/m	9.25 kg/m^2	PBT white	Snap-in Clip	-40÷80 °C	-40÷65 °C	Low friction, Minimized maintenance, Easy pin removal Row to row angle: 1,33°; Pin material: Ø4,7 mm; Open Area: 0% Length of the belt 285 Modules
P5452231402A	800 mm	1400 mm (55,12")	180°	LFB - Low friction acetal (Blue)	P545	60 mm	13500 N/m	9.25 kg/m^2	PBT white	Snap-in Clip	-40÷80 °C	-40÷65 °C	Low friction, Minimized maintenance, Easy pin removal Row to row angle: 1,33°; Pin material: Ø4,7 mm; Open Area: 0% Length of the belt 285 Modules
P5452231601A	600 mm	1600 mm (62,99")	180°	LFB - Low friction acetal (Blue)	P545	60 mm	13500 N/m	9.25 kg/m^2	PBT white	Snap-in Clip	-40÷80 °C	-40÷65 °C	Low friction, Minimized maintenance, Easy pin removal Row to row angle: 1,33°; Pin material: Ø4,7 mm; Open Area: 0% Length of the belt 285 Modules

•
