Zero ATP PRO
Description
Description
The new Movex® Zero ATP Pro, equipped with micro-pitch 510 modular belt series, is the smallest Active Transfer Plate available on the market.
With its revolutionary compact shape, Zero ATP Pro is the right choice to connect different conveyors, guaranteeing a smooth product transfer, that can be easily integrated into existing lines by replacing traditional transfers, with limited structural work.

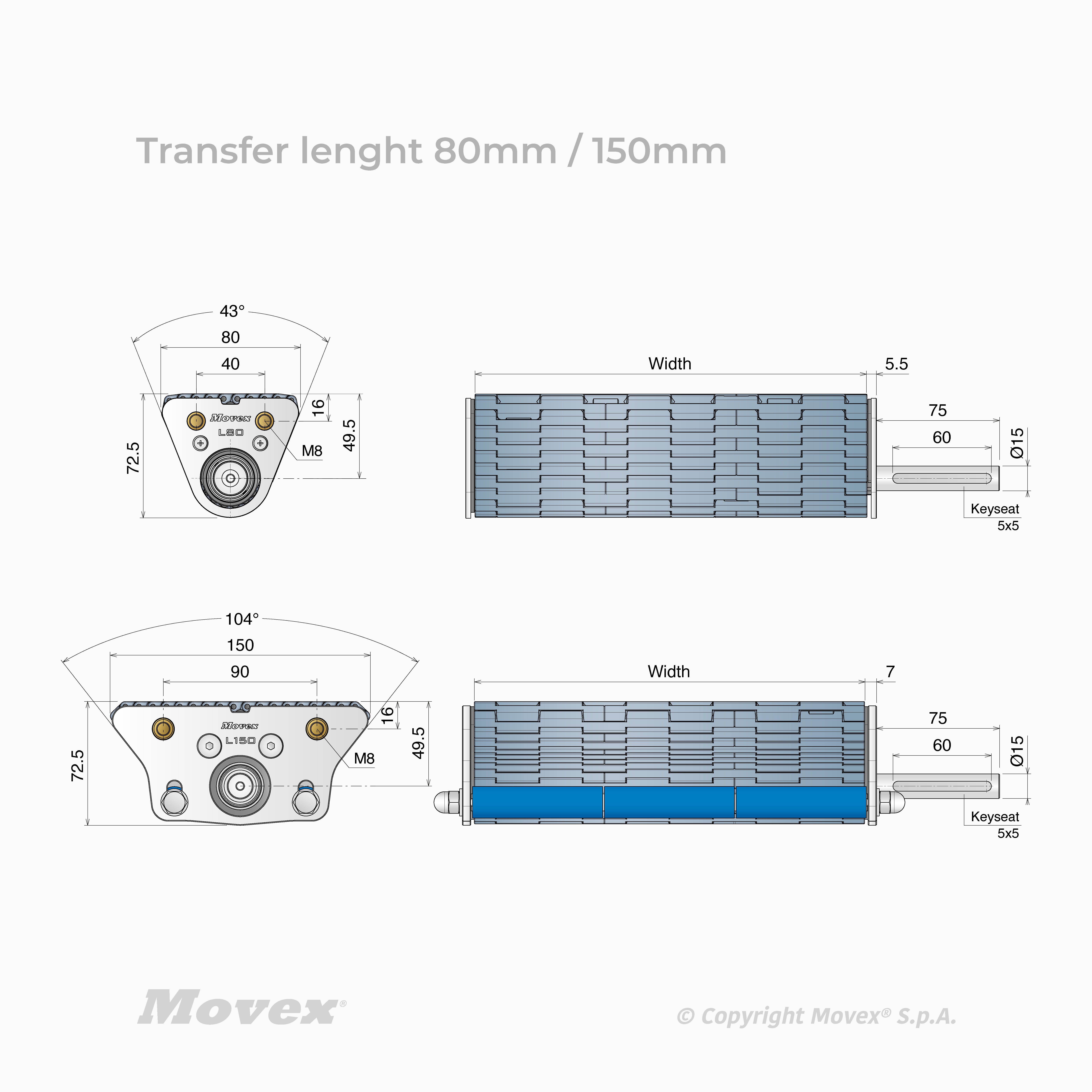

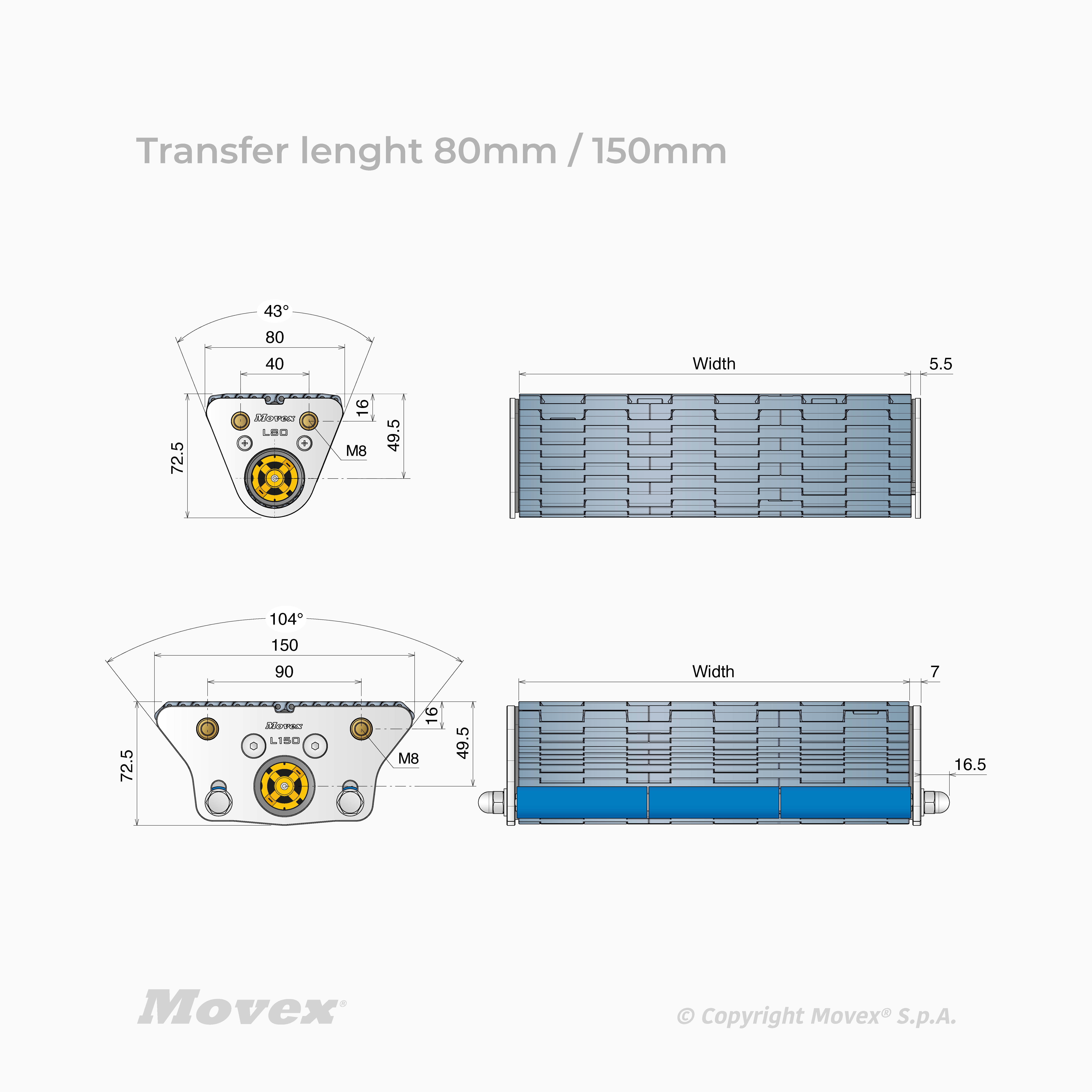

Zero ATP Pro can be provided with mini-motor or key shaft for an external transmission and is a maintenance and tensioning free system.
Basic features
| Type: | Conveyors |
|---|---|
| Functionality: | Short transfer |
| Unit of measure: | Ea |
| Box: | - |
Zero ATP PRO
| Width | Length | Material | Version | Part | Max working load | Mass | Pin material | Fixation | Temperature range dry | Supplementary informations | ||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Code | Actions | |||||||||||
| P5336010006A | 6" (152,4 mm) | 80 mm | LFA - Low friction acetal (01) | A - Mini motor | P5336 | 3000 N/m | 5.8 kg/m^2 | PBT white | Patented PinSphere | -5÷45 (non condensing) °C | Includes a 15 mm shaft with standard key seat 5x5 for roller chain transmission. Plug-in & Play solution; Maintenance free; Self-tensioning Soft roller - SEBS rubber |
|
| P5336010006B | 6" (152,4 mm) | 80 mm | LFA - Low friction acetal (01) | B - Keyed shaft | P5336 | 3000 N/m | 5.8 kg/m^2 | PBT white | Patented PinSphere | -5÷45 (non condensing) °C | Mini-motor features: Supply voltage 6-15 V dc; Power Rating 7.85W; Max Torque 6539 g.cm. Plug-in & Play solution; Maintenance free; Self-tensioning Includes a mini-motor assembled at the inside of the module. Optional cover for motor connection Article-Nr. 300601 Soft roller - SEBS rubber |
|
| P5336010009A | 9" (228,6 mm) | 80 mm | LFA - Low friction acetal (01) | A - Mini motor | P5336 | 3000 N/m | 5.8 kg/m^2 | PBT white | Patented PinSphere | -5÷45 (non condensing) °C | - |
|
| P5336010009B | 9" (228,6 mm) | 80 mm | LFA - Low friction acetal (01) | B - Keyed shaft | P5336 | 3000 N/m | 5.8 kg/m^2 | PBT white | Patented PinSphere | -5÷45 (non condensing) °C | Mini-motor features: Supply voltage 6-15 V dc; Power Rating 7.85W; Max Torque 6539 g.cm. Plug-in & Play solution; Maintenance free; Self-tensioning Includes a mini-motor assembled at the inside of the module. Optional cover for motor connection Article-Nr. 300601 Soft roller - SEBS rubber |
|
| P5336010012A | 12" (304,8 mm) | 80 mm | LFA - Low friction acetal (01) | A - Mini motor | P5336 | 3000 N/m | 5.8 kg/m^2 | PBT white | Patented PinSphere | -5÷45 (non condensing) °C | - |
|
| P5336010012B | 12" (304,8 mm) | 80 mm | LFA - Low friction acetal (01) | B - Keyed shaft | P5336 | 3000 N/m | 5.8 kg/m^2 | PBT white | Patented PinSphere | -5÷45 (non condensing) °C | Mini-motor features: Supply voltage 6-15 V dc; Power Rating 7.85W; Max Torque 6539 g.cm. Plug-in & Play solution; Maintenance free; Self-tensioning Includes a mini-motor assembled at the inside of the module. Optional cover for motor connection Article-Nr. 300601 Soft roller - SEBS rubber |
|
| P5336010015A | 15" (381 mm) | 80 mm | LFA - Low friction acetal (01) | A - Mini motor | P5336 | 3000 N/m | 5.8 kg/m^2 | PBT white | Patented PinSphere | -5÷45 (non condensing) °C | - |
|
| P5336010015B | 15" (381 mm) | 80 mm | LFA - Low friction acetal (01) | B - Keyed shaft | P5336 | 3000 N/m | 5.8 kg/m^2 | PBT white | Patented PinSphere | -5÷45 (non condensing) °C | Mini-motor features: Supply voltage 6-15 V dc; Power Rating 7.85W; Max Torque 6539 g.cm. Plug-in & Play solution; Maintenance free; Self-tensioning Includes a mini-motor assembled at the inside of the module. Optional cover for motor connection Article-Nr. 300601 Soft roller - SEBS rubber |
|
| P5336010018A | 18" (457,2 mm) | 80 mm | LFA - Low friction acetal (01) | A - Mini motor | P5336 | 3000 N/m | 5.8 kg/m^2 | PBT white | Patented PinSphere | -5÷45 (non condensing) °C | - |
|
| P5336010018B | 18" (457,2 mm) | 80 mm | LFA - Low friction acetal (01) | B - Keyed shaft | P5336 | 3000 N/m | 5.8 kg/m^2 | PBT white | Patented PinSphere | -5÷45 (non condensing) °C | Mini-motor features: Supply voltage 6-15 V dc; Power Rating 7.85W; Max Torque 6539 g.cm. Plug-in & Play solution; Maintenance free; Self-tensioning Includes a mini-motor assembled at the inside of the module. Optional cover for motor connection Article-Nr. 300601 Soft roller - SEBS rubber |
|
| P5336010021A | 21" (533,4 mm) | 80 mm | LFA - Low friction acetal (01) | A - Mini motor | P5336 | 3000 N/m | 5.8 kg/m^2 | PBT white | Patented PinSphere | -5÷45 (non condensing) °C | - |
|
| P5336010021B | 21" (533,4 mm) | 80 mm | LFA - Low friction acetal (01) | B - Keyed shaft | P5336 | 3000 N/m | 5.8 kg/m^2 | PBT white | Patented PinSphere | -5÷45 (non condensing) °C | Mini-motor features: Supply voltage 6-15 V dc; Power Rating 7.85W; Max Torque 6539 g.cm. Plug-in & Play solution; Maintenance free; Self-tensioning Includes a mini-motor assembled at the inside of the module. Optional cover for motor connection Article-Nr. 300601 Soft roller - SEBS rubber |
|
| P5336010024A | 24" (609,6 mm) | 80 mm | LFA - Low friction acetal (01) | A - Mini motor | P5336 | 3000 N/m | 5.8 kg/m^2 | PBT white | Patented PinSphere | -5÷45 (non condensing) °C | - |
|
| P5336010024B | 24" (609,6 mm) | 80 mm | LFA - Low friction acetal (01) | B - Keyed shaft | P5336 | 3000 N/m | 5.8 kg/m^2 | PBT white | Patented PinSphere | -5÷45 (non condensing) °C | Mini-motor features: Supply voltage 6-15 V dc; Power Rating 7.85W; Max Torque 6539 g.cm. Plug-in & Play solution; Maintenance free; Self-tensioning Includes a mini-motor assembled at the inside of the module. Optional cover for motor connection Article-Nr. 300601 Soft roller - SEBS rubber |
|
| P5336030006A | 6" (152,4 mm) | 80 mm | MX - Performance PBT (03) | A - Mini motor | P5336 | 2700 N/m | 5.5 kg/m^2 | POM grey | Patented PinSphere | -5÷45 (non condensing) °C | - |
|
| P5336030006B | 6" (152,4 mm) | 80 mm | MX - Performance PBT (03) | B - Keyed shaft | P5336 | 2700 N/m | 5.5 kg/m^2 | POM grey | Patented PinSphere | -5÷45 (non condensing) °C | Includes a 15 mm shaft with standard key seat 5x5 for roller chain transmission. Plug-in & Play solution; Maintenance free; Self-tensioning |
|
| P5336030009A | 9" (228,6 mm) | 80 mm | MX - Performance PBT (03) | A - Mini motor | P5336 | 2700 N/m | 5.5 kg/m^2 | POM grey | Patented PinSphere | -5÷45 (non condensing) °C | - |
|
| P5336030009B | 9" (228,6 mm) | 80 mm | MX - Performance PBT (03) | B - Keyed shaft | P5336 | 2700 N/m | 5.5 kg/m^2 | POM grey | Patented PinSphere | -5÷45 (non condensing) °C | Includes a 15 mm shaft with standard key seat 5x5 for roller chain transmission. Plug-in & Play solution; Maintenance free; Self-tensioning |
|
| P5336030012A | 12" (304,8 mm) | 80 mm | MX - Performance PBT (03) | A - Mini motor | P5336 | 2700 N/m | 5.5 kg/m^2 | POM grey | Patented PinSphere | -5÷45 (non condensing) °C | - |
|
| P5336030012B | 12" (304,8 mm) | 80 mm | MX - Performance PBT (03) | B - Keyed shaft | P5336 | 2700 N/m | 5.5 kg/m^2 | POM grey | Patented PinSphere | -5÷45 (non condensing) °C | Includes a 15 mm shaft with standard key seat 5x5 for roller chain transmission. Plug-in & Play solution; Maintenance free; Self-tensioning |
|
| P5336030015A | 15" (381 mm) | 80 mm | MX - Performance PBT (03) | A - Mini motor | P5336 | 2700 N/m | 5.5 kg/m^2 | POM grey | Patented PinSphere | -5÷45 (non condensing) °C | - |
|
| P5336030015B | 15" (381 mm) | 80 mm | MX - Performance PBT (03) | B - Keyed shaft | P5336 | 2700 N/m | 5.5 kg/m^2 | POM grey | Patented PinSphere | -5÷45 (non condensing) °C | Includes a 15 mm shaft with standard key seat 5x5 for roller chain transmission. Plug-in & Play solution; Maintenance free; Self-tensioning |
|
| P5336030018A | 18" (457,2 mm) | 80 mm | MX - Performance PBT (03) | A - Mini motor | P5336 | 2700 N/m | 5.5 kg/m^2 | POM grey | Patented PinSphere | -5÷45 (non condensing) °C | - |
|
| P5336030018B | 18" (457,2 mm) | 80 mm | MX - Performance PBT (03) | B - Keyed shaft | P5336 | 2700 N/m | 5.5 kg/m^2 | POM grey | Patented PinSphere | -5÷45 (non condensing) °C | Includes a 15 mm shaft with standard key seat 5x5 for roller chain transmission. Plug-in & Play solution; Maintenance free; Self-tensioning |
|
| P5336030021A | 21" (533,4 mm) | 80 mm | MX - Performance PBT (03) | A - Mini motor | P5336 | 2700 N/m | 5.5 kg/m^2 | POM grey | Patented PinSphere | -5÷45 (non condensing) °C | - |
|
| P5336030021B | 21" (533,4 mm) | 80 mm | MX - Performance PBT (03) | B - Keyed shaft | P5336 | 2700 N/m | 5.5 kg/m^2 | POM grey | Patented PinSphere | -5÷45 (non condensing) °C | Includes a 15 mm shaft with standard key seat 5x5 for roller chain transmission. Plug-in & Play solution; Maintenance free; Self-tensioning |
|
| P5336030024A | 24" (609,6 mm) | 80 mm | MX - Performance PBT (03) | A - Mini motor | P5336 | 2700 N/m | 5.5 kg/m^2 | POM grey | Patented PinSphere | -5÷45 (non condensing) °C | - |
|
| P5336030024B | 24" (609,6 mm) | 80 mm | MX - Performance PBT (03) | B - Keyed shaft | P5336 | 2700 N/m | 5.5 kg/m^2 | POM grey | Patented PinSphere | -5÷45 (non condensing) °C | Includes a 15 mm shaft with standard key seat 5x5 for roller chain transmission. Plug-in & Play solution; Maintenance free; Self-tensioning |
|
| P5336230006A | 6" (152,4 mm) | 80 mm | LFB - Low friction acetal (23) | A - Mini motor | P5336 | 3000 N/m | 5.8 kg/m^2 | PBT white | Patented PinSphere | -5÷45 (non condensing) °C | - |
|
| P5336230006B | 6" (152,4 mm) | 80 mm | LFB - Low friction acetal (23) | B - Keyed shaft | P5336 | 3000 N/m | 5.8 kg/m^2 | PBT white | Patented PinSphere | -5÷45 (non condensing) °C | Includes a 15 mm shaft with standard key seat 5x5 for roller chain transmission. Plug-in & Play solution; Maintenance free; Self-tensioning |
|
| P5336230009A | 9" (228,6 mm) | 80 mm | LFB - Low friction acetal (23) | A - Mini motor | P5336 | 3000 N/m | 5.8 kg/m^2 | PBT white | Patented PinSphere | -5÷45 (non condensing) °C | Mini-motor features: Supply voltage 6-15 V dc; Power Rating 7.85W; Max Torque 6539 g.cm. Plug-in & Play solution; Maintenance free; Self-tensioning Includes a mini-motor assembled at the inside of the module. Optional cover for motor connection Article-Nr. 300601 |
|
| P5336230009B | 9" (228,6 mm) | 80 mm | LFB - Low friction acetal (23) | B - Keyed shaft | P5336 | 3000 N/m | 5.8 kg/m^2 | PBT white | Patented PinSphere | -5÷45 (non condensing) °C | Includes a 15 mm shaft with standard key seat 5x5 for roller chain transmission. Plug-in & Play solution; Maintenance free; Self-tensioning |
|
| P5336230012A | 12" (304,8 mm) | 80 mm | LFB - Low friction acetal (23) | A - Mini motor | P5336 | 3000 N/m | 5.8 kg/m^2 | PBT white | Patented PinSphere | -5÷45 (non condensing) °C | Mini-motor features: Supply voltage 6-15 V dc; Power Rating 7.85W; Max Torque 6539 g.cm. Plug-in & Play solution; Maintenance free; Self-tensioning Includes a mini-motor assembled at the inside of the module. Optional cover for motor connection Article-Nr. 300601 |
|
| P5336230012B | 12" (304,8 mm) | 80 mm | LFB - Low friction acetal (23) | B - Keyed shaft | P5336 | 3000 N/m | 5.8 kg/m^2 | PBT white | Patented PinSphere | -5÷45 (non condensing) °C | Includes a 15 mm shaft with standard key seat 5x5 for roller chain transmission. Plug-in & Play solution; Maintenance free; Self-tensioning |
|
| P5336230015A | 15" (381 mm) | 80 mm | LFB - Low friction acetal (23) | A - Mini motor | P5336 | 3000 N/m | 5.8 kg/m^2 | PBT white | Patented PinSphere | -5÷45 (non condensing) °C | Mini-motor features: Supply voltage 6-15 V dc; Power Rating 7.85W; Max Torque 6539 g.cm. Plug-in & Play solution; Maintenance free; Self-tensioning Includes a mini-motor assembled at the inside of the module. Optional cover for motor connection Article-Nr. 300601 |
|
| P5336230015B | 15" (381 mm) | 80 mm | LFB - Low friction acetal (23) | B - Keyed shaft | P5336 | 3000 N/m | 5.8 kg/m^2 | PBT white | Patented PinSphere | -5÷45 (non condensing) °C | Includes a 15 mm shaft with standard key seat 5x5 for roller chain transmission. Plug-in & Play solution; Maintenance free; Self-tensioning |
|
| P5336230018A | 18" (457,2 mm) | 80 mm | LFB - Low friction acetal (23) | A - Mini motor | P5336 | 3000 N/m | 5.8 kg/m^2 | PBT white | Patented PinSphere | -5÷45 (non condensing) °C | Mini-motor features: Supply voltage 6-15 V dc; Power Rating 7.85W; Max Torque 6539 g.cm. Plug-in & Play solution; Maintenance free; Self-tensioning Includes a mini-motor assembled at the inside of the module. Optional cover for motor connection Article-Nr. 300601 |
|
| P5336230018B | 18" (457,2 mm) | 80 mm | LFB - Low friction acetal (23) | B - Keyed shaft | P5336 | 3000 N/m | 5.8 kg/m^2 | PBT white | Patented PinSphere | -5÷45 (non condensing) °C | Includes a 15 mm shaft with standard key seat 5x5 for roller chain transmission. Plug-in & Play solution; Maintenance free; Self-tensioning |
|
| P5336230021A | 21" (533,4 mm) | 80 mm | LFB - Low friction acetal (23) | A - Mini motor | P5336 | 3000 N/m | 5.8 kg/m^2 | PBT white | Patented PinSphere | -5÷45 (non condensing) °C | Mini-motor features: Supply voltage 6-15 V dc; Power Rating 7.85W; Max Torque 6539 g.cm. Plug-in & Play solution; Maintenance free; Self-tensioning Includes a mini-motor assembled at the inside of the module. Optional cover for motor connection Article-Nr. 300601 |
|
| P5336230021B | 21" (533,4 mm) | 80 mm | LFB - Low friction acetal (23) | B - Keyed shaft | P5336 | 3000 N/m | 5.8 kg/m^2 | PBT white | Patented PinSphere | -5÷45 (non condensing) °C | Includes a 15 mm shaft with standard key seat 5x5 for roller chain transmission. Plug-in & Play solution; Maintenance free; Self-tensioning |
|
| P5336230024A | 24" (609,6 mm) | 80 mm | LFB - Low friction acetal (23) | A - Mini motor | P5336 | 3000 N/m | 5.8 kg/m^2 | PBT white | Patented PinSphere | -5÷45 (non condensing) °C | Mini-motor features: Supply voltage 6-15 V dc; Power Rating 7.85W; Max Torque 6539 g.cm. Plug-in & Play solution; Maintenance free; Self-tensioning Includes a mini-motor assembled at the inside of the module. Optional cover for motor connection Article-Nr. 300601 |
|
| P5336230024B | 24" (609,6 mm) | 80 mm | LFB - Low friction acetal (23) | B - Keyed shaft | P5336 | 3000 N/m | 5.8 kg/m^2 | PBT white | Patented PinSphere | -5÷45 (non condensing) °C | Includes a 15 mm shaft with standard key seat 5x5 for roller chain transmission. Plug-in & Play solution; Maintenance free; Self-tensioning |
|
| P5338010006A | 6" (152,4 mm) | 150 mm | LFA - Low friction acetal (01) | A - Mini motor | P5338 | 3000 N/m | 5.8 kg/m^2 | PBT white | Patented PinSphere | -5÷45 (non condensing) °C | Mini-motor features: Supply voltage 6-15 V dc; Power Rating 7.85W; Max Torque 6539 g.cm. Plug-in & Play solution; Maintenance free; Self-tensioning Includes a mini-motor assembled at the inside of the module. Optional cover for motor connection Article-Nr. 300601 |
|
| P5338010006B | 6" (152,4 mm) | 150 mm | LFA - Low friction acetal (01) | B - Keyed shaft | P5338 | 3000 N/m | 5.8 kg/m^2 | PBT white | Patented PinSphere | -5÷45 (non condensing) °C | Includes a 15 mm shaft with standard key seat 5x5 for roller chain transmission. Plug-in & Play solution; Maintenance free; Self-tensioning |
|
| P5338010009A | 9" (228,6 mm) | 150 mm | LFA - Low friction acetal (01) | A - Mini motor | P5338 | 3000 N/m | 5.8 kg/m^2 | PBT white | Patented PinSphere | -5÷45 (non condensing) °C | Mini-motor features: Supply voltage 6-15 V dc; Power Rating 7.85W; Max Torque 6539 g.cm. Plug-in & Play solution; Maintenance free; Self-tensioning Includes a mini-motor assembled at the inside of the module. Optional cover for motor connection Article-Nr. 300601 |
|
| P5338010009B | 9" (228,6 mm) | 150 mm | LFA - Low friction acetal (01) | B - Keyed shaft | P5338 | 3000 N/m | 5.8 kg/m^2 | PBT white | Patented PinSphere | -5÷45 (non condensing) °C | Includes a 15 mm shaft with standard key seat 5x5 for roller chain transmission. Plug-in & Play solution; Maintenance free; Self-tensioning |
|
| P5338010012A | 12" (304,8 mm) | 150 mm | LFA - Low friction acetal (01) | A - Mini motor | P5338 | 3000 N/m | 5.8 kg/m^2 | PBT white | Patented PinSphere | -5÷45 (non condensing) °C | Mini-motor features: Supply voltage 6-15 V dc; Power Rating 7.85W; Max Torque 6539 g.cm. Plug-in & Play solution; Maintenance free; Self-tensioning Includes a mini-motor assembled at the inside of the module. Optional cover for motor connection Article-Nr. 300601 |
|
| P5338010012B | 12" (304,8 mm) | 150 mm | LFA - Low friction acetal (01) | B - Keyed shaft | P5338 | 3000 N/m | 5.8 kg/m^2 | PBT white | Patented PinSphere | -5÷45 (non condensing) °C | Includes a 15 mm shaft with standard key seat 5x5 for roller chain transmission. Plug-in & Play solution; Maintenance free; Self-tensioning |
|
| P5338010015A | 15" (381 mm) | 150 mm | LFA - Low friction acetal (01) | A - Mini motor | P5338 | 3000 N/m | 5.8 kg/m^2 | PBT white | Patented PinSphere | -5÷45 (non condensing) °C | Mini-motor features: Supply voltage 6-15 V dc; Power Rating 7.85W; Max Torque 6539 g.cm. Plug-in & Play solution; Maintenance free; Self-tensioning Includes a mini-motor assembled at the inside of the module. Optional cover for motor connection Article-Nr. 300601 |
|
| P5338010015B | 15" (381 mm) | 150 mm | LFA - Low friction acetal (01) | B - Keyed shaft | P5338 | 3000 N/m | 5.8 kg/m^2 | PBT white | Patented PinSphere | -5÷45 (non condensing) °C | Includes a 15 mm shaft with standard key seat 5x5 for roller chain transmission. Plug-in & Play solution; Maintenance free; Self-tensioning |
|
| P5338010018A | 18" (457,2 mm) | 150 mm | LFA - Low friction acetal (01) | A - Mini motor | P5338 | 3000 N/m | 5.8 kg/m^2 | PBT white | Patented PinSphere | -5÷45 (non condensing) °C | Mini-motor features: Supply voltage 6-15 V dc; Power Rating 7.85W; Max Torque 6539 g.cm. Plug-in & Play solution; Maintenance free; Self-tensioning Includes a mini-motor assembled at the inside of the module. Optional cover for motor connection Article-Nr. 300601 |
|
| P5338010018B | 18" (457,2 mm) | 150 mm | LFA - Low friction acetal (01) | B - Keyed shaft | P5338 | 3000 N/m | 5.8 kg/m^2 | PBT white | Patented PinSphere | -5÷45 (non condensing) °C | Includes a 15 mm shaft with standard key seat 5x5 for roller chain transmission. Plug-in & Play solution; Maintenance free; Self-tensioning |
|
| P5338010021A | 21" (533,4 mm) | 150 mm | LFA - Low friction acetal (01) | A - Mini motor | P5338 | 3000 N/m | 5.8 kg/m^2 | PBT white | Patented PinSphere | -5÷45 (non condensing) °C | Mini-motor features: Supply voltage 6-15 V dc; Power Rating 7.85W; Max Torque 6539 g.cm. Plug-in & Play solution; Maintenance free; Self-tensioning Includes a mini-motor assembled at the inside of the module. Optional cover for motor connection Article-Nr. 300601 |
|
| P5338010021B | 21" (533,4 mm) | 150 mm | LFA - Low friction acetal (01) | B - Keyed shaft | P5338 | 3000 N/m | 5.8 kg/m^2 | PBT white | Patented PinSphere | -5÷45 (non condensing) °C | Includes a 15 mm shaft with standard key seat 5x5 for roller chain transmission. Plug-in & Play solution; Maintenance free; Self-tensioning |
|
| P5338010024A | 24" (609,6 mm) | 150 mm | LFA - Low friction acetal (01) | A - Mini motor | P5338 | 3000 N/m | 5.8 kg/m^2 | PBT white | Patented PinSphere | -5÷45 (non condensing) °C | Mini-motor features: Supply voltage 6-15 V dc; Power Rating 7.85W; Max Torque 6539 g.cm. Plug-in & Play solution; Maintenance free; Self-tensioning Includes a mini-motor assembled at the inside of the module. Optional cover for motor connection Article-Nr. 300601 |
|
| P5338010024B | 24" (609,6 mm) | 150 mm | LFA - Low friction acetal (01) | B - Keyed shaft | P5338 | 3000 N/m | 5.8 kg/m^2 | PBT white | Patented PinSphere | -5÷45 (non condensing) °C | Includes a 15 mm shaft with standard key seat 5x5 for roller chain transmission. Plug-in & Play solution; Maintenance free; Self-tensioning Soft roller - SEBS rubber |
|
| P5338030006A | 6" (152,4 mm) | 150 mm | MX - Performance PBT (03) | A - Mini motor | P5338 | 2700 N/m | 5.5 kg/m^2 | POM grey | Patented PinSphere | -5÷45 (non condensing) °C | Mini-motor features: Supply voltage 6-15 V dc; Power Rating 7.85W; Max Torque 6539 g.cm. Plug-in & Play solution; Maintenance free; Self-tensioning Includes a mini-motor assembled at the inside of the module. Optional cover for motor connection Article-Nr. 300601 |
|
| P5338030006B | 6" (152,4 mm) | 150 mm | MX - Performance PBT (03) | B - Keyed shaft | P5338 | 2700 N/m | 5.5 kg/m^2 | POM grey | Patented PinSphere | -5÷45 (non condensing) °C | Includes a 15 mm shaft with standard key seat 5x5 for roller chain transmission. Plug-in & Play solution; Maintenance free; Self-tensioning Soft roller - SEBS rubber |
|
| P5338030009A | 9" (228,6 mm) | 150 mm | MX - Performance PBT (03) | A - Mini motor | P5338 | 2700 N/m | 5.5 kg/m^2 | POM grey | Patented PinSphere | -5÷45 (non condensing) °C | Mini-motor features: Supply voltage 6-15 V dc; Power Rating 7.85W; Max Torque 6539 g.cm. Plug-in & Play solution; Maintenance free; Self-tensioning Includes a mini-motor assembled at the inside of the module. Optional cover for motor connection Article-Nr. 300601 Soft roller - SEBS rubber |
|
| P5338030009B | 9" (228,6 mm) | 150 mm | MX - Performance PBT (03) | B - Keyed shaft | P5338 | 2700 N/m | 5.5 kg/m^2 | POM grey | Patented PinSphere | -5÷45 (non condensing) °C | Includes a 15 mm shaft with standard key seat 5x5 for roller chain transmission. Plug-in & Play solution; Maintenance free; Self-tensioning Soft roller - SEBS rubber |
|
| P5338030012A | 12" (304,8 mm) | 150 mm | MX - Performance PBT (03) | A - Mini motor | P5338 | 2700 N/m | 5.5 kg/m^2 | POM grey | Patented PinSphere | -5÷45 (non condensing) °C | Mini-motor features: Supply voltage 6-15 V dc; Power Rating 7.85W; Max Torque 6539 g.cm. Plug-in & Play solution; Maintenance free; Self-tensioning Includes a mini-motor assembled at the inside of the module. Optional cover for motor connection Article-Nr. 300601 Soft roller - SEBS rubber |
|
| P5338030012B | 12" (304,8 mm) | 150 mm | MX - Performance PBT (03) | B - Keyed shaft | P5338 | 2700 N/m | 5.5 kg/m^2 | POM grey | Patented PinSphere | -5÷45 (non condensing) °C | Includes a 15 mm shaft with standard key seat 5x5 for roller chain transmission. Plug-in & Play solution; Maintenance free; Self-tensioning Soft roller - SEBS rubber |
|
| P5338030015A | 15" (381 mm) | 150 mm | MX - Performance PBT (03) | A - Mini motor | P5338 | 2700 N/m | 5.5 kg/m^2 | POM grey | Patented PinSphere | -5÷45 (non condensing) °C | Mini-motor features: Supply voltage 6-15 V dc; Power Rating 7.85W; Max Torque 6539 g.cm. Plug-in & Play solution; Maintenance free; Self-tensioning Includes a mini-motor assembled at the inside of the module. Optional cover for motor connection Article-Nr. 300601 Soft roller - SEBS rubber |
|
| P5338030015B | 15" (381 mm) | 150 mm | MX - Performance PBT (03) | B - Keyed shaft | P5338 | 2700 N/m | 5.5 kg/m^2 | POM grey | Patented PinSphere | -5÷45 (non condensing) °C | Includes a 15 mm shaft with standard key seat 5x5 for roller chain transmission. Plug-in & Play solution; Maintenance free; Self-tensioning Soft roller - SEBS rubber |
|
| P5338030018A | 18" (457,2 mm) | 150 mm | MX - Performance PBT (03) | A - Mini motor | P5338 | 2700 N/m | 5.5 kg/m^2 | POM grey | Patented PinSphere | -5÷45 (non condensing) °C | Mini-motor features: Supply voltage 6-15 V dc; Power Rating 7.85W; Max Torque 6539 g.cm. Plug-in & Play solution; Maintenance free; Self-tensioning Includes a mini-motor assembled at the inside of the module. Optional cover for motor connection Article-Nr. 300601 Soft roller - SEBS rubber |
|
| P5338030018B | 18" (457,2 mm) | 150 mm | MX - Performance PBT (03) | B - Keyed shaft | P5338 | 2700 N/m | 5.5 kg/m^2 | POM grey | Patented PinSphere | -5÷45 (non condensing) °C | Includes a 15 mm shaft with standard key seat 5x5 for roller chain transmission. Plug-in & Play solution; Maintenance free; Self-tensioning Soft roller - SEBS rubber |
|
| P5338030021A | 21" (533,4 mm) | 150 mm | MX - Performance PBT (03) | A - Mini motor | P5338 | 2700 N/m | 5.5 kg/m^2 | POM grey | Patented PinSphere | -5÷45 (non condensing) °C | Mini-motor features: Supply voltage 6-15 V dc; Power Rating 7.85W; Max Torque 6539 g.cm. Plug-in & Play solution; Maintenance free; Self-tensioning Includes a mini-motor assembled at the inside of the module. Optional cover for motor connection Article-Nr. 300601 Soft roller - SEBS rubber |
|
| P5338030021B | 21" (533,4 mm) | 150 mm | MX - Performance PBT (03) | B - Keyed shaft | P5338 | 2700 N/m | 5.5 kg/m^2 | POM grey | Patented PinSphere | -5÷45 (non condensing) °C | Includes a 15 mm shaft with standard key seat 5x5 for roller chain transmission. Plug-in & Play solution; Maintenance free; Self-tensioning Soft roller - SEBS rubber |
|
| P5338030024A | 24" (609,6 mm) | 150 mm | MX - Performance PBT (03) | A - Mini motor | P5338 | 2700 N/m | 5.5 kg/m^2 | POM grey | Patented PinSphere | -5÷45 (non condensing) °C | Mini-motor features: Supply voltage 6-15 V dc; Power Rating 7.85W; Max Torque 6539 g.cm. Plug-in & Play solution; Maintenance free; Self-tensioning Includes a mini-motor assembled at the inside of the module. Optional cover for motor connection Article-Nr. 300601 Soft roller - SEBS rubber |
|
| P5338030024B | 24" (609,6 mm) | 150 mm | MX - Performance PBT (03) | B - Keyed shaft | P5338 | 2700 N/m | 5.5 kg/m^2 | POM grey | Patented PinSphere | -5÷45 (non condensing) °C | Includes a 15 mm shaft with standard key seat 5x5 for roller chain transmission. Plug-in & Play solution; Maintenance free; Self-tensioning Soft roller - SEBS rubber |
|
| P5338230006A | 6" (152,4 mm) | 150 mm | LFB - Low friction acetal (23) | A - Mini motor | P5338 | 3000 N/m | 5.8 kg/m^2 | PBT white | Patented PinSphere | -5÷45 (non condensing) °C | Mini-motor features: Supply voltage 6-15 V dc; Power Rating 7.85W; Max Torque 6539 g.cm. Plug-in & Play solution; Maintenance free; Self-tensioning Includes a mini-motor assembled at the inside of the module. Optional cover for motor connection Article-Nr. 300601 Soft roller - SEBS rubber |
|
| P5338230006B | 6" (152,4 mm) | 150 mm | LFB - Low friction acetal (23) | B - Keyed shaft | P5338 | 3000 N/m | 5.8 kg/m^2 | PBT white | Patented PinSphere | -5÷45 (non condensing) °C | Includes a 15 mm shaft with standard key seat 5x5 for roller chain transmission. Plug-in & Play solution; Maintenance free; Self-tensioning Soft roller - SEBS rubber |
|
| P5338230009A | 9" (228,6 mm) | 150 mm | LFB - Low friction acetal (23) | A - Mini motor | P5338 | 3000 N/m | 5.8 kg/m^2 | PBT white | Patented PinSphere | -5÷45 (non condensing) °C | Mini-motor features: Supply voltage 6-15 V dc; Power Rating 7.85W; Max Torque 6539 g.cm. Plug-in & Play solution; Maintenance free; Self-tensioning Includes a mini-motor assembled at the inside of the module. Optional cover for motor connection Article-Nr. 300601 Soft roller - SEBS rubber |
|
| P5338230009B | 9" (228,6 mm) | 150 mm | LFB - Low friction acetal (23) | B - Keyed shaft | P5338 | 3000 N/m | 5.8 kg/m^2 | PBT white | Patented PinSphere | -5÷45 (non condensing) °C | Includes a 15 mm shaft with standard key seat 5x5 for roller chain transmission. Plug-in & Play solution; Maintenance free; Self-tensioning Soft roller - SEBS rubber |
|
| P5338230012A | 12" (304,8 mm) | 150 mm | LFB - Low friction acetal (23) | A - Mini motor | P5338 | 3000 N/m | 5.8 kg/m^2 | PBT white | Patented PinSphere | -5÷45 (non condensing) °C | Mini-motor features: Supply voltage 6-15 V dc; Power Rating 7.85W; Max Torque 6539 g.cm. Plug-in & Play solution; Maintenance free; Self-tensioning Includes a mini-motor assembled at the inside of the module. Optional cover for motor connection Article-Nr. 300601 Soft roller - SEBS rubber |
|
| P5338230012B | 12" (304,8 mm) | 150 mm | LFB - Low friction acetal (23) | B - Keyed shaft | P5338 | 3000 N/m | 5.8 kg/m^2 | PBT white | Patented PinSphere | -5÷45 (non condensing) °C | Includes a 15 mm shaft with standard key seat 5x5 for roller chain transmission. Plug-in & Play solution; Maintenance free; Self-tensioning Soft roller - SEBS rubber |
|
| P5338230015A | 15" (381 mm) | 150 mm | LFB - Low friction acetal (23) | A - Mini motor | P5338 | 3000 N/m | 5.8 kg/m^2 | PBT white | Patented PinSphere | -5÷45 (non condensing) °C | Mini-motor features: Supply voltage 6-15 V dc; Power Rating 7.85W; Max Torque 6539 g.cm. Plug-in & Play solution; Maintenance free; Self-tensioning Includes a mini-motor assembled at the inside of the module. Optional cover for motor connection Article-Nr. 300601 Soft roller - SEBS rubber |
|
| P5338230015B | 15" (381 mm) | 150 mm | LFB - Low friction acetal (23) | B - Keyed shaft | P5338 | 3000 N/m | 5.8 kg/m^2 | PBT white | Patented PinSphere | -5÷45 (non condensing) °C | Includes a 15 mm shaft with standard key seat 5x5 for roller chain transmission. Plug-in & Play solution; Maintenance free; Self-tensioning Soft roller - SEBS rubber |
|
| P5338230018A | 18" (457,2 mm) | 150 mm | LFB - Low friction acetal (23) | A - Mini motor | P5338 | 3000 N/m | 5.8 kg/m^2 | PBT white | Patented PinSphere | -5÷45 (non condensing) °C | Mini-motor features: Supply voltage 6-15 V dc; Power Rating 7.85W; Max Torque 6539 g.cm. Plug-in & Play solution; Maintenance free; Self-tensioning Includes a mini-motor assembled at the inside of the module. Optional cover for motor connection Article-Nr. 300601 Soft roller - SEBS rubber |
|
| P5338230018B | 18" (457,2 mm) | 150 mm | LFB - Low friction acetal (23) | B - Keyed shaft | P5338 | 3000 N/m | 5.8 kg/m^2 | PBT white | Patented PinSphere | -5÷45 (non condensing) °C | Includes a 15 mm shaft with standard key seat 5x5 for roller chain transmission. Plug-in & Play solution; Maintenance free; Self-tensioning Soft roller - SEBS rubber |
|
| P5338230021A | 21" (533,4 mm) | 150 mm | LFB - Low friction acetal (23) | A - Mini motor | P5338 | 3000 N/m | 5.8 kg/m^2 | PBT white | Patented PinSphere | -5÷45 (non condensing) °C | Mini-motor features: Supply voltage 6-15 V dc; Power Rating 7.85W; Max Torque 6539 g.cm. Plug-in & Play solution; Maintenance free; Self-tensioning Includes a mini-motor assembled at the inside of the module. Optional cover for motor connection Article-Nr. 300601 Soft roller - SEBS rubber |
|
| P5338230021B | 21" (533,4 mm) | 150 mm | LFB - Low friction acetal (23) | B - Keyed shaft | P5338 | 3000 N/m | 5.8 kg/m^2 | PBT white | Patented PinSphere | -5÷45 (non condensing) °C | Includes a 15 mm shaft with standard key seat 5x5 for roller chain transmission. Plug-in & Play solution; Maintenance free; Self-tensioning Soft roller - SEBS rubber |
|
| P5338230024A | 24" (609,6 mm) | 150 mm | LFB - Low friction acetal (23) | A - Mini motor | P5338 | 3000 N/m | 5.8 kg/m^2 | PBT white | Patented PinSphere | -5÷45 (non condensing) °C | Mini-motor features: Supply voltage 6-15 V dc; Power Rating 7.85W; Max Torque 6539 g.cm. Plug-in & Play solution; Maintenance free; Self-tensioning Includes a mini-motor assembled at the inside of the module. Optional cover for motor connection Article-Nr. 300601 Soft roller - SEBS rubber |
|
| P5338230024B | 24" (609,6 mm) | 150 mm | LFB - Low friction acetal (23) | B - Keyed shaft | P5338 | 3000 N/m | 5.8 kg/m^2 | PBT white | Patented PinSphere | -5÷45 (non condensing) °C | Includes a 15 mm shaft with standard key seat 5x5 for roller chain transmission. Plug-in & Play solution; Maintenance free; Self-tensioning Soft roller - SEBS rubber |
|
