VVM-50

Multi-Bellows Round vacuum cups for food packaging

Diameter 50 mm, with or without support, rubber

Enquire Now

VVM-50-A

Multi-Bellows Round vacuum cups for food packaging

Oil-proof rubber, without support

VVM-50-N

Multi-Bellows Round vacuum cups for food packaging

Natural rubber, without support

VVM-50-S

Multi-Bellows Round vacuum cups for food packaging

Silicone rubber, without support

VVM-50-T-A

Multi-Bellows Round vacuum cups for food packaging

Oil-proof rubber, with support

VVM-50-T-N

Multi-Bellows Round vacuum cups for food packaging

Natural rubber, with support

VVM-50-T-S

Multi-Bellows Round vacuum cups for food packaging

Silicone rubber, with support

Description

Main specifications

Material

Vacuum cup in oil-proof rubber (NBR), natural (NR), or silicone (VMQ).

Support in anodised aluminium.

Standard executions

VVM-50-A: oil-proof rubber, without support.

VVM-50-N: natural rubber, without support.

VVM-50-S: silicone rubber, without support.

VVM-50-T-A: oil-proof rubber, with support.

VVM-50-T-N: natural rubber, with support.

VVM-50-T-S: silicone rubber, with support.

General information

Features and applications

They are specifically indicated for use in the food packaging sector, in particular for the handling of baked goods or confectionery products, where the multi-bellows shape is perfectly suited to the handling of even fragile packaged products. (e.g. biscuits, bread, snacks).

The adaptability to different surfaces, even irregular ones, with imperfect errors or inclined, allows these vacuum cups to also be used in different sectors where the multi-bellows shape is particularly effective.

The effective stroke of the bellows is 32 mm.

See Technical Data for vacuum cups.

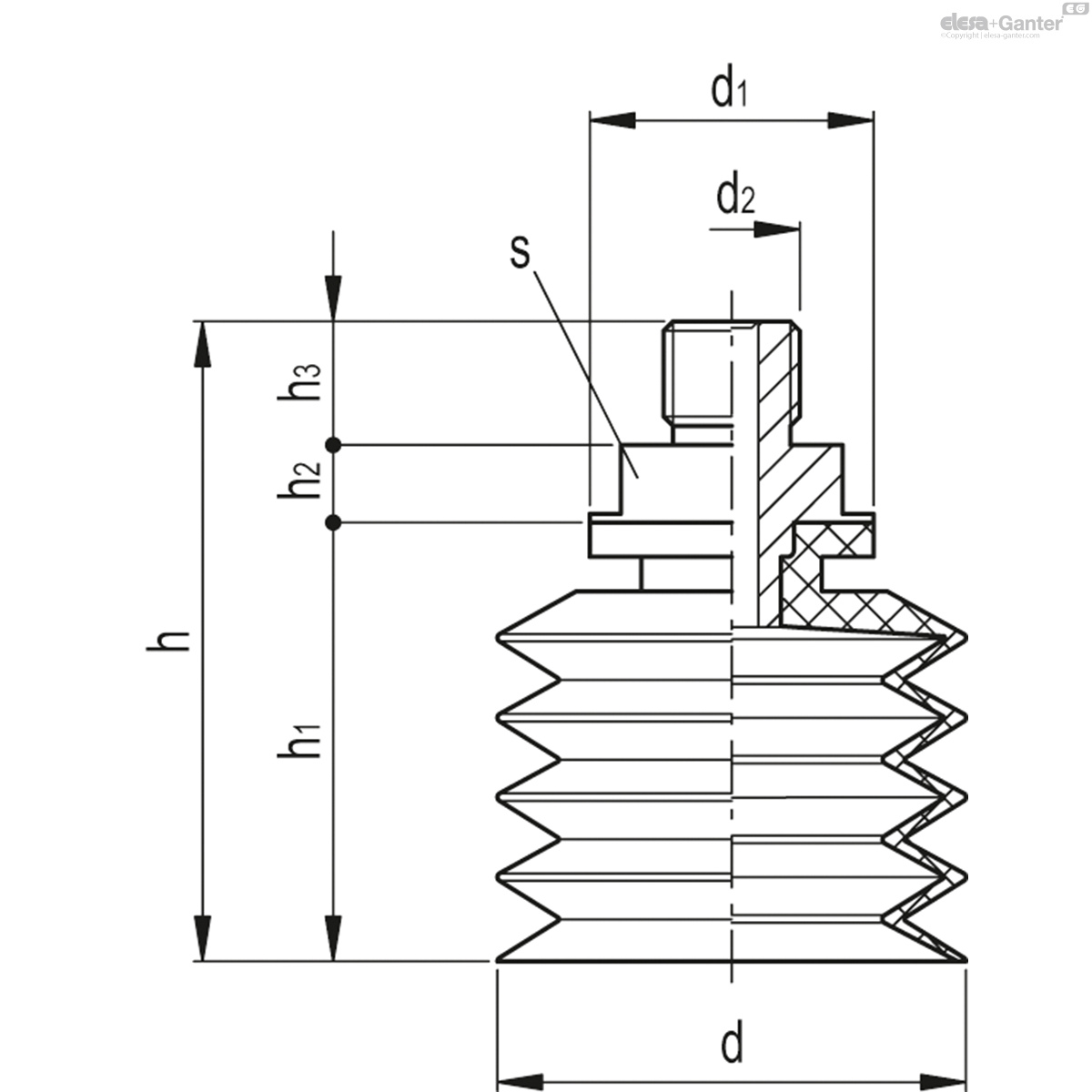

VVM-50-T-A

		d	d₁	d₂	h	h₁	h₂	h₃	s	F* [Kg]	Volume# [cm3]
Code	Description												Actions
VV.57022	VVM-50-G1/4-T-A	50	27	G1/4	72.5	53	7.5	12	22	4.9	53.3	41
