VVH-09

Cup-shaped vacuum cups

Diameter 9 mm, with or without shaped support, rubber

Enquire Now

VVH-09-S

Cup-shaped vacuum cups

Silicone rubber, without support

VVH-09-T-S

Cup-shaped vacuum cups

Silicone rubber, with support

Description

Main specifications

Material

Vacuum cup in silicone rubber (VMQ).

Nickel-plated brass support.

Standard executions

VVH-09-S: silicone rubber, without support.

VVH-09-T-S: silicone rubber, with support.

General information

Features and applications

They are used in various sectors including electronics for gripping of electrical components, food packaging and, in general, for handling products with very different technical characteristics in terms of size, materials (metal or plastic), form, and gripping surfaces (flat, slightly convex or concave).

See Technical Data for vacuum cups.

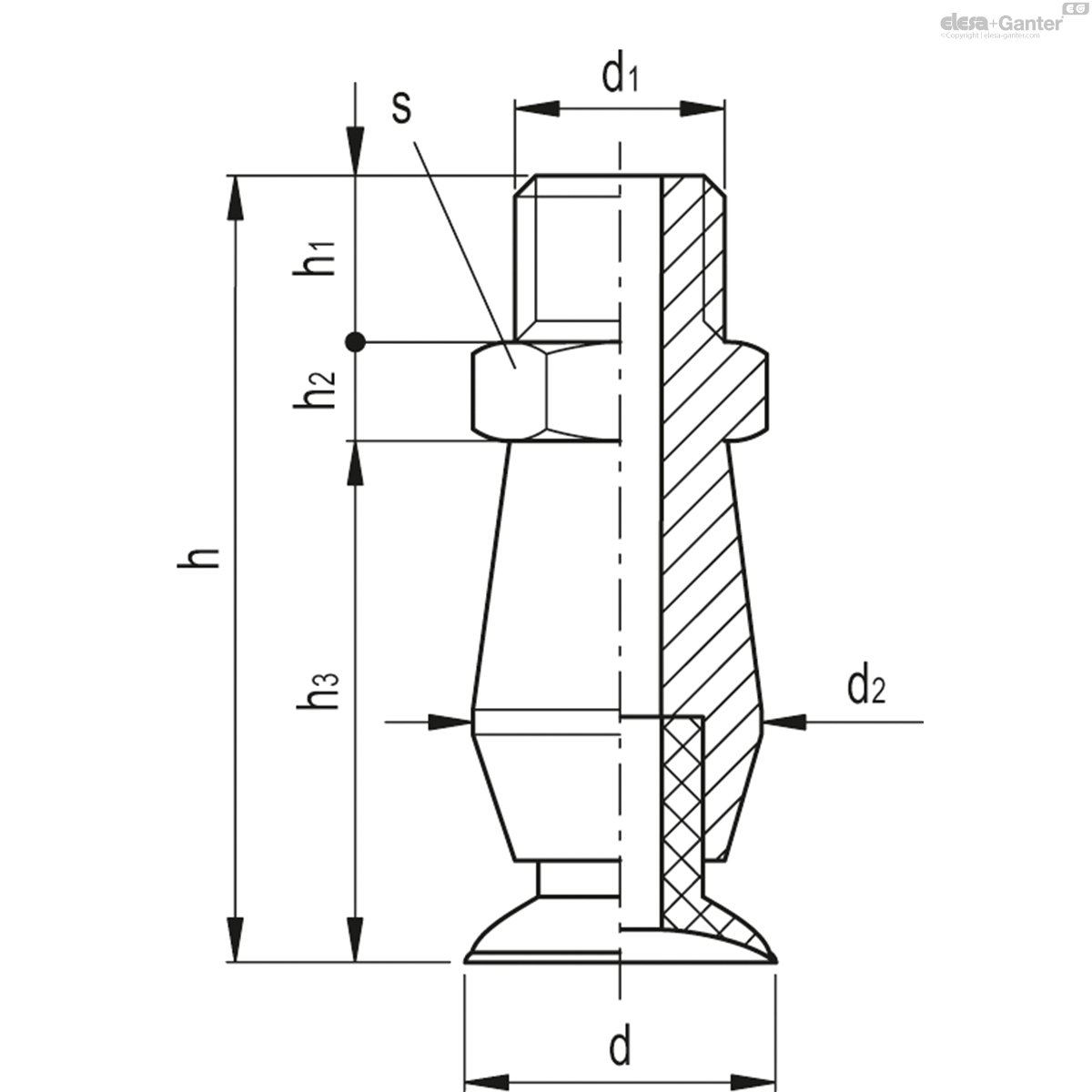

VVH-09-T-S

		d	d₁	d₂	h	h₁	h₂	h₃	s	F* [Kg]	Volume# [mm3]
Code	Description												Actions
VV.52031	VVH-09-M5-T-S	9	M5	7	20.5	5	3	12.5	7	0.15	56	4
