VVG

Elliptical vacuum cups with double bellow

With support, rubber

Enquire Now

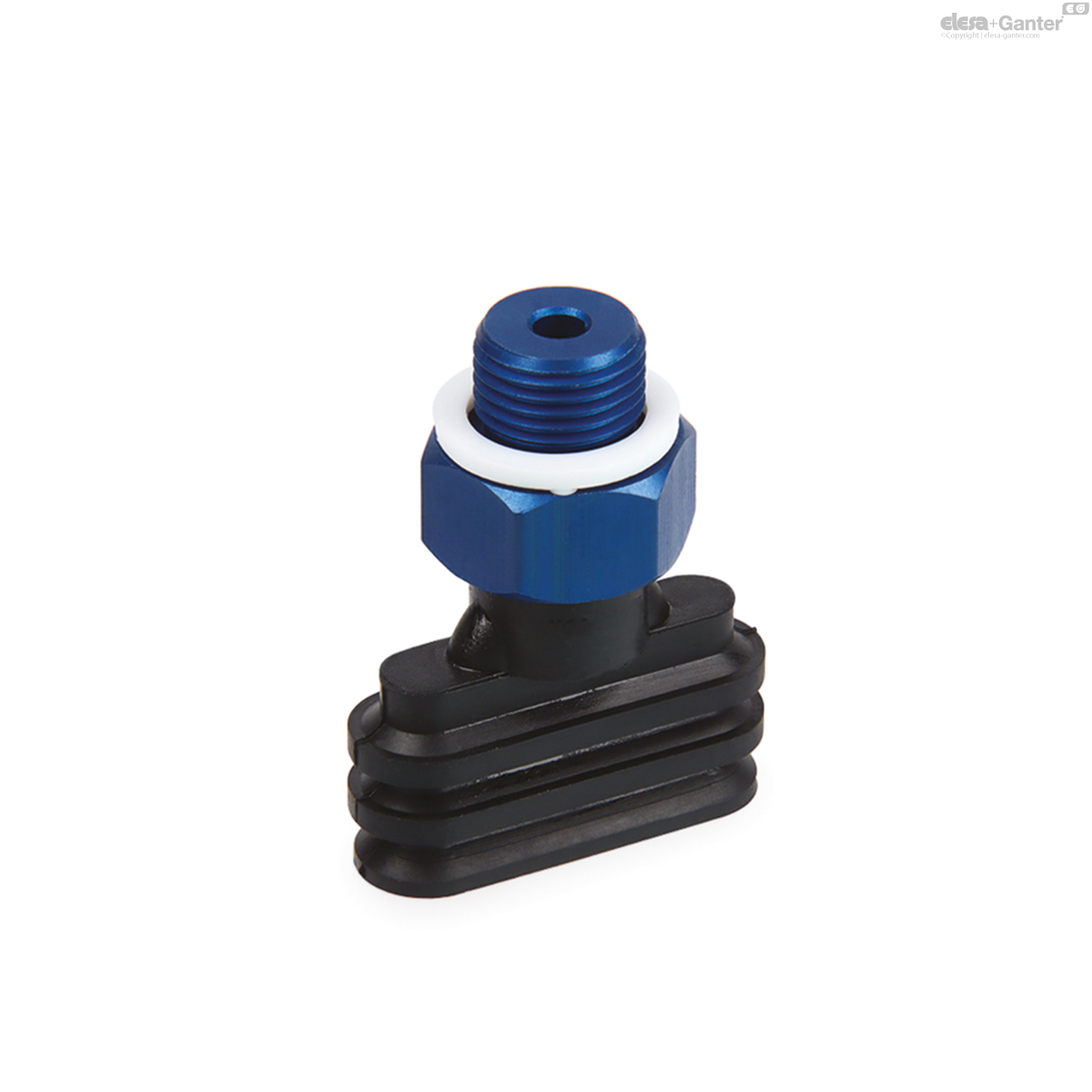

VVG-A

Elliptical vacuum cups with double bellow

Oil-proof rubber

VVG-N

Elliptical vacuum cups with double bellow

Natural rubber

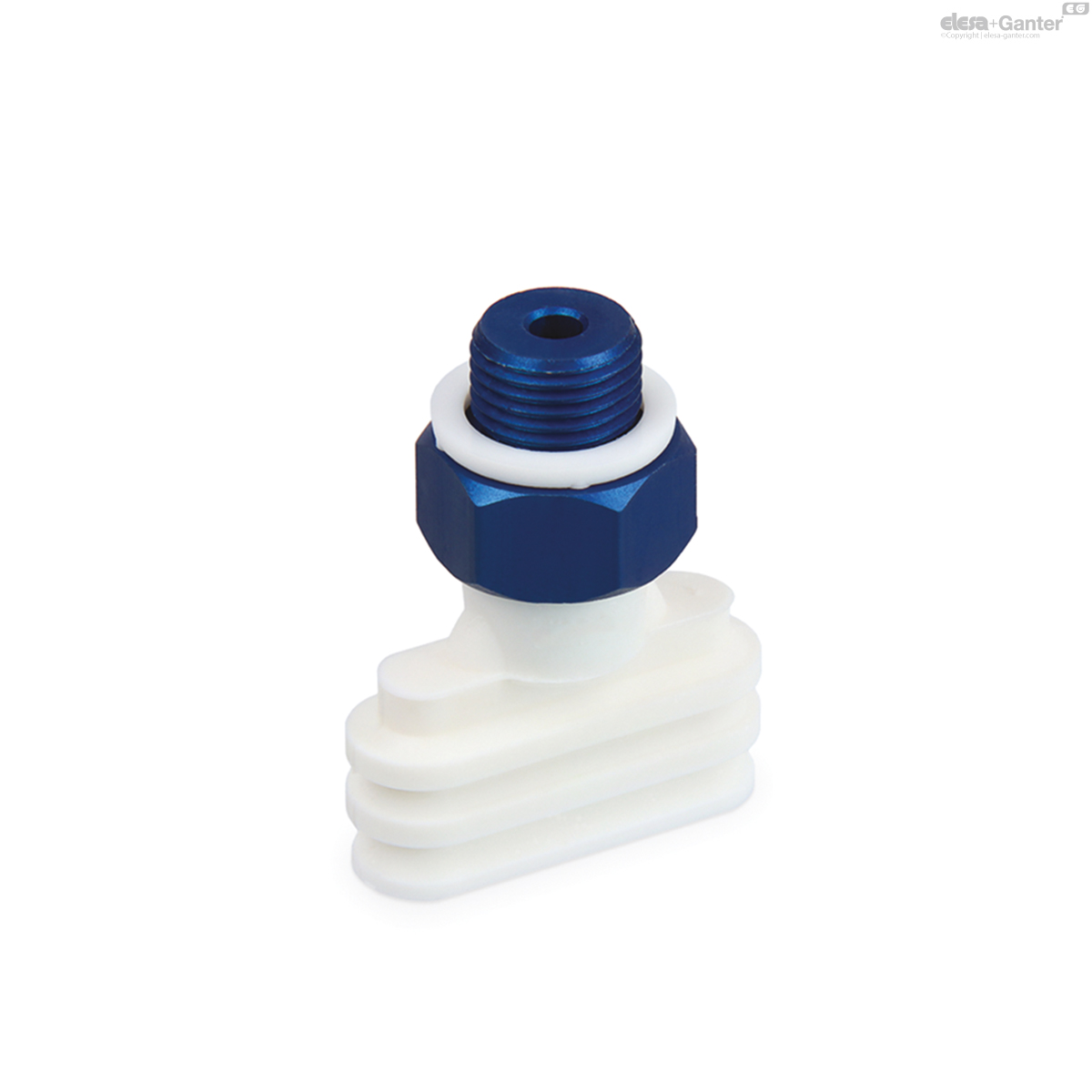

VVG-S

Elliptical vacuum cups with double bellow

Silicone rubber

Description

Main specifications

Material

Vacuum cup in oil-proof rubber (NBR), natural (NR), or silicone (VMQ).

Aluminium support.

Standard executions

VVG-A: oil-proof rubber.

VVG-N: natural rubber.

VVG-S: silicone rubber.

General information

Features and applications

The elliptical shape makes them suitable for gripping, handling, and clipping materials or products with elongated surfaces.

The bellows shape means that when in contact with the surface of the load the vacuum cup folds quickly on itself, lifting the load from the support surface.

They are used in many sectors including paper converting (for cardboard cases or boxes), ceramic sector (tiles or bricks) and with iron or stainless steel profiles or sheets.

See Technical Data for vacuum cups.

VVG-A

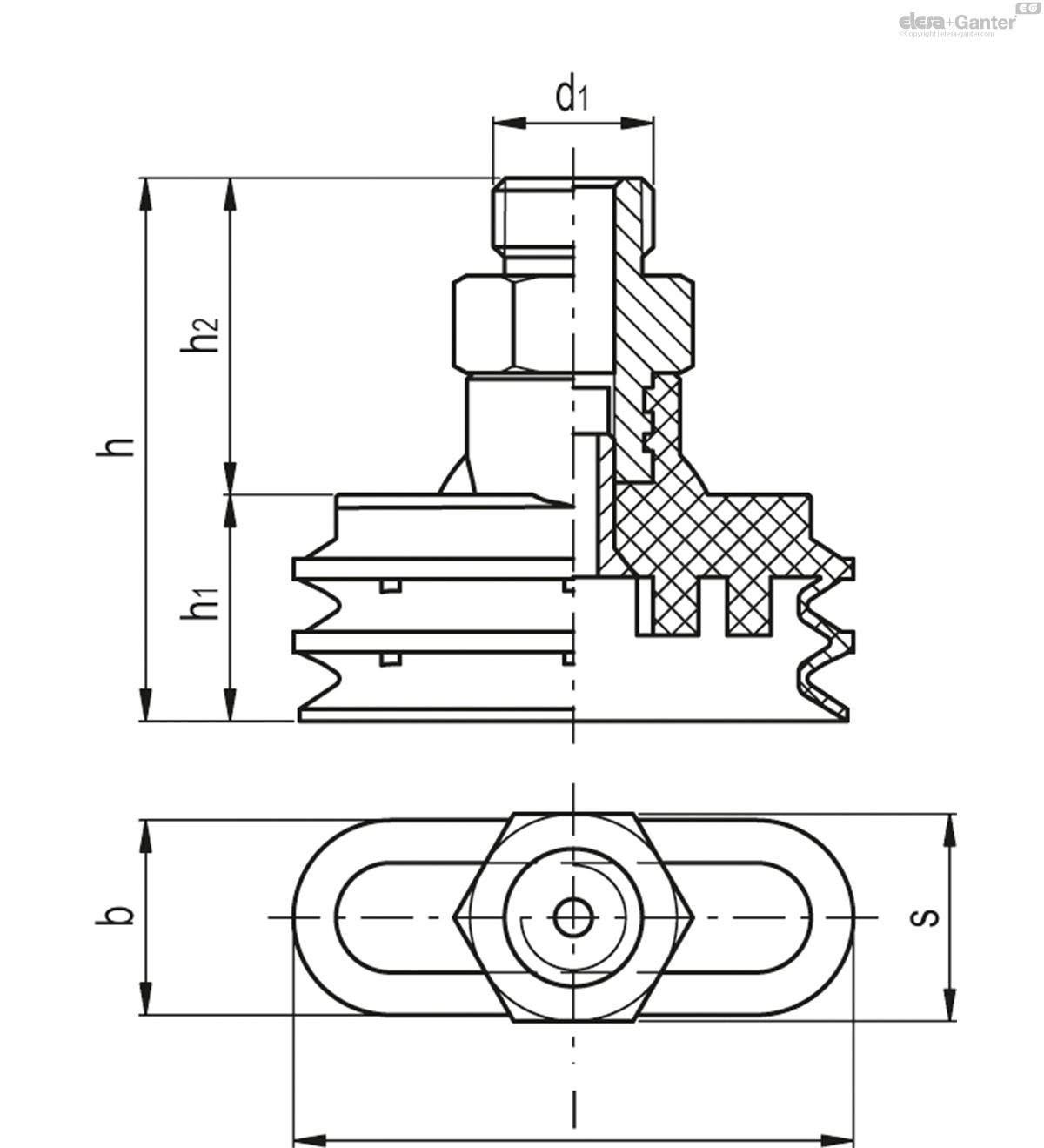

		d₁	h	h₁	h₂	b	l	s	F* [Kg]	Volume# [cm3]
Code	Description											Actions
VV.51001	VVG-08-25-G1/8-M-A	G1/8	32.4	12.4	20	8	25	14	0.5	0.8	20
VV.51004	VVG-15-45-G1/4-M-A	G1/4	44.6	18.6	26	15	45	17	1.5	5	32
VV.51007	VVG-25-75-G1/4-M-A	G1/4	50.2	25.2	25	25	75	17	4.3	23	48
