VVF

Elliptical vacuum cups

With support, rubber

Enquire Now

VVF-A

Elliptical vacuum cups

Oil-proof rubber

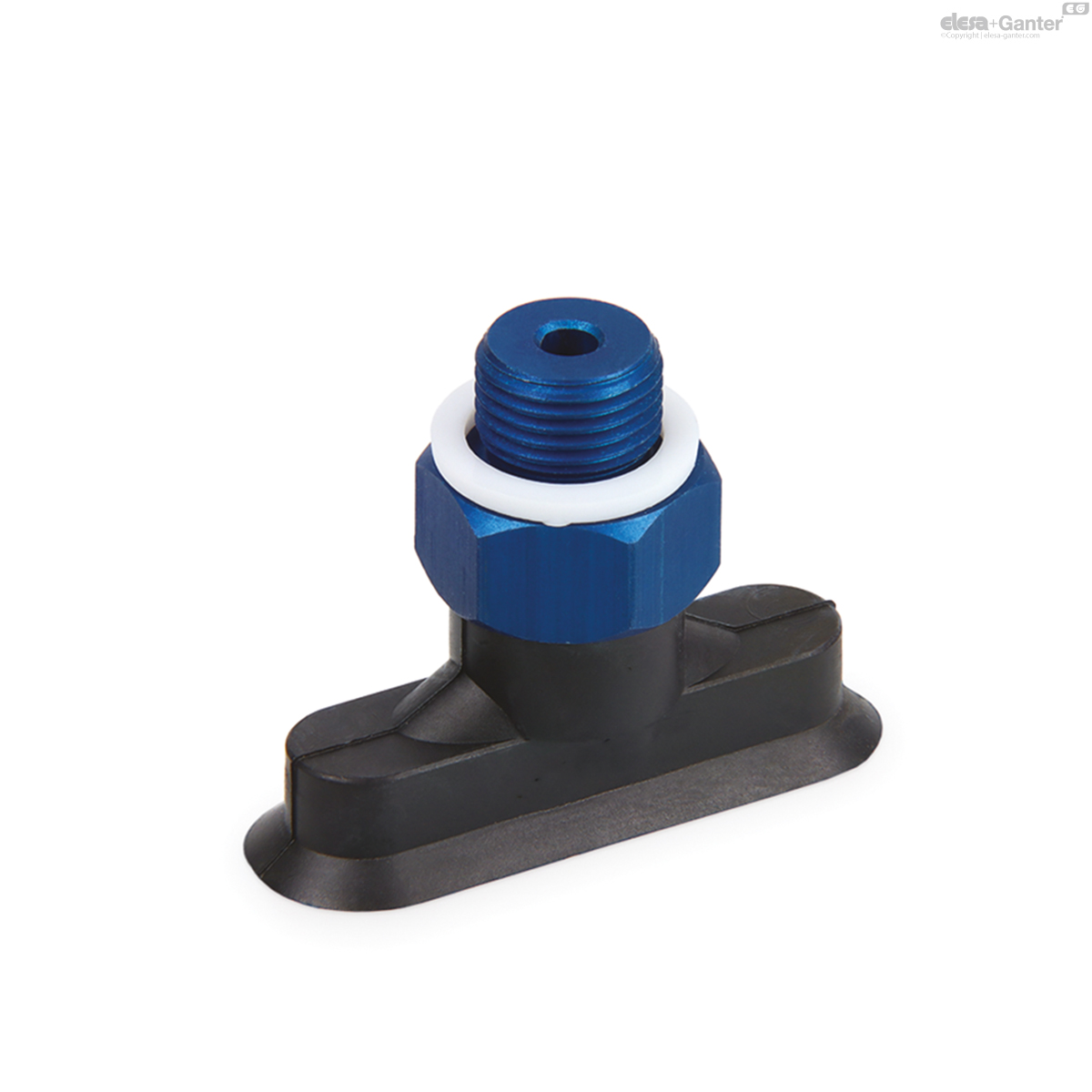

VVF-N

Elliptical vacuum cups

Natural rubber

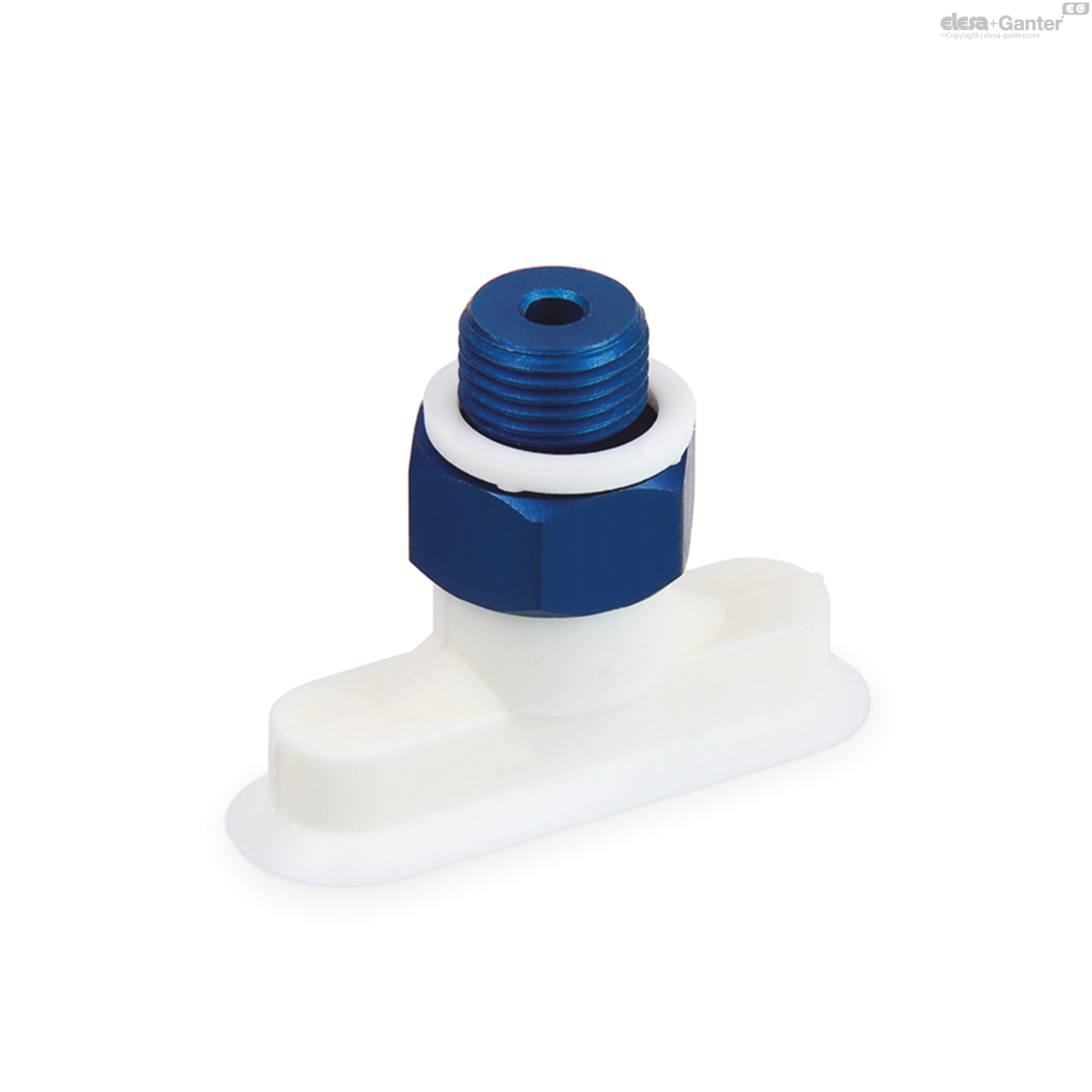

VVF-S

Elliptical vacuum cups

Silicone rubber

Description

Main specifications

Material

Vacuum cup in oil-proof rubber (NBR), natural (NR), or silicone (VMQ).

Aluminium support.

Standard executions

VVF-A: oil-proof rubber.

VVF-N: natural rubber.

VVF-S: silicone rubber.

General information

Features and applications

The elliptical shape makes them suitable for gripping, handling, and clipping materials or products with elongated surfaces.

They are used in many sectors including paper converting (for cardboard cases or boxes), ceramic sector (tiles or bricks) and with iron or stainless steel profiles or sheets.

See Technical Data for vacuum cups .

VVF-A

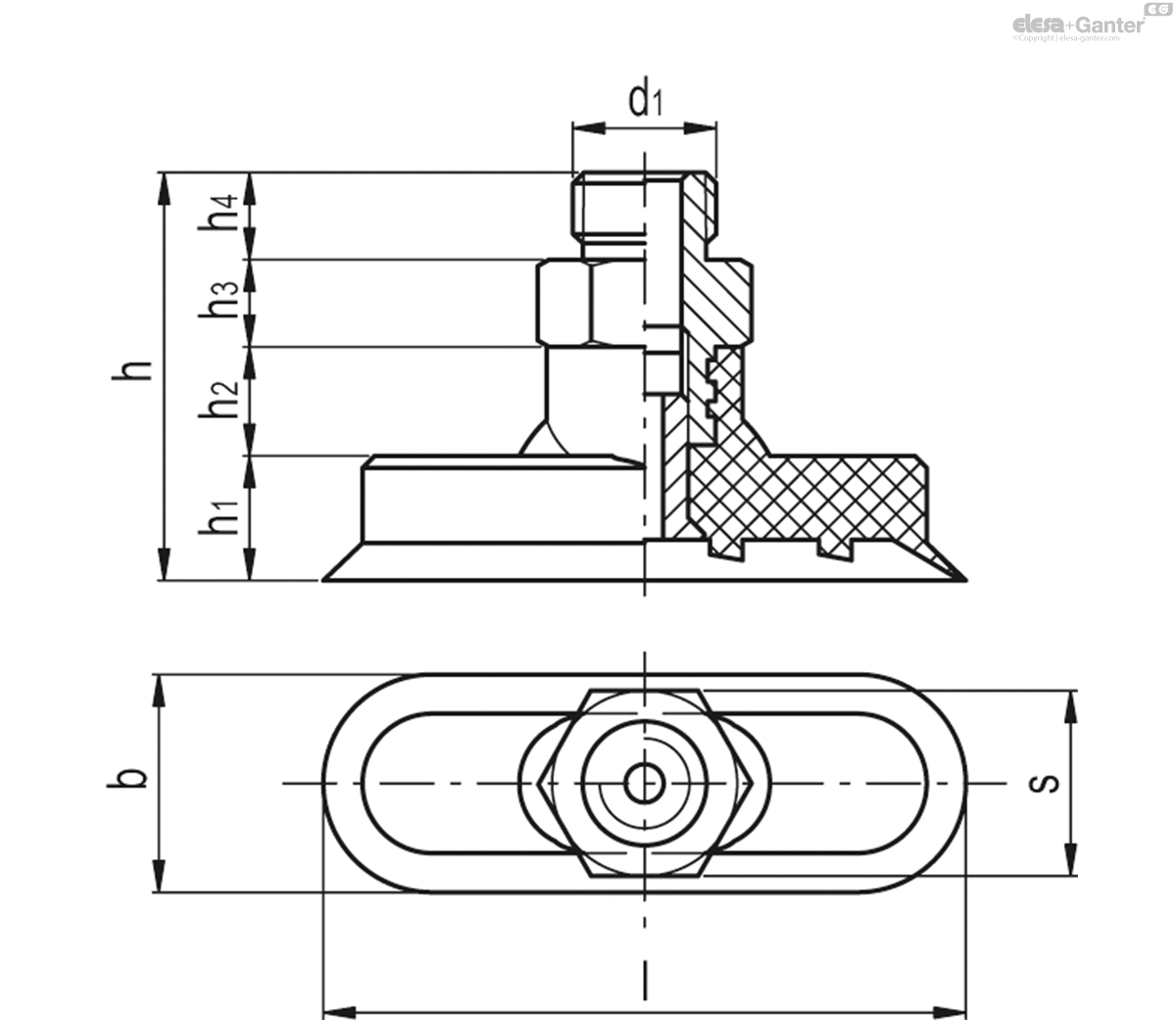

		d₁	h	h₁	h₂	h₃	h₄	b	l	s	F* [Kg]	Volume# [cm3]
Code	Description													Actions
VV.50001	VVF-08-24-G1/8-A	G1/8	26	5.3	6.7	7	7	8	24	14	0.4	0.2	20
VV.50004	VVF-10-30-G1/8-A	G1/8	26	5	7	7	7	10	30	14	0.7	0.2	20
VV.50007	VVF-12-36-G1/8-A	G1/8	27	6.6	6.4	7	7	12	36	14	1	0.5	21
VV.50010	VVF-15-45-G1/4-A	G1/4	38	7.7	14.3	8	8	15	45	17	1.5	1.2	30
VV.50013	VVF-20-60-G1/4-A	G1/4	37.5	11.5	10	8	8	20	60	17	2.7	2	39
VV.50016	VVF-25-75-G1/4-A	G1/4	37.3	13.7	7.6	8	8	25	75	17	4.3	5	44
VV.50019	VVF-28-85-G1/4-A	G1/4	37.7	13	8.7	8	8	28	85	17	5.5	6.8	51
VV.50022	VVF-35-100-G1/4-A	G1/4	38.2	13.5	8.7	8	8	35	100	17	8	11.9	63
