VVA-27

Flat vacuum cups with shank

Diameter 27mm, with or without support, rubber

Enquire Now

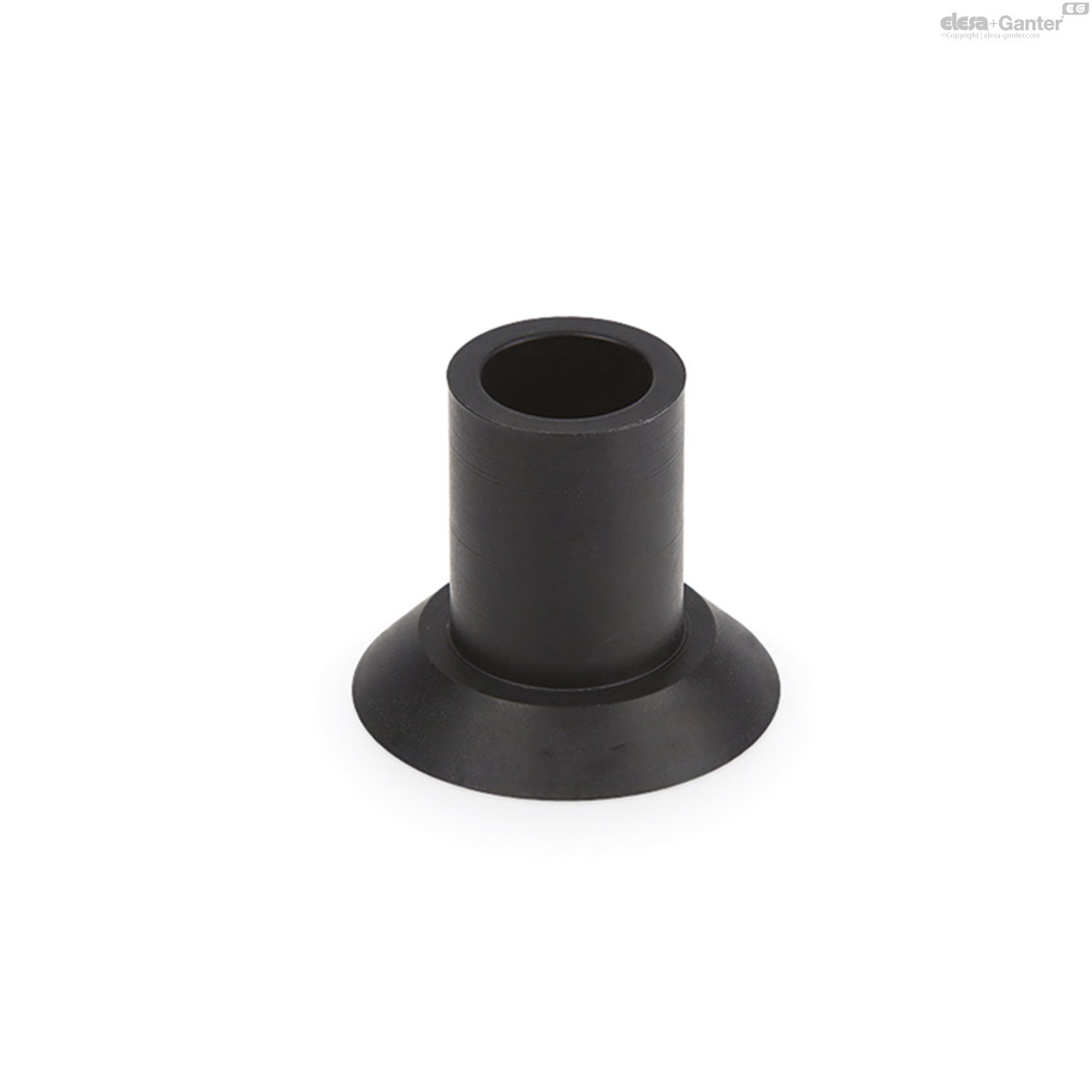

VVA-27-A

Flat vacuum cups with shank

Oil-proof rubber, without support

VVA-27-N

Flat vacuum cups with shank

Natural rubber, without support

VVA-27-S

Flat vacuum cups with shank

Silicone rubber, without support

VVA-27-T-A

Flat vacuum cups with shank

Oil-proof rubber, with support

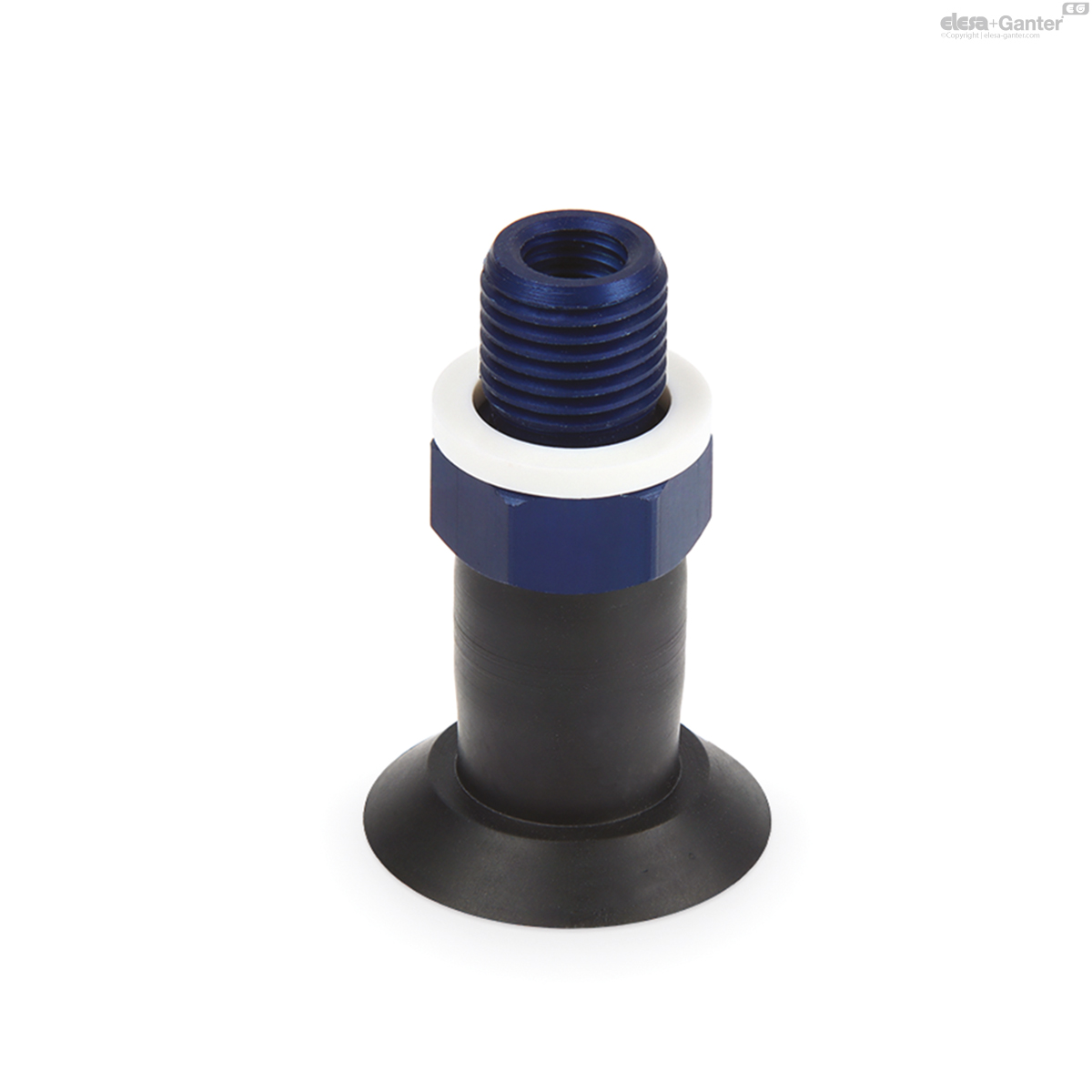

VVA-27-T-N

Flat vacuum cups with shank

Natural rubber, with support

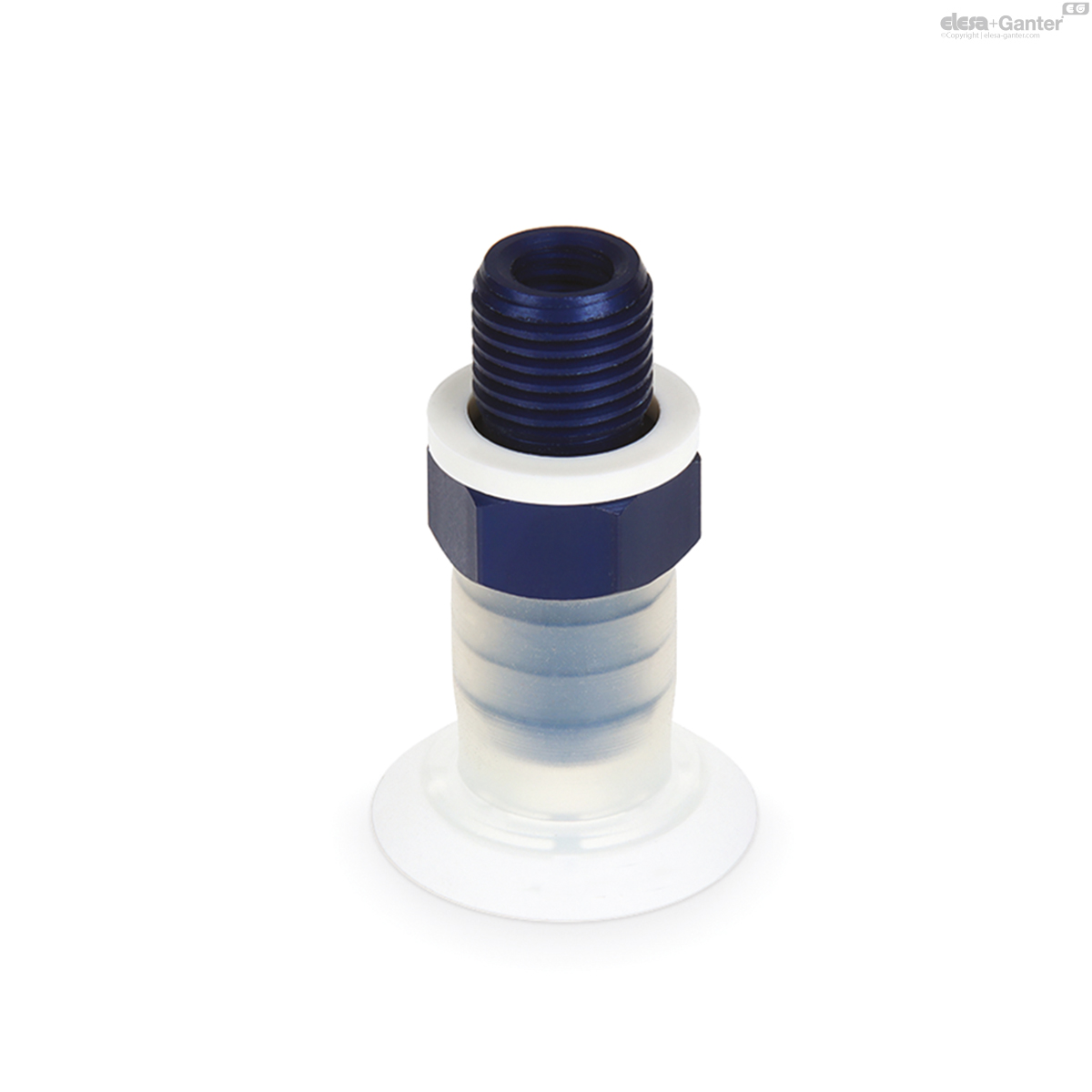

VVA-27-T-S

Flat vacuum cups with shank

Silicone rubber, with support

Description

Main specifications

Material

Vacuum cup in oil-proof rubber (NBR), natural (NR), or silicone (VMQ).

Aluminium support.

Standard executions

VVA-27-A: oil-proof rubber, without support.

VVA-27-N: natural rubber, without support.

VVA-27-S: silicone rubber, without support.

VVA-27-T-A: oil-proof rubber, with support.

VVA-27-T-N: natural rubber, with support.

VVA-27-T-S: silicone rubber, with support.

General information

Features and applications

They are used in the packaging sector, in particular in packaging using plastic films and in the paper converting sector for the handling of sheets of paper.

The labyrinth moulded onto the support surface of the vacuum cup ensures a more effective grip on the product to be handled; in particular, the notches allow even distribution of the vacuum on the surface of the product, preventing the packaging sheet or bag from being sucked into the vacuum cup.

See Technical Data for vacuum cups.

VVA-27-A

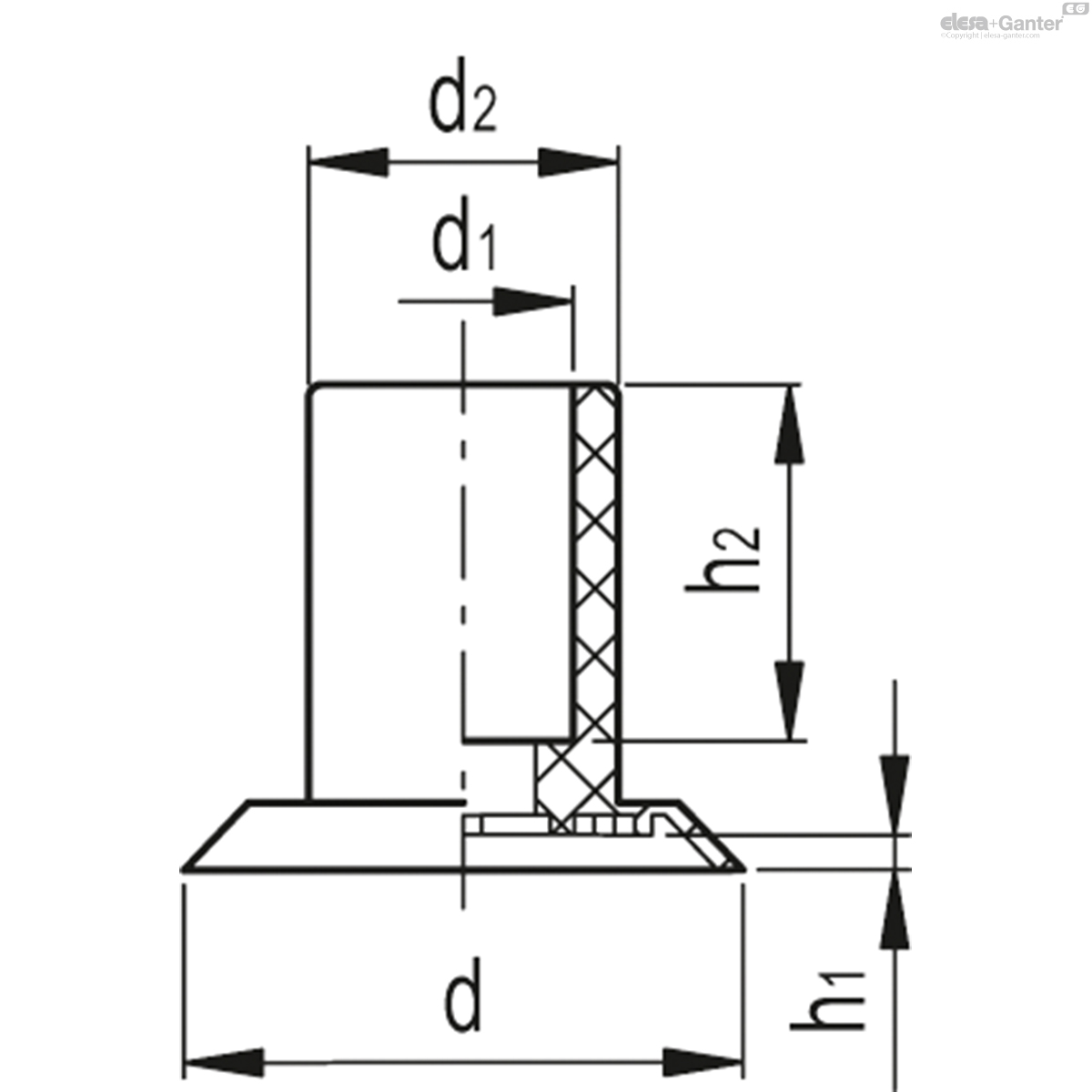

		d	d₁	d₂	h	h₁	h₂	F* [Kg]	Volume# [cm3]
Code	Description										Actions
VV.45017	VVA-27-A	27	11	15	24	3	16	1.4	2.2	3
