VVA-17
Flat vacuum cups with shank
Diameter 17mm, with or without support, rubber
VVA-17-A
Flat vacuum cups with shank
Oil-proof rubber, without support
VVA-17-N
Flat vacuum cups with shank
Natural rubber, without support
VVA-17-S
Flat vacuum cups with shank
Silicone rubber, without support
VVA-17-T-A
Flat vacuum cups with shank
Oil-proof rubber, with support
VVA-17-T-N
Flat vacuum cups with shank
Silicone rubber, with support
VVA-17-T-S
Flat vacuum cups with shank
Natural rubber, with support
Description
Main specifications
Material
Vacuum cup in oil-proof rubber (NBR), natural (NR), or silicone (VMQ).
Nickel-plated brass support.
Standard executions
- VVA-17-A:Â oil-proof rubber, without support.
- VVA-17-N:Â natural rubber, without support.
- VVA-17-S:Â silicone rubber, without support.
- VVA-17-T-A:Â oil-proof rubber, with support.
- VVA-17-T-N:Â natural rubber, with support.
- VVA-17-T-S:Â silicone rubber, with support.
General information
Applications
They are widely used in the paper converting sector, in particular for the handling of paper sheets and labels.
See Technical Data for vacuum cups .

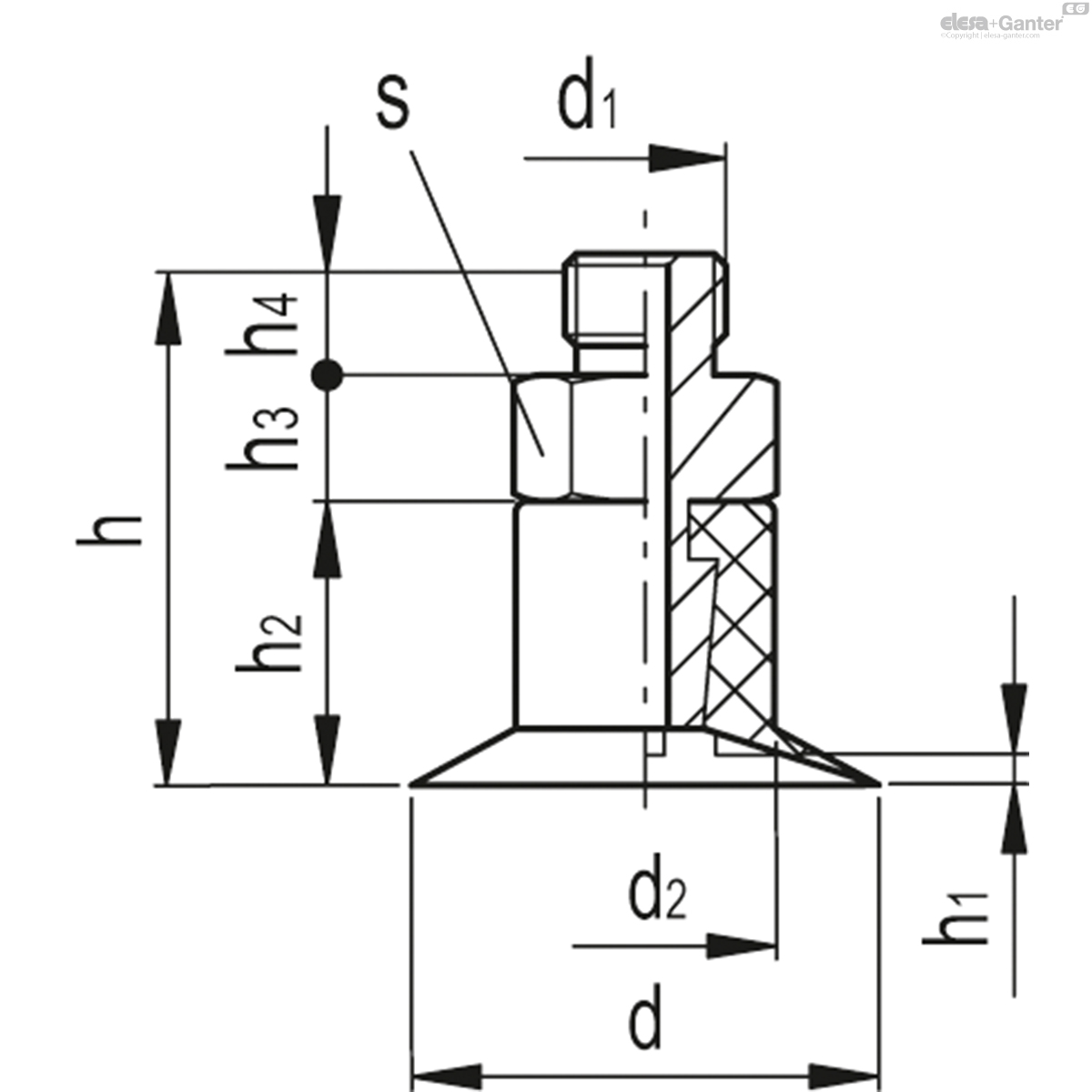

VVA-17-T-A
| d | d1 | d2 | h | h1 | h2 | h3 | h4 | s | F* [Kg] |
Volume# [mm3] |
 |
|||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Code | Description | Actions | ||||||||||||
| VV.45006 | VVA-17-M5-T-A | 17 | M5 | 9 | 19.5 | 1 | 11 | 4.5 | 4 | 8 | 0.6 | 213 | 4 |
|
