VVA-07
Mini vacuum cups
Diameter 7mm, with or without support, rubber
Description
Main specifications
Material
Vacuum cup in silicone rubber (VMQ).
Nickel-plated brass support.
Standard executions

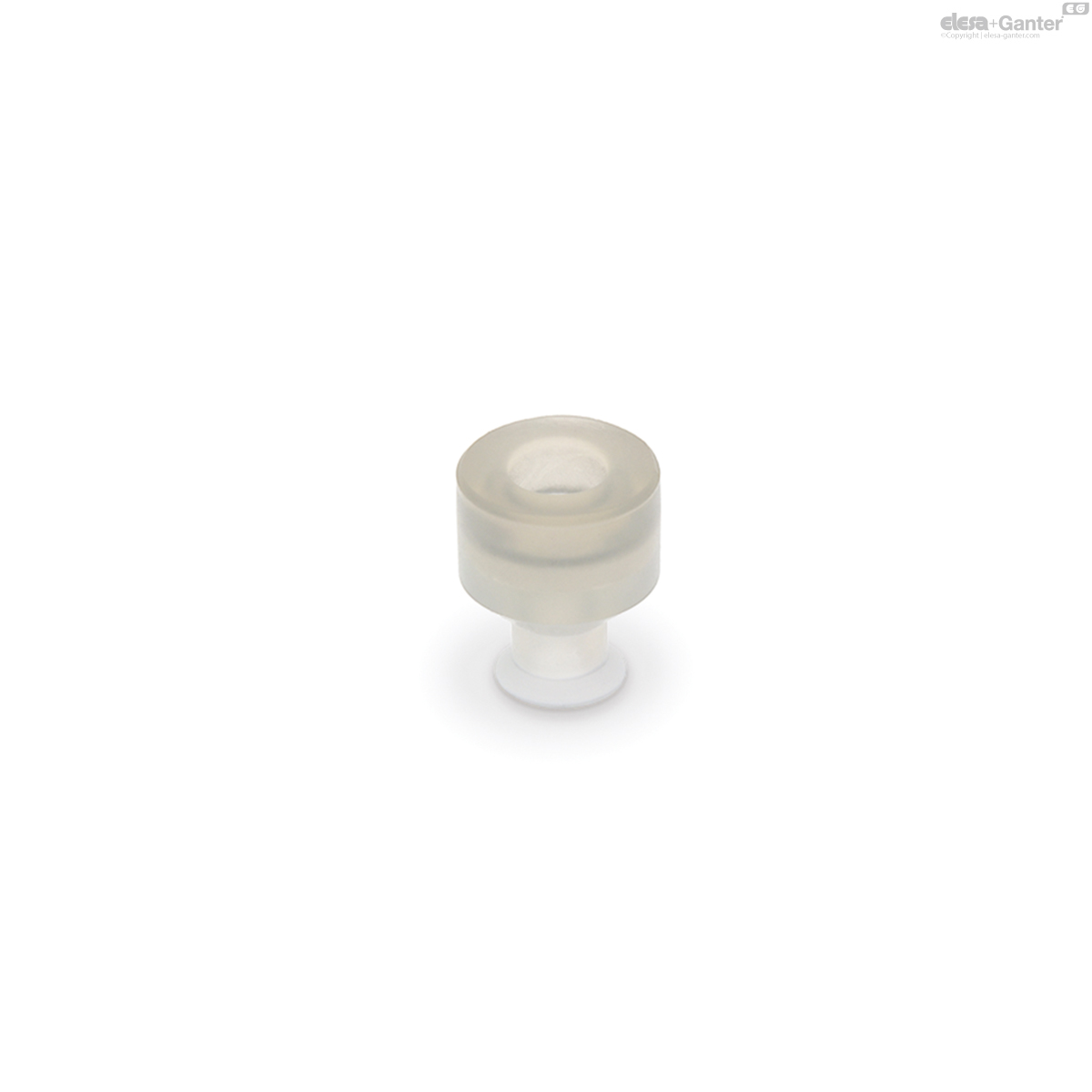

- VVA-07-S:Â without support.

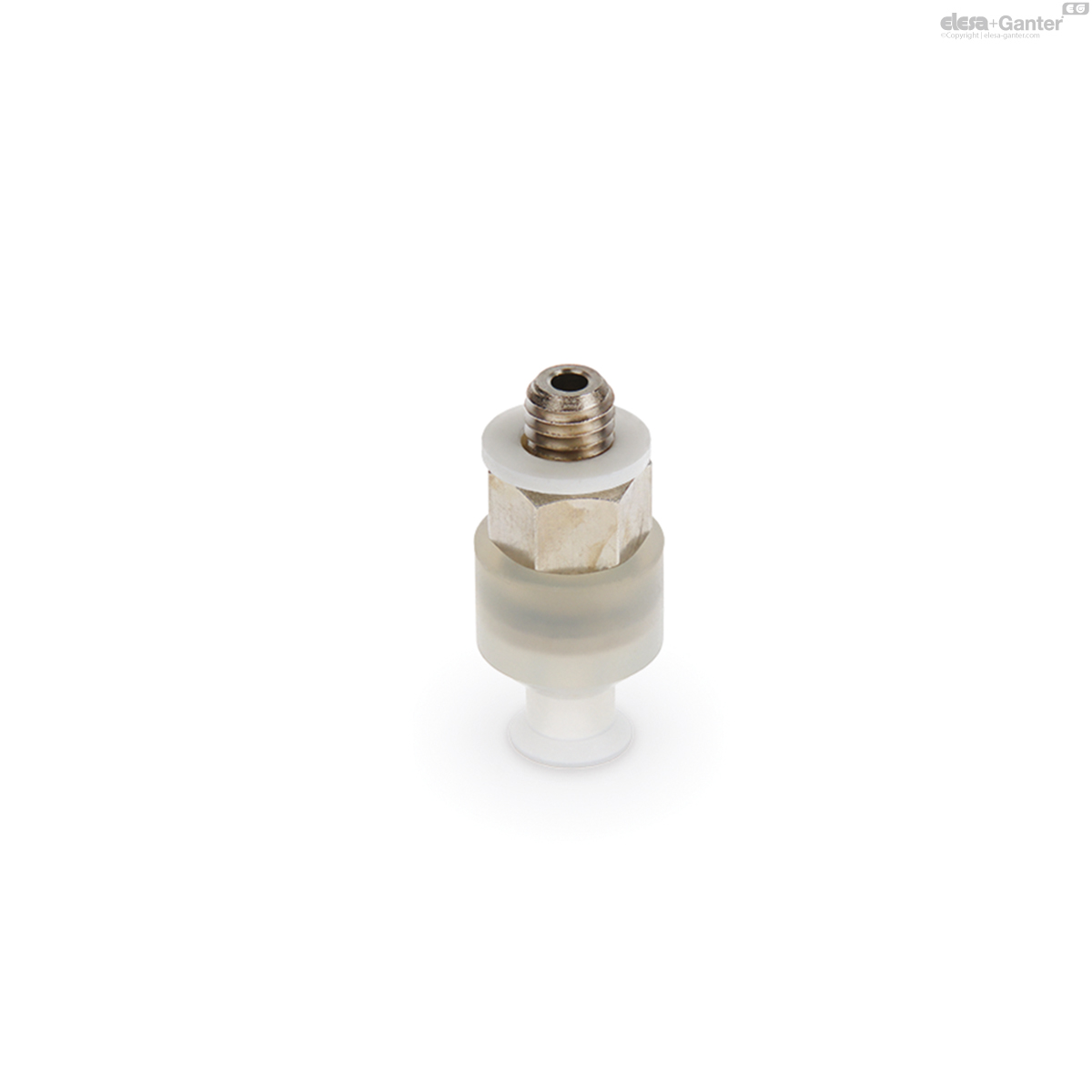

- VVA-07-T-S:Â with support.
General information
Applications
They are widely used in the paper converting sector, in particular for the handling of paper sheets and labels.
They can also be used in different sectors, including electronics, for gripping small electrical components, food or for use with small metal or plastic products.
See Technical Data for vacuum cups.
VVA-07-S

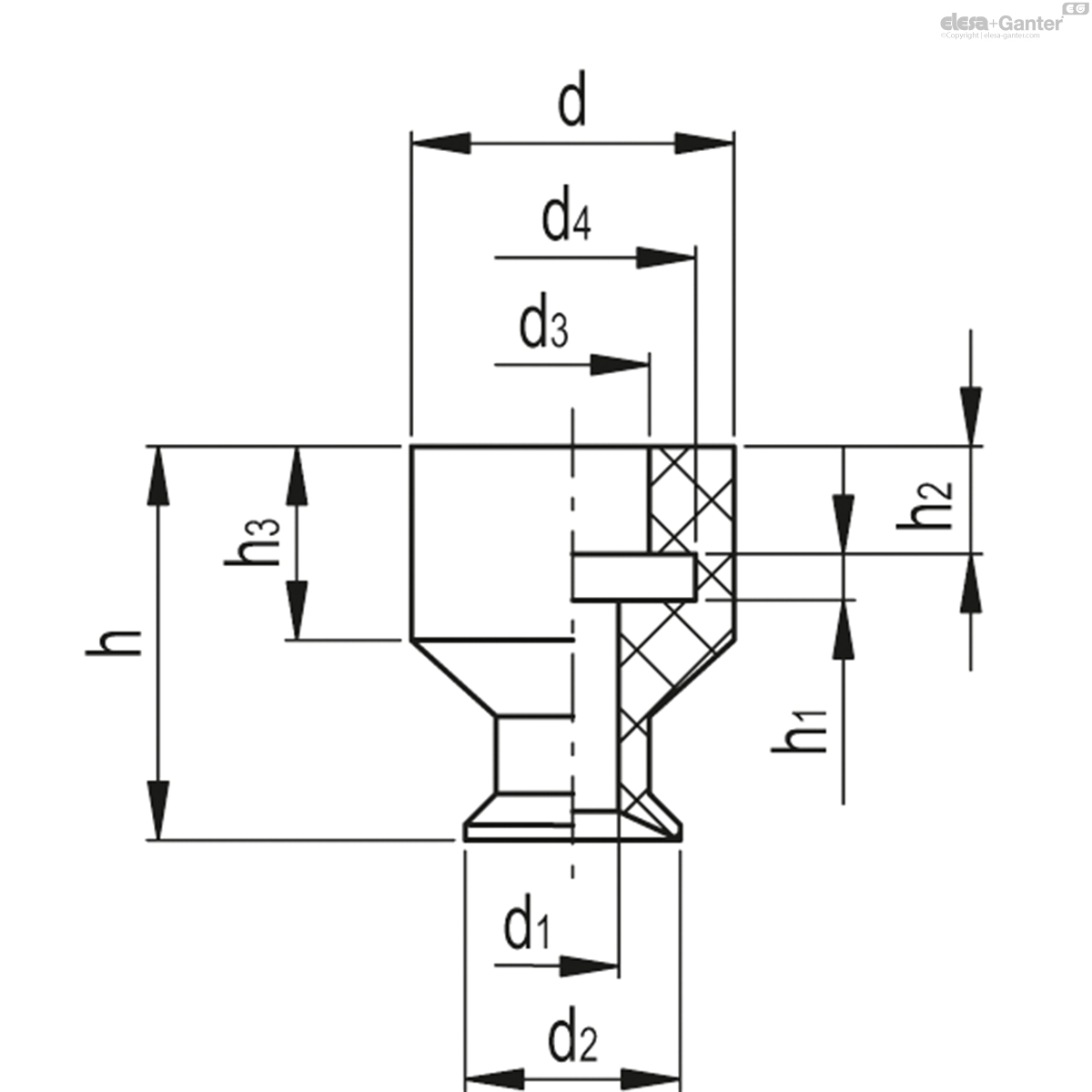

| d | d1 | d2 | d3 | d4 | h | h1 | h2 | h3 | F* [Kg] |
Volume# [mm3] |
 |
|||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Code | Description | Actions | ||||||||||||
| VV.45001 | VVA-07-S | 10.5 | 3 | 7 | 5 | 8 | 13 | 1.5 | 3.5 | 6.5 | 0.1 | 19 | 1 |
|
