VRTP-P-SST

Spoked handwheels with solid section

Technopolymer

Enquire Now

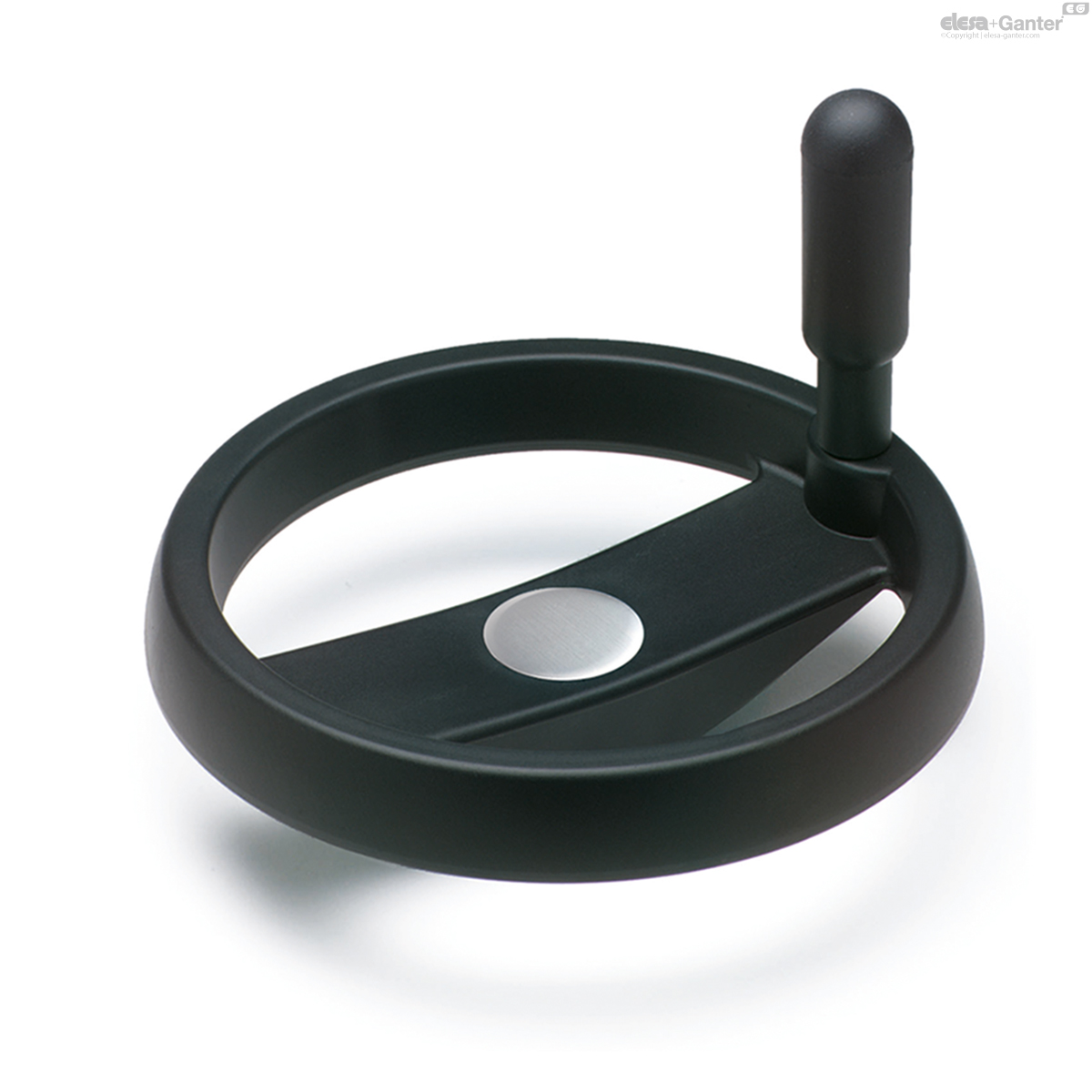

VRTP-P+I-SST

Spoked handwheels with solid section

Revolving handle

VRTP-P+IR-SST

Spoked handwheels with solid section

Fold-away handle

Description

Main specifications

Material

High-resilience polypropylene based (PP) technopolymer, black colour, matte finish.

Produced from FDA compliant raw material (FDA CFR.21 and EU 10/2011).

Boss-cap

AISI 304 stainless steel self-adhesive front plate adhesive suitable for contact with food (FDA CFR.21 and EU 10/2011).

Standard executions

AISI 304 stainless steel boss, H7 reamed hole.

H9 reamed hole for executions with keyway.

VRTP-P+I-SST: with revolving handle type I.621+x-SST in polyamide based (PA) technopolymer, certified in compliance with FDA.
VRTP-P+IR-SST: with fold-away handle type IR.620 in polyamide based (PA) technopolymer, certified in compliance with FDA. AISI 304 stainless steel pin, bushing and internal components, AISI 316L stainless steel support.
K: index for executions with hole and keyway in compliance with DIN 6885/1, tolerance P9 i.e.:

79111-R-K VRTP.80-P+I-SST-8-K

Accessories on request

Axial retaining washer GN 184.5-.

General information

Features and applications

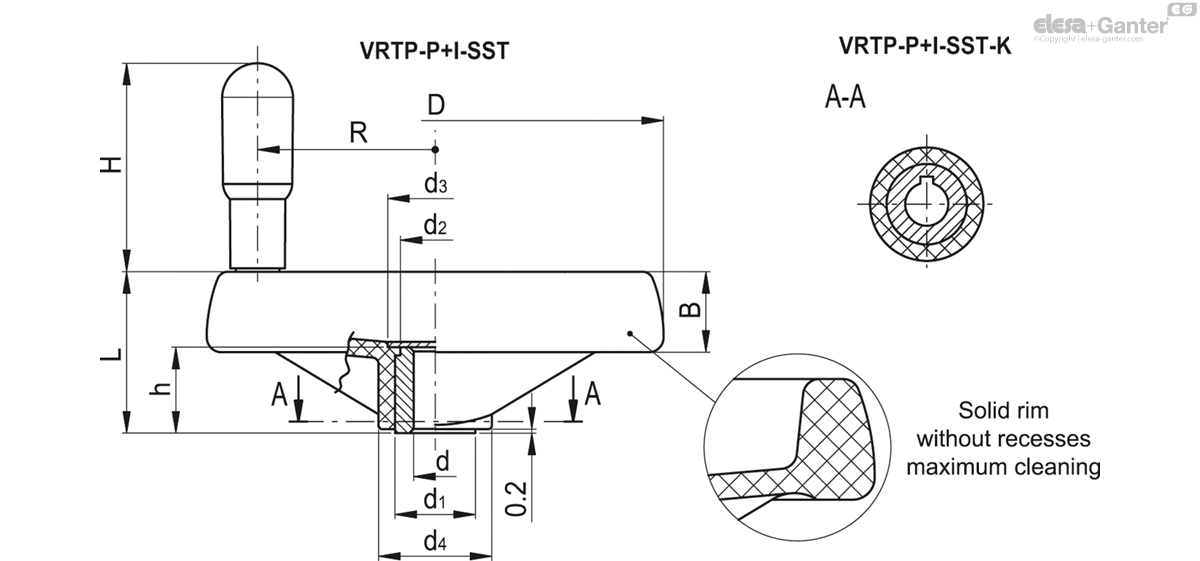

The solid rim of the handwheel allows the easy cleaning thanks to the absence of rear recesses. For this reason, being the technopolymer polypropylene based and the metal components in AISI 304 stainless steel, this version of VRTP. handwheel is designed for applications in food, pharmaceutical and medical fields.

VRTP-P+I-SST

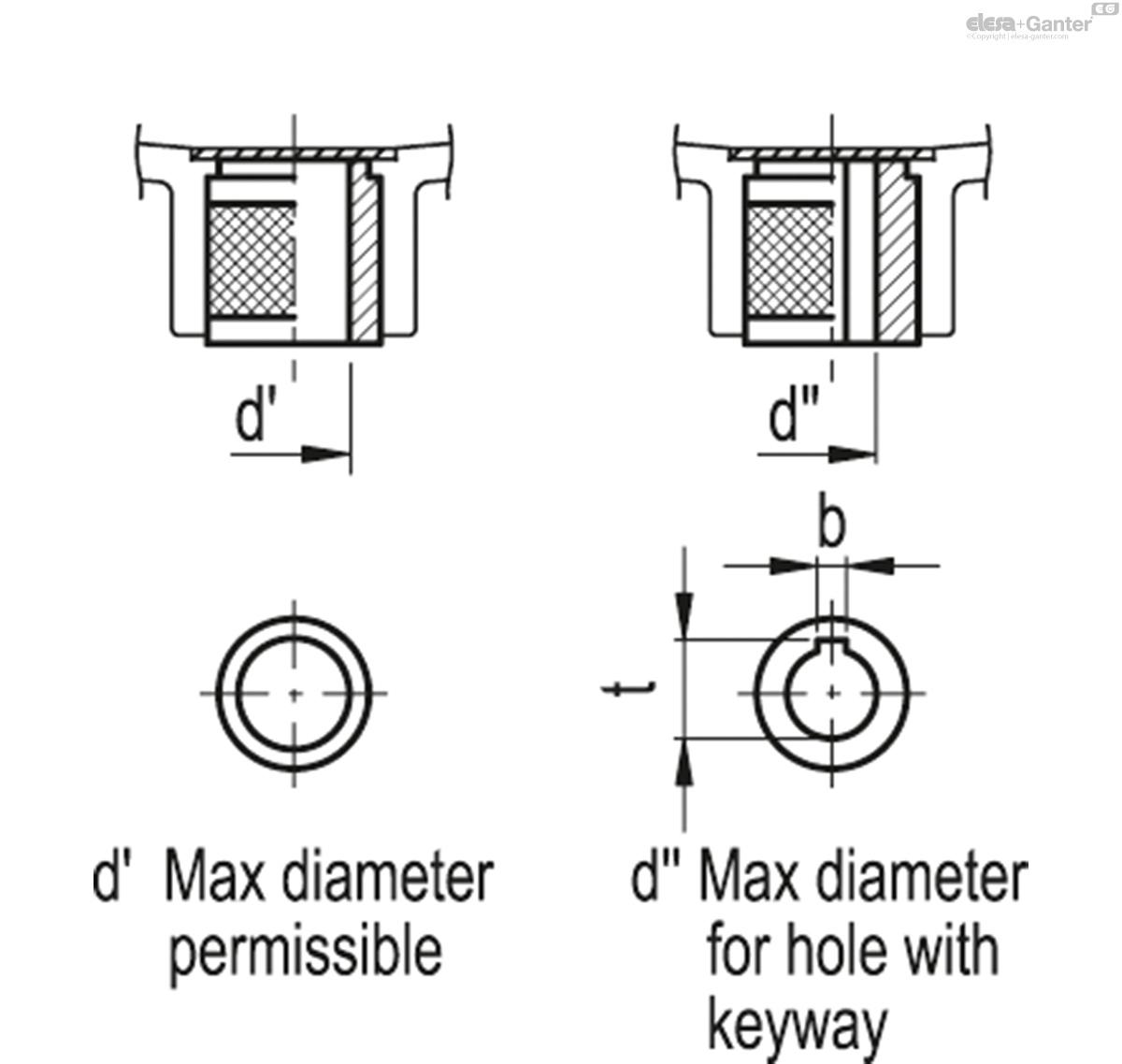

		D	d_H7	L	B	d₁	d₂	d₃	d₄	h	H	d'	d''	R	t	b	C# [Nm]	L# [J]
Code	Description																			Actions
79111-R	VRTP.80-P+I-SST-8	80	8	35	18	18	16	20.5	25	17	45	14	10	29	9	2	32	5	110
79161-R	VRTP.100-P+I-SST-10	99	10	37	20	18	16	20.5	25.5	17	60	14	10	37	11.4	3	54	7	144
79211-R	VRTP.125-P+I-SST-12	125	12	44	22	22	20	26	31	22	65	18	12	48	13.8	4	94	10	279
79261-R	VRTP.160-P+I-SST-14	160	14	51	25	26	24	32	40	27	73	20	16	65	16.3	5	185	15	420
79311-R	VRTP.200-P+I-SST-16	200	16	61	28	30	28	36	50	34	80	24	18	84	18.3	5	300	24	535
79313-R	VRTP.200-P+I-SST-20	200	20	61	28	30	28	36	50	34	80	24	22	84	22.8	6	300	24	535

VRTP-P+I-SST-K

		D	d_H9	L	B	d₁	d₂	d₃	d₄	h	H	R	t	b	C# [Nm]	L# [J]
Code	Description																	Actions
79111-R-K	VRTP.80-P+I-SST-8-K	80	8	35	18	18	16	20.5	25	17	45	29	9	2	32	5	112
79161-R-K	VRTP.100-P+I-SST-10-K	99	10	37	20	18	16	20.5	25.5	17	60	37	11.4	3	54	7	145
79211-R-K	VRTP.125-P+I-SST-12-K	125	12	44	22	22	20	26	31	22	65	48	13.8	4	94	10	279
79261-R-K	VRTP.160-P+I-SST-14-K	160	14	51	25	26	24	32	40	27	73	65	16.3	5	185	15	414
79311-R-K	VRTP.200-P+I-SST-16-K	200	16	61	28	30	28	36	50	34	80	84	18.3	5	300	24	612
79313-R-K	VRTP.200-P+I-SST-20-K	200	20	61	28	30	28	36	50	34	80	84	22.8	6	300	24	535
