Mini vacuum cup with built-in spring suspensions
Threaded connection female, steel, aluminium and brass

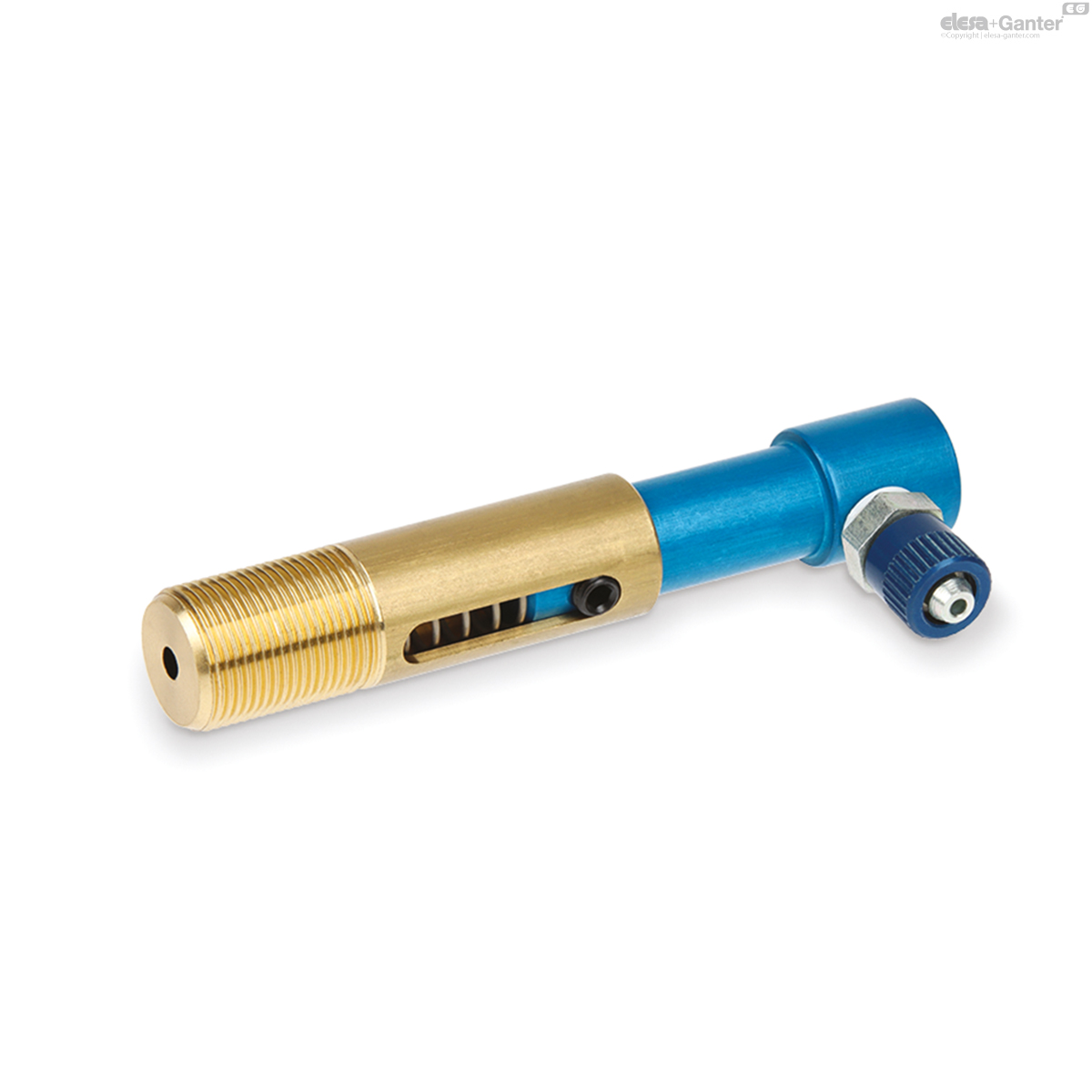

VPE-F
Mini vacuum cup with built-in spring suspensions
Female threaded connection and straight quick fitting

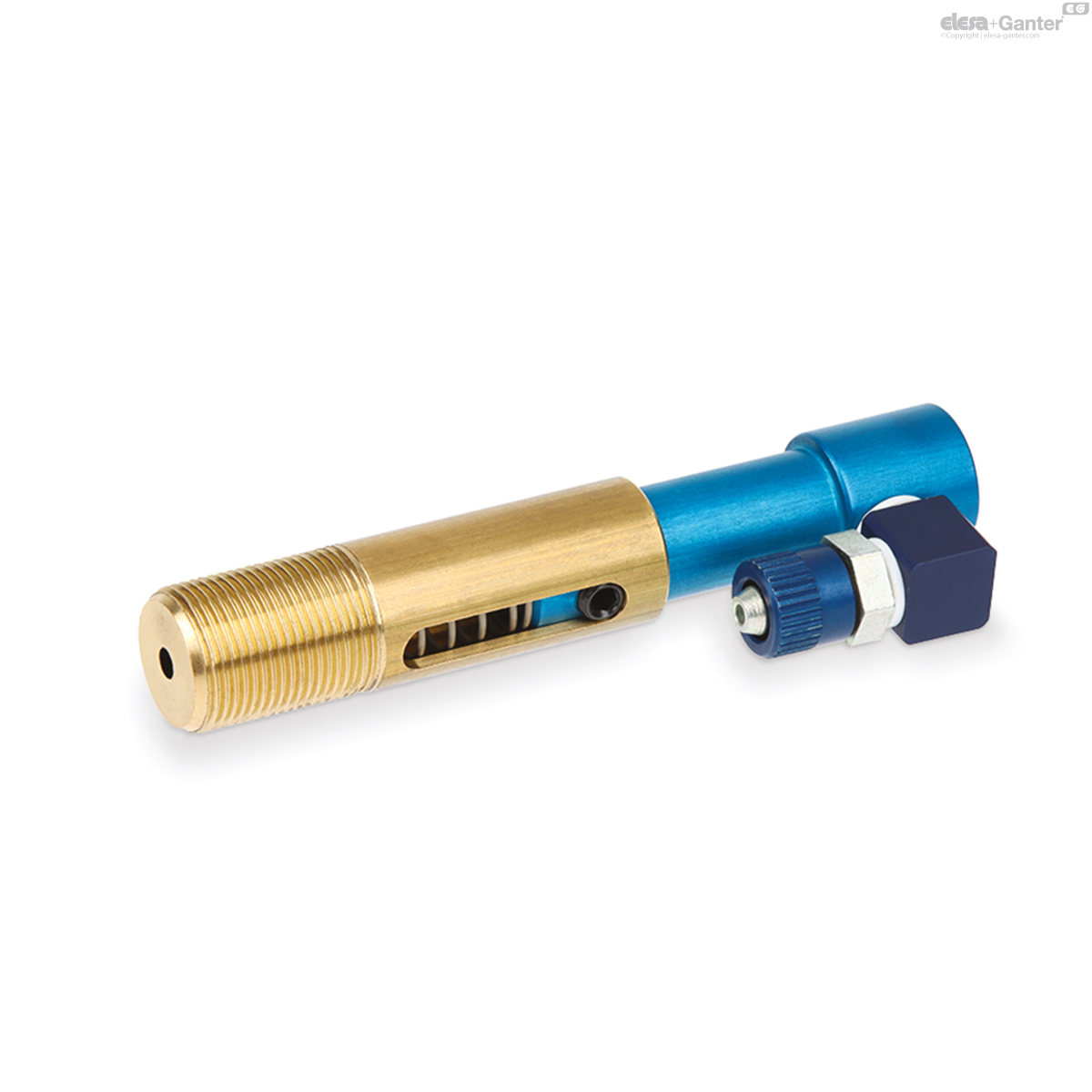

VPE-F-L
Mini vacuum cup with built-in spring suspensions
Female threaded connection and L-shaped quick fitting
Description
Main specifications
Material
Brass stem.
Steel spring.
Quick fitting in blue anodised aluminium.
Standard execution
- VPE-F:Â with female threaded connection and straight quick fitting.
- VPE-F-L:Â with female threaded connection and L-shaped quick fitting.
General information
Features
VPE vacuum cup suspensions comprise:
- a brass stem to fix the vacuum cup to the automation device;
- a spring to cushion the impact of the vacuum cup and at the same time maintain a constant pressure with the load to be lifted;
- a quick fitting for connection to the suction hose.
Characterised by reduced dimensions and weight to satisfy particular requests in industrial automation. The particular shape of the brass shank for fixing the vacuum cup suspension to the automation device prevents the rotation of the vacuum cup.
The effective spring stroke is functional to the length (l2) of the stem, in particular:
- 15 mm for length 72 mm
- 20 mm for length 87 mm
Compatible with 4x6 diameter plastic tube.
See Technical Data for vacuum cups .

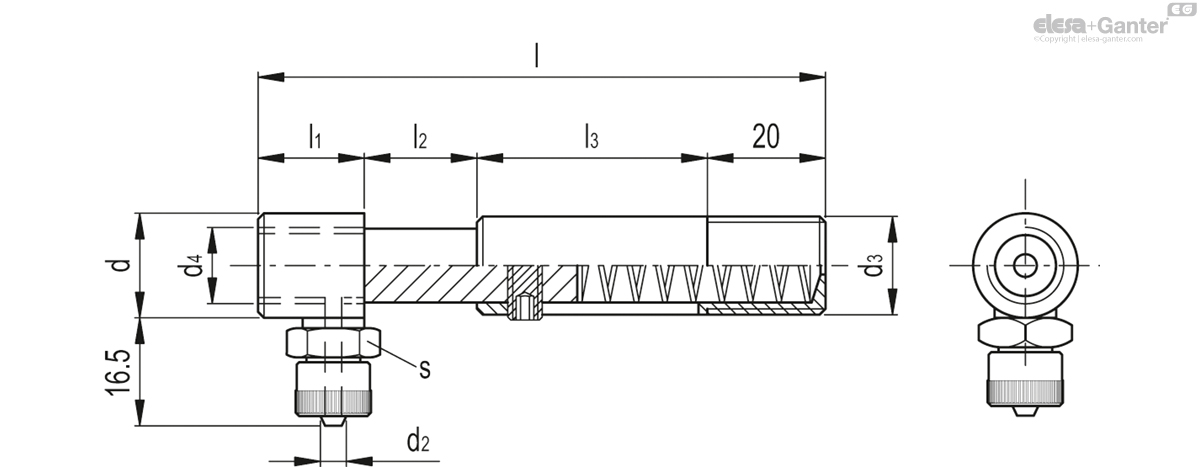

VPE-F
| d | d2* | d3 | d4 | l | l1 | l2 | l3 | s |  |
|||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Code | Description | Actions | ||||||||||
| VV.43001 | VPE-80-15-G1/8-F | 15 | 4 | M10x0.75 | G1/8 | 72 | 15 | 15 | 22 | 10 | 26 |
|
| VV.43003 | VPE-80-20-G1/8-F | 15 | 4 | M15x1 | G1/8 | 87 | 15 | 20 | 32 | 10 | 42 |
|
